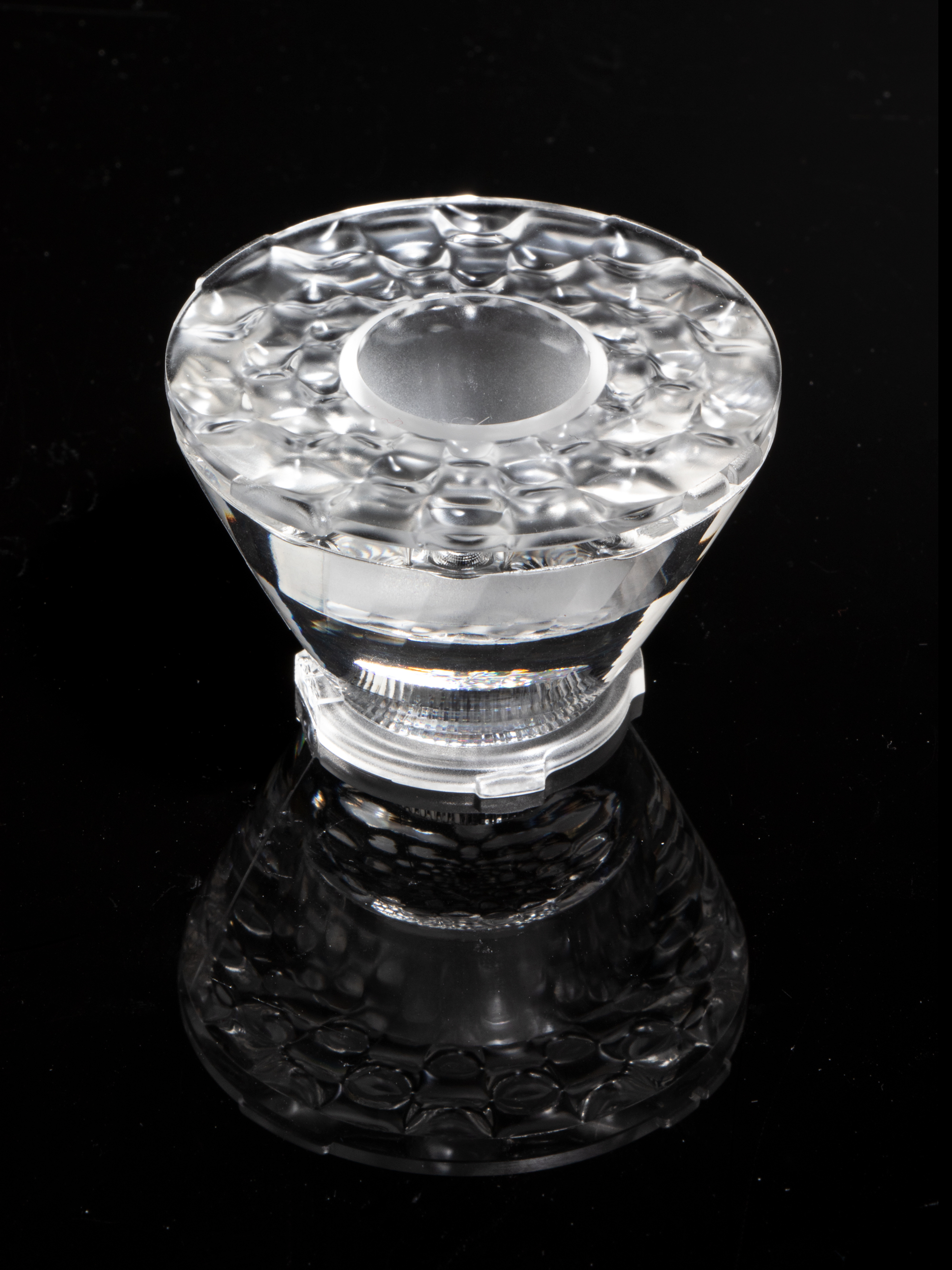

    ILONA-ZOOM

    Print

    An infinitely adjustable beam from 13 to 48 degrees.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      53 mm
    • Height:
      33.22 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantities for one set:
    • Single lens
      1 pcs
    • Sublens
      1 pcs
    • Single lens
    • C17295_ILONA-ZOOM
      clear
    • Quantity in box:
      264 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.70 kg
    • MPQ:
      33 pcs
    • MOQ:
      33 pcs
    • MOQ Size:
      480 x 280 x 50 mm
    • MOQ Weight:
      1.30 kg
    • Sublens
    • C17296_ILONA-ZOOM-SUB
      clear
    • Quantity in box:
      264 pcs
    • Box size:
      480 x 280 x 185 mm
    • Box weight:
      2.40 kg
    • MPQ:
      33 pcs
    • MOQ:
      33 pcs
    • MOQ Size:
      480 x 280 x 40 mm
    • MOQ Weight:
      0.50 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
