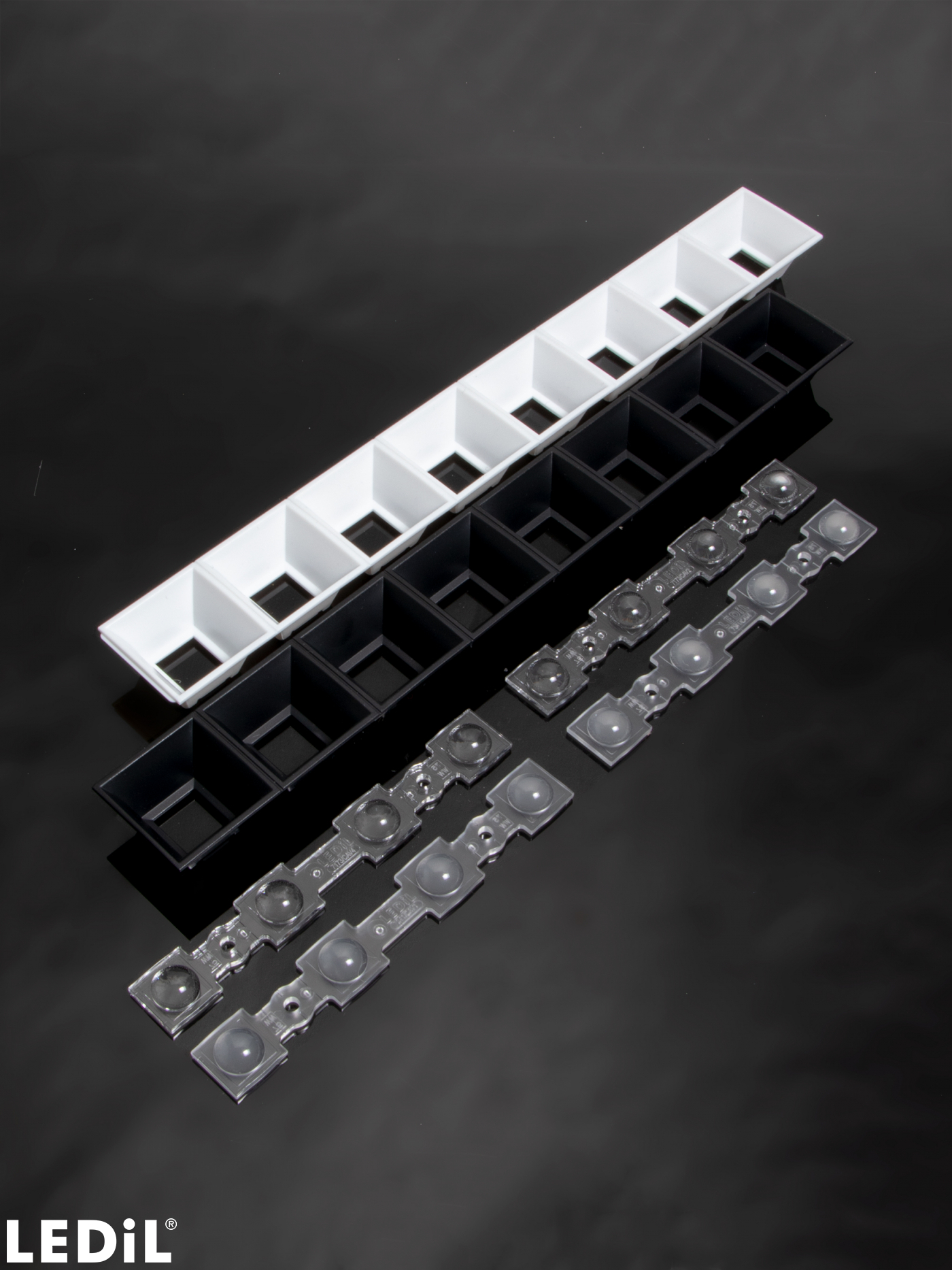

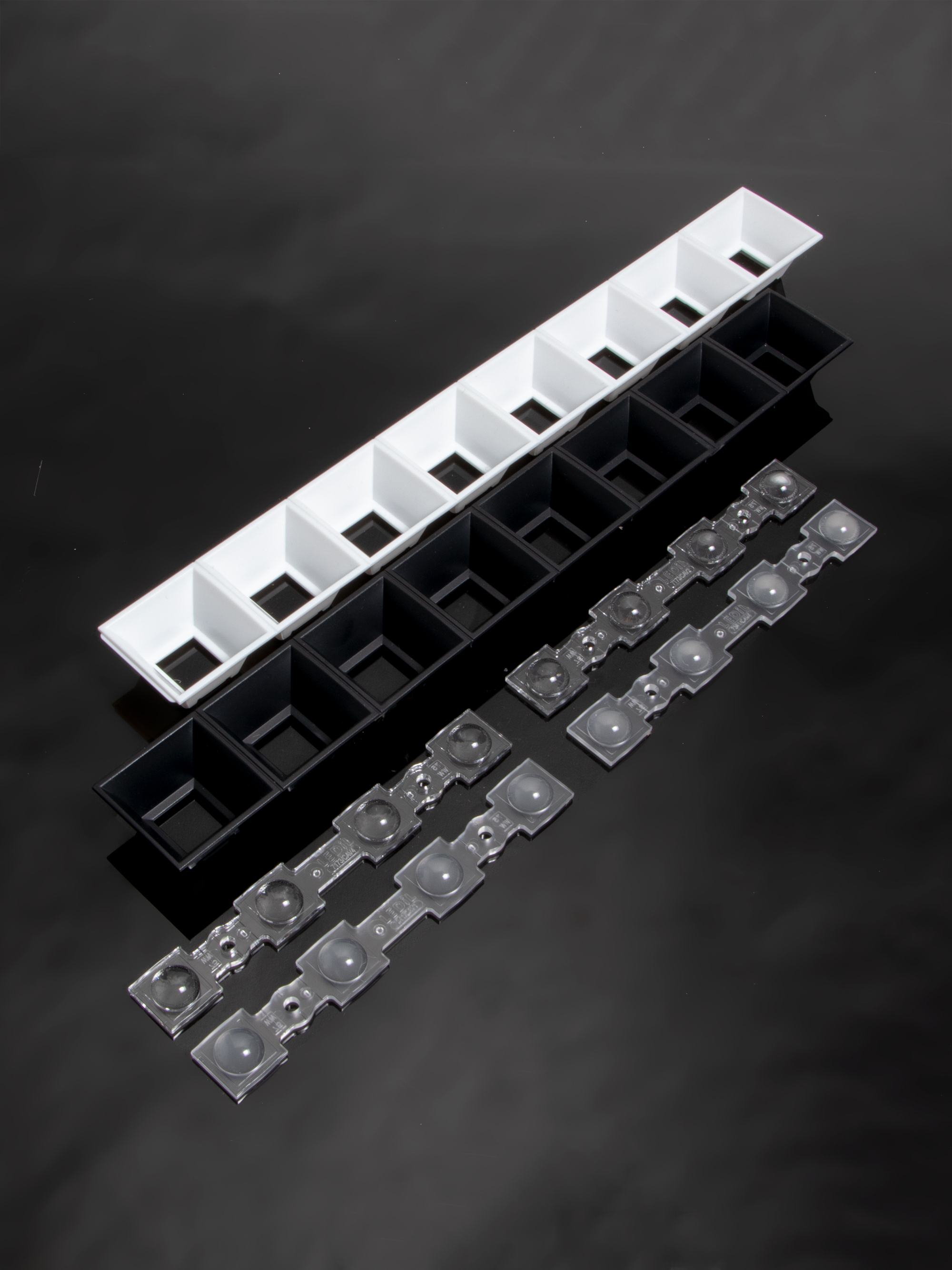

    DAISY-8X1-WW-MATT

    Print

    ~80° wide beam

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      305 x  38 mm
    • Height:
      21.05 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      2 pcs
    • Shade
      1 pcs
    • Linear lens
    • C17173_DAISY-4X1-WW-US
      clear
    • Quantity in box:
      504 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      5.40 kg
    • MPQ:
      84 pcs
    • MOQ:
      84 pcs
    • MOQ Size:
      480 x 280 x 70 mm
    • MOQ Weight:
      1.10 kg
    • Shade
    • C17171_DAISY-8X1-SHD-MATT
      black,matt
    • C17172_DAISY-8X1-SHD-MATT-WHT
      white,matt
    • Quantity in box:
      84 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      4.00 kg
    • MPQ:
      42 pcs
    • MOQ:
      42 pcs
    • MOQ Size:
      400 x 300 x 160 mm
    • MOQ Weight:
      2.00 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C17173_DAISY-4X1-WW-US
      C17171_DAISY-8X1-SHD-MATT

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

    PCN

    Product change notification NR159 - Change of product ordering method in Daisy family

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Reference product

    serio-HITOS pendant luminaire

    News

    New Products 2019-11-07

    Application guide

    LEDiL guide for retail lighting optics

    Application guide

    LEDiL guide for office lighting optics

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    Application example

    Wall-washing with DAISY-7X1-WAS

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

    Optical results

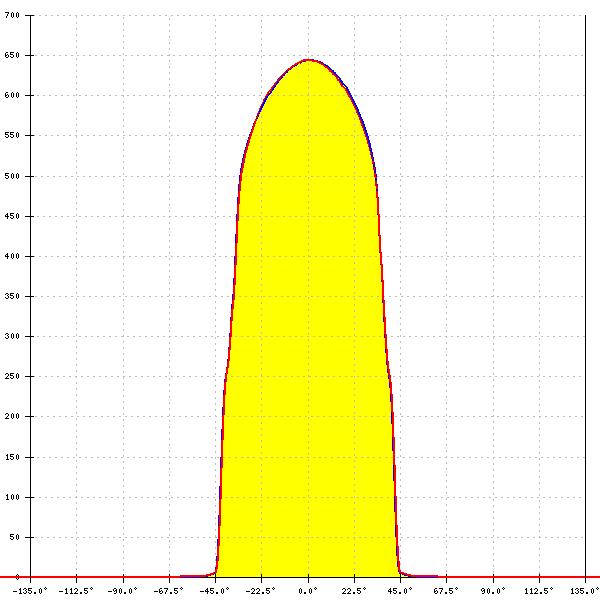

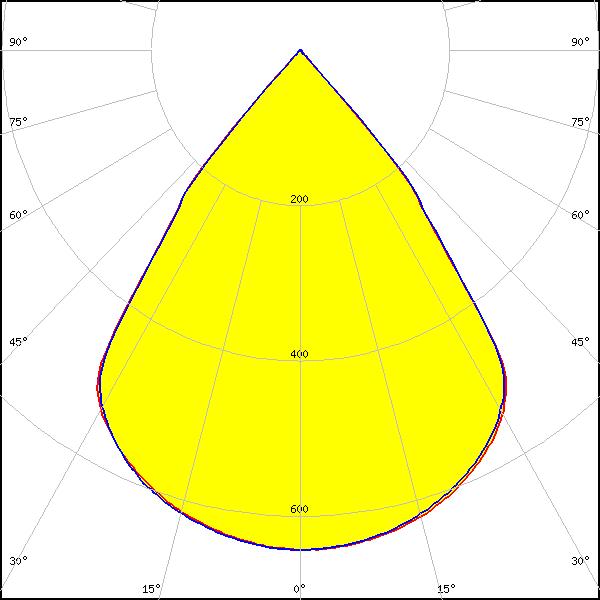

    LED: LIGHT ENGINE DAISY 8x1 32 LEDs 303.7mm x 20mm
    Required components:
    C17171_DAISY-8X1-SHD-MATT
    FWHM: 74°
    FWTM: 86°
    Peak intensity: 0.645 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 4
    Light colour/type: White

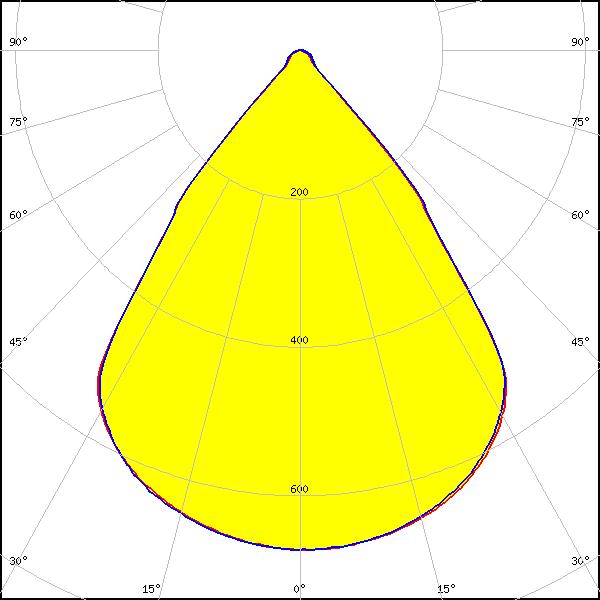

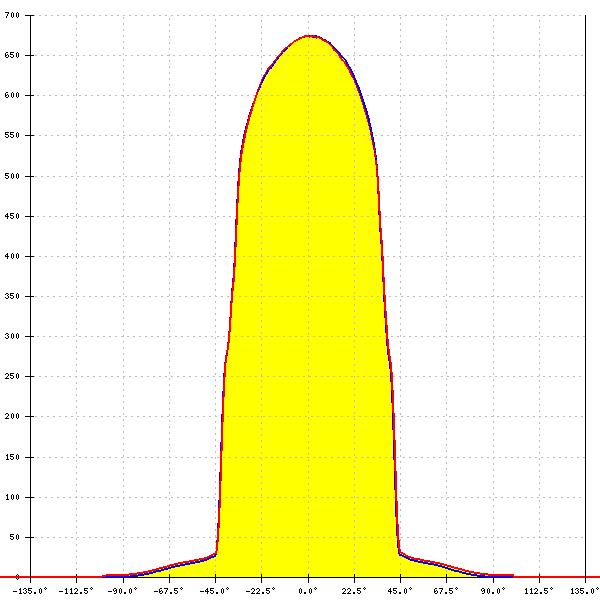

    LED: LIGHT ENGINE DAISY 8x1 32 LEDs 303.7mm x 20mm
    Required components:
    C17172_DAISY-8X1-SHD-MATT-WHT
    FWHM: 75°
    FWTM: 87°
    Peak intensity: 0.675 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 4
    Light colour/type: White

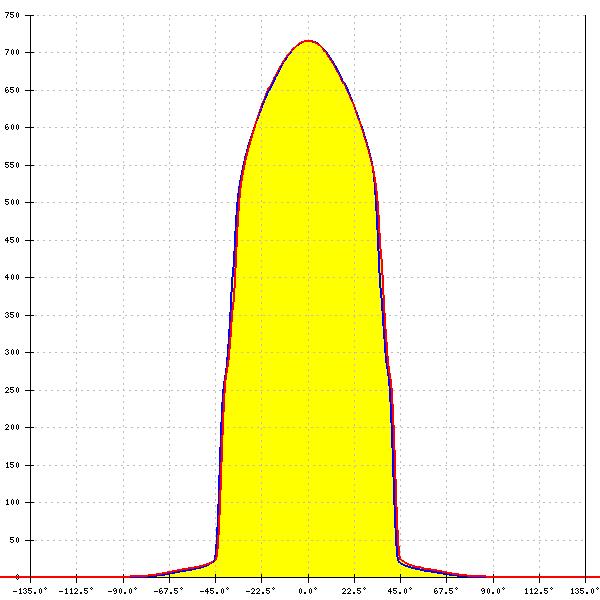

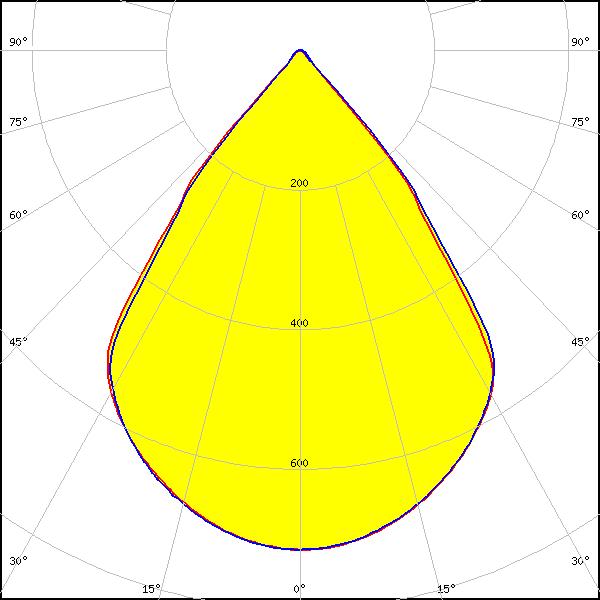

    LED: LIGHT ENGINE DAISY 8x1 32 LEDs 303.7mm x 20mm
    Required components:
    C17534_DAISY-8X1-SHD-MET-MATT
    FWHM: 73°
    FWTM: 87°
    Peak intensity: 0.716 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White

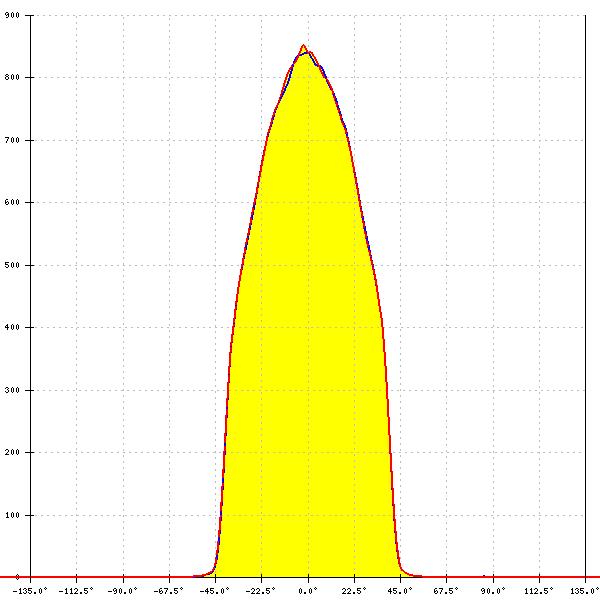

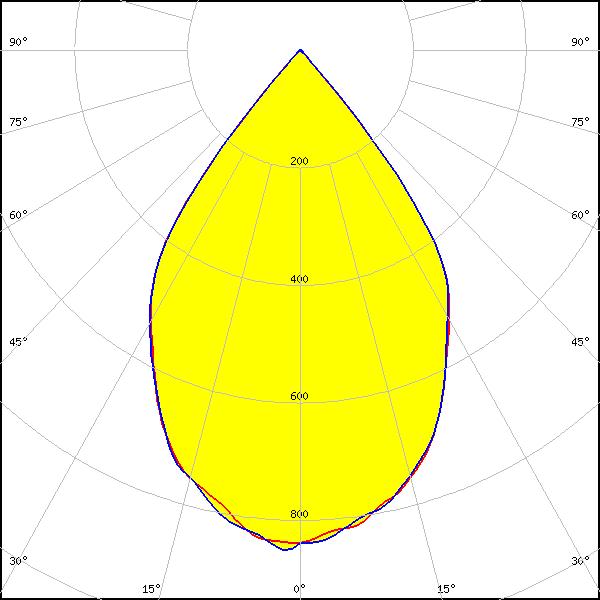

    LED: Duris E 2835
    Required components:
    C17171_DAISY-8X1-SHD-MATT
    FWHM: 71°
    FWTM: 85°
    Peak intensity: 0.852 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 2
    Light colour/type: White

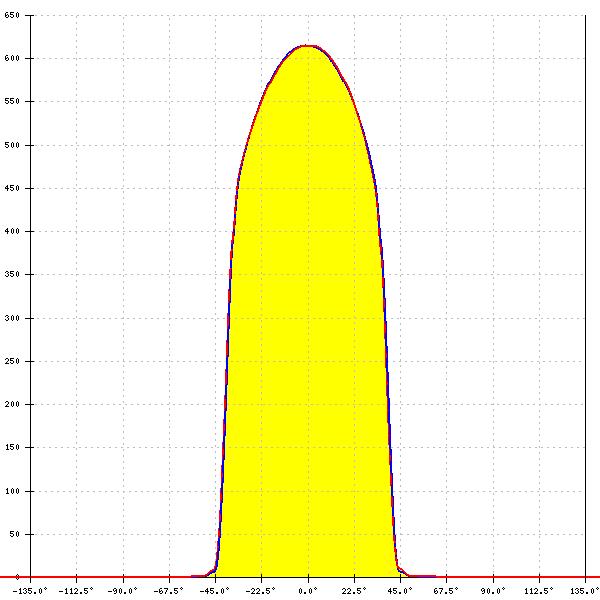

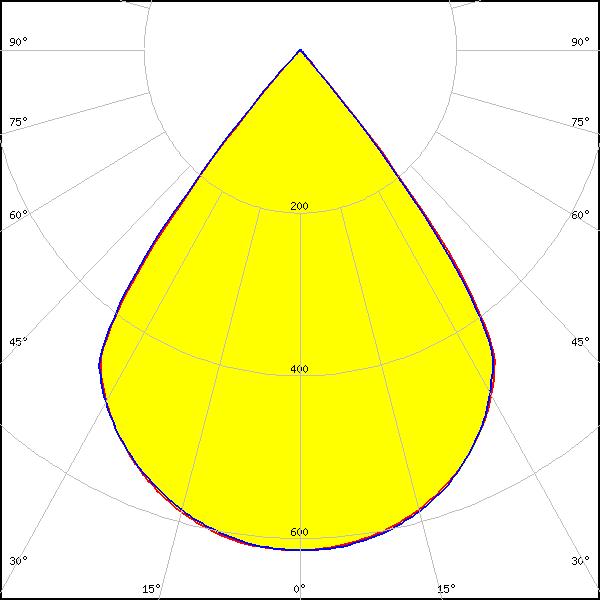

    LED: LM28xB Series
    Required components:
    C17171_DAISY-8X1-SHD-MATT
    FWHM: 76°
    FWTM: 84°
    Peak intensity: 0.615 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 2
    Light colour/type: White

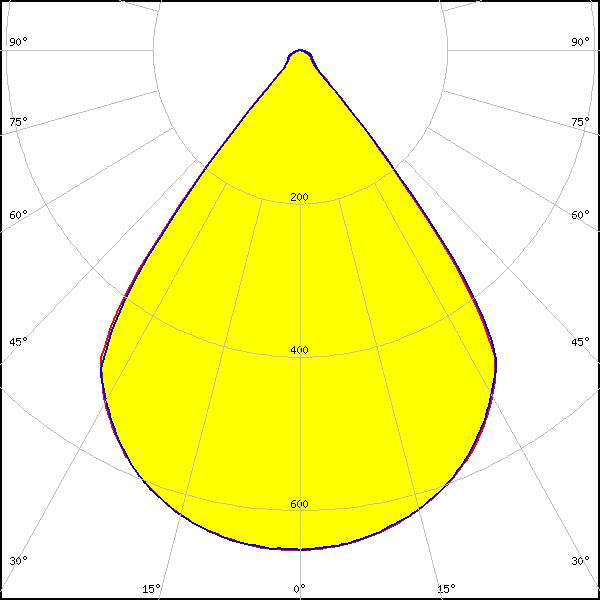

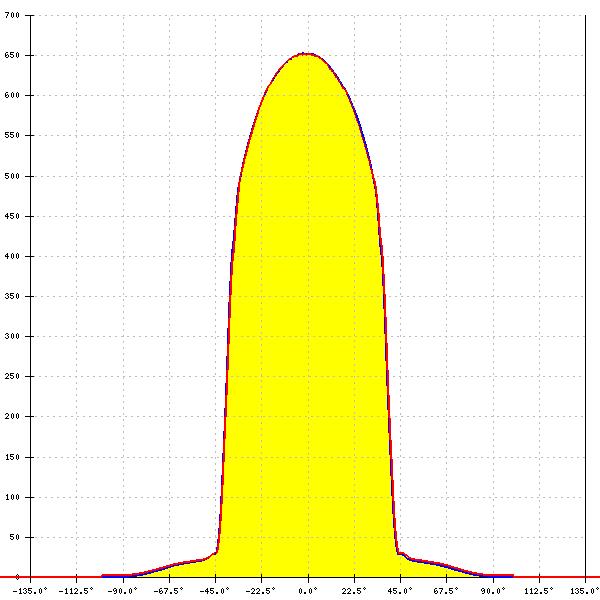

    LED: LM28xB Series
    Required components:
    C17172_DAISY-8X1-SHD-MATT-WHT
    FWHM: 75°
    FWTM: 85°
    Peak intensity: 0.653 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 2
    Light colour/type: White
