    DAISY-7X1-W2

    Print

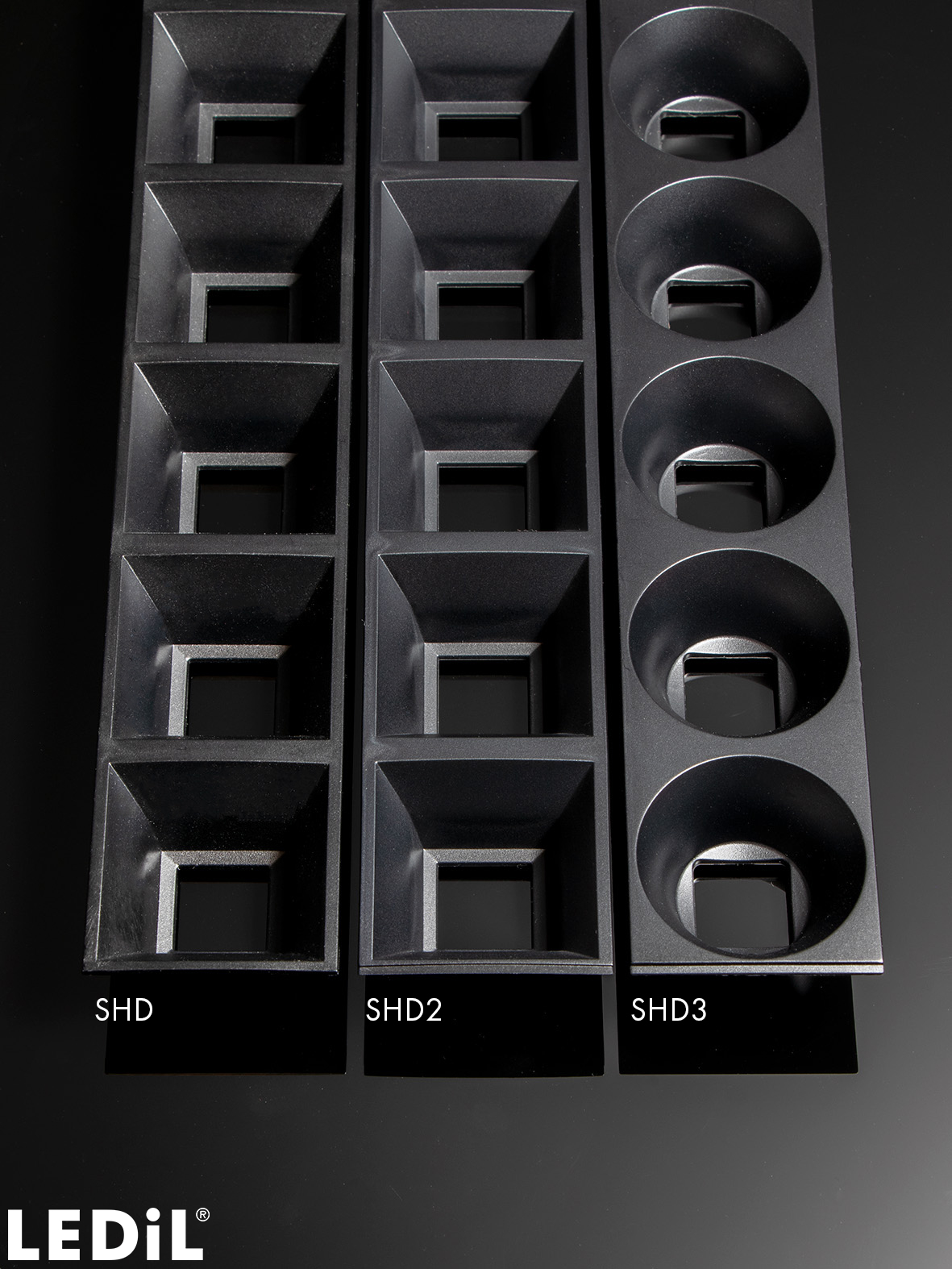

    ~50° wide beam with tighter cutoff. Choose SHD with no lips or SHD2 with narrow lips and square openings. SHD3 with narrow lips and round openings.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      280 x  40 mm
    • Height:
      20.30 mm
    • Fastening:
      pin, screw, clips
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

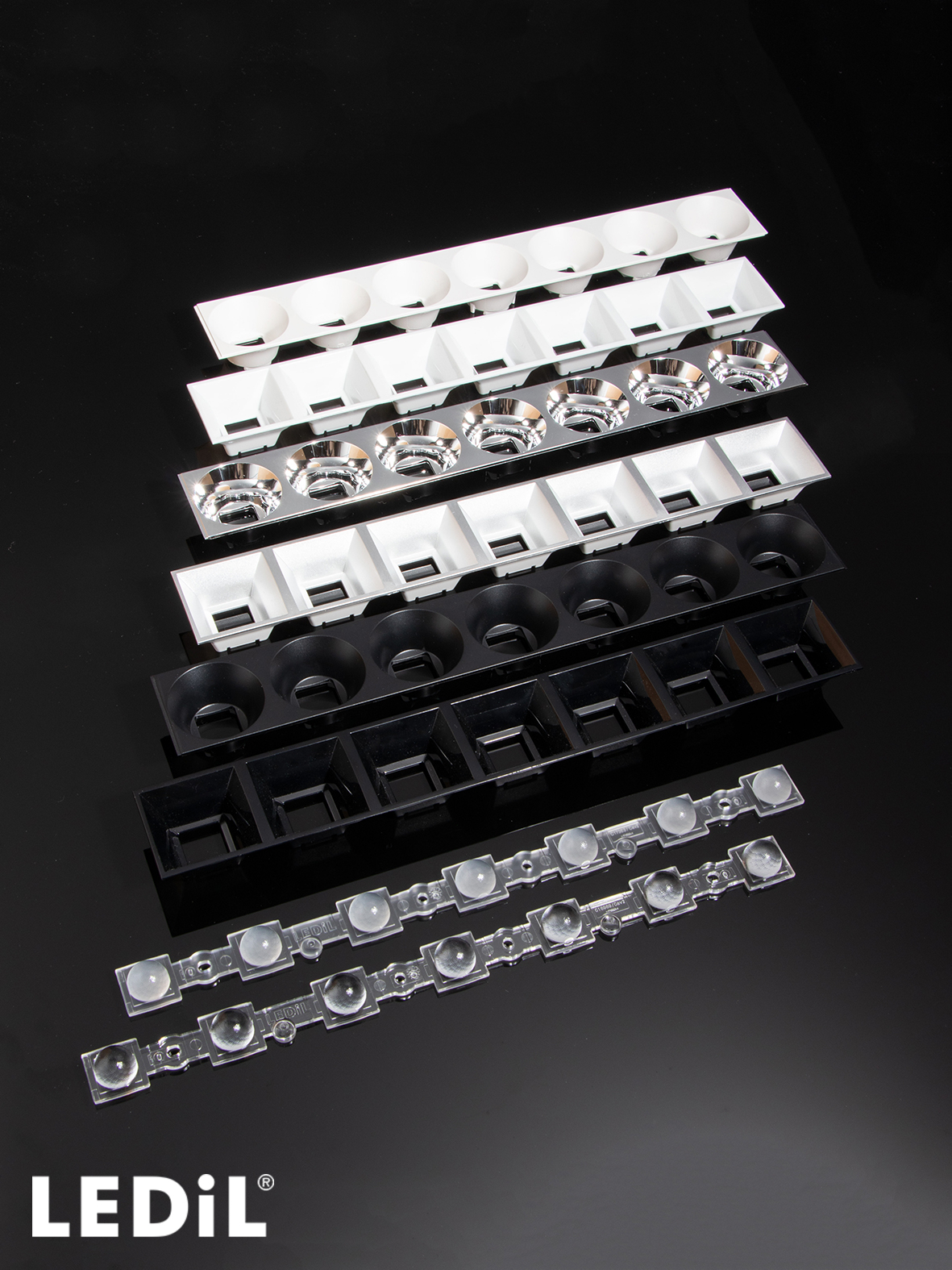

    Component Materials
    • DAISY-7X1-SHD
      Shade
      PC
    • DAISY-7X1-SHD-WHT
      Shade
      PC
    • DAISY-7X1-W2
      Linear lens
      PMMA
    • DAISY-7X1-SHD-MATT
      Shade
      PC
    • DAISY-7X1-SHD-WHT-MATT
      Shade
      PC
    • DAISY-7X1-SHD-MET
      Shade
      PC
    • DAISY-7X1-SHD-MET-MATT
      Shade
      PC
    • DAISY-7X1-SHD3
      Shade
      PC
    • DAISY-7X1-SHD3-MATT
      Shade
      PC
    • DAISY-7X1-SHD3-WHT
      Shade
      PC
    • DAISY-7X1-SHD3-WHT-MATT
      Shade
      PC
    • DAISY-7X1-SHD3-MET
      Shade
      PC
    • DAISY-7X1-SHD3-MET-MATT
      Shade
      PC

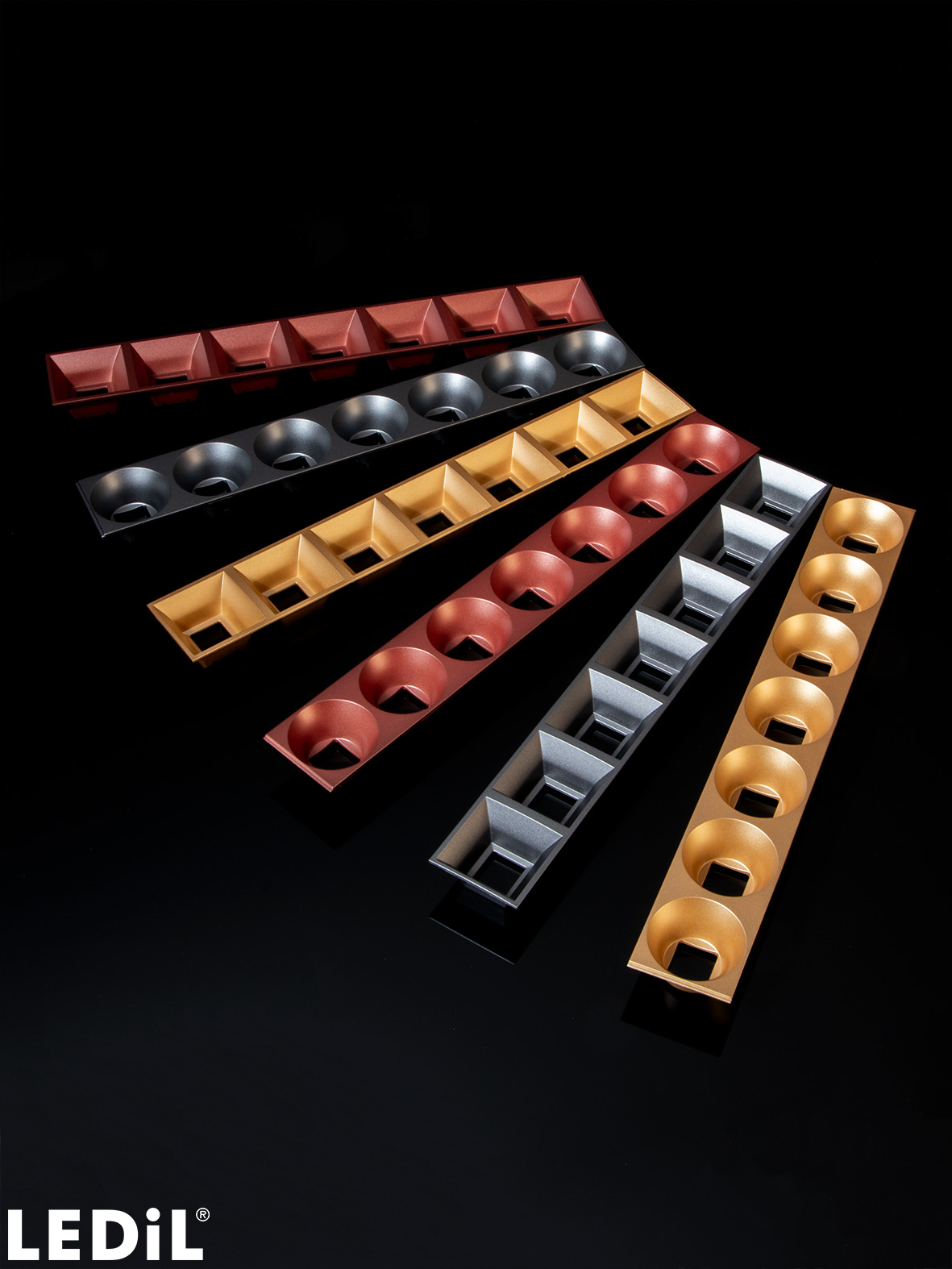

    • DAISY-7X1-SHD-MATT-RED
      Shade
      PC
    • DAISY-7X1-SHD-MATT-GR
      Shade
      PC
    • DAISY-7X1-SHD-MATT-GLD
      Shade
      PC
    • DAISY-7X1-SHD3-MATT-GR
      Shade
      PC
    • DAISY-7X1-SHD3-MATT-RED
      Shade
      PC
    • DAISY-7X1-SHD3-MATT-GLD
      Shade
      PC
    • DAISY-7X1-SHD2
      Shade
      PC
    • DAISY-7X1-SHD2-MATT
      Shade
      PC-ABS
    • DAISY-7X1-SHD2-WHT
      Shade
      PC
    • DAISY-7X1-SHD2-MATT-WHT
      Shade
      PC
    • DAISY-7X1-SHD2-MET
      Shade
      PC
    • DAISY-7X1-SHD2-MET-MATT
      Shade
      PC-ABS
    • Request material files from Tech Support

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Linear lens
    • C16989_DAISY-7X1-W2
      clear
    • Quantity in box:
      312 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      7.00 kg
    • MPQ:
      24 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      400 x 300 x 300 mm
    • MOQ Weight:
      7.00 kg
    • Shade
    • C16872_DAISY-7X1-SHD
      black,gloss
    • C16876_DAISY-7X1-SHD-WHT
      white,gloss
    • C17051_DAISY-7X1-SHD-MATT
      black,matt
    • C17225_DAISY-7X1-SHD-WHT-MATT
      white,matt
    • C18167_DAISY-7X1-SHD-MET
      metal,gloss
    • C18409_DAISY-7X1-SHD-MET-MATT
      metal,matt
    • C19312_DAISY-7X1-SHD3
      black,gloss
    • C19313_DAISY-7X1-SHD3-MATT
      black,matt
    • C19314_DAISY-7X1-SHD3-WHT
      white,gloss
    • C19315_DAISY-7X1-SHD3-WHT-MATT
      white,matt
    • C19641_DAISY-7X1-SHD3-MET
      metal,gloss
    • C19642_DAISY-7X1-SHD3-MET-MATT
      metal,matt
    • C19763_DAISY-7X1-SHD-MATT-RED
      red,matt
    • C19764_DAISY-7X1-SHD-MATT-GR
      grey,matt
    • C19852_DAISY-7X1-SHD-MATT-GLD
      gold,matt
    • C19853_DAISY-7X1-SHD3-MATT-GR
      grey,matt
    • C19854_DAISY-7X1-SHD3-MATT-RED
      red,matt
    • C19855_DAISY-7X1-SHD3-MATT-GLD
      gold,matt
    • L20010_DAISY-7X1-SHD2
      black,gloss
    • L20011_DAISY-7X1-SHD2-MATT
      black,matt
    • L20012_DAISY-7X1-SHD2-WHT
      white,gloss
    • L20013_DAISY-7X1-SHD2-MATT-WHT
      white,matt
    • L20014_DAISY-7X1-SHD2-MET
      metal,gloss
    • L20015_DAISY-7X1-SHD2-MET-MATT
      metal,matt
    • Quantity in box:
      156 pcs
    • Box size:
      595 x 360 x 230 mm
    • Box weight:
      7.10 kg
    • MPQ:
      24 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      595 x 360 x 230 mm
    • MOQ Weight:
      7.10 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C16989_DAISY-7X1-W2
      C16872_DAISY-7X1-SHD
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

    Case story

    Airport in Asuncion

    News

    New products – August 12, 2021

    PCN

    Product change notification NR173 - Change of product coating method and ordering code

    News

    New Products 2019-09-24

    News

    New beams and products – April 2025

    News

    New beams and products – August 2024

    News

    New beams and products – May 2024

    News

    Square or round, it’s all about your preference

    Reference product

    SG Armaturen Yggdrasil luminaire

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR 195 - Change of Minimum order quantity in DAISY-7X1 family

    PCN

    Product change notification NR191 - Additional PC material approved

    News

    New products – January, 2023

    PCN

    Product change notification NR178 - Additional PMMA material approved

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Wall-washing with DAISY-7X1-WAS

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Reference product

    serio-HITOS pendant luminaire

    News

    New Products 2020-1-9

    News

    New Products 2019-11-07

    News

    New Products - 2019-08-27

    News

    New Products 2019-06-13

    News

    DAISY the linear solution for premium class office lighting

    Luminaire, example

    Troffer luminaires with DAISY-7X1

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Office Lighting Optics

    News

    Transforming workspaces with DAISY

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

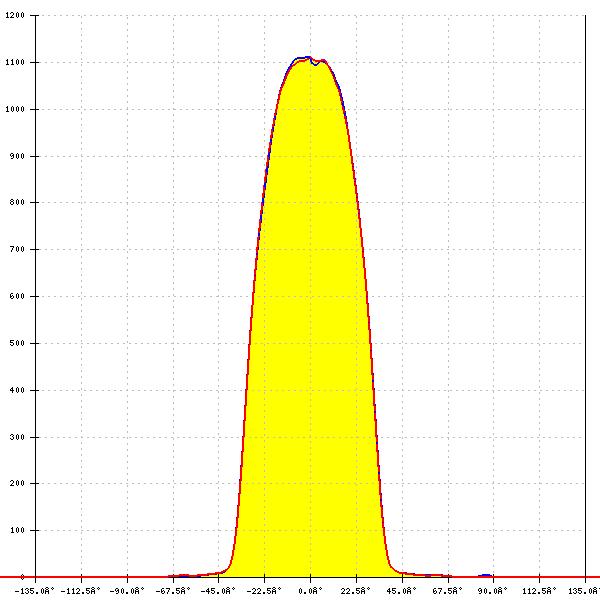

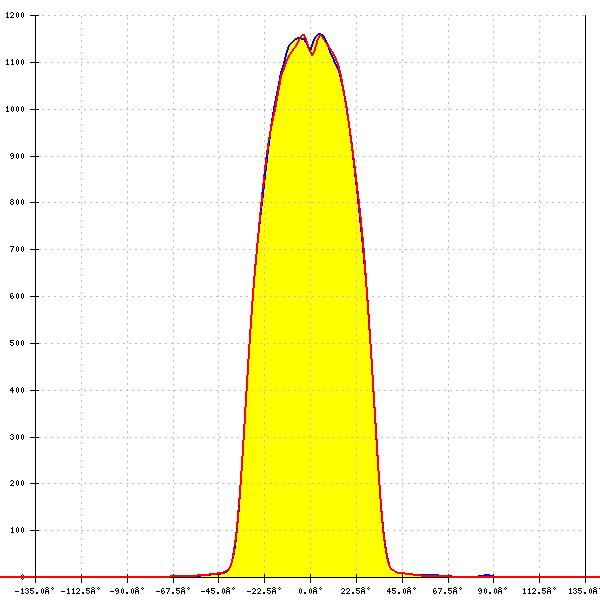

    Optical results

    LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 58°
    FWTM: 68°
    Peak intensity: 1.205 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 58°
    FWTM: 68°
    Peak intensity: 1.186 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 4
    Light colour/type: White

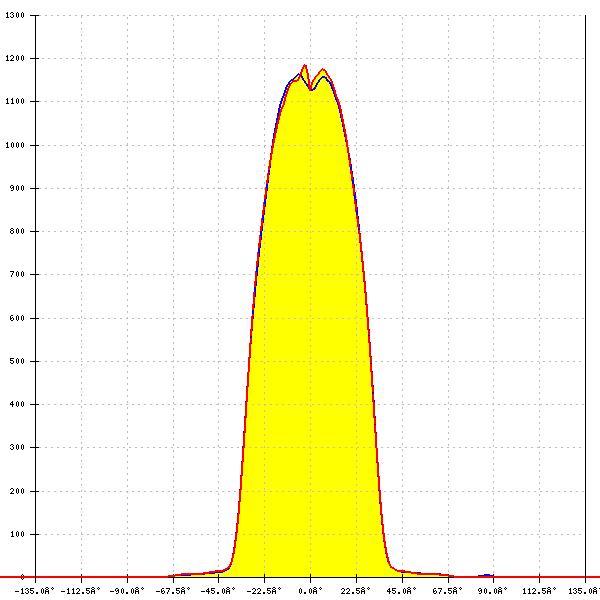

    LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 58°
    FWTM: 68°
    Peak intensity: 1.204 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: 58°
    FWTM: 69°
    Peak intensity: 1.230 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
    Required components:
    C17533_DAISY-7X1-SHD-MET-MATT
    FWHM: 58°
    FWTM: 68°
    Peak intensity: 1.212 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 58°
    FWTM: 68°
    Peak intensity: 1.184 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: J Series 2835
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 58°
    FWTM: 72°
    Peak intensity: 1.173 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour/type: White

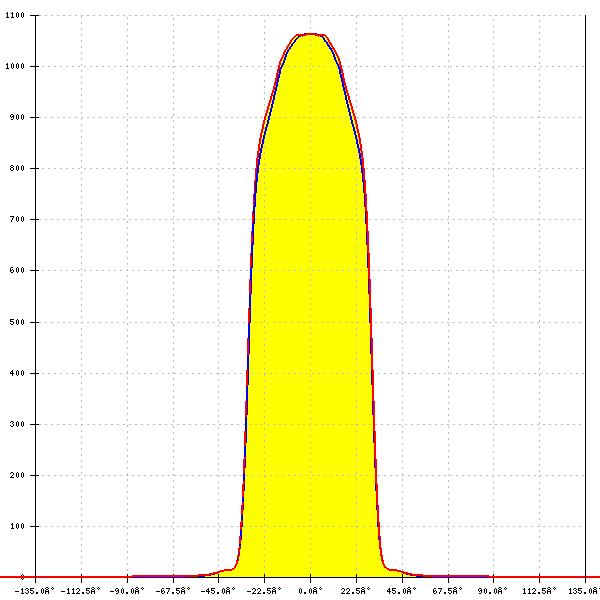

    LED: PL-LIN-2000 280x24mm
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 59°
    FWTM: 67°
    Peak intensity: 1.073 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LUXEON 2835 Architectural
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 58°
    FWTM: 68°
    Peak intensity: 1.184 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LUXEON 2835 Architectural
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 58°
    FWTM: 69°
    Peak intensity: 1.205 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LUXEON 2835 Architectural
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 58°
    FWTM: 68°
    Peak intensity: 1.186 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LUXEON 2835 Architectural
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 58°
    FWTM: 69°
    Peak intensity: 1.204 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LUXEON 2835 Architectural
    Required components:
    C17532_DAISY-7X1-SHD-MET
    FWHM: 58°
    FWTM: 69°
    Peak intensity: 1.230 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LUXEON 2835 Architectural
    Required components:
    C17533_DAISY-7X1-SHD-MET-MATT
    FWHM: 58°
    FWTM: 69°
    Peak intensity: 1.212 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: Opticus Daisy M L28W2
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 61°
    FWTM: 70°
    Peak intensity: 0.958 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 4
    Light colour/type: White

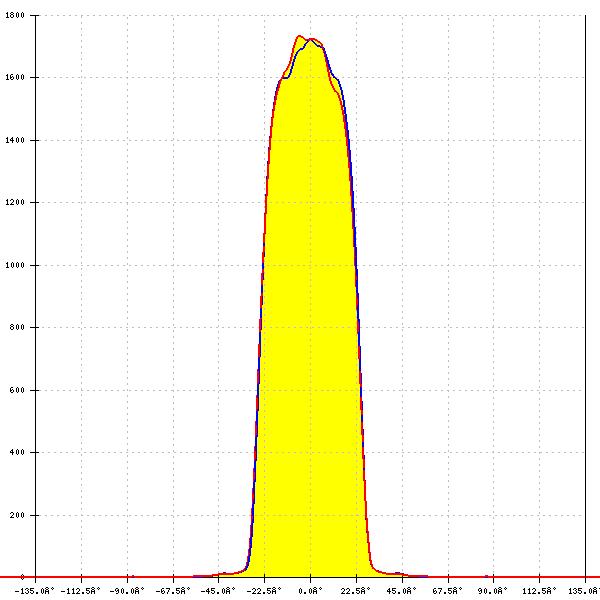

    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 59°
    FWTM: 69°
    Peak intensity: 1.130 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 59°
    FWTM: 69°
    Peak intensity: 1.139 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 59°
    FWTM: 69°
    Peak intensity: 1.115 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 59°
    FWTM: 69°
    Peak intensity: 1.134 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C17533_DAISY-7X1-SHD-MET-MATT
    FWHM: 59°
    FWTM: 69°
    Peak intensity: 1.145 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: 59°
    FWTM: 70°
    Peak intensity: 1.159 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 47°
    FWTM: 57°
    Peak intensity: 1.733 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris E 2835
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 56°
    FWTM: 72°
    Peak intensity: 1.176 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: Duris E 2835
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 57°
    FWTM: 72°
    Peak intensity: 1.200 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: OSCONIQ E 2835
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 59°
    FWTM: 68°
    Peak intensity: 1.065 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: 50°
    FWTM: 66°
    Peak intensity: 1.559 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    C17533_DAISY-7X1-SHD-MET-MATT
    FWHM: 50°
    FWTM: 66°
    Peak intensity: 1.541 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 56°
    FWTM: 70°
    Peak intensity: 1.202 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 51°
    FWTM: 65°
    Peak intensity: 1.497 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 51°
    FWTM: 65°
    Peak intensity: 1.493 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 50°
    FWTM: 65°
    Peak intensity: 1.482 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 51°
    FWTM: 65°
    Peak intensity: 1.489 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LM301B
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 58°
    FWTM: 72°
    Peak intensity: 1.126 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 58°
    FWTM: 67°
    Peak intensity: 1.174 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 58°
    FWTM: 68°
    Peak intensity: 1.191 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 58°
    FWTM: 68°
    Peak intensity: 1.172 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 58°
    FWTM: 68°
    Peak intensity: 1.192 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: 58°
    FWTM: 68°
    Peak intensity: 1.214 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
    Required components:
    C17533_DAISY-7X1-SHD-MET-MATT
    FWHM: 58°
    FWTM: 68°
    Peak intensity: 1.204 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: SEOUL DC 3030C
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 57°
    FWTM: 72°
    Peak intensity: 1.150 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 65°
    FWTM: 75°
    Peak intensity: 0.763 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 65°
    FWTM: 73°
    Peak intensity: 0.738 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 65°
    FWTM: 75°
    Peak intensity: 0.760 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 64°
    FWTM: 72°
    Peak intensity: 0.739 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LLE 24x280mm 750lm 8x0 LVD ADV1
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 60°
    FWTM: 69°
    Peak intensity: 1.005 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LLE 24x280mm 750lm 8x0 LVD ADV1
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 60°
    FWTM: 70°
    Peak intensity: 1.028 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LLE 24x280mm 750lm 8x0 LVD ADV1
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 60°
    FWTM: 69°
    Peak intensity: 1.005 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LLE 24x280mm 750lm 8x0 LVD ADV1
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 61°
    FWTM: 70°
    Peak intensity: 1.027 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
