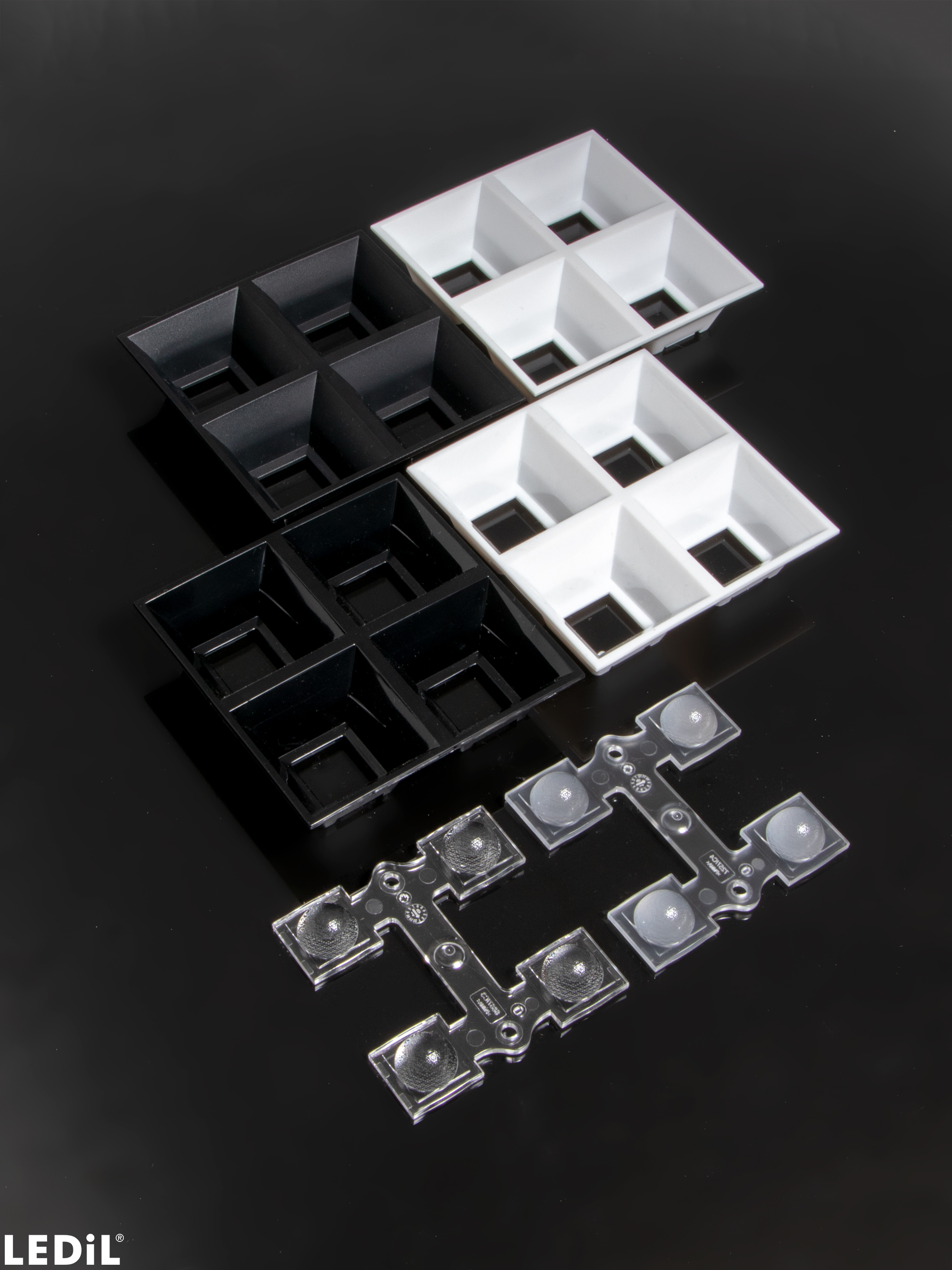

    DAISY-2X2-W

    Print

    ~50° wide beam

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      80 x  80 mm
    • Height:
      21.00 mm
    • Fastening:
      pin, screw, clips
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Multi-lens
      1 pcs
    • Shade
      1 pcs
    • Multi-lens
    • C16867_DAISY-2X2-W
      clear
    • Quantity in box:
      440 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      5.70 kg
    • MPQ:
      20 pcs
    • MOQ:
      440 pcs
    • MOQ Size:
      400 x 300 x 300 mm
    • MOQ Weight:
      5.70 kg
    • Shade
    • C16866_DAISY-2X2-SHD
      black,gloss
    • C16875_DAISY-2X2-SHD-WHT
      white,gloss
    • C17483_DAISY-2X2-SHD-MATT
      black,matt
    • C17484_DAISY-2X2-SHD-WHT-MATT
      white,matt
    • Quantity in box:
      186 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      5.30 kg
    • MPQ:
      20 pcs
    • MOQ:
      440 pcs
    • MOQ Size:
      400 x 300 x 300 mm
    • MOQ Weight:
      12.90 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C16867_DAISY-2X2-W
      C16866_DAISY-2X2-SHD

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

    PCN

    Product change notification NR159 - Change of product ordering method in Daisy family

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    New Products 2019-06-13

    News

    DAISY the linear solution for premium class office lighting

    Luminaire, example

    Downlight luminaire with DAISY-2X2

    Application guide

    LEDiL guide for retail lighting optics

    Application guide

    LEDiL guide for office lighting optics

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    Application example

    Wall-washing with DAISY-7X1-WAS

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

    Optical results

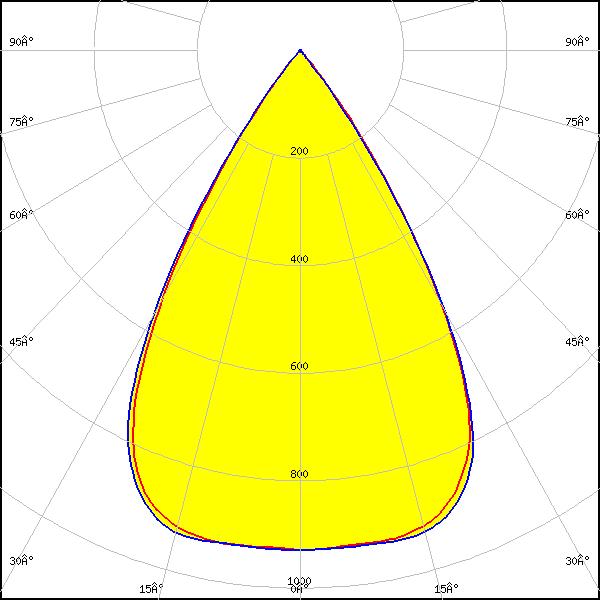

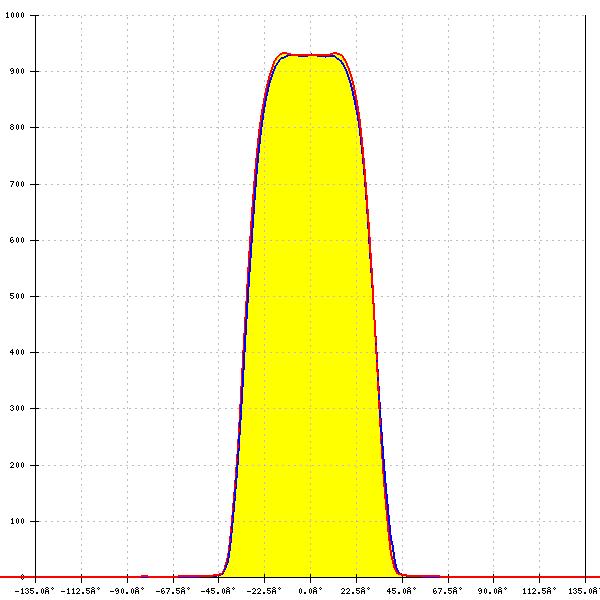

    LED: LIGHT ENGINE DAISY 16 LEDs 62mm x 62mm
    Required components:
    C16866_DAISY-2X2-SHD
    FWHM: 63°
    FWTM: 77°
    Peak intensity: 0.933 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White

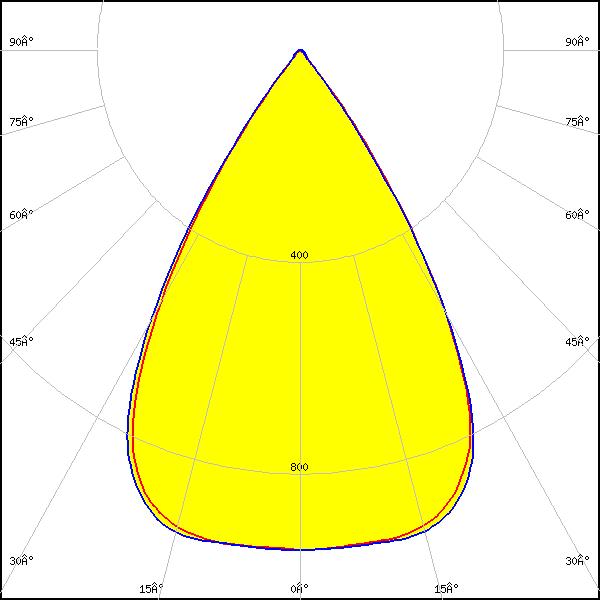

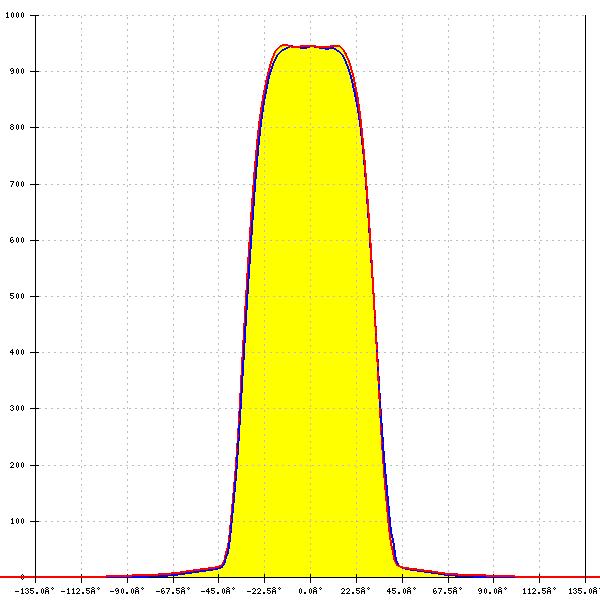

    LED: LIGHT ENGINE DAISY 16 LEDs 62mm x 62mm
    Required components:
    C16875_DAISY-2X2-SHD-WHT
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.948 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White

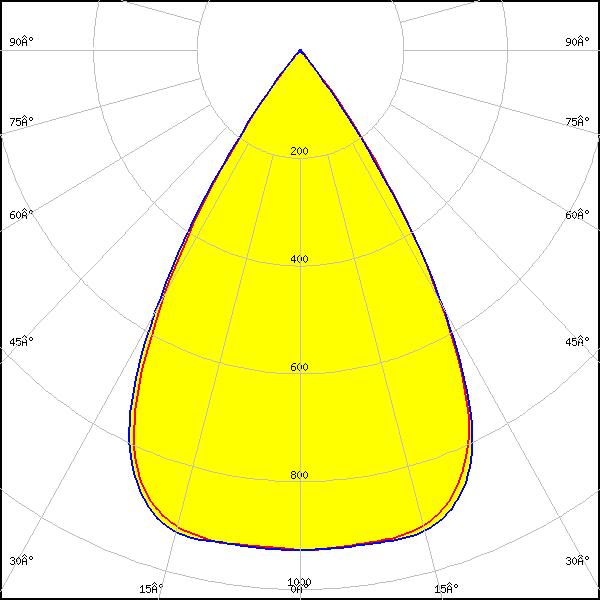

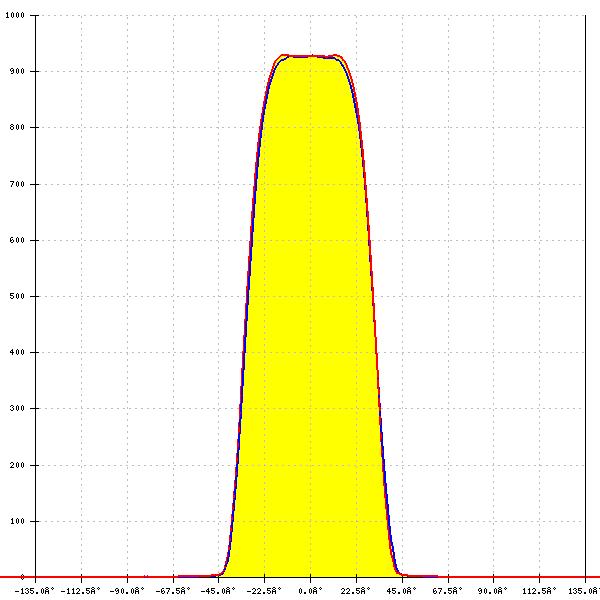

    LED: LIGHT ENGINE DAISY 16 LEDs 62mm x 62mm
    Required components:
    C17483_DAISY-2X2-SHD-MATT
    FWHM: 63°
    FWTM: 78°
    Peak intensity: 0.930 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White

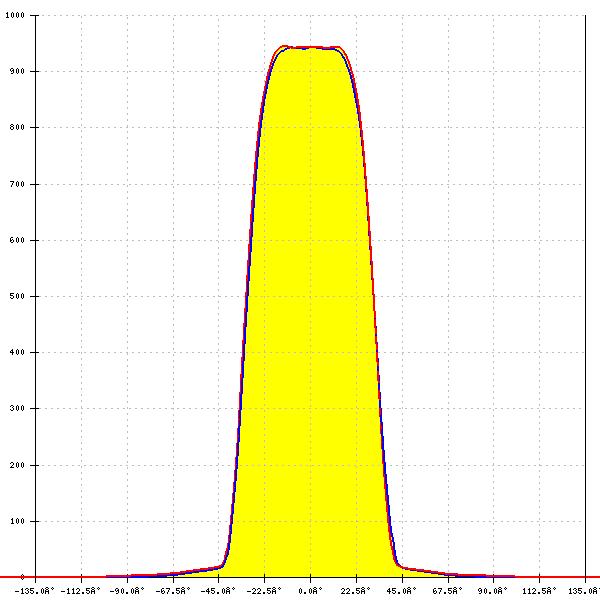

    LED: LIGHT ENGINE DAISY 16 LEDs 62mm x 62mm
    Required components:
    C17484_DAISY-2X2-SHD-WHT-MATT
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.946 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LIGHT ENGINE DAISY 16 LEDs 62mm x 62mm
    Required components:
    C17530_DAISY-2X2-SHD-MET
    FWHM: 63°
    FWTM: 78°
    Peak intensity: 0.980 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LIGHT ENGINE DAISY 16 LEDs 62mm x 62mm
    Required components:
    C17536_DAISY-2X2-SHD-MET-MATT
    FWHM: 63°
    FWTM: 78°
    Peak intensity: 0.962 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White

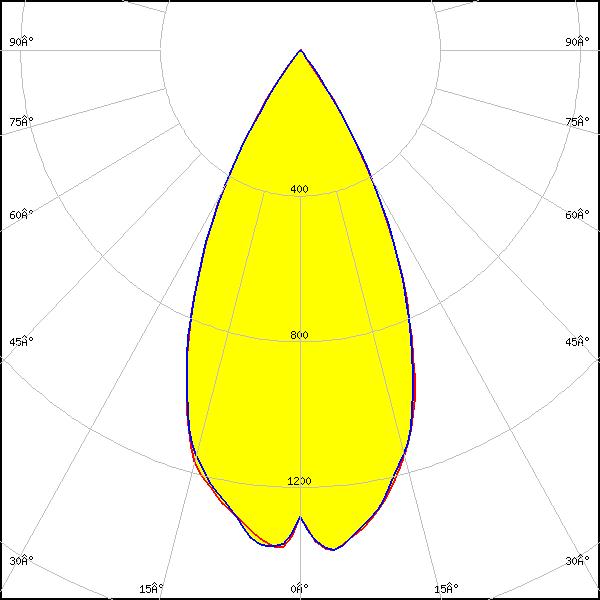

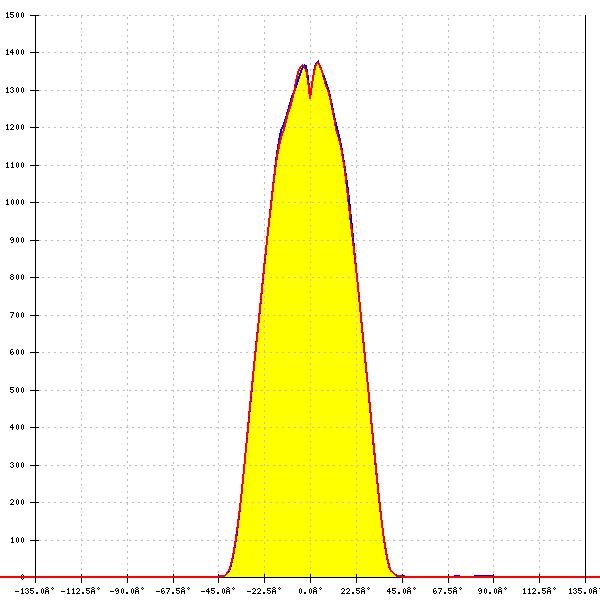

    LED: J Series 2835
    Required components:
    C17483_DAISY-2X2-SHD-MATT
    FWHM: 50°
    FWTM: 72°
    Peak intensity: 1.393 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

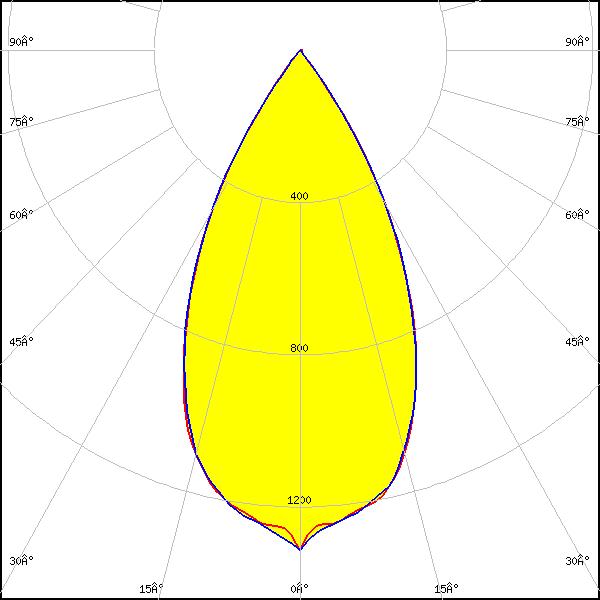

    LED: J Series 5050 Round LES
    Required components:
    C17483_DAISY-2X2-SHD-MATT
    FWHM: 52°
    FWTM: 74°
    Peak intensity: 1.314 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

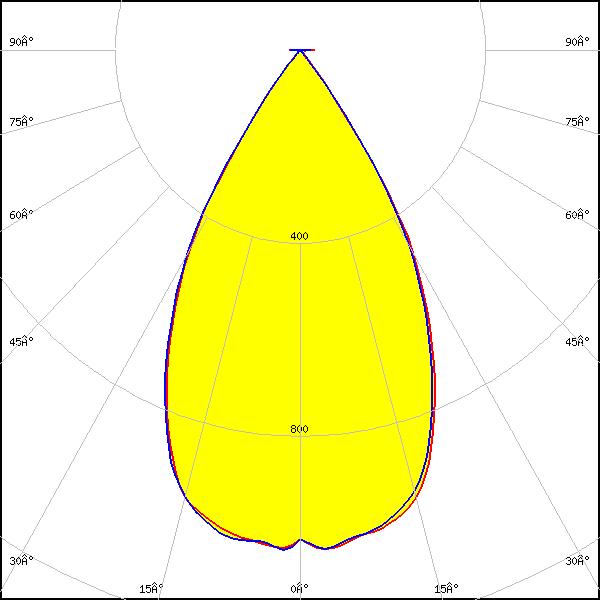

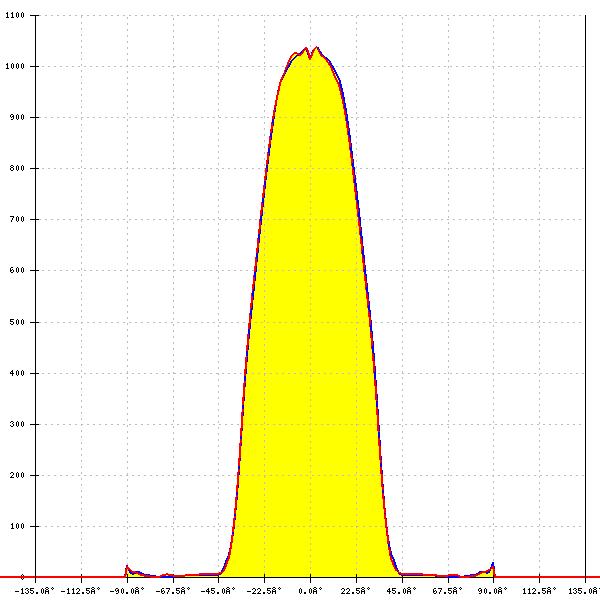

    LED: XD16
    Required components:
    C16866_DAISY-2X2-SHD
    FWHM: 58°
    FWTM: 73°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

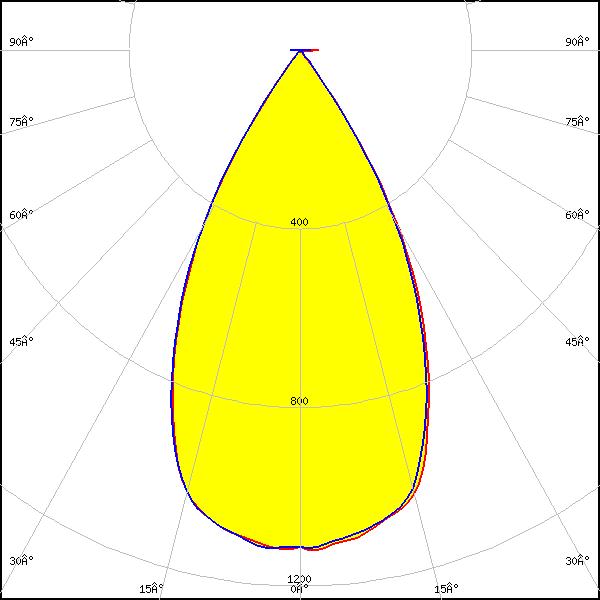

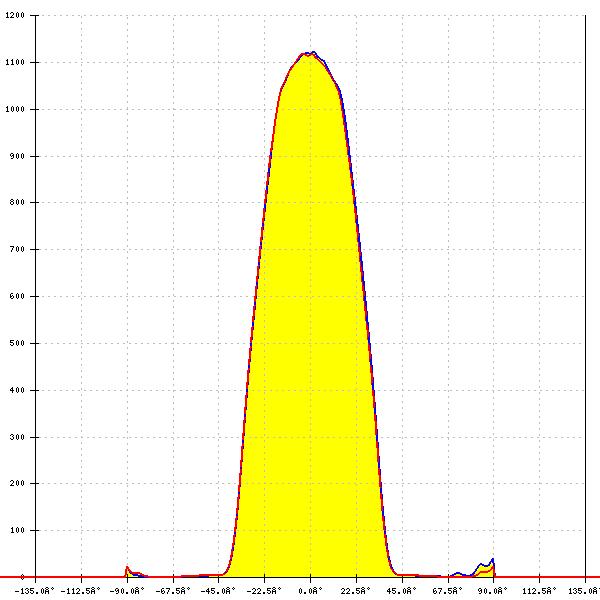

    LED: XD16
    Required components:
    C16866_DAISY-2X2-SHD
    FWHM: 55°
    FWTM: 74°
    Peak intensity: 1.131 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: White

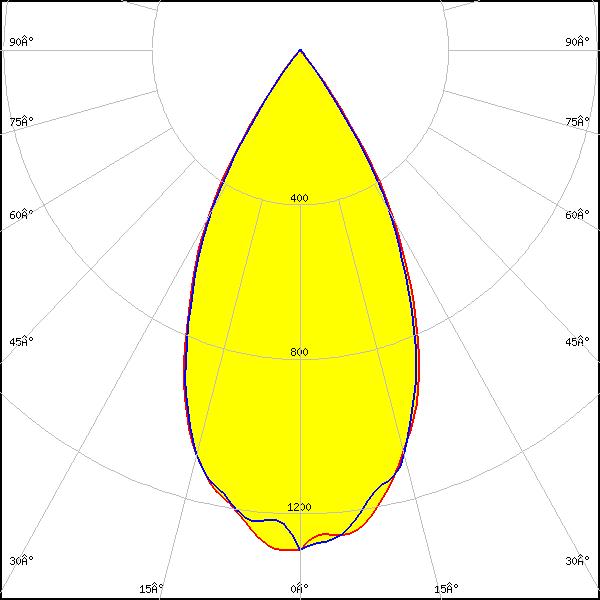

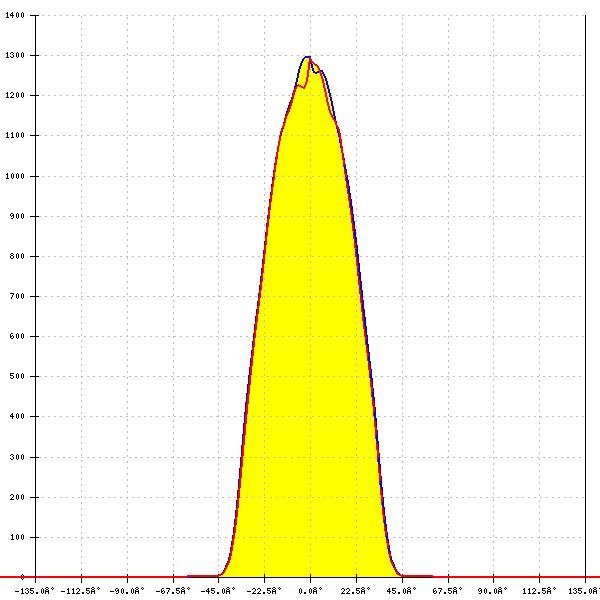

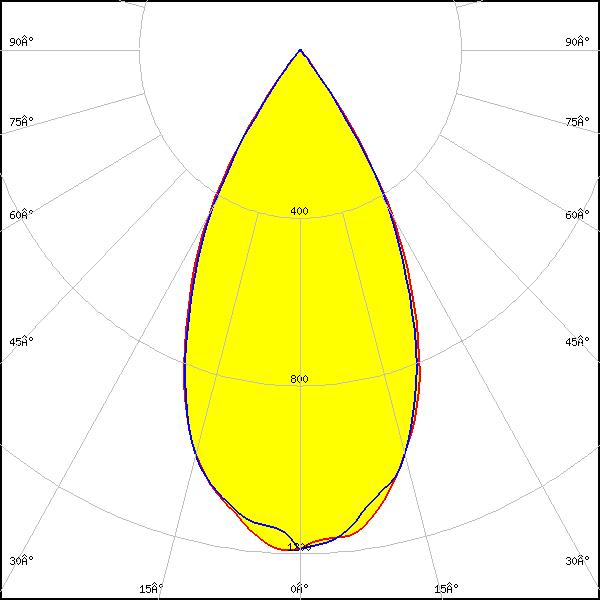

    LED: LUXEON 5050 Square LES
    Required components:
    C16866_DAISY-2X2-SHD
    FWHM: 53°
    FWTM: 74°
    Peak intensity: 1.317 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

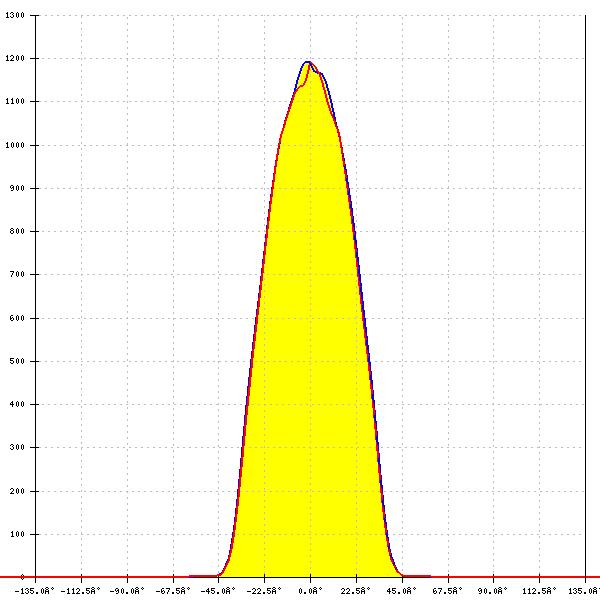

    LED: LUXEON 5050 Square LES
    Required components:
    C16866_DAISY-2X2-SHD
    FWHM: 53°
    FWTM: 75°
    Peak intensity: 1.205 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

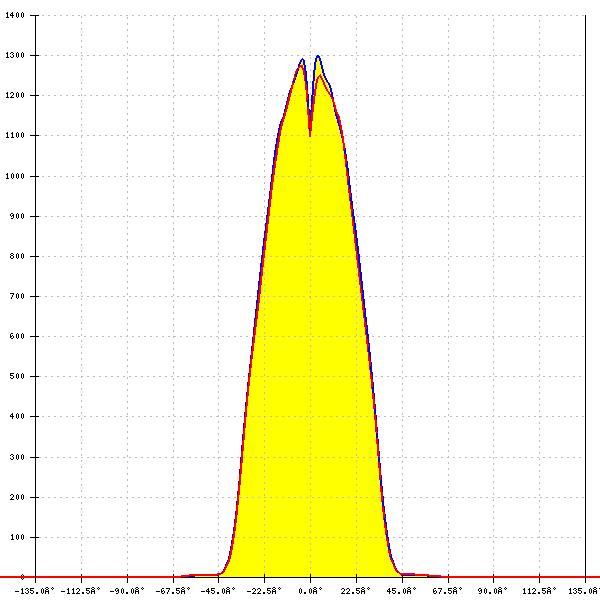

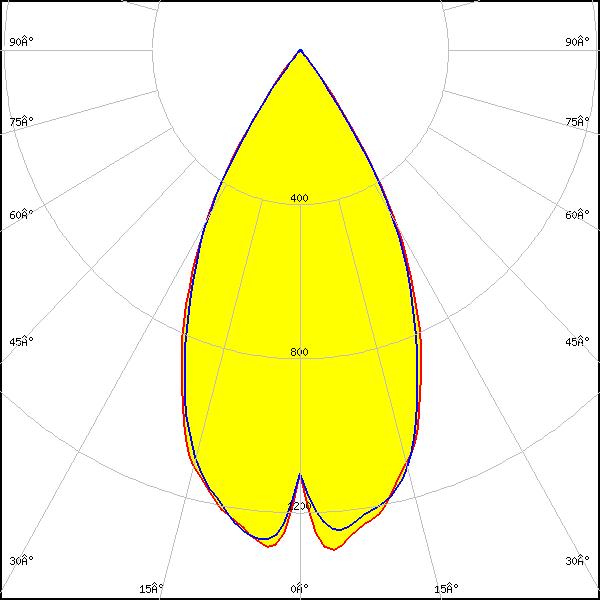

    LED: LUXEON 5050 Square LES
    Required components:
    C16875_DAISY-2X2-SHD-WHT
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.324 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

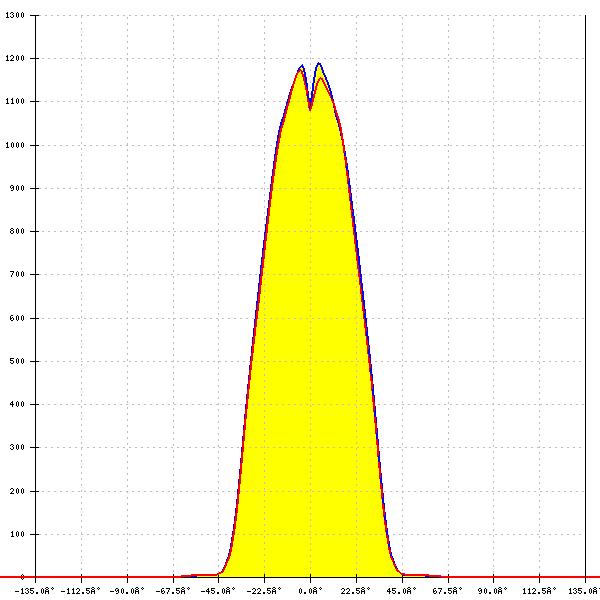

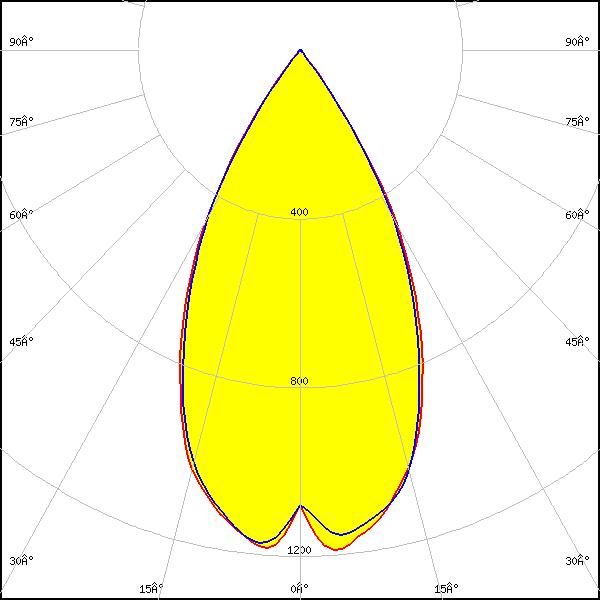

    LED: LUXEON 5050 Square LES
    Required components:
    C16875_DAISY-2X2-SHD-WHT
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 1.203 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

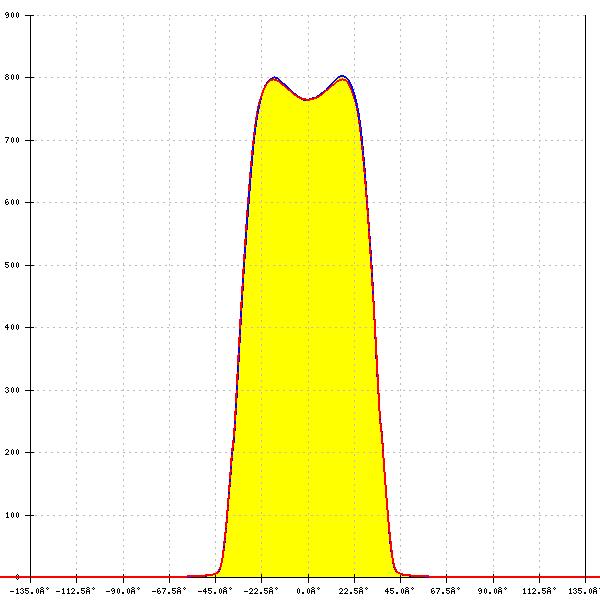

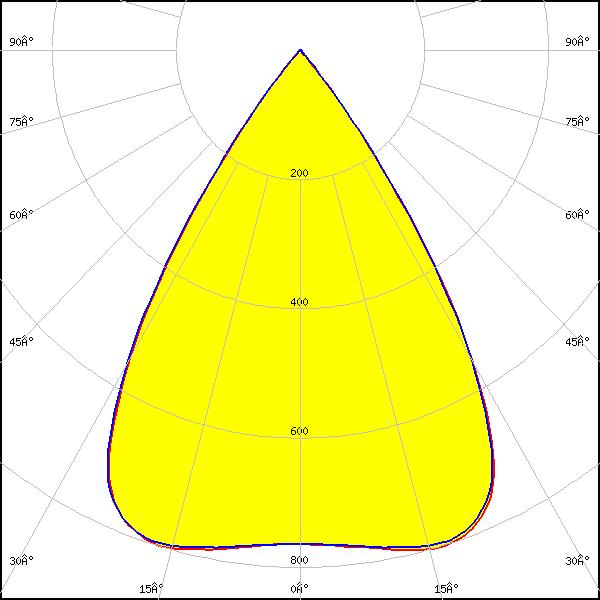

    LED: Opticus Daisy M 2x2 4P
    Required components:
    C17483_DAISY-2X2-SHD-MATT
    FWHM: 66°
    FWTM: 79°
    Peak intensity: 0.809 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 4
    Light colour/type: White

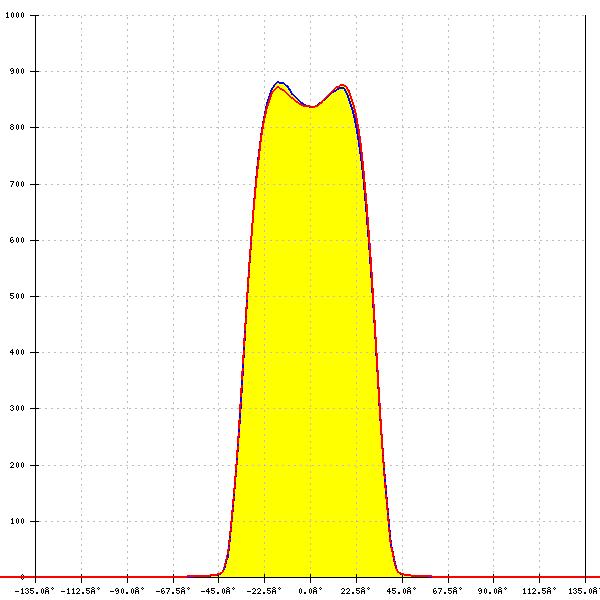

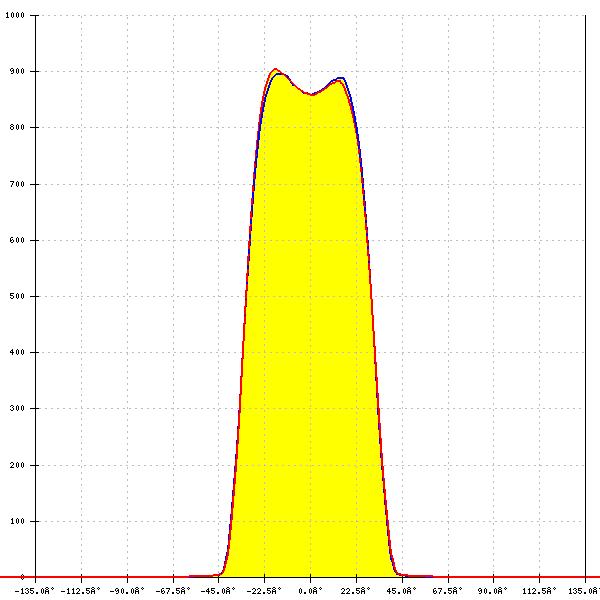

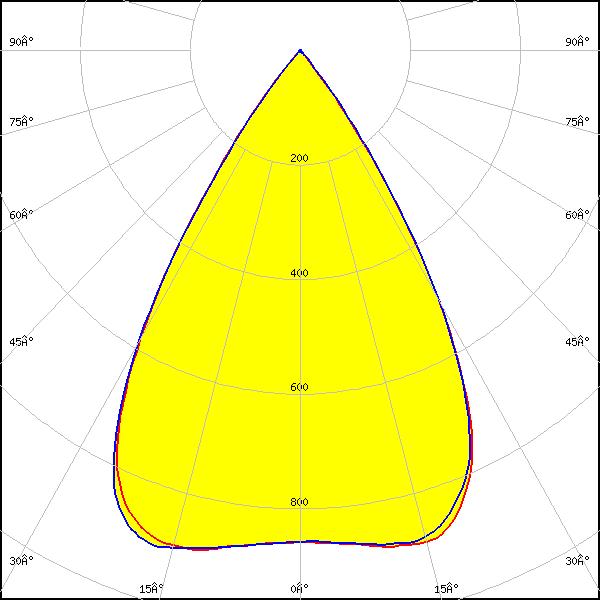

    LED: RecLED 62x62mm 1600lm 827-865 36V G1
    Required components:
    C16866_DAISY-2X2-SHD
    FWHM: 63°
    FWTM: 78°
    Peak intensity: 0.905 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: Tunable White

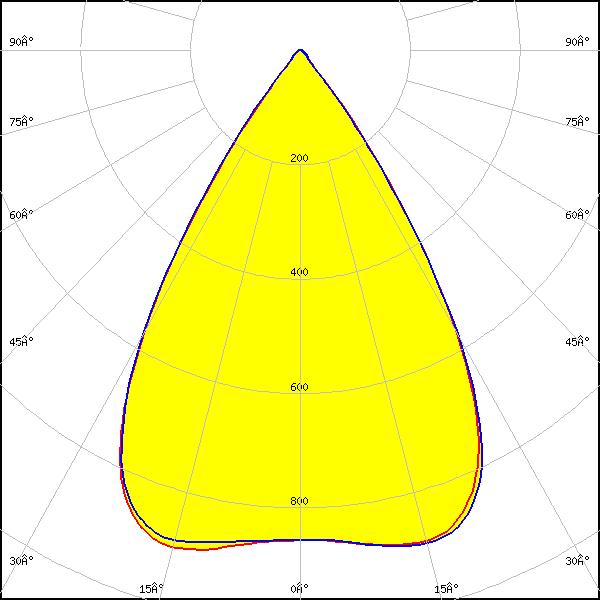

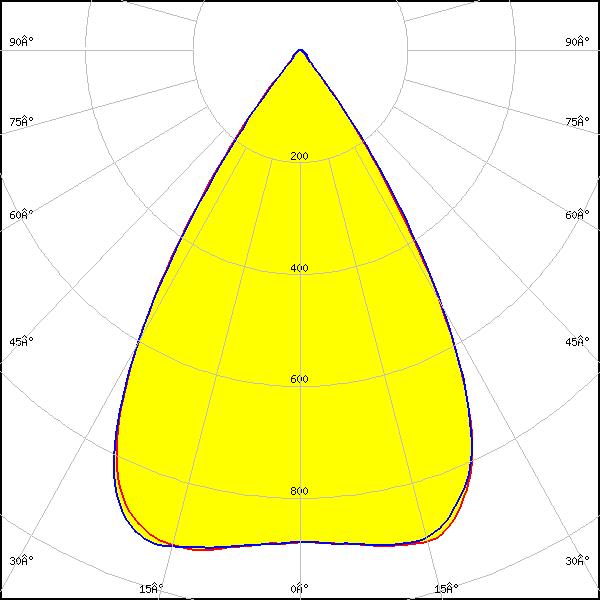

    LED: RecLED 62x62mm 1600lm 827-865 36V G1
    Required components:
    C16875_DAISY-2X2-SHD-WHT
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.924 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: Tunable White

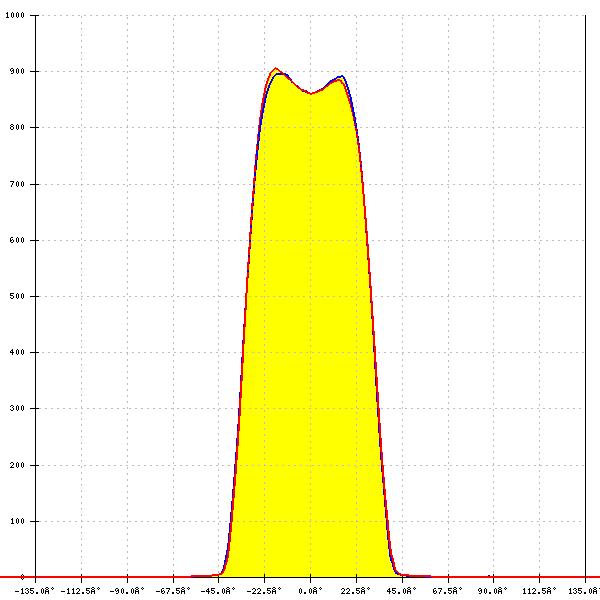

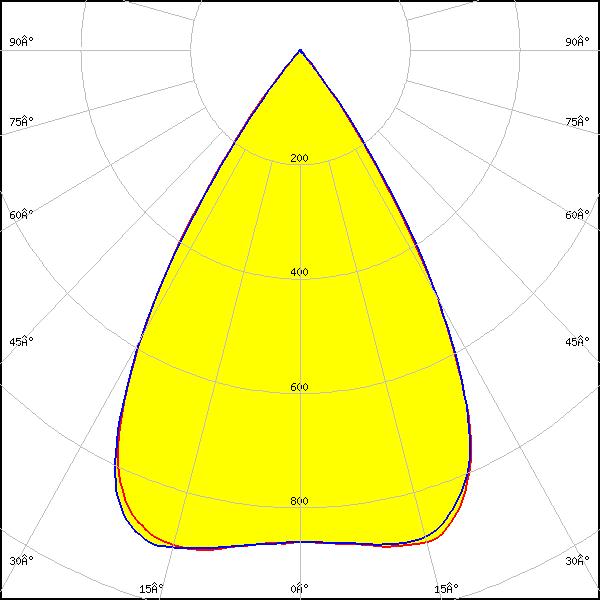

    LED: RecLED 62x62mm 1600lm 827-865 36V G1
    Required components:
    C17483_DAISY-2X2-SHD-MATT
    FWHM: 63°
    FWTM: 77°
    Peak intensity: 0.906 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: Tunable White

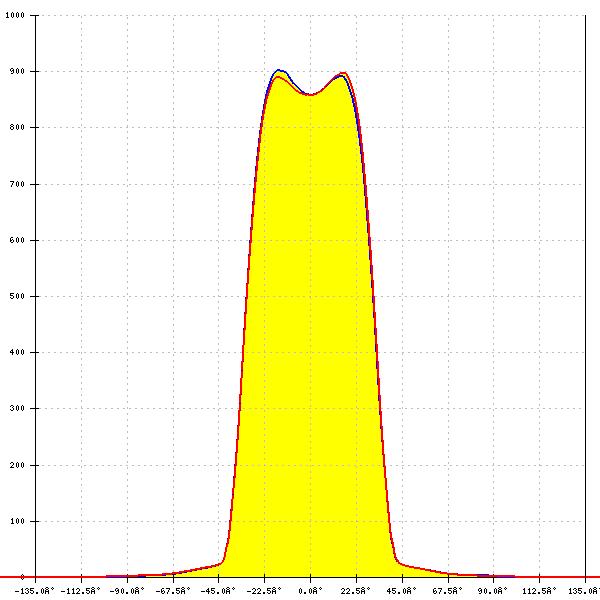

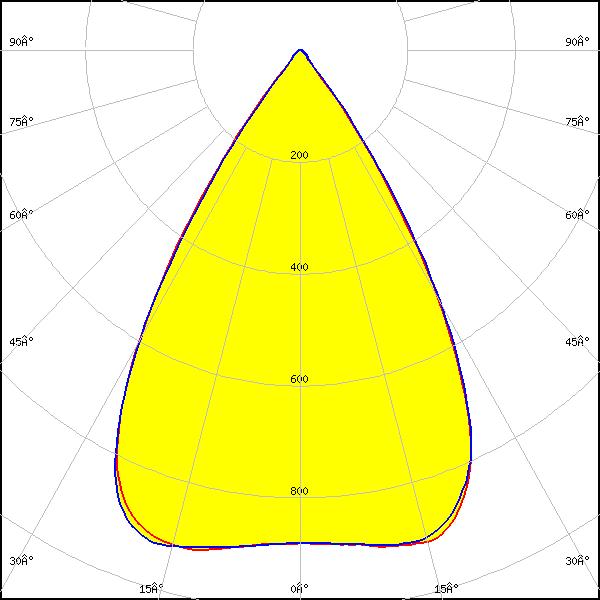

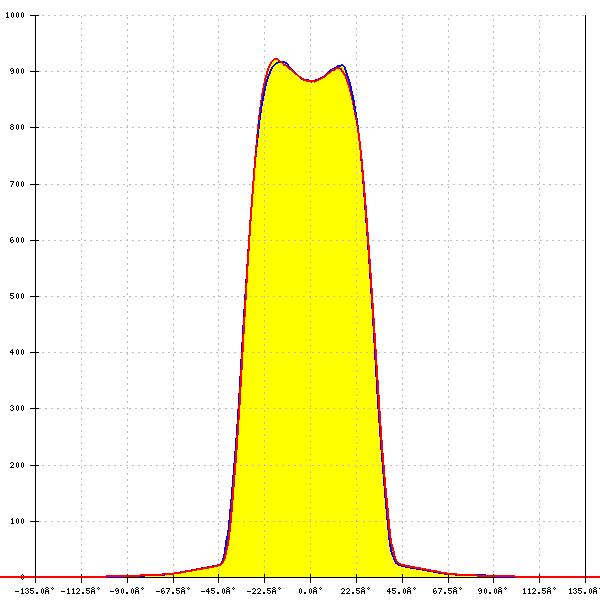

    LED: RecLED 62x62mm 1600lm 827-865 36V G1
    Required components:
    C17484_DAISY-2X2-SHD-WHT-MATT
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.923 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: Tunable White
    LED: RecLED 62x62mm 1600lm 827-865 36V G1
    Required components:
    C17530_DAISY-2X2-SHD-MET
    FWHM: 63°
    FWTM: 77°
    Peak intensity: 0.951 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: Tunable White
    LED: RecLED 62x62mm 1600lm 827-865 36V G1
    Required components:
    C17536_DAISY-2X2-SHD-MET-MATT
    FWHM: 63°
    FWTM: 78°
    Peak intensity: 0.917 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour/type: Tunable White

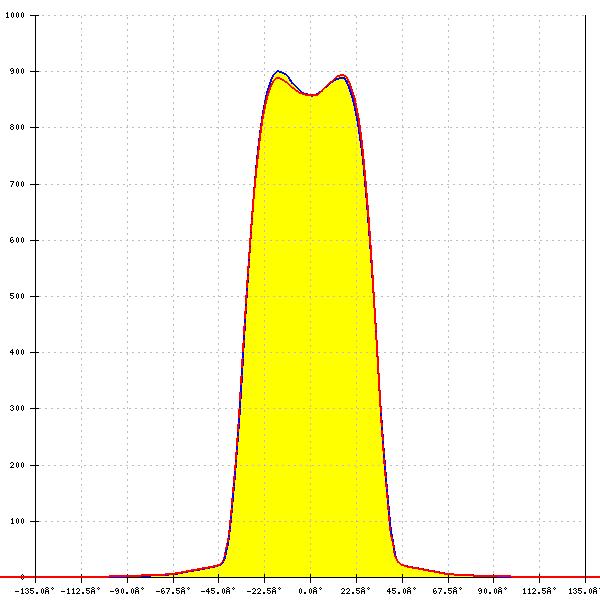

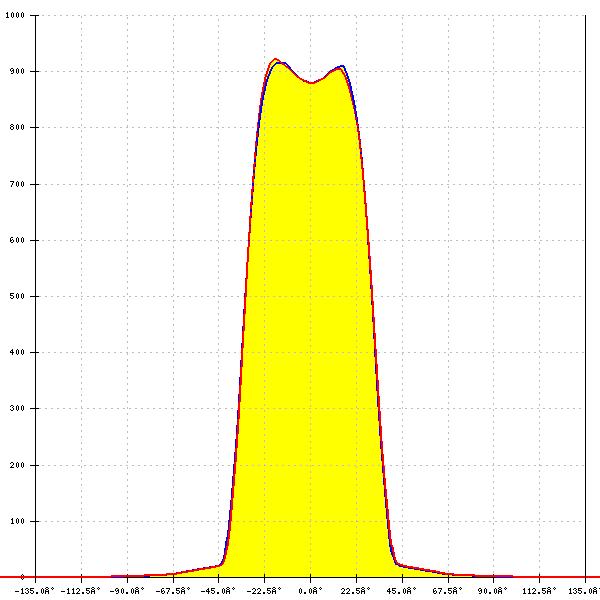

    LED: RecLED 62x62mm 1600lm 827-865 36V G1
    Required components:
    C16875_DAISY-2X2-SHD-WHT
    FWHM: 64°
    FWTM: 79°
    Peak intensity: 0.900 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White

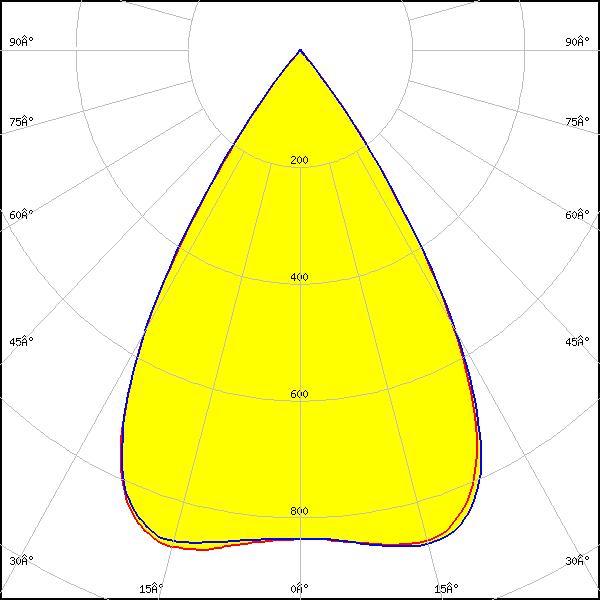

    LED: RecLED 62x62mm 1600lm 8x0 36V G1
    Required components:
    C16866_DAISY-2X2-SHD
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.882 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: White

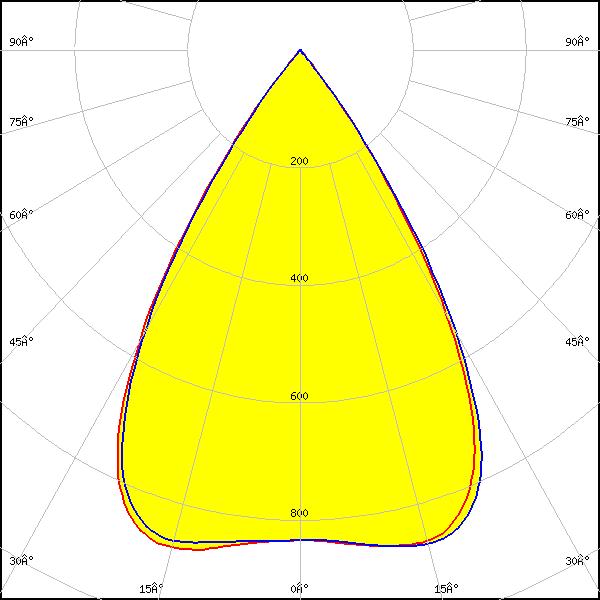

    LED: RecLED 62x62mm 1600lm 8x0 36V G1
    Required components:
    C17483_DAISY-2X2-SHD-MATT
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.878 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: White

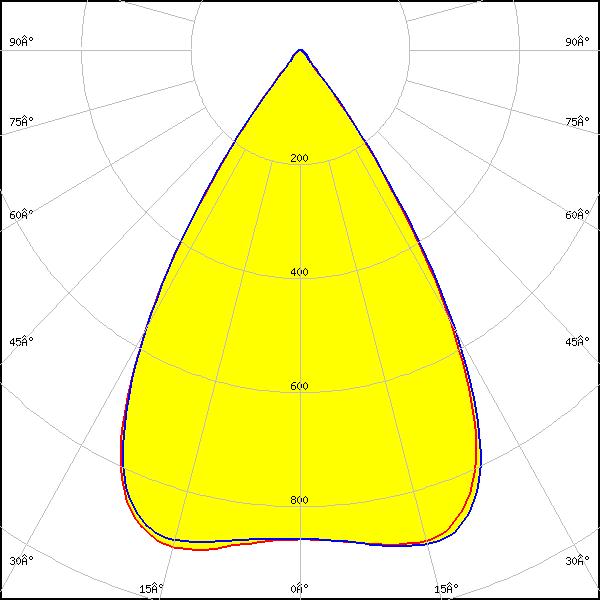

    LED: RecLED 62x62mm 1600lm 8x0 36V G1
    Required components:
    C17484_DAISY-2X2-SHD-WHT-MATT
    FWHM: 64°
    FWTM: 79°
    Peak intensity: 0.904 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: RecLED 62x62mm 1600lm 8x0 36V G1
    Required components:
    C17530_DAISY-2X2-SHD-MET
    FWHM: 63°
    FWTM: 78°
    Peak intensity: 0.933 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: RecLED 62x62mm 1600lm 8x0 36V G1
    Required components:
    C17536_DAISY-2X2-SHD-MET-MATT
    FWHM: 64°
    FWTM: 78°
    Peak intensity: 0.899 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 4
    Light colour/type: White

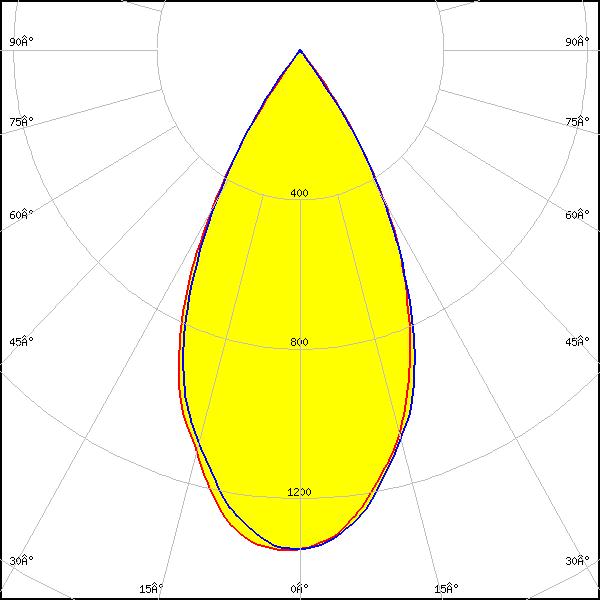

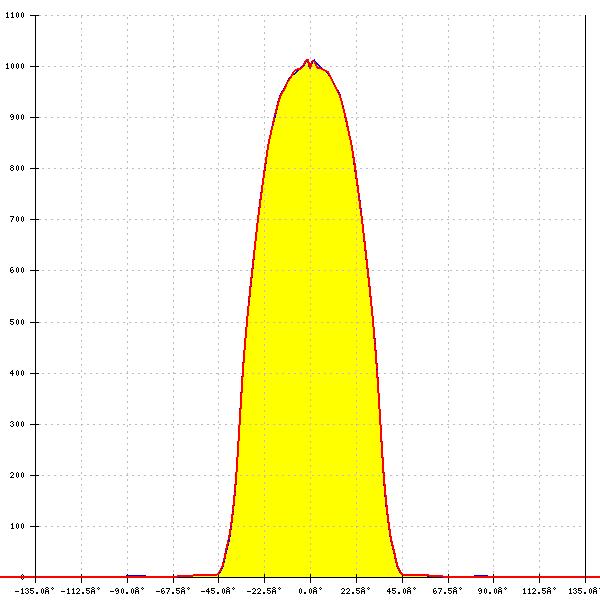

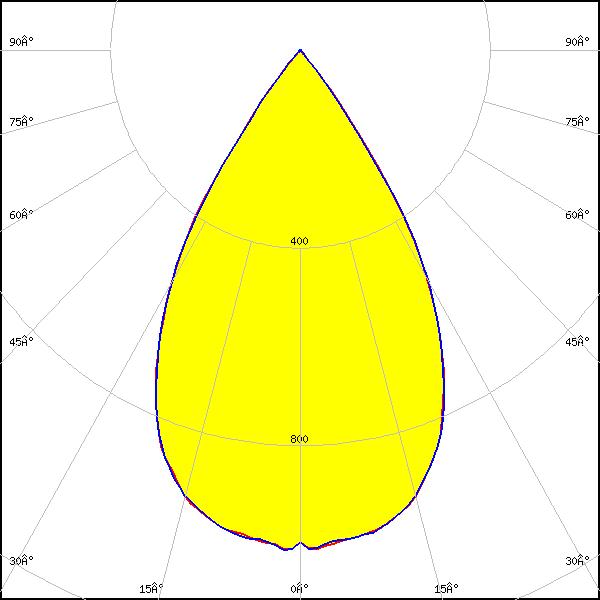

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16866_DAISY-2X2-SHD
    FWHM: 62°
    FWTM: 78°
    Peak intensity: 1.019 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour/type: Tunable White

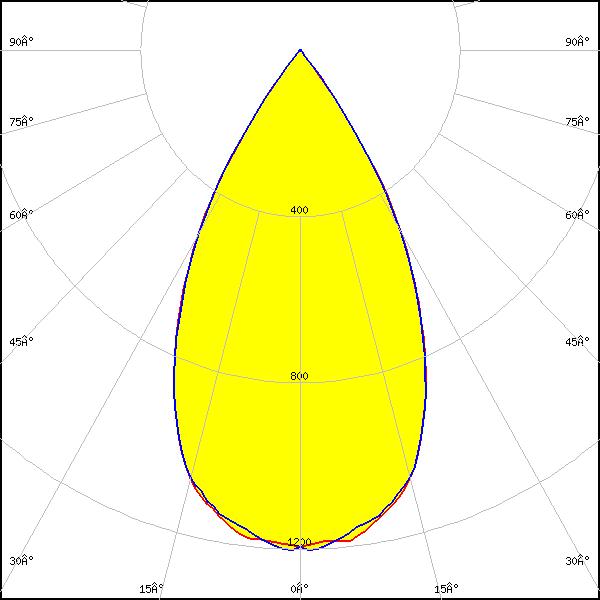

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16866_DAISY-2X2-SHD
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.212 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

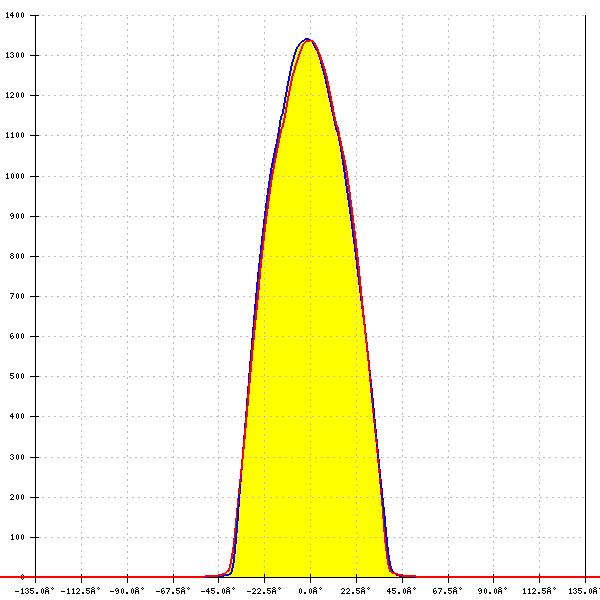

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16866_DAISY-2X2-SHD
    FWHM: 53°
    FWTM: 73°
    Peak intensity: 1.339 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

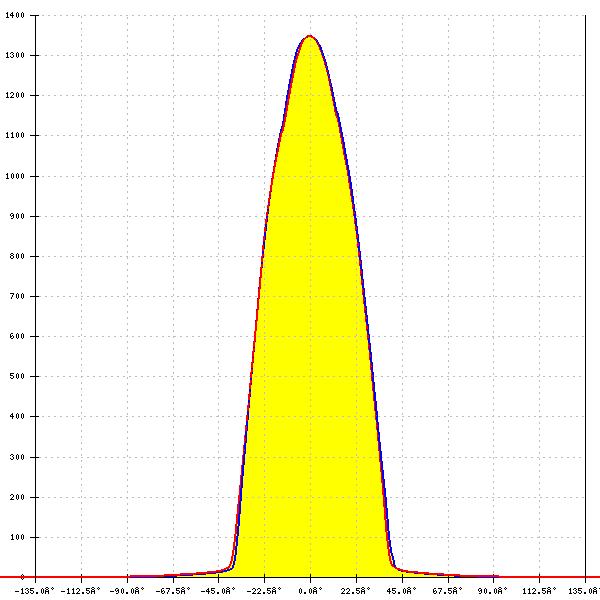

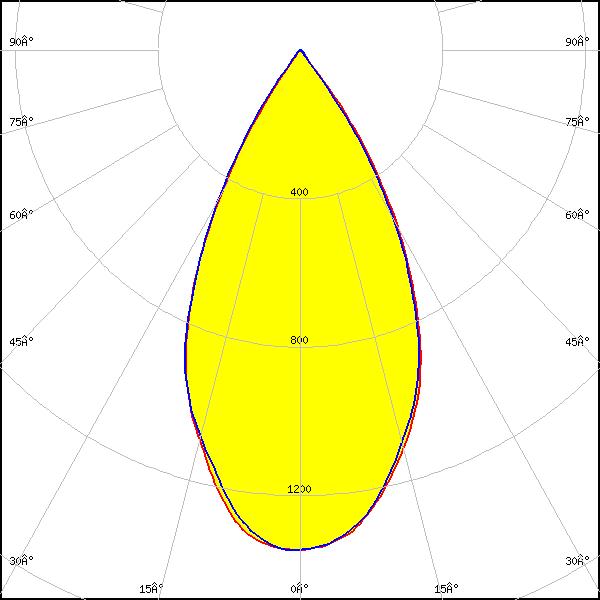

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16875_DAISY-2X2-SHD-WHT
    FWHM: 53°
    FWTM: 74°
    Peak intensity: 1.349 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

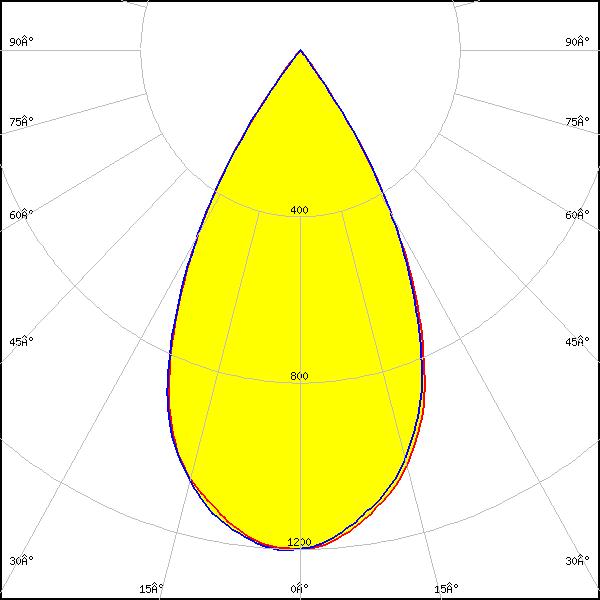

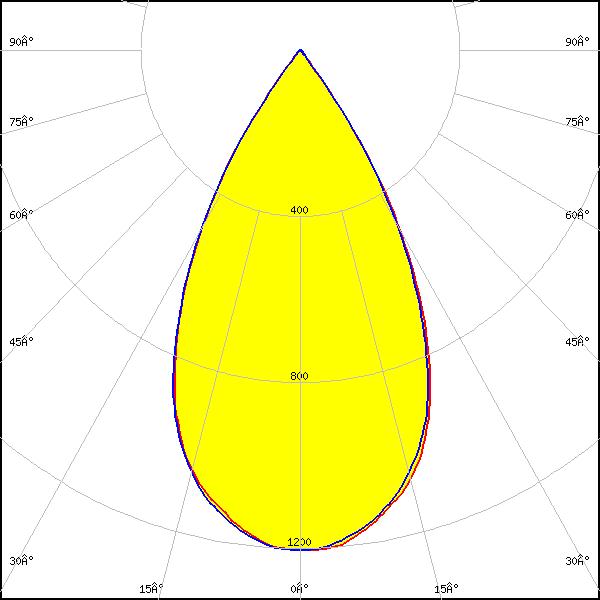

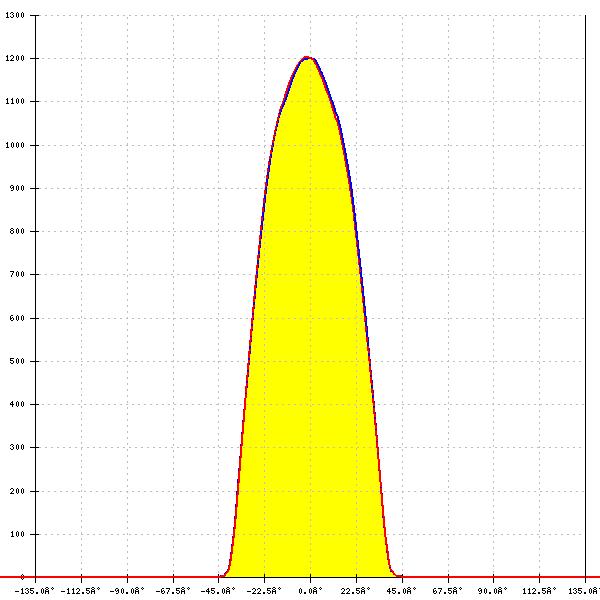

    LED: LM28xB Series
    Required components:
    C16866_DAISY-2X2-SHD
    FWHM: 55°
    FWTM: 74°
    Peak intensity: 1.200 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

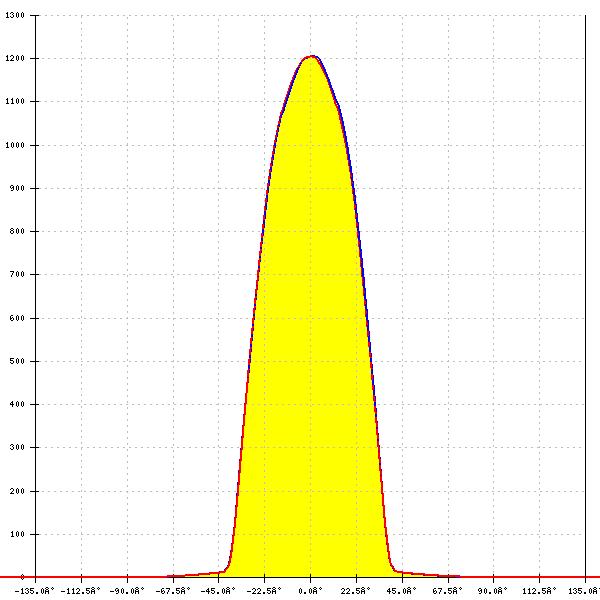

    LED: LM28xB Series
    Required components:
    C16875_DAISY-2X2-SHD-WHT
    FWHM: 56°
    FWTM: 74°
    Peak intensity: 1.200 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

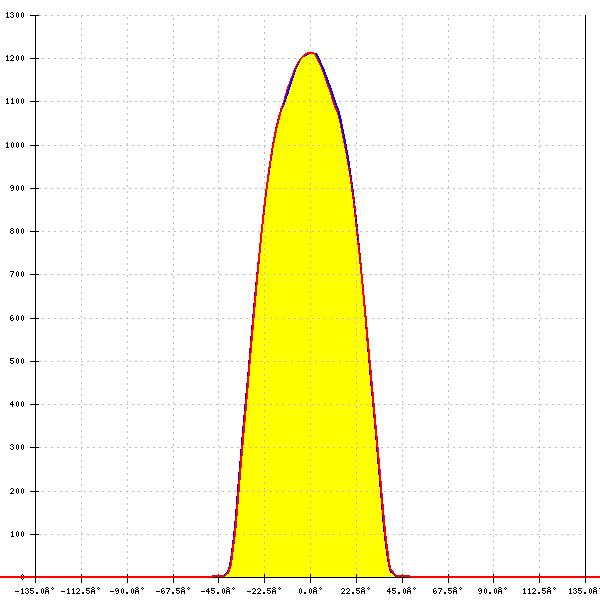

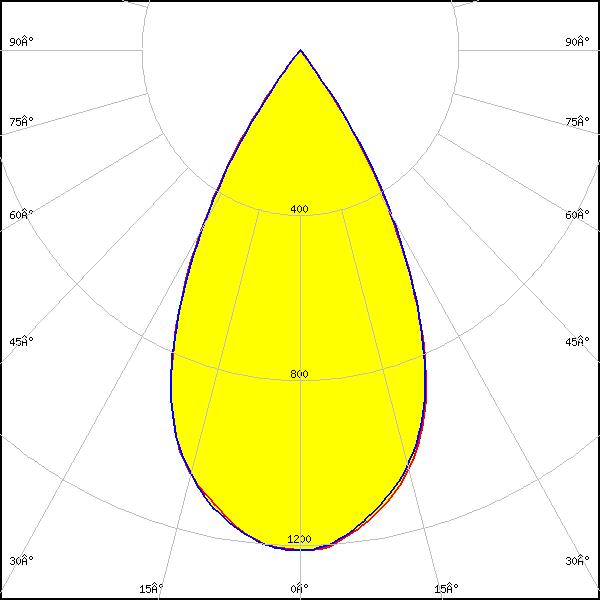

    LED: LM28xB Series
    Required components:
    C17483_DAISY-2X2-SHD-MATT
    FWHM: 55°
    FWTM: 74°
    Peak intensity: 1.212 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
