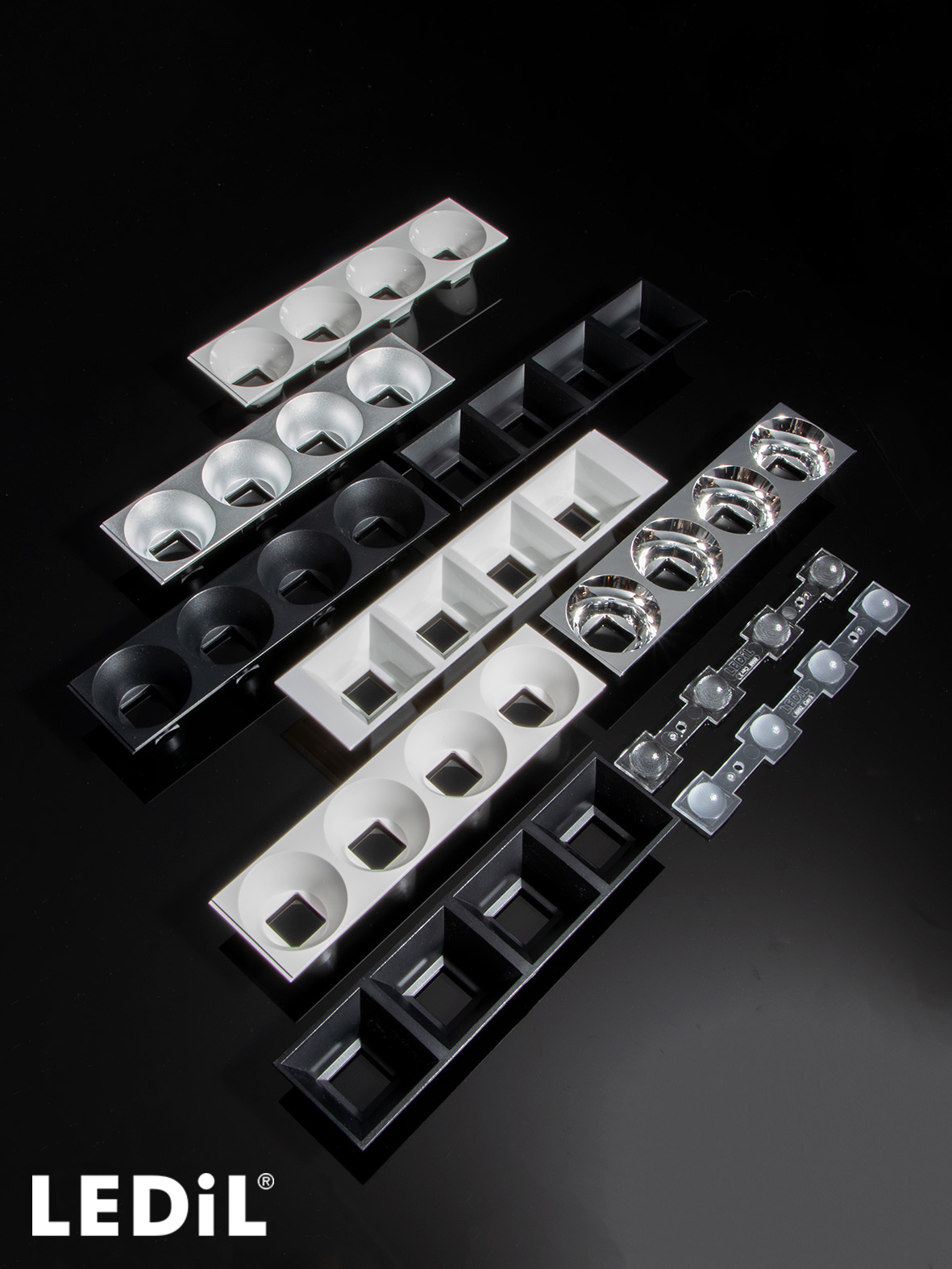

DAISY-4X1-W
Print
~50° wide beam
This product consists of multiple parts that need to be ordered separately. See ordering information.
Materials
- Linear lens
- C16588_DAISY-4X1-WPMMA
- Request material files from Tech Support
- Shade
- C16590_DAISY-4X1-SHDPC
- C16784_DAISY-4X1-SHD-WHTPC
- C17422_DAISY-4X1-SHD2-MATTPC
- C17423_DAISY-4X1-SHD2-WHT-MATTPC
- C18407_DAISY-4X1-SHD-METPC
- C18411_DAISY-4X1-SHD2-MET-MATTPC
- C18412_DAISY-4X1-SHD2-METPC
- C18414_DAISY-4X1-SHD-MET-MATTPC
- C19075_DAISY-4X1-SHD2PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
NOTE! See 2D mechanical drawings for SHD and SHD2 differences.
Related Content
Optical results

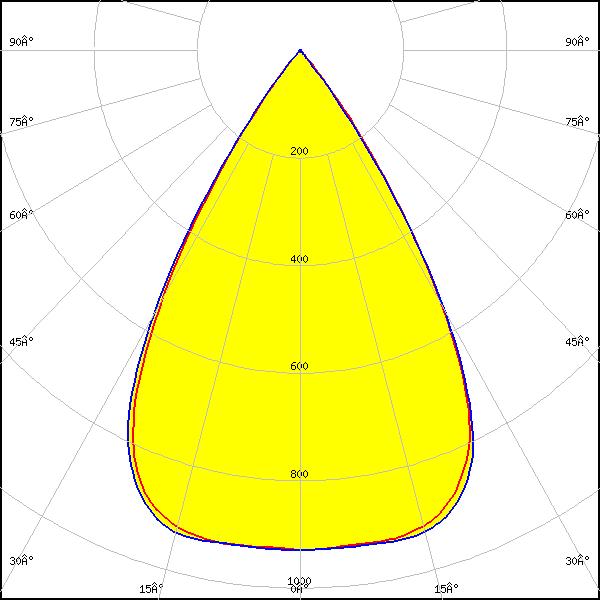

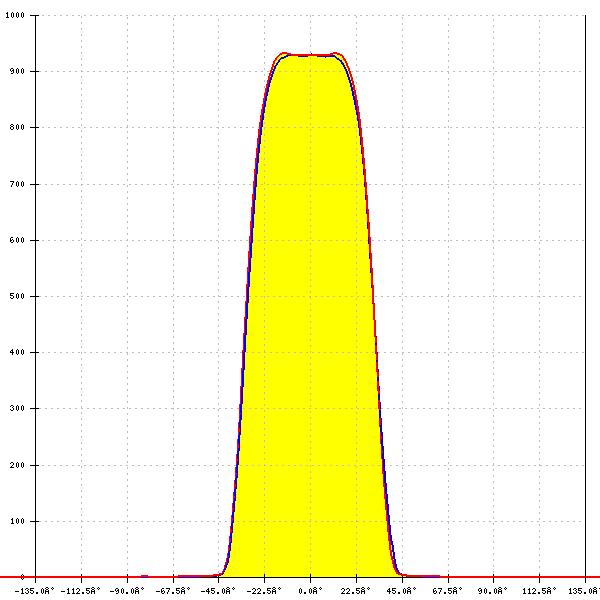

LED:
LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C16590_DAISY-4X1-SHD
FWHM:
63°
FWTM:
77°
Peak intensity:
0.933 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White

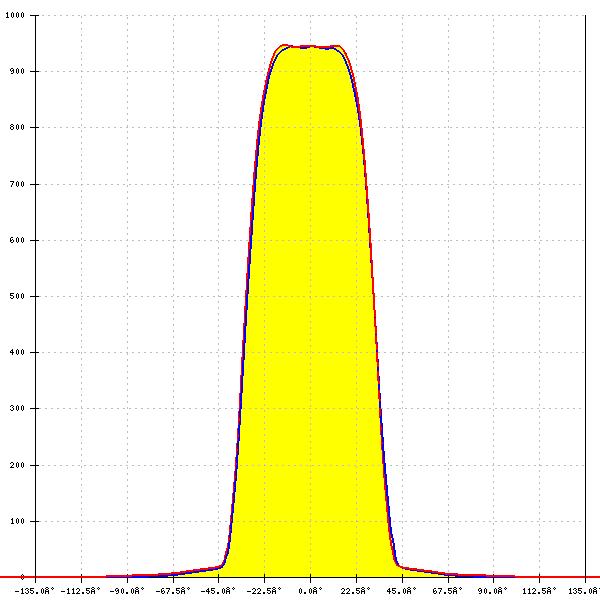

LED:
LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
64°
FWTM:
78°
Peak intensity:
0.948 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

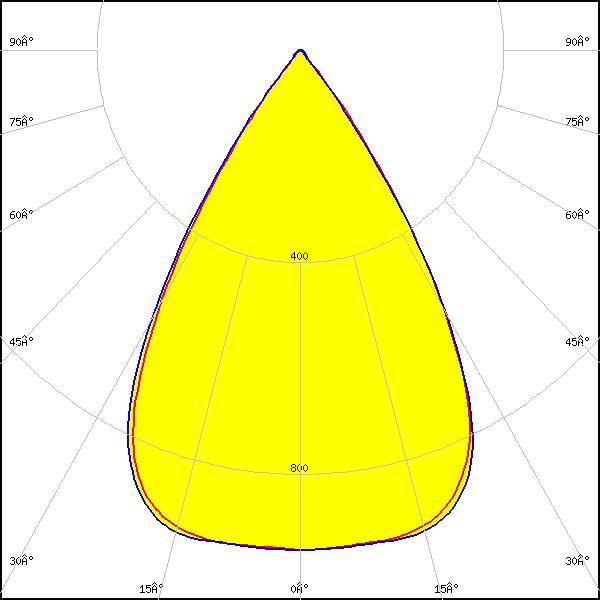

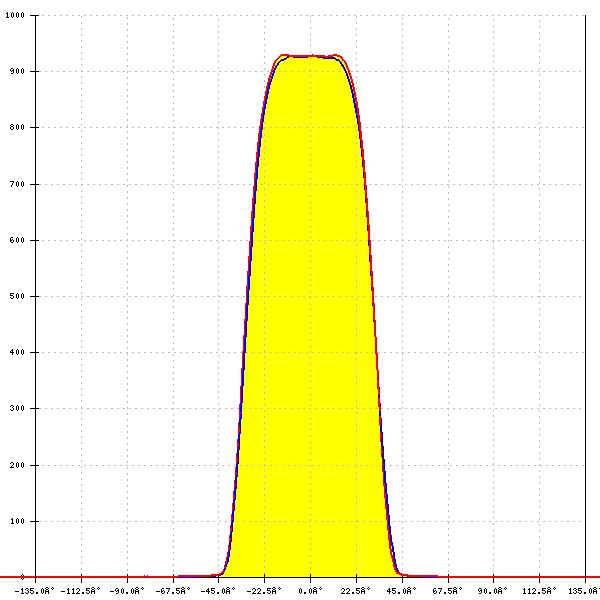

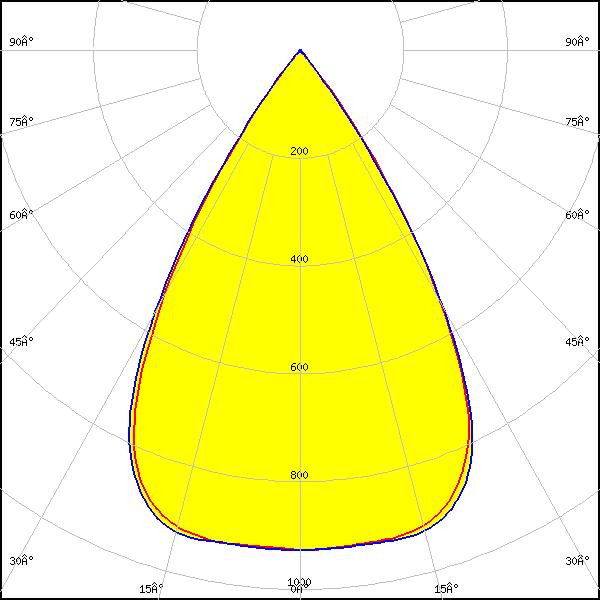

LED:
LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
63°
FWTM:
78°
Peak intensity:
0.930 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White

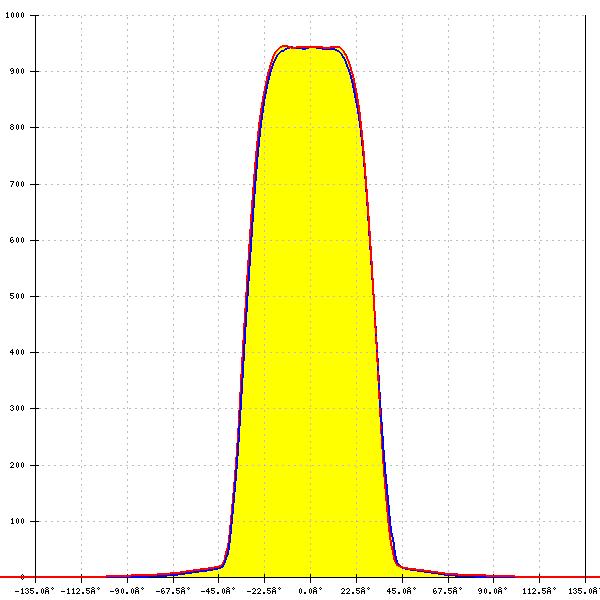

LED:
LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM:
64°
FWTM:
78°
Peak intensity:
0.946 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

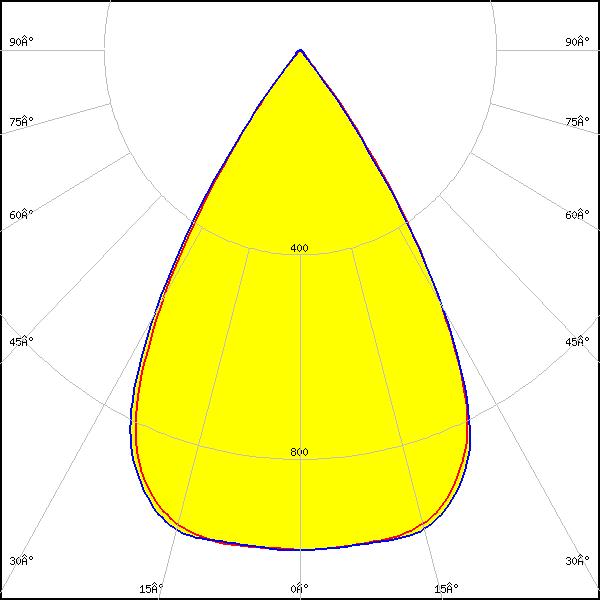

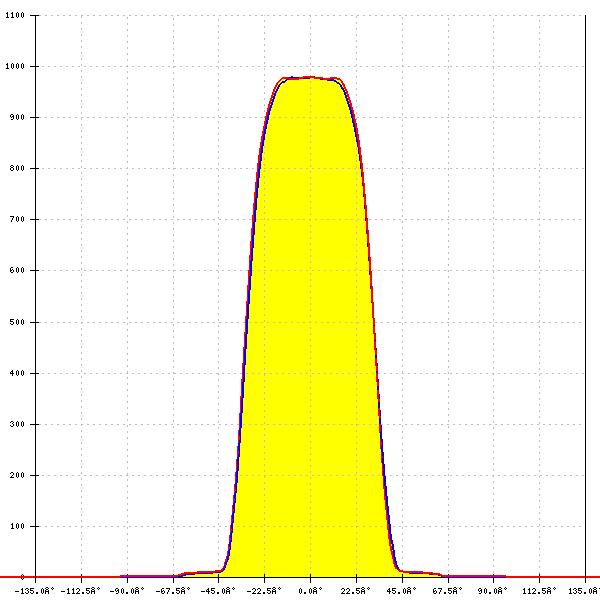

LED:
LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17528_DAISY-4X1-SHD-MET
FWHM:
63°
FWTM:
78°
Peak intensity:
0.980 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

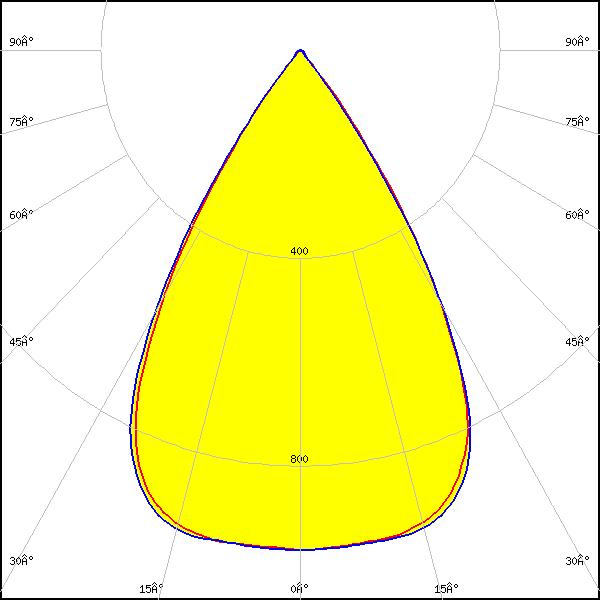

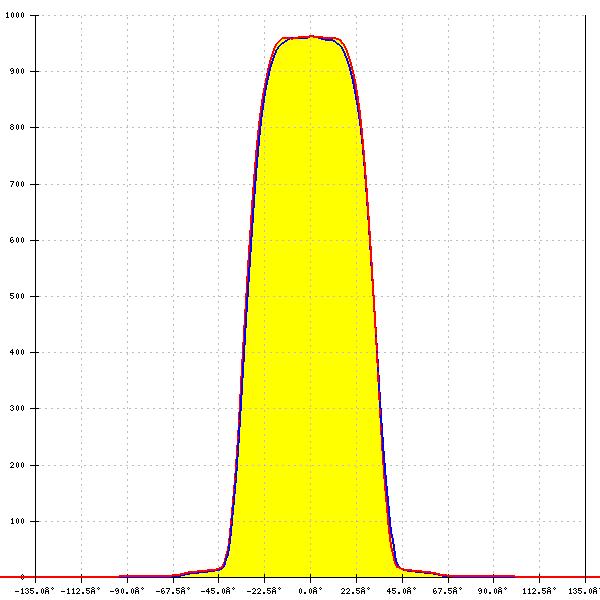

LED:
LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17535_DAISY-4X1-SHD2-MET-MATT
FWHM:
63°
FWTM:
78°
Peak intensity:
0.962 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White

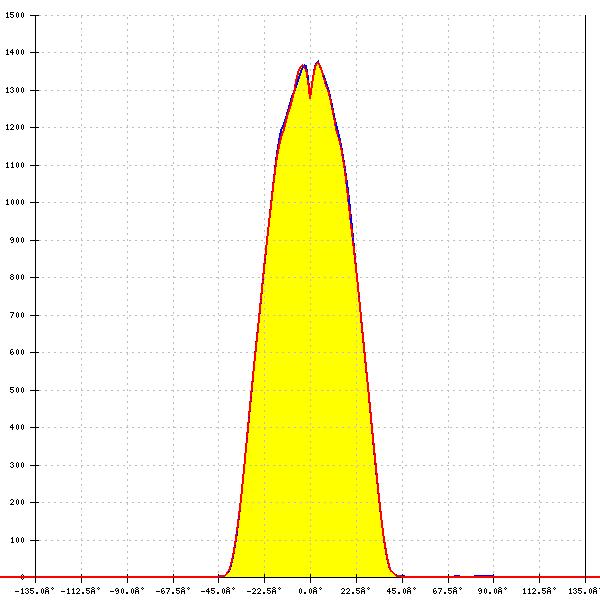

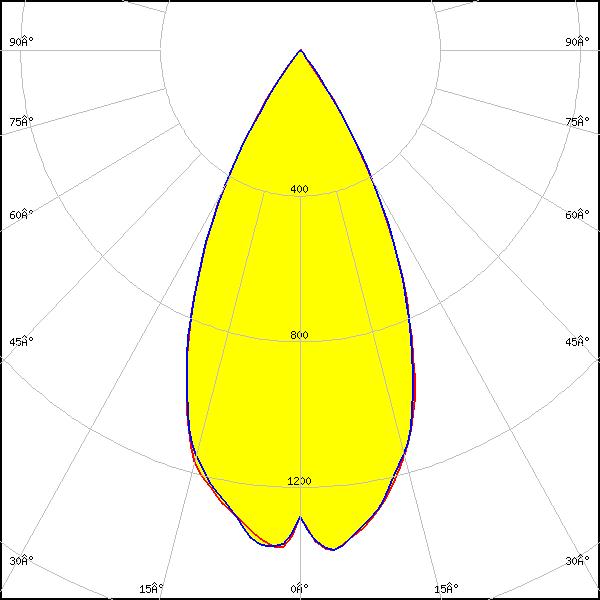

LED:

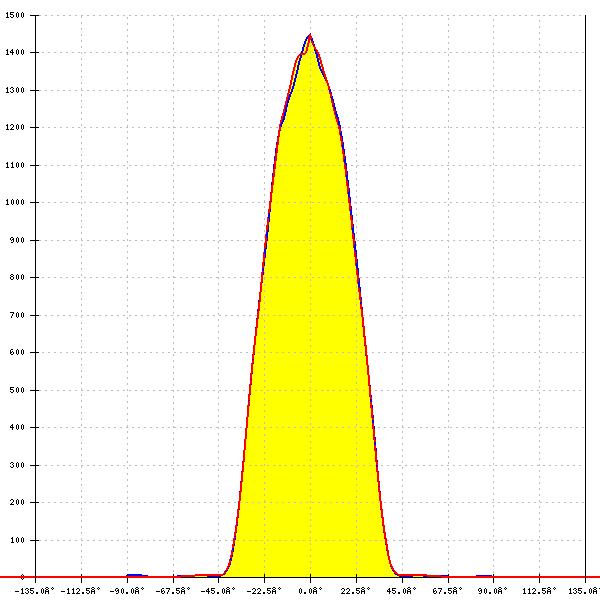

J Series 2835
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
50°
FWTM:
72°
Peak intensity:
1.393 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

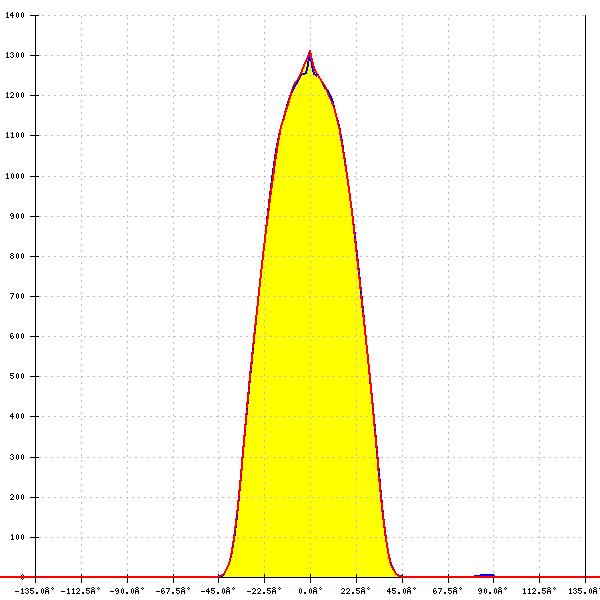

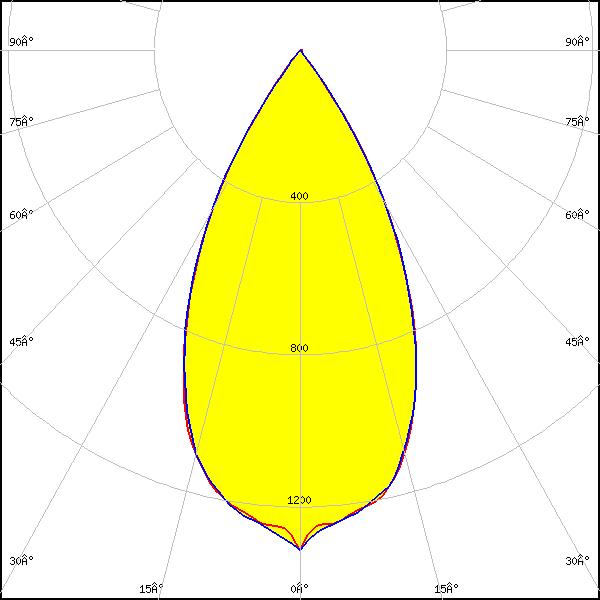

LED:
J Series 5050 Round LES
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
52°
FWTM:
74°
Peak intensity:
1.314 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

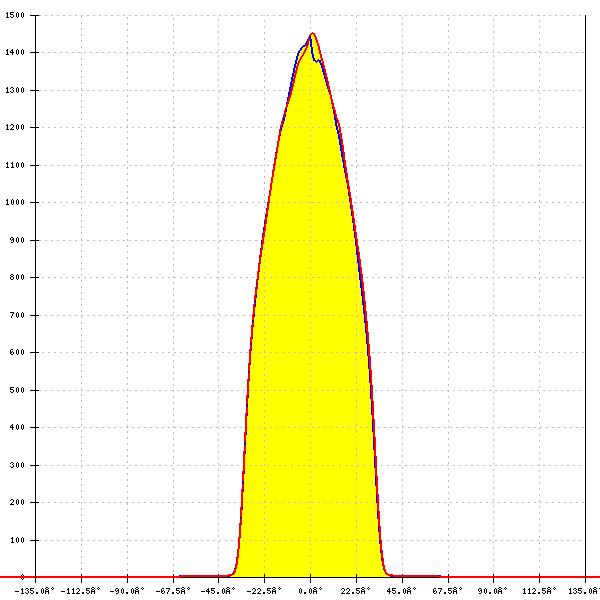

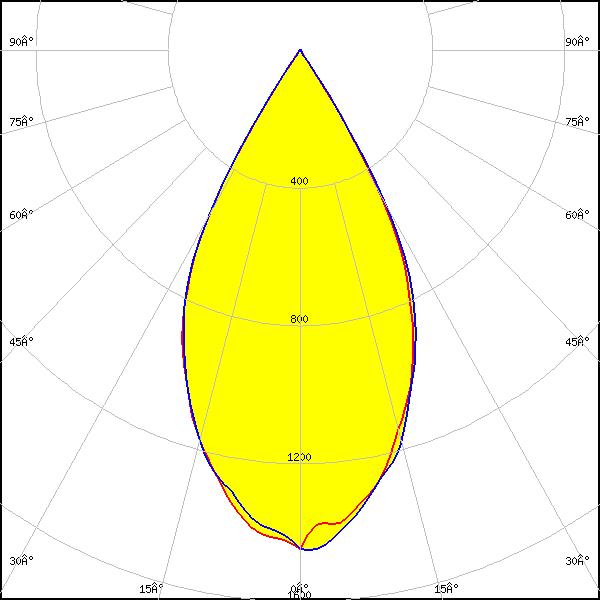

LED:
LUXEON 5050 Round LES
Required components:
C16590_DAISY-4X1-SHD
FWHM:
54°
FWTM:
69°
Peak intensity:
1.460 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

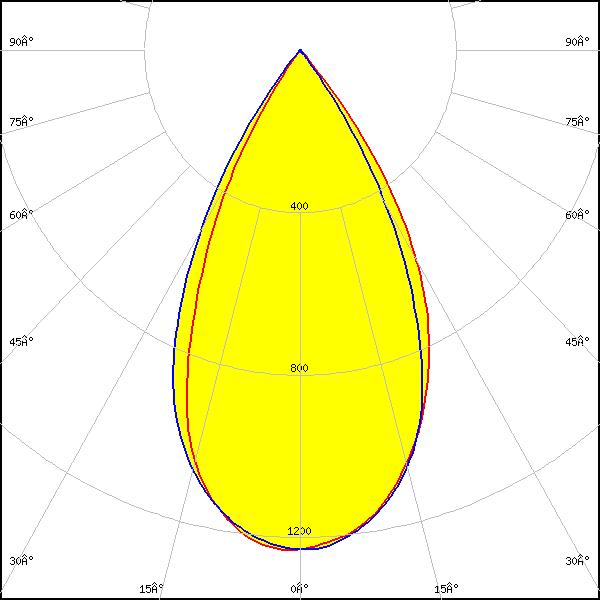

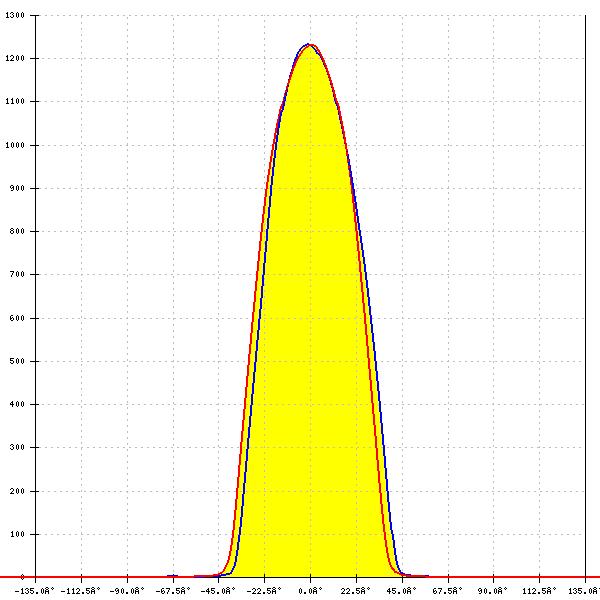

LED:

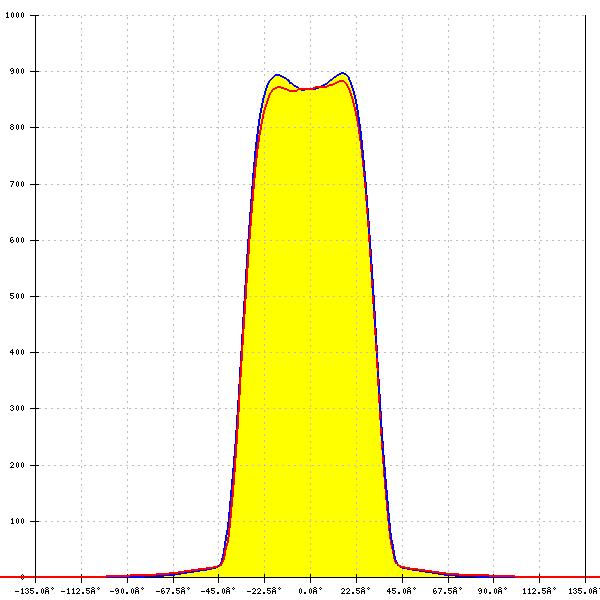

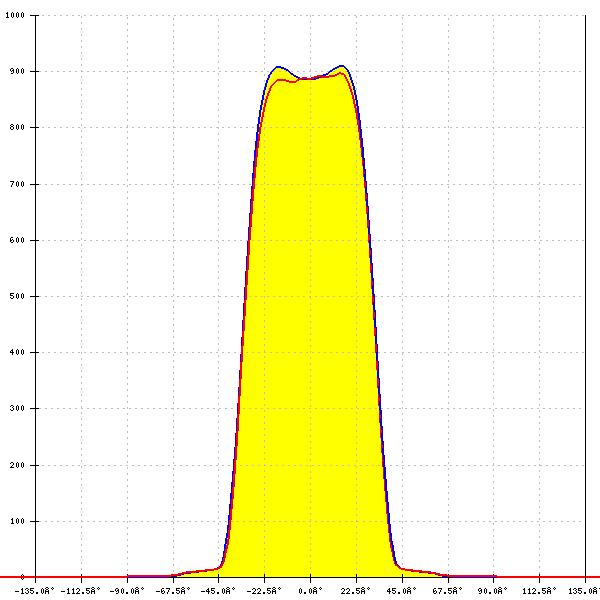

LinLED 156x28mm 2x200lm 827-865 2x2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM:
54°
FWTM:
74°
Peak intensity:
1.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
2
Light colour/type:
Tunable White

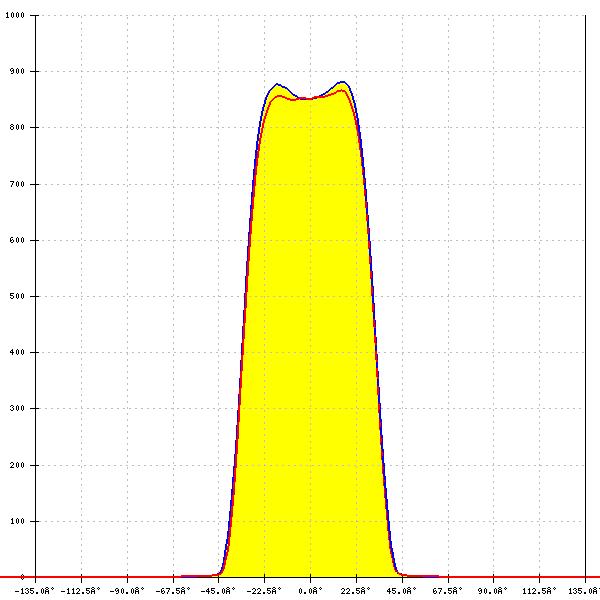

LED:
LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM:
65° + 65°
FWTM:
79° + 78°
Peak intensity:
0.881 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
Tunable White

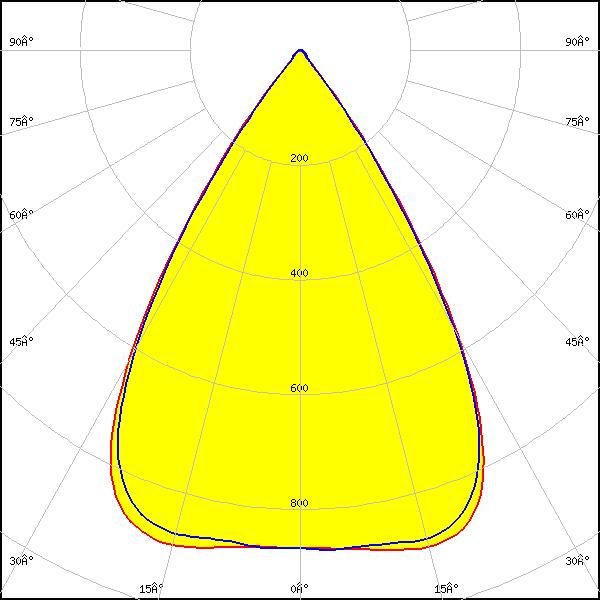

LED:
LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
65° + 65°
FWTM:
80° + 79°
Peak intensity:
0.898 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
Tunable White

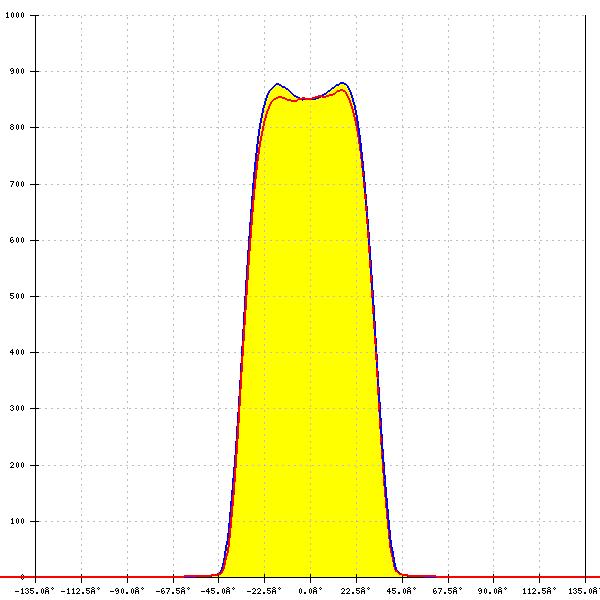

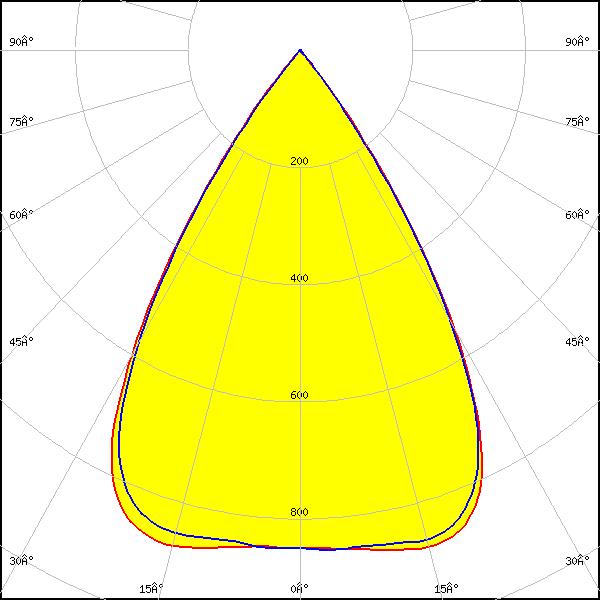

LED:
LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
65° + 65°
FWTM:
79° + 78°
Peak intensity:
0.879 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
Tunable White

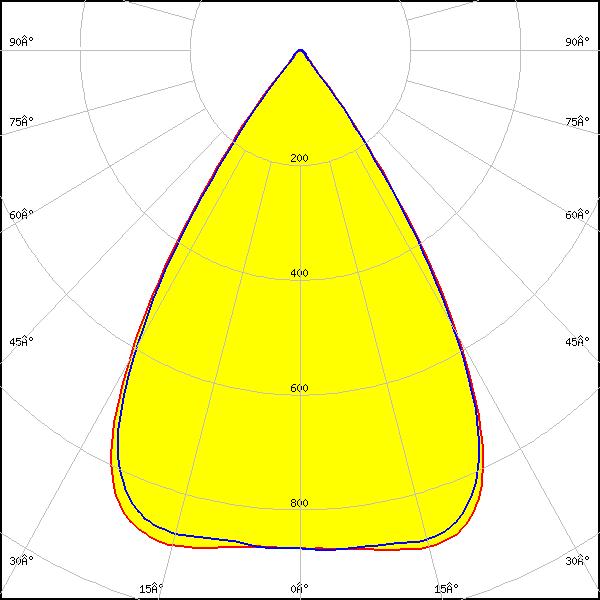

LED:
LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM:
65° + 65°
FWTM:
80° + 79°
Peak intensity:
0.897 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
Tunable White

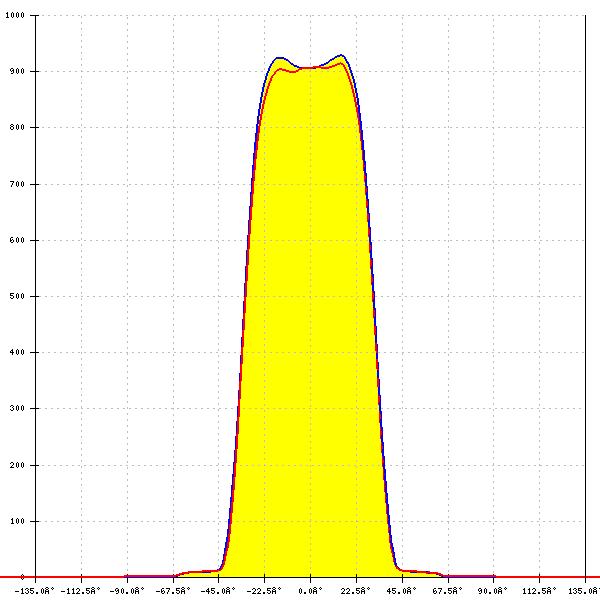

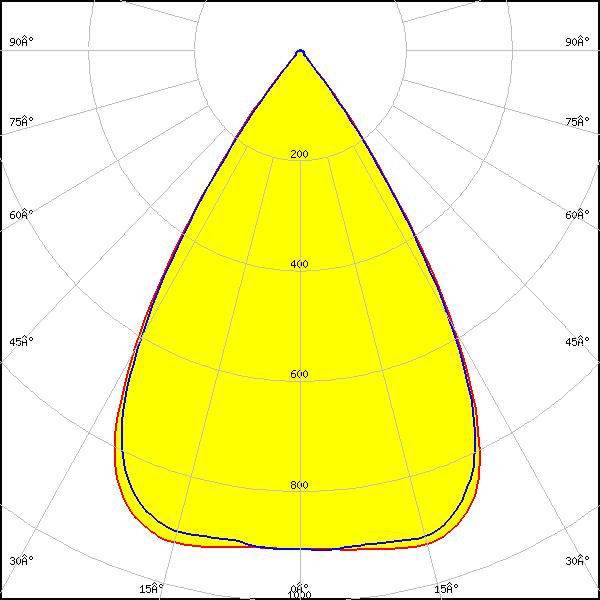

LED:
LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17528_DAISY-4X1-SHD-MET
FWHM:
65°
FWTM:
79°
Peak intensity:
0.928 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
Tunable White

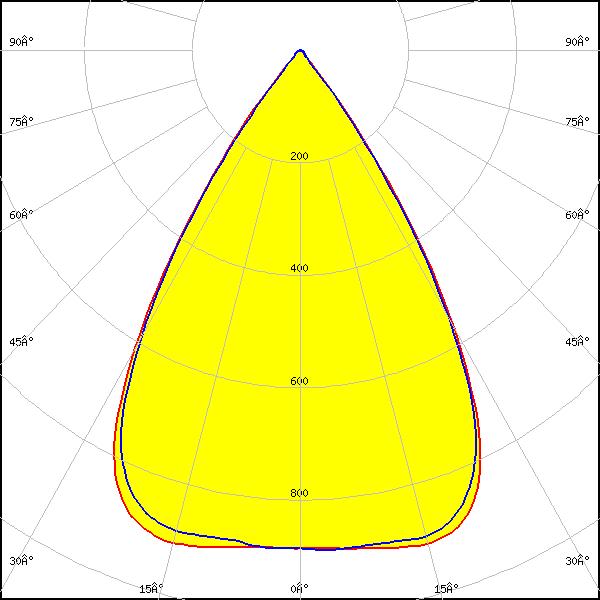

LED:
LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17535_DAISY-4X1-SHD2-MET-MATT
FWHM:
65° + 65°
FWTM:
80° + 79°
Peak intensity:
0.910 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
Tunable White
LED:
LinLED 156x28mm 400lm 8x0 2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM:
56°
FWTM:
75°
Peak intensity:
1.180 cd/lm
Efficiency:
90 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM:
65°
FWTM:
79°
Peak intensity:
0.892 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
64°
FWTM:
79°
Peak intensity:
0.890 cd/lm
Efficiency:
87 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
65° + 65°
FWTM:
80° + 79°
Peak intensity:
0.905 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM:
65° + 65°
FWTM:
80° + 79°
Peak intensity:
0.907 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17528_DAISY-4X1-SHD-MET
FWHM:
64° + 64°
FWTM:
79° + 78°
Peak intensity:
0.935 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17537_DAISY-28X1-SHD-MET-MATT
FWHM:
65° + 64°
FWTM:
79° + 79°
Peak intensity:
0.919 cd/lm
Efficiency:
92 %
LEDs/each optic:
4
Light colour/type:
White

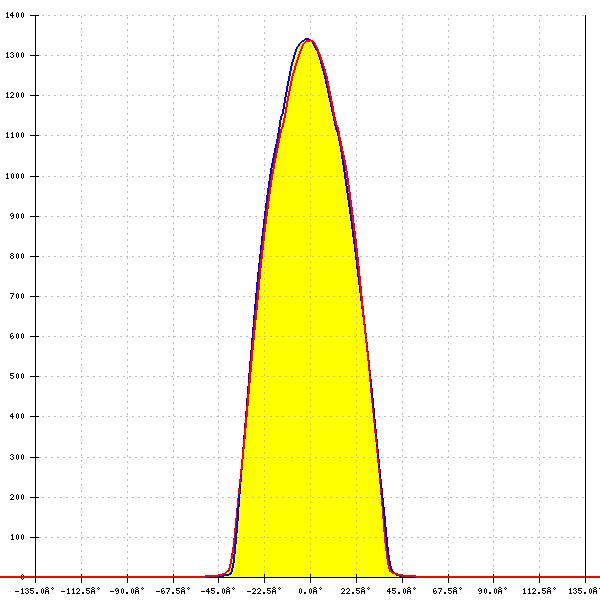

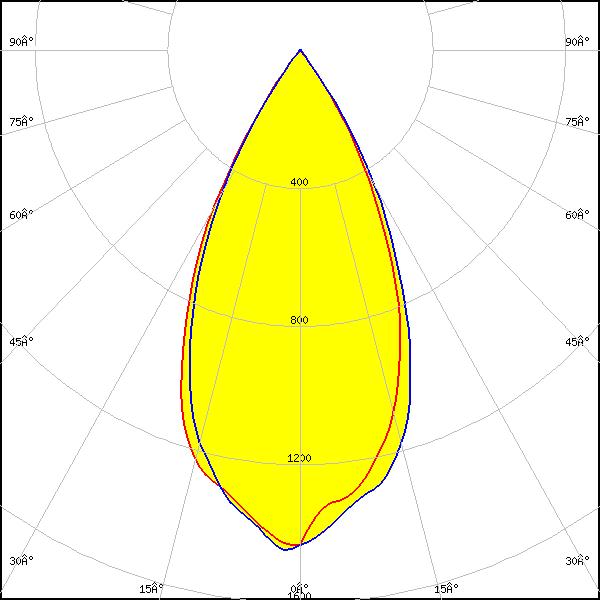

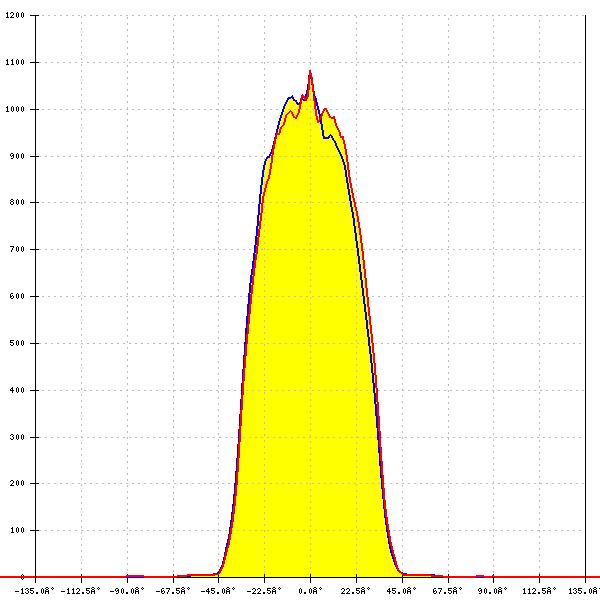

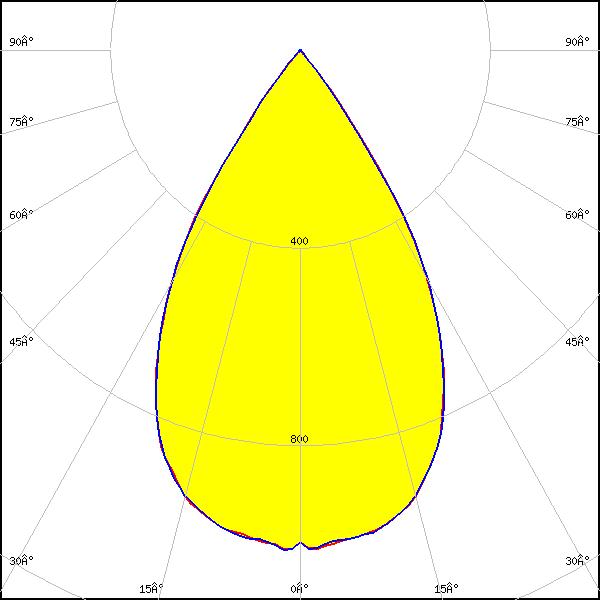

LED:
NF2W757G-MT (Tunable White)
Required components:
C16590_DAISY-4X1-SHD
FWHM:
62°
FWTM:
78°
Peak intensity:
1.019 cd/lm
Efficiency:
90 %
LEDs/each optic:
4
Light colour/type:
Tunable White

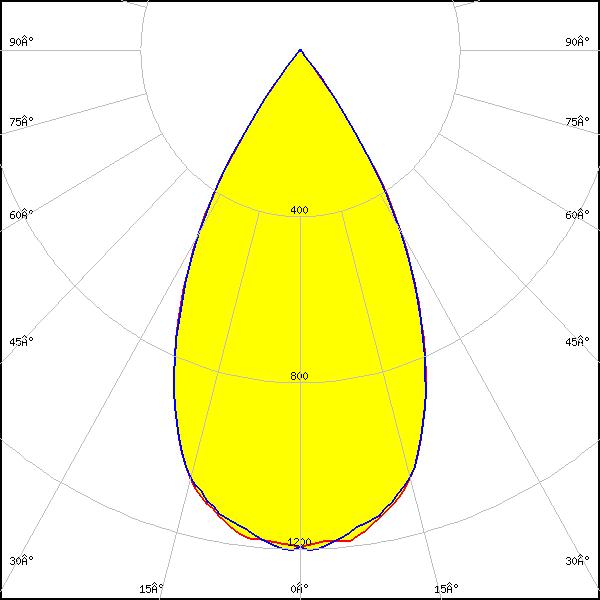

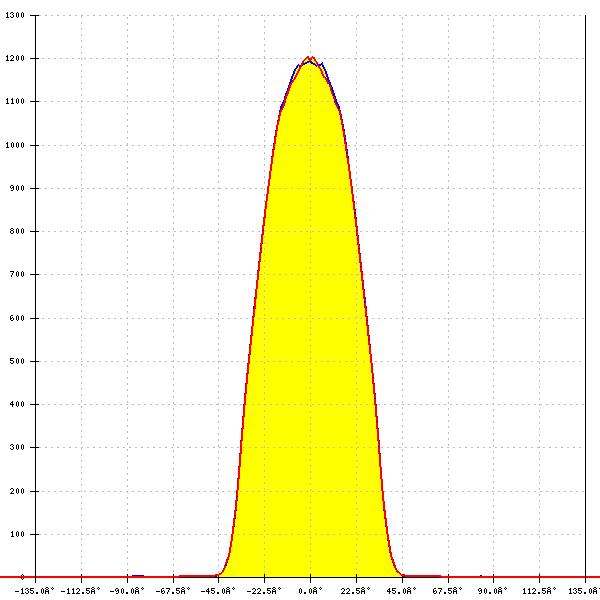

LED:
NF2W757G-MT (Tunable White)
Required components:
C16590_DAISY-4X1-SHD
FWHM:
56°
FWTM:
76°
Peak intensity:
1.212 cd/lm
Efficiency:
91 %
LEDs/each optic:
2
Light colour/type:
Tunable White

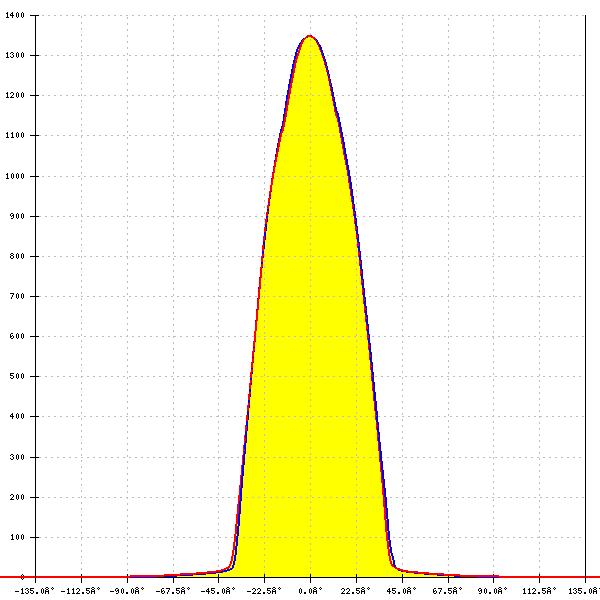

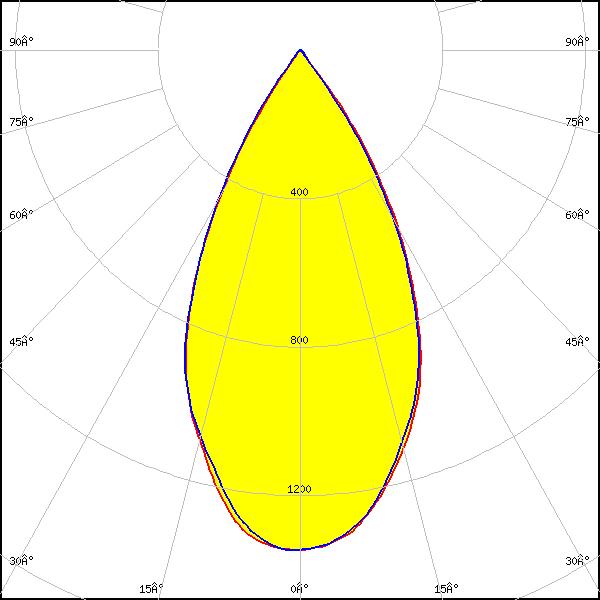

LED:
NF2W757G-MT (Tunable White)
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
53°
FWTM:
74°
Peak intensity:
1.349 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Tunable White

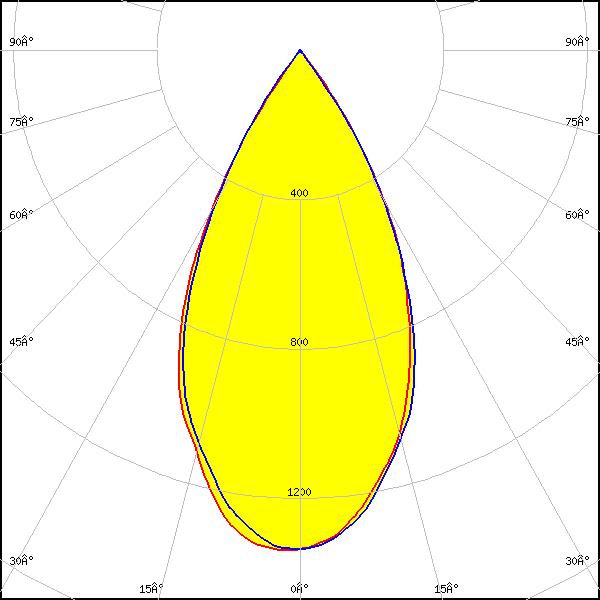

LED:
NF2W757G-MT (Tunable White)
Required components:
C16590_DAISY-4X1-SHD
FWHM:
53°
FWTM:
73°
Peak intensity:
1.339 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Tunable White

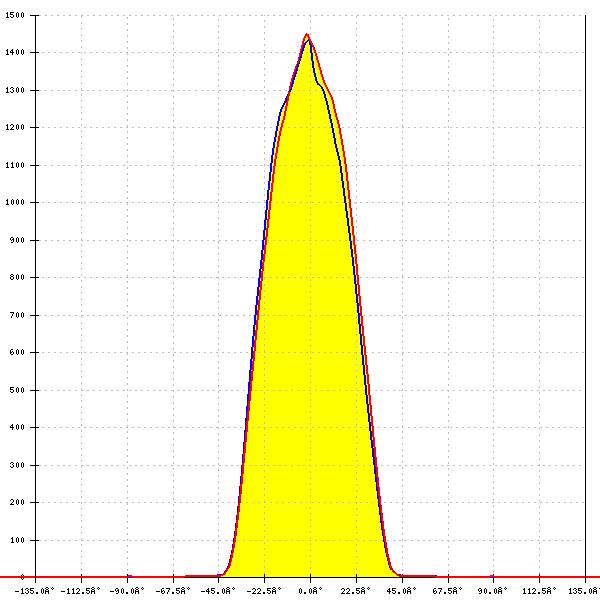

LED:
NF2x757G
Required components:
C16590_DAISY-4X1-SHD
FWHM:
50°
FWTM:
72°
Peak intensity:
1.464 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

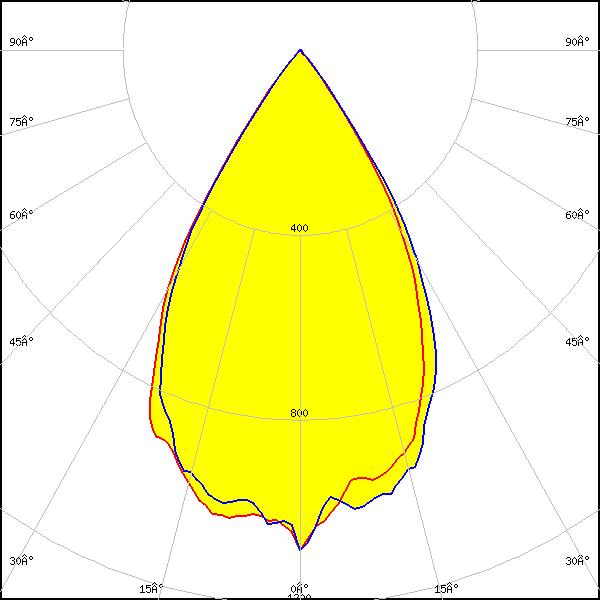

LED:
NF2x757G
Required components:
C16590_DAISY-4X1-SHD
FWHM:
60°
FWTM:
77°
Peak intensity:
1.117 cd/lm
Efficiency:
90 %
LEDs/each optic:
4
Light colour/type:
White

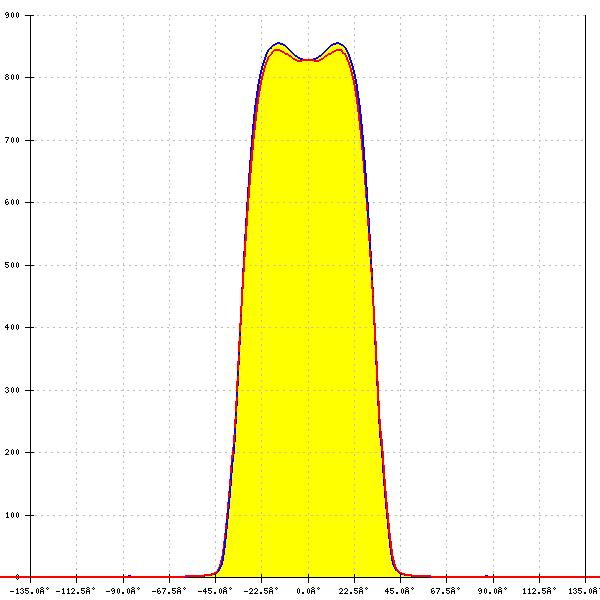

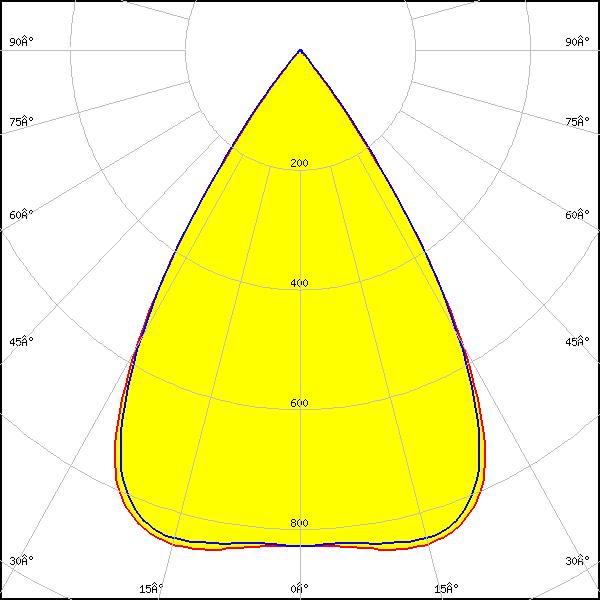

LED:
PL-LIN-1000 140x24mm
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
65°
FWTM:
78°
Peak intensity:
0.863 cd/lm
Efficiency:
87 %
LEDs/each optic:
4
Light colour/type:
White

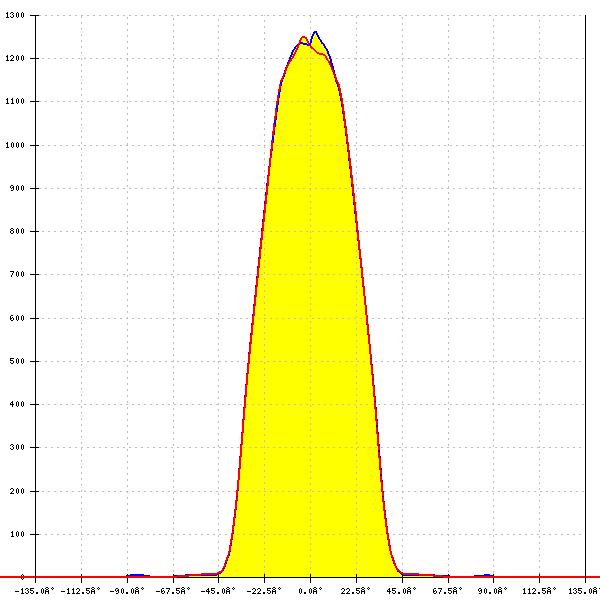

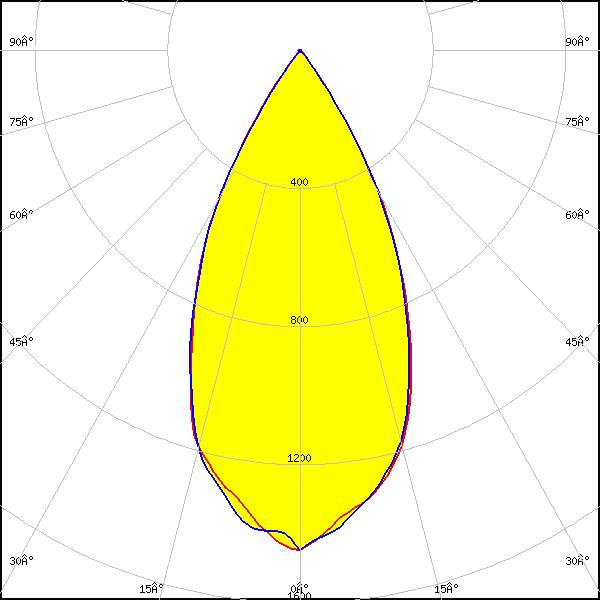

LED:
Duris E 2835
Required components:
C16590_DAISY-4X1-SHD
FWHM:
50°
FWTM:
72°
Peak intensity:
1.453 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

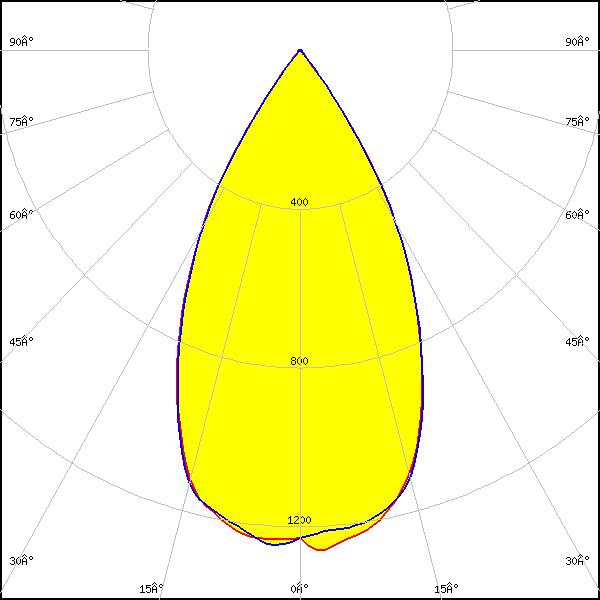

LED:
Duris E 2835
Required components:
C16590_DAISY-4X1-SHD
FWHM:
54°
FWTM:
76°
Peak intensity:
1.274 cd/lm
Efficiency:
94 %
LEDs/each optic:
2
Light colour/type:
White

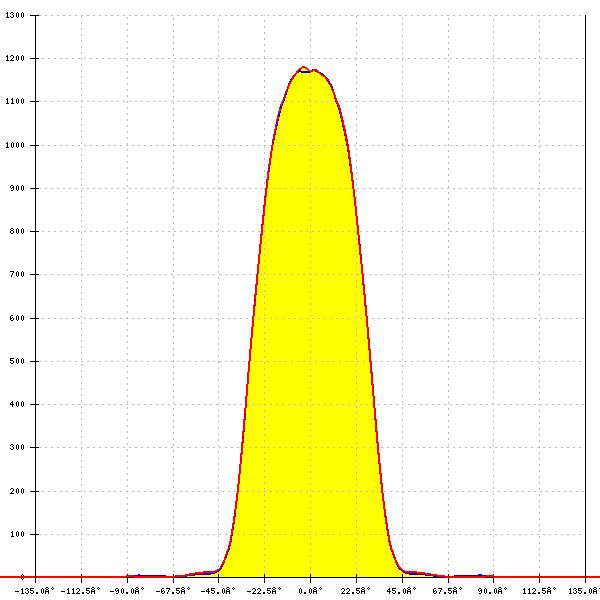

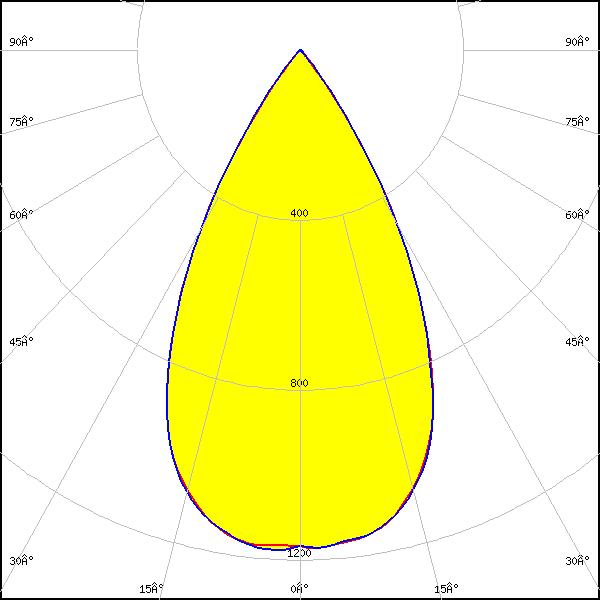

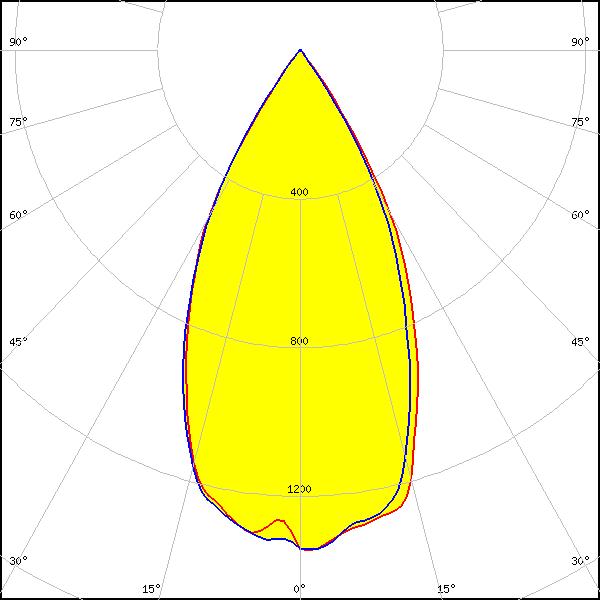

LED:
Duris S8
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
56°
FWTM:
76°
Peak intensity:
1.189 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
Required components:
C16590_DAISY-4X1-SHD
FWHM:
52°
FWTM:
73°
Peak intensity:
1.390 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

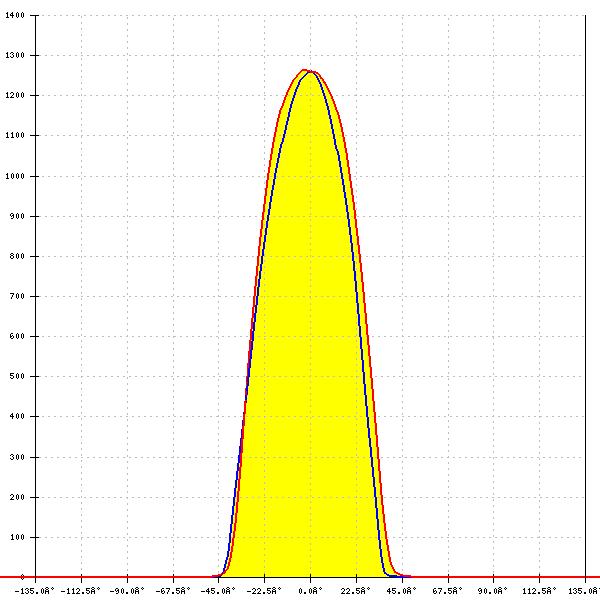

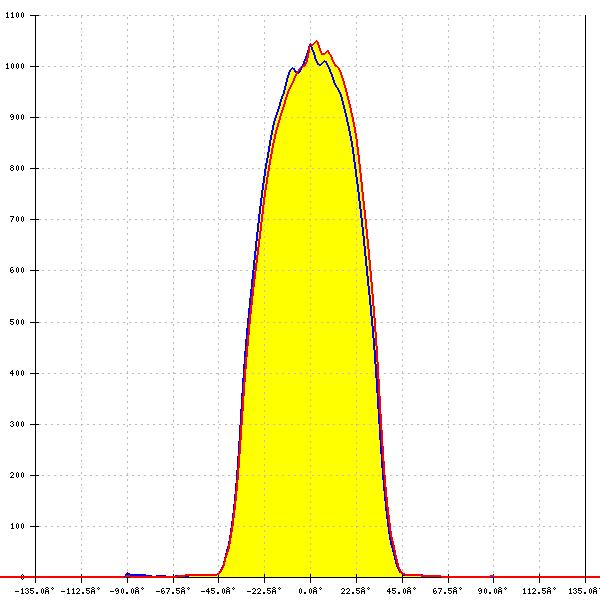

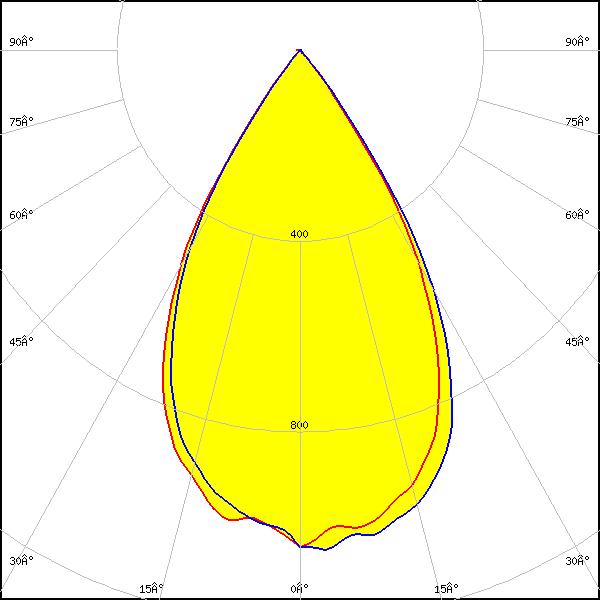

LED:
LM28xB Series
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
60°
FWTM:
77°
Peak intensity:
1.050 cd/lm
Efficiency:
89 %
LEDs/each optic:
4
Light colour/type:
White

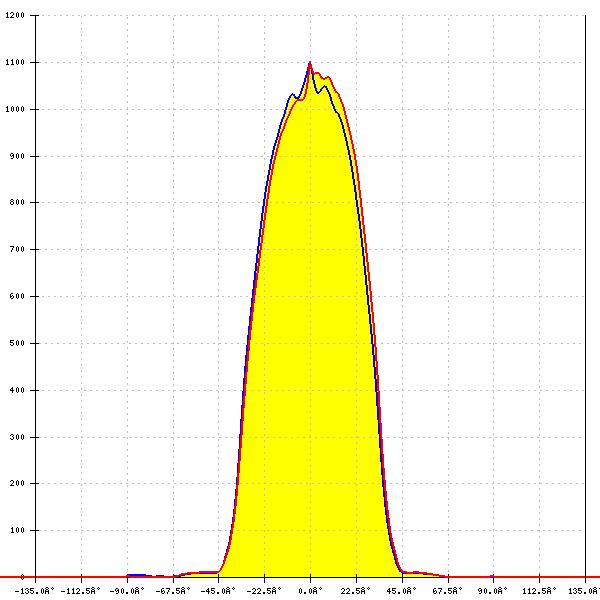

LED:
LM28xB Series
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM:
60°
FWTM:
77°
Peak intensity:
1.102 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White

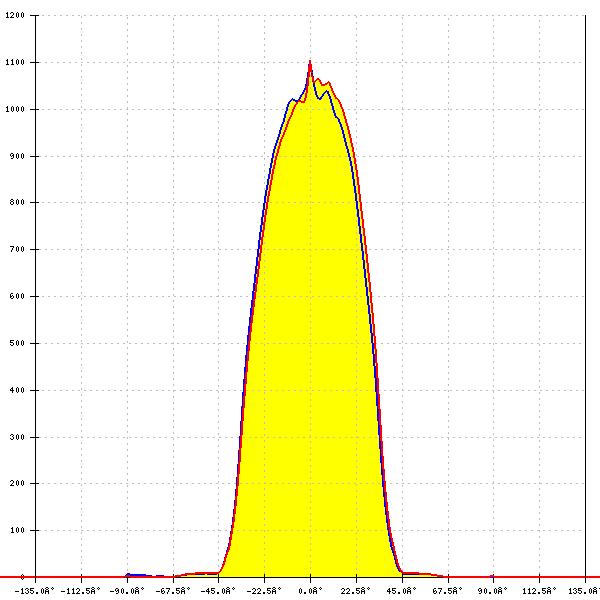

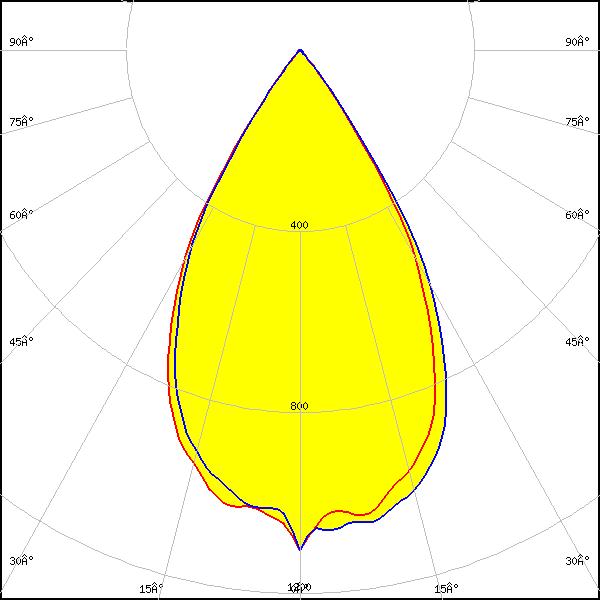

LED:
LM28xB Series
Required components:
C18411_DAISY-4X1-SHD2-MET-MATT
FWHM:
59°
FWTM:
77°
Peak intensity:
1.105 cd/lm
Efficiency:
92 %
LEDs/each optic:
4
Light colour/type:
White

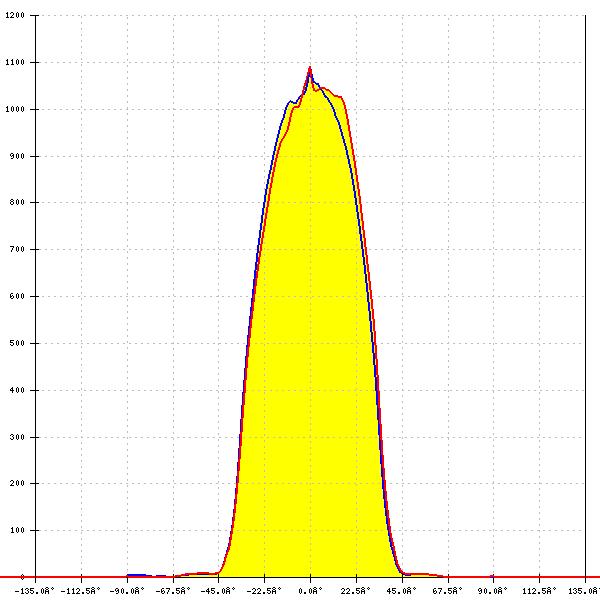

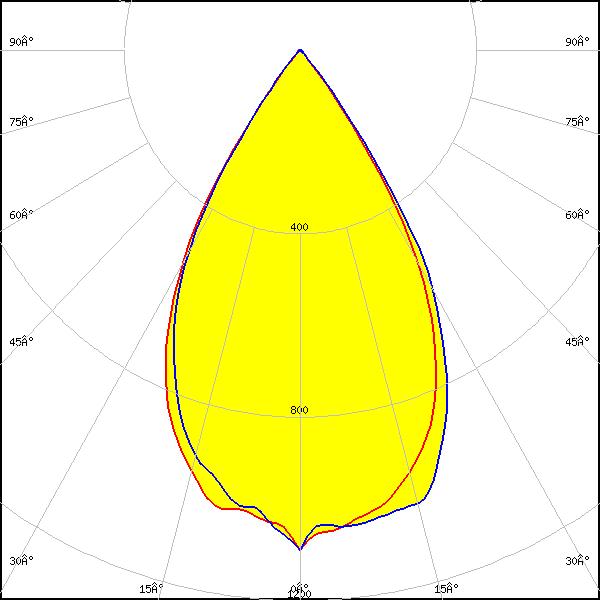

LED:
LM28xB Series
Required components:
C18412_DAISY-4X1-SHD2-MET
FWHM:
60°
FWTM:
77°
Peak intensity:
1.093 cd/lm
Efficiency:
92 %
LEDs/each optic:
4
Light colour/type:
White

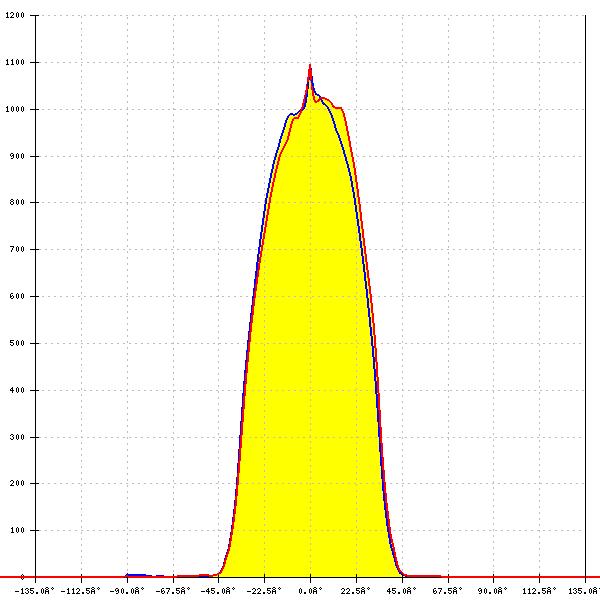

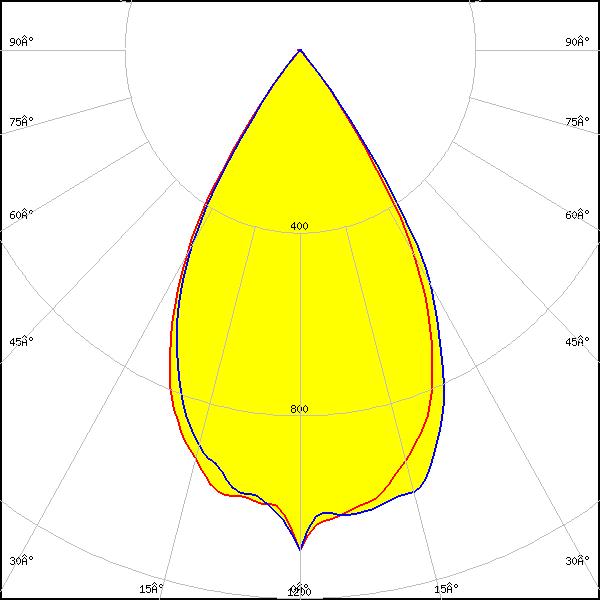

LED:
LM28xB Series
Required components:
C19075_DAISY-4X1-SHD2
FWHM:
59°
FWTM:
77°
Peak intensity:
1.095 cd/lm
Efficiency:
89 %
LEDs/each optic:
4
Light colour/type:
White

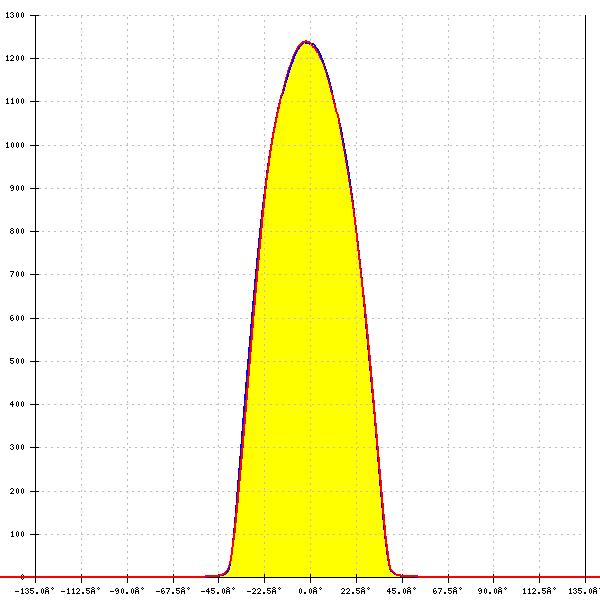

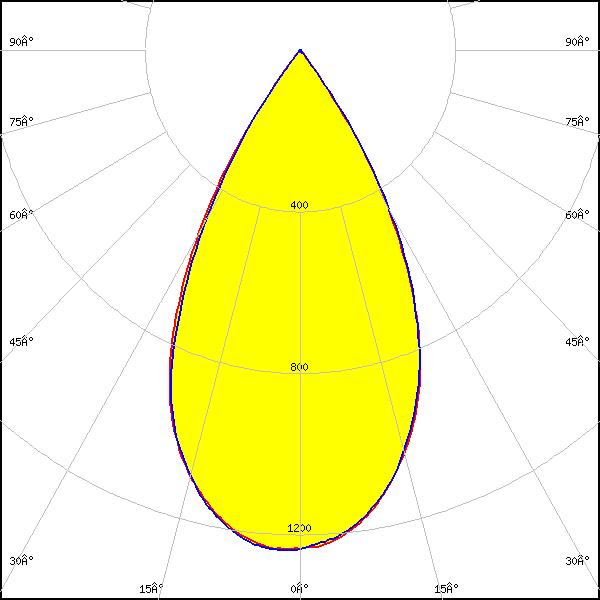

LED:
LM28xB Series
Required components:
C16590_DAISY-4X1-SHD
FWHM:
55°
FWTM:
73°
Peak intensity:
1.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
2
Light colour/type:
White

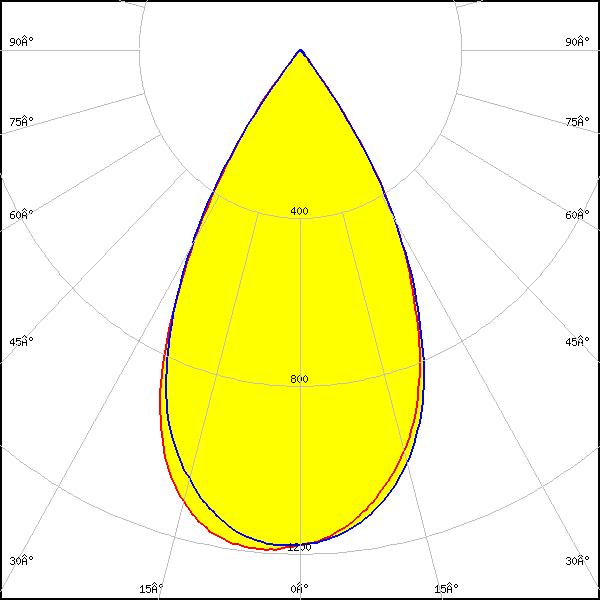

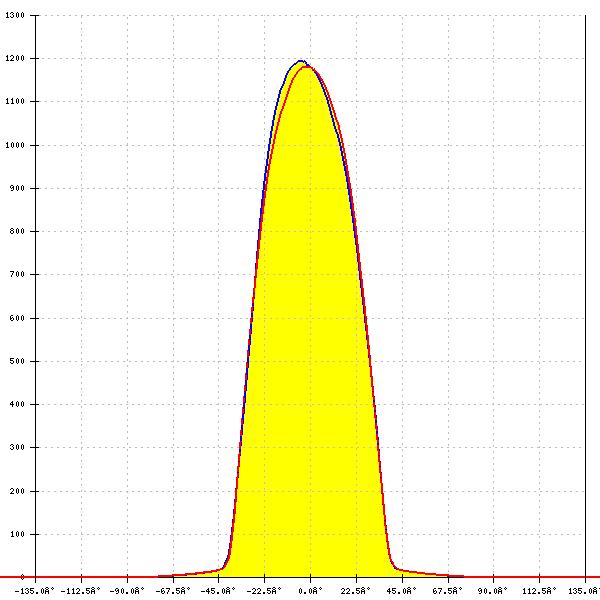

LED:
LM28xB Series
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
56°
FWTM:
75°
Peak intensity:
1.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
2
Light colour/type:
White

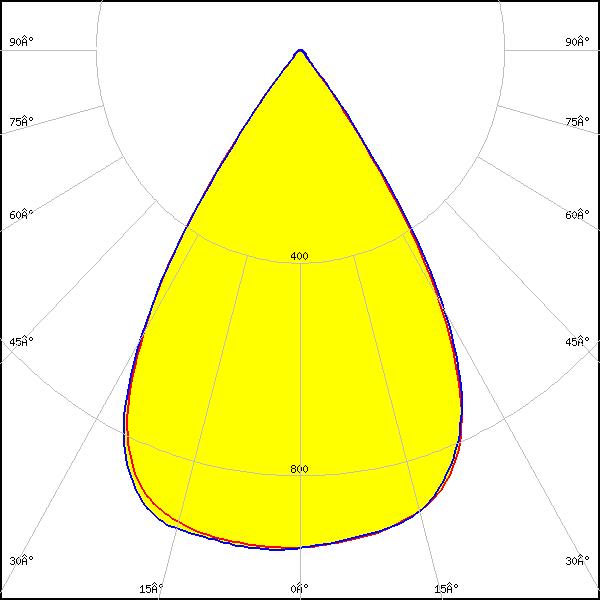

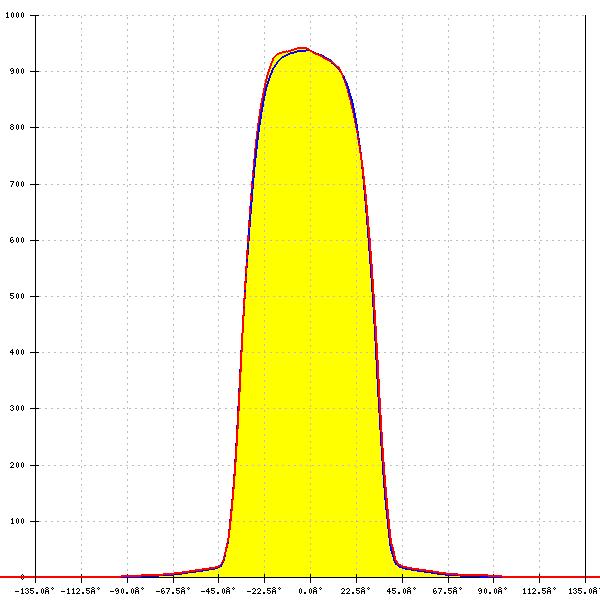

LED:
LM28xB Series
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
64°
FWTM:
78°
Peak intensity:
0.940 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

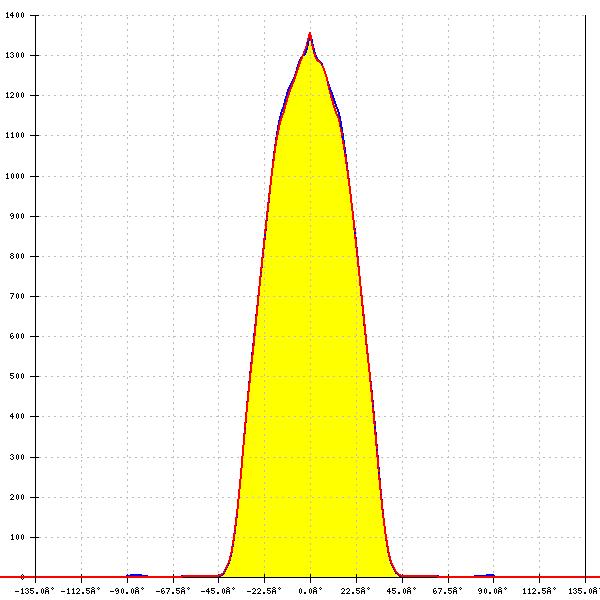

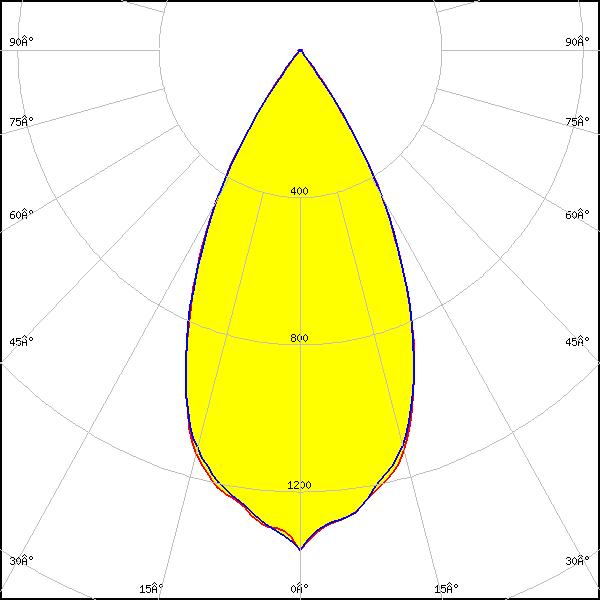

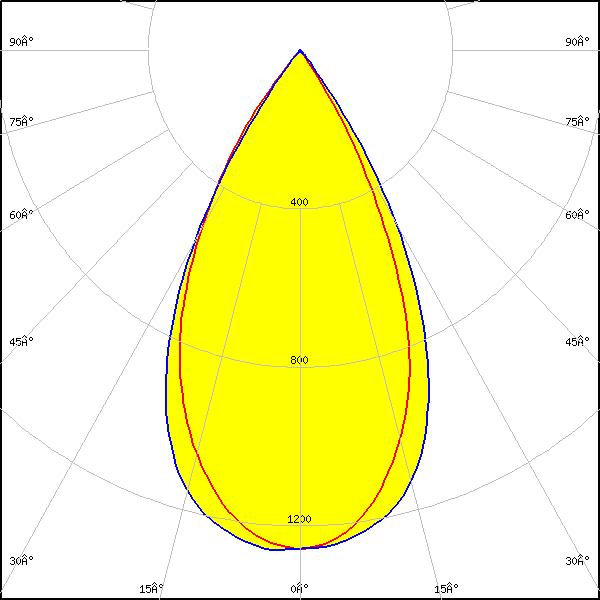

LED:
LM28xB Series
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
54°
FWTM:
73°
Peak intensity:
1.264 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

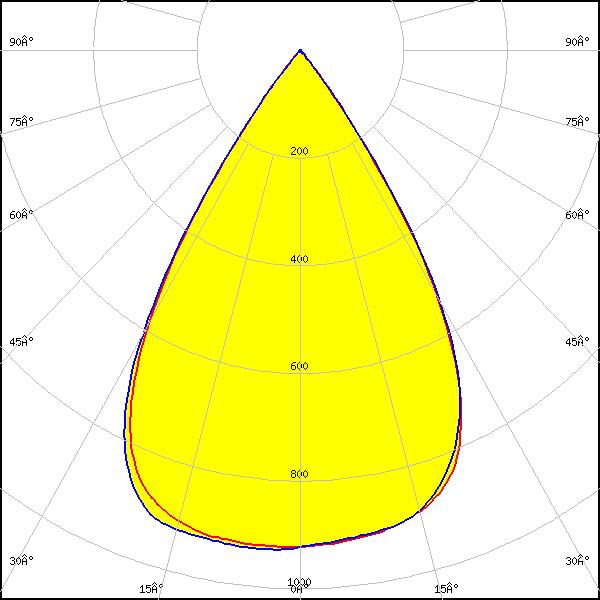

LED:
LM28xB Series
Required components:
C16590_DAISY-4X1-SHD
FWHM:
64°
FWTM:
77°
Peak intensity:
0.930 cd/lm
Efficiency:
89 %
LEDs/each optic:
4
Light colour/type:
White

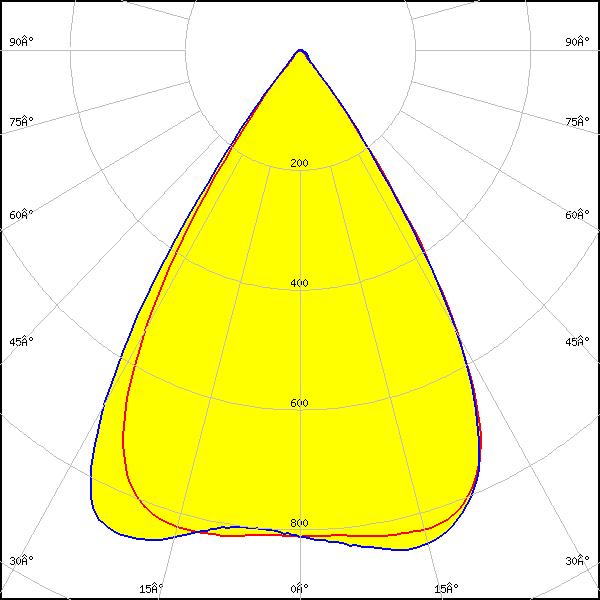

LED:
SEOUL DC 3030
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
66°
FWTM:
79°
Peak intensity:
0.886 cd/lm
Efficiency:
92 %
LEDs/each optic:
4
Light colour/type:
Tunable White

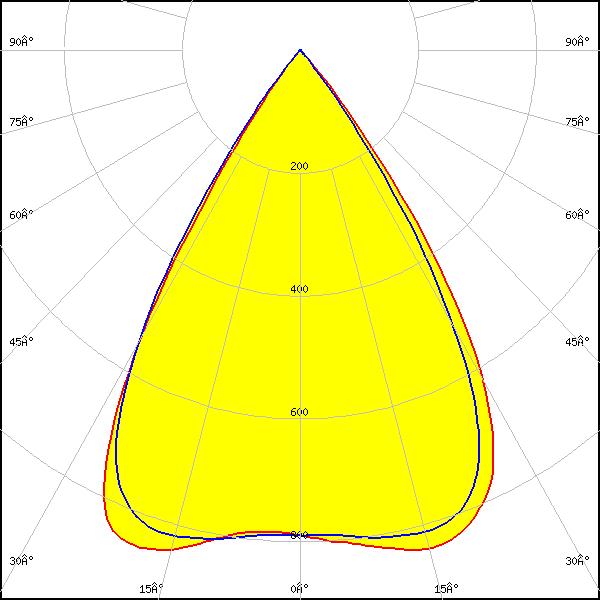

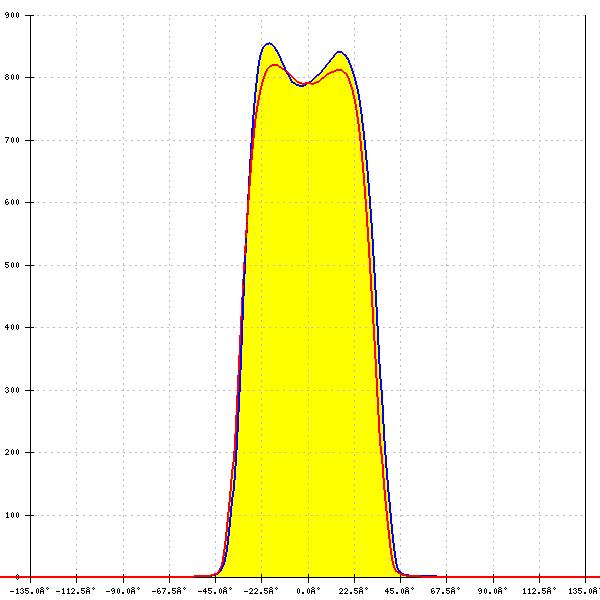

LED:
SEOUL DC 3030
Required components:
C16590_DAISY-4X1-SHD
FWHM:
65°
FWTM:
78°
Peak intensity:
0.873 cd/lm
Efficiency:
86 %
LEDs/each optic:
4
Light colour/type:
Tunable White

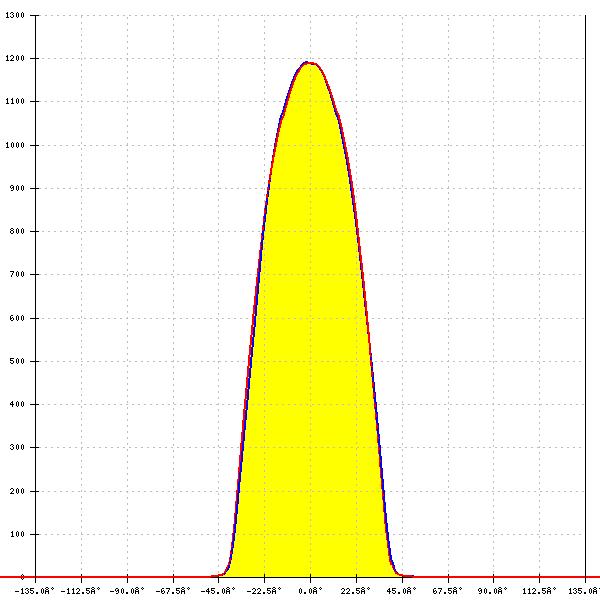

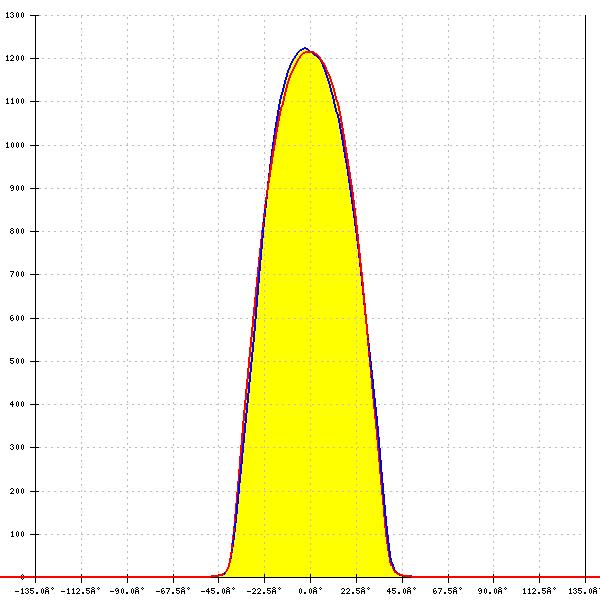

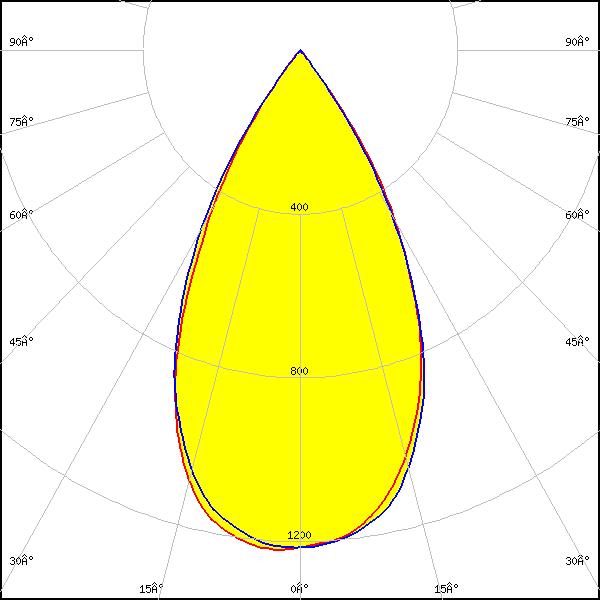

LED:
SEOUL DC 3528
Required components:
C16590_DAISY-4X1-SHD
FWHM:
54°
FWTM:
74°
Peak intensity:
1.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
2
Light colour/type:
White

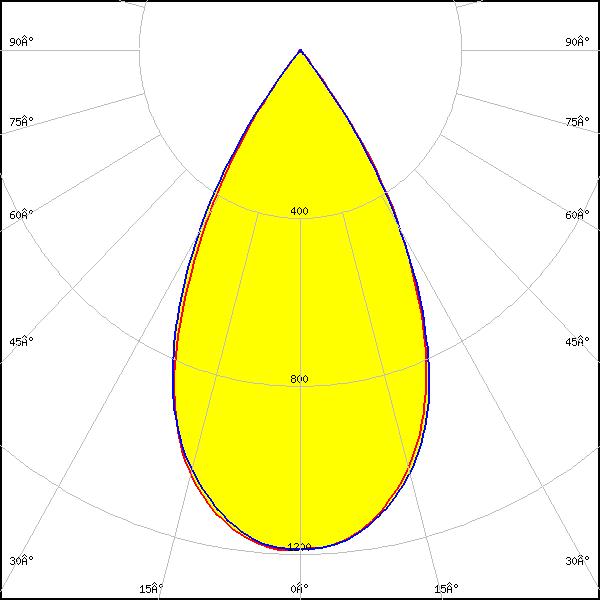

LED:
SEOUL DC 3528
Required components:
C16590_DAISY-4X1-SHD
FWHM:
56°
FWTM:
75°
Peak intensity:
1.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
2
Light colour/type:
White

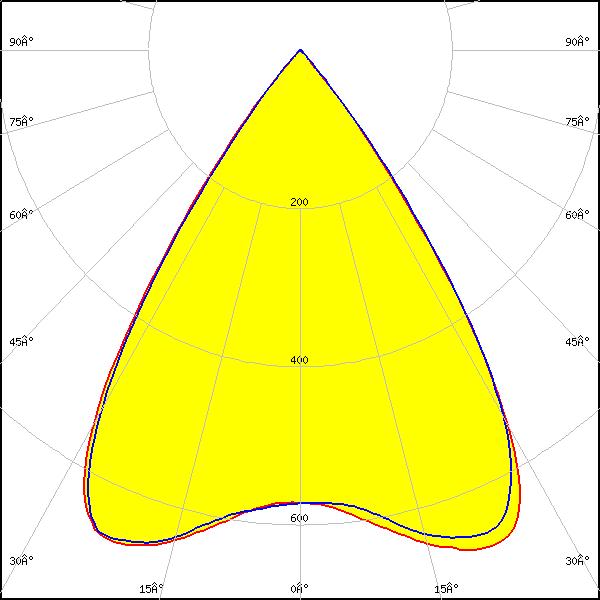

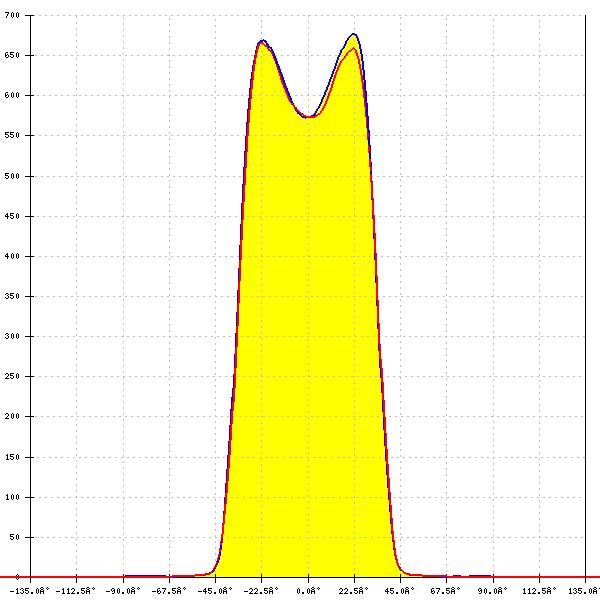

LED:
PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C16590_DAISY-4X1-SHD
FWHM:
69°
FWTM:
81°
Peak intensity:
0.762 cd/lm
Efficiency:
82 %
LEDs/each optic:
4
Light colour/type:
White

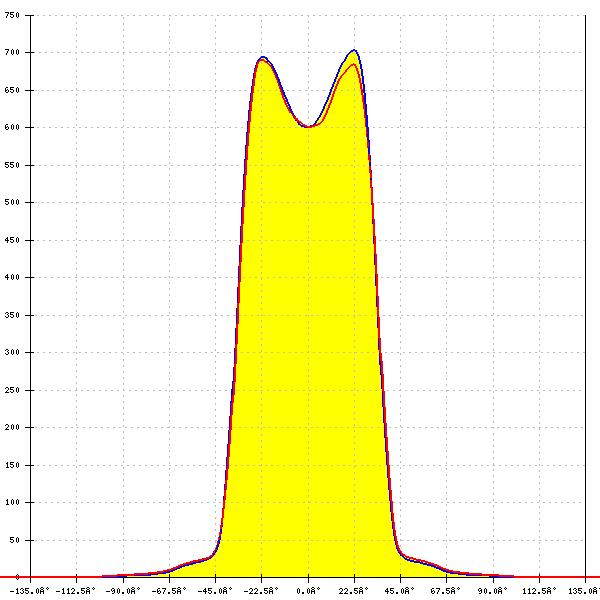

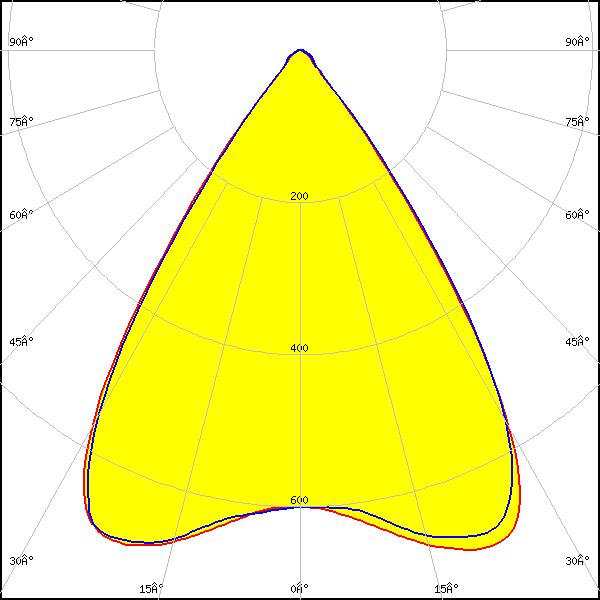

LED:
PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
69°
FWTM:
83°
Peak intensity:
0.787 cd/lm
Efficiency:
92 %
LEDs/each optic:
4
Light colour/type:
White

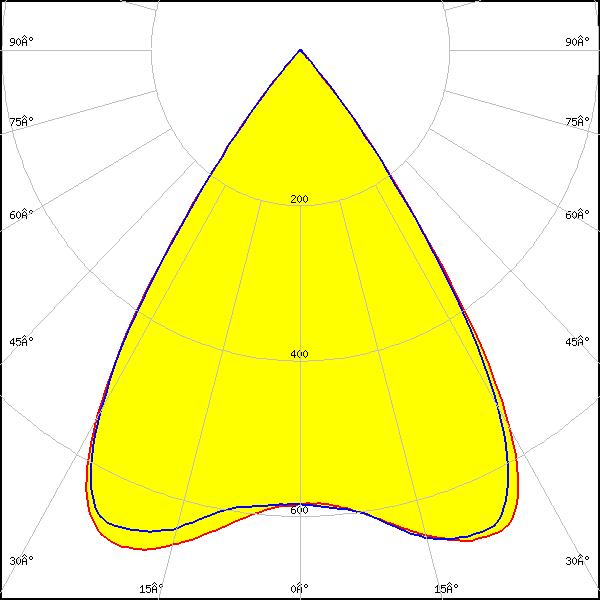

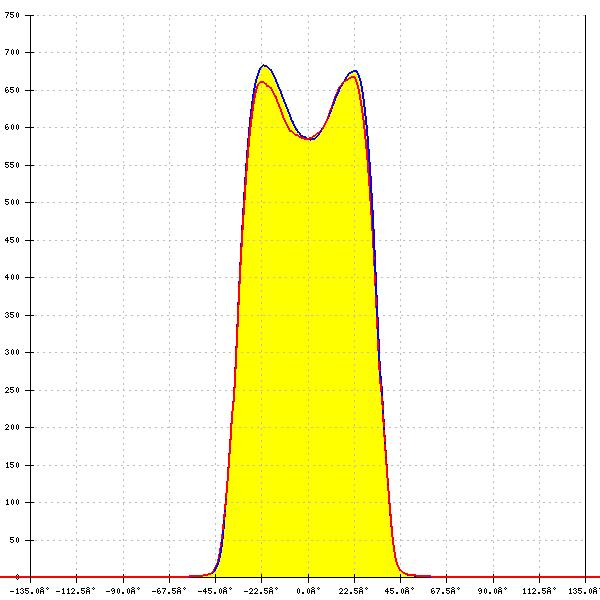

LED:
PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
69°
FWTM:
81°
Peak intensity:
0.768 cd/lm
Efficiency:
83 %
LEDs/each optic:
4
Light colour/type:
White

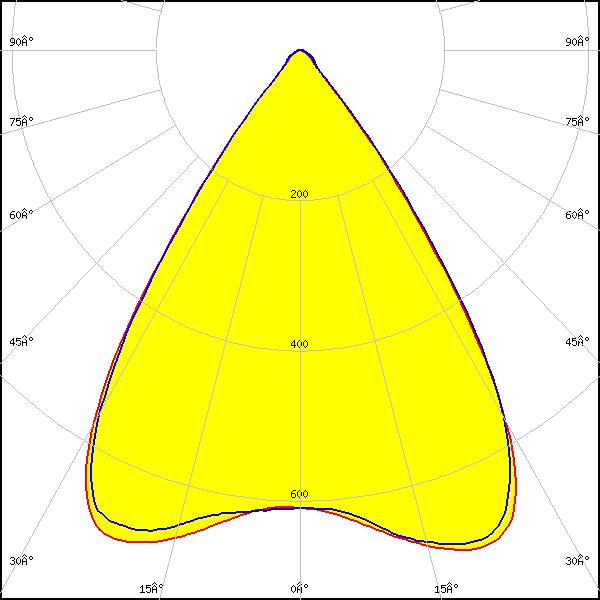

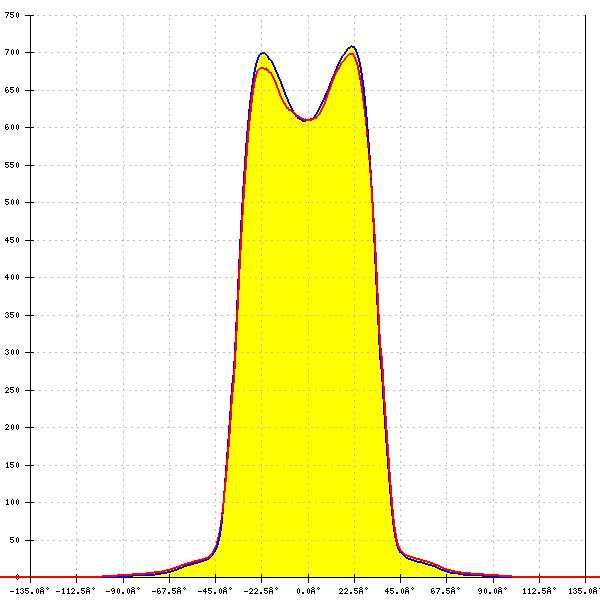

LED:
PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM:
69°
FWTM:
84°
Peak intensity:
0.785 cd/lm
Efficiency:
91 %
LEDs/each optic:
4
Light colour/type:
White

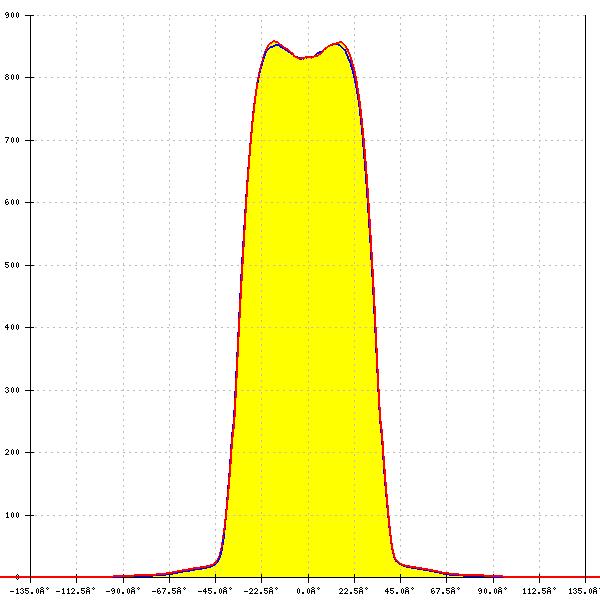

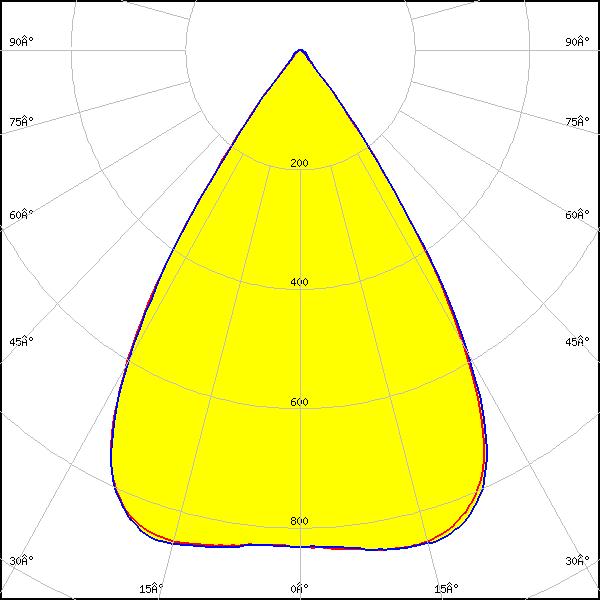

LED:
LLE 24x140mm 400lm 827-865 LVD ADV1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
66°
FWTM:
80°
Peak intensity:
0.870 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

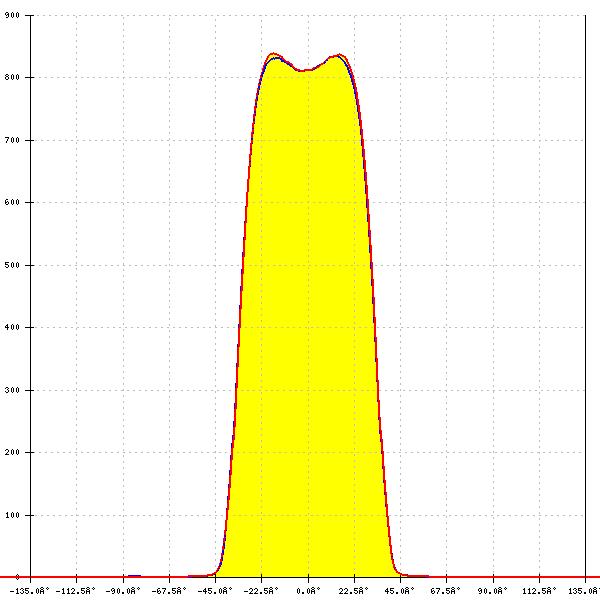

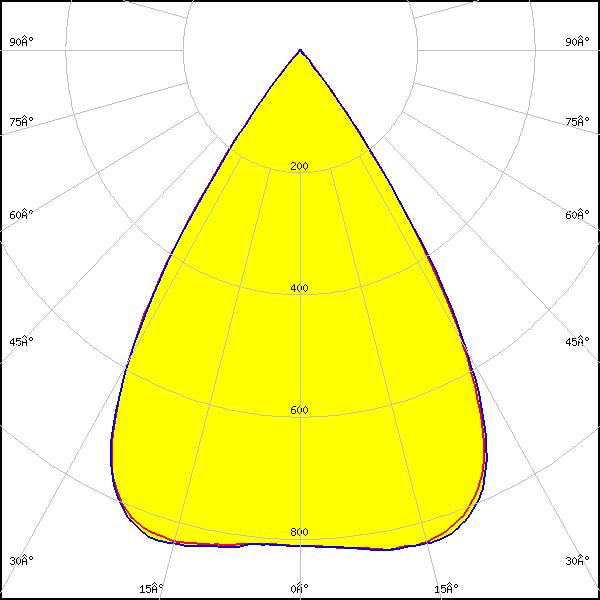

LED:
LLE 24x140mm 400lm 827-865 LVD ADV1
Required components:
C16590_DAISY-4X1-SHD
FWHM:
66°
FWTM:
79°
Peak intensity:
0.850 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White

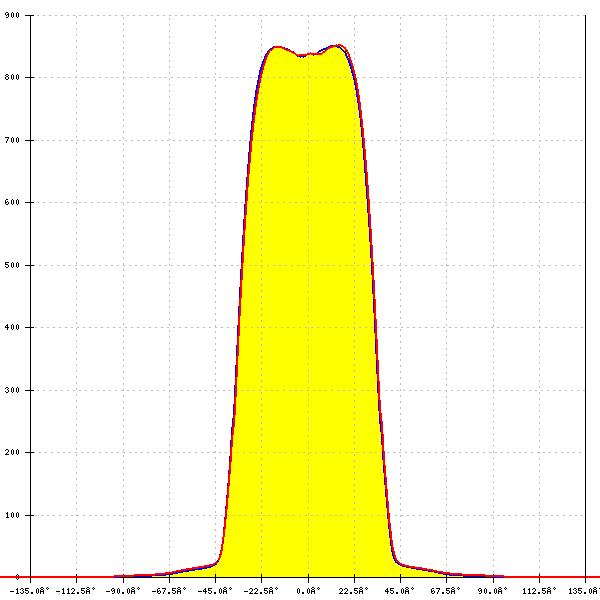

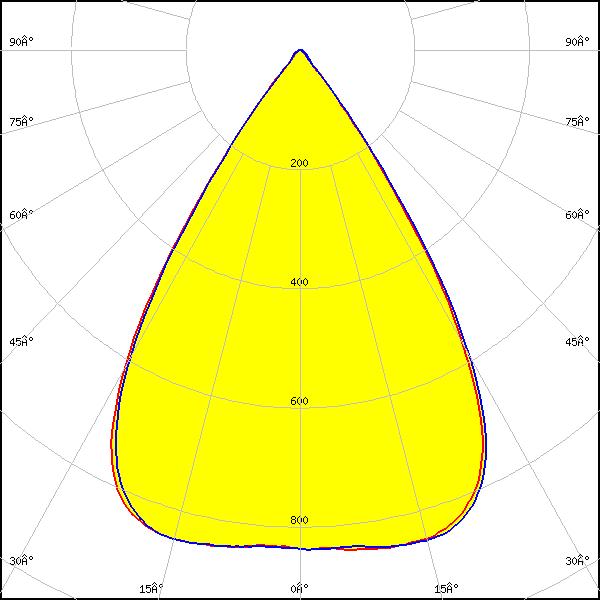

LED:
LLE 24x140mm 400lm 8x0 LVD ADV1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
66°
FWTM:
80°
Peak intensity:
0.866 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

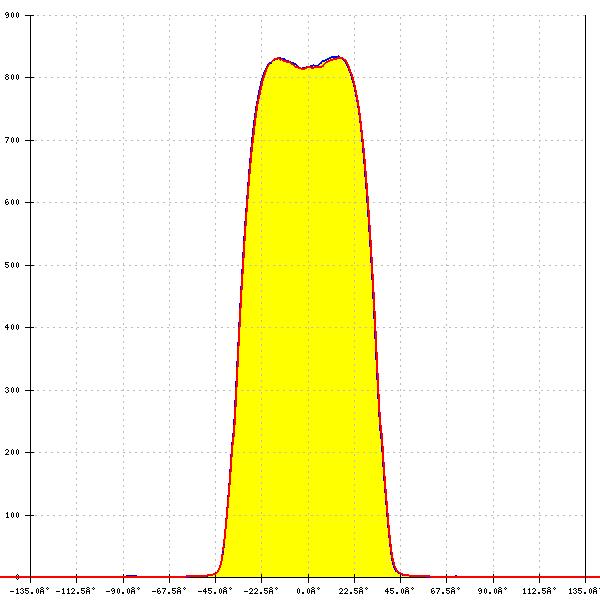

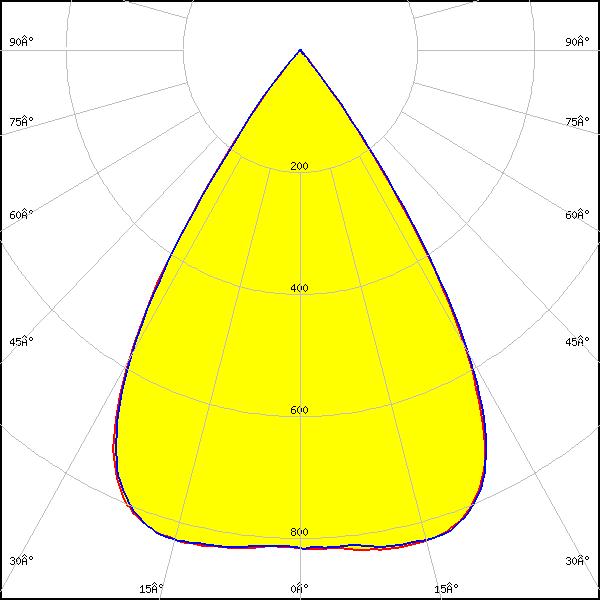

LED:
LLE 24x140mm 400lm 8x0 LVD ADV1
Required components:
C16590_DAISY-4X1-SHD
FWHM:
66°
FWTM:
79°
Peak intensity:
0.849 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
66°
FWTM:
80°
Peak intensity:
0.870 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16590_DAISY-4X1-SHD
FWHM:
66°
FWTM:
79°
Peak intensity:
0.850 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
