DAISY-4X1-WW
Print
~80° wide beam
This product consists of multiple parts that need to be ordered separately. See ordering information.

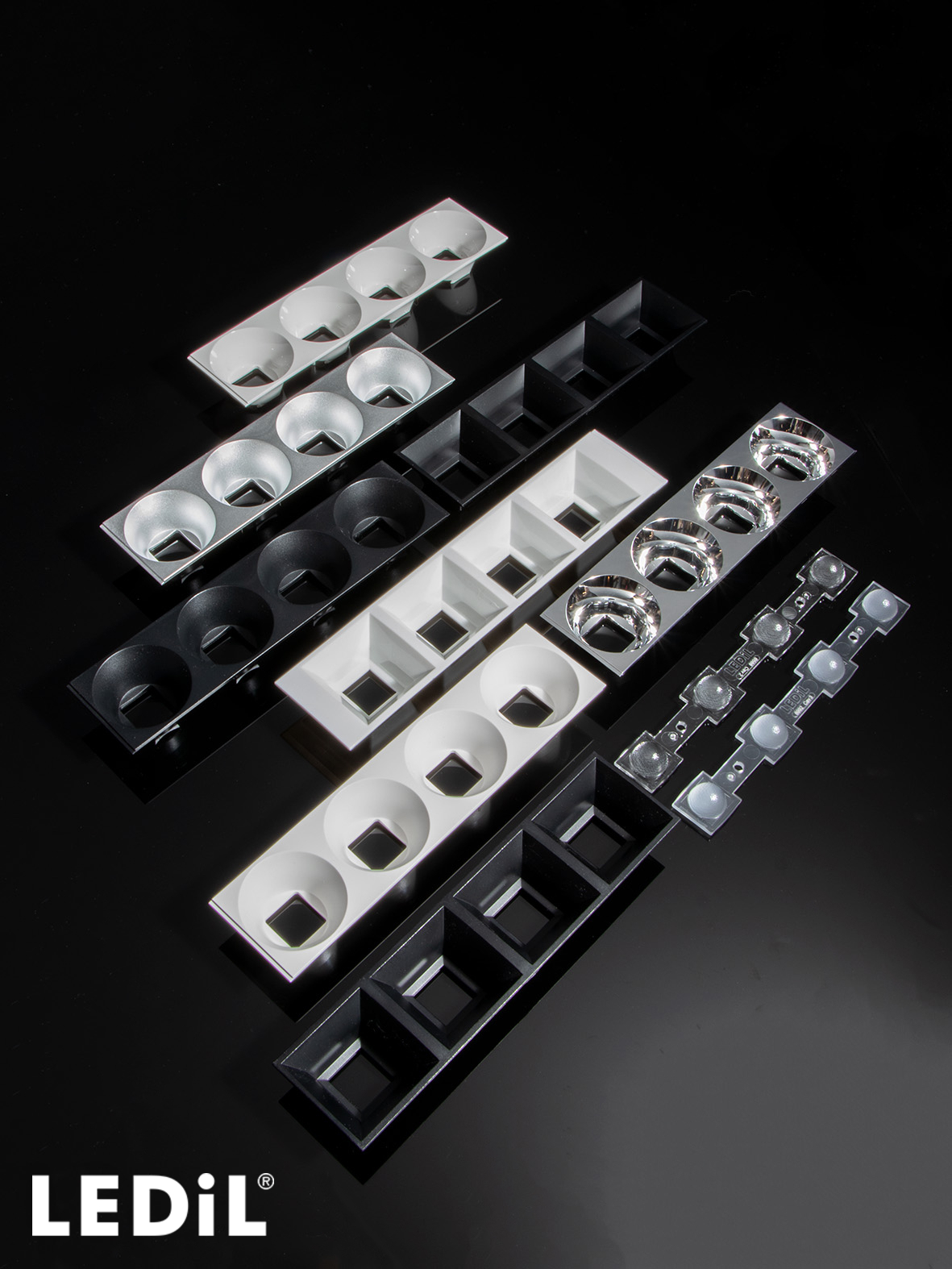

Materials
- Linear lens
- C16584_DAISY-4X1-WWPMMA
- Request material files from Tech Support
- Shade
- C16590_DAISY-4X1-SHDPC
- C16784_DAISY-4X1-SHD-WHTPC
- C17422_DAISY-4X1-SHD2-MATTPC
- C17423_DAISY-4X1-SHD2-WHT-MATTPC
- C18407_DAISY-4X1-SHD-METPC
- C18411_DAISY-4X1-SHD2-MET-MATTPC
- C18412_DAISY-4X1-SHD2-METPC
- C18414_DAISY-4X1-SHD-MET-MATTPC
- C19075_DAISY-4X1-SHD2PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
NOTE! See 2D mechanical drawings for SHD and SHD2 differences.
Related Content

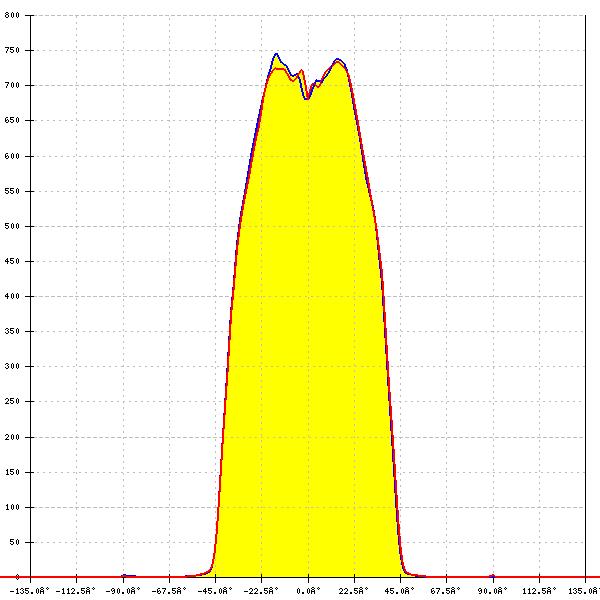

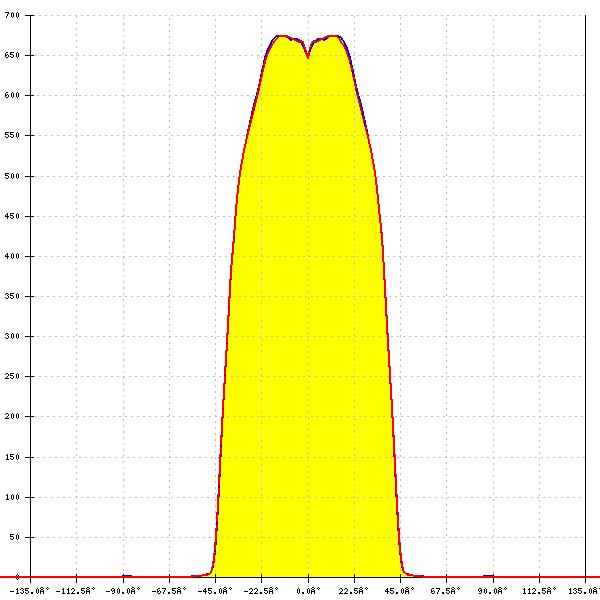

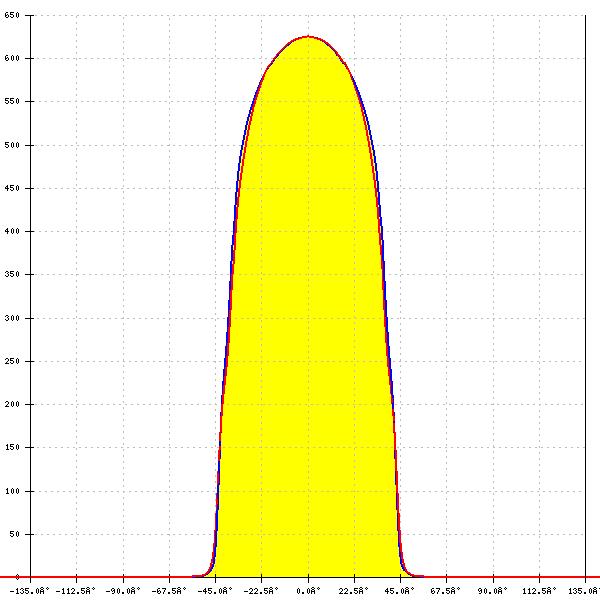

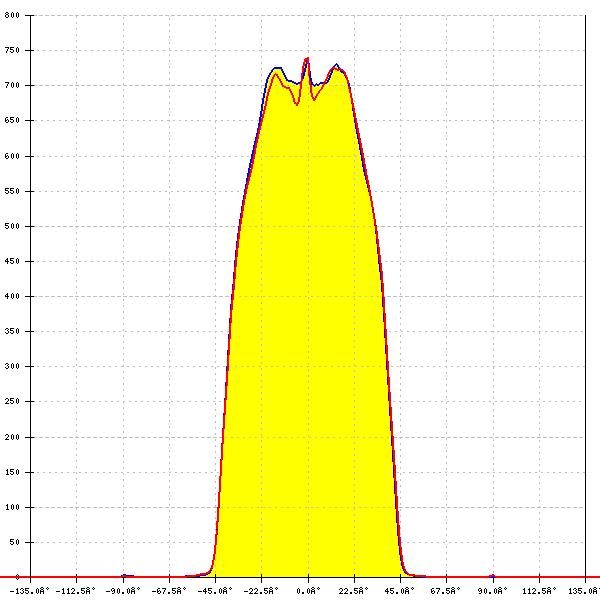

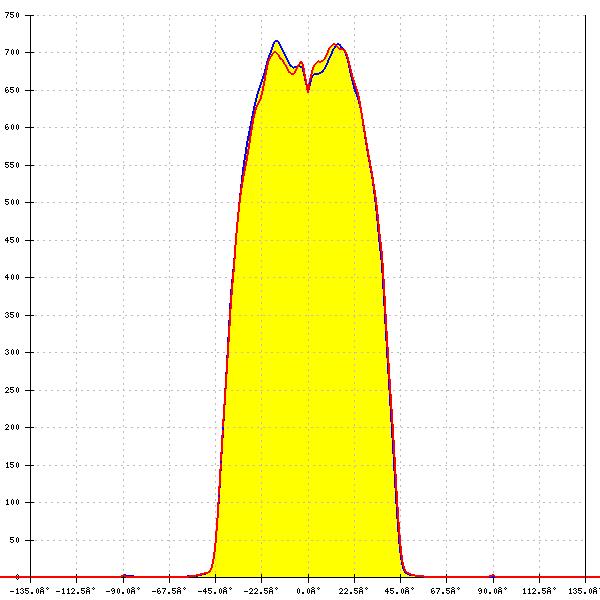

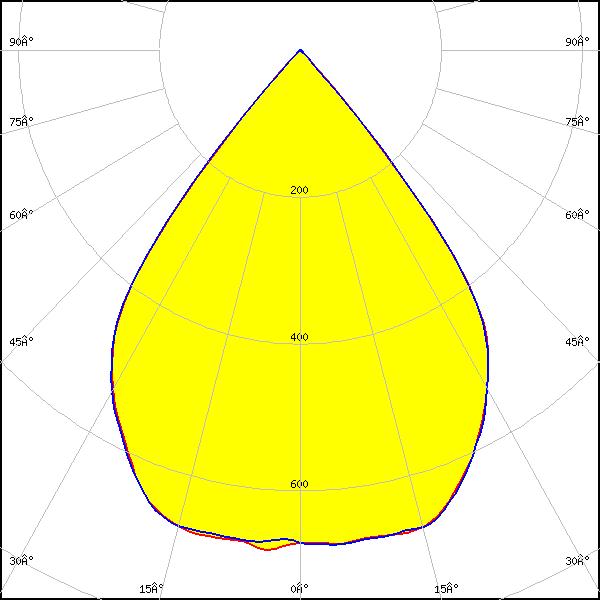

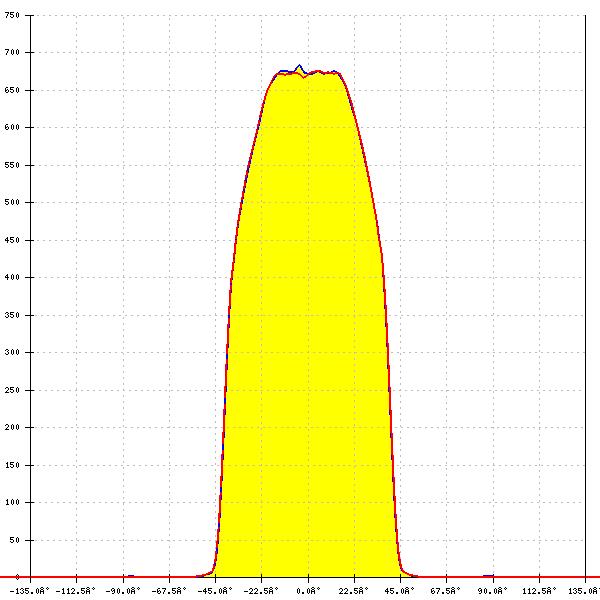

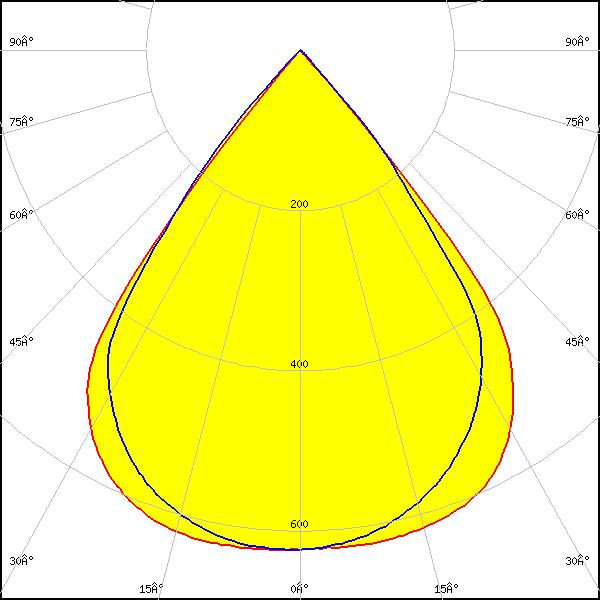

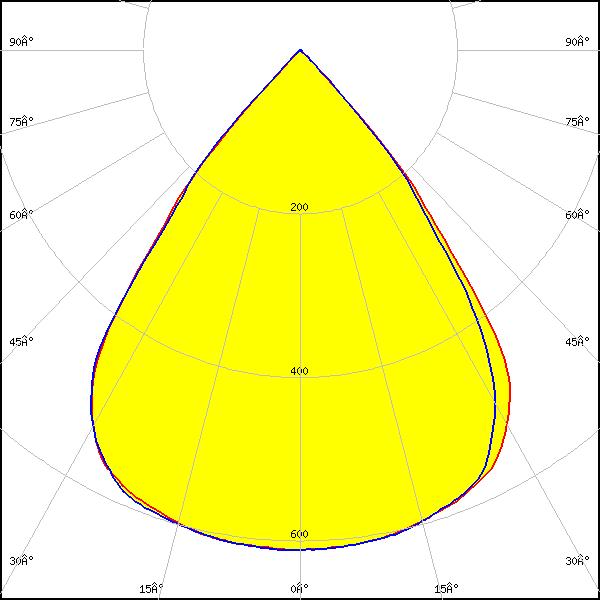

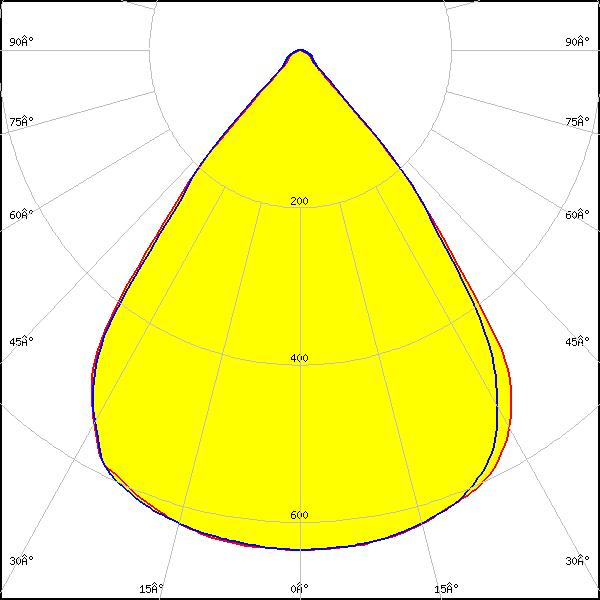

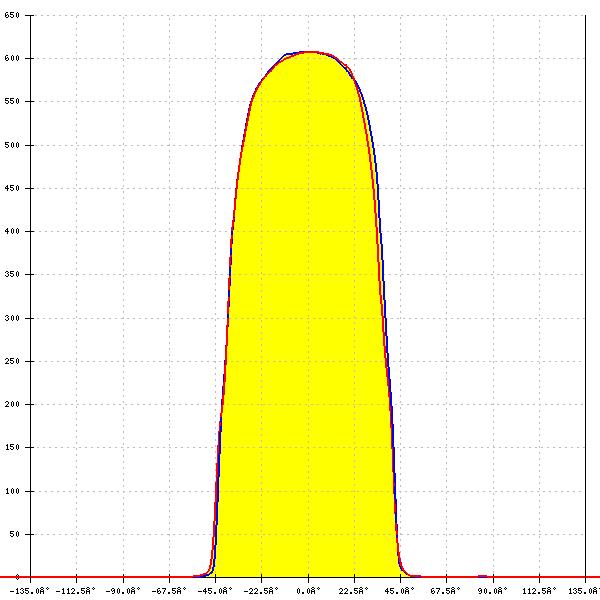

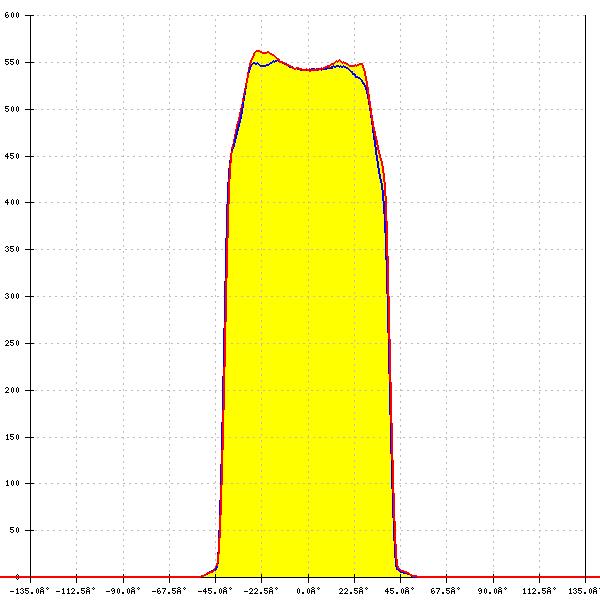

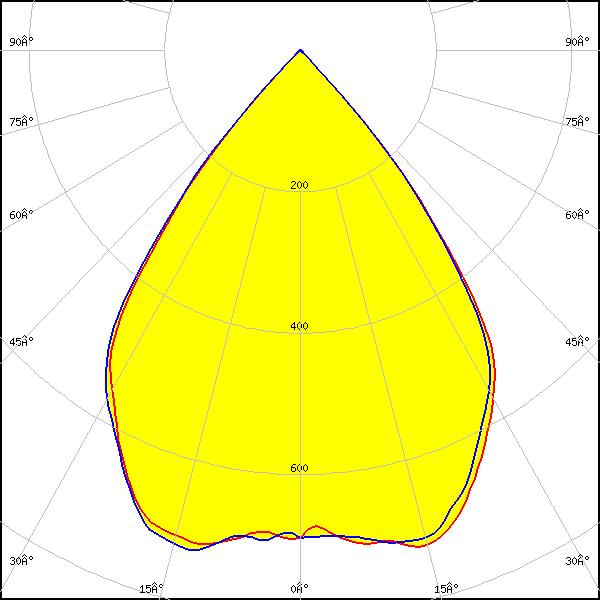

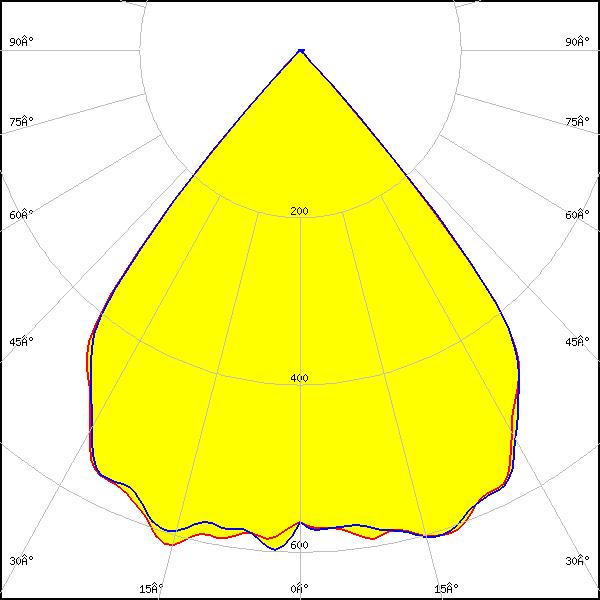

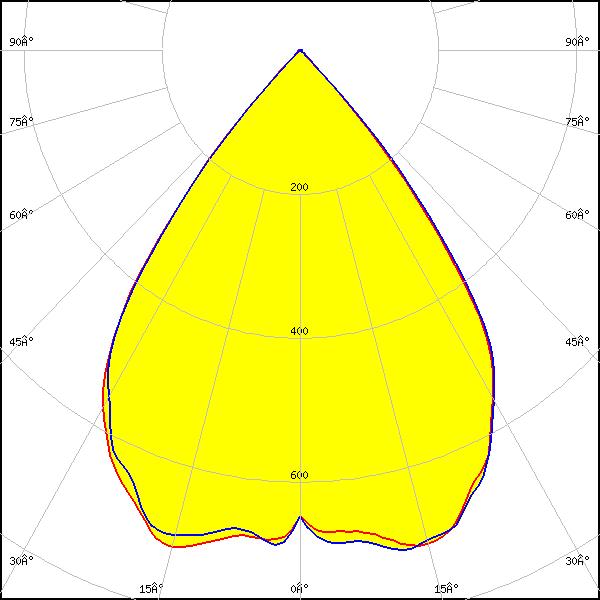

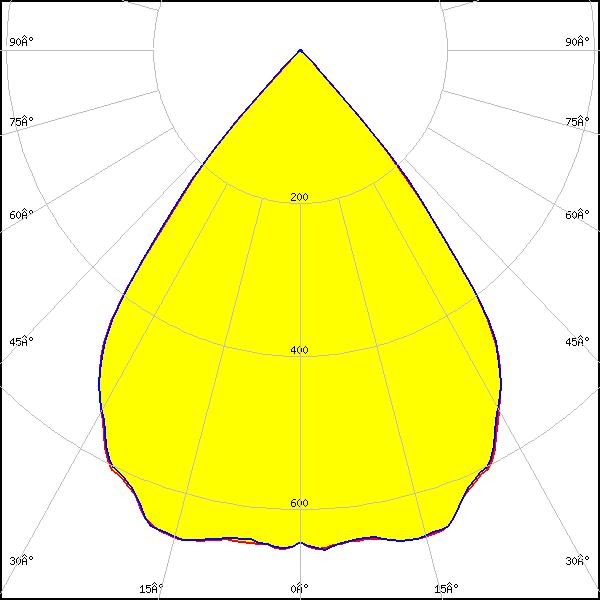

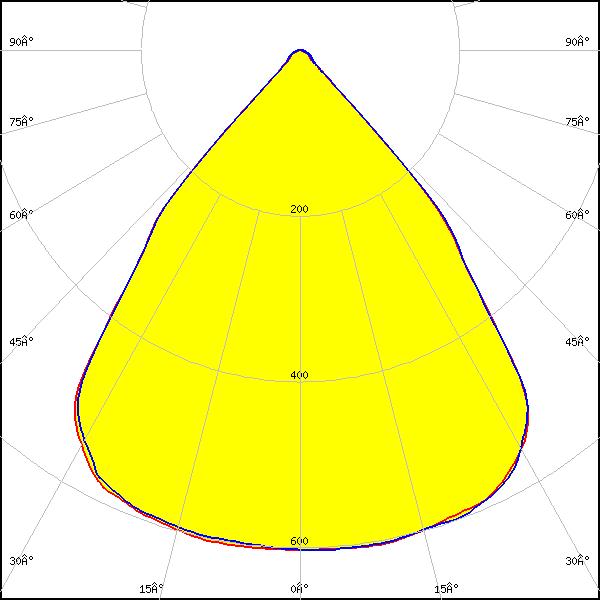

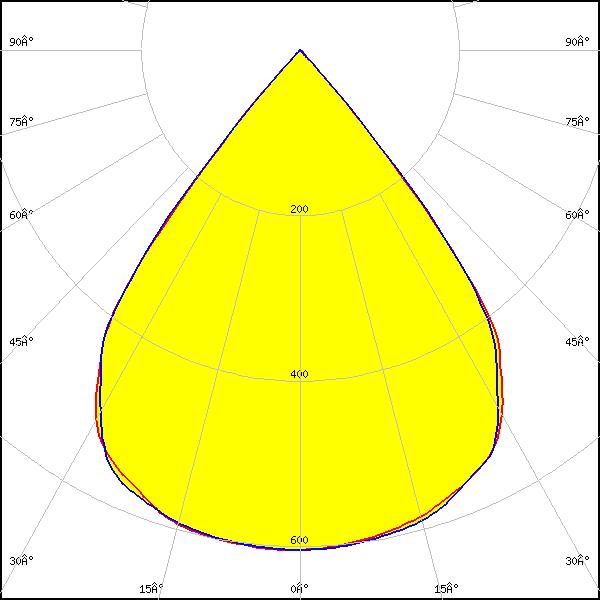

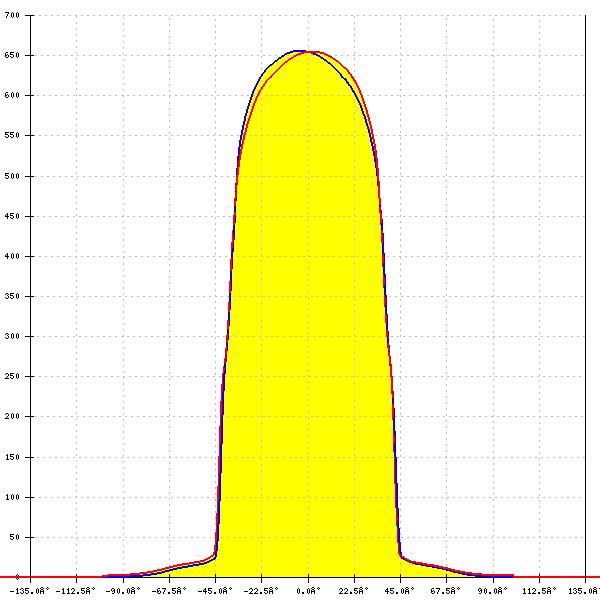

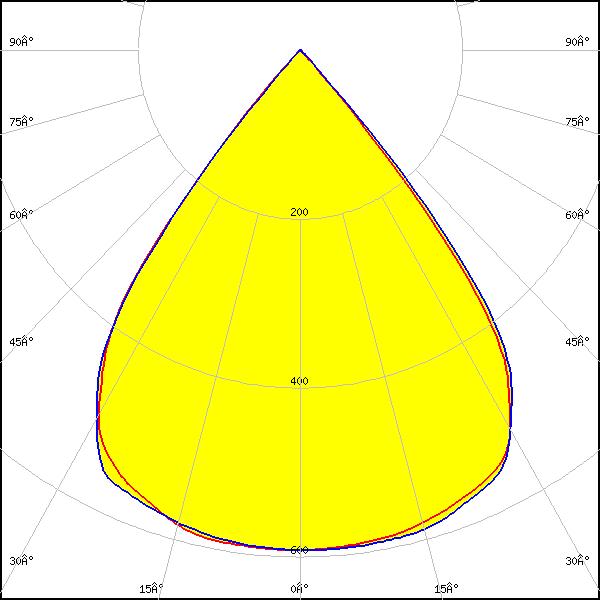

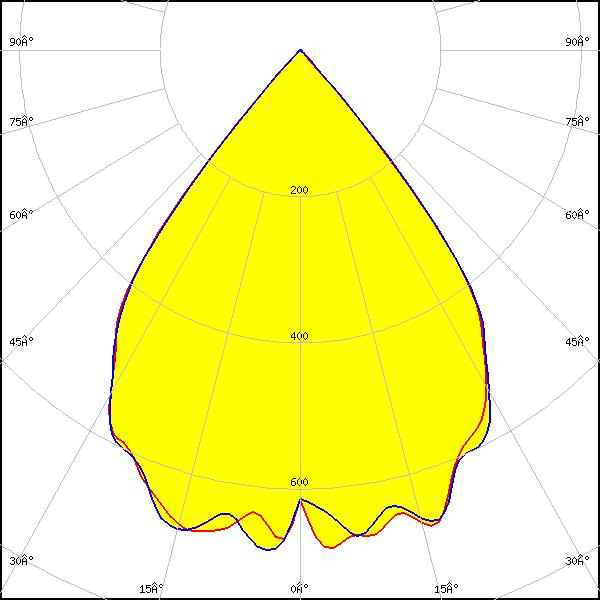

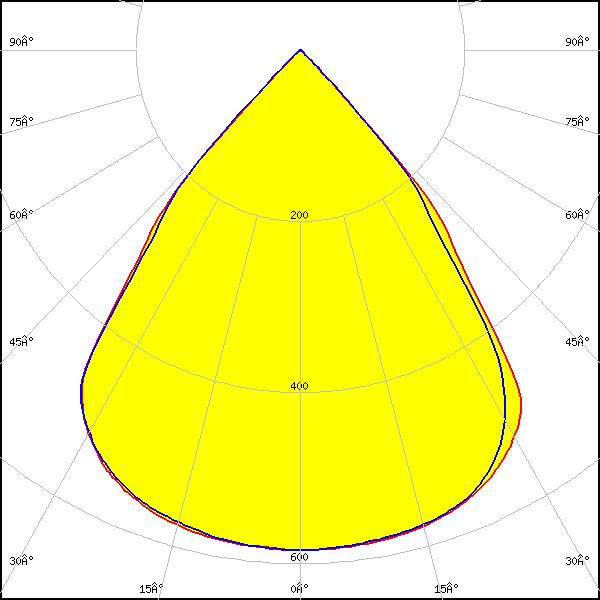

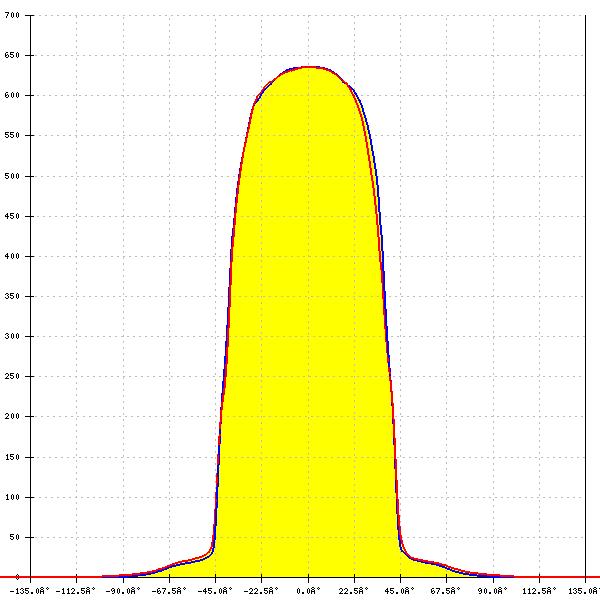

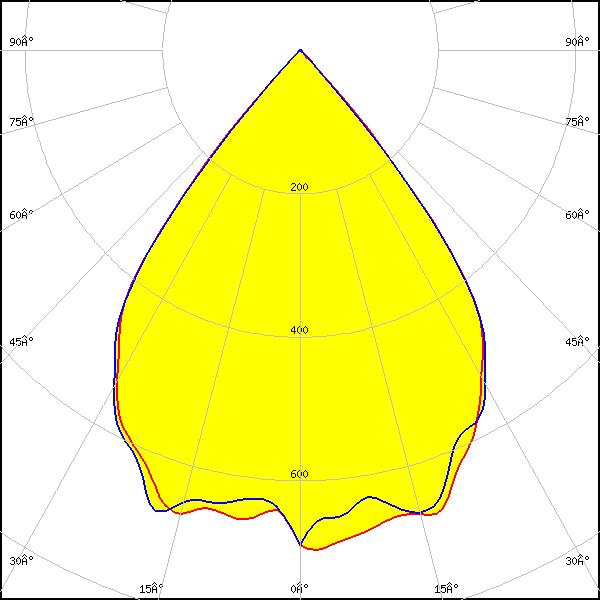

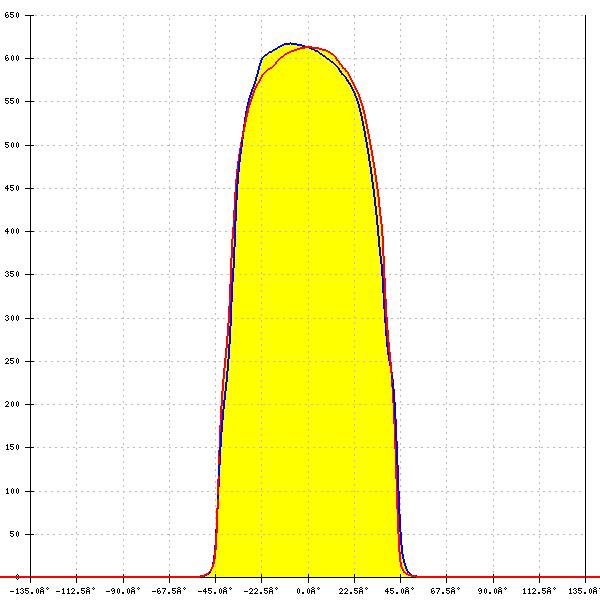

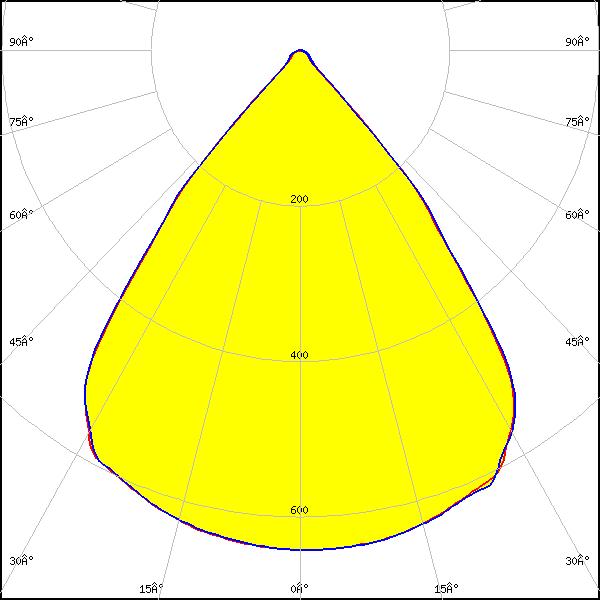

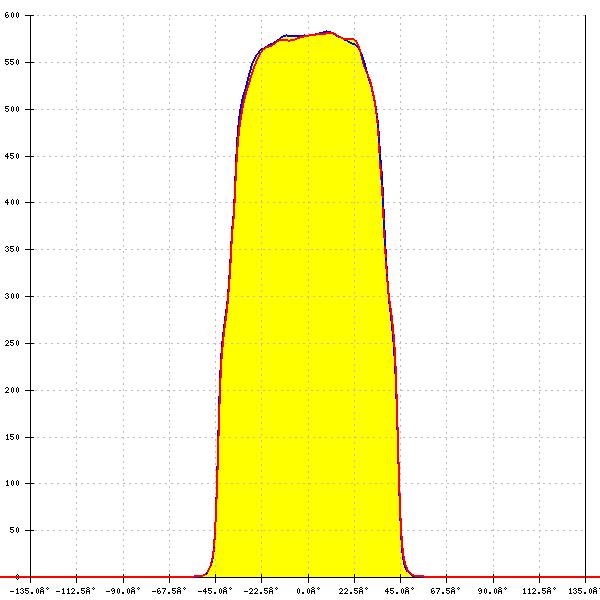

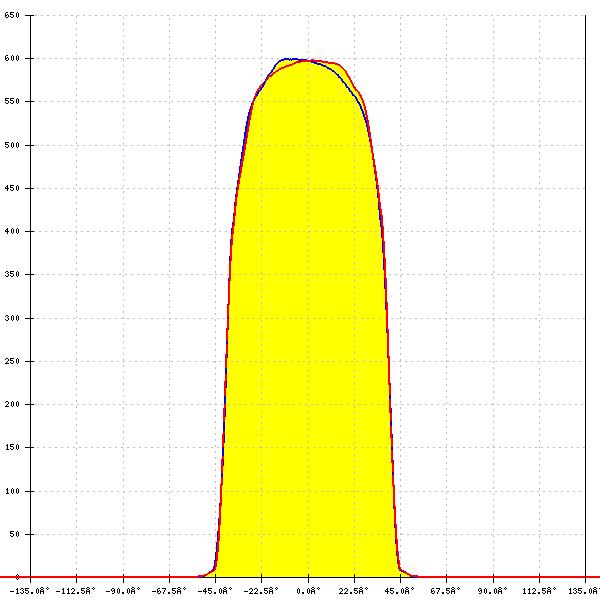

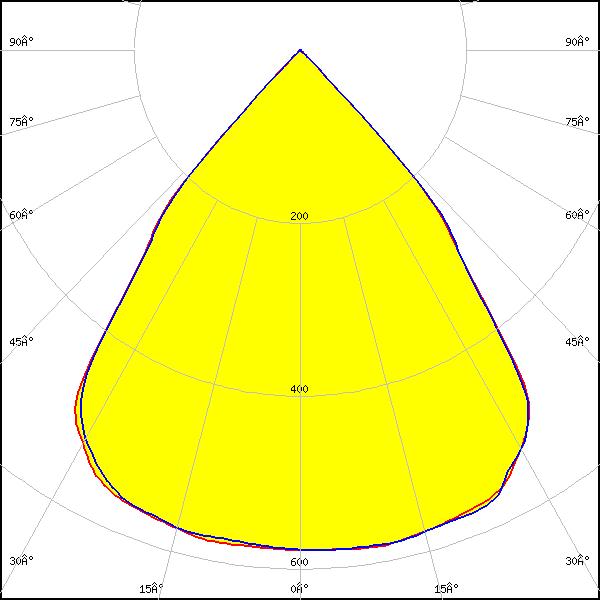

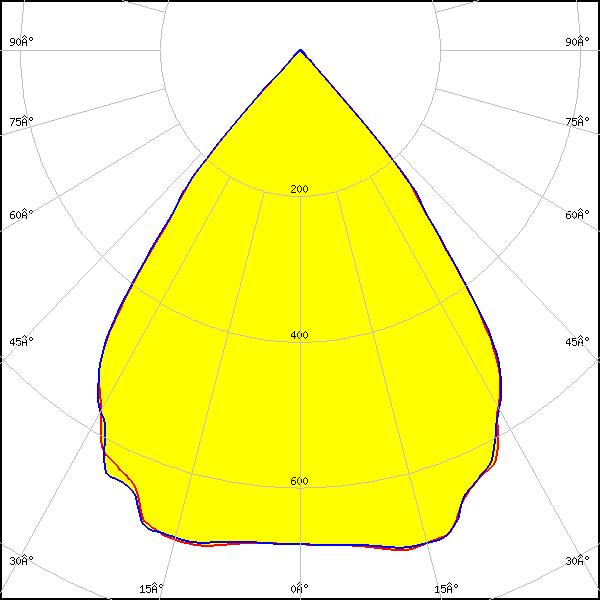

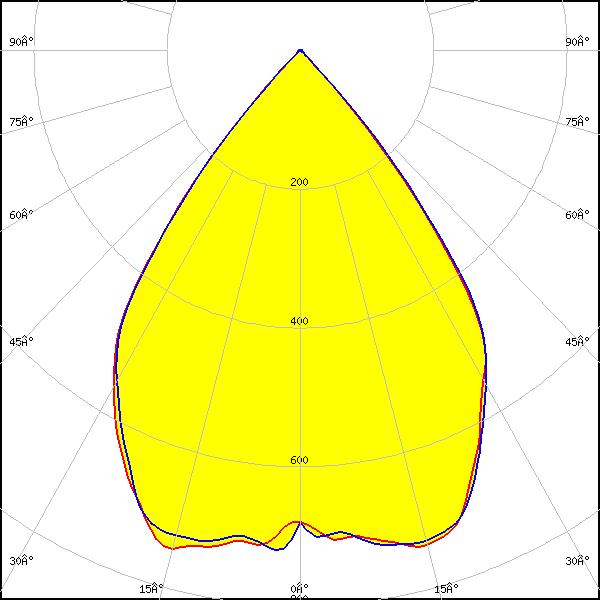

Optical results

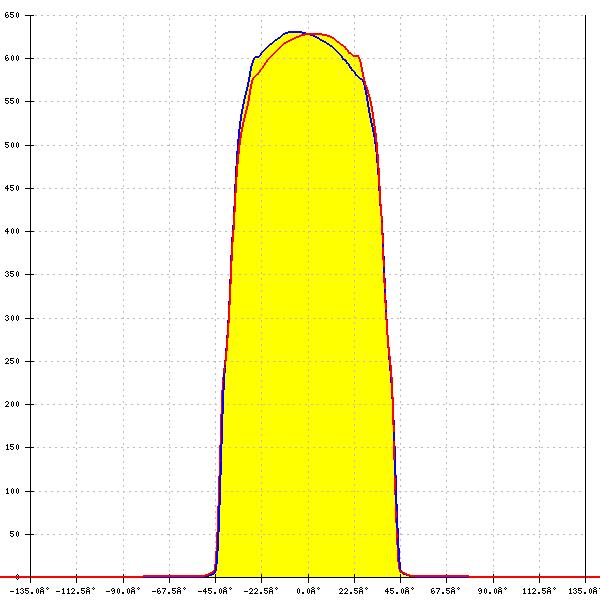

LED:
LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C16590_DAISY-4X1-SHD
FWHM:
76°
FWTM:
87°
Peak intensity:
0.631 cd/lm
Efficiency:
87 %
LEDs/each optic:
4
Light colour/type:
White

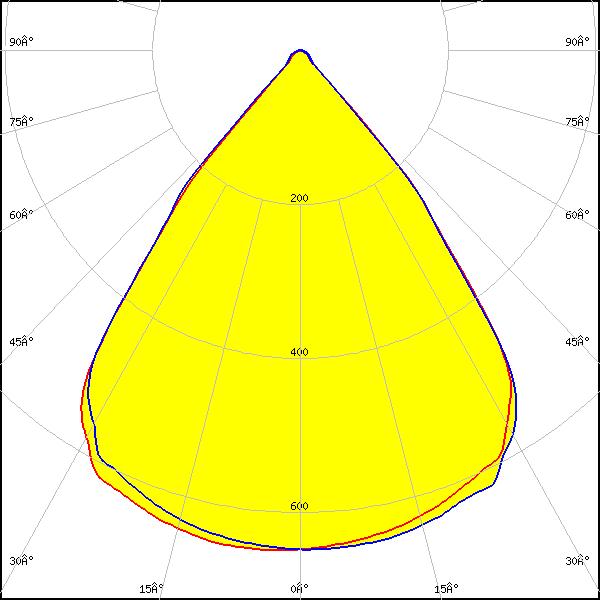

LED:
LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
76°
FWTM:
88°
Peak intensity:
0.651 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White

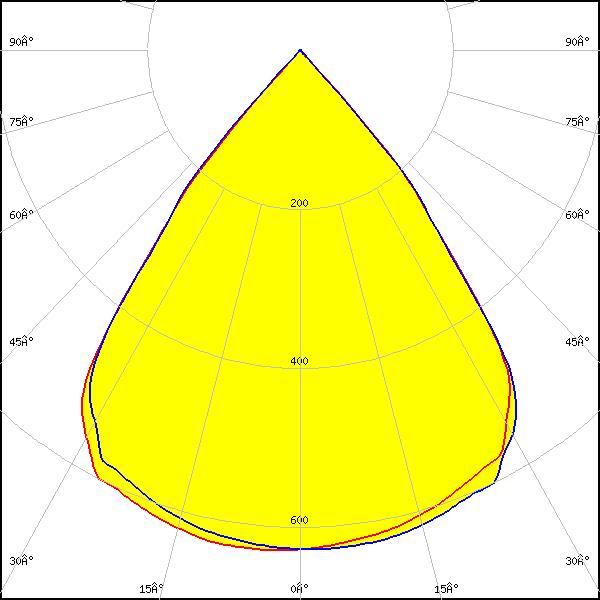

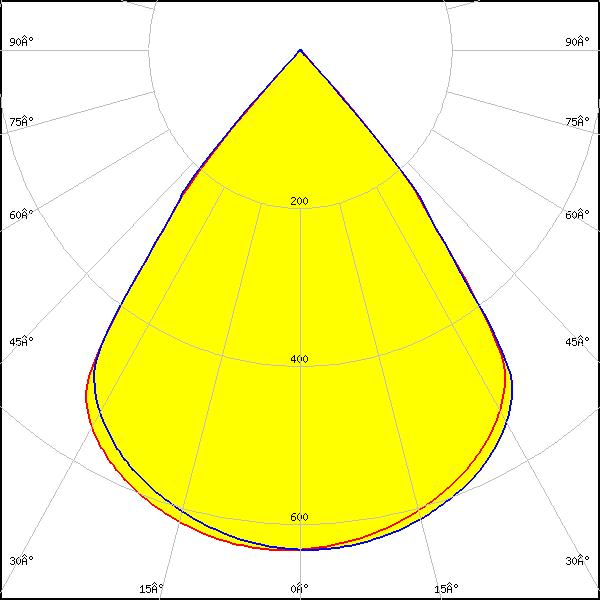

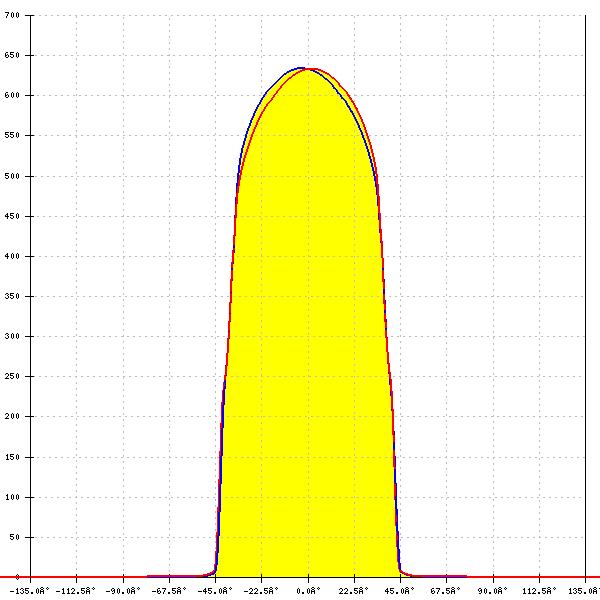

LED:
LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
76°
FWTM:
87°
Peak intensity:
0.634 cd/lm
Efficiency:
86 %
LEDs/each optic:
4
Light colour/type:
White

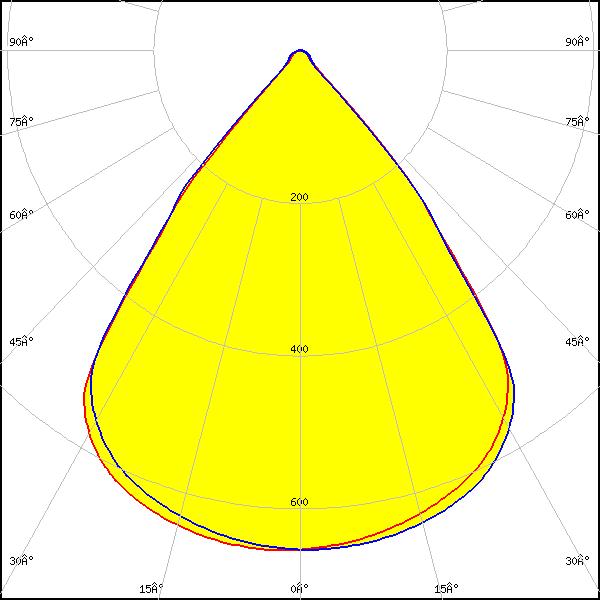

LED:
LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17225_DAISY-7X1-SHD-WHT-MATT
FWHM:
76°
FWTM:
88°
Peak intensity:
0.656 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White

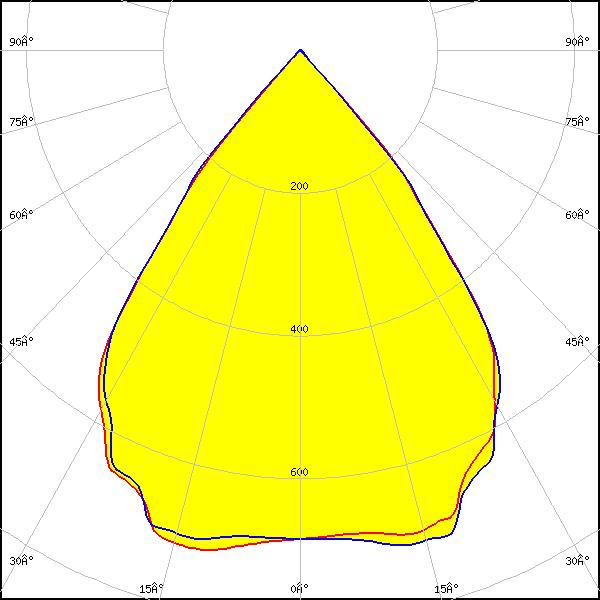

LED:
LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:

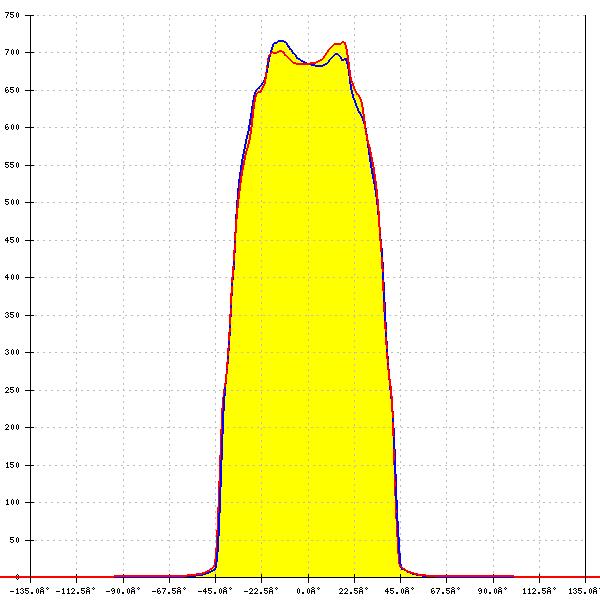

C17528_DAISY-4X1-SHD-MET
FWHM:
74°
FWTM:
87°
Peak intensity:
0.725 cd/lm
Efficiency:
96 %
LEDs/each optic:
4
Light colour/type:
White

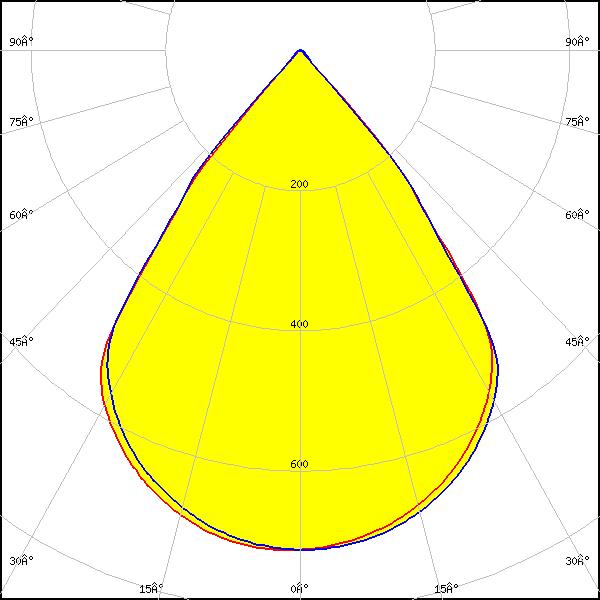

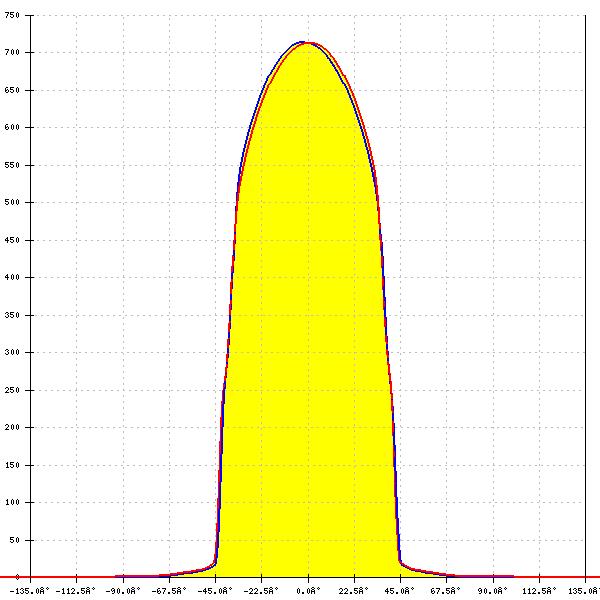

LED:
LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17535_DAISY-4X1-SHD2-MET-MATT
FWHM:
75°
FWTM:
87°
Peak intensity:
0.714 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:
Bridgelux SMD 2835
Required components:
C16590_DAISY-4X1-SHD
LEDs/each optic:
1
Light colour/type:
White

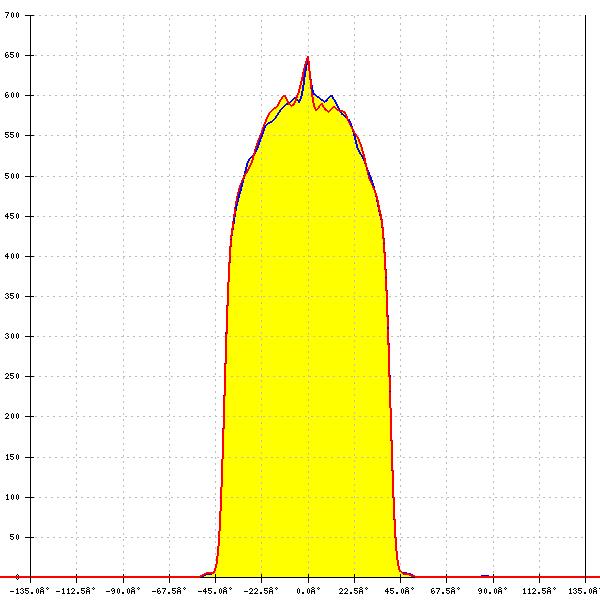

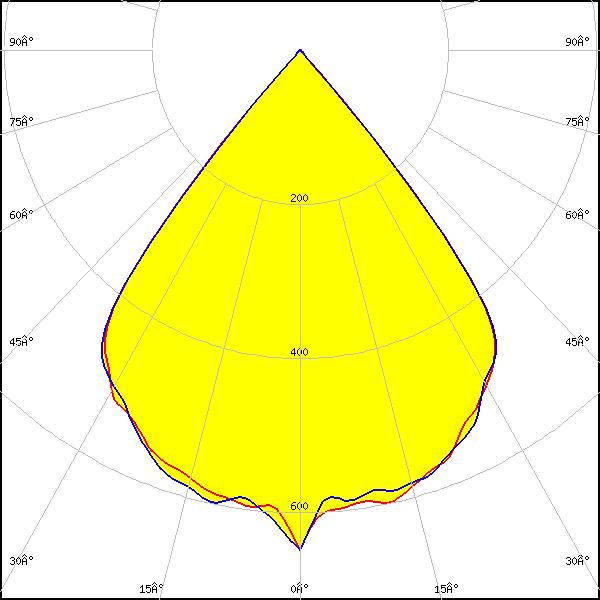

LED:
J Series 2835
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
78°
FWTM:
85°
Peak intensity:
0.649 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

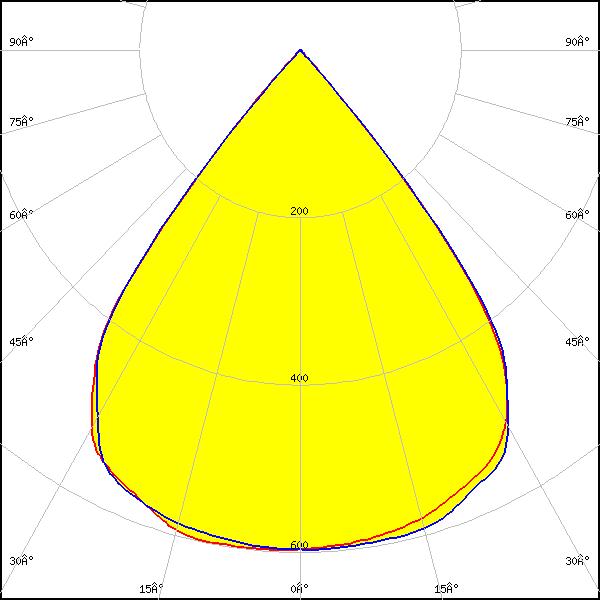

LED:
J Series 2835
Required components:
C16590_DAISY-4X1-SHD
FWHM:
77°
FWTM:
86°
Peak intensity:
0.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White

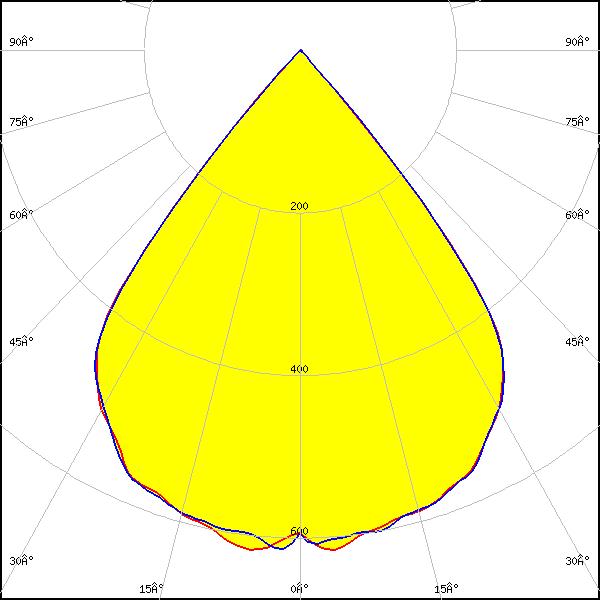

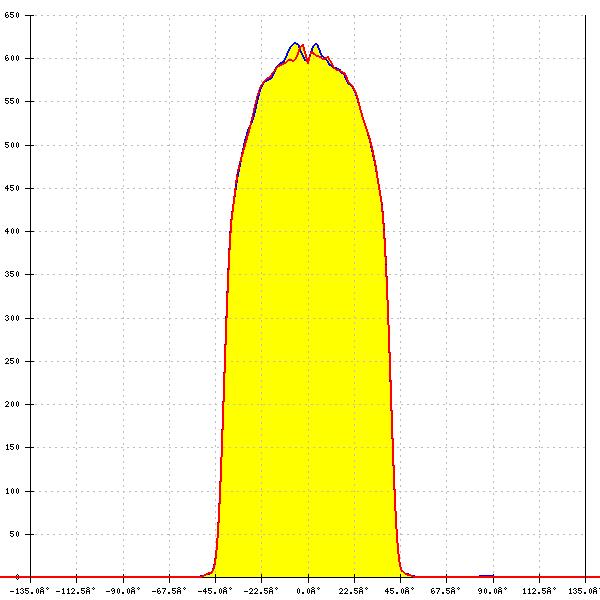

LED:
J Series 5050 Round LES
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
78°
FWTM:
86°
Peak intensity:
0.620 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

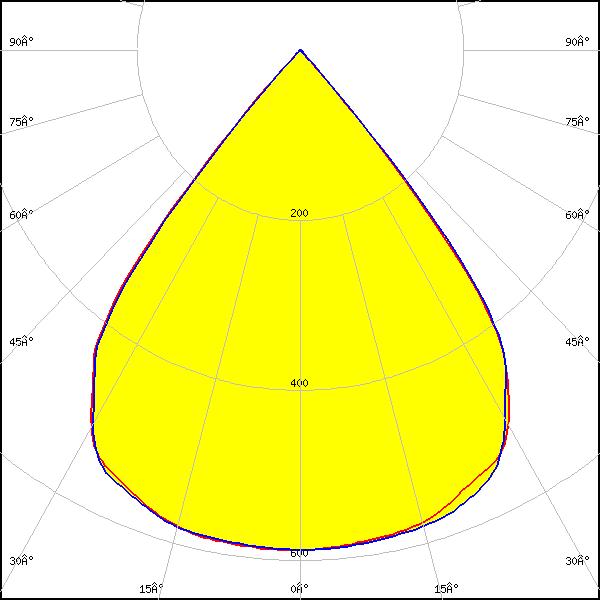

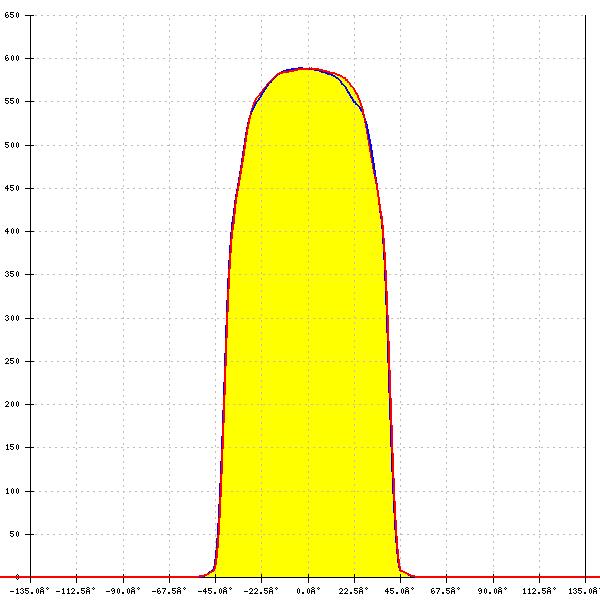

LED:
LUXEON 2835 Line
Required components:
C16590_DAISY-4X1-SHD
FWHM:
78°
FWTM:
86°
Peak intensity:
0.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
2
Light colour/type:
White

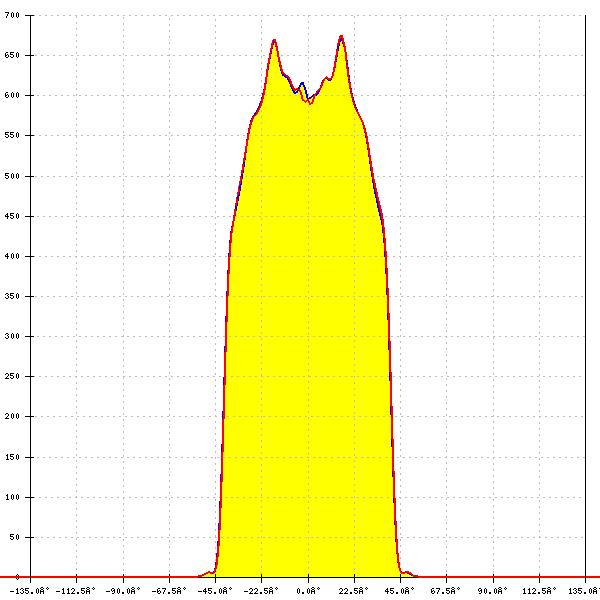

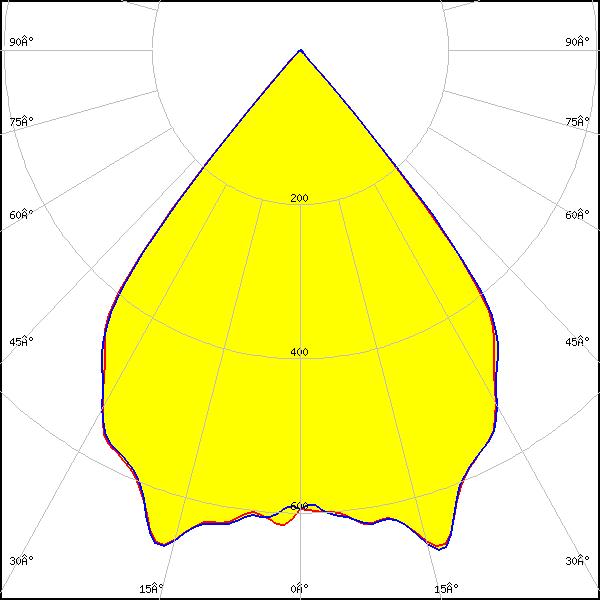

LED:
LUXEON 3535L
Required components:
C16590_DAISY-4X1-SHD
FWHM:
76°
FWTM:
85°
Peak intensity:
0.670 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

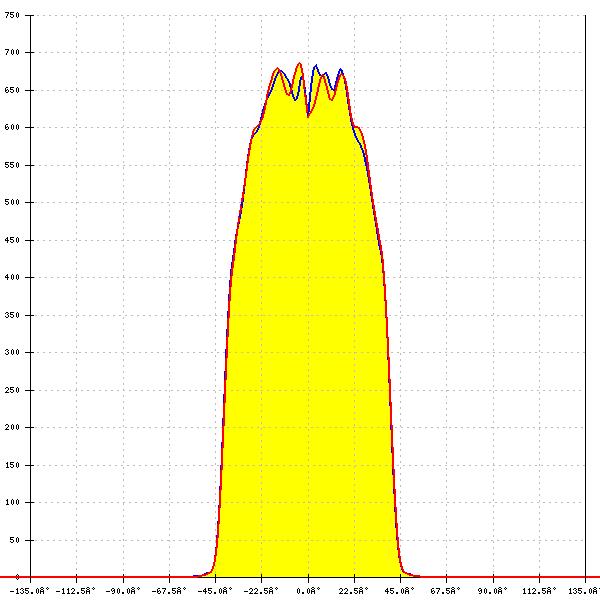

LED:
LUXEON 5050 Round LES
Required components:
C16590_DAISY-4X1-SHD
FWHM:
76°
FWTM:
88°
Peak intensity:
0.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LinLED 156x28mm 2x200lm 827-865 2x2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM:
77°
FWTM:
85°
Peak intensity:
0.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
2
Light colour/type:
Tunable White

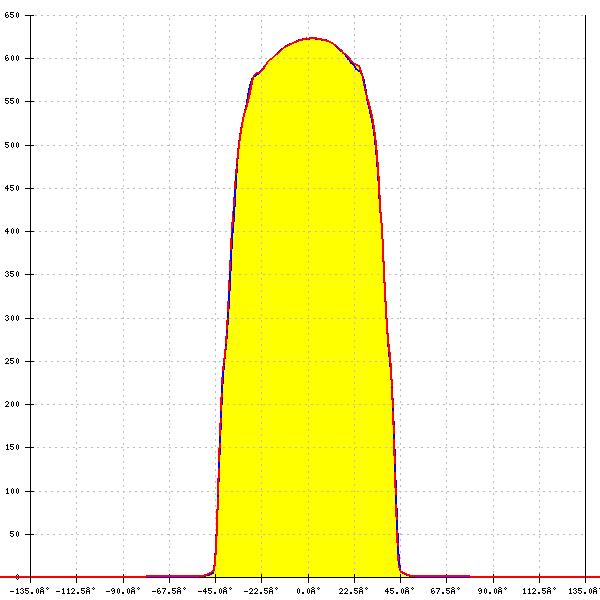

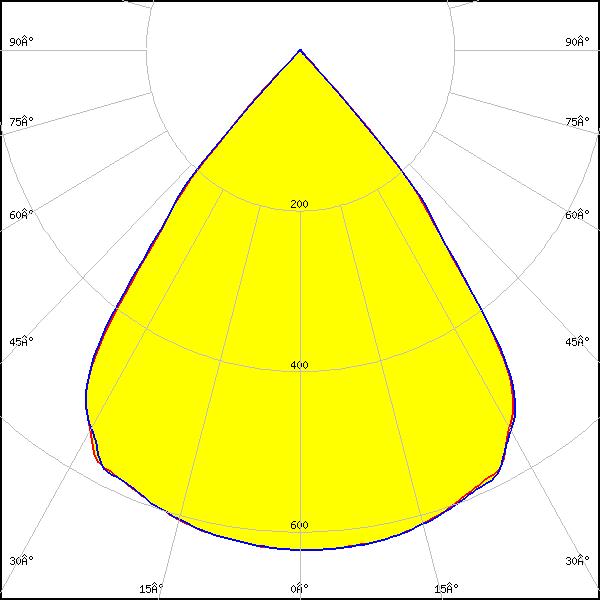

LED:
LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM:
76° + 77°
FWTM:
88° + 88°
Peak intensity:
0.623 cd/lm
Efficiency:
87 %
LEDs/each optic:
4
Light colour/type:
Tunable White

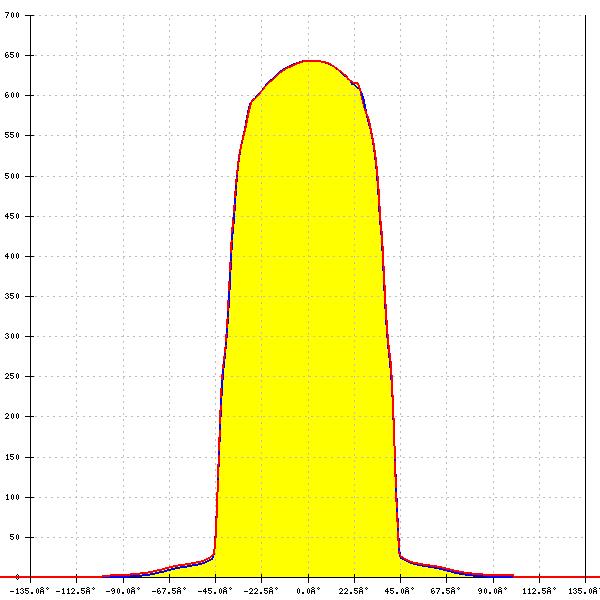

LED:
LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
77° + 77°
FWTM:
89° + 89°
Peak intensity:
0.644 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
Tunable White

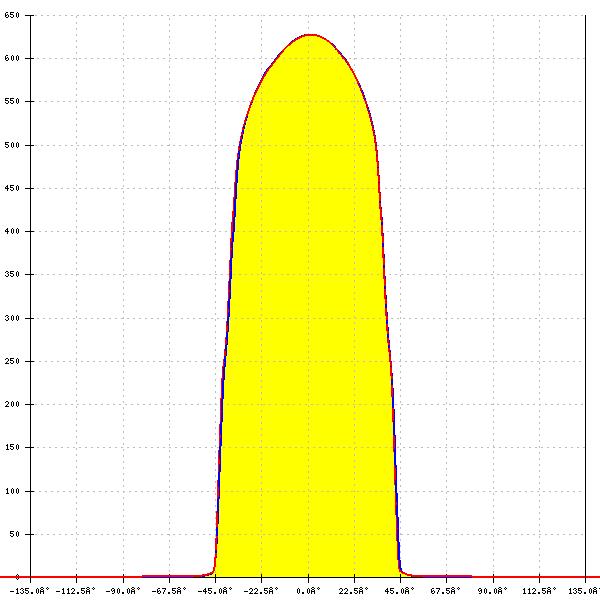

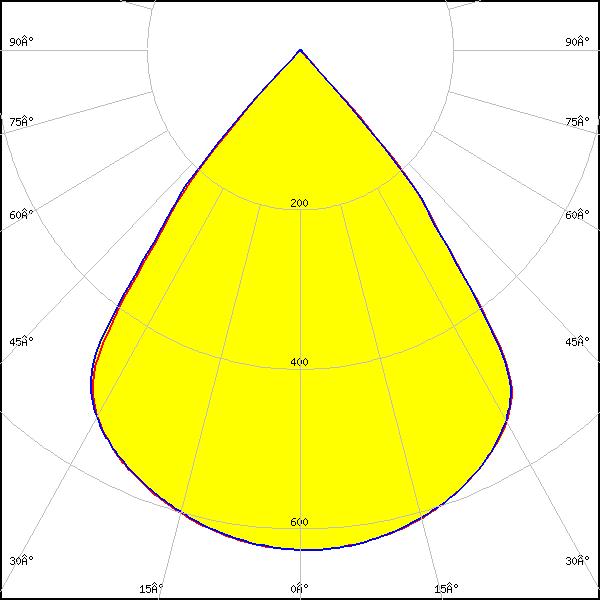

LED:
LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
76° + 77°
FWTM:
88° + 88°
Peak intensity:
0.628 cd/lm
Efficiency:
86 %
LEDs/each optic:
4
Light colour/type:
Tunable White

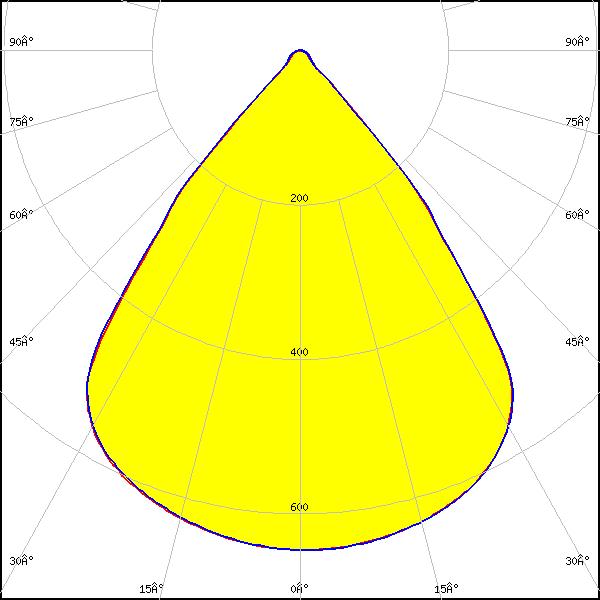

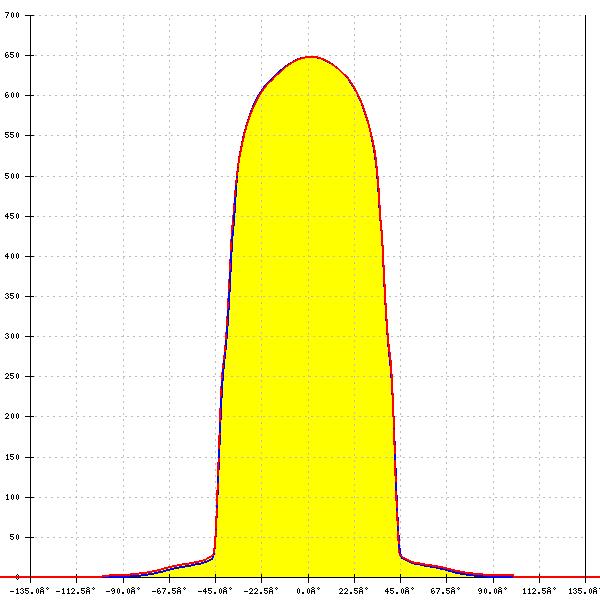

LED:
LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM:
77° + 77°
FWTM:
89° + 89°
Peak intensity:
0.648 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
Tunable White

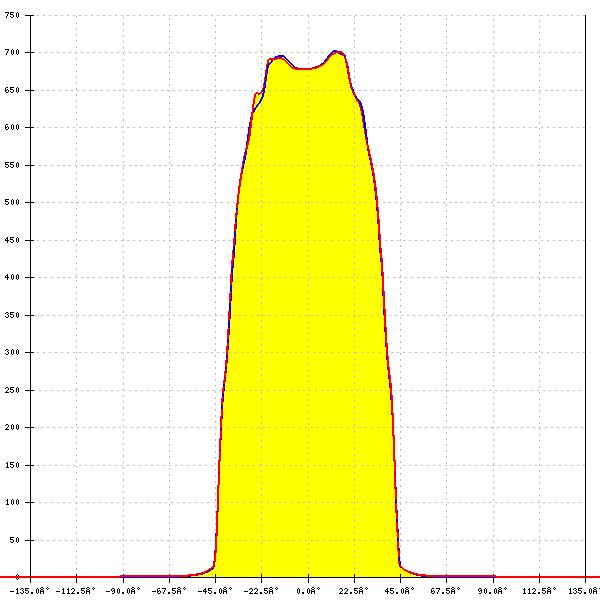

LED:
LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17528_DAISY-4X1-SHD-MET
FWHM:
75° + 76°
FWTM:
88° + 88°
Peak intensity:
0.708 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
Tunable White

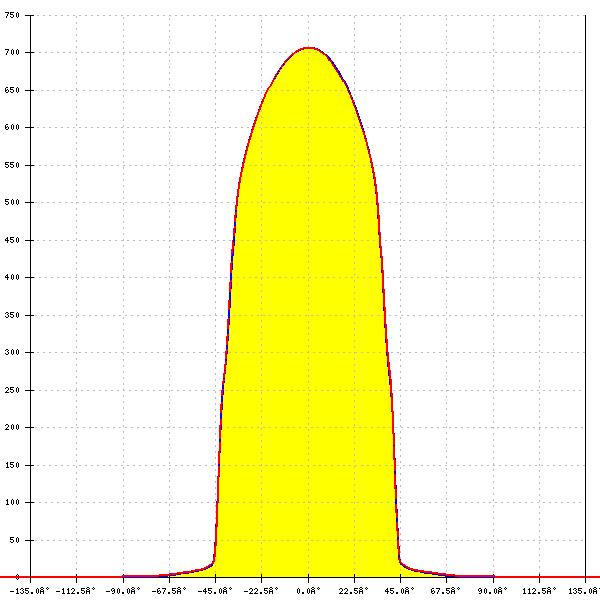

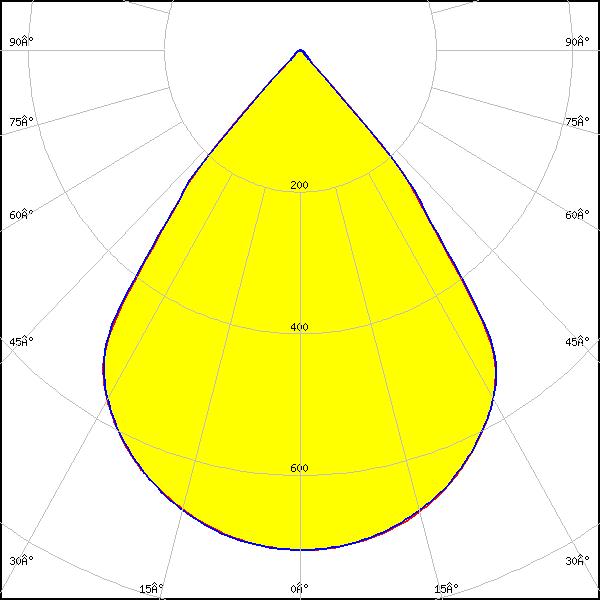

LED:
LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17535_DAISY-4X1-SHD2-MET-MATT
FWHM:
76°
FWTM:
88°
Peak intensity:
0.706 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
Tunable White
LED:
LinLED 156x28mm 400lm 8x0 2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM:
77°
FWTM:
86°
Peak intensity:
0.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM:
76° + 76°
FWTM:
88° + 87°
Peak intensity:
0.622 cd/lm
Efficiency:
86 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
77°
FWTM:
89°
Peak intensity:
0.642 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
76° + 76°
FWTM:
88° + 88°
Peak intensity:
0.624 cd/lm
Efficiency:
85 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM:
76° + 77°
FWTM:
88° + 88°
Peak intensity:
0.647 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17528_DAISY-4X1-SHD-MET
FWHM:
75°
FWTM:
88°
Peak intensity:
0.712 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17535_DAISY-4X1-SHD2-MET-MATT
FWHM:
75°
FWTM:
88°
Peak intensity:
0.712 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

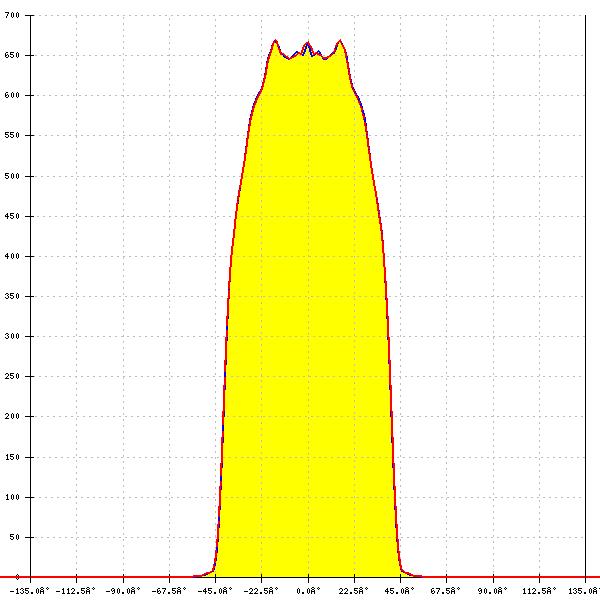

LED:

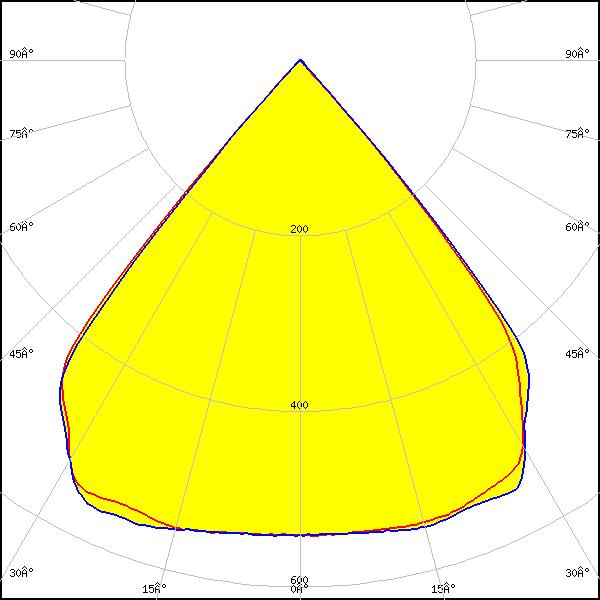

NF2W757G-MT (Tunable White)
Required components:
C16590_DAISY-4X1-SHD
FWHM:
76° + 78°
FWTM:
86° + 86°
Peak intensity:
0.670 cd/lm
Efficiency:
90 %
LEDs/each optic:
2
Light colour/type:
Tunable White

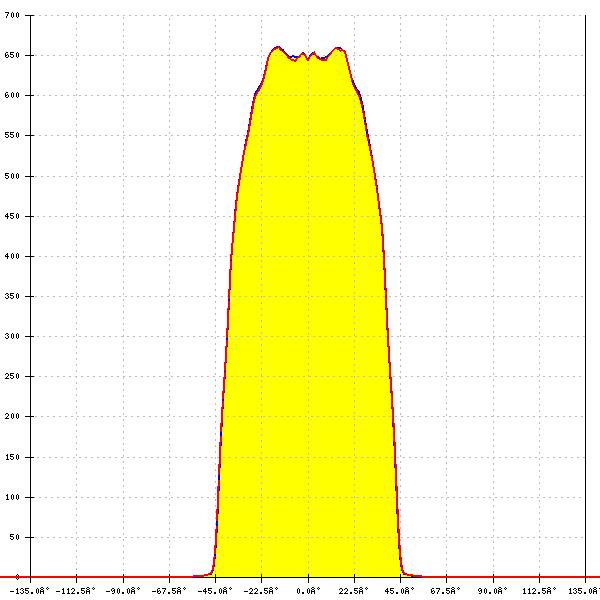

LED:
NF2W757G-MT (Tunable White)
Required components:
C16590_DAISY-4X1-SHD
FWHM:
76°
FWTM:
88°
Peak intensity:
0.660 cd/lm
Efficiency:
90 %
LEDs/each optic:
4
Light colour/type:
Tunable White

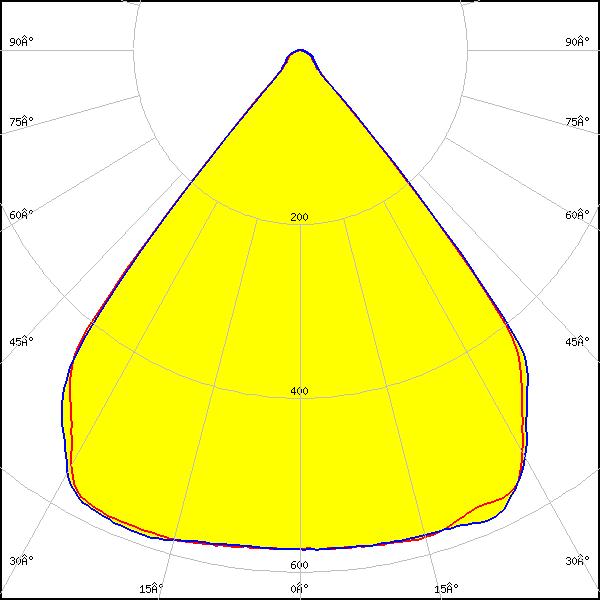

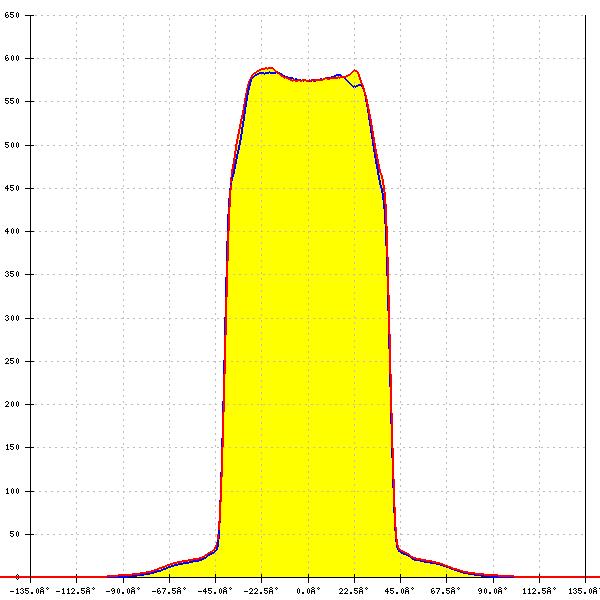

LED:
NF2W757G-MT (Tunable White)
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
79°
FWTM:
86°
Peak intensity:
0.589 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
NF2W757G-MT (Tunable White)
Required components:
C16590_DAISY-4X1-SHD
FWHM:
79°
FWTM:
85°
Peak intensity:
0.562 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

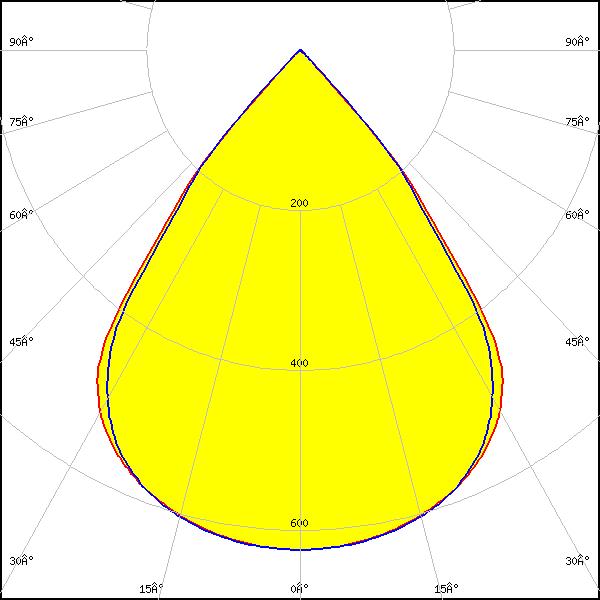

PL-LIN-1000 140x24mm
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
75°
FWTM:
89°
Peak intensity:
0.625 cd/lm
Efficiency:
83 %
LEDs/each optic:
4
Light colour/type:
White

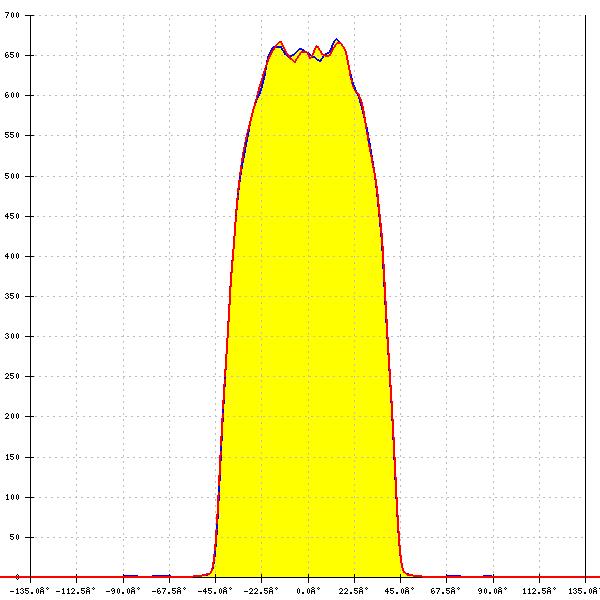

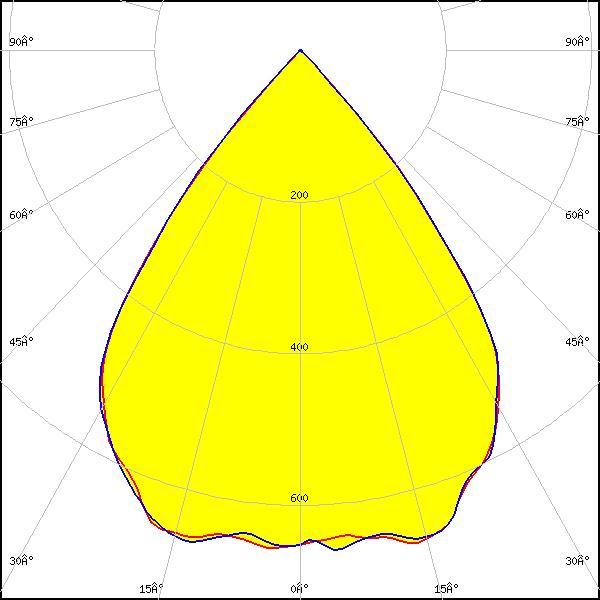

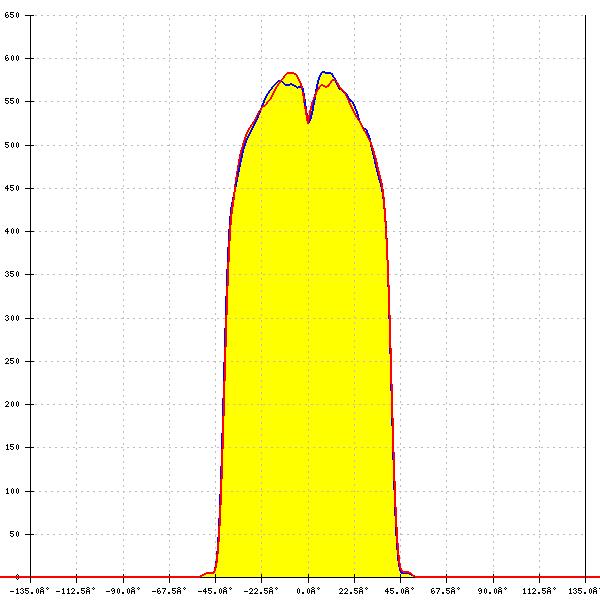

LED:
Duris E 2835
Required components:
C16585_DAISY-28X1-SHD
FWHM:
76°
FWTM:
88°
Peak intensity:
0.675 cd/lm
Efficiency:
89 %
LEDs/each optic:
4
Light colour/type:
White

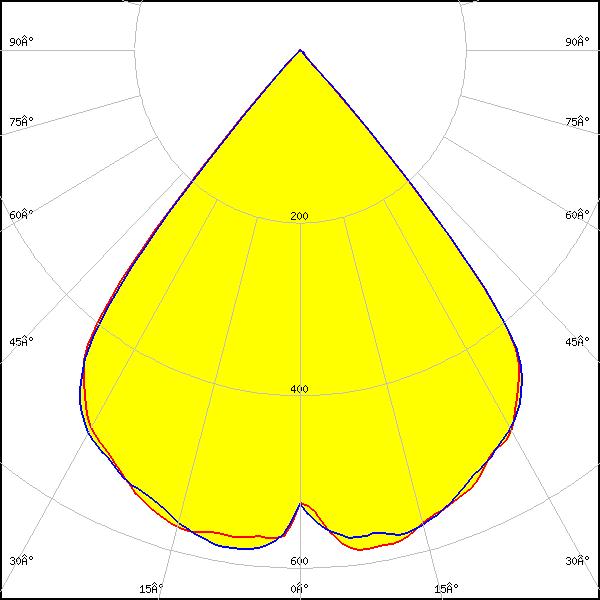

LED:
Duris E 2835
Required components:
C16590_DAISY-4X1-SHD
FWHM:
80°
FWTM:
86°
Peak intensity:
0.589 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

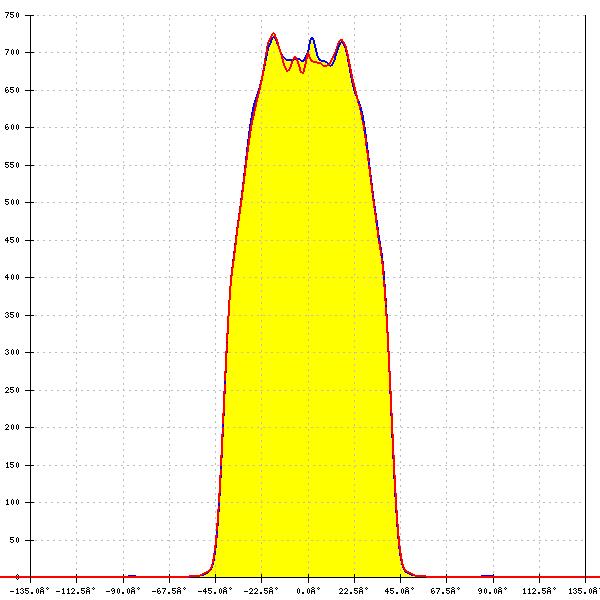

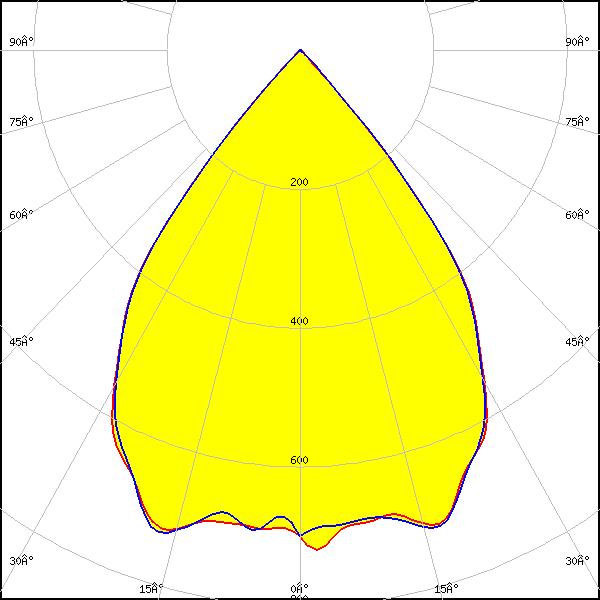

LED:
Duris E 2835
Required components:
C16590_DAISY-4X1-SHD
FWHM:
76°
FWTM:
88°
Peak intensity:
0.726 cd/lm
Efficiency:
95 %
LEDs/each optic:
2
Light colour/type:
White

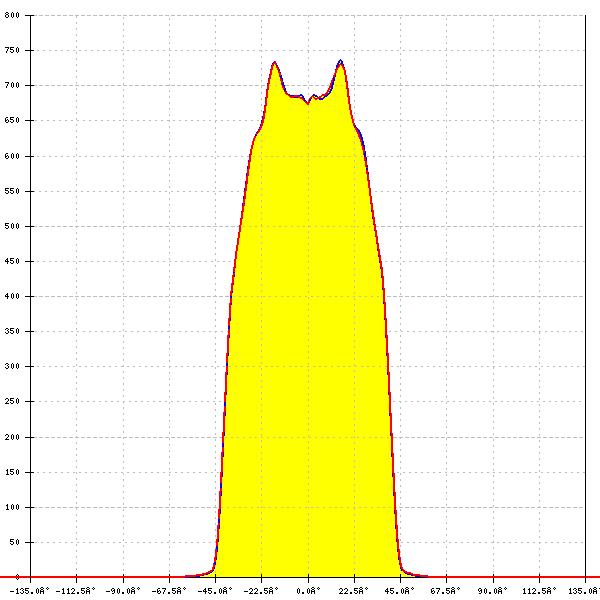

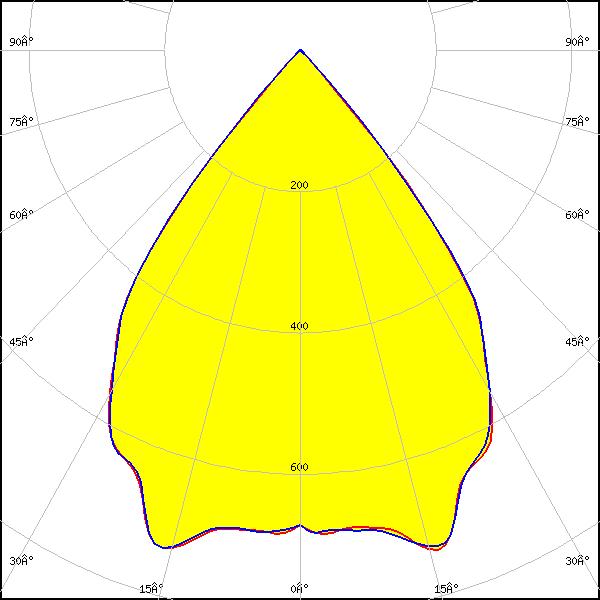

LED:
Duris S8
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
76°
FWTM:
86°
Peak intensity:
0.737 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
Required components:
C16590_DAISY-4X1-SHD
FWHM:
76°
FWTM:
88°
Peak intensity:
0.707 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

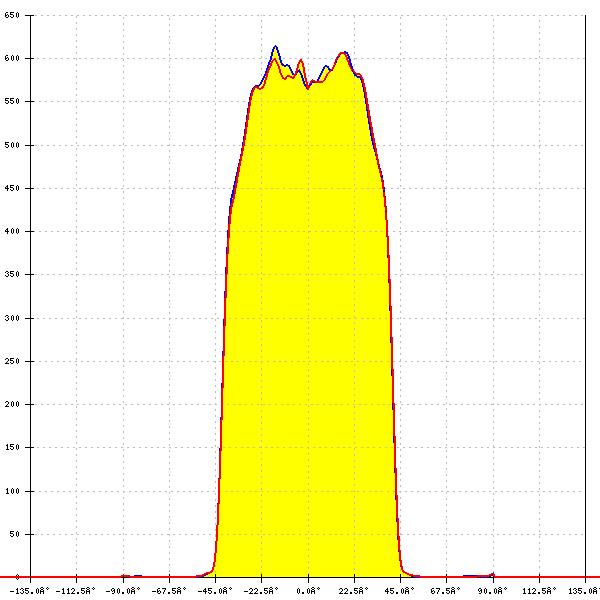

LED:
LH351B
Required components:
C16590_DAISY-4X1-SHD
FWHM:
79°
FWTM:
88°
Peak intensity:
0.610 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM28xB Series
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM:
75°
FWTM:
88°
Peak intensity:
0.755 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White

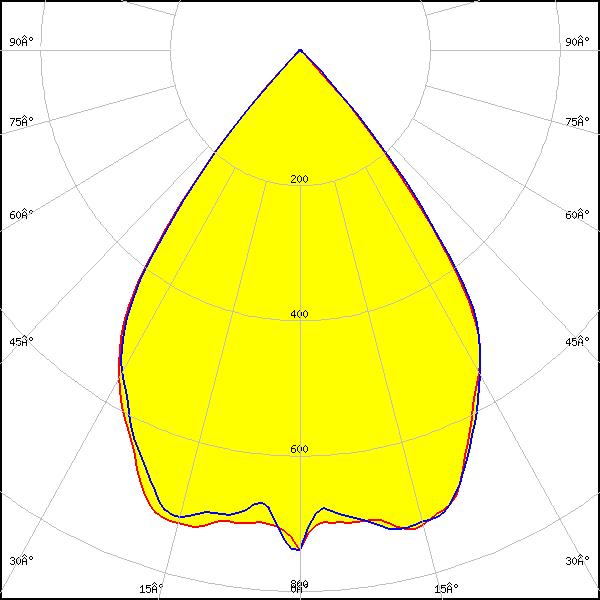

LED:
LM28xB Series
Required components:
C18411_DAISY-4X1-SHD2-MET-MATT
FWHM:
74°
FWTM:
88°
Peak intensity:
0.739 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LM28xB Series
Required components:
C18412_DAISY-4X1-SHD2-MET
FWHM:
75°
FWTM:
88°
Peak intensity:
0.731 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White

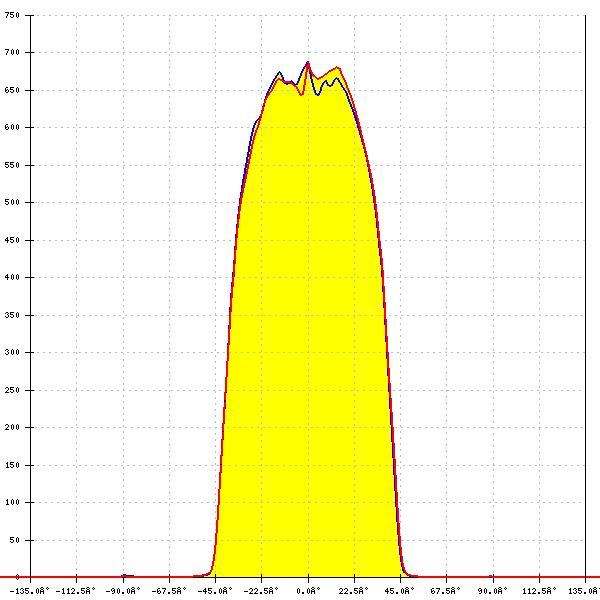

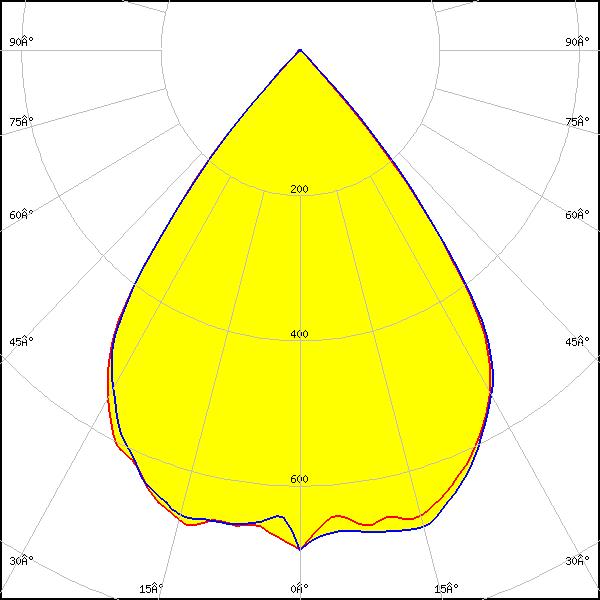

LED:
LM28xB Series
Required components:
C19075_DAISY-4X1-SHD2
FWHM:
76°
FWTM:
88°
Peak intensity:
0.692 cd/lm
Efficiency:
89 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LM28xB Series
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
76°
FWTM:
86°
Peak intensity:
0.689 cd/lm
Efficiency:
90 %
LEDs/each optic:
2
Light colour/type:
White

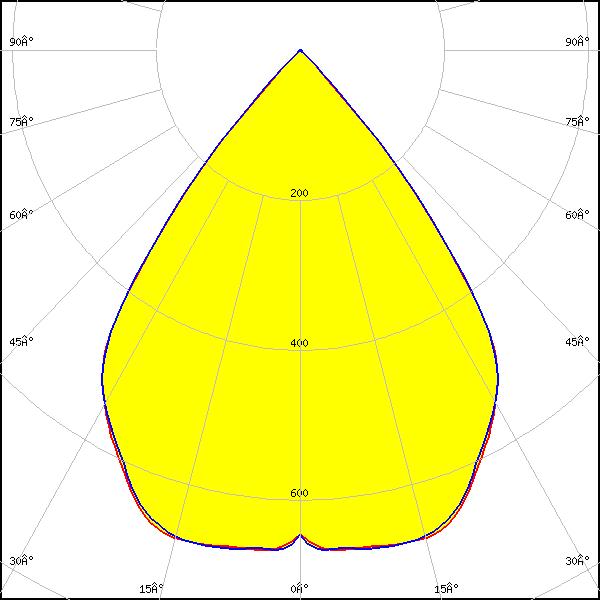

LED:
LM28xB Series
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
76°
FWTM:
88°
Peak intensity:
0.678 cd/lm
Efficiency:
90 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LM28xB Series
Required components:
C16590_DAISY-4X1-SHD
FWHM:
78°
FWTM:
86°
Peak intensity:
0.580 cd/lm
Efficiency:
84 %
LEDs/each optic:
2
Light colour/type:
White

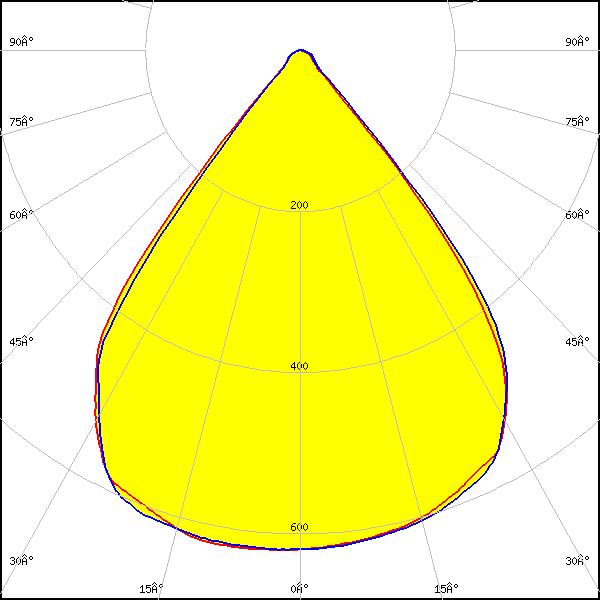

LED:
LM28xB Series
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
77°
FWTM:
87°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
2
Light colour/type:
White

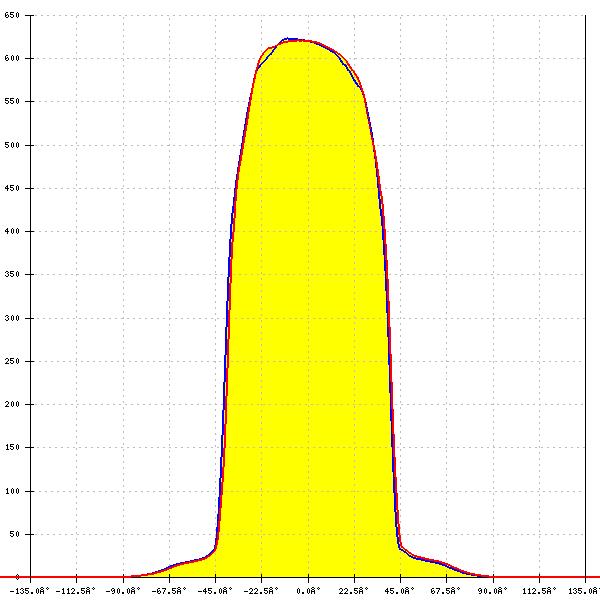

LED:
LM28xB Series
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
76°
FWTM:
89°
Peak intensity:
0.640 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LM28xB Series
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
76°
FWTM:
85°
Peak intensity:
0.627 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

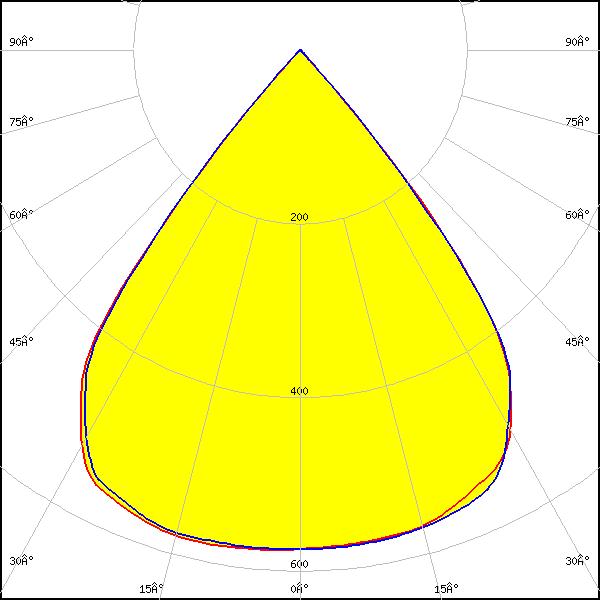

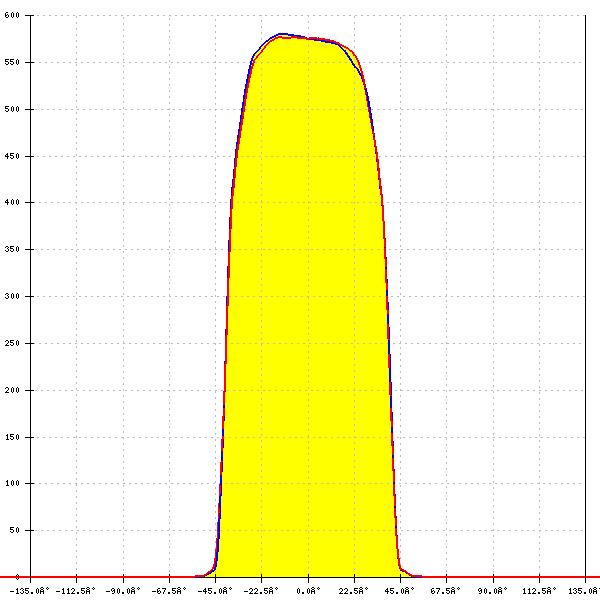

LED:
LM28xB Series
Required components:
C16590_DAISY-4X1-SHD
FWHM:
75°
FWTM:
88°
Peak intensity:
0.610 cd/lm
Efficiency:
84 %
LEDs/each optic:
4
Light colour/type:
White

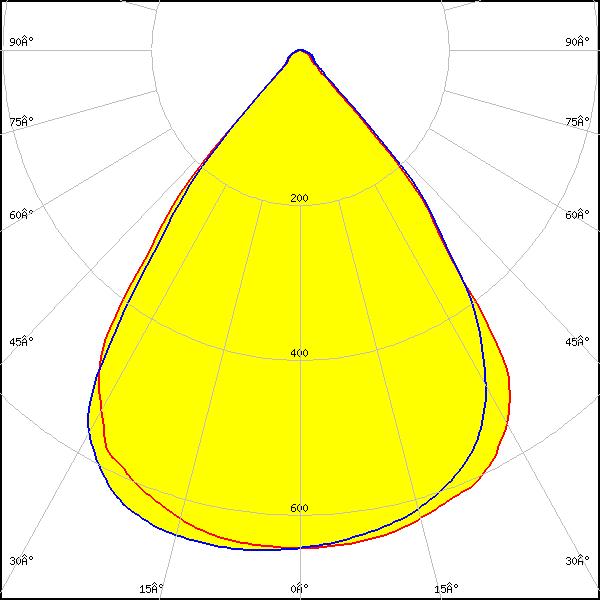

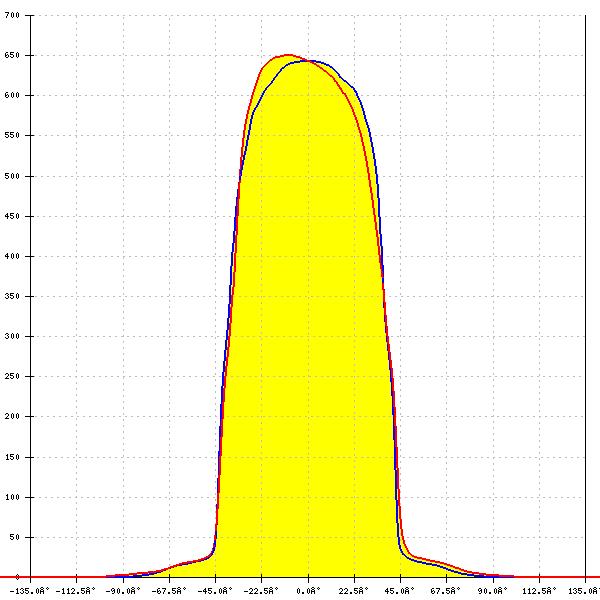

LED:
SEOUL DC 3030
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
75°
FWTM:
89°
Peak intensity:
0.651 cd/lm
Efficiency:
92 %
LEDs/each optic:
4
Light colour/type:
Tunable White

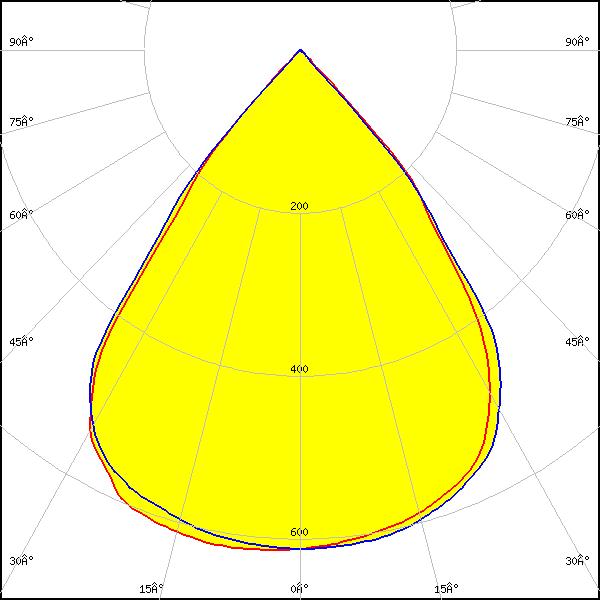

LED:
SEOUL DC 3030
Required components:
C16590_DAISY-4X1-SHD
FWHM:
75°
FWTM:
89°
Peak intensity:
0.617 cd/lm
Efficiency:
83 %
LEDs/each optic:
4
Light colour/type:
Tunable White

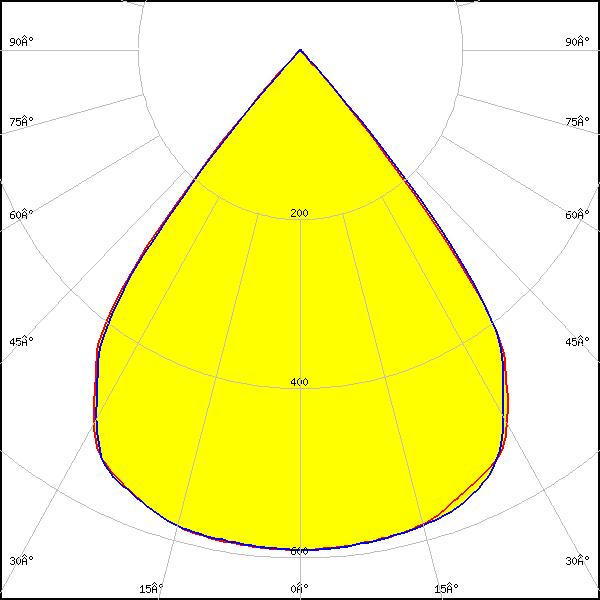

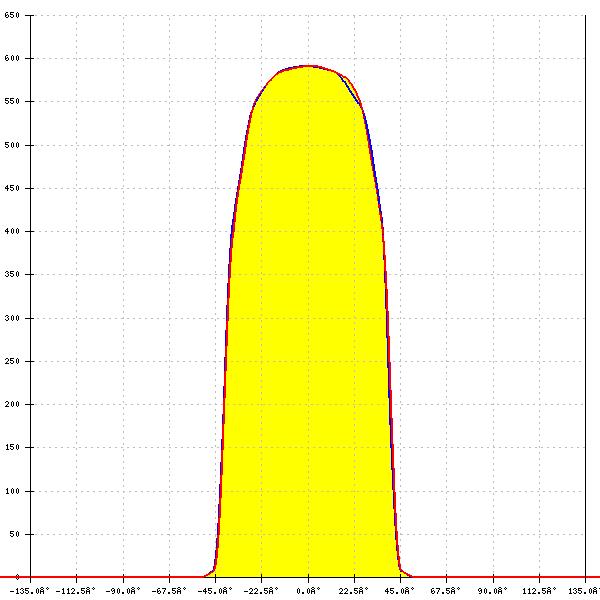

LED:
SEOUL DC 3528
Required components:
C16590_DAISY-4X1-SHD
FWHM:
78°
FWTM:
86°
Peak intensity:
0.590 cd/lm
Efficiency:
87 %
LEDs/each optic:
2
Light colour/type:
White

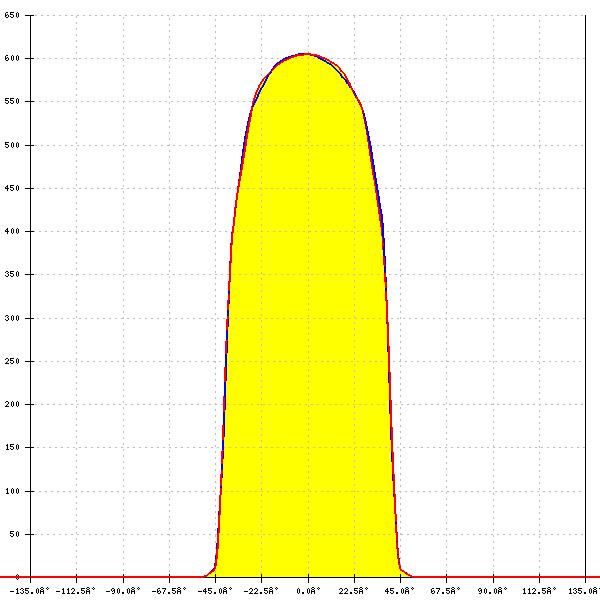

LED:
SEOUL DC 3528
Required components:
C16590_DAISY-4X1-SHD
FWHM:
77°
FWTM:
86°
Peak intensity:
0.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
2
Light colour/type:
White

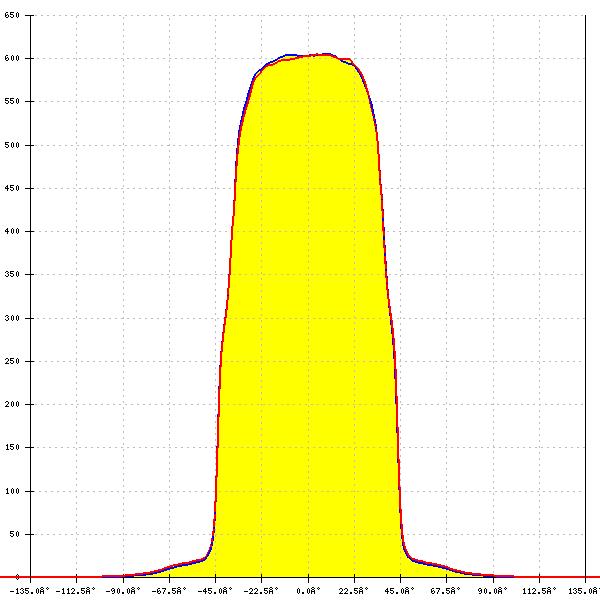

LED:
PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
80°
FWTM:
91°
Peak intensity:
0.607 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

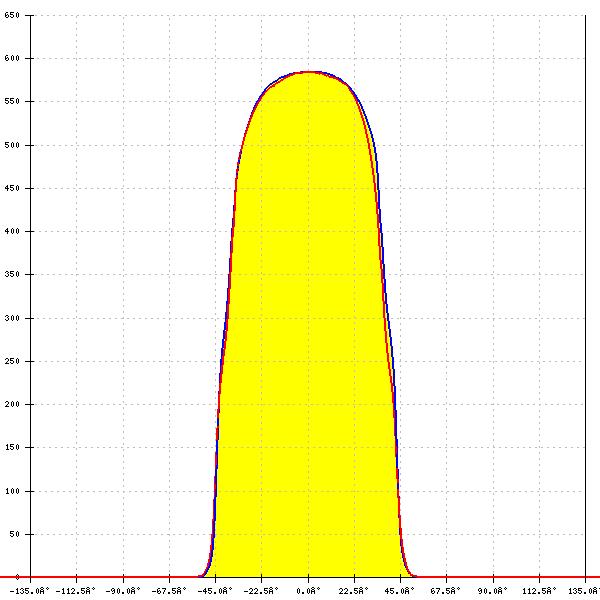

LED:
PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM:
80° + 77°
FWTM:
91° + 91°
Peak intensity:
0.585 cd/lm
Efficiency:
83 %
LEDs/each optic:
4
Light colour/type:
White

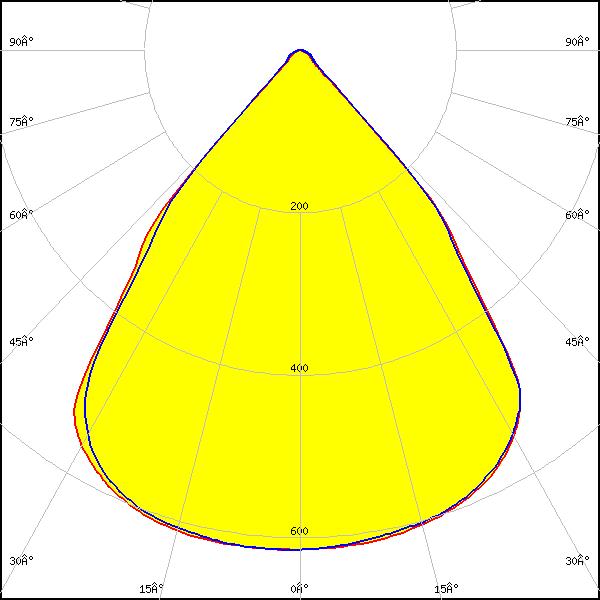

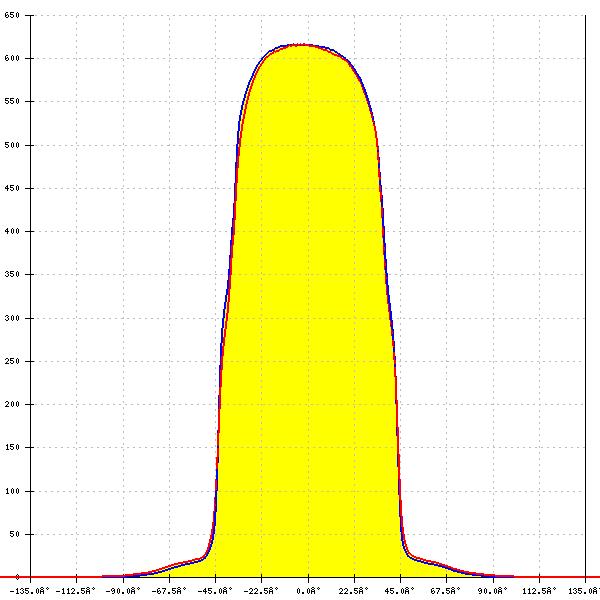

LED:
PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM:
79°
FWTM:
91°
Peak intensity:
0.617 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:
PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C16590_DAISY-4X1-SHD
FWHM:
79°
FWTM:
91°
Peak intensity:
0.584 cd/lm
Efficiency:
85 %
LEDs/each optic:
4
Light colour/type:
White

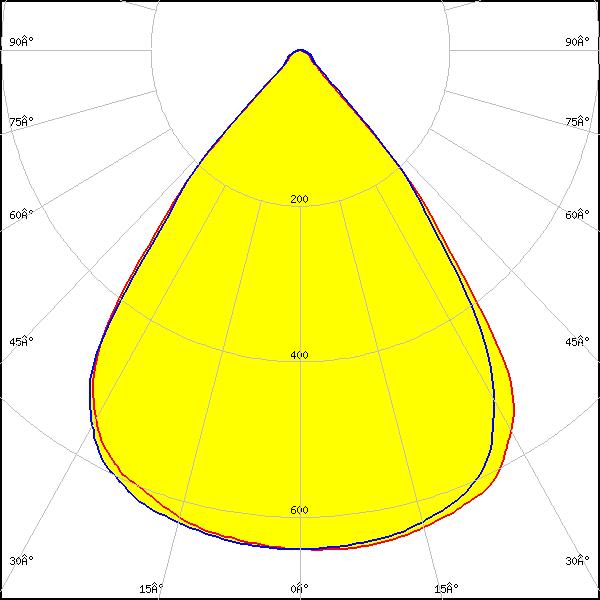

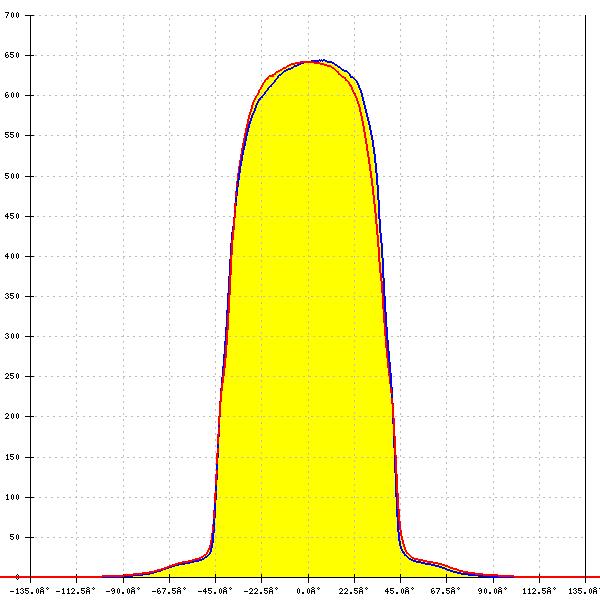

LED:
LLE 24x140mm 400lm 827-865 LVD ADV1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
76°
FWTM:
90°
Peak intensity:
0.640 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

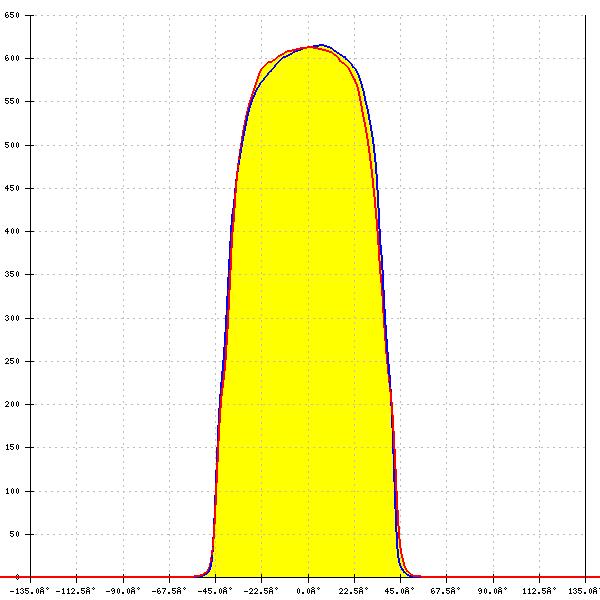

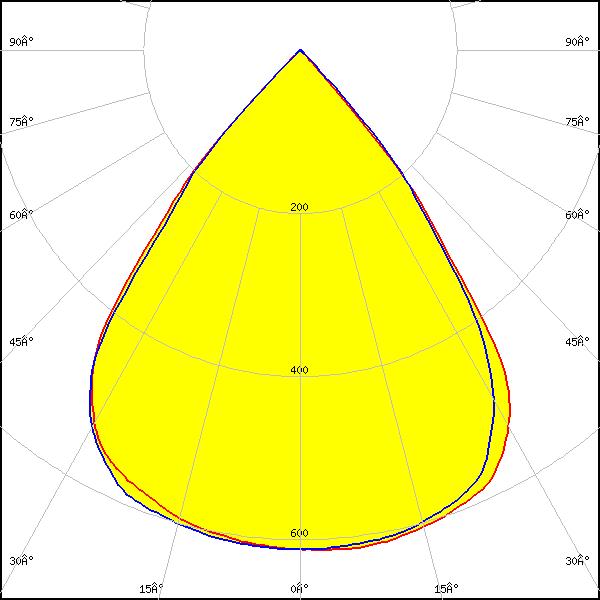

LED:
LLE 24x140mm 400lm 827-865 LVD ADV1
Required components:
C16590_DAISY-4X1-SHD
FWHM:
76°
FWTM:
89°
Peak intensity:
0.620 cd/lm
Efficiency:
85 %
LEDs/each optic:
4
Light colour/type:
White

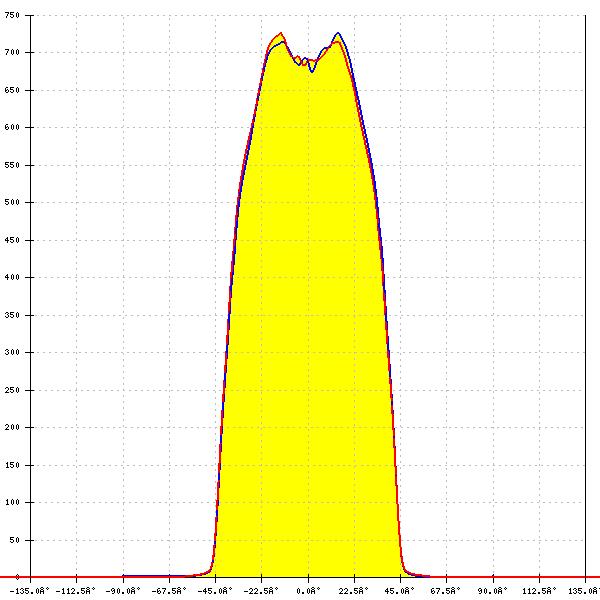

LED:
LLE 24x140mm 400lm 8x0 LVD ADV1
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM:
75°
FWTM:
88°
Peak intensity:
0.734 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LLE 24x140mm 400lm 8x0 LVD ADV1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
77°
FWTM:
90°
Peak intensity:
0.640 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:
LLE 24x140mm 400lm 8x0 LVD ADV1
Required components:
C16590_DAISY-4X1-SHD
FWHM:
76°
FWTM:
89°
Peak intensity:
0.610 cd/lm
Efficiency:
85 %
LEDs/each optic:
4
Light colour/type:
White

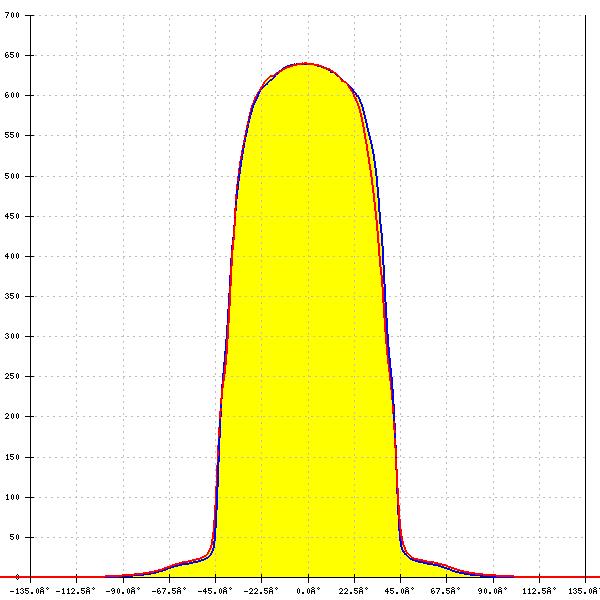

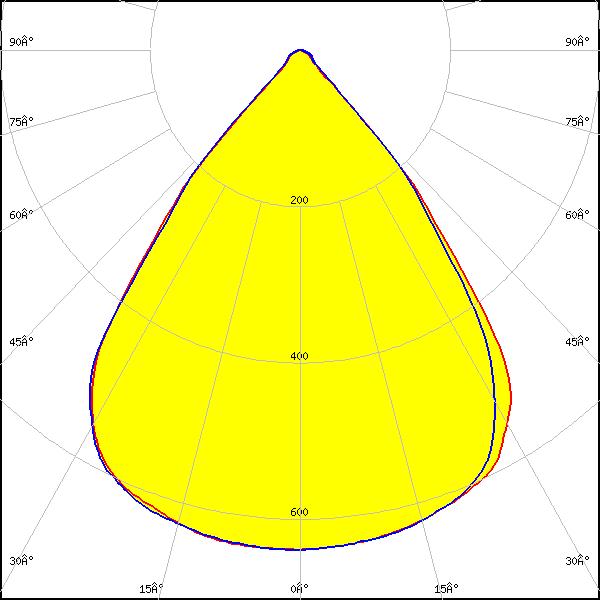

LED:
LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM:
76°
FWTM:
90°
Peak intensity:
0.640 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

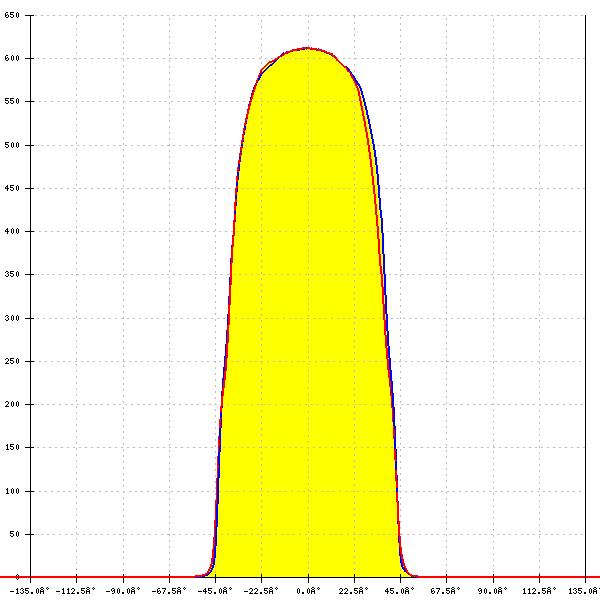

LED:
LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16590_DAISY-4X1-SHD
FWHM:
76°
FWTM:
89°
Peak intensity:
0.612 cd/lm
Efficiency:
85 %
LEDs/each optic:
4
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
