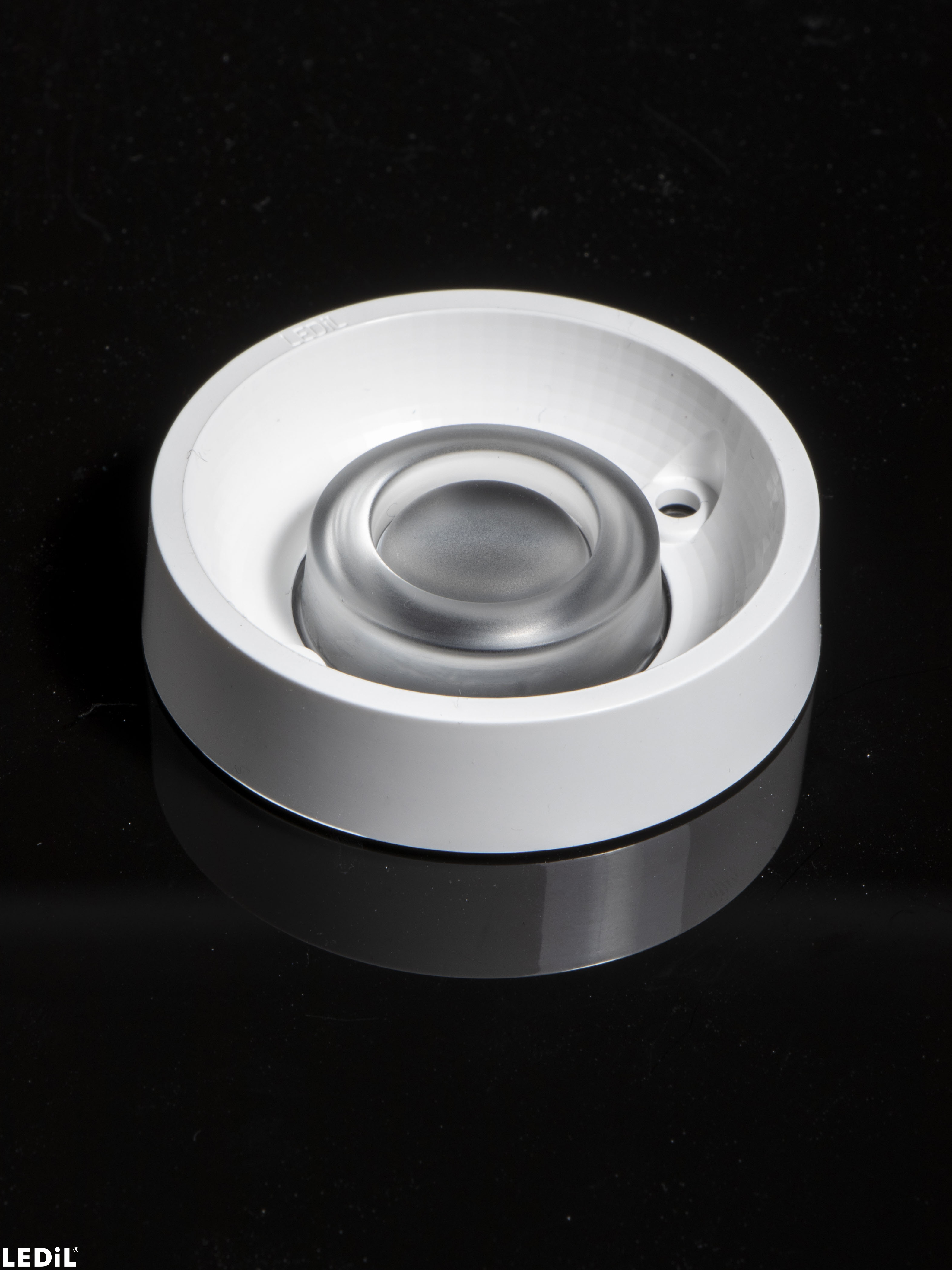

SAGA-HB-IP-WHT
Print
~60° high bay beam
This product consists of multiple parts that need to be ordered separately. See ordering information.
Component Materials
- SAGA-HB-IPSingle lensSilicone
- SAGA-FRAME-WHTHolderHRPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

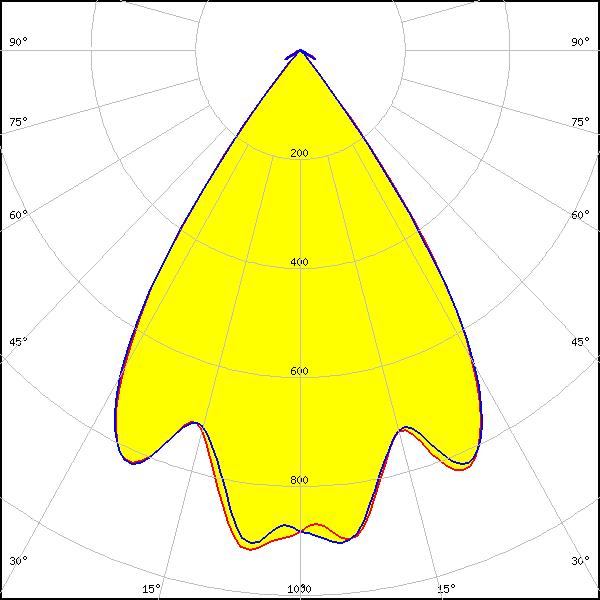

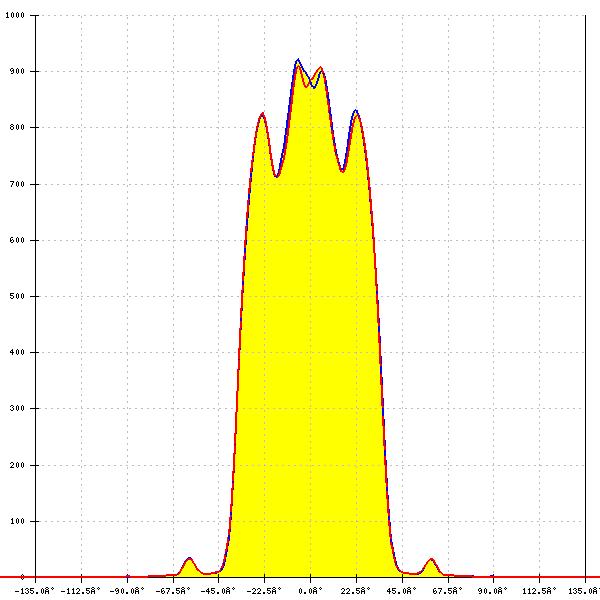

Optical results
LED:
V10 Gen6
LES size: 9.9 mm
FWHM:
58°
FWTM:
106°
Peak intensity:
0.830 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 Gen6
LES size: 6.0 mm
FWHM:
73°
FWTM:
115°
Peak intensity:
0.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V8 Gen6
LES size: 8.1 mm
FWHM:
66°
FWTM:
109°
Peak intensity:
0.670 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO10
LES size: 9.9 mm
FWHM:
58°
FWTM:
101°
Peak intensity:
0.850 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL01x
LES size: 6.0 mm
FWHM:
61°
FWTM:
93°
Peak intensity:
0.840 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
LES size: 9.8 mm
FWHM:
58°
FWTM:
98°
Peak intensity:
0.860 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
LES size: 9.8 mm
Required components:
Bender Wirth: 434 Typ L6
FWHM:
47°
FWTM:
95°
Peak intensity:
1.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU03x
LES size: 14.5 mm
FWHM:
64°
FWTM:
116°
Peak intensity:
0.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU03x
LES size: 14.5 mm
Required components:
Bender Wirth: 433 Typ L6
FWHM:
61°
FWTM:
125°
Peak intensity:
0.610 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
FWHM:
56°
FWTM:
90°
Peak intensity:
0.900 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
Bender Wirth: 434 Typ L6
FWHM:
46°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU710/711
LES size: 8.5 mm
FWHM:
62°
FWTM:
107°
Peak intensity:
0.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
FWHM:
61°
FWTM:
113°
Peak intensity:
0.730 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
Bender Wirth: 433 Typ L6
FWHM:
50°
FWTM:
109°
Peak intensity:
0.850 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
LES size: 6.0 mm
FWHM:
70°
FWTM:
104°
Peak intensity:
0.680 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
FWHM:
64°
FWTM:
104°
Peak intensity:
0.750 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
FWHM:
64°
FWTM:
102°
Peak intensity:
0.750 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
FWHM:
63°
FWTM:
111°
Peak intensity:
0.730 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHD-E/G
LES size: 0.0 mm
FWHM:
60°
FWTM:
105°
Peak intensity:
0.780 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
FWHM:
63°
FWTM:
108°
Peak intensity:
0.730 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
FWHM:
67°
FWTM:
106°
Peak intensity:
0.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
FWHM:
66°
FWTM:
121°
Peak intensity:
0.640 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-6 (12x13)
LES size: 6.3 mm
FWHM:
66°
FWTM:
104°
Peak intensity:
0.730 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-7 (13x13)
LES size: 7.5 mm
FWHM:
64°
FWTM:
105°
Peak intensity:
0.750 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
FWHM:
63°
FWTM:
109°
Peak intensity:
0.720 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
LES size: 6.7 mm
FWHM:
64°
FWTM:
84°
Peak intensity:
0.977 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S10
LES size: 0.0 mm
FWHM:
74°
FWTM:
106°
Peak intensity:
0.670 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
FWHM:
61°
FWTM:
110°
Peak intensity:
0.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S9
LES size: 9.8 mm
FWHM:
56°
FWTM:
87°
Peak intensity:
1.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C
LES size: 8.0 mm
Required components:
Bender Wirth: 479 Typ L6
FWHM:
42°
FWTM:
66°
Peak intensity:
1.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040C
LES size: 11.0 mm
Required components:
Bender Wirth: 480 Typ L6
FWHM:
51°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 6
LES size: 6.0 mm
Required components:
Bender Wirth: 434 Typ L6
FWHM:
46°
FWTM:
79°
Peak intensity:
1.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mini Zenigata (GW6BM)
LES size: 8.6 mm
FWHM:
62°
FWTM:
100°
Peak intensity:
0.800 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
