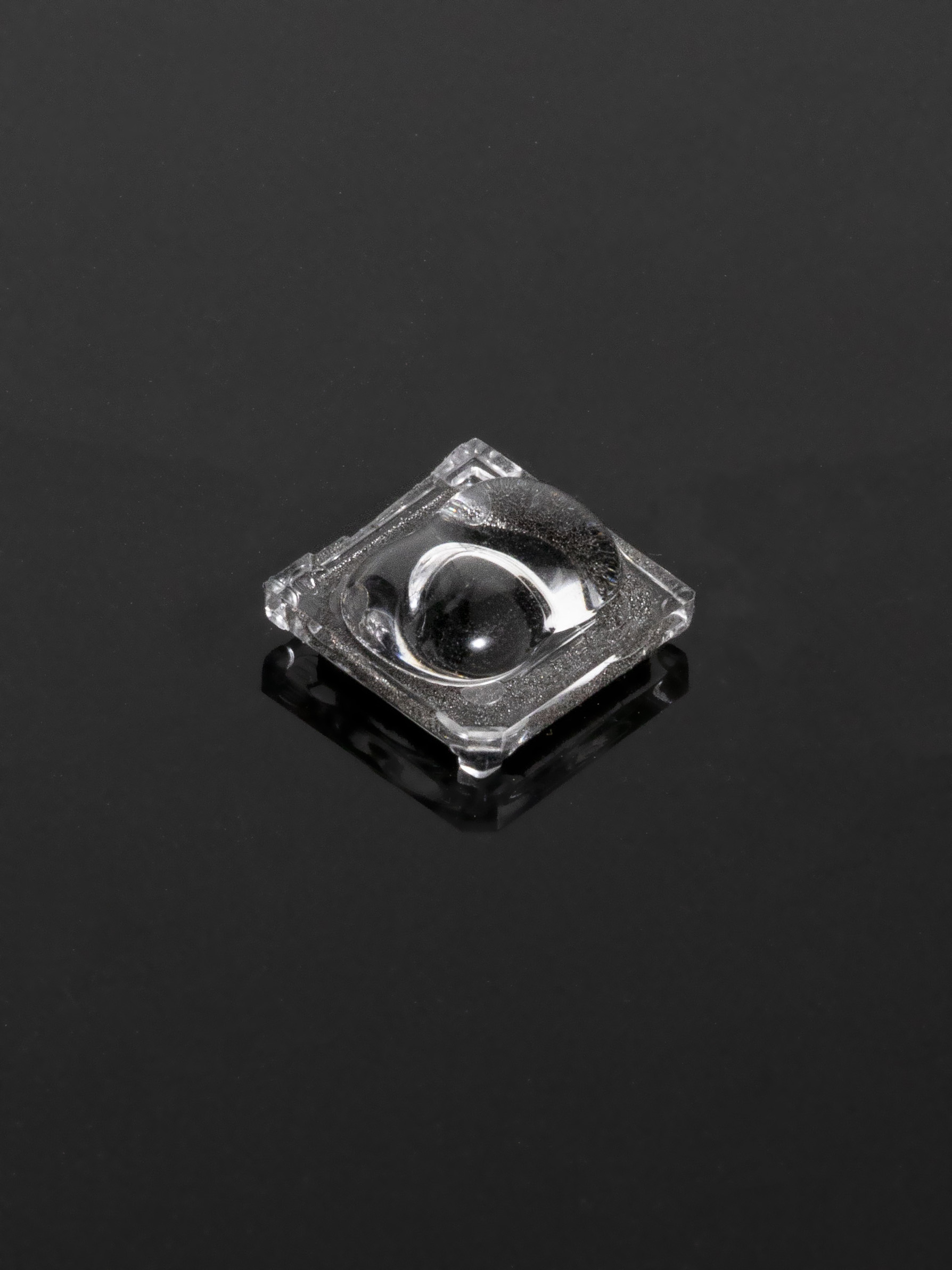

CA16755_IRIE-A
Print~120° x 90° rectangle beam for 4:3 aspect ratio cameras. Assembly with tape.
												Specification


											-
														Dimensions:14 x 14 mm
 -
														Height:5.10 mm
 -
														Fastening:tape, pin
 -
														Colour:clear
 -
														RoHS and REACH compliant:Yes

												Component Materials


											- IRIE-ASingle lensPMMA
 - VERONICA-SQ-MINI-TAPETapeAcryl tape
 - Request material files from Tech Support

												Ordering information


											-
														Quantity in box:5544 pcs
 -
														Box size:480 x 280 x 300 mm
 -
														Box weight:5.5 kg
 -
														MPQ:252 pcs
 -
														MOQ:252 pcs
 -
														MOQ size:480 x 280 x 20 mm
 -
														MOQ weight:0.6 kg

												Documents


											- Family datasheet
 - Product datasheet
 - 2D mechanical drawing
 - Request a 3D mechanical model

Related Content
Optical results
																								LED:

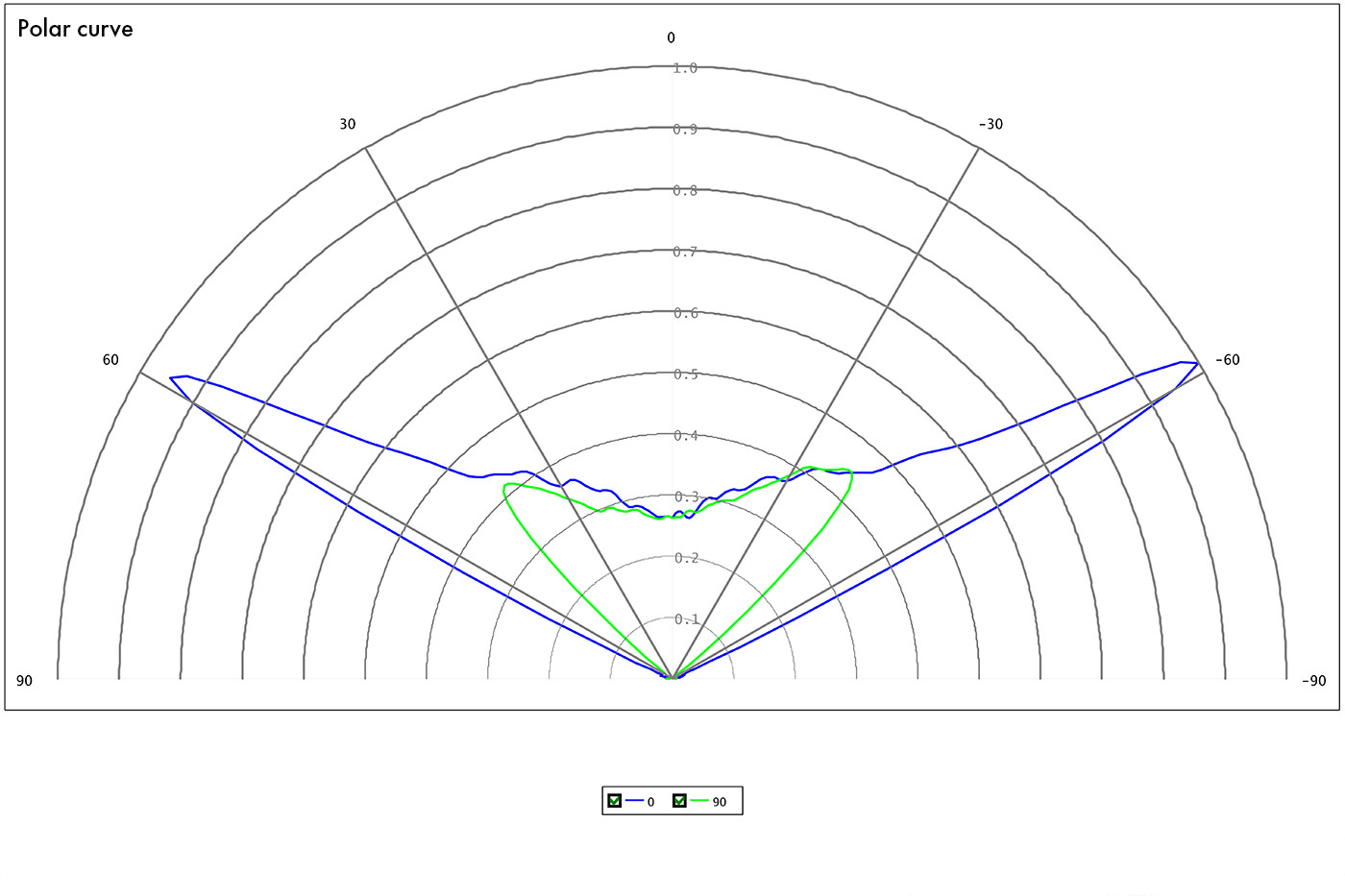

													LUXEON IR 2720



																																				FWHM: asymmetric


																								Efficiency:
													92 %

																										LEDs/each optic:
													1

																								Light colour/type:
													IR


																								LED:
													LUXEON IR 2720



																																				FWHM: asymmetric



																										LEDs/each optic:
													1

																								Light colour/type:
													IR


																								LED:

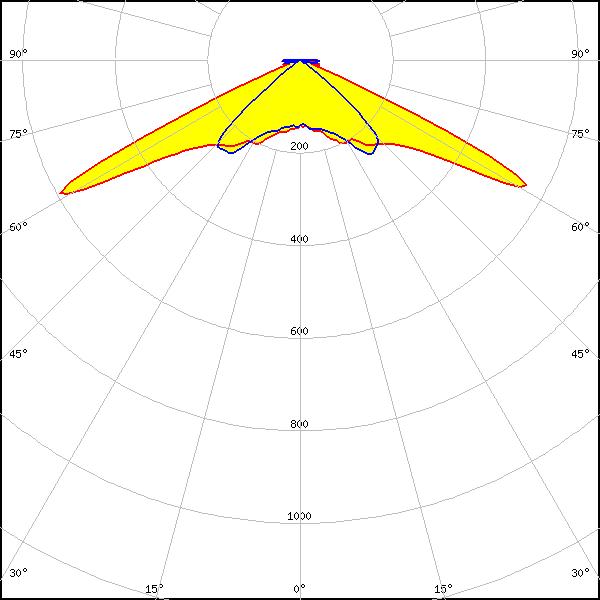

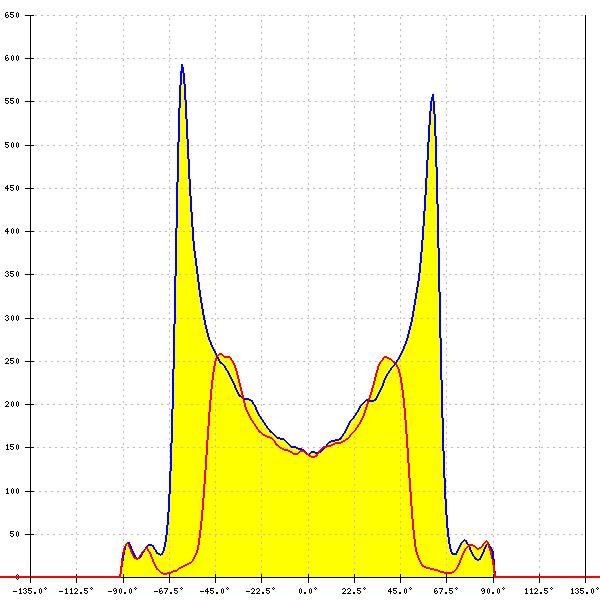

													LUXEON IR Compact



																																				FWHM: asymmetric


																								Efficiency:
													93 %

																										LEDs/each optic:
													1

																								Light colour/type:
													White


																								LED:

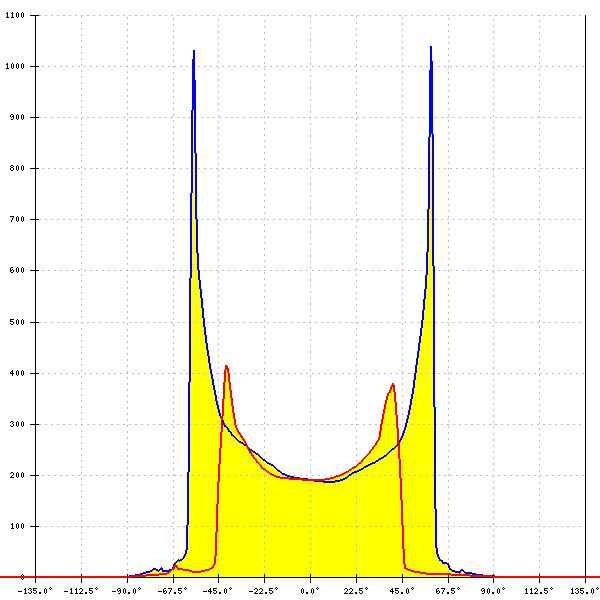

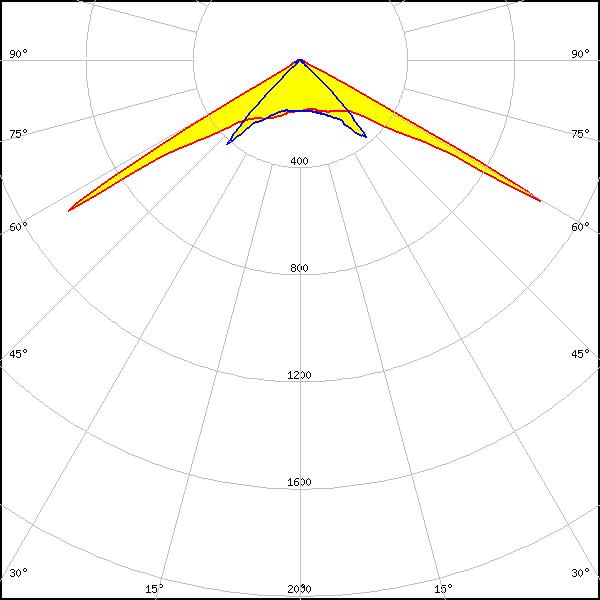

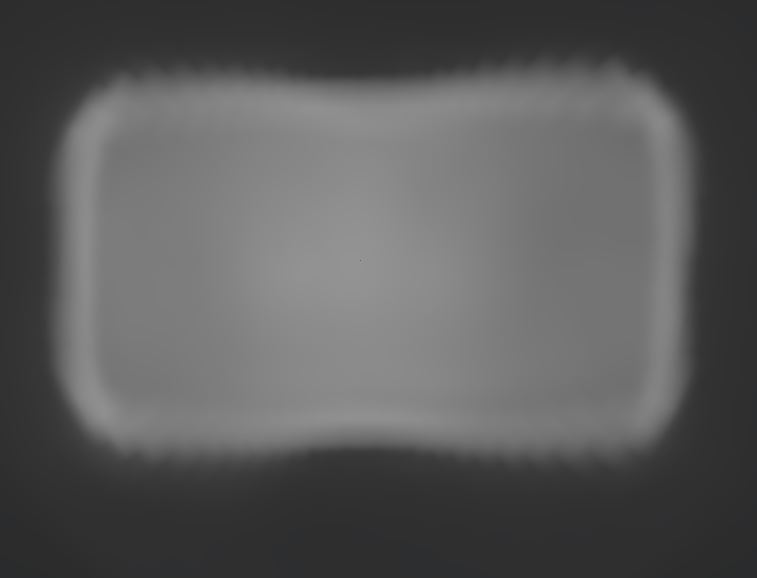

													LUXEON Z



																																				FWHM: asymmetric

																								Peak intensity:
													1.500 cd/lm

																								Efficiency:
													94 %

																										LEDs/each optic:
													1

																								Light colour/type:
													White


																								LED:

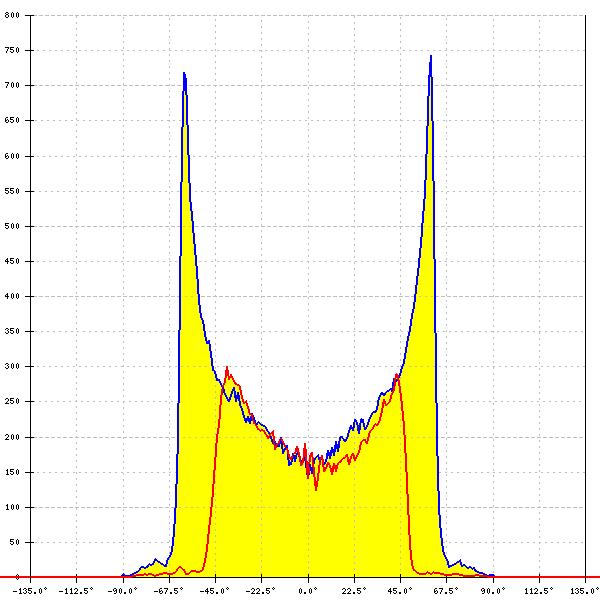

													SFH 4770S



																																				FWHM: asymmetric


																								Efficiency:
													93 %

																										LEDs/each optic:
													1

																								Light colour/type:
													White
