CA16204_GABRIELLA-MIDI-W
Print

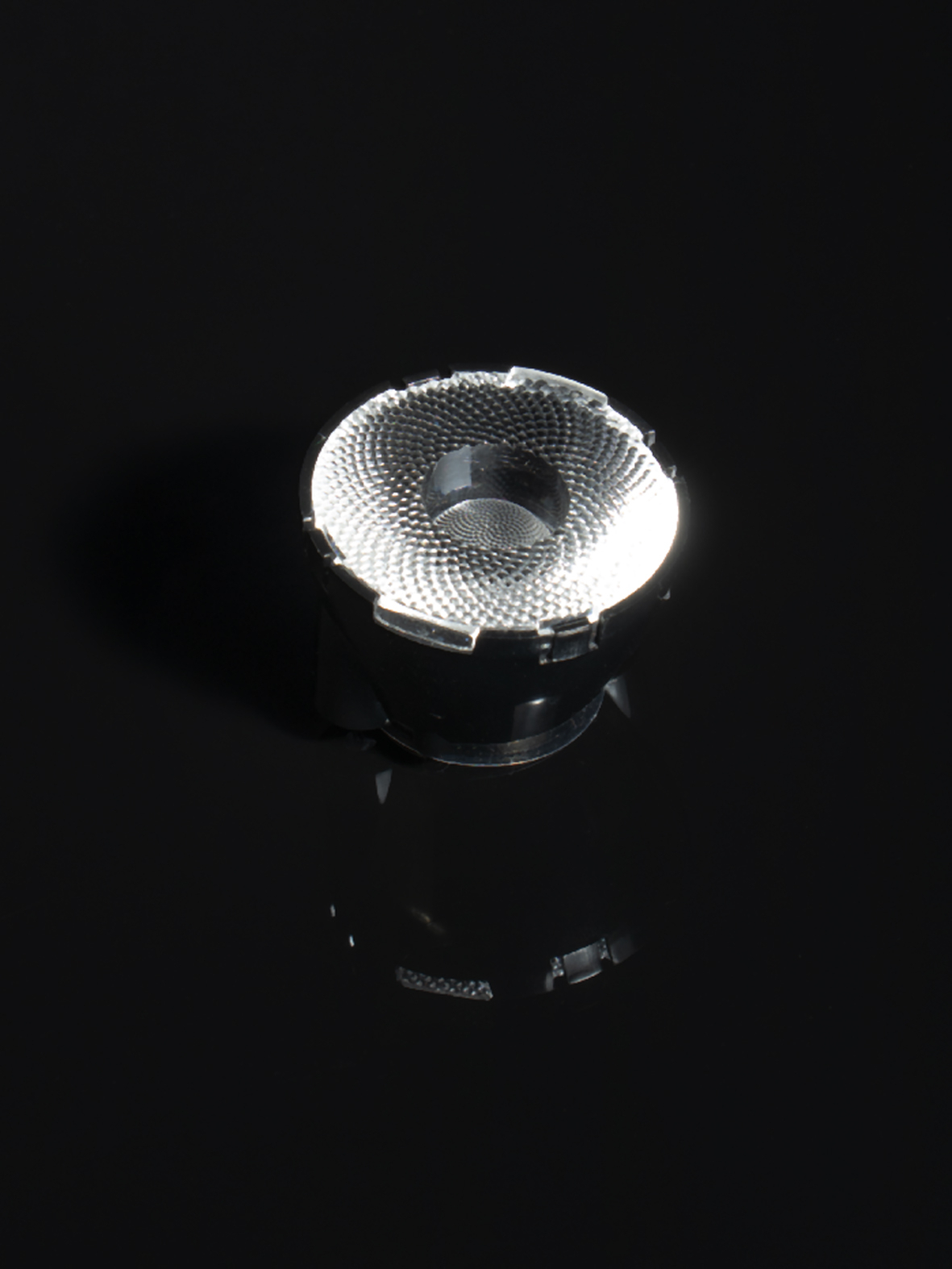

~35° spot beam with holder and installation tape
Component Materials
- GABRIELLA-MIDI-WSingle lensPMMA
- GABRIELLA-MIDI-HLDHolderPC
- GABRIELLA-MIDI-TAPETapeAcryl tape
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
J Series 5050 Round LES
FWHM:
34°
FWTM:
58°
Peak intensity:
2.184 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HI
FWHM:
35°
FWTM:
56°
Peak intensity:
2.320 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
FWHM:
32°
FWTM:
58°
Peak intensity:
2.269 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50.2
FWHM:
34°
FWTM:
59°
Peak intensity:
2.050 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L RGBW (XMLCTW)
FWHM:
36°
FWTM:
58°
Peak intensity:
2.190 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

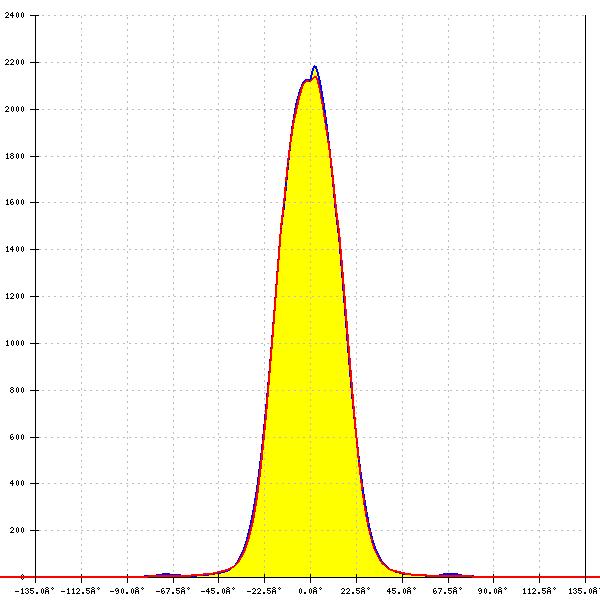

LED:
XM-L RGBW (XMLDCL HD)
FWHM:
36°
FWTM:
58°
Peak intensity:
2.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
XM-L RGBW (XMLDCL HI)
FWHM:
33°
FWTM:
61°
Peak intensity:
1.986 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
XM-L2
FWHM:
37°
FWTM:
58°
Peak intensity:
2.160 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
37°
FWTM:
57°
Peak intensity:
2.300 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2 HE
FWHM:
38°
FWTM:
56°
Peak intensity:
2.248 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

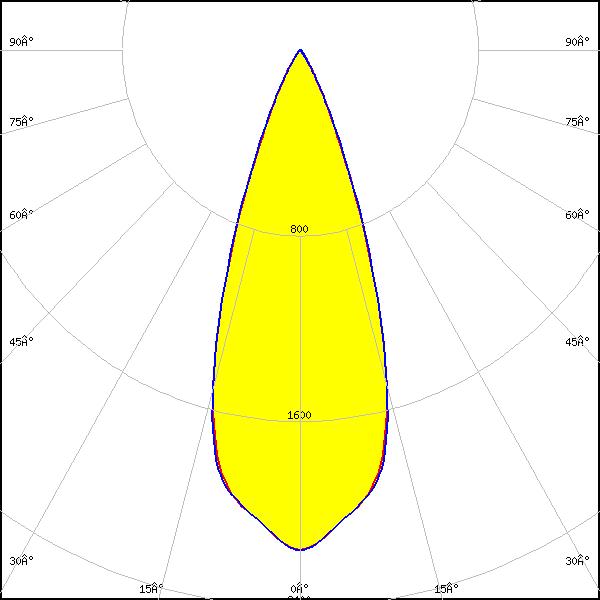

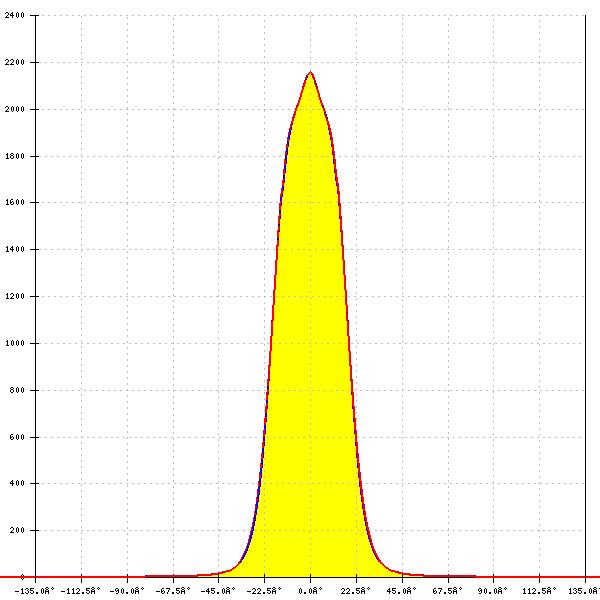

XP-L RGBW HD
FWHM:
37°
FWTM:
56°
Peak intensity:
2.158 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:

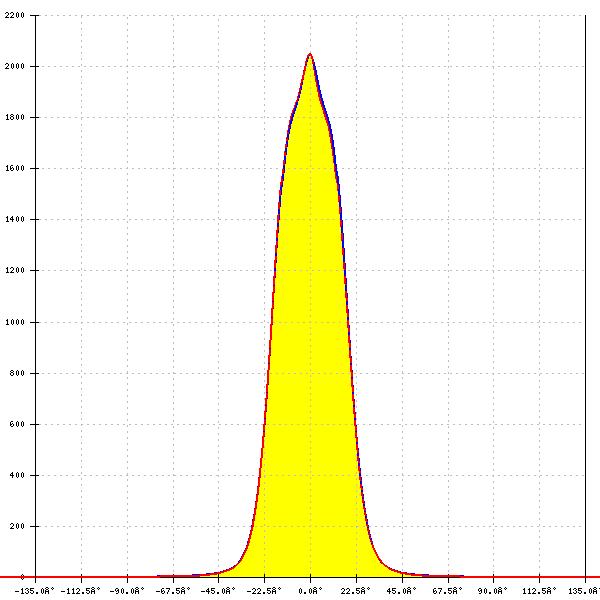

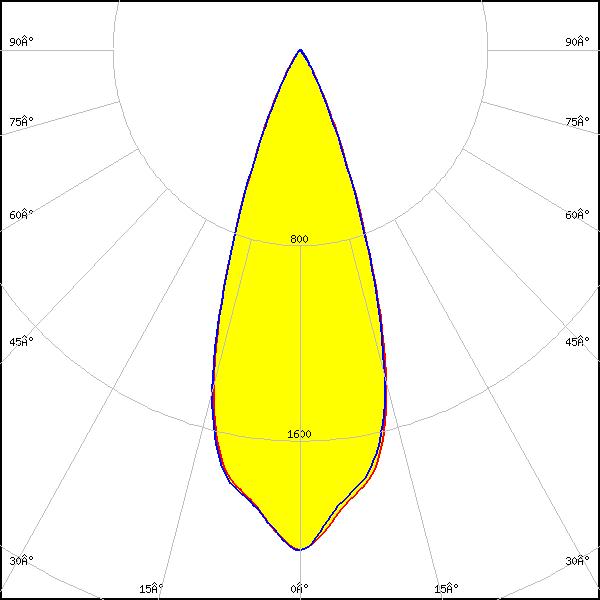

XP-L RGBW HI
FWHM:
37°
FWTM:
56°
Peak intensity:
2.049 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LZ7 Plus (LZ7-04M2PD)
FWHM:
35°
FWTM:
57°
Peak intensity:
2.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

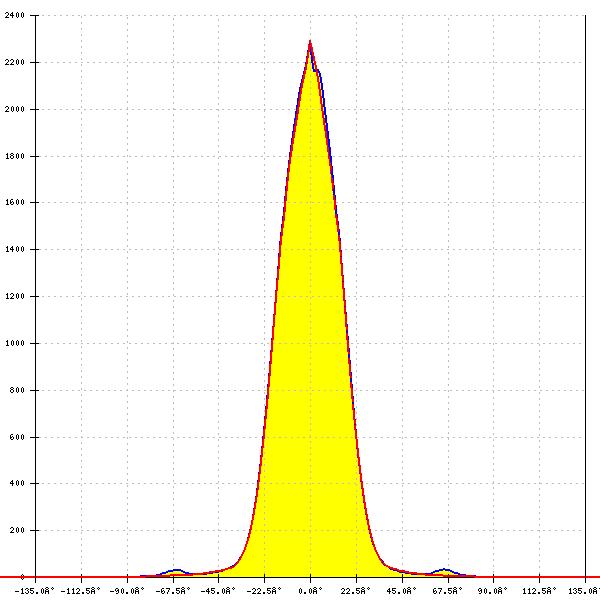

LED:
LUXEON 5050 Round LES
FWHM:
34°
FWTM:
58°
Peak intensity:
2.295 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON M/MX
FWHM:
33°
FWTM:
59°
Peak intensity:
2.170 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON MZ
FWHM:
35°
FWTM:
57°
Peak intensity:
2.270 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NV4x144A
FWHM:
34°
FWTM:
59°
Peak intensity:
2.080 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM:
36°
FWTM:
59°
Peak intensity:
2.060 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Pure 1414
FWHM:
33°
FWTM:
72°
Peak intensity:
1.676 cd/lm
Efficiency:
78 %
LEDs/each optic:
4
Light colour/type:
RGBW
LED:
OSLON Square EC
FWHM:
36°
FWTM:
56°
Peak intensity:
2.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Stage (S2WP)
FWHM:
36°
FWTM:
57°
Peak intensity:
2.100 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

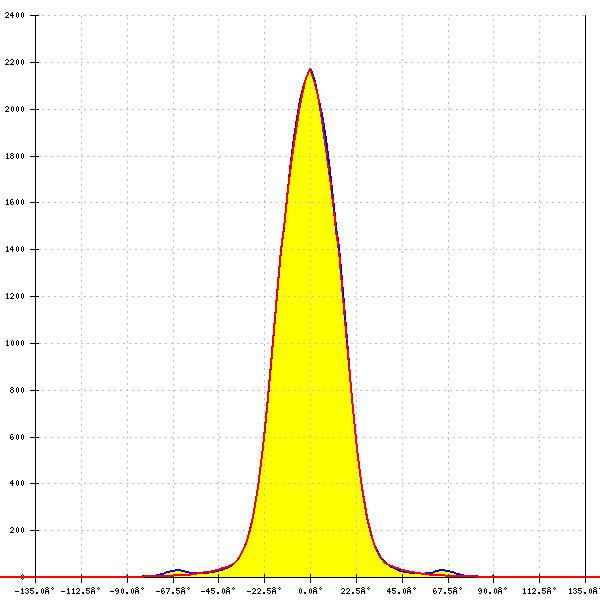

LH502D
FWHM:
34°
FWTM:
58°
Peak intensity:
2.174 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

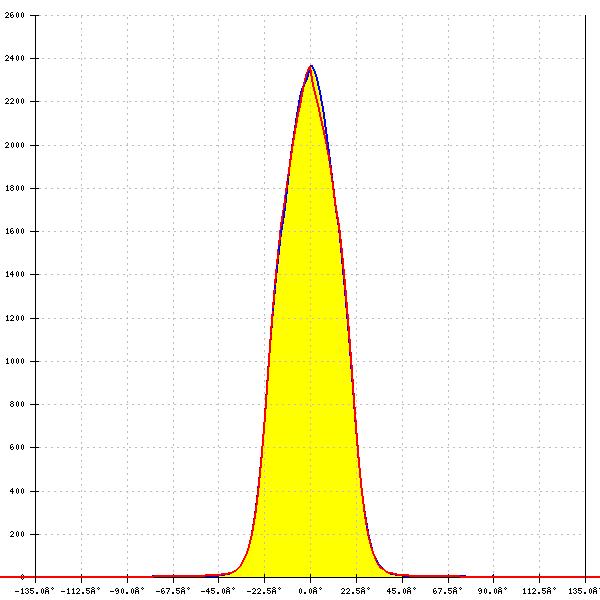

LM28xB Series
FWHM:
38°
FWTM:
56°
Peak intensity:
2.371 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SPF05F0A
FWHM:
36°
FWTM:
56°
Peak intensity:
2.301 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
SPF05F0B
FWHM:
36°
FWTM:
56°
Peak intensity:
2.301 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
SPF05F0C
FWHM:
35°
FWTM:
57°
Peak intensity:
2.190 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
RGBW
