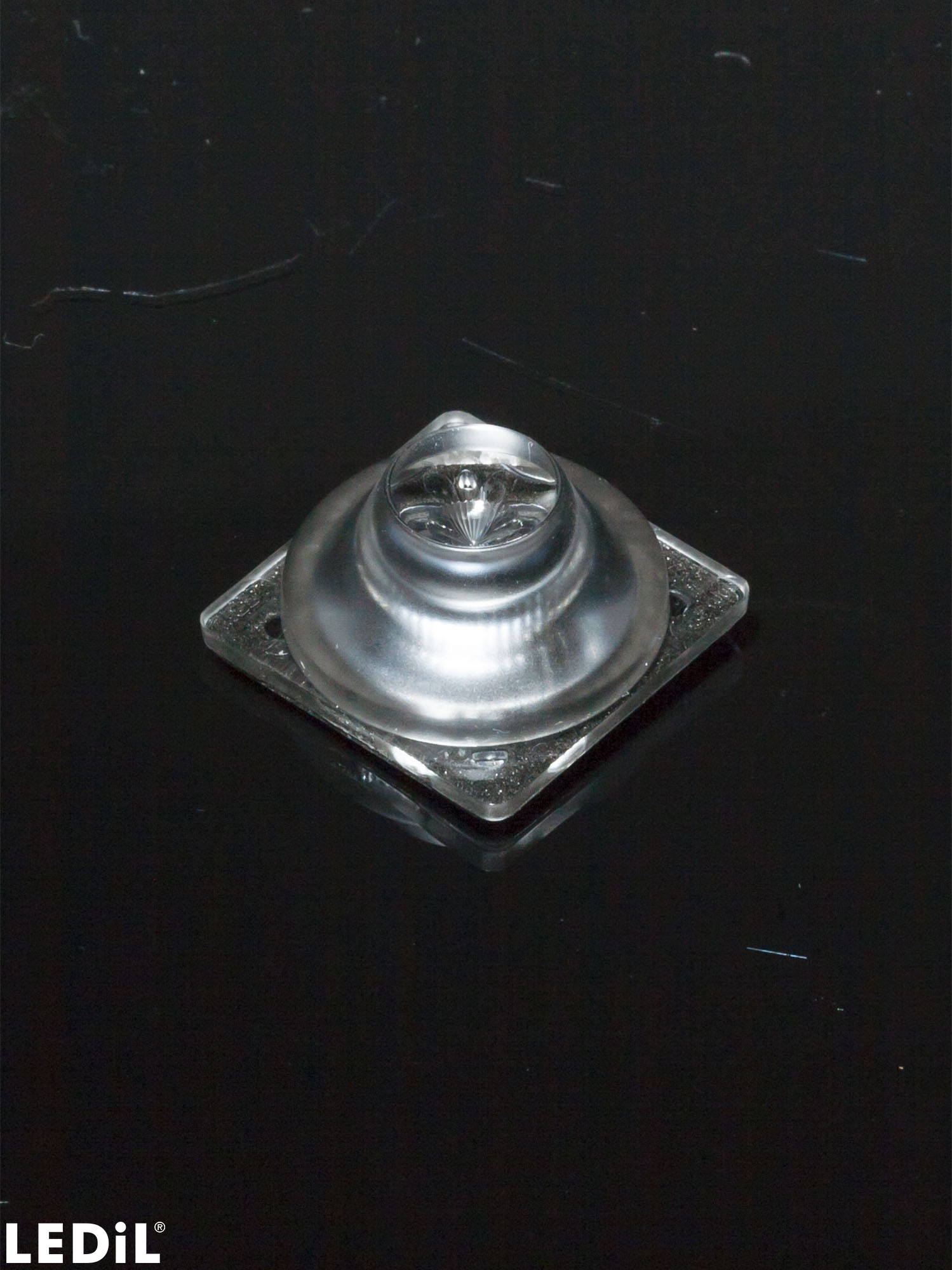

CA15902_VERONICA-SQ-SE
Print
~190° side emitter beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

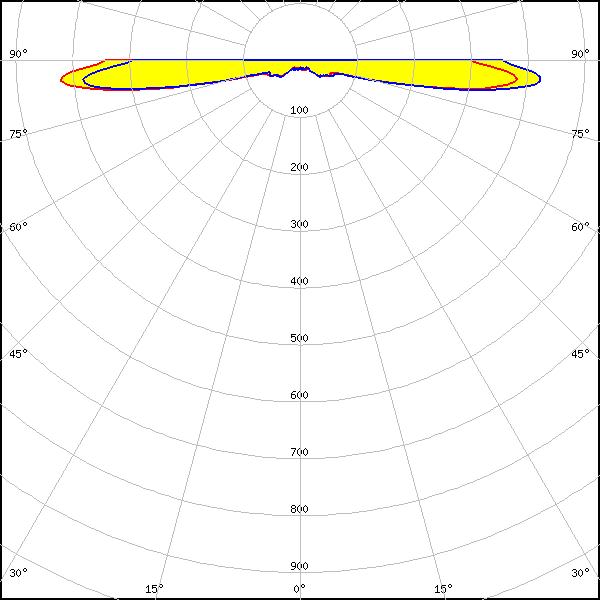

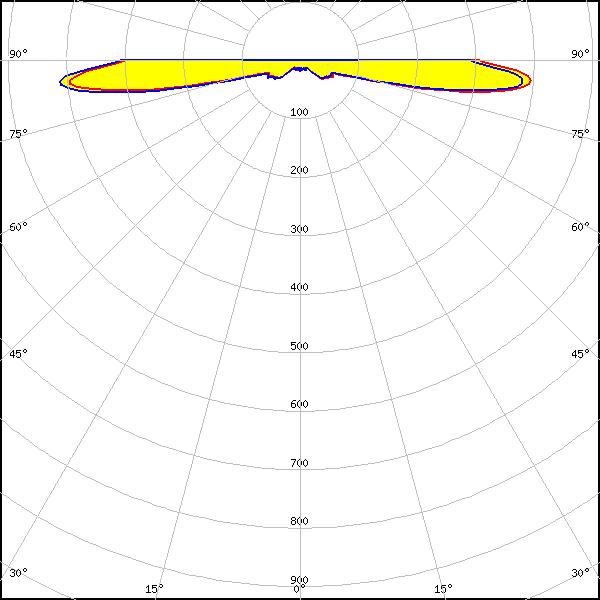

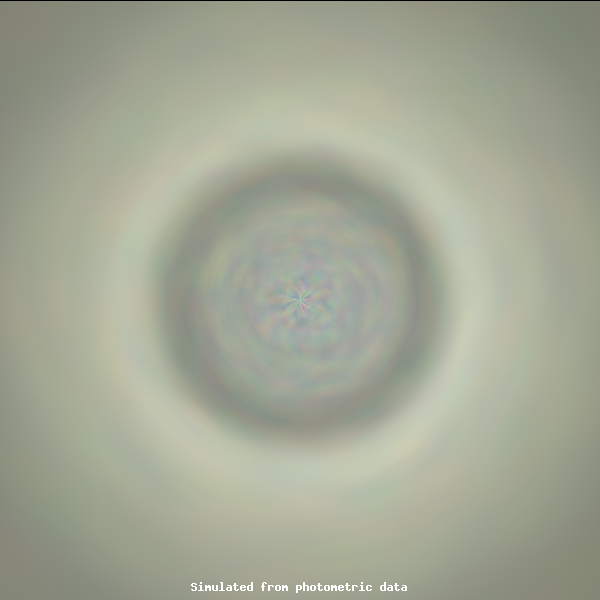

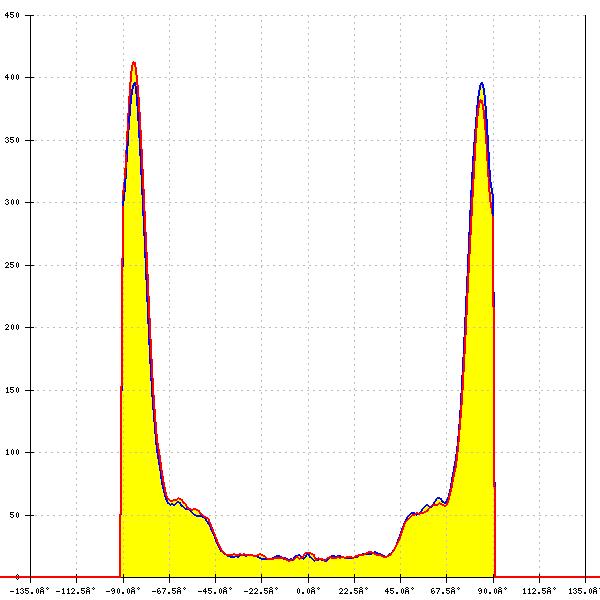

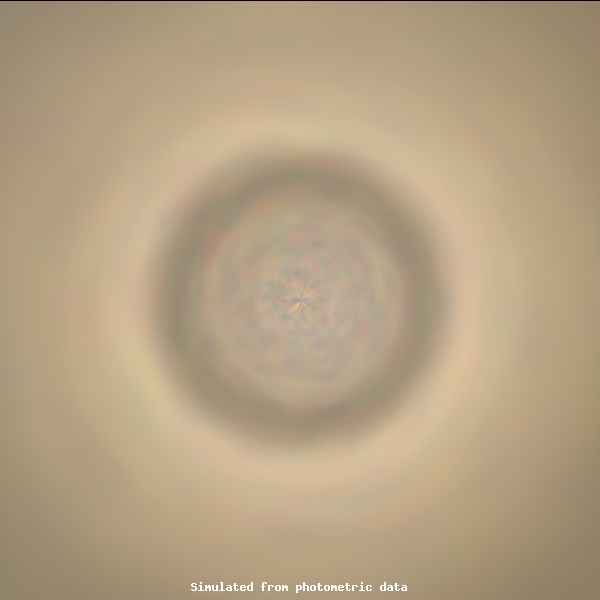

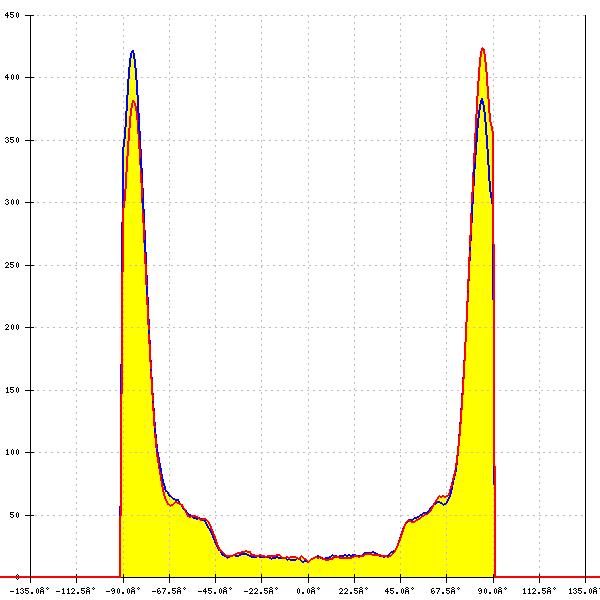

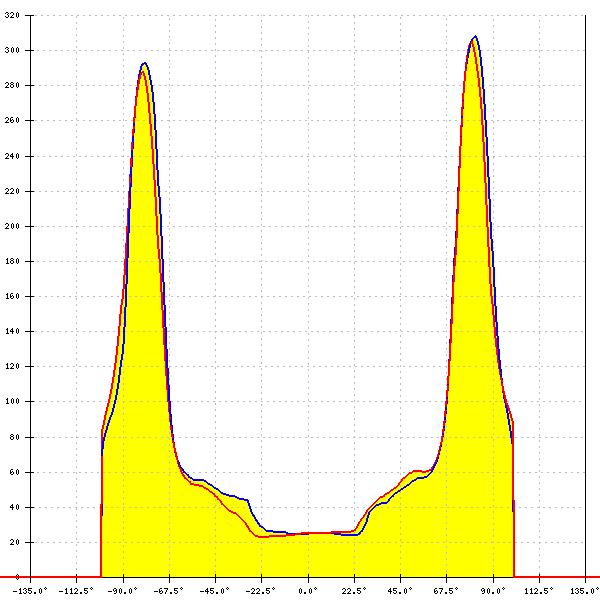

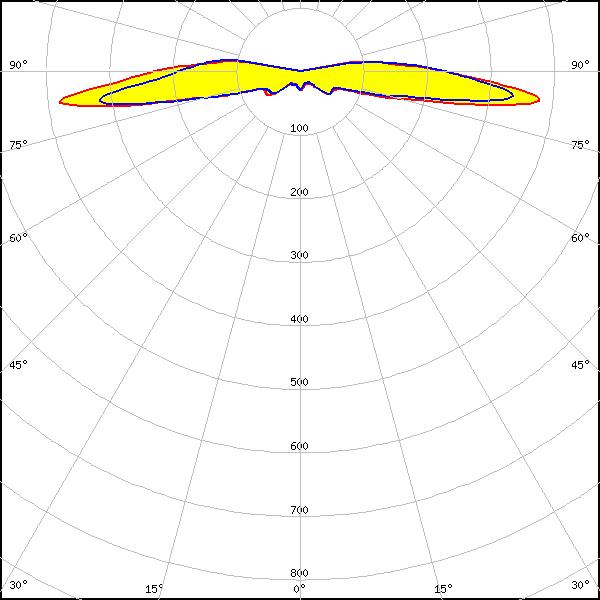

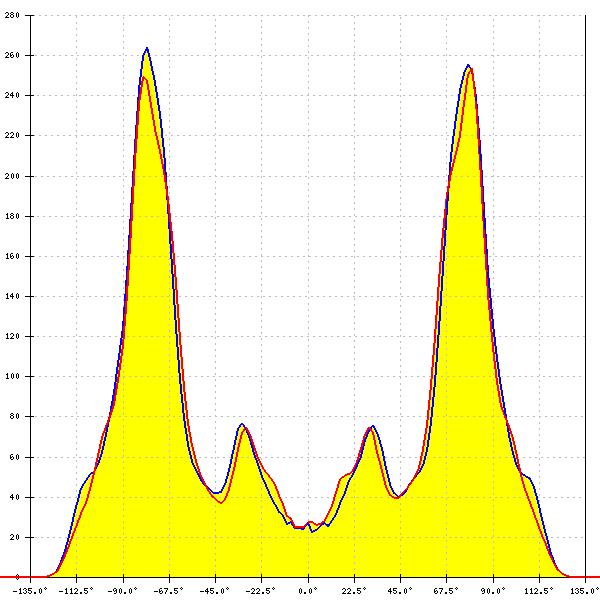

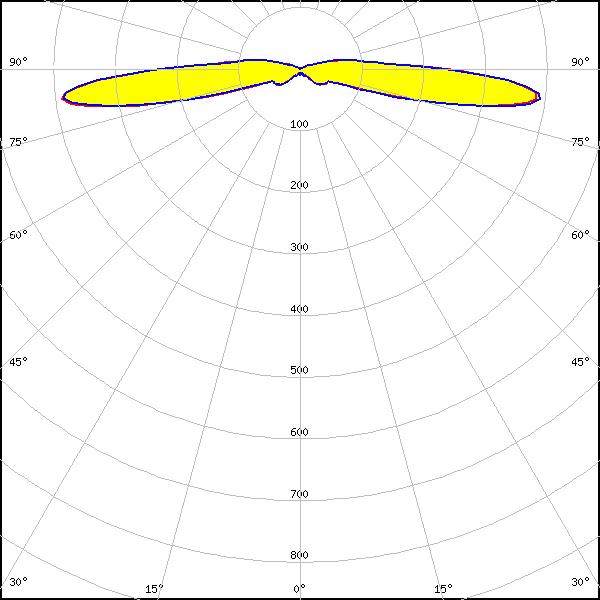

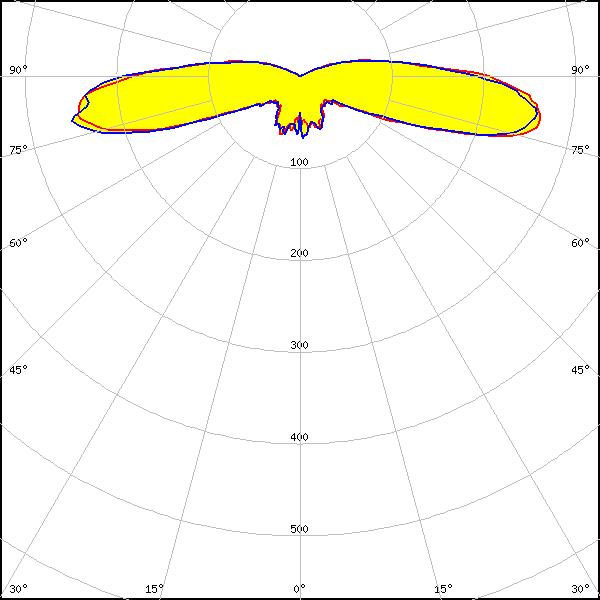

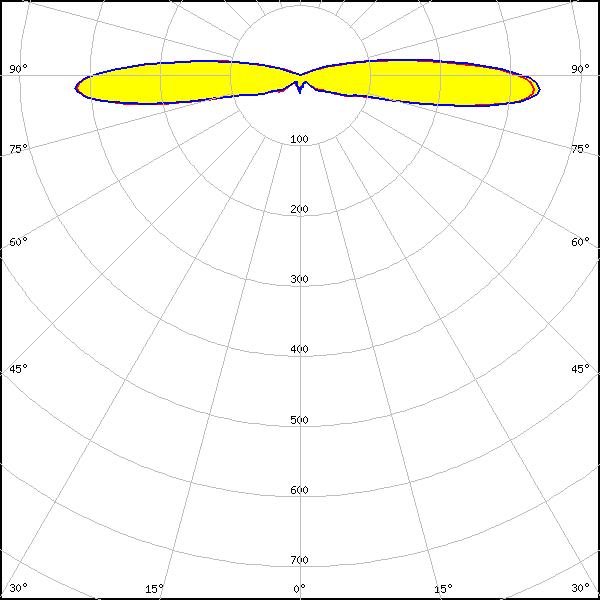

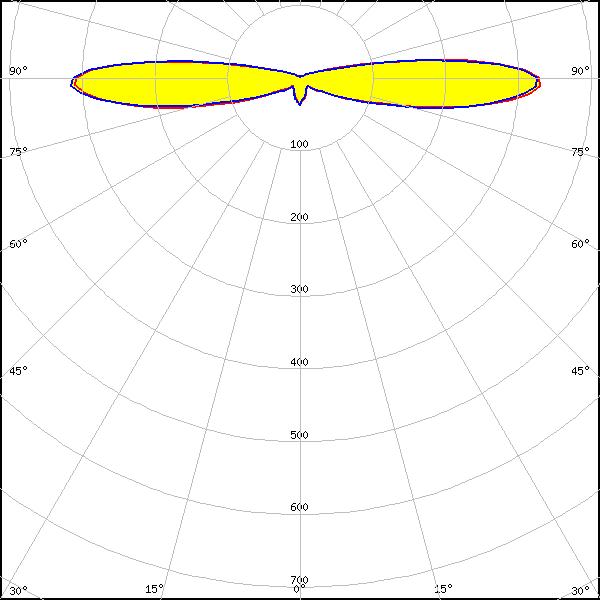

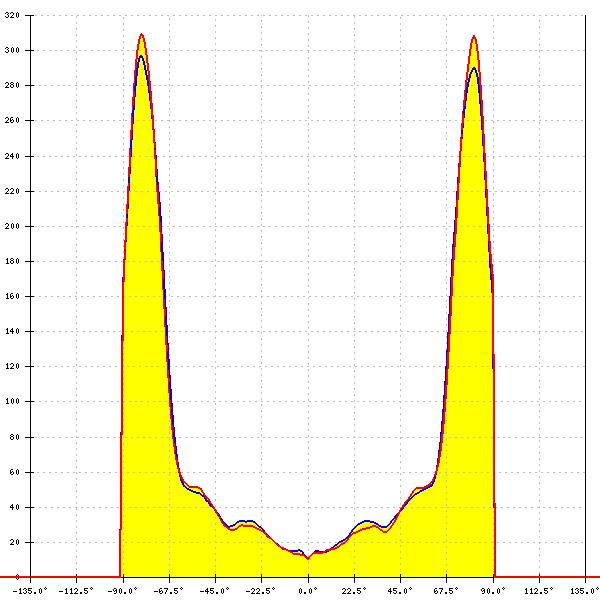

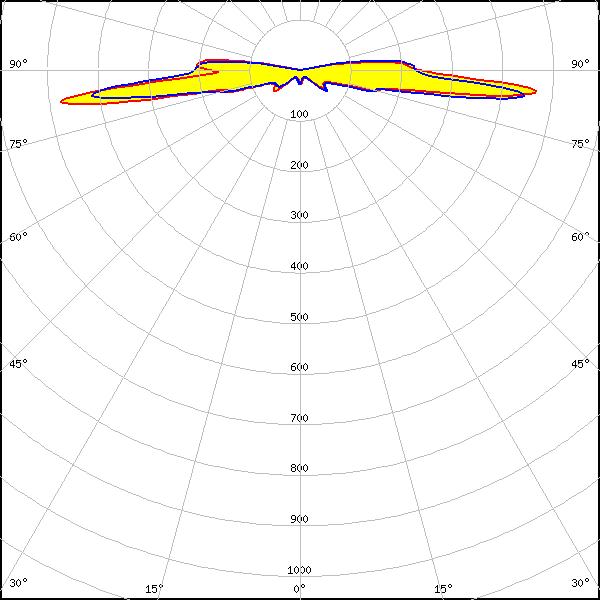

Optical results

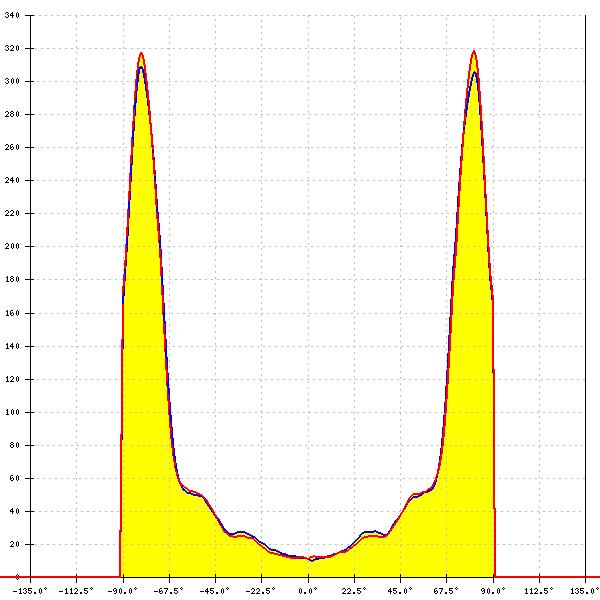

LED:

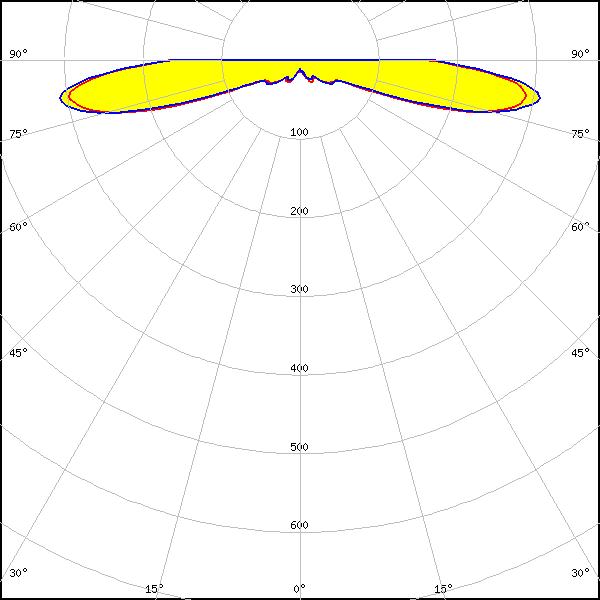

J Series 5050 Round LES
FWHM:
180°
FWTM:
182°
Peak intensity:
0.322 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

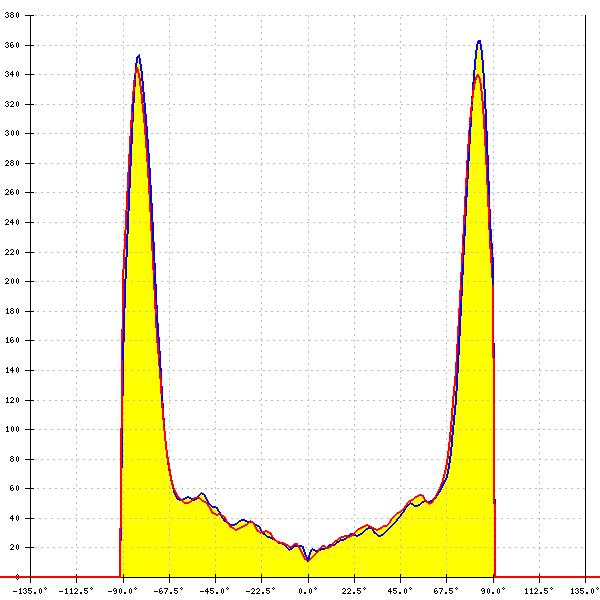

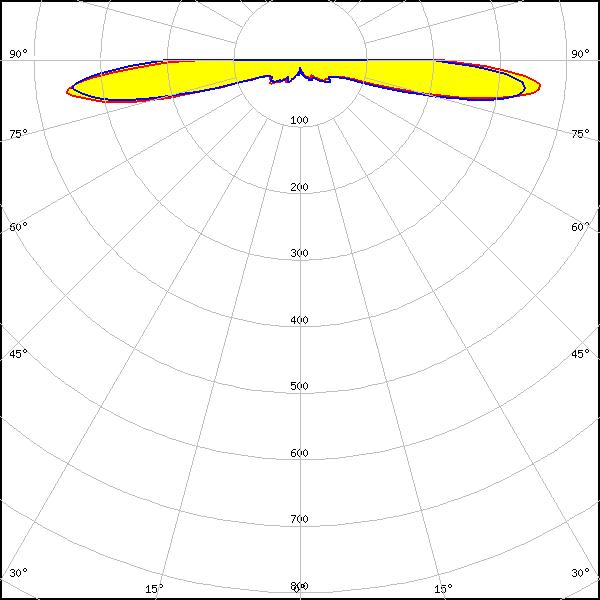

LED:
J Series 5050B 30V K Class
FWHM:
180°
FWTM:
182°
Peak intensity:
0.363 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM:
180°
FWTM:
182°
Peak intensity:
0.311 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

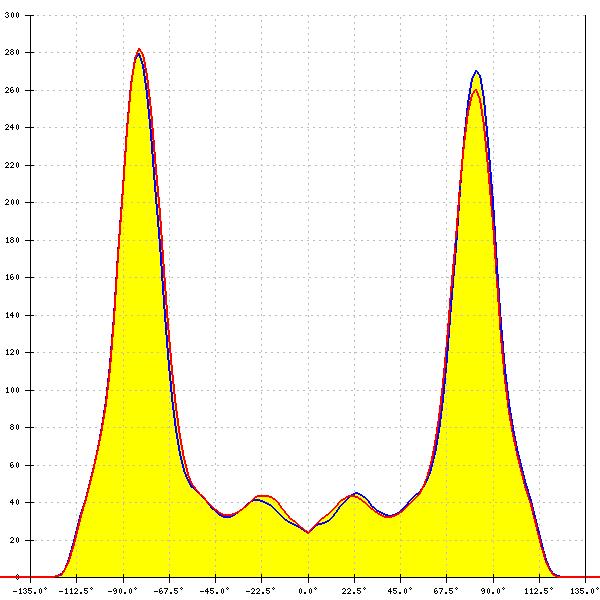

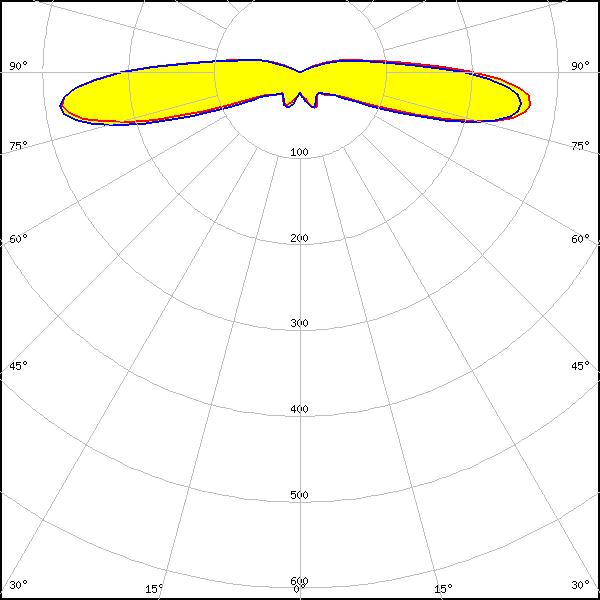

LED:
XD16
FWHM:
188°
FWTM:
223°
Peak intensity:
0.283 cd/lm
Efficiency:
94 %
LEDs/each optic:
7
Light colour/type:
White

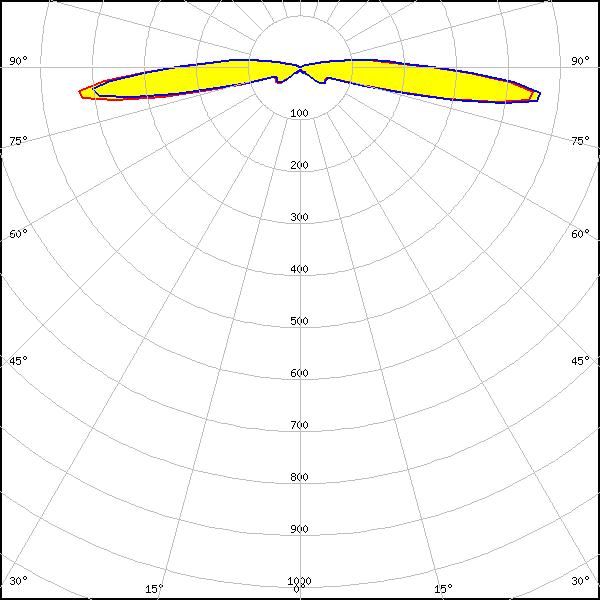

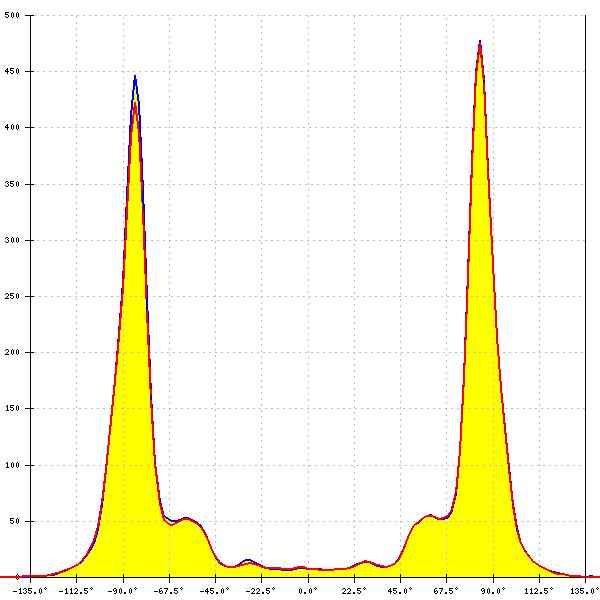

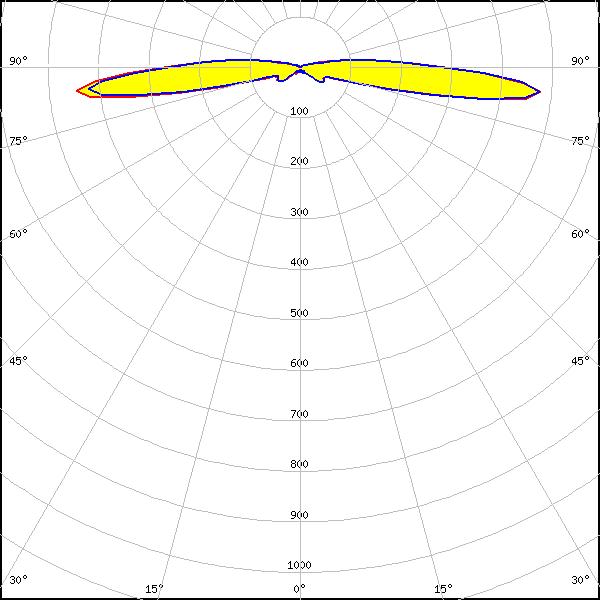

LED:

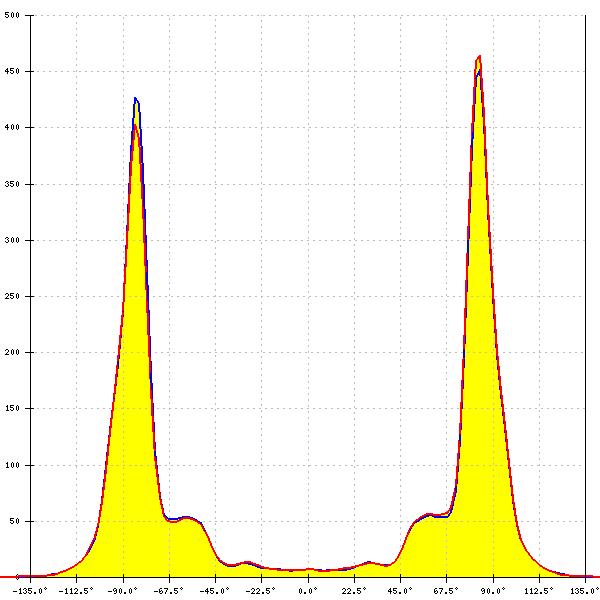

XE-G
FWHM:
180°
FWTM:
204°
Peak intensity:
0.492 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Red

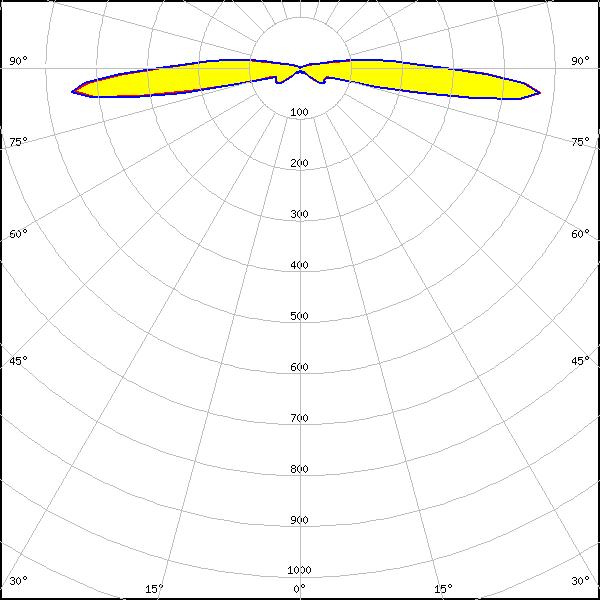

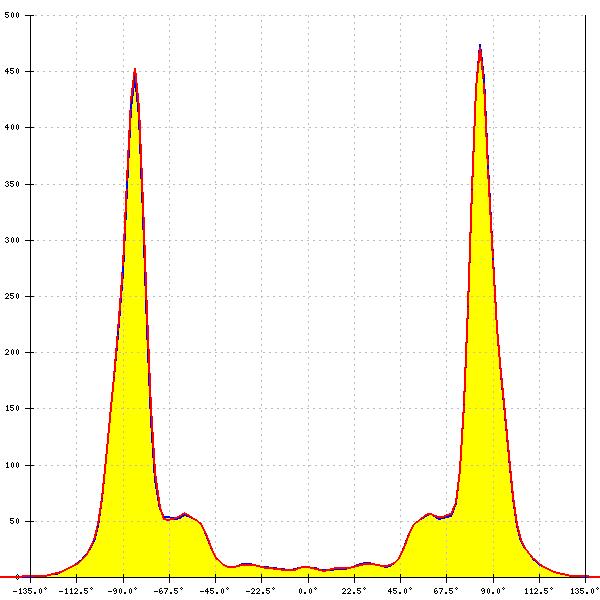

LED:
XE-G
FWHM:
184°
FWTM:
204°
Peak intensity:
0.486 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Blue
LED:
XE-G
FWHM:
182°
FWTM:
204°
Peak intensity:
0.505 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

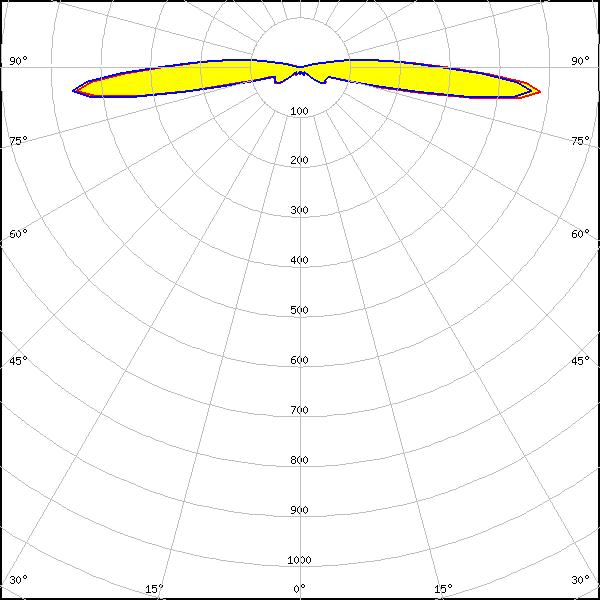

LED:
XE-G
FWHM:
184°
FWTM:
200°
Peak intensity:
0.486 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:

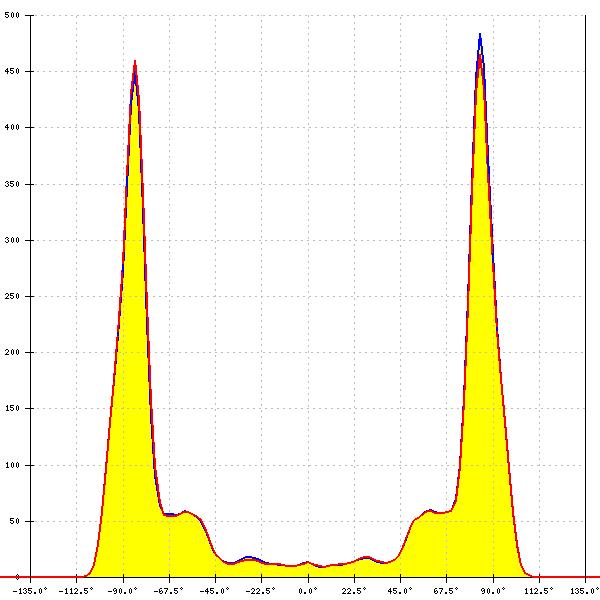

Green

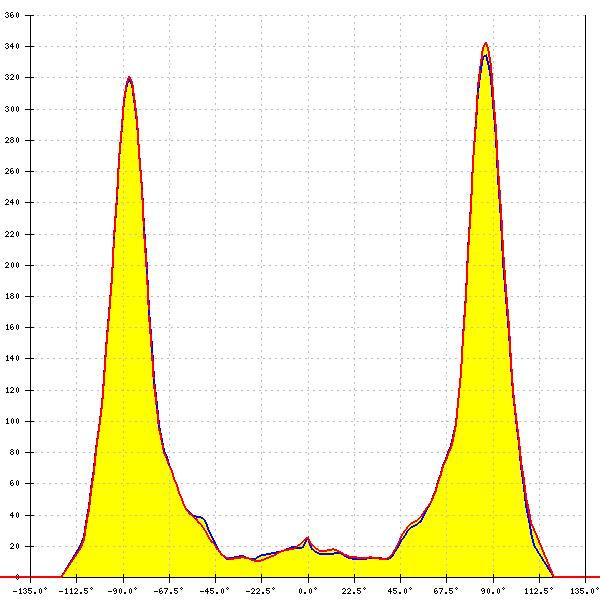

LED:
XHP35 HD
FWHM:
194°
FWTM:
216°
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

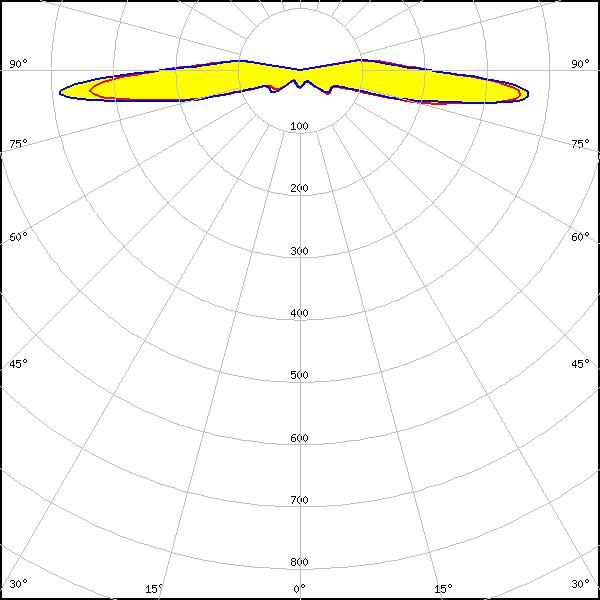

LED:

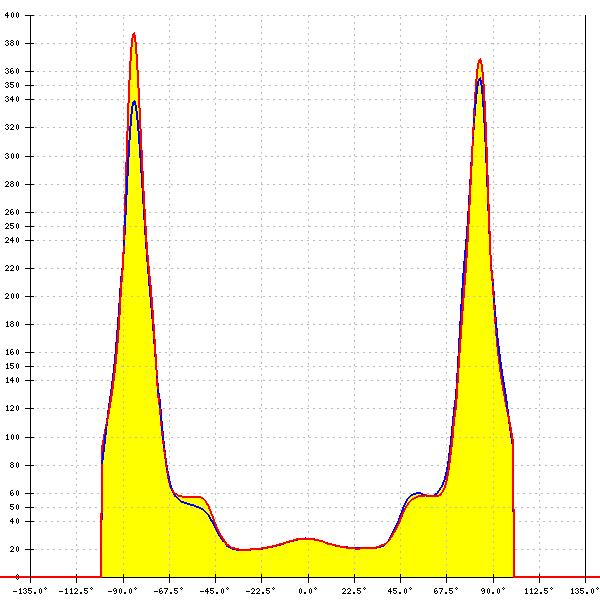

XHP35 HI
FWHM:
183°
FWTM:
201°
Peak intensity:
0.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

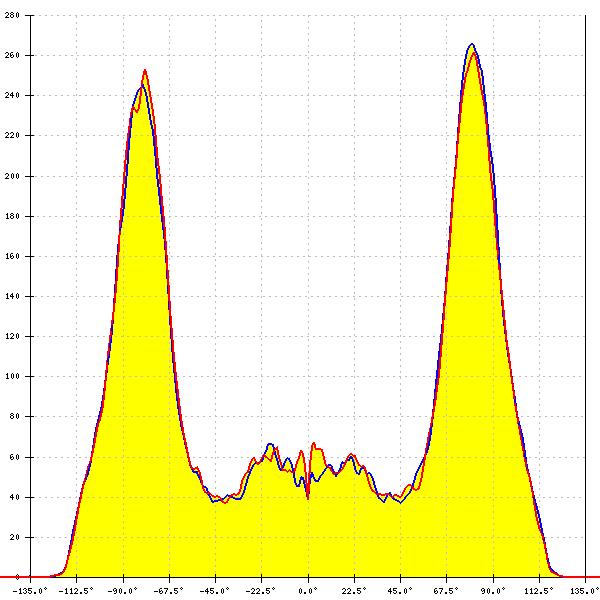

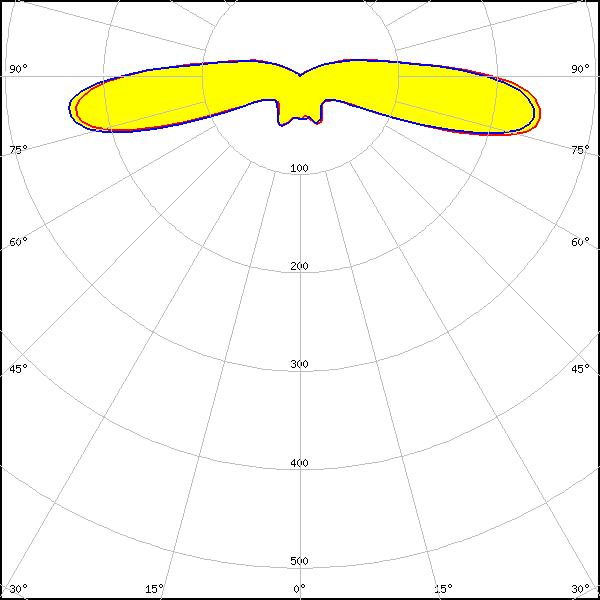

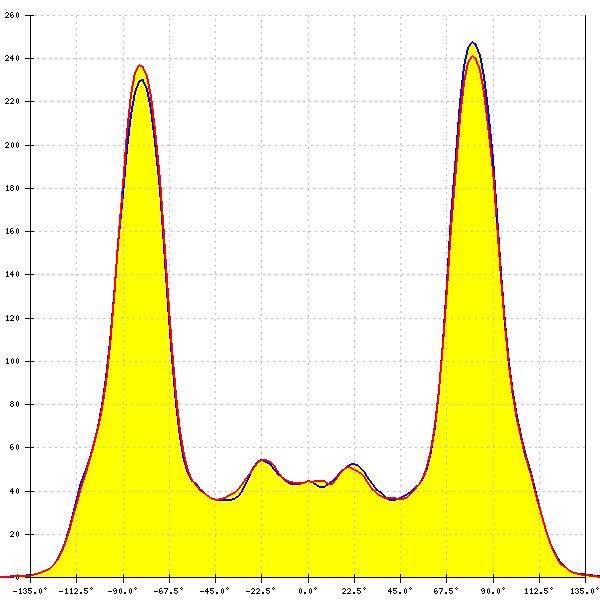

XHP70
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70
FWHM:
190°
FWTM:
232°
Peak intensity:
0.250 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

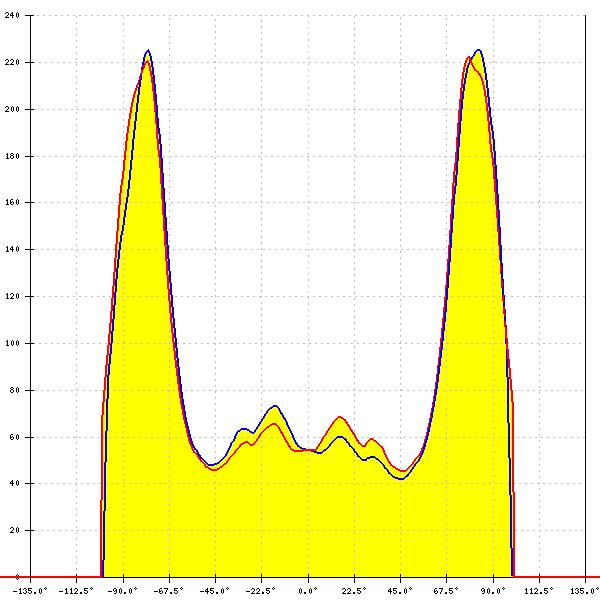

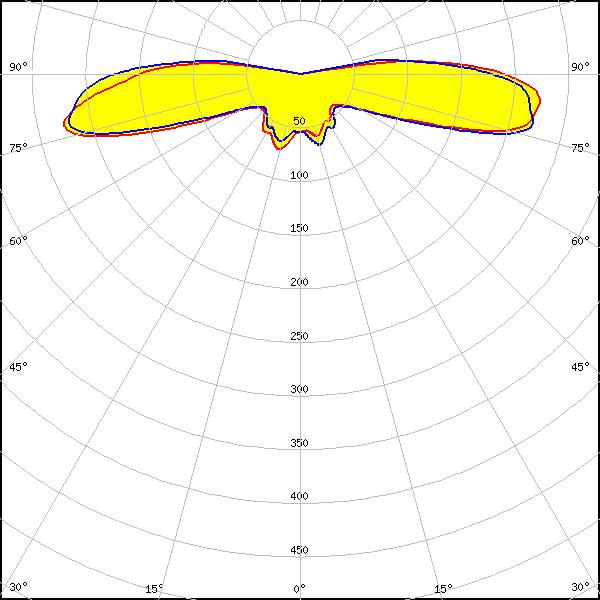

LED:
XHP70.2
FWHM:
194°
FWTM:
220°
Peak intensity:
0.240 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

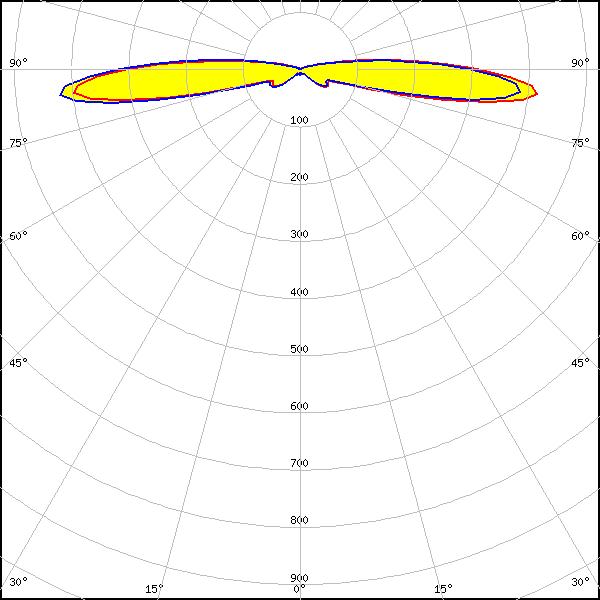

LED:

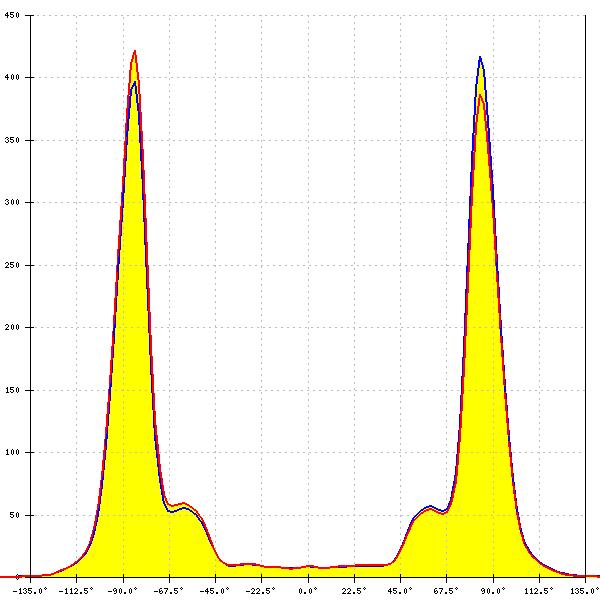

XP-E
FWHM:
188°
FWTM:
208°
Peak intensity:
0.429 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

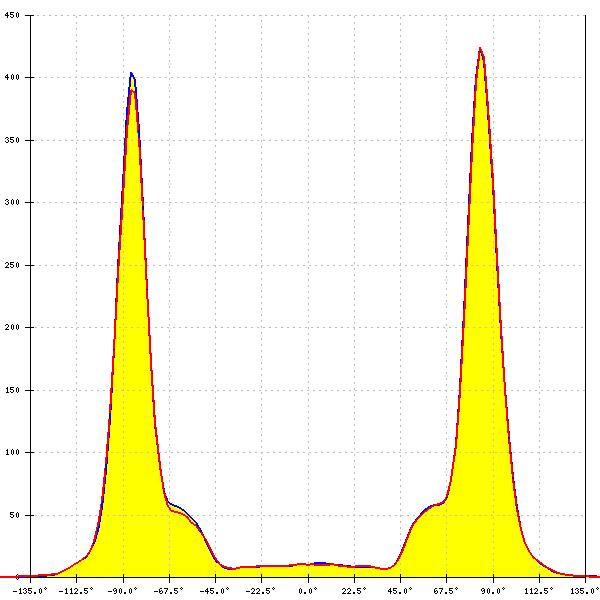

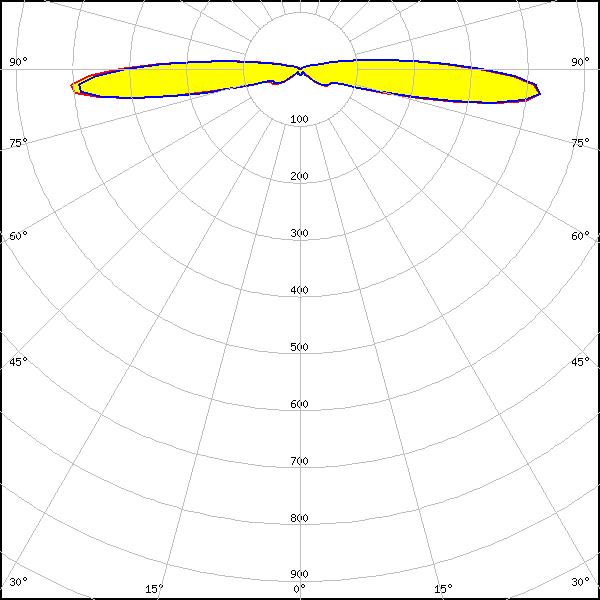

LED:
XP-E2
FWHM:
188°
FWTM:
206°
Peak intensity:
0.428 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Red

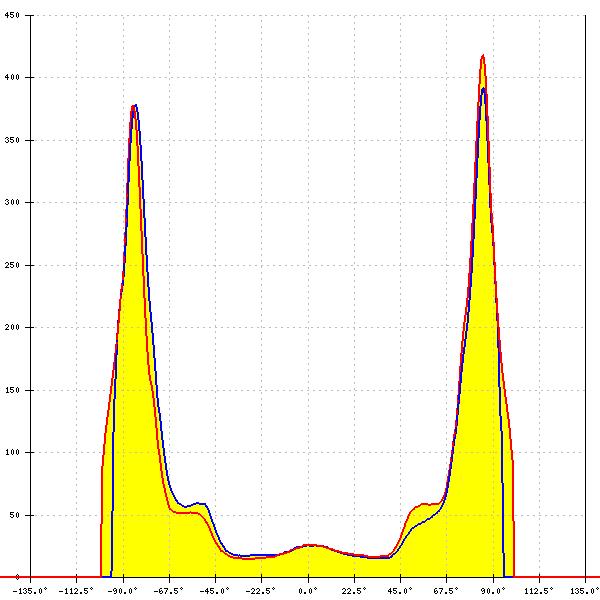

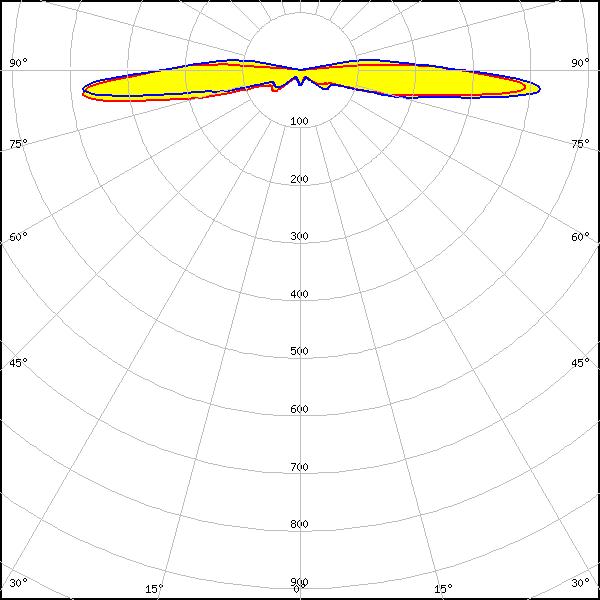

LED:
XP-G2
FWHM:
184°
FWTM:
196°
Peak intensity:
0.440 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

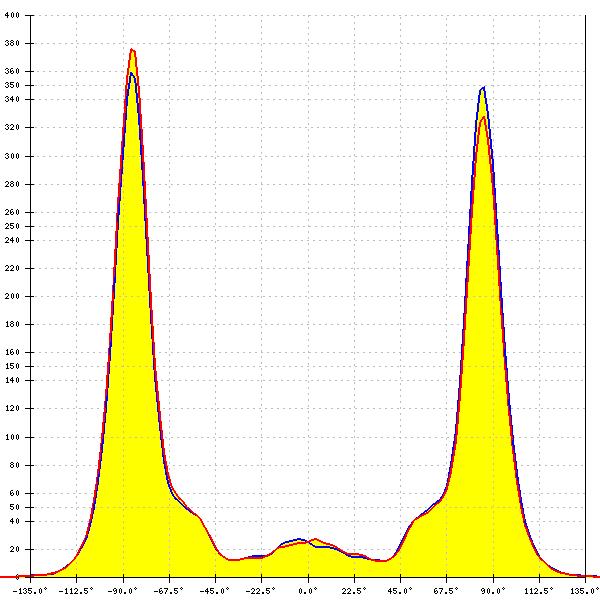

LED:

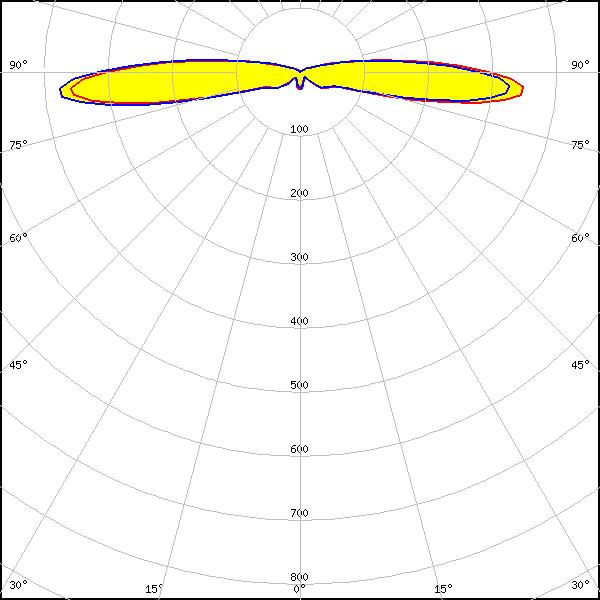

XP-G2 HE
FWHM:
191°
FWTM:
212°
Peak intensity:
0.377 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

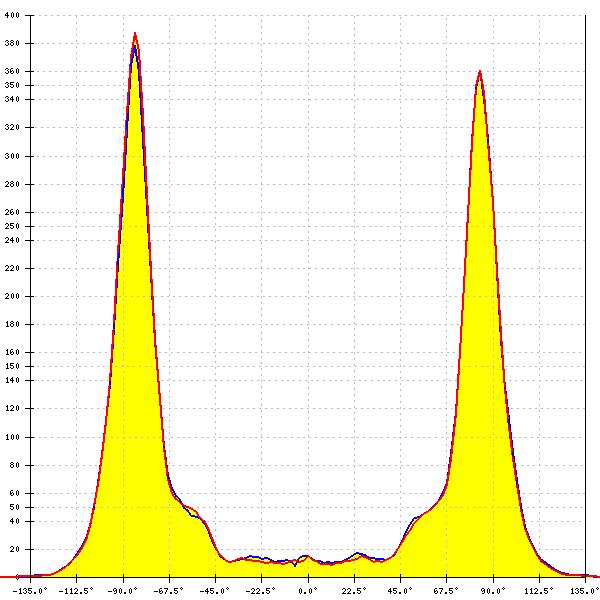

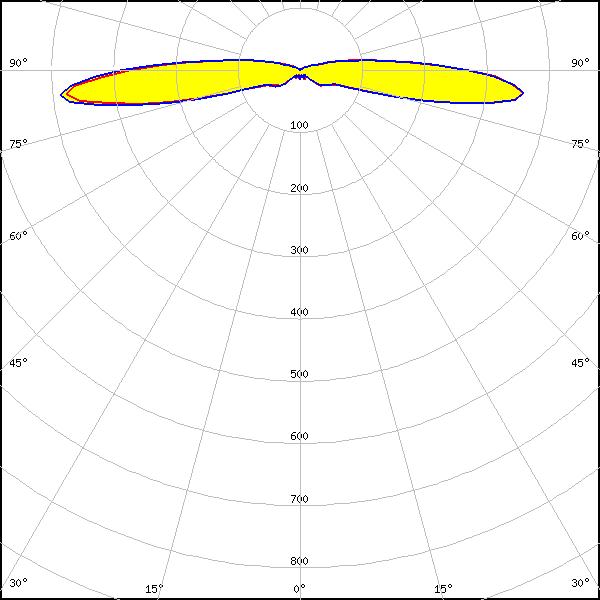

LED:
XP-G3
FWHM:
186°
FWTM:
211°
Peak intensity:
0.390 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

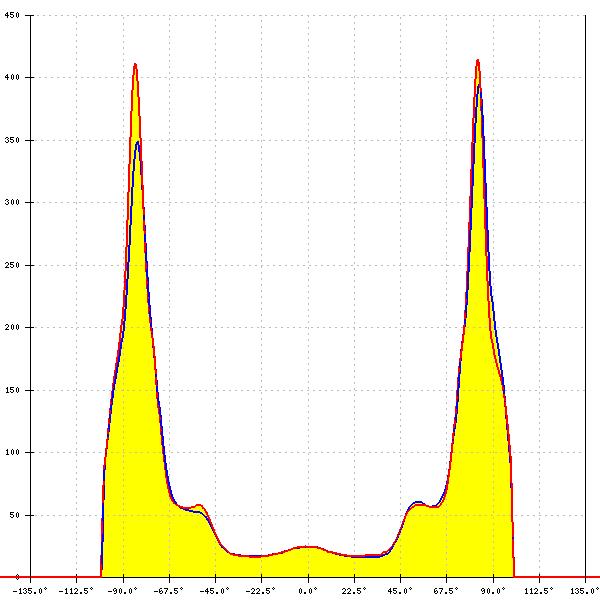

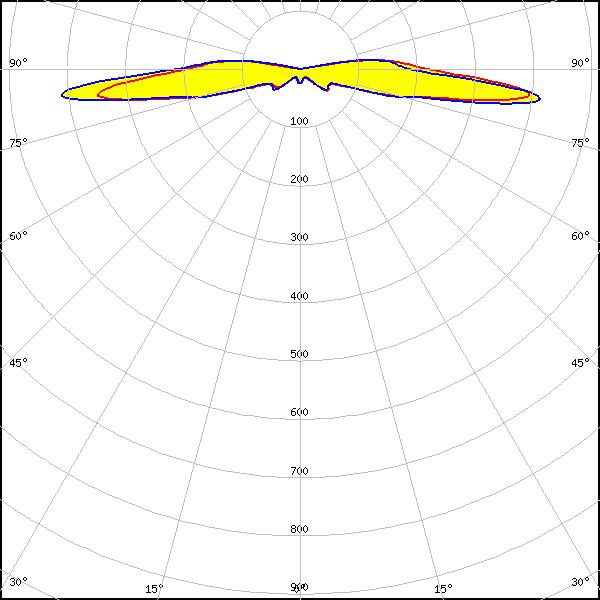

XP-L HI
FWHM:
184°
FWTM:
210°
Peak intensity:
0.450 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

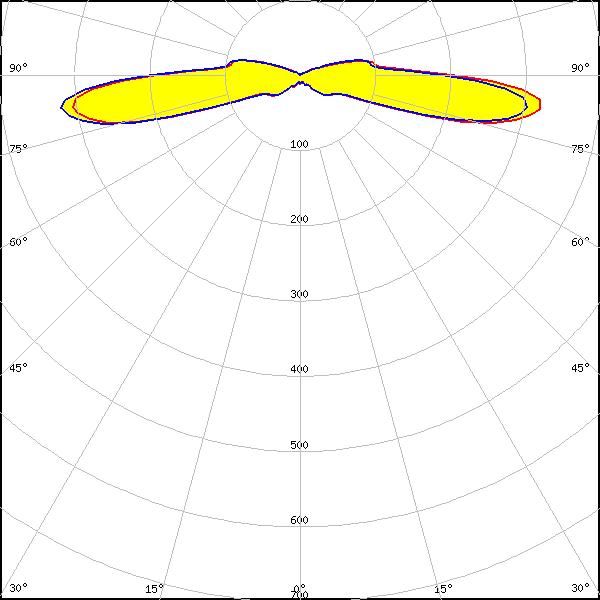

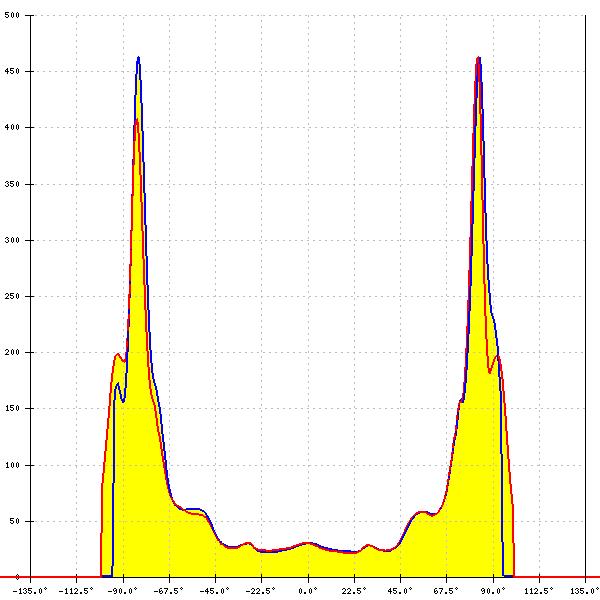

LED:

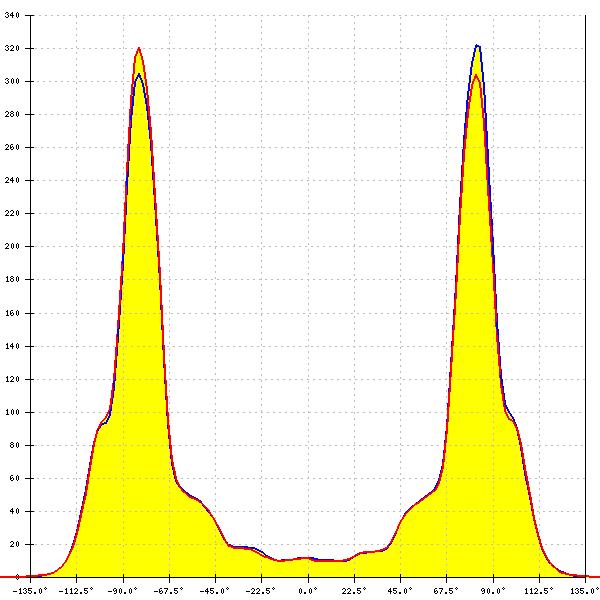

XQ-E HI
FWHM:
183°
FWTM:
221°
Peak intensity:
0.330 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White
LED:
XQ-E HI
FWHM:
176°
FWTM:
195°
Peak intensity:
0.490 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

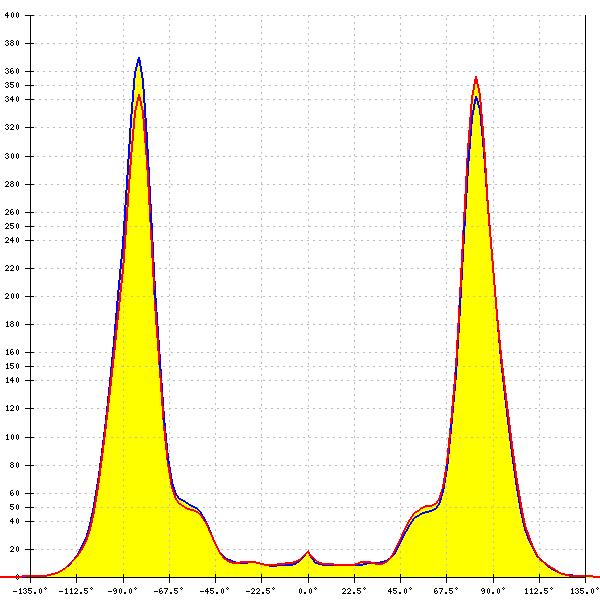

XT-E
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

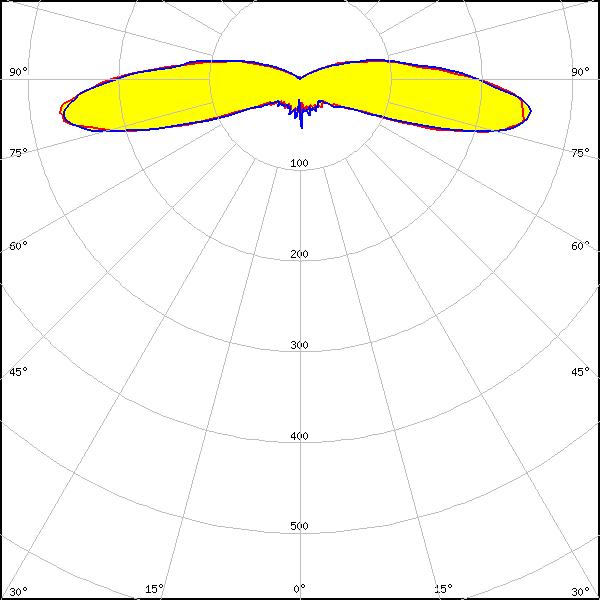

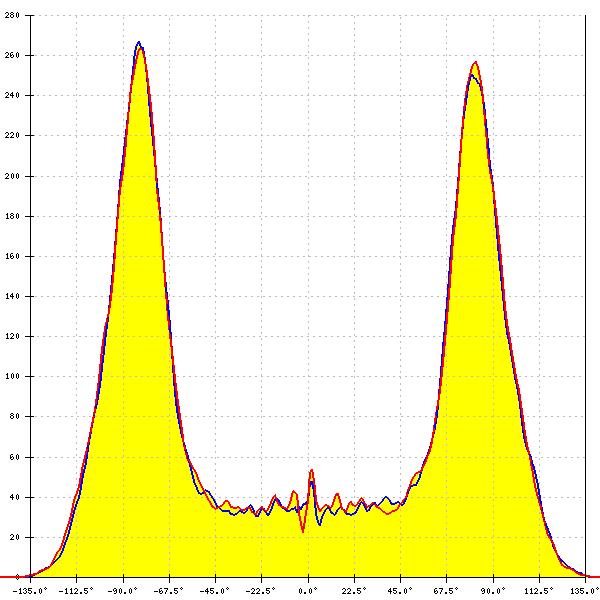

LED:
XT-E
FWHM:
184°
FWTM:
212°
Peak intensity:
0.373 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

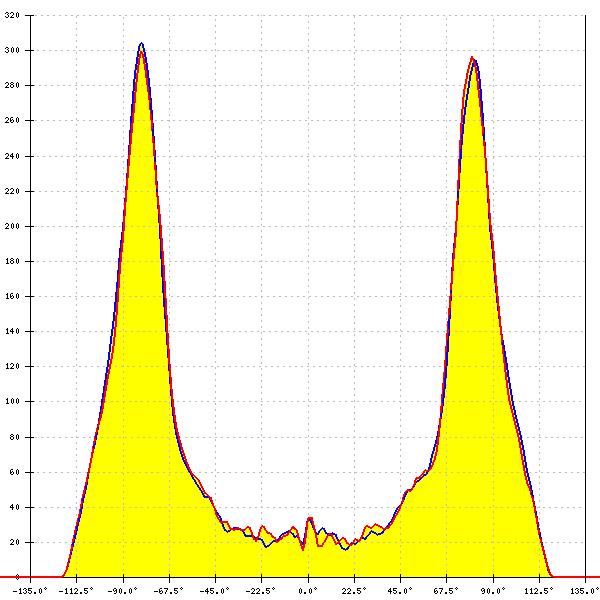

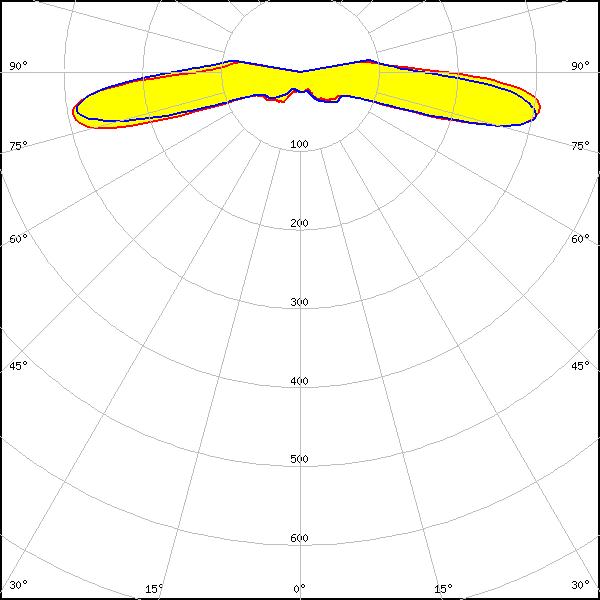

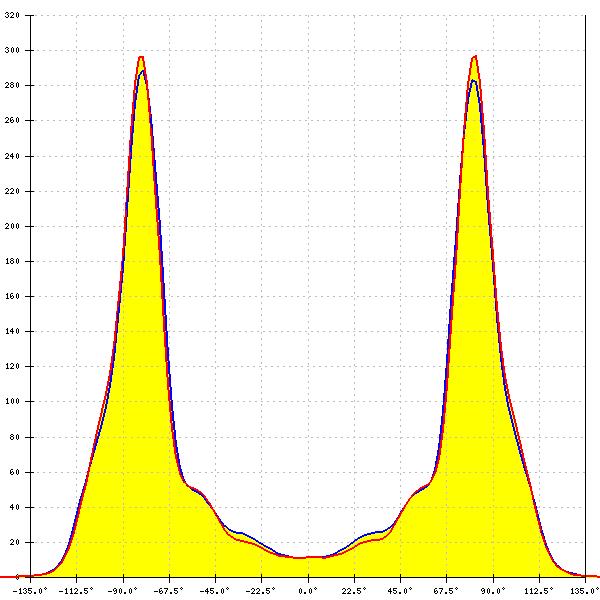

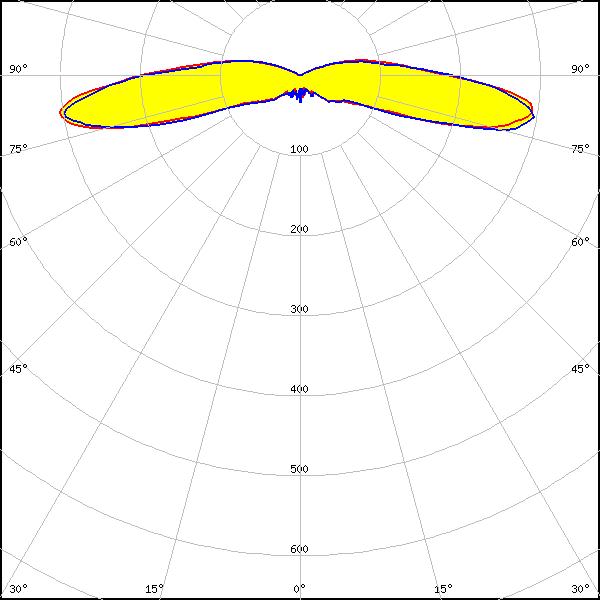

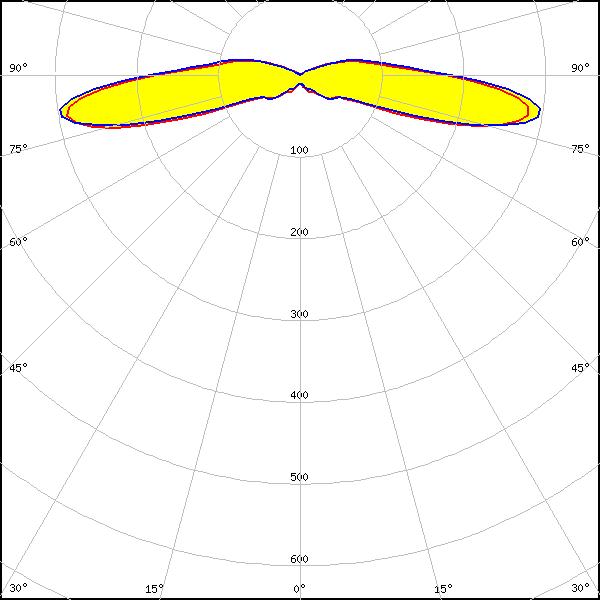

LUXEON 5050 Round LES
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM:
184°
FWTM:
226°
Peak intensity:
0.298 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM:
180°
FWTM:
200°
Peak intensity:
0.310 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

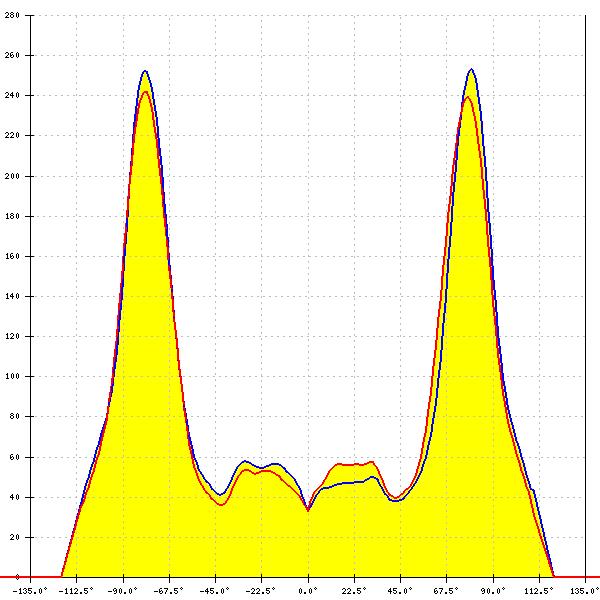

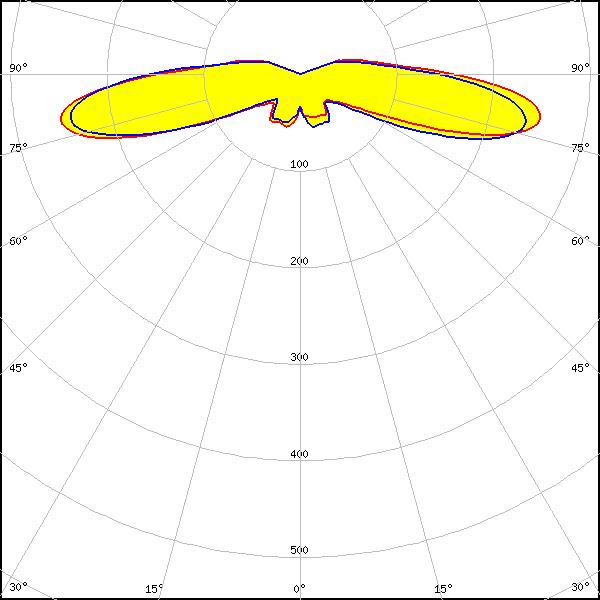

LED:
LUXEON 7070
FWHM:
185°
FWTM:
220°
Peak intensity:
0.256 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

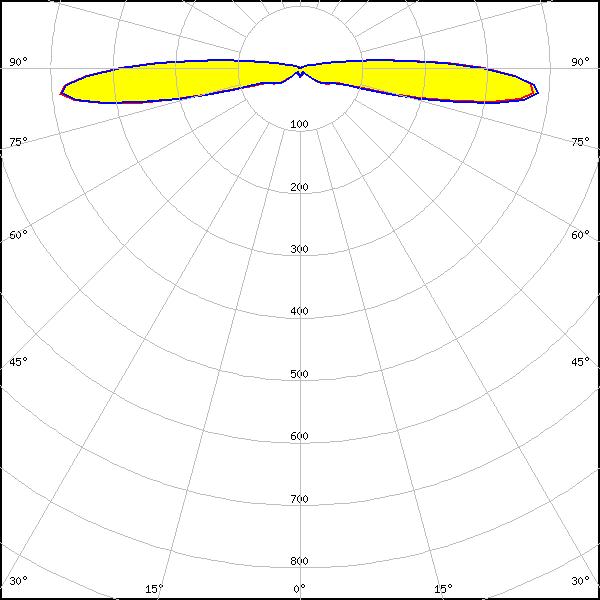

LED:

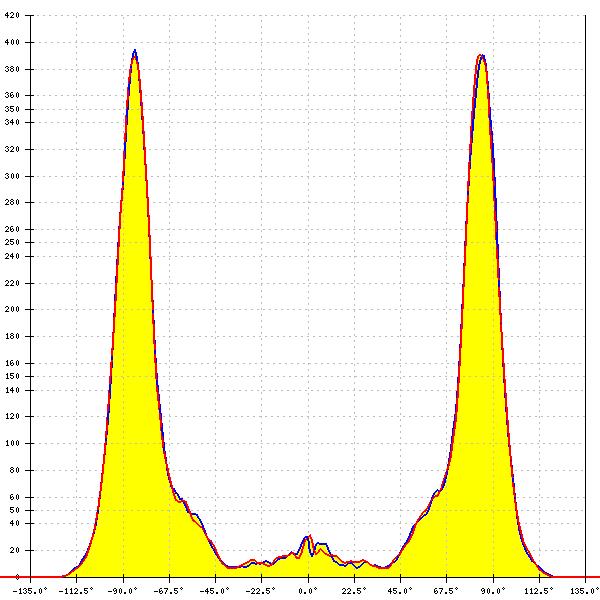

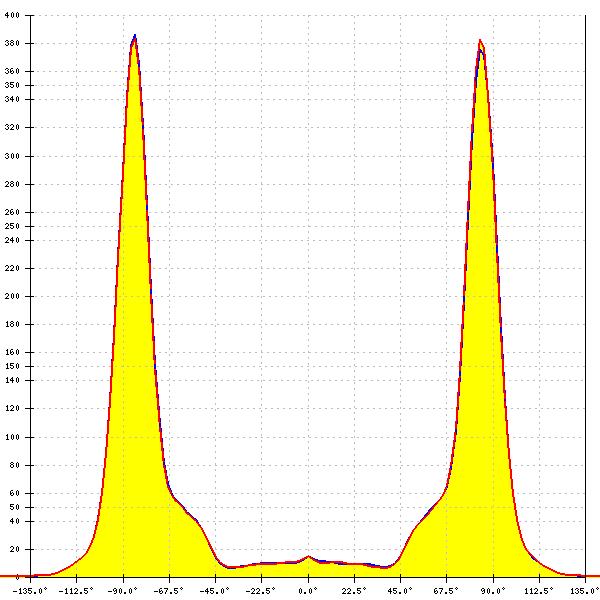

LUXEON C
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON C
FWHM:
188°
FWTM:
204°
Peak intensity:
0.406 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

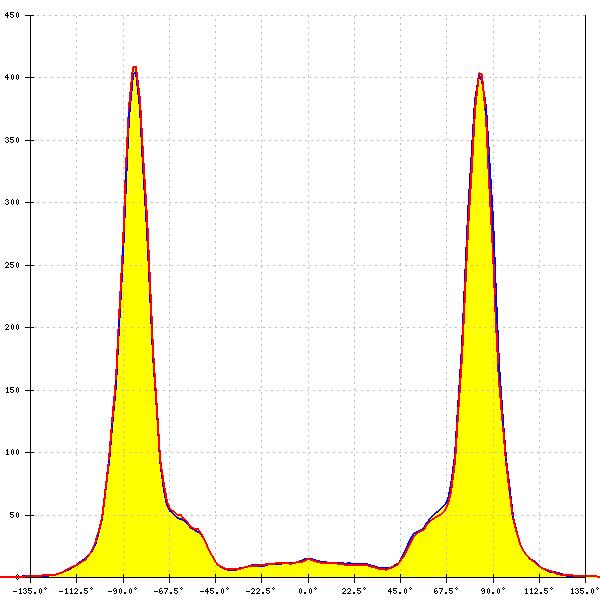

LUXEON C
FWHM:
183°
FWTM:
201°
Peak intensity:
0.450 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Green
LED:

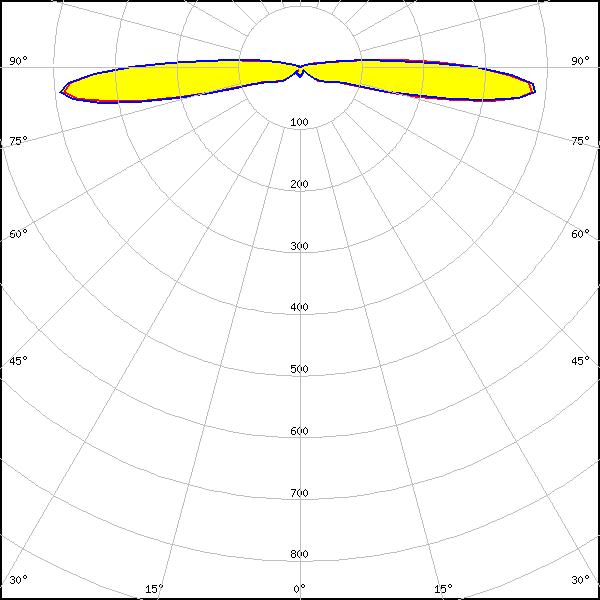

LUXEON C
FWHM:
184°
FWTM:
204°
Peak intensity:
0.414 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Red

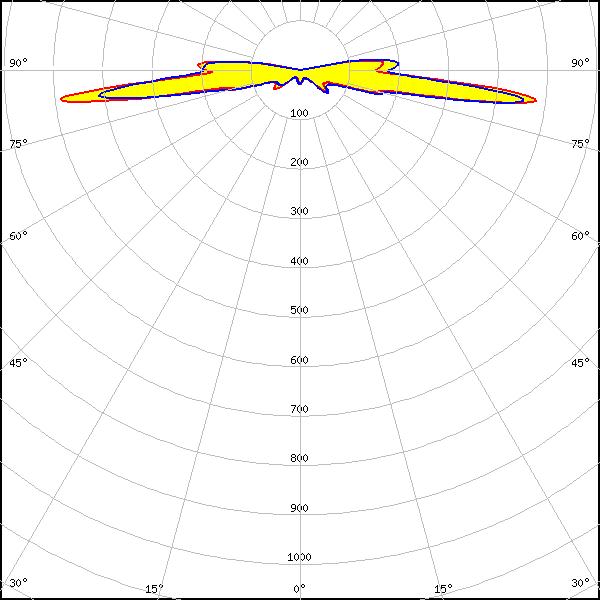

LED:

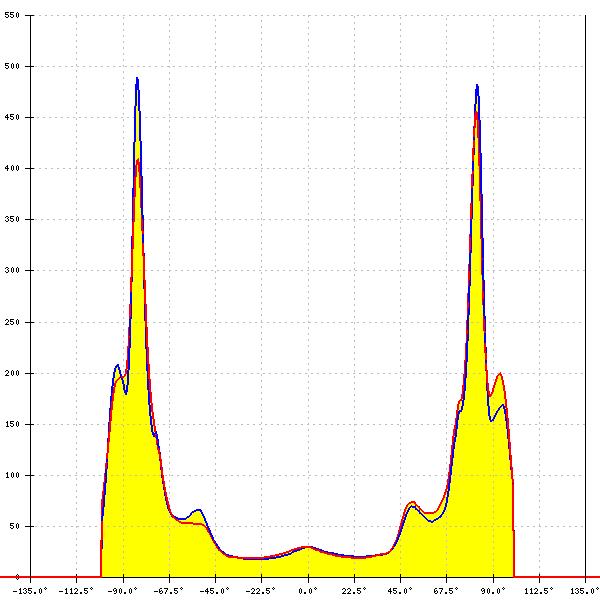

LUXEON CZ
FWHM:
173°
FWTM:
200°
Peak intensity:
0.540 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON IR Compact
FWHM:
183°
FWTM:
217°
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
IR

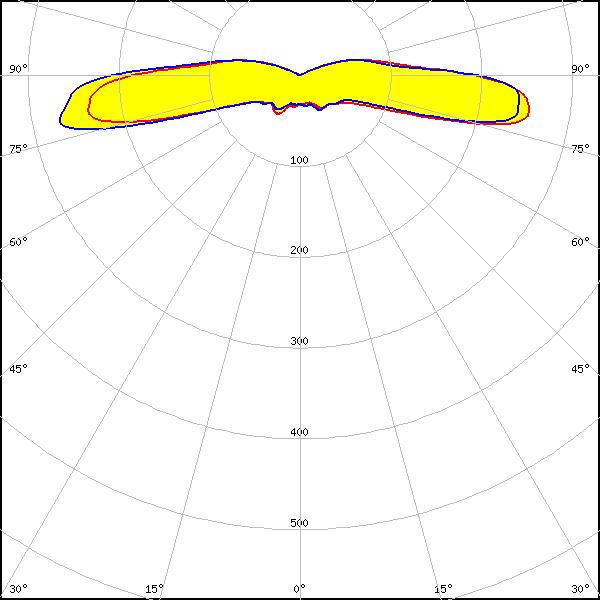

LED:

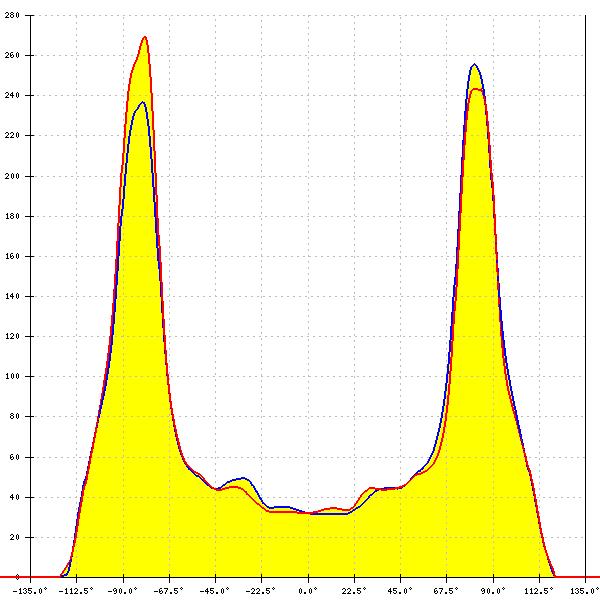

LUXEON M/MX
FWHM:
189°
FWTM:
225°
Peak intensity:
2.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

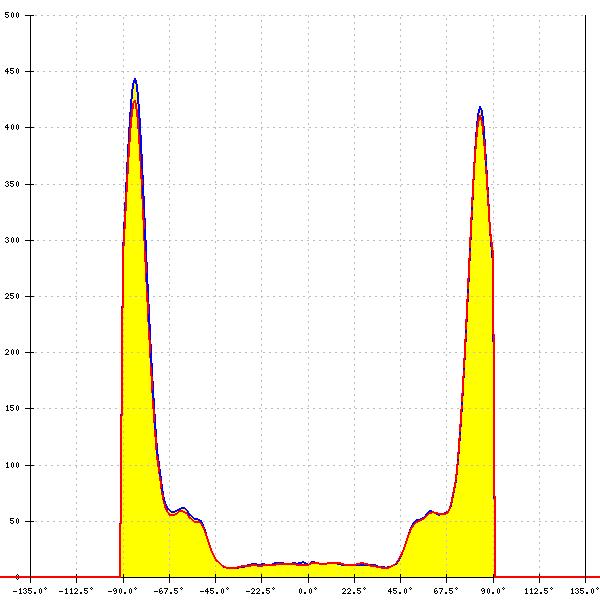

LED:

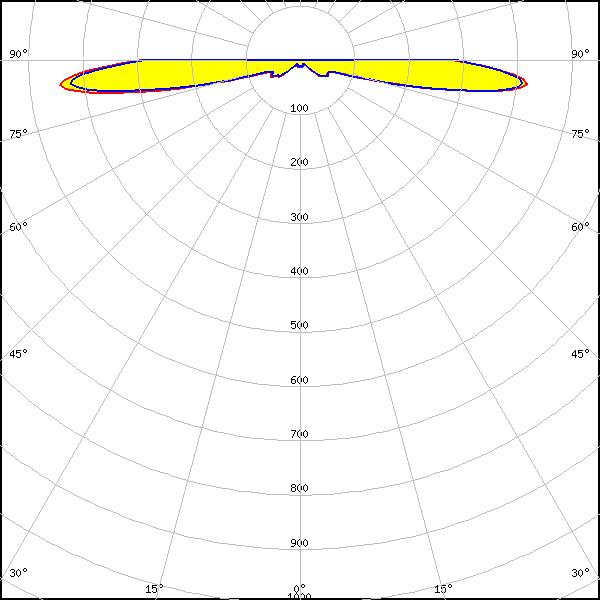

LUXEON Rebel
FWHM:
180°
FWTM:
182°
Peak intensity:
0.444 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
Red

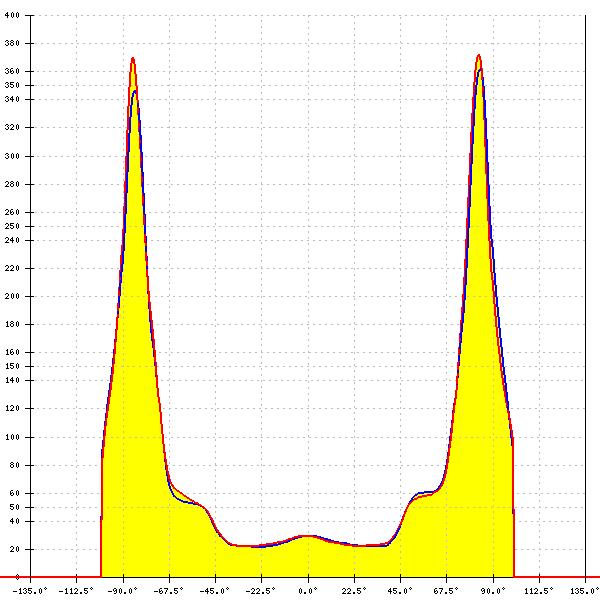

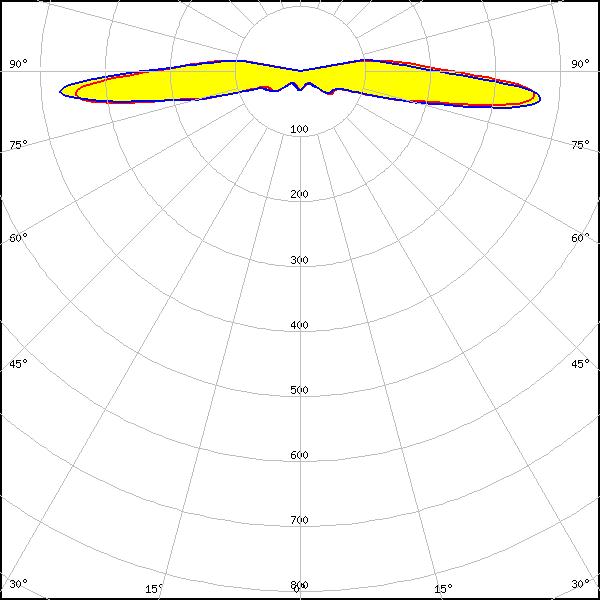

LED:
LUXEON TX
FWHM:
185°
FWTM:
201°
Peak intensity:
0.410 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

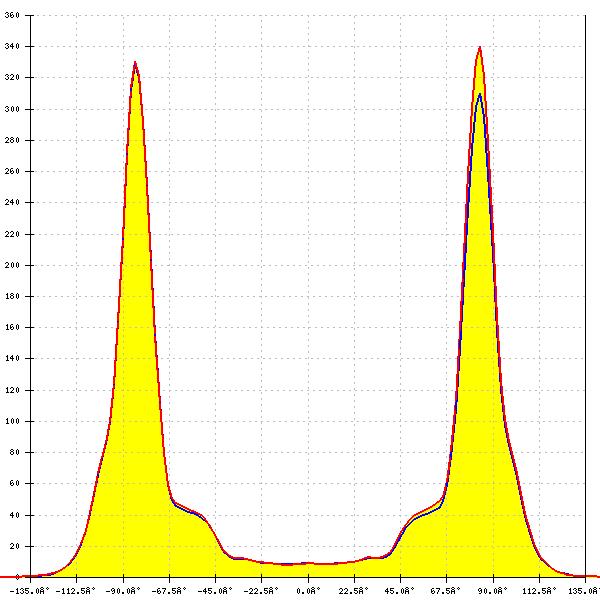

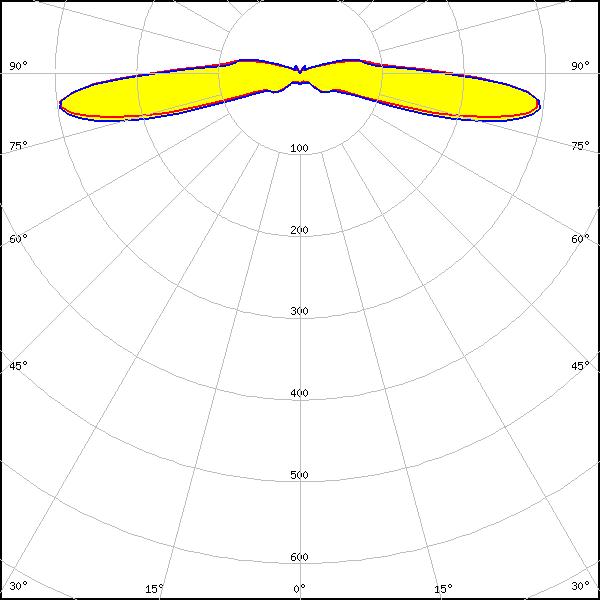

LED:

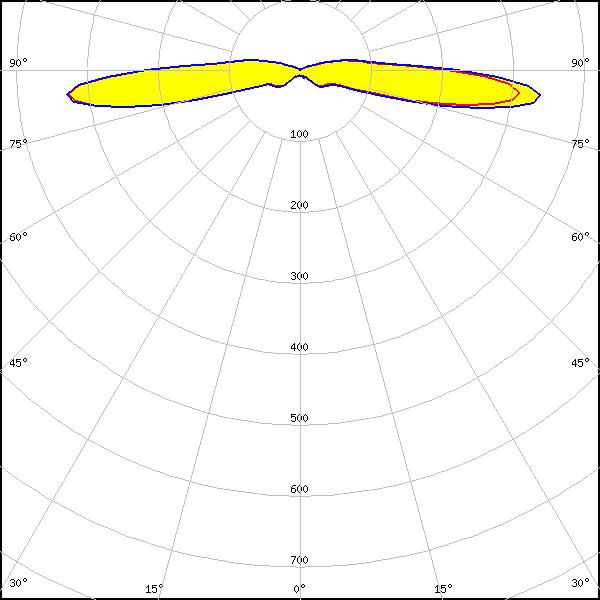

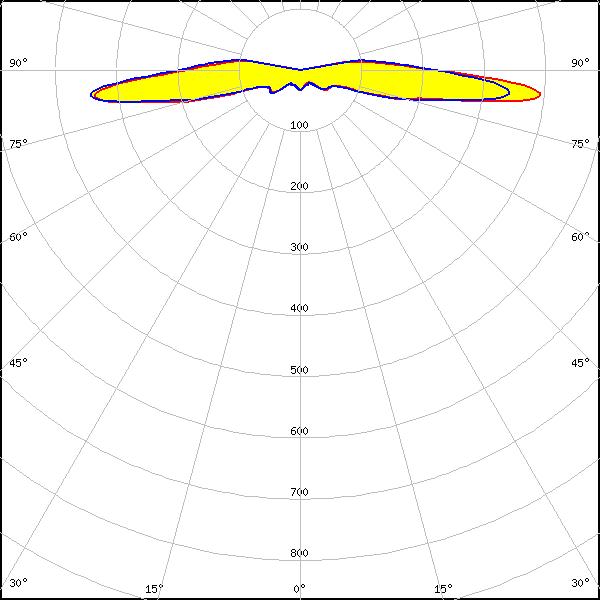

LUXEON Z
FWHM:
184°
FWTM:
216°
Peak intensity:
0.372 cd/lm
Efficiency:
87 %
LEDs/each optic:
4
Light colour/type:
Red

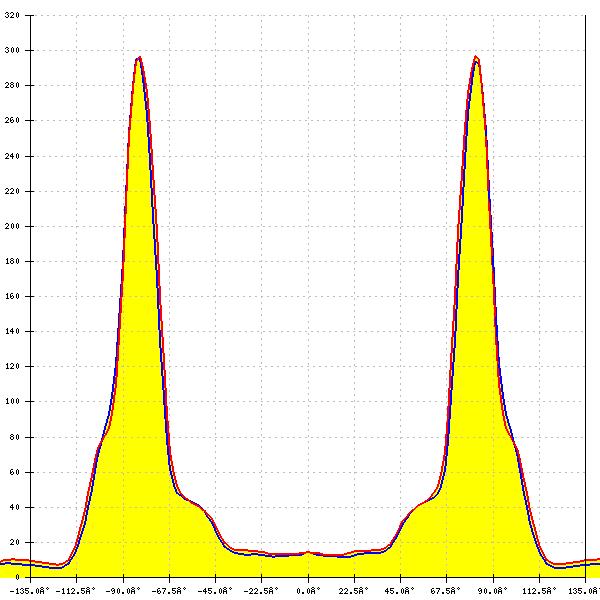

LED:
LUXEON Z
FWHM:
183°
FWTM:
218°
Peak intensity:
0.331 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Red

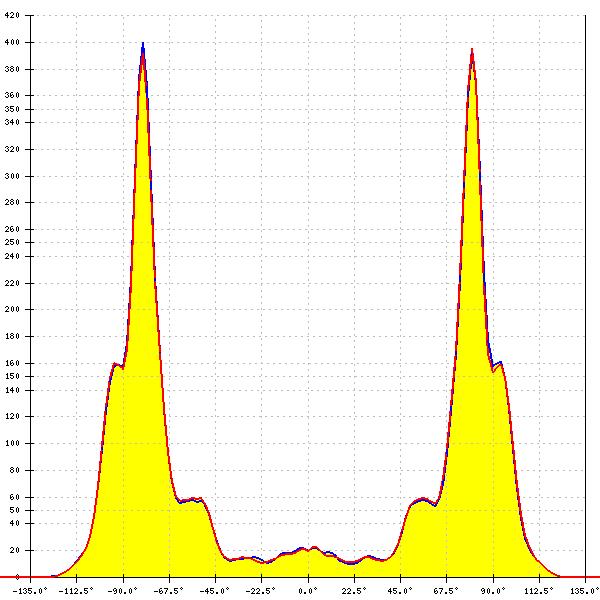

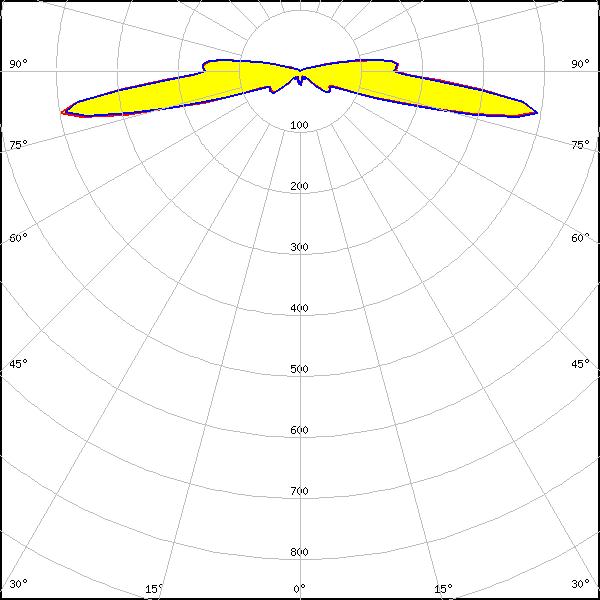

LED:
NCSxE17A
FWHM:
173°
FWTM:
208°
Peak intensity:
0.418 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

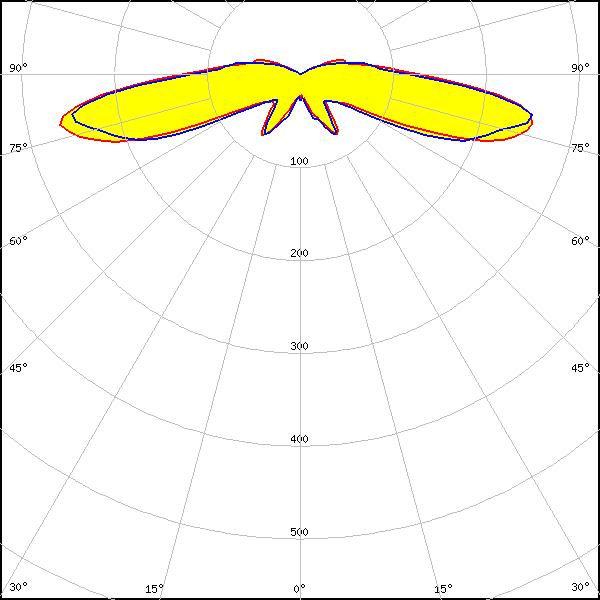

LED:

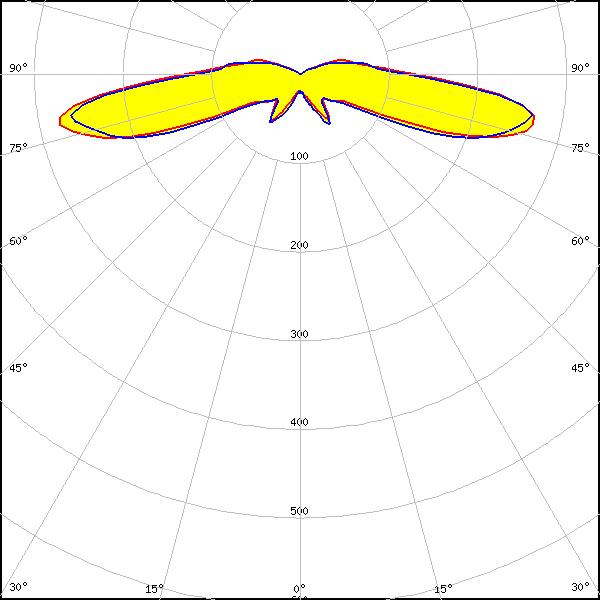

NCSxE17A
FWHM:
180°
FWTM:
226°
Peak intensity:
0.273 cd/lm
Efficiency:
96 %
LEDs/each optic:
7
Light colour/type:
White

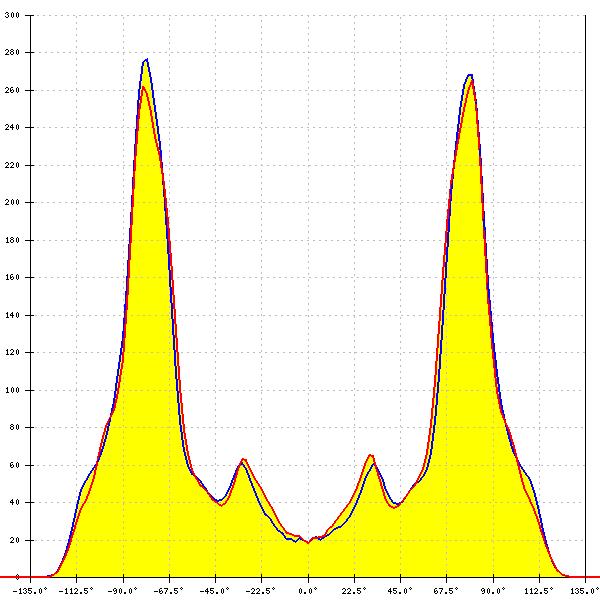

LED:
NCSxE17A
FWHM:
179°
FWTM:
228°
Peak intensity:
0.285 cd/lm
Efficiency:
96 %
LEDs/each optic:
7
Light colour/type:
White

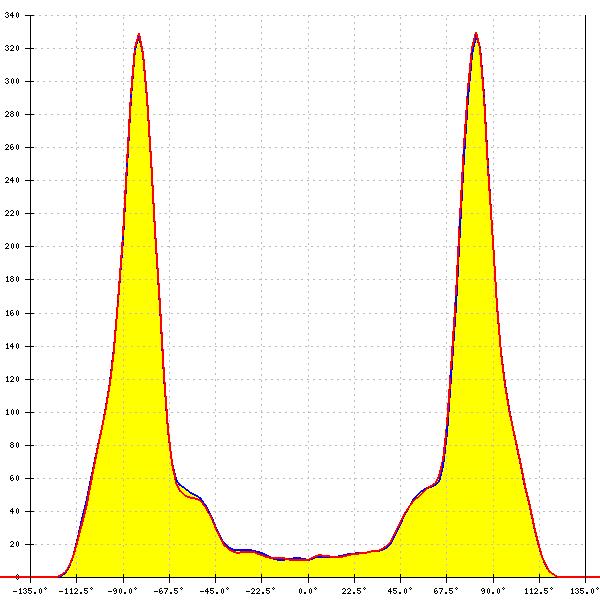

LED:
NV4WB35AM
FWHM:
184°
FWTM:
220°
Peak intensity:
0.338 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

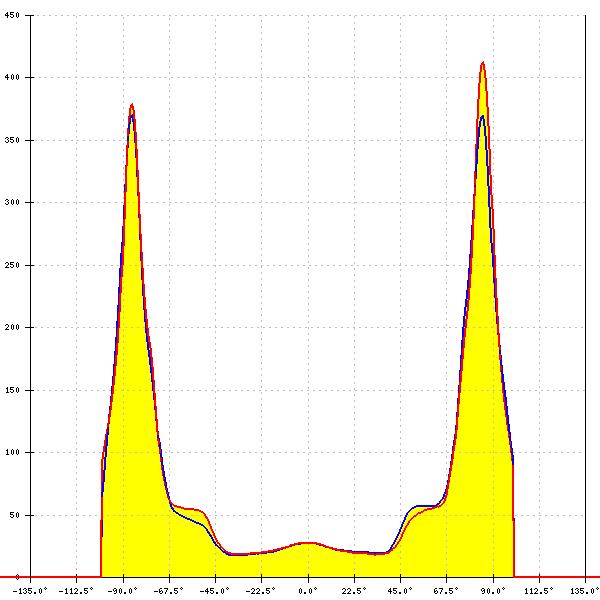

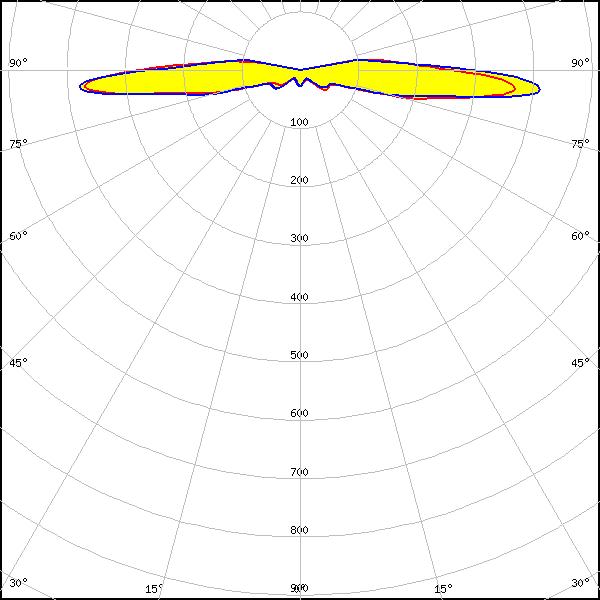

LED:
NVSW219F
FWHM:
185°
FWTM:
201°
Peak intensity:
0.430 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

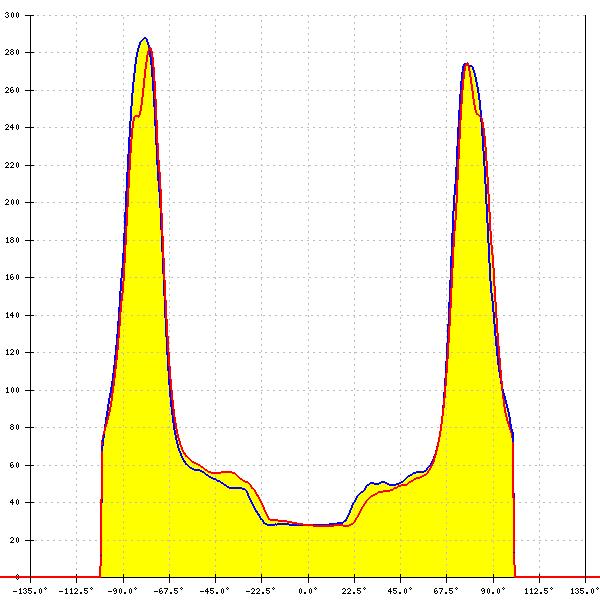

LED:

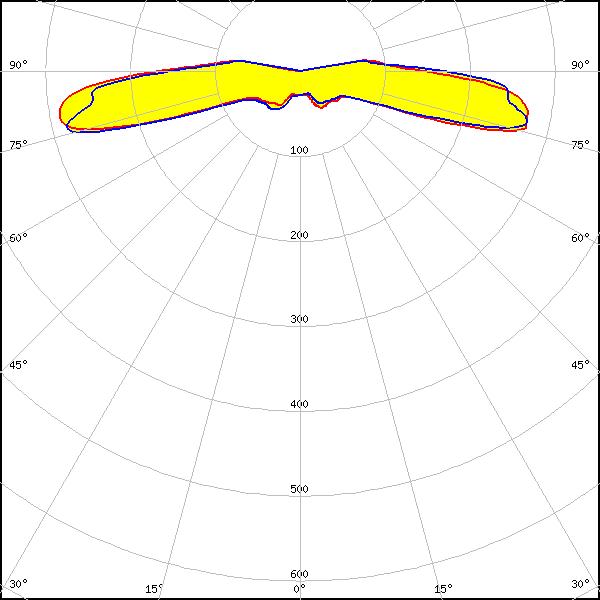

Duris S8
FWHM:
182°
FWTM:
201°
Peak intensity:
0.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

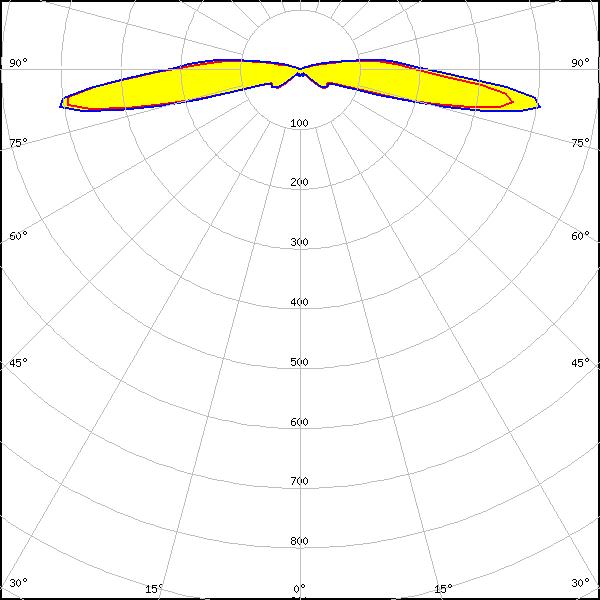

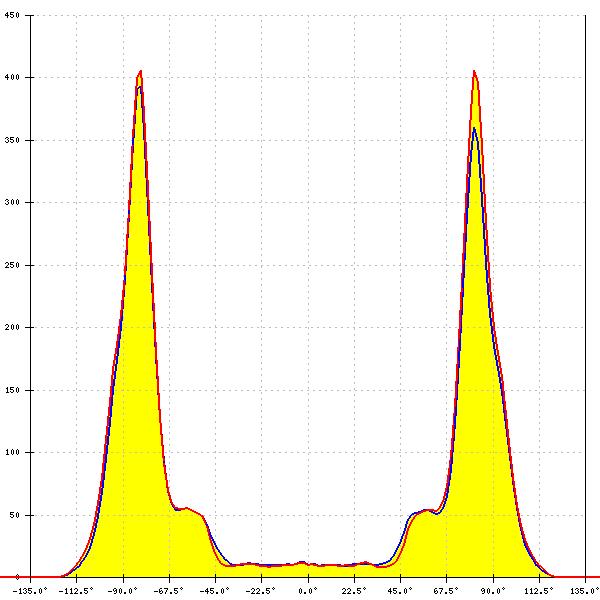

OSCONIQ P 3030
FWHM:
181°
FWTM:
208°
Peak intensity:
0.422 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
192°
FWTM:
226°
Peak intensity:
0.000 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

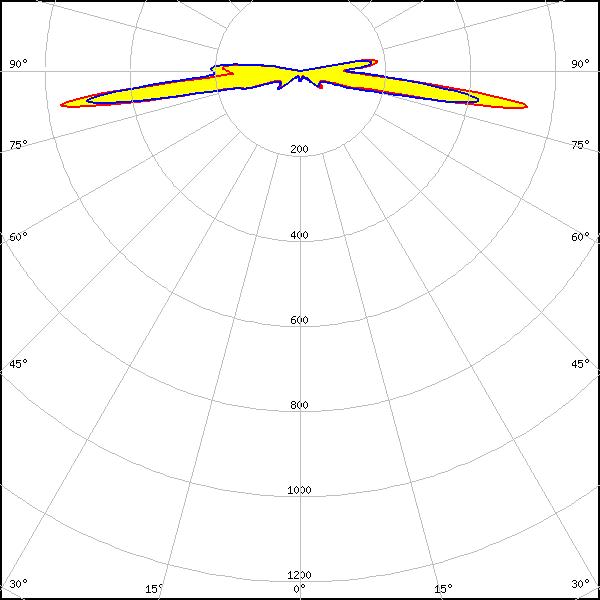

LED:

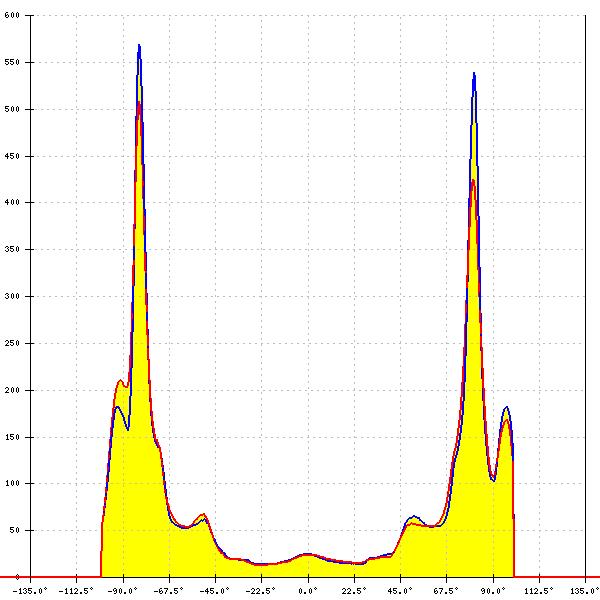

OSLON Black Flat (LUW HWQP)
FWHM:
170°
FWTM:
210°
Peak intensity:
0.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

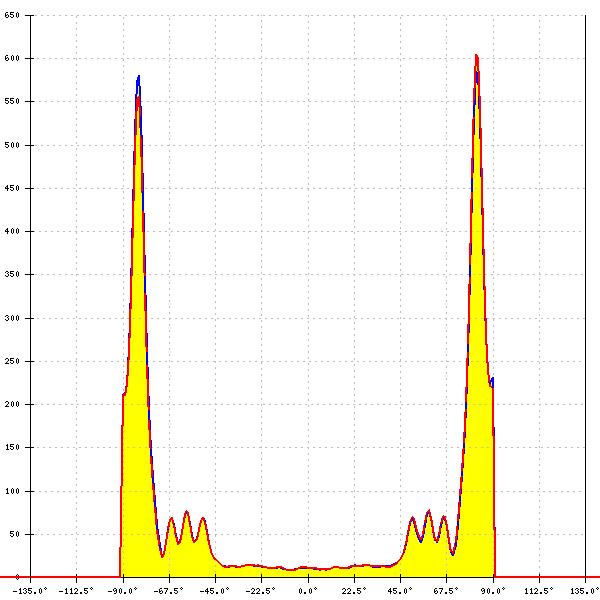

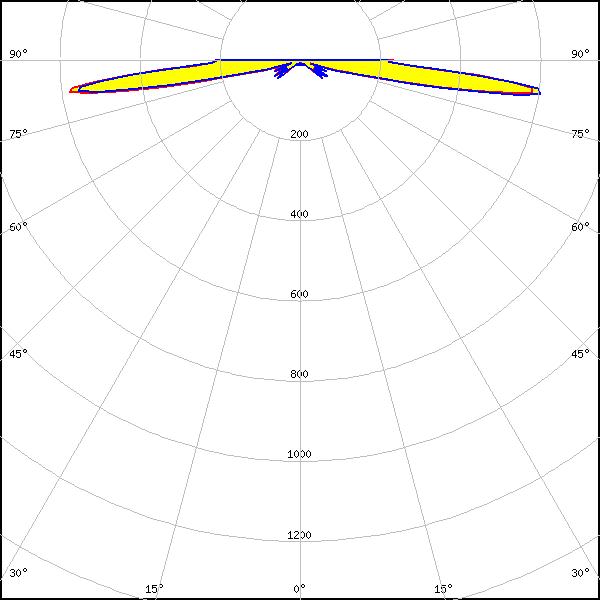

LED:
OSLON Pure 1414
FWHM:
174° + 173°
FWTM:
182° + 182°
Peak intensity:
0.617 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

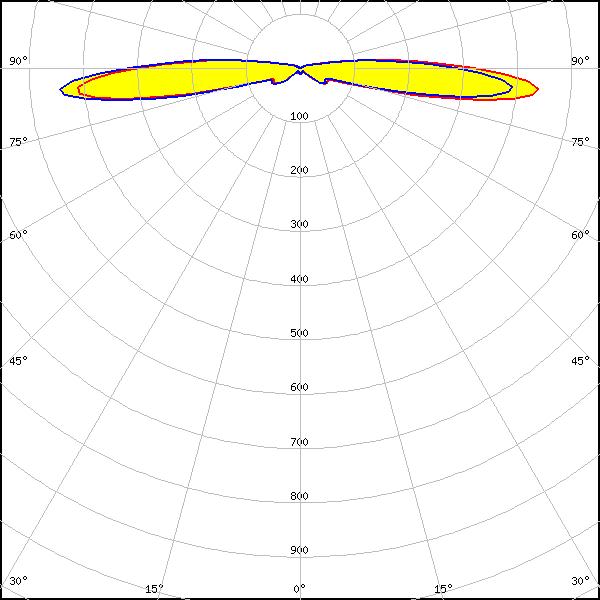

LED:

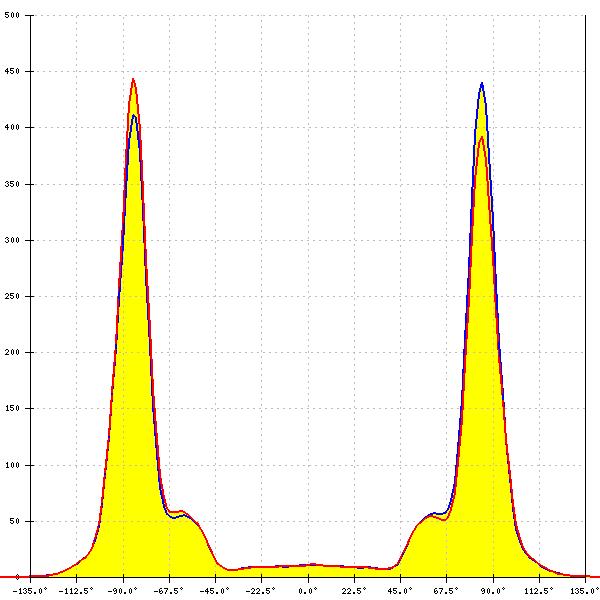

OSLON Signal
FWHM:
186°
FWTM:
203°
Peak intensity:
0.457 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Red

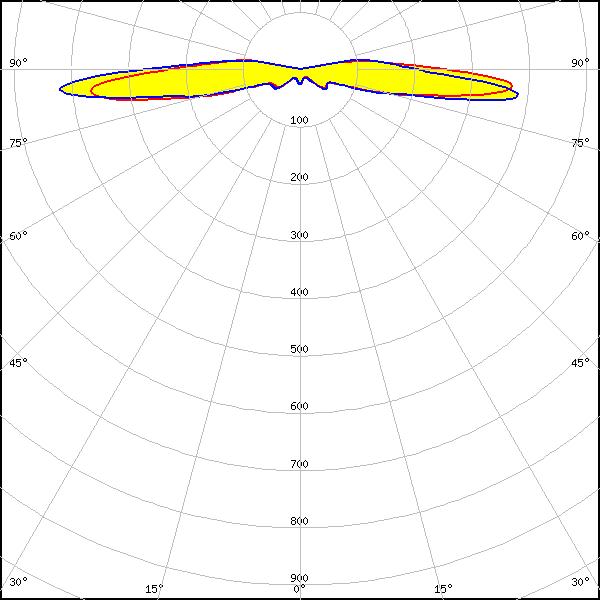

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
186°
FWTM:
220°
Peak intensity:
0.430 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

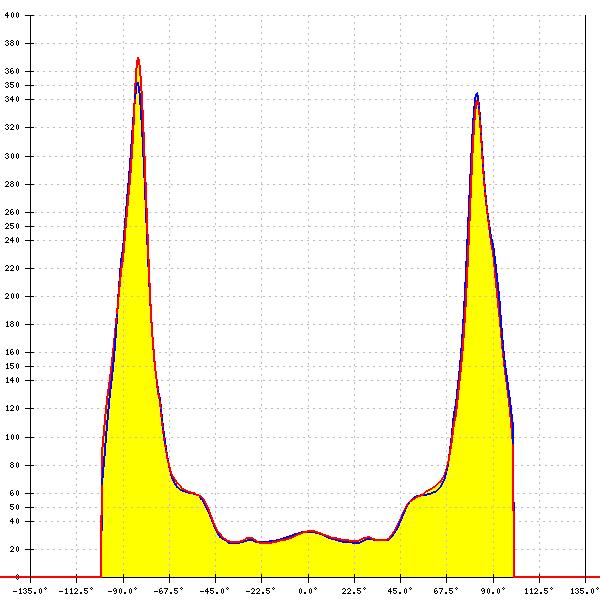

LED:

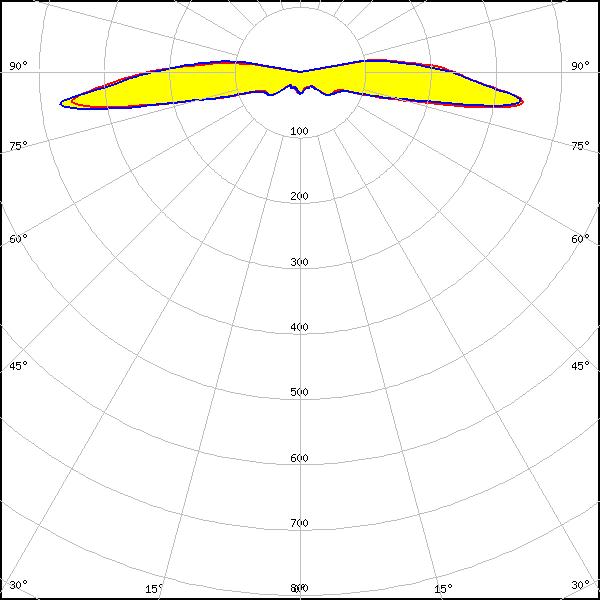

OSLON Square EC
FWHM:
189°
FWTM:
201°
Peak intensity:
0.370 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

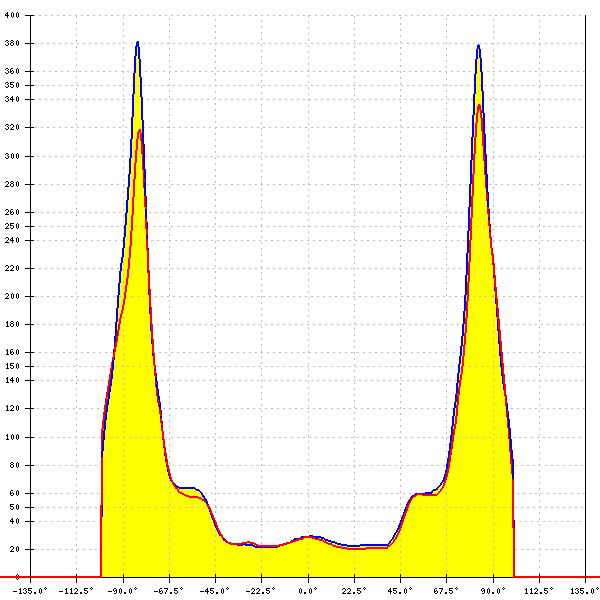

LED:
OSLON Square PC
FWHM:
187°
FWTM:
200°
Peak intensity:
0.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

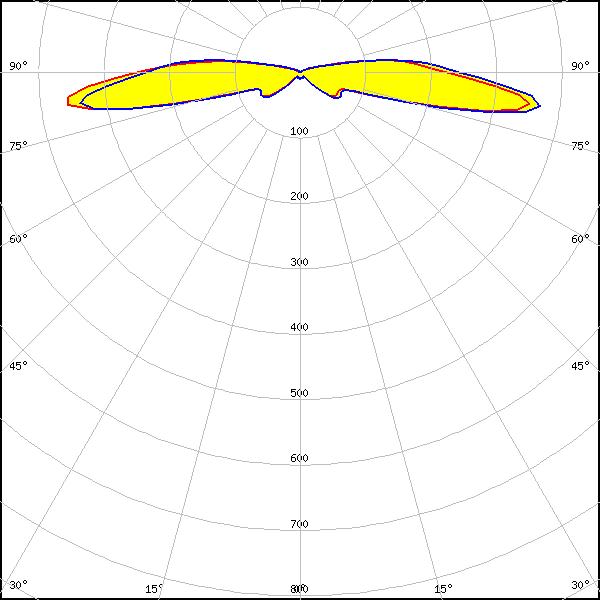

LED:

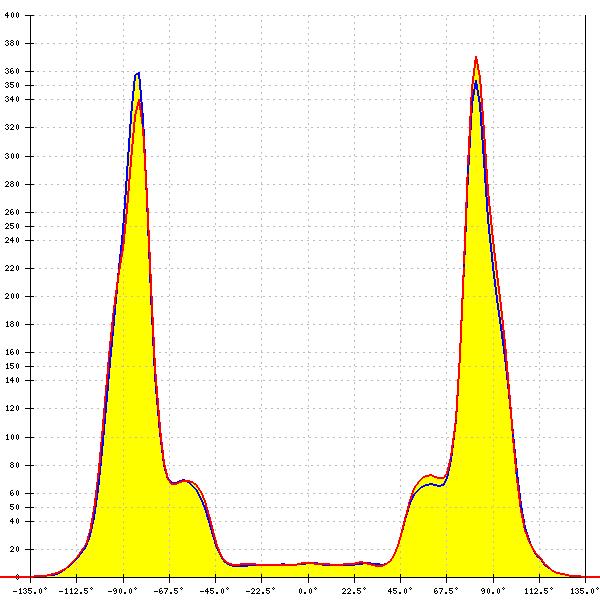

OSLON SSL 120
FWHM:
188°
FWTM:
212°
Peak intensity:
0.371 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

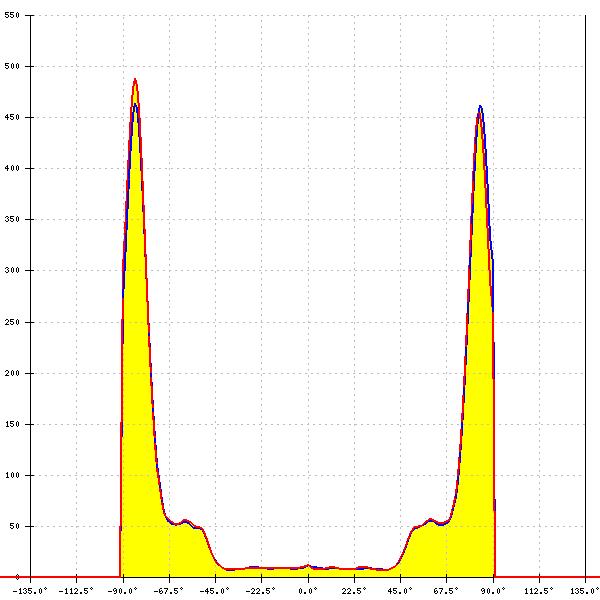

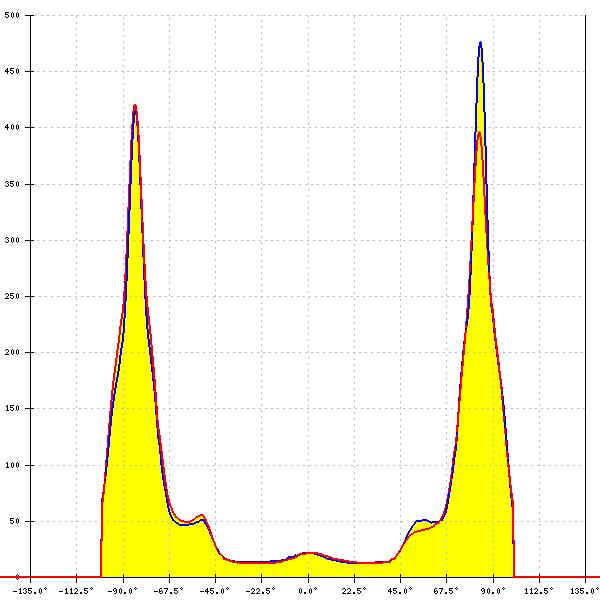

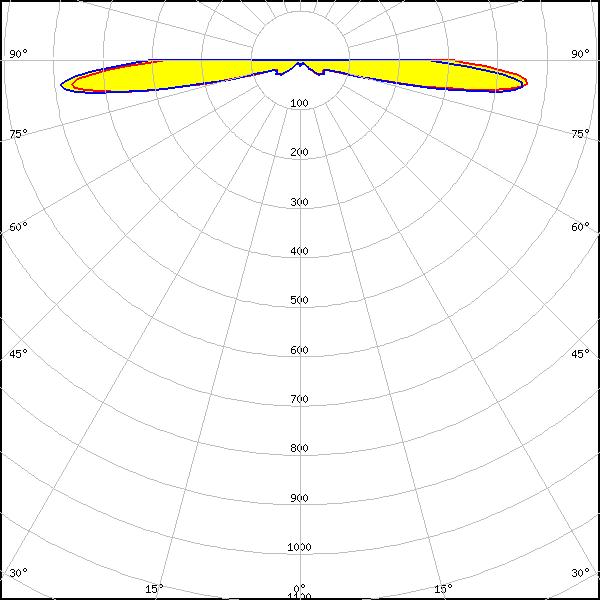

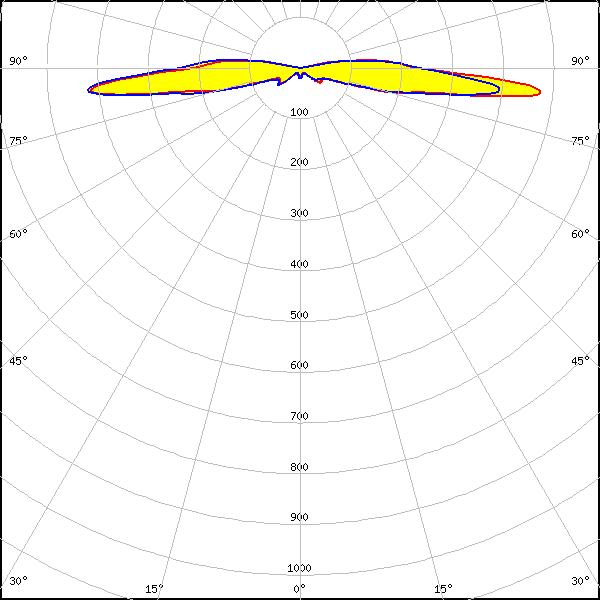

LED:
OSLON SSL 150
FWHM:
180°
FWTM:
182°
Peak intensity:
0.489 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
Red
LED:
OSLON SSL 150
FWHM:
182°
FWTM:
200°
Peak intensity:
0.490 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

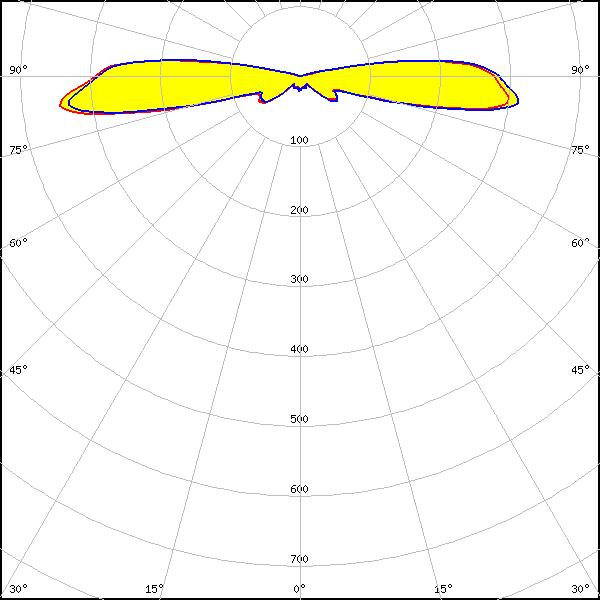

LED:

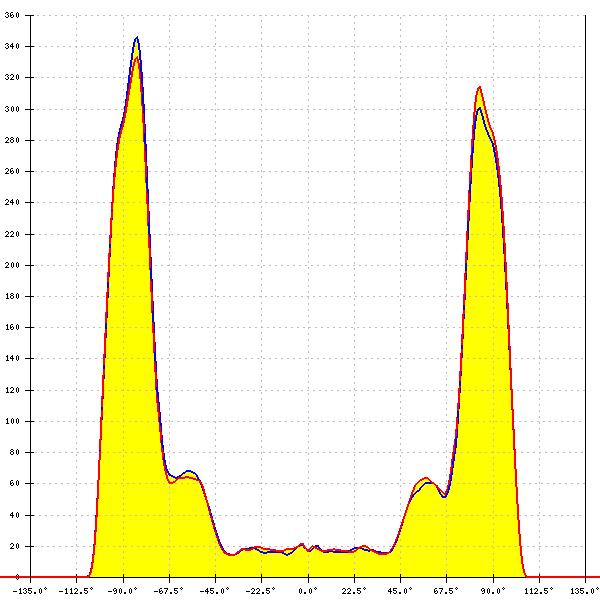

OSLON SSL 80
FWHM:
198°
FWTM:
216°
Peak intensity:
0.310 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Blue
LED:
OSLON SSL 80
FWHM:
195°
FWTM:
206°
Peak intensity:
0.364 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

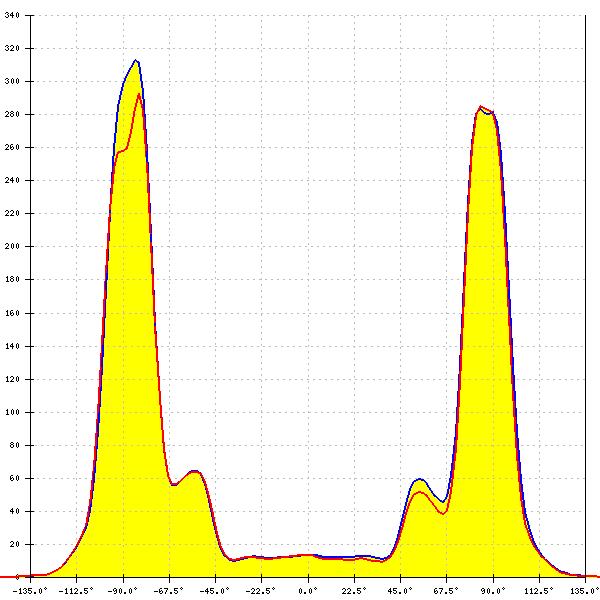

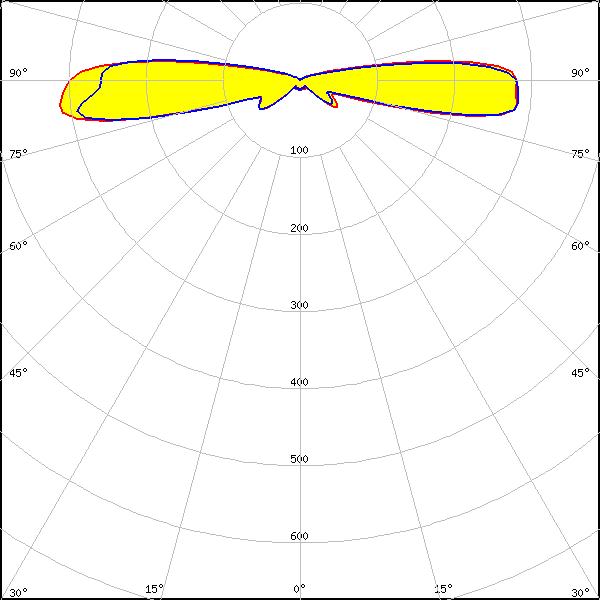

LED:
OSLON SSL 80
FWHM:
197°
FWTM:
215°
Peak intensity:
0.322 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Red

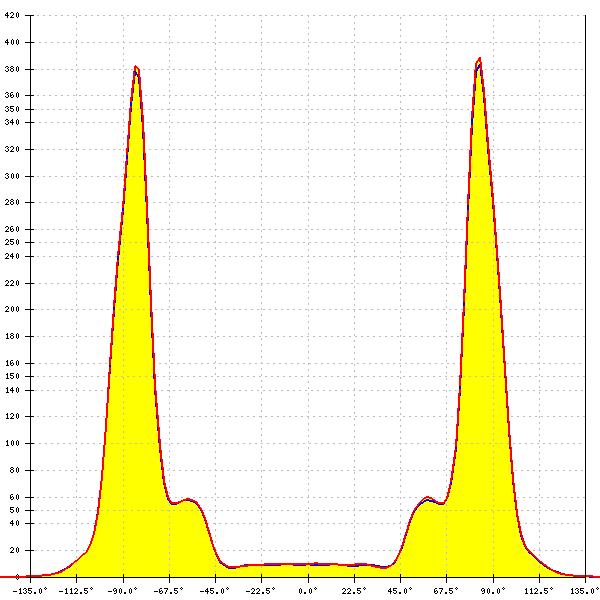

LED:
OSTAR Projection Compact (KW.CSLNM1.TG)
FWHM:
188°
FWTM:
208°
Peak intensity:
0.390 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Red
LED:
SFH 4170S
FWHM:
188°
FWTM:
208°
Peak intensity:
0.351 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4715AS
FWHM:
202°
FWTM:
221°
Peak intensity:
0.281 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4715S
FWHM:
196°
FWTM:
216°
Peak intensity:
0.308 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4716AS
FWHM:
184°
FWTM:
207°
Peak intensity:
0.414 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4717AS
FWHM:
207°
FWTM:
224°
Peak intensity:
0.258 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4770S
FWHM:
185°
FWTM:
212°
Peak intensity:
0.375 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
IR

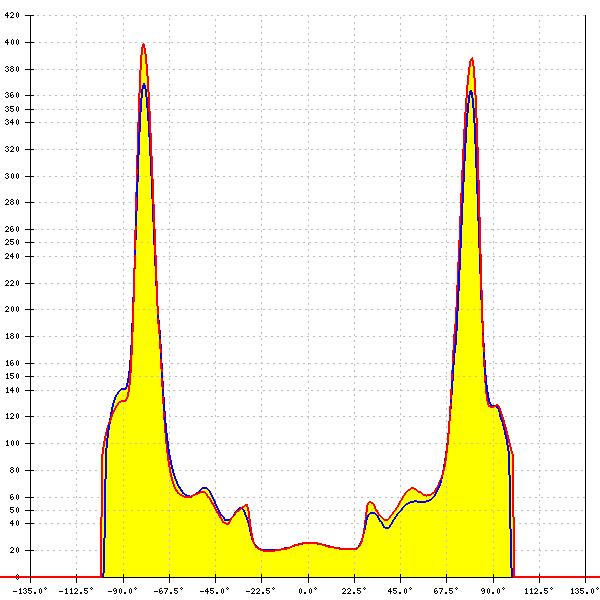

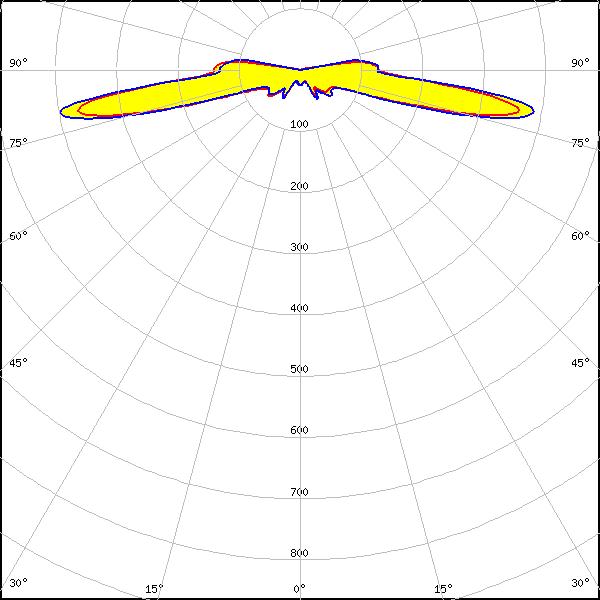

LED:
LH181A
FWHM:
170°
FWTM:
210°
Peak intensity:
0.450 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

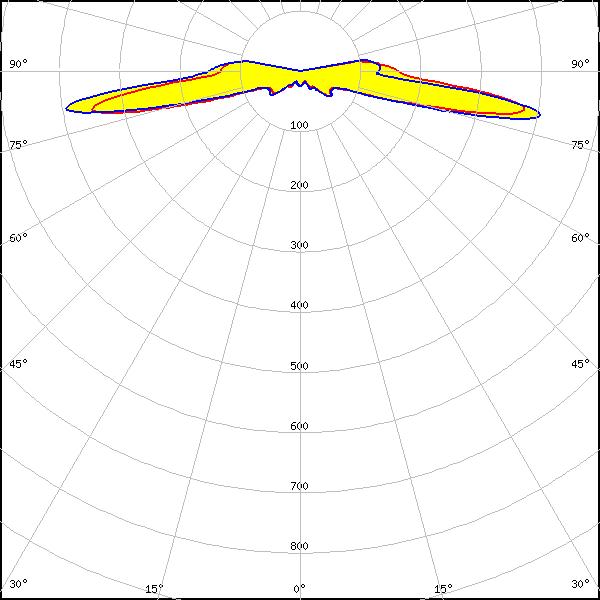

LED:

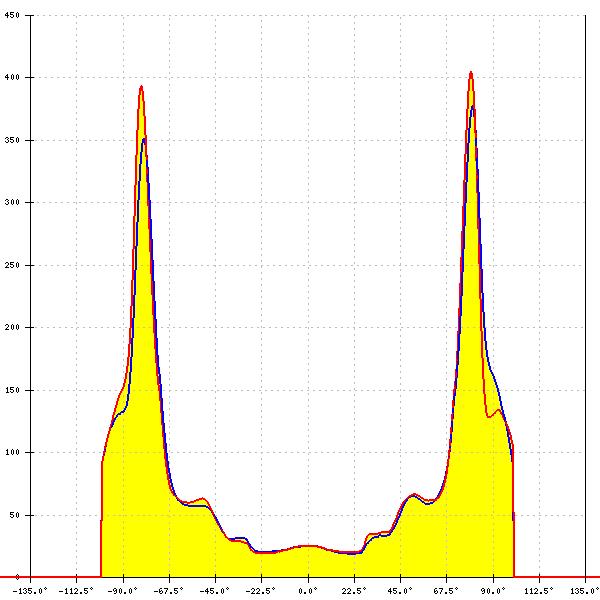

LH181B
FWHM:
171°
FWTM:
201°
Peak intensity:
0.450 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

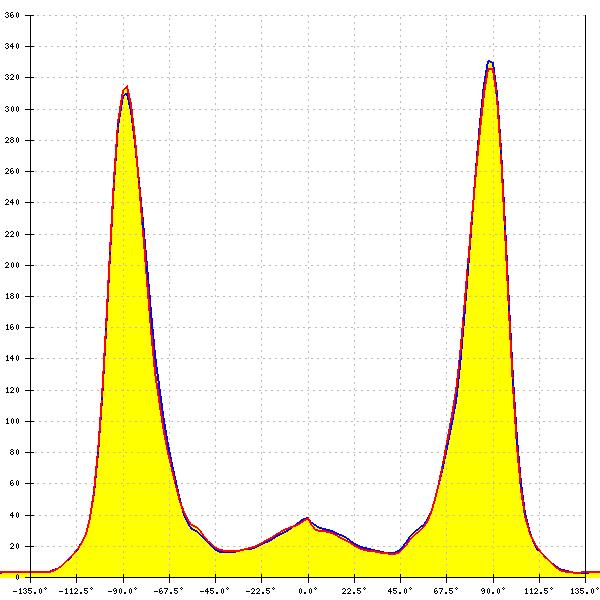

LED:
LH351C
FWHM:
196°
FWTM:
215°
Peak intensity:
0.341 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

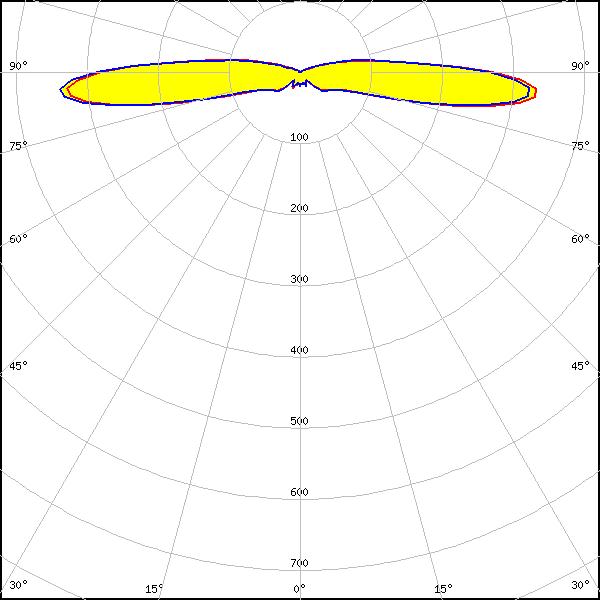

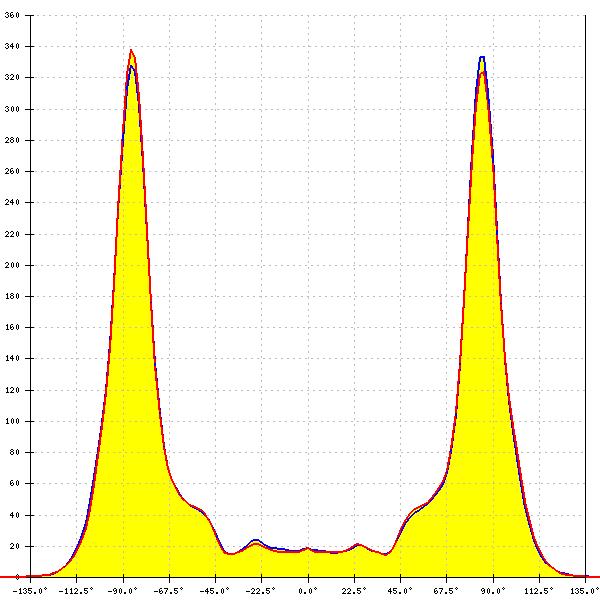

LED:
LH351D
FWHM:
190°
FWTM:
216°
Peak intensity:
0.342 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

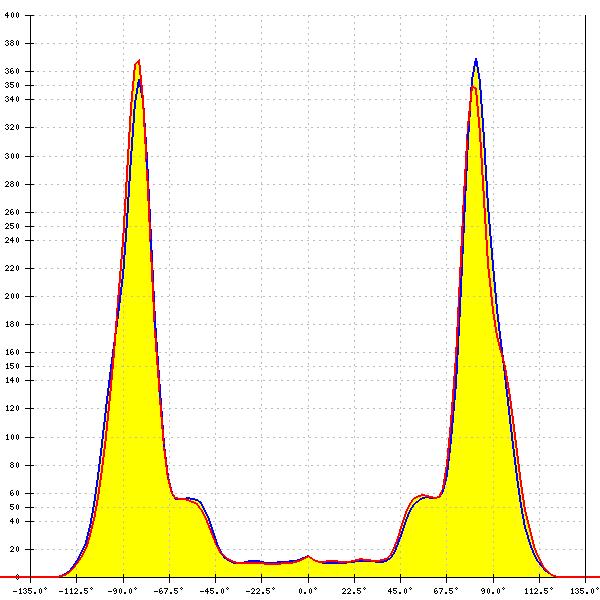

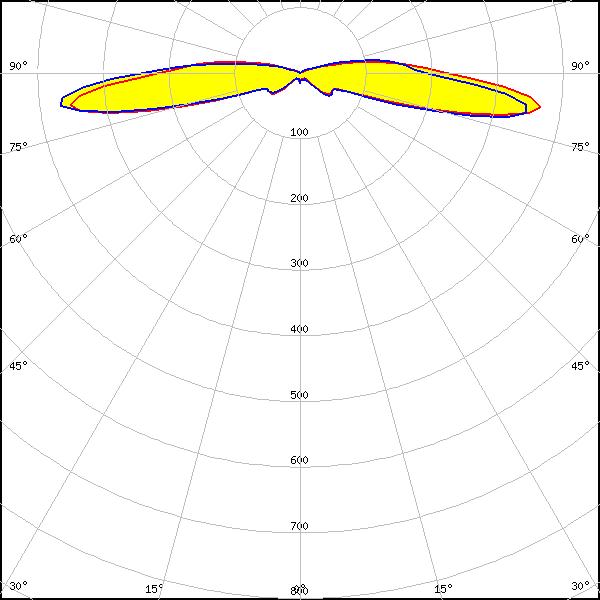

LED:
MJT 3030
FWHM:
184°
FWTM:
212°
Peak intensity:
0.372 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

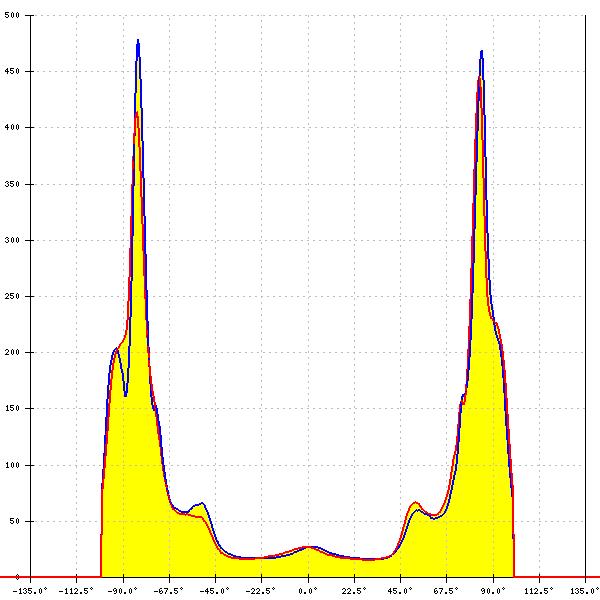

LED:
nPola
FWHM:
181°
FWTM:
200°
Peak intensity:
0.540 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3
FWHM:
184°
FWTM:
201°
Peak intensity:
0.400 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

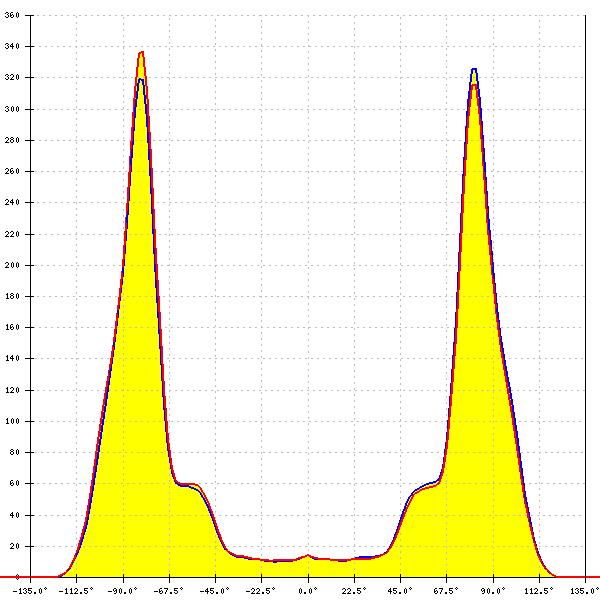

LED:
Z5M4
FWHM:
184°
FWTM:
216°
Peak intensity:
0.342 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4-E1
FWHM:
180°
FWTM:
182°
Peak intensity:
0.412 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4-E2
FWHM:
180°
FWTM:
182°
Peak intensity:
0.433 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

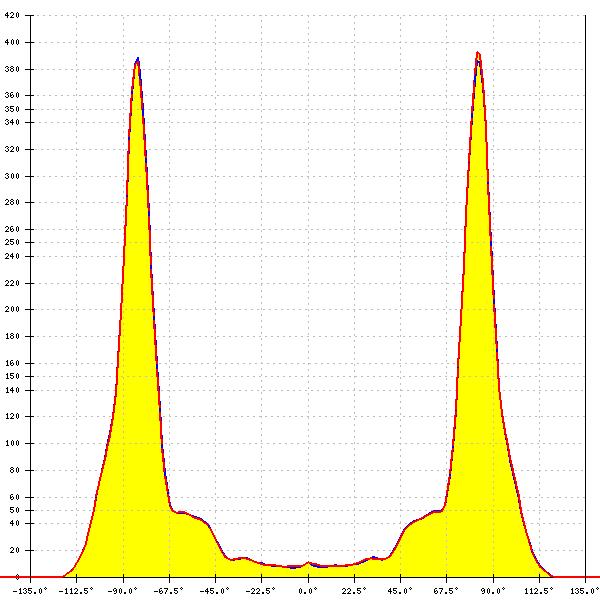

LED:
Z8Y22P
FWHM:
181°
FWTM:
211°
Peak intensity:
0.434 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
