    CA15365_TINA2-O-WAS

    Print

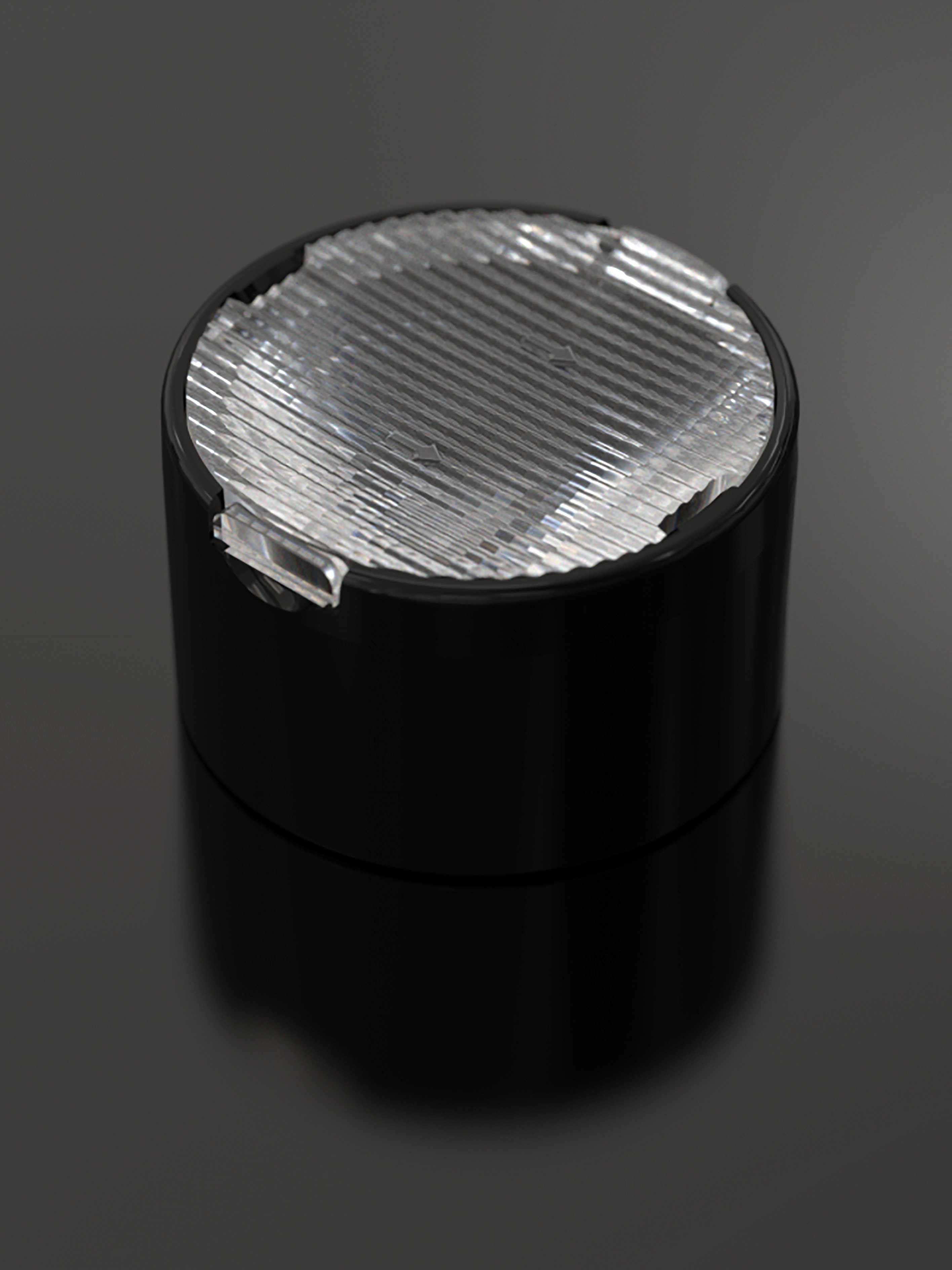

    Asymmetric beam for wall-washing. Assembly with black holder, installation tape and location pins.

    Specification
    • Dimensions:
      16 mm
    • Height:
      9.50 mm
    • Fastening:
      tape, pin
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      4140 pcs
    • Box size:
      451 x 241 x 298 mm
    • Box weight:
      8.0 kg
    • MPQ:
      230 pcs
    • MOQ:
      230 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA15365_TINA2-O-WAS

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Case story

    Deichman library in Oslo

    News

    PRODUCT NEWS - TINA2-O-WAS

    Case story

    Football pitch

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    Application guide

    Guide_for_Retail_Lighting_Optics_v.1.0_2021_WEB

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    TriBeCa apartment building

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Optical results

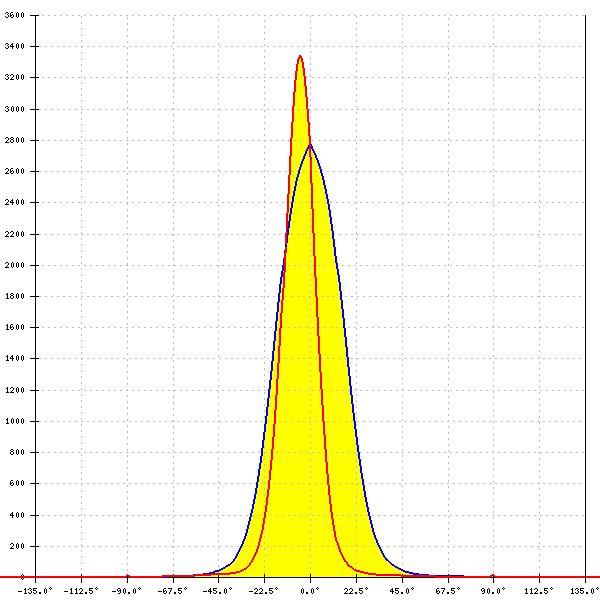

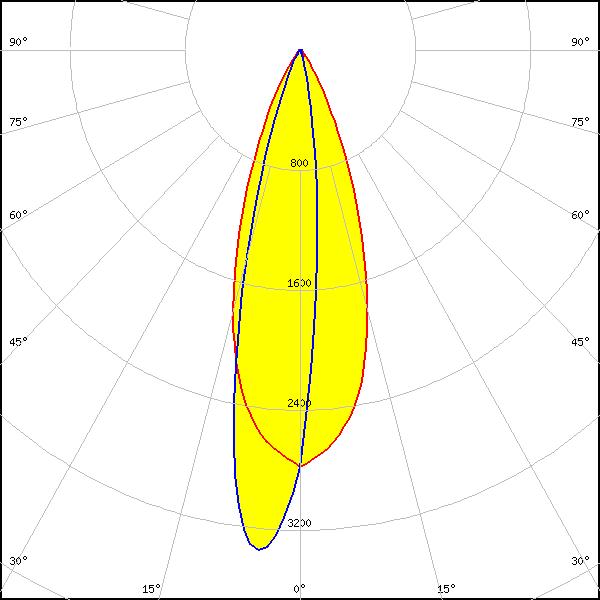

    LED: LUXEON C
    FWHM: asymmetric
    Peak intensity: 3.363 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

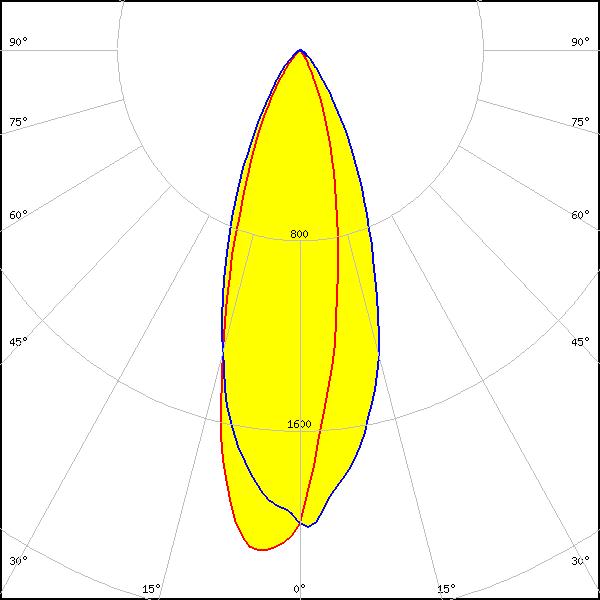

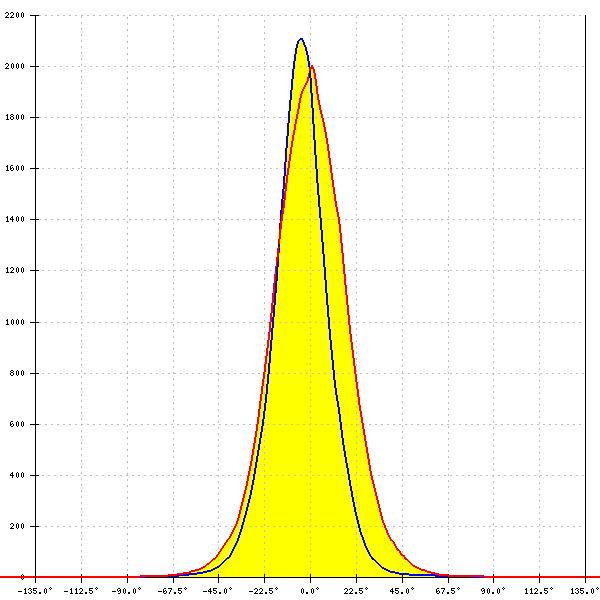

    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 2.170 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

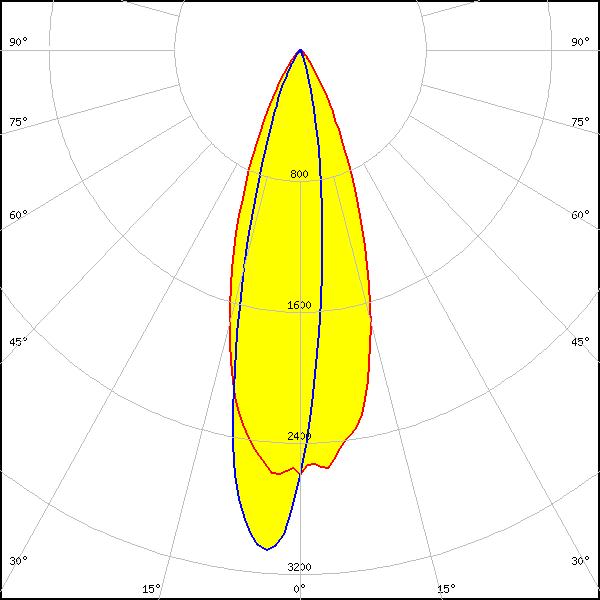

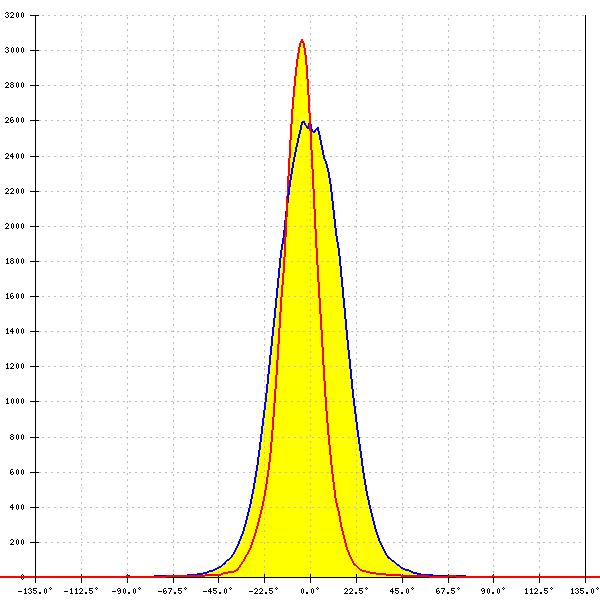

    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 3.060 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

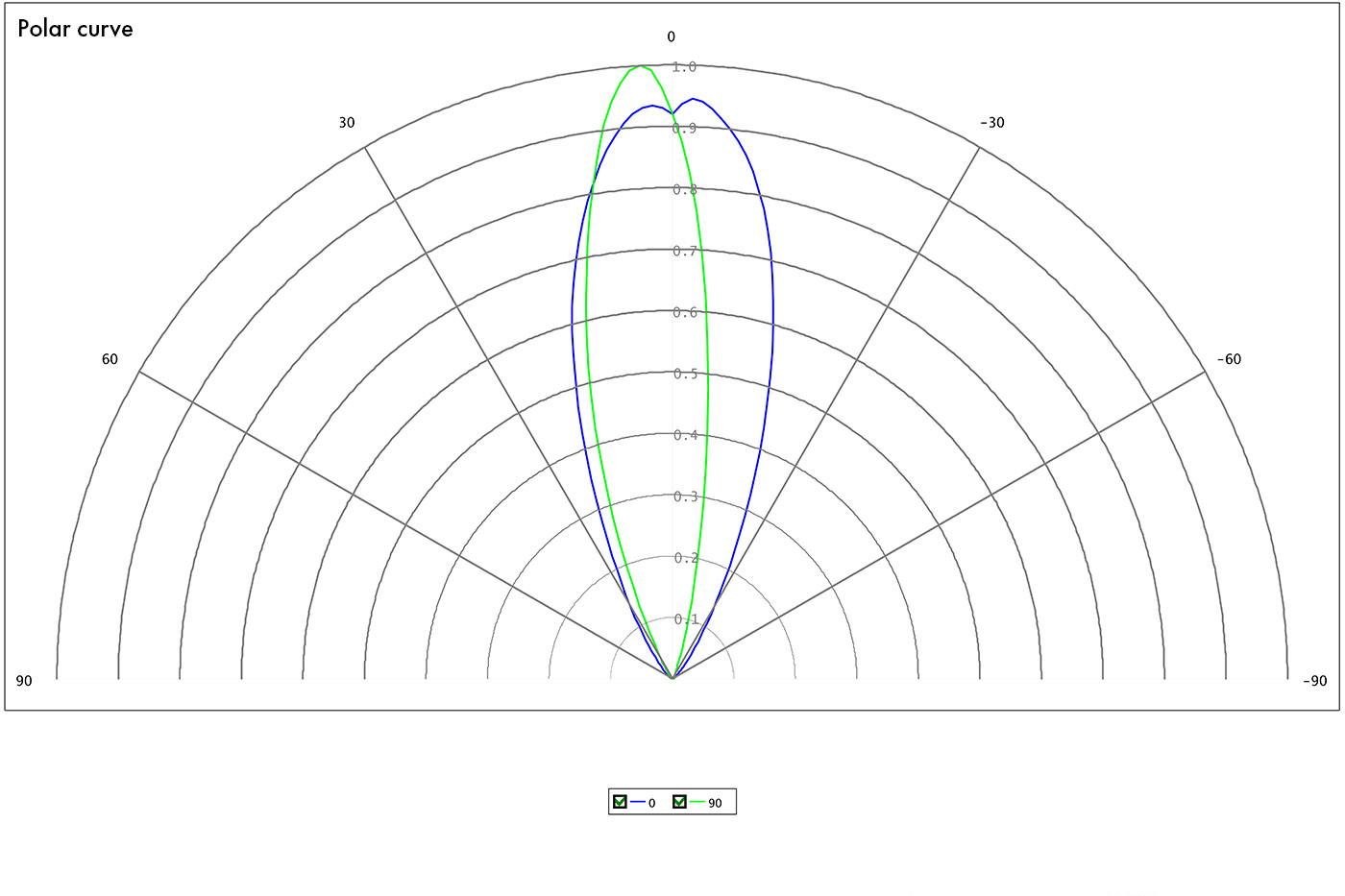

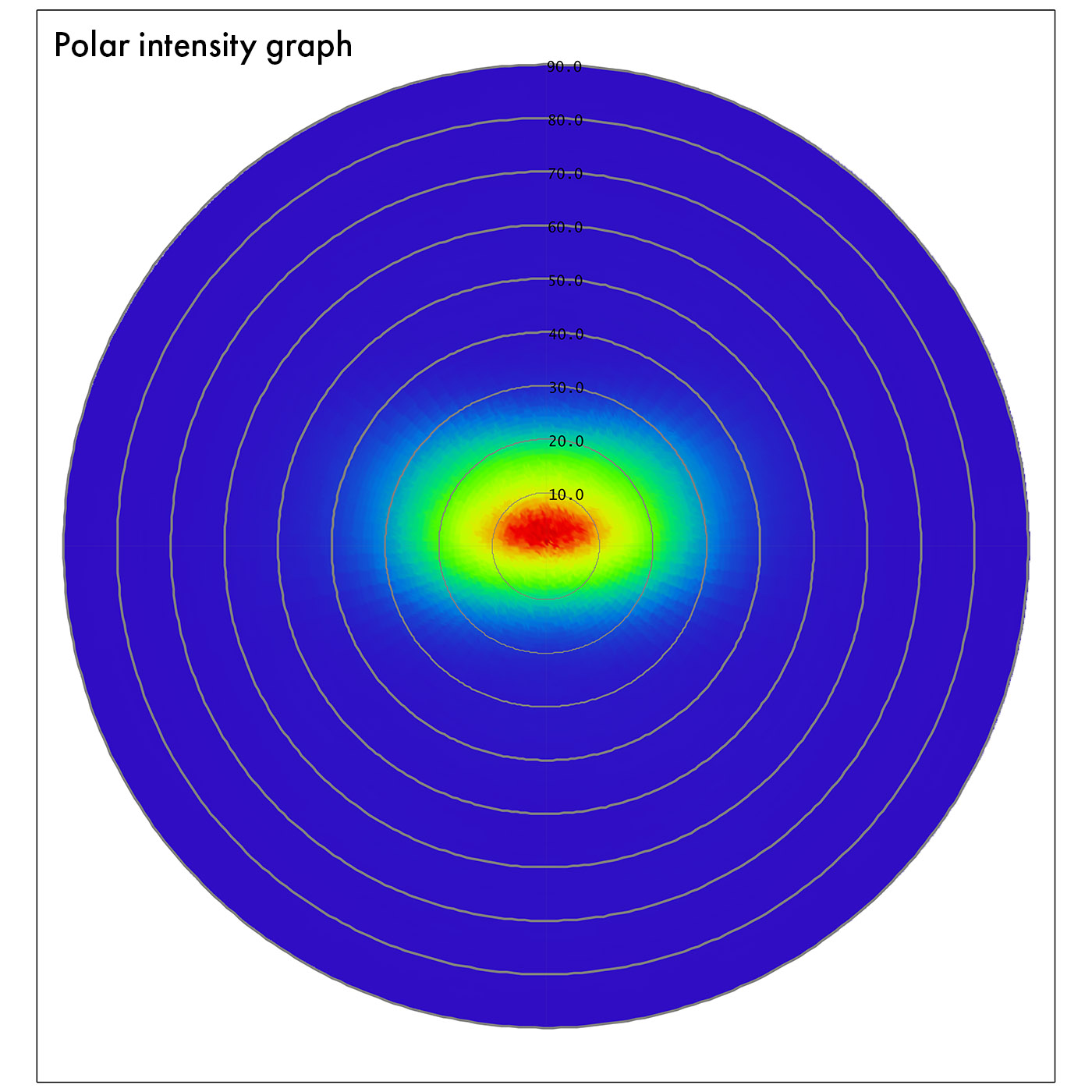

    LED: SFH 4725AS
    FWHM: 38° + 23°
    FWTM: 66° + 40°
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: IR

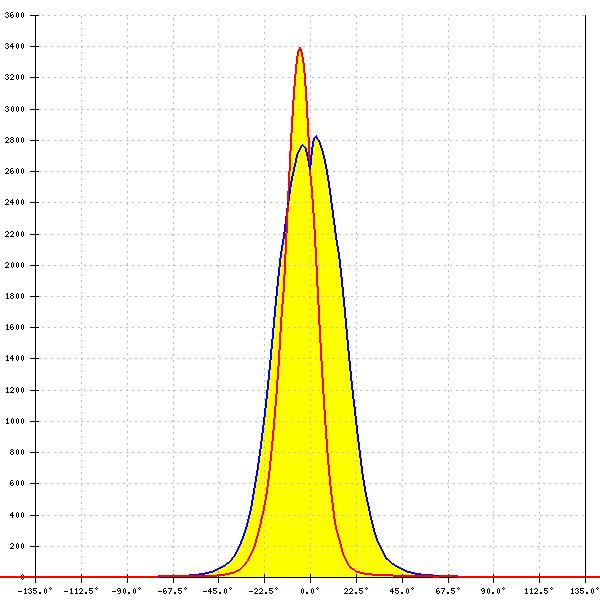

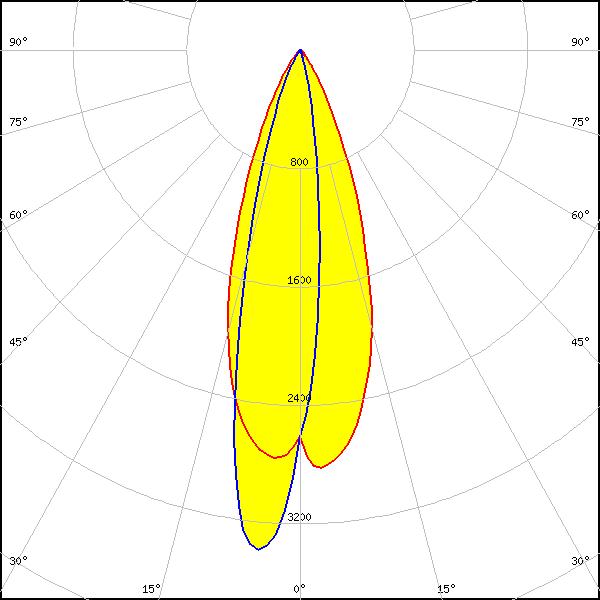

    LED: Z5M1/Z5M2
    FWHM: asymmetric
    Peak intensity: 3.474 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
