    CA15226_STRADA-SQ-FS3

    Print

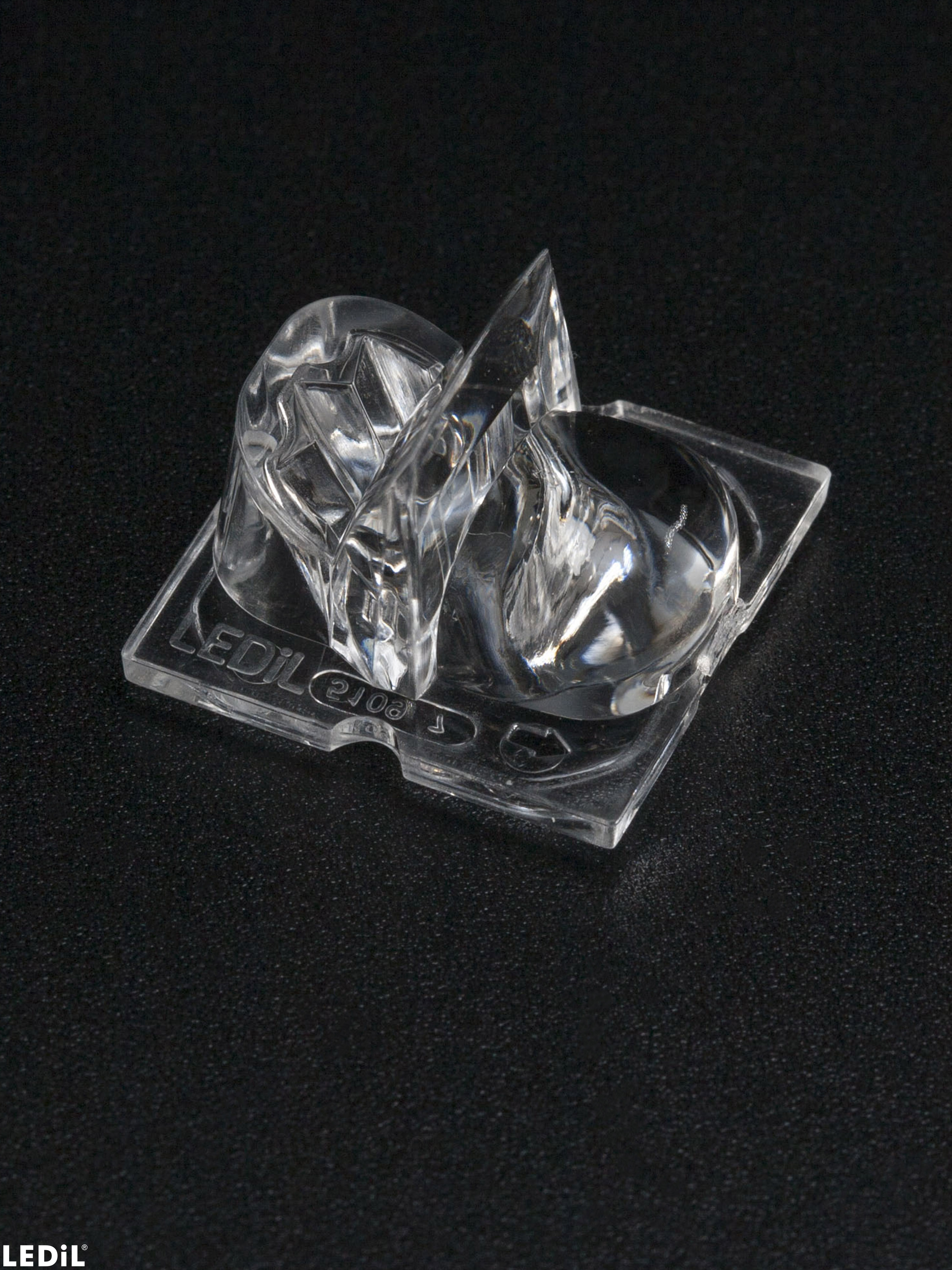

    Forward throw beam optimized for European tunnels, resulting in extremely efficient lighting with counter-beam method. Version with location pins. Assembly with installation tape.

    Specification
    • Dimensions:
      25 x  25 mm
    • Height:
      16.20 mm
    • Fastening:
      tape
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      1470 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.4 kg
    • MPQ:
      98 pcs
    • MOQ:
      294 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA15226_STRADA-SQ-FS3

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - STRADA-SQ-FS3

    Application guide

    Guide for Street lighting optics

    News

    PRODUCT NEWS - STRADA-SQ

    Application area

    Industrial Lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Optical results

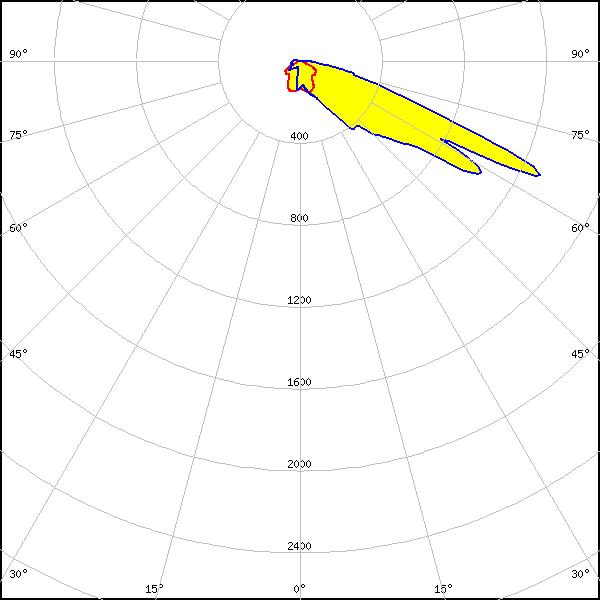

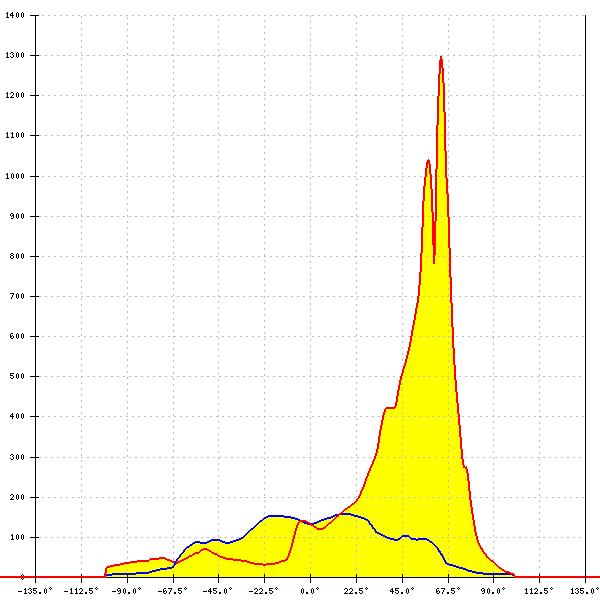

    LED: MK-R
    FWHM: 125°
    FWTM: 157°
    Peak intensity: 1.298 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

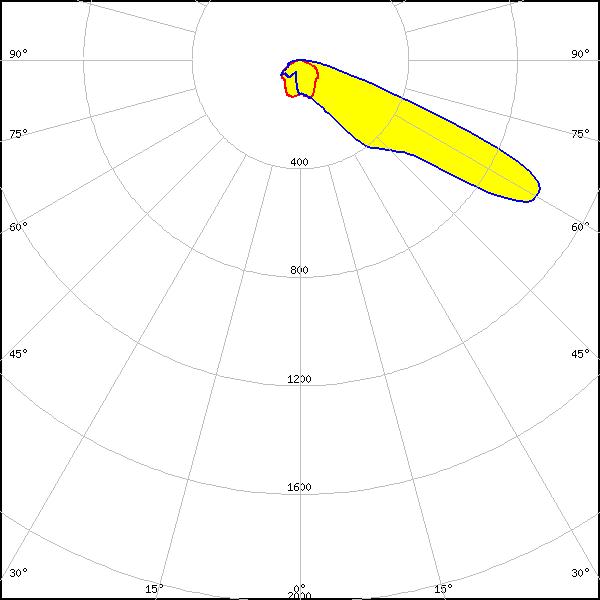

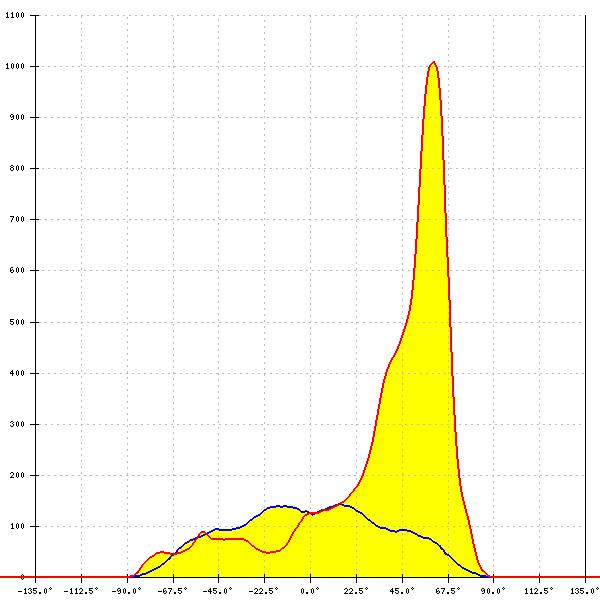

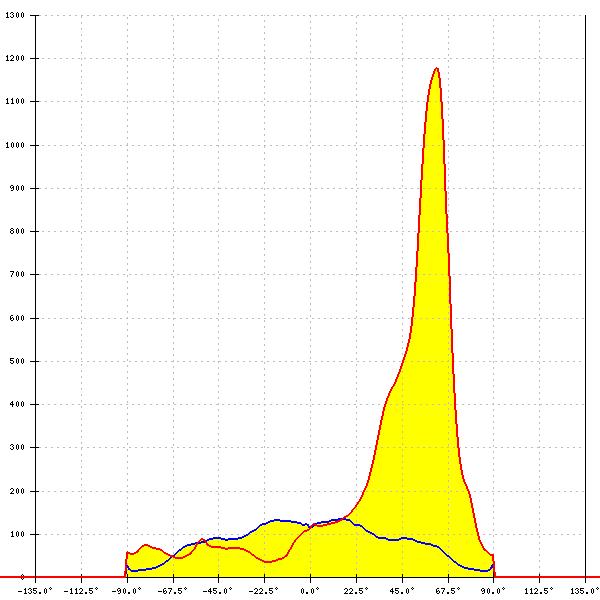

    LED: XHP50.2
    FWHM: asymmetric
    Peak intensity: 1.060 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50.2
    FWHM: asymmetric
    Peak intensity: 1.210 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP70
    FWHM: asymmetric
    Peak intensity: 0.910 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

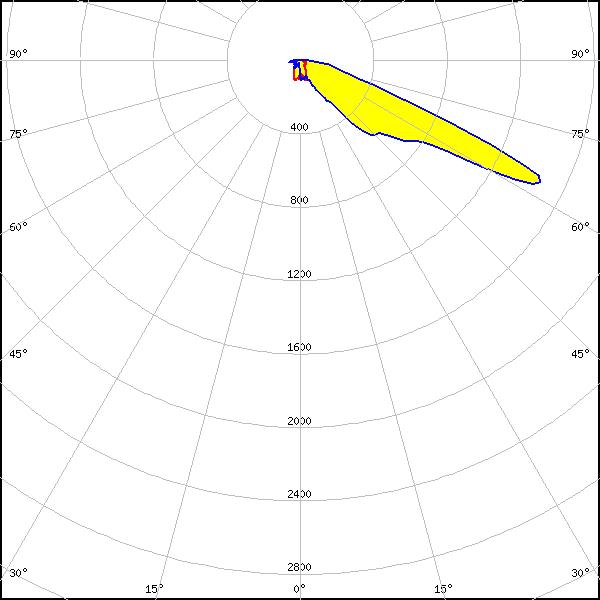

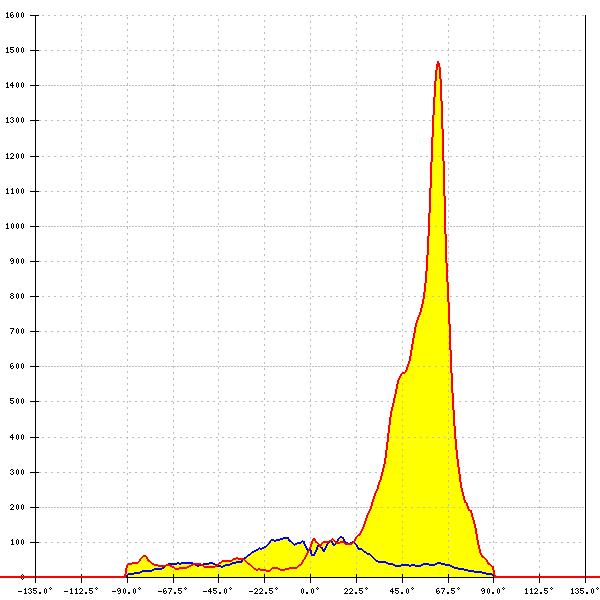

    LED: XM-L2
    FWHM: asymmetric
    Peak intensity: 2.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

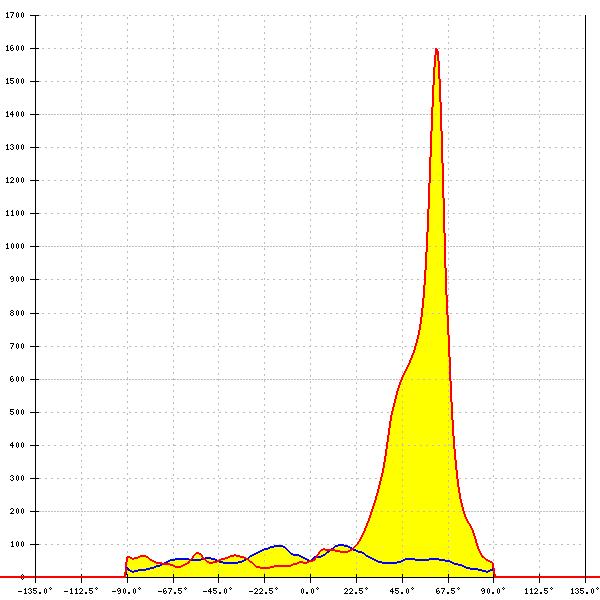

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 1.730 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

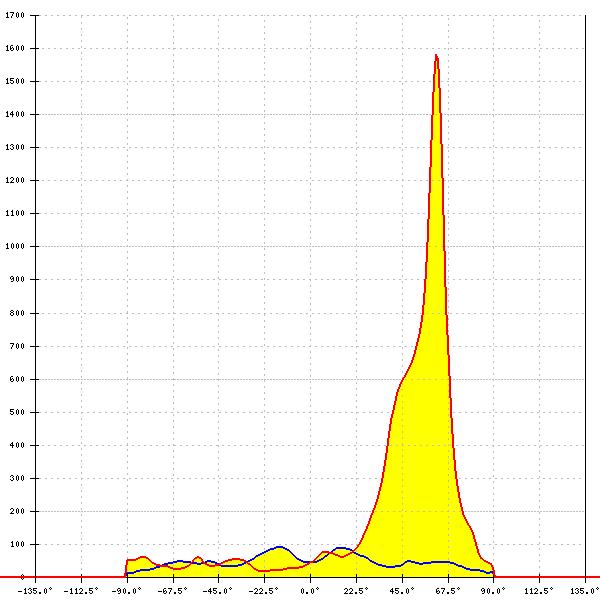

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 1.838 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: Red

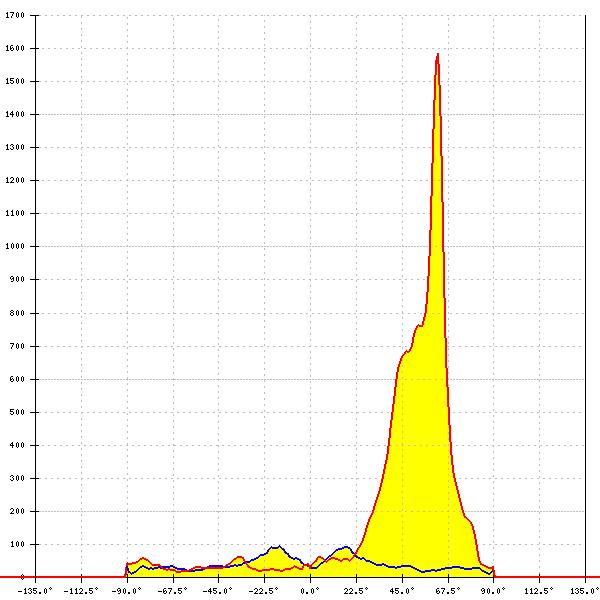

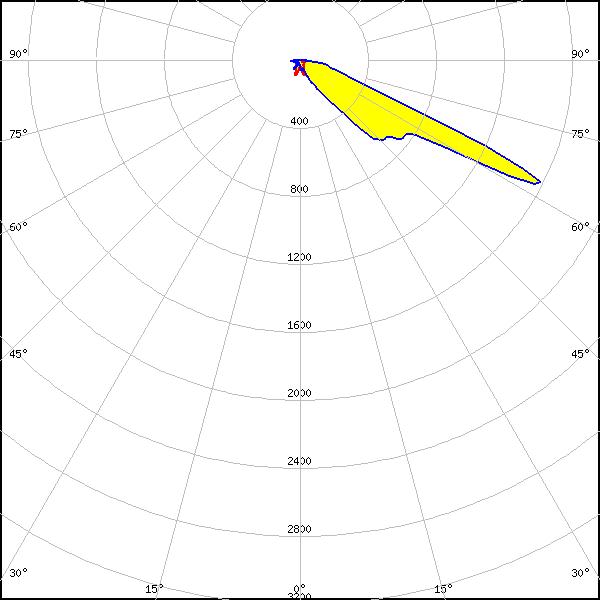

    LED: XT-E
    FWHM: asymmetric
    Peak intensity: 2.500 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

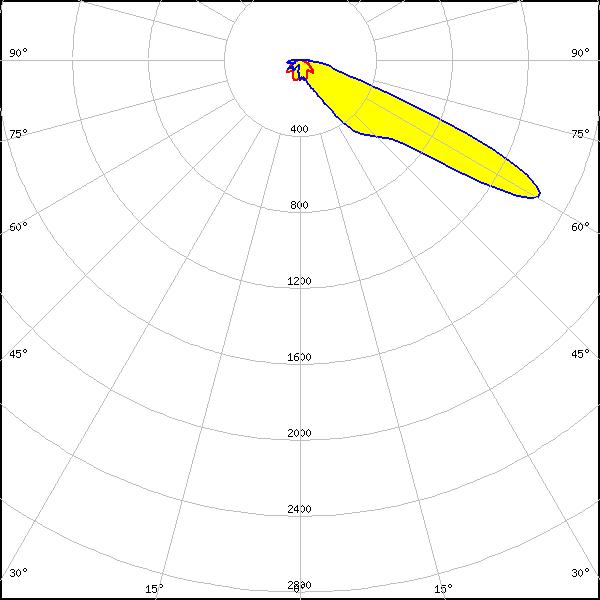

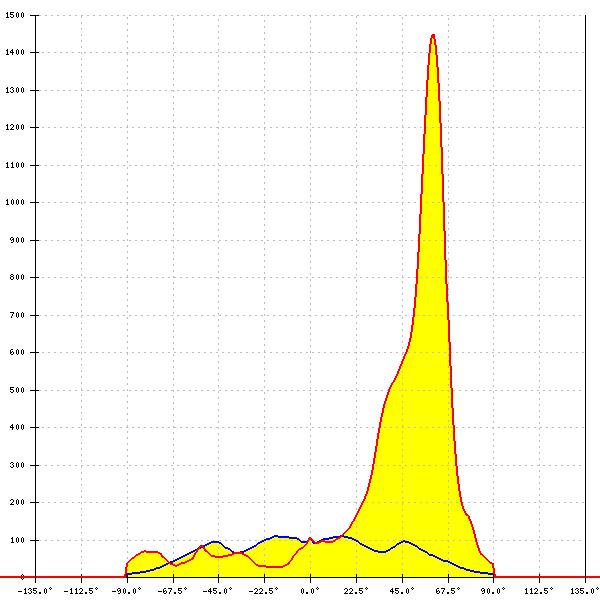

    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 1.514 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

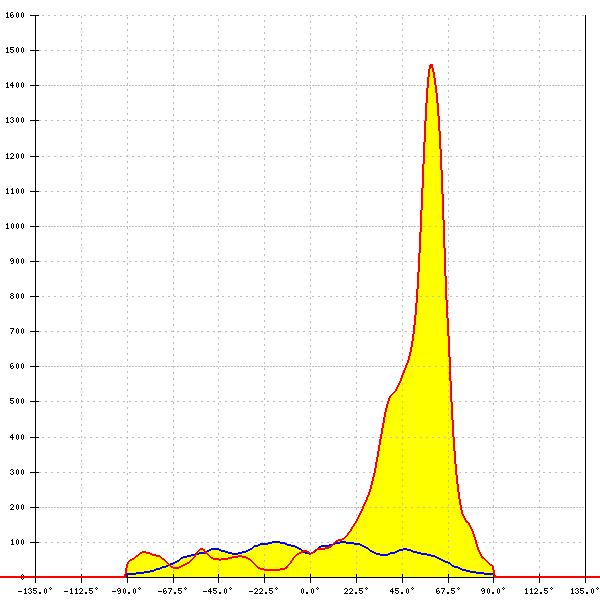

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 1.515 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

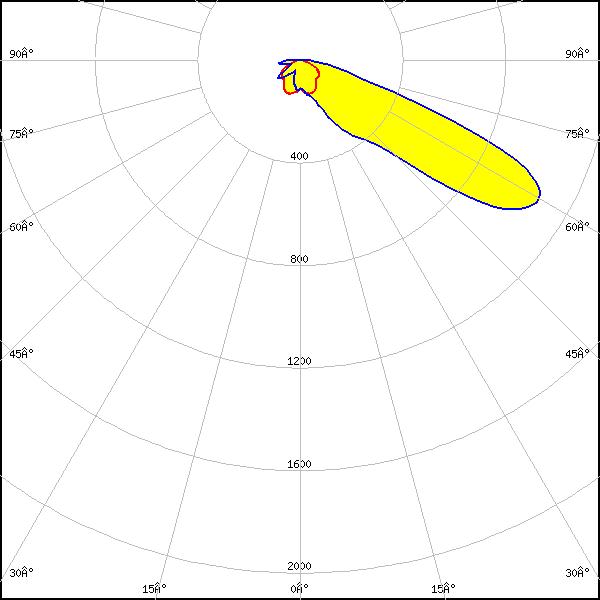

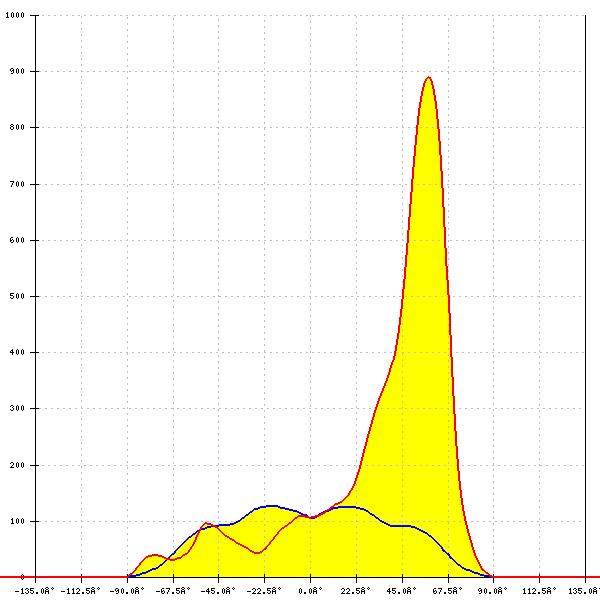

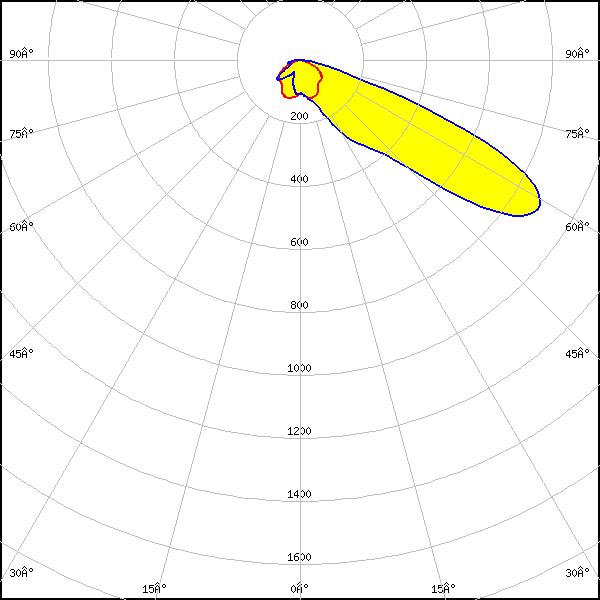

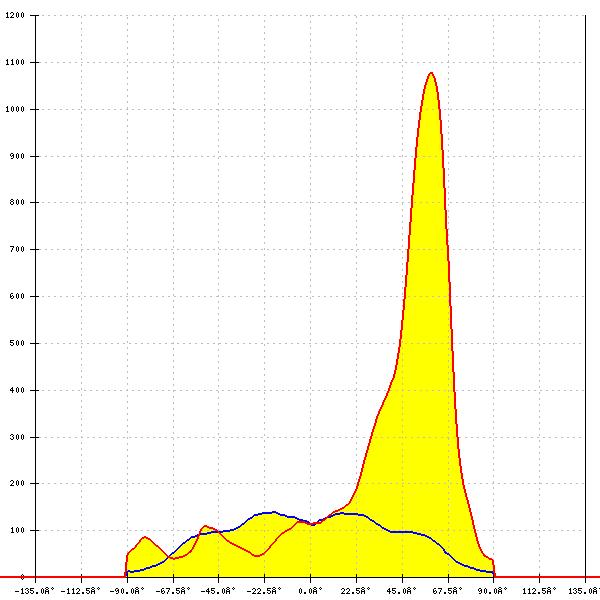

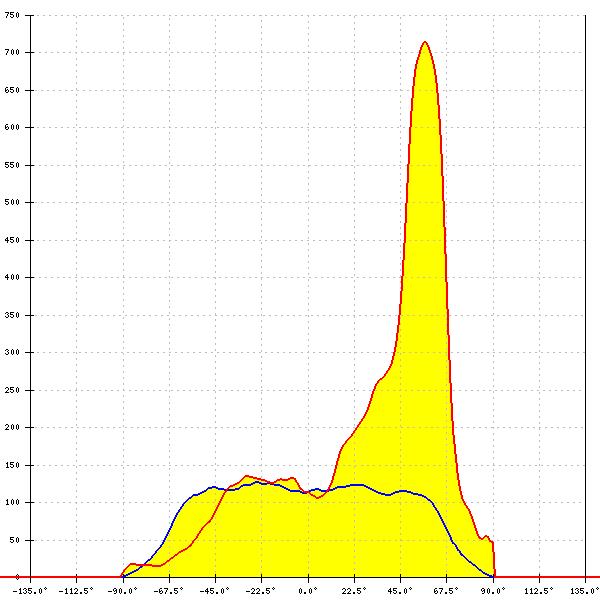

    LED: LUXEON 7070
    FWHM: asymmetric
    Peak intensity: 0.721 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

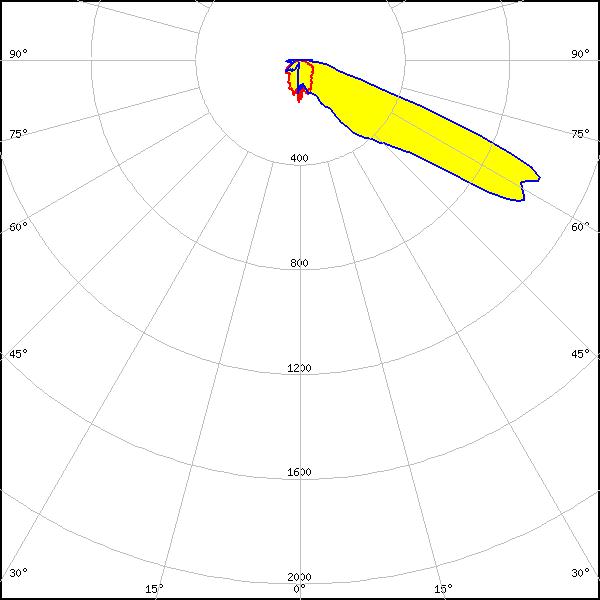

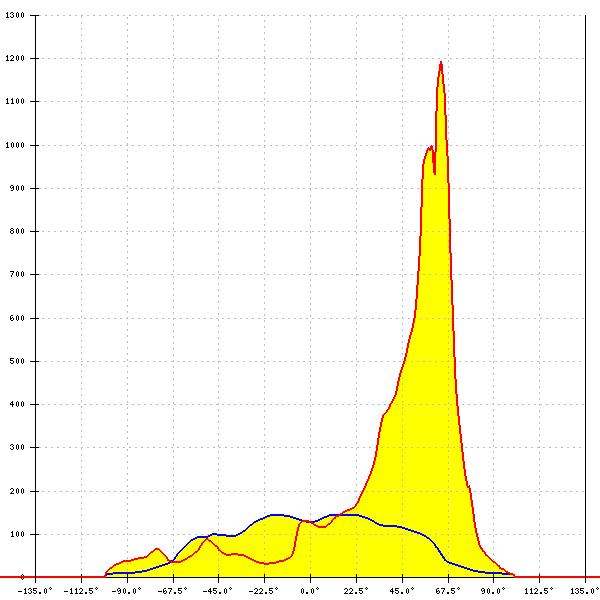

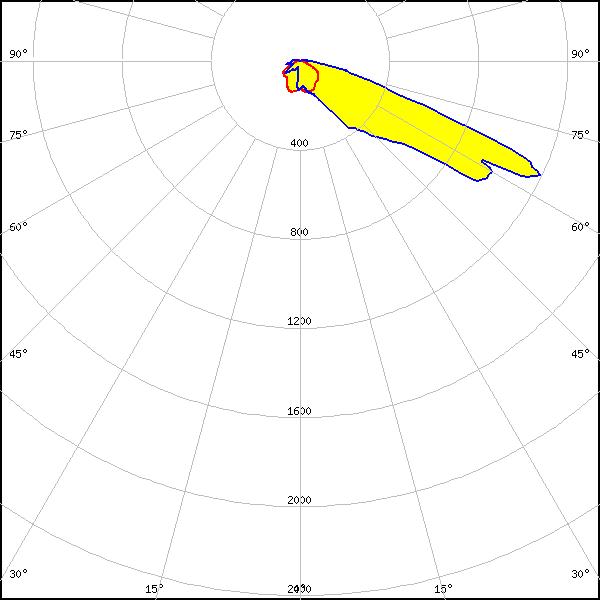

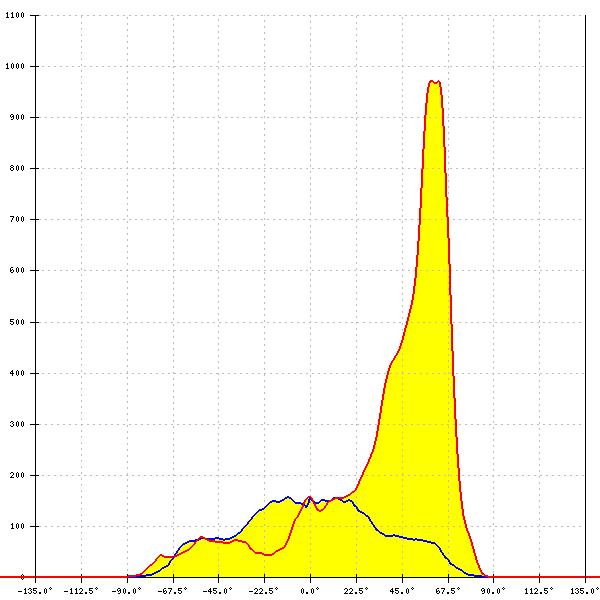

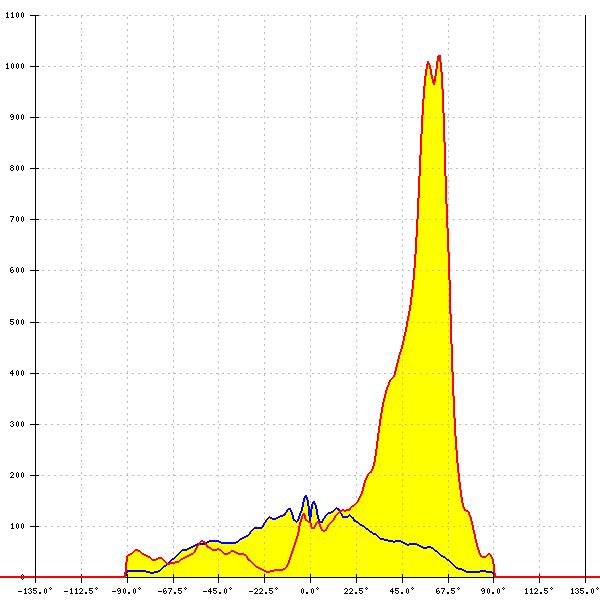

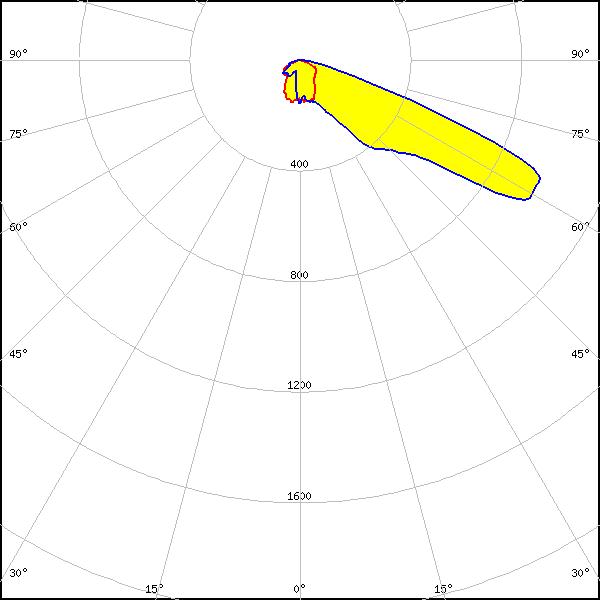

    LED: LUXEON M/MX
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON M/MX
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON M/MX
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

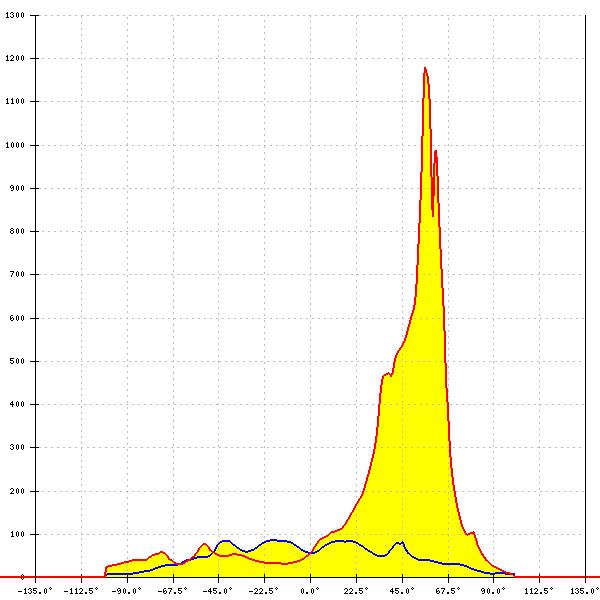

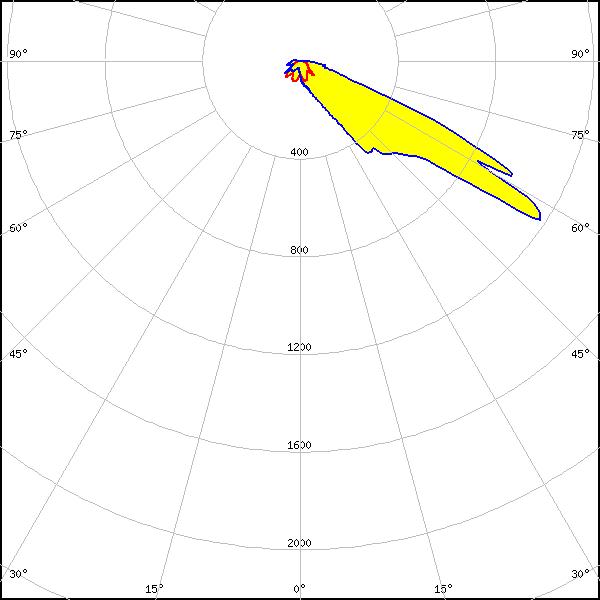

    LED: LUXEON MZ
    FWHM: asymmetric
    Peak intensity: 2.400 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

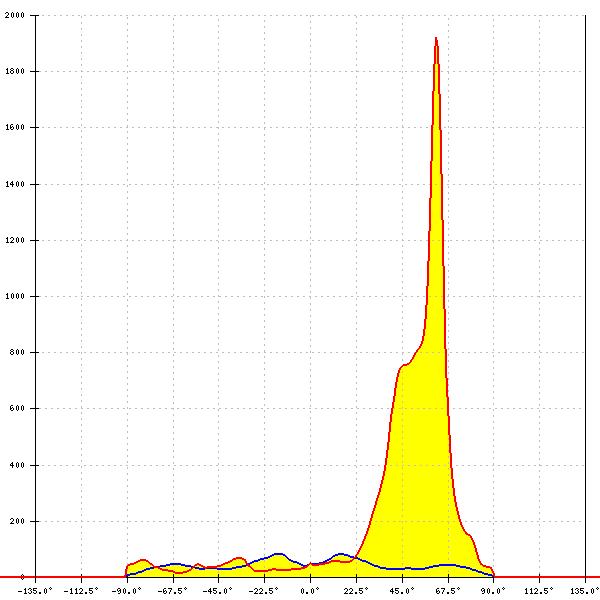

    LED: SFT-40-WCS
    FWHM: asymmetric
    Peak intensity: 2.275 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFT-40-WCS
    FWHM: asymmetric
    Peak intensity: 1.572 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

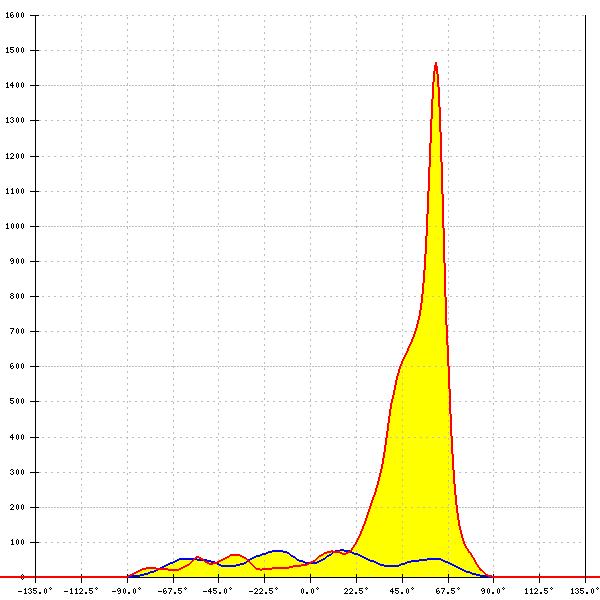

    LED: SFT-70X-WCS
    FWHM: asymmetric
    Peak intensity: 2.019 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFT-70X-WCS
    FWHM: asymmetric
    Peak intensity: 1.472 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

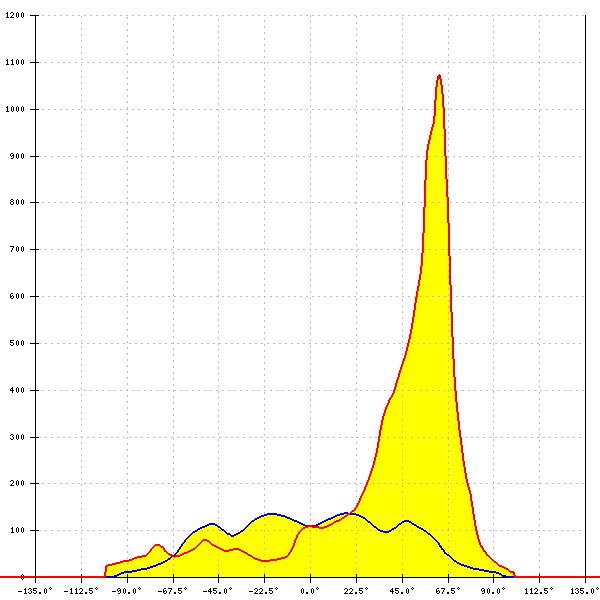

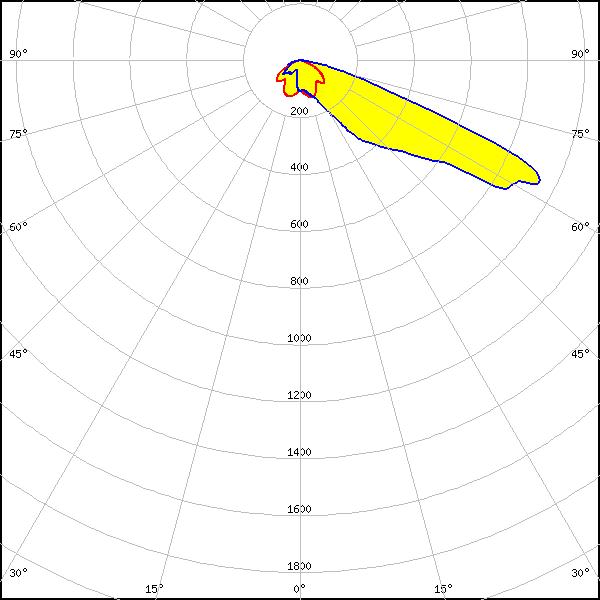

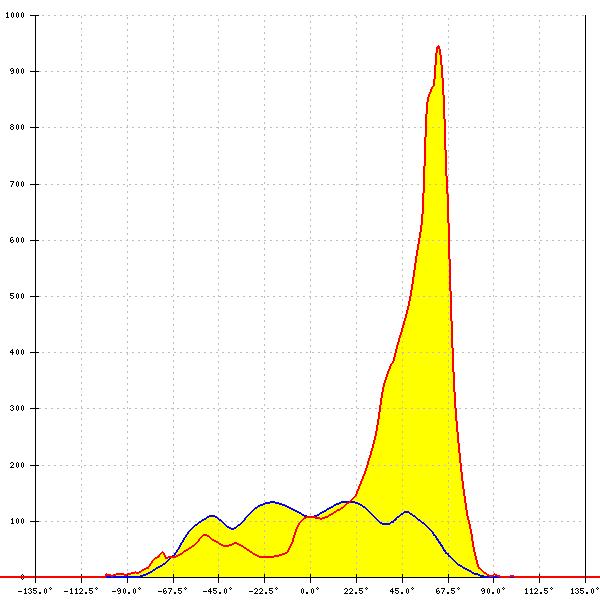

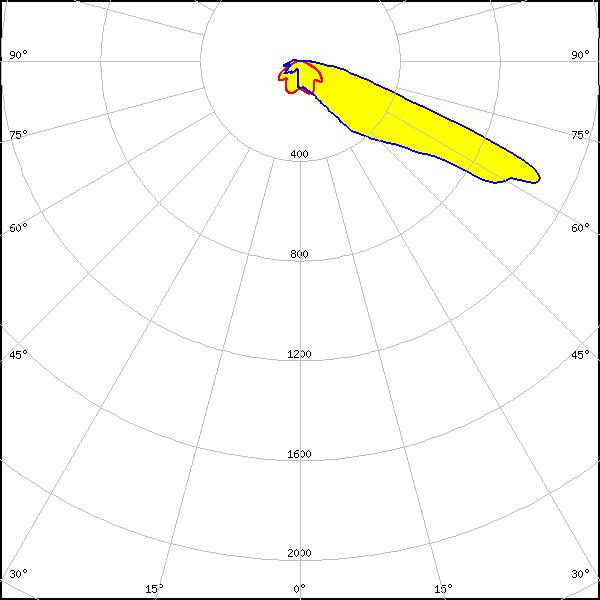

    LED: NV4x144A
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4x144A
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

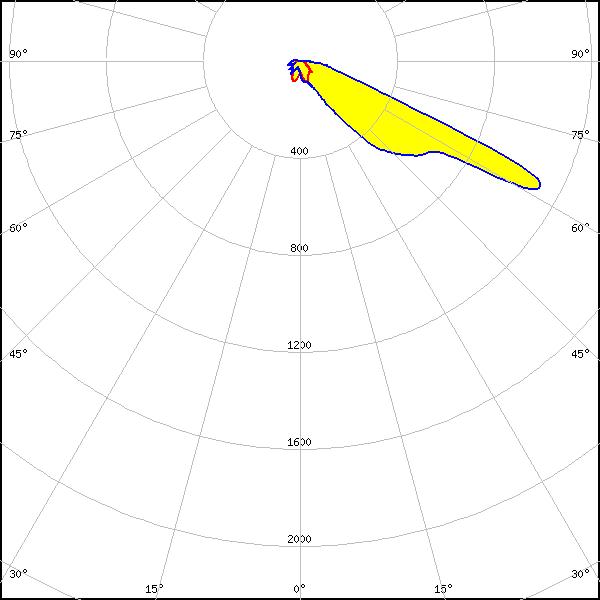

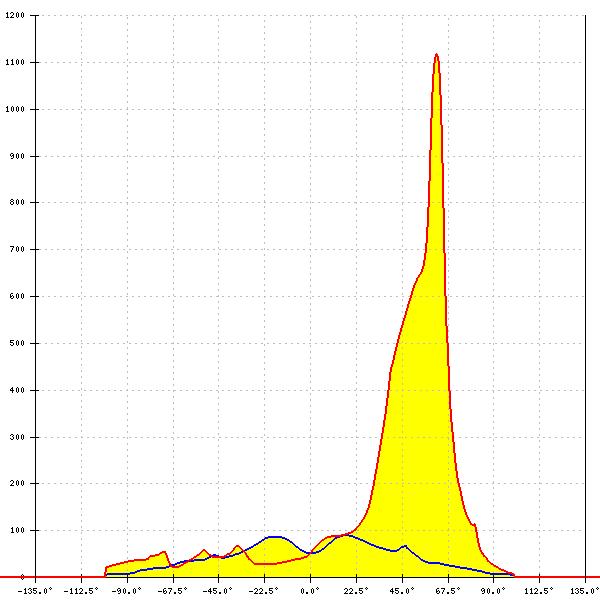

    LED: NVSW319B
    FWHM: asymmetric
    Peak intensity: 2.400 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

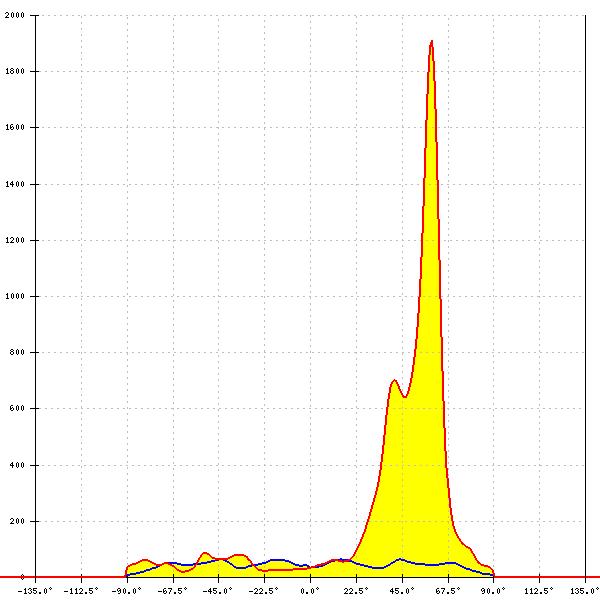

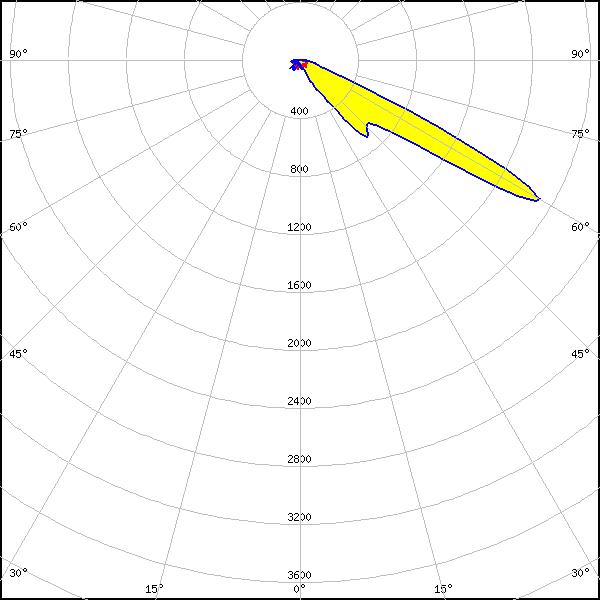

    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 2.100 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 2.151 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

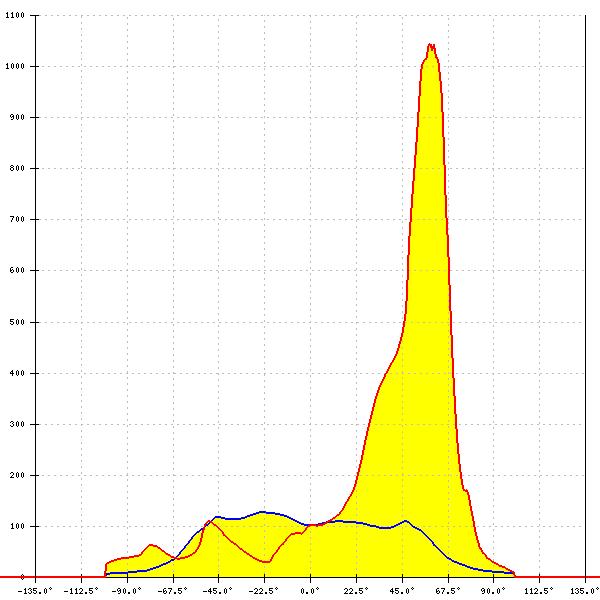

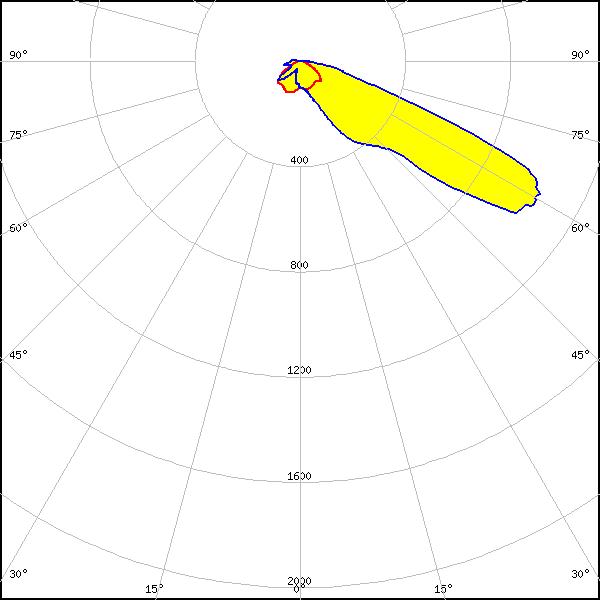

    LED: Duris S10
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 7070
    FWHM: asymmetric
    Peak intensity: 1.420 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 7070
    FWHM: asymmetric
    Peak intensity: 1.370 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 2.160 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

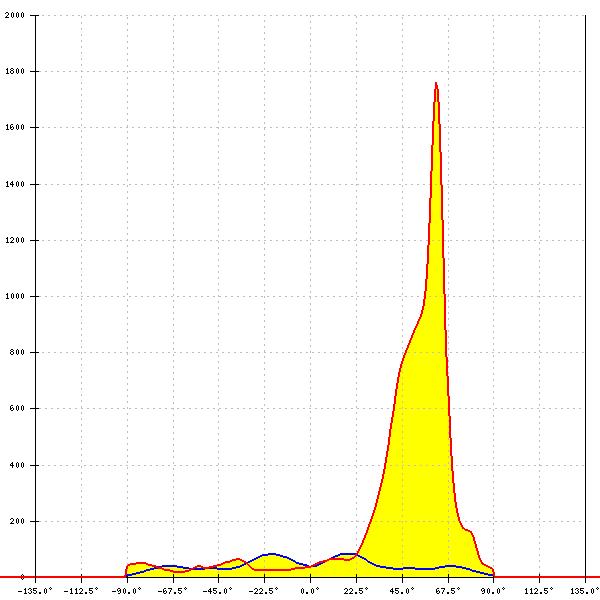

    LED: OSLON Square EC
    FWHM: asymmetric
    Peak intensity: 2.060 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

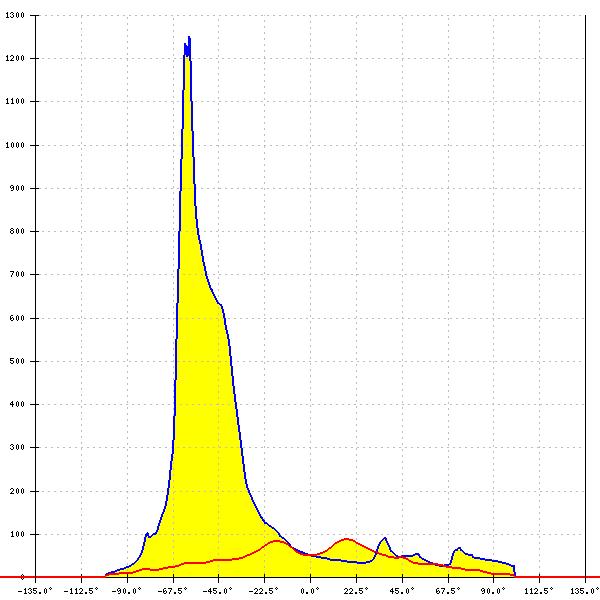

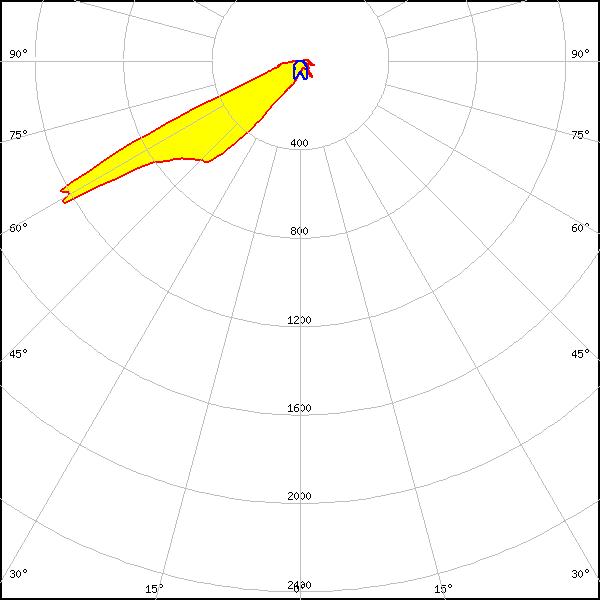

    LED: OSLON Square PC
    FWHM: asymmetric
    Peak intensity: 3.100 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4715AS
    FWHM: asymmetric
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4716AS
    FWHM: asymmetric
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: IR

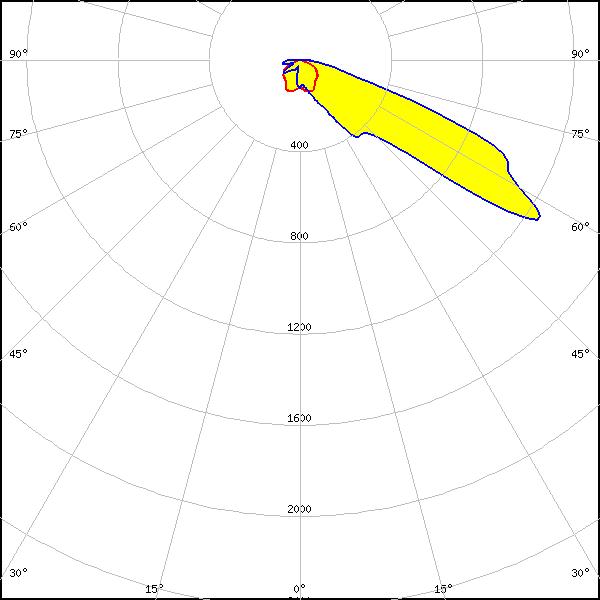

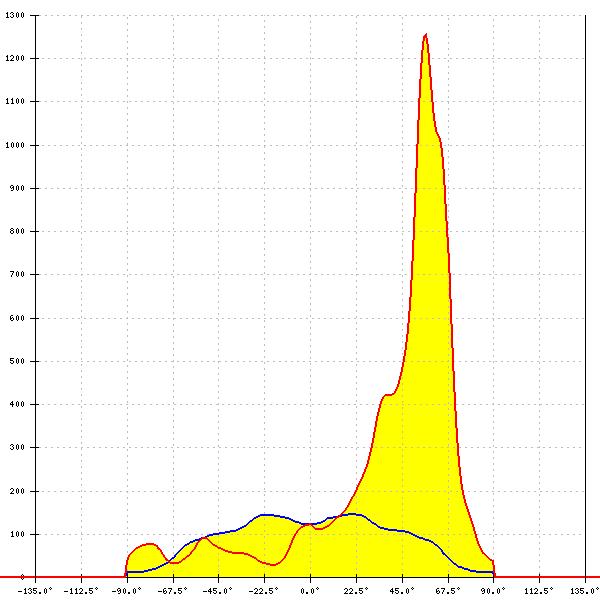

    LED: LH181B
    FWHM: asymmetric
    Peak intensity: 1.230 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour/type: White

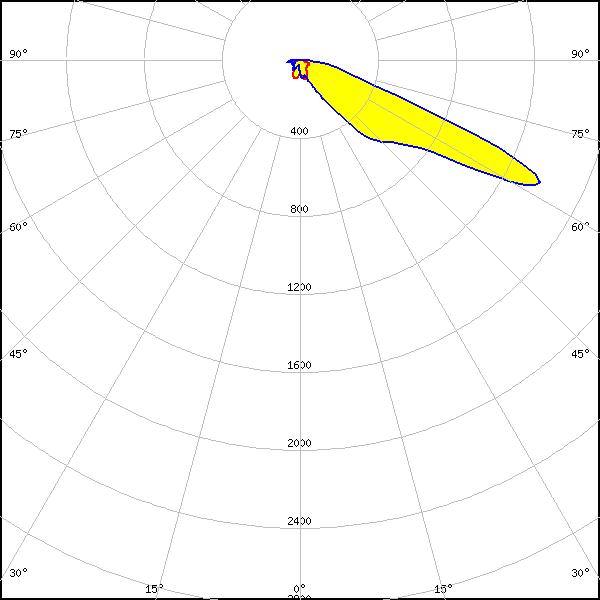

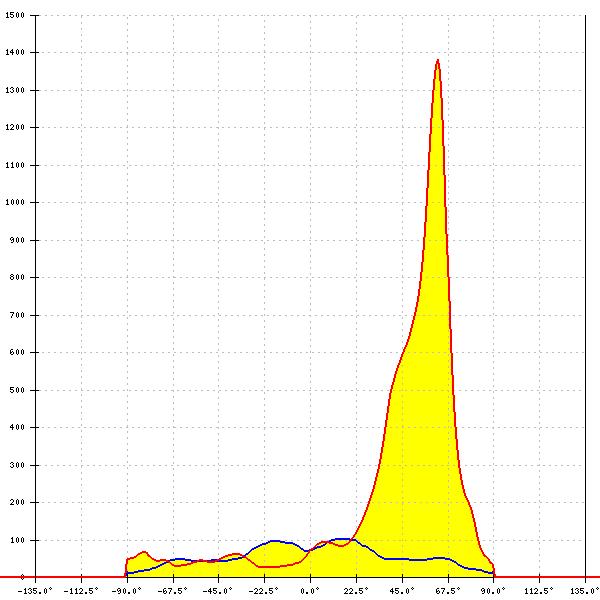

    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 1.535 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
