    CA15027_MINNIE-LT-WWW

    Print

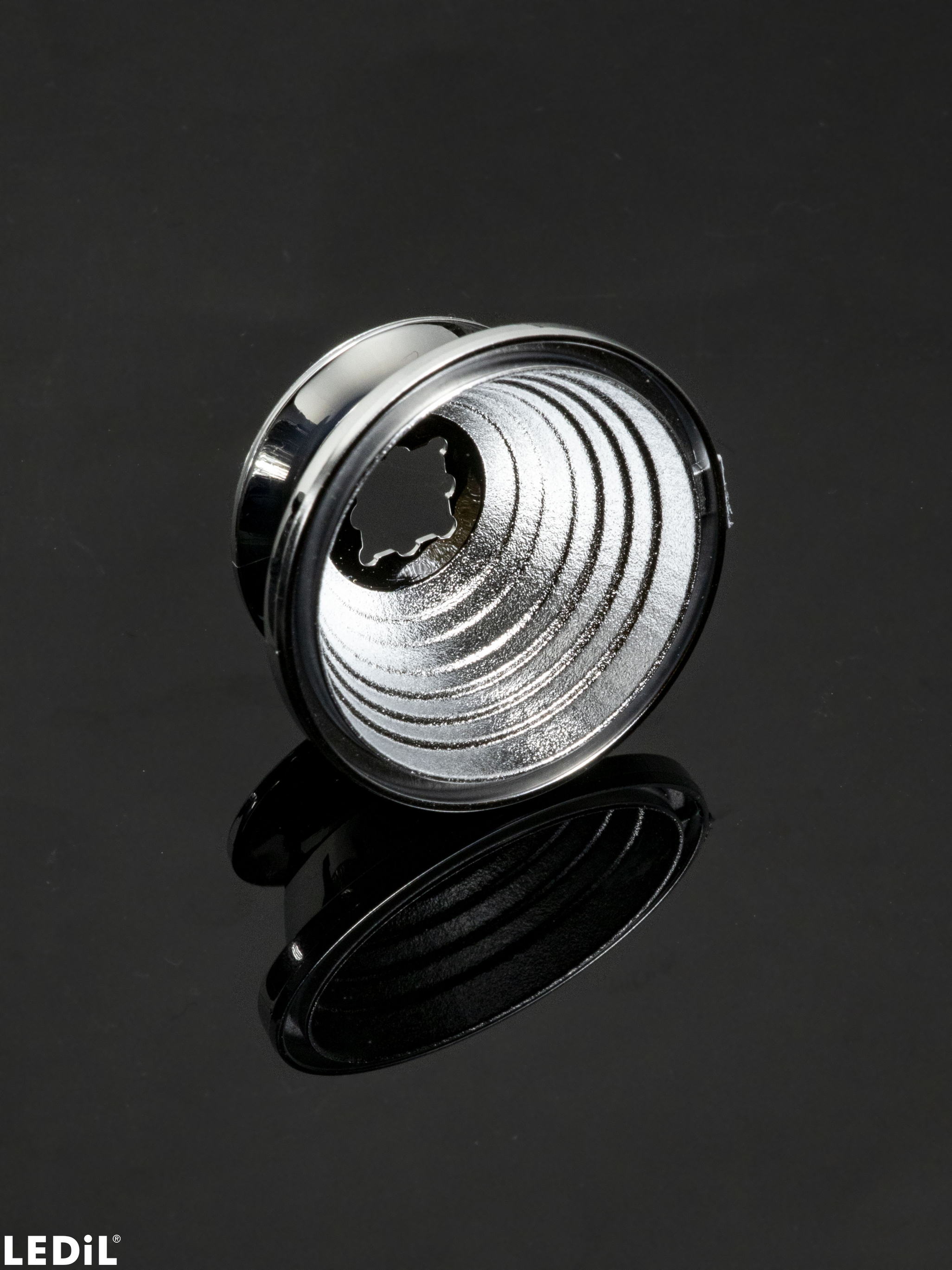

    ~70° very wide beam. Assembly with installation tape.

    Specification
    • Dimensions:
      35 mm
    • Height:
      15.80 mm
    • Fastening:
      tape
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      720 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      3.7 kg
    • MPQ:
      45 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA15027_MINNIE-LT-WWW

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - MINNIE-LT

    News

    PRODUCT NEWS - MINNIE FOR CREE MT-G LED

    Application area

    Indoor Architectural Lighting

    Optical results

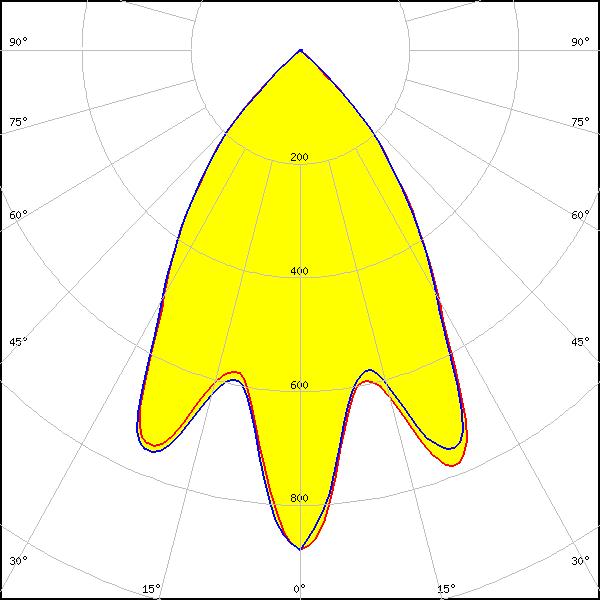

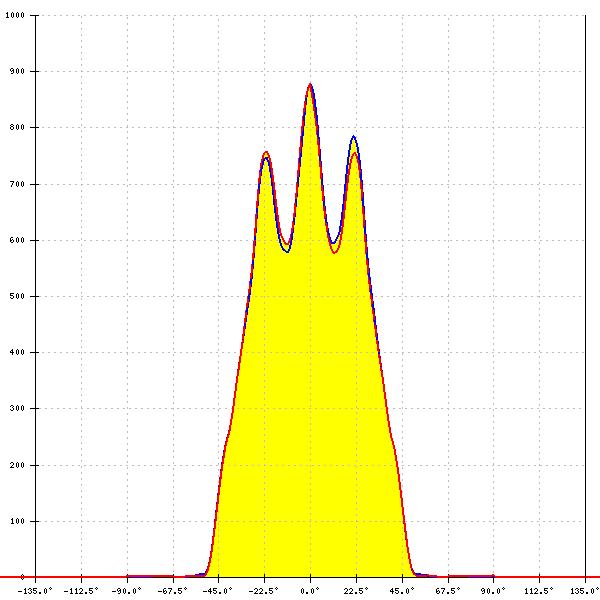

    LED: XHP50.3 HD
    FWHM: 65° + 64°
    FWTM: 94° + 94°
    Peak intensity: 0.881 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

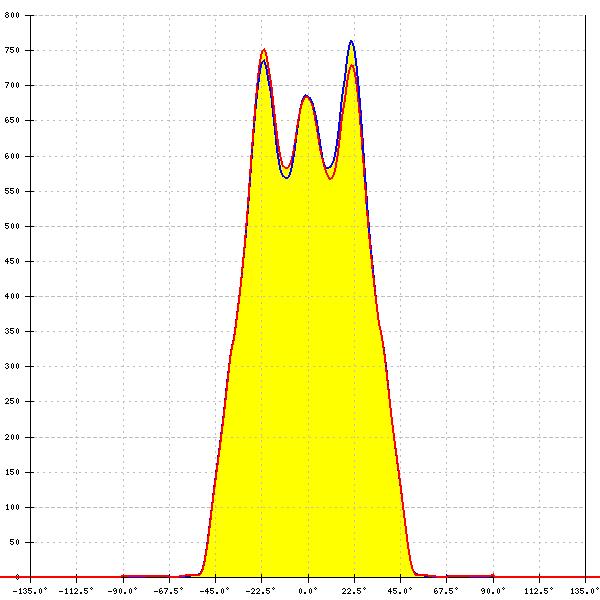

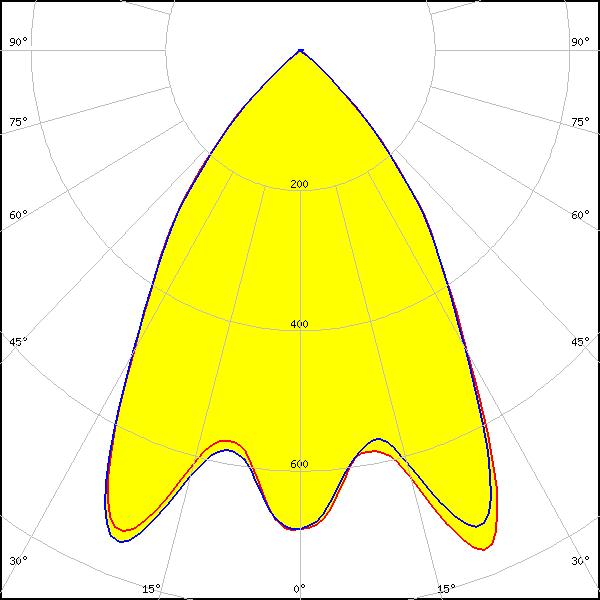

    LED: XHP70.3 HD
    FWHM: 68°
    FWTM: 96°
    Peak intensity: 0.783 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

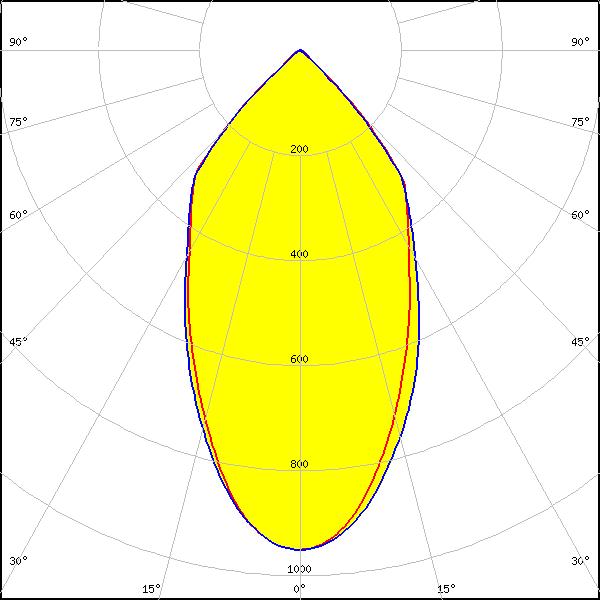

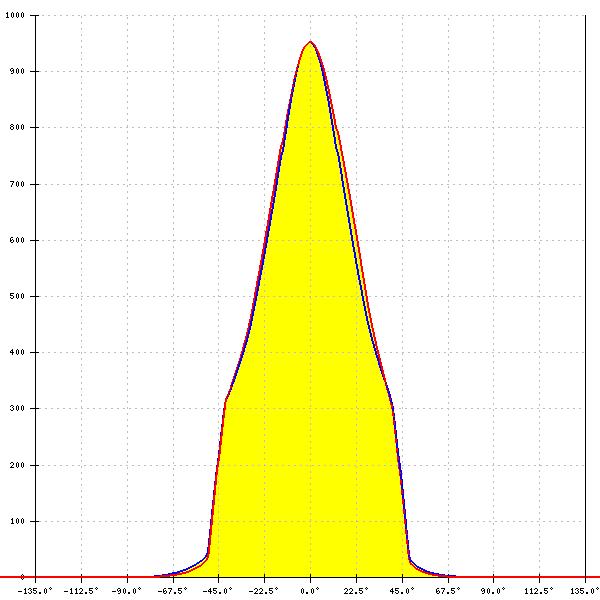

    LED: LUXEON M/MX
    FWHM: 56°
    FWTM: 95°
    Peak intensity: 0.950 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

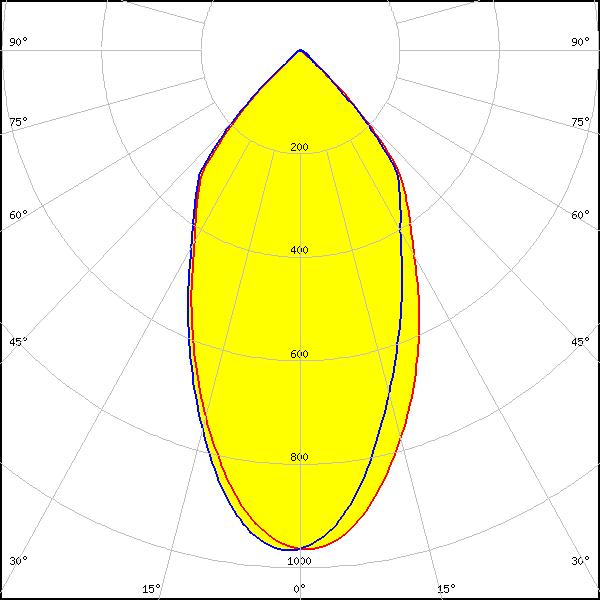

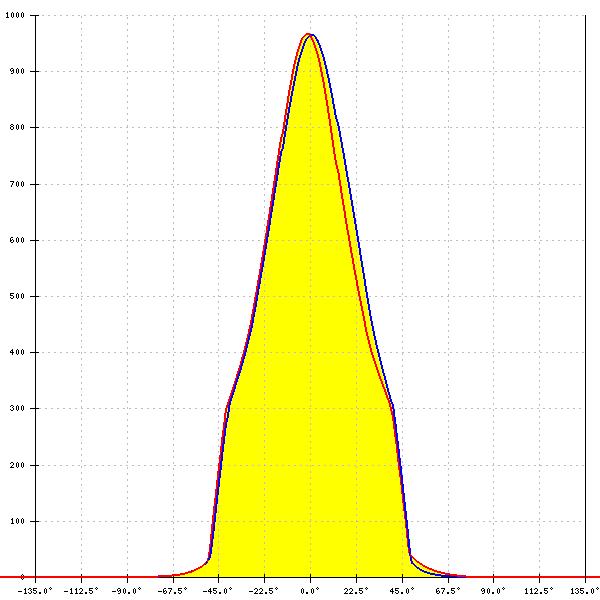

    LED: PLW7070
    FWHM: 54°
    FWTM: 94°
    Peak intensity: 1.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
