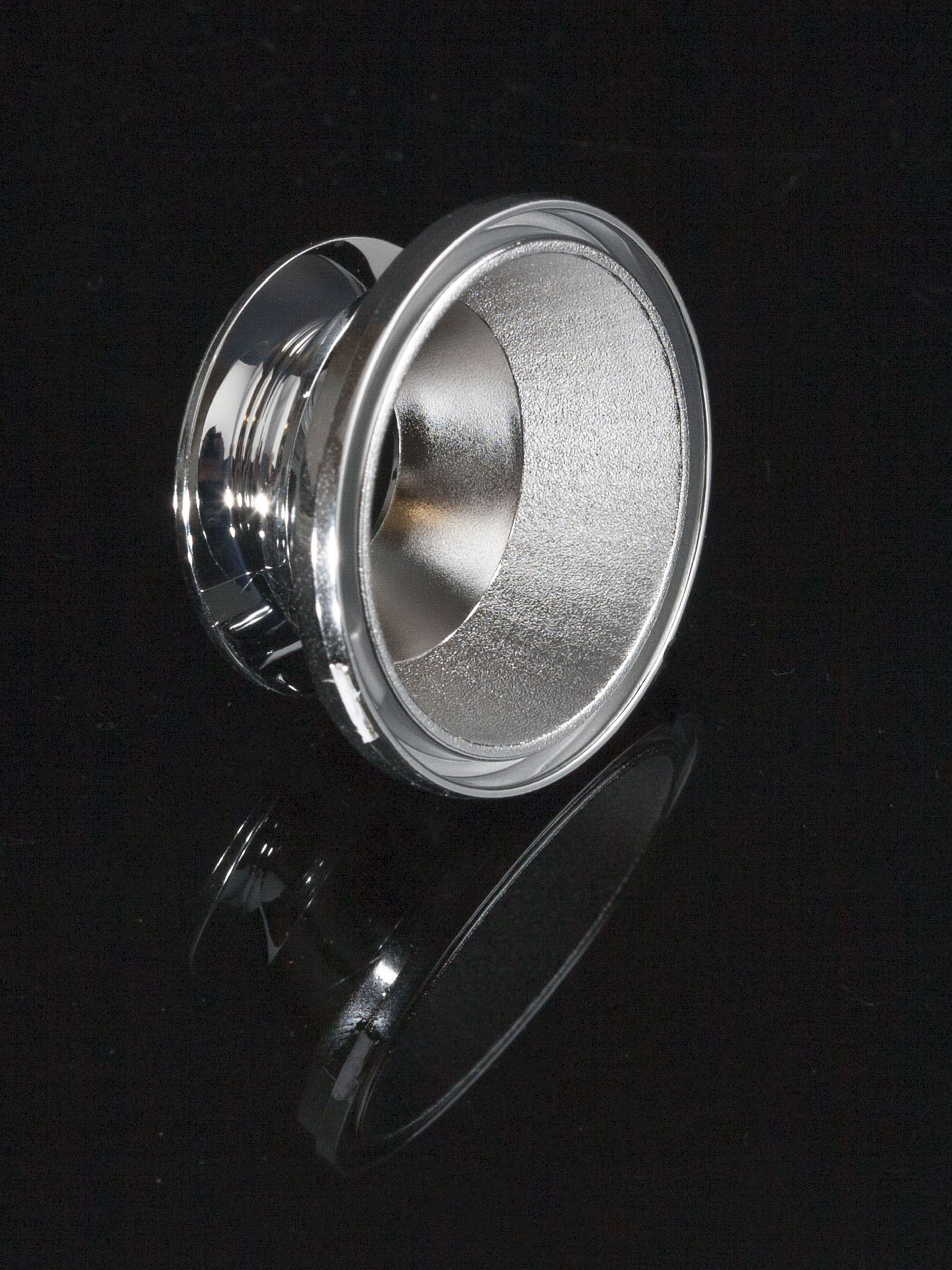

CA14942_MINNIE-LT-W-PIN
Print
~35° wide beam. Assembly with location pins and installation tape.
Component Materials
- MINNIE-LT-W-PINReflectorPC
- SPUTNIK-TAPE3TapeAcryl tape
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
MK-R
FWHM:
40°
FWTM:
89°
Peak intensity:
1.410 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50.3 HD
FWHM:
30°
FWTM:
79°
Peak intensity:
2.444 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70.2
FWHM:
35°
FWTM:
87°
Peak intensity:
1.550 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70.3 HD
FWHM:
36°
FWTM:
84°
Peak intensity:
1.909 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM:
34°
FWTM:
85°
Peak intensity:
1.720 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
30°
FWTM:
83°
Peak intensity:
1.980 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM:
29°
FWTM:
84°
Peak intensity:
2.000 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 7070
FWHM:
32°
FWTM:
75°
Peak intensity:
2.401 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON M/MX
FWHM:
30°
FWTM:
84°
Peak intensity:
1.900 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON M/MX
FWHM:
30°
FWTM:
90°
Peak intensity:
1.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON MZ
FWHM:
27°
FWTM:
83°
Peak intensity:
2.300 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON V
FWHM:
24°
FWTM:
83°
Peak intensity:
2.400 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NFMW48xA
FWHM:
29°
FWTM:
83°
Peak intensity:
2.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S10
FWHM:
34°
FWTM:
84°
Peak intensity:
1.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
29°
FWTM:
84°
Peak intensity:
1.900 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
WICOP 5050
FWHM:
27°
FWTM:
81°
Peak intensity:
2.261 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
