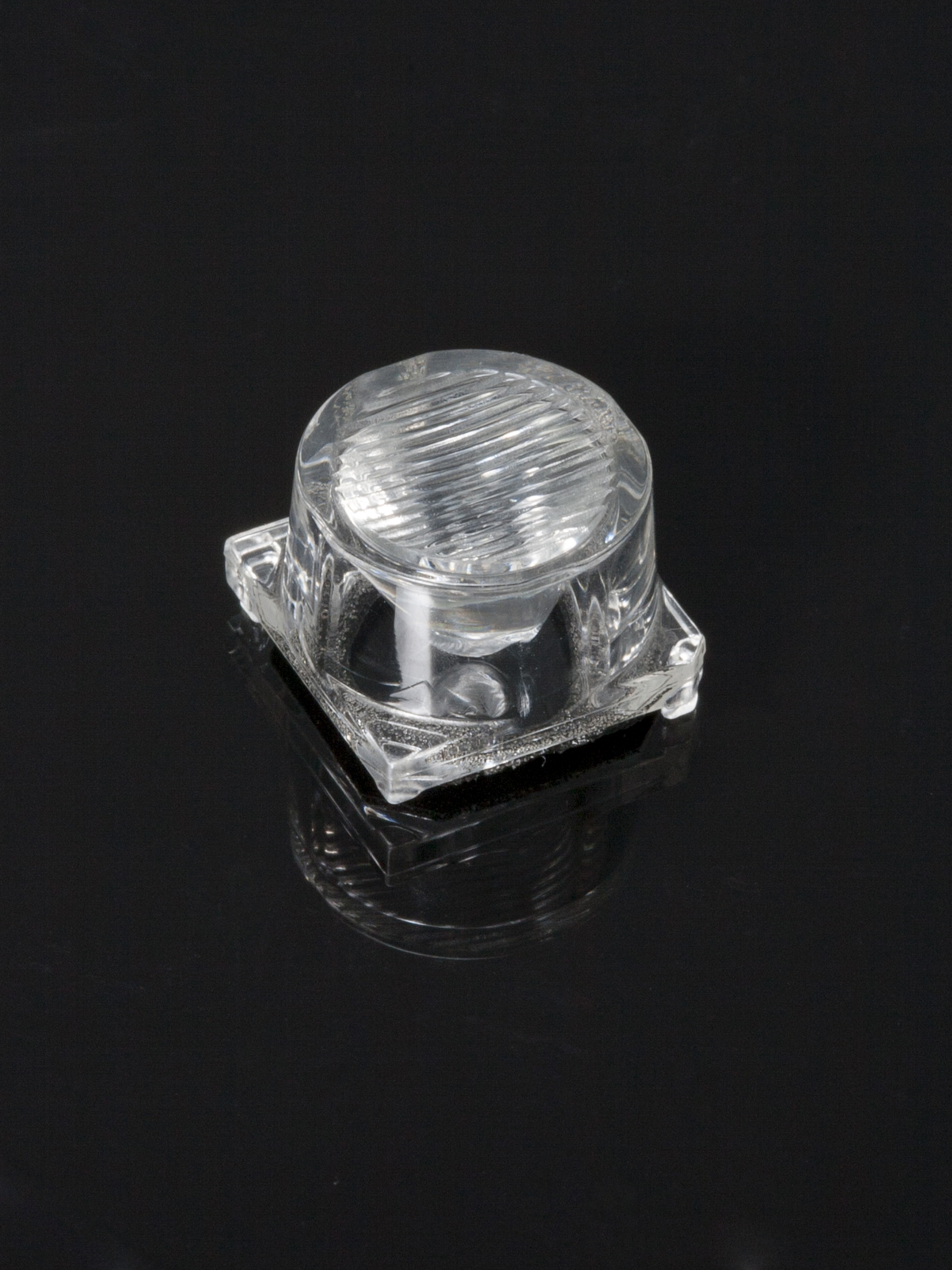

CA14602_VERONICA-SQ-MINI-O
Print
~15° + 50° oval beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

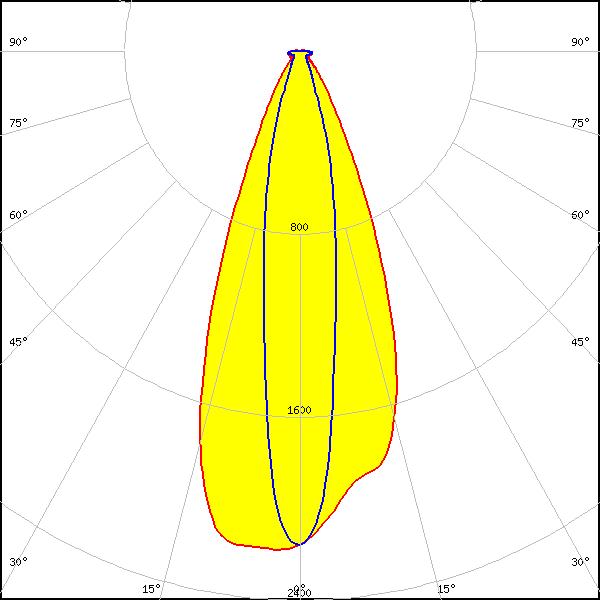

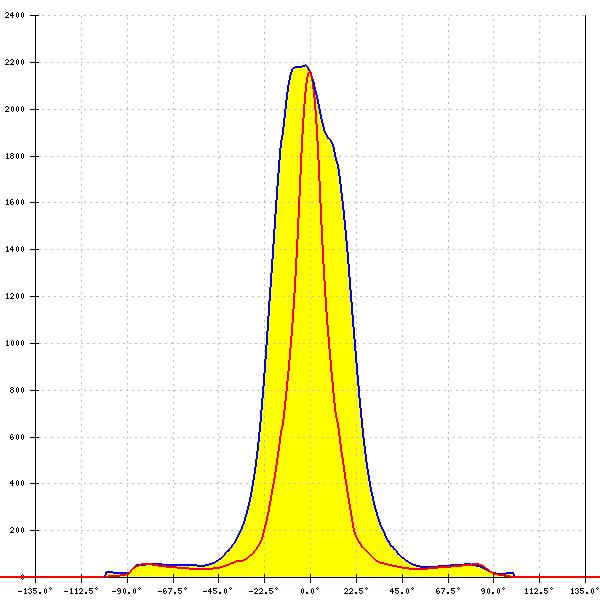

LED:
XD16
FWHM:
41° + 18°
FWTM:
68° + 43°
Peak intensity:
2.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

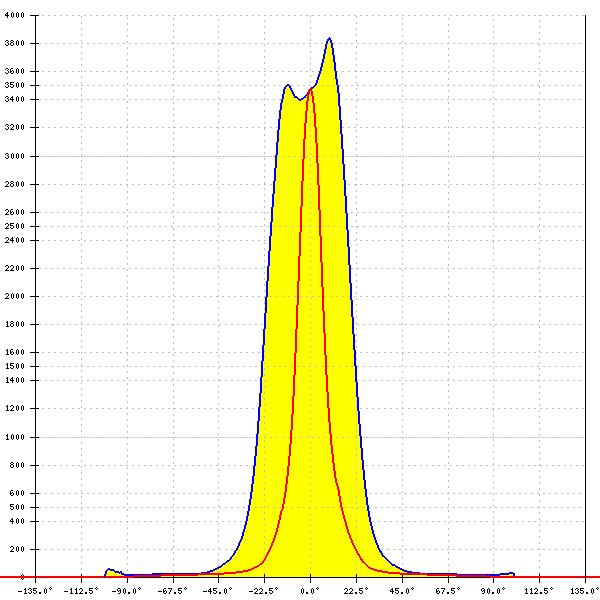

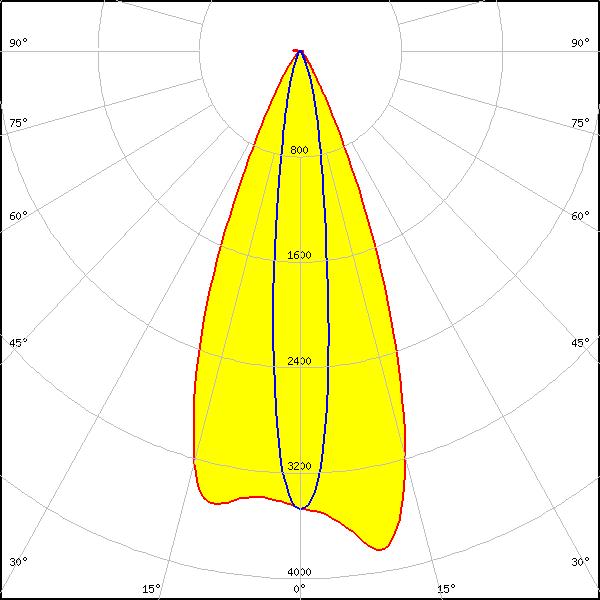

LED:
XP-E2
FWHM:
42° + 14°
FWTM:
61° + 34°
Peak intensity:
3.800 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

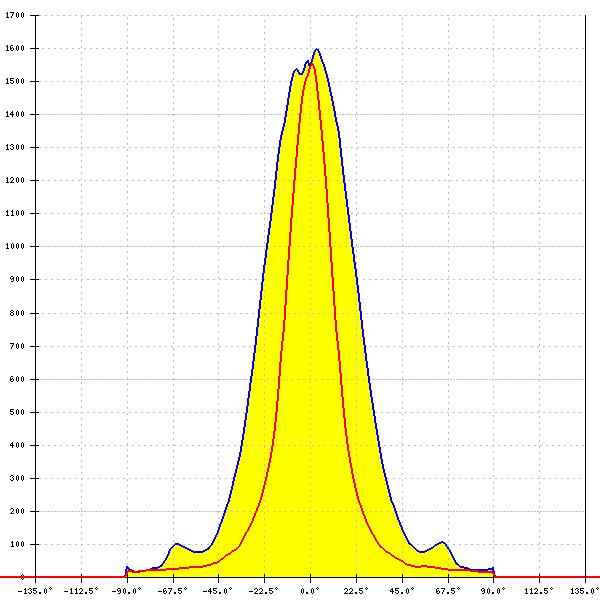

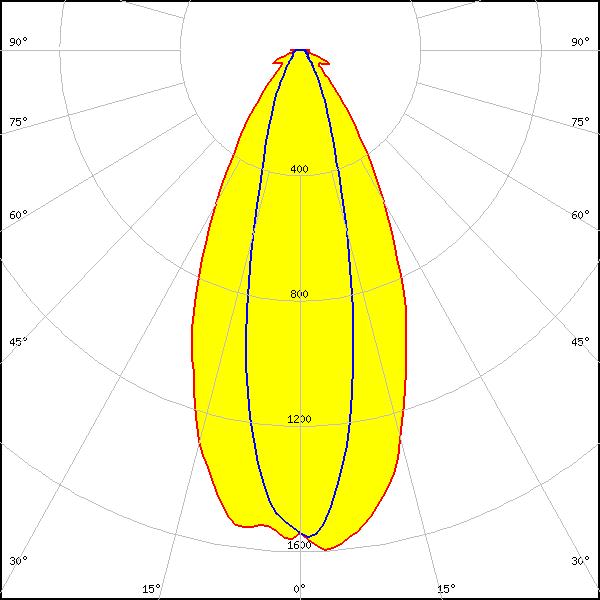

LED:
XP-G2 HE
FWHM:
50° + 26°
FWTM:
88° + 59°
Peak intensity:
1.598 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XQ-E HD
FWHM:
54° + 16°
FWTM:
80° + 34°
Peak intensity:
2.678 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

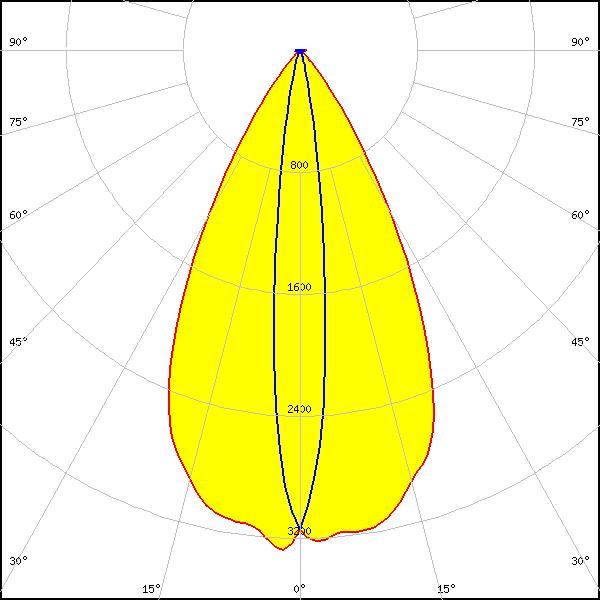

LED:
XQ-E HI
FWHM:
54° + 12°
FWTM:
78° + 26°
Peak intensity:
3.293 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 2835 Architectural
FWHM:
54° + 16°
FWTM:
80° + 41°
Peak intensity:
2.332 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
PC Amber

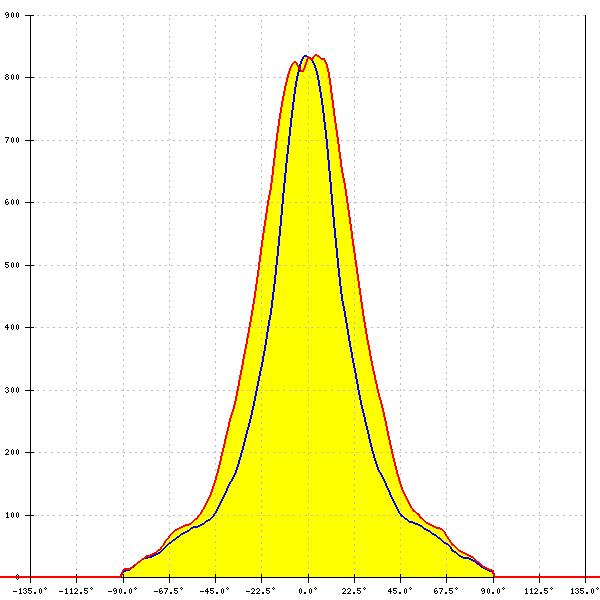

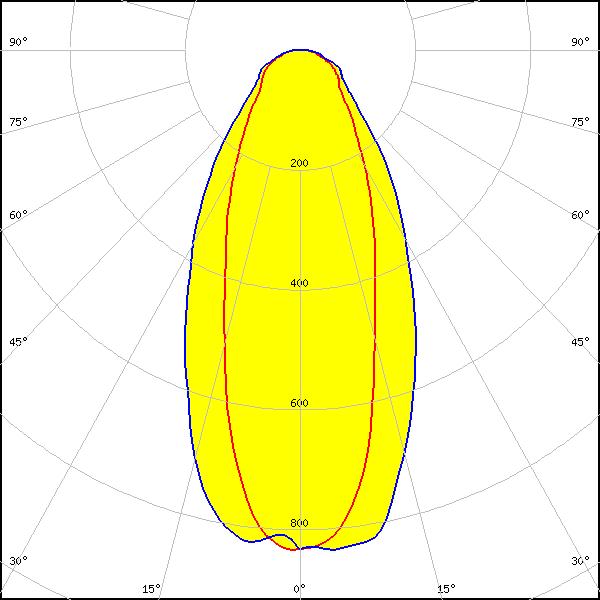

LED:
LUXEON 5050 Round LES
FWHM:
54° + 36°
FWTM:
118° + 106°
Peak intensity:
0.845 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

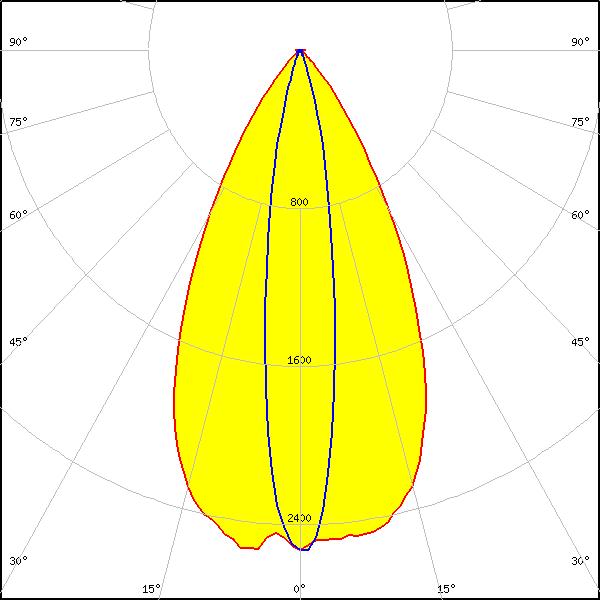

LED:

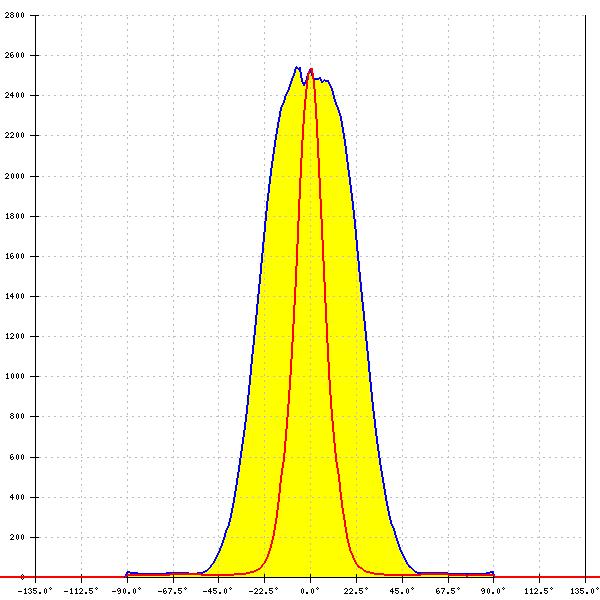

LUXEON C
FWHM:
53° + 17°
FWTM:
81° + 34°
Peak intensity:
2.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

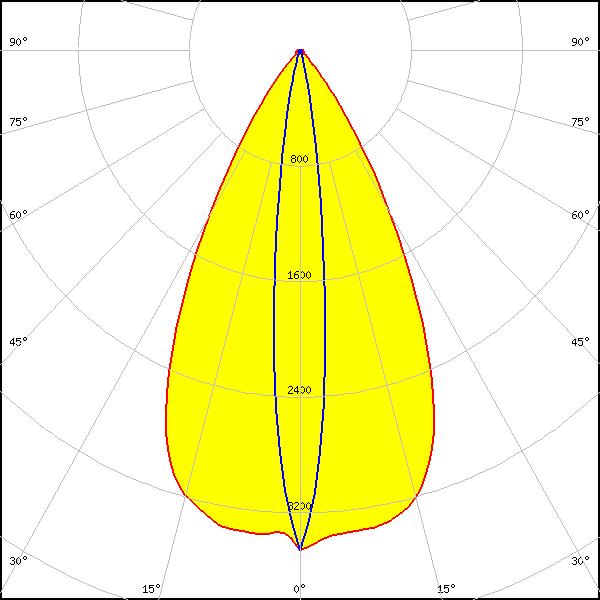

LED:
LUXEON CZ
FWHM:
54° + 12°
FWTM:
78° + 25°
Peak intensity:
3.460 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Red

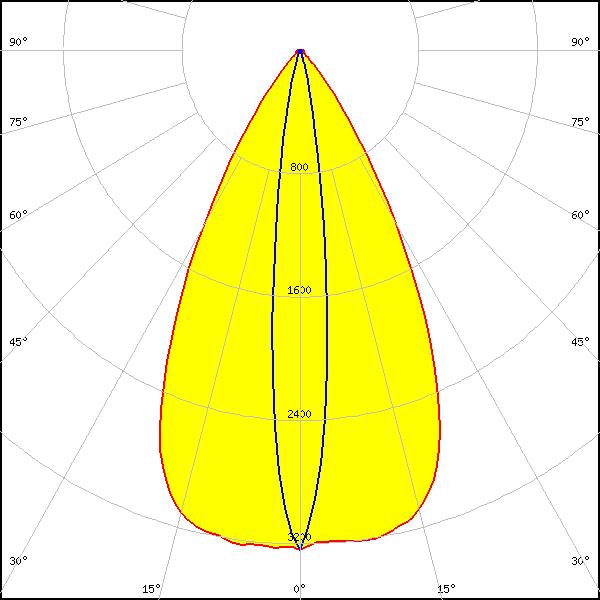

LED:
LUXEON CZ
FWHM:
56° + 13°
FWTM:
79° + 26°
Peak intensity:
3.260 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
PC Amber

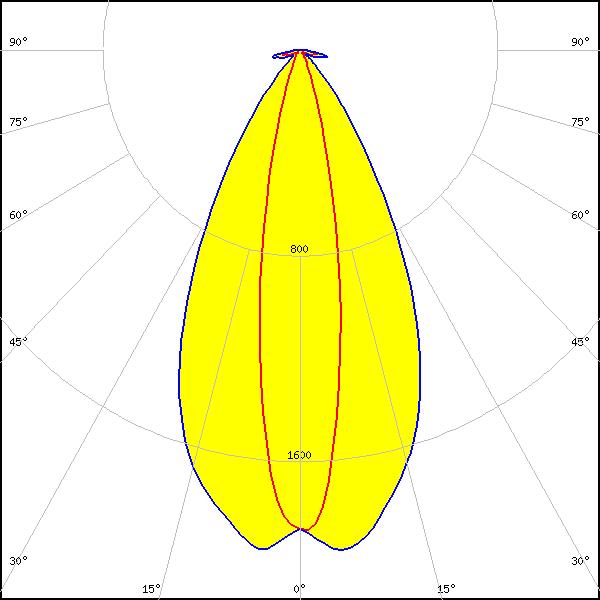

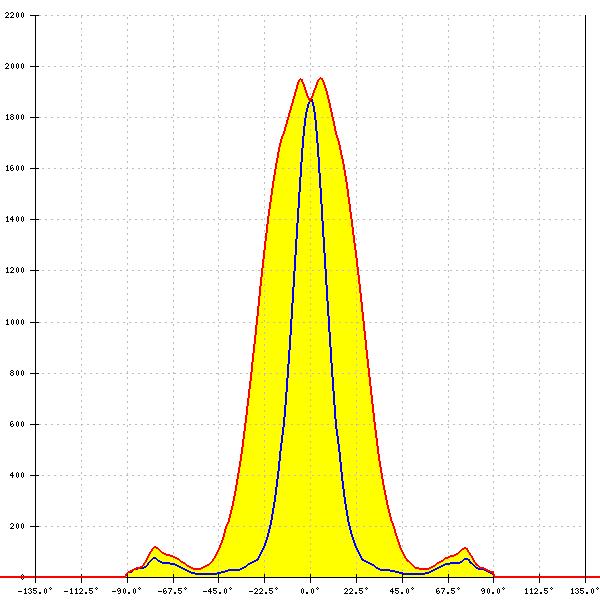

LED:
LUXEON HL1Z
FWHM:
20° + 53°
FWTM:
40° + 82°
Peak intensity:
1.952 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

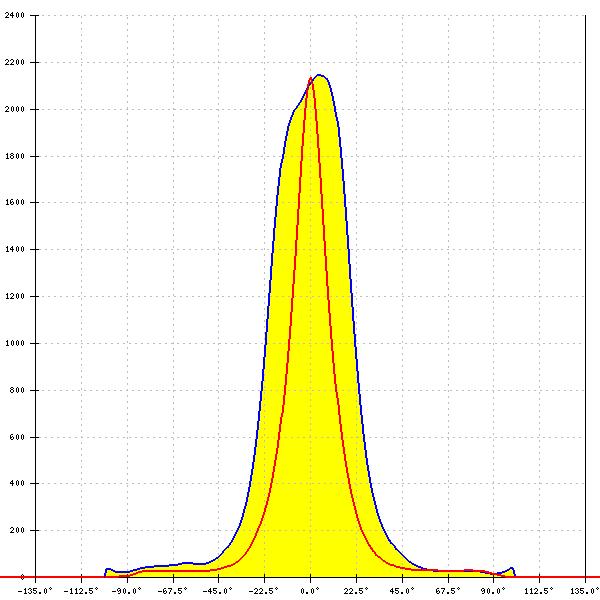

LED:

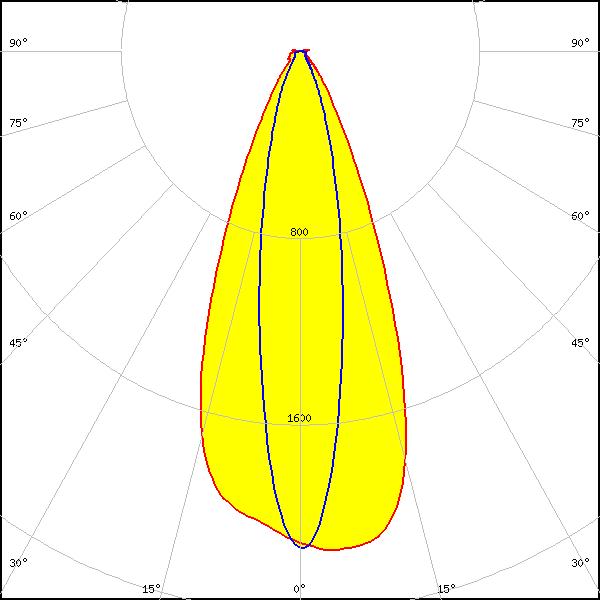

LUXEON Rebel
FWHM:
42° + 20°
FWTM:
71° + 50°
Peak intensity:
2.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

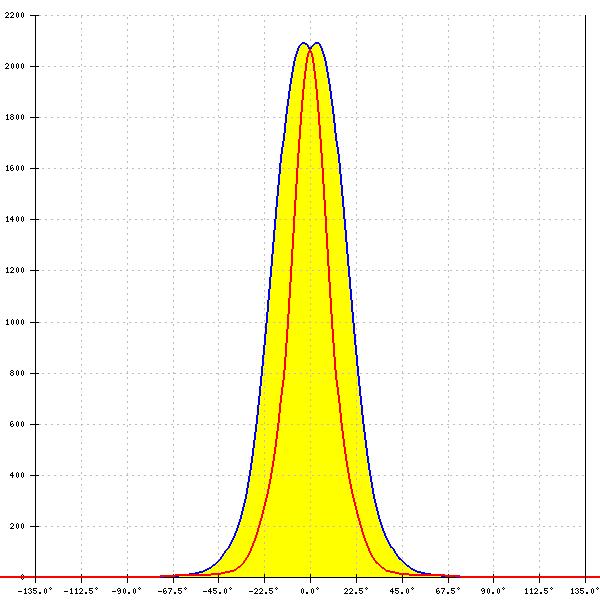

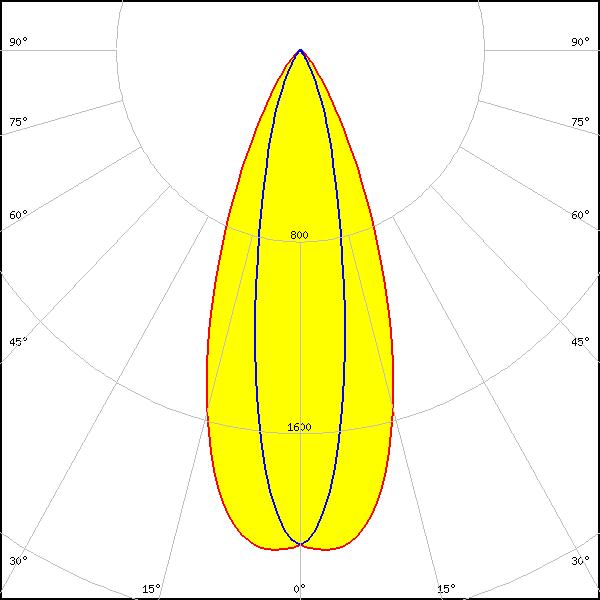

LED:
LUXEON Rebel ES
FWHM:
50° + 23°
FWTM:
71° + 51°
Peak intensity:
2.100 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

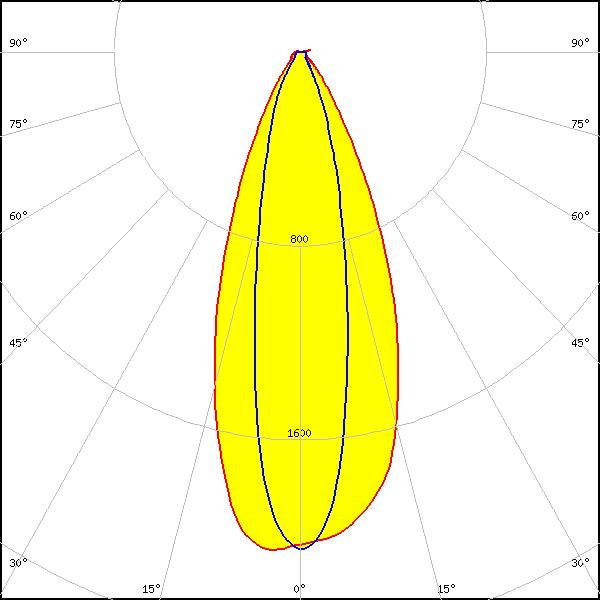

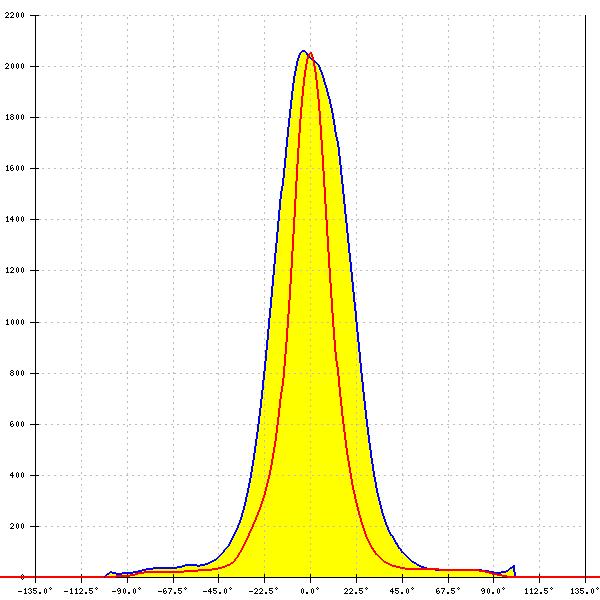

LED:
LUXEON TX
FWHM:
42° + 22°
FWTM:
73° + 54°
Peak intensity:
2.060 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

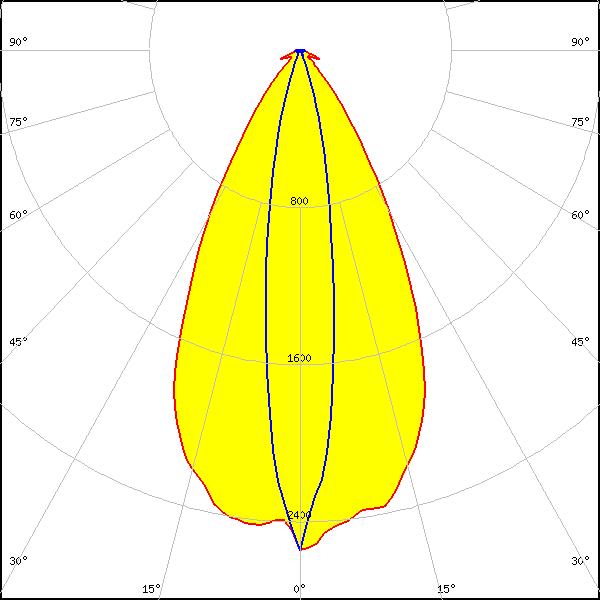

LUXEON Z ES
FWHM:
53° + 16°
FWTM:
82° + 35°
Peak intensity:
2.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

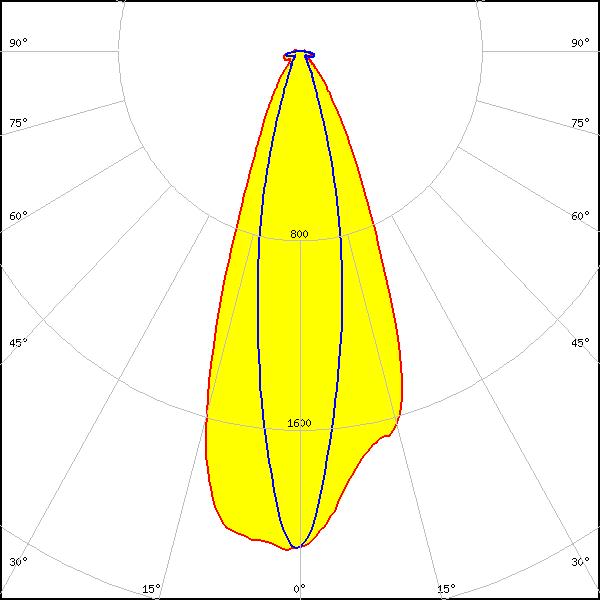

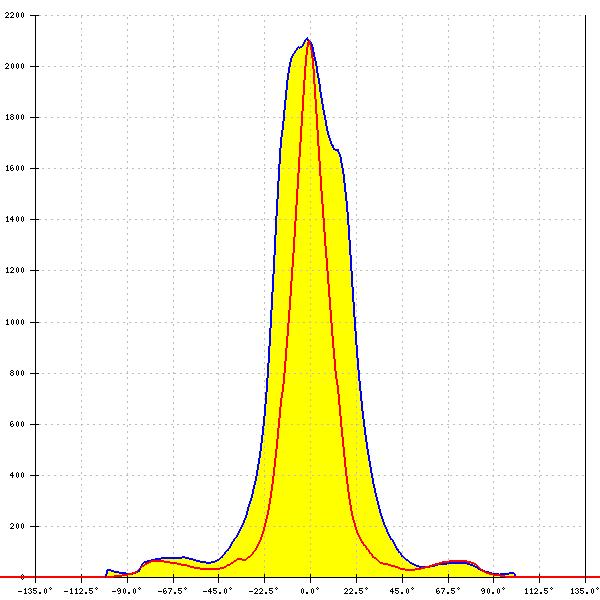

LED:
NCSxE17A
FWHM:
40° + 20°
FWTM:
69° + 44°
Peak intensity:
2.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

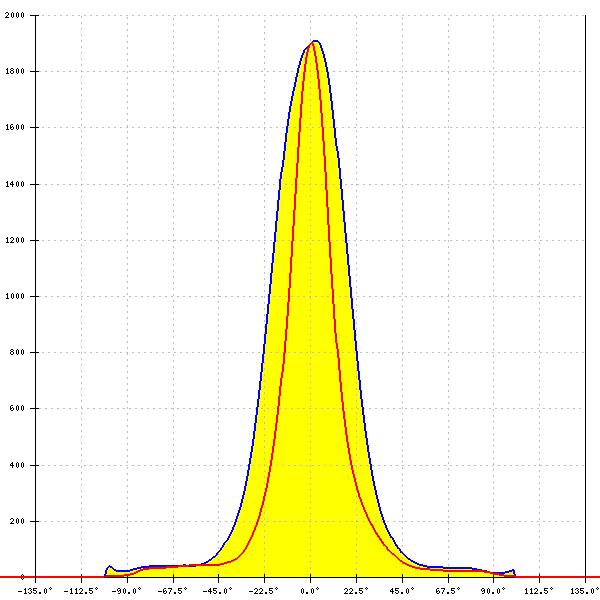

LED:

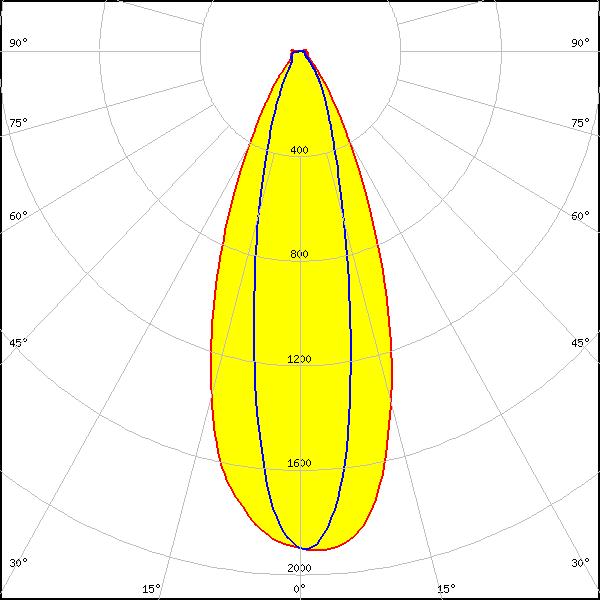

NVSxx19B/NVSxx19C
FWHM:
41° + 23°
FWTM:
74° + 56°
Peak intensity:
1.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

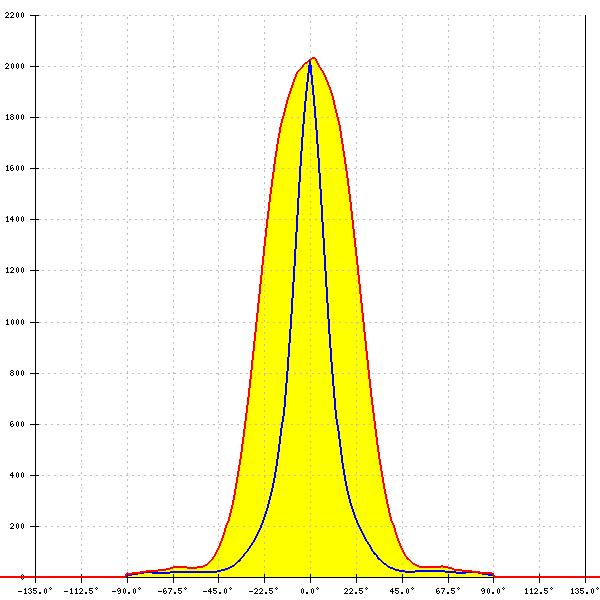

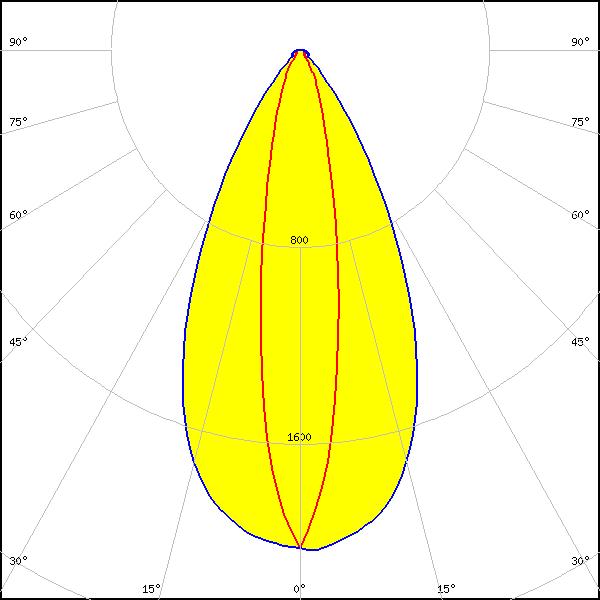

LED:
Duris E 2835
FWHM:
18° + 52°
FWTM:
48° + 82°
Peak intensity:
2.032 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

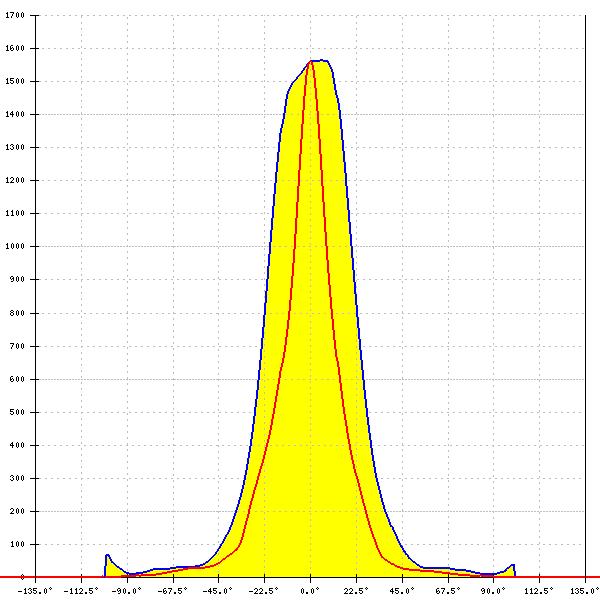

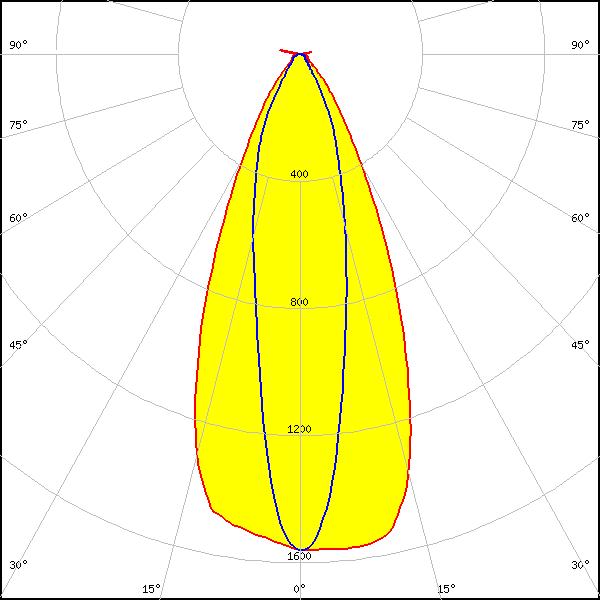

LED:
DURIS S5 (2 chip)
FWHM:
76° + 22°
FWTM:
79° + 61°
Peak intensity:
1.600 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

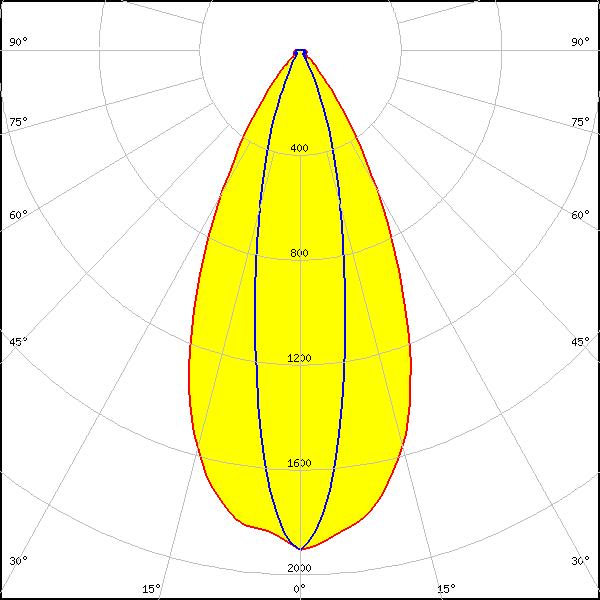

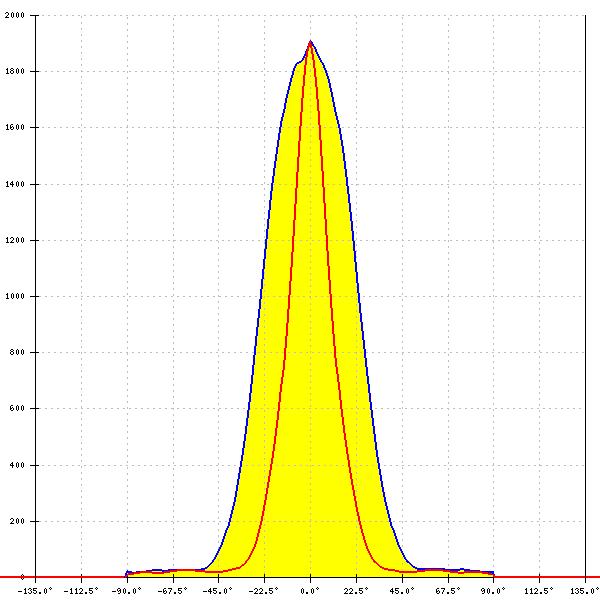

LED:
OSCONIQ P 3737 (2W version)
FWHM:
49° + 22°
FWTM:
80° + 49°
Peak intensity:
1.900 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

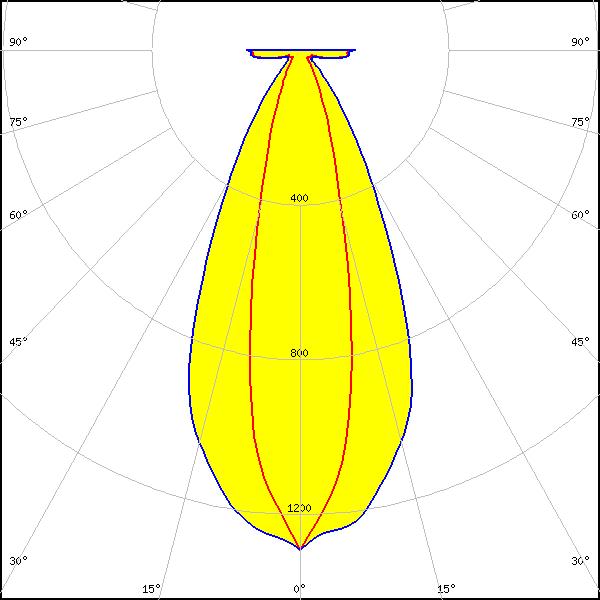

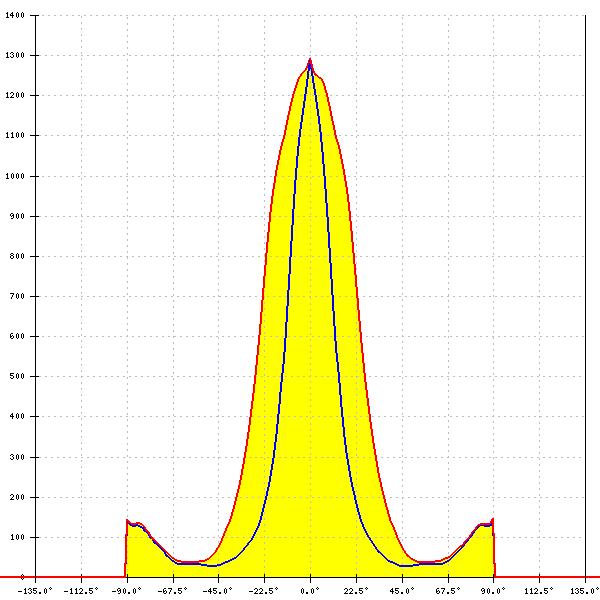

LED:
OSCONIQ P 3737 (3W version)
FWHM:
24° + 48°
FWTM:
48° + 80°
Peak intensity:
1.293 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

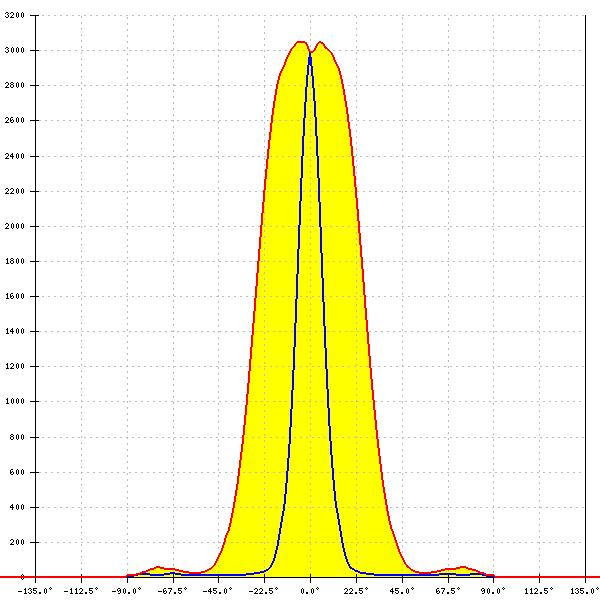

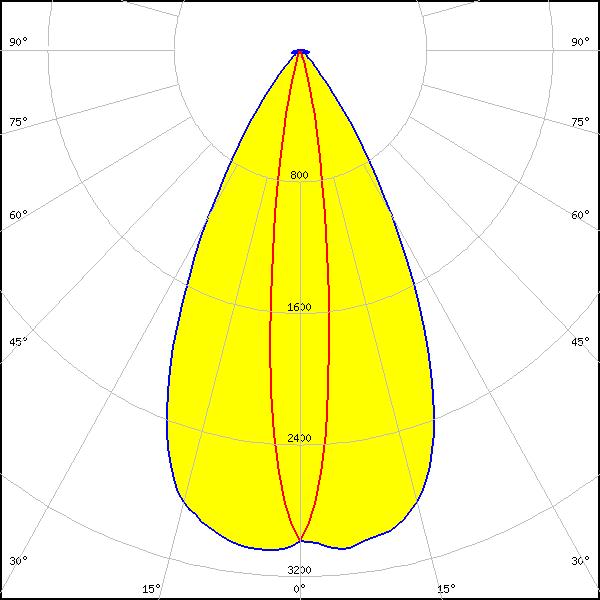

LED:
OSLON Pure 1414
FWHM:
14° + 54°
FWTM:
28° + 79°
Peak intensity:
3.066 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

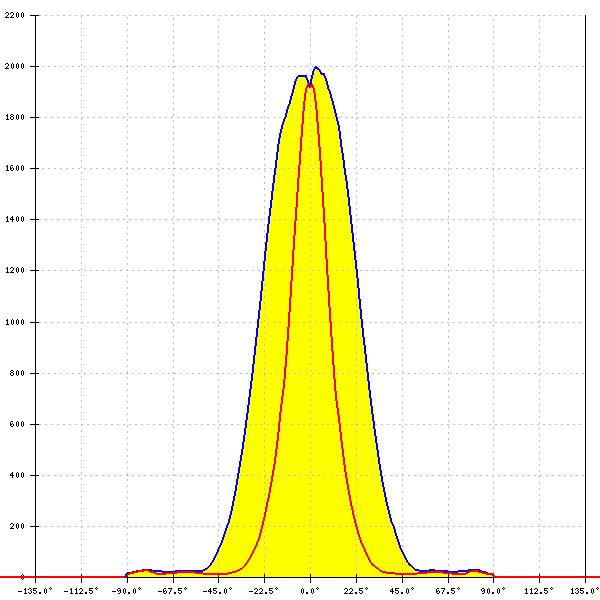

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
48° + 20°
FWTM:
82° + 44°
Peak intensity:
2.000 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

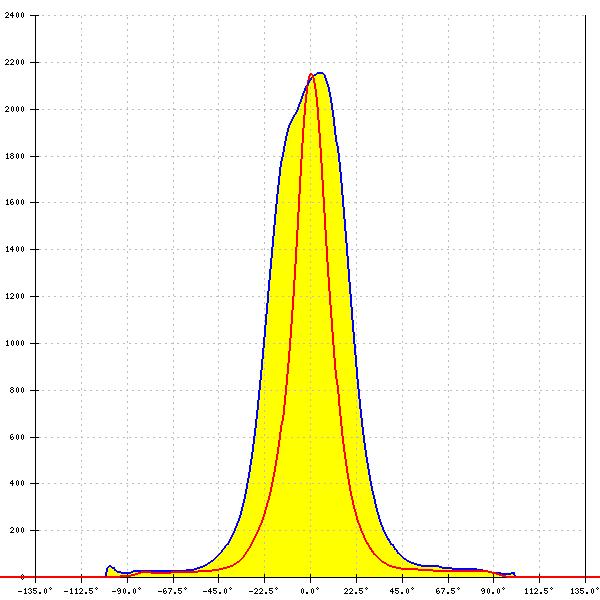

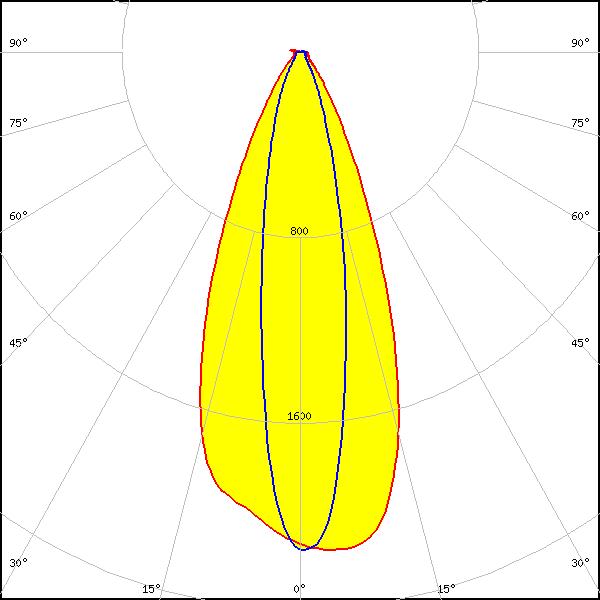

LED:

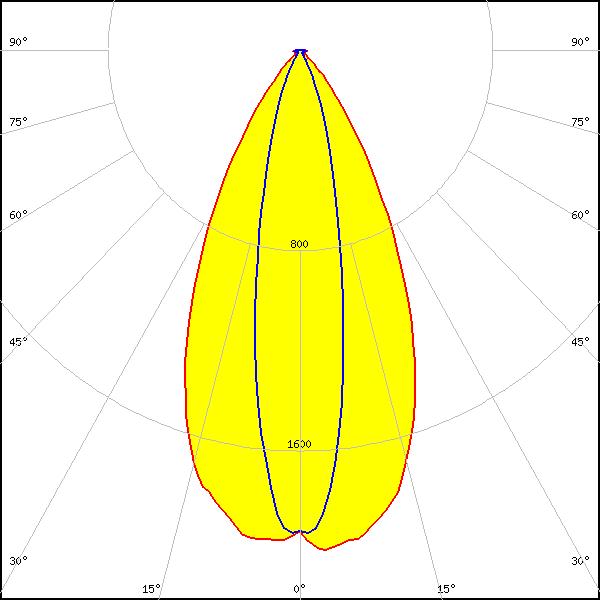

OSLON Square EC
FWHM:
42° + 20°
FWTM:
72° + 49°
Peak intensity:
2.150 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
53° + 16°
FWTM:
80° + 30°
Peak intensity:
2.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Red
LED:
OSLON SSL 150
FWHM:
54° + 15°
FWTM:
80° + 30°
Peak intensity:
2.760 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Green
LED:
OSLON SSL 150
FWHM:
55° + 16°
FWTM:
82° + 34°
Peak intensity:
2.570 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Blue

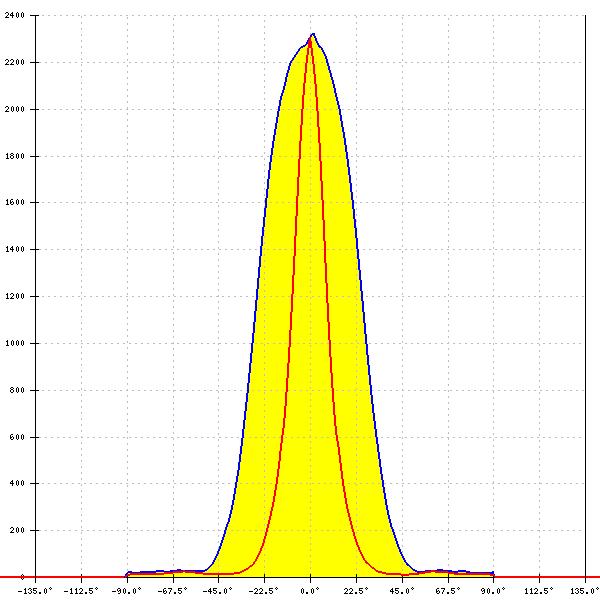

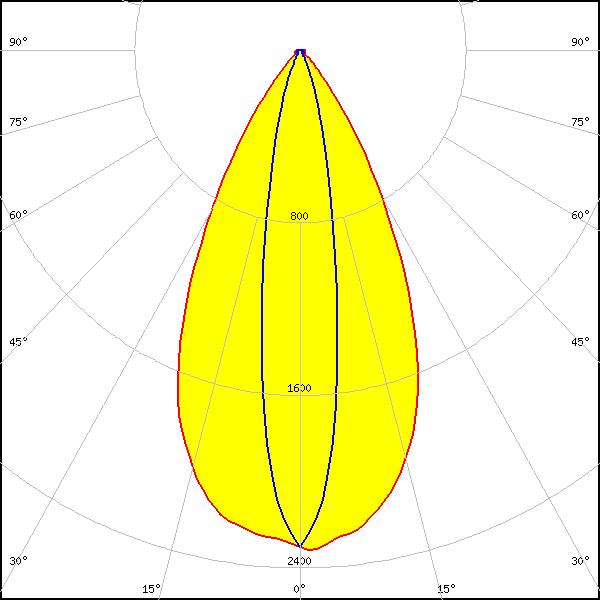

LED:
OSLON SSL 80
FWHM:
53° + 18°
FWTM:
80° + 40°
Peak intensity:
2.319 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4170S
FWHM:
40° + 12°
FWTM:
60° + 33°
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4180S
FWHM:
38° + 11°
FWTM:
58° + 31°
LEDs/each optic:
1
Light colour/type:
IR

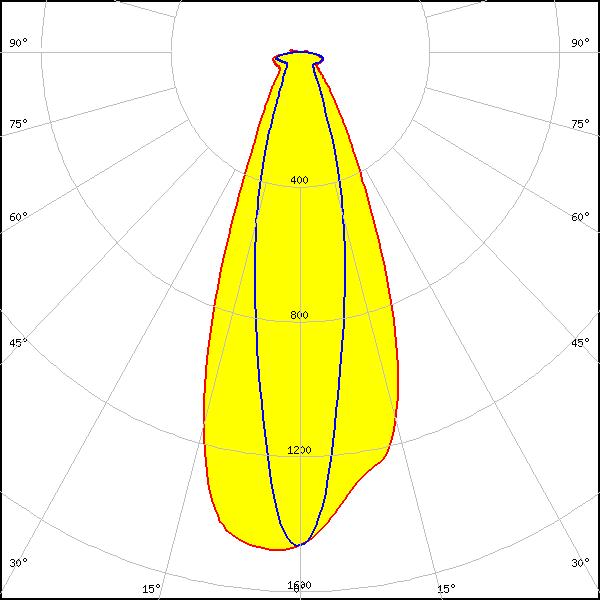

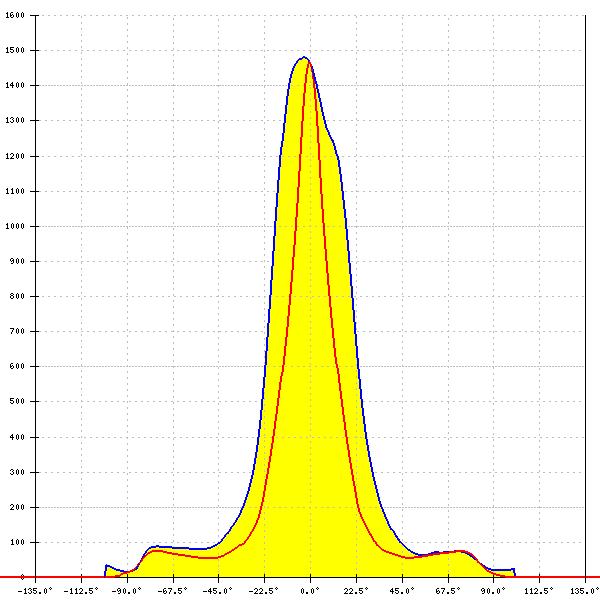

LED:
LH181A
FWHM:
42° + 22°
FWTM:
77° + 54°
Peak intensity:
1.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

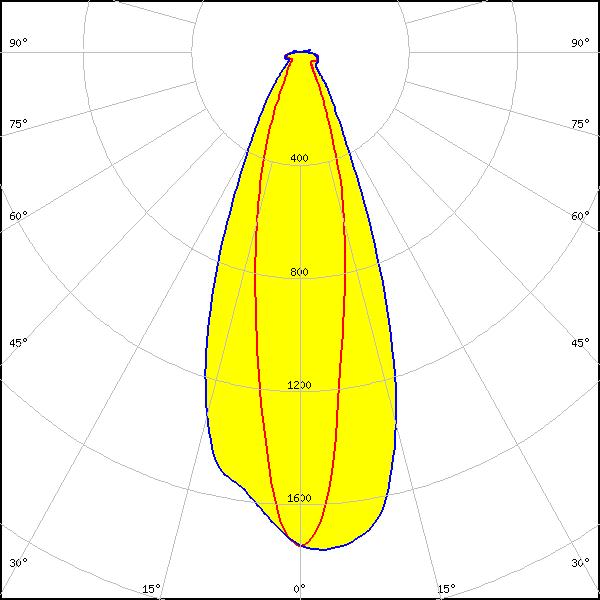

LED:
LH181B
FWHM:
22° + 41°
FWTM:
54° + 75°
Peak intensity:
1.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

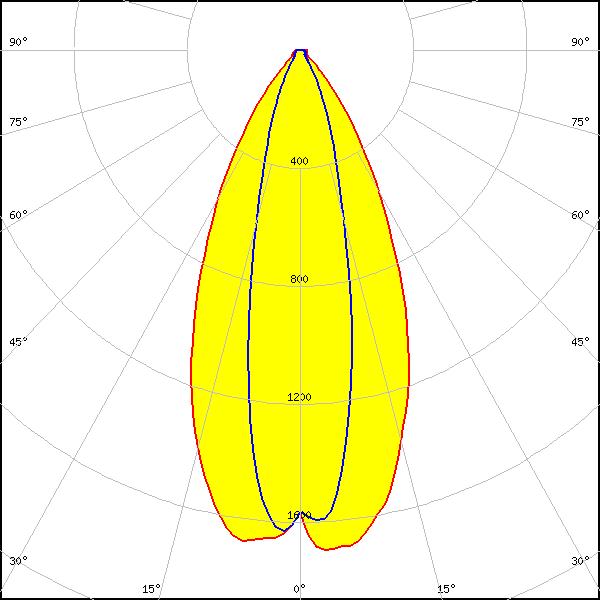

LH351B
FWHM:
49° + 24°
FWTM:
83° + 53°
Peak intensity:
1.770 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

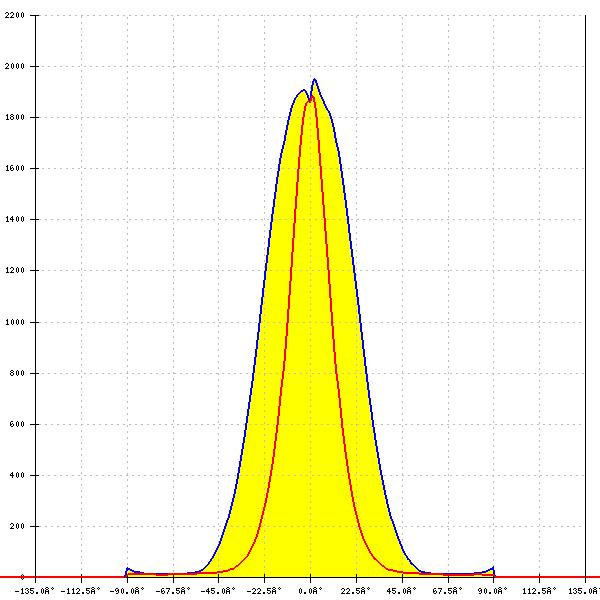

LED:
LH502D
FWHM:
50° + 24°
FWTM:
83° + 50°
Peak intensity:
1.966 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

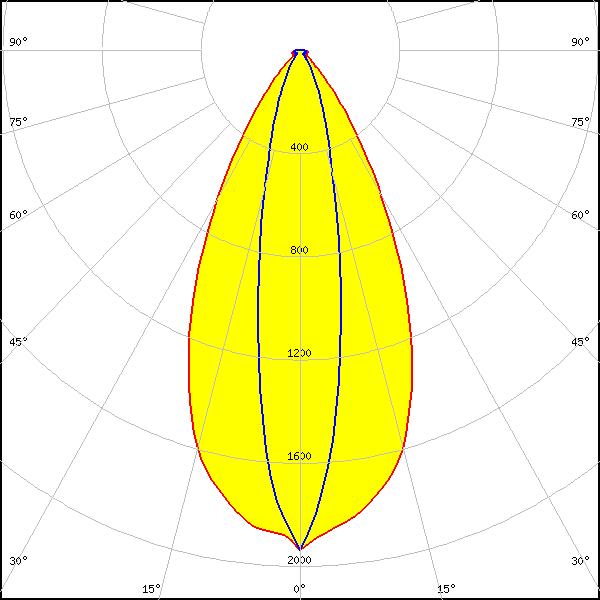

LED:
MJT 3030
FWHM:
50° + 20°
FWTM:
82° + 48°
Peak intensity:
1.937 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

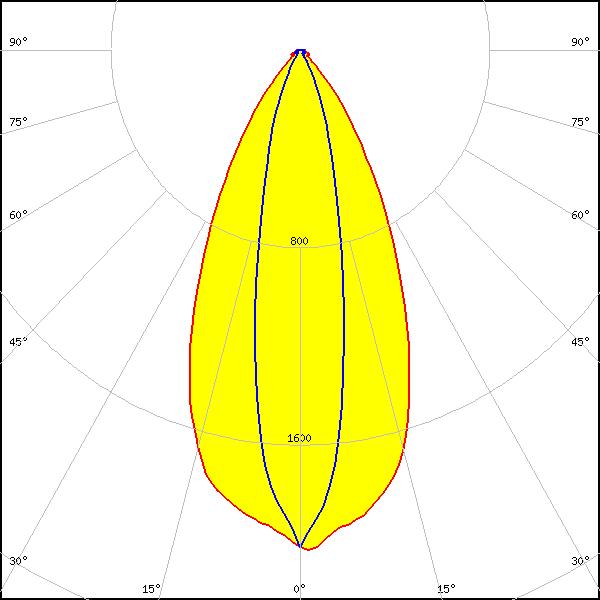

Z5M1/Z5M2
FWHM:
50° + 22°
FWTM:
82° + 48°
Peak intensity:
2.030 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

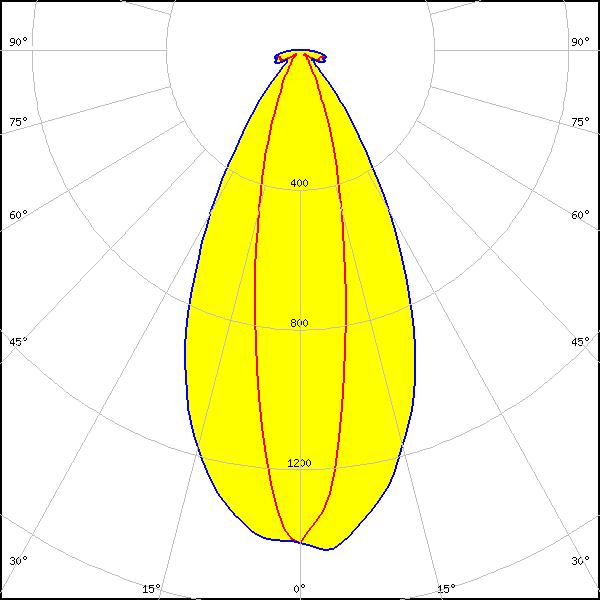

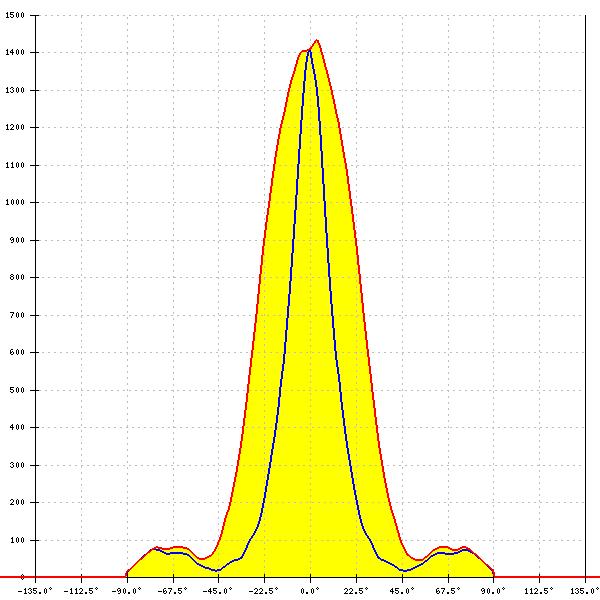

LED:
Z8Y19
FWHM:
22° + 52°
FWTM:
51° + 84°
Peak intensity:
1.435 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

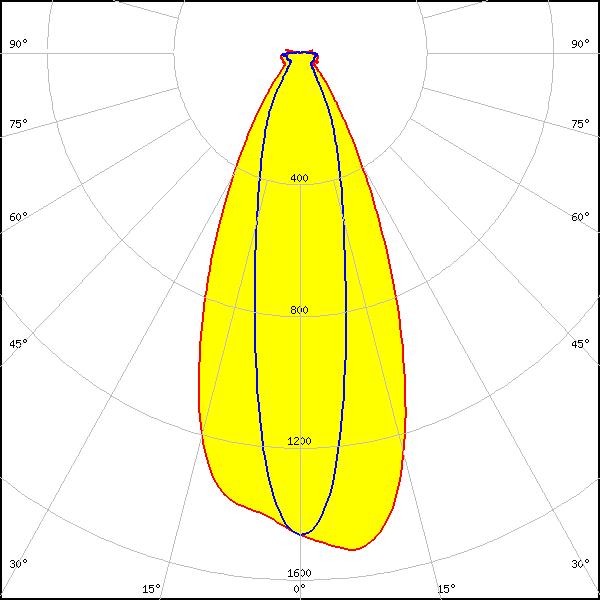

LED:

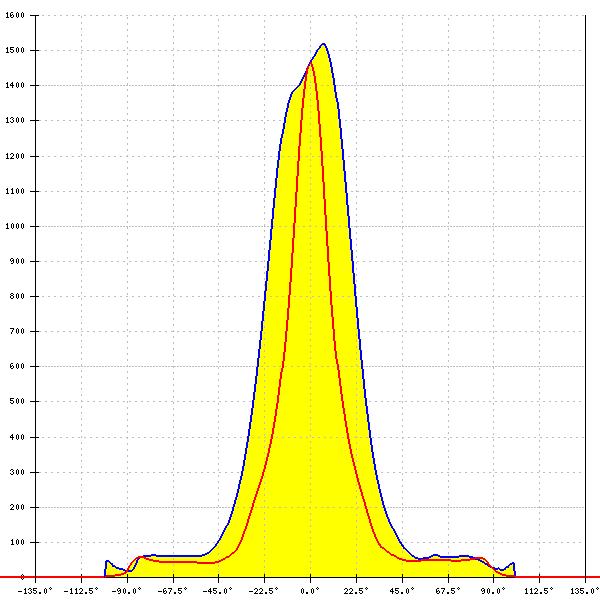

Z8Y22P
FWHM:
46° + 23°
FWTM:
80° + 62°
Peak intensity:
1.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

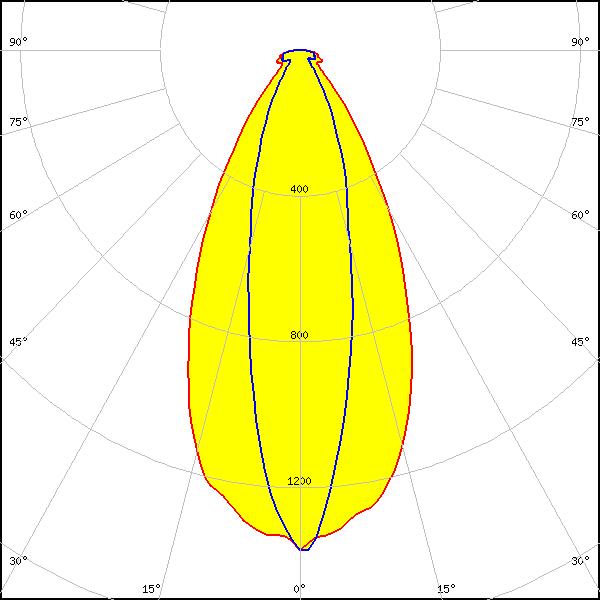

LED:
Z8Y22T
FWHM:
51° + 25°
FWTM:
87° + 61°
Peak intensity:
1.390 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
