CA14601_VERONICA-SQ-MINI-RS
Print
~17° spot beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

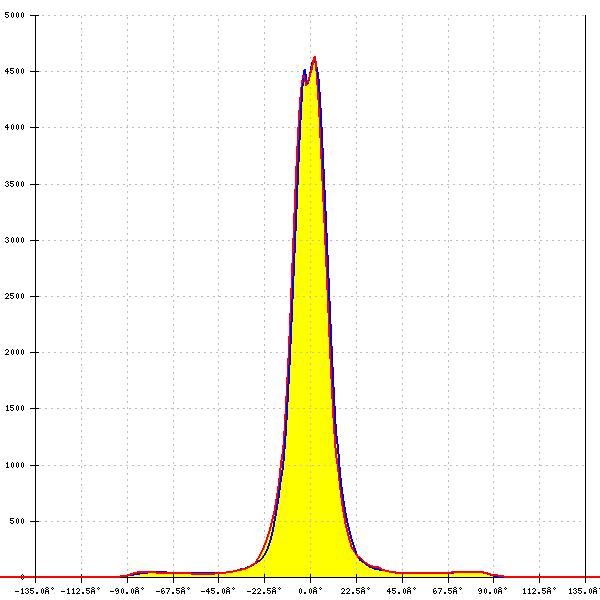

LED:

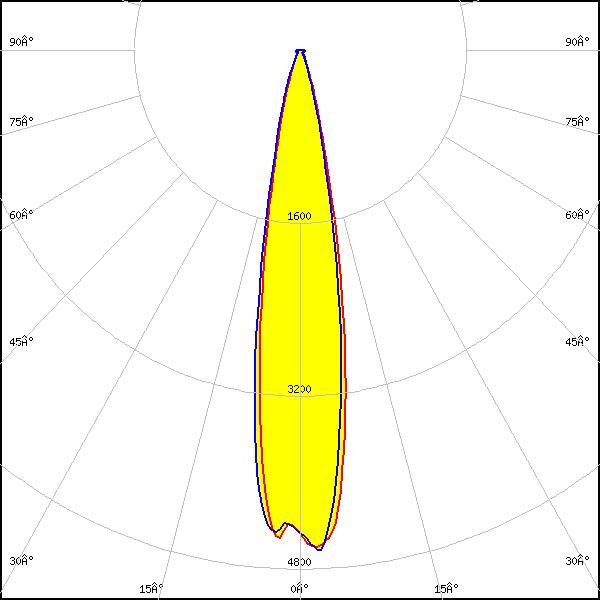

XD16
FWHM:
19°
FWTM:
36°
Peak intensity:
4.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

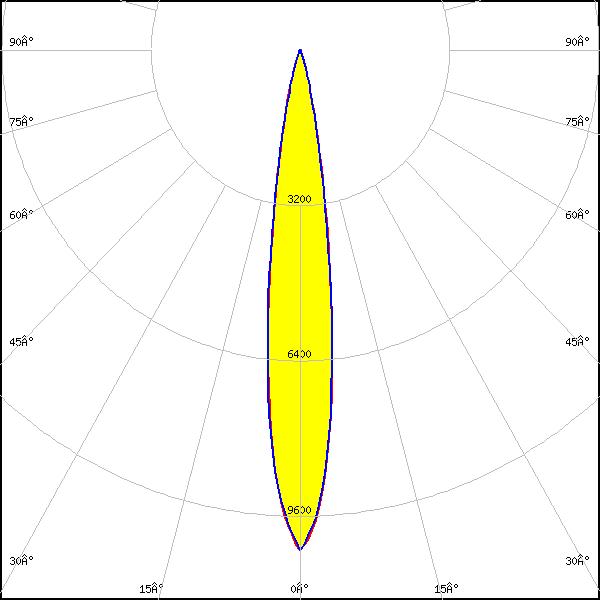

LED:
XP-E
FWHM:
15°
FWTM:
29°
Peak intensity:
10.300 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

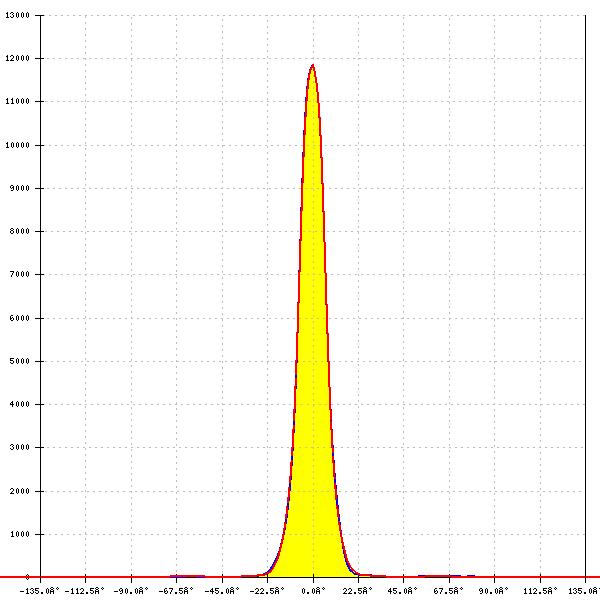

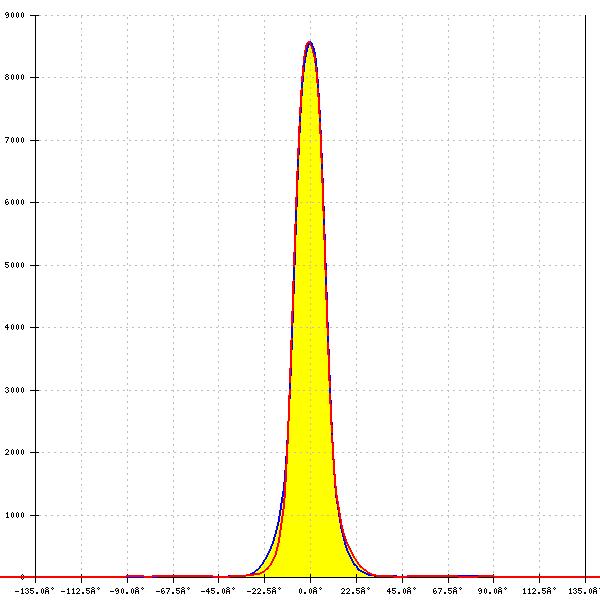

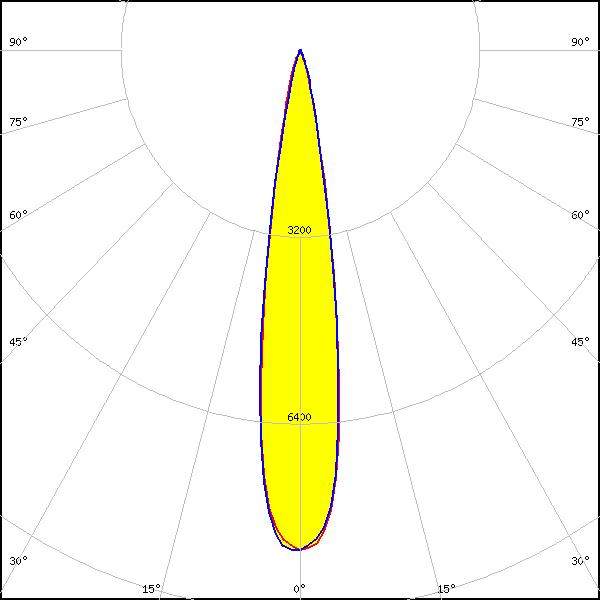

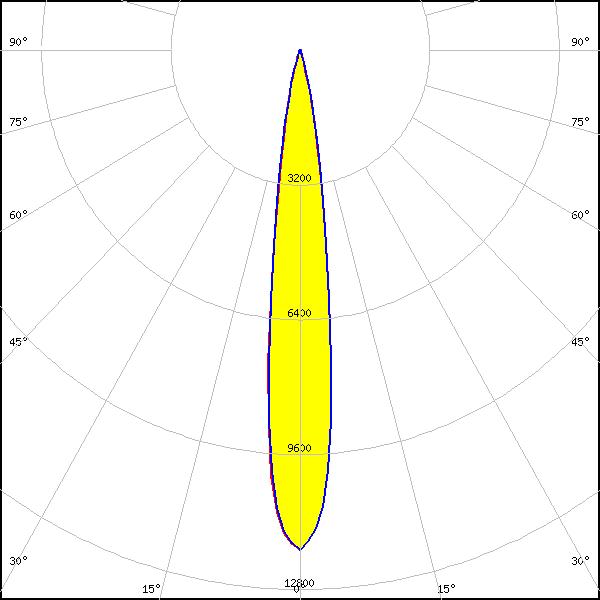

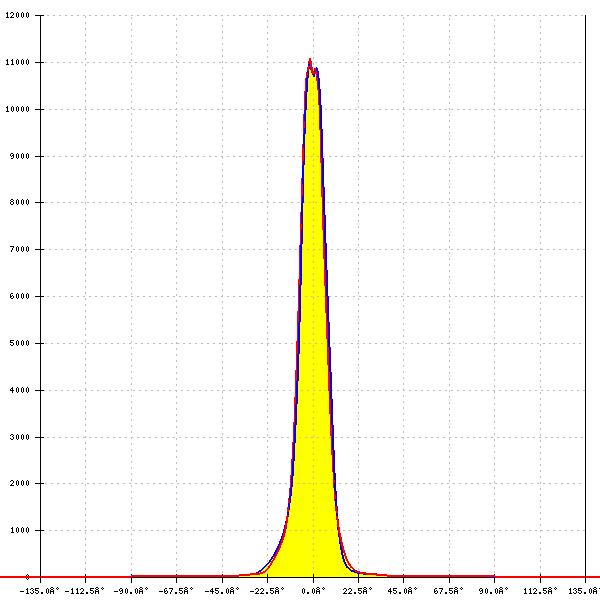

LED:
XP-E2
FWHM:
14°
FWTM:
26°
Peak intensity:
11.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

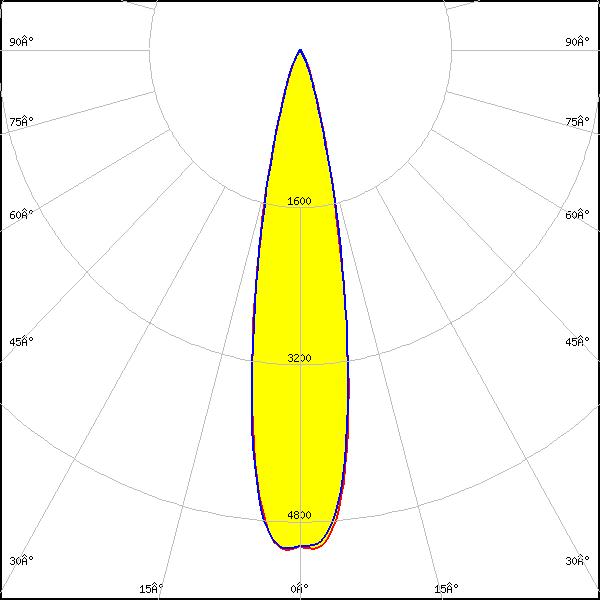

XP-G
FWHM:
21°
FWTM:
40°
Peak intensity:
5.170 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

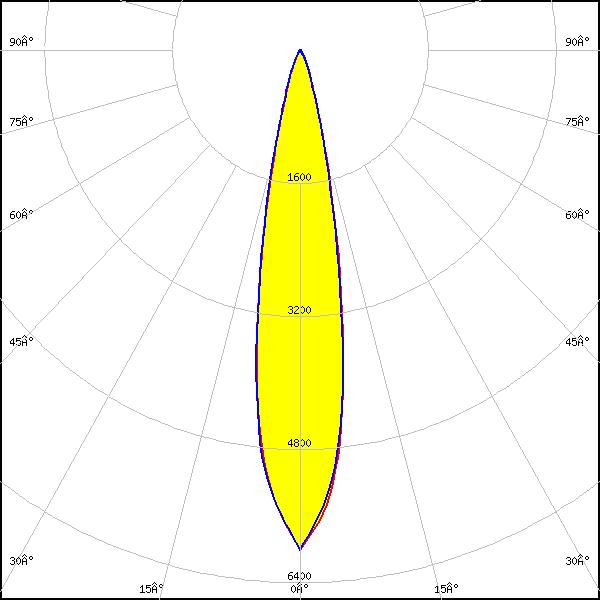

LED:
XP-G2
FWHM:
20°
FWTM:
38°
Peak intensity:
6.010 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

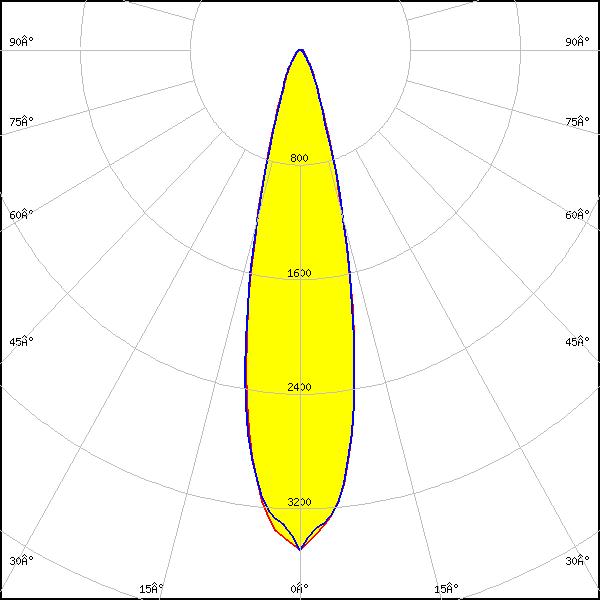

LED:
XP-G2 HE
FWHM:
24°
FWTM:
47°
Peak intensity:
3.491 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

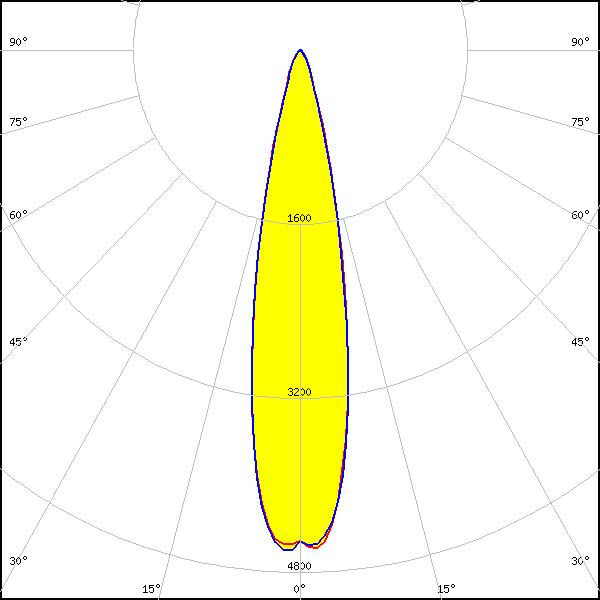

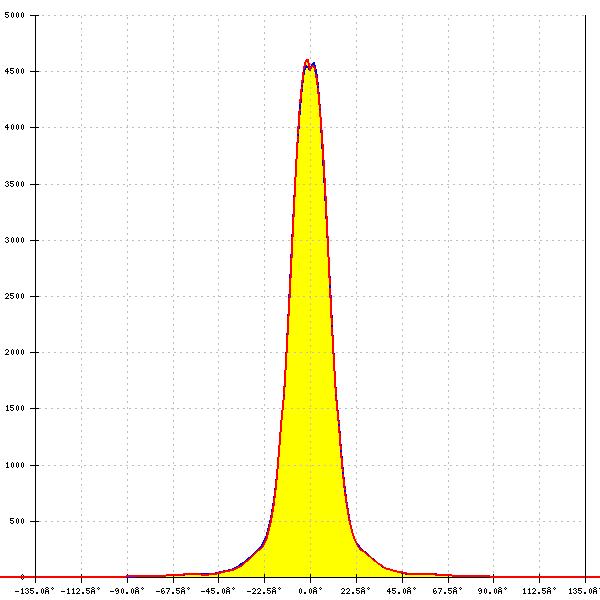

XP-G4
FWHM:
22°
FWTM:
40°
Peak intensity:
4.638 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

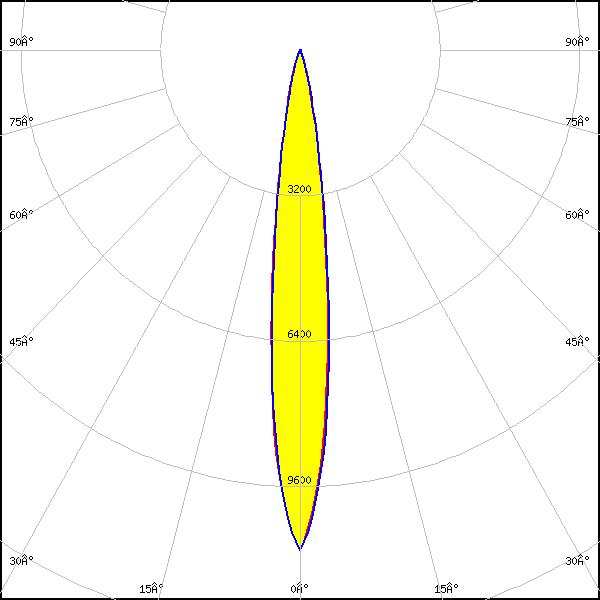

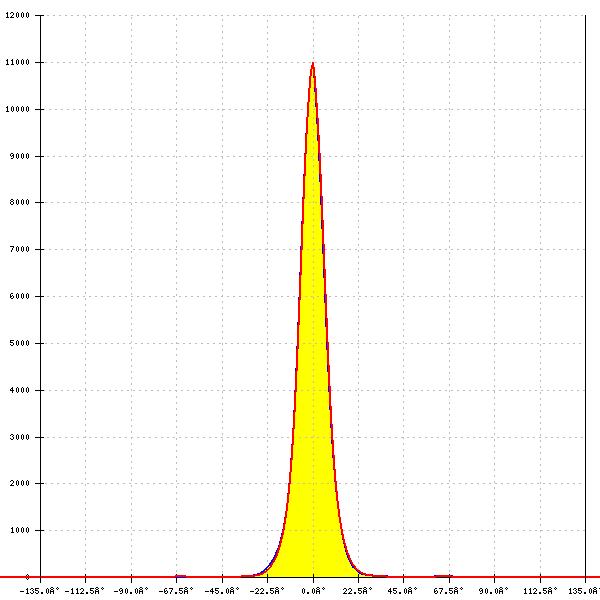

LED:
XQ-E HD
FWHM:
13°
FWTM:
28°
Peak intensity:
11.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

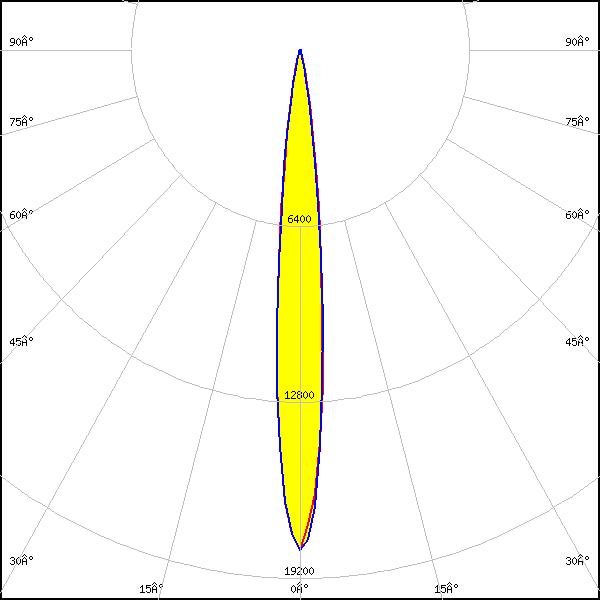

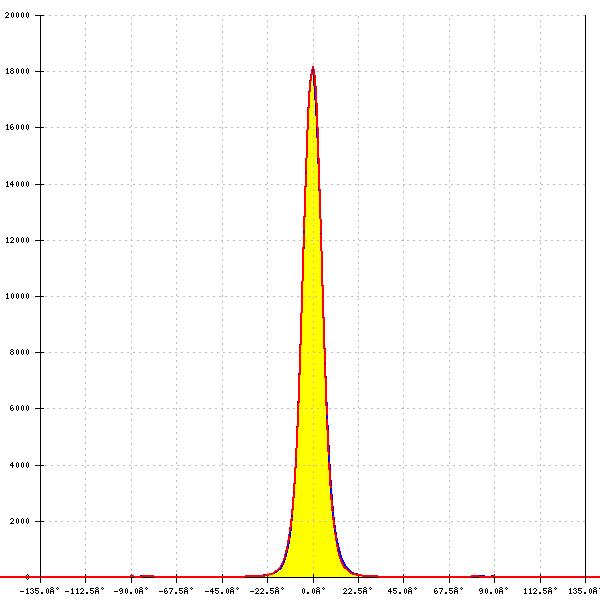

LED:
XQ-E HI
FWHM:
9°
FWTM:
24°
Peak intensity:
14.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 2835 Architectural
FWHM:
12°
FWTM:
29°
Peak intensity:
9.961 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
PC Amber
LED:

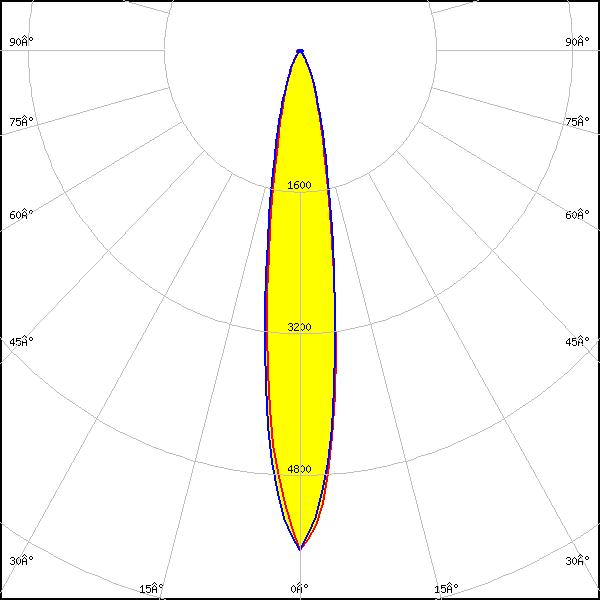

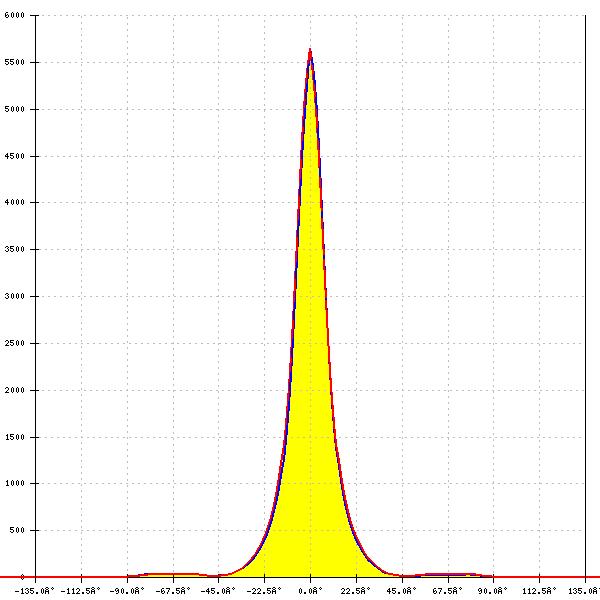

LUXEON 3030 2D (Round LES)
FWHM:
16°
FWTM:
40°
Peak intensity:
5.646 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

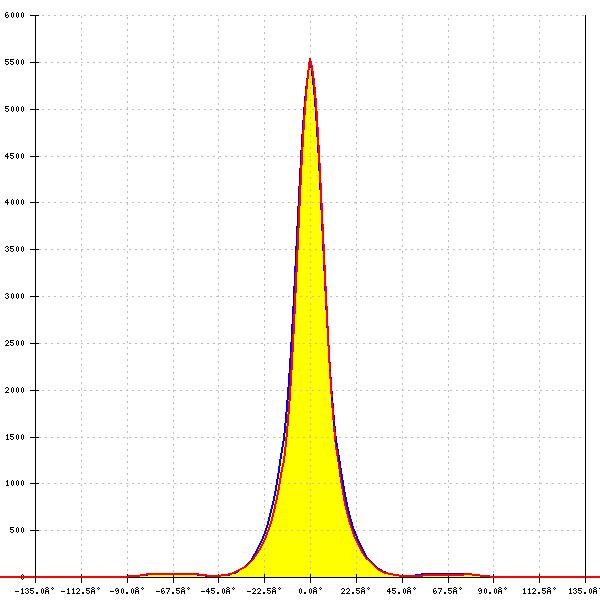

LED:
LUXEON 3030 HV
FWHM:
17°
FWTM:
41°
Peak intensity:
5.541 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

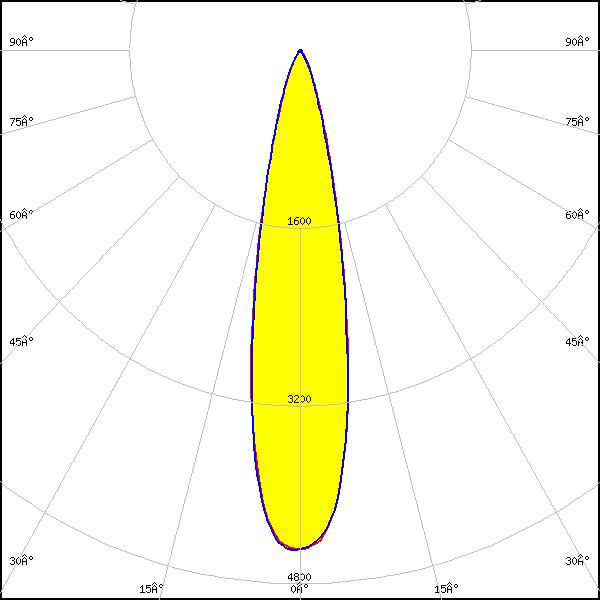

LED:
LUXEON A
FWHM:
21°
FWTM:
42°
Peak intensity:
4.540 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

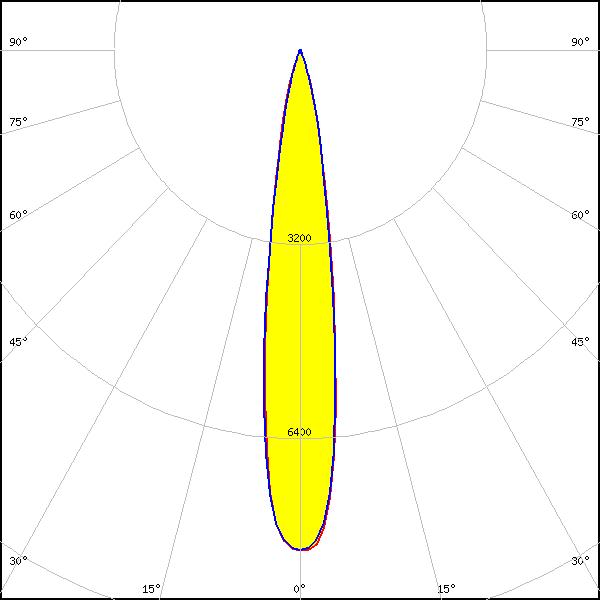

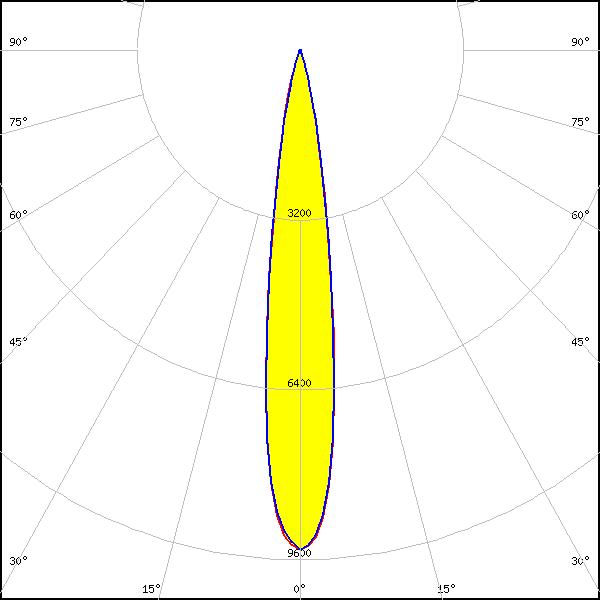

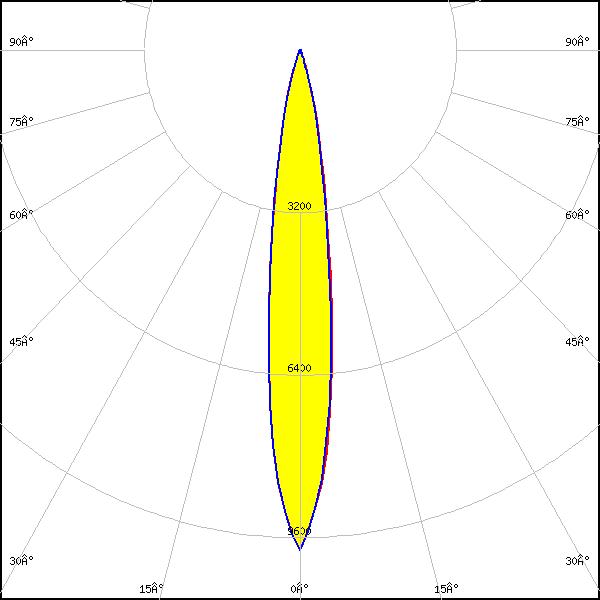

LED:
LUXEON C
FWHM:
15°
FWTM:
31°
Peak intensity:
9.850 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

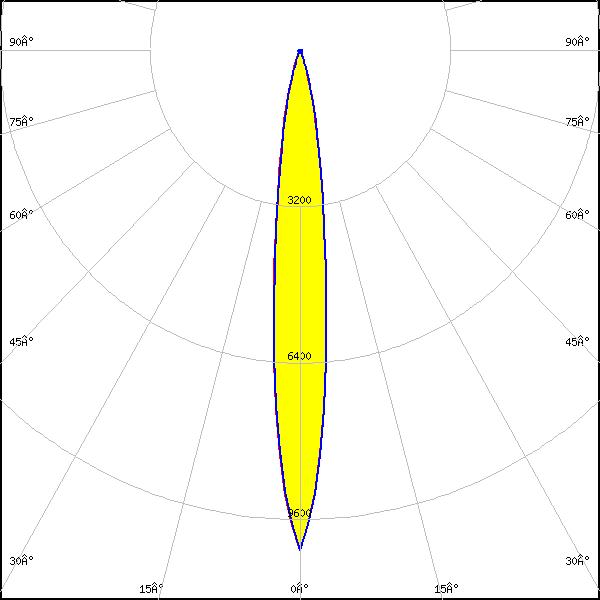

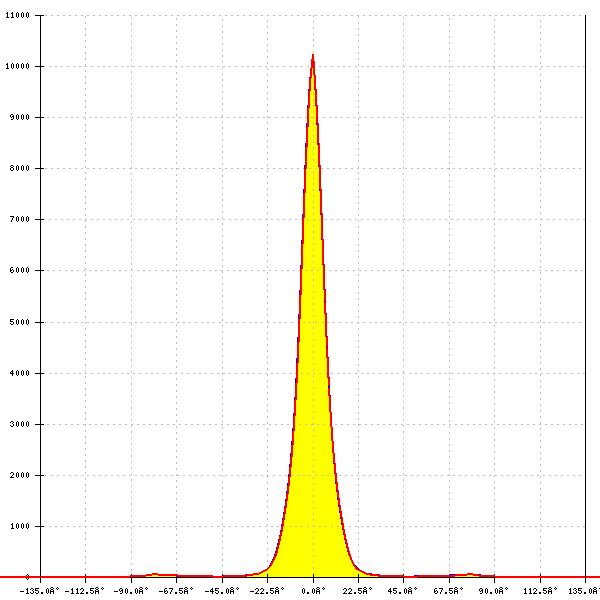

LUXEON HL1Z
FWHM:
12°
FWTM:
30°
Peak intensity:
10.232 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

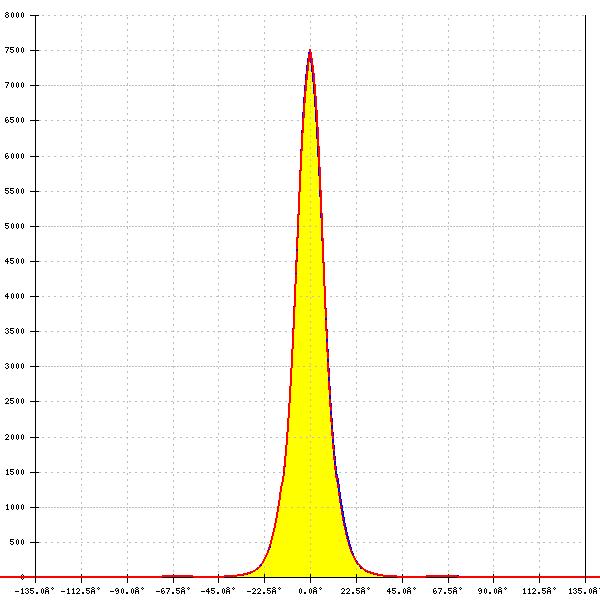

LED:

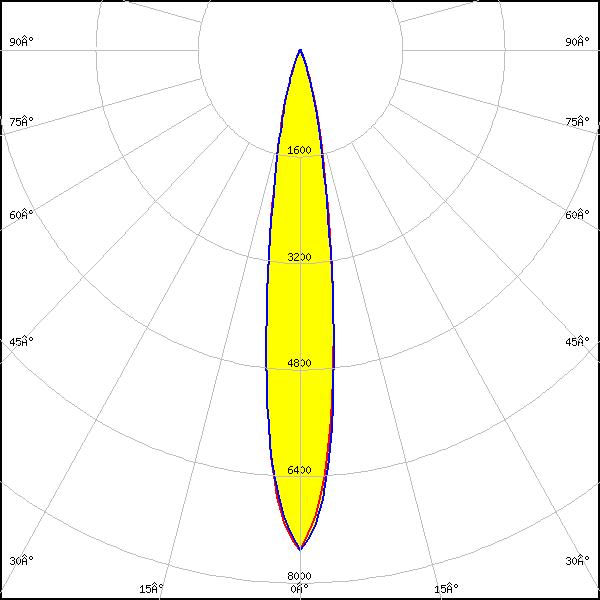

LUXEON Rebel
FWHM:
16°
FWTM:
34°
Peak intensity:
7.510 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

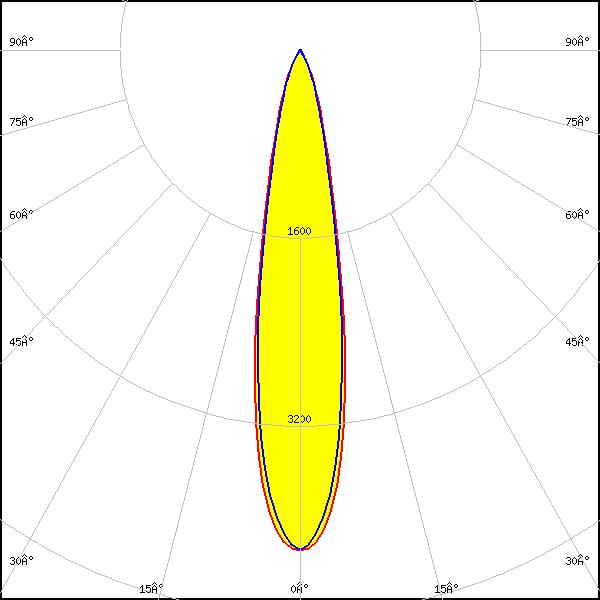

LED:
LUXEON Rebel ES
FWHM:
21°
FWTM:
43°
Peak intensity:
4.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

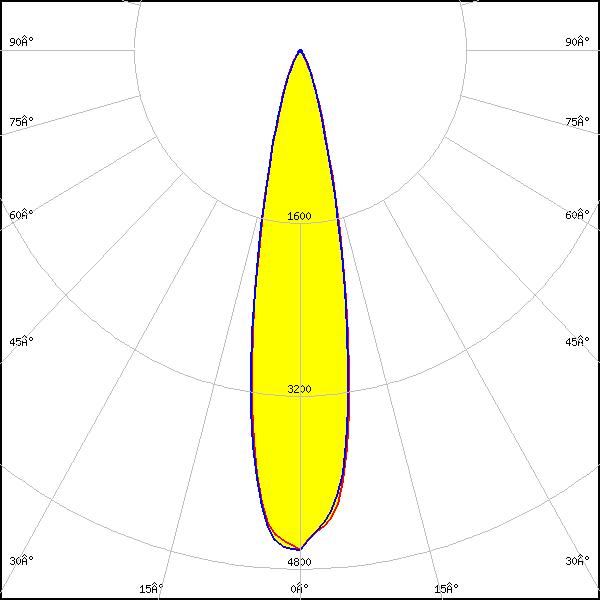

LED:

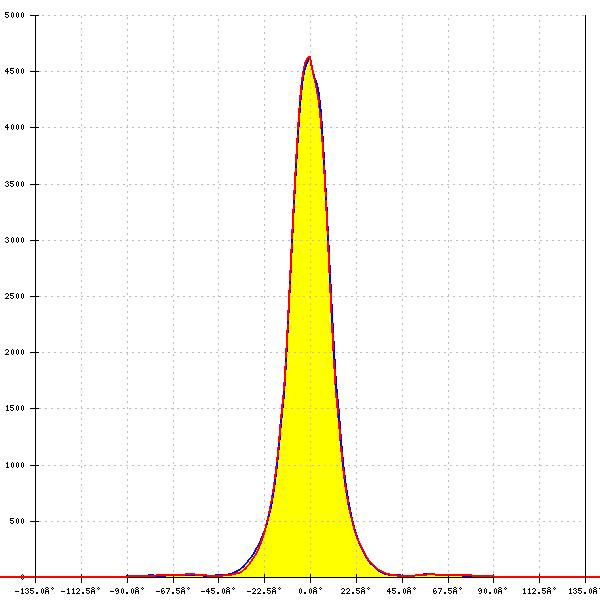

LUXEON T
FWHM:
22°
FWTM:
42°
Peak intensity:
4.653 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

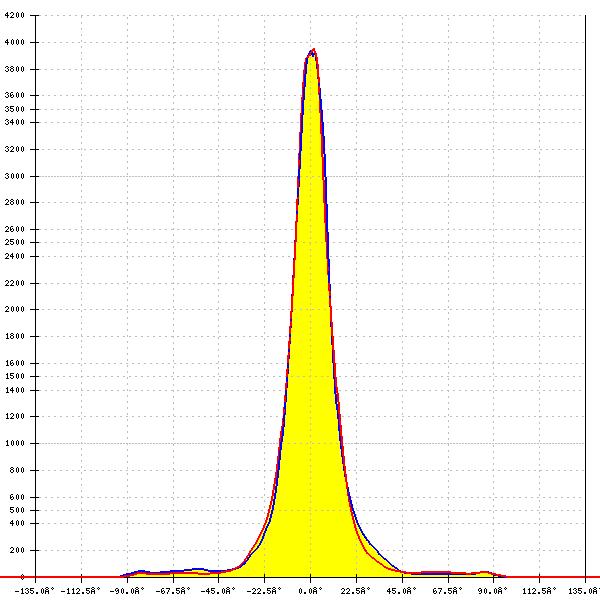

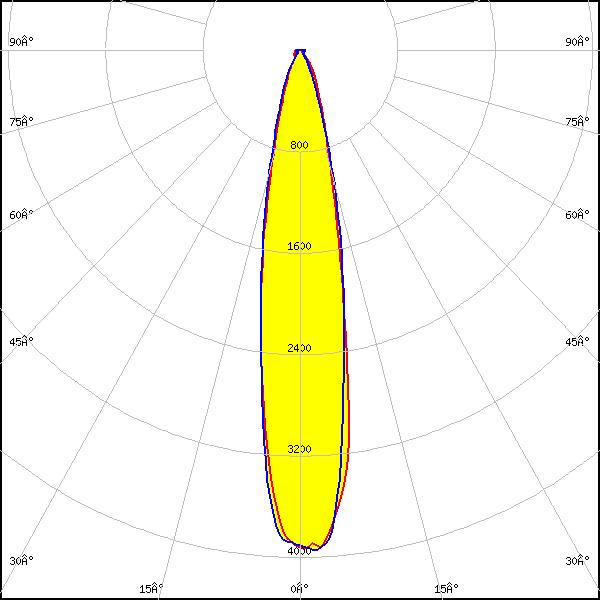

LED:
LUXEON TX
FWHM:
20°
FWTM:
44°
Peak intensity:
3.960 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

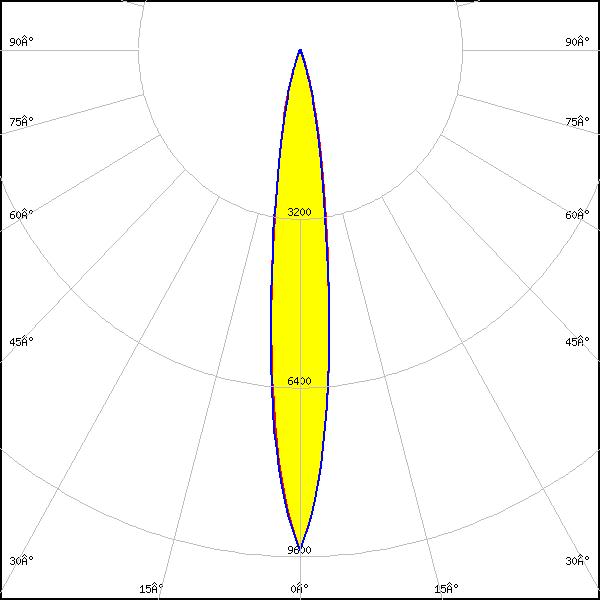

LED:
LUXEON Z ES
FWHM:
14°
FWTM:
31°
Peak intensity:
9.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

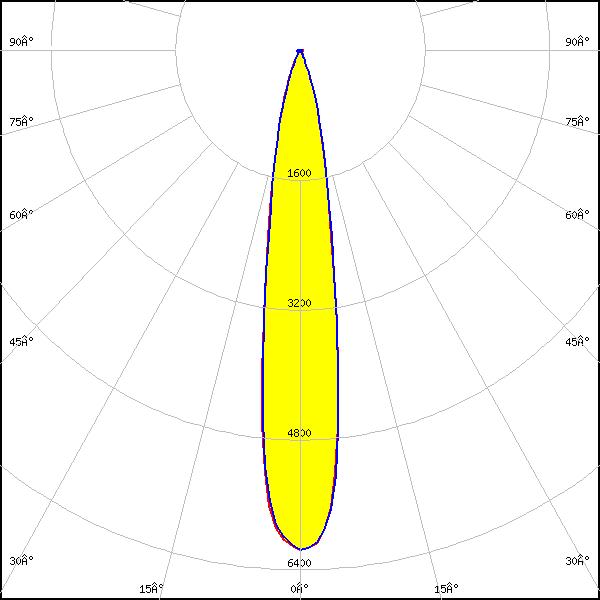

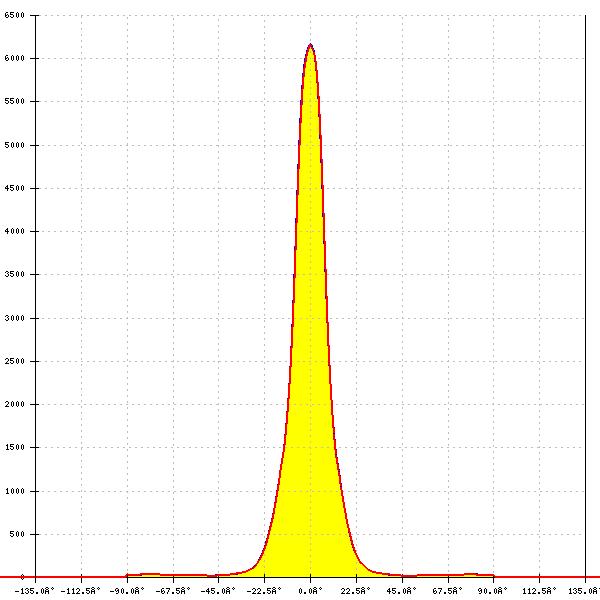

SST-20 Gen1
FWHM:
17°
FWTM:
37°
Peak intensity:
6.160 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

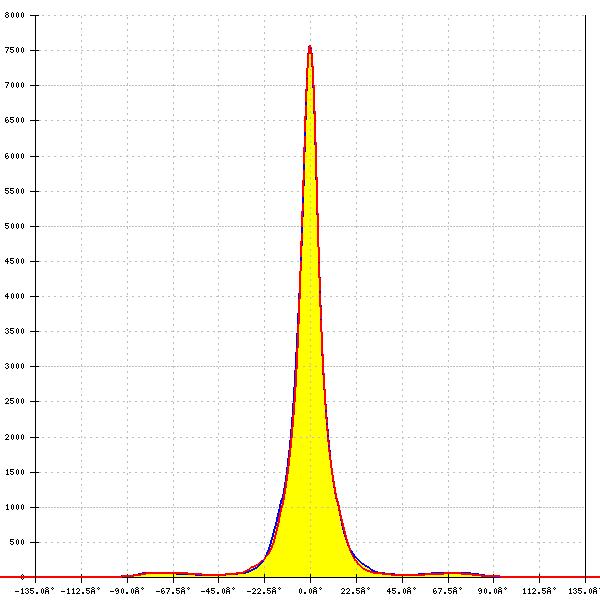

LED:

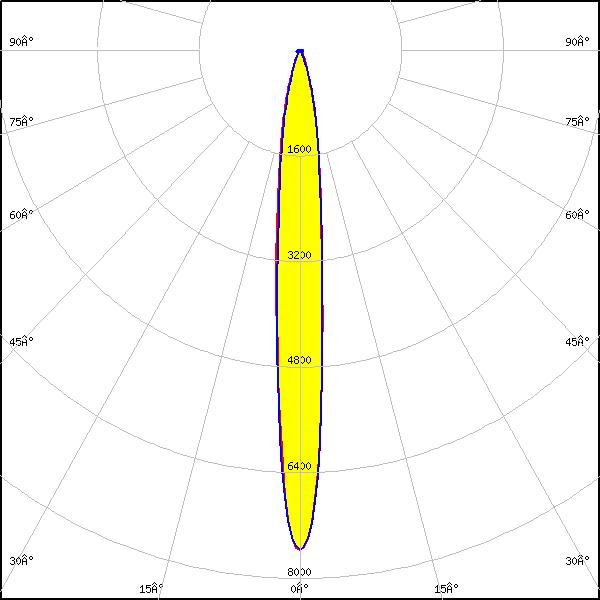

NCSxE17A
FWHM:
11°
FWTM:
32°
Peak intensity:
7.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

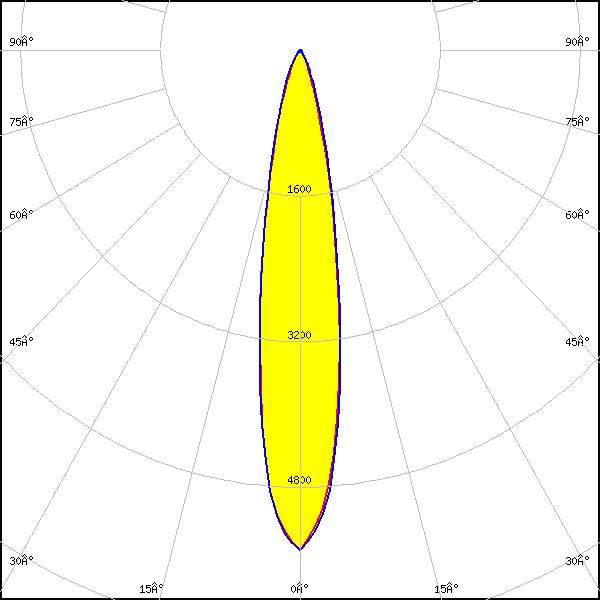

LED:
NF2x757G
FWHM:
19°
FWTM:
40°
Peak intensity:
5.508 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

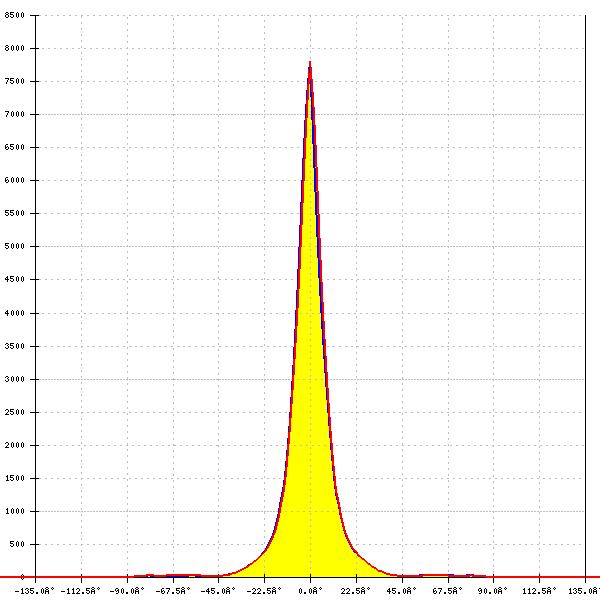

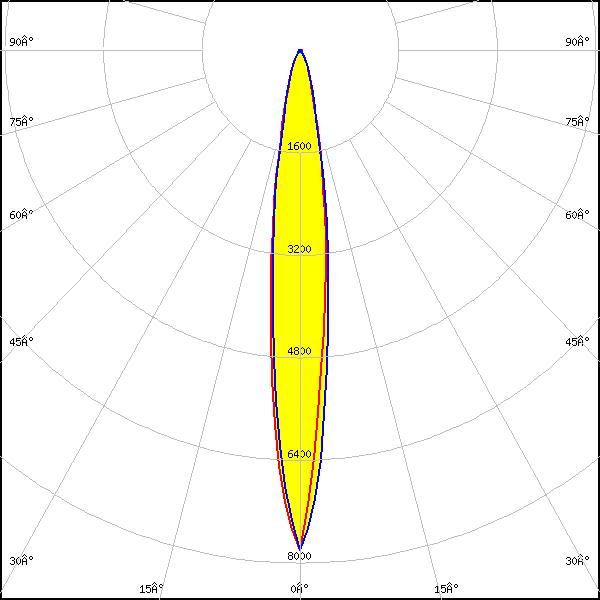

NFSx757G
FWHM:
14°
FWTM:
33°
Peak intensity:
7.804 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

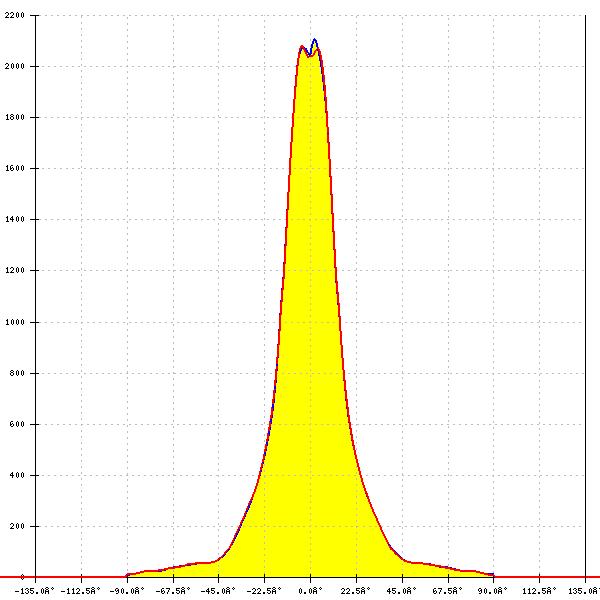

LED:

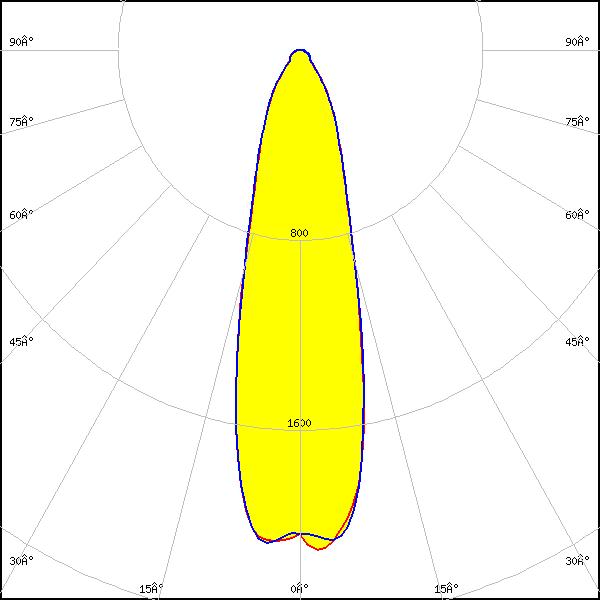

NV4WB35AM
FWHM:
28°
FWTM:
68°
Peak intensity:
2.107 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

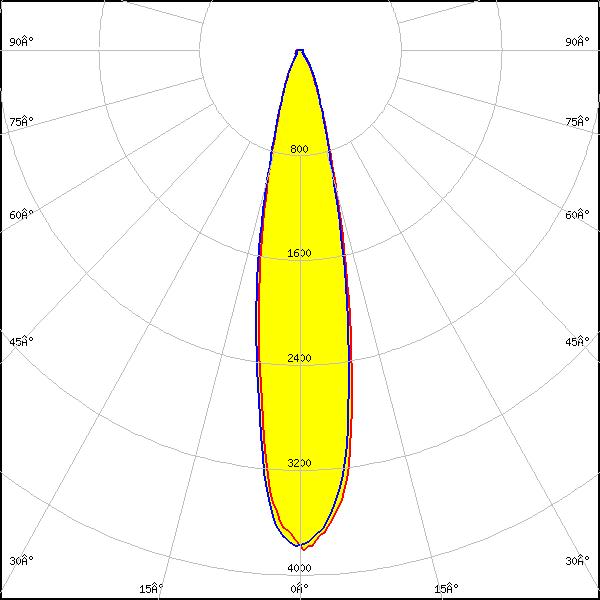

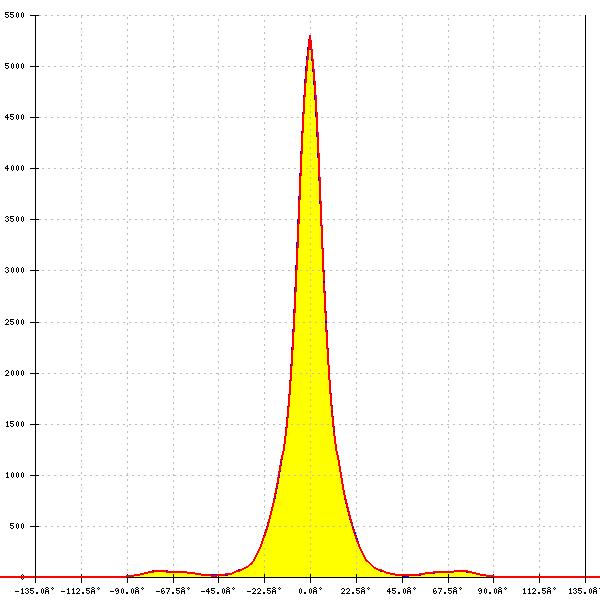

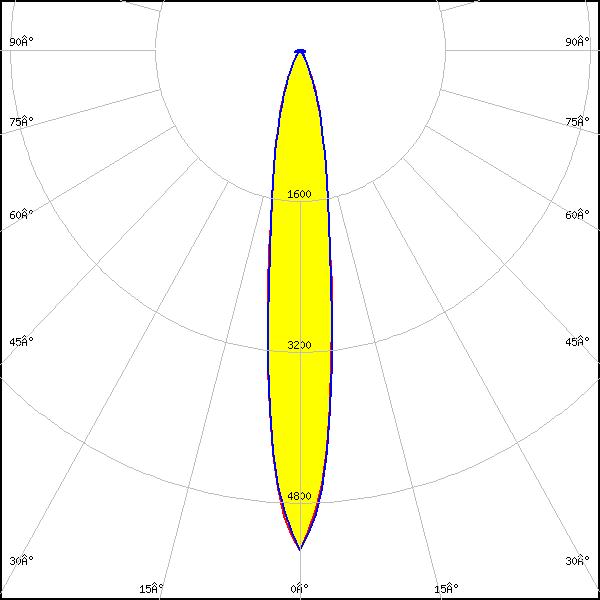

LED:
NVSxE21A
FWHM:
15°
FWTM:
41°
Peak intensity:
5.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

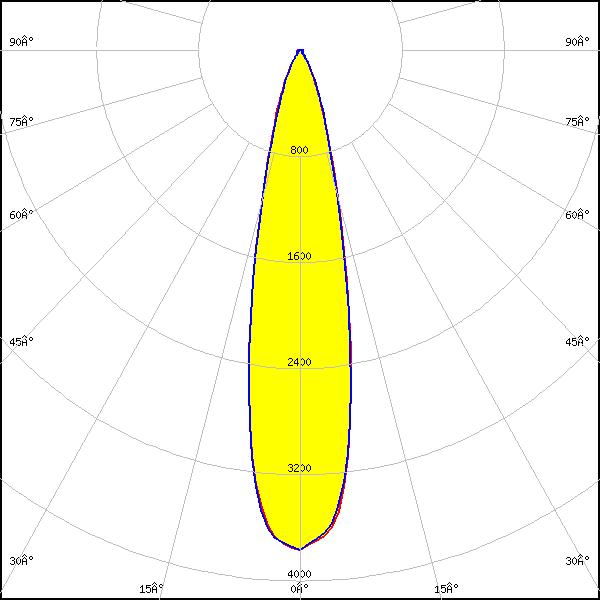

LED:

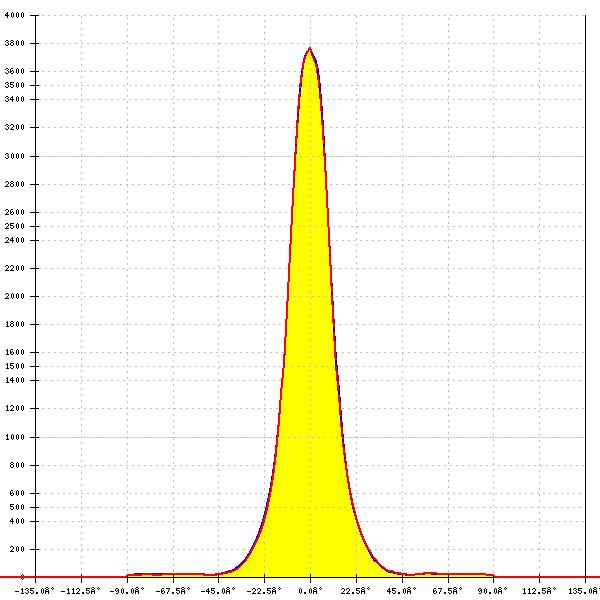

NVSxx19B/NVSxx19C
FWHM:
24°
FWTM:
47°
Peak intensity:
3.790 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

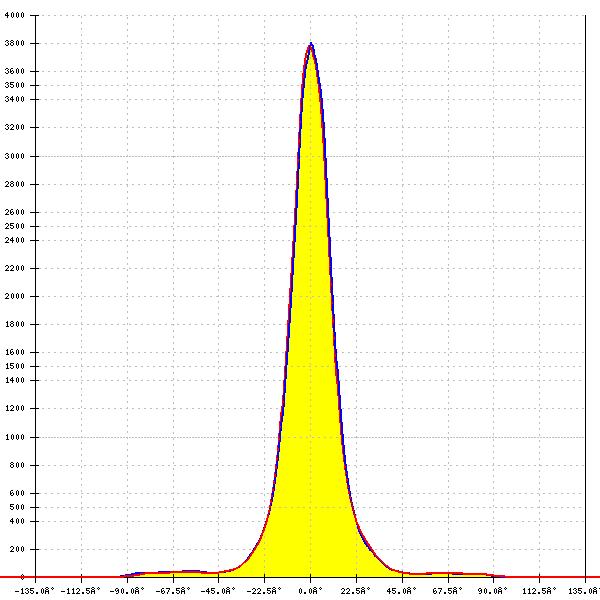

LED:
NVSxx19B/NVSxx19C
FWHM:
21°
FWTM:
45°
Peak intensity:
3.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

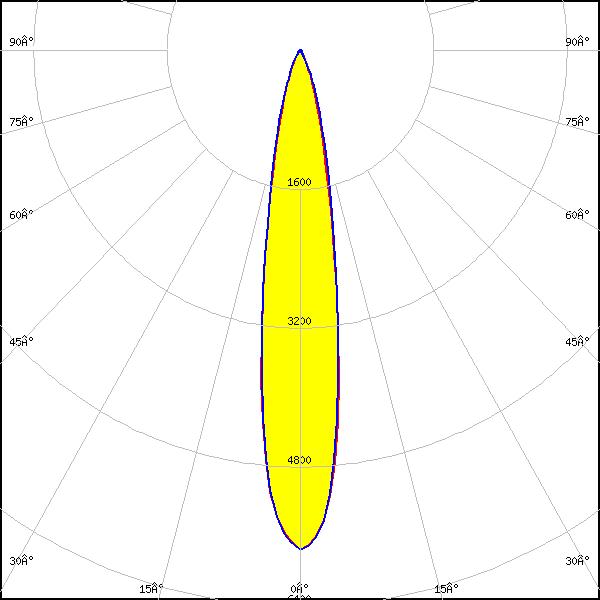

LED:
OSCONIQ P 3737 (2W version)
FWHM:
18°
FWTM:
39°
Peak intensity:
5.760 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

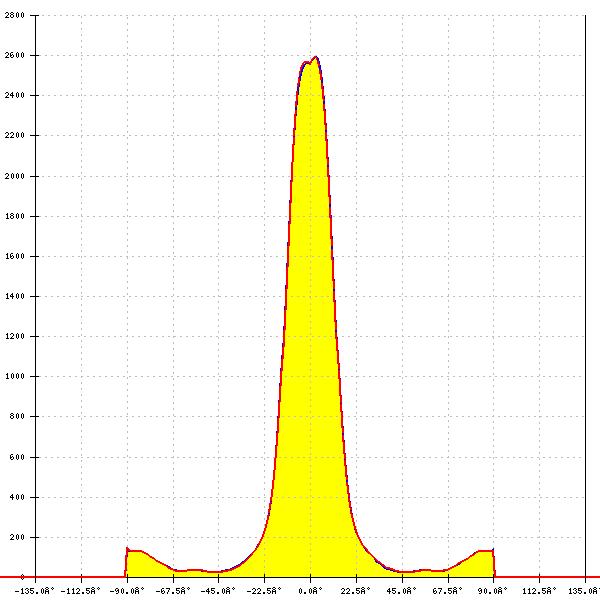

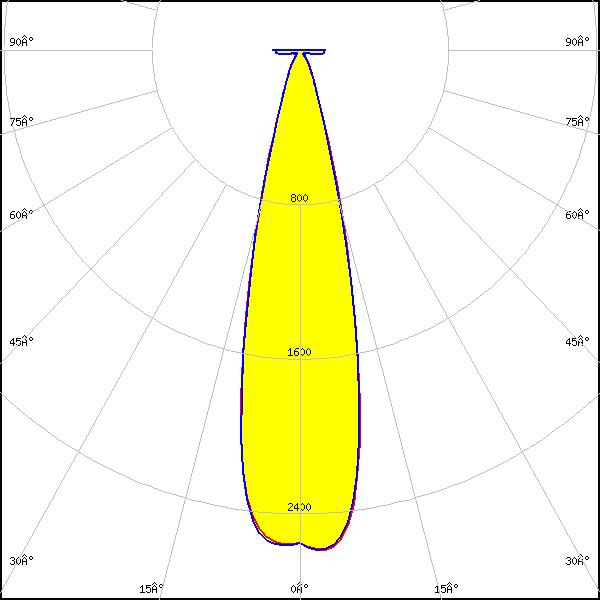

LED:
OSCONIQ P 3737 (3W version)
FWHM:
25°
FWTM:
43°
Peak intensity:
2.592 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

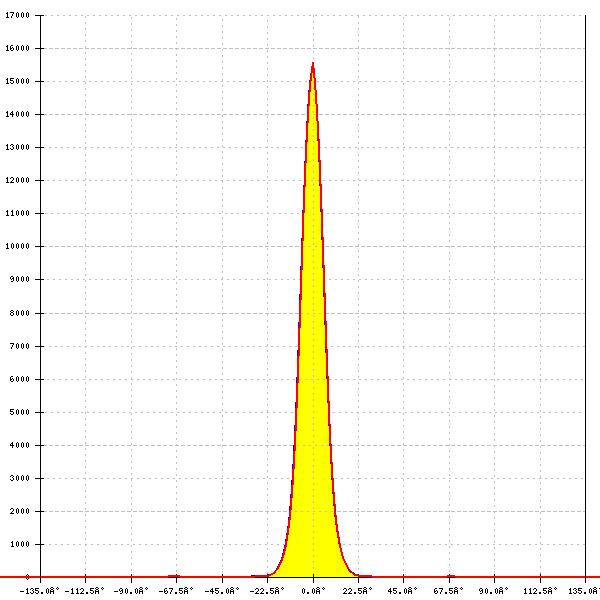

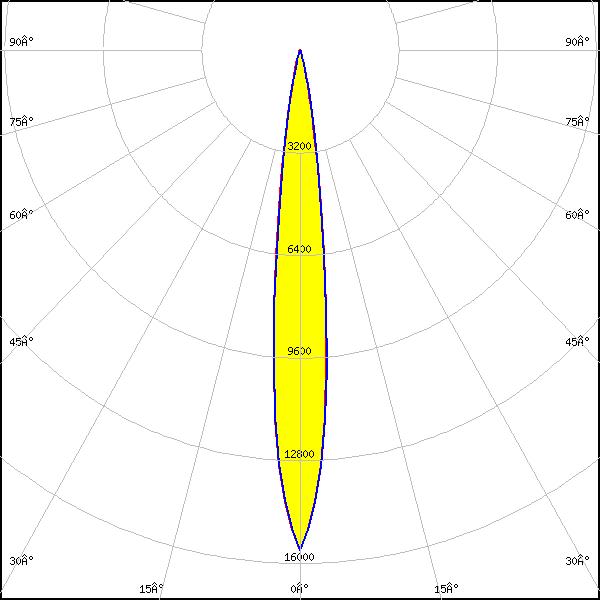

LED:
OSLON Pure 1414
FWHM:
12°
FWTM:
24°
Peak intensity:
15.591 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

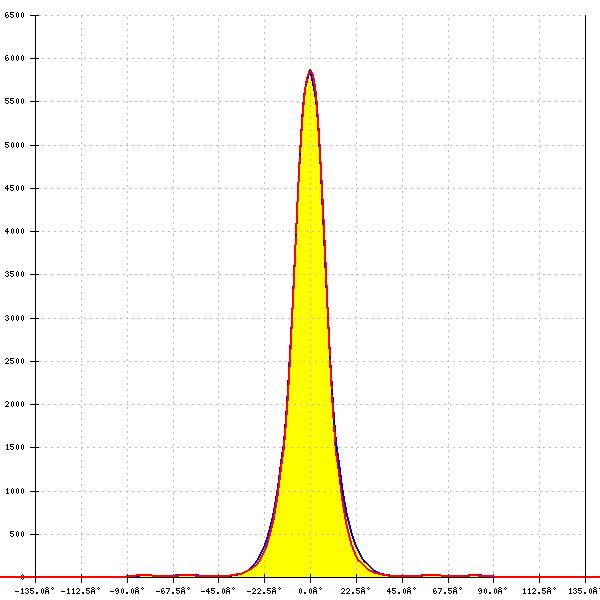

LED:

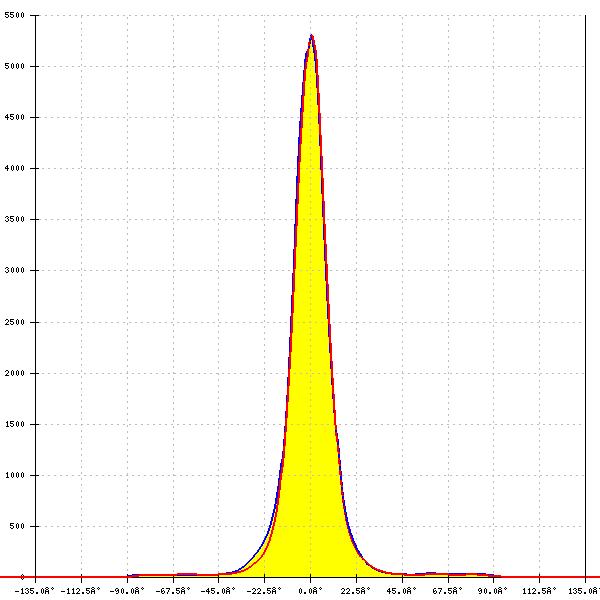

OSLON Square CSSRM2/CSSRM3
FWHM:
18°
FWTM:
39°
Peak intensity:
5.900 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

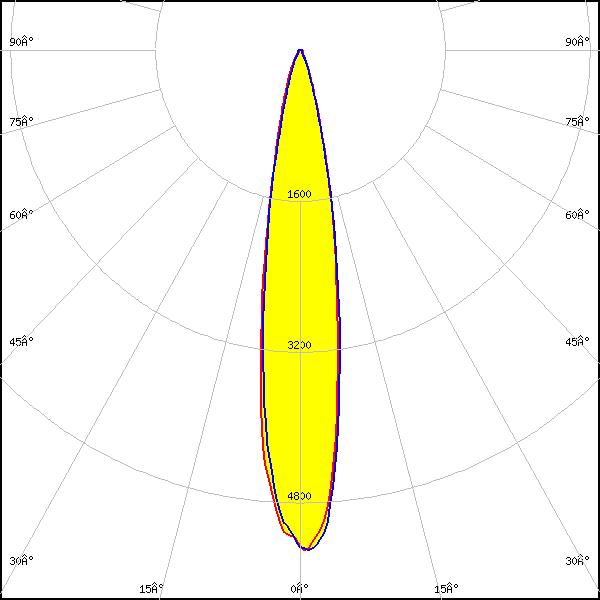

LED:
OSLON Square EC
FWHM:
18°
FWTM:
37°
Peak intensity:
5.330 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

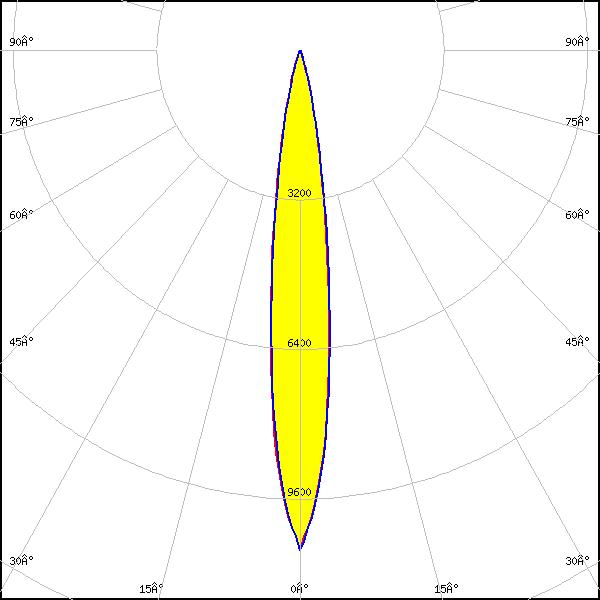

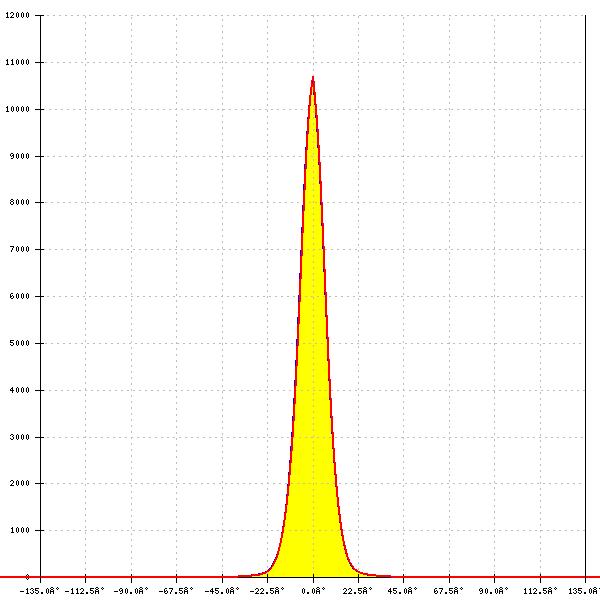

LED:
OSLON SSL 150
FWHM:
14°
FWTM:
28°
Peak intensity:
10.700 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

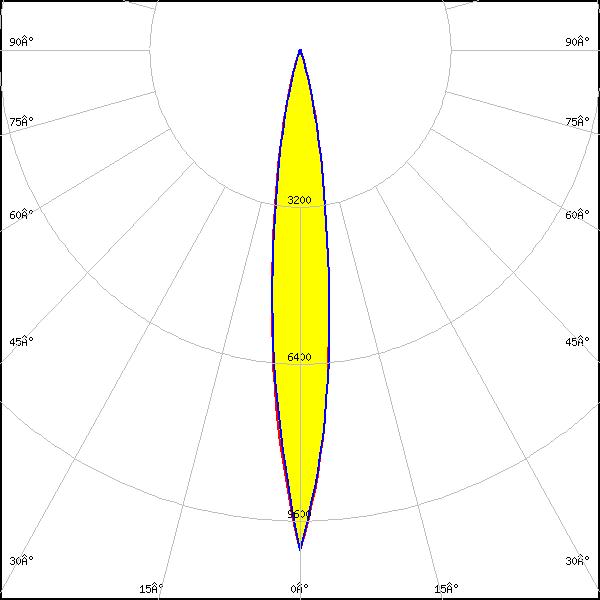

LED:
OSLON SSL 80
FWHM:
14°
FWTM:
29°
Peak intensity:
10.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4170S
FWHM:
13°
FWTM:
25°
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4180S
FWHM:
11°
FWTM:
22°
LEDs/each optic:
1
Light colour/type:
IR

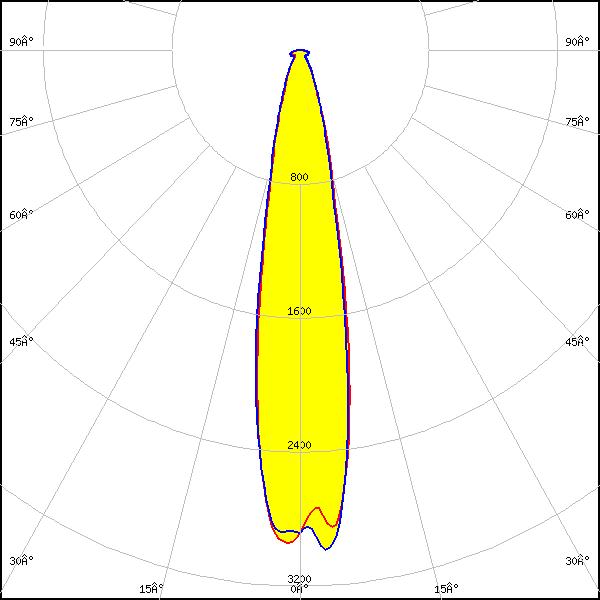

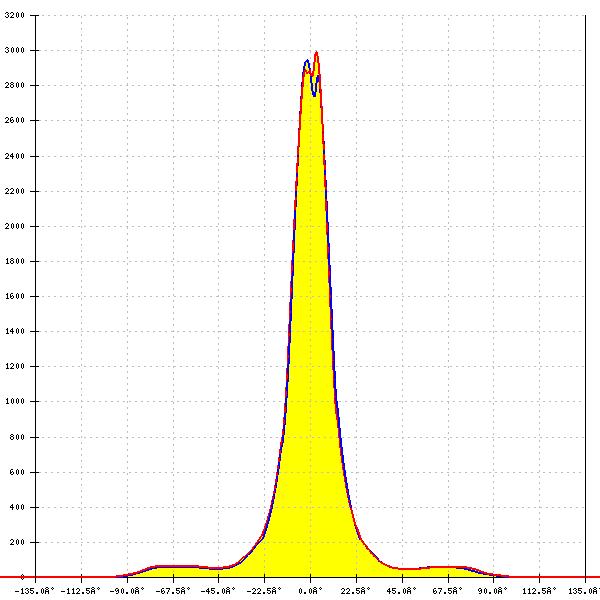

LED:
LH181A
FWHM:
21°
FWTM:
44°
Peak intensity:
3.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

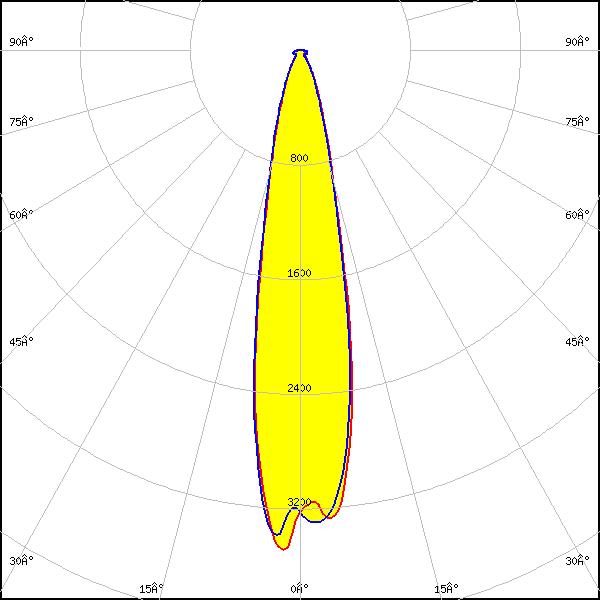

LED:

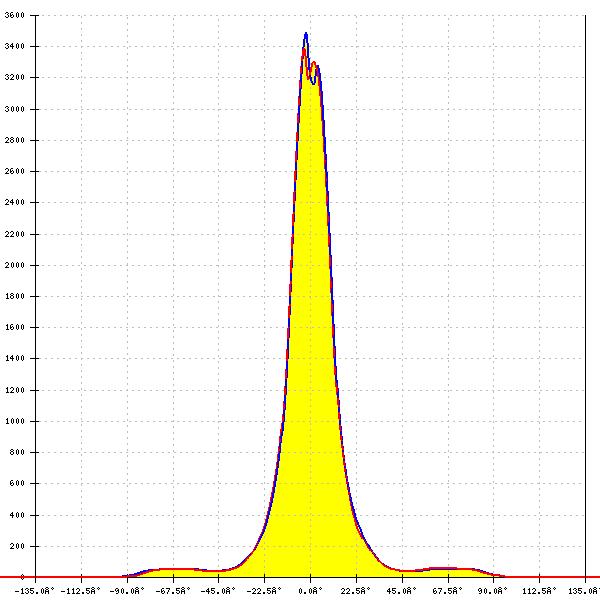

LH181B
FWHM:
22°
FWTM:
45°
Peak intensity:
3.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

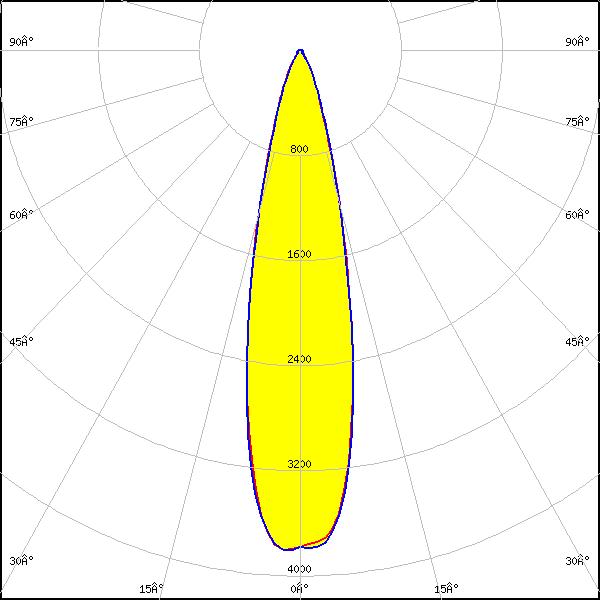

LED:
LH351B
FWHM:
24°
FWTM:
46°
Peak intensity:
3.850 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

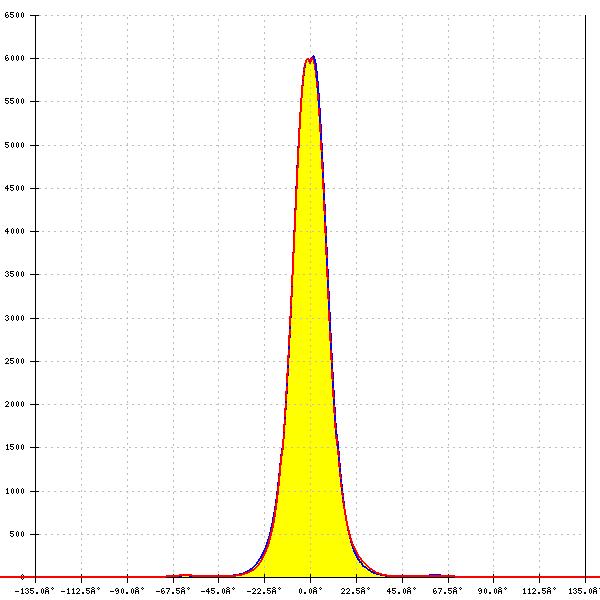

LED:

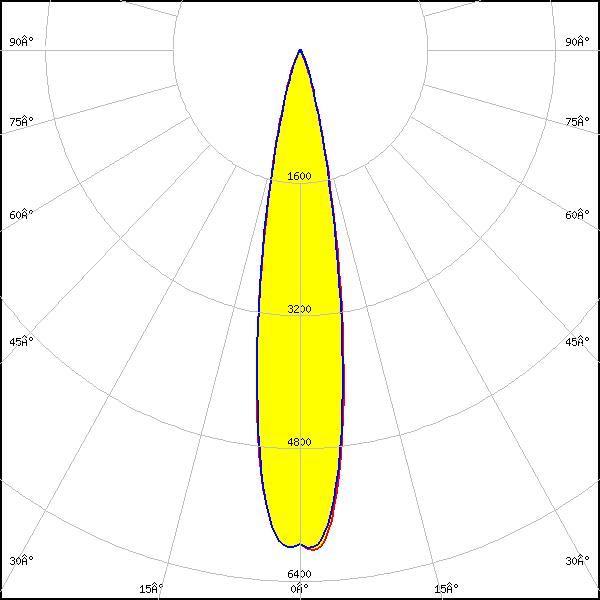

LH351Z
FWHM:
19°
FWTM:
36°
Peak intensity:
6.060 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

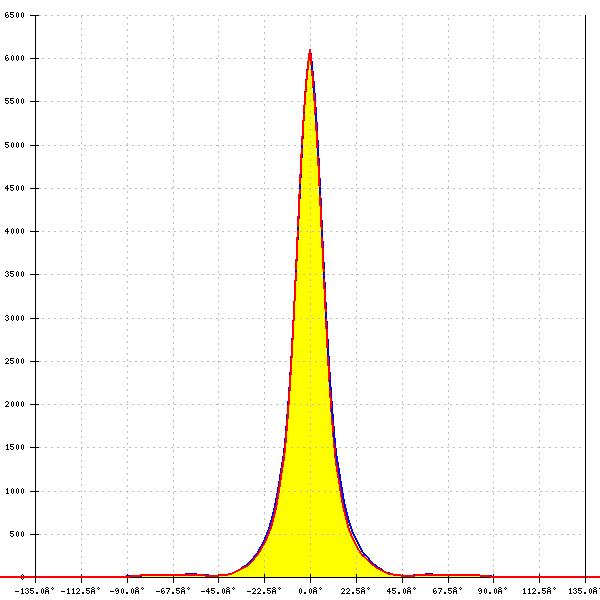

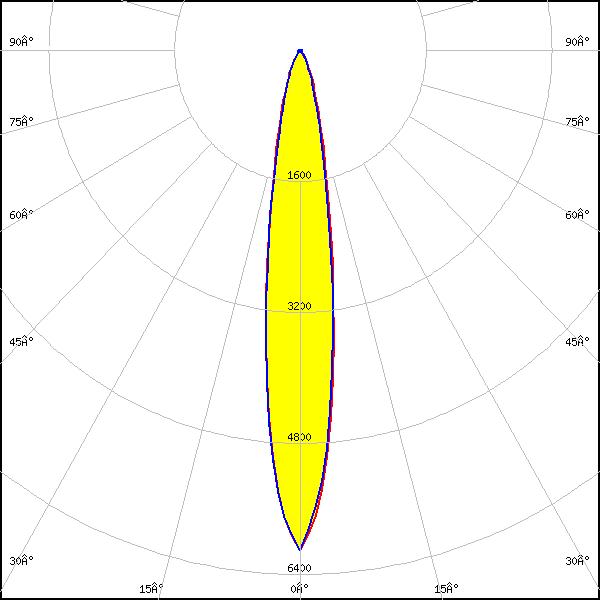

LED:
MJT 3030
FWHM:
16°
FWTM:
38°
Peak intensity:
6.106 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

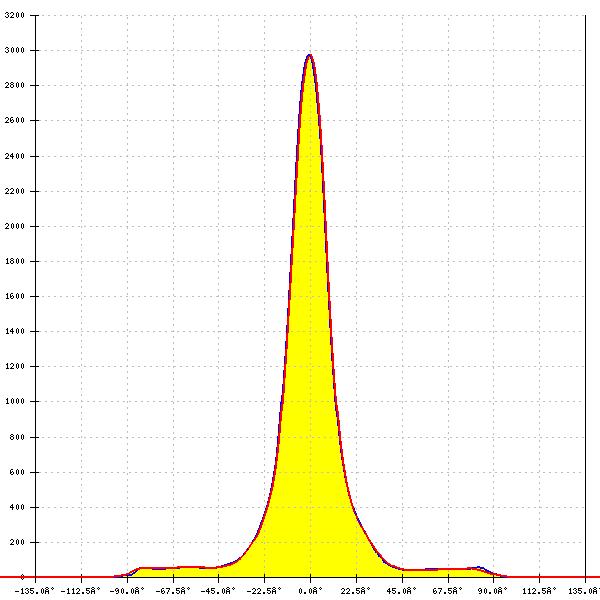

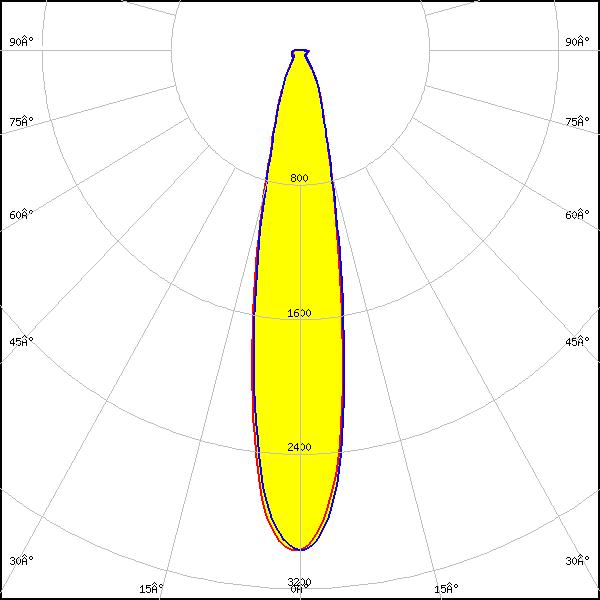

LED:
Z8Y22P
FWHM:
21°
FWTM:
49°
Peak intensity:
3.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

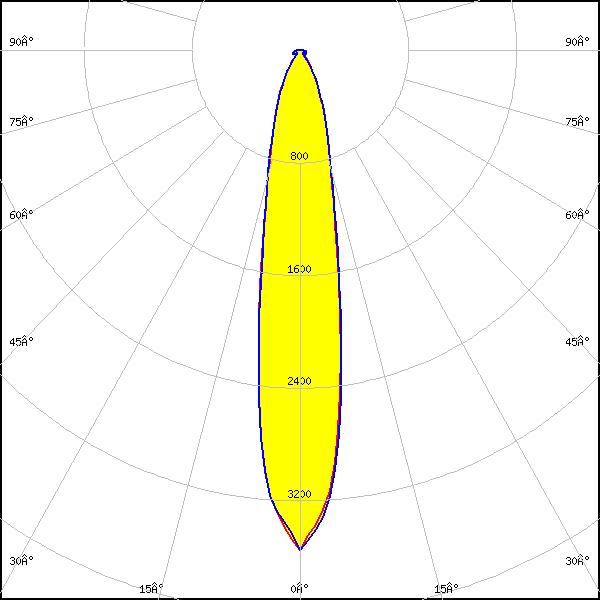

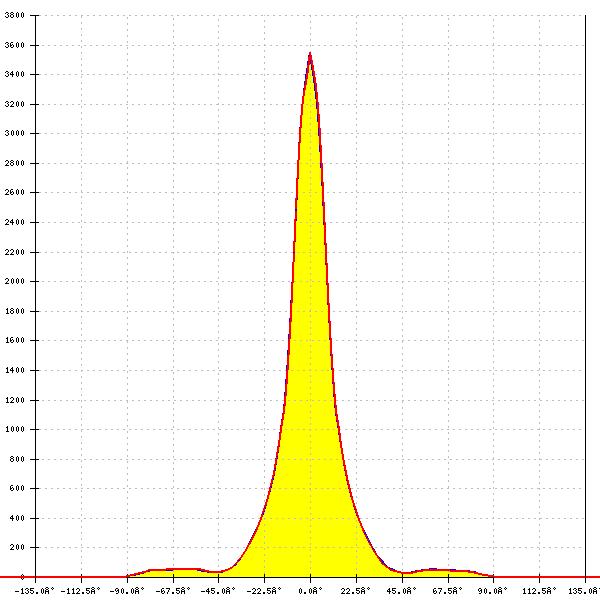

LED:
Z8Y22T
FWHM:
19°
FWTM:
50°
Peak intensity:
3.550 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
