CA14434_MINNIE-LT-M
Print
~25° medium beam. Assembly with installation tape.
Materials
- MINNIE-LT-M, Reflector, PC, lacquer
- SPUTNIK-TAPE, Tape, Acrylic foam
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
MK-R
FWHM:
21°
FWTM:
78°
Peak intensity:
2.840 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
FWHM:
21°
FWTM:
83°
Peak intensity:
2.400 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50.2
FWHM:
22°
FWTM:
52°
Peak intensity:
3.050 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70.3 HD
FWHM:
18°
FWTM:
34°
Peak intensity:
4.750 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

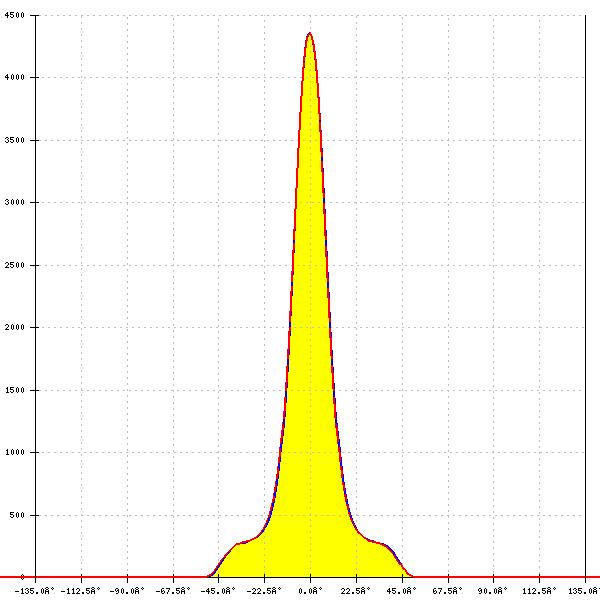

LED:
LUXEON 7070
FWHM:
19°
FWTM:
42°
Peak intensity:
4.361 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON M/MX
FWHM:
21°
FWTM:
74°
Peak intensity:
2.900 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
18°
FWTM:
36°
Peak intensity:
4.800 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PLW7070
FWHM:
32°
FWTM:
90°
Peak intensity:
1.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
