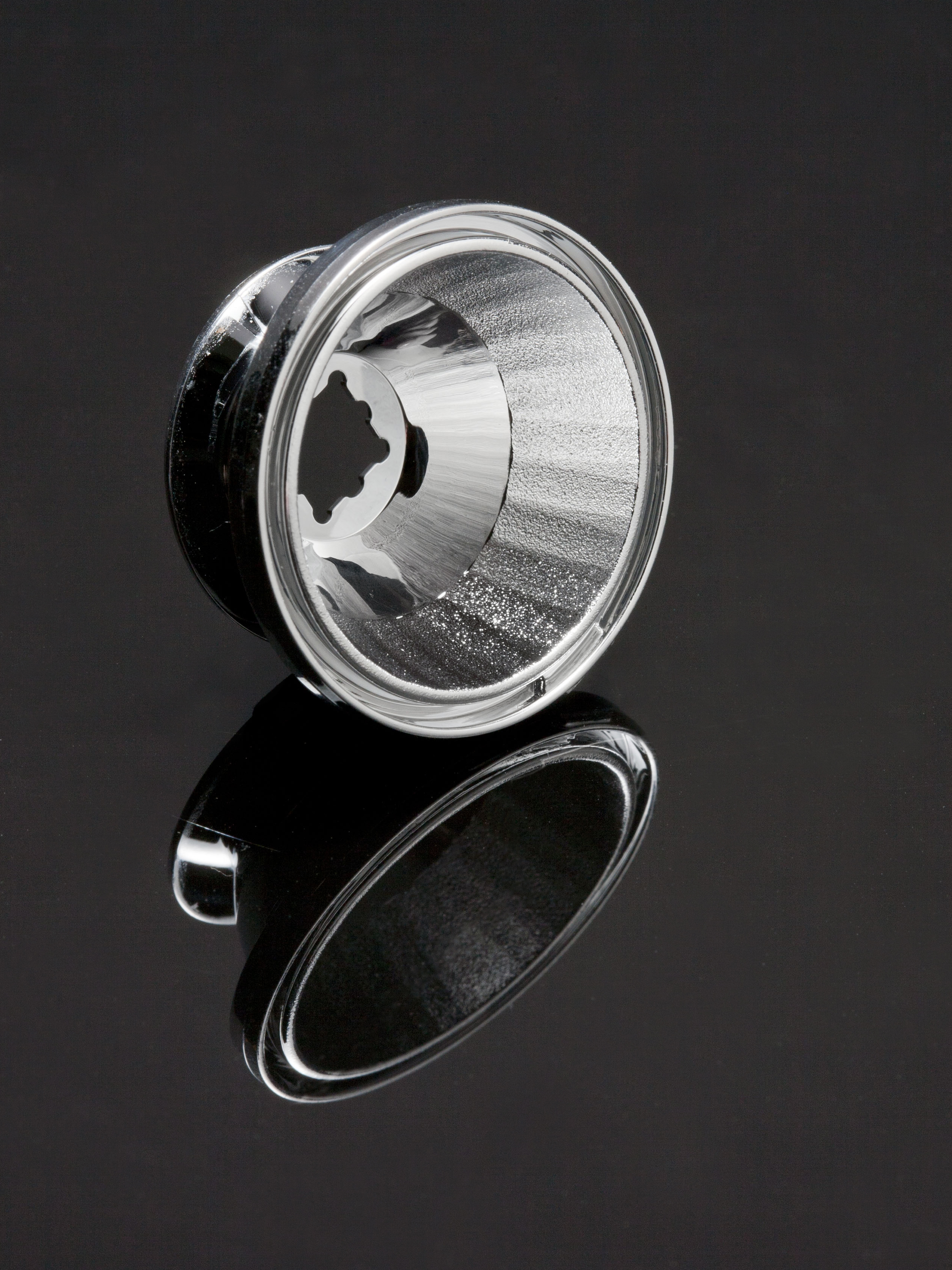

CA14433_MINNIE-LT-W

~35° wide beam. Assembly with installation tape.

Dimensions:

35 mm
Height:

15.60 mm
Fastening:

tape
Colour:

metal
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Quantity in box:

720 pcs
Box size:

476 x 273 x 292 mm
Box weight:

3.6 kg
MPQ:

45 pcs
MOQ:

90 pcs
MOQ size:

480 x 280 x 50 mm
MOQ weight:

0.7 kg

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

ORDER ONLINE

LED: MK-R

FWHM: 30°

FWTM: 88°

Peak intensity: 1.980 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET

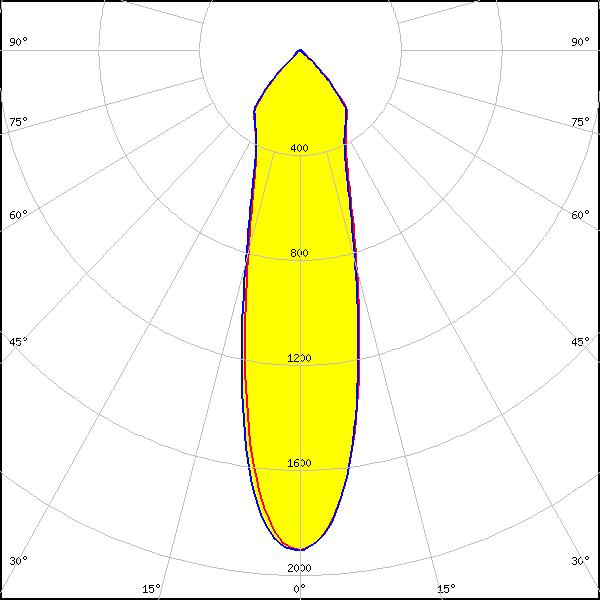

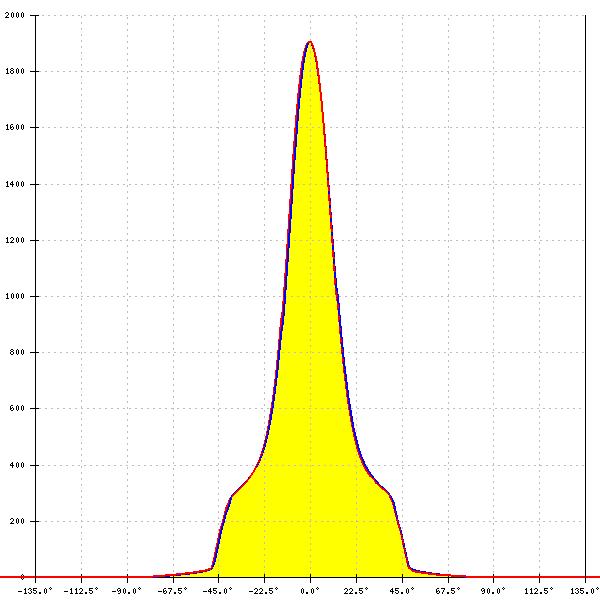

LED: XHP50

FWHM: 27°

FWTM: 86°

Peak intensity: 1.900 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

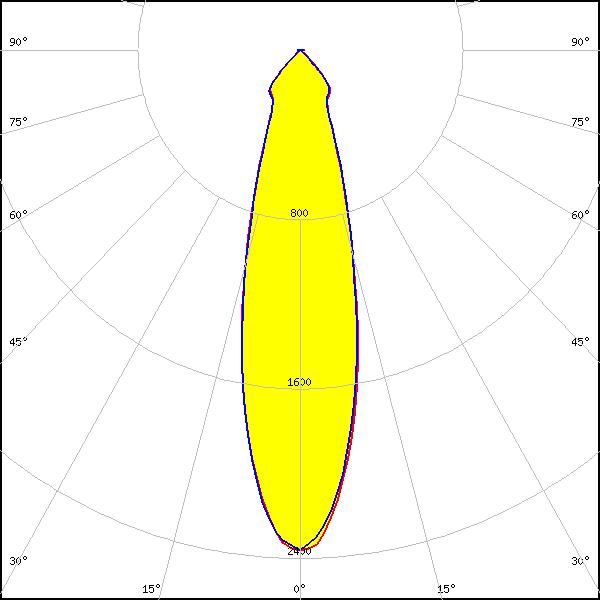

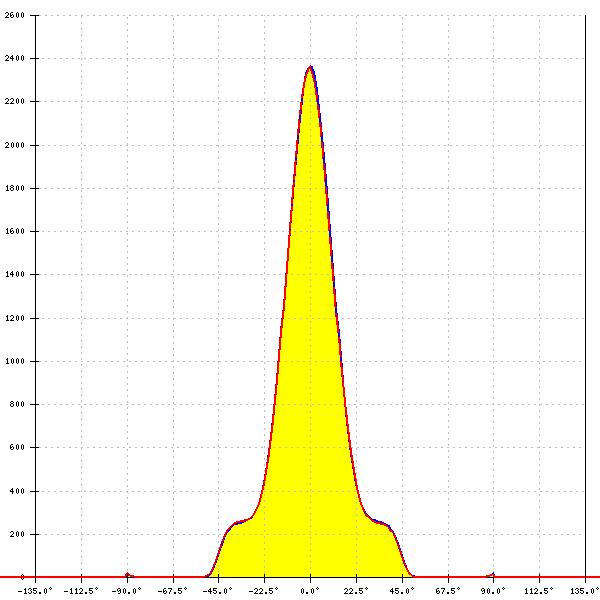

LED: XHP50.2

FWHM: 27°

FWTM: 76°

Peak intensity: 2.370 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

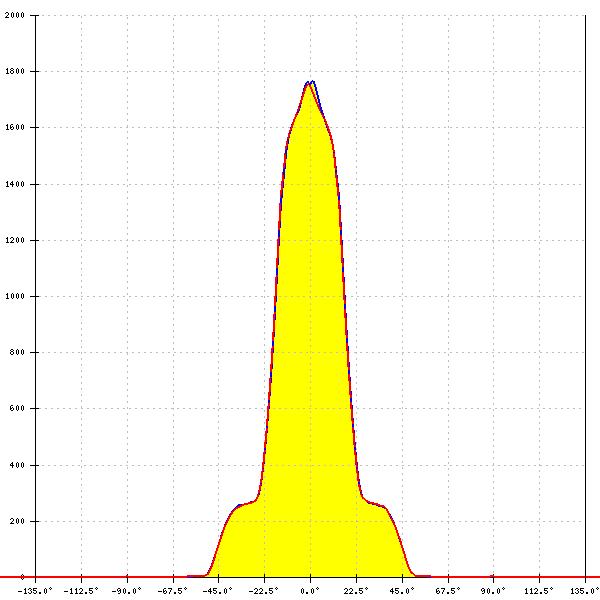

LED: XHP70.3 HD

FWHM: 36°

FWTM: 84°

Peak intensity: 1.792 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

LED: LUXEON M/MX

FWHM: 30°

FWTM: 84°

Peak intensity: 2.100 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET

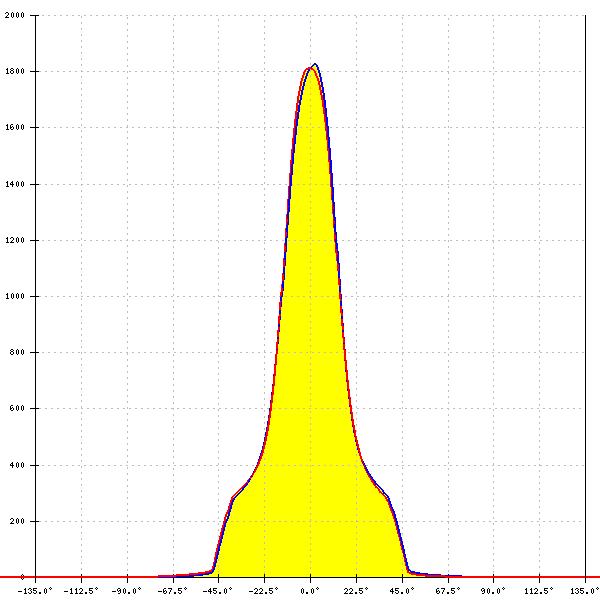

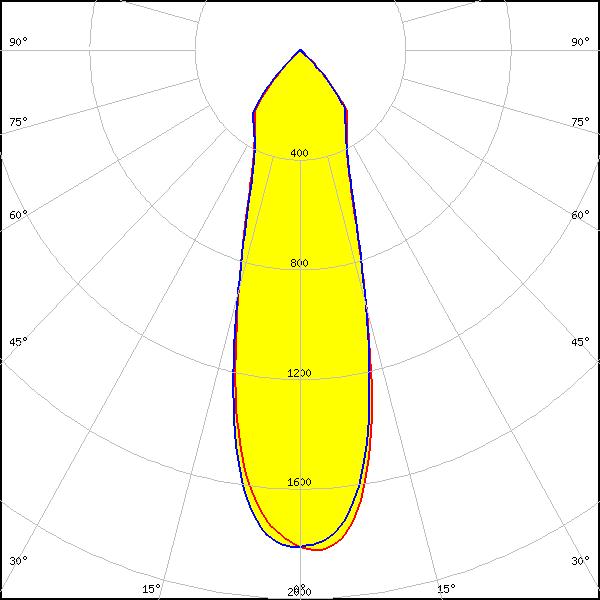

LED: PLW7070

FWHM: 31°

FWTM: 85°

Peak intensity: 1.800 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files
