CA14129_TATIANA-1X4-B
Print

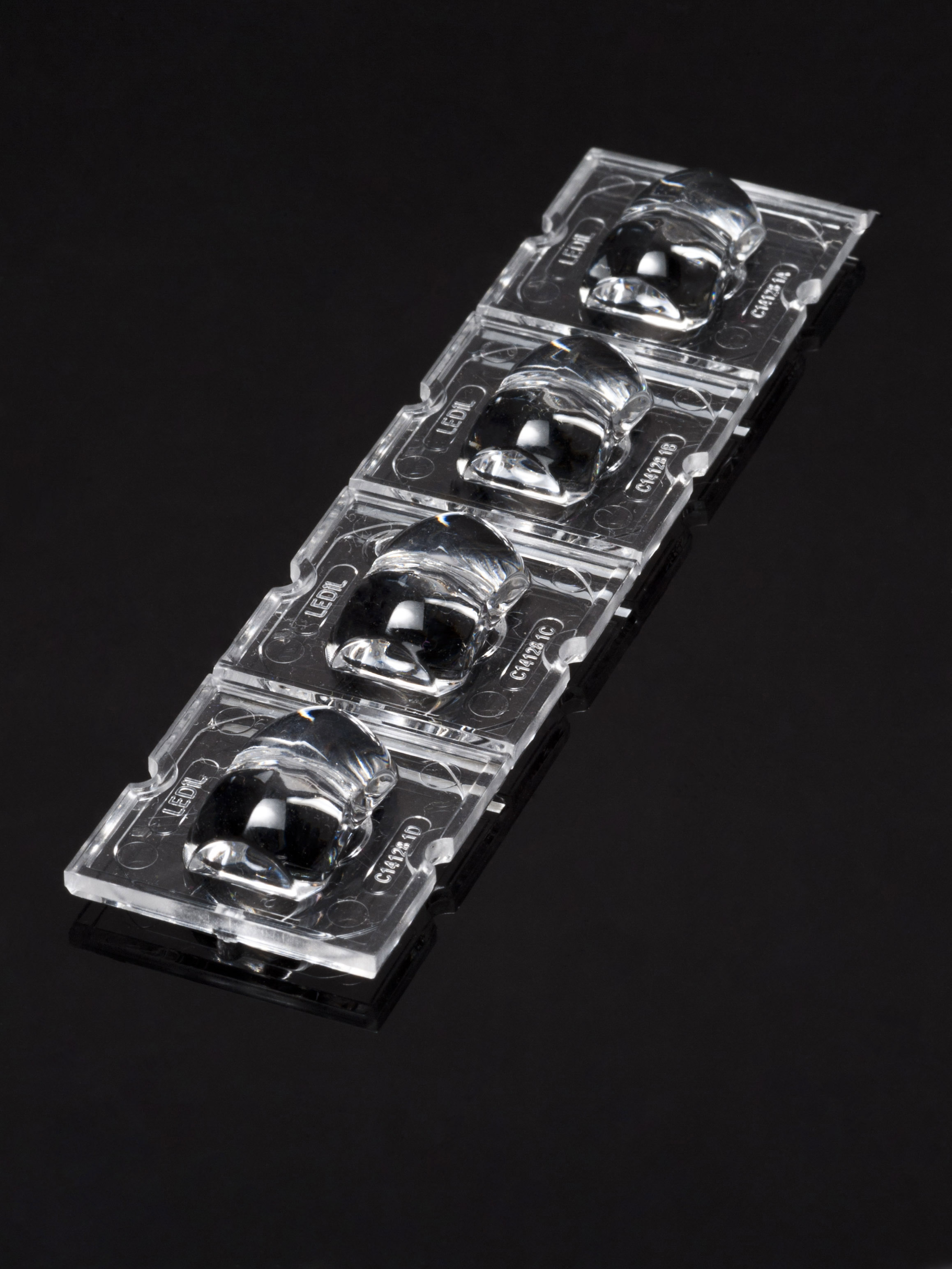

Oval beam for area lighting. Assembly with installation tape.
Specification
-
Dimensions:102 x 25 mm
-
Height:7.80 mm
-
Fastening:tape, pin
-
Colour:clear
-
RoHS and REACH compliant:Yes
Component Materials
- TATIANA-1X4-BMulti-lensPMMA
- ROSE-TAPE2-1X4TapeAcryl tape
- Request material files from Tech Support
Ordering information
-
Quantity in box:672 pcs
-
Box weight:6.7 kg
-
MPQ:28 pcs
-
MOQ:56 pcs
-
MOQ size:480 x 280 x 50 mm
-
MOQ weight:1.1 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
Optical results

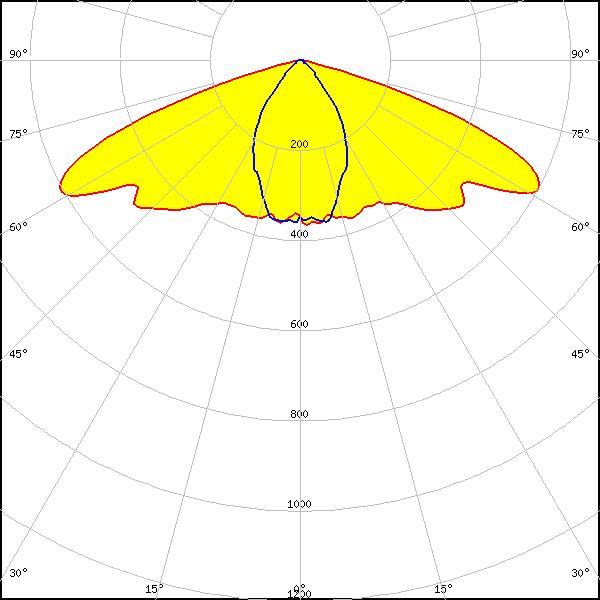

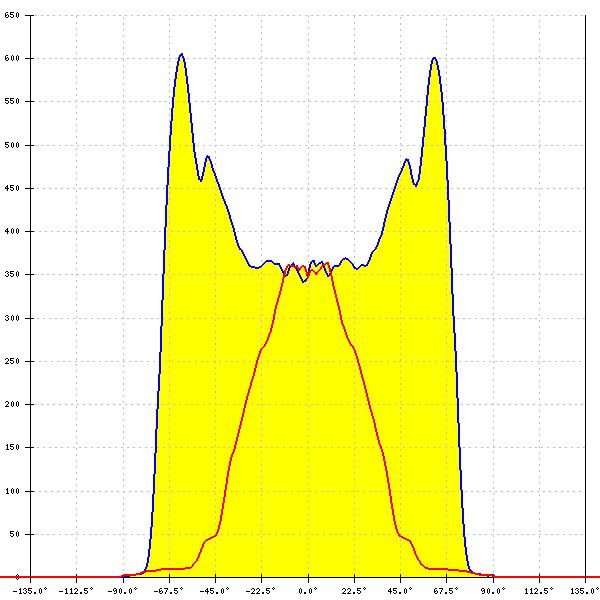

LED:
XM-L
FWHM:
142° + 64°
FWTM:
152° + 102°
Peak intensity:
0.605 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

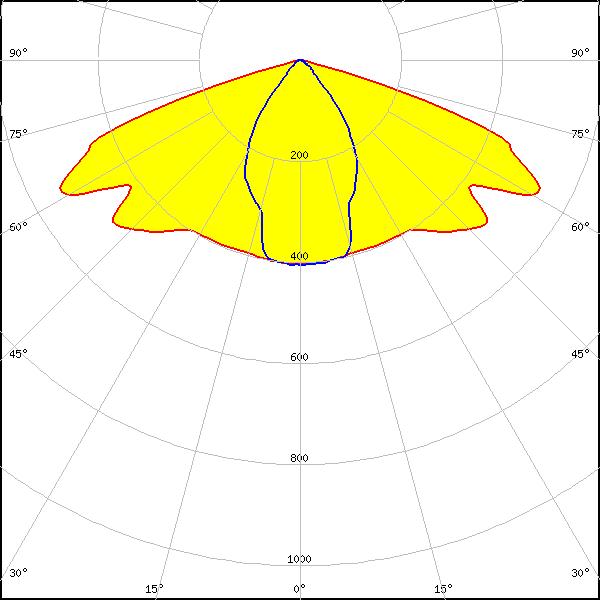

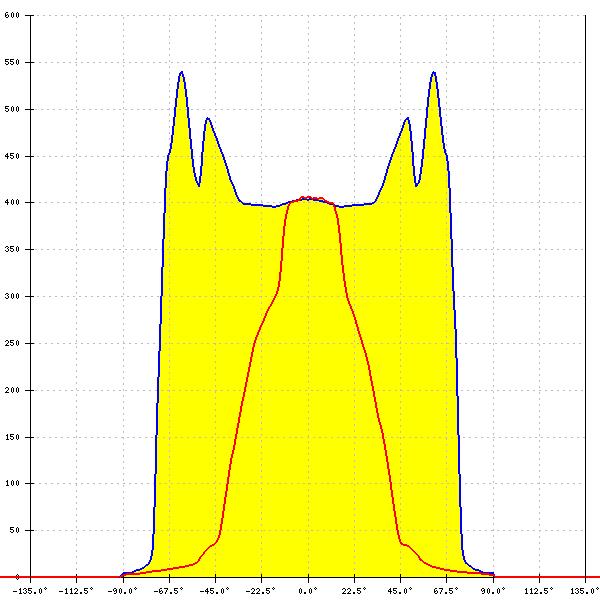

LED:
XM-L2
FWHM:
144° + 62°
FWTM:
148° + 89°
Peak intensity:
0.540 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
