CA13724_VERONICA-SQ-RS
Print
~13° spot beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

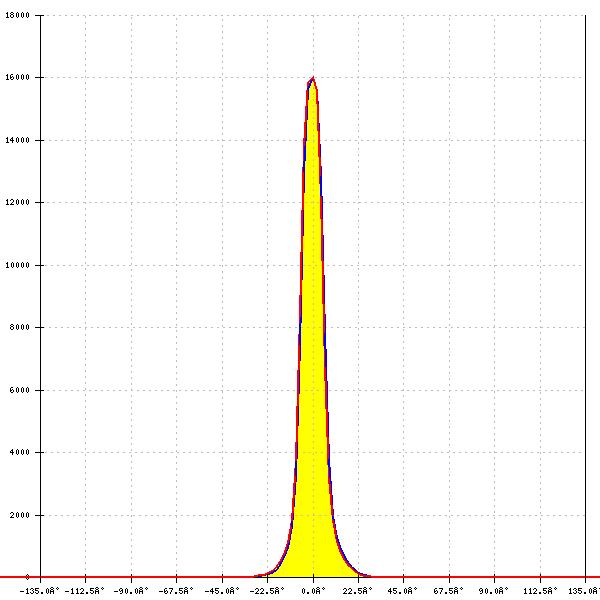

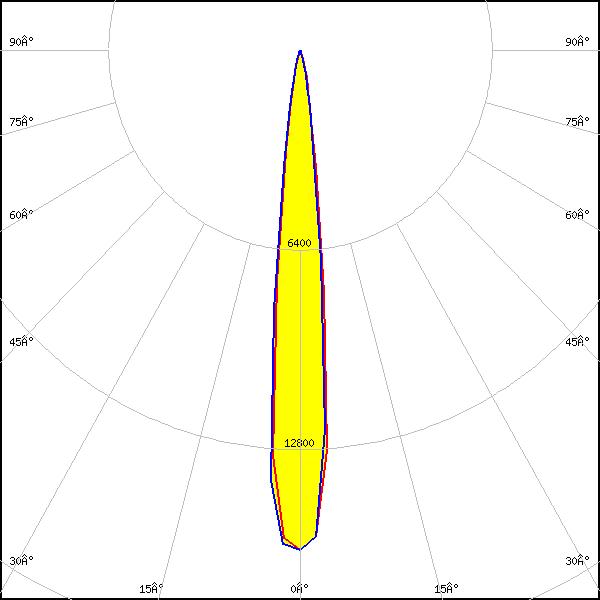

LED:
XB-H
FWHM:
12°
FWTM:
22°
Peak intensity:
16.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

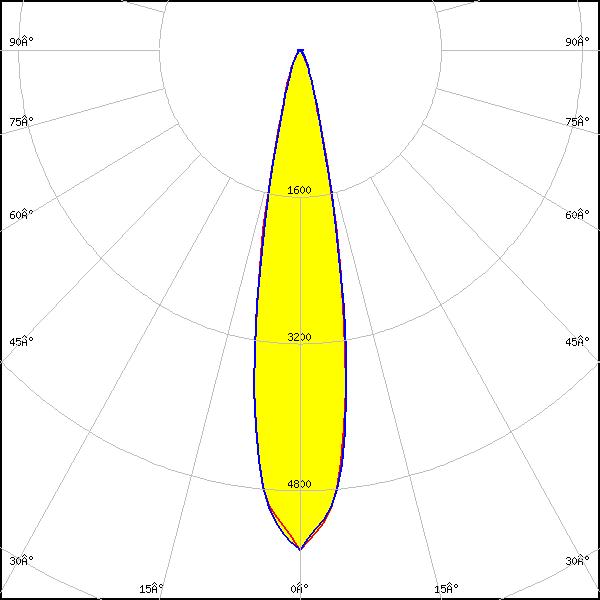

LED:
XHP35.2 HD
FWHM:
20°
FWTM:
37°
Peak intensity:
5.451 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L
FWHM:
15°
FWTM:
-
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L2
FWHM:
15°
FWTM:
-
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E
FWHM:
8°
FWTM:
-
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

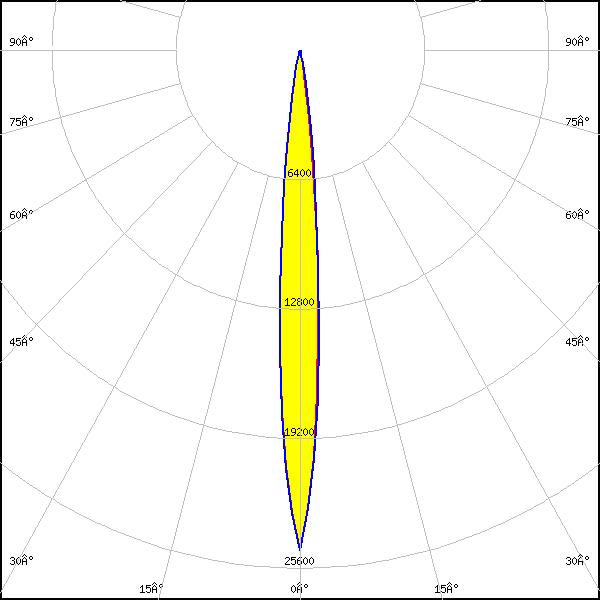

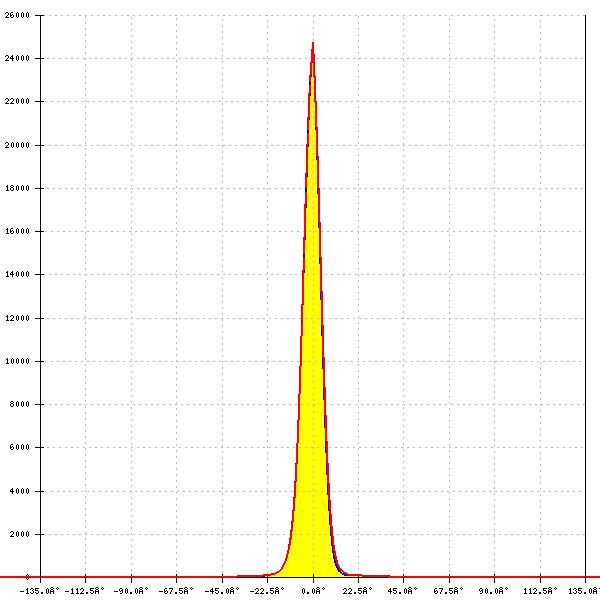

LED:
XP-E2
FWHM:
10°
FWTM:
19°
Peak intensity:
24.730 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Amber

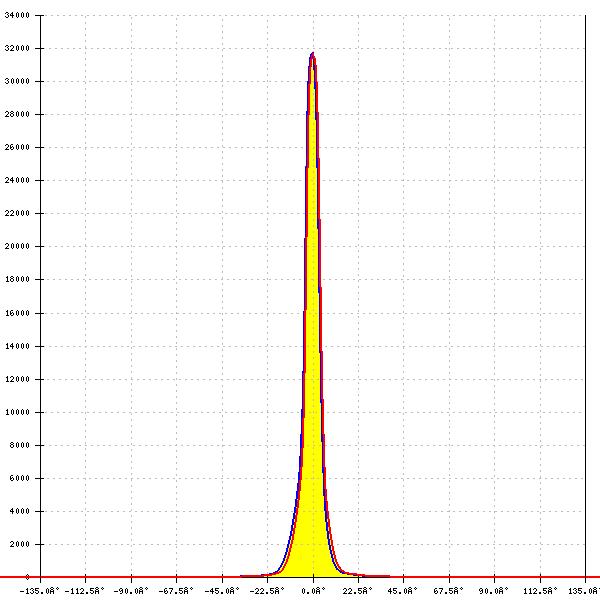

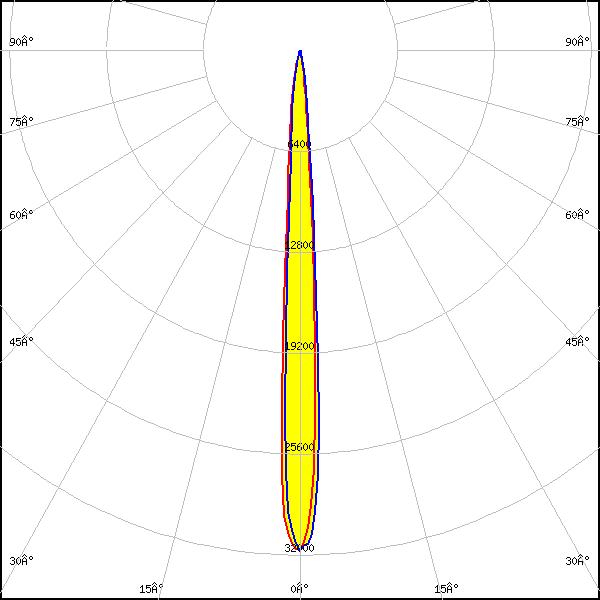

LED:
XP-E2
FWHM:
7°
FWTM:
17°
Peak intensity:
31.709 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
FWHM:
10°
FWTM:
-
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

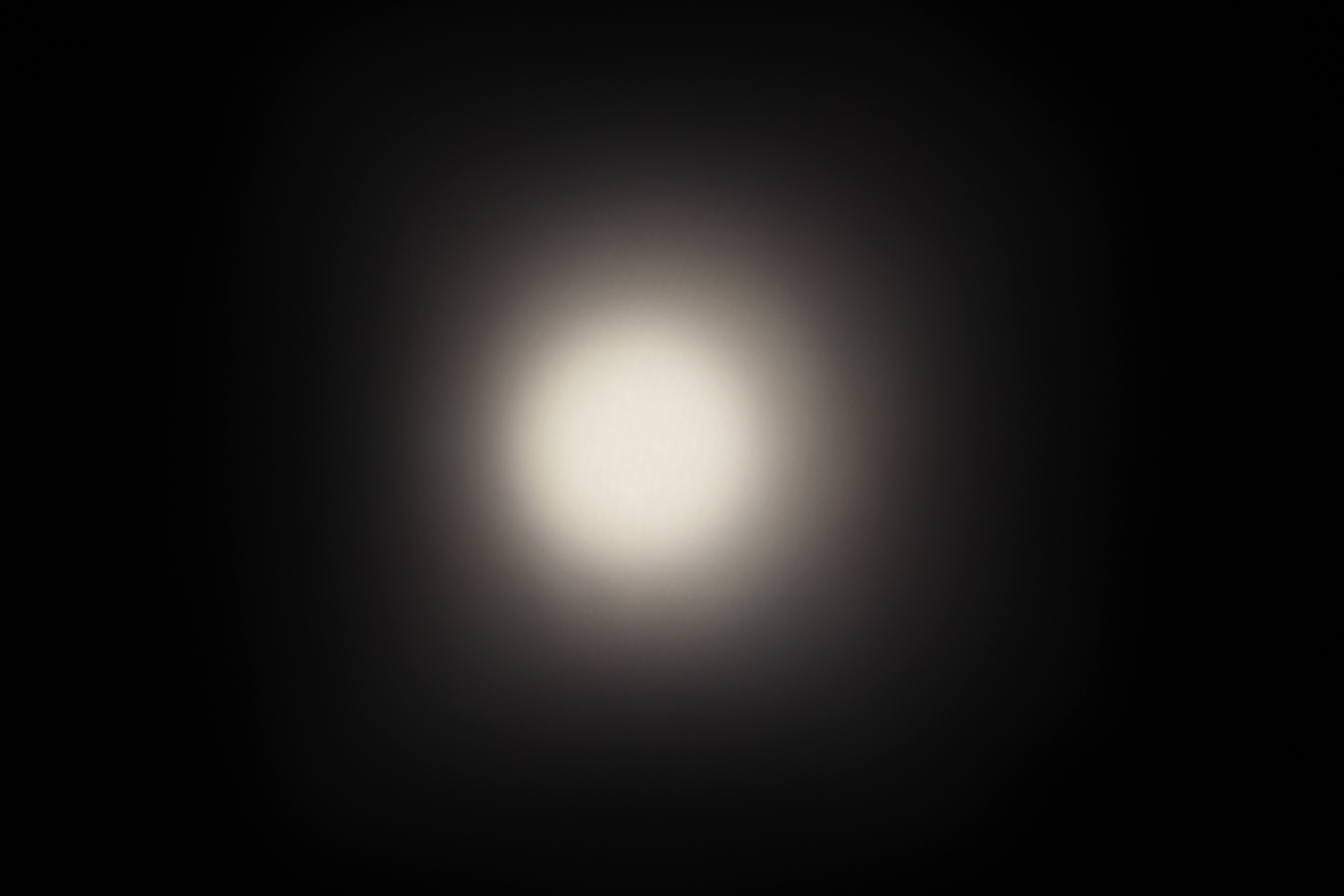

LED:

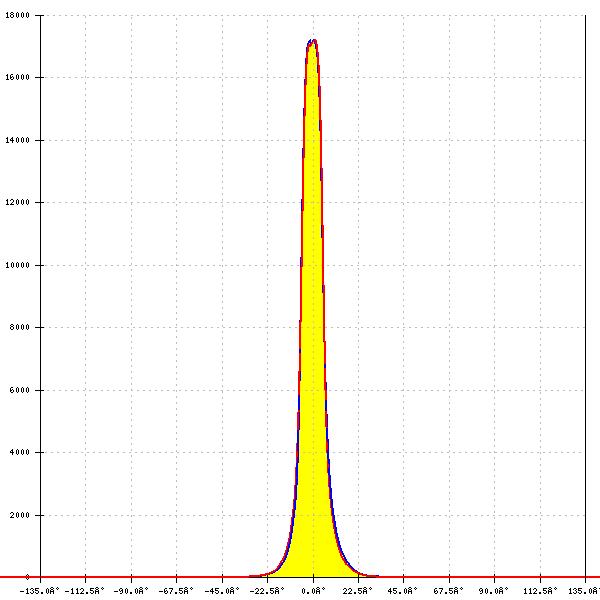

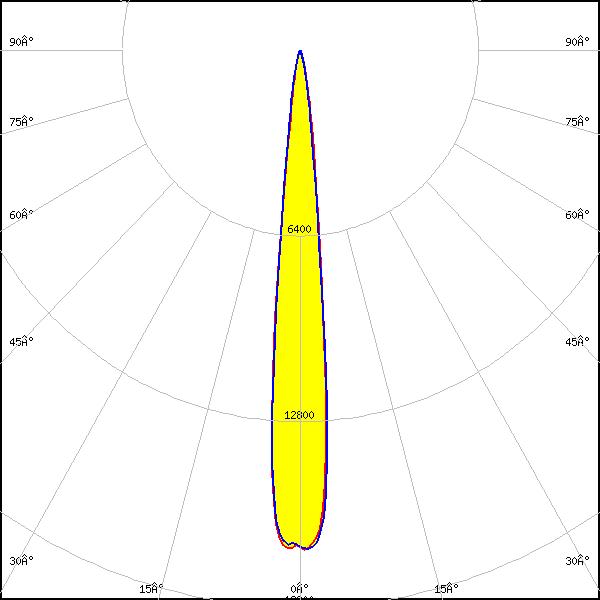

XP-G2
FWHM:
11°
FWTM:
20°
Peak intensity:
18.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

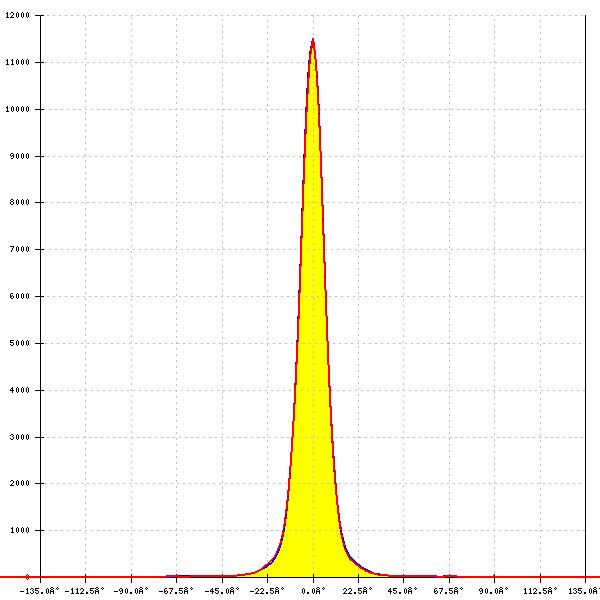

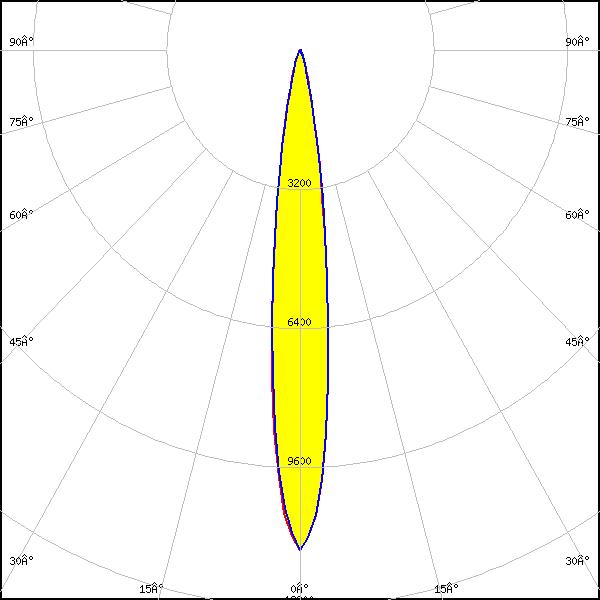

XP-G2 HE
FWHM:
14°
FWTM:
27°
Peak intensity:
11.503 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

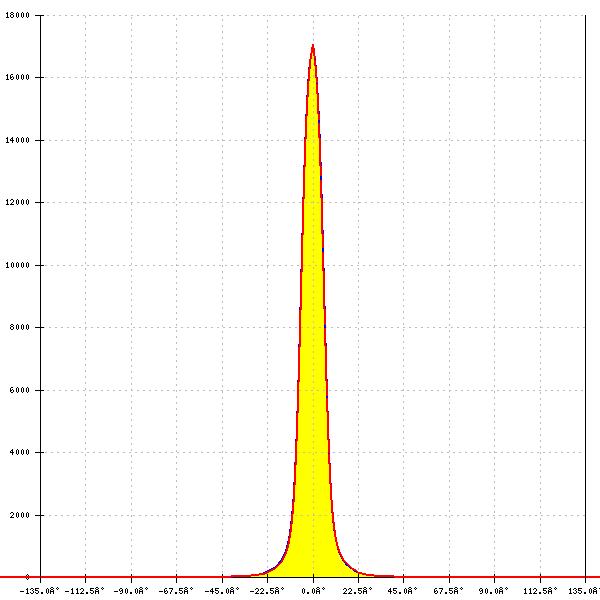

LED:

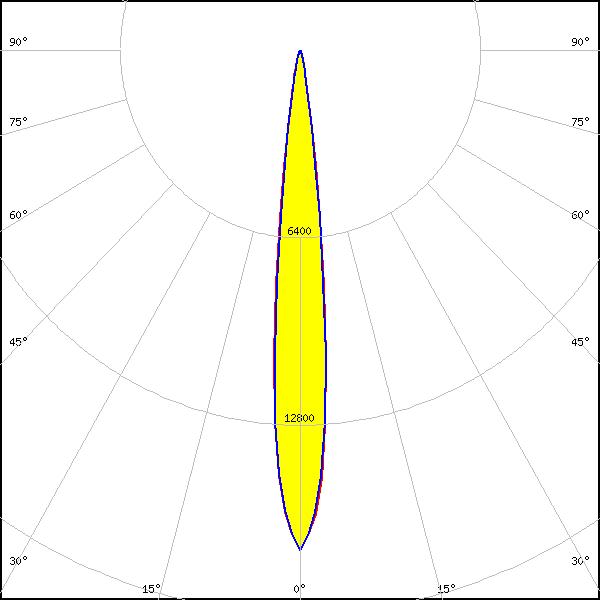

XP-G4
FWHM:
12°
FWTM:
20°
Peak intensity:
17.071 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

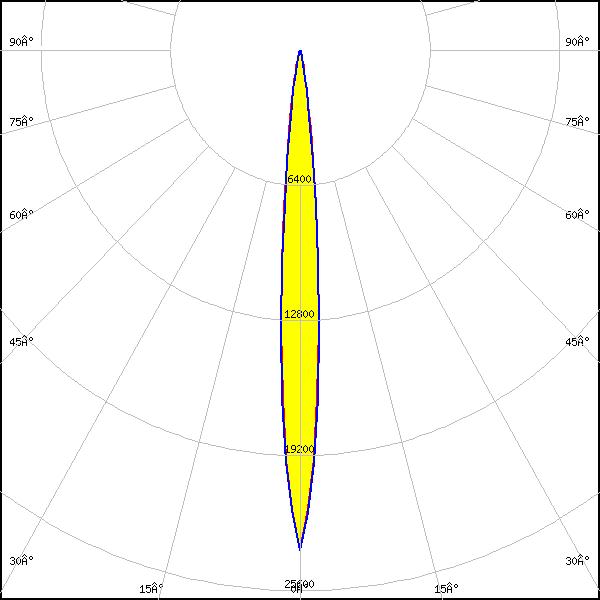

LED:

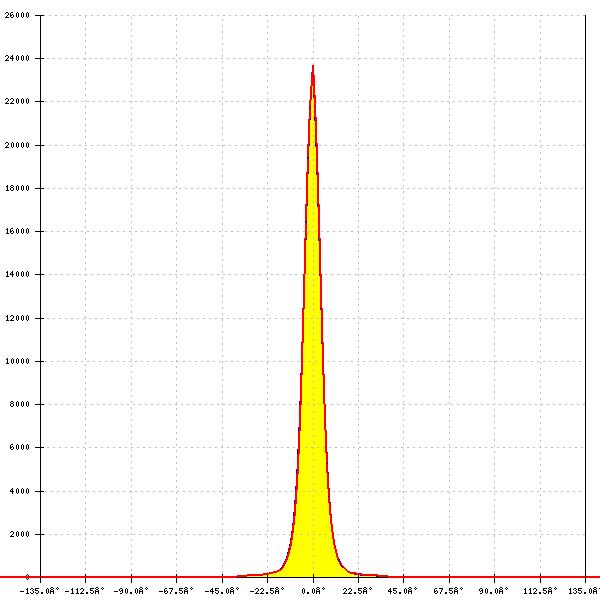

XP-G4 HI
FWHM:
8°
FWTM:
18°
Peak intensity:
23.685 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

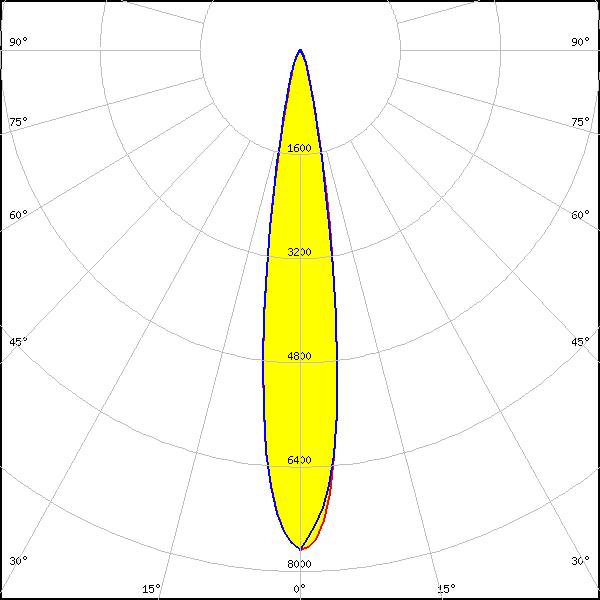

LED:

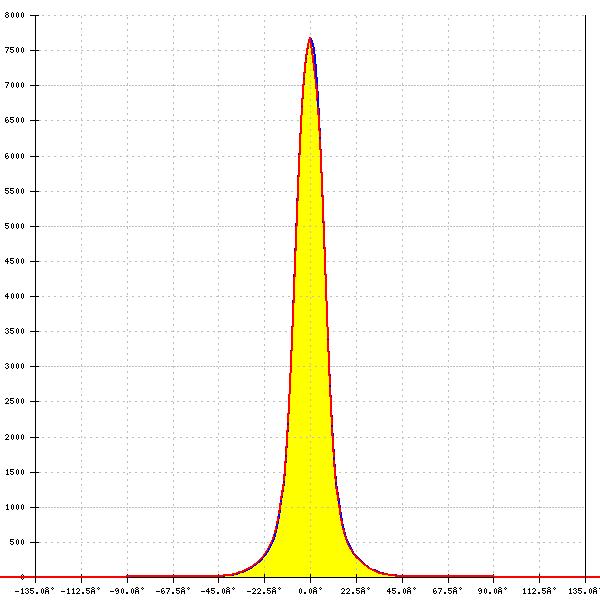

XP-L2
FWHM:
16°
FWTM:
32°
Peak intensity:
7.680 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

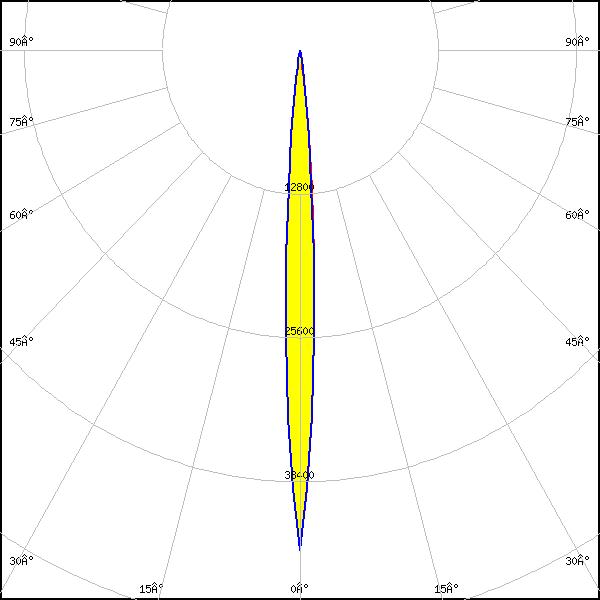

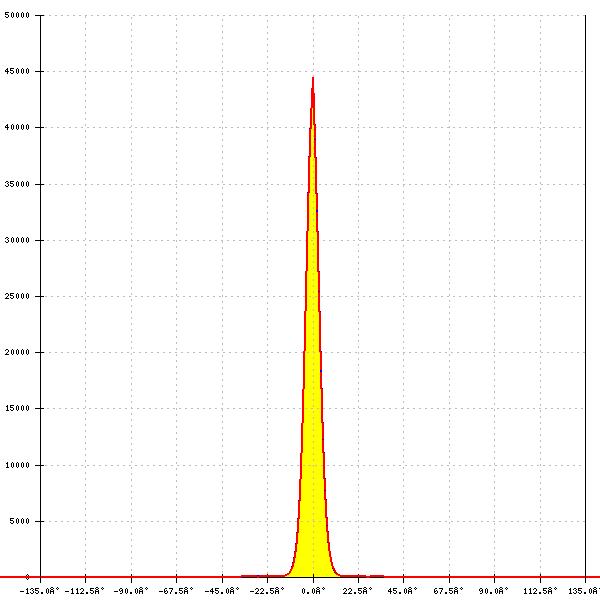

LED:
XP-P
FWHM:
6°
FWTM:
14°
Peak intensity:
44.515 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

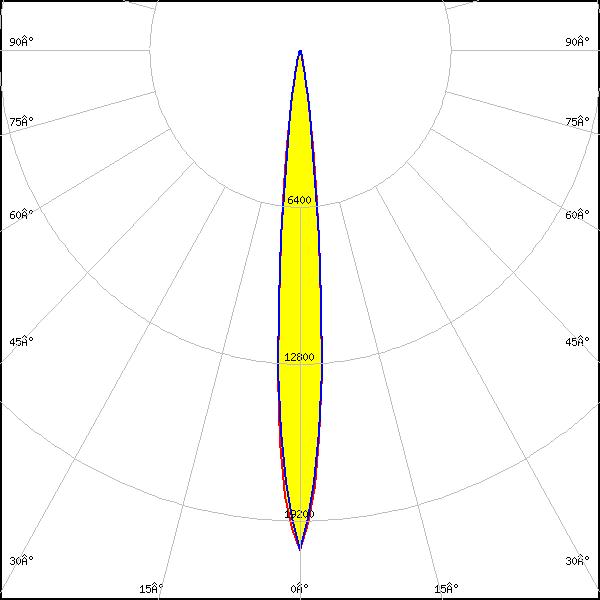

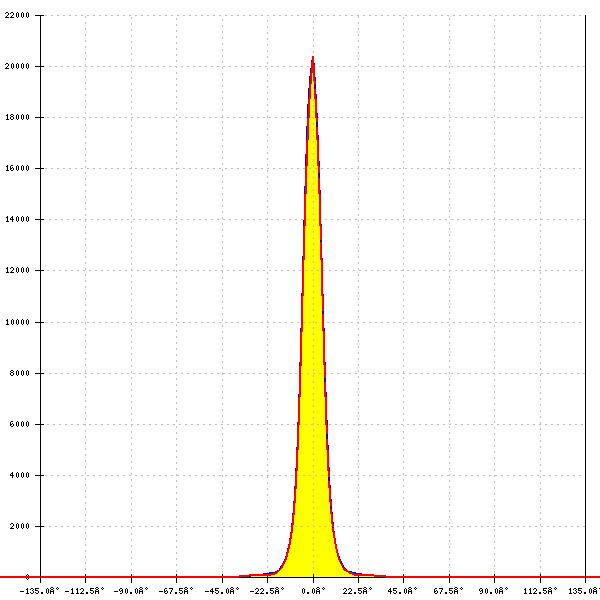

XT-E
FWHM:
10°
FWTM:
20°
Peak intensity:
20.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

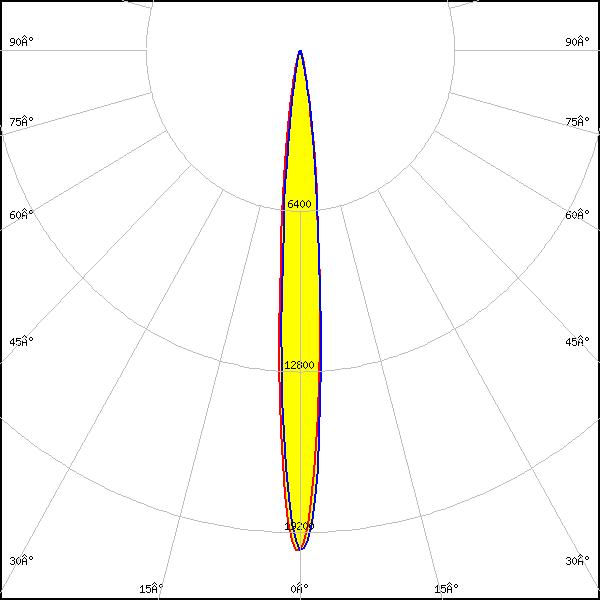

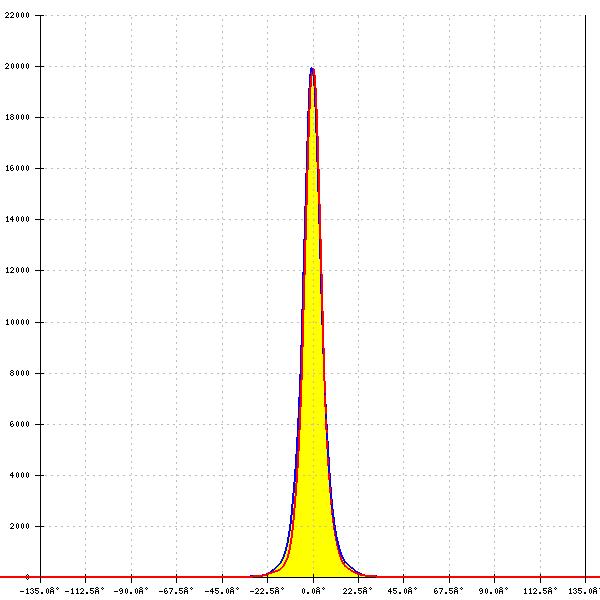

LED:
LUXEON 3030 2D (Square LES)
FWHM:
10°
FWTM:
21°
Peak intensity:
19.900 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

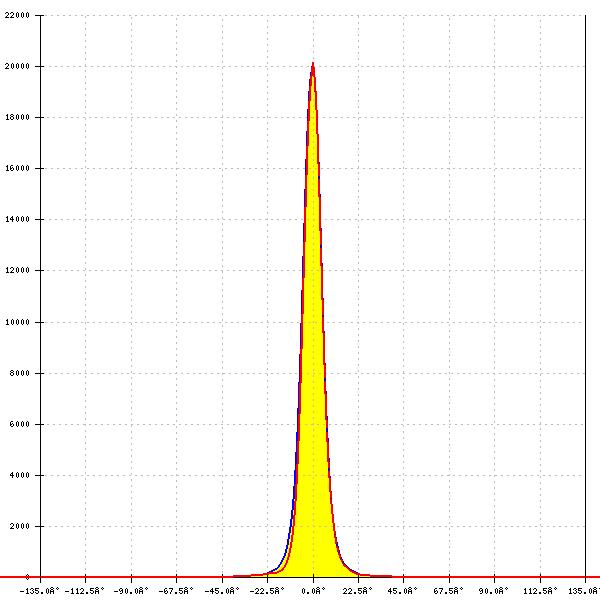

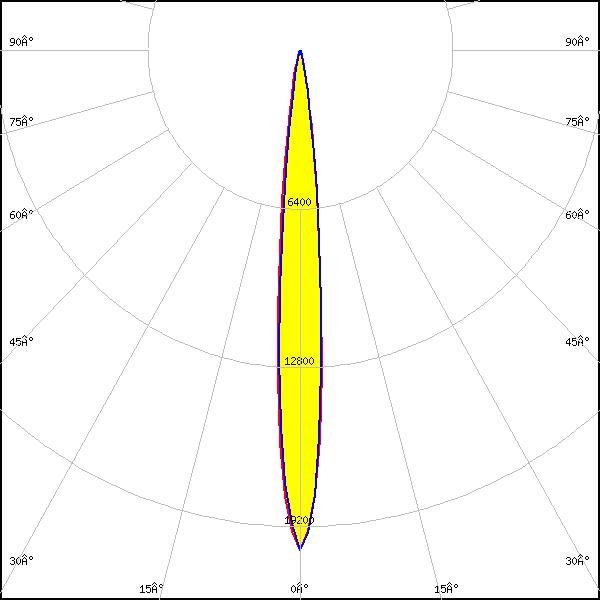

LUXEON 3030 HV
FWHM:
10°
FWTM:
21°
Peak intensity:
20.970 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON A
FWHM:
11°
FWTM:
-
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

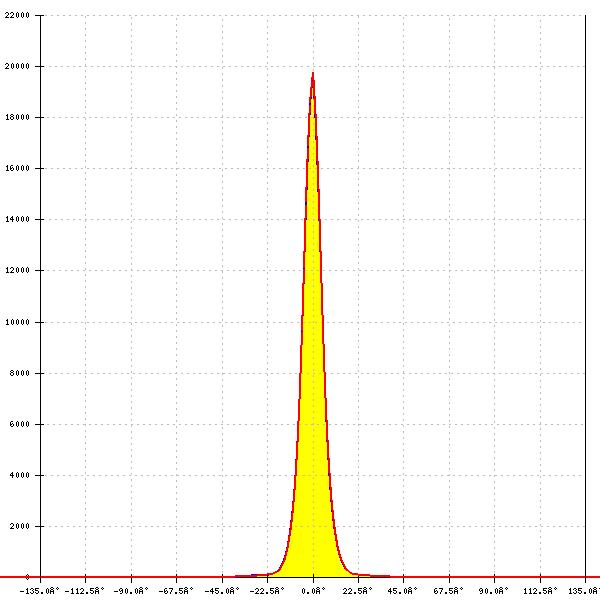

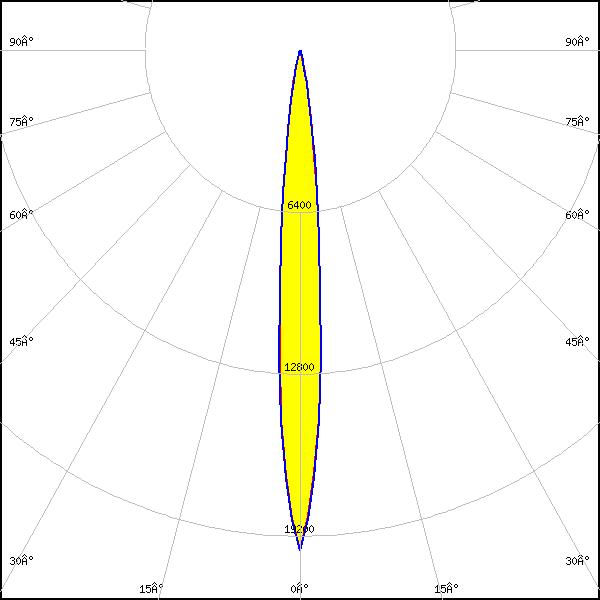

LUXEON HL2Z
FWHM:
10°
FWTM:
22°
Peak intensity:
19.764 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

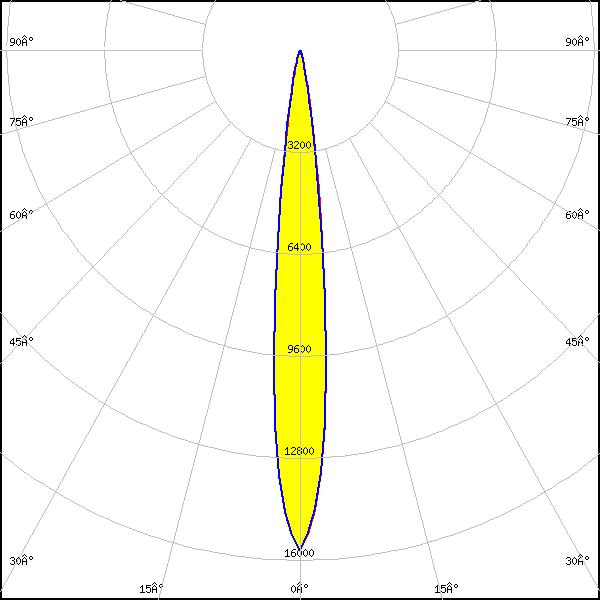

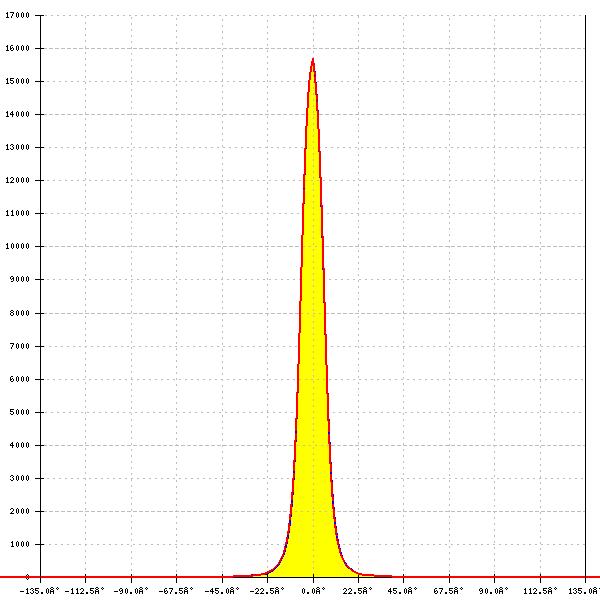

LUXEON HL4Z
FWHM:
12°
FWTM:
22°
Peak intensity:
15.694 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON R
FWHM:
11°
FWTM:
-
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel
FWHM:
9°
FWTM:
-
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel ES
FWHM:
11°
FWTM:
-
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

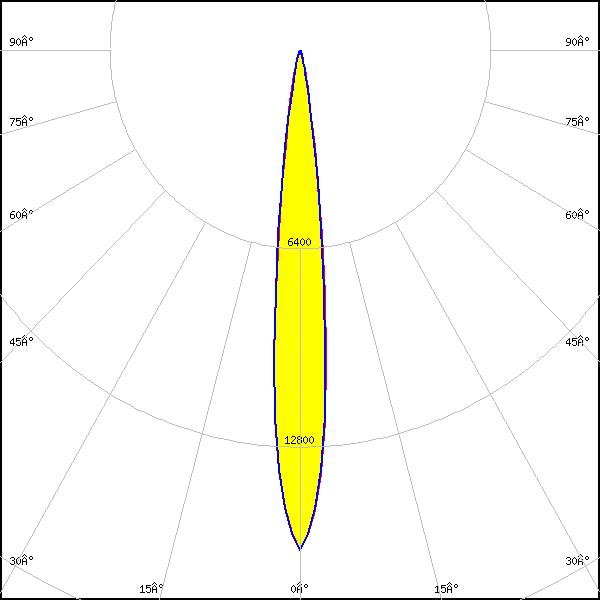

LUXEON T
FWHM:
12°
FWTM:
22°
Peak intensity:
16.133 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

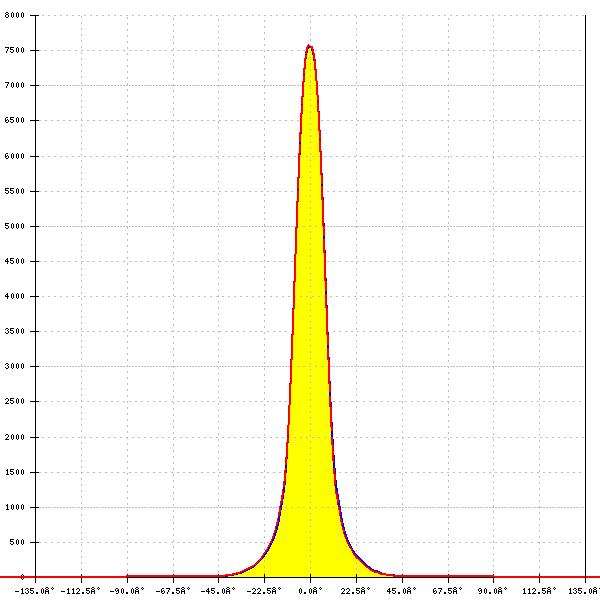

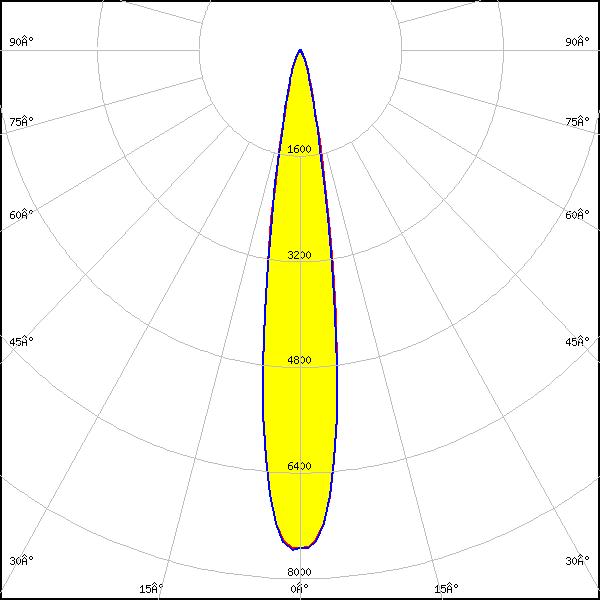

LUXEON V
FWHM:
17°
FWTM:
31°
Peak intensity:
7.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

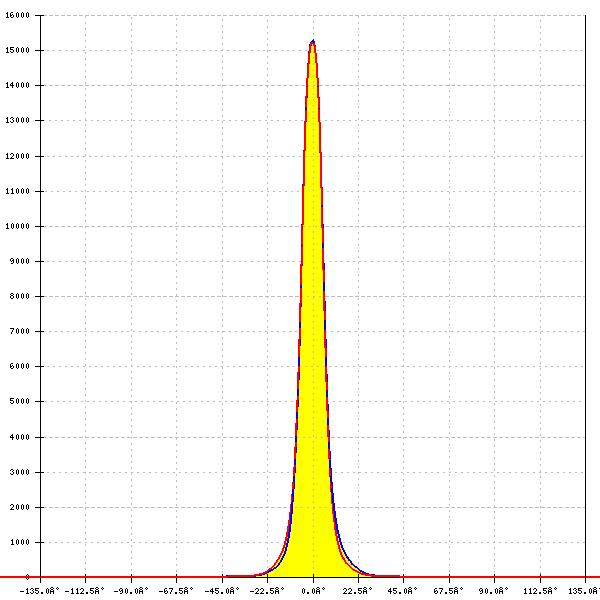

LED:

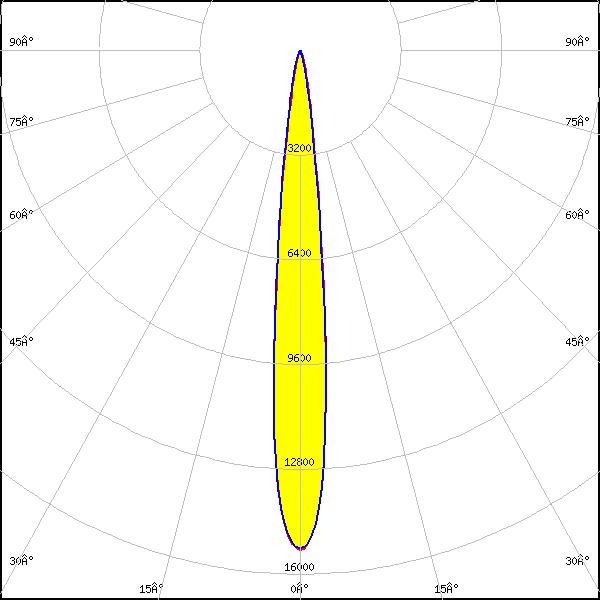

LUXEON V2
FWHM:
12°
FWTM:
22°
Peak intensity:
15.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

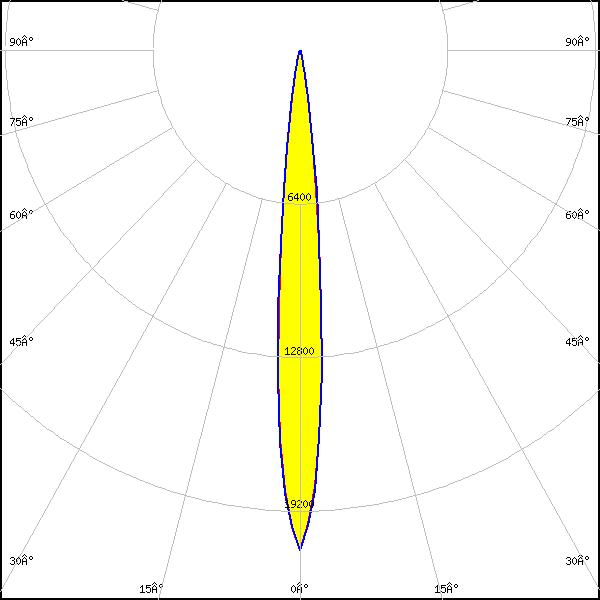

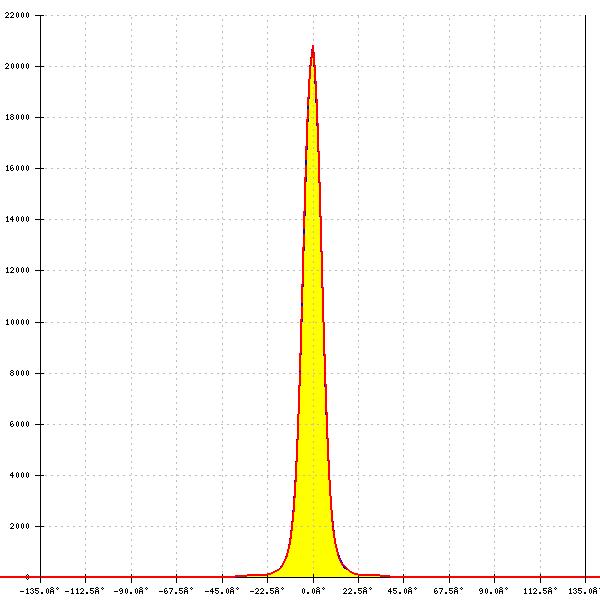

SFT-40 Gen2
FWHM:
10°
FWTM:
20°
Peak intensity:
20.830 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

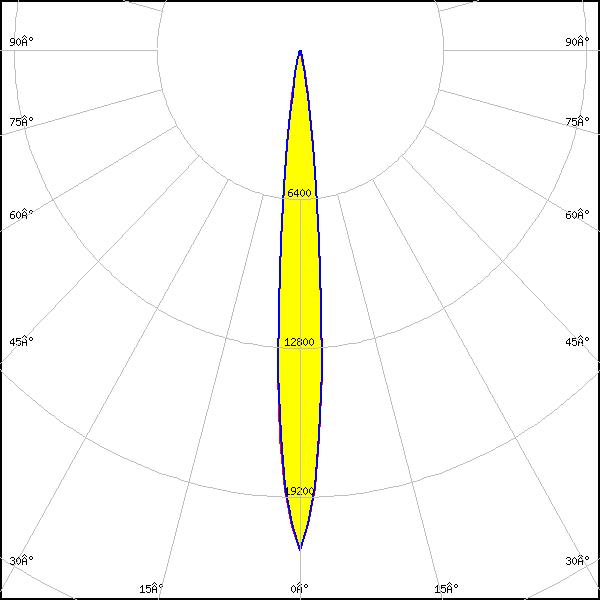

LED:
SFT-40-WCS
FWHM:
10°
FWTM:
20°
Peak intensity:
21.475 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

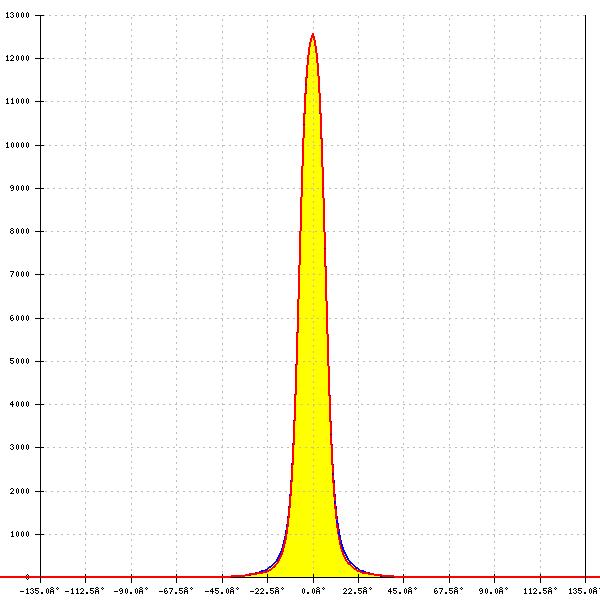

SFT-70X-WCS
FWHM:
14°
FWTM:
24°
Peak intensity:
12.575 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

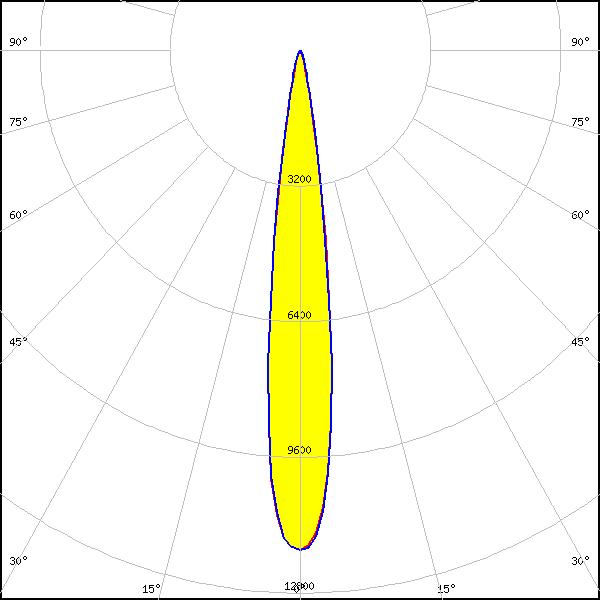

SFT-70X-WES-Gen2
FWHM:
14°
FWTM:
24°
Peak intensity:
11.855 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSxx19A
FWHM:
8°
FWTM:
-
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

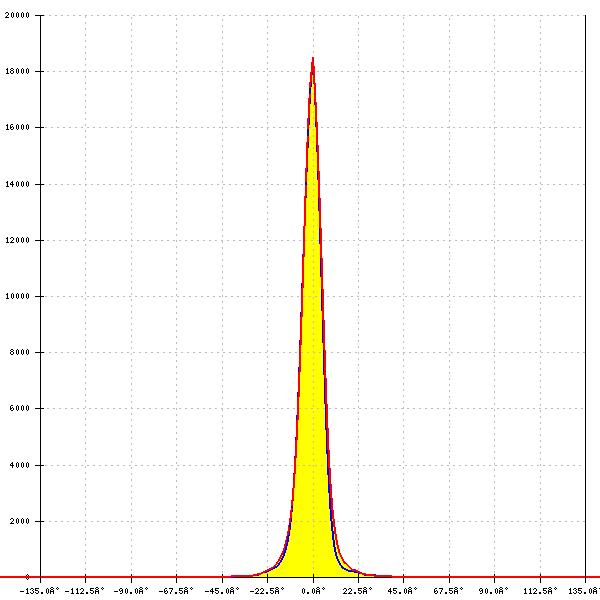

LED:

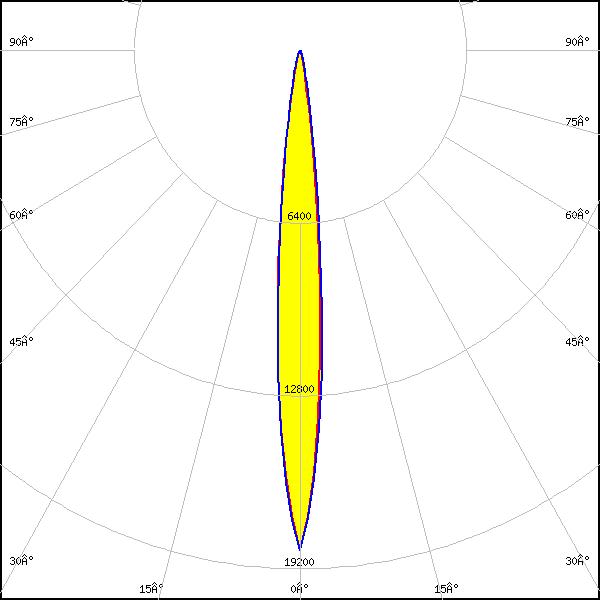

NF2x757G
FWHM:
10°
FWTM:
21°
Peak intensity:
18.516 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

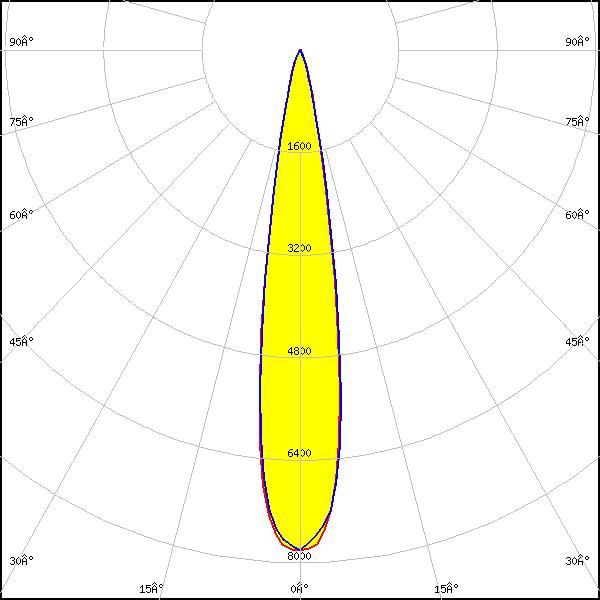

LED:
NV4WB35AM
FWHM:
18°
FWTM:
32°
Peak intensity:
7.881 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

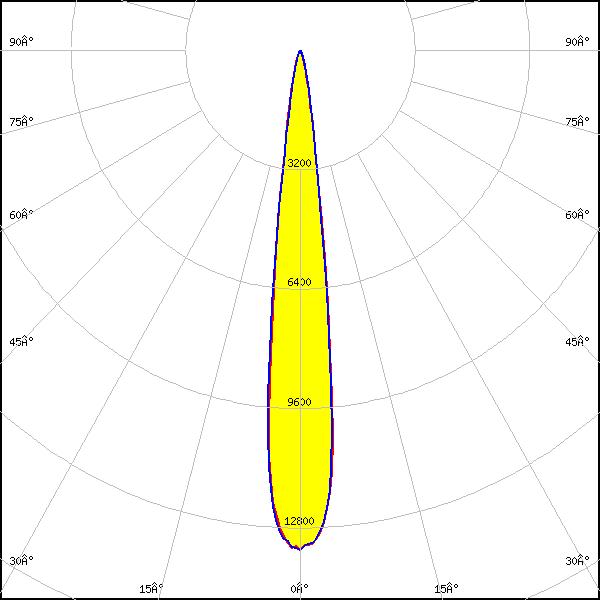

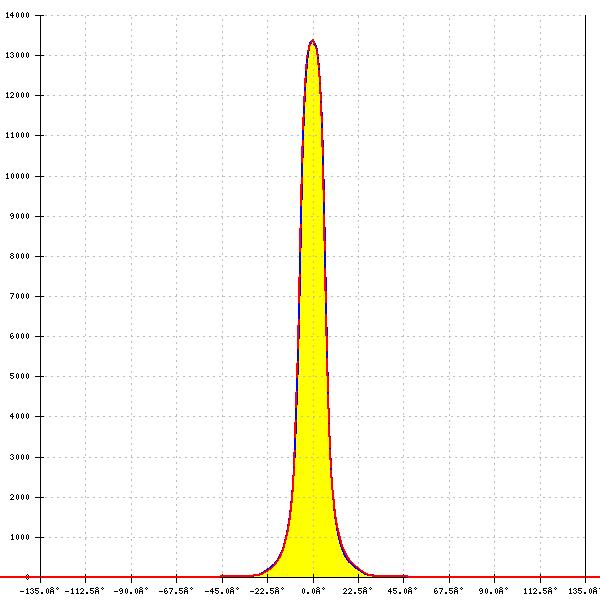

LED:
NVSW219F
FWHM:
13°
FWTM:
23°
Peak intensity:
13.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

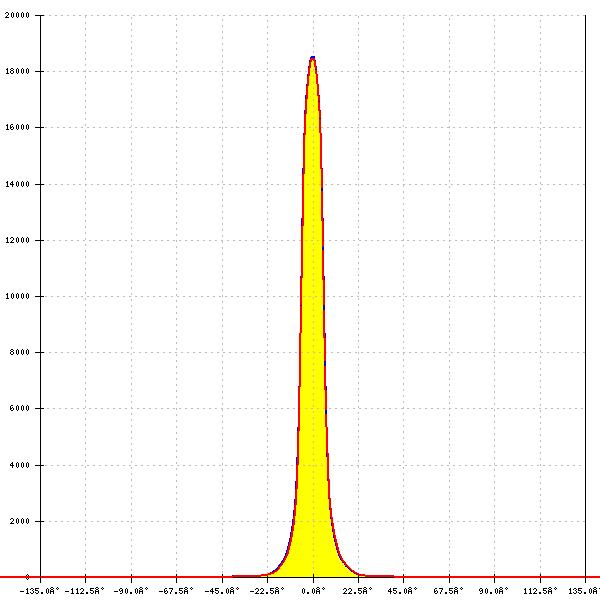

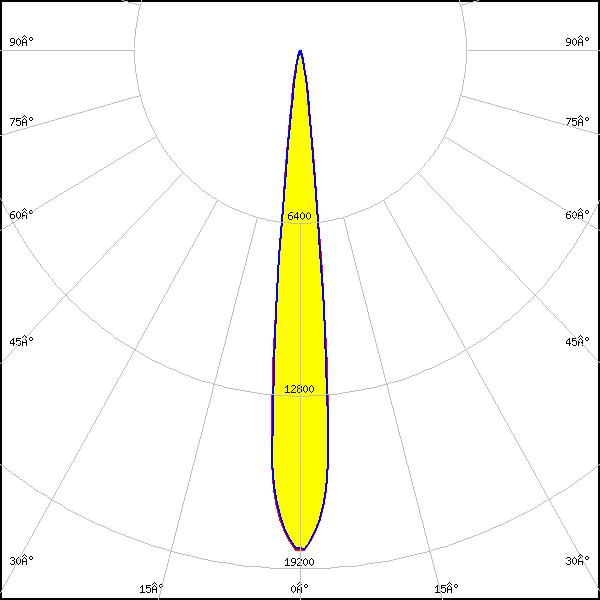

NVSW719AC
FWHM:
11°
FWTM:
20°
Peak intensity:
18.563 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

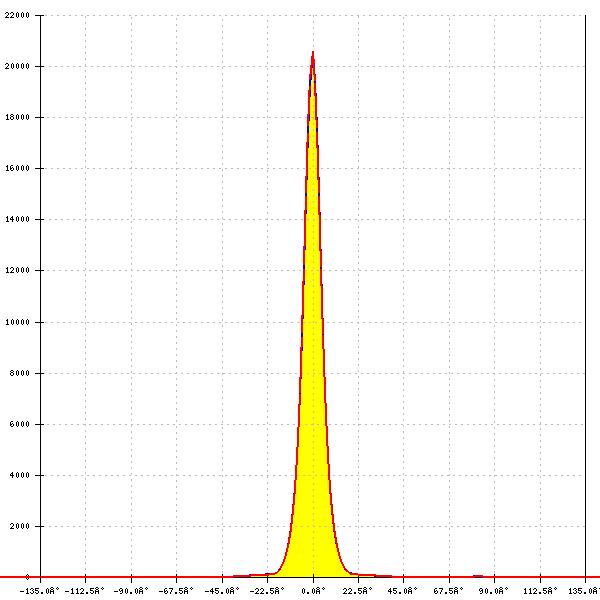

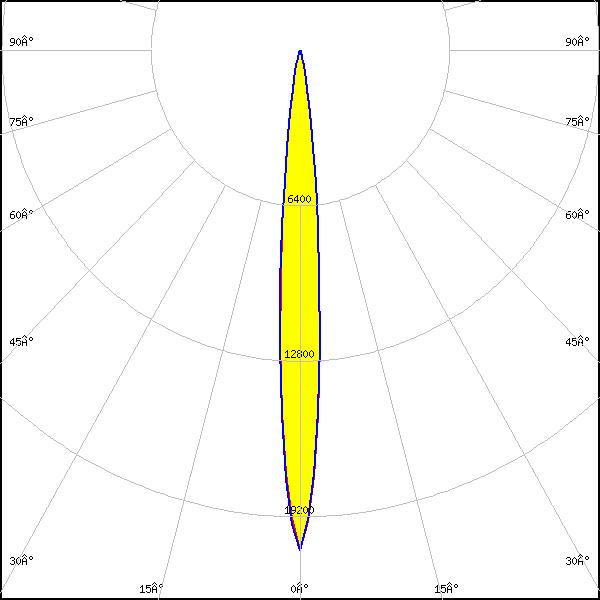

NVSxE21A
FWHM:
9°
FWTM:
21°
Peak intensity:
20.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

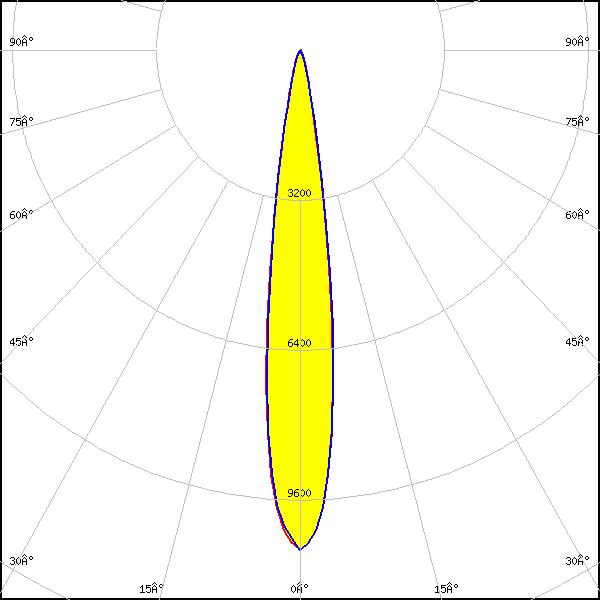

LED:

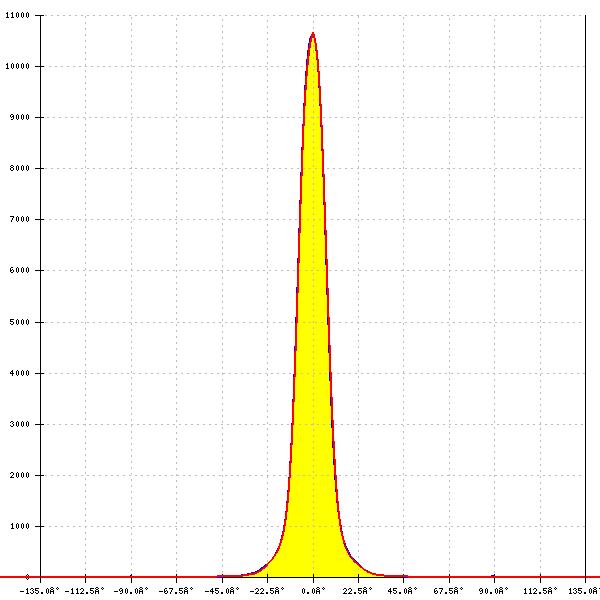

NVSxx19A
FWHM:
15°
FWTM:
28°
Peak intensity:
10.674 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

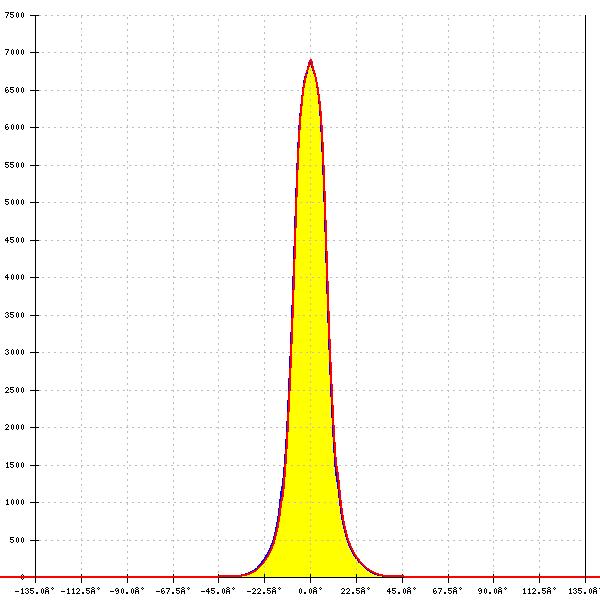

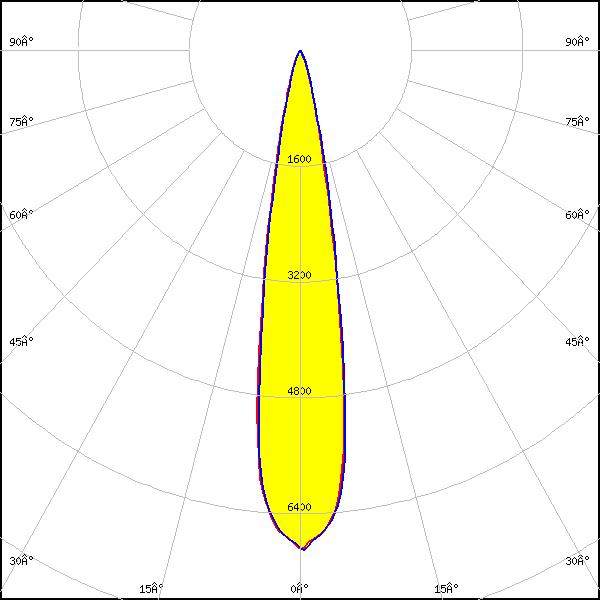

NWSx229A
FWHM:
18°
FWTM:
33°
Peak intensity:
6.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

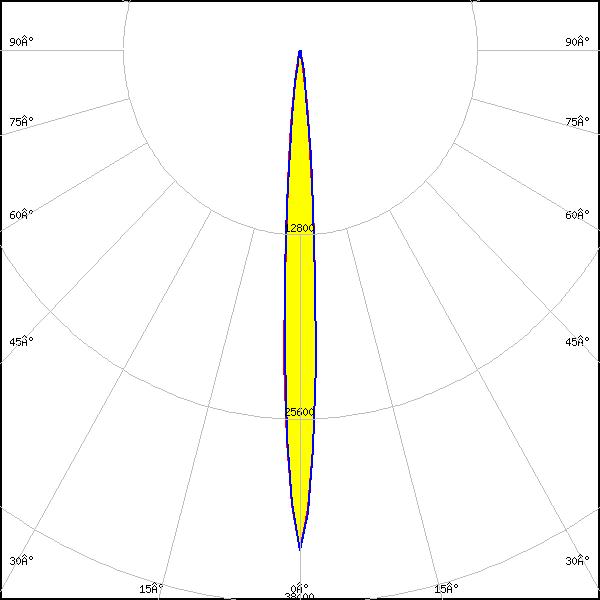

LED:

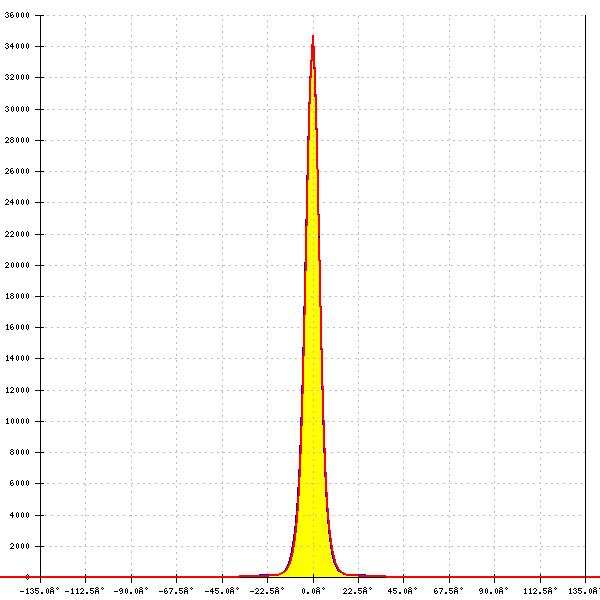

OSCONIQ P 3030
FWHM:
7°
FWTM:
16°
Peak intensity:
34.706 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

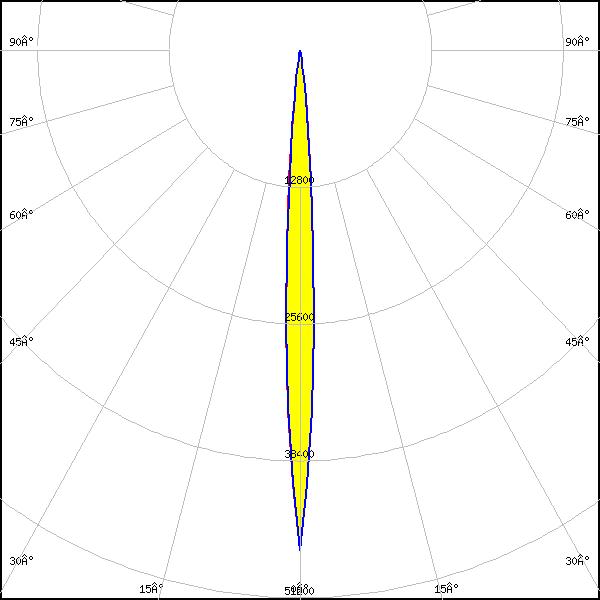

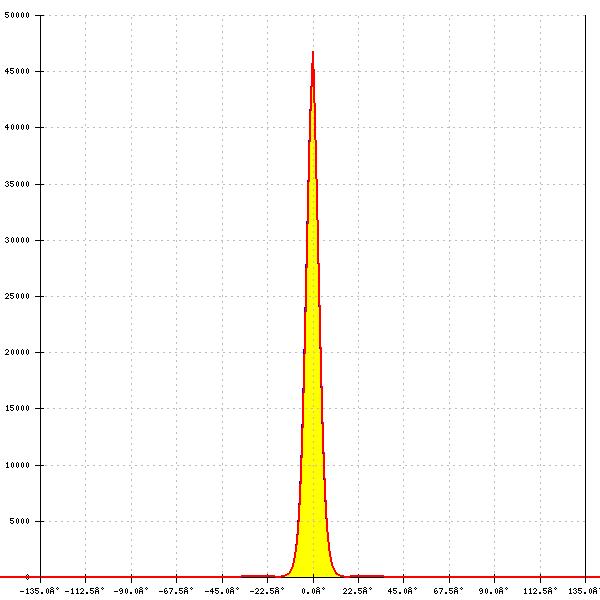

LED:
OSLON Pure 1414
FWHM:
6°
FWTM:
14°
Peak intensity:
46.769 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

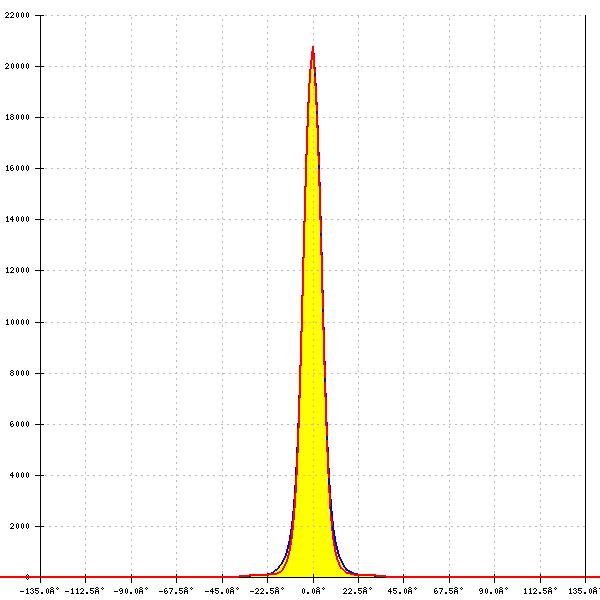

LED:

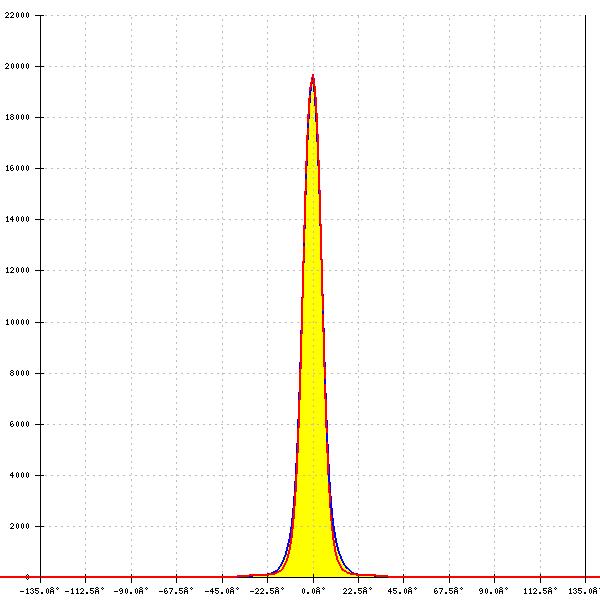

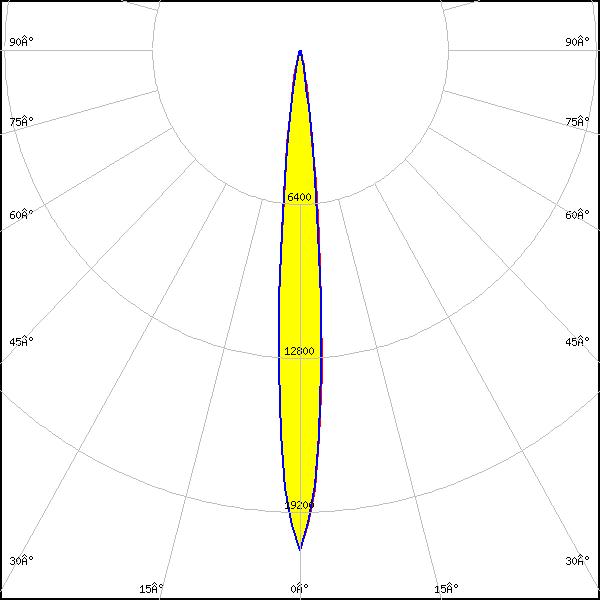

OSLON Square CSSRM2/CSSRM3
FWHM:
10°
FWTM:
20°
Peak intensity:
20.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

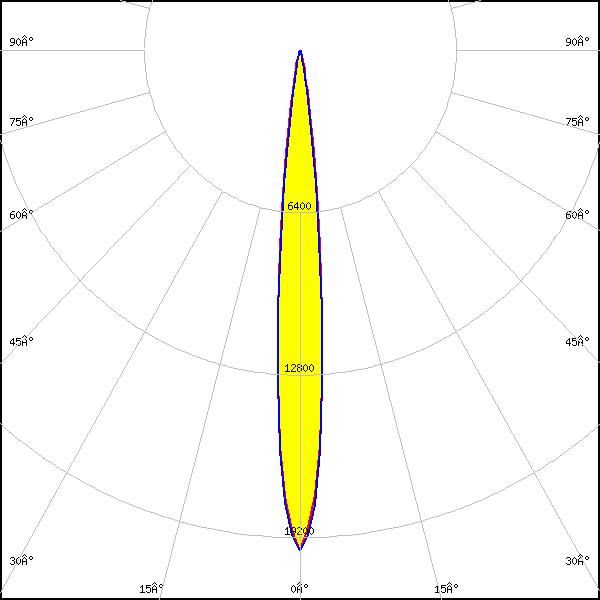

OSLON Square EC
FWHM:
10°
FWTM:
19°
Peak intensity:
20.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square PC
FWHM:
10°
FWTM:
-
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
8°
FWTM:
-
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

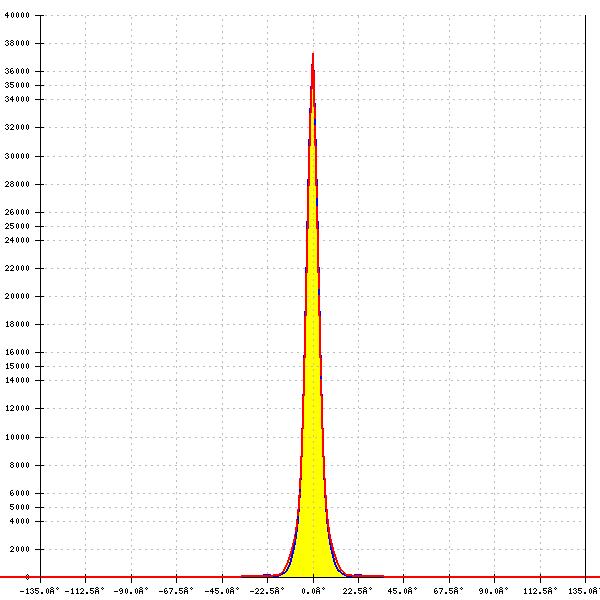

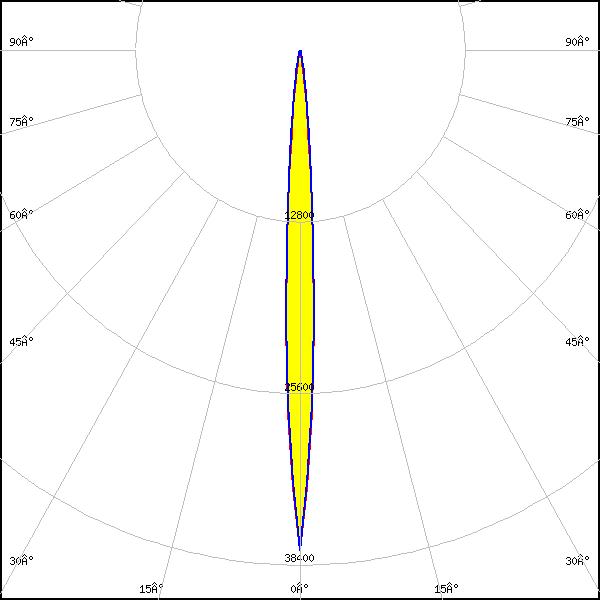

LED:
OSLON SSL 80
FWHM:
7°
FWTM:
-
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

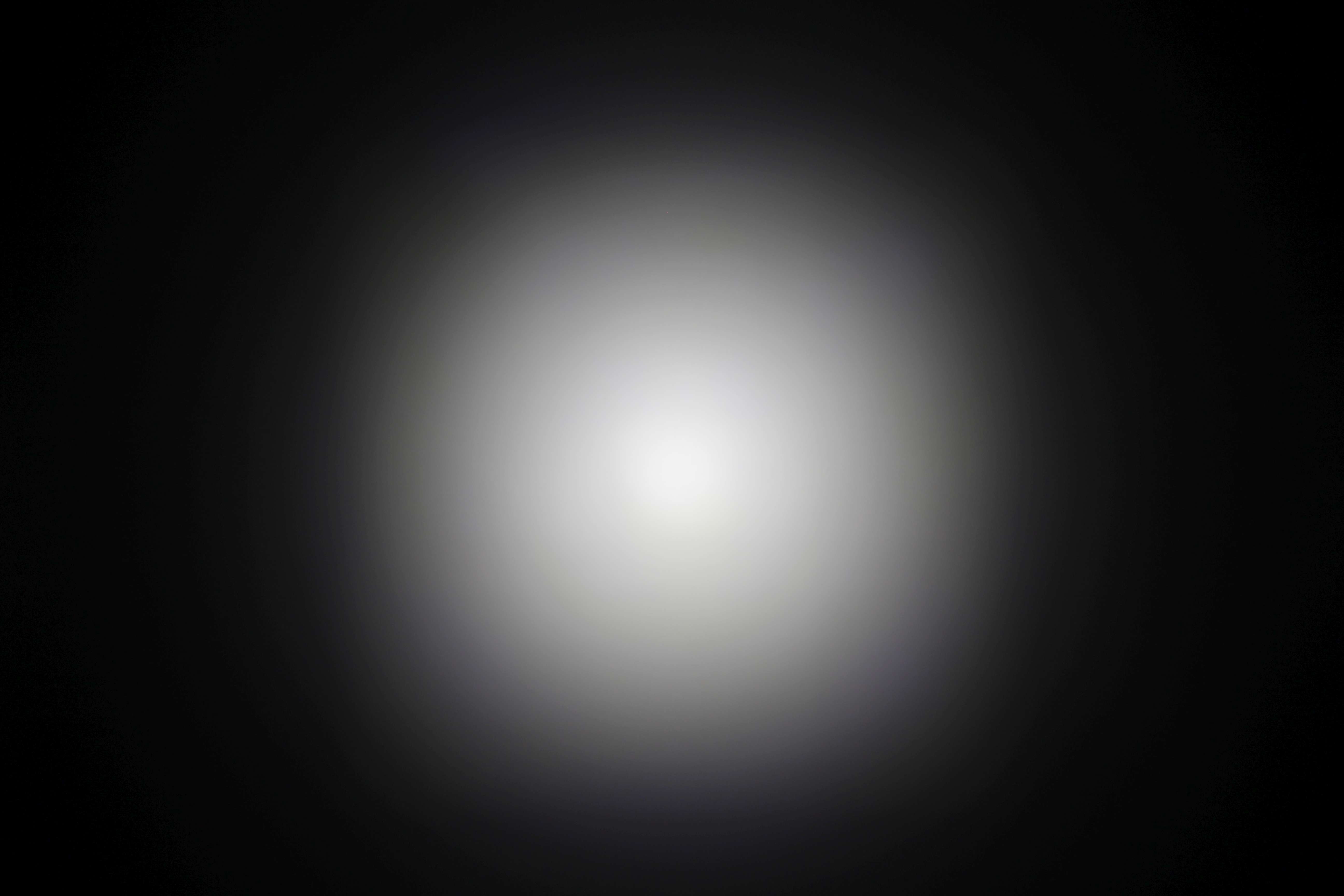

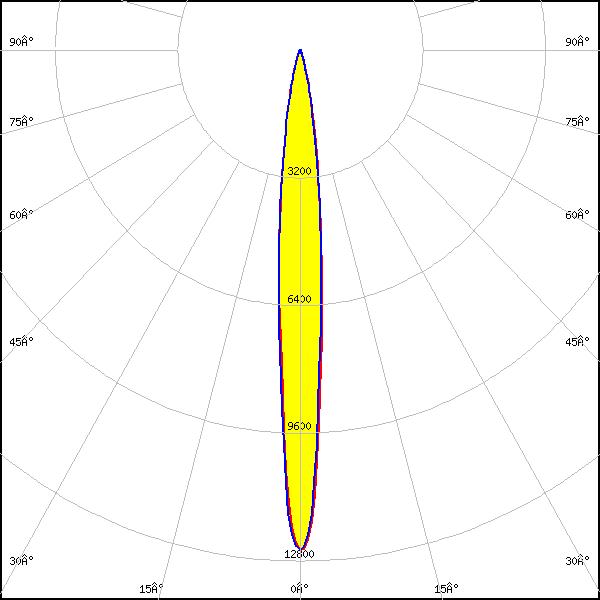

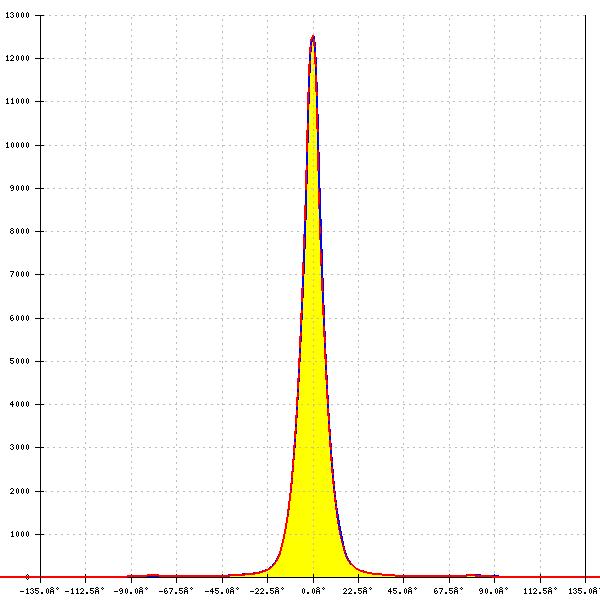

LH181A
FWHM:
10°
FWTM:
26°
Peak intensity:
12.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

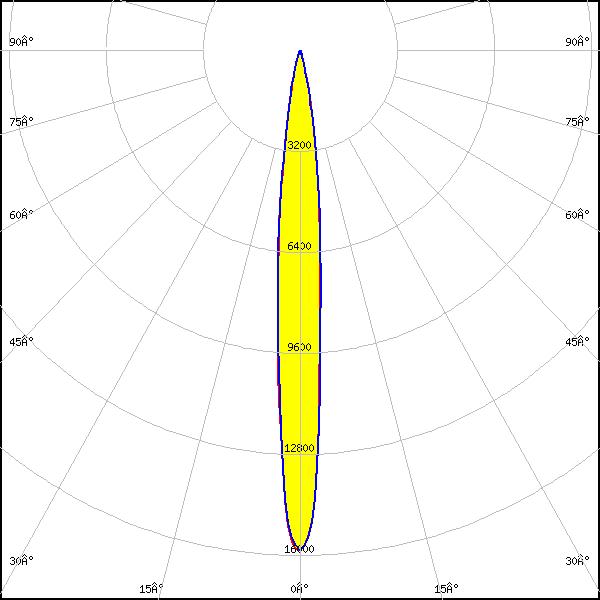

LED:

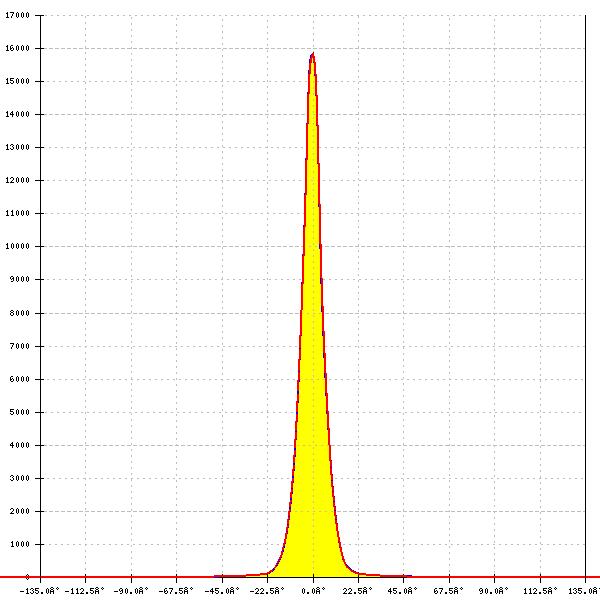

LH181B
FWHM:
10°
FWTM:
24°
Peak intensity:
15.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM:
12°
FWTM:
-
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

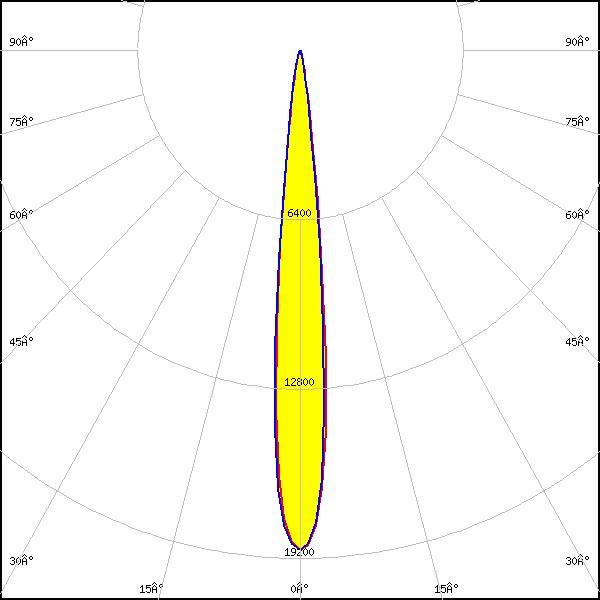

LH351Z
FWHM:
12°
FWTM:
20°
Peak intensity:
18.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

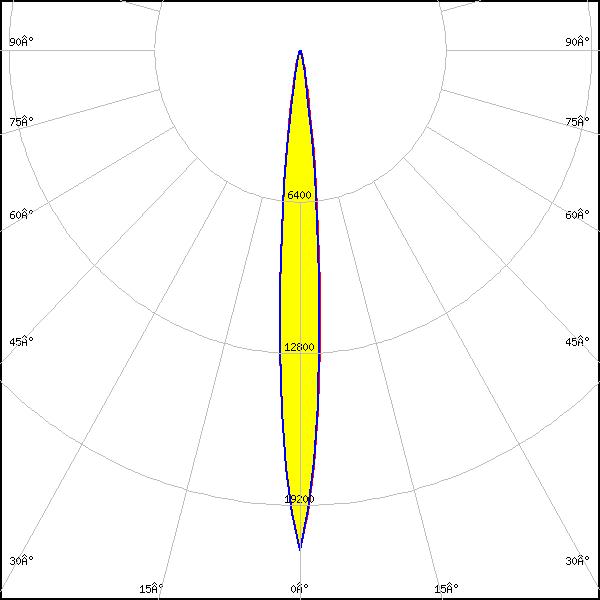

LED:
MJT 3030
FWHM:
10°
FWTM:
20°
Peak intensity:
21.095 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

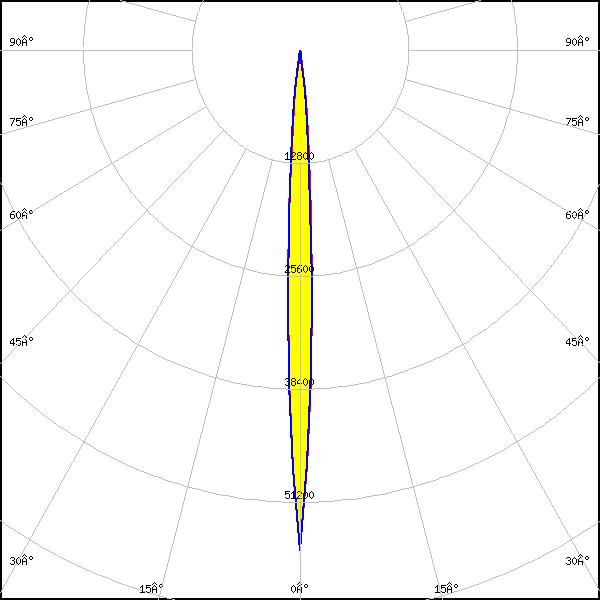

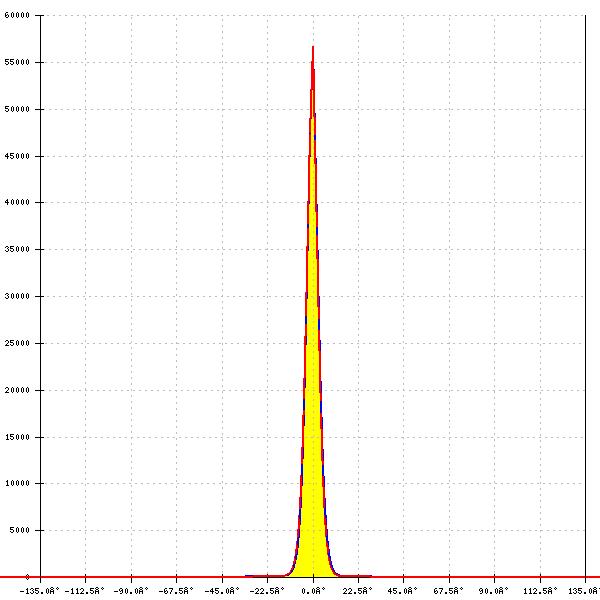

Z5
FWHM:
6°
FWTM:
13°
Peak intensity:
56.649 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

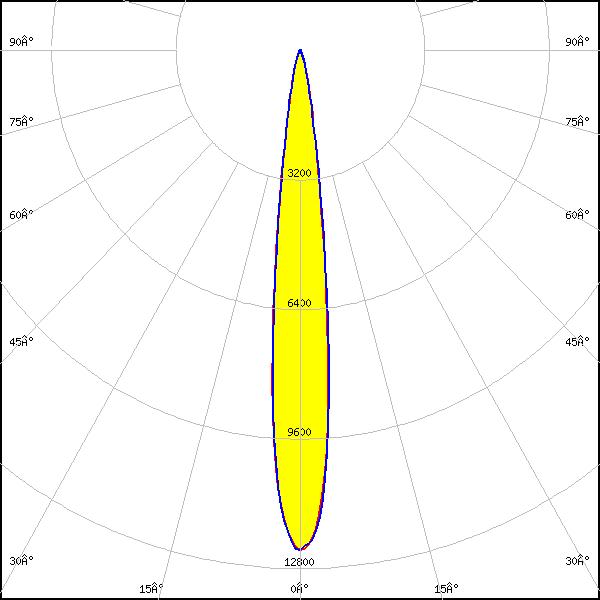

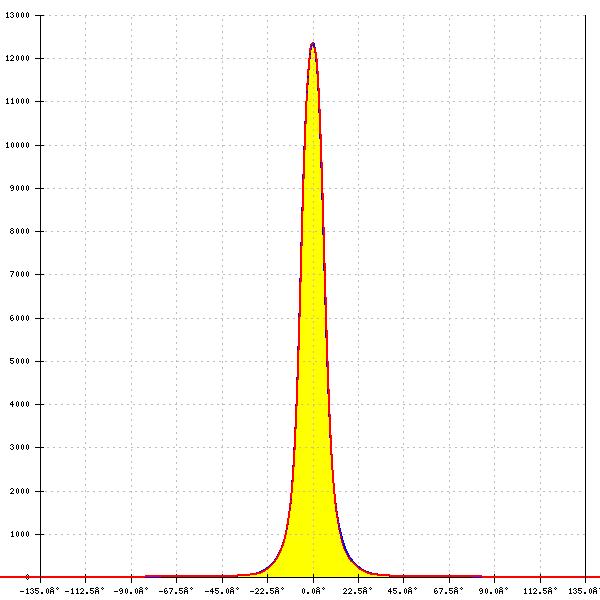

LED:
Z5M3
FWHM:
13°
FWTM:
25°
Peak intensity:
12.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

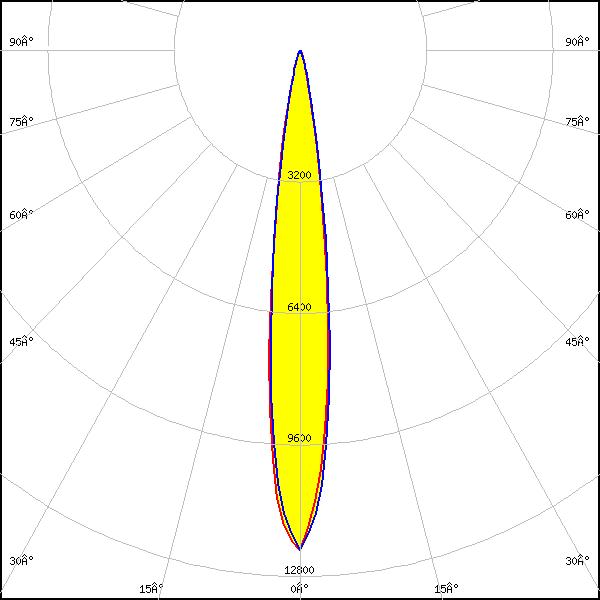

Z5M4
FWHM:
14°
FWTM:
26°
Peak intensity:
12.165 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

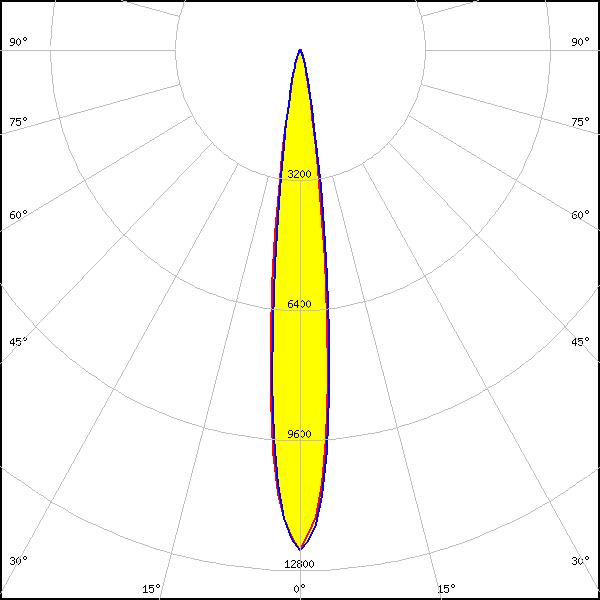

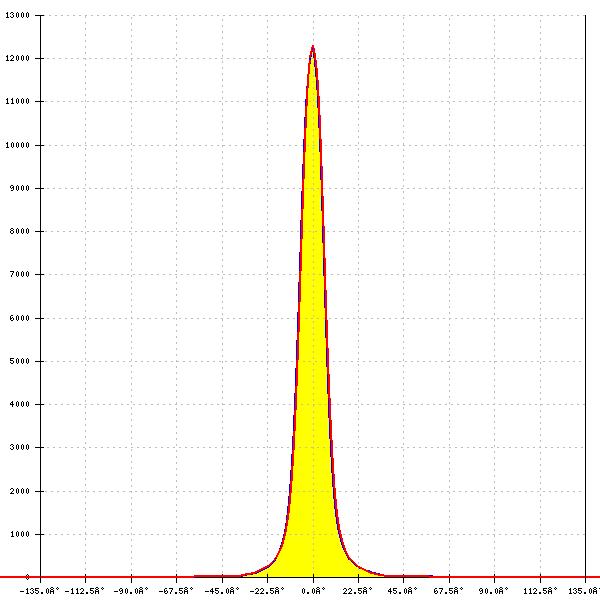

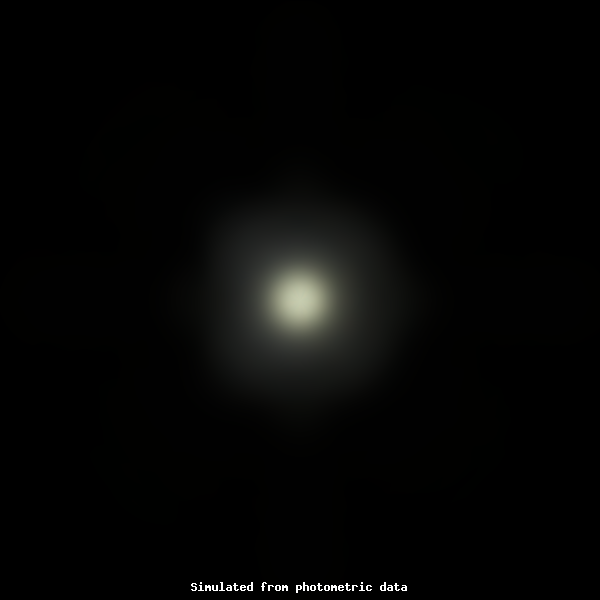

Z5M4-E1
FWHM:
13°
FWTM:
25°
Peak intensity:
12.300 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

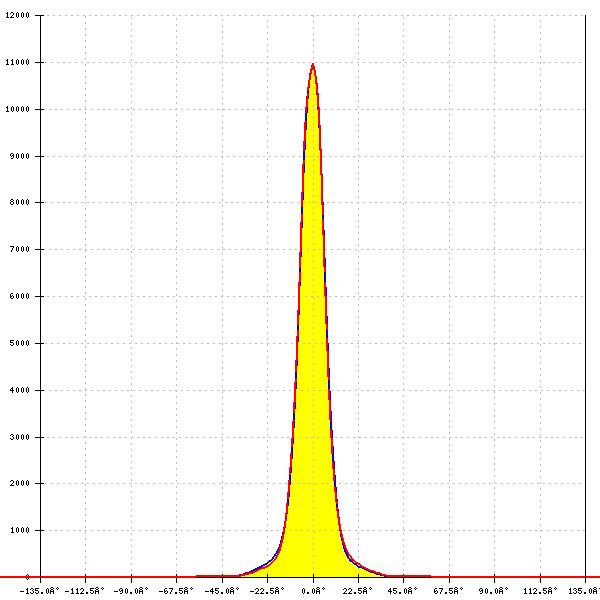

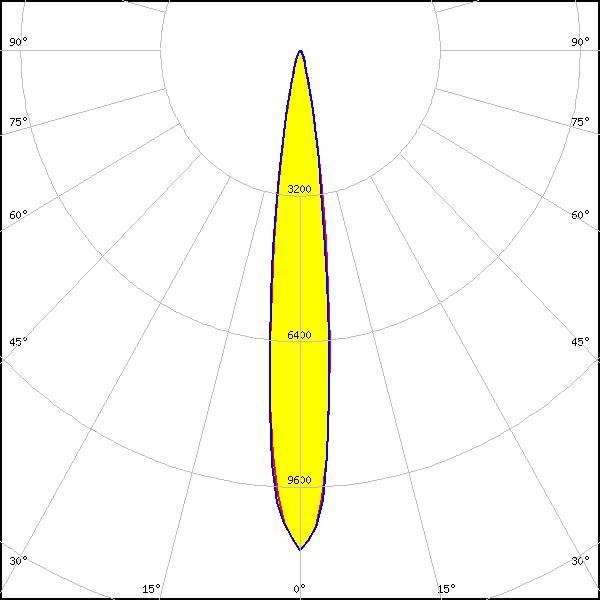

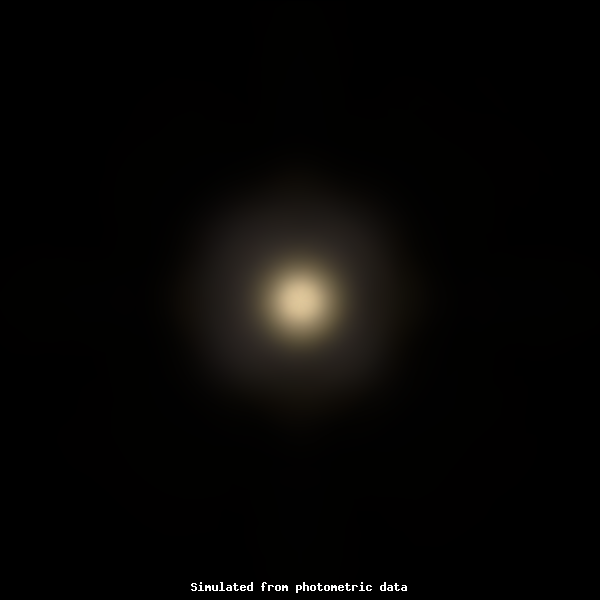

Z5M4-E2
FWHM:
14°
FWTM:
27°
Peak intensity:
10.985 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

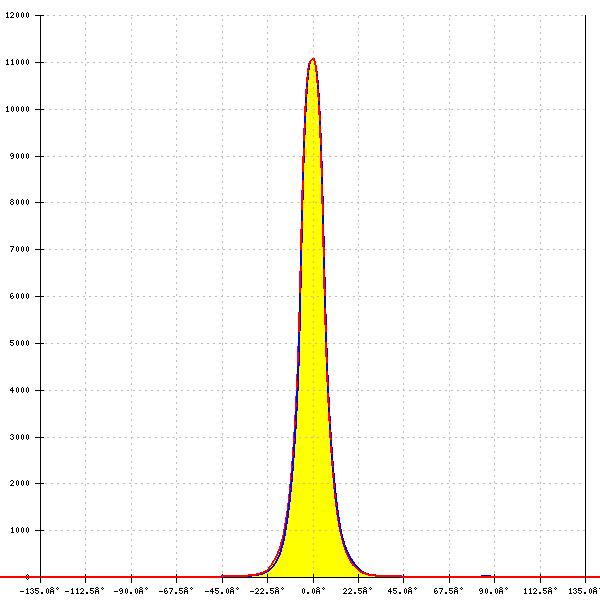

LED:

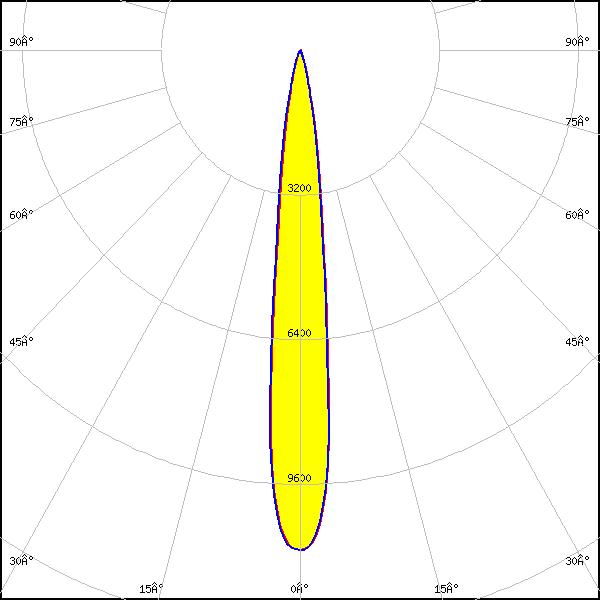

Z8Y22P
FWHM:
12°
FWTM:
26°
Peak intensity:
11.059 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

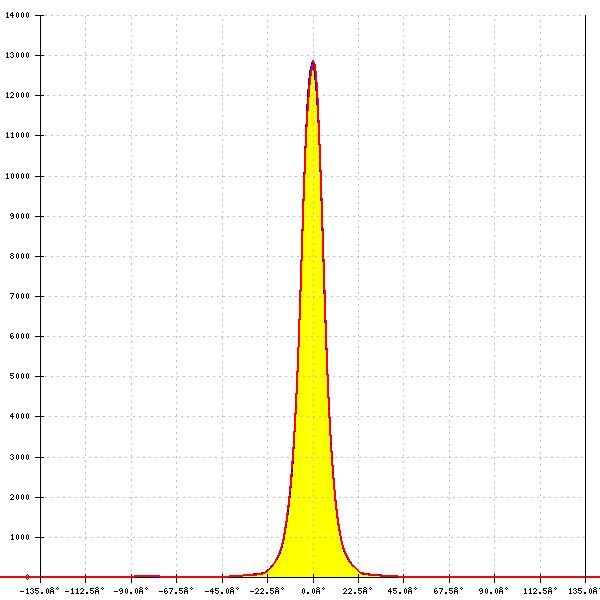

LED:
Z8Y22T
FWHM:
12°
FWTM:
26°
Peak intensity:
12.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

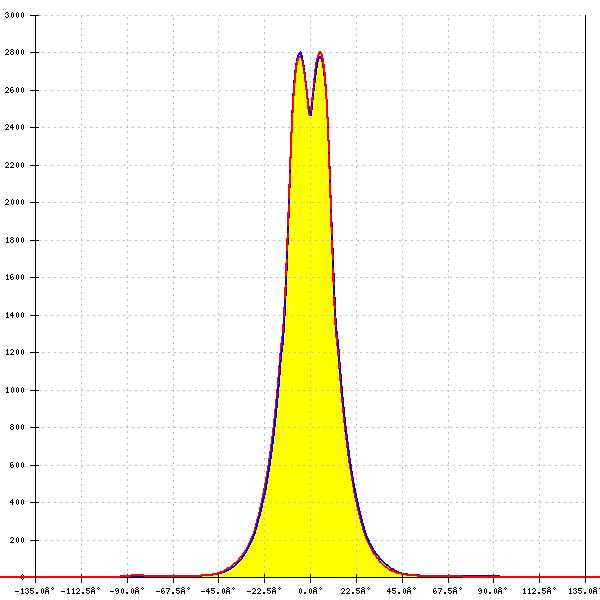

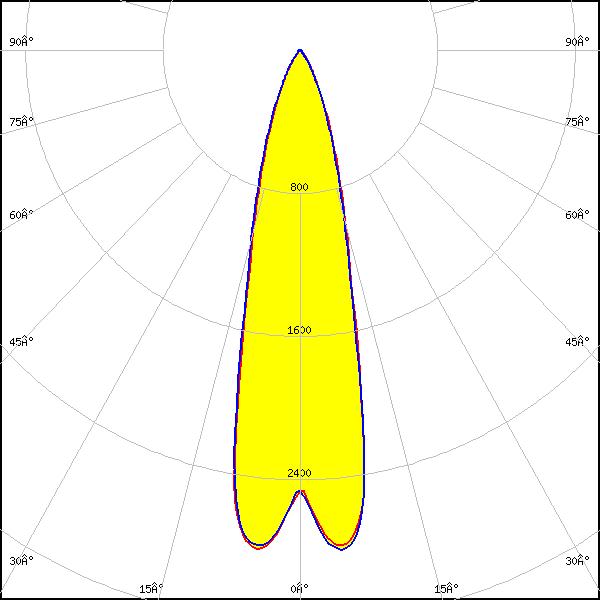

Z8Y50P
FWHM:
25°
FWTM:
52°
Peak intensity:
2.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Double Dome (GM2BB)
LEDs/each optic:
1
Light colour/type:
White
