IESNA Type V (square) beam for wide areas lighting such as car parks. Version with location pins. Assembly with installation tape.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

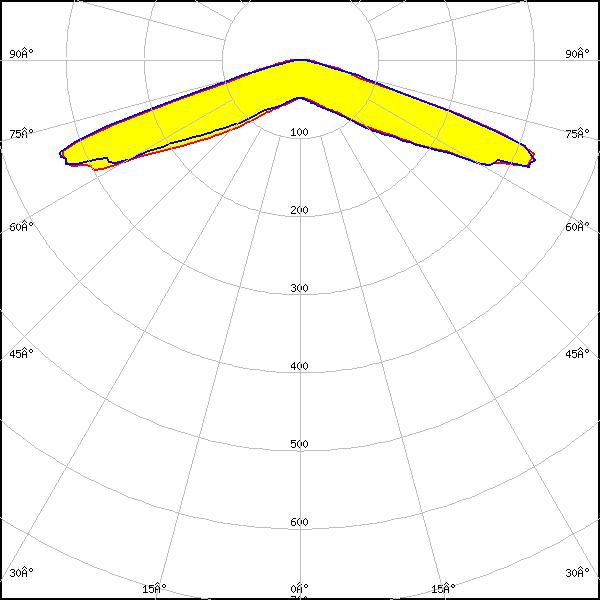

Optical results
LED:

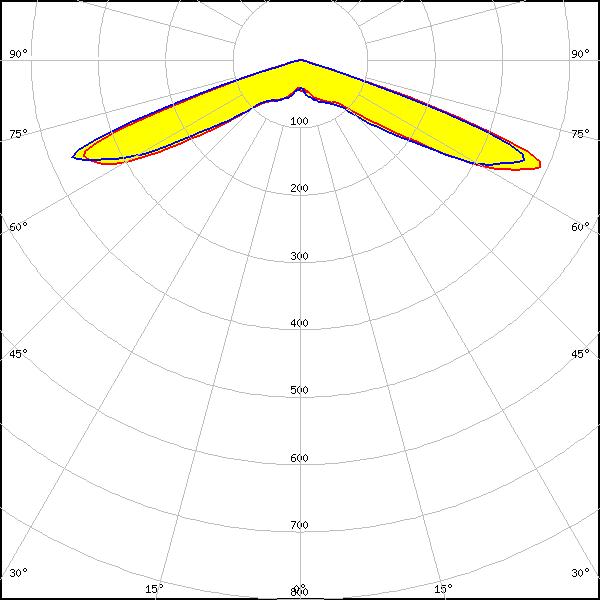

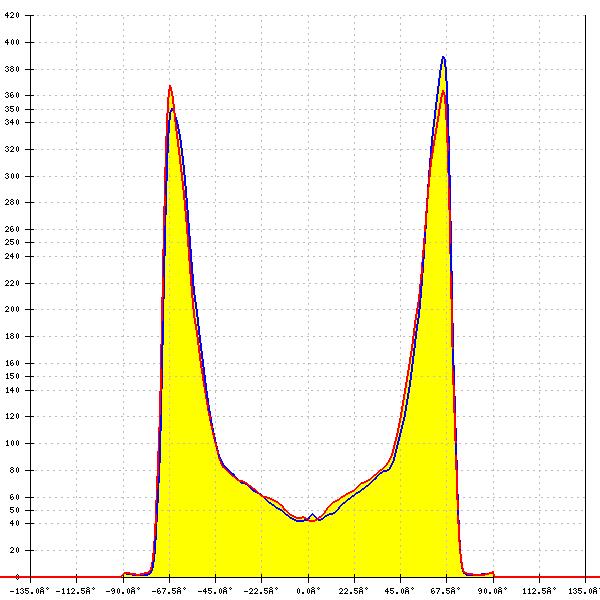

Bridgelux SMD 3030
FWHM:
142°
FWTM:
147°
Peak intensity:
0.589 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

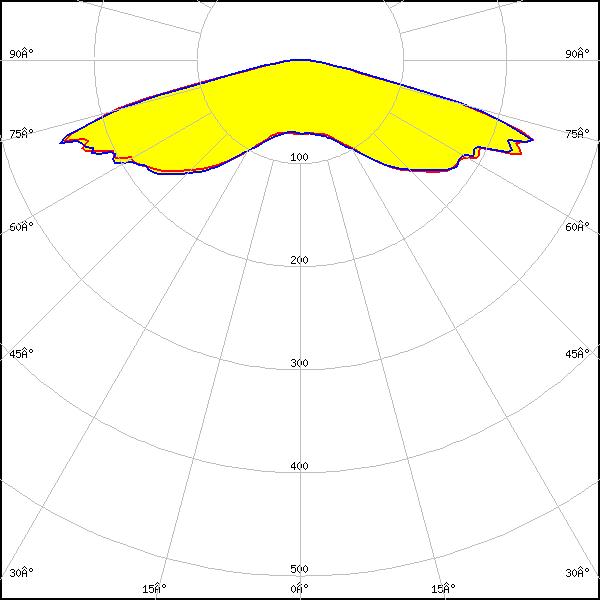

MK-R
FWHM:
156°
FWTM:
171°
Peak intensity:
0.300 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

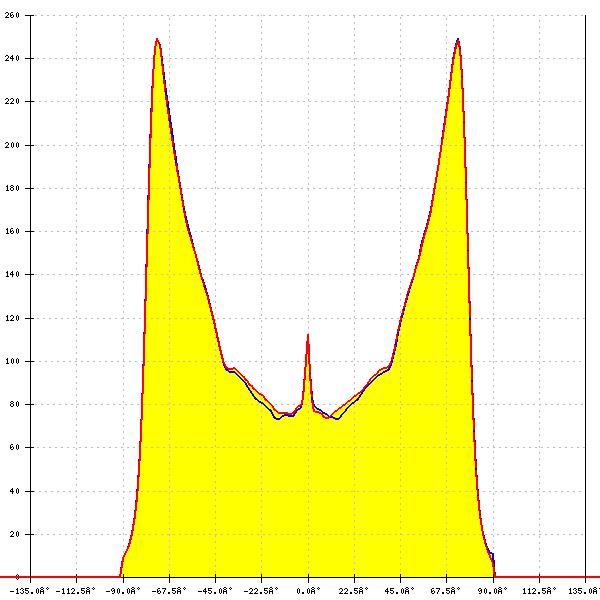

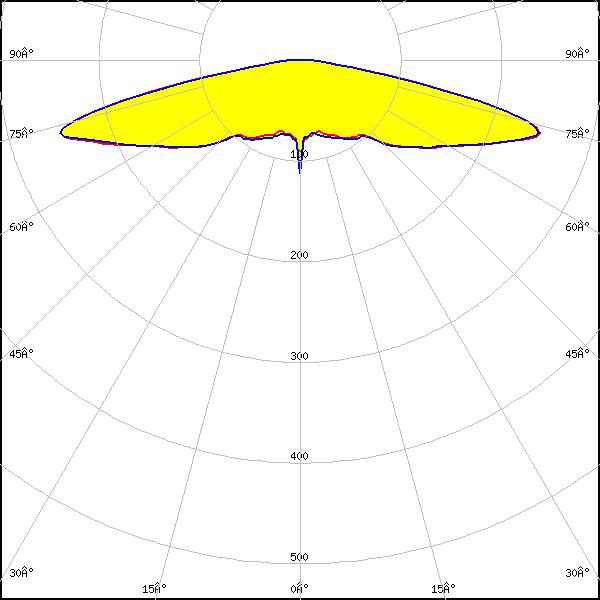

XHP35 HD
FWHM:
158°
FWTM:
170°
Peak intensity:
0.317 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

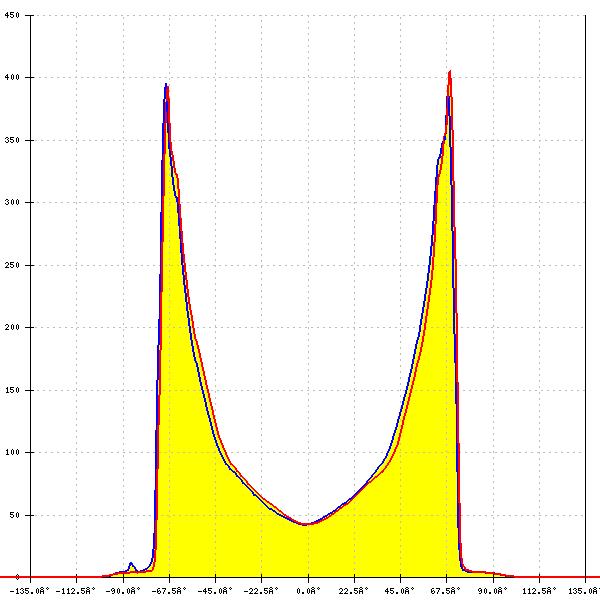

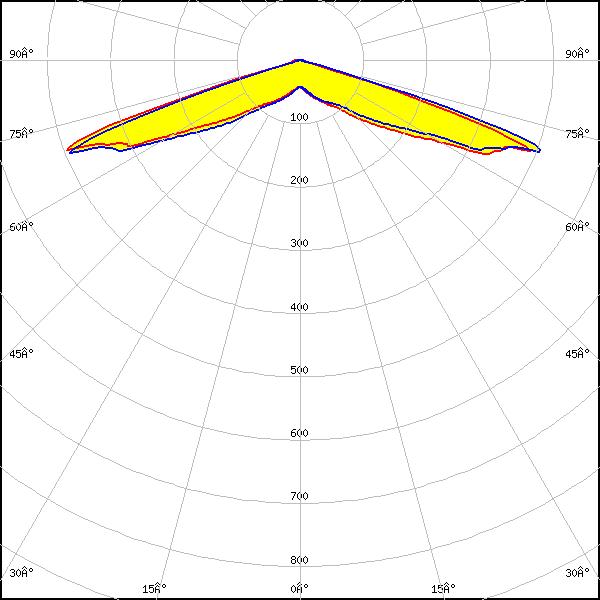

XHP35 HI
FWHM:
145°
FWTM:
148°
Peak intensity:
0.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

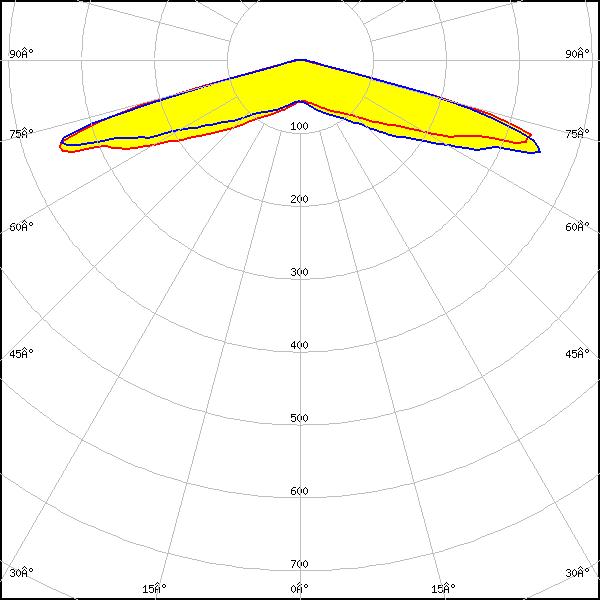

LED:

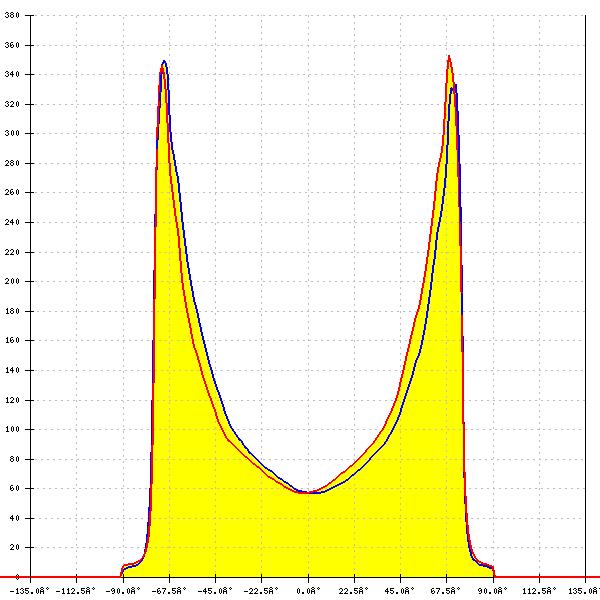

XM-L
FWHM:
154°
FWTM:
-
Peak intensity:
0.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

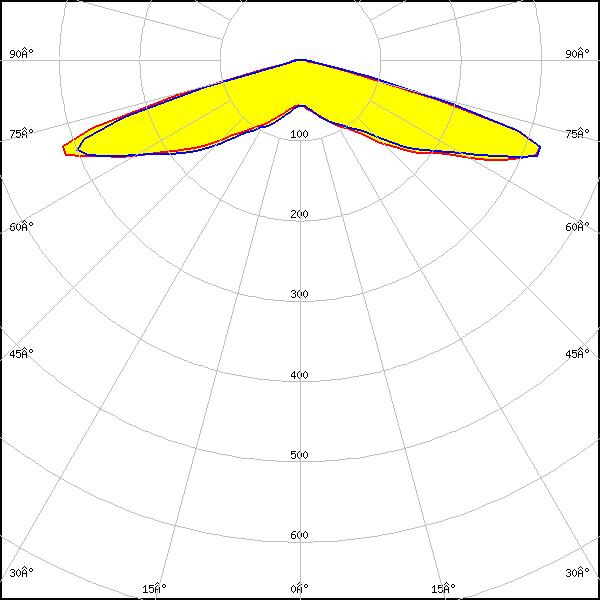

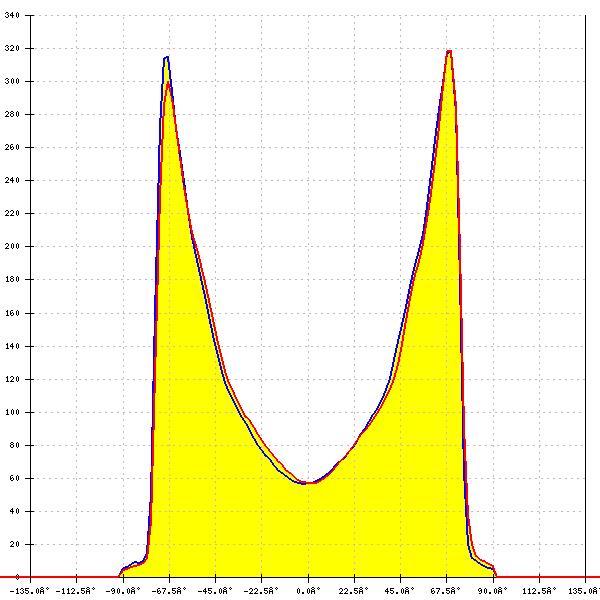

LED:
XM-L2
FWHM:
155°
FWTM:
177°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

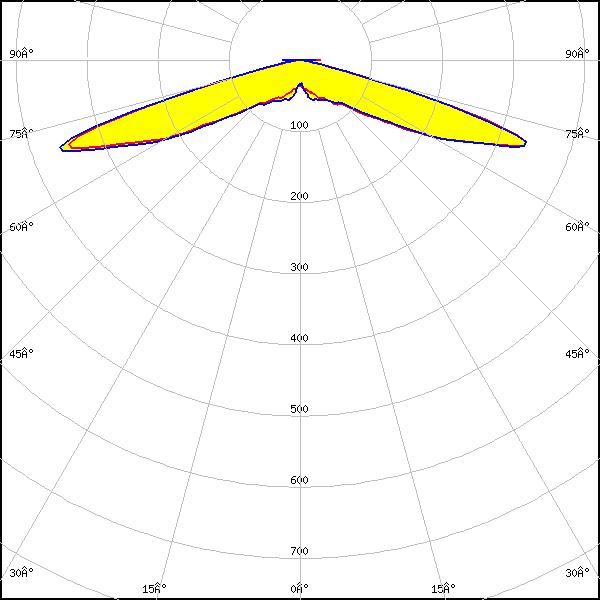

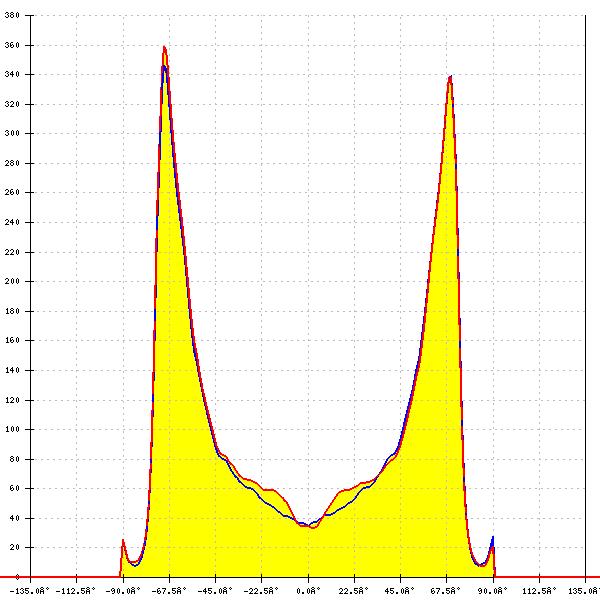

XP-G3
FWHM:
148°
FWTM:
156°
Peak intensity:
0.494 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

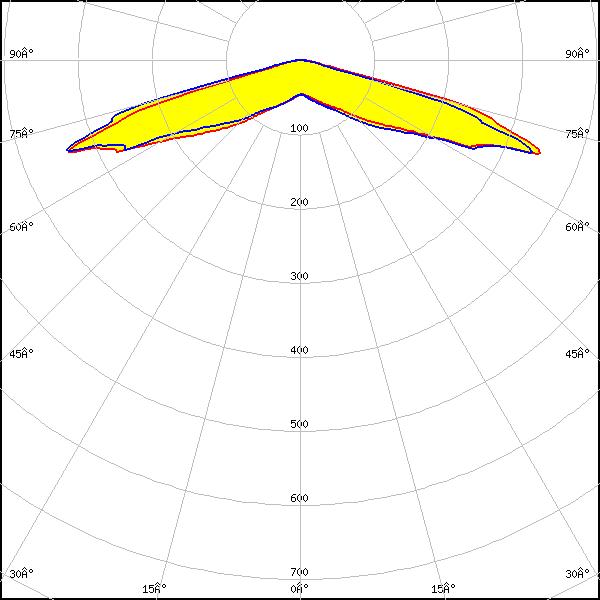

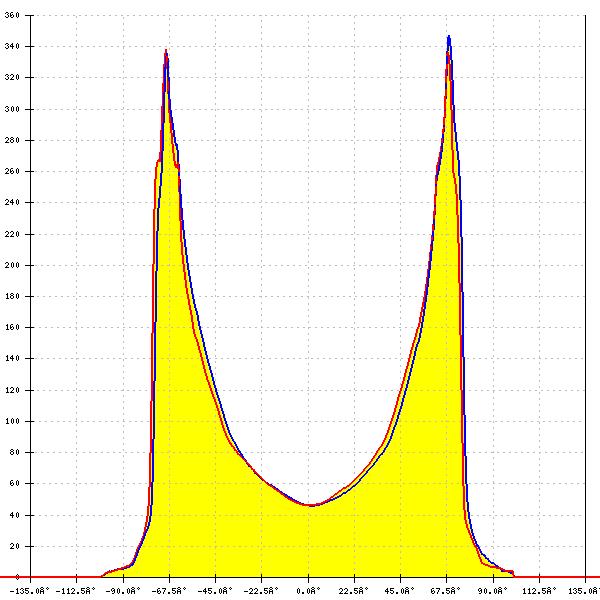

XP-L HD
FWHM:
150°
FWTM:
159°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

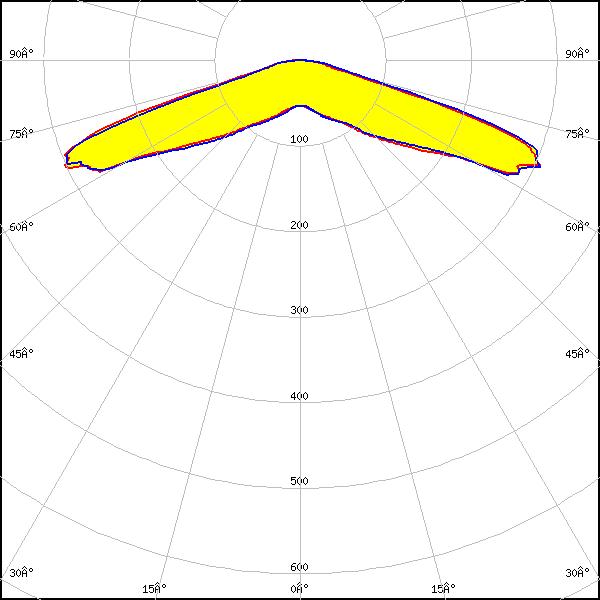

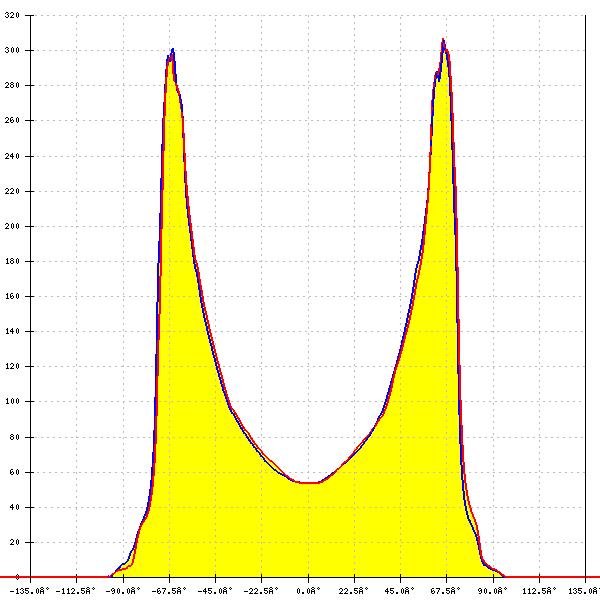

XP-L2
FWHM:
146°
FWTM:
163°
Peak intensity:
0.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

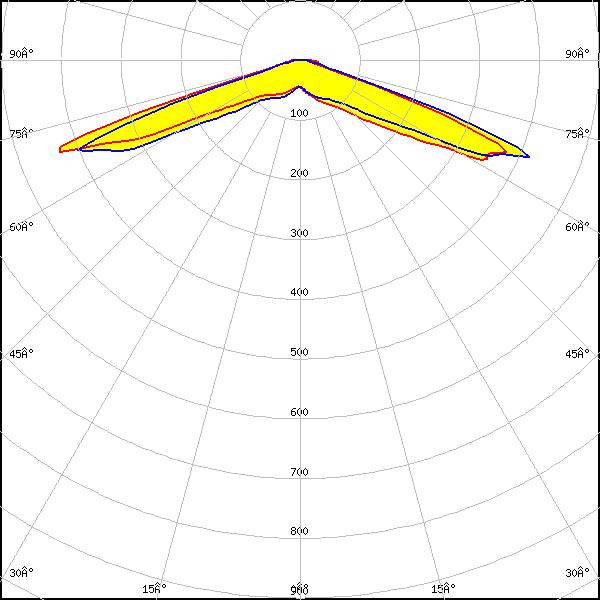

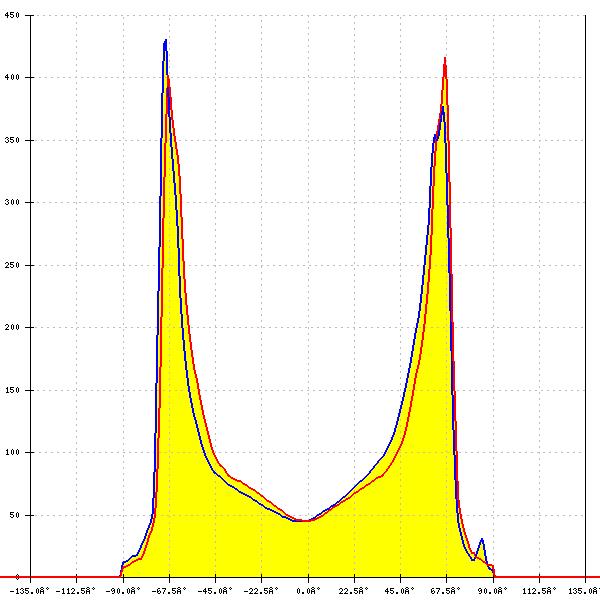

XT-E
FWHM:
151°
FWTM:
-
Peak intensity:
0.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

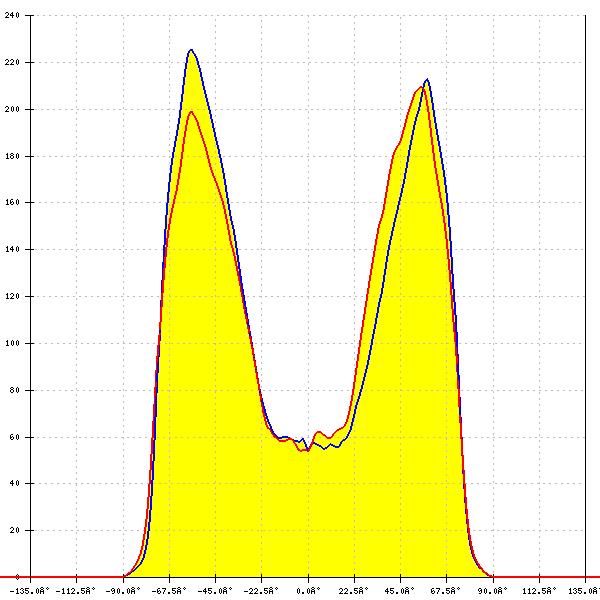

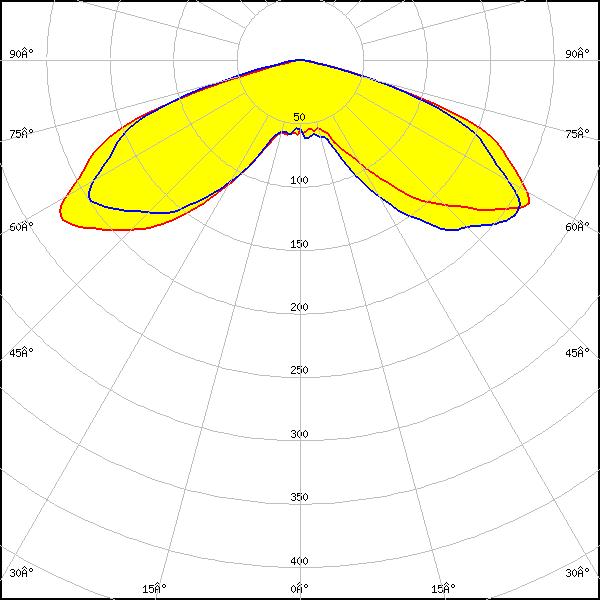

LUXEON 7070
FWHM:
144°
FWTM:
156°
Peak intensity:
0.256 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:

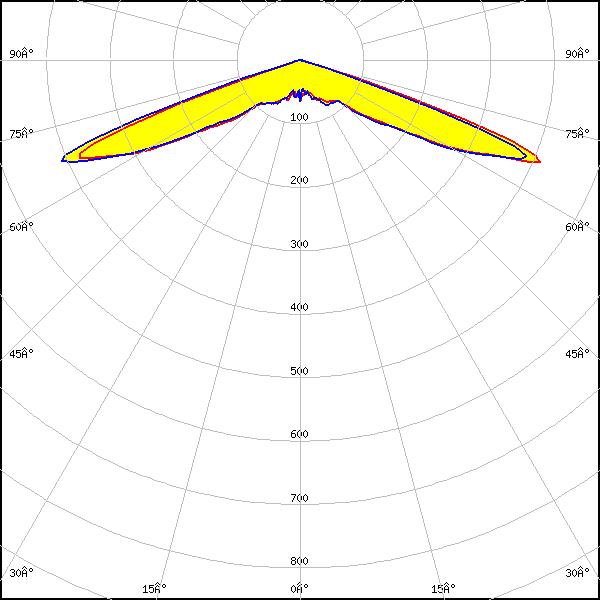

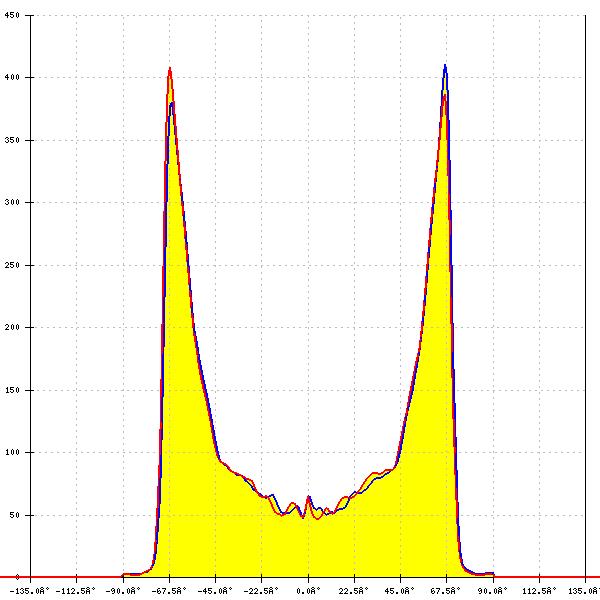

LUXEON H50-2
FWHM:
140°
FWTM:
144°
Peak intensity:
0.550 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

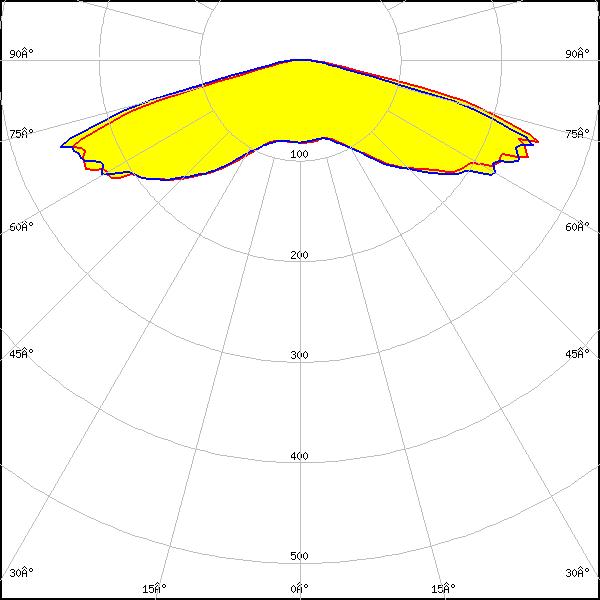

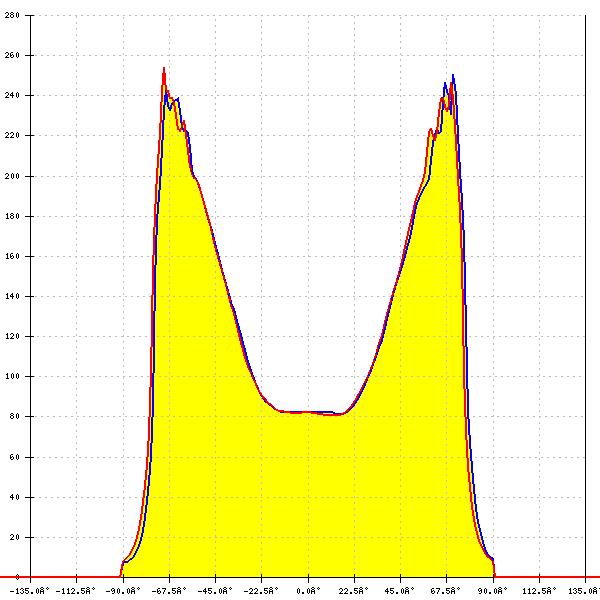

LUXEON M/MX
FWHM:
154°
FWTM:
-
Peak intensity:
0.250 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

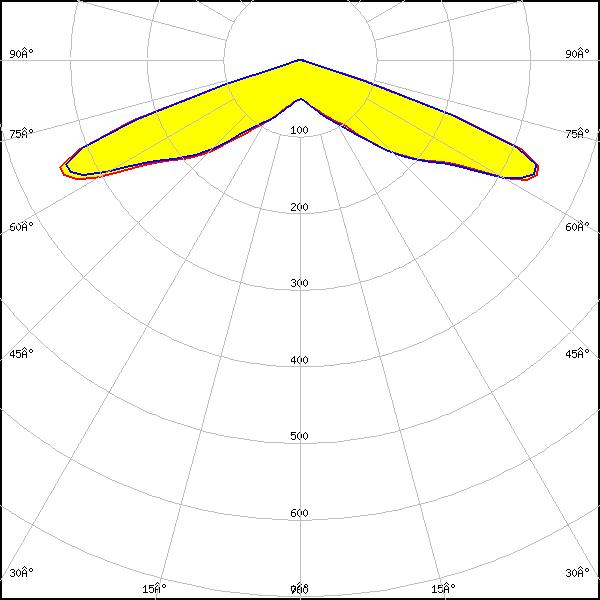

LED:
LUXEON MZ
FWHM:
148°
FWTM:
173°
Peak intensity:
0.410 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

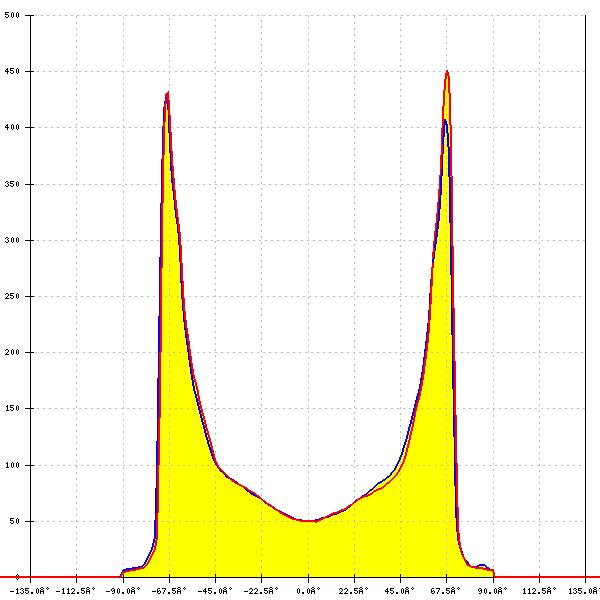

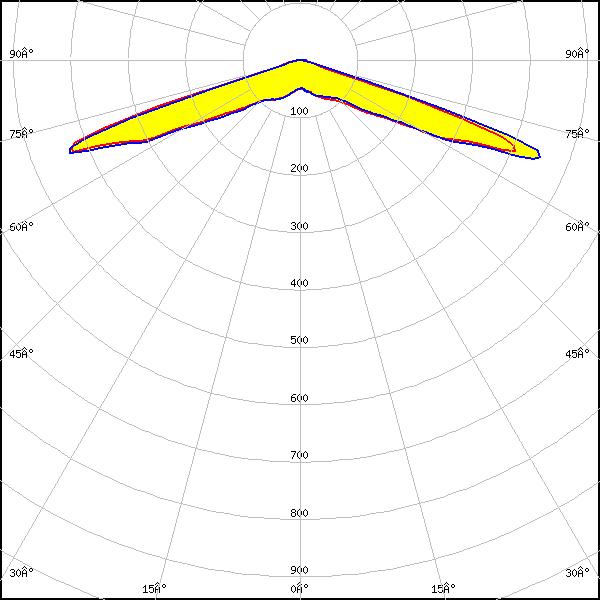

LUXEON T
FWHM:
145°
FWTM:
-
Peak intensity:
0.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

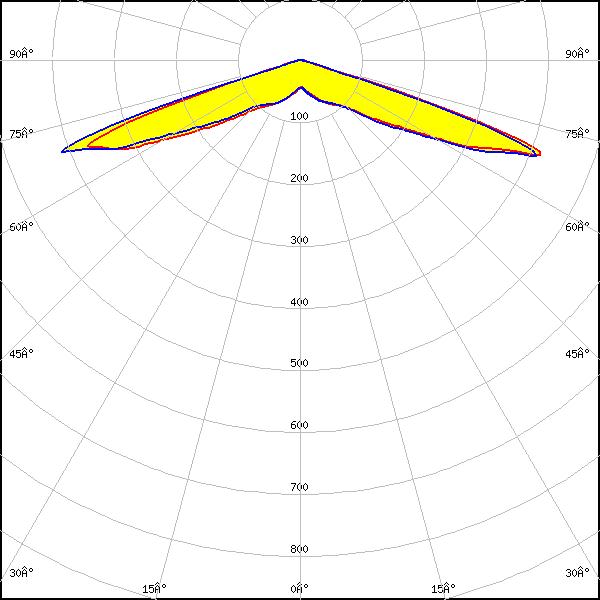

LED:

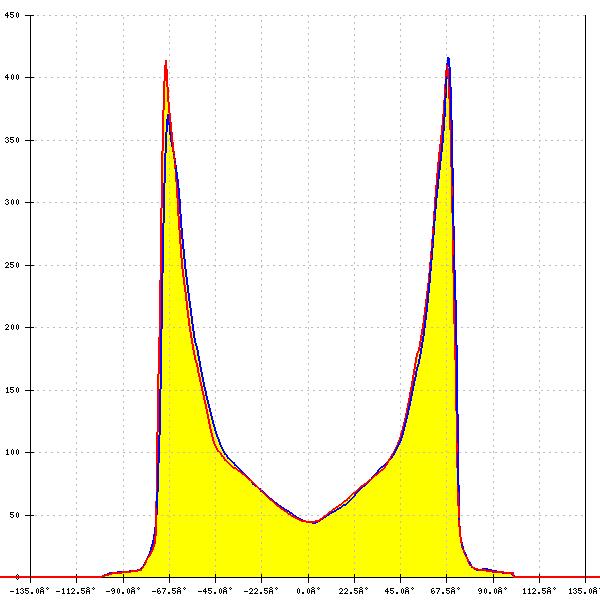

LUXEON TX
FWHM:
148°
FWTM:
152°
Peak intensity:
0.670 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

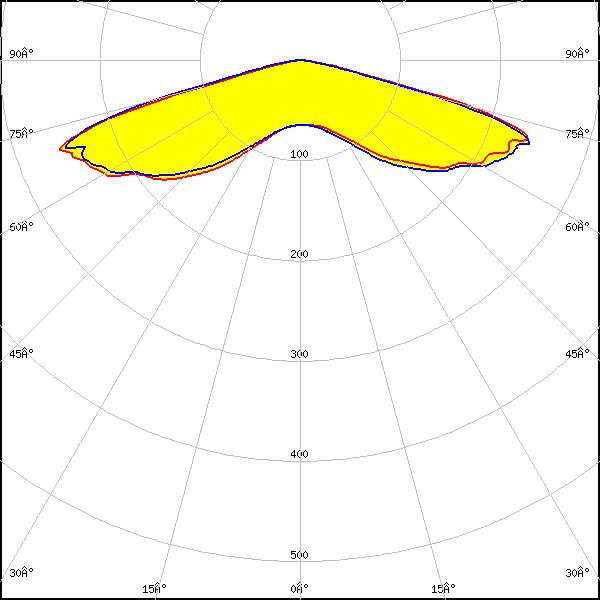

LED:

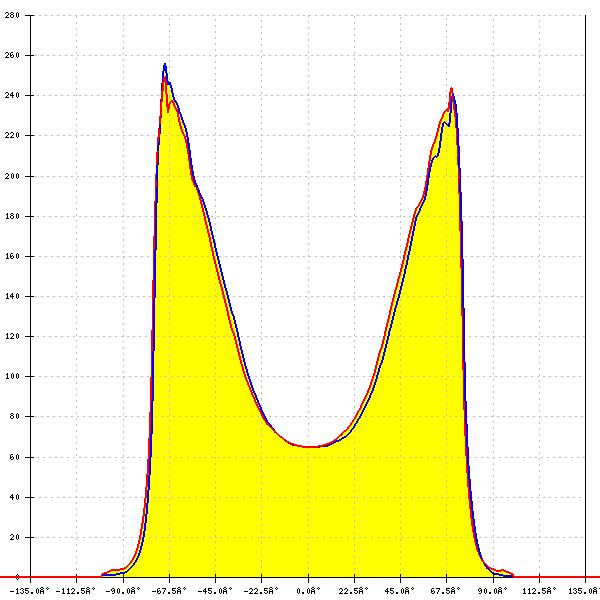

LUXEON XR-M Linear (L2M0-xxxx003MC3300)
FWHM:
151°
FWTM:
162°
Peak intensity:
0.340 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSU033A
FWHM:
149°
FWTM:
155°
Peak intensity:
0.590 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NS9x383
FWHM:
149°
FWTM:
-
Peak intensity:
0.470 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

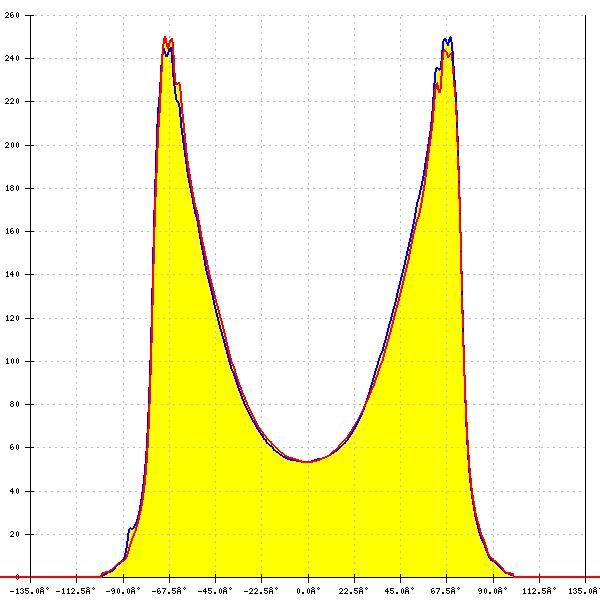

LED:

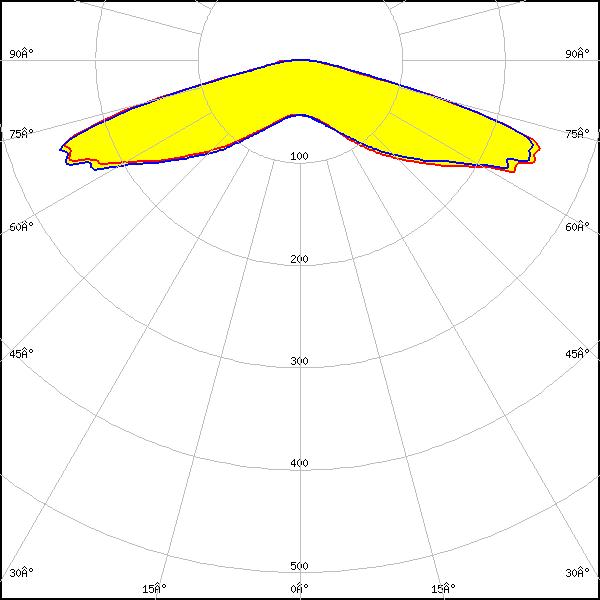

NV4x144A
FWHM:
156°
FWTM:
176°
Peak intensity:
0.330 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

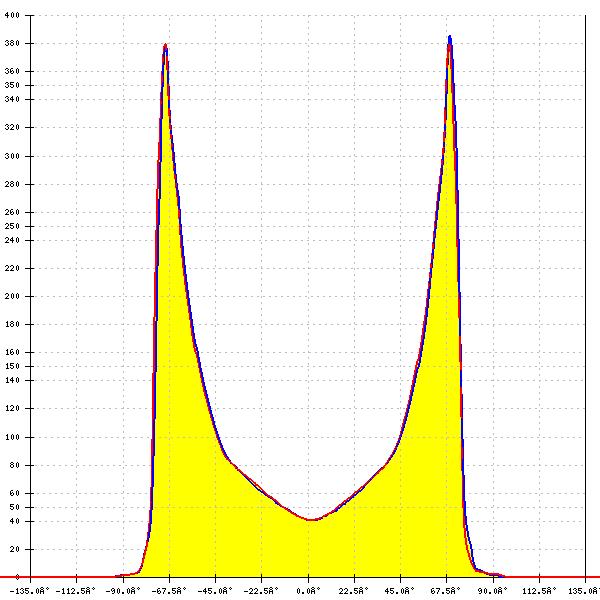

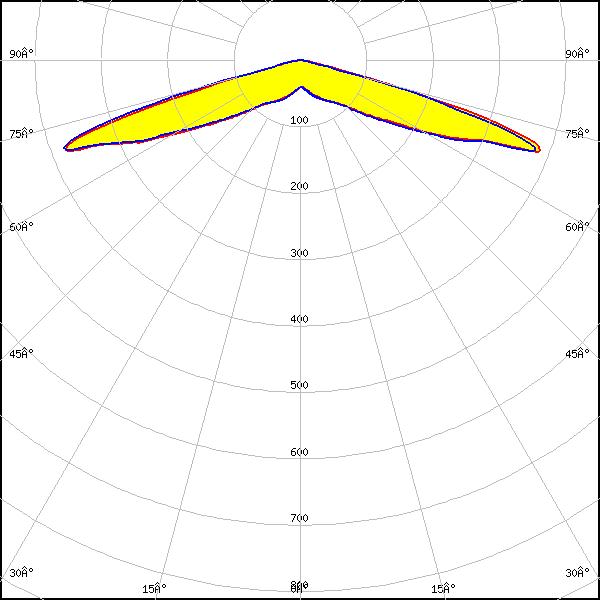

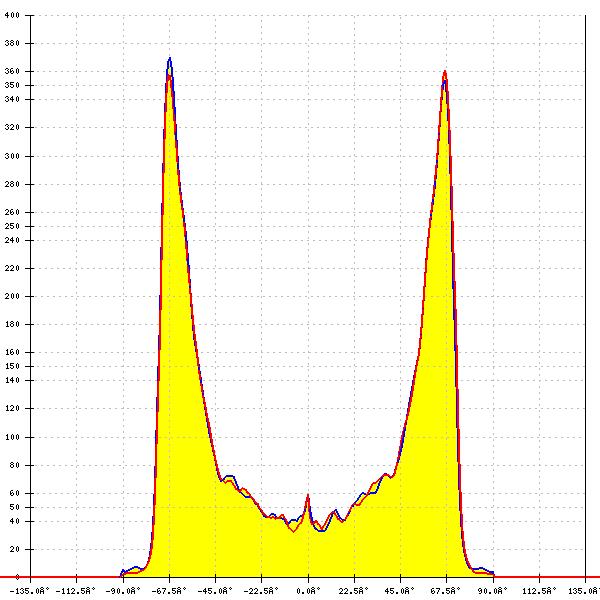

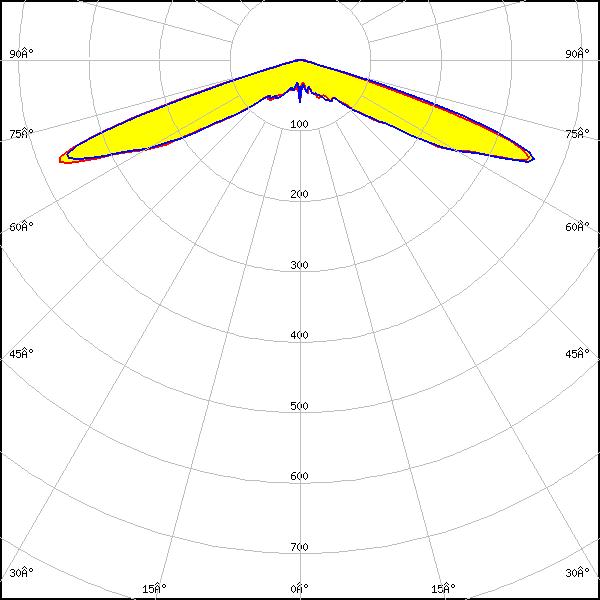

LED:
NVSxx19B/NVSxx19C
FWHM:
144°
FWTM:
-
Peak intensity:
0.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

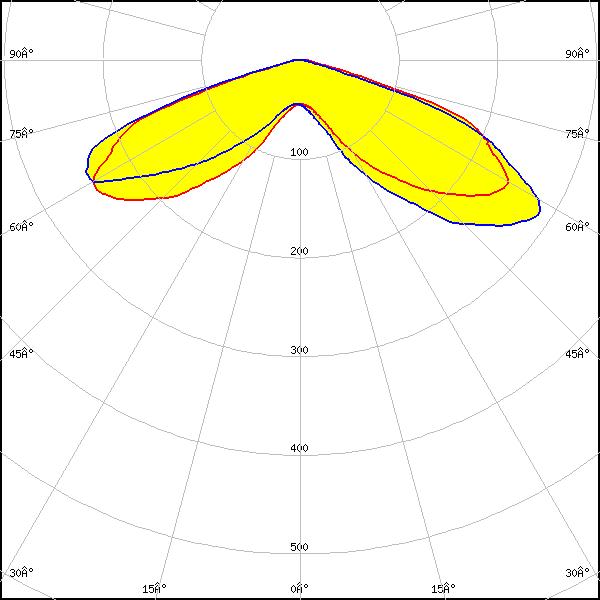

LED:

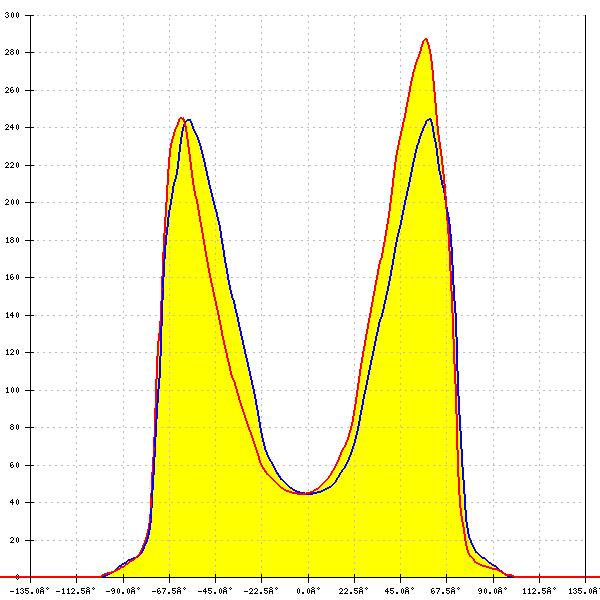

Duris S10
FWHM:
148°
FWTM:
158°
Peak intensity:
0.330 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
150°
FWTM:
158°
Peak intensity:
0.400 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Ostar
FWHM:
145°
FWTM:
150°
Peak intensity:
0.626 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Stage (S2WM)
FWHM:
145°
FWTM:
150°
Peak intensity:
0.626 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Stage (S2WN)
FWHM:
146°
FWTM:
152°
Peak intensity:
0.522 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

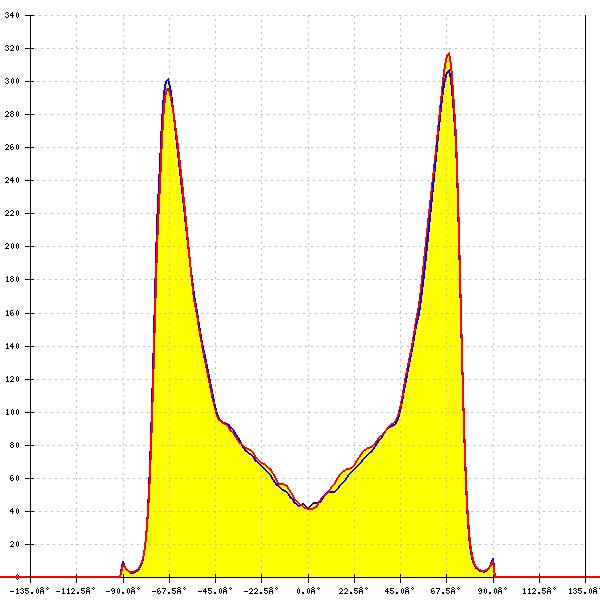

LED:

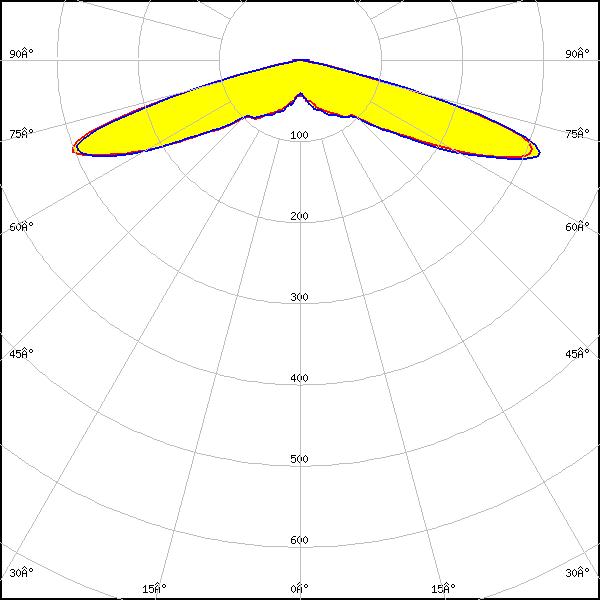

LH351B
FWHM:
148°
FWTM:
156°
Peak intensity:
0.430 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
