    CA12514_RITA-A

    Print

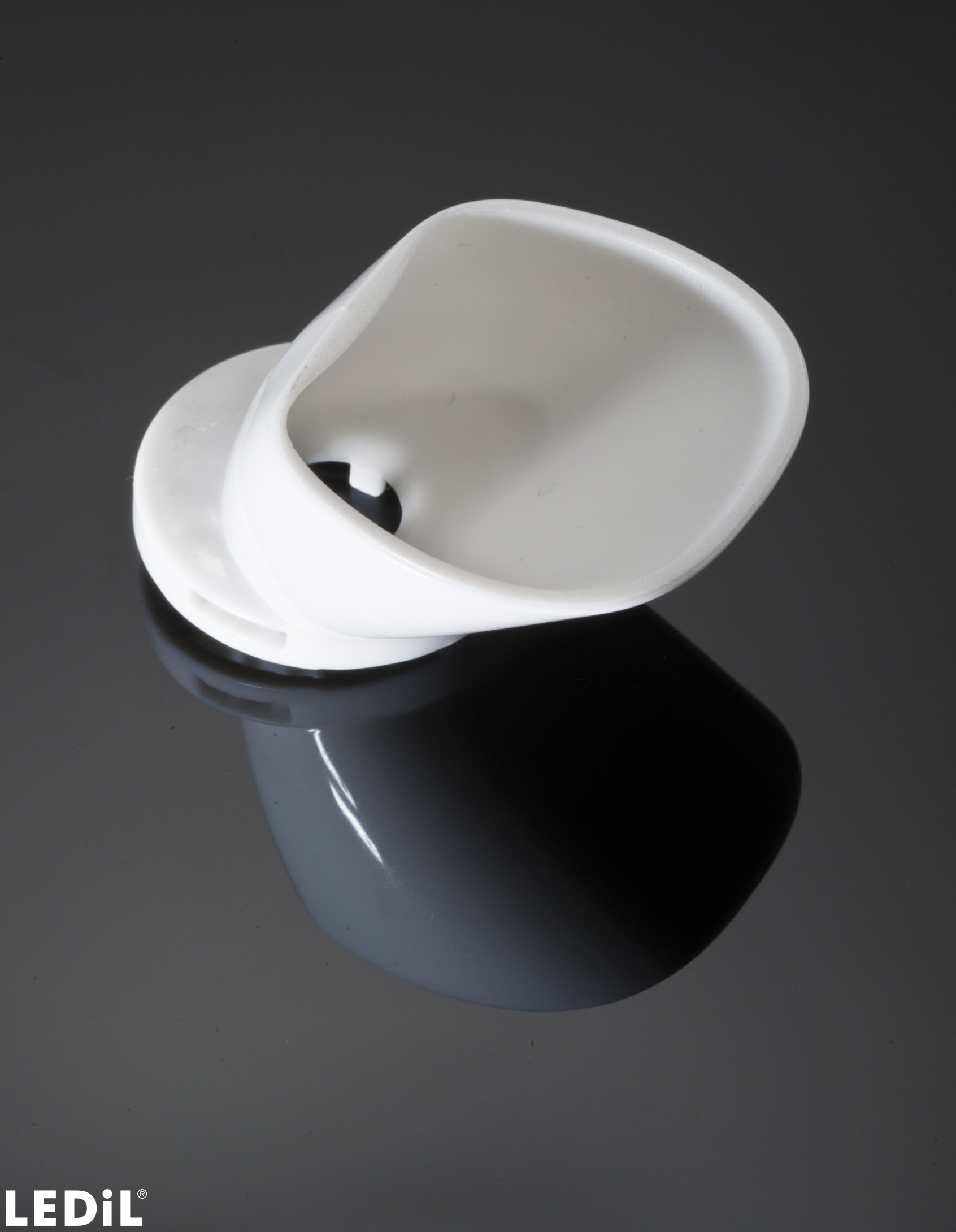

    Asymmetric beam. Assembly with installation tape

    Specification
    • Dimensions:
      36 x  28 mm
    • Height:
      17.30 mm
    • Fastening:
      tape, pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      810 pcs
    • Box weight:
      4.3 kg
    • MPQ:
      54 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA12514_RITA-A

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - RITA-A

    Application area

    Indoor Architectural Lighting

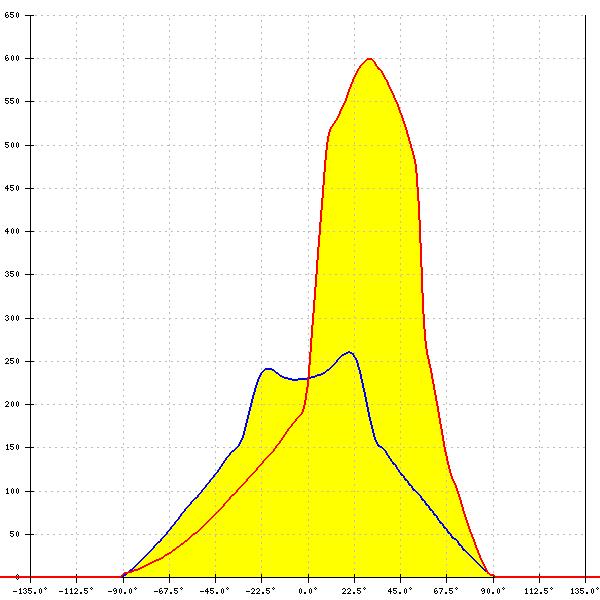

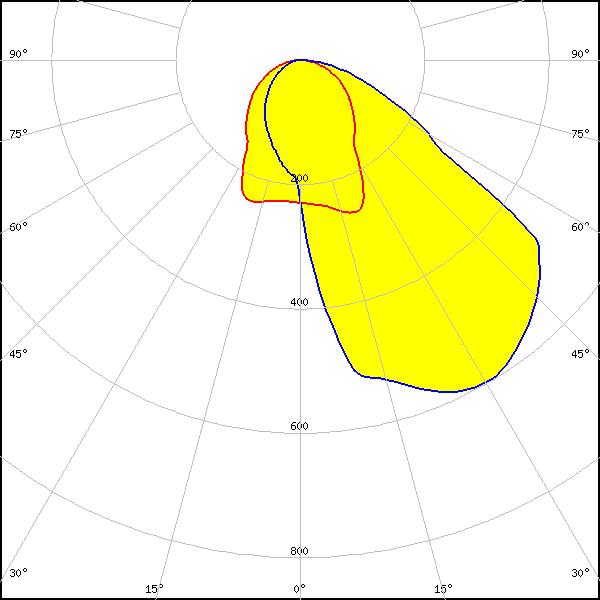

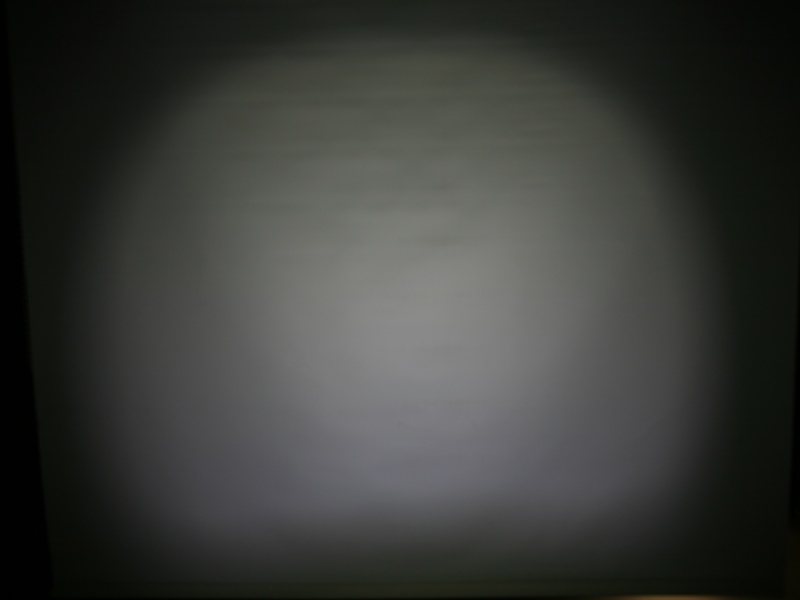

    Optical results

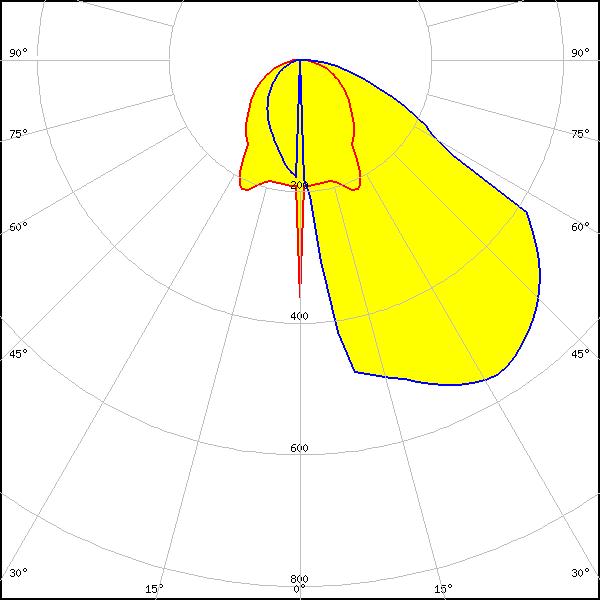

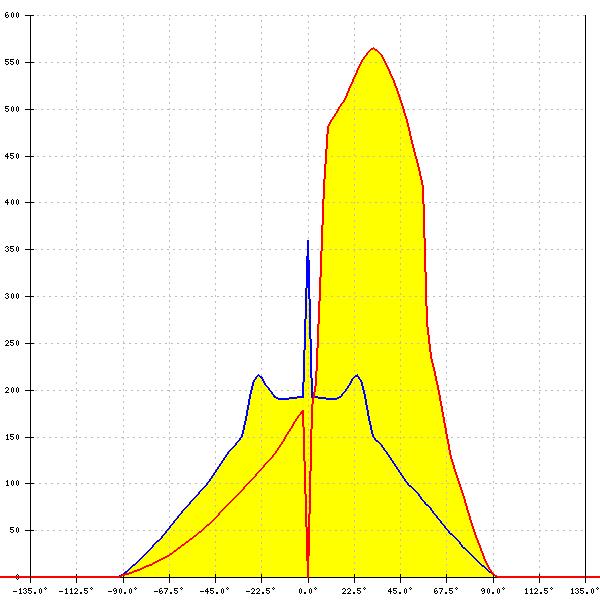

    LED: XB-D
    FWHM: asymmetric
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

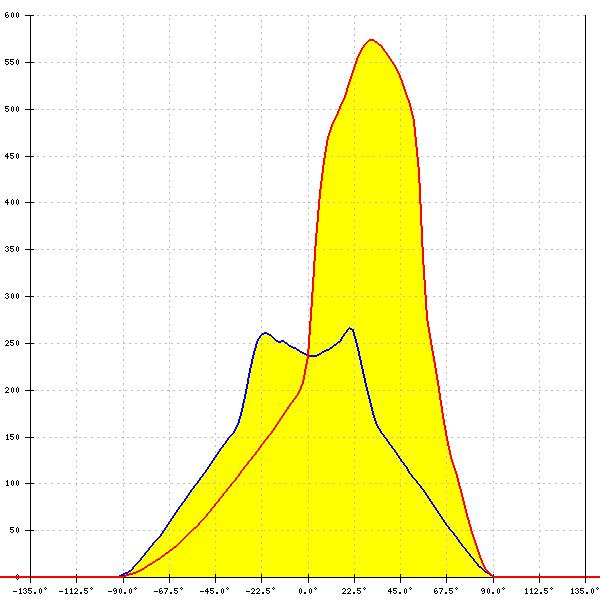

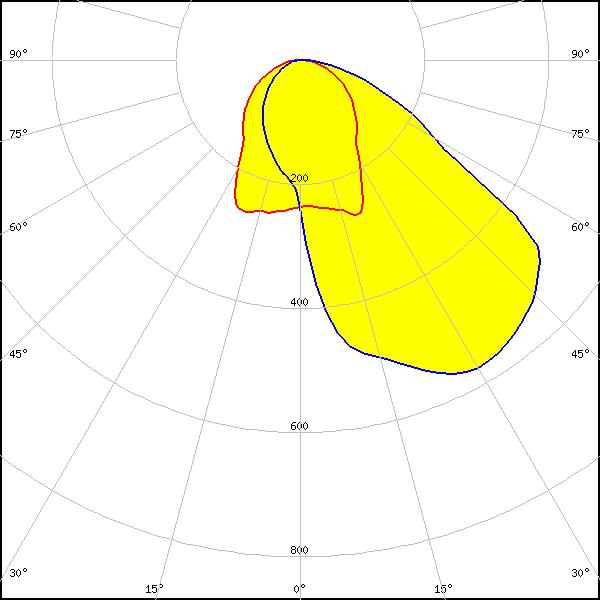

    LED: XM-L2
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

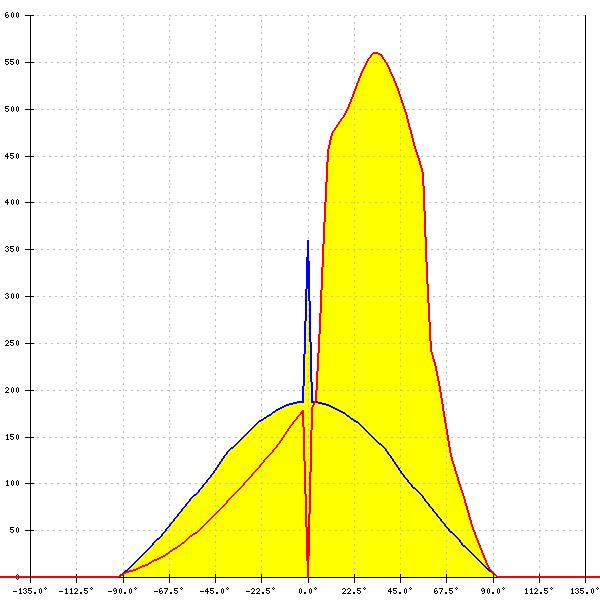

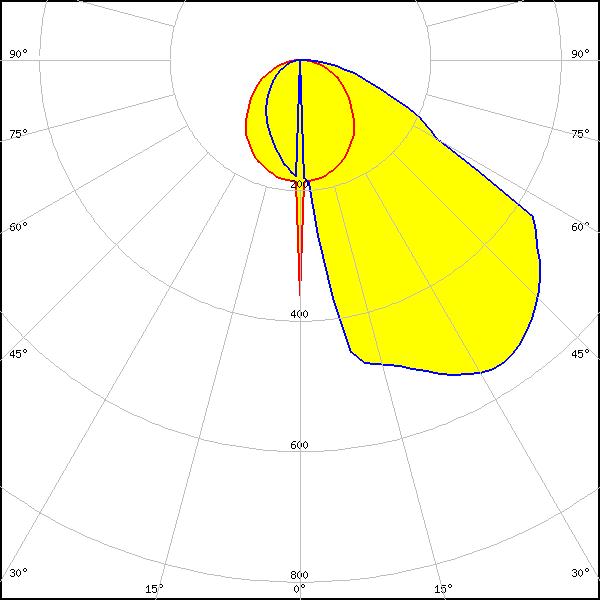

    LED: XP-G
    FWHM: asymmetric
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

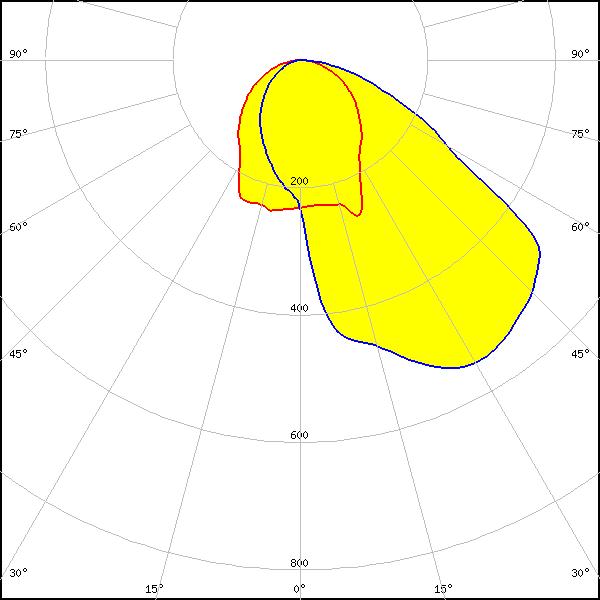

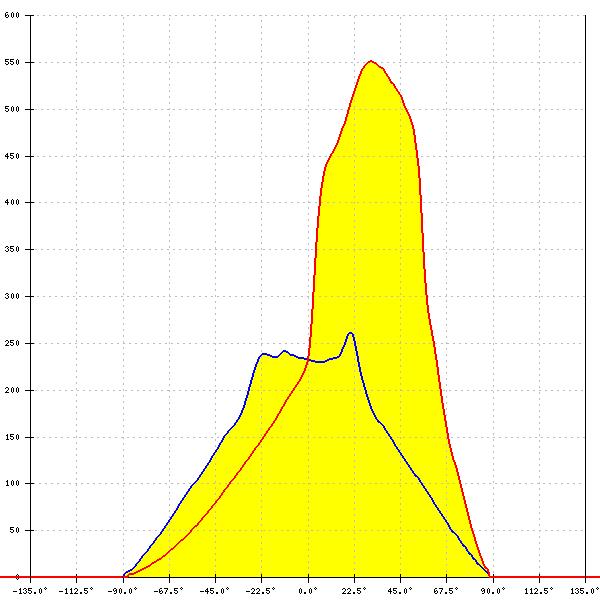

    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 0.550 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

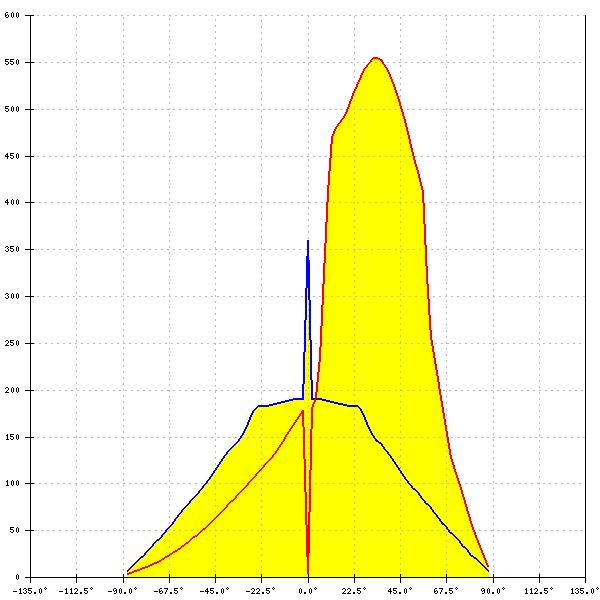

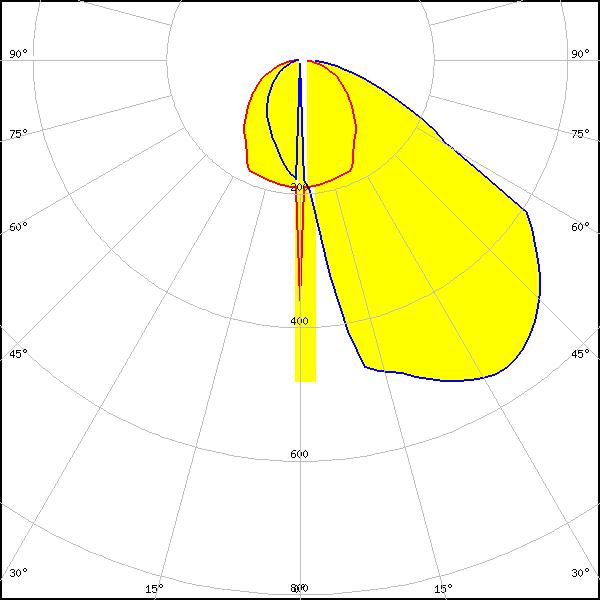

    LED: XT-E
    FWHM: asymmetric
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

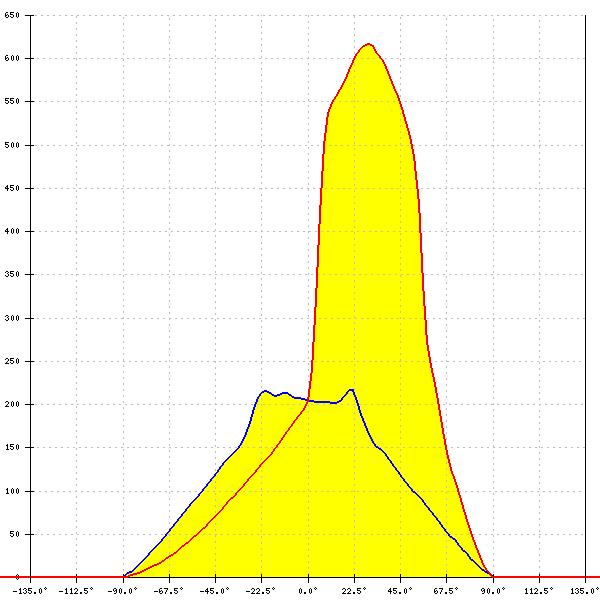

    LED: LUXEON A
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

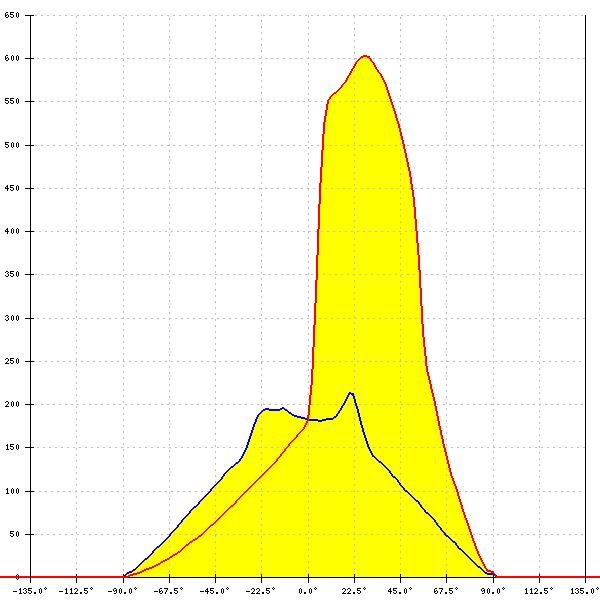

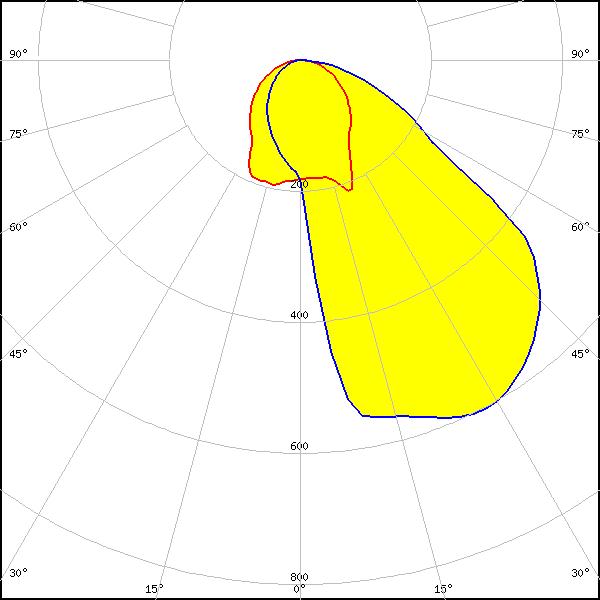

    LED: LUXEON Rebel
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

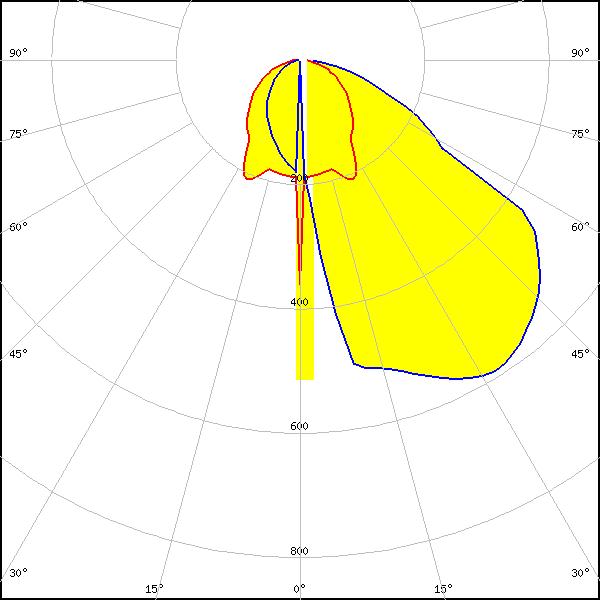

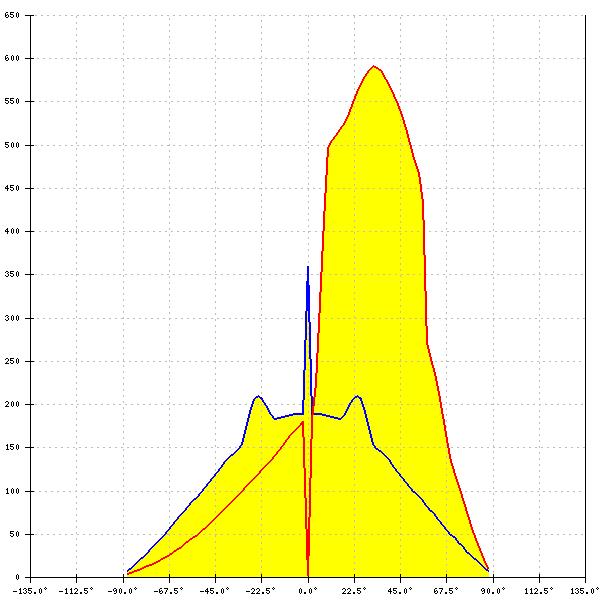

    LED: LUXEON Rebel ES
    FWHM: asymmetric
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

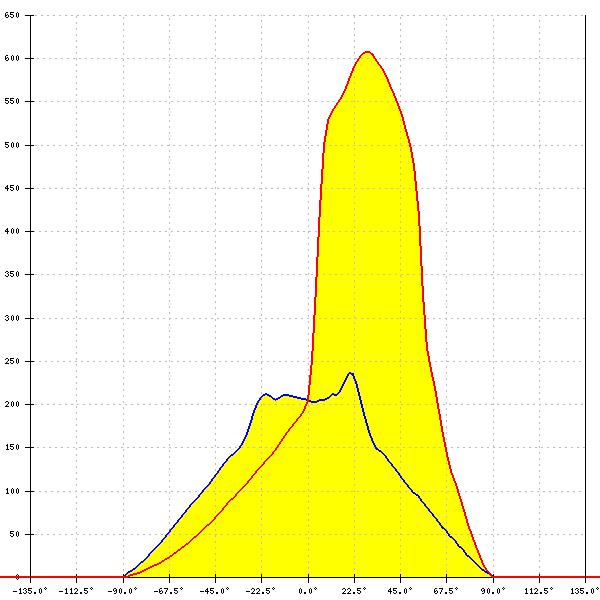

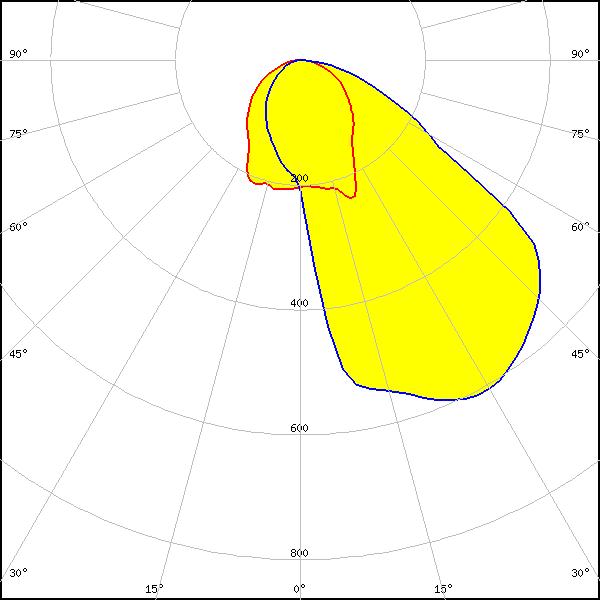

    LED: LUXEON T
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

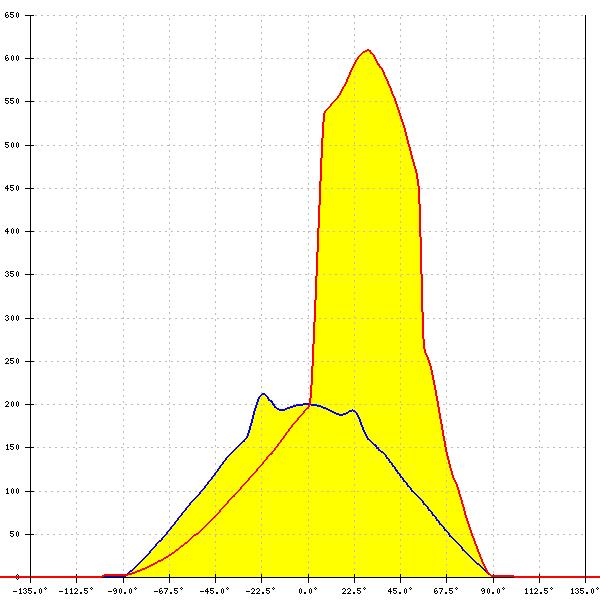

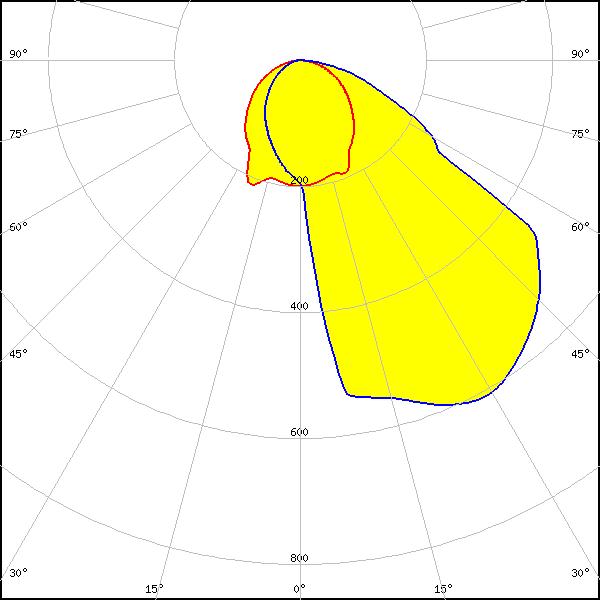

    LED: LUXEON TX
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

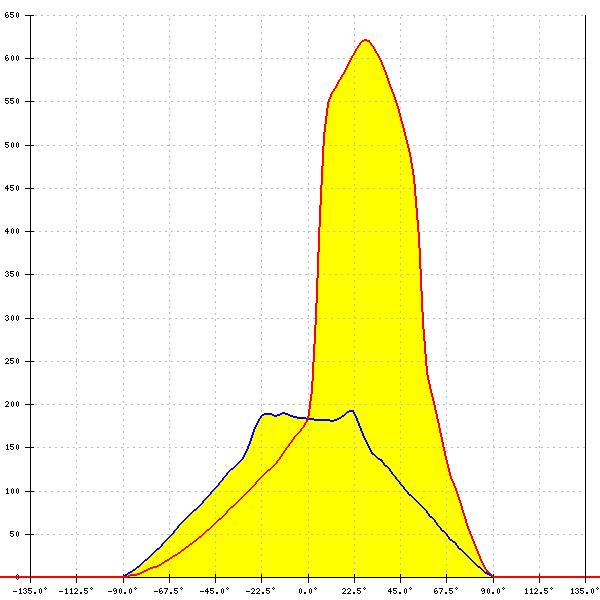

    LED: NCSxx19A
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NS9x383
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

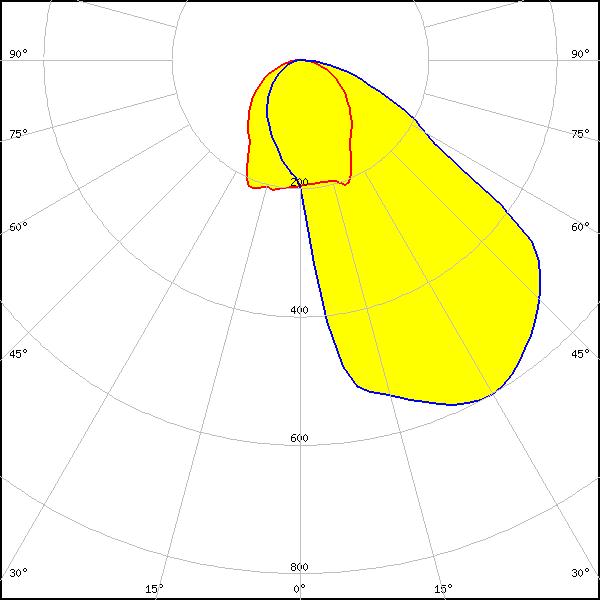

    LED: NVSxx19A
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

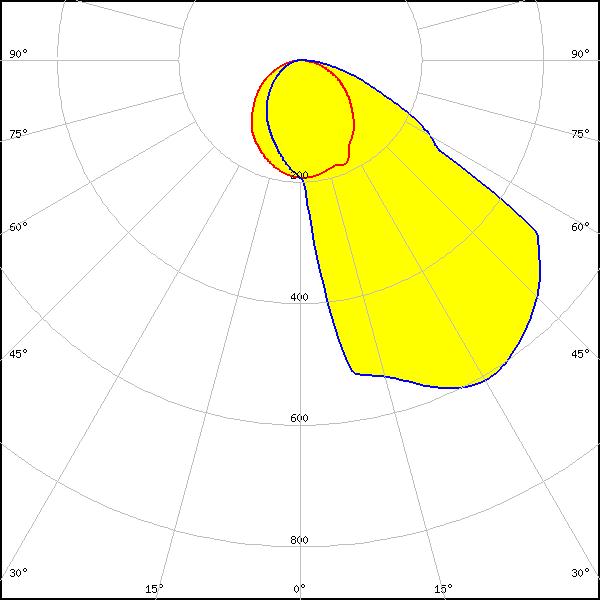

    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

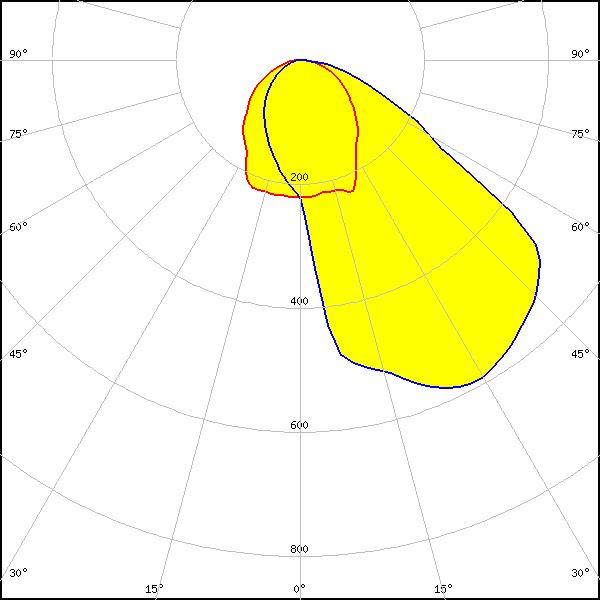

    LED: OSLON SSL 150
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

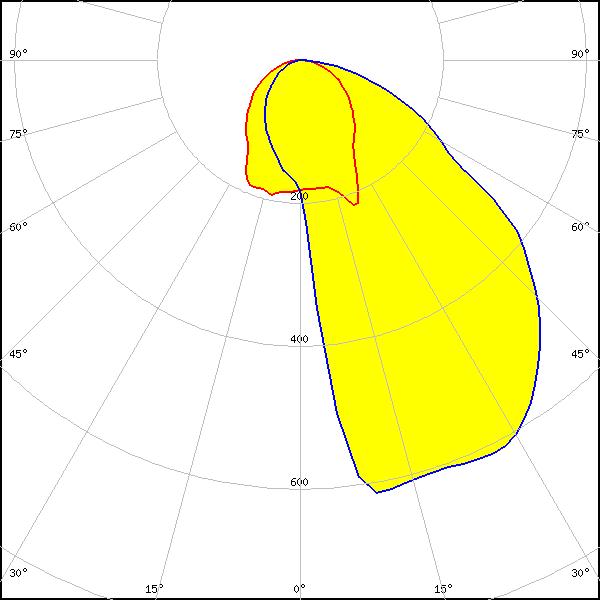

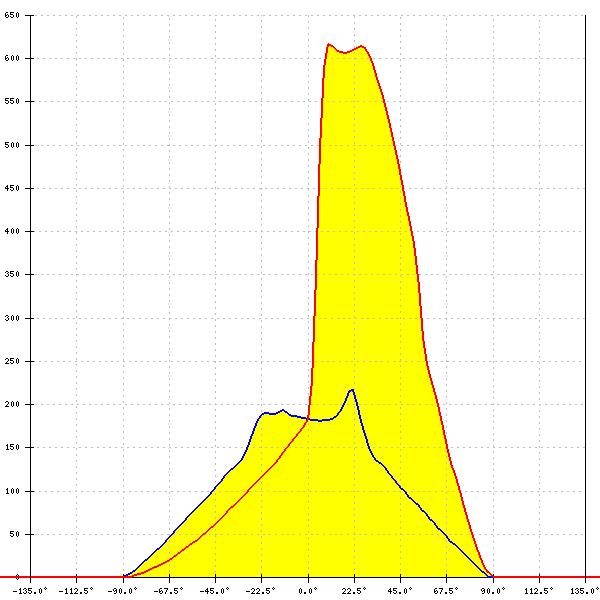

    LED: OSLON SSL 80
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
