C19843_LIANNA-2R-60-L2C
Print
~60° wide beam, chainable with LIANNA-2R-60 variants
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

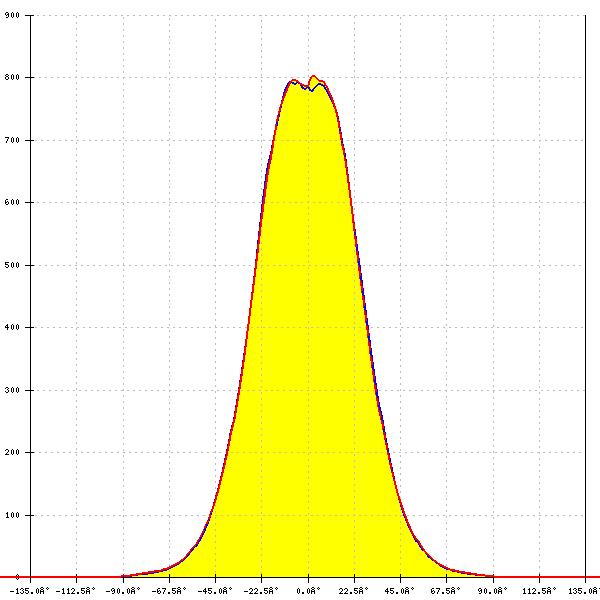

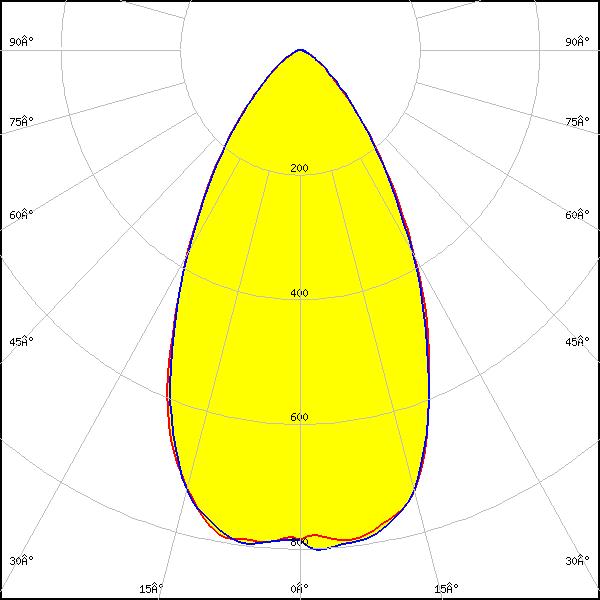

LED:
LH502D
FWHM:
59°
FWTM:
100°
Peak intensity:
0.804 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

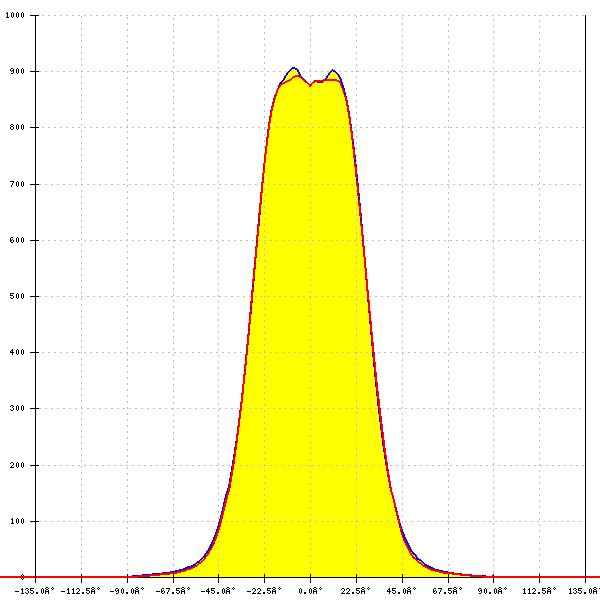

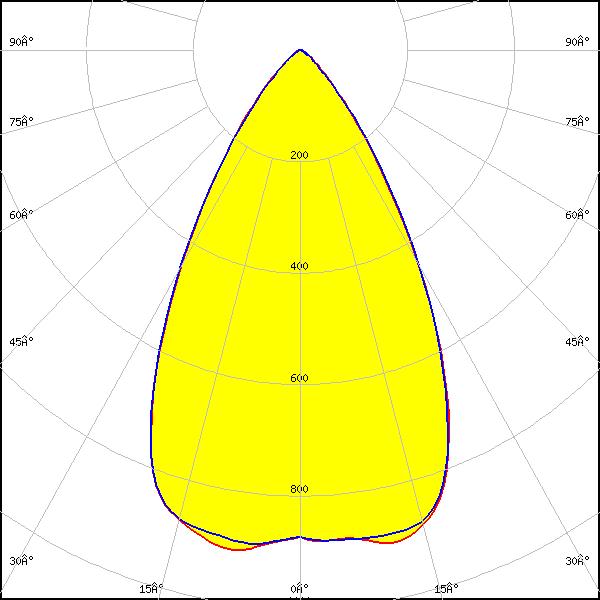

LED:
LM28xB Series
FWHM:
60°
FWTM:
89°
Peak intensity:
0.913 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

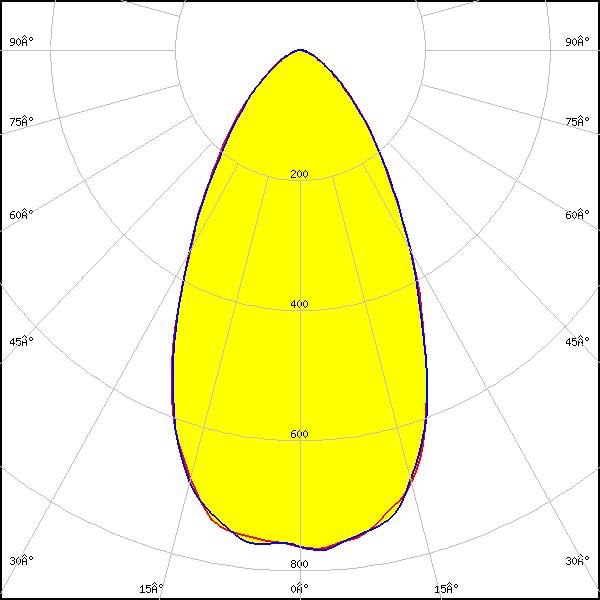

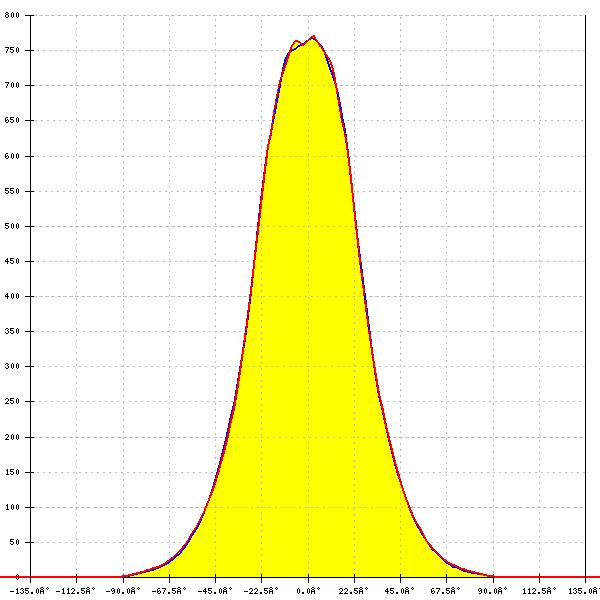

LED:
LM301B
FWHM:
57°
FWTM:
106°
Peak intensity:
0.777 cd/lm
Efficiency:
90 %
LEDs/each optic:
2
Light colour/type:
White

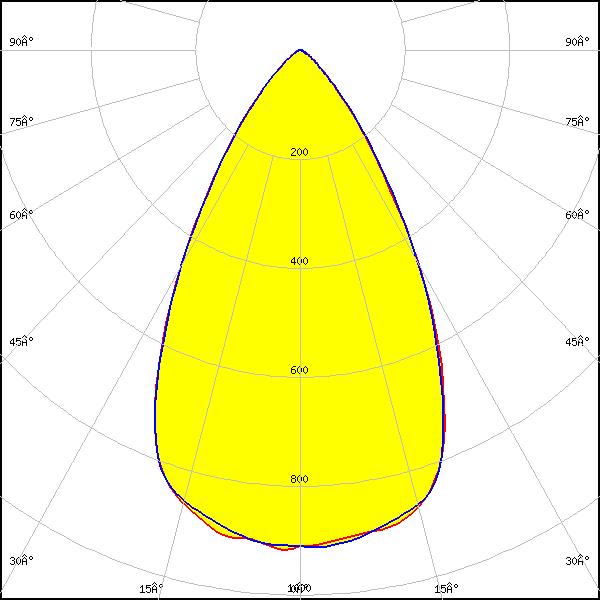

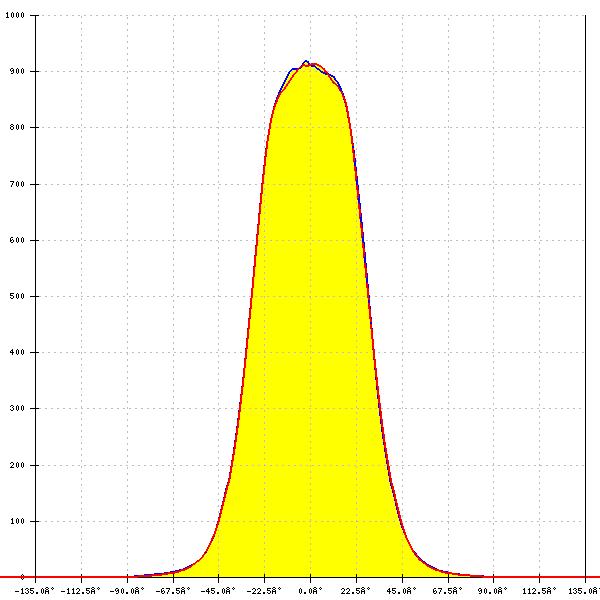

LED:
LM301B EVO
FWHM:
60°
FWTM:
90°
Peak intensity:
0.921 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
