    C19761_STRADA-2X2R-T2

    Print

    Reflector-based optic design with extremely low glare (luminous intensity class as good as G6) and high efficiency. IESNA Type II (medium) beam applicable for pedestrian and road lighting from low poles.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      11.35 mm
    • Fastening:
      pin, screw
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      504 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      5.6 kg
    • MPQ:
      28 pcs
    • MOQ:
      504 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      5.6 kg
    Documents
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C19761_STRADA-2X2R-T2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR202- Name change of STRADA-2X2 Reflectors

    News

    New beams and products – October 2024

    Application example

    C3 street and P1 pedestrian lighting with STRADA-2X2R-T2

    News

    STRADA-2X2 – Brightness without glare

    Application area

    Urban lighting with LEDiL optics

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    Guide for Street lighting optics

    News

    Winner of the German Innovation Award 2025 – STRADA Reflector

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Optical results

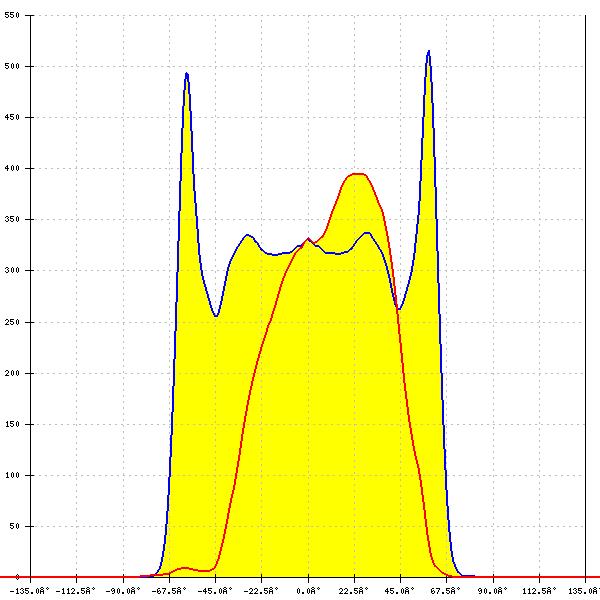

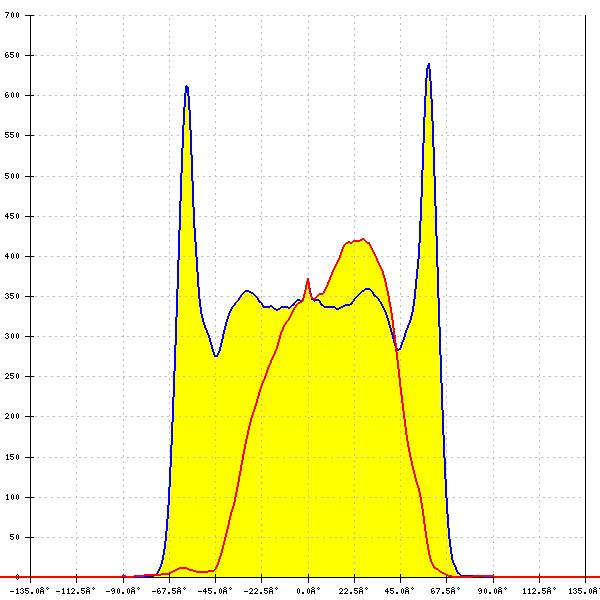

    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.722 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.814 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.664 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

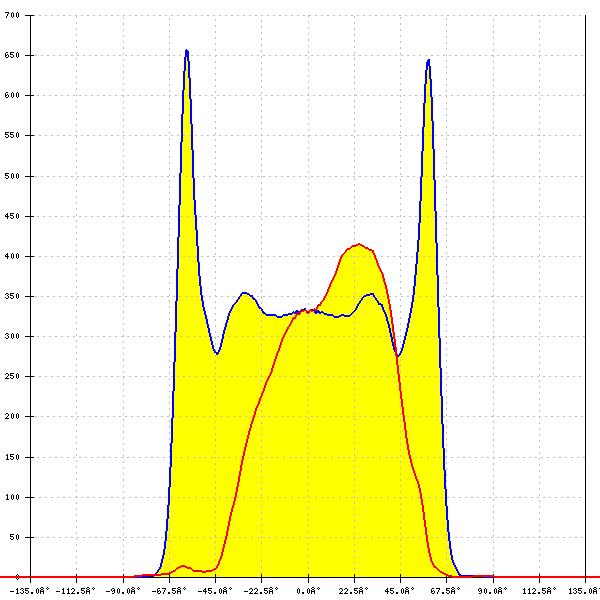

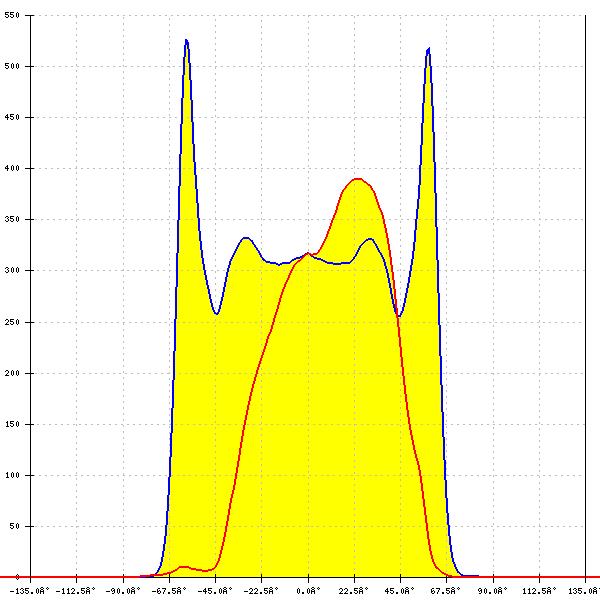

    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 0.855 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 0.695 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

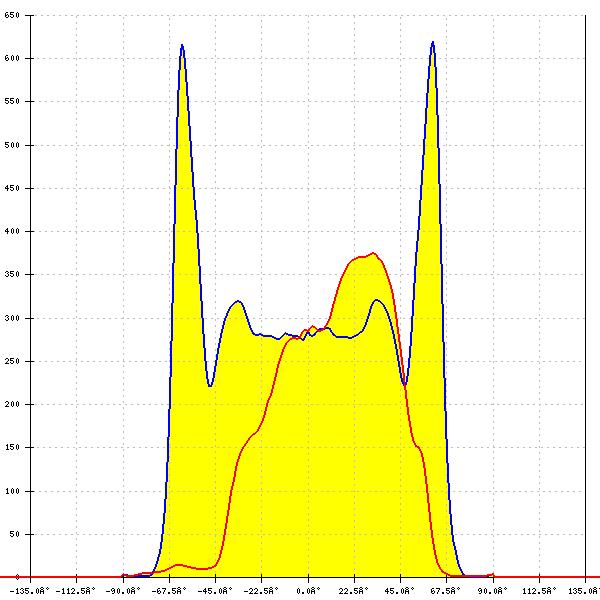

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.994 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

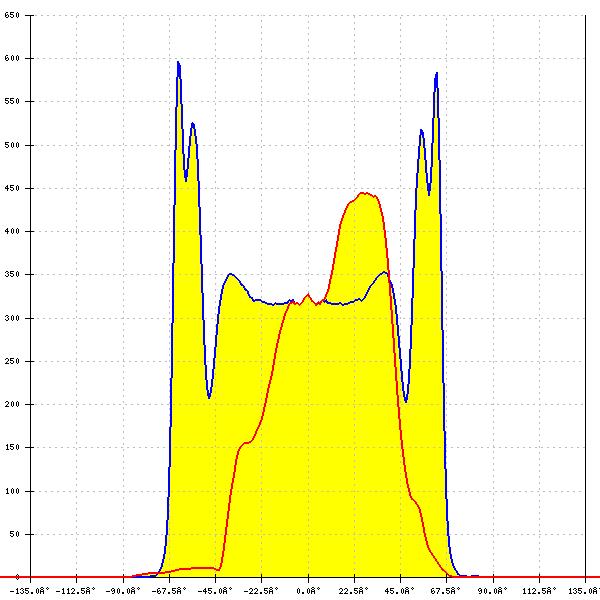

    LED: XP-G4
    FWHM: asymmetric
    Peak intensity: 1.076 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White

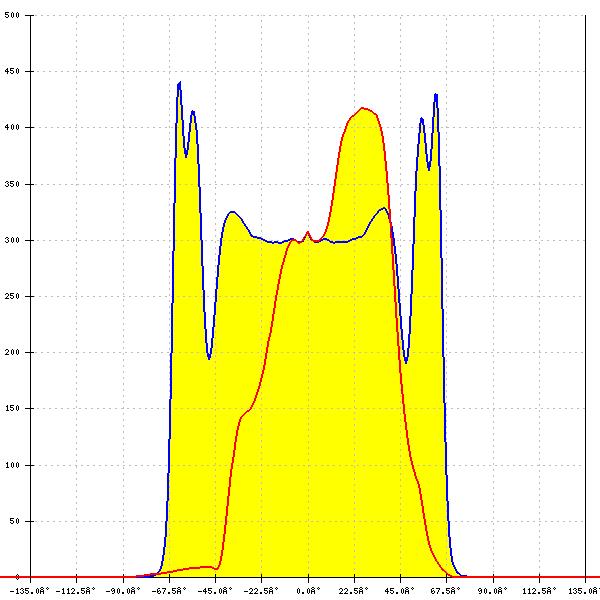

    LED: XP-G4
    FWHM: asymmetric
    Peak intensity: 0.776 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

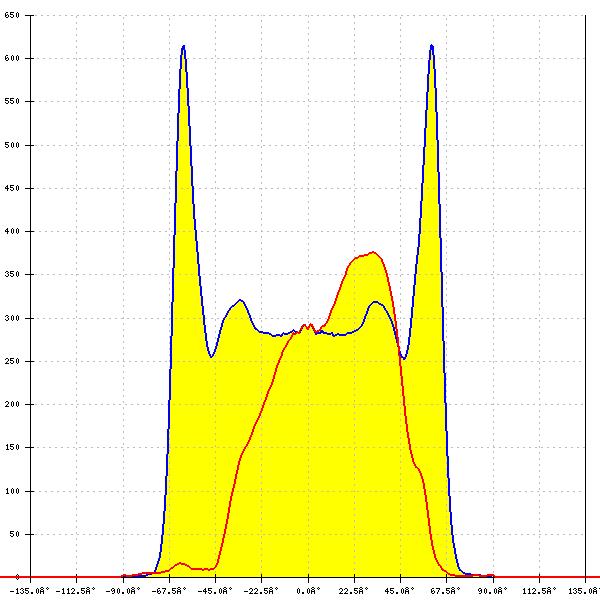

    LED: XP-L2
    FWHM: asymmetric
    Peak intensity: 0.858 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

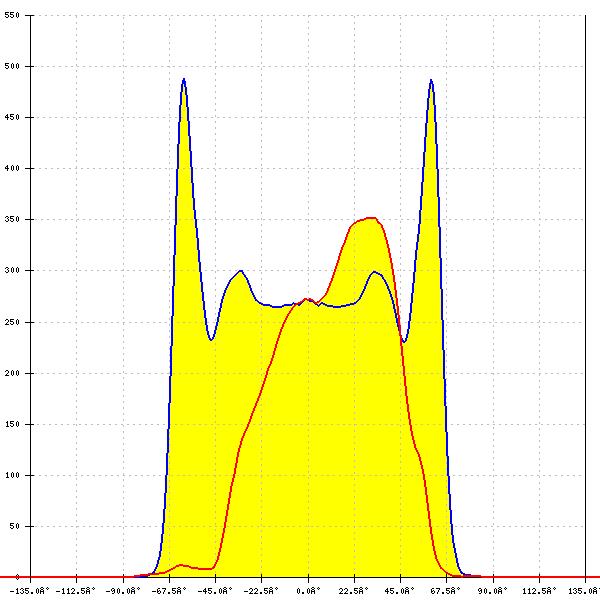

    LED: XP-L2
    FWHM: asymmetric
    Peak intensity: 0.669 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

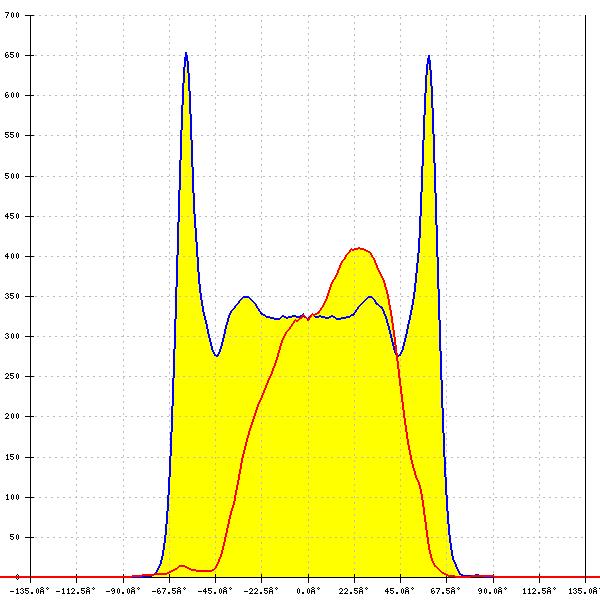

    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 0.855 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 0.696 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

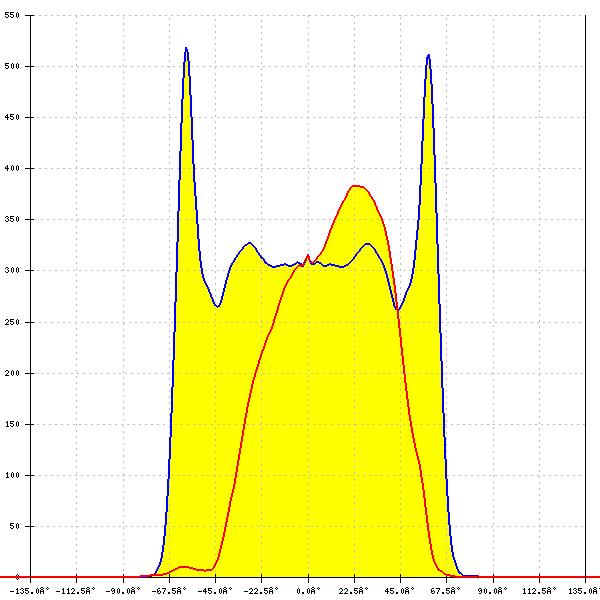

    LED: LUXEON 5050 HE Plus
    FWHM: asymmetric
    Peak intensity: 0.818 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE Plus
    FWHM: asymmetric
    Peak intensity: 0.668 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.752 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

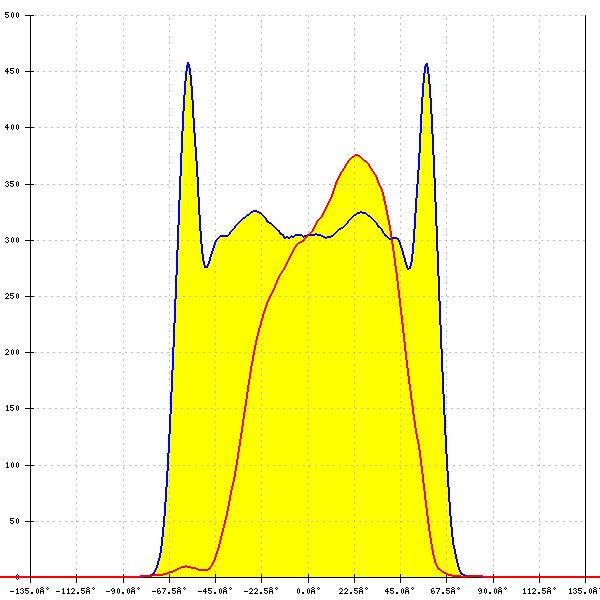

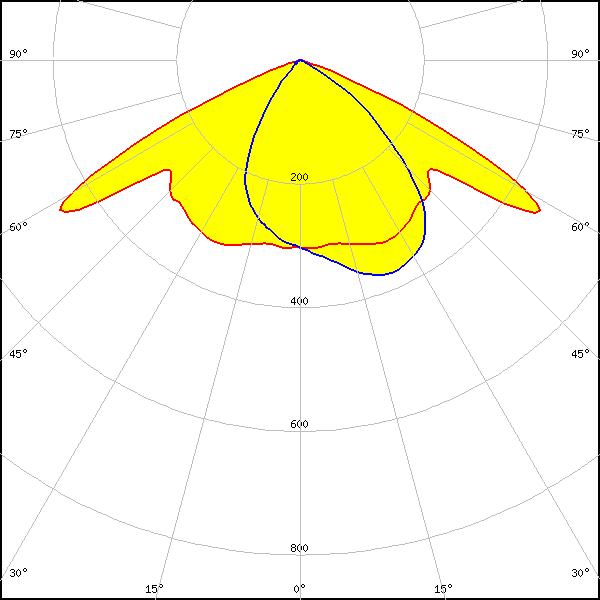

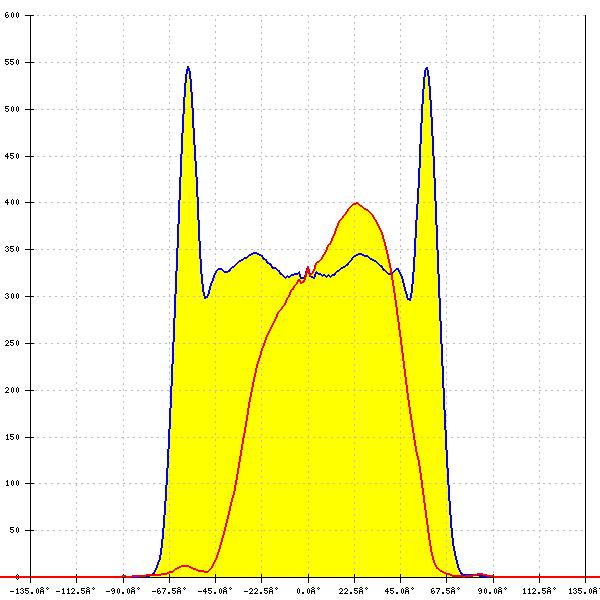

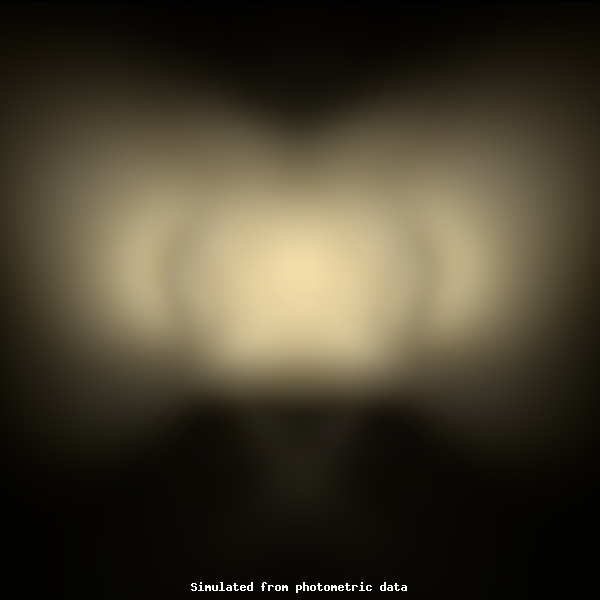

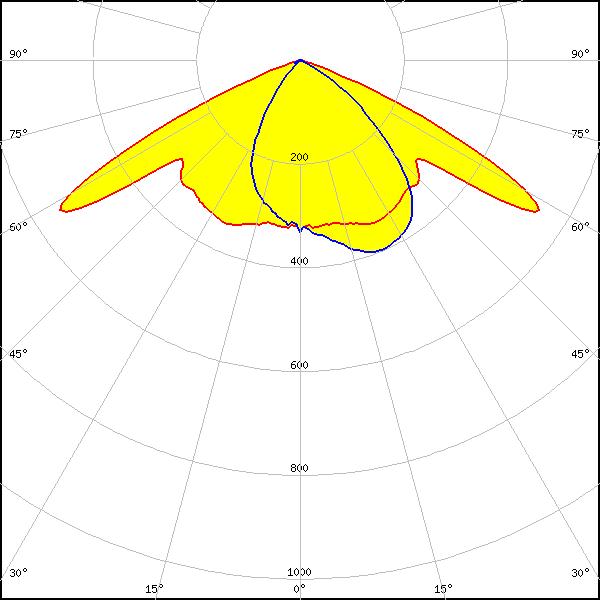

    LED: LUXEON 7070
    FWHM: asymmetric
    Peak intensity: 0.619 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-5050 SQR (L213-xxxx008MRH001)
    FWHM: asymmetric
    Peak intensity: 0.752 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 0.706 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.710 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (2W version)
    FWHM: asymmetric
    Peak intensity: 1.101 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (2W version)
    FWHM: asymmetric
    Peak intensity: 0.826 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: asymmetric
    Peak intensity: 1.030 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: asymmetric
    Peak intensity: 0.790 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR32)
    FWHM: asymmetric
    Peak intensity: 0.720 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR32)
    FWHM: asymmetric
    Peak intensity: 0.566 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 SFC
    FWHM: asymmetric
    Peak intensity: 0.850 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 SFC
    FWHM: asymmetric
    Peak intensity: 0.689 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 SFC
    FWHM: asymmetric
    Peak intensity: 0.850 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 SFC
    FWHM: asymmetric
    Peak intensity: 0.689 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.941 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.706 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

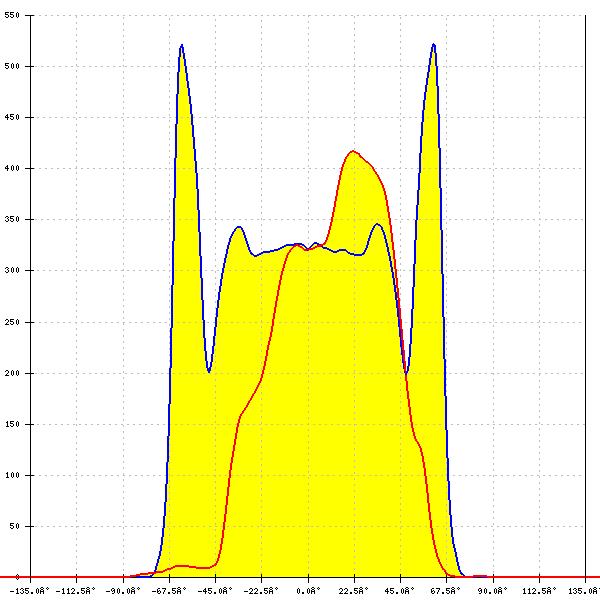

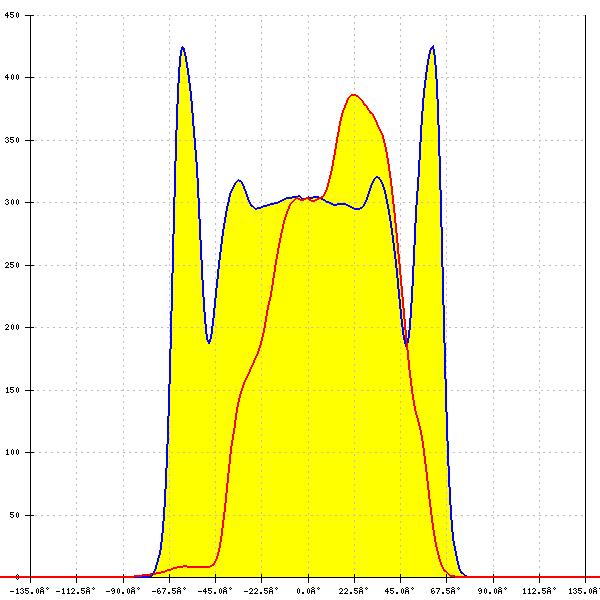

    LED: Fortimo FastFlex LED 2x8 DA G5
    FWHM: asymmetric
    Peak intensity: 0.941 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G5
    FWHM: asymmetric
    Peak intensity: 0.706 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.822 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.669 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

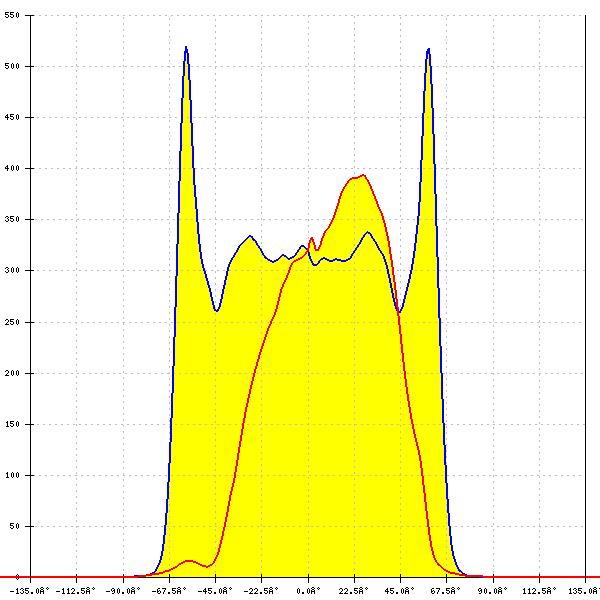

    LED: RLE 2x8 6000lm HP HE EXC3 OTD
    FWHM: asymmetric
    Peak intensity: 0.712 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
