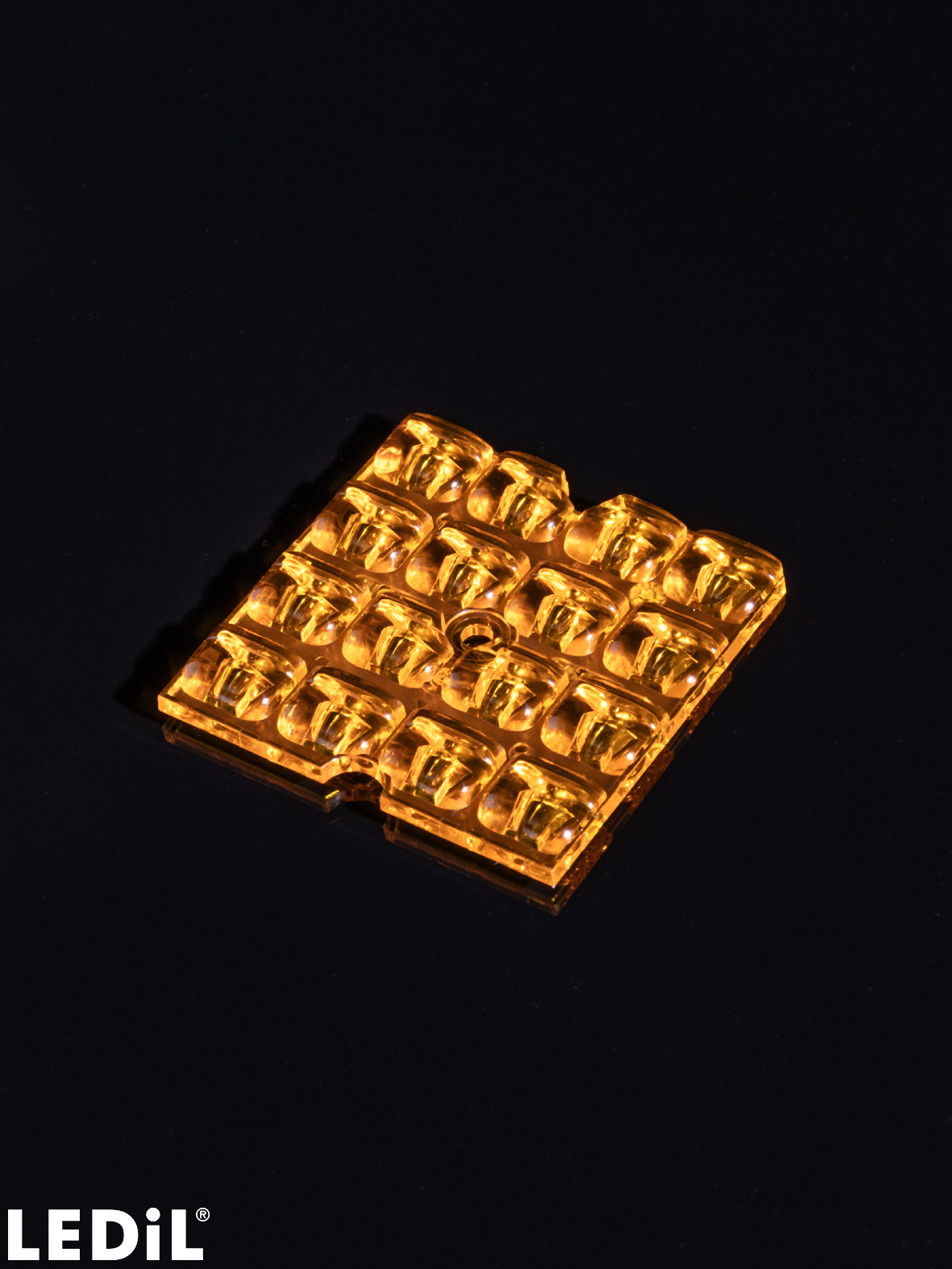

    C19682_AMBER-16-SCL

    Print

    Type II/III (long) beam for very wide pole to pole distances. Ideal for pedestrian paths and residential roads. EN13201 P-classes.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      4.36 mm
    • Fastening:
      screw
    • Colour:
      amber
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.2 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C19682_AMBER-16-SCL
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – February 2024

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    Application area

    Urban lighting with LEDiL optics

    Article

    See the stars in the centre of the city - How to reduce light pollution in urban environments

    News

    Create biologically sustainable lighting with LEDiL AMBER lenses

    Application area

    Outdoor Special Applications

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Optical results

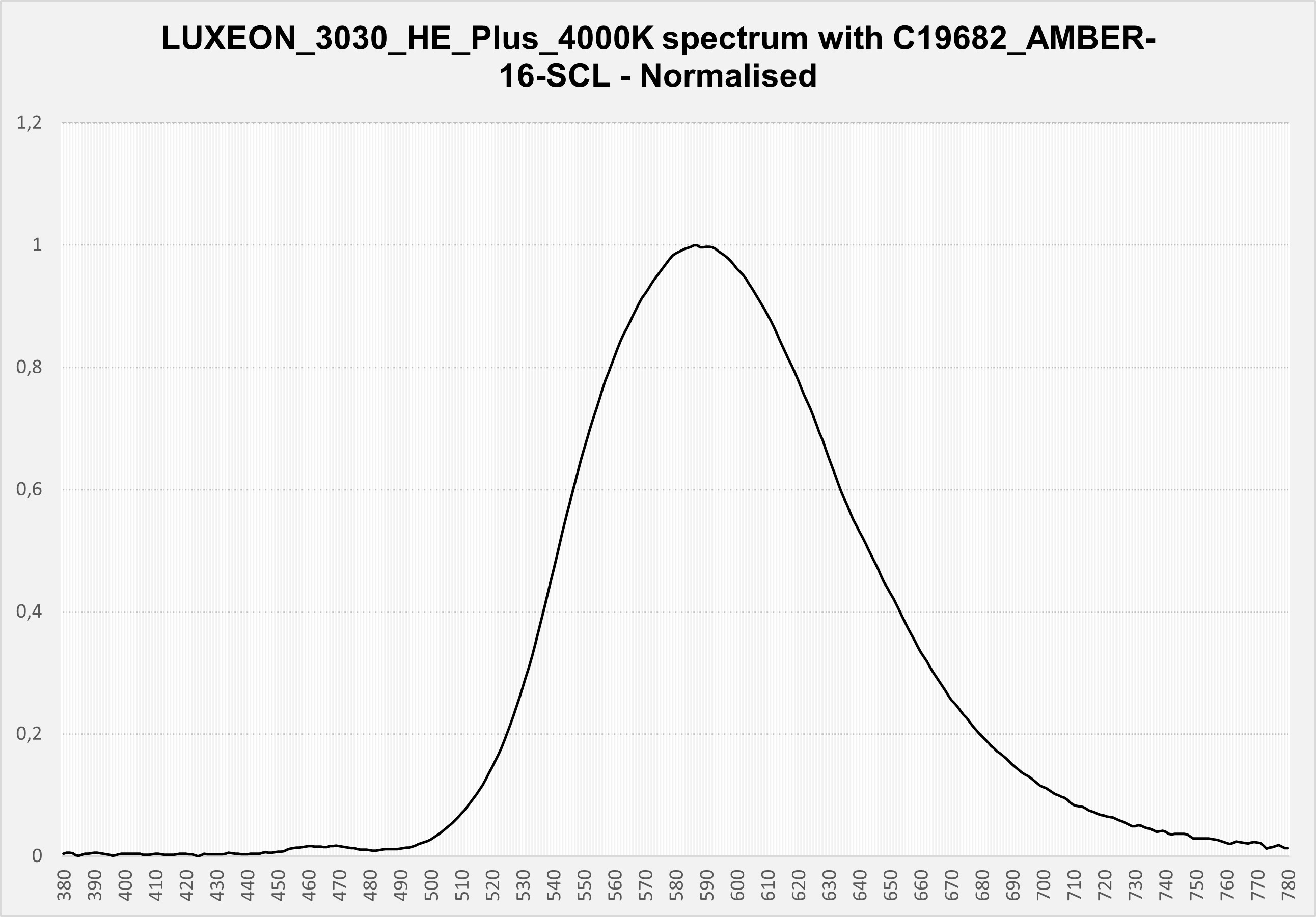

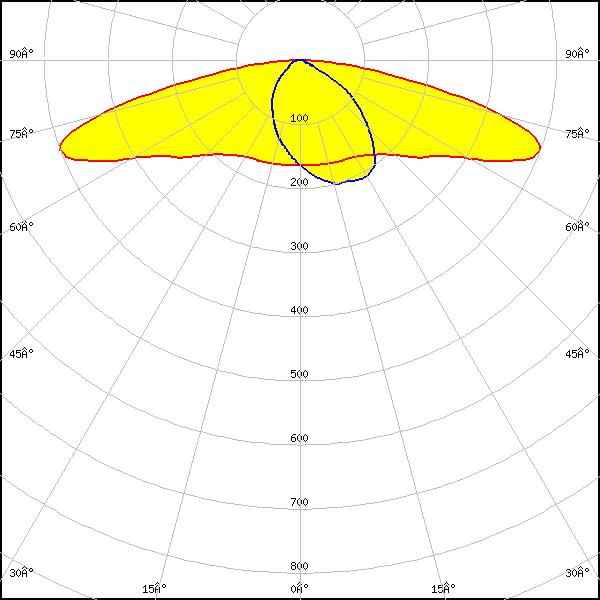

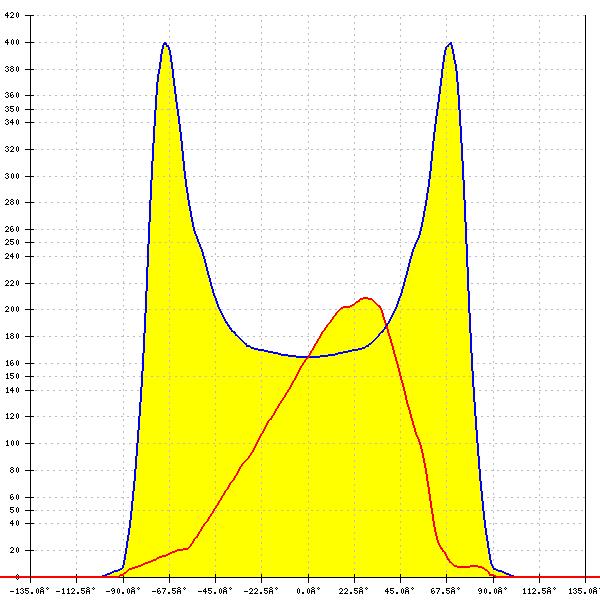

    LED: LUXEON 3030 HE Plus
    FWHM: asymmetric
    Peak intensity: 0.552 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.9%
    CCT (LED/with lens)*: 3900 K/ 2500 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

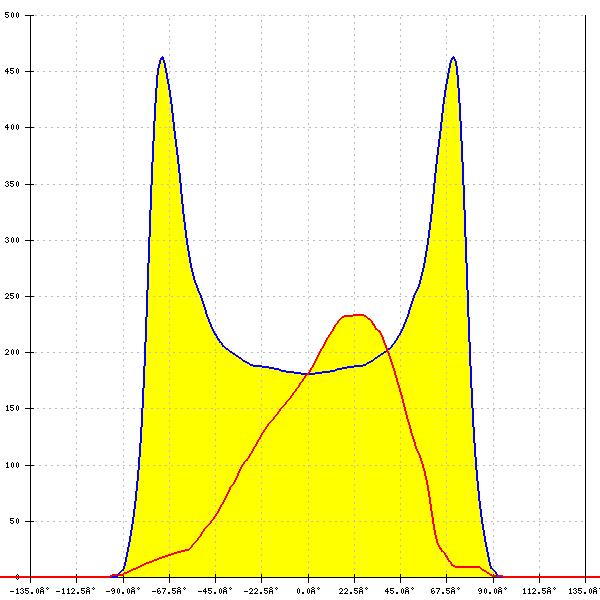

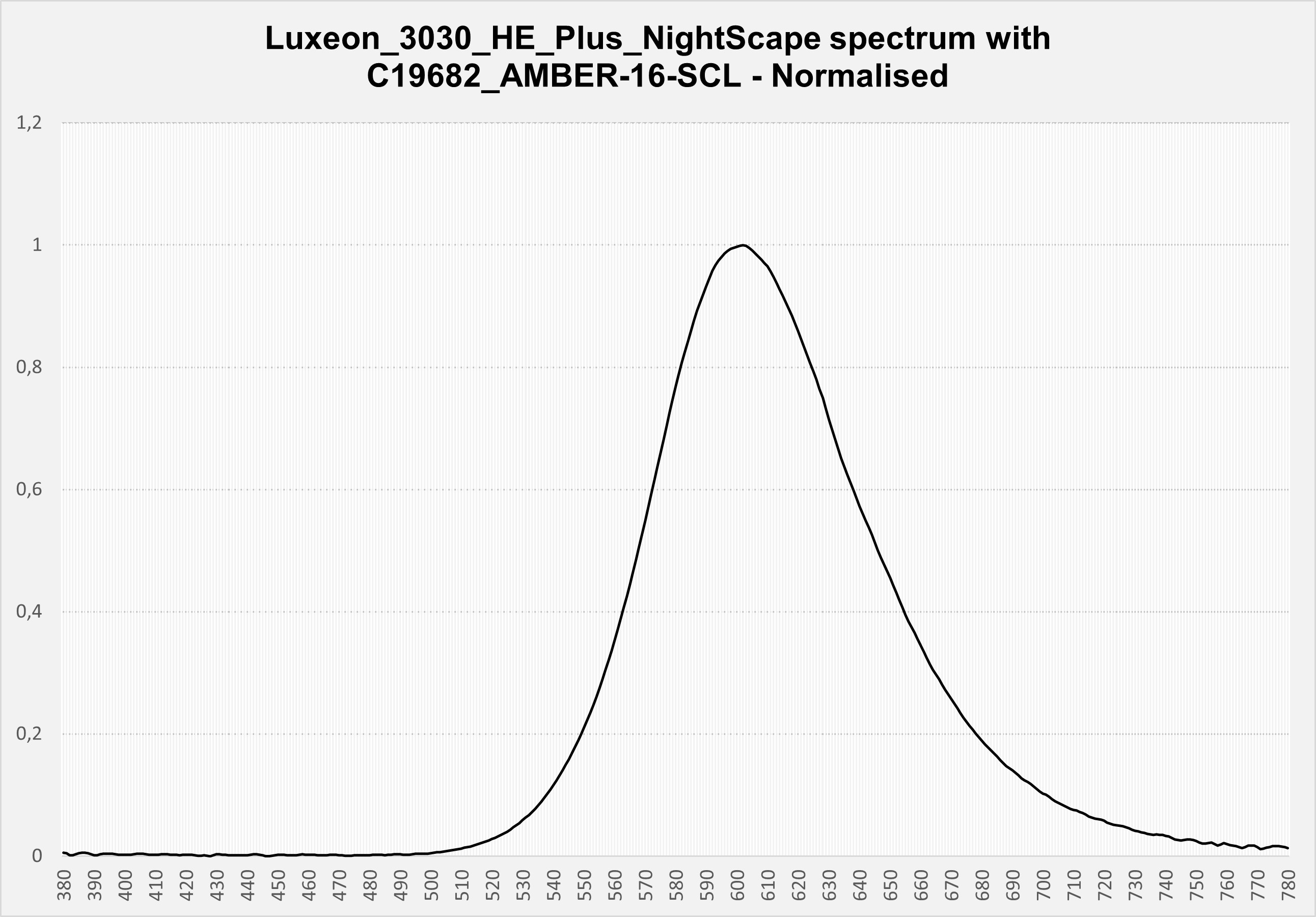

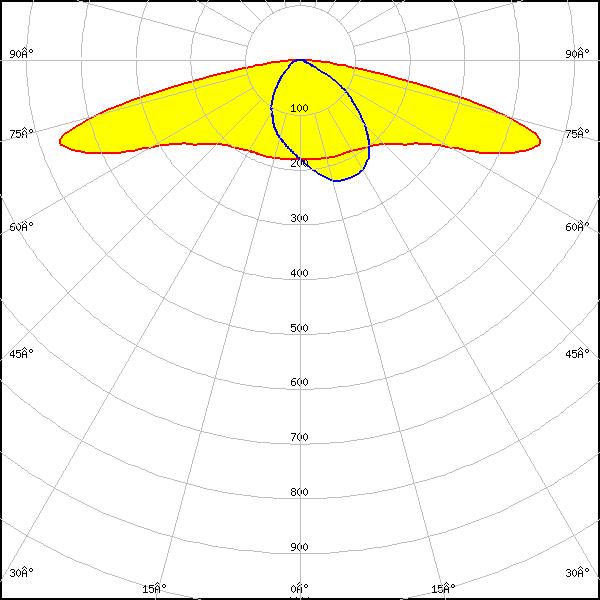

    LED: LUXEON 3030 HE Plus
    FWHM: asymmetric
    Peak intensity: 0.768 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.3%
    CCT (LED/with lens)*: 1900 K/ 1700 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

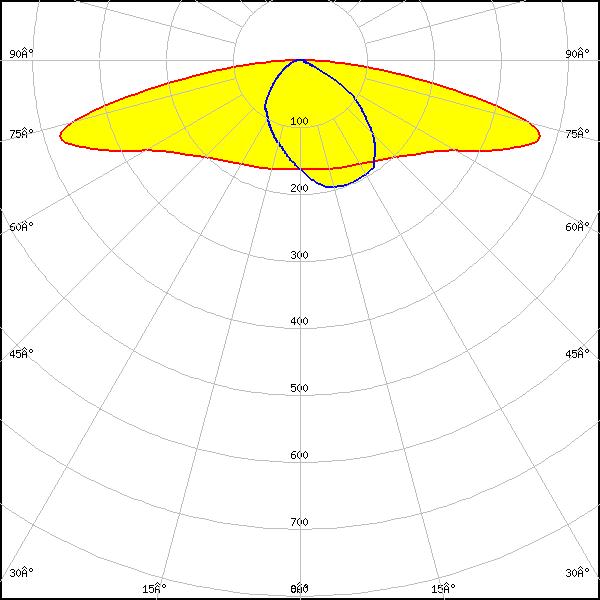

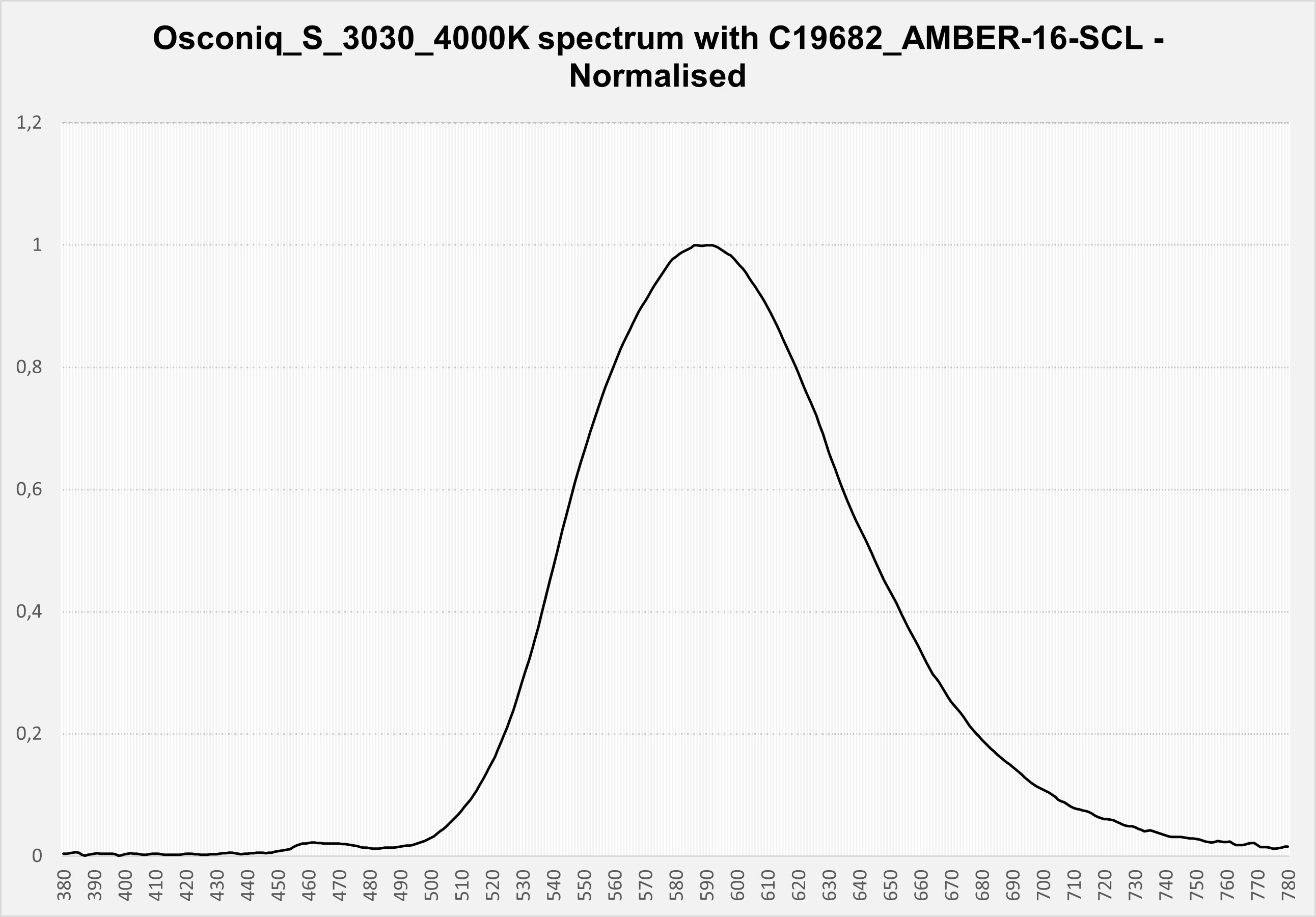

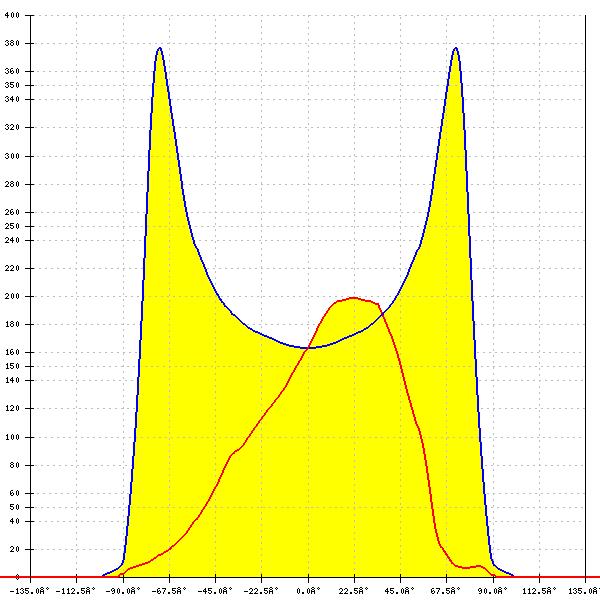

    LED: OSCONIQ S 3030 (QSLMS2.HM)
    FWHM: asymmetric
    Peak intensity: 0.517 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 1.0%
    CCT (LED/with lens)*: 3900 K/ 2500 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

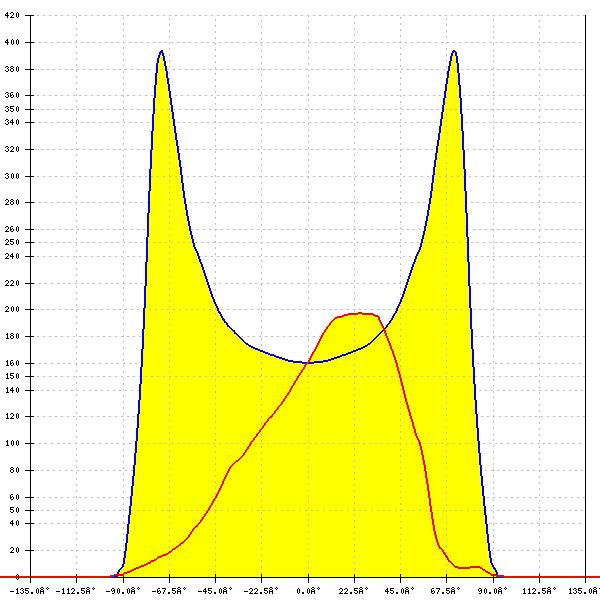

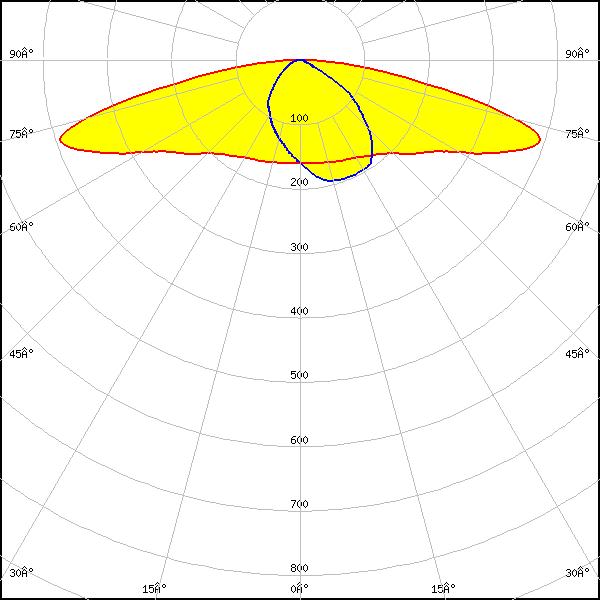

    LED: SEOUL DC 3030C
    FWHM: asymmetric
    Peak intensity: 0.533 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.4%
    CCT (LED/with lens)*: 4000 K/ 2300 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line
