    C19541_STRADA-2X3-5050-T2

    Print

    IESNA Type II (medium) beam applicable for European P-class standard pedestrian lighting and M-class roads.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      8.53 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.0 kg
    • MPQ:
      160 pcs
    • MOQ:
      800 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      8.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C19541_STRADA-2X3-5050-T2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application example

    STRADA-2X3-5050-T2 | MH & pole distance calculations

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    Guide for Street lighting optics

    News

    New beams and products - September 2024

    News

    STRADA-2X3 – Cut costs, not quality

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

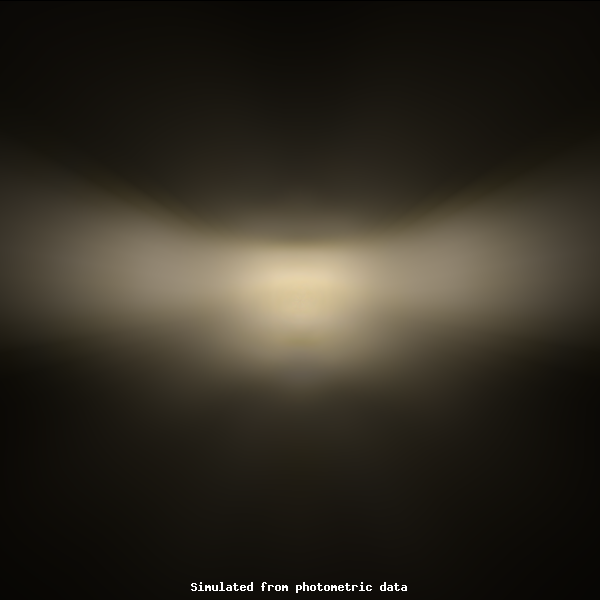

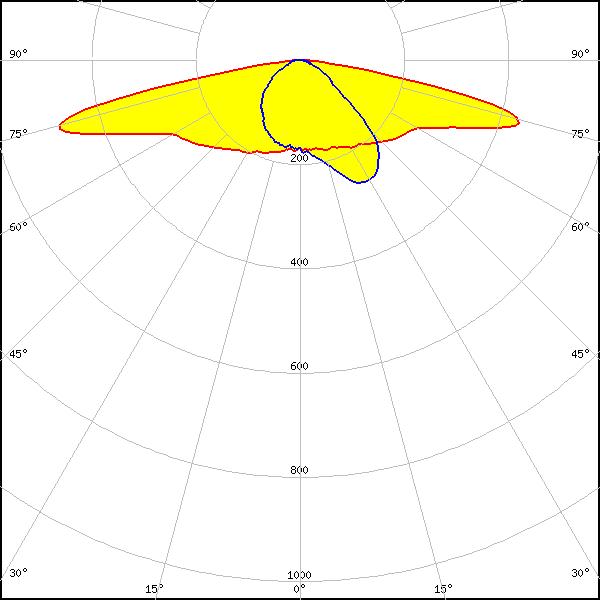

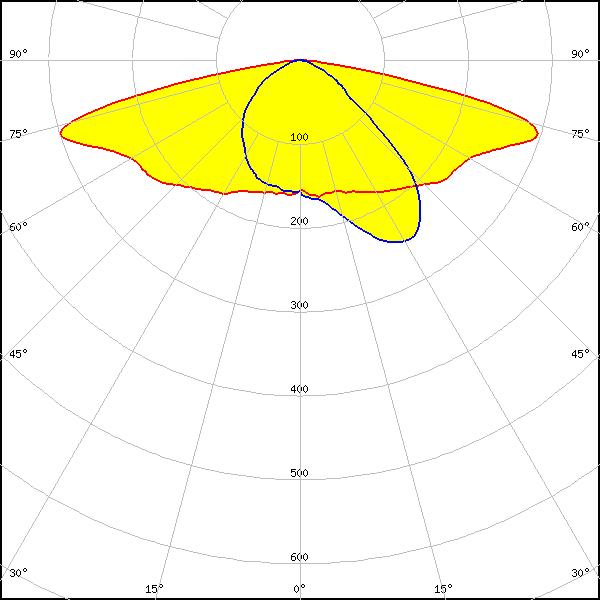

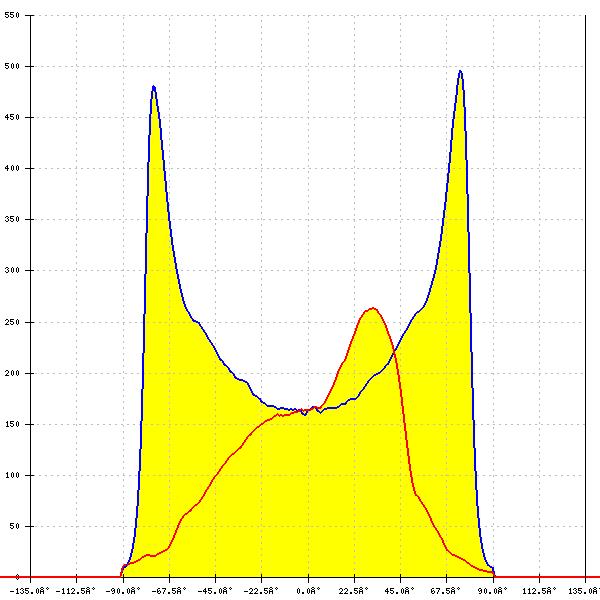

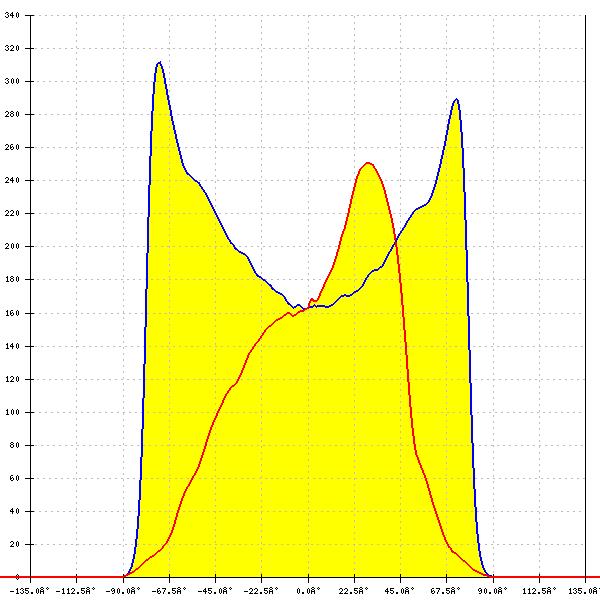

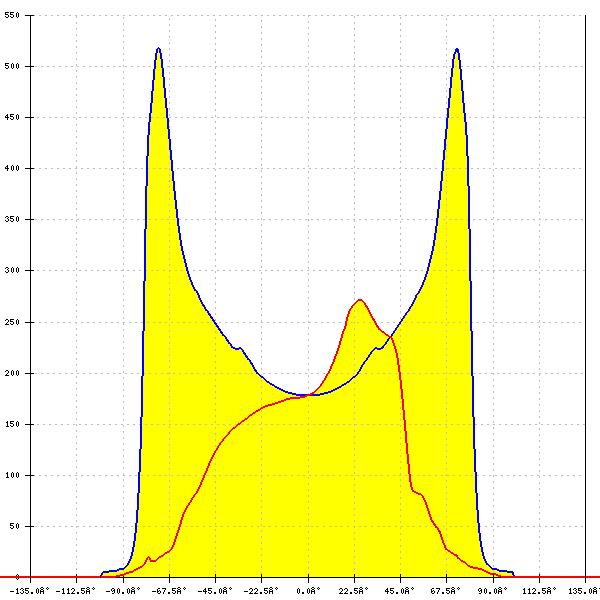

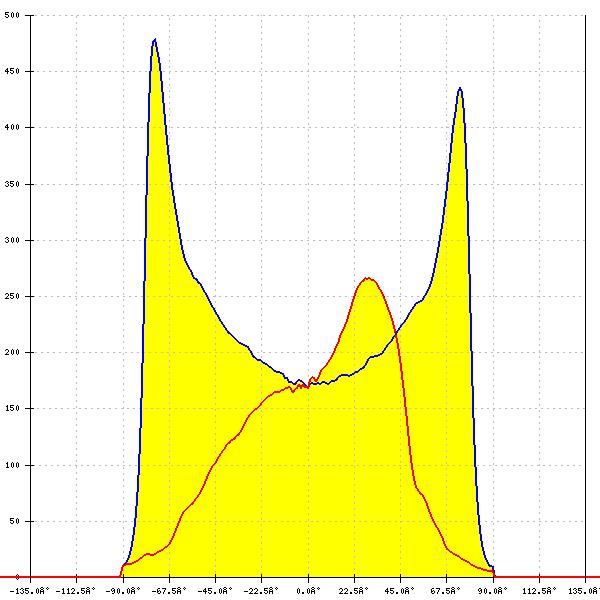

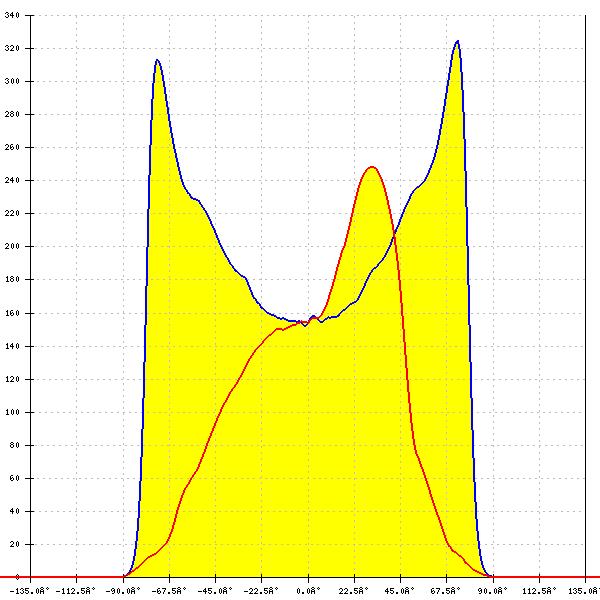

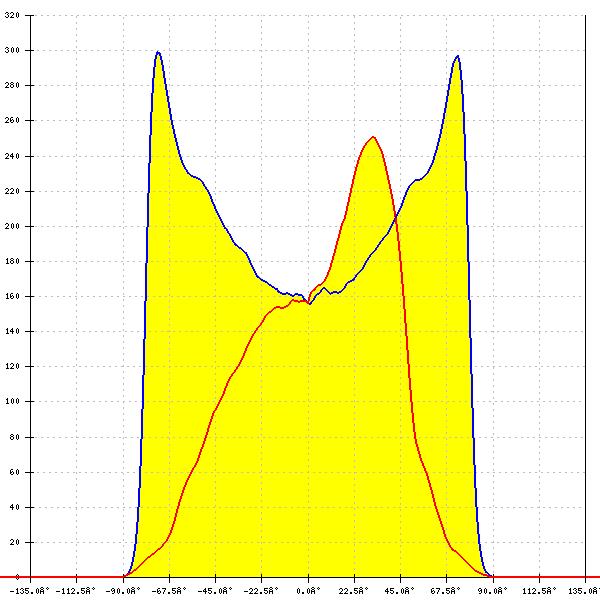

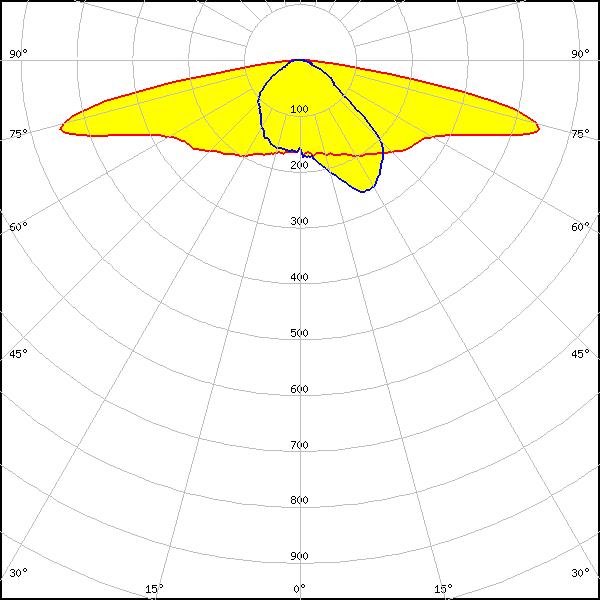

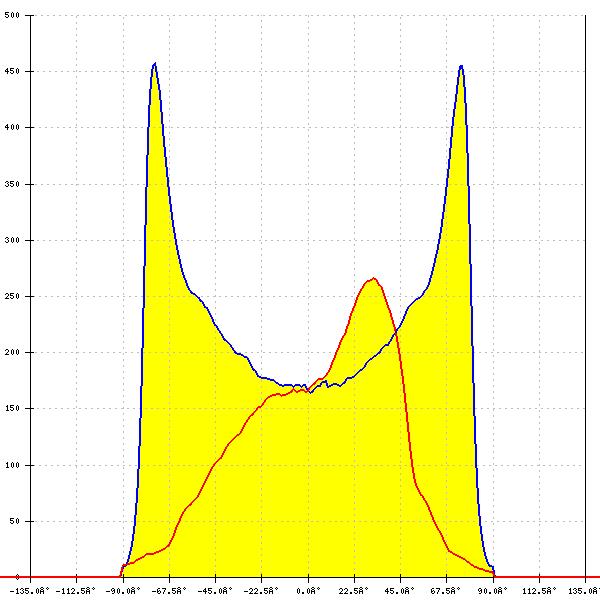

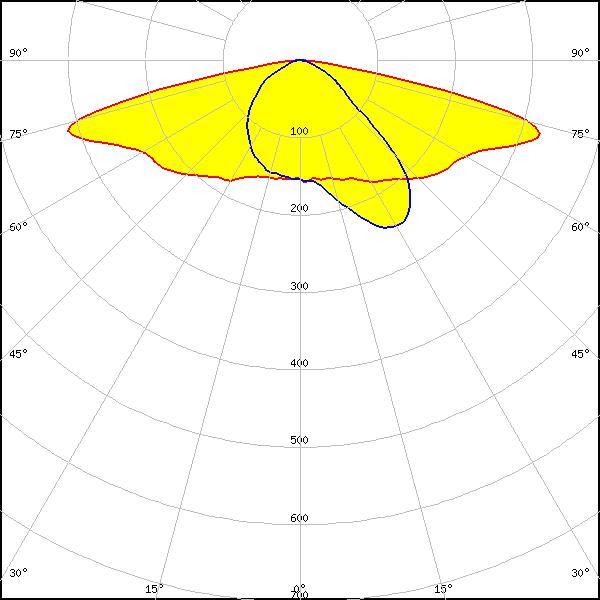

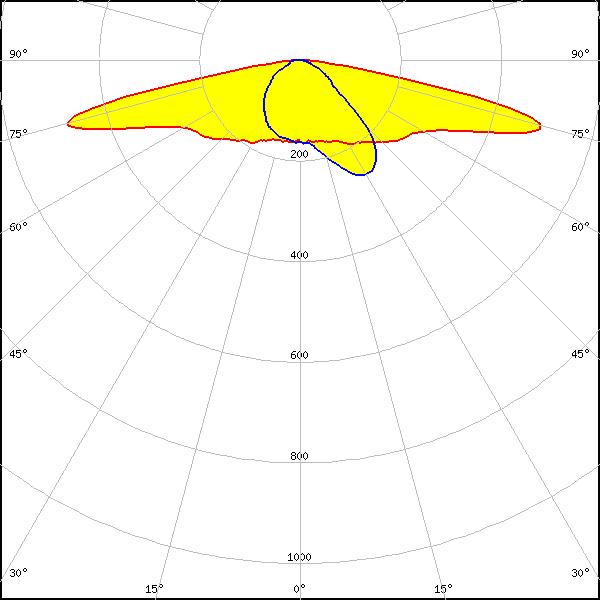

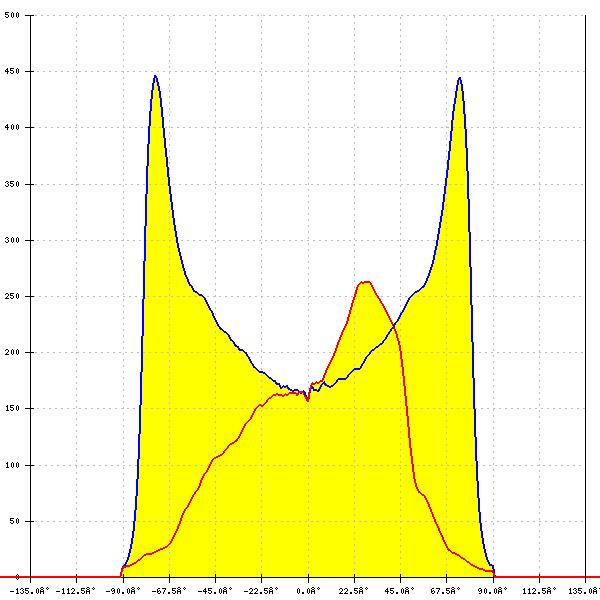

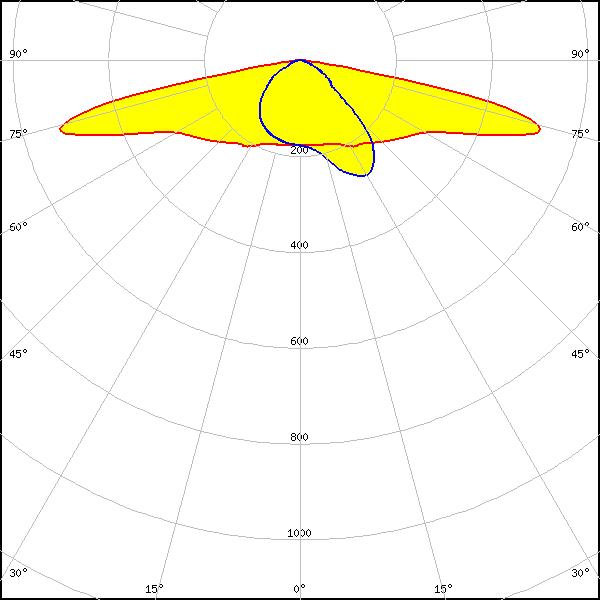

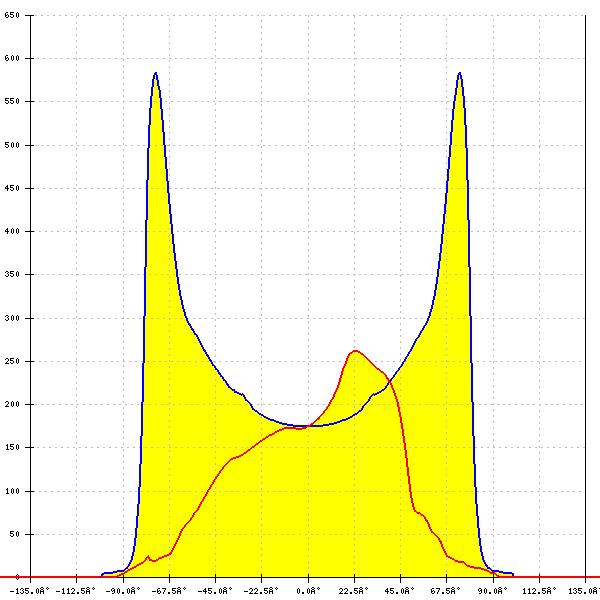

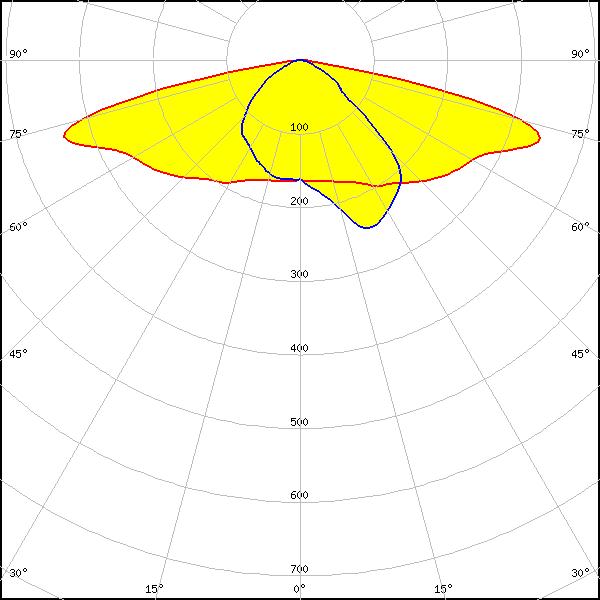

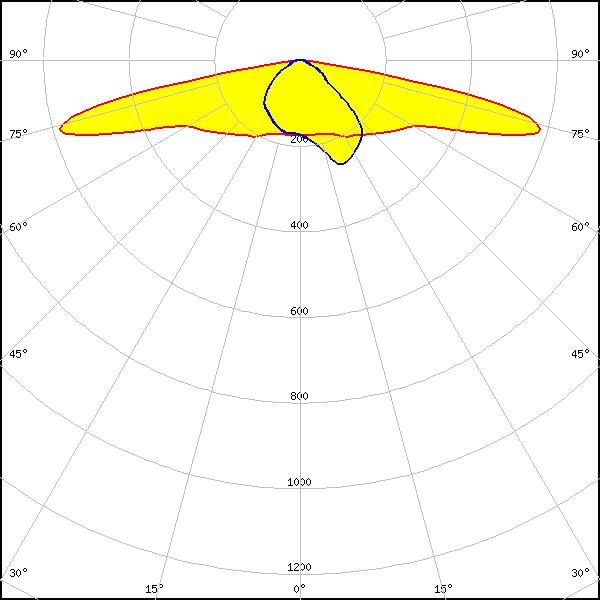

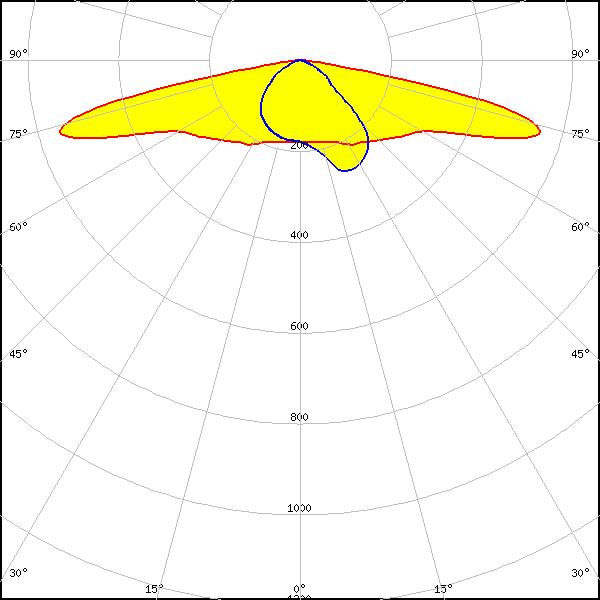

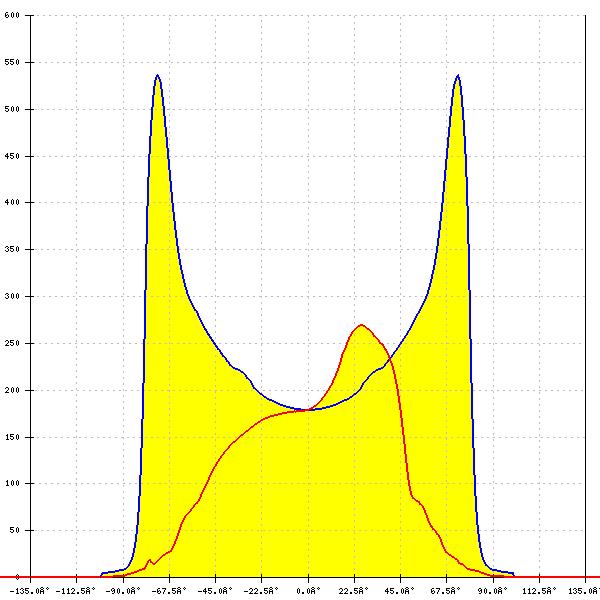

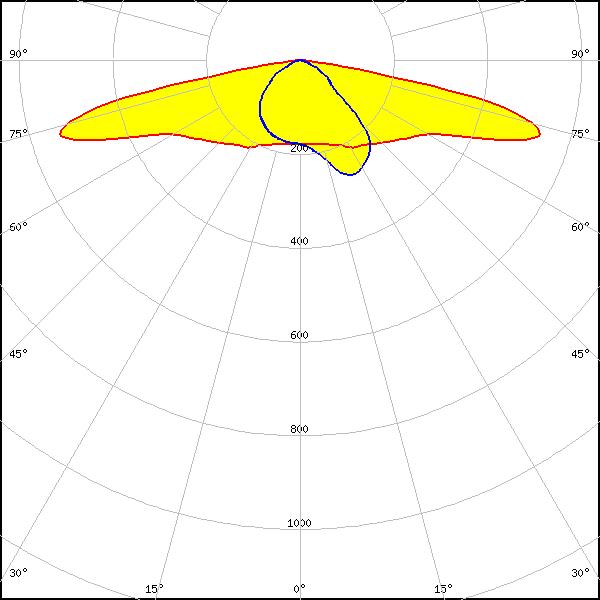

    Optical results

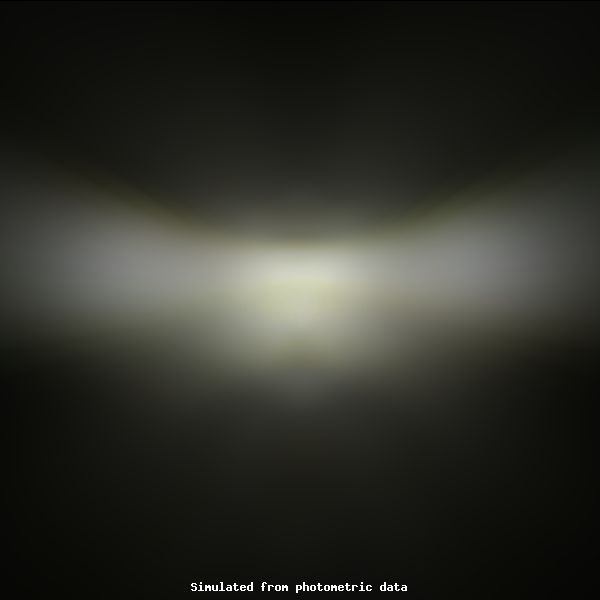

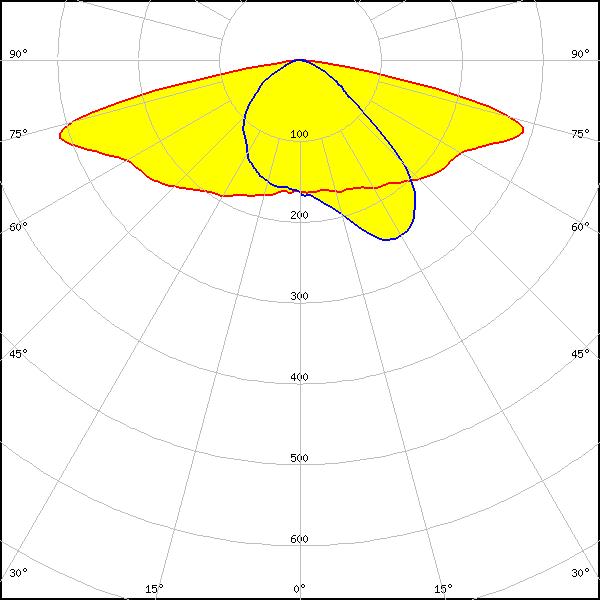

    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.577 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

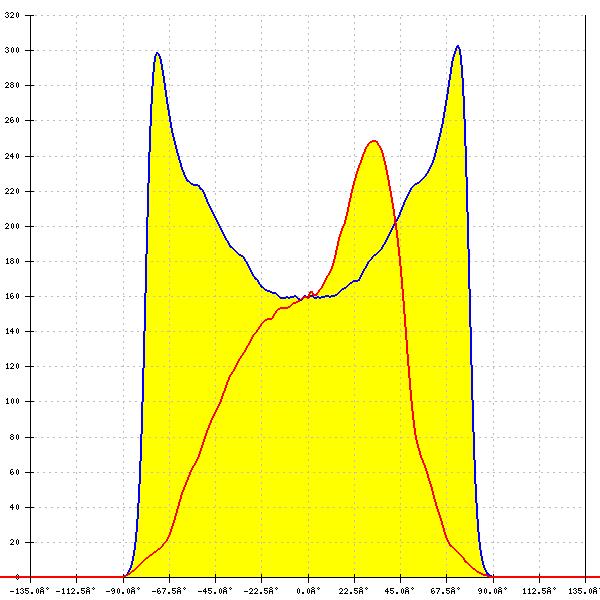

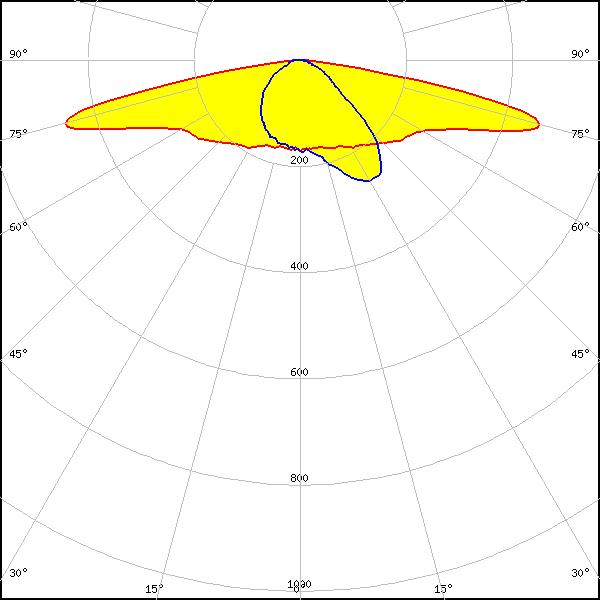

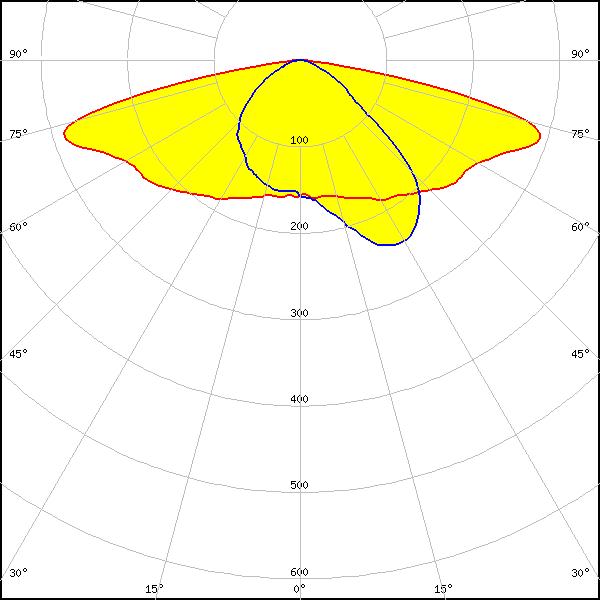

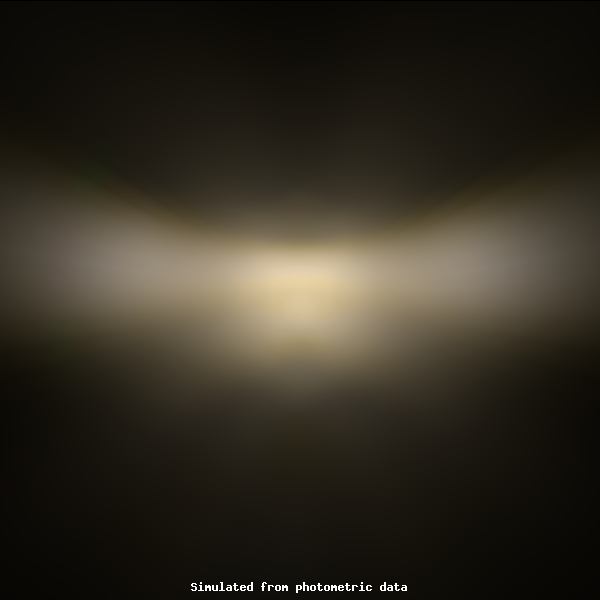

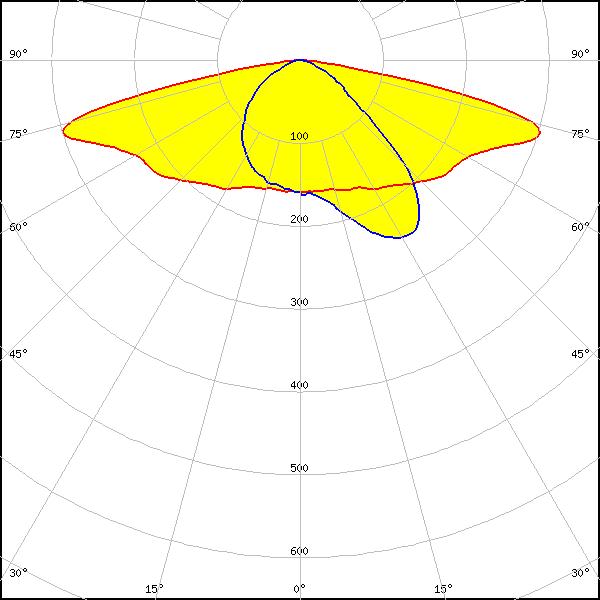

    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 0.622 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

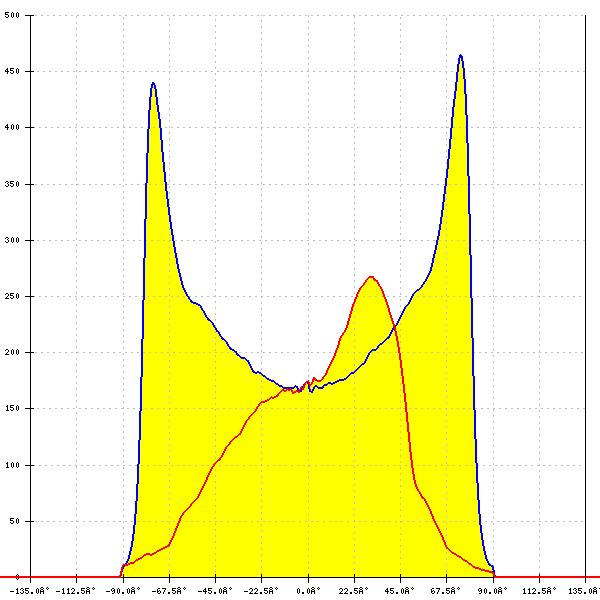

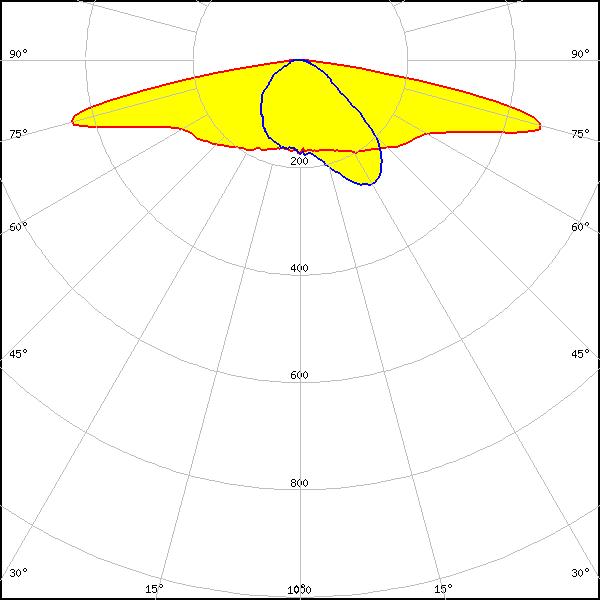

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.392 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 SFC
    FWHM: asymmetric
    Peak intensity: 0.708 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 SFC
    FWHM: asymmetric
    Peak intensity: 0.418 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

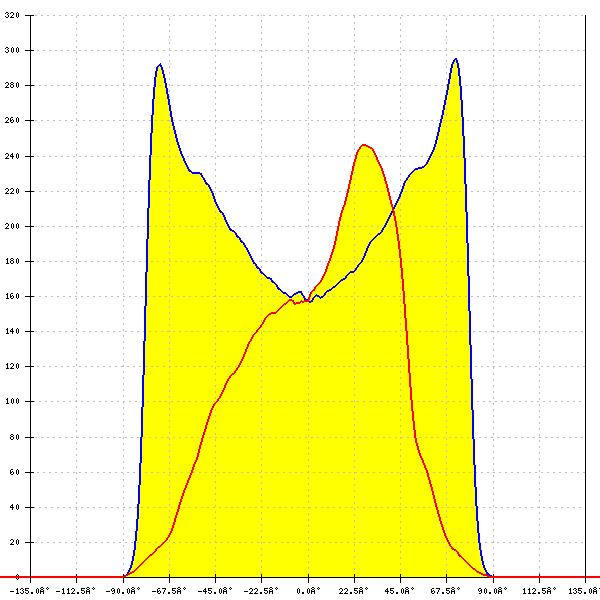

    LED: Seoul 5050 G-Series
    FWHM: asymmetric
    Peak intensity: 0.621 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Seoul 5050 G-Series
    FWHM: asymmetric
    Peak intensity: 0.387 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
