    C19230_STRADA-2X2-5050-ME3

    Print

    Beam capable to achieve super long pole distances with excellent longitudinal luminance uniformity fulfilling EN13201 M-class requirements where road width is equal to or less the pole height.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      6.80 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.7 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C19230_STRADA-2X2-5050-ME3
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – November, 2023

    News

    STRADA-2X2 & ME3 – Going the distance

    Application example

    M3 street lighting with STRADA-2X2-5050-ME3

    Application area

    Urban lighting with LEDiL optics

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

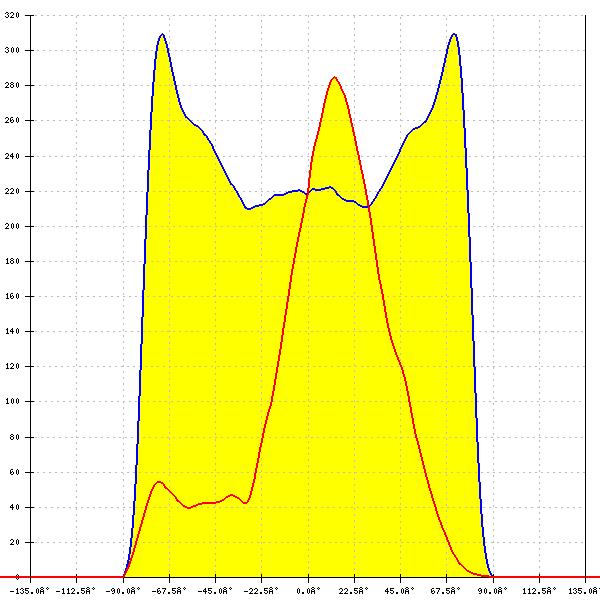

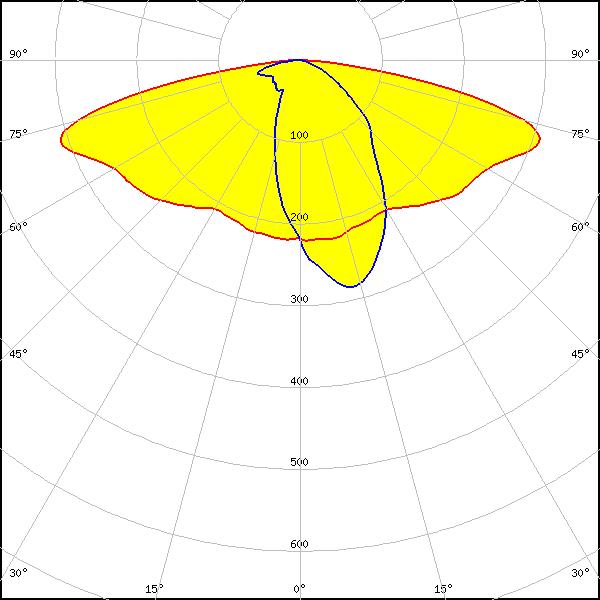

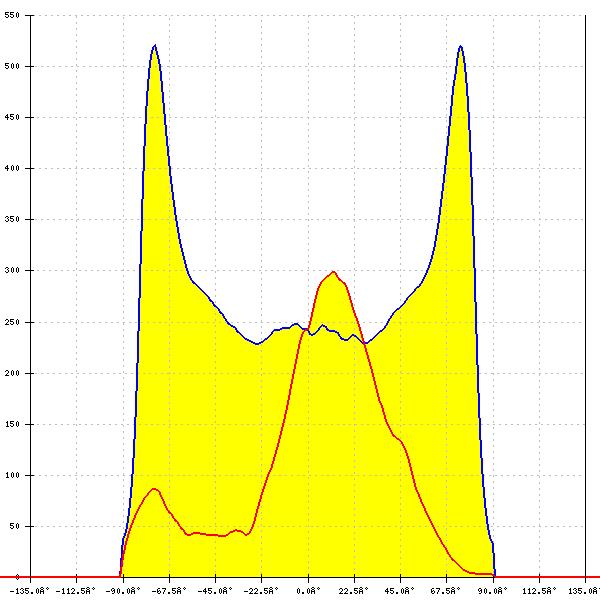

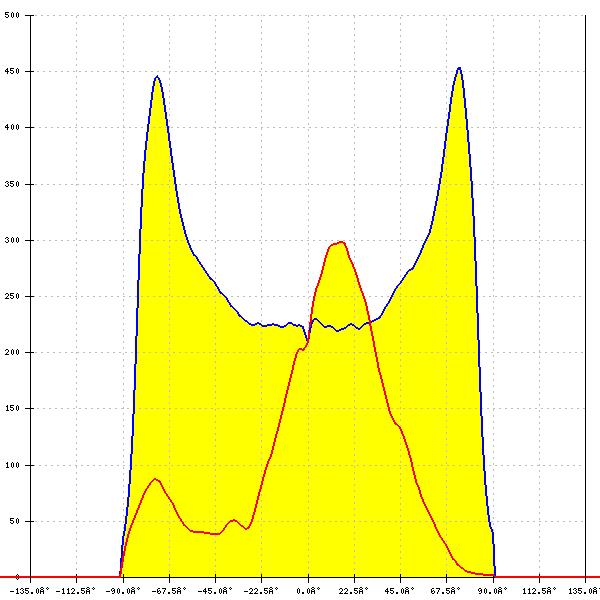

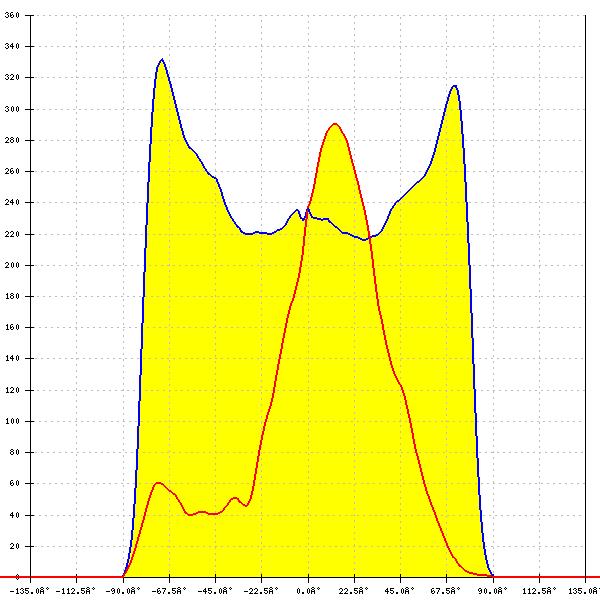

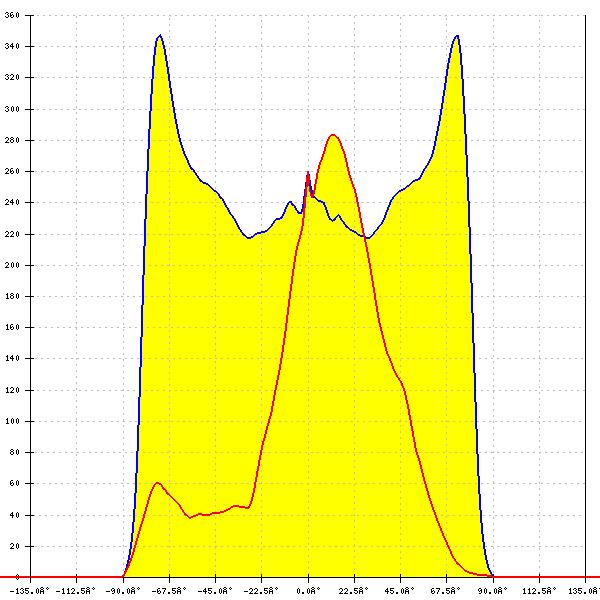

    Optical results

    LED: J Series 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.629 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.424 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.385 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

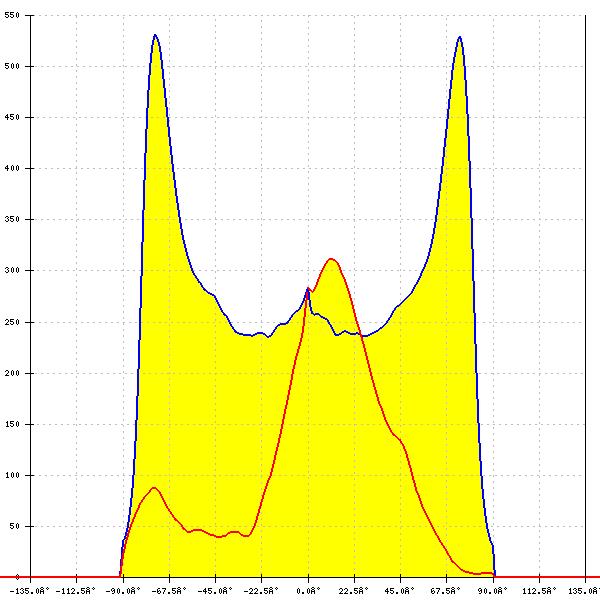

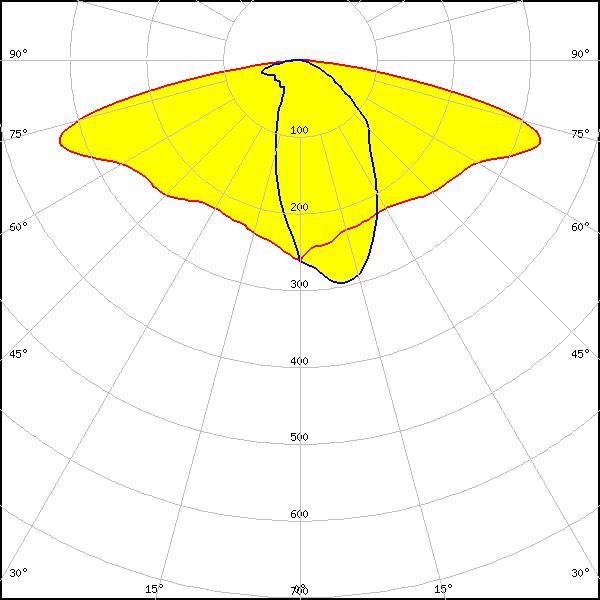

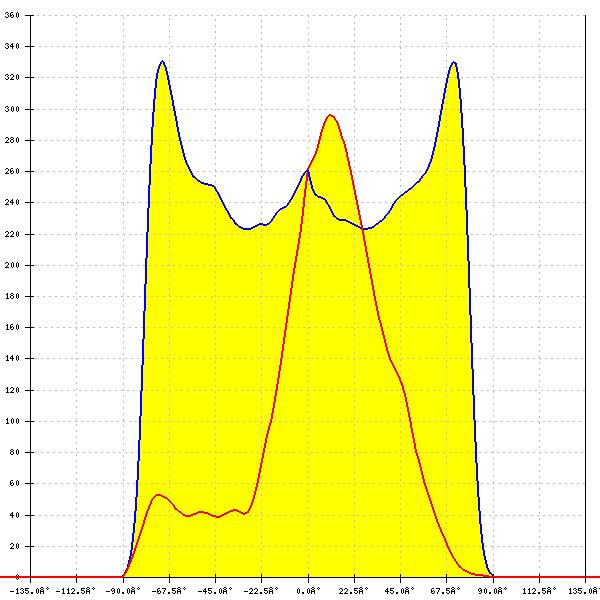

    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 0.642 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

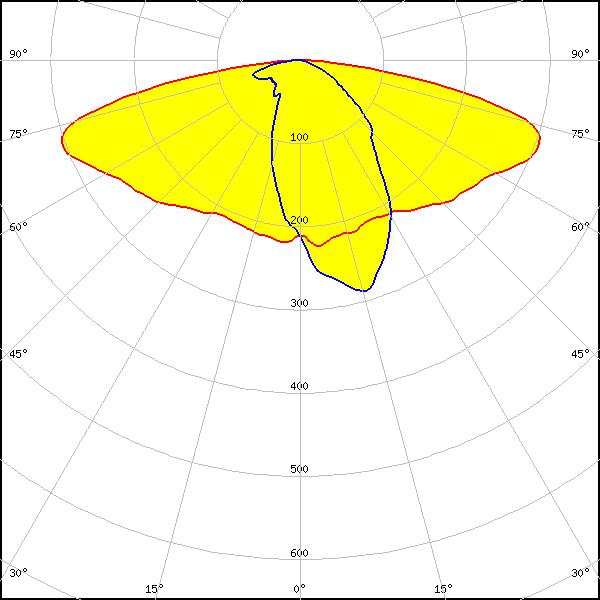

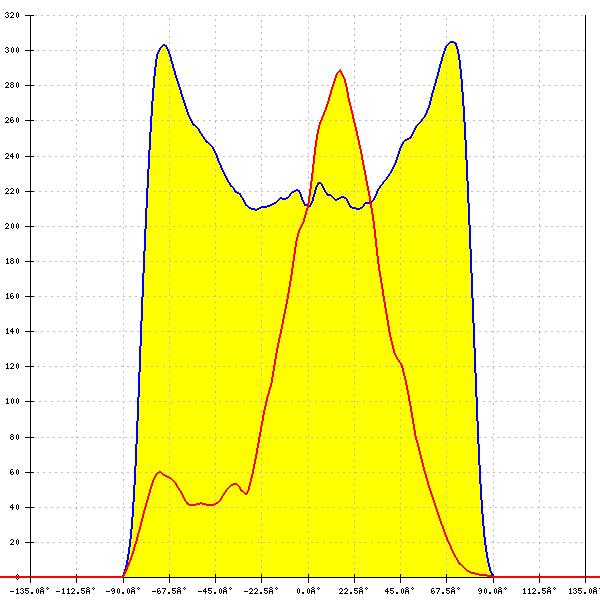

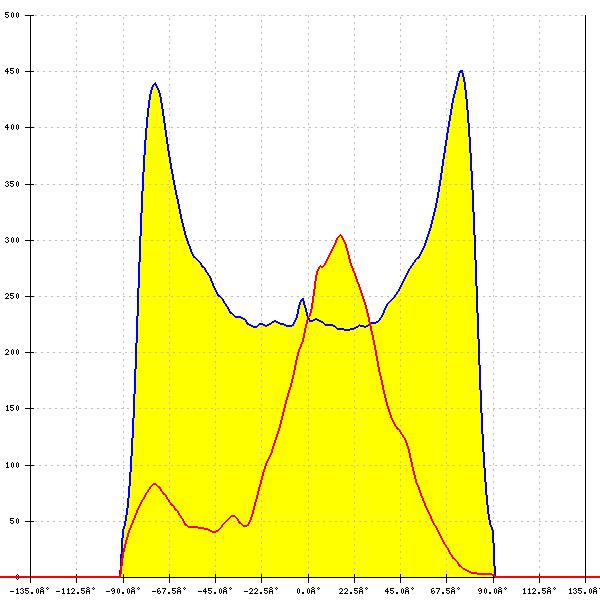

    LED: LUXEON 5050 HE Plus
    FWHM: asymmetric
    Peak intensity: 0.360 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE Plus
    FWHM: asymmetric
    Peak intensity: 0.524 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

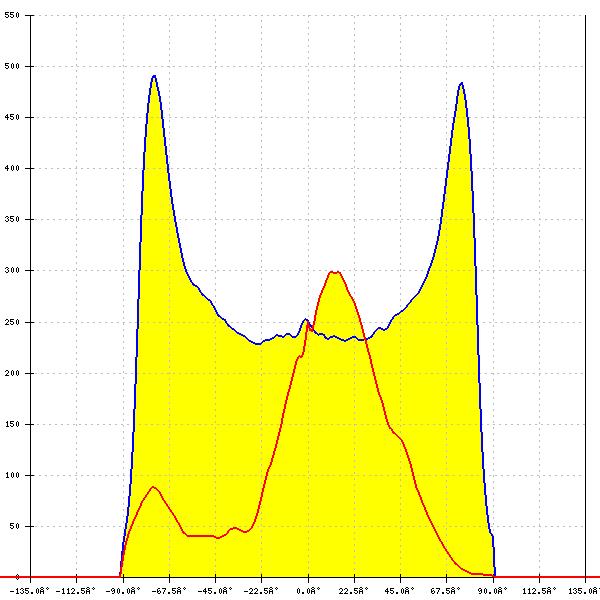

    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.399 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.582 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

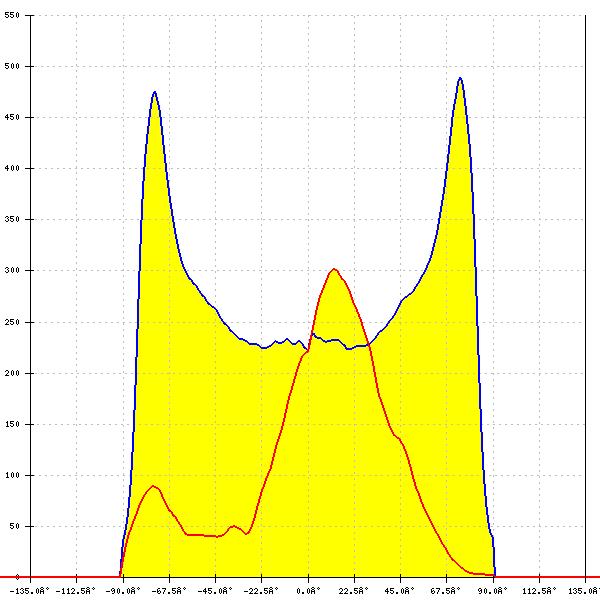

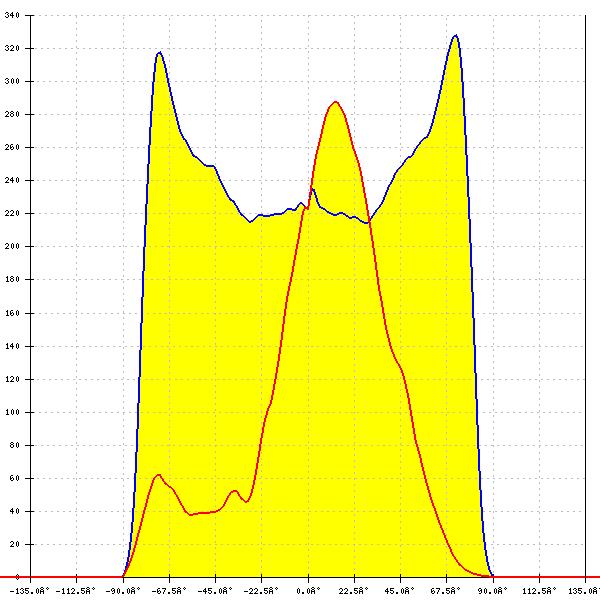

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.387 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.573 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

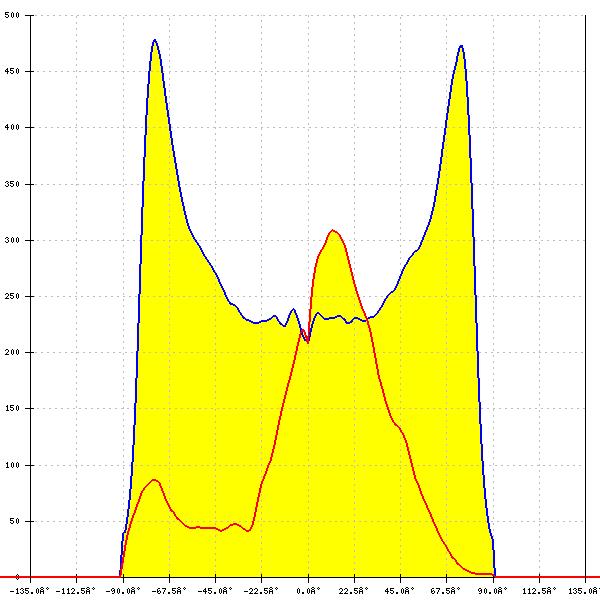

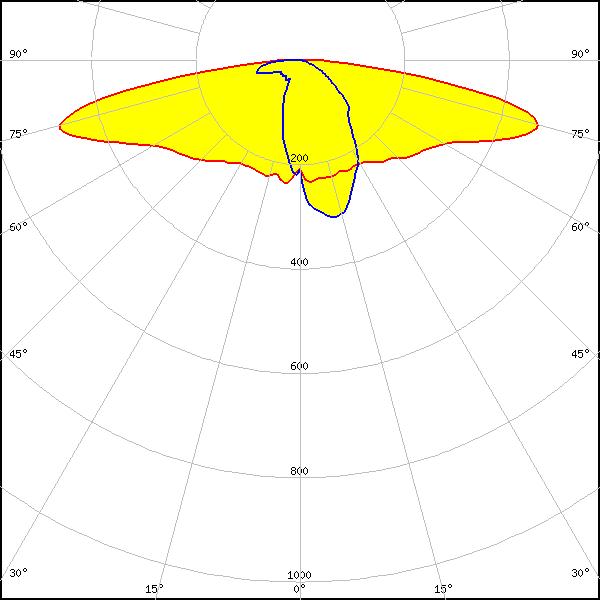

    LED: MP-5050-240E_810E
    FWHM: asymmetric
    Peak intensity: 0.568 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RecLED 122x50mm 2x4 5050
    FWHM: asymmetric
    Peak intensity: 0.369 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

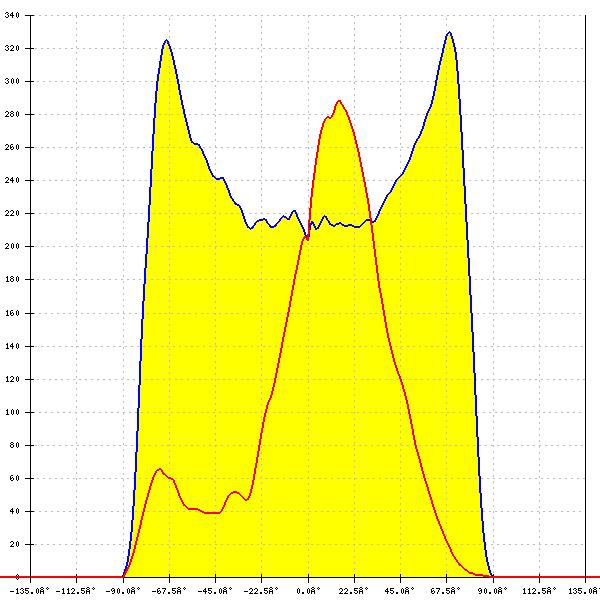

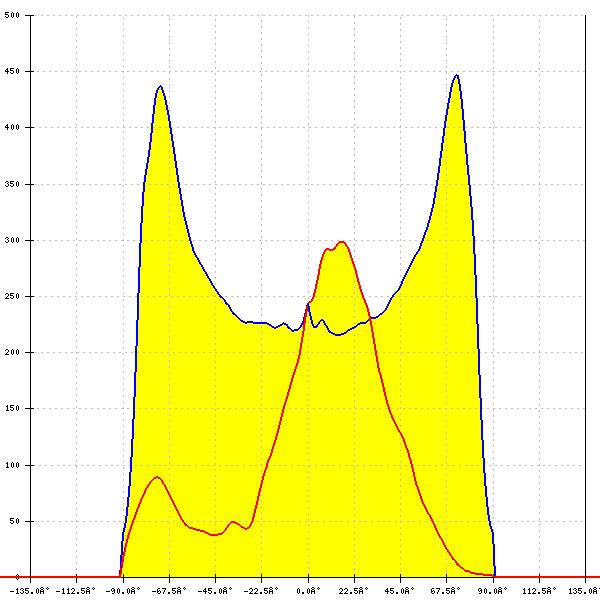

    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.496 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.369 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 SFC
    FWHM: asymmetric
    Peak intensity: 0.643 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 SFC
    FWHM: asymmetric
    Peak intensity: 0.415 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

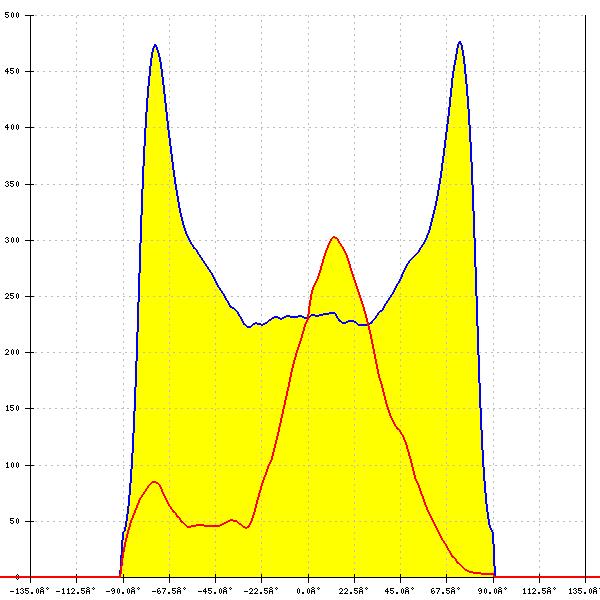

    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.566 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.365 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.518 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
