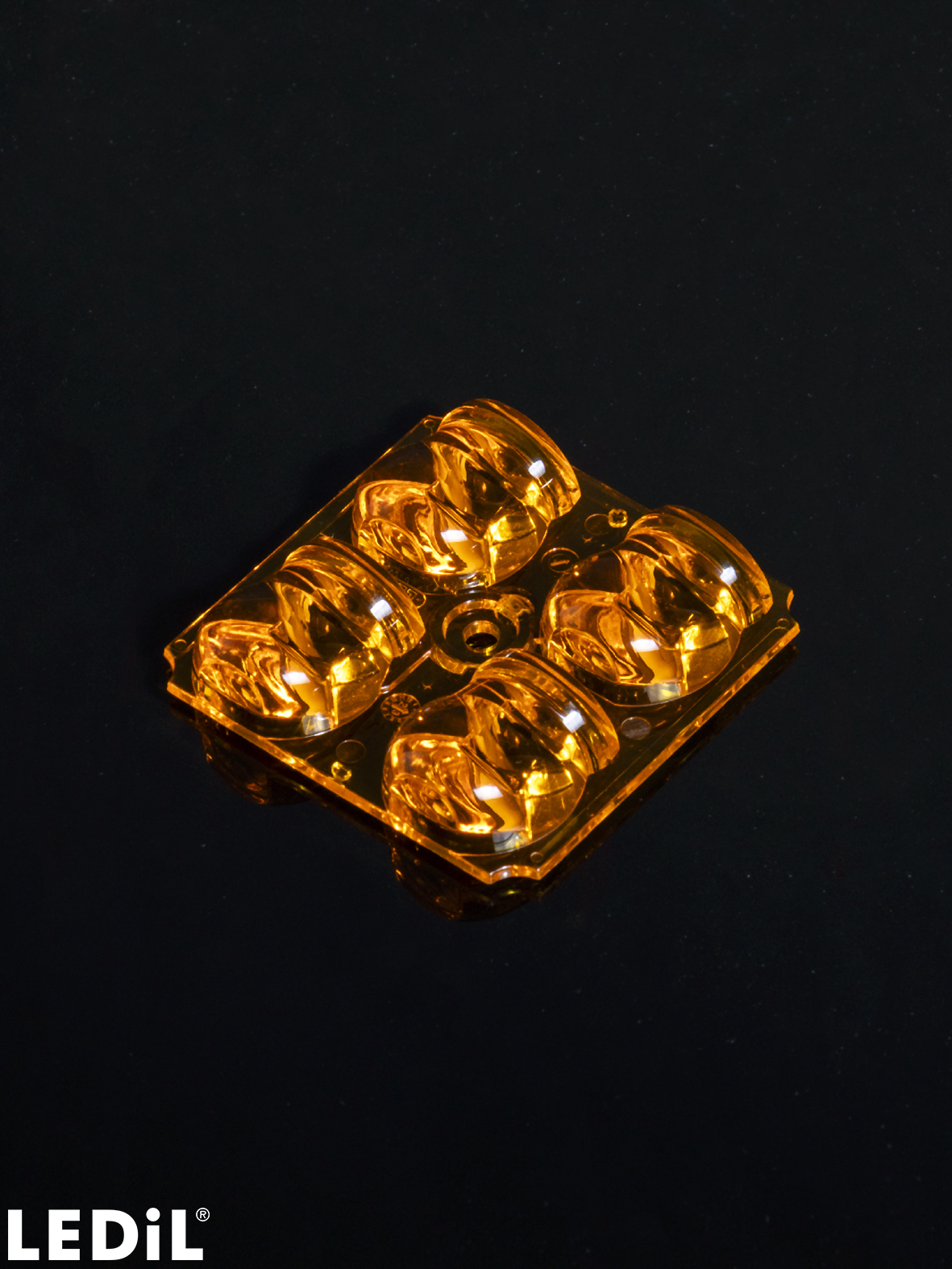

C19181_AMBER-2X2-FT6
Print
Narrow forward throw beam with optimized cut-off for high masts
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

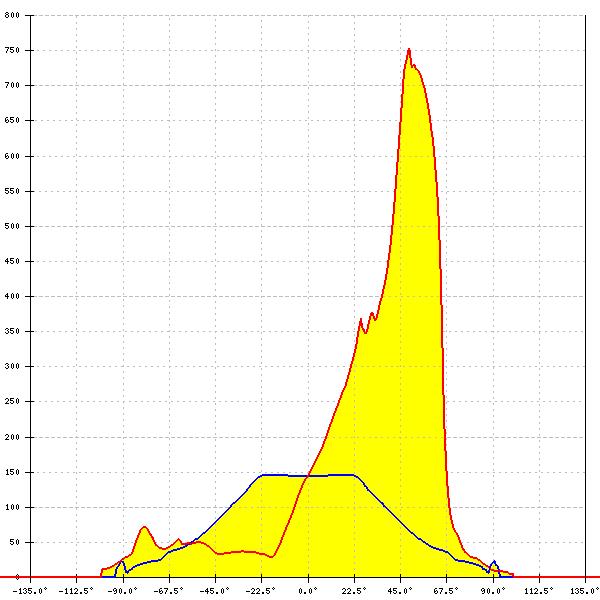

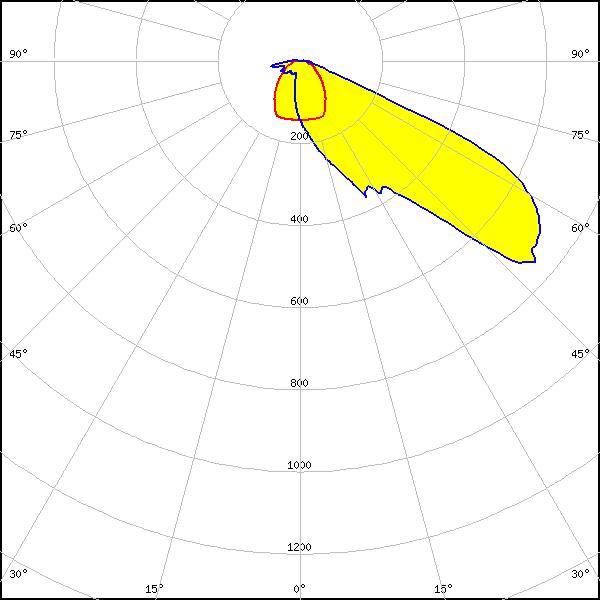

LED:
J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity:
0.753 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3800 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

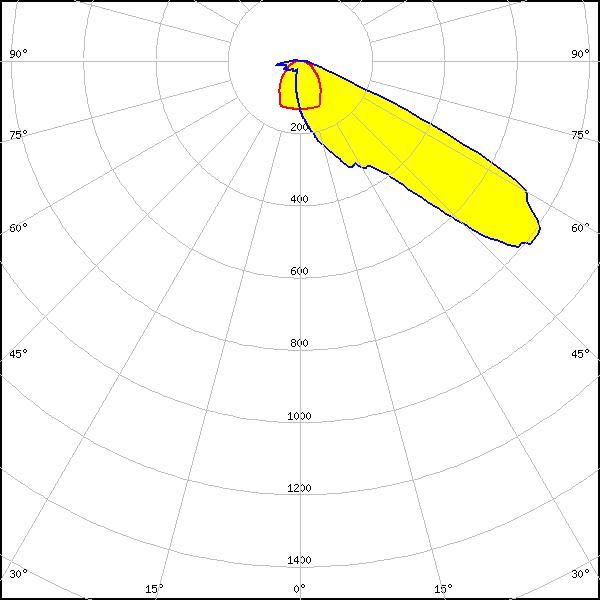

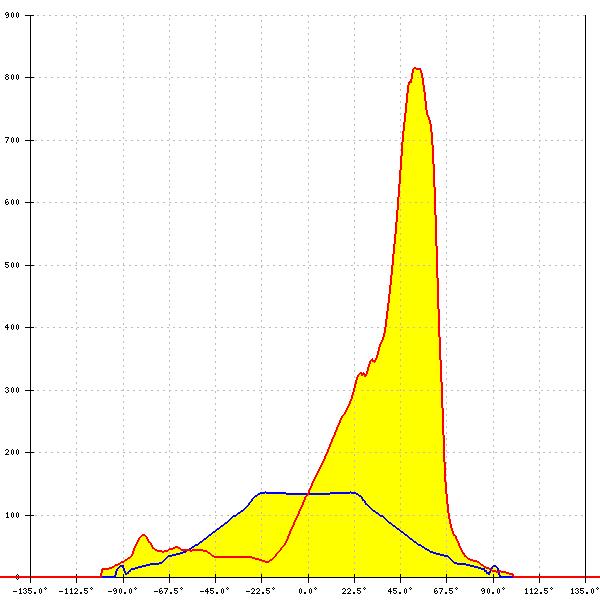

LED:
LUXEON 5050 HE
FWHM: asymmetric
Peak intensity:
0.815 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3900 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

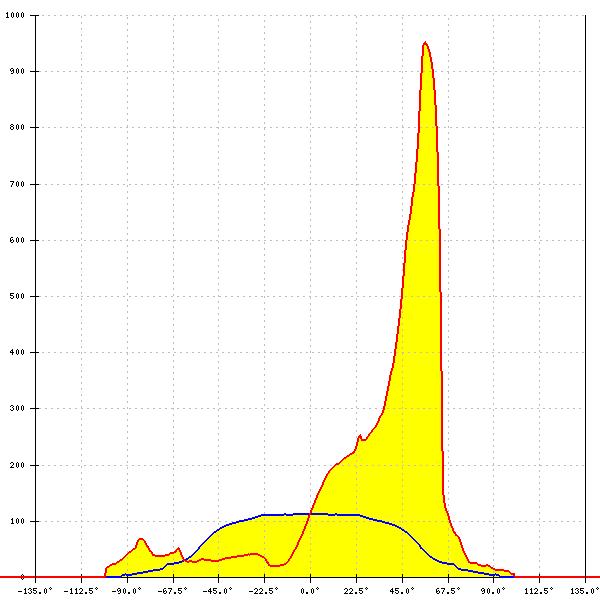

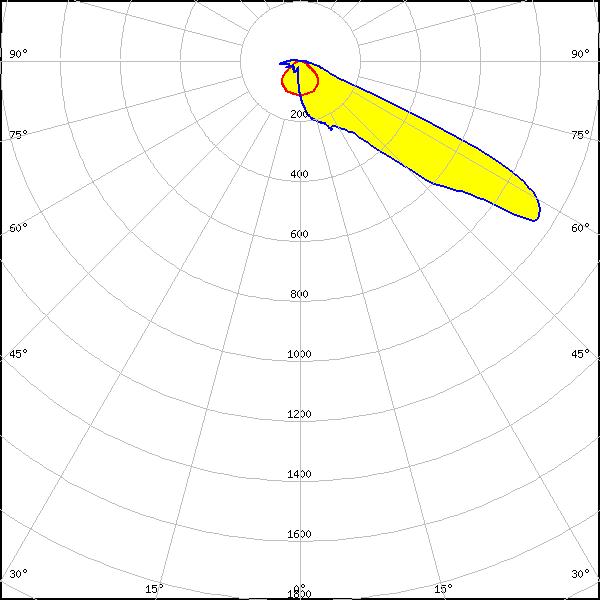

LED:
LUXEON HL2X-D
FWHM: asymmetric
Peak intensity:
0.985 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.4%
CCT (LED/with lens)*:
3900 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

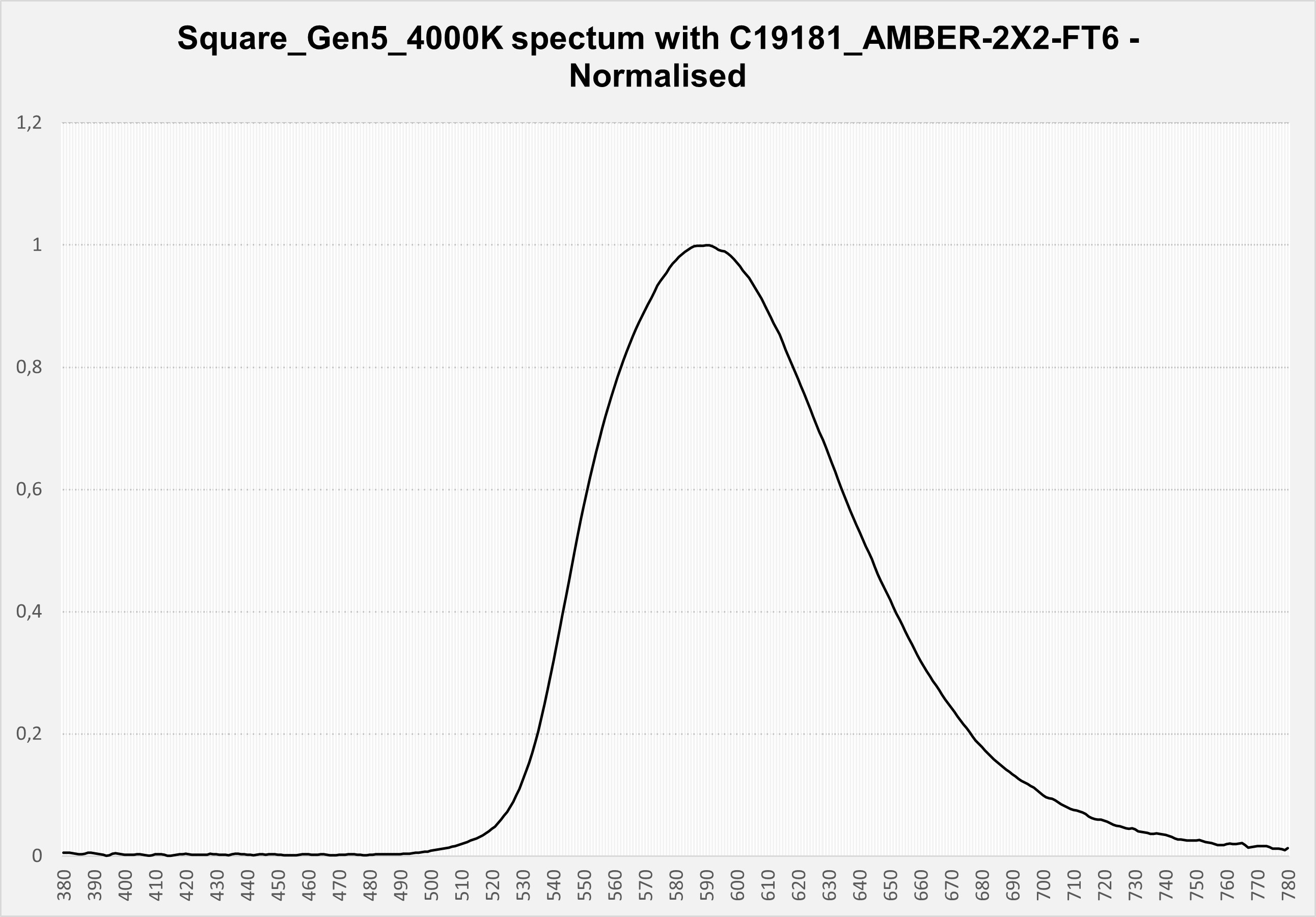

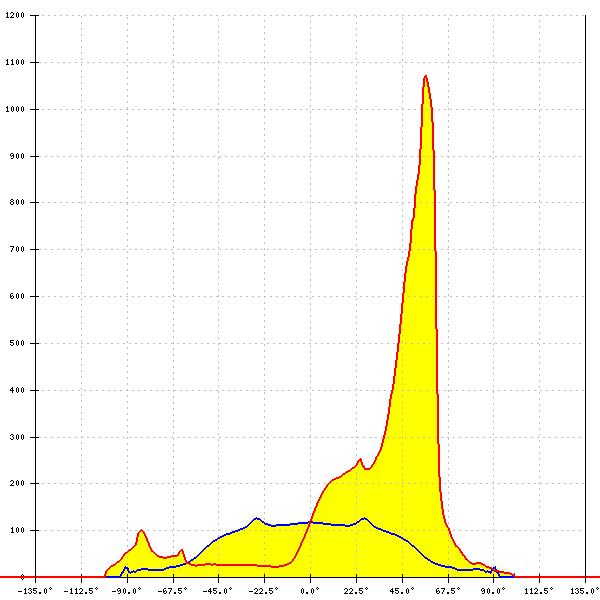

LED:
OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
1.140 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3900 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

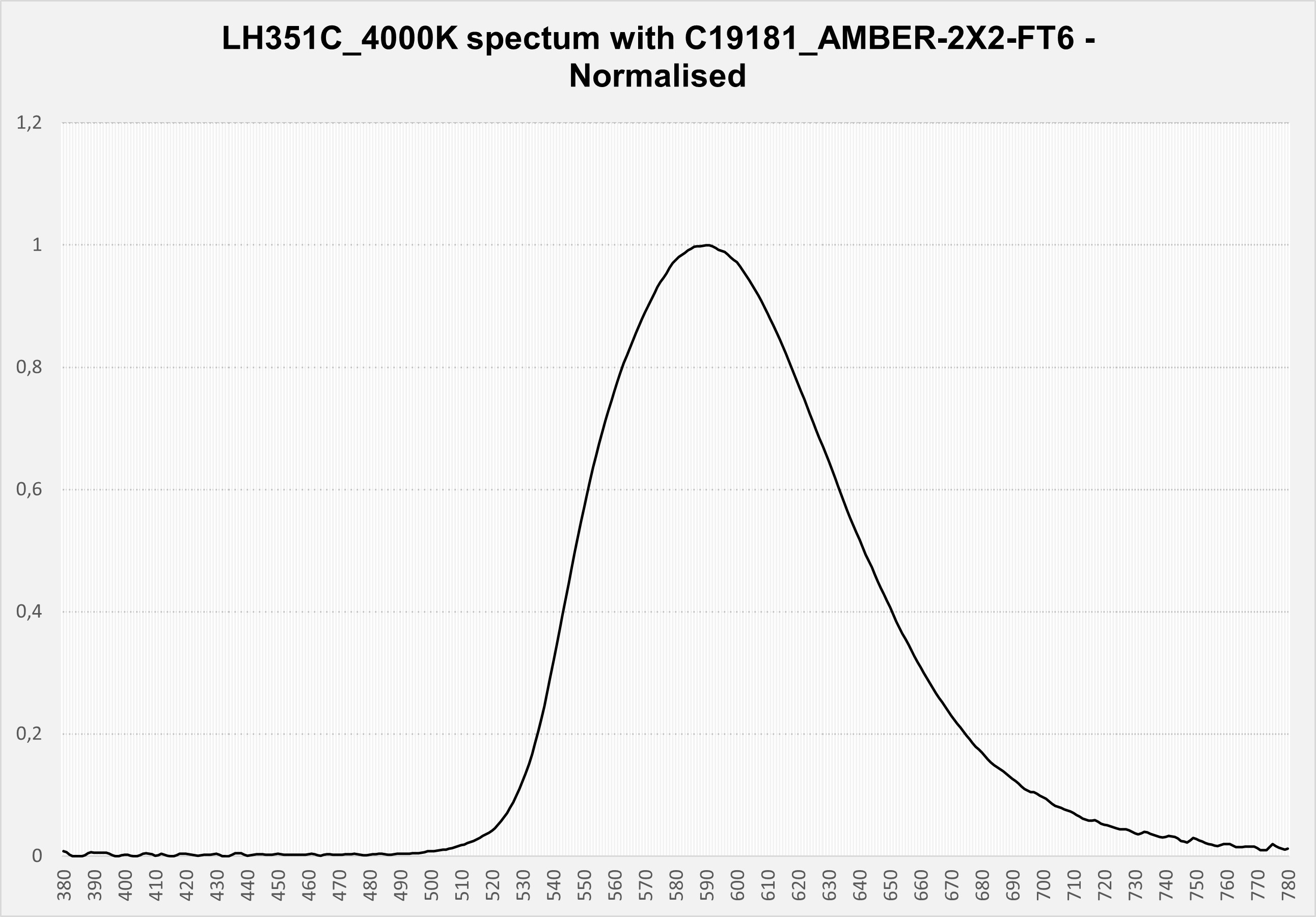

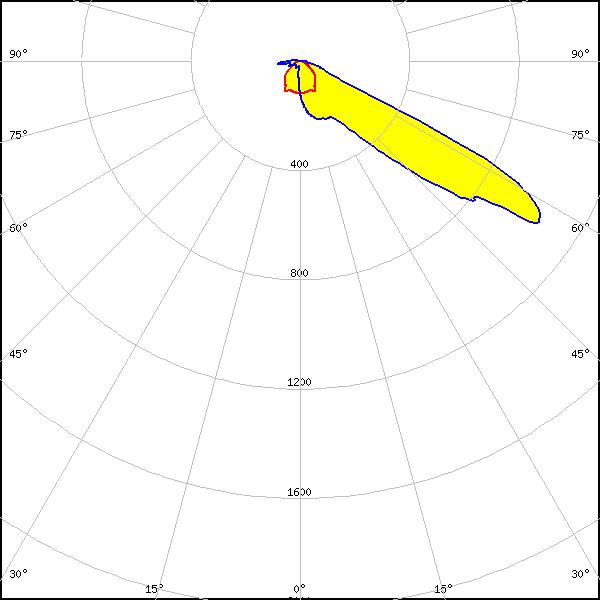

LED:
LH351C
FWHM: asymmetric
Peak intensity:
1.108 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3800 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

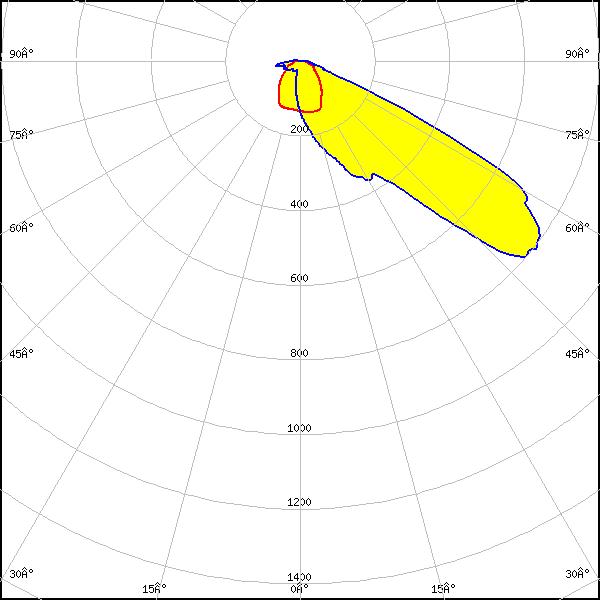

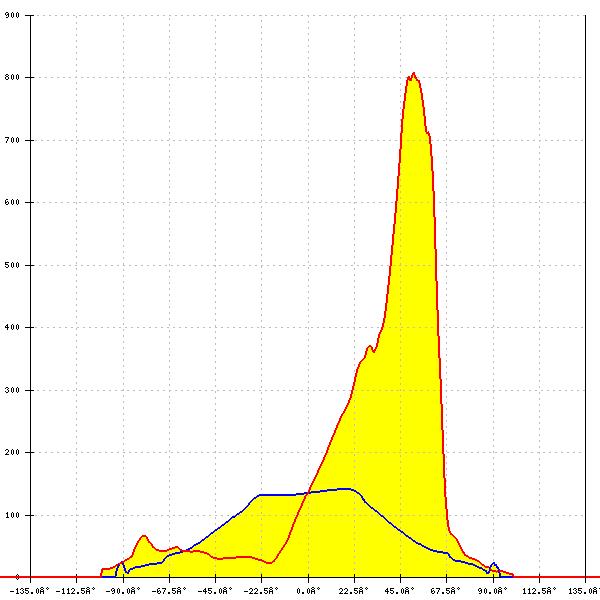

LED:
LH502D
FWHM: asymmetric
Peak intensity:
0.808 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.4%
CCT (LED/with lens)*:
3800 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

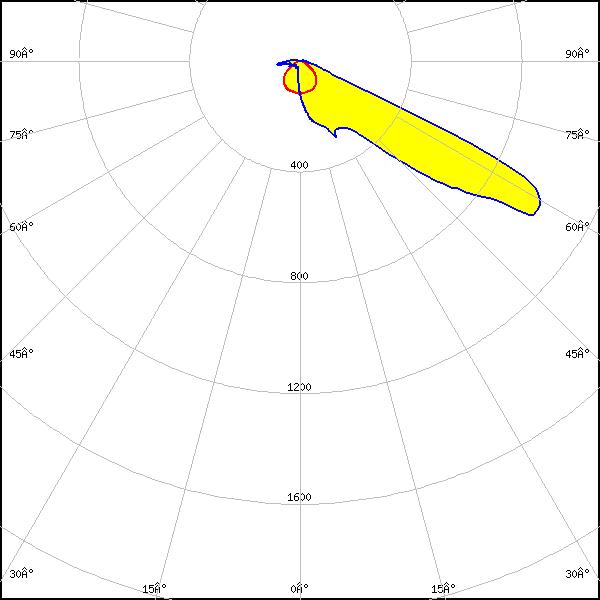

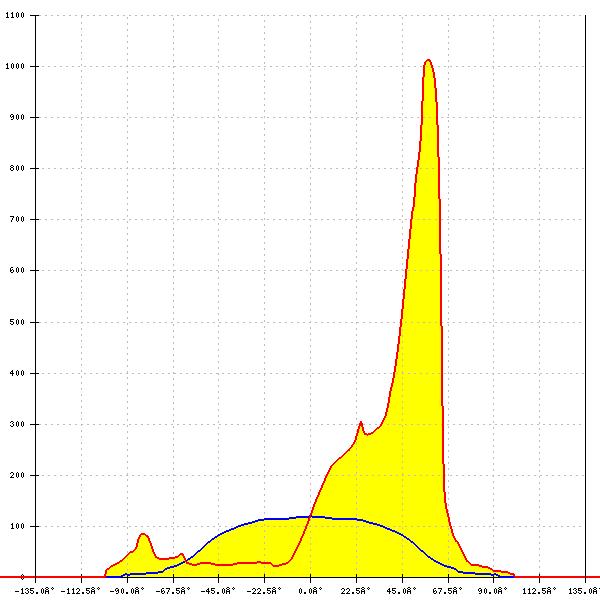

LED:
Z5M4
FWHM: asymmetric
Peak intensity:
1.044 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3600 K/ 2200 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
