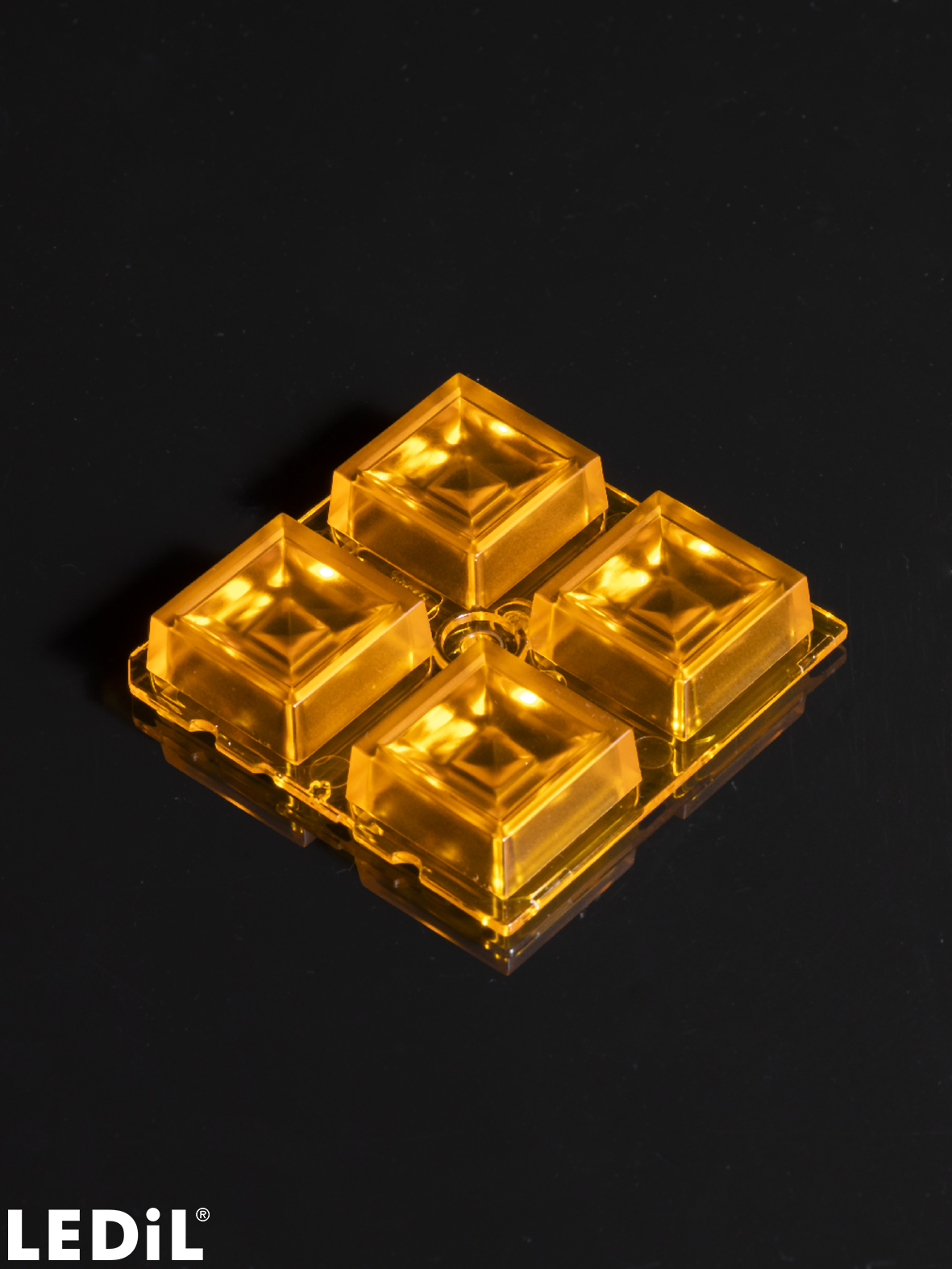

C19175_AMBER-2X2-W
Print
~50° wide beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

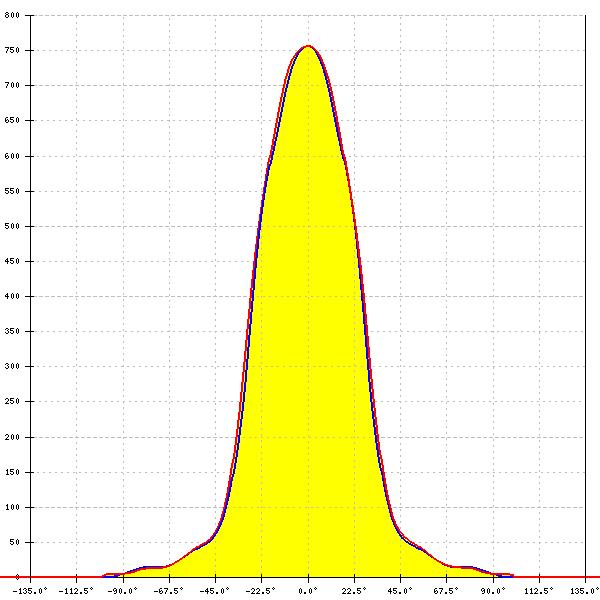

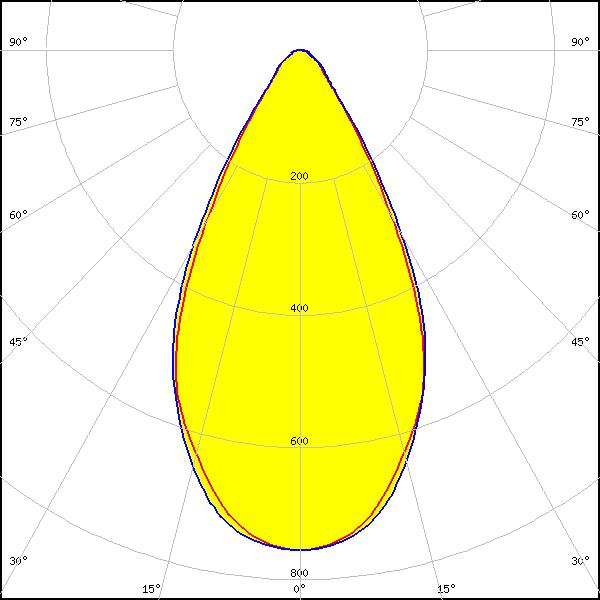

LED:
J Series 5050B 6V K Class
FWHM:
55°
FWTM:
85°
Peak intensity:
0.757 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3800 K/ 2200 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

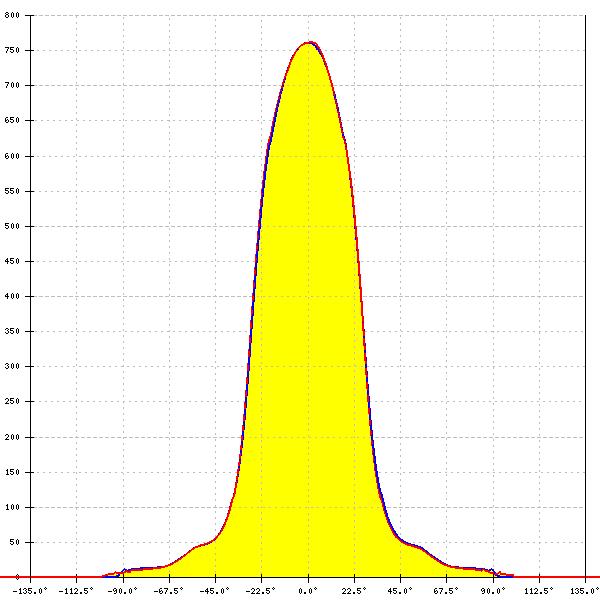

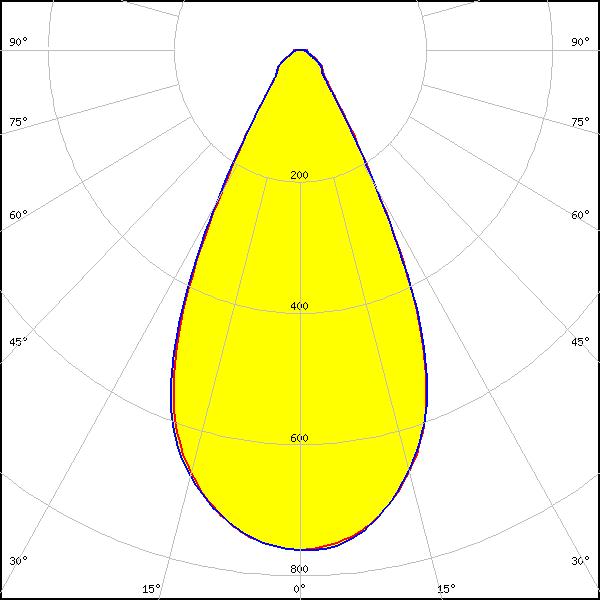

LED:
XP-G3
FWHM:
53°
FWTM:
80°
Peak intensity:
0.761 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.4%
CCT (LED/with lens)*:
3900 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

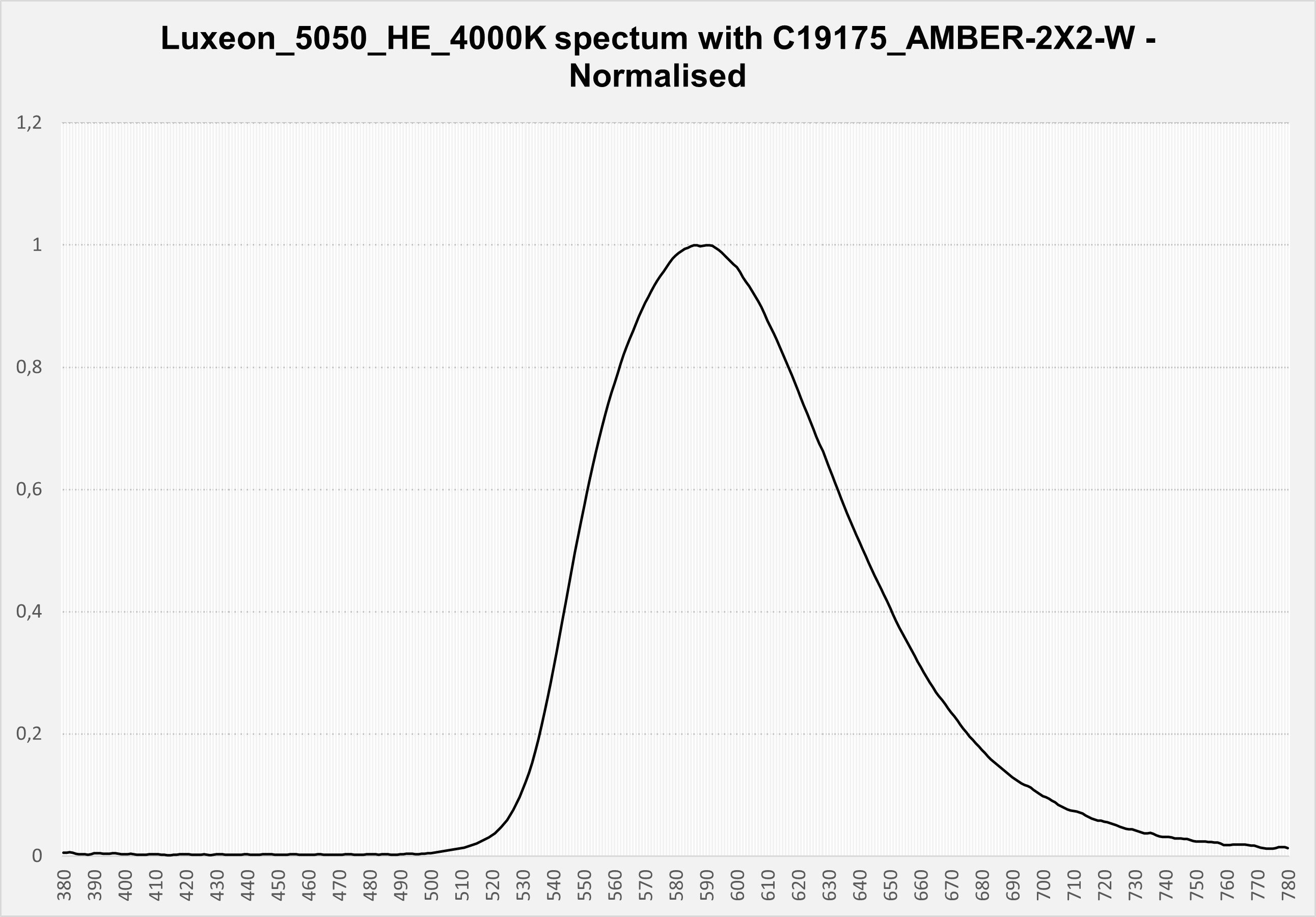

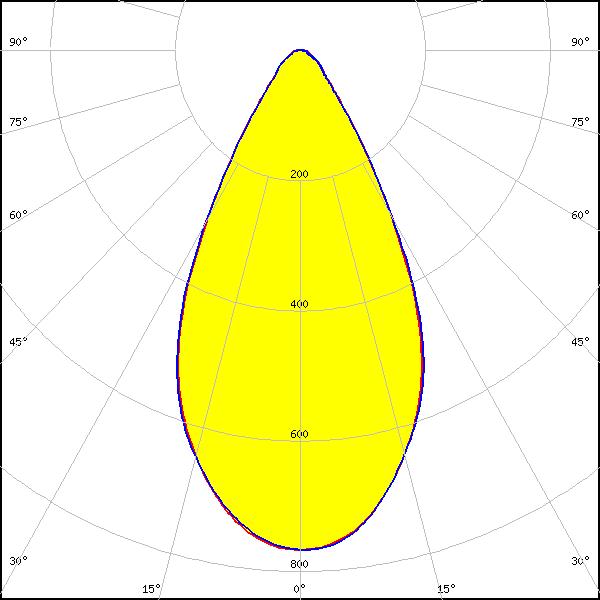

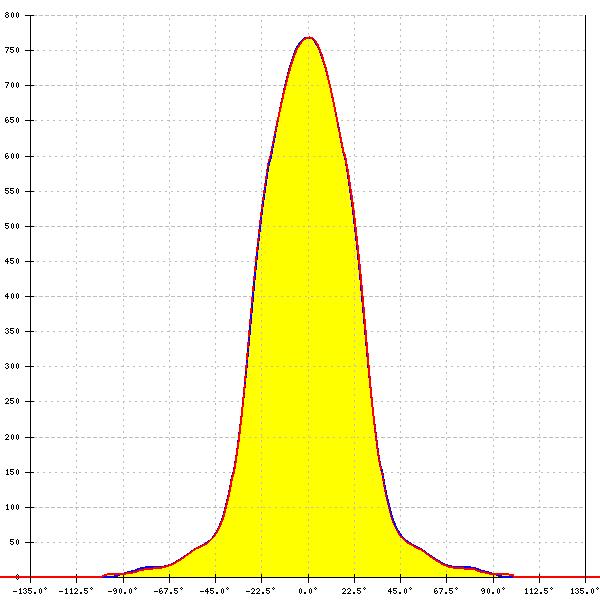

LED:
LUXEON 5050 HE
FWHM:
55°
FWTM:
84°
Peak intensity:
0.770 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3900 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

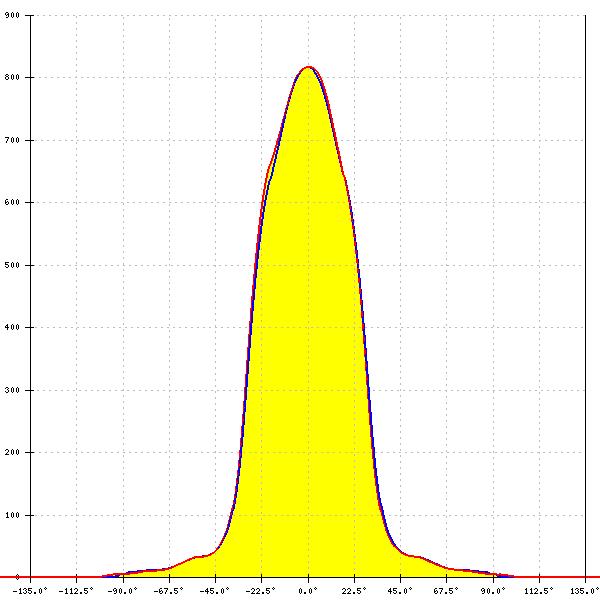

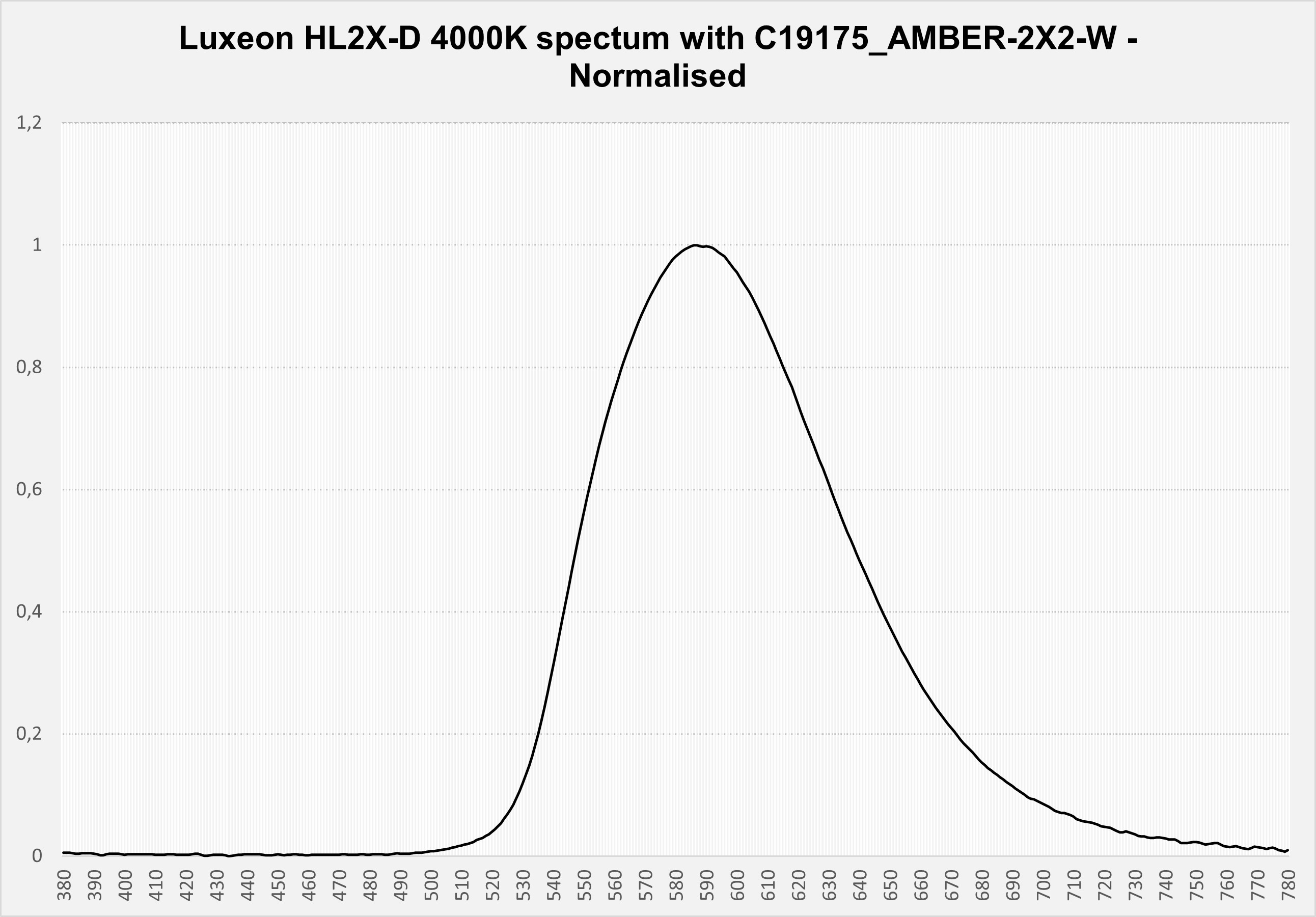

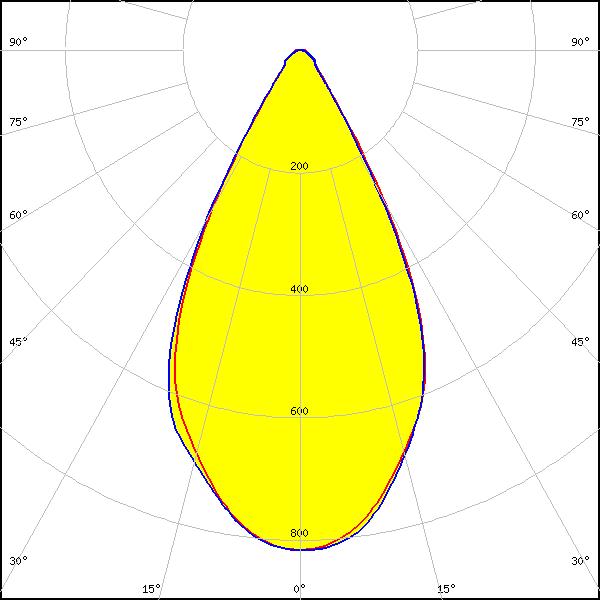

LED:
LUXEON HL2X-D
FWHM:
55°
FWTM:
76°
Peak intensity:
0.817 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.4%
CCT (LED/with lens)*:
4000 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

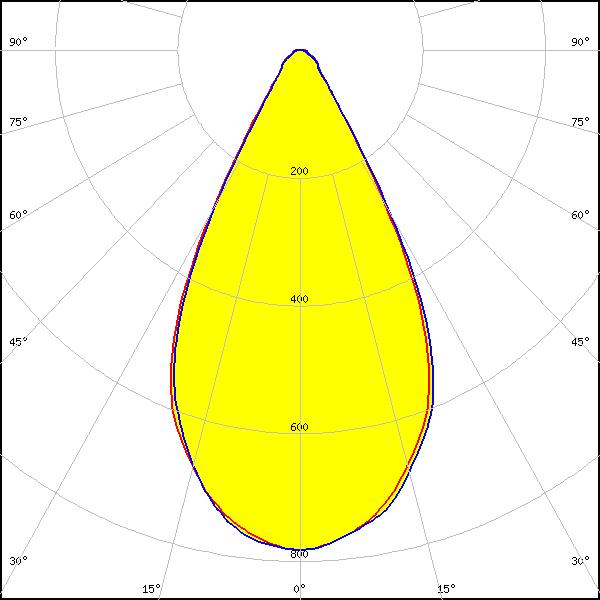

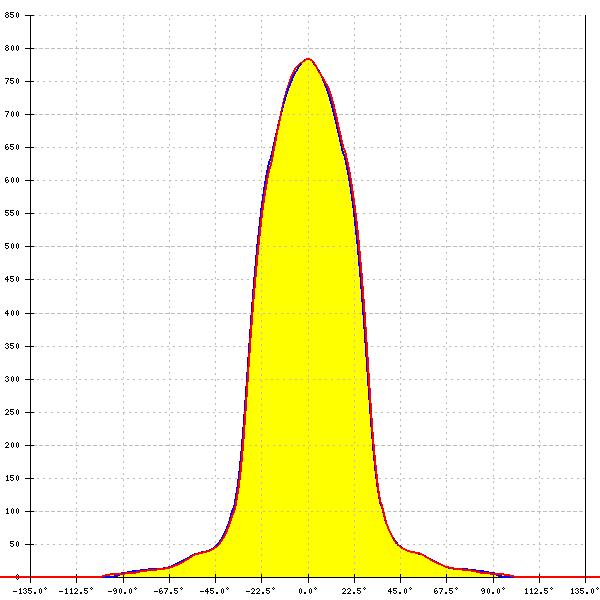

LED:
NVSW219F
FWHM:
55°
FWTM:
77°
Peak intensity:
0.783 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.4%
CCT (LED/with lens)*:
3900 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

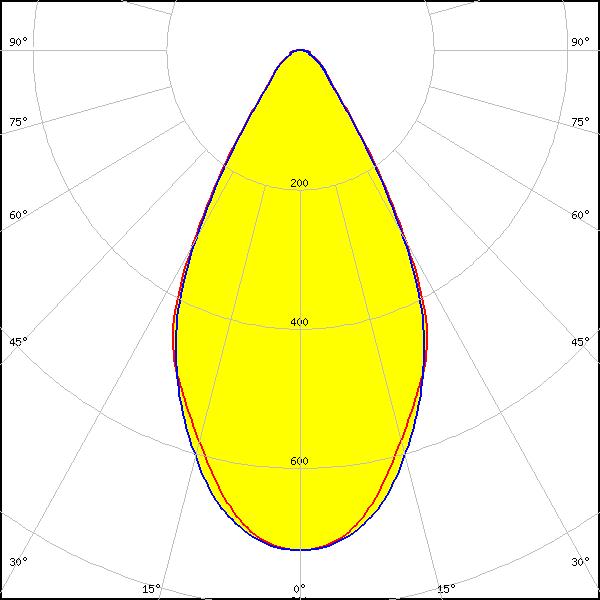

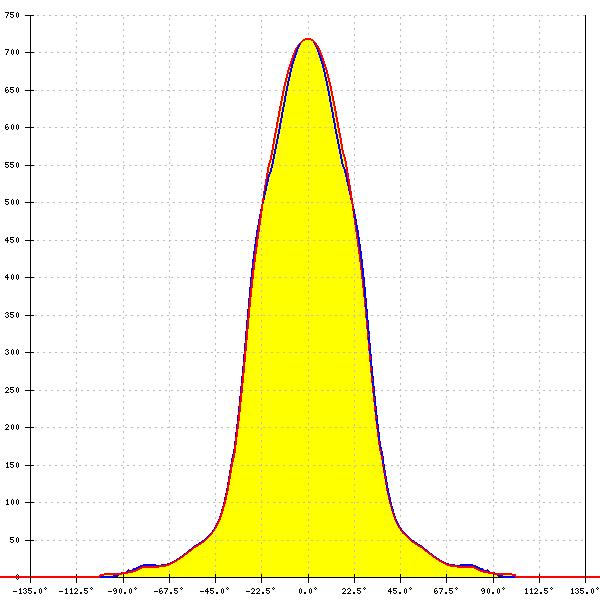

LED:
Duris S8
FWHM:
57°
FWTM:
88°
Peak intensity:
0.719 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White

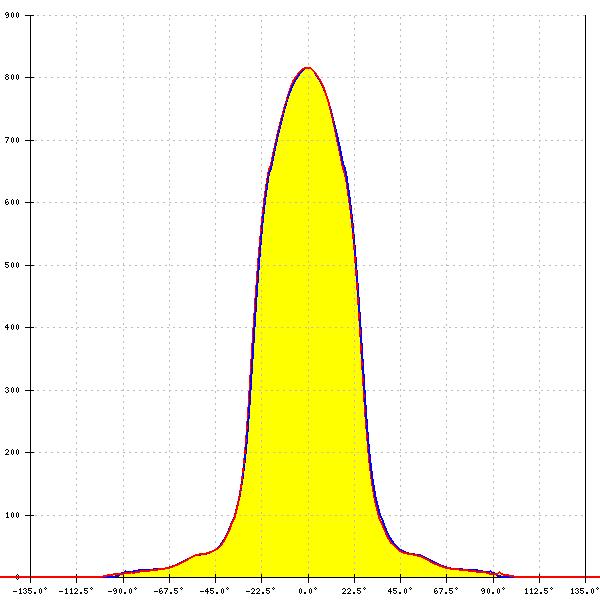

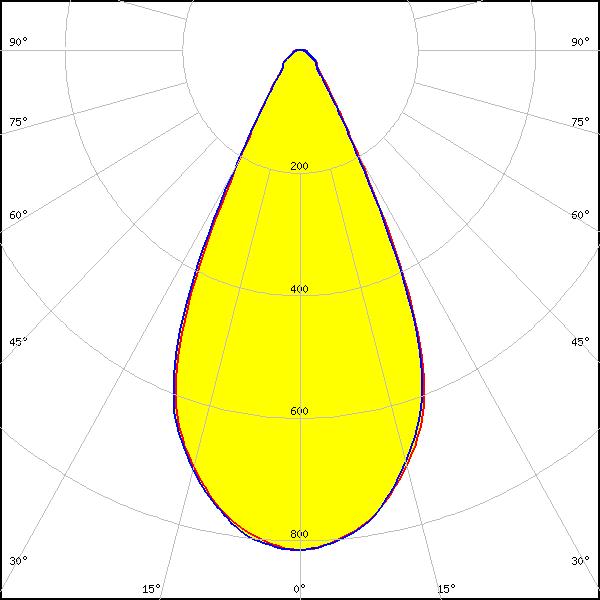

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
52°
FWTM:
74°
Peak intensity:
0.816 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3900 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
LED:
Fortimo FastFlex LED 2x8 DA G4+
FWHM:
54°
FWTM:
80°
Peak intensity:
0.712 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White

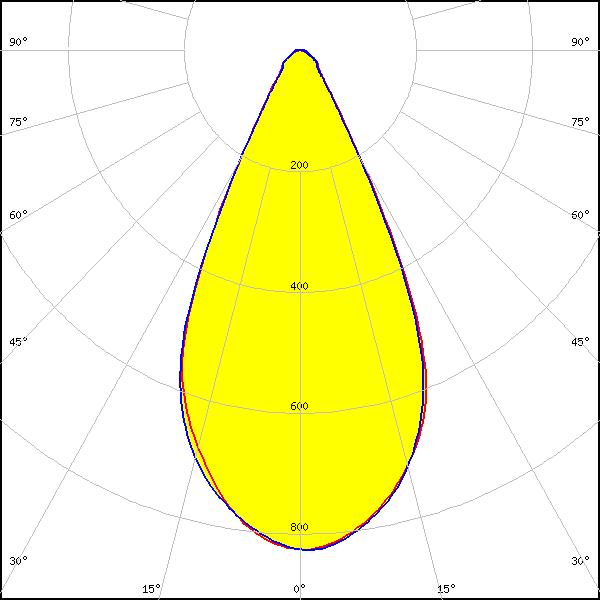

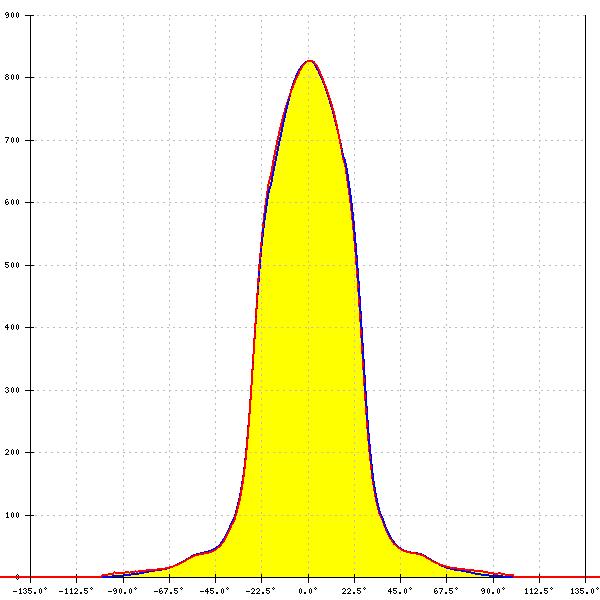

LED:
Fortimo FastFlex LED 2x8 DA G5
FWHM:
51°
FWTM:
75°
Peak intensity:
0.828 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

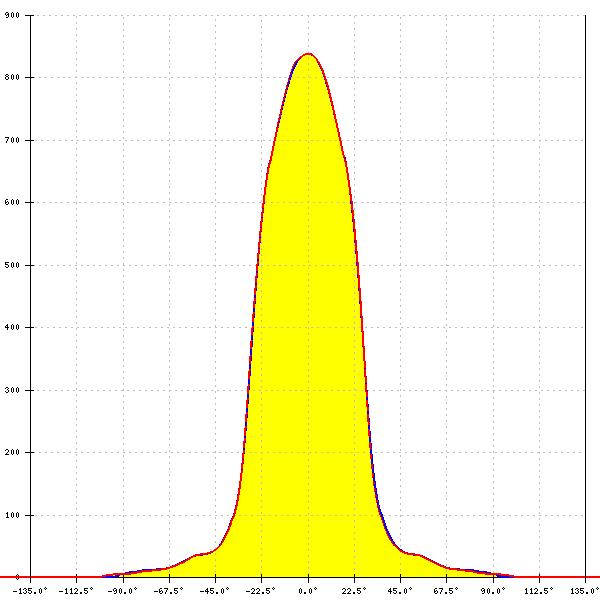

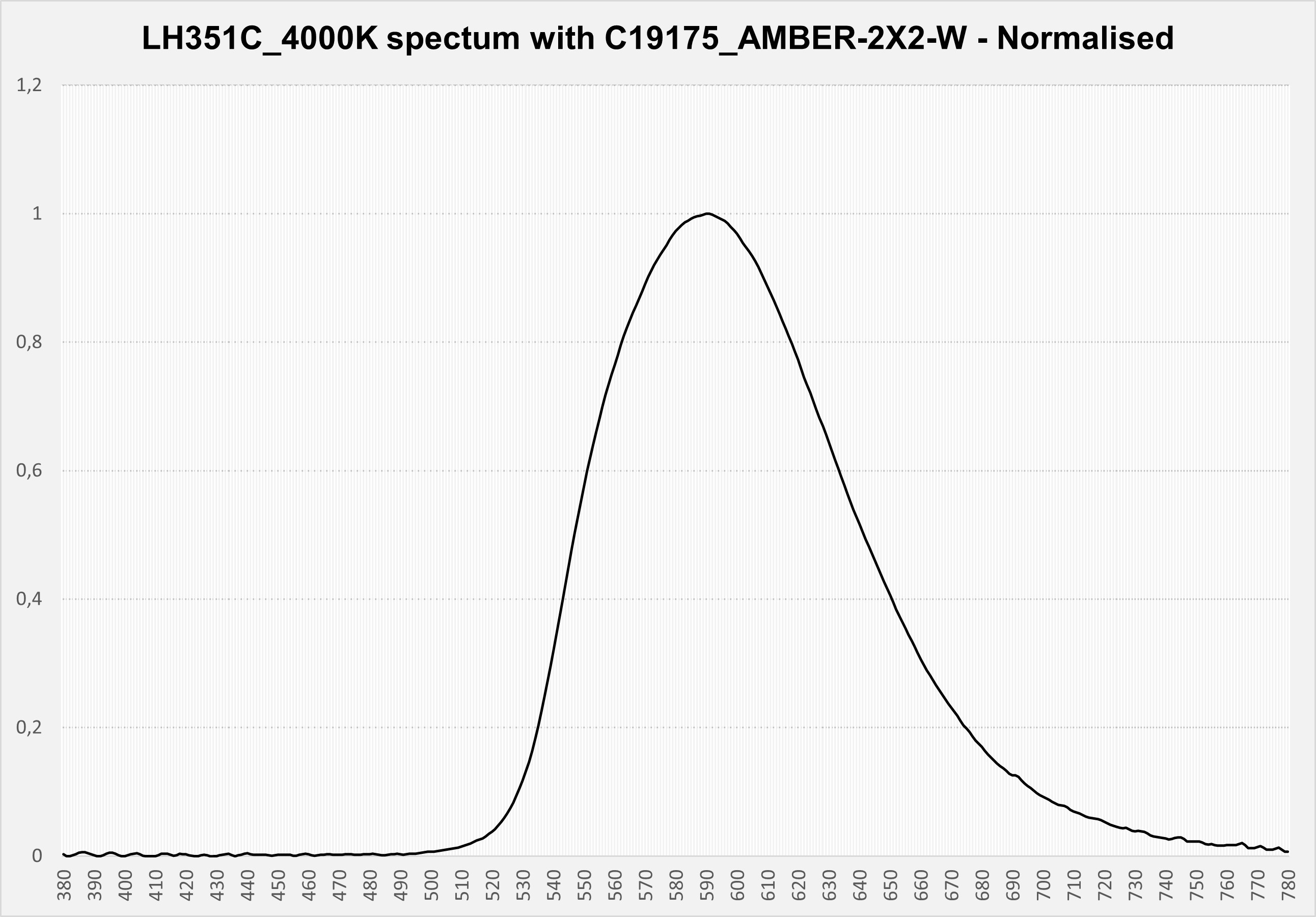

LED:
LH351C
FWHM:
52°
FWTM:
75°
Peak intensity:
0.838 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3800 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

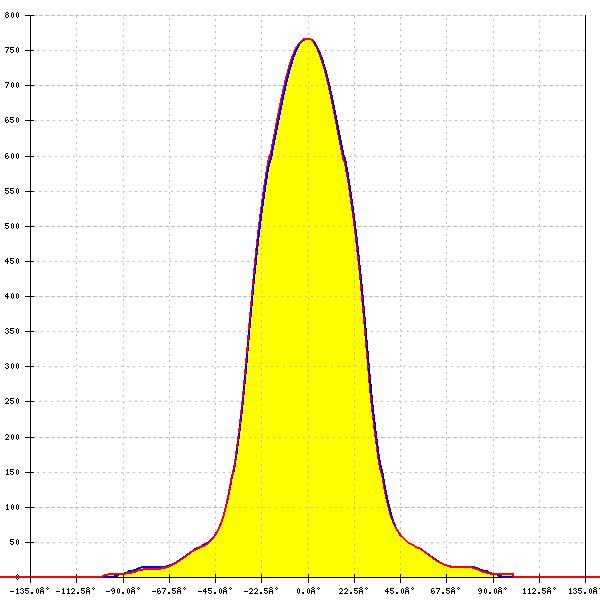

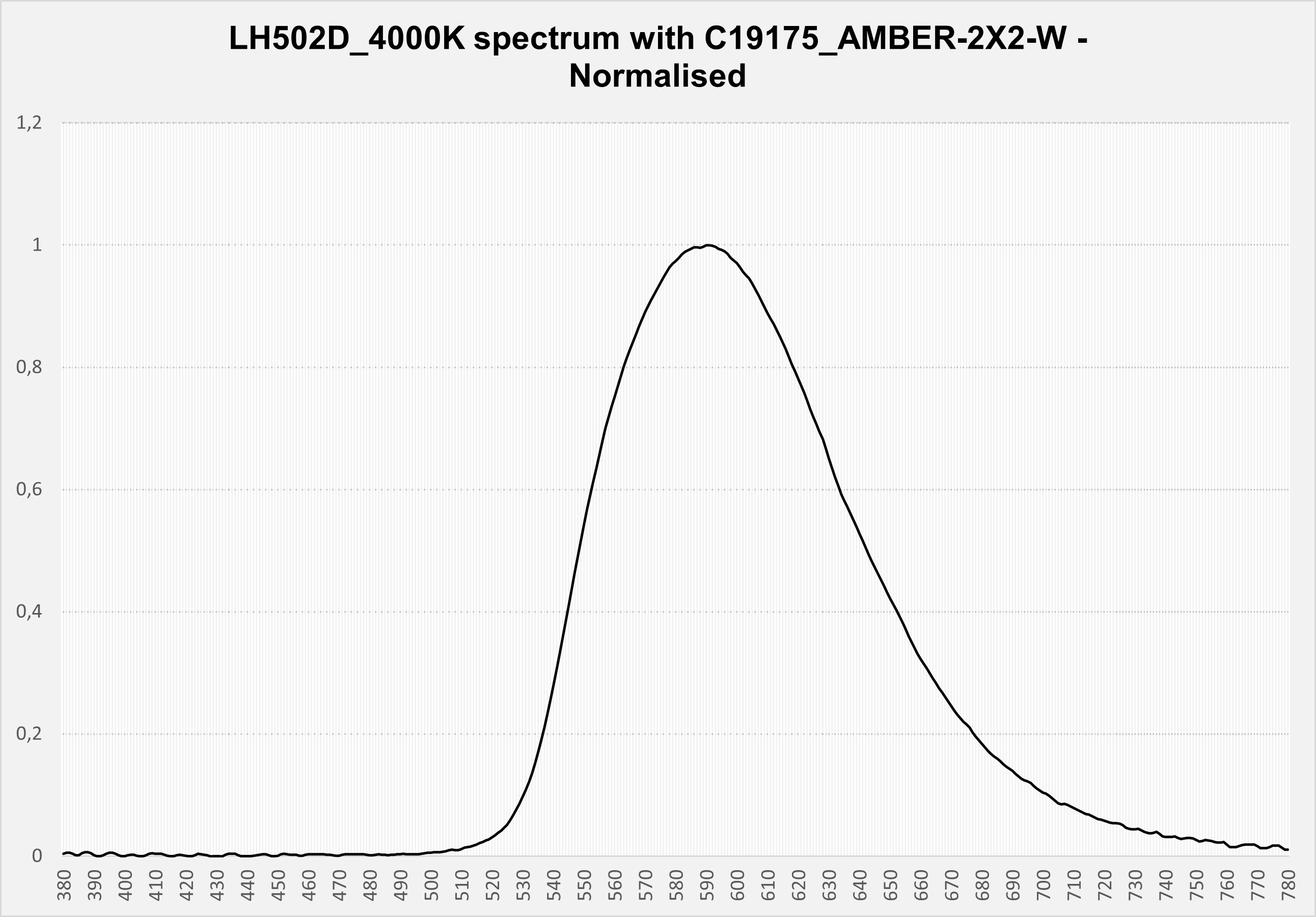

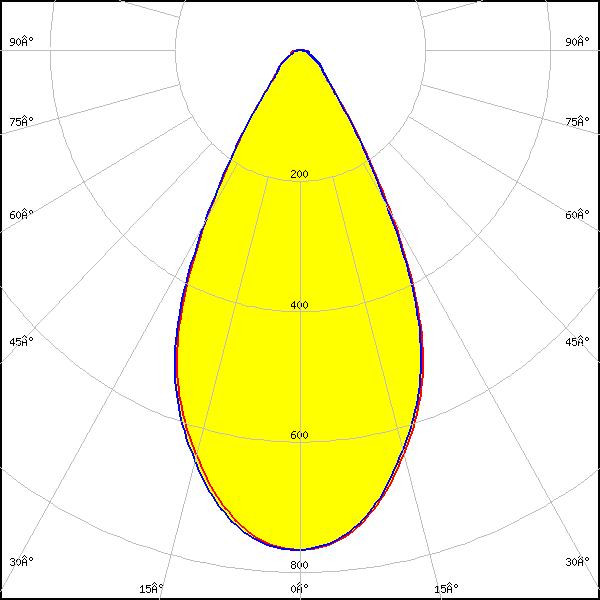

LED:
LH502D
FWHM:
55°
FWTM:
84°
Peak intensity:
0.767 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3800 K/ 2200 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

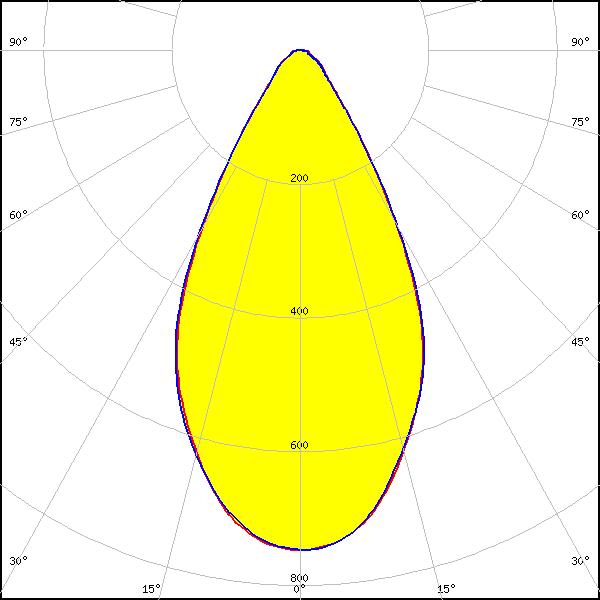

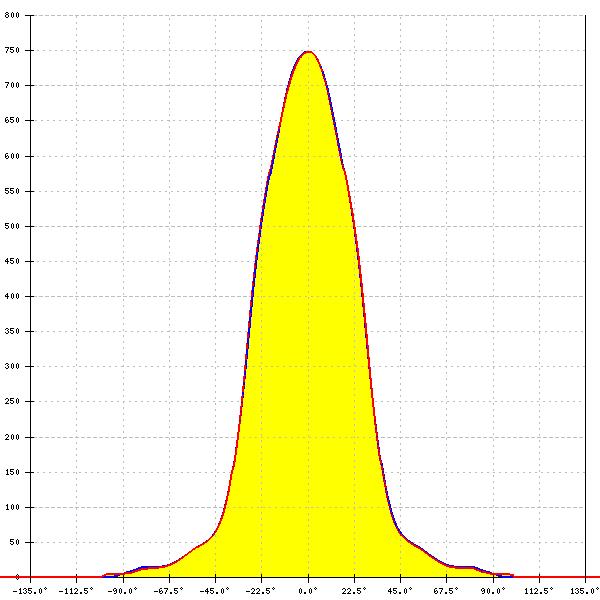

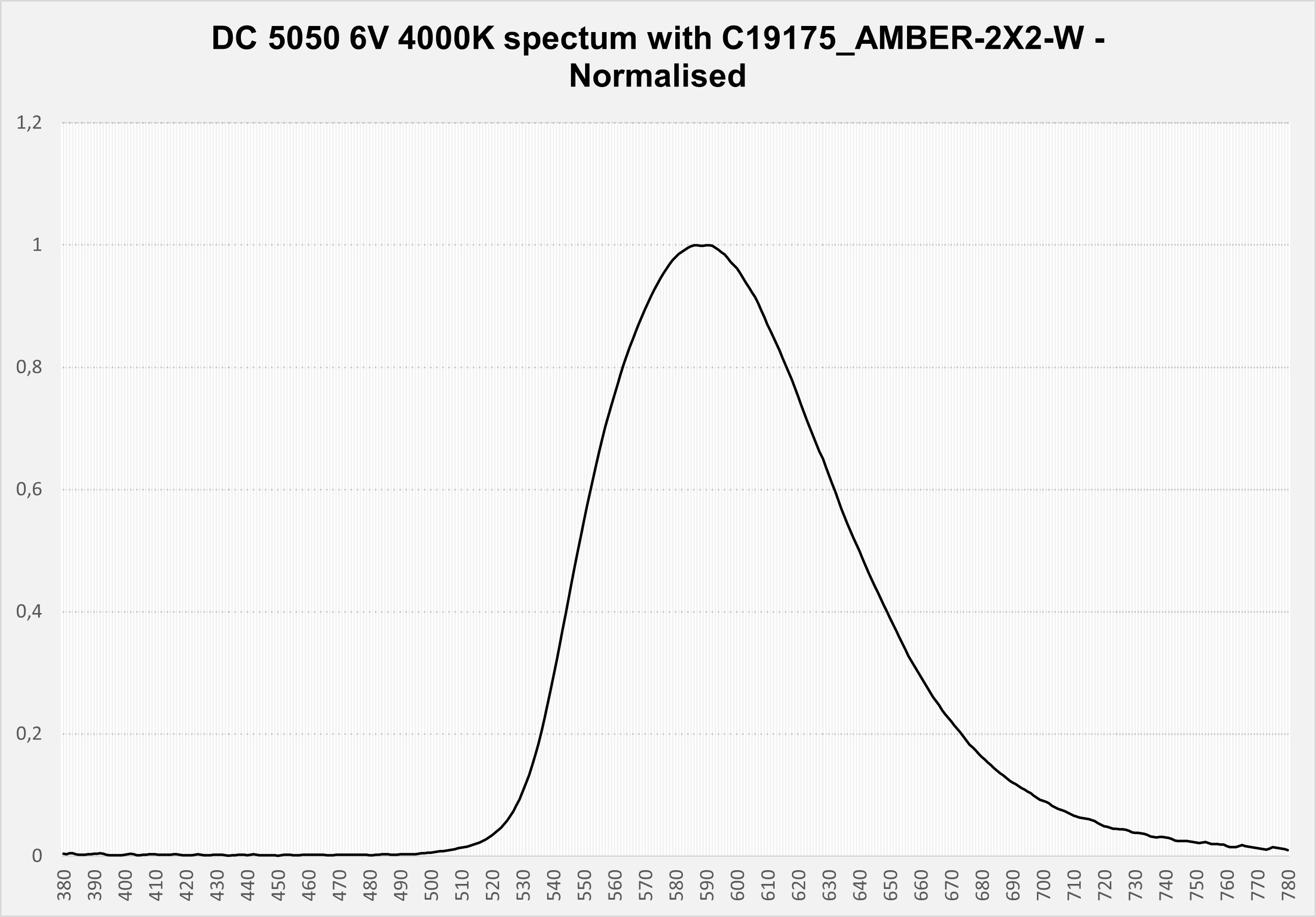

LED:
SEOUL DC 5050 6V
FWHM:
56°
FWTM:
86°
Peak intensity:
0.748 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
4000 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

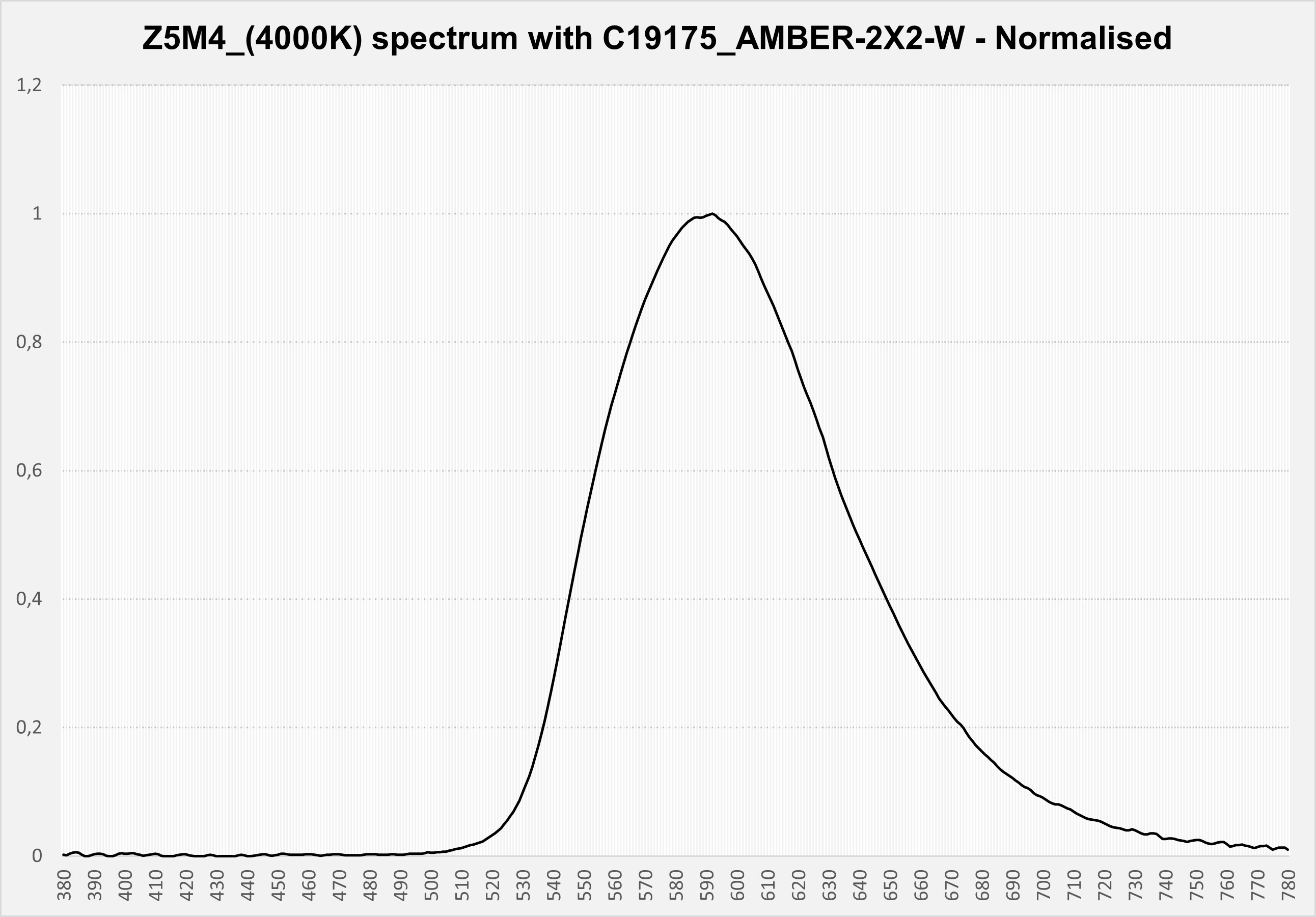

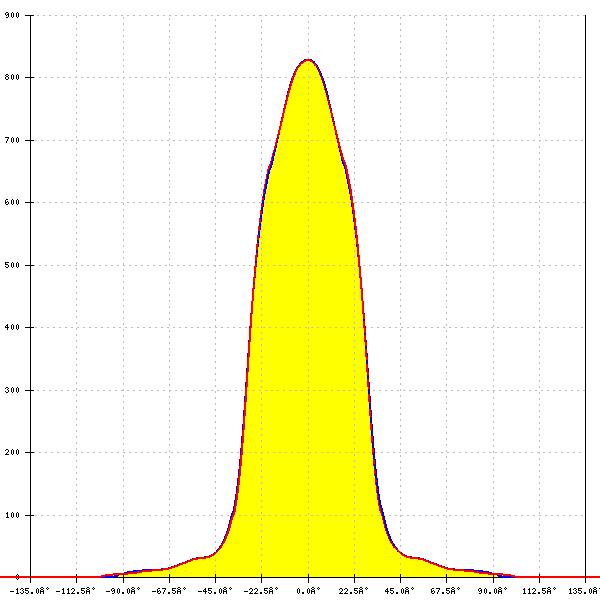

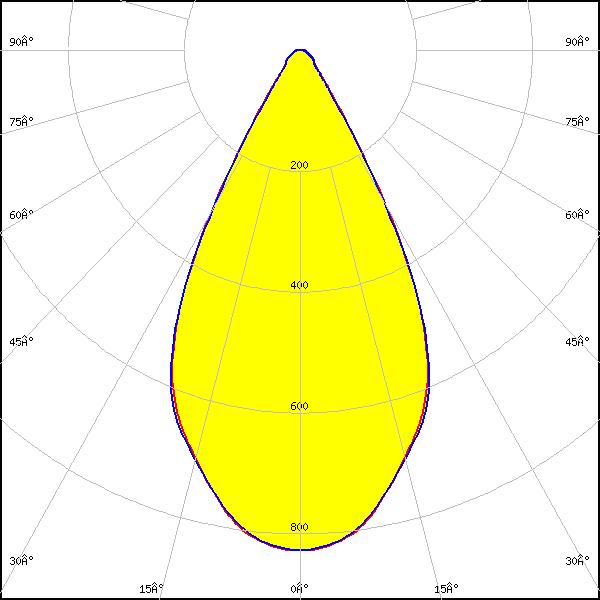

LED:
Z5M4
FWHM:
55°
FWTM:
76°
Peak intensity:
0.828 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3600 K/ 2200 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
