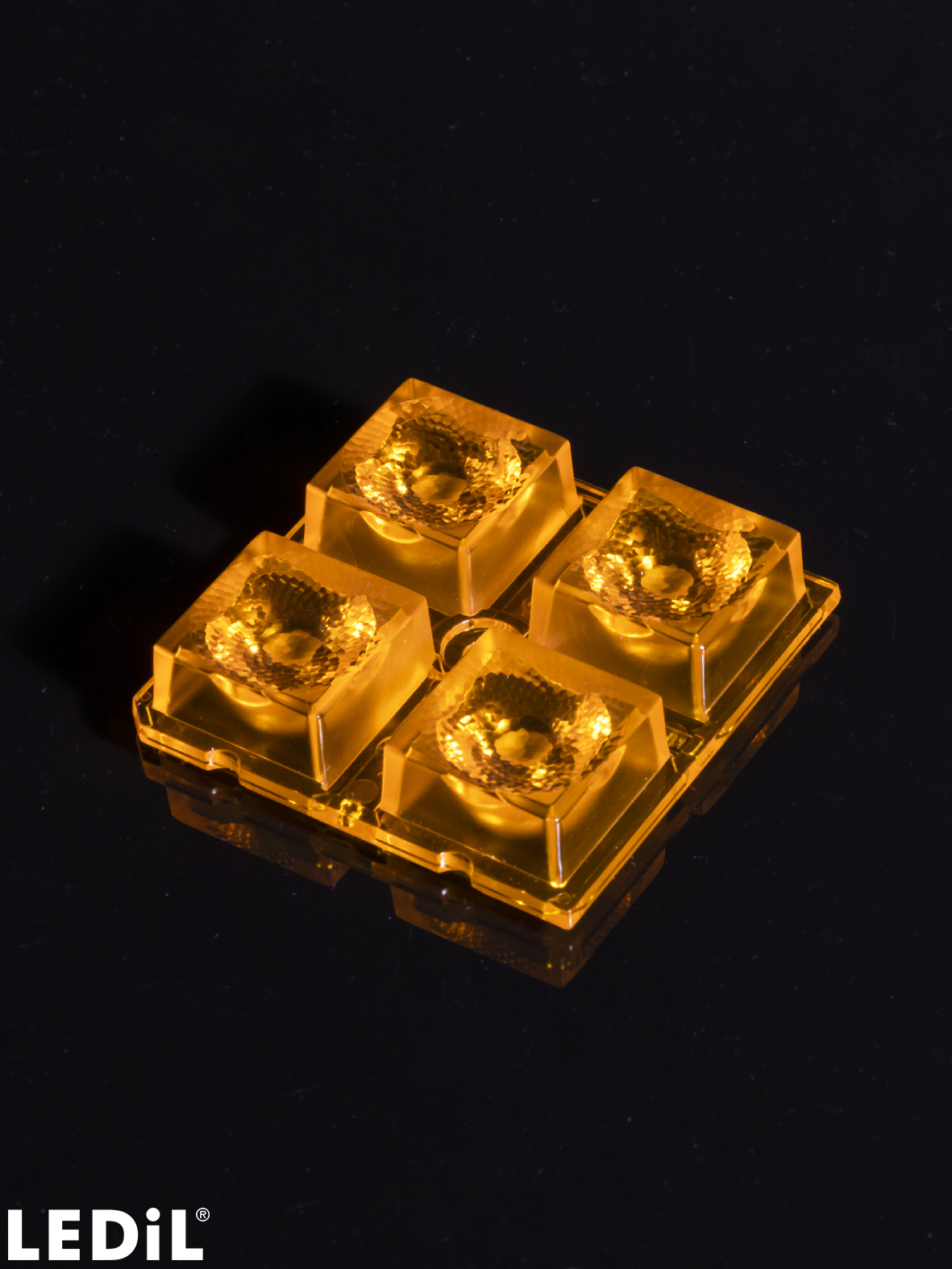

C19174_AMBER-2X2-5050-S
Print
~25° spot beam for industrial applications
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

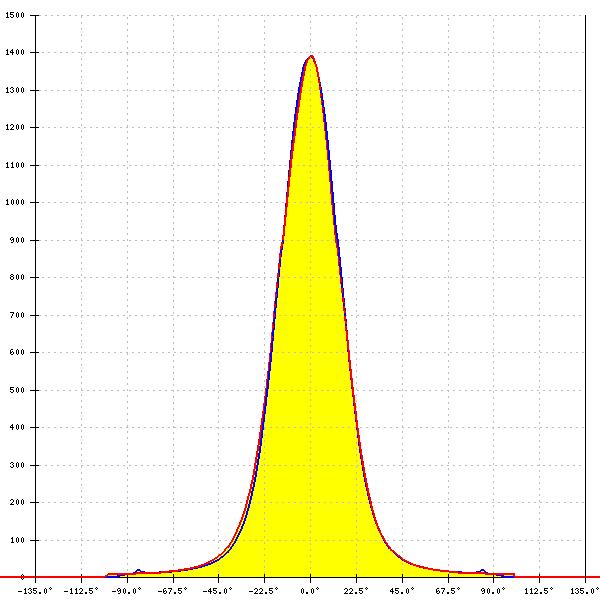

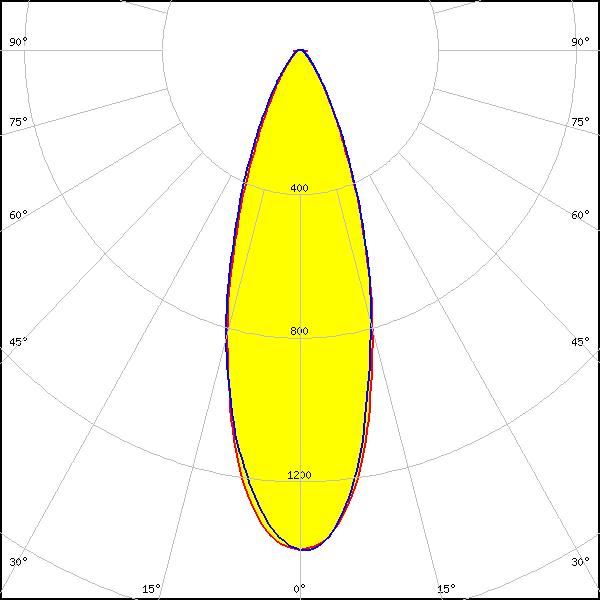

LED:
J Series 5050B 6V K Class
FWHM:
35°
FWTM:
67°
Peak intensity:
1.391 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.2%
CCT (LED/with lens)*:
3800 K/ 2200 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

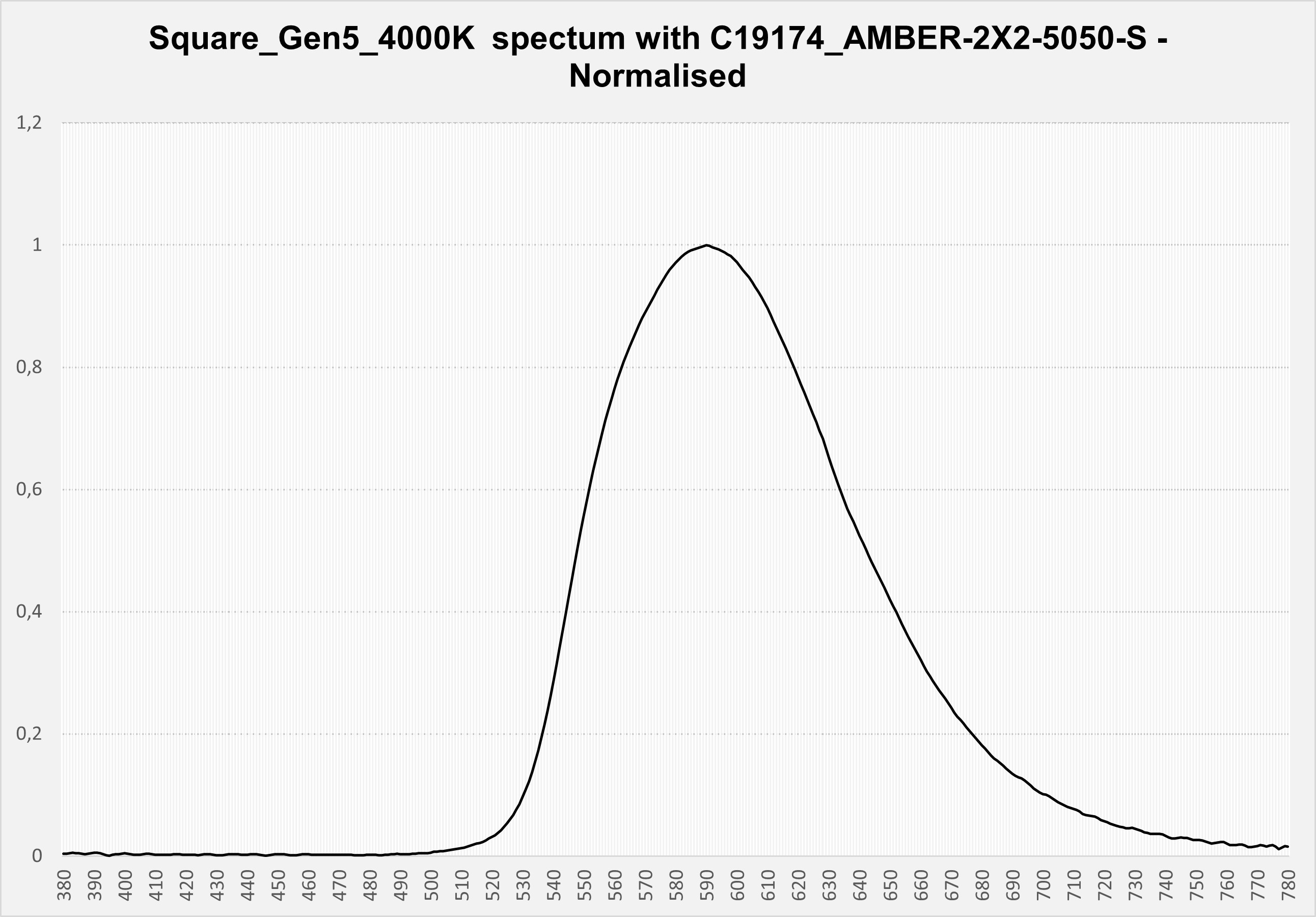

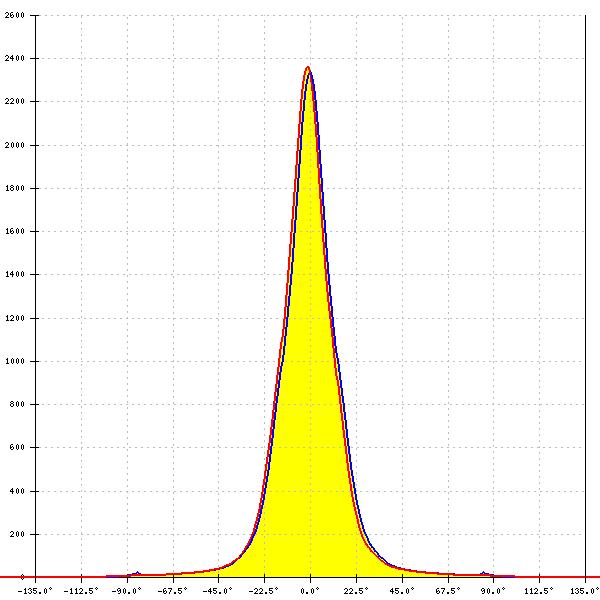

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
23°
FWTM:
52°
Peak intensity:
2.366 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3900 K/ 2200 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

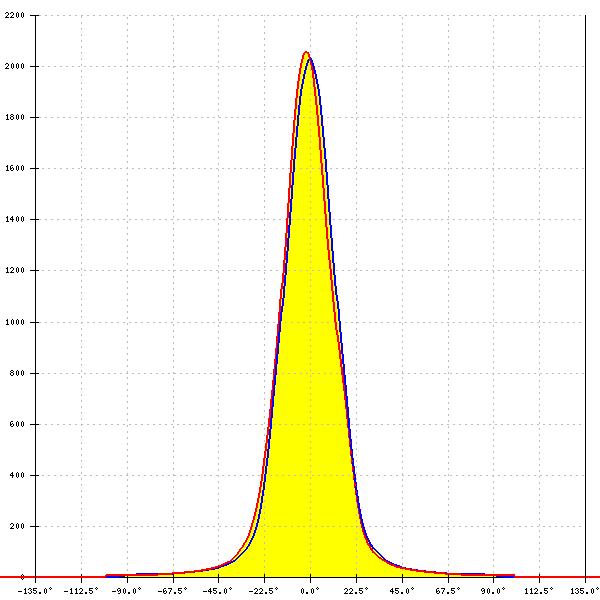

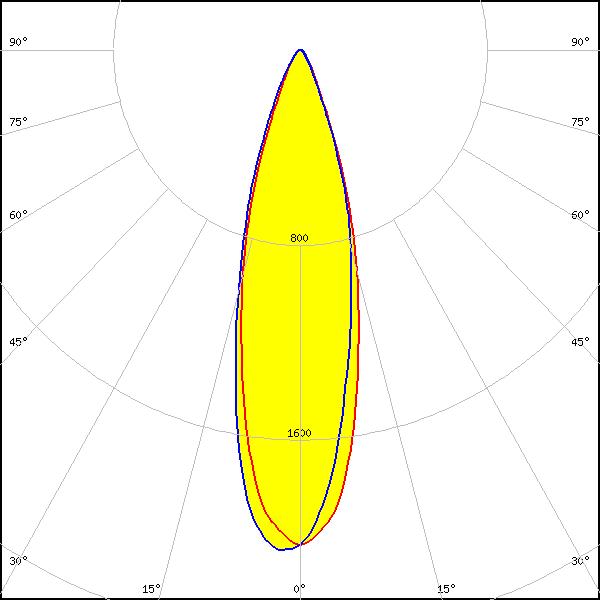

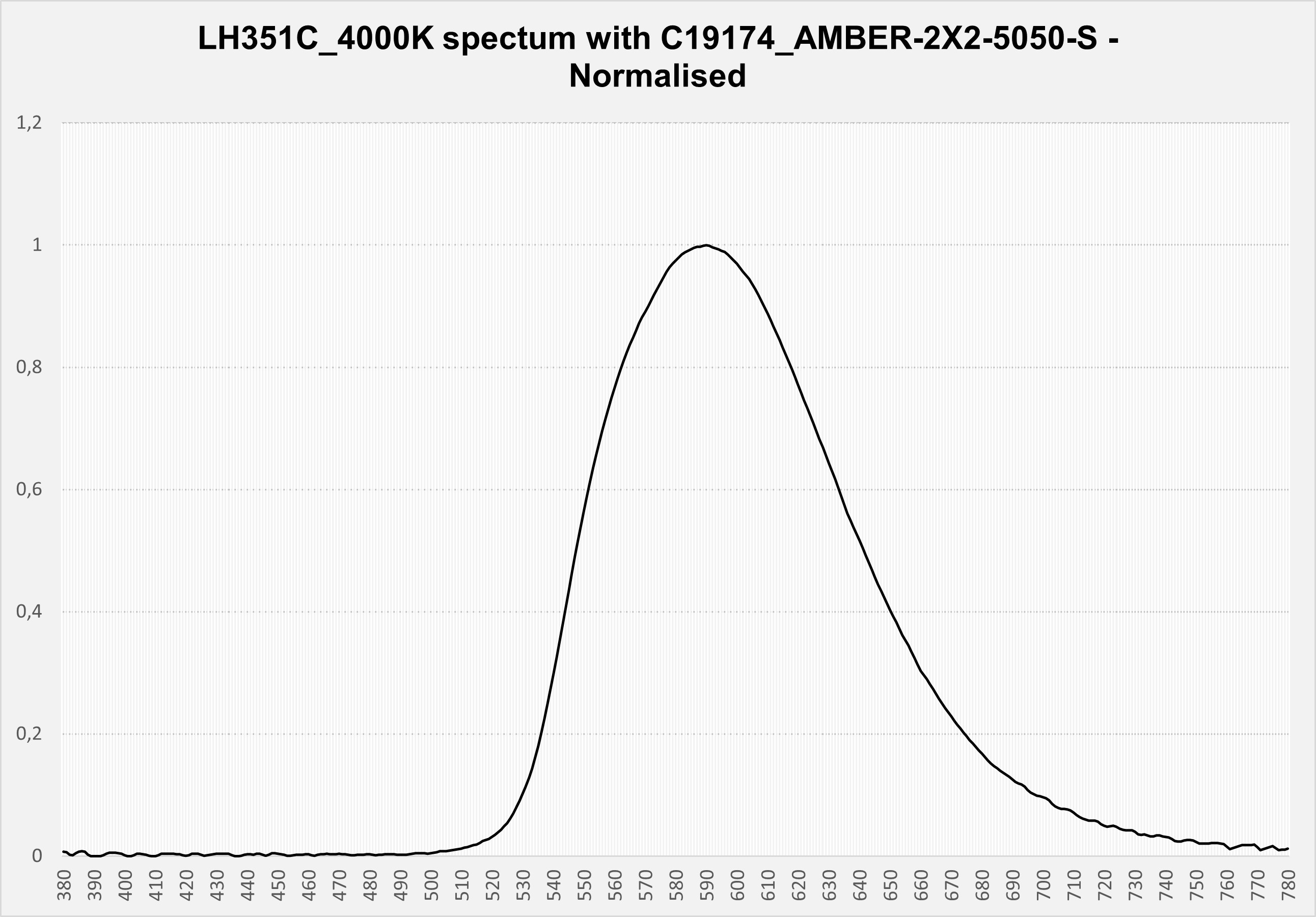

LED:
LH351C
FWHM:
28°
FWTM:
53°
Peak intensity:
2.059 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3800 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

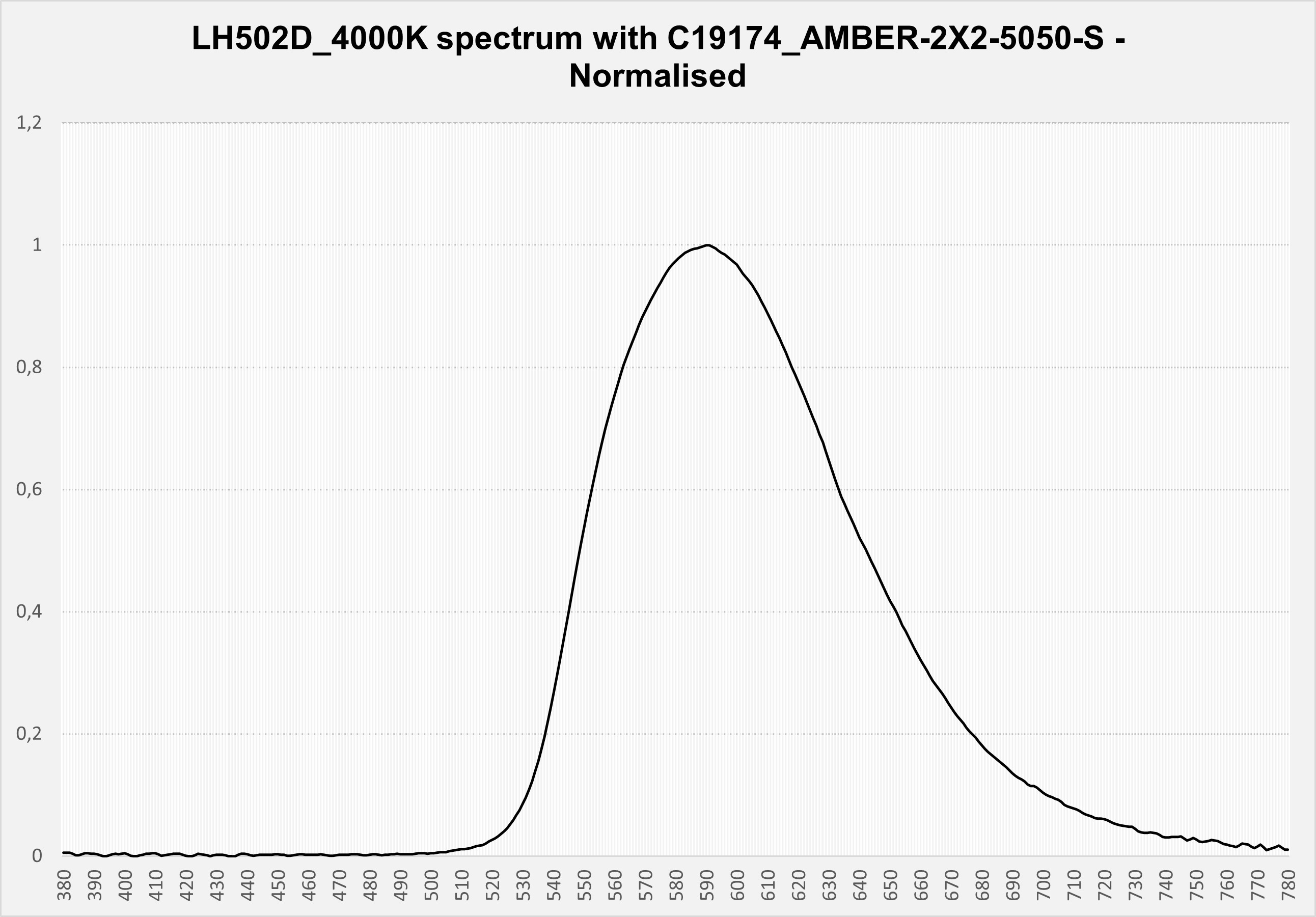

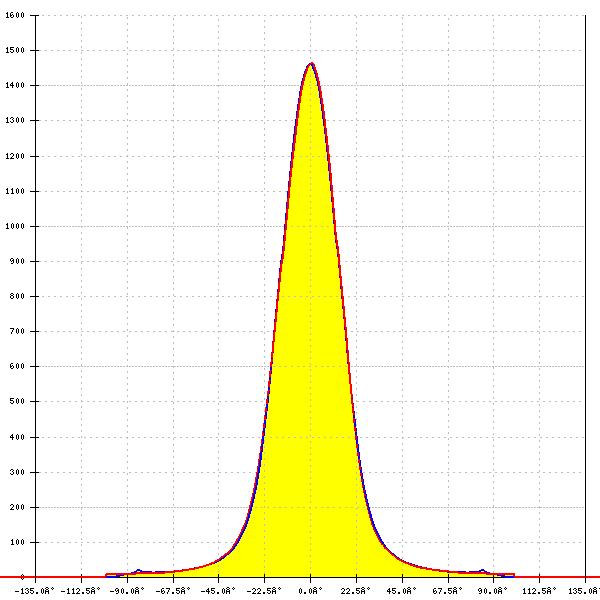

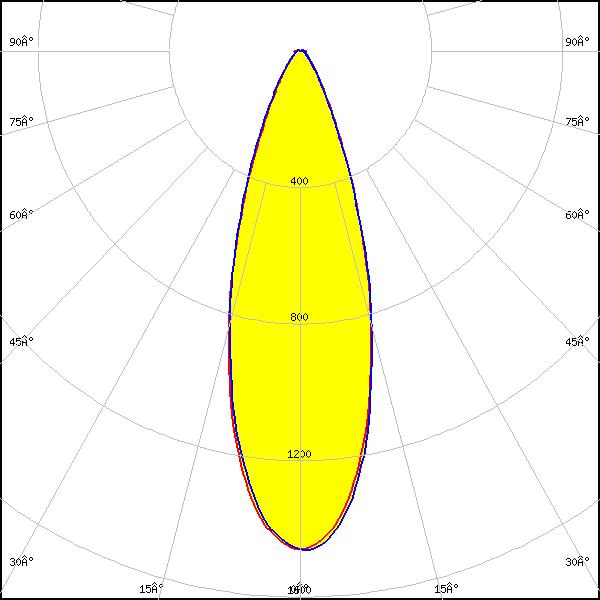

LED:
LH502D
FWHM:
34°
FWTM:
64°
Peak intensity:
1.463 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3800 K/ 2200 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

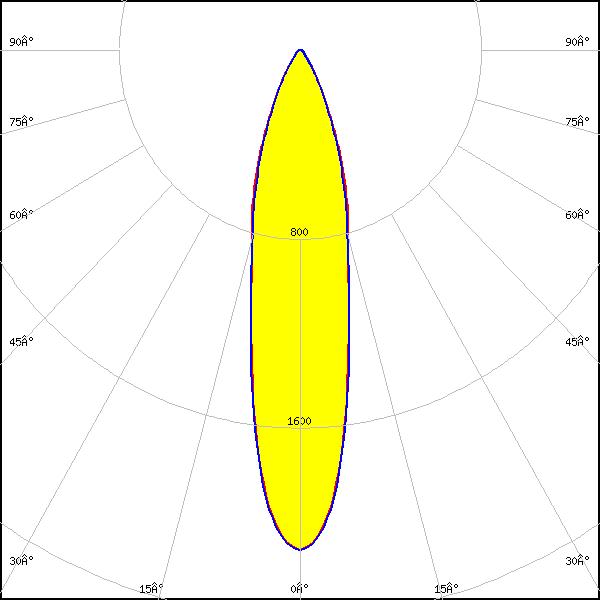

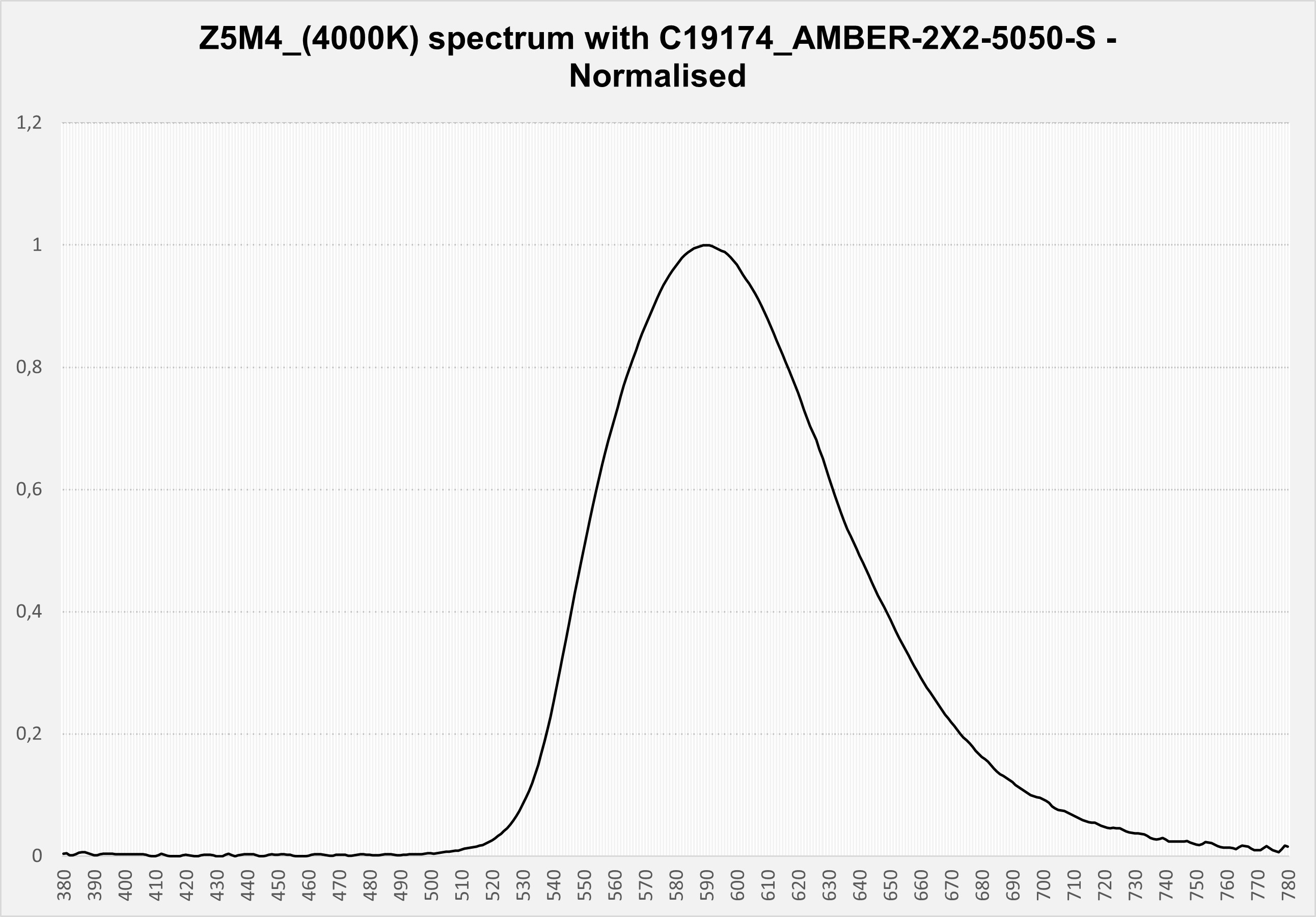

LED:
Z5M4
FWHM:
24°
FWTM:
57°
Peak intensity:
2.119 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3600 K/ 2200 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
