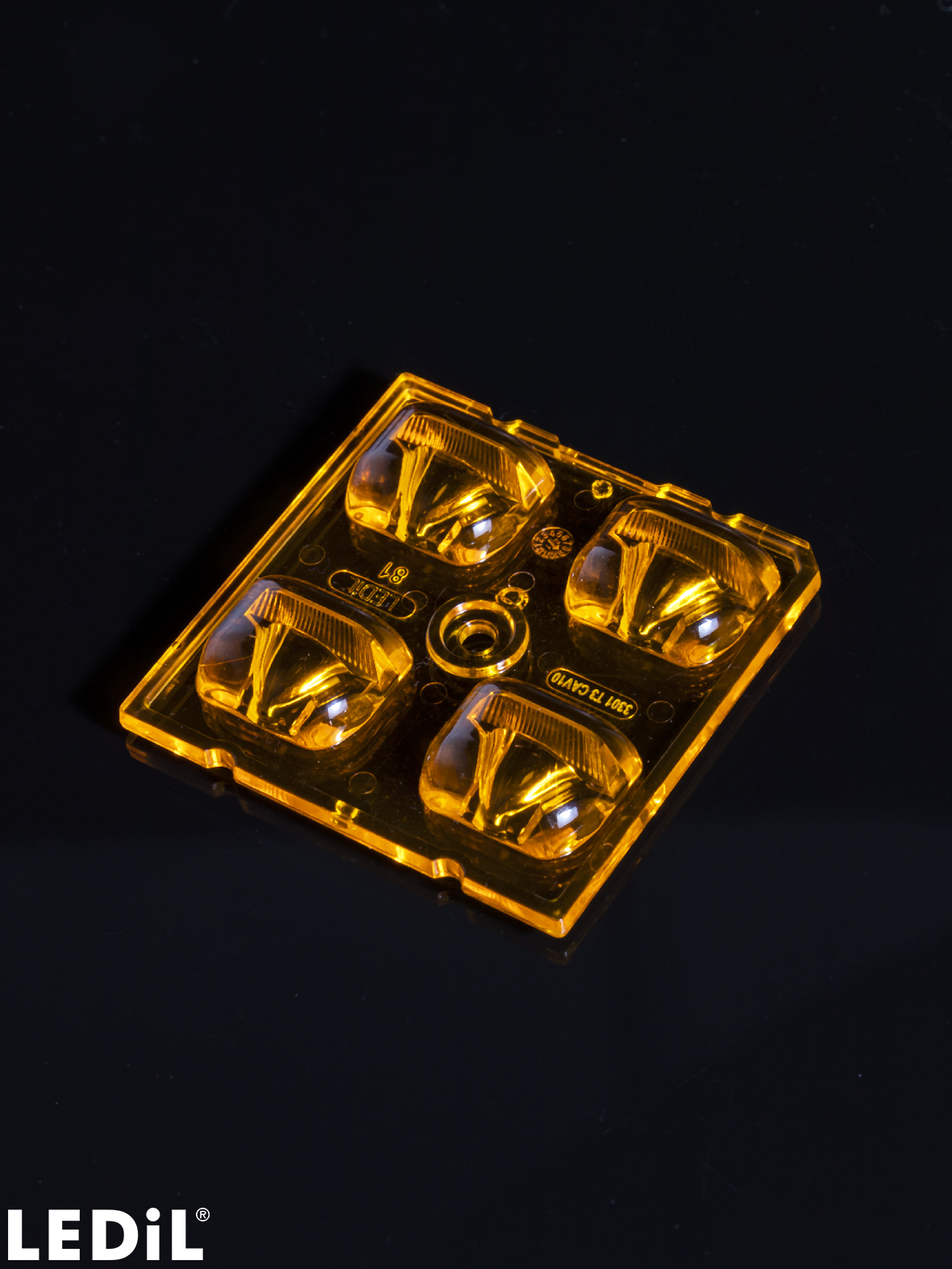

    C19003_AMBER-2X2-T3

    Print

    IESNA Type III (medium) beam for roads that are equal to or wider than mounting height

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      7.10 mm
    • Fastening:
      glue, pin, screw
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.7 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C19003_AMBER-2X2-T3

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – March/April, 2023

    Case story

    The Tenardita salt mine in Chile

    News

    New products – November 16, 2022

    Application area

    Urban lighting with LEDiL optics

    Application guide

    LEDiL guide for urban lighting optics

    Article

    See the stars in the centre of the city - How to reduce light pollution in urban environments

    News

    Create biologically sustainable lighting with LEDiL AMBER lenses

    Application area

    Outdoor Special Applications

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Optical results

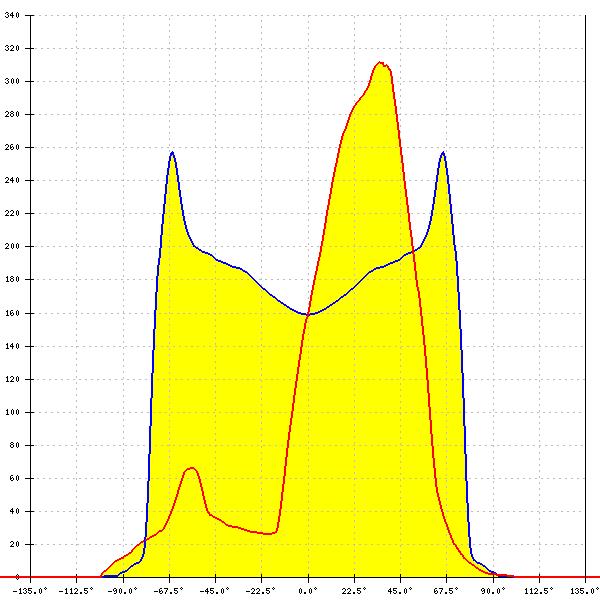

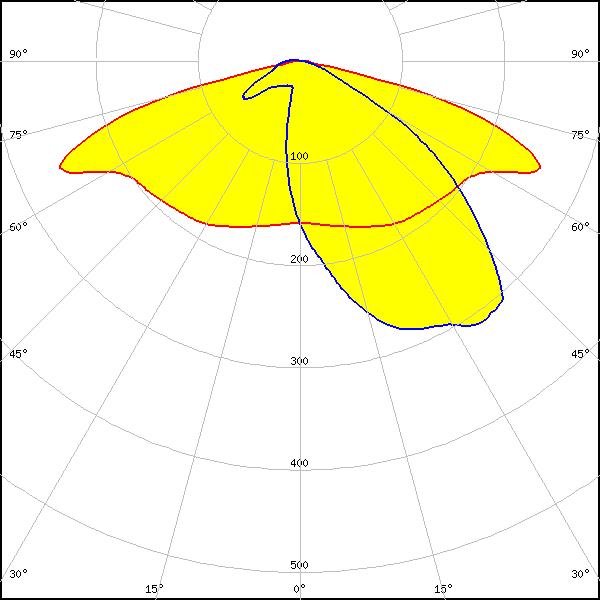

    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.396 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.3%
    CCT (LED/with lens)*: 3800 K/ 2300 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

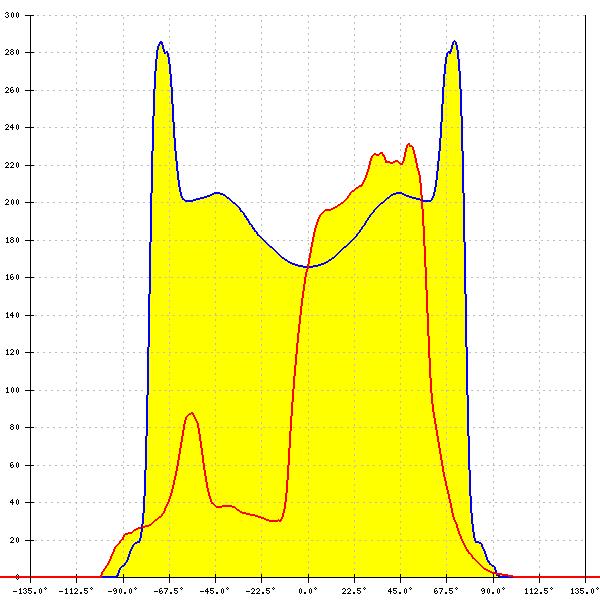

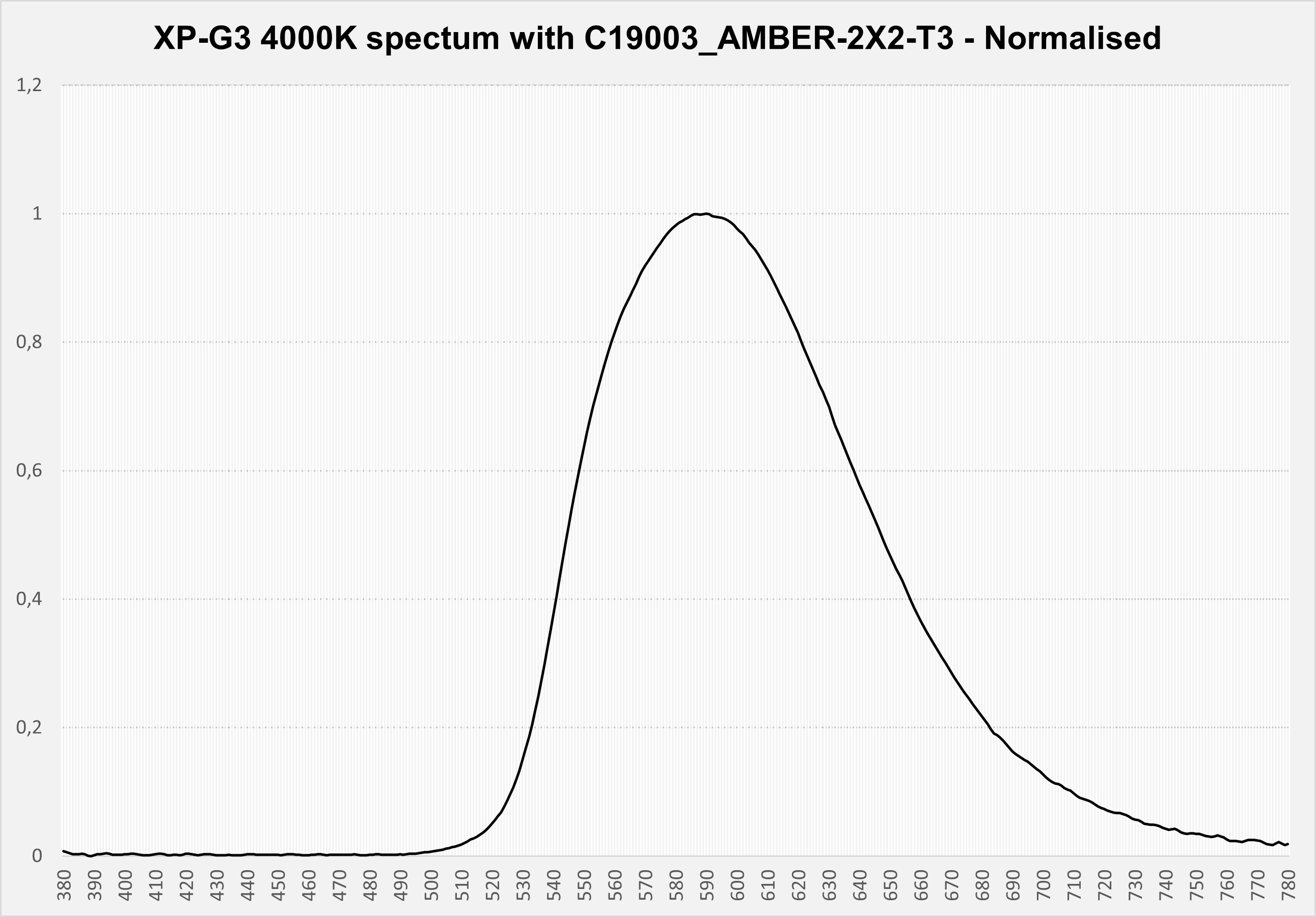

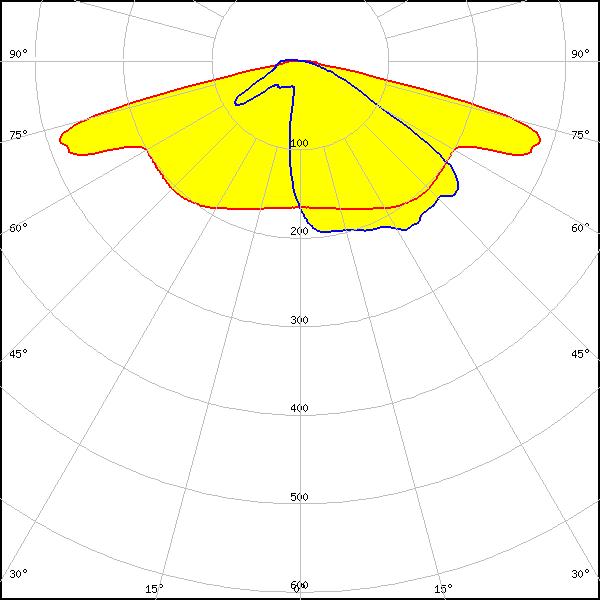

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.461 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.3%
    CCT (LED/with lens)*: 3900 K/ 2300 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

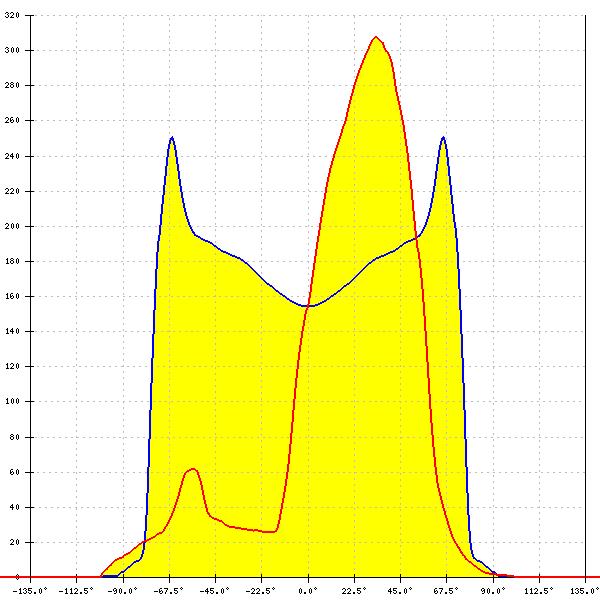

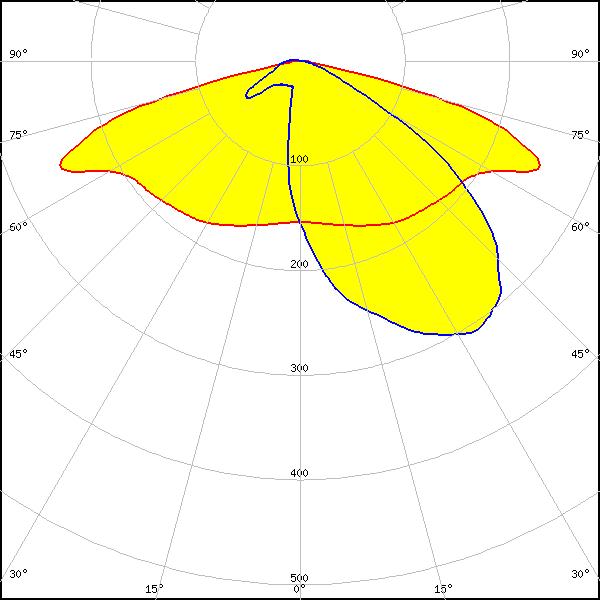

    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 0.397 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.3%
    CCT (LED/with lens)*: 3900 K/ 2300 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

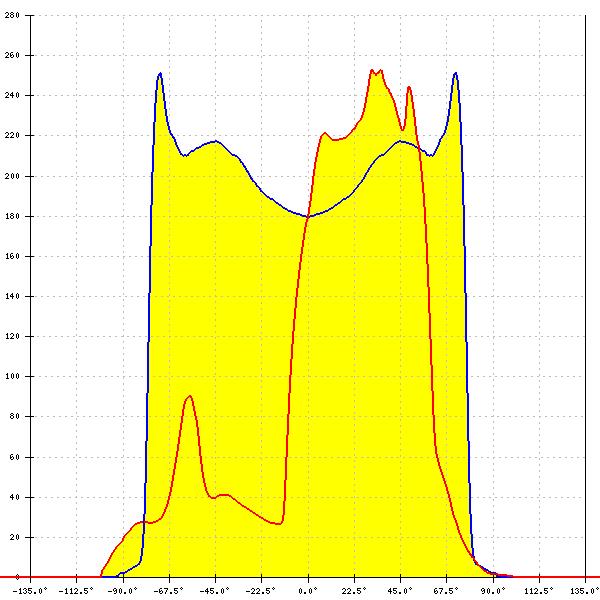

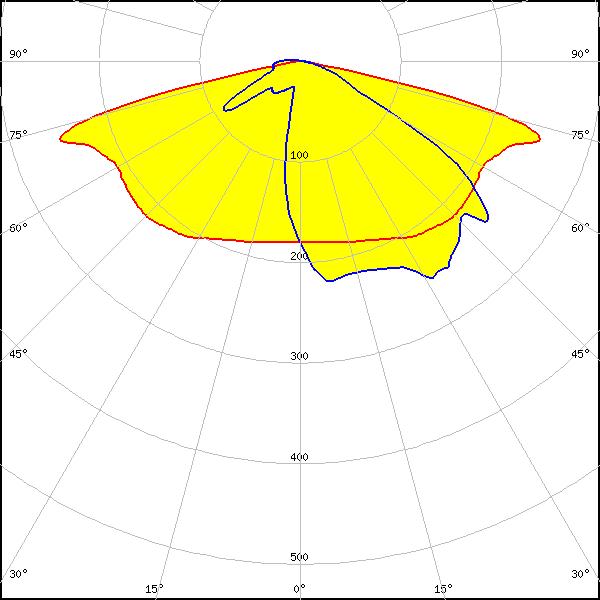

    LED: LUXEON HL2X-D
    FWHM: asymmetric
    Peak intensity: 0.399 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.4%
    CCT (LED/with lens)*: 4000 K/ 2300 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

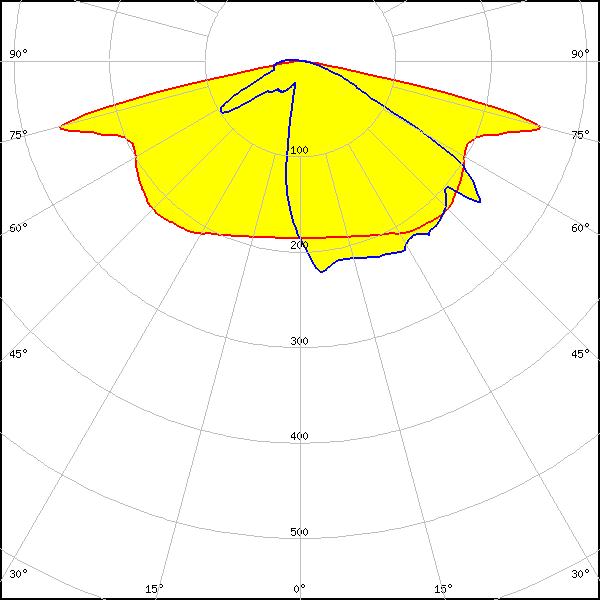

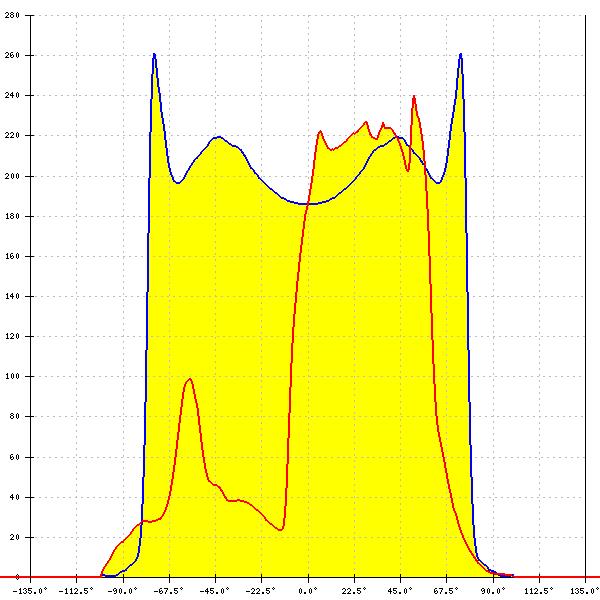

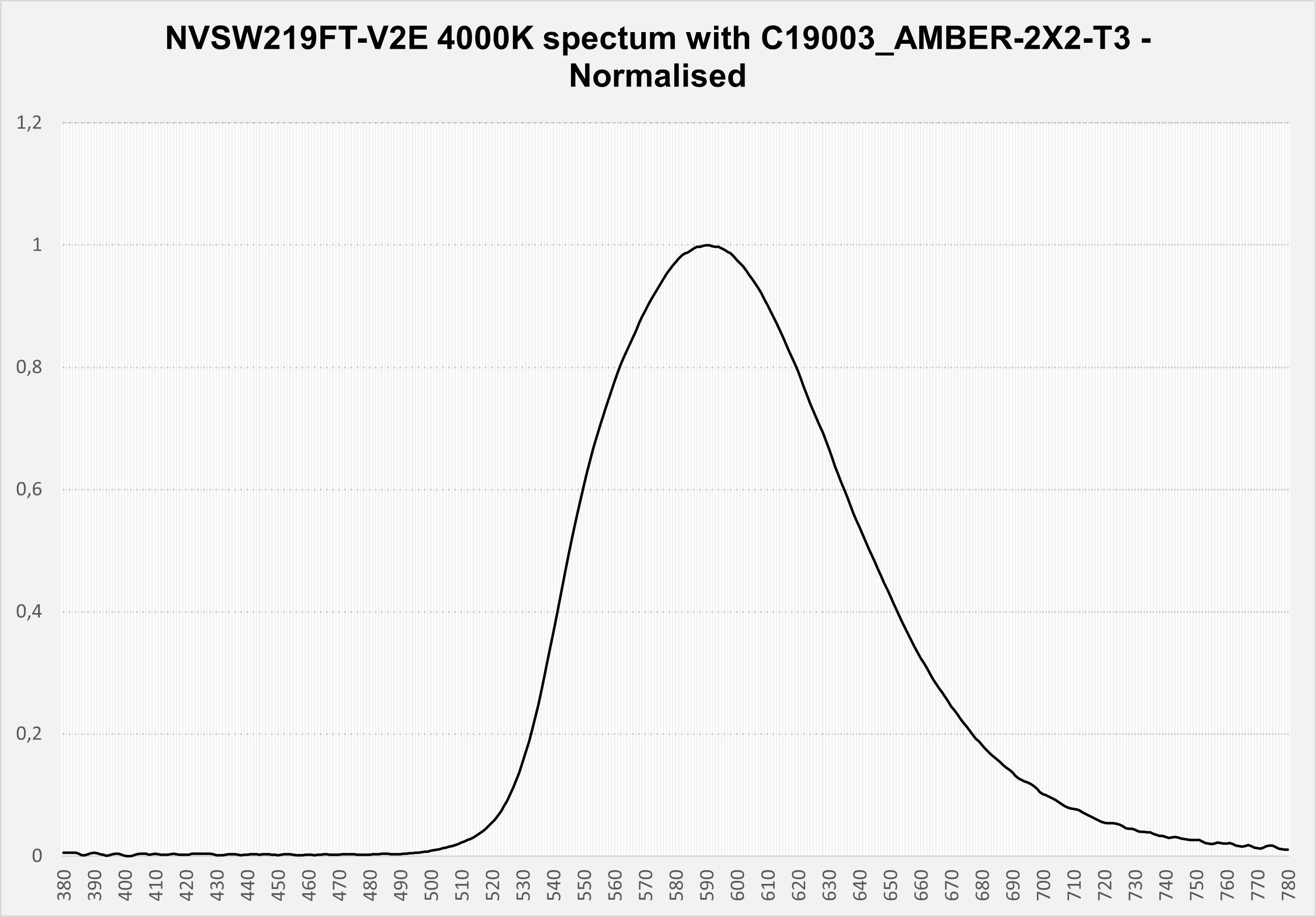

    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 0.464 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.3%
    CCT (LED/with lens)*: 3900 K/ 2300 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

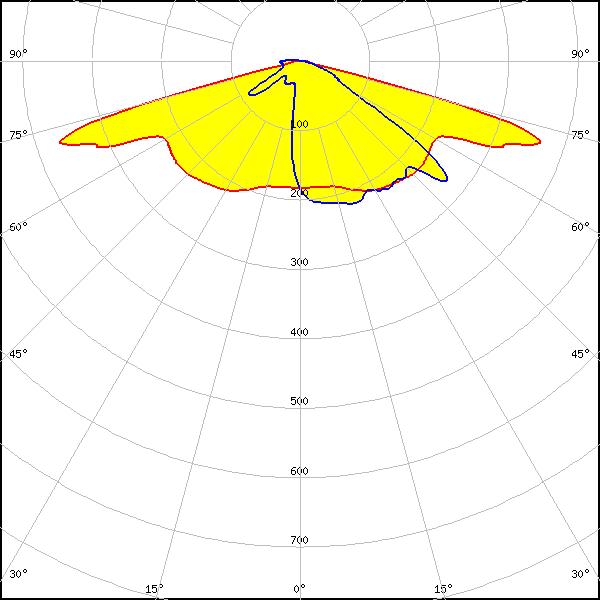

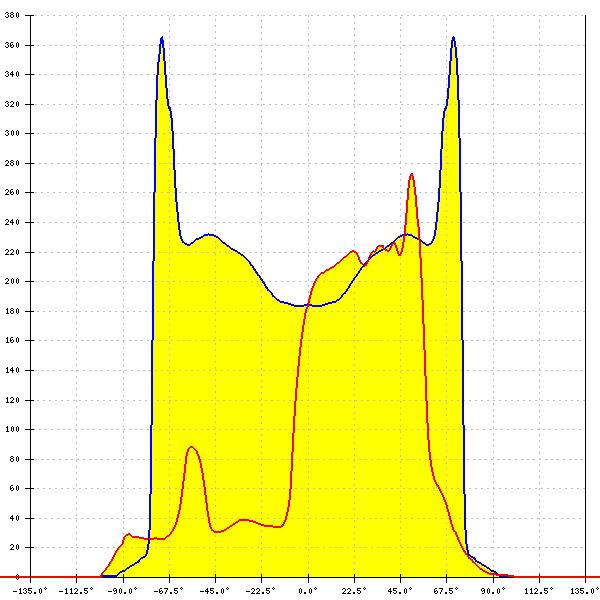

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.585 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

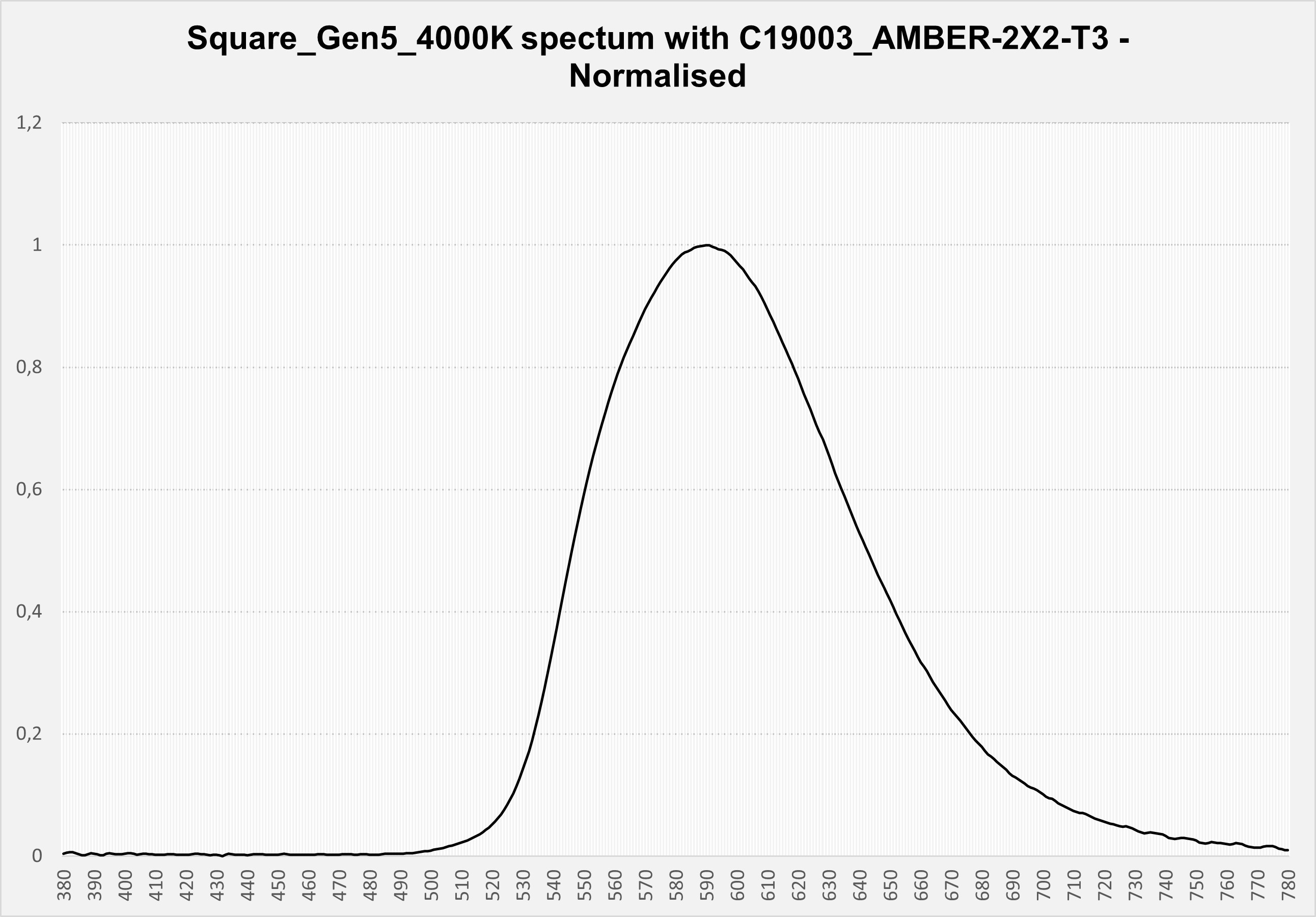

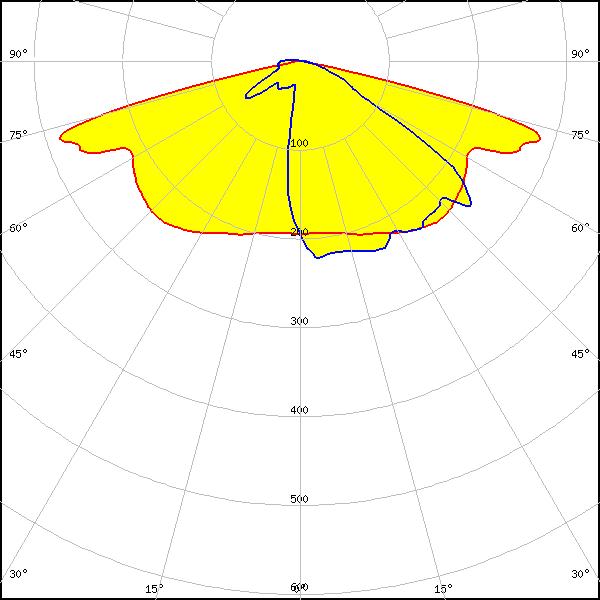

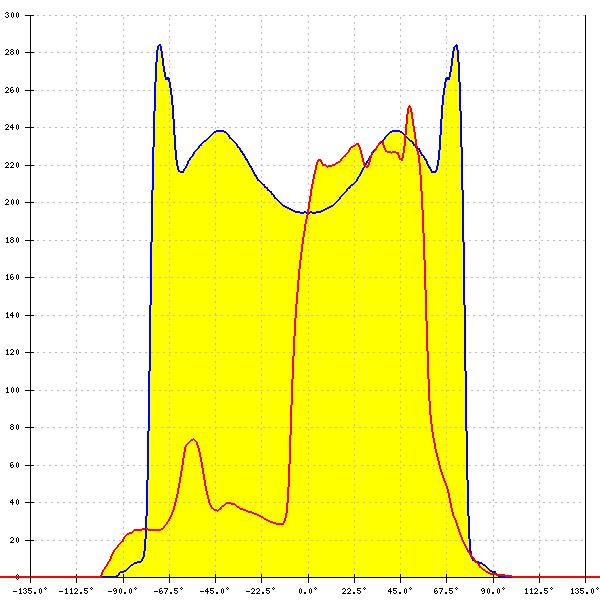

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.477 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.4%
    CCT (LED/with lens)*: 3900 K/ 2300 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line
    LED: Fortimo FastFlex LED 2x8 DA G4+
    FWHM: asymmetric
    Peak intensity: 0.438 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G5
    FWHM: asymmetric
    Peak intensity: 0.481 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

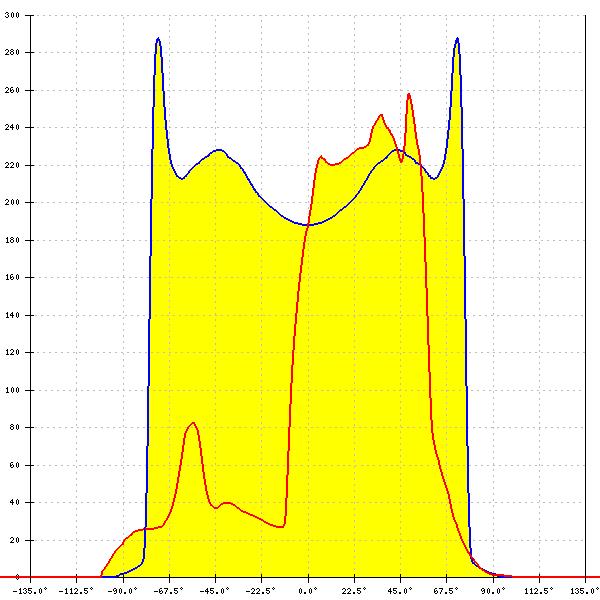

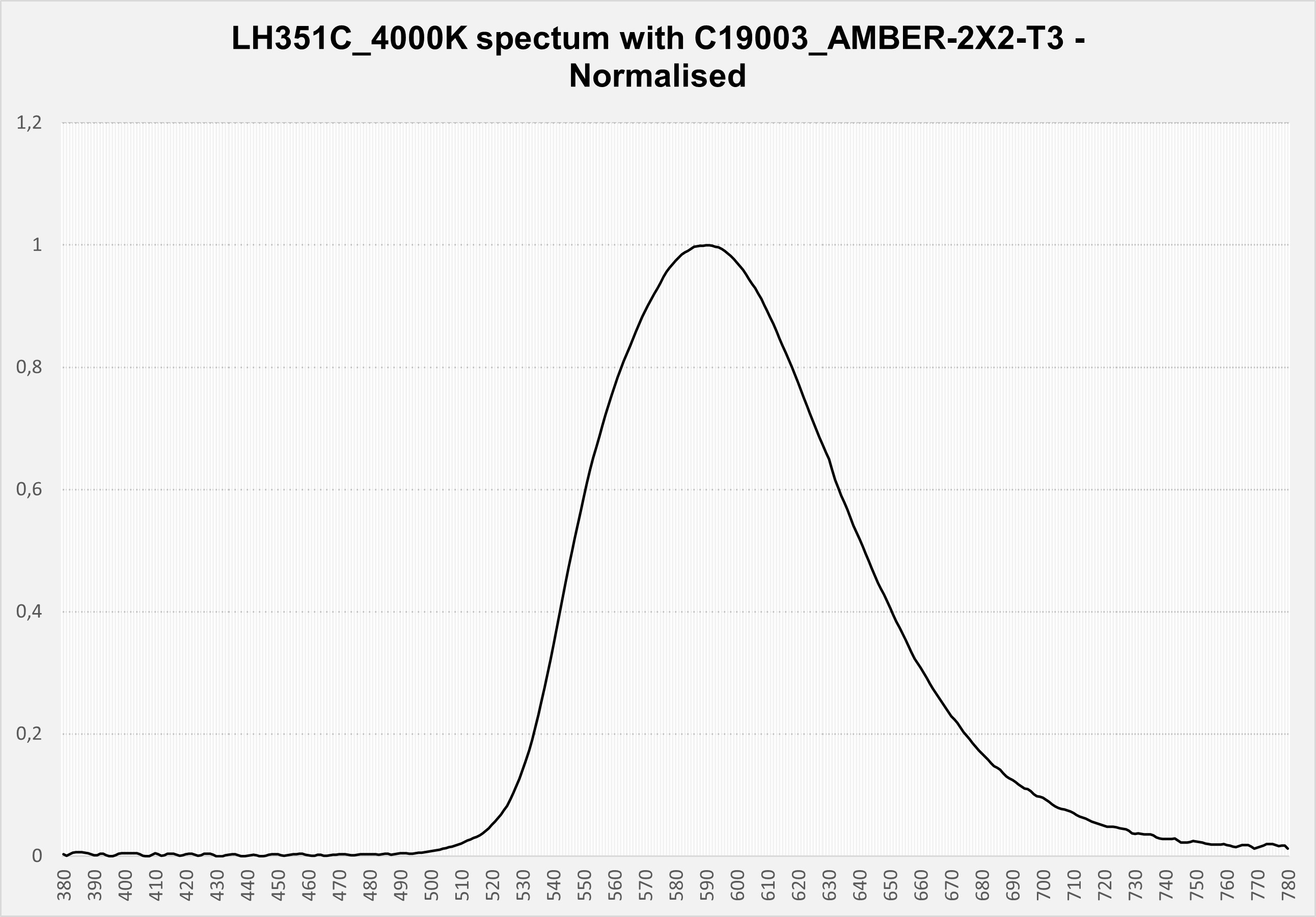

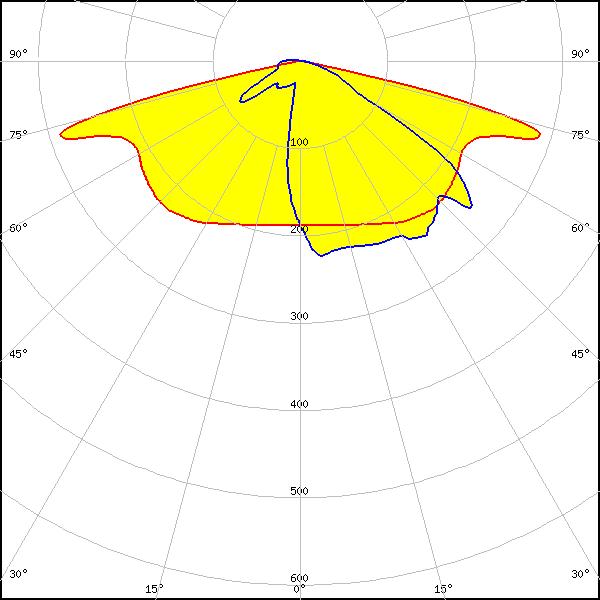

    LED: LH351C
    FWHM: asymmetric
    Peak intensity: 0.471 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.3%
    CCT (LED/with lens)*: 3800 K/ 2300 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

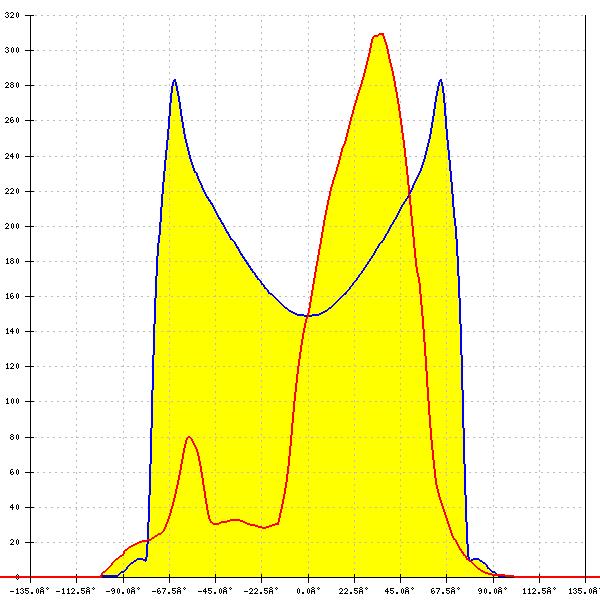

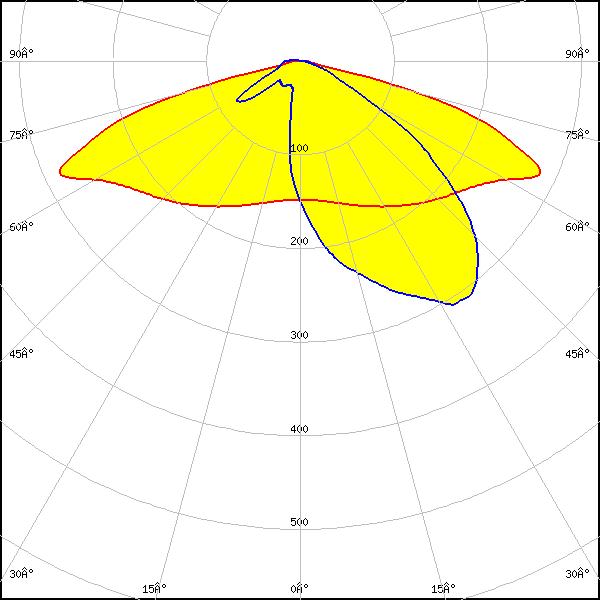

    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.428 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.3%
    CCT (LED/with lens)*: 3800 K/ 2300 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

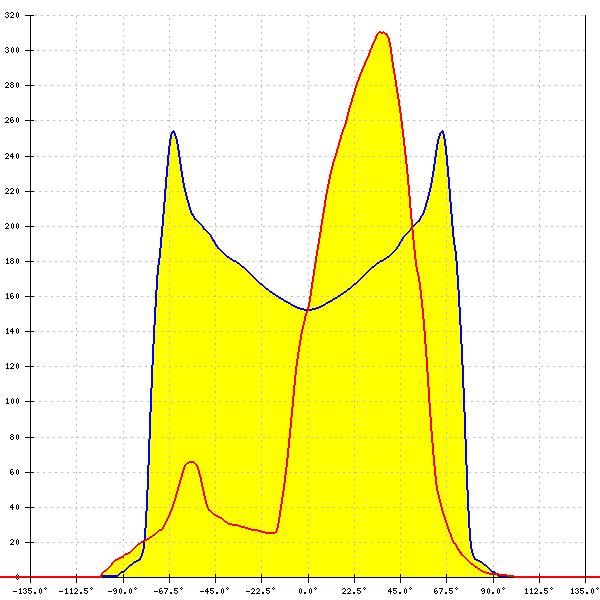

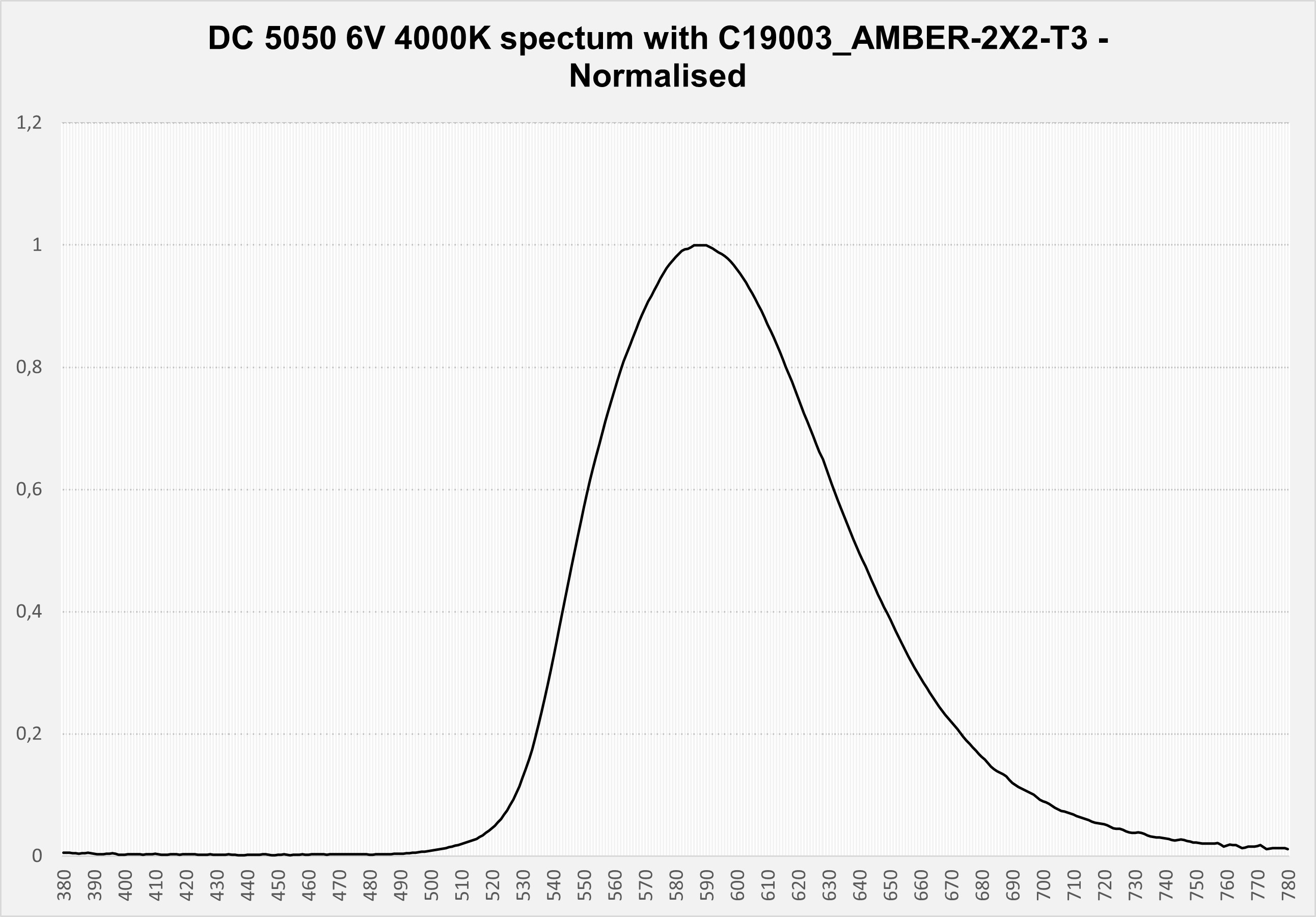

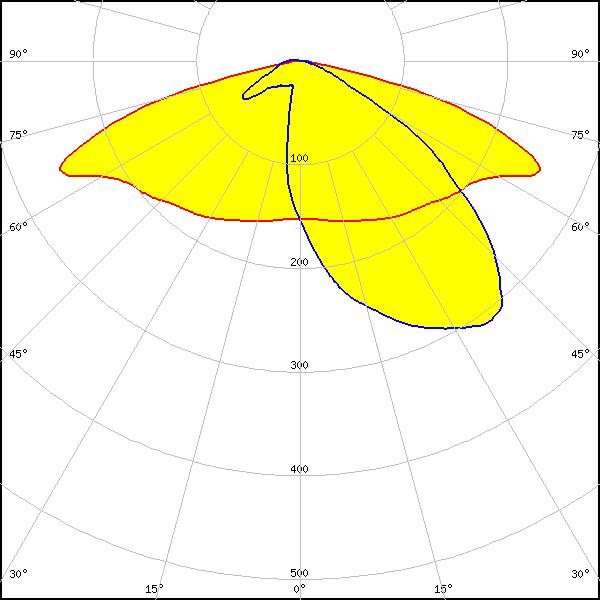

    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.394 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.4%
    CCT (LED/with lens)*: 4000 K/ 2300 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line

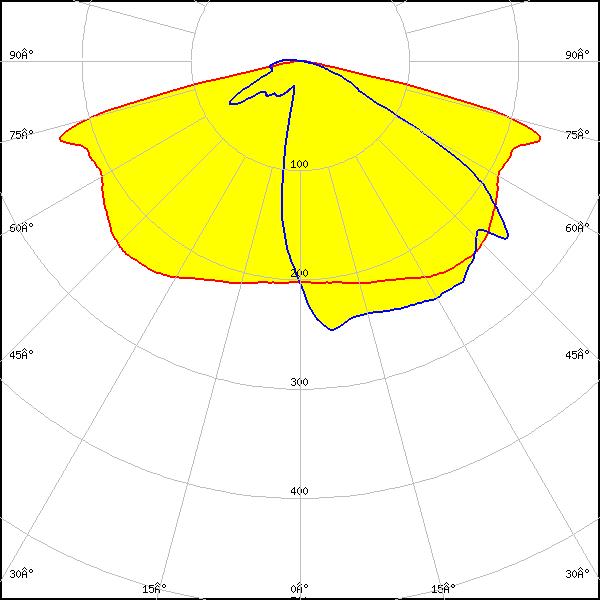

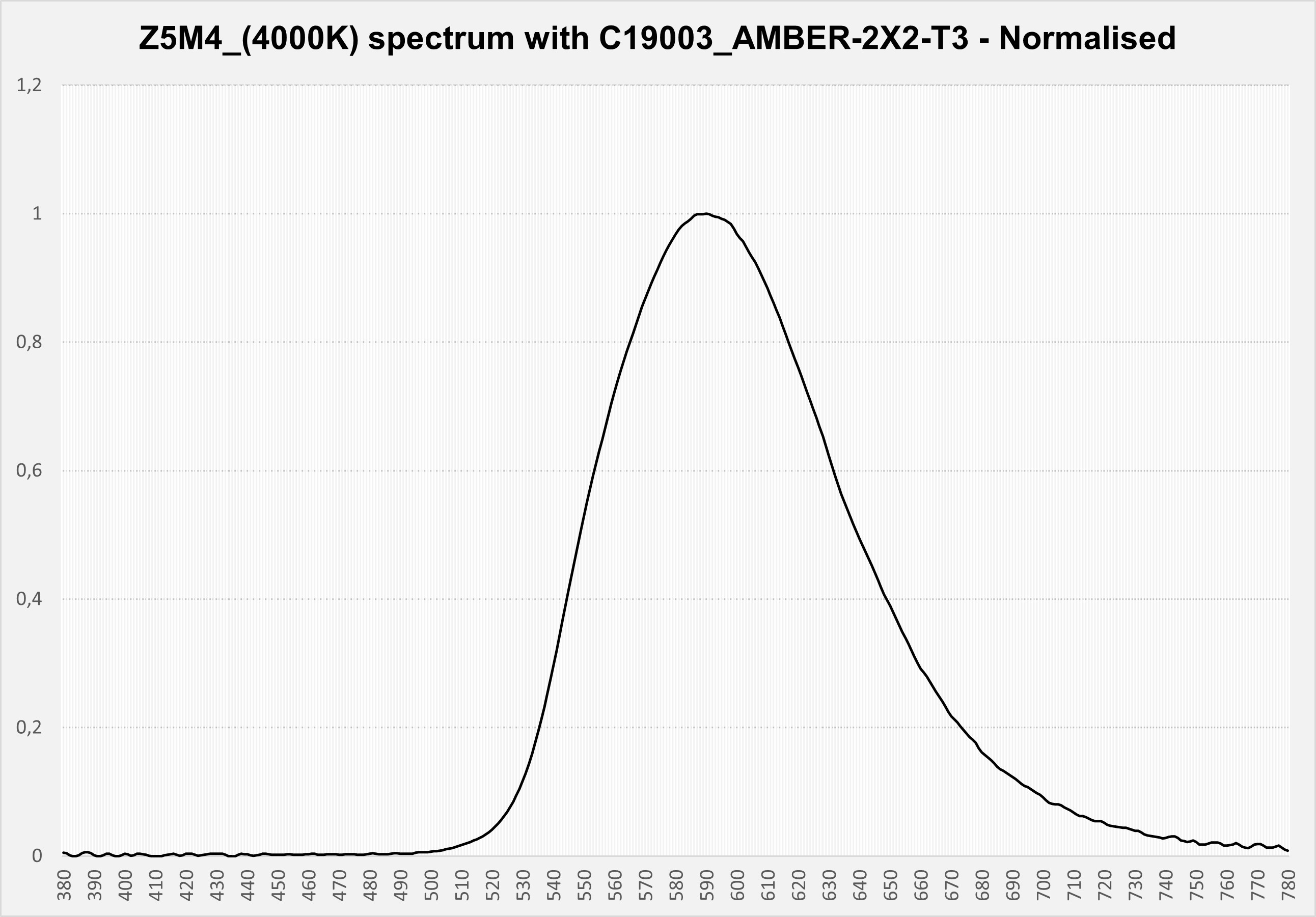

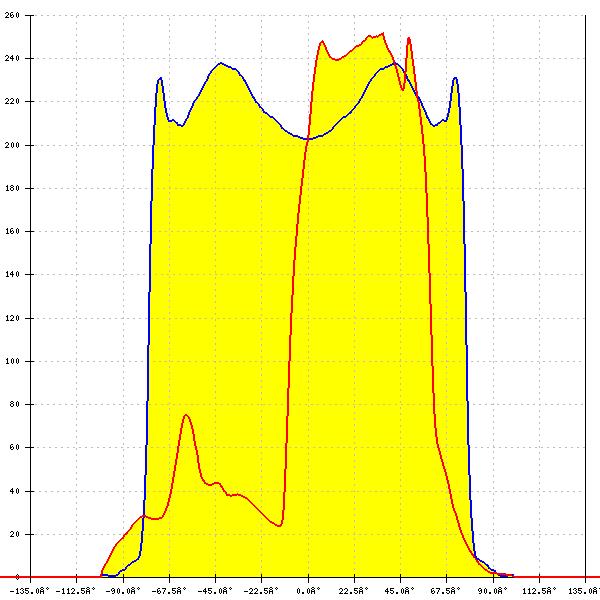

    LED: Z5M4
    FWHM: asymmetric
    Peak intensity: 0.375 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    Amount of blue light (380-500 nm): 0.3%
    CCT (LED/with lens)*: 3600 K/ 2300 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line
