C18986_ADELIA-70-WW2

~65° wide beam

Dimensions:

70 mm
Height:

42.80 mm
Fastening:

snaps
Colour:

metal
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Quantity in box:

600 pcs
Box size:

370 x 300 x 310 mm
Box weight:

10.8 kg
MPQ:

50 pcs
MOQ:

50 pcs
MOQ size:

320 x 230 x 100 mm
MOQ weight:

1.1 kg

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

REQUEST SAMPLES

WHERE TO BUY

ORDER ONLINE

ADELIA-ADAPTER-C

Adapter for ADELIA reflectors. Compatible with HEKLA interface.

ADELIA-ADAPTER-B

Adapter for ADELIA reflectors. Compatible with BJB and B+W connectors.

HEKLA-G2-I

Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

HEKLA-G2-H

Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

HEKLA-G2-D

Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

HEKLA-G2-C

Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

HEKLA-SOCKET-K

Version compatible with Bender+Wirth Typ L8

HEKLA-SOCKET-A

Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

HEKLA-SOCKET-H

Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

HEKLA-SOCKET-G

Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

HEKLA-SOCKET-F

Version compatible with Bridgelux VERO10

HEKLA-SOCKET-D

Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

HEKLA-SOCKET-C

Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

HEKLA-SOCKET-B

Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

HEKLA-G2-J

Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

HEKLA-SOCKET-VERO18

Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

HEKLA-SOCKET-I

Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

HEKLA-SOCKET-J

Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

HEKLA-SOCKET-E

Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

Show less

LED: LC003D / LC006D / LC009D / LC013D

LES size: 9.8 mm

Required components:

F17438_HEKLA-G2-I
C18432_ADELIA-ADAPTER-C

FWHM: 62°

FWTM: 82°

Peak intensity: 1.064 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

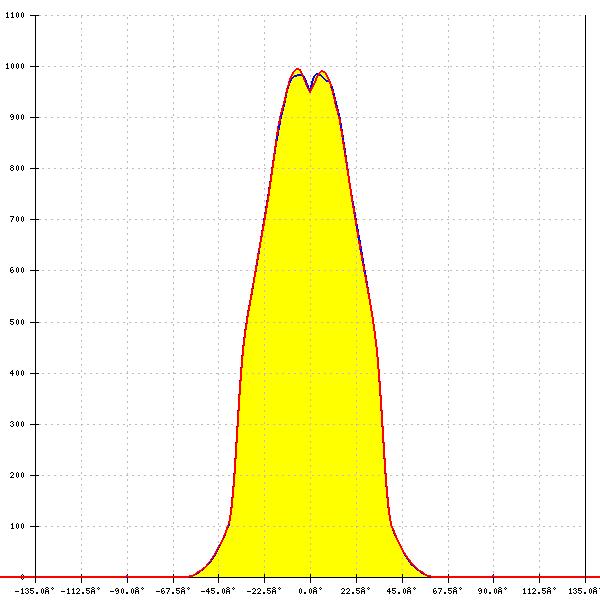

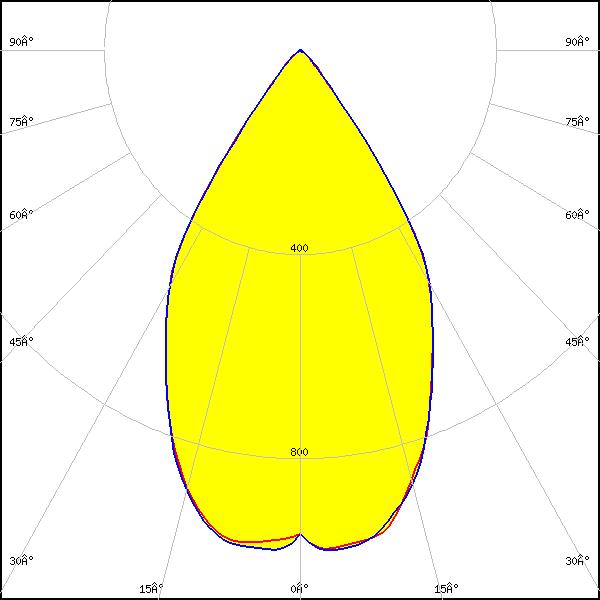

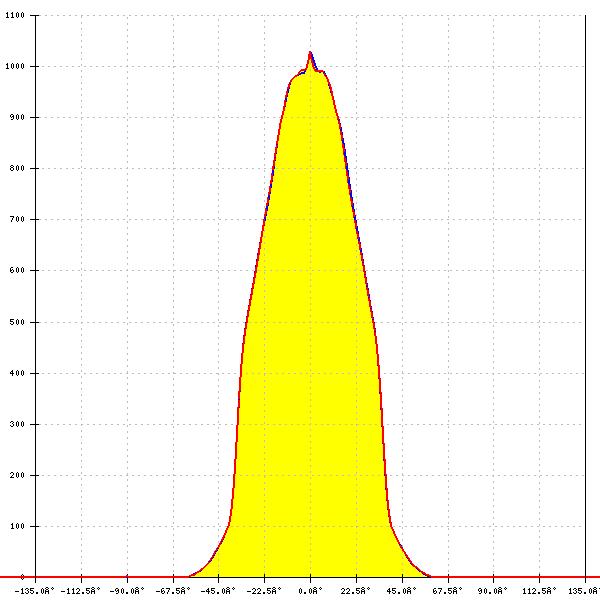

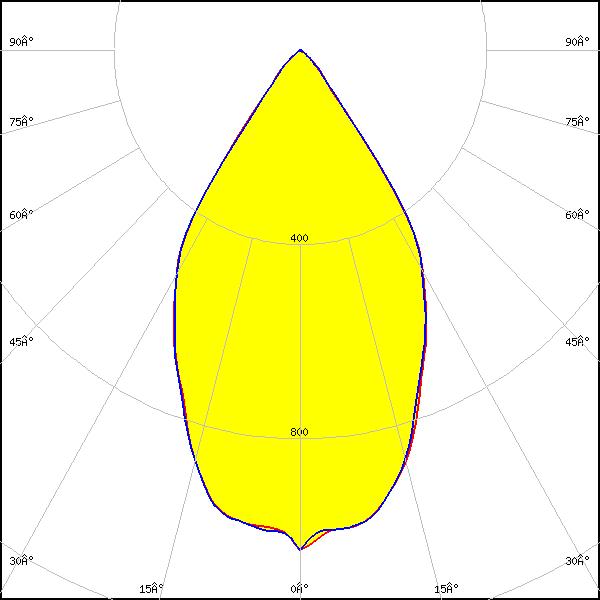

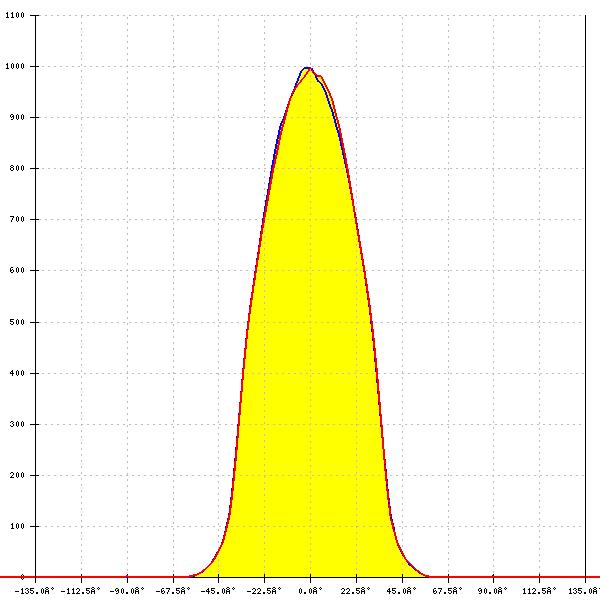

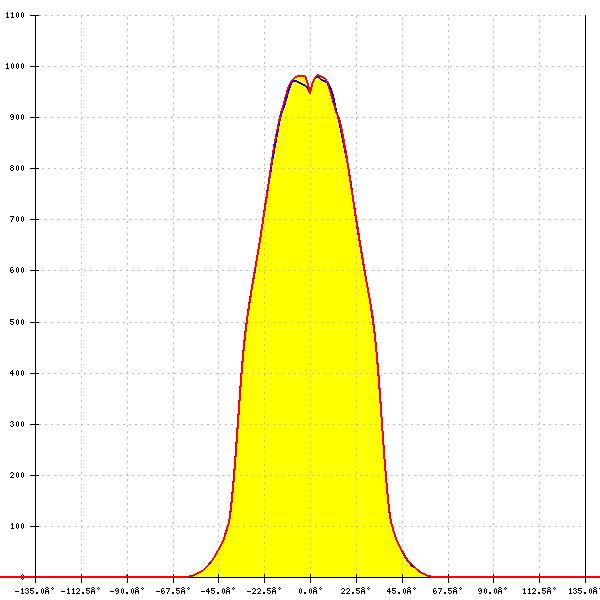

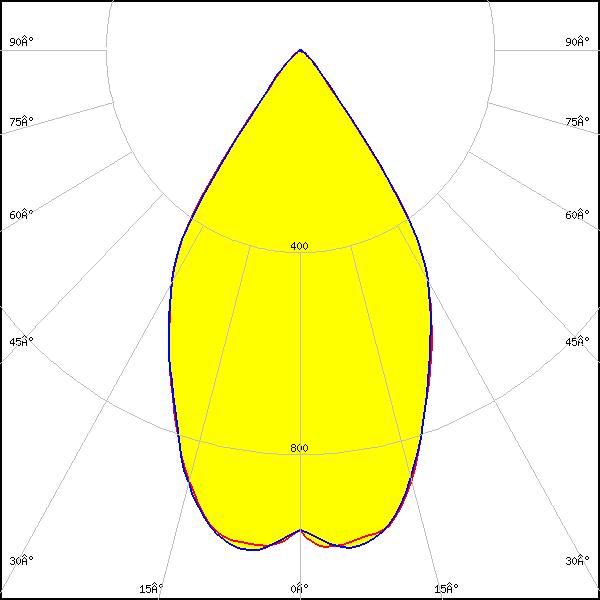

SIMULATED

LED: LC016D / LC019D / LC026D / LC033D

LES size: 14.5 mm
