    C18966_HB-2X3-5050-WWW

    Print

    ~90° wide beam

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      5.73 mm
    • Fastening:
      glue, screw
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      1200 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      5.9 kg
    • MPQ:
      240 pcs
    • MOQ:
      1200 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      5.9 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18966_HB-2X3-5050-WWW

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – June, 2023

    News

    HB-2X3 – Ready to sell millions of luminaires?

    Application area

    Area and Car Park Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

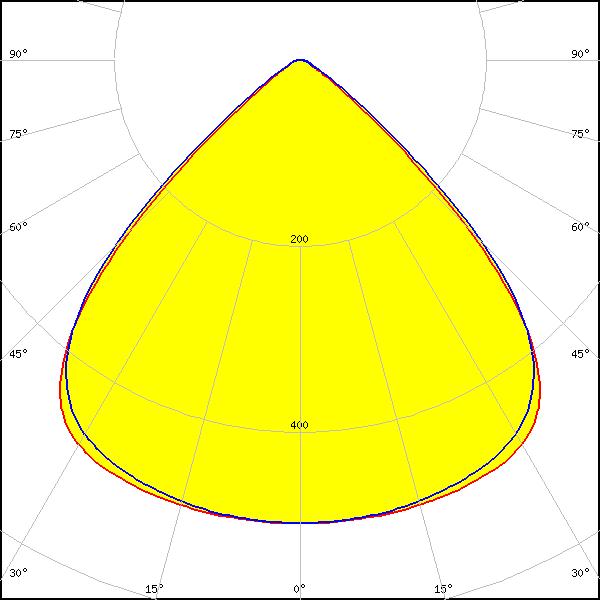

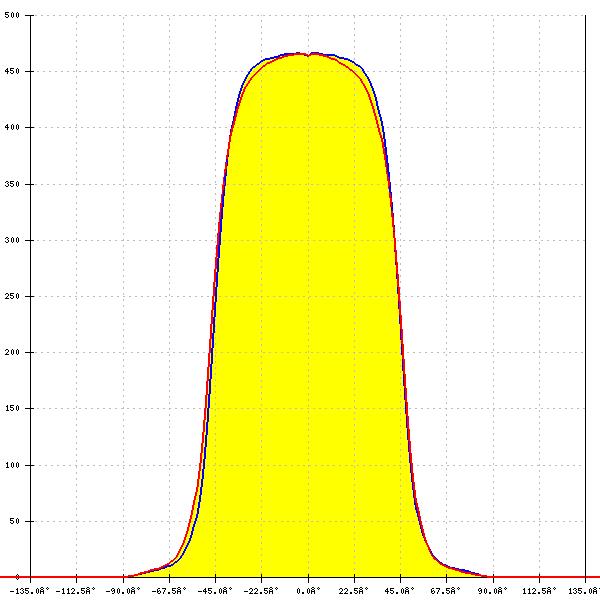

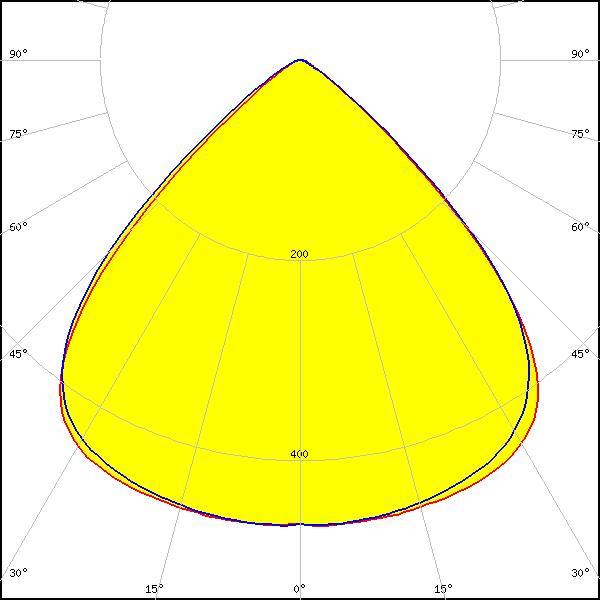

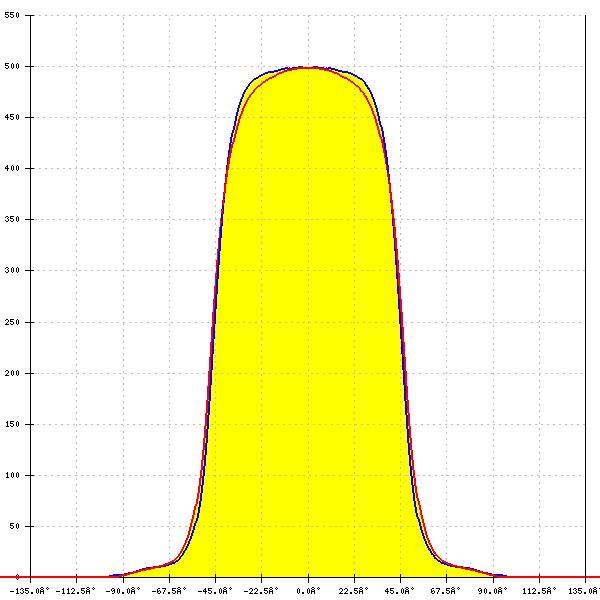

    Optical results

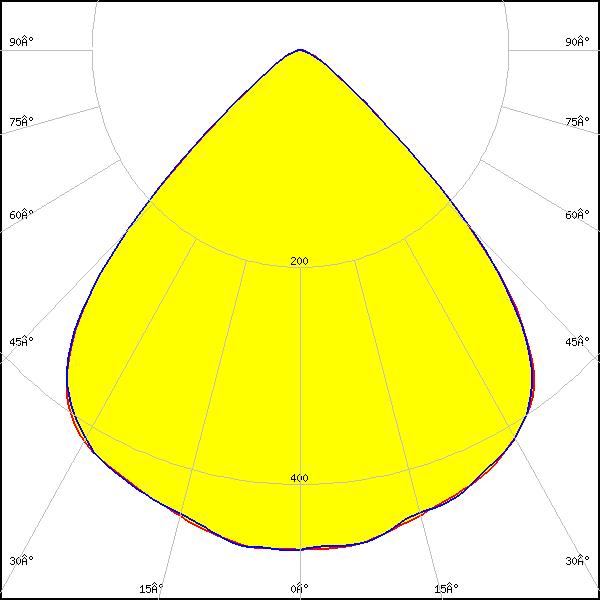

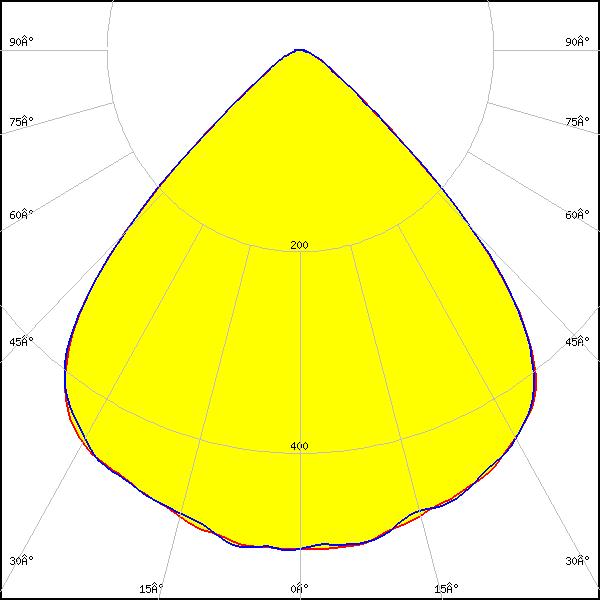

    LED: J Series 5050 Round LES
    FWHM: 90°
    FWTM: 112°
    Peak intensity: 0.511 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 Round LES
    FWHM: 90°
    FWTM: 112°
    Peak intensity: 0.470 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

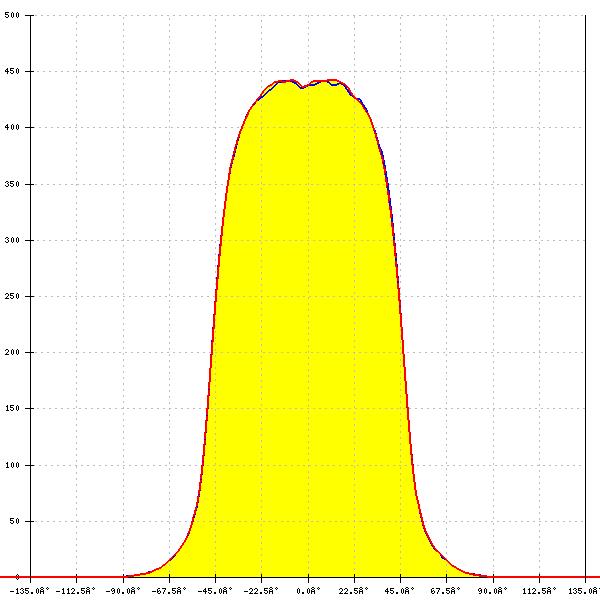

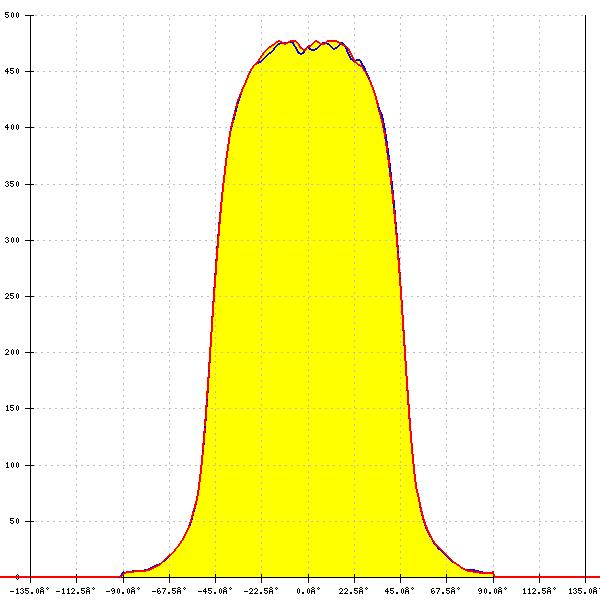

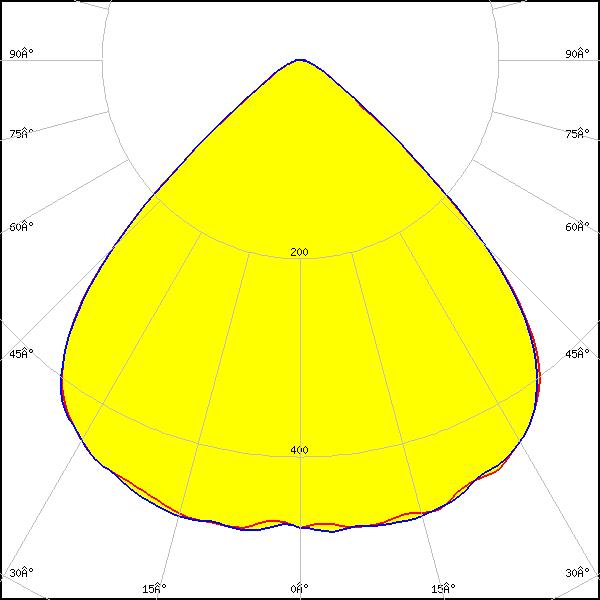

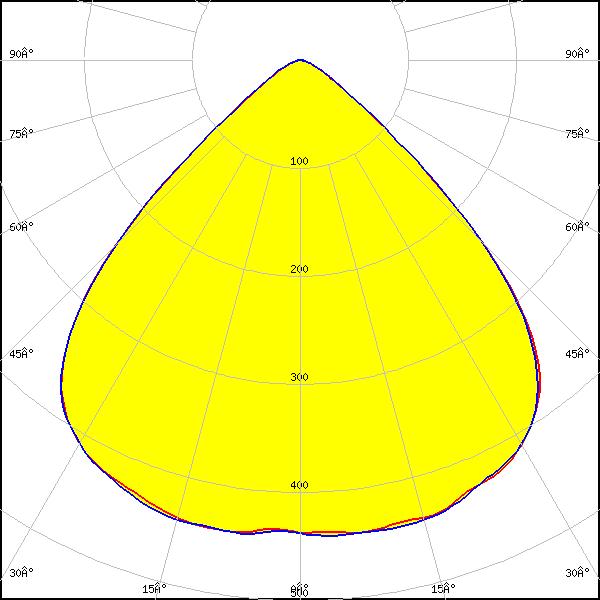

    LED: J Series 5050B 6V K Class
    FWHM: 92°
    FWTM: 114°
    Peak intensity: 0.482 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

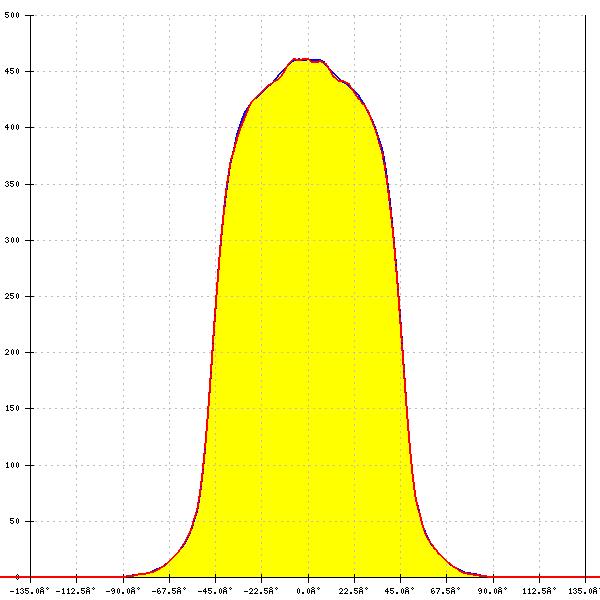

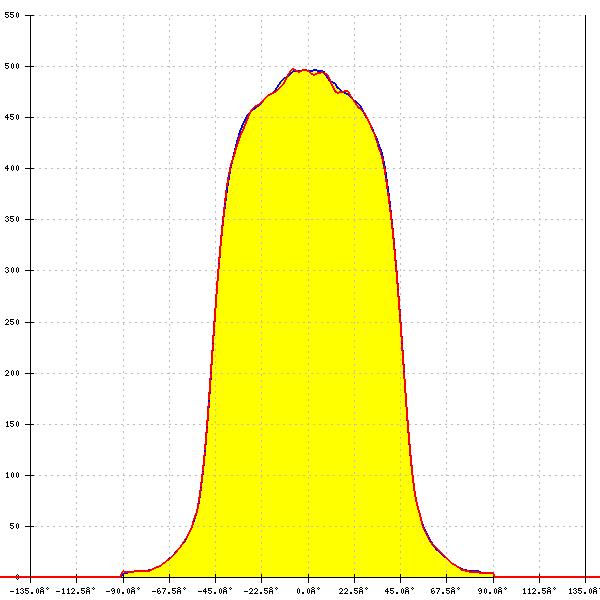

    LED: J Series 5050B 6V K Class
    FWHM: 92°
    FWTM: 114°
    Peak intensity: 0.446 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

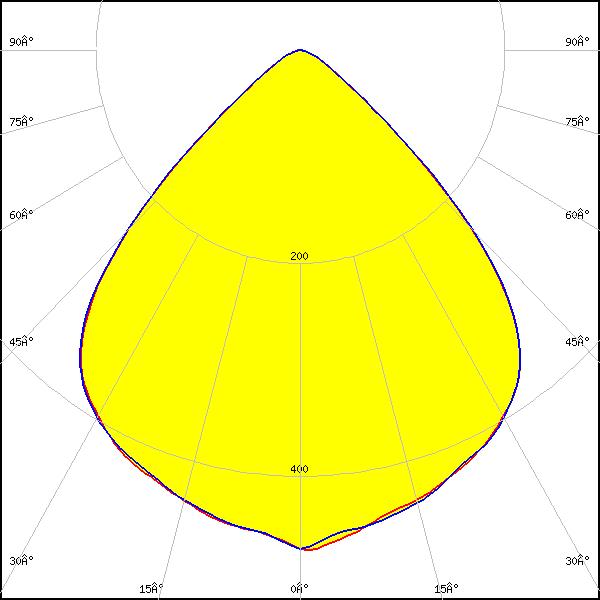

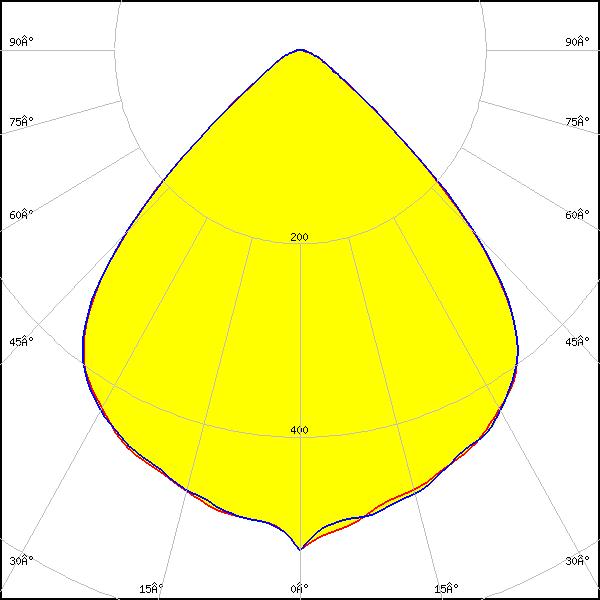

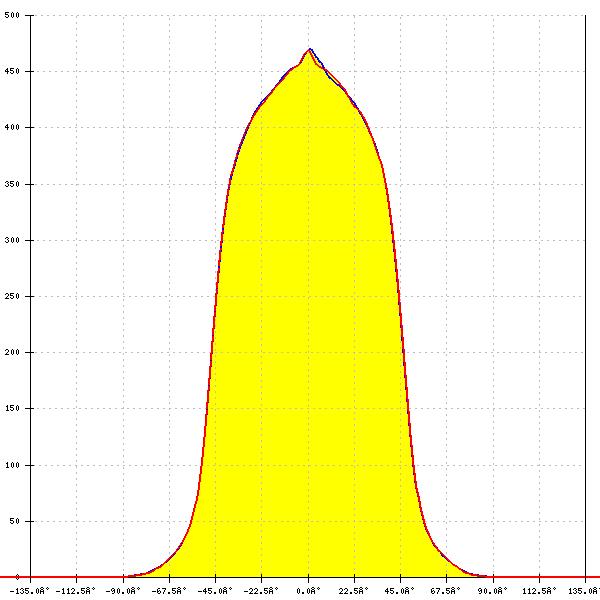

    LED: LUXEON 5050 Square LES
    FWHM: 90°
    FWTM: 114°
    Peak intensity: 0.470 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

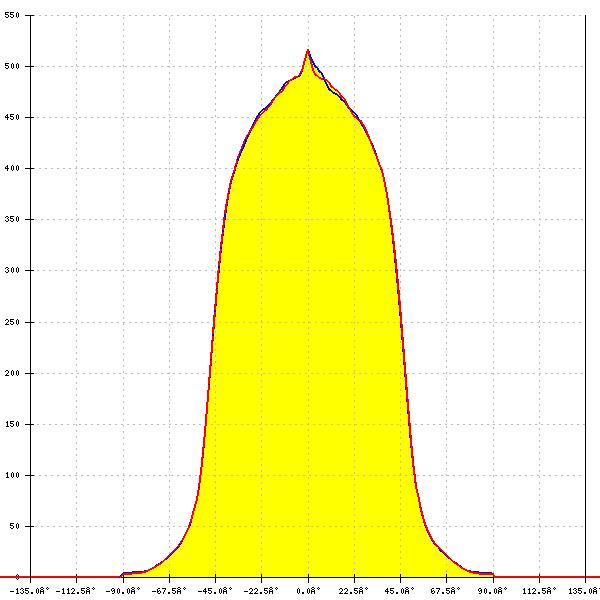

    LED: LUXEON 5050 Square LES
    FWHM: 90°
    FWTM: 114°
    Peak intensity: 0.517 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

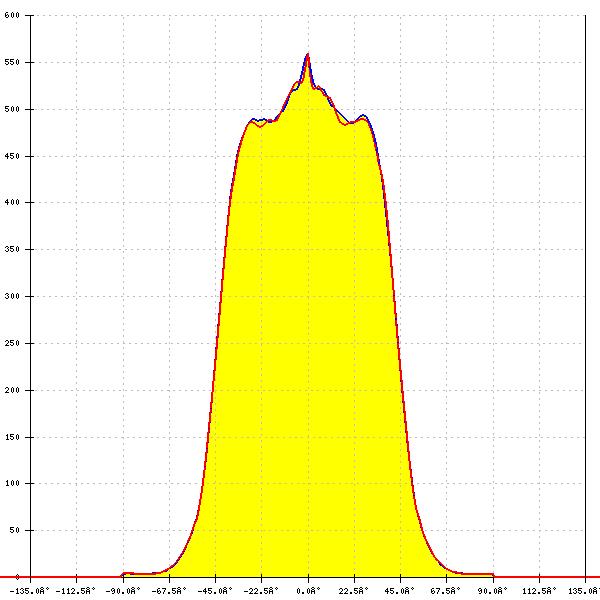

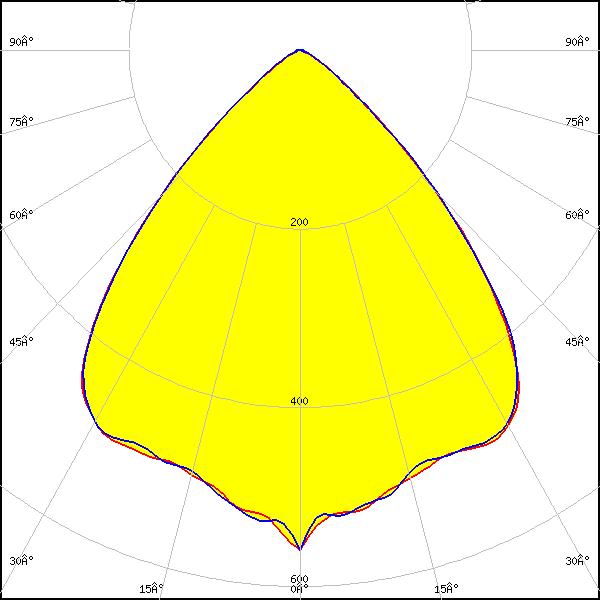

    LED: Duris S5 (2 chip)
    FWHM: 86°
    FWTM: 110°
    Peak intensity: 0.560 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

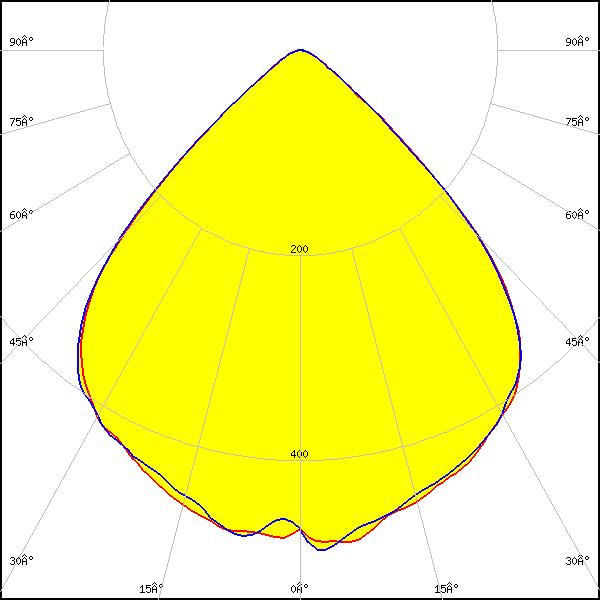

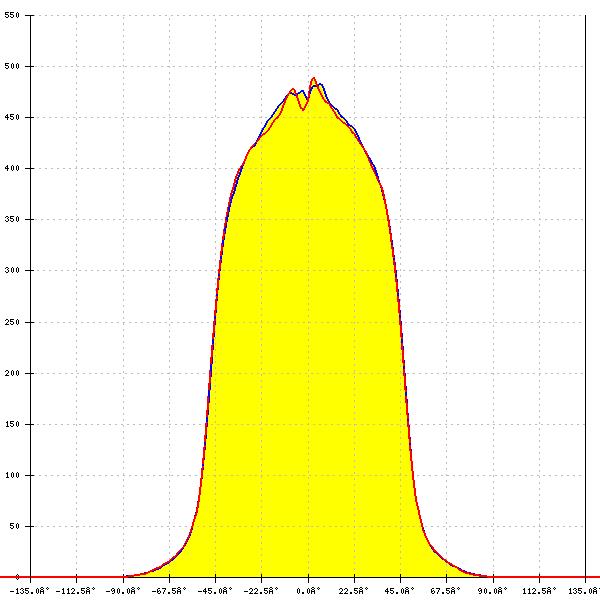

    LED: OSCONIQ S 5050
    FWHM: 91°
    FWTM: 112°
    Peak intensity: 0.488 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
