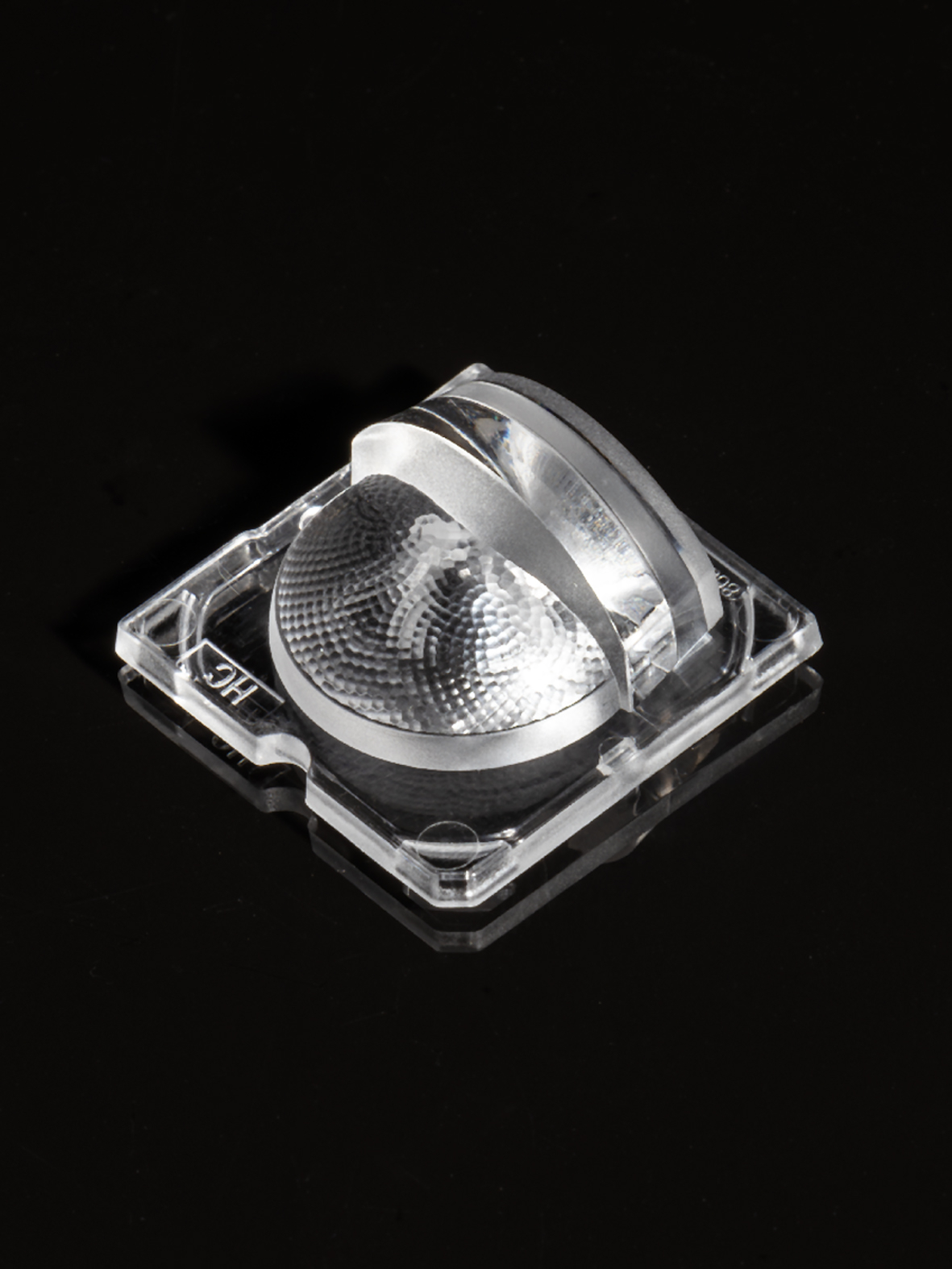

C18689_BELLA-SQ-HC
Print
Special lainaushalf-Clainaus type beam ideal for uniform ambient lighting
Specification
-
Dimensions:25 x 25 mm
-
Height:11.90 mm
-
Fastening:glue, pin, screw
-
Colour:clear
-
RoHS and REACH compliant:Yes
Component Materials
Ordering information
-
Quantity in box:1568 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:5.8 kg
-
MPQ:98 pcs
-
MOQ:294 pcs
-
MOQ size:480 x 280 x 80 mm
-
MOQ weight:1.2 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
Optical results

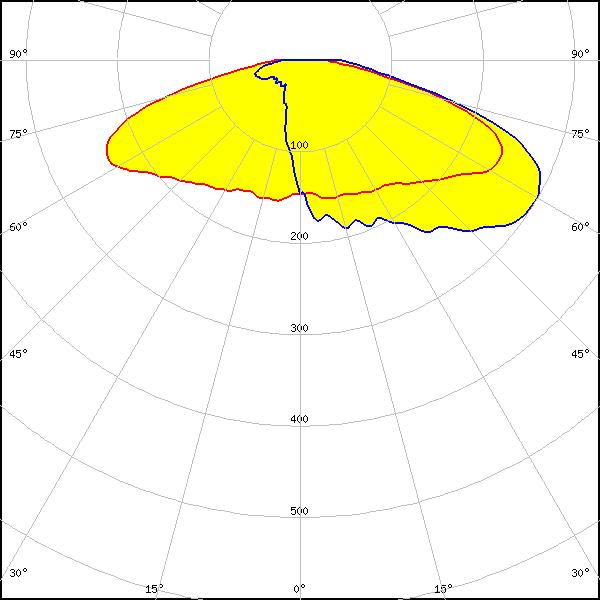

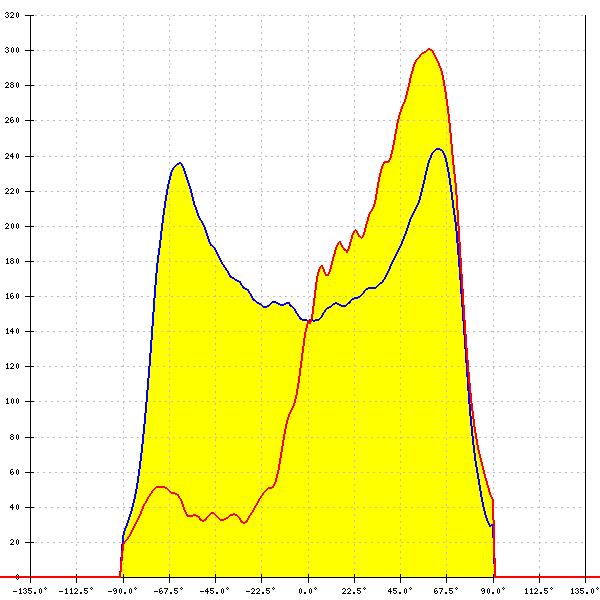

LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.365 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

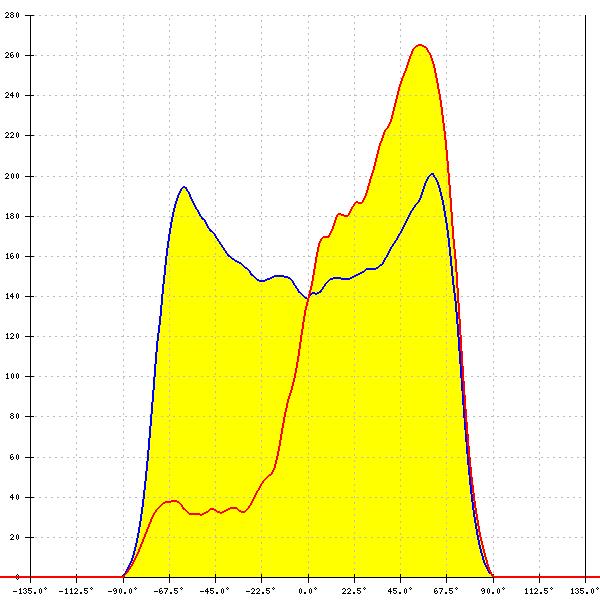

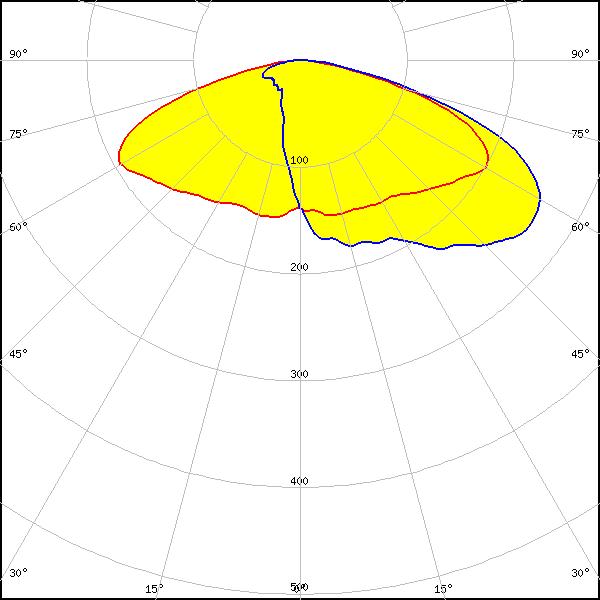

LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.300 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

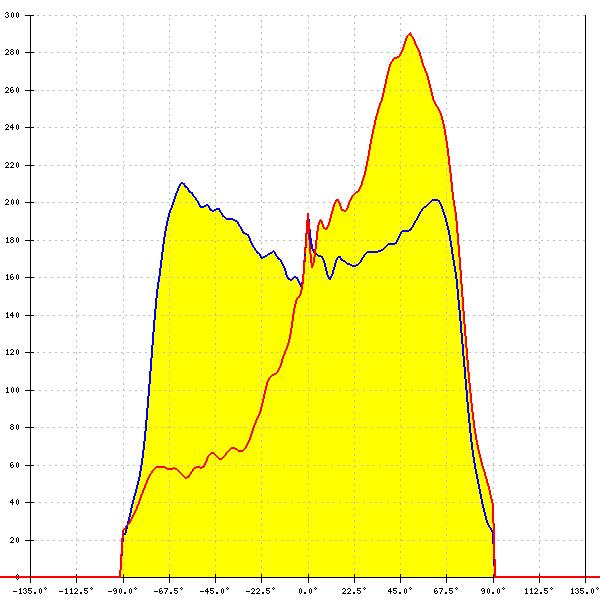

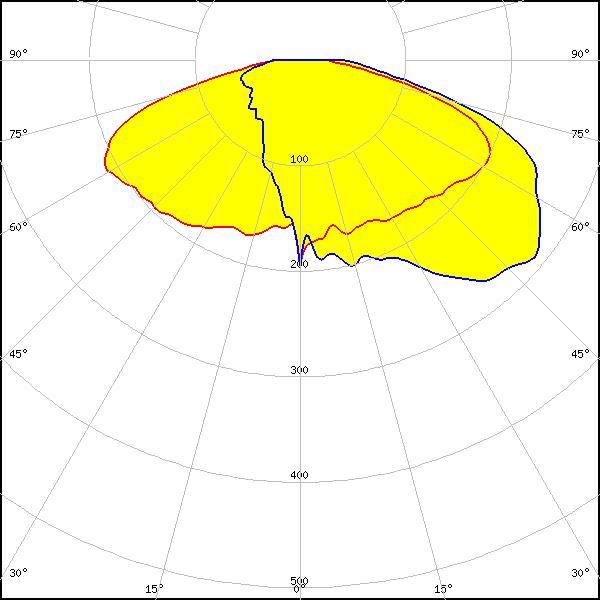

LED:
LUXEON 7070
FWHM: asymmetric
Peak intensity:
0.319 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

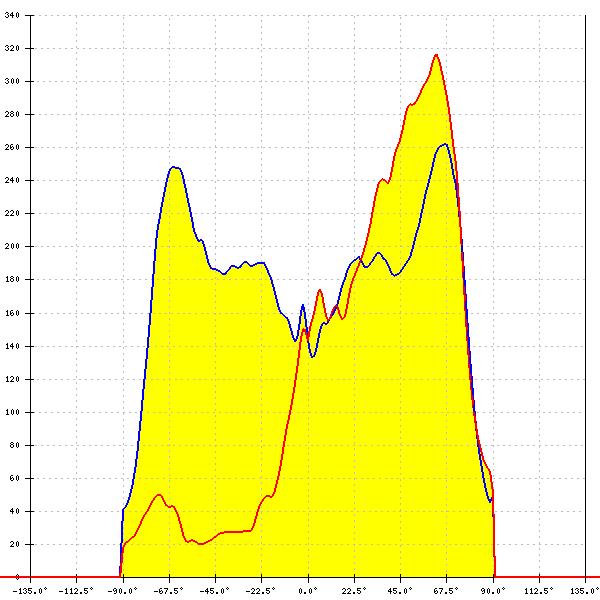

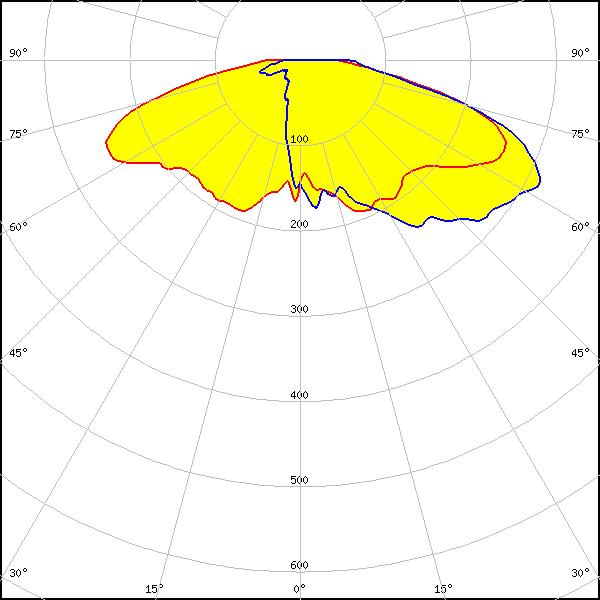

LED:
OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.365 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
