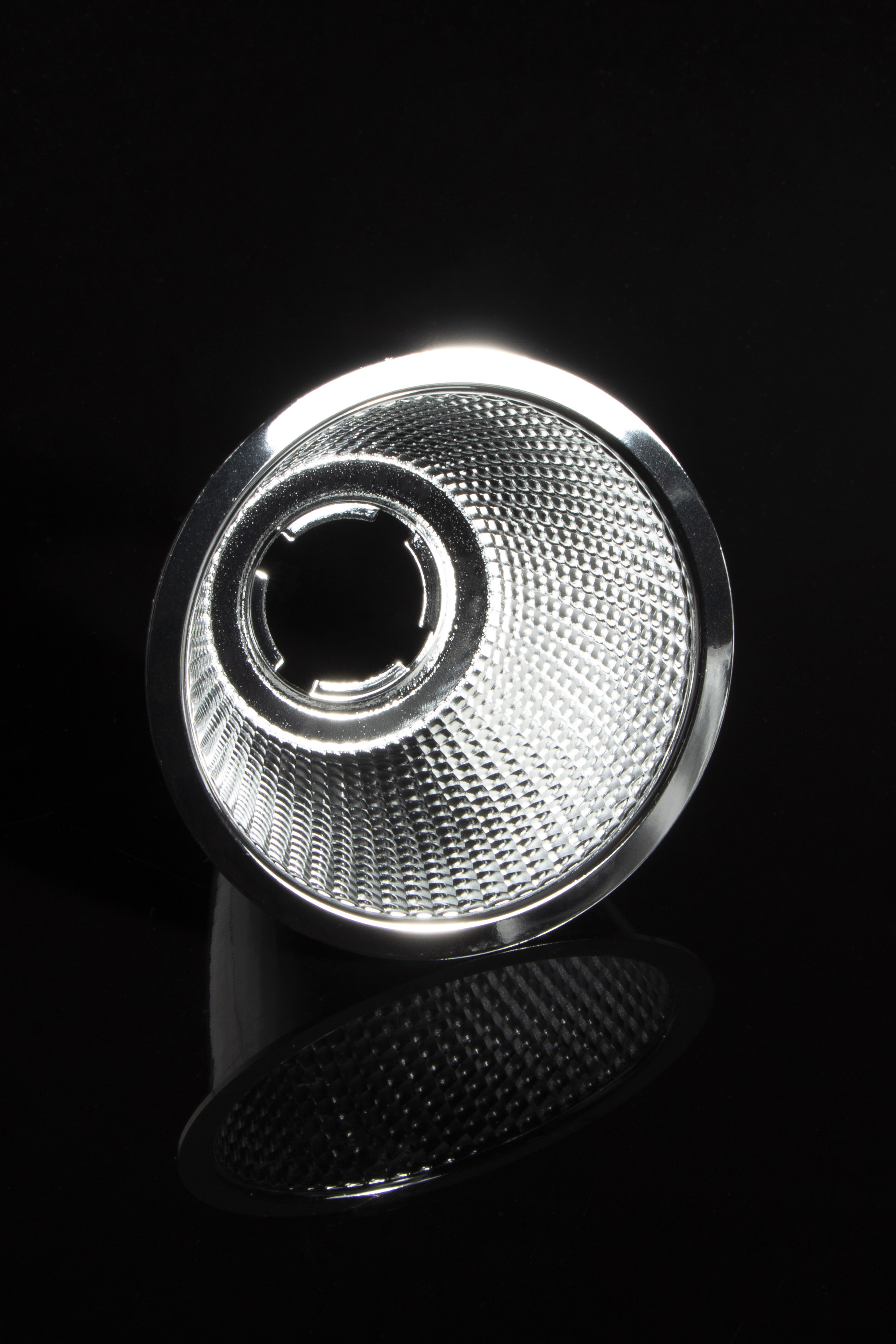

C18657_ADELIA-75-WW

~55° wide beam

Dimensions:

75 mm
Height:

42.80 mm
Fastening:

snaps
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Quantity in box:

720 pcs
Box size:

370 x 300 x 310 mm
Box weight:

13.7 kg
MPQ:

60 pcs
MOQ:

60 pcs
MOQ size:

320 x 230 x 100 mm
MOQ weight:

1.3 kg

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

REQUEST SAMPLES

WHERE TO BUY

ORDER ONLINE

ADELIA-ADAPTER-C

Adapter for ADELIA reflectors. Compatible with HEKLA interface.

ADELIA-ADAPTER-B

Adapter for ADELIA reflectors. Compatible with BJB and B+W connectors.

HEKLA-G2-I

Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

HEKLA-G2-H

Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

HEKLA-G2-D

Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

HEKLA-G2-C

Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

HEKLA-SOCKET-K

Version compatible with Bender+Wirth Typ L8

HEKLA-SOCKET-A

Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

HEKLA-SOCKET-H

Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

HEKLA-SOCKET-G

Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

HEKLA-SOCKET-F

Version compatible with Bridgelux VERO10

HEKLA-SOCKET-D

Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

HEKLA-SOCKET-C

Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

HEKLA-SOCKET-B

Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

HEKLA-G2-J

Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

HEKLA-SOCKET-VERO18

Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

HEKLA-SOCKET-I

Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

HEKLA-SOCKET-J

Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

HEKLA-SOCKET-E

Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

Show less

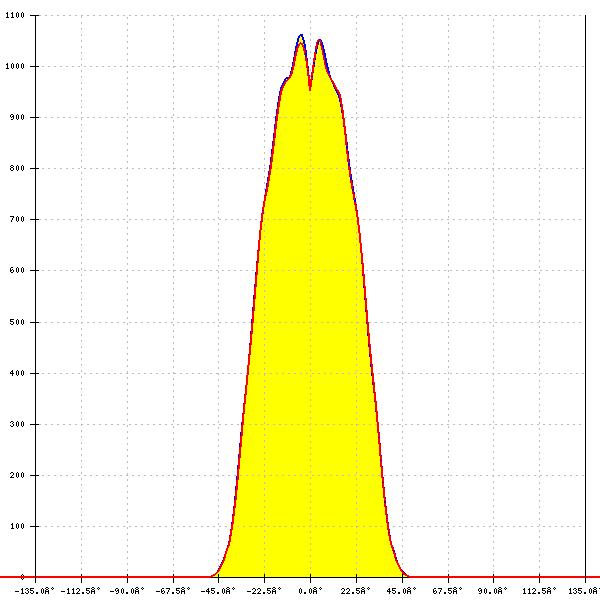

LED: V18 Gen 8-9

LES size: 19.6 mm

Required components:

Bender Wirth: 639b Hekla XL
C18432_ADELIA-ADAPTER-C

FWHM: 56°

FWTM: 76°

Peak intensity: 1.076 cd/lm

Efficiency: 79 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

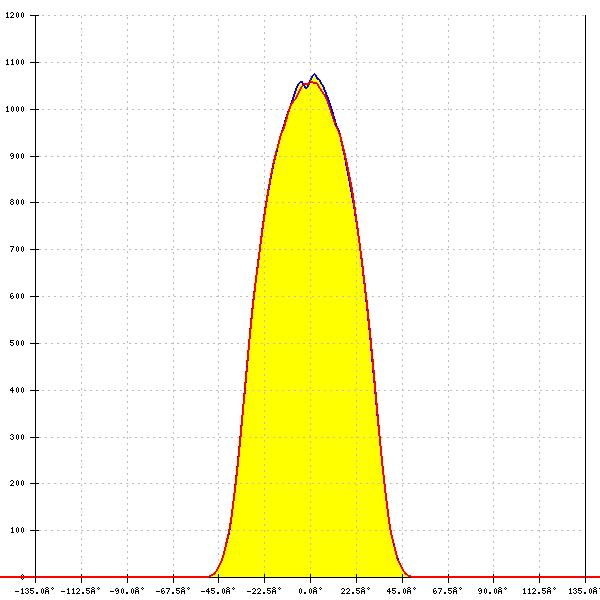

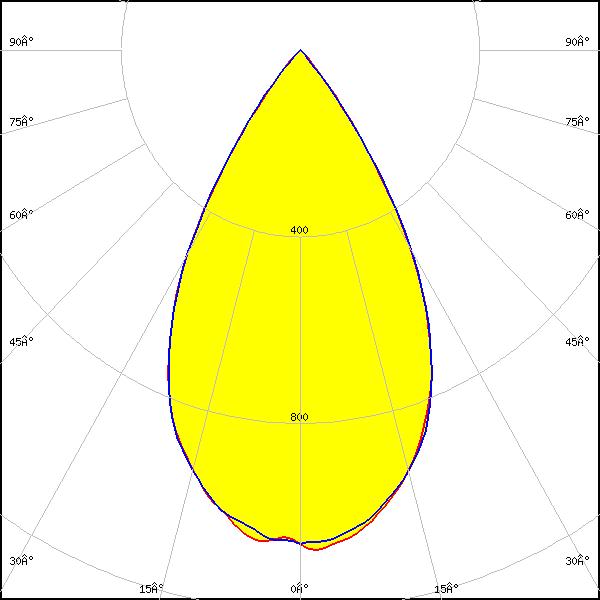

SIMULATED

LED: V22 Gen 8-9

LES size: 23.3 mm
