    C18424_ADELIA-70-M

    Print

    ~24° medium beam

    Specification
    • Dimensions:
      70 mm
    • Height:
      42.80 mm
    • Fastening:
      snaps
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      840 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      14.0 kg
    • MPQ:
      70 pcs
    • MOQ:
      70 pcs
    • MOQ size:
      320 x 230 x 100 mm
    • MOQ weight:
      1.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18424_ADELIA-70-M

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – June 29, 2022

    Application example

    Track light example with ADELIA

    Luminaire, example

    Track light luminaire with ADELIA

    News

    ADELIA – visual perfection

    Compatible product

    B+W 630 Hekla datasheet

    Application guide

    LEDiL guide for retail lighting optics

    News

    New products – January, 2023

    Article

    Explore new retail lighting opportunities

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    ADELIA-ADAPTER-C

    Adapter for ADELIA reflectors. Compatible with HEKLA interface.

    ADELIA-ADAPTER-B

    Adapter for ADELIA reflectors. Compatible with BJB and B+W connectors.

    Optical results

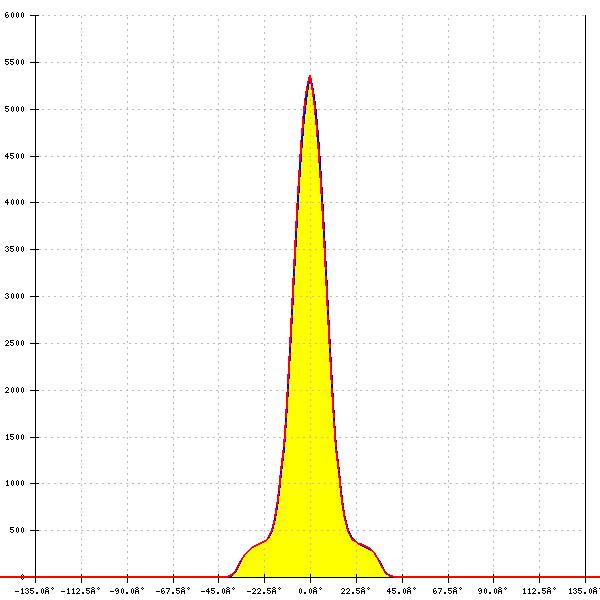

    LED: V10 Gen 8-9
    LES size: 10.0 mm
    Required components:
    BJB: 47.360.1020
    C18431_ADELIA-ADAPTER-B
    FWHM: 18°
    FWTM: 36°
    Peak intensity: 5.358 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V13 Gen 8-9
    LES size: 14.8 mm
    Required components:
    Bender Wirth: 633c Hekla
    C18432_ADELIA-ADAPTER-C
    FWHM: 23°
    FWTM: 53°
    Peak intensity: 3.594 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

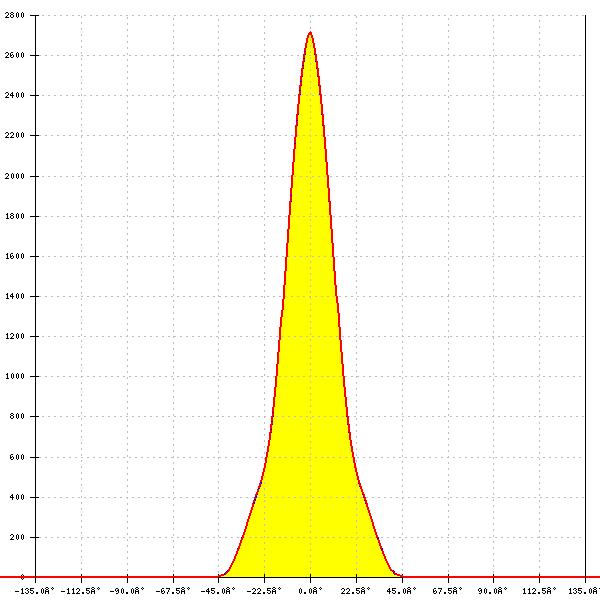

    LED: V18 Gen 8-9
    LES size: 19.6 mm
    Required components:
    Bender Wirth: 639b Hekla XL
    C18432_ADELIA-ADAPTER-C
    FWHM: 27°
    FWTM: 62°
    Peak intensity: 2.714 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V22 Gen 8-9
    LES size: 23.3 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    C18432_ADELIA-ADAPTER-C
    FWHM: 28°
    FWTM: 62°
    Peak intensity: 2.404 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 HD Gen 7
    LES size: 7.0 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    C18432_ADELIA-ADAPTER-C
    FWHM: 17°
    FWTM: 32°
    Peak intensity: 6.726 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

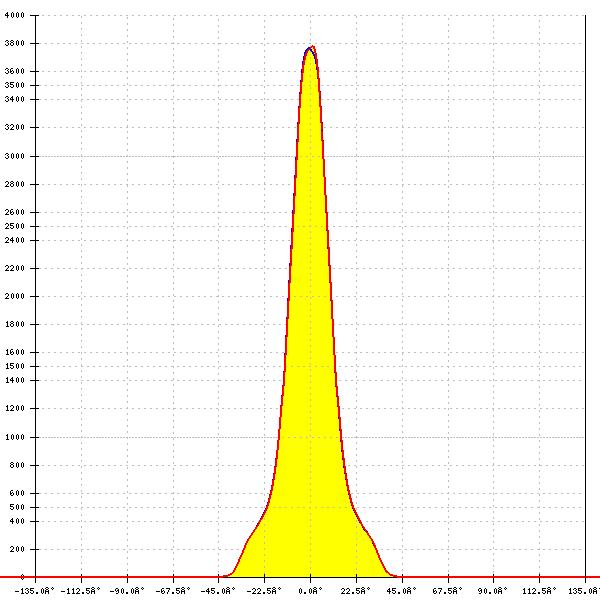

    LED: VERO13
    LES size: 13.4 mm
    Required components:
    C18264_HEKLA-SOCKET-VERO18
    C18432_ADELIA-ADAPTER-C
    FWHM: 22°
    FWTM: 50°
    Peak intensity: 3.799 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

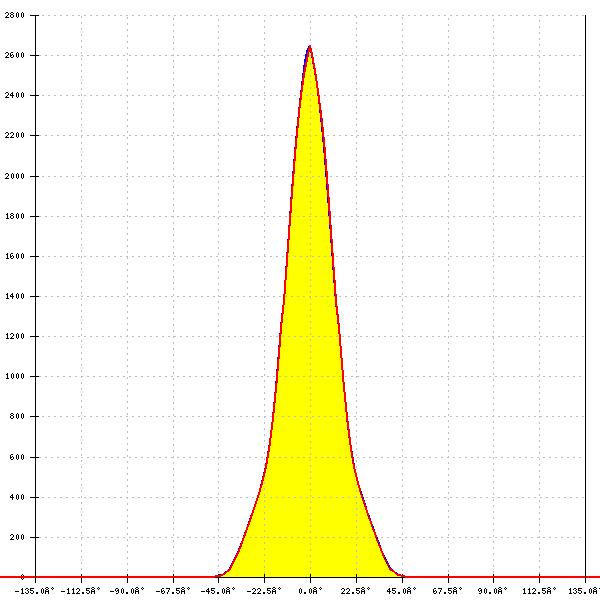

    LED: VERO18
    LES size: 18.6 mm
    Required components:
    C18264_HEKLA-SOCKET-VERO18
    C18432_ADELIA-ADAPTER-C
    FWHM: 26°
    FWTM: 60°
    Peak intensity: 2.650 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

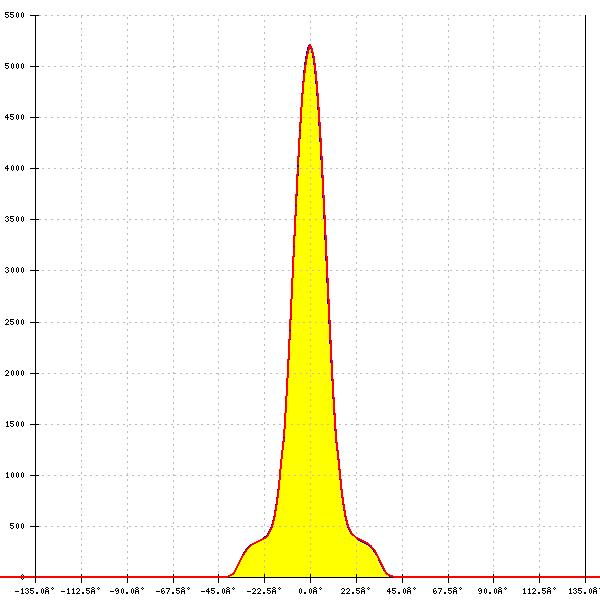

    LED: CMU10xx
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    C18431_ADELIA-ADAPTER-B
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 5.215 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

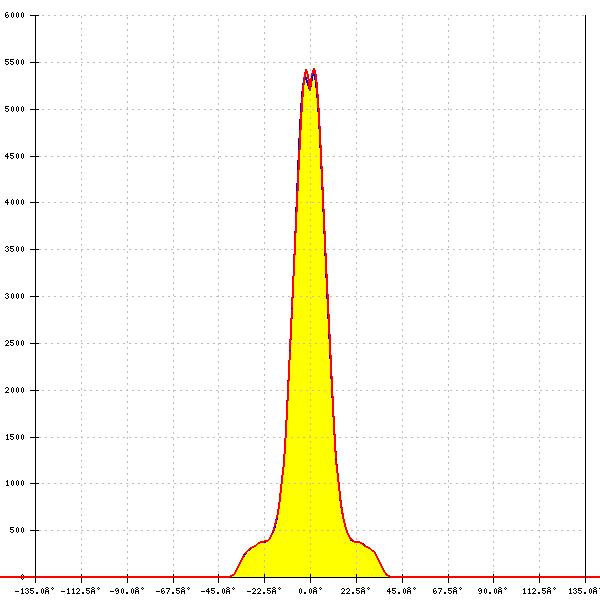

    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    F17436_HEKLA-G2-D
    C18432_ADELIA-ADAPTER-C
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 5.494 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

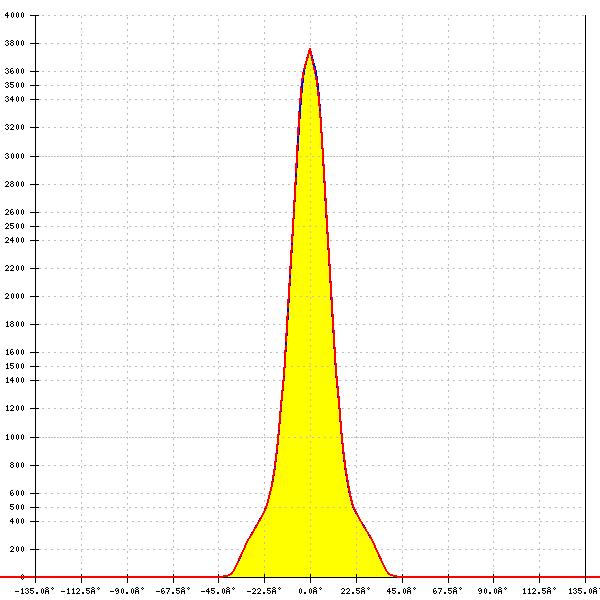

    LED: CXA/B 1830
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637b Hekla
    C18432_ADELIA-ADAPTER-C
    FWHM: 22°
    FWTM: 52°
    Peak intensity: 3.763 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    C18432_ADELIA-ADAPTER-C
    FWHM: 18°
    FWTM: 36°
    Peak intensity: 5.296 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    C18432_ADELIA-ADAPTER-C
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 5.174 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    C18432_ADELIA-ADAPTER-C
    FWHM: 24°
    FWTM: 56°
    Peak intensity: 3.347 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    C18432_ADELIA-ADAPTER-C
    FWHM: 24°
    FWTM: 56°
    Peak intensity: 3.458 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
