    C18319_ADELIA-110-S

    Print

    ~15° spot beam

    Specification
    • Dimensions:
      110 mm
    • Height:
      57.90 mm
    • Fastening:
      snaps
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      360 pcs
    • Box size:
      400 x 280 x 280 mm
    • Box weight:
      13.7 kg
    • MPQ:
      60 pcs
    • MOQ:
      60 pcs
    • MOQ size:
      320 x 230 x 150 mm
    • MOQ weight:
      2.5 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18319_ADELIA-110-S
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Compatibility guide

    LEDiL connector and socket compatibility

    News

    New products – June 29, 2022

    Application example

    Track light example with ADELIA

    Luminaire, example

    Track light luminaire with ADELIA

    News

    ADELIA – visual perfection

    Compatible product

    B+W 630 Hekla datasheet

    Application guide

    LEDiL Guide for Retail Lighting Optics

    News

    New products – January, 2023

    Article

    Explore new retail lighting opportunities

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    ADELIA-110-ADAPTER-C

    Adapter for ADELIA reflectors. Compatible with HEKLA interface.

    ADELIA-110-ADAPTER-B

    Adapter for ADELIA reflectors. Compatible with BJB and B+W connectors.

    VERO29SE-ADAPTER

    Adapter for ADELIA-110 and AMY-110. Compatible with Bridgelux VERO 29 SE interface.

    Optical results

    LED: V18 Gen 8-9
    LES size: 19.6 mm
    Required components:
    Bender Wirth: 639b Hekla XL
    C18323_ADELIA-110-ADAPTER-C
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 6.598 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V22 Gen 8-9
    LES size: 23.3 mm
    Required components:
    Bender Wirth: 631b Hekla XL
    C18323_ADELIA-110-ADAPTER-C
    FWHM: 16°
    FWTM: 33°
    Peak intensity: 5.786 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

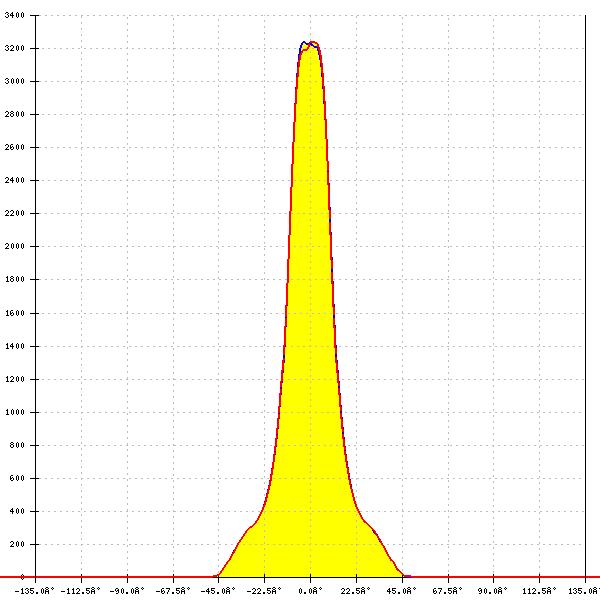

    LED: Vero SE 29
    LES size: 29.2 mm
    FWHM: 24°
    FWTM: 55°
    Peak intensity: 3.200 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

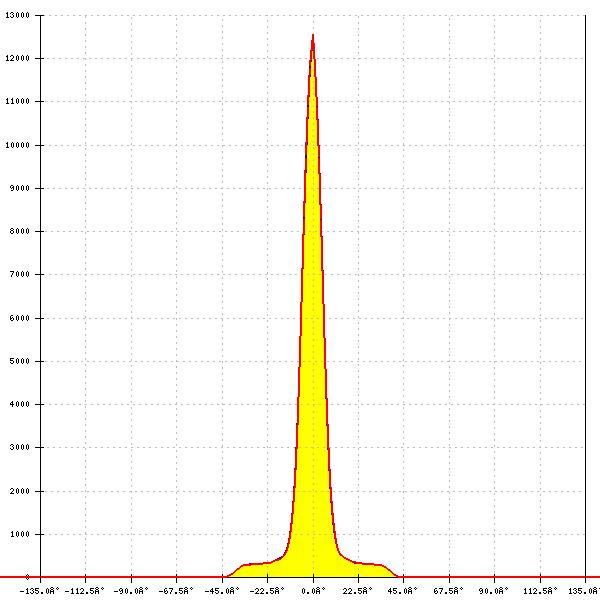

    LED: VERO13
    LES size: 13.4 mm
    Required components:
    C18264_HEKLA-SOCKET-VERO18
    C18323_ADELIA-110-ADAPTER-C
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 12.553 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO18
    LES size: 18.6 mm
    Required components:
    C18264_HEKLA-SOCKET-VERO18
    C18323_ADELIA-110-ADAPTER-C
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 6.313 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    C18323_ADELIA-110-ADAPTER-C
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 11.067 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

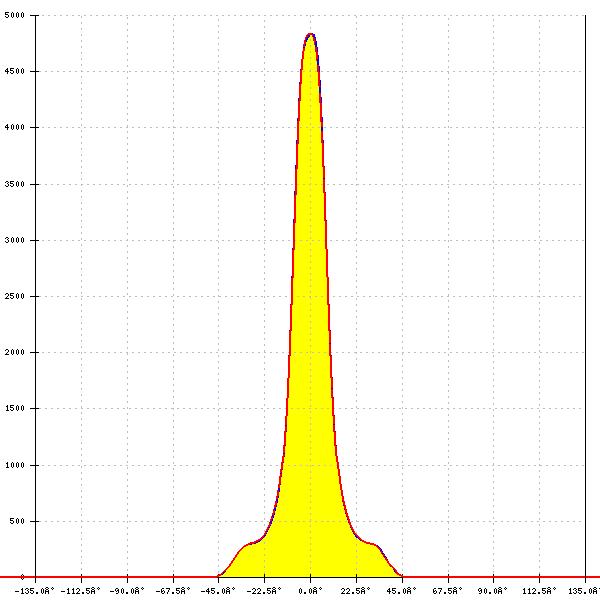

    LED: CLU04x
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 631a Bayonet50
    C18324_ADELIA-110-ADAPTER-B
    FWHM: 18°
    FWTM: 38°
    Peak intensity: 4.860 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1840
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Bayonet50
    C18324_ADELIA-110-ADAPTER-B
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 11.070 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA3090
    LES size: 23.0 mm
    Required components:
    BJB: 47.319.2151
    C18324_ADELIA-110-ADAPTER-B
    FWHM: 18°
    FWTM: 40°
    Peak intensity: 4.704 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

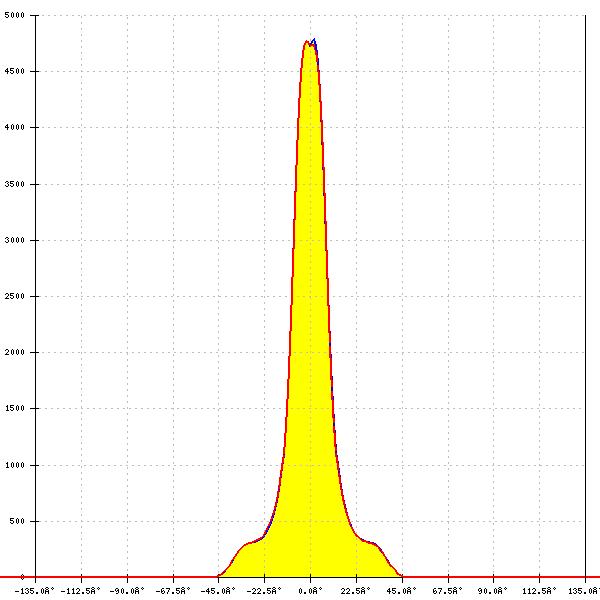

    LED: CMU22xx
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 631a Bayonet50
    C18324_ADELIA-110-ADAPTER-B
    FWHM: 18°
    FWTM: 39°
    Peak intensity: 4.792 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

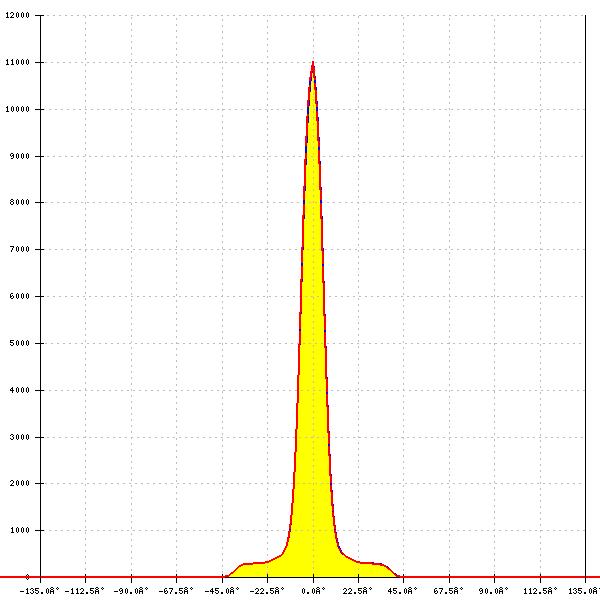

    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Bayonet50
    C18324_ADELIA-110-ADAPTER-B
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 11.011 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

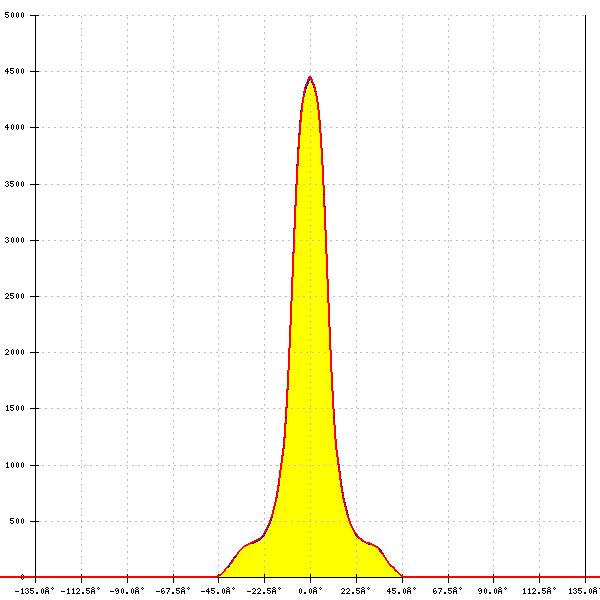

    LED: LUXEON CoB 1213/1216/1812
    LES size: 23.0 mm
    Required components:
    Bender Wirth: 631a Bayonet50
    C18324_ADELIA-110-ADAPTER-B
    FWHM: 20°
    FWTM: 41°
    Peak intensity: 4.458 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

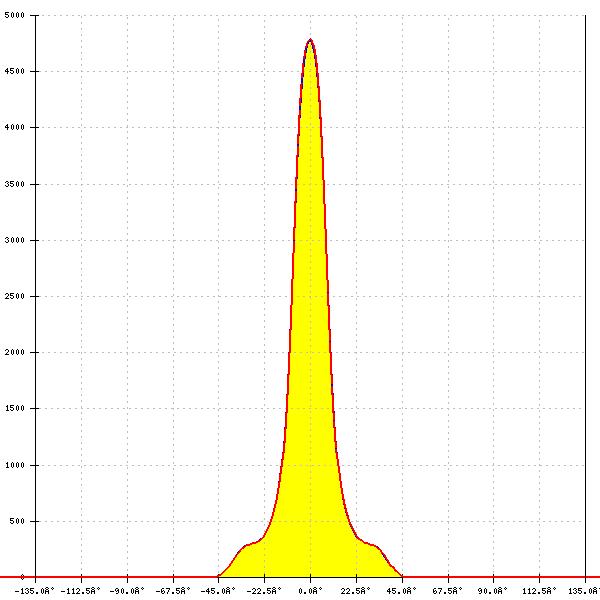

    LED: CxM-22 (28x28)
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 631a Bayonet50
    C18324_ADELIA-110-ADAPTER-B
    FWHM: 18°
    FWTM: 40°
    Peak intensity: 4.801 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

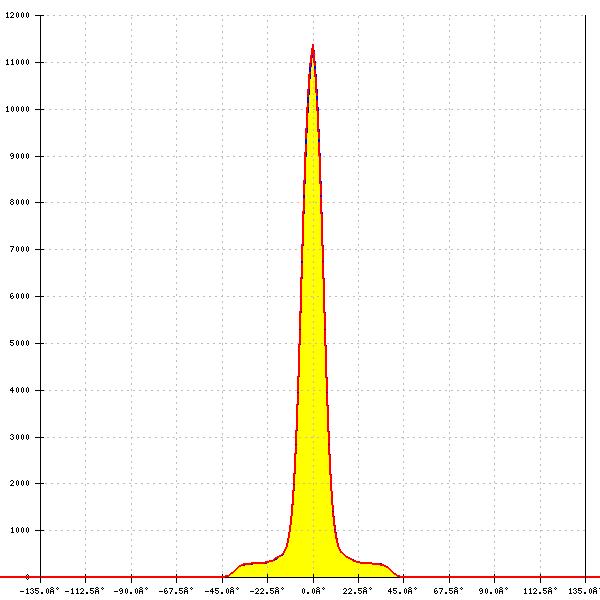

    LED: COB J-Type
    LES size: 14.6 mm
    Required components:
    Bender Wirth: 663a Bayonet50
    C18324_ADELIA-110-ADAPTER-B
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 11.376 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    C18323_ADELIA-110-ADAPTER-C
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 9.746 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC040D / LC060D / LC080D
    LES size: 22.0 mm
    Required components:
    BJB: 47.319.2030
    C18324_ADELIA-110-ADAPTER-B
    FWHM: 18°
    FWTM: 38°
    Peak intensity: 5.288 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

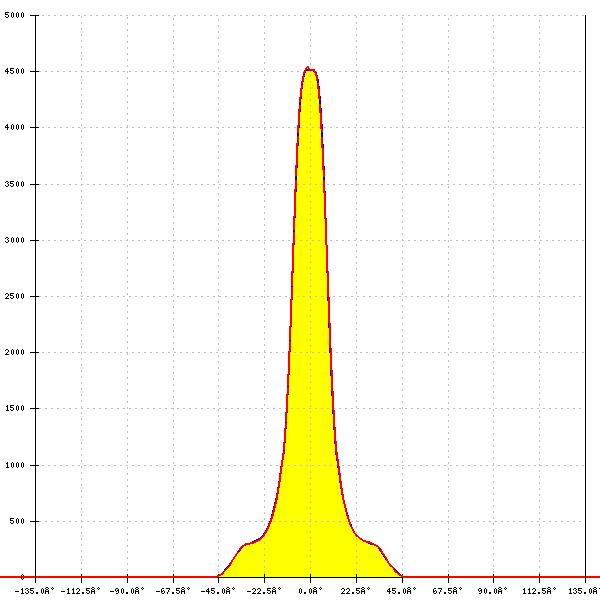

    LED: MJT COB LES 22
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 631a Bayonet50
    C18324_ADELIA-110-ADAPTER-B
    FWHM: 20°
    FWTM: 40°
    Peak intensity: 4.614 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
