    C18293_SPORT-2X2-S1-HT

    Print

    ~10° spot beam. Variant from High Temperature PMMA.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      16.01 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      512 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.9 kg
    • MPQ:
      32 pcs
    • MOQ:
      128 pcs
    • MOQ size:
      480 x 280 x 100 mm
    • MOQ weight:
      2.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C18293_SPORT-2X2-S1-HT
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    The teaser for the SPORT-2X2 optics

    PCN

    Product change notification NR186 - Additional High Temperature PMMA material approved

    Application example

    Football field lighting with SPORT-2X2-S1

    News

    SPORT-2X2 – All you need to know

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    SPORT-2X2 - the right light for any sports activity

    Application area

    SPORTS INDOOR LIGHTING

    Application area

    Area and Car Park Lighting

    Application guide

    Guide for Street lighting optics

    Application guide

    LEDiL Guide for Sports lighting optics

    News

    SPORT-2X2-S1 – Our narrowest, most powerful sport beam + new optic material for higher temperatures

    Application area

    Sports outdoor lighting

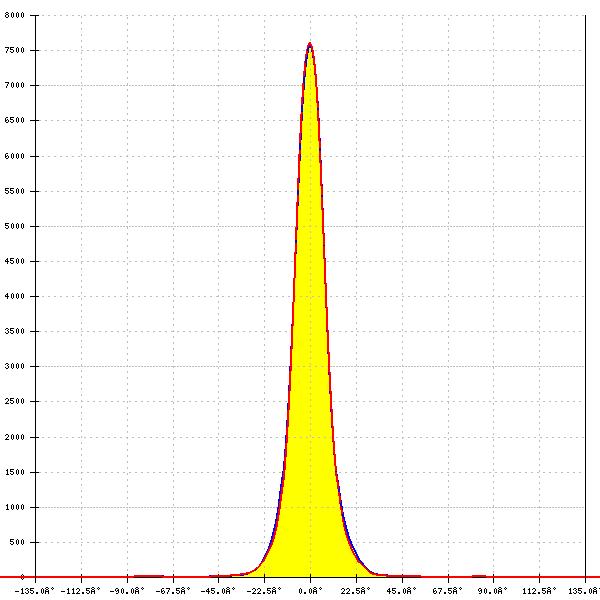

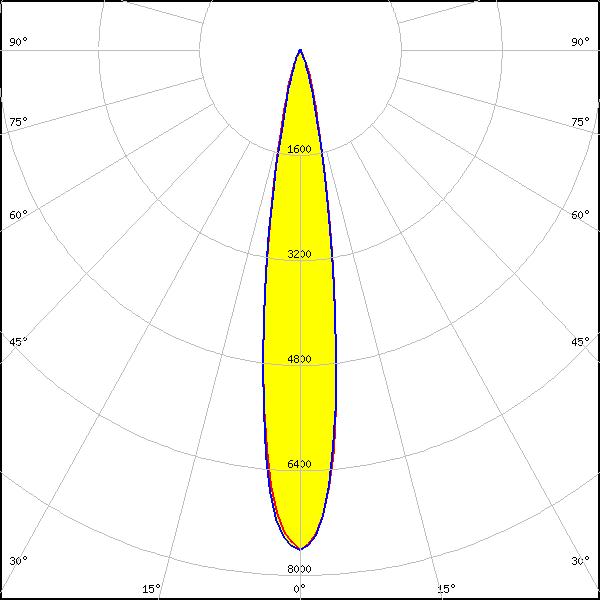

    Optical results

    LED: XP-G2 HE
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 28.470 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2 HE
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 23.689 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

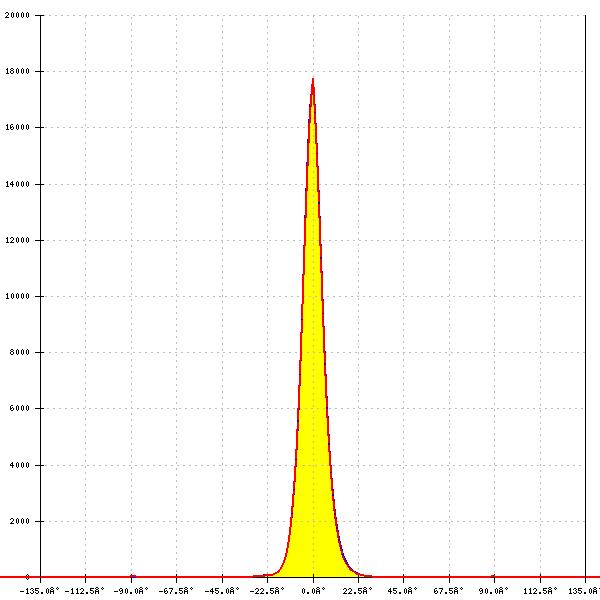

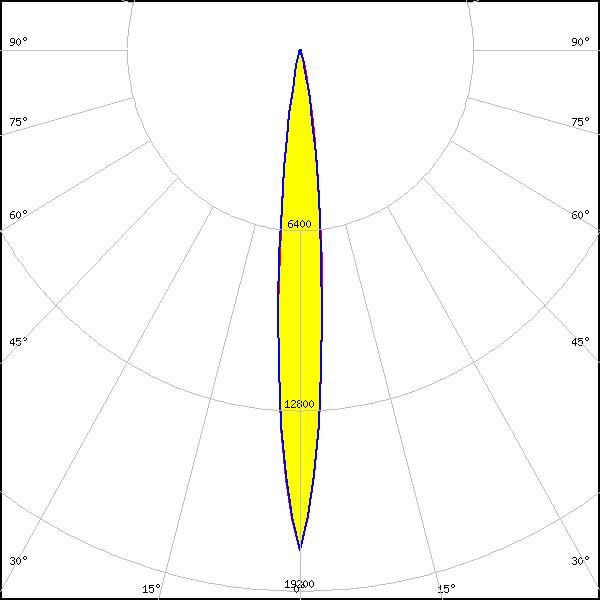

    LED: XP-G3
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 17.716 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HI
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 24.854 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HI
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 22.662 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 7.300 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 20.291 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

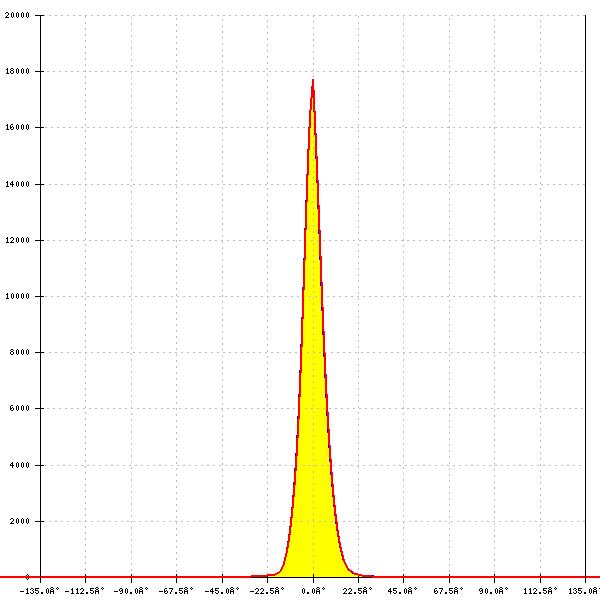

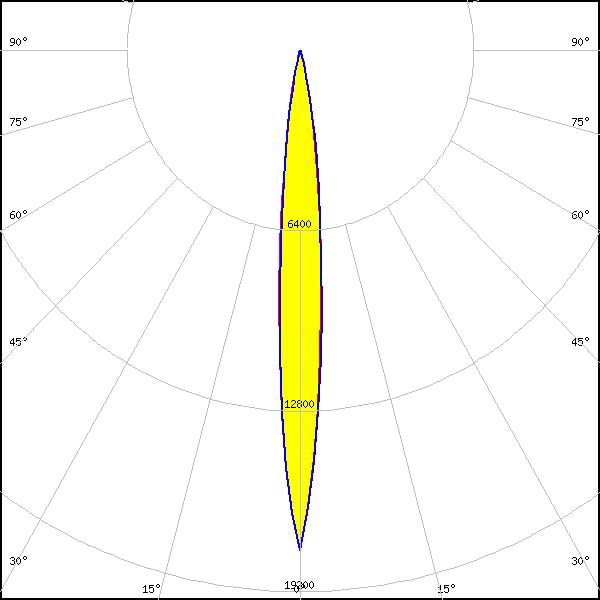

    LED: LUXEON HL2X-V
    FWHM: 10°
    FWTM: 23°
    Peak intensity: 17.732 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

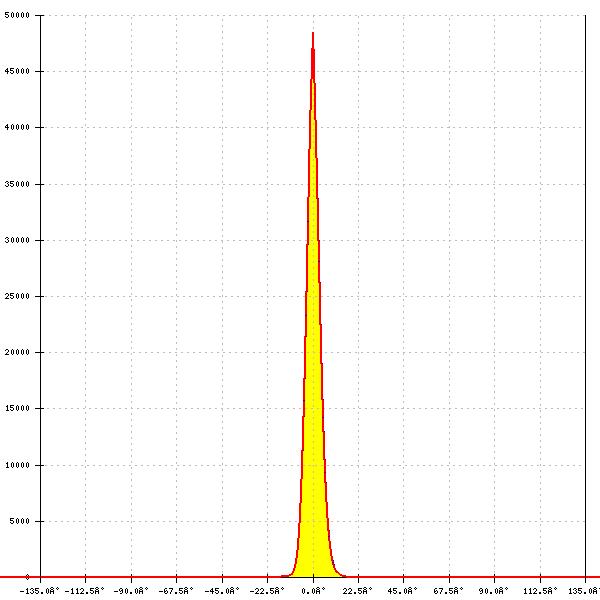

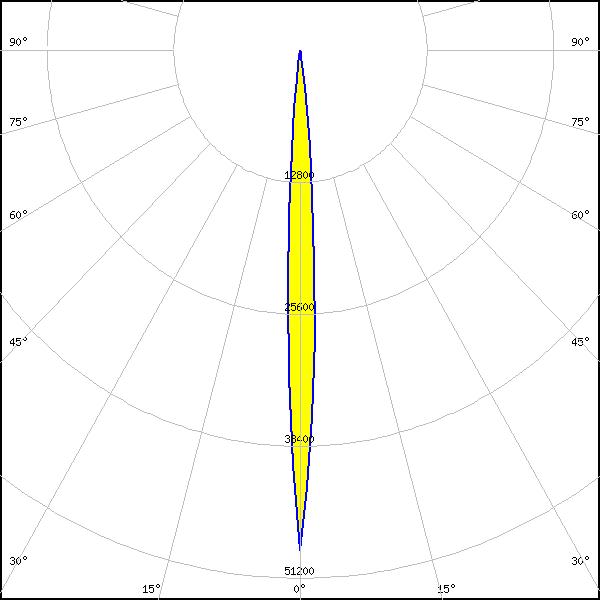

    LED: SFT-12R-W-A
    FWHM: 7°
    FWTM: 13°
    Peak intensity: 48.509 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-40
    FWHM: 12°
    FWTM: 28°
    Peak intensity: 12.360 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 11.082 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 20.629 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 15.152 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

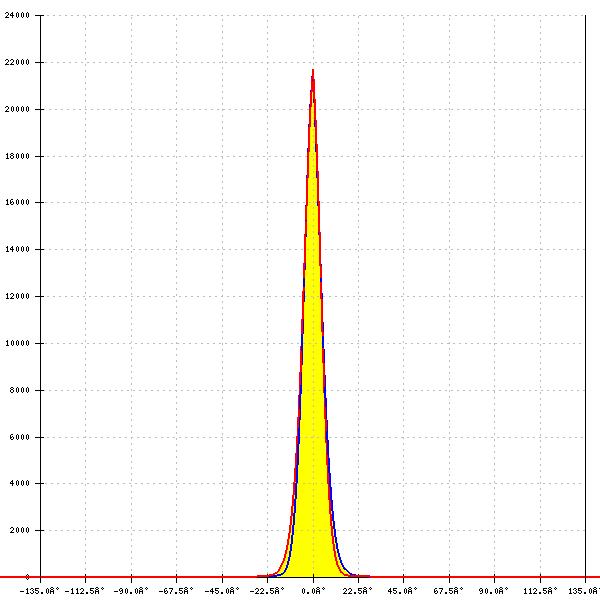

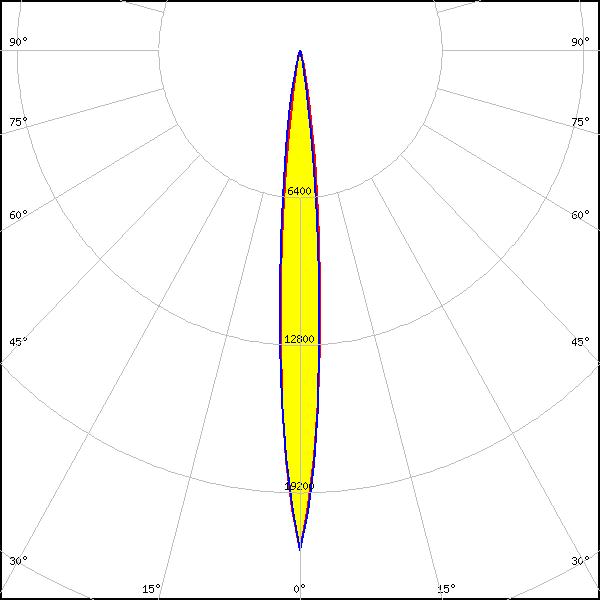

    LED: OSLON Square GW CSSRM3.HW
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 21.694 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 19.877 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
