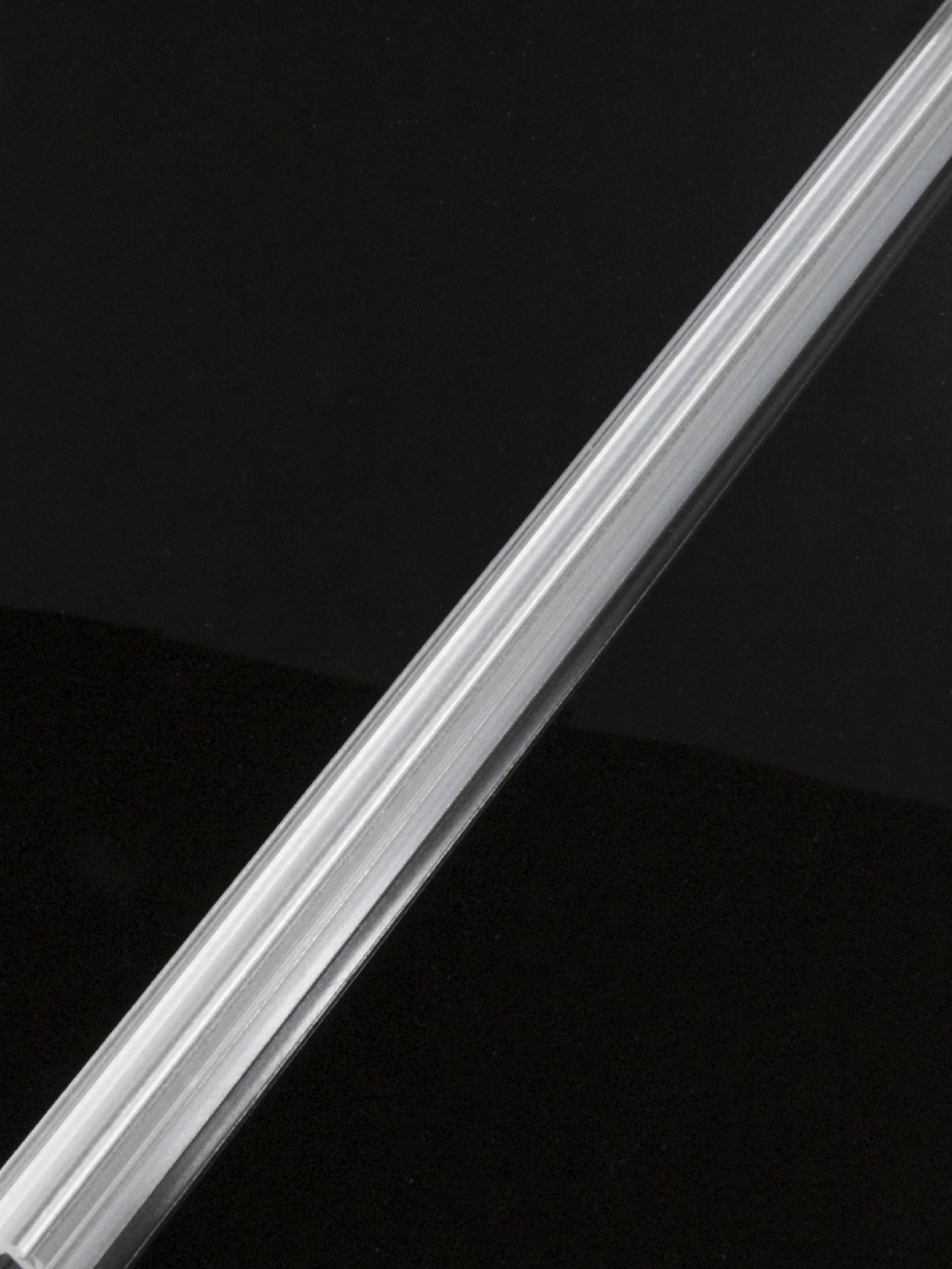

C18078_LINDA-10-UP
Print
~145° + 100° extra wide beam for uplighting
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

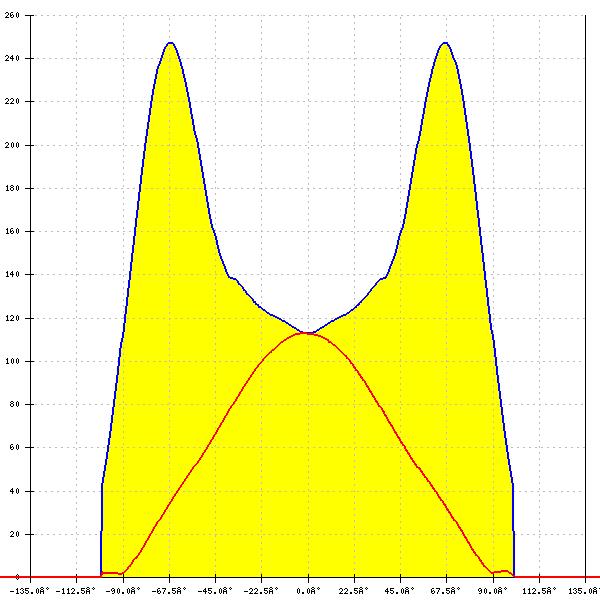

LED:
LUXEON 3014
FWHM:
177° + 101°
FWTM:
200° + 163°
Peak intensity:
0.253 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

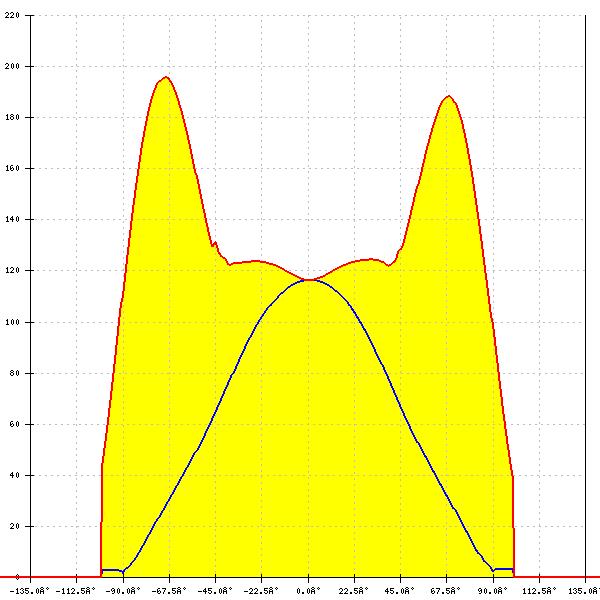

LUXEON 3030 2D (Round LES)
FWHM:
99° + 182°
FWTM:
163° + 201°
Peak intensity:
0.206 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

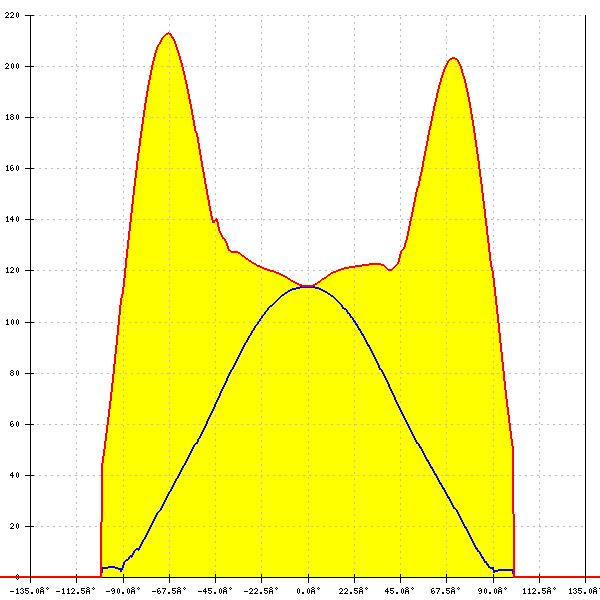

LED:
MP-2016
FWHM:
102° + 183°
FWTM:
164° + 201°
Peak intensity:
0.213 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

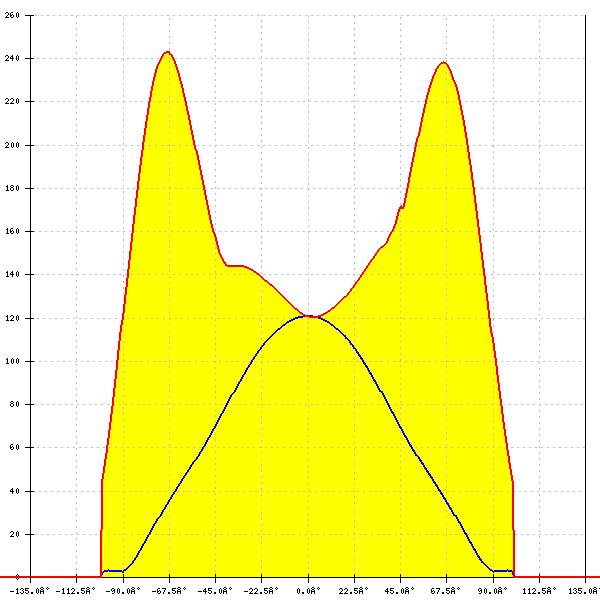

LED:
NFSW757H
FWHM:
102° + 179°
FWTM:
164° + 200°
Peak intensity:
0.243 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NFSx757G
FWHM:
99° + 182°
FWTM:
162° + 201°
Peak intensity:
0.196 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White
LED:

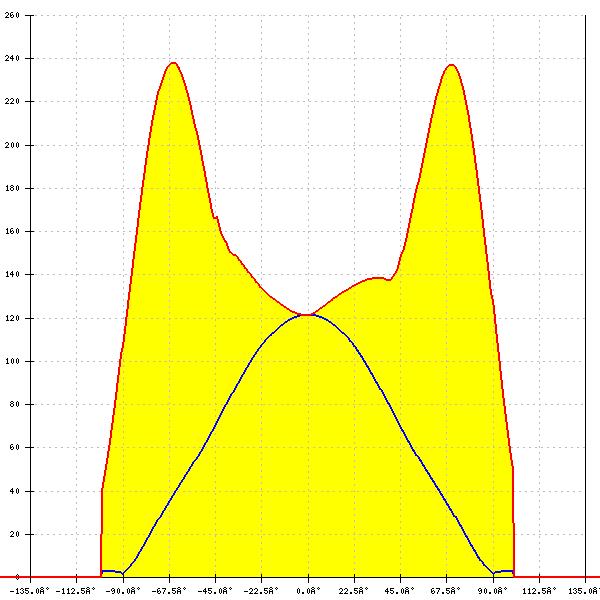

Duris S5 (Single chip)
FWHM:
101° + 180°
FWTM:
163° + 201°
Peak intensity:
0.238 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

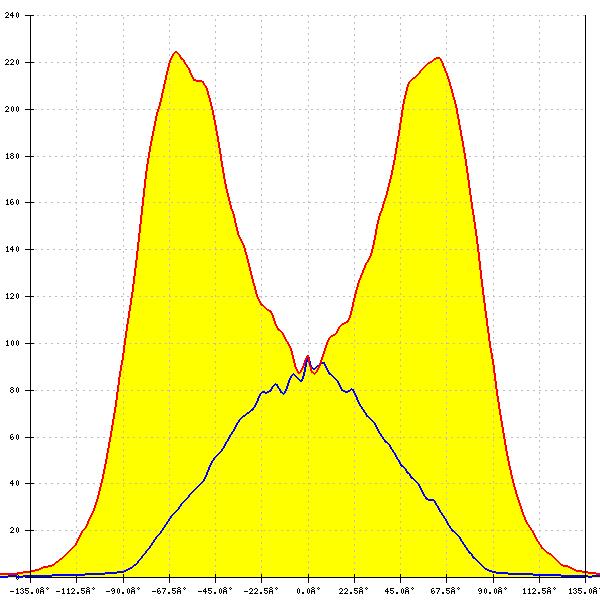

LED:

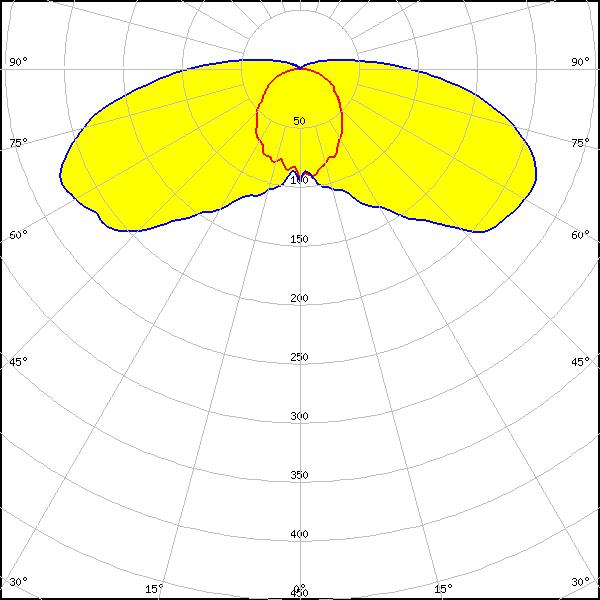

LM28xB Series
FWHM:
100° + 162°
FWTM:
156° + 196°
Peak intensity:
0.269 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

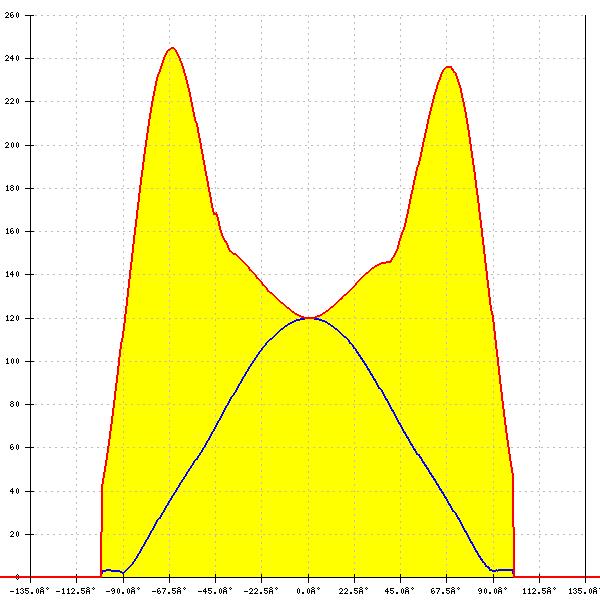

LED:
LM301B
FWHM:
102° + 178°
FWTM:
164° + 200°
Peak intensity:
0.245 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

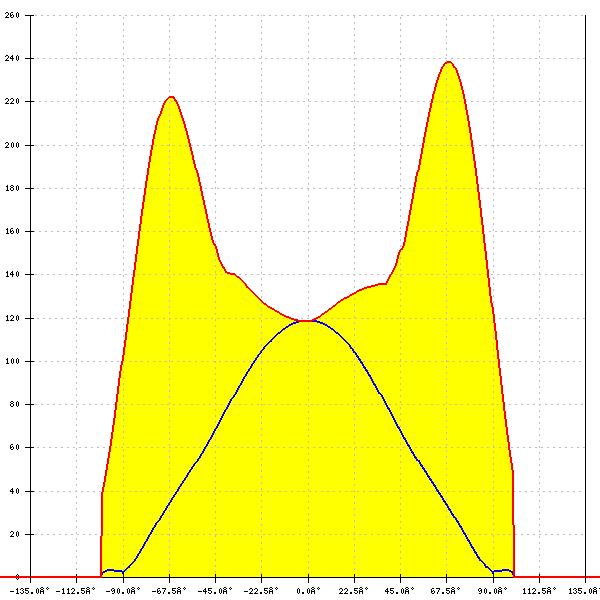

LED:
SEOUL 3030
FWHM:
101° + 178°
FWTM:
163° + 201°
Peak intensity:
0.238 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

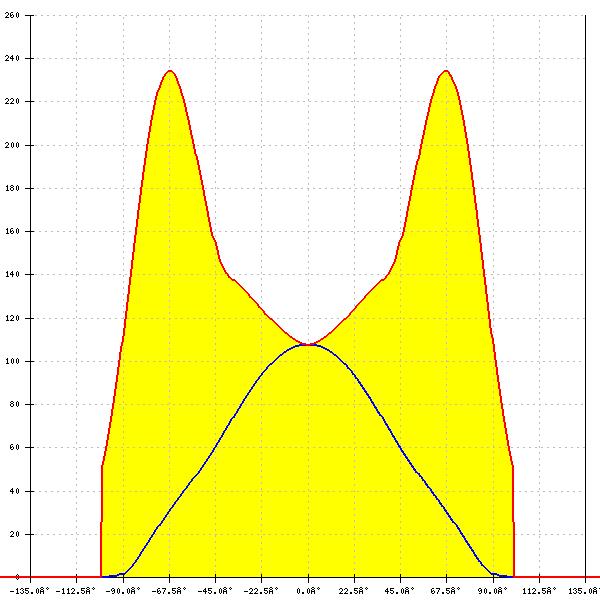

LED:
LLE FLEX 8mm EXC3
FWHM: asymmetric
Peak intensity:
0.247 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
