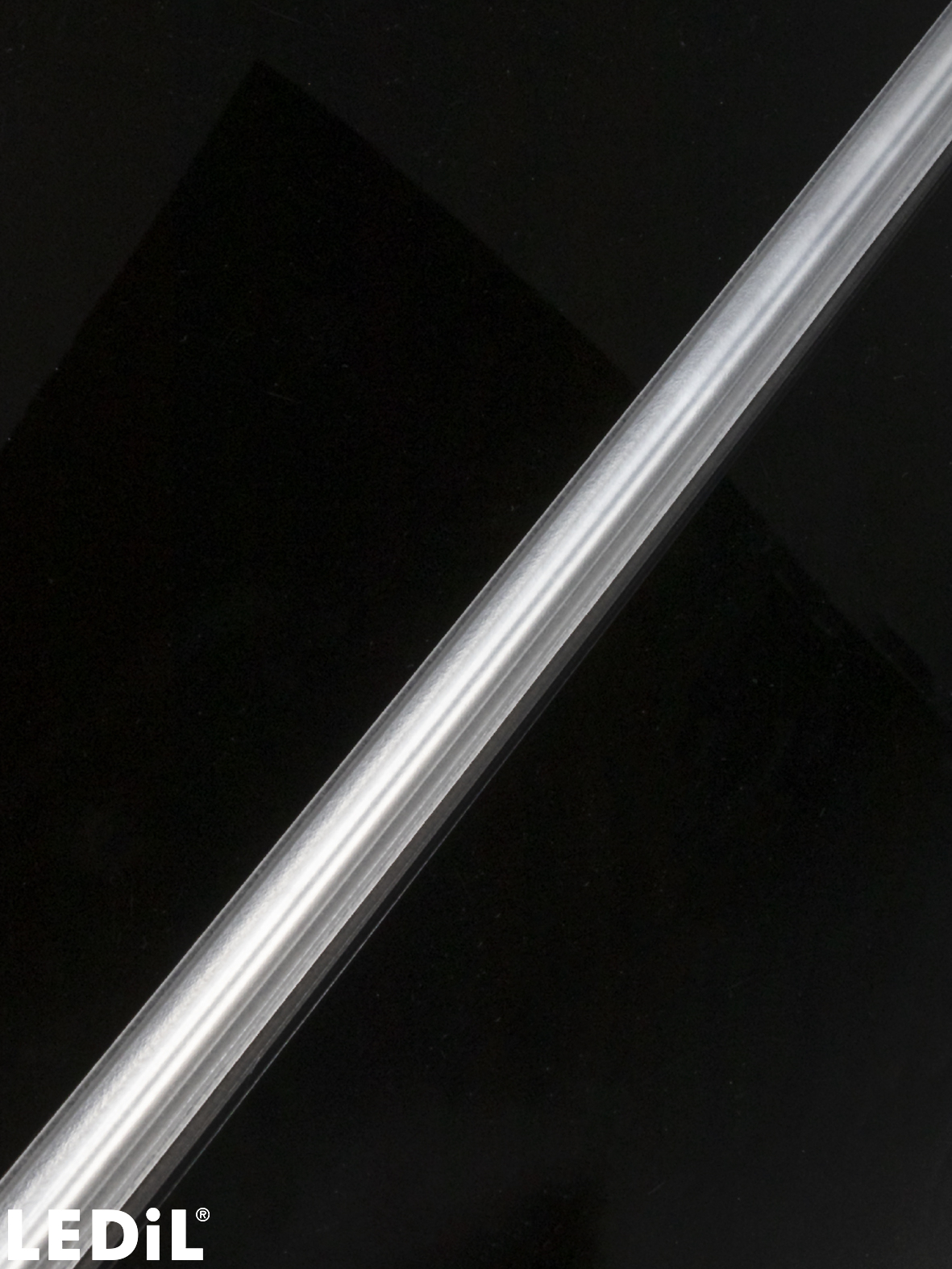

    C18077_LINDA-10-F

    Print

    Asymmetric beam for undercabinet lighting

    Specification
    • Dimensions:
      13 x  1140 mm
    • Height:
      5.59 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      143 pcs
    • Box size:
      1185 x 150 x 80 mm
    • Box weight:
      8.5 kg
    • MPQ:
      143 pcs
    • MOQ:
      143 pcs
    • MOQ size:
      1185 x 150 x 80 mm
    • MOQ weight:
      8.5 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18077_LINDA-10-F
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    Guide for Architectural lighting optics

    Compatible product

    Aluminium profile by Light and Smart

    Compatible product

    Aluminium profile by DG Light

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    Application example

    Retail lighting with LINDA-10

    News

    New products – May, 2023

    News

    LINDA-10 – Linear light control in a pure and compact form

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Office Lighting Optics

    News

    LINDA-40 – versatile 40 mm free pitch extrusion

    Case story

    Badia di Pomaio resort

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    News

    New Products 2019-11-07

    News

    Effective fashion retail lighting

    Application example

    Retail lighting with LINDA and ELISE (low contrast)

    Article

    Illuminating supermarkets with LEDiL optics

    Application example

    Supermarket lighting with LINDA and ALISE

    News

    LINDA industrial scale extrusion optic for precise retail lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Office Lighting

    Optical results

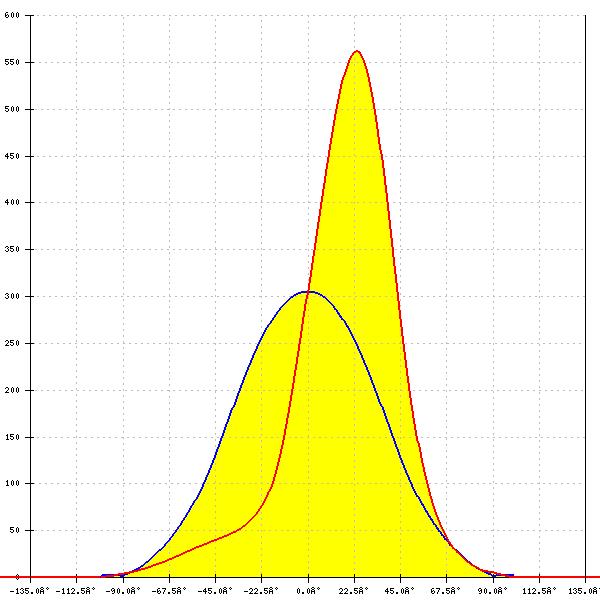

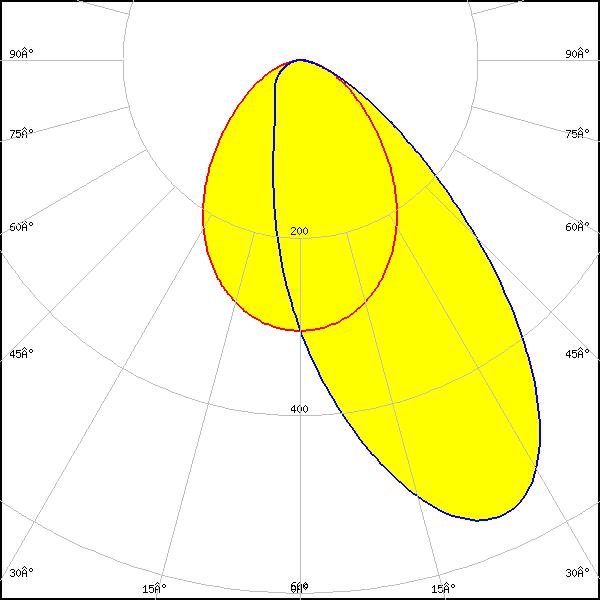

    LED: LUXEON 3030 2D (Square LES)
    FWHM: 82° + 47°
    FWTM: 143° + 95°
    Peak intensity: 0.561 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

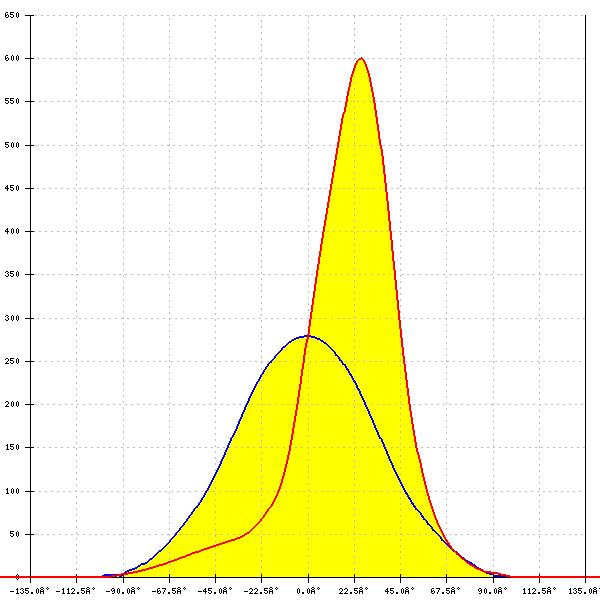

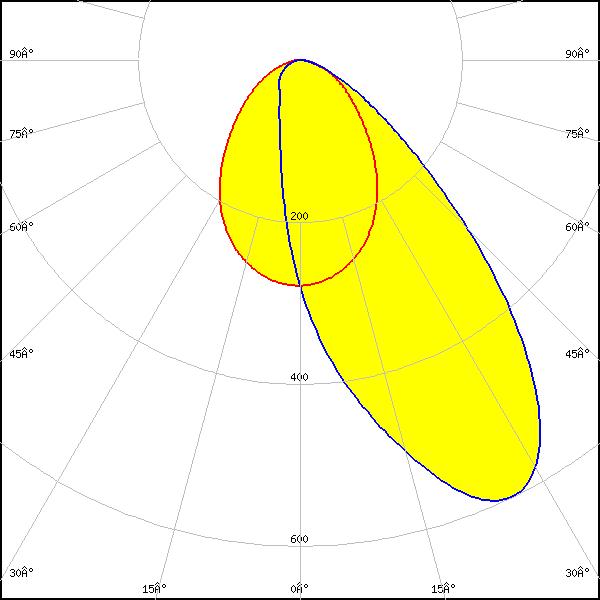

    LED: MP-2016
    FWHM: 80° + 43°
    FWTM: 146° + 89°
    Peak intensity: 0.600 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

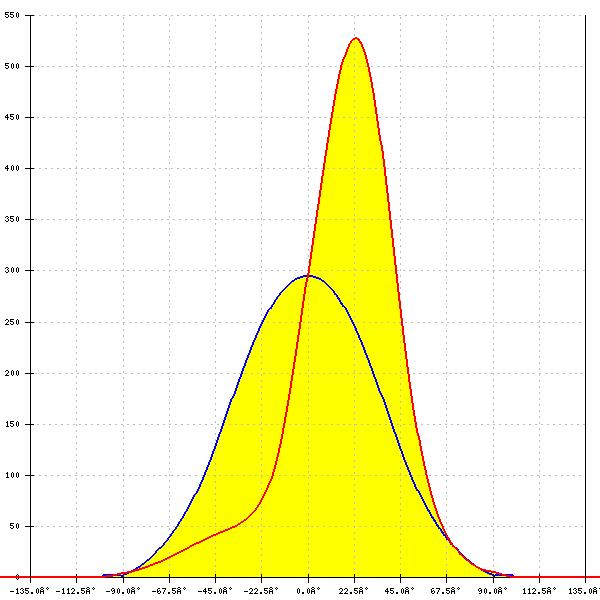

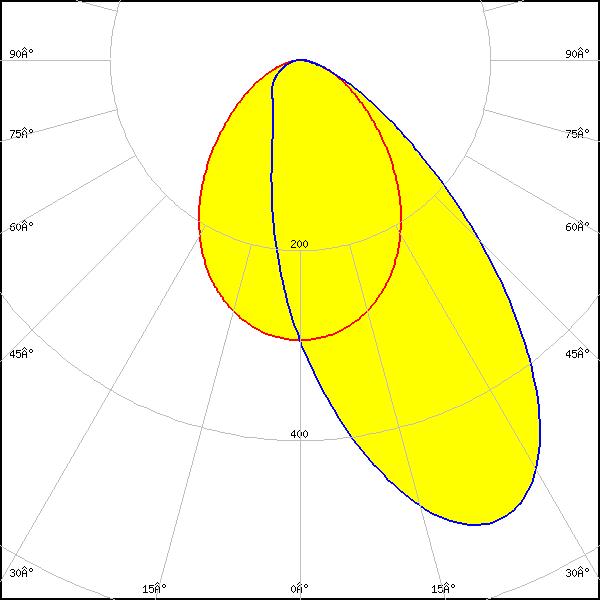

    LED: NF2x757G
    FWHM: 83° + 48°
    FWTM: 143° + 98°
    Peak intensity: 0.529 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

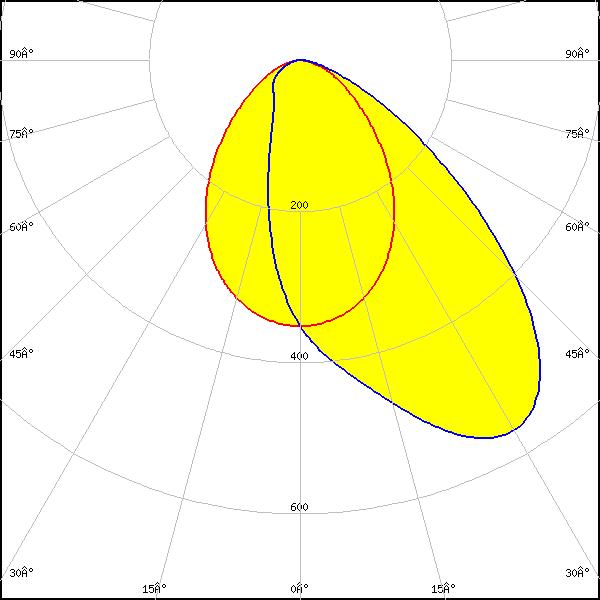

    LED: NFSW757H
    FWHM: 81° + 58°
    FWTM: 140° + 108°
    Peak intensity: 0.566 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

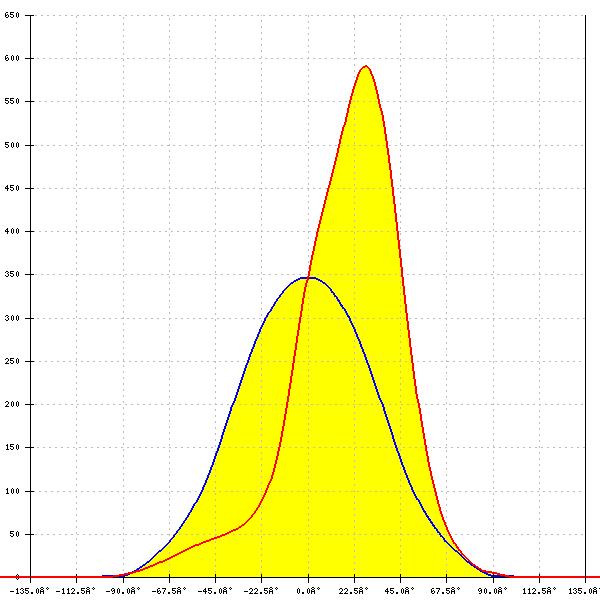

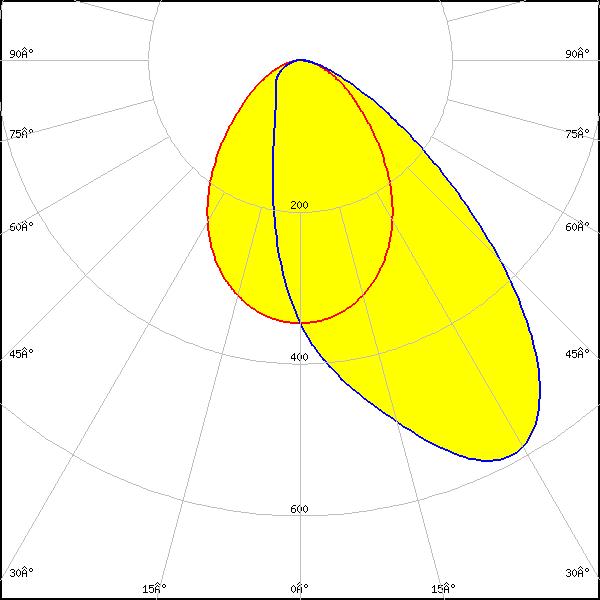

    LED: DURIS S5 (Single chip)
    FWHM: 80° + 53°
    FWTM: 140° + 100°
    Peak intensity: 0.591 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

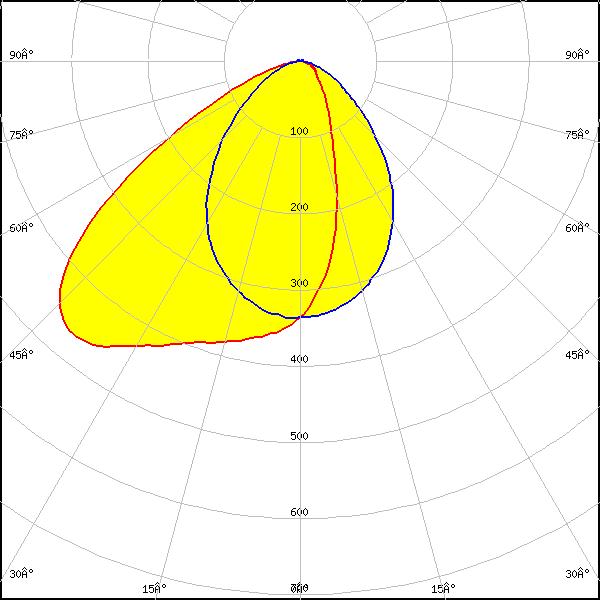

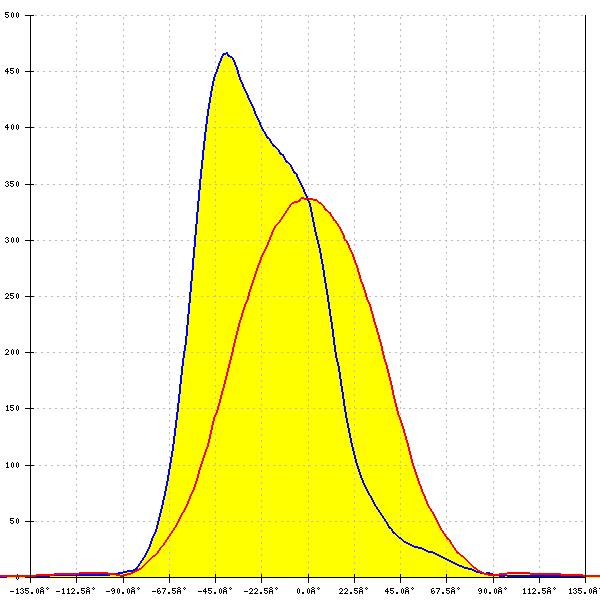

    LED: LM28xB Series
    FWHM: asymmetric
    Peak intensity: 0.466 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

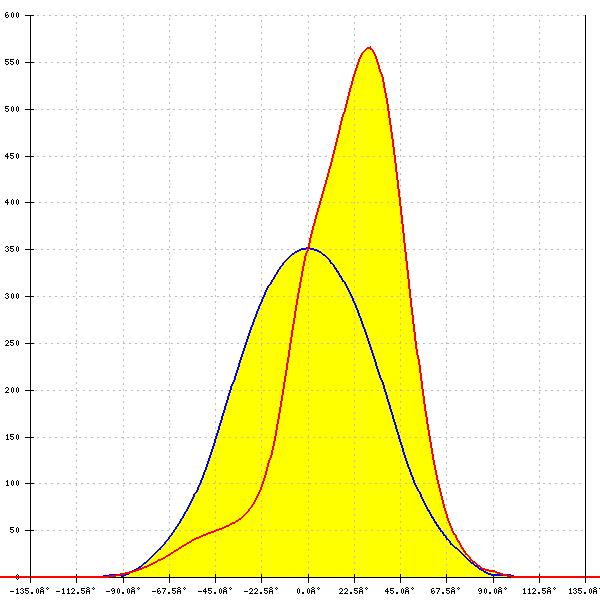

    LED: LM301B
    FWHM: 82° + 57°
    FWTM: 141° + 107°
    Peak intensity: 0.565 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

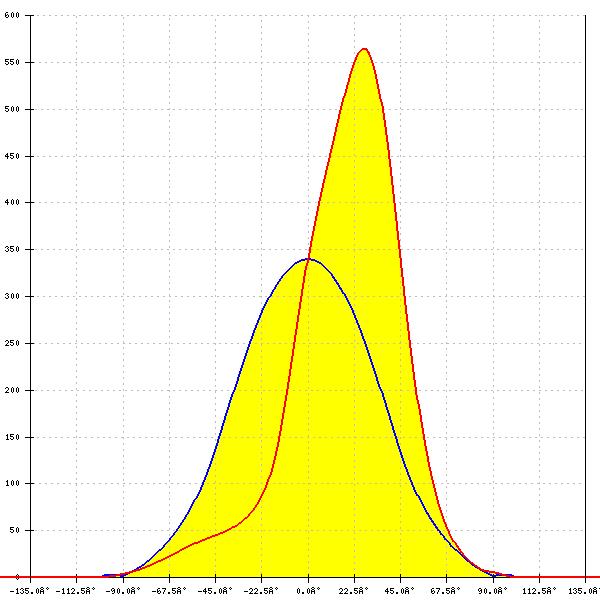

    LED: SEOUL 3030
    FWHM: 80° + 52°
    FWTM: 140° + 102°
    Peak intensity: 0.564 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

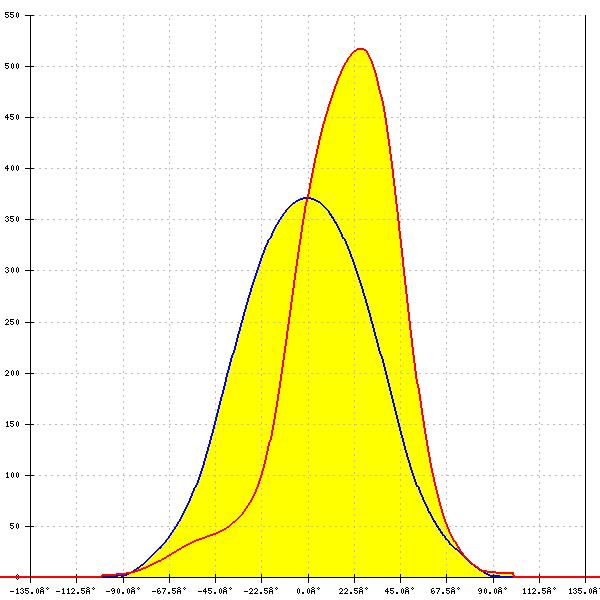

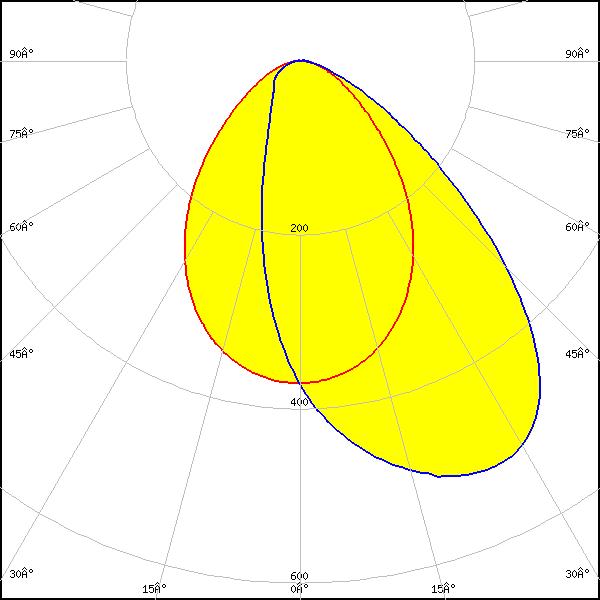

    LED: LLE FLEX 8mm EXC3
    FWHM: 81° + 58°
    FWTM: 136° + 105°
    Peak intensity: 0.517 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
