C18076_LINDA-10-ZT25
Print

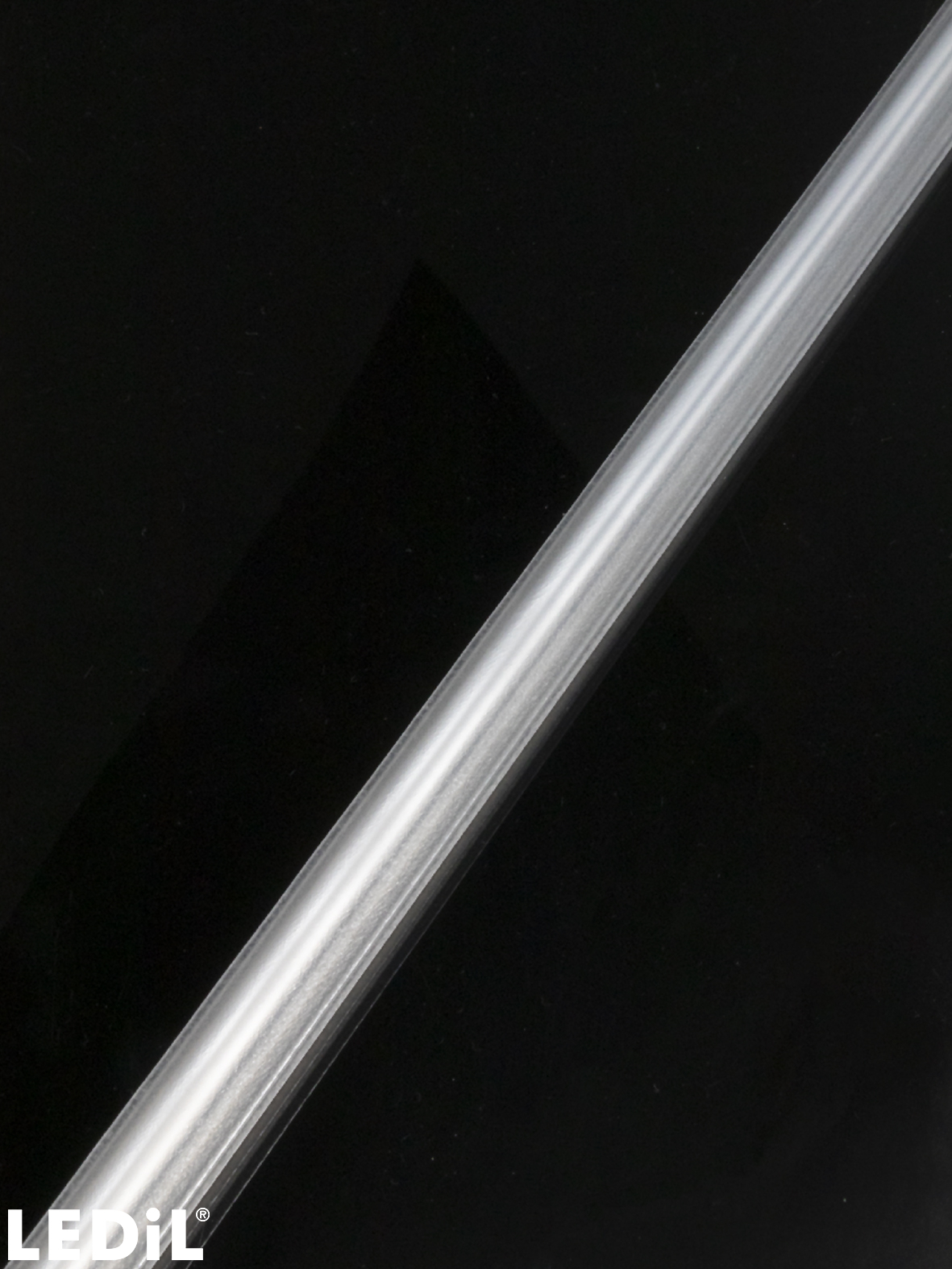

Asymmetric beam for wall-washing and shelf lighting
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

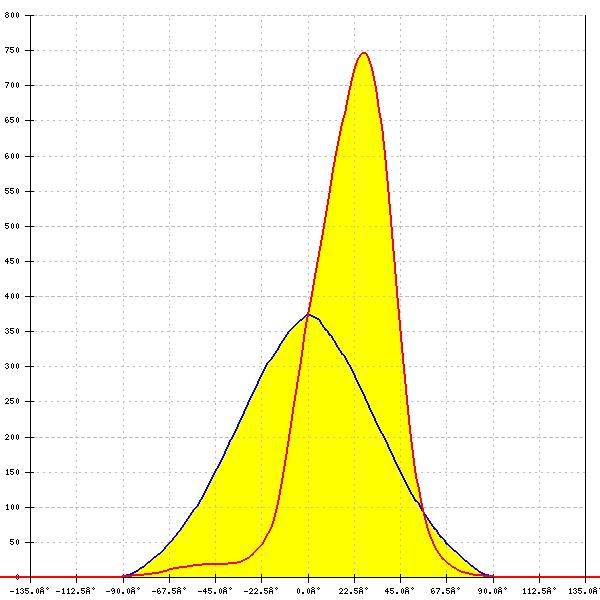

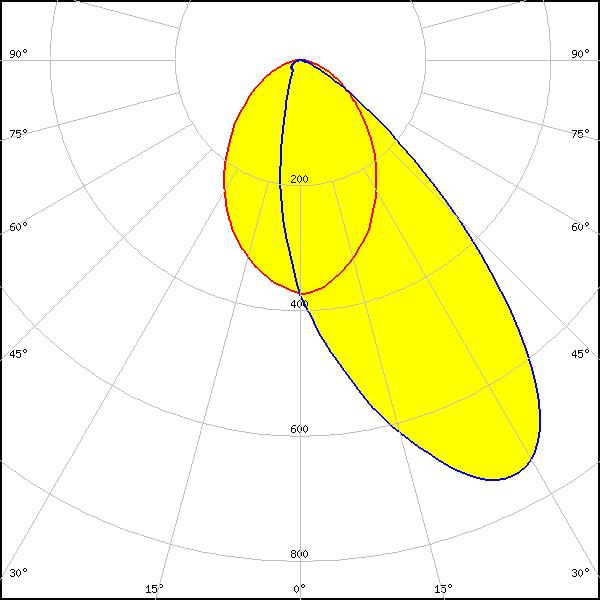

Optical results
LED:
LUXEON 3014
FWHM:
40° + 88°
FWTM:
110° + 147°
Peak intensity:
0.657 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

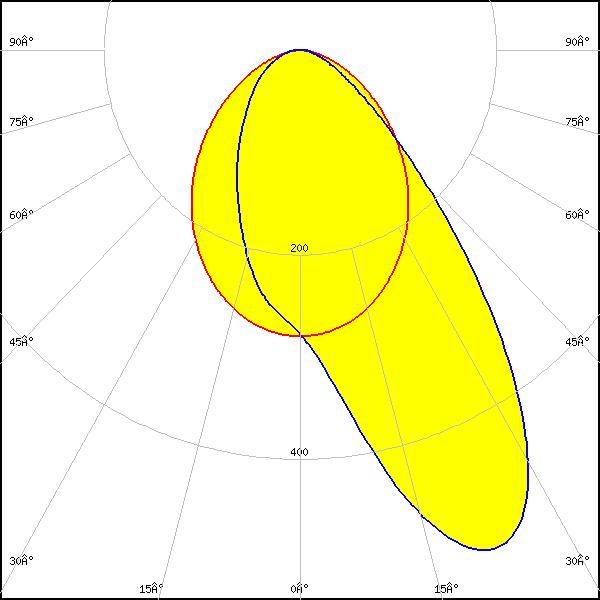

LED:

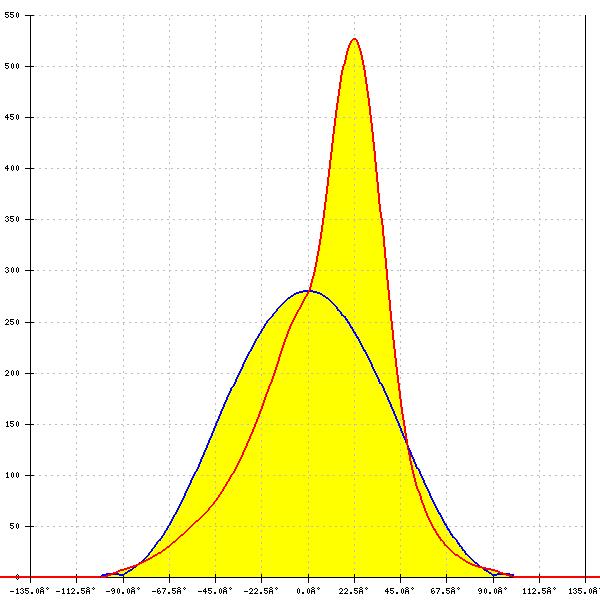

LUXEON 3030 2D (Round LES)
FWHM:
93° + 44°
FWTM:
150° + 115°
Peak intensity:
0.527 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:

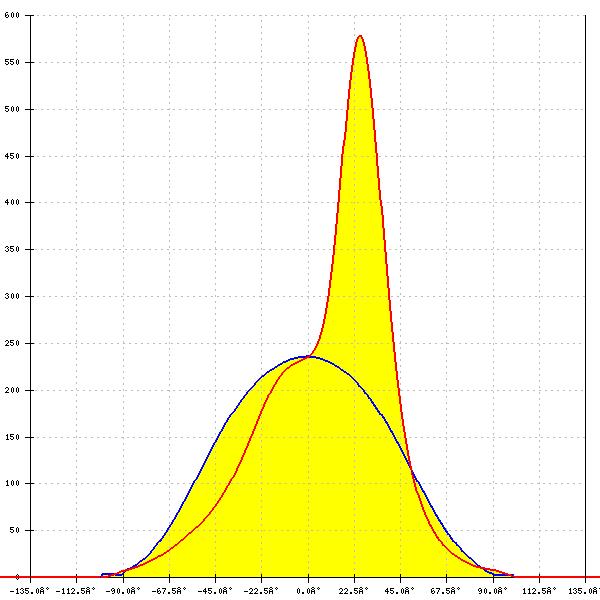

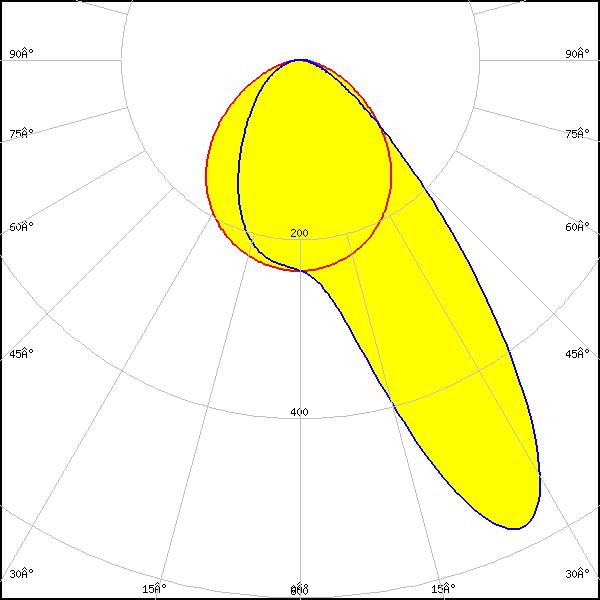

MP-2016
FWHM:
101° + 31°
FWTM:
155° + 111°
Peak intensity:
0.578 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

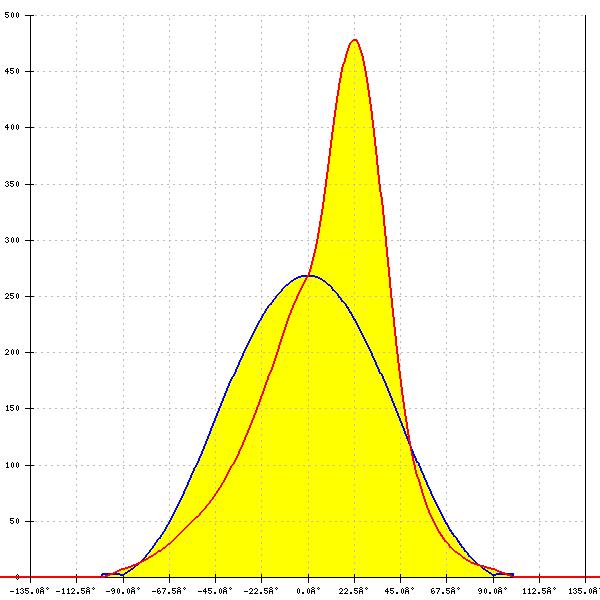

LED:

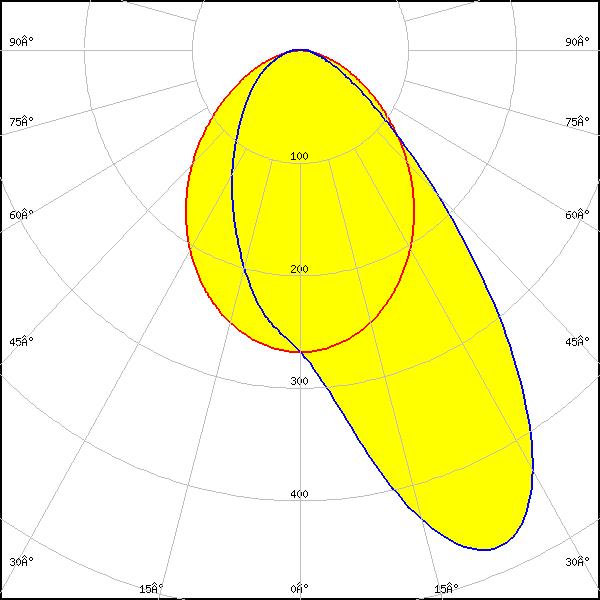

NF2x757G
FWHM:
93° + 49°
FWTM:
150° + 119°
Peak intensity:
0.479 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White
LED:

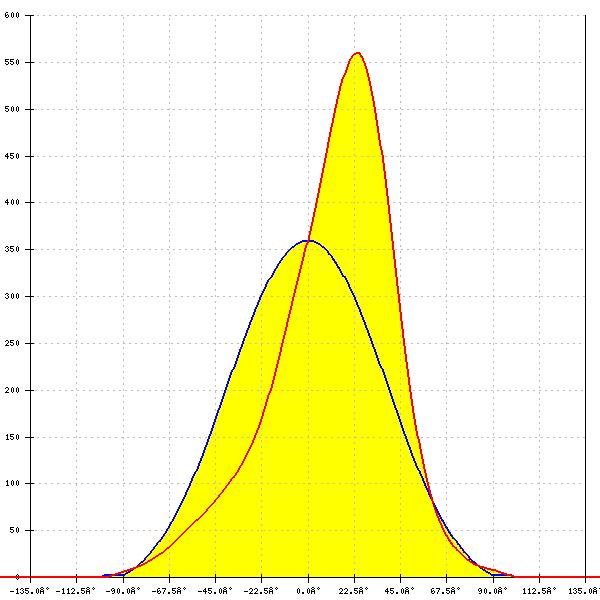

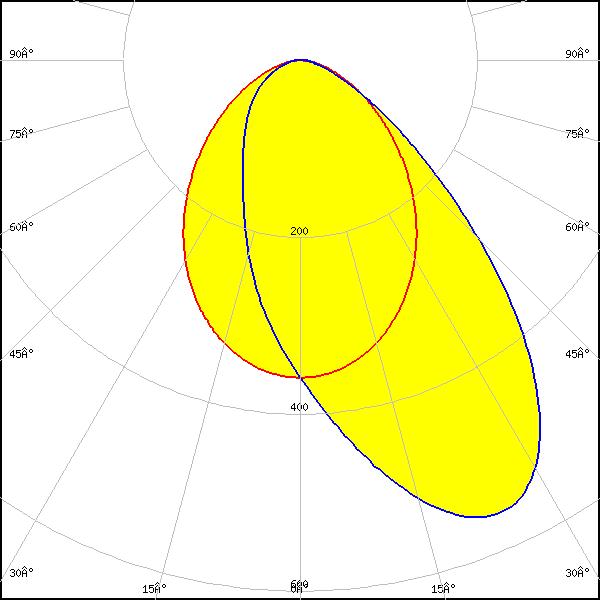

NFSW757H
FWHM:
86° + 55°
FWTM:
146° + 121°
Peak intensity:
0.560 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

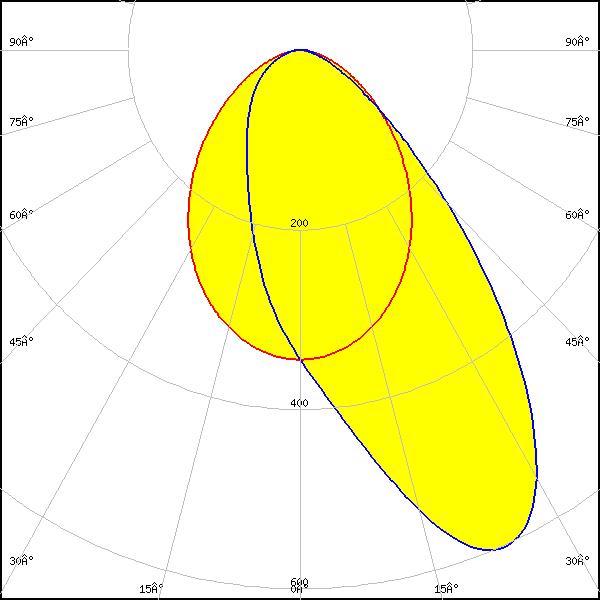

LED:

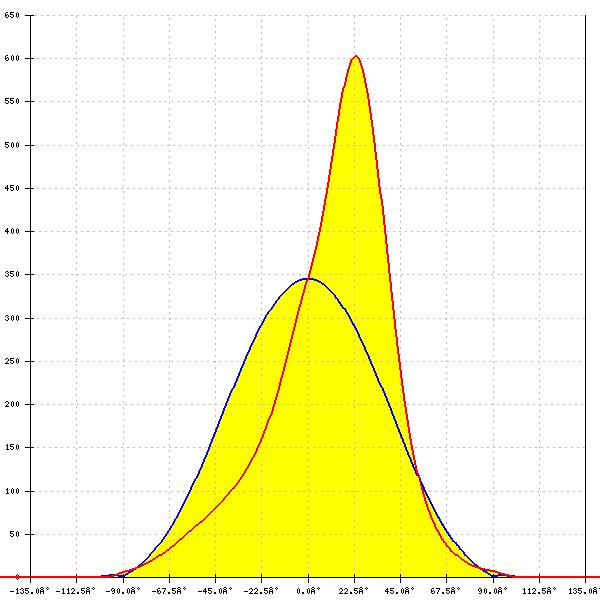

Duris S5 (Single chip)
FWHM:
89° + 47°
FWTM:
147° + 116°
Peak intensity:
0.602 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

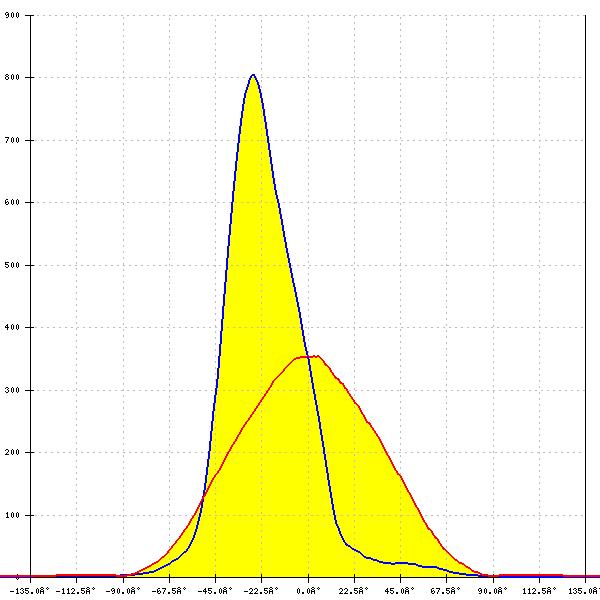

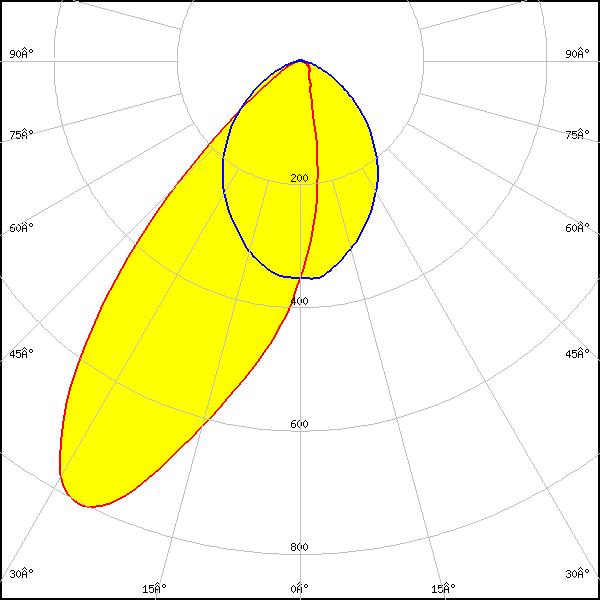

LED:
LM28xB Series
FWHM: asymmetric
Peak intensity:
0.805 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

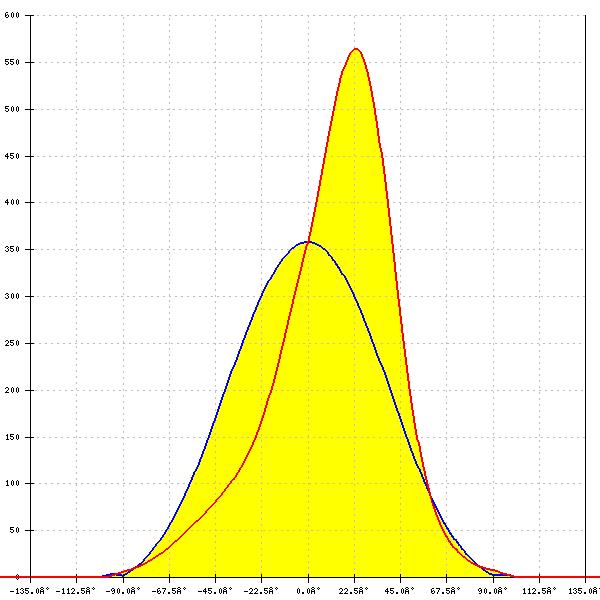

LED:

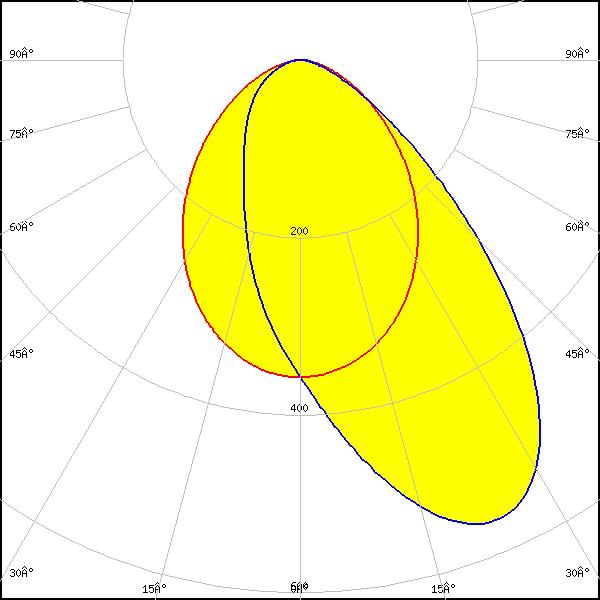

LM301B
FWHM:
87° + 54°
FWTM:
146° + 120°
Peak intensity:
0.564 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

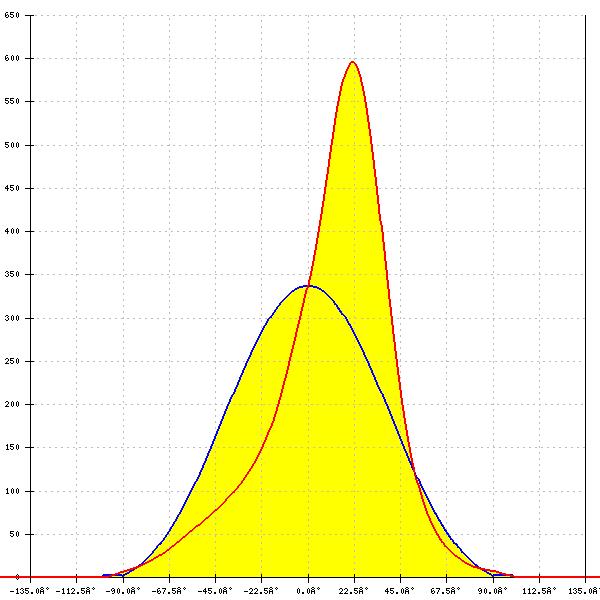

SEOUL 3030
FWHM:
88° + 45°
FWTM:
147° + 115°
Peak intensity:
0.596 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

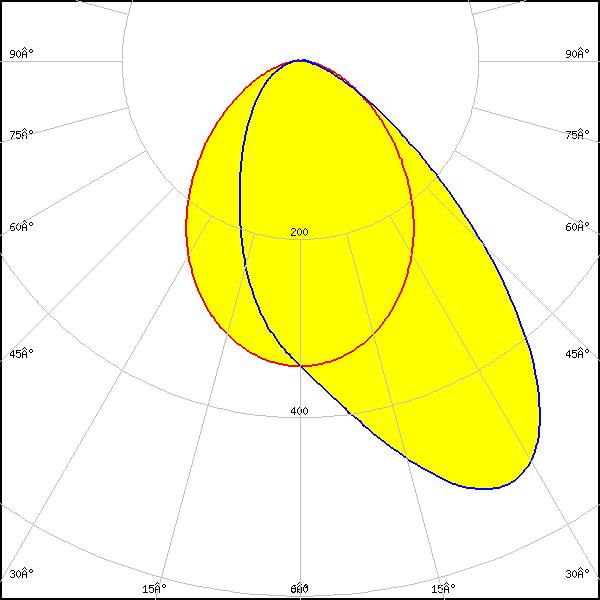

LED:

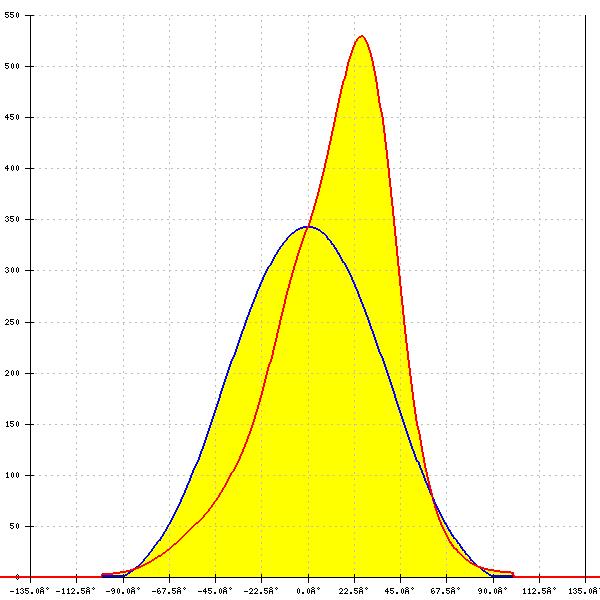

LLE FLEX 8mm EXC3
FWHM: asymmetric
Peak intensity:
0.529 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
