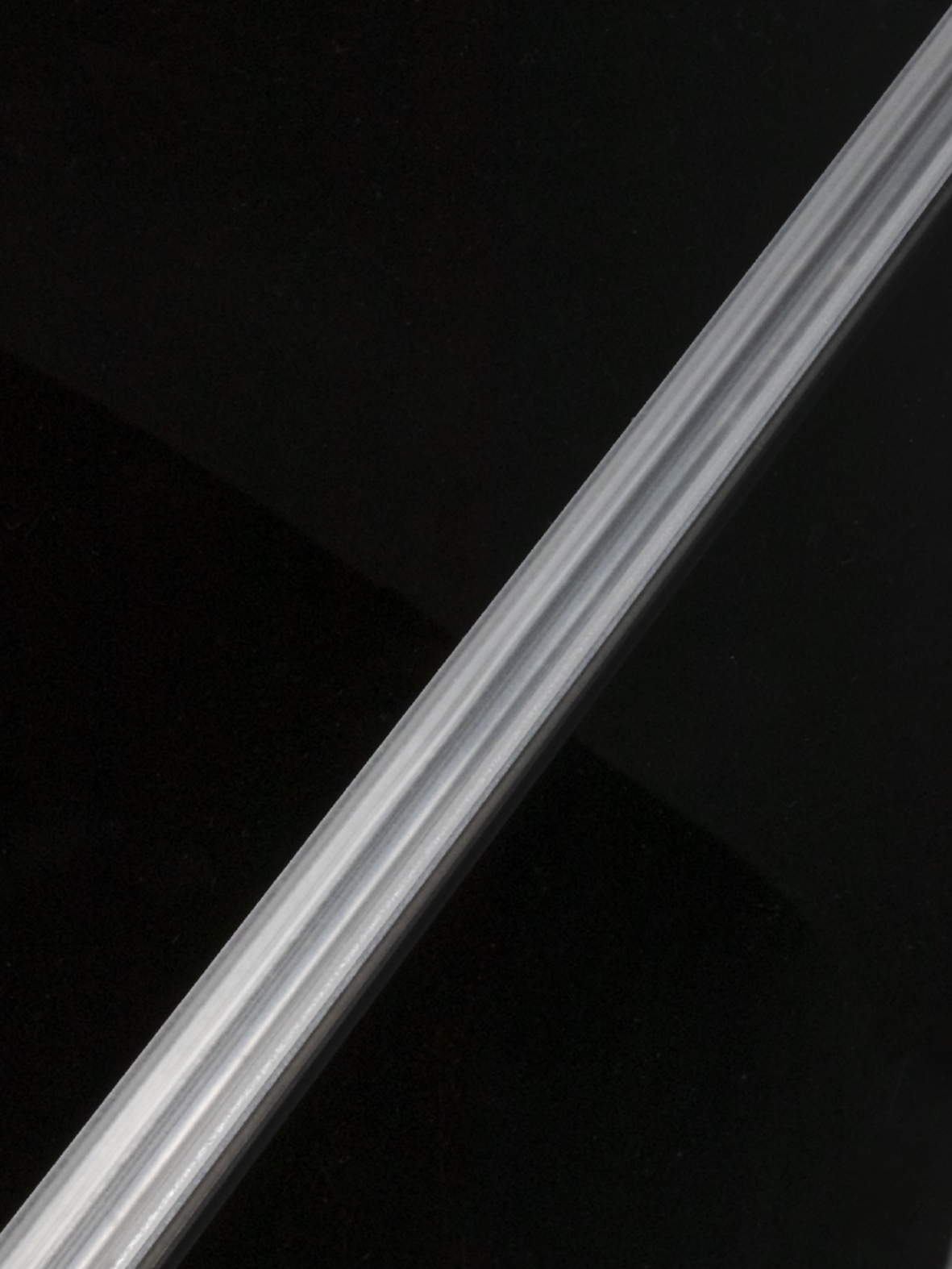

C18074_LINDA-10-M
Print
~40° + 85° wide beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

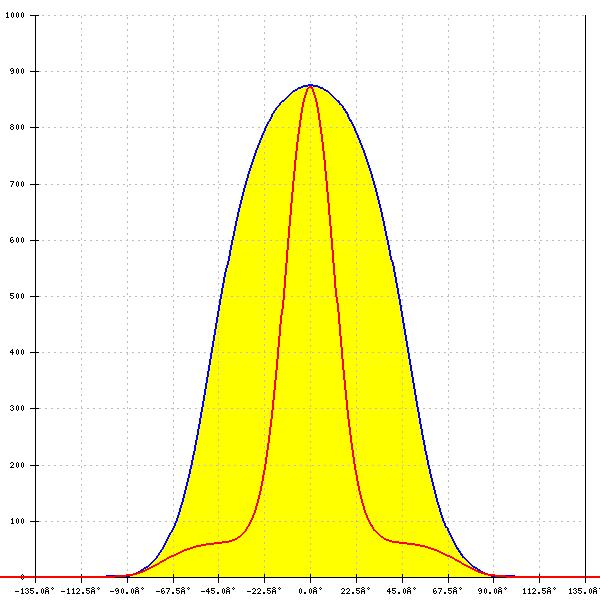

LED:
LUXEON 3014
FWHM:
95° + 31°
FWTM:
135° + 64°
Peak intensity:
0.859 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

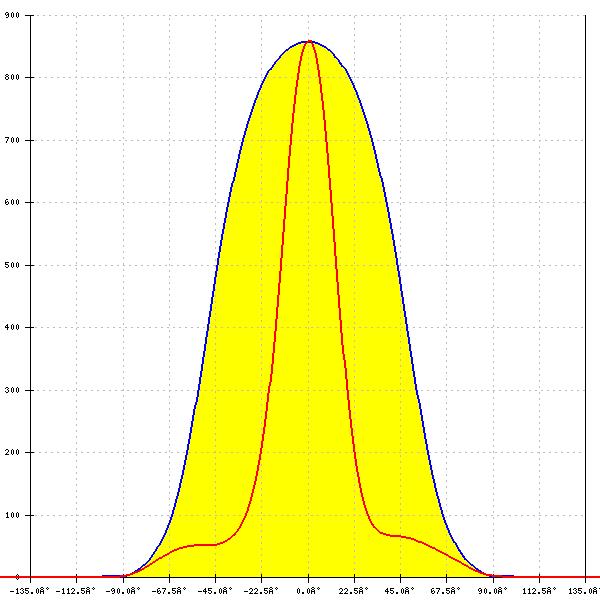

LED:
LUXEON 3014
FWHM:
93° + 30°
FWTM:
135° + 62°
Peak intensity:
0.875 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3030 2D (Round LES)
FWHM:
35° + 97°
FWTM:
85° + 139°
Peak intensity:
0.661 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

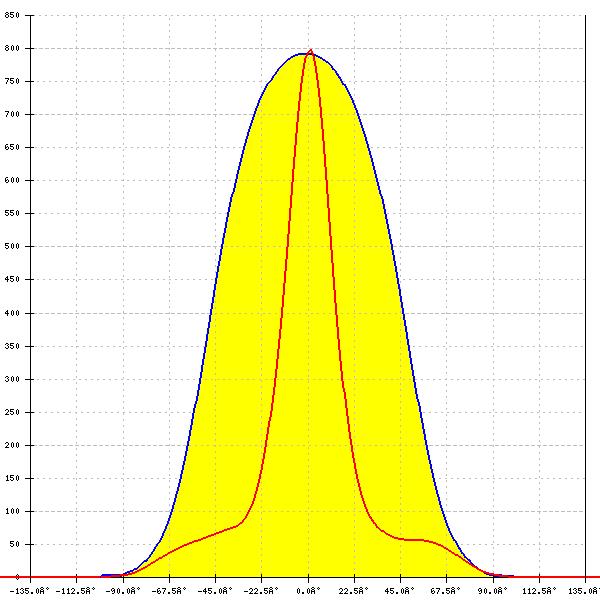

LED:
MP-2016
FWHM:
95° + 27°
FWTM:
137° + 67°
Peak intensity:
0.797 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NF2x757G
FWHM:
98° + 37°
FWTM:
140° + 97°
Peak intensity:
0.594 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

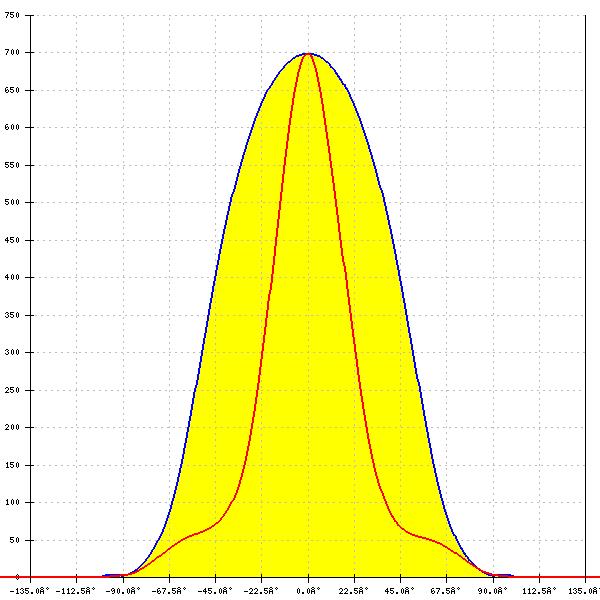

LED:
NFSW757H
FWHM:
97° + 41°
FWTM:
139° + 89°
Peak intensity:
0.699 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

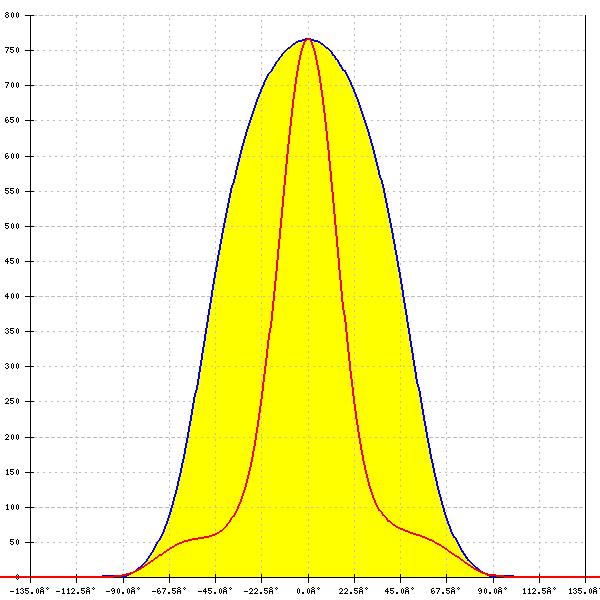

LED:
Duris S5 (Single chip)
FWHM:
96° + 35°
FWTM:
138° + 79°
Peak intensity:
0.766 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM28xB Series
FWHM:
34° + 80°
FWTM:
66° + 125°
Peak intensity:
0.876 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

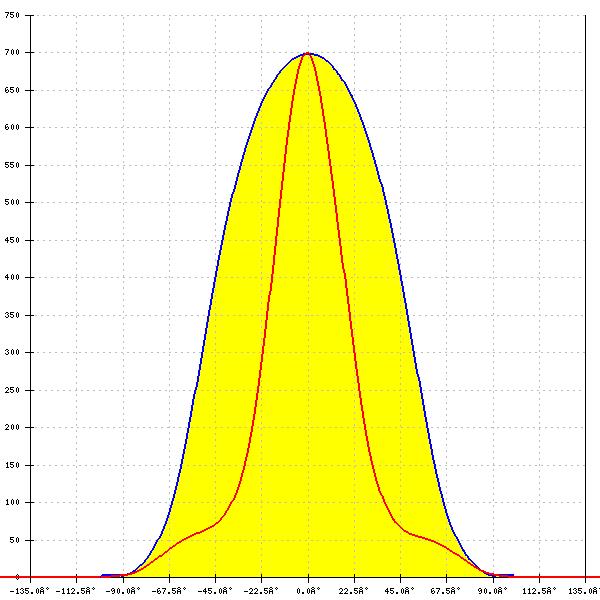

LED:
LM301B
FWHM:
97° + 40°
FWTM:
140° + 89°
Peak intensity:
0.699 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL 3030
FWHM:
96° + 36°
FWTM:
138° + 79°
Peak intensity:
0.732 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LLE FLEX 8mm EXC3
FWHM:
91° + 37°
FWTM:
138° + 88°
Peak intensity:
0.697 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
