    C17991_SPORT-2X2-S1

    Print

    ~10° spot beam.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      16.01 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      512 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.8 kg
    • MPQ:
      32 pcs
    • MOQ:
      128 pcs
    • MOQ size:
      480 x 280 x 100 mm
    • MOQ weight:
      2.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C17991_SPORT-2X2-S1

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    The teaser for the SPORT-2X2 optics

    News

    New products – October 21, 2021

    Application example

    Football field lighting with SPORT-2X2-S1

    News

    SPORT-2X2 – All you need to know

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    SPORT-2X2 - the right light for any sports activity

    Application area

    SPORTS INDOOR LIGHTING

    Application area

    Area and Car Park Lighting

    Application guide

    LEDiL guide for sports lighting optics

    News

    SPORT-2X2-S1 – Our narrowest, most powerful sport beam + new optic material for higher temperatures

    Application area

    Sports outdoor lighting

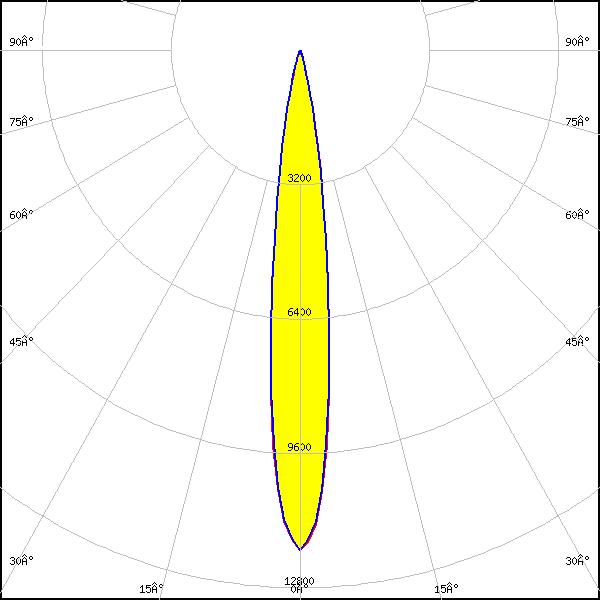

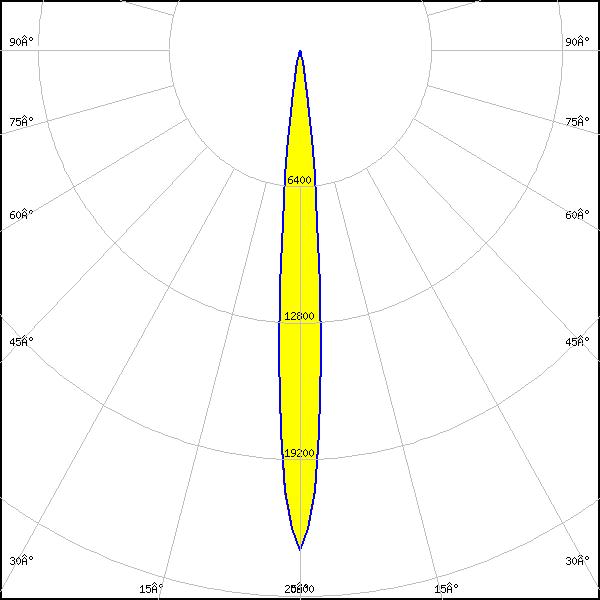

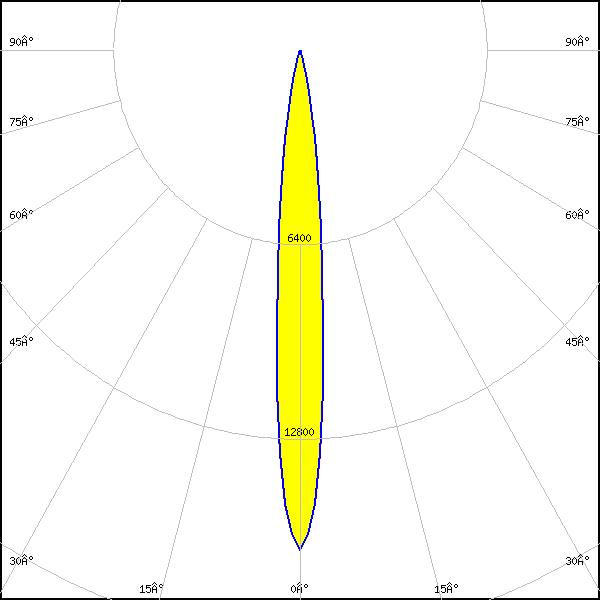

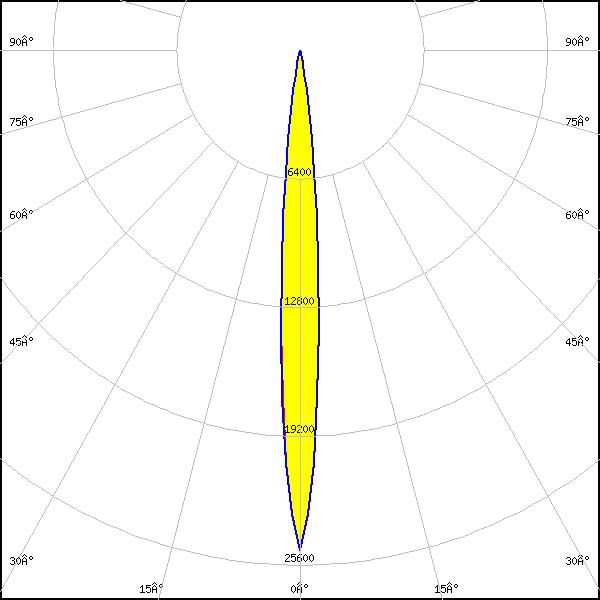

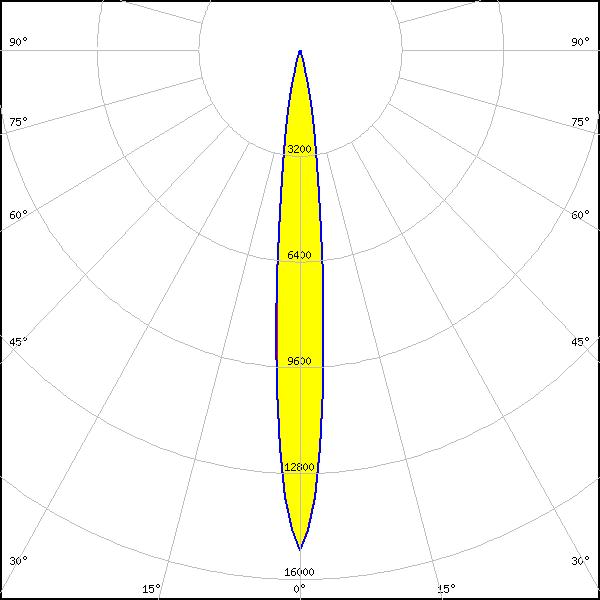

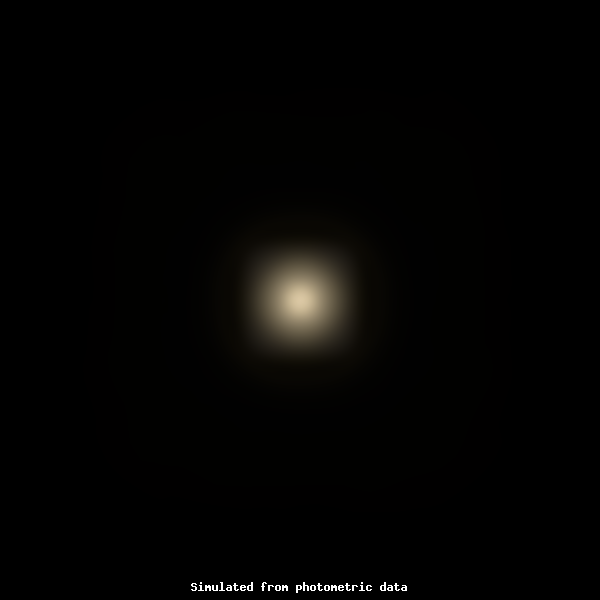

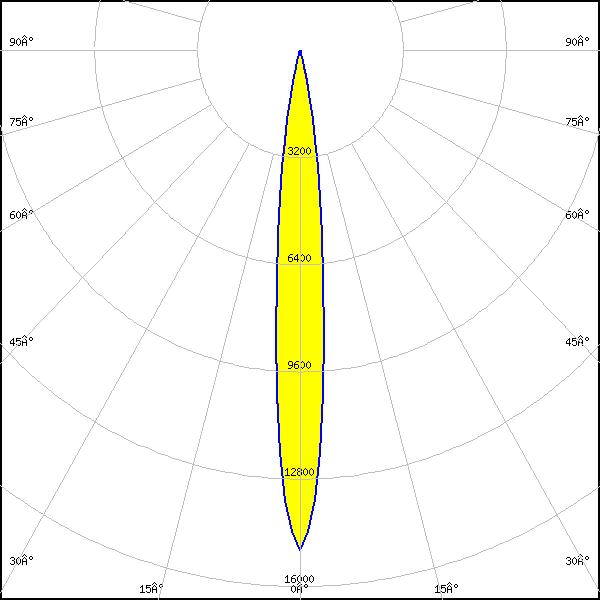

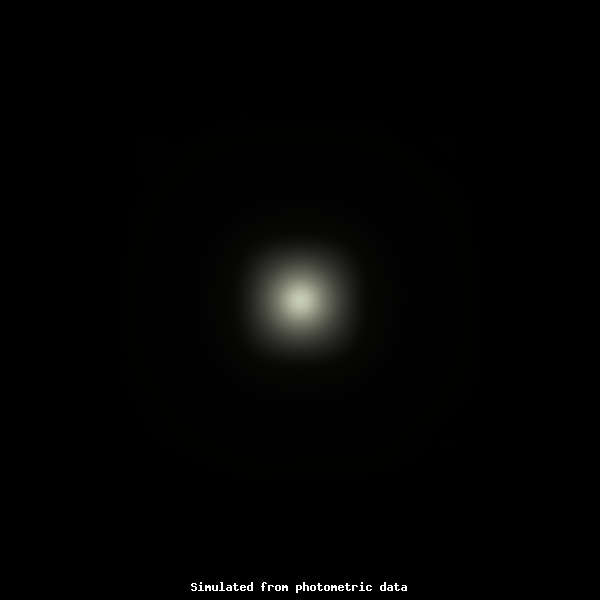

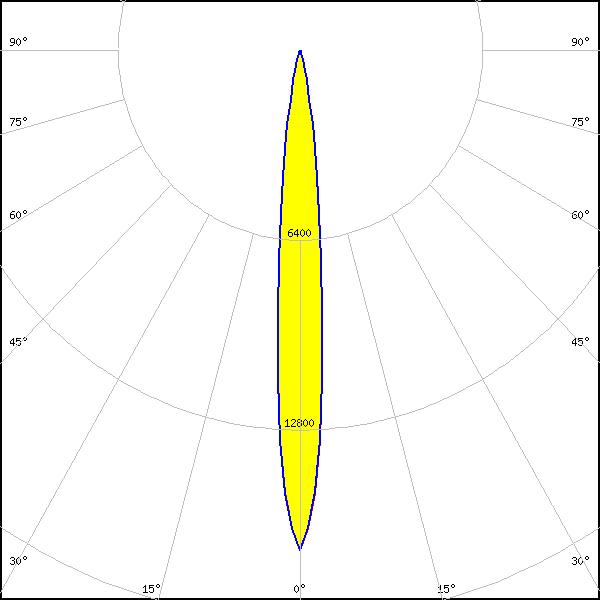

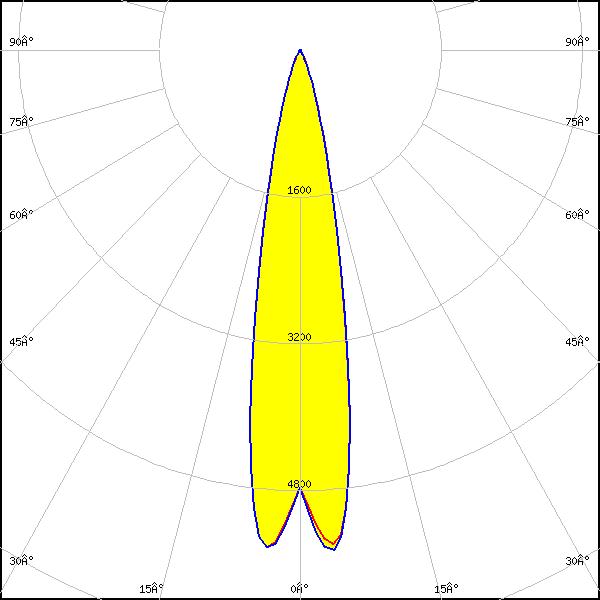

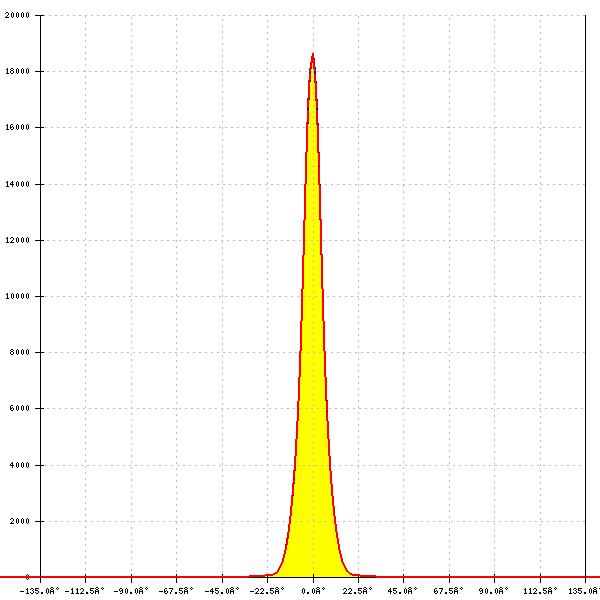

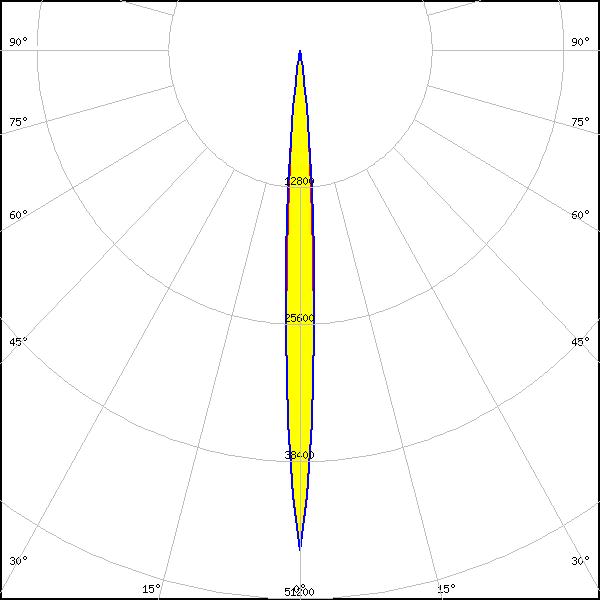

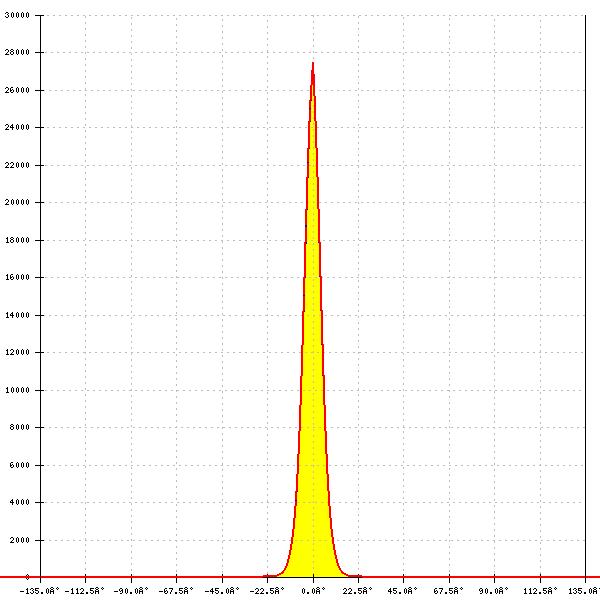

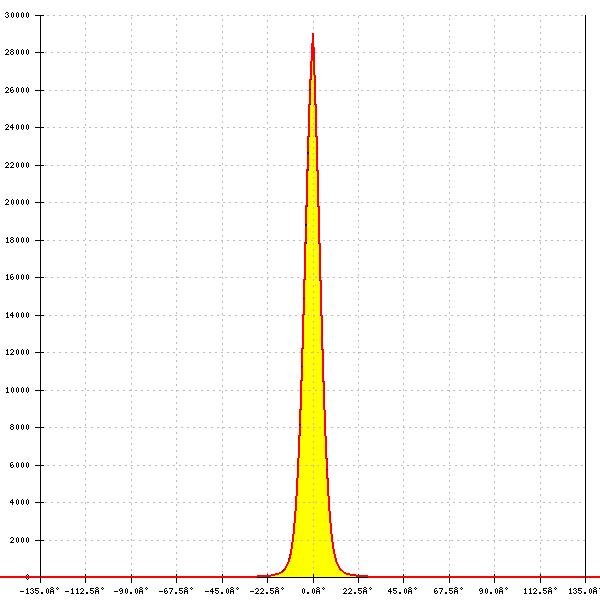

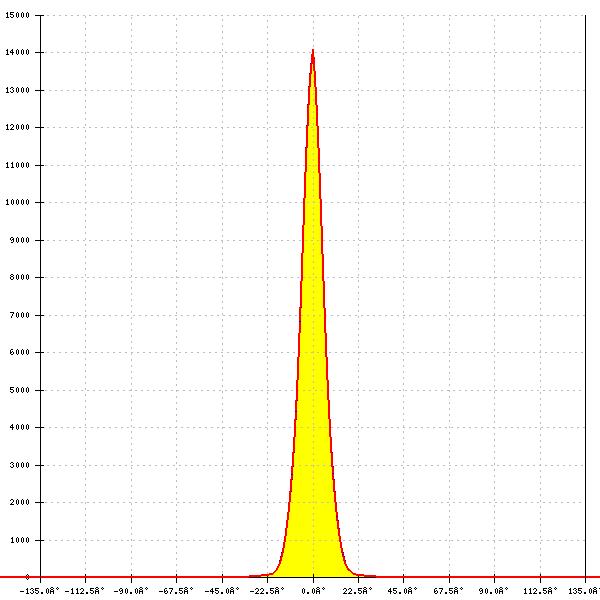

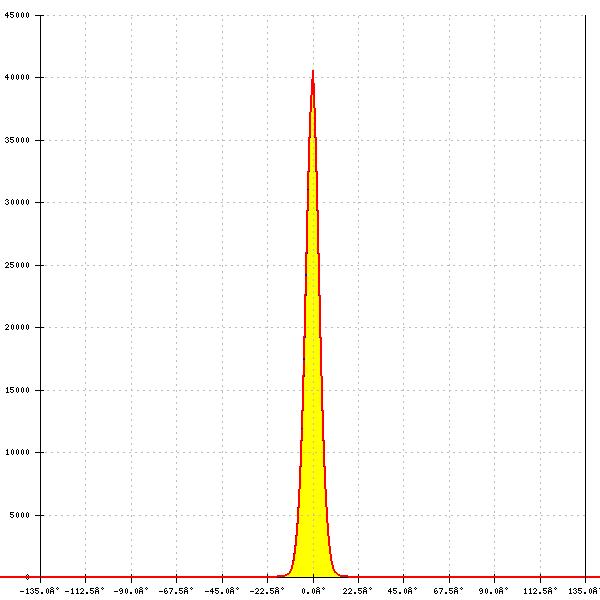

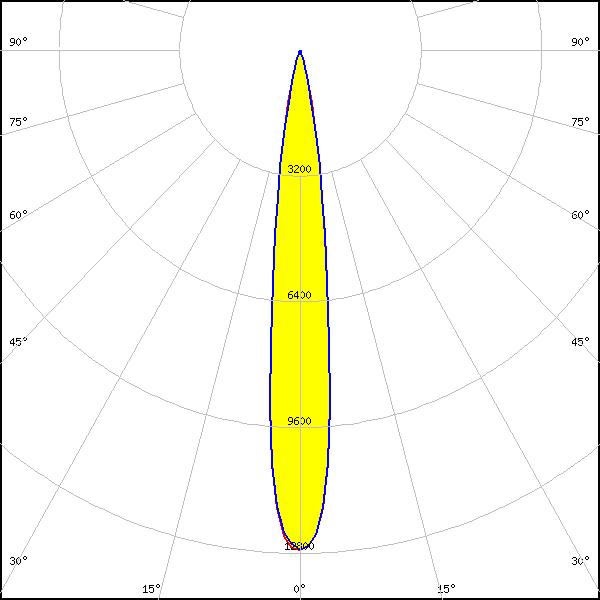

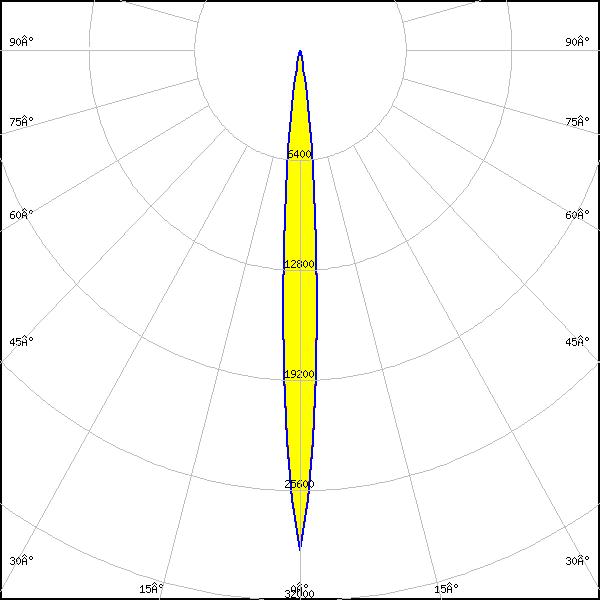

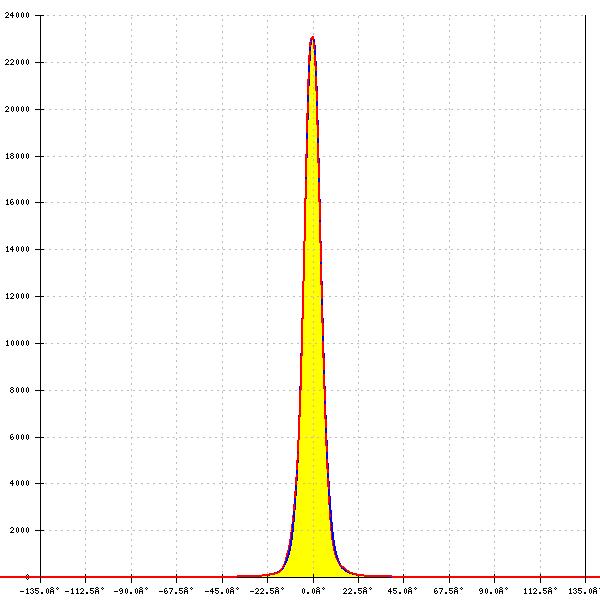

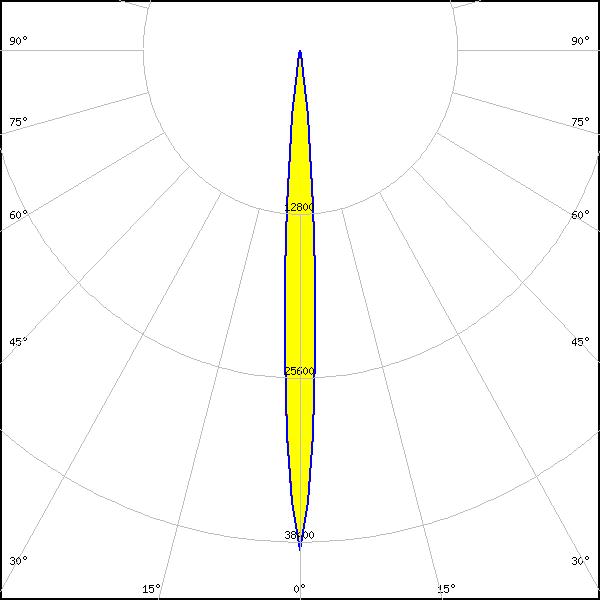

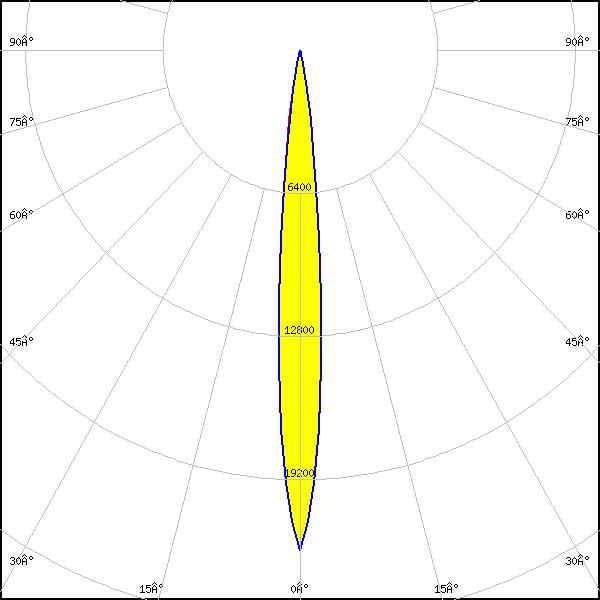

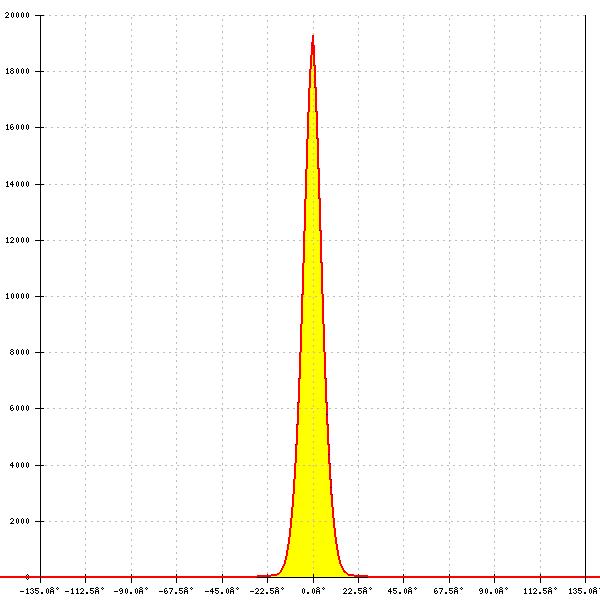

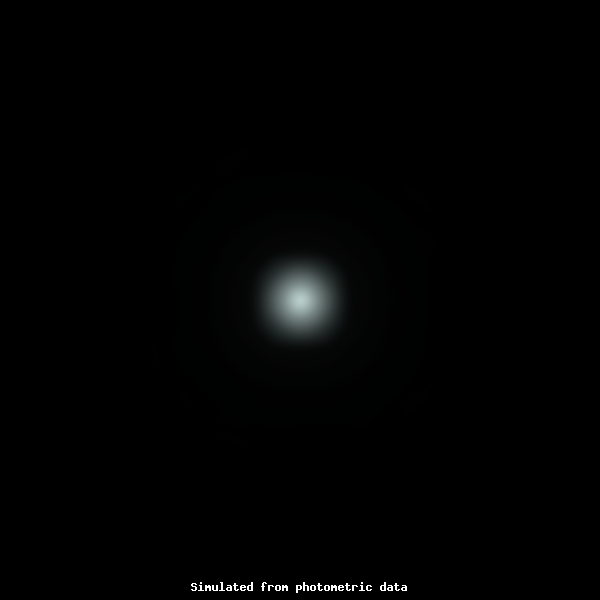

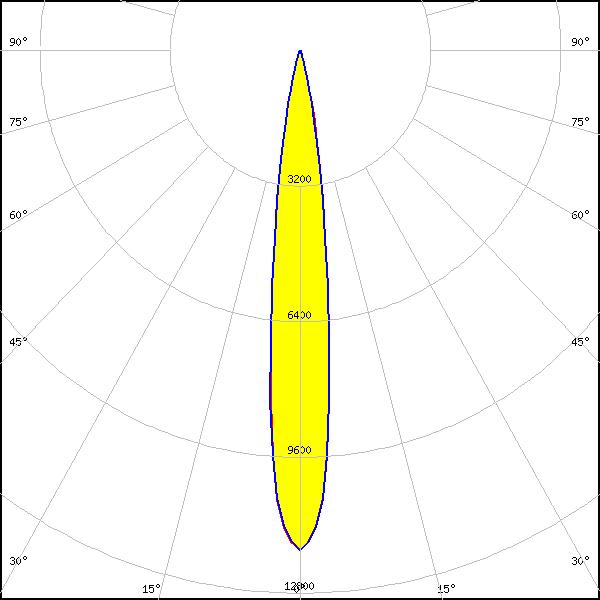

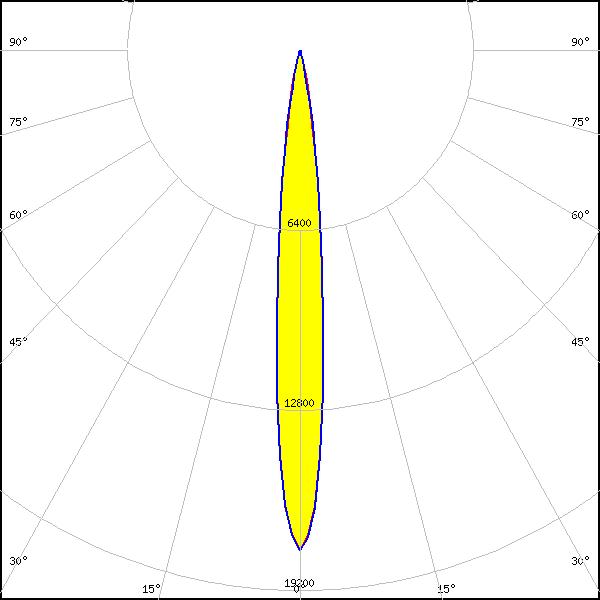

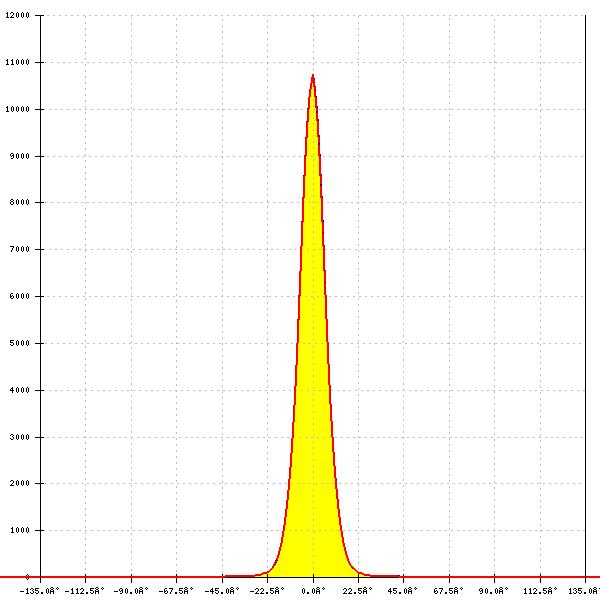

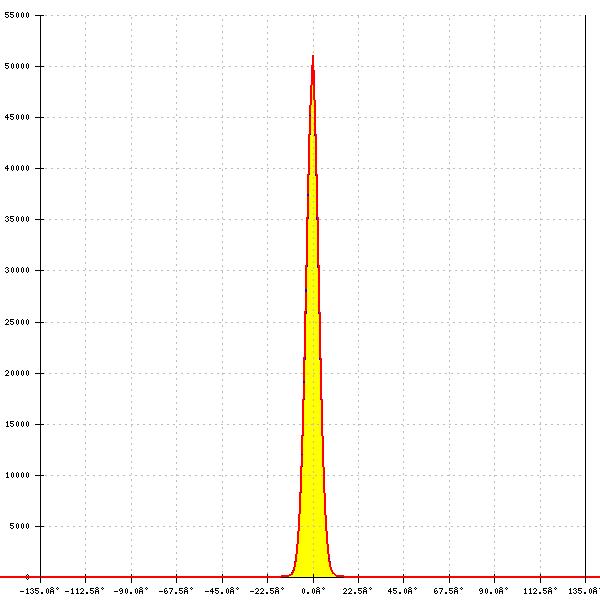

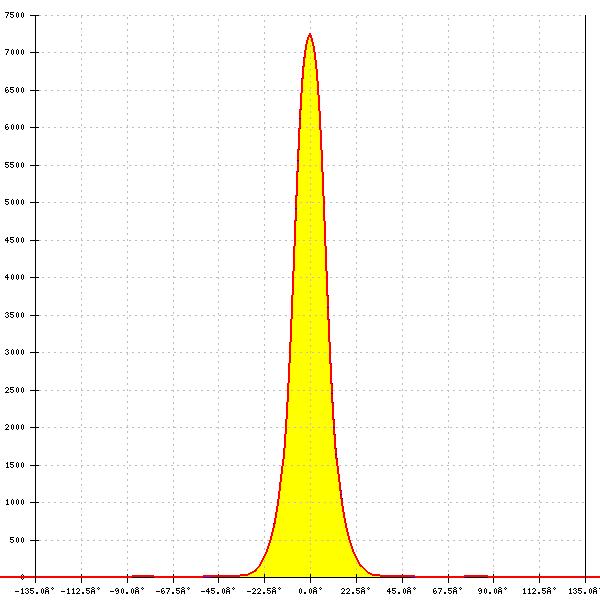

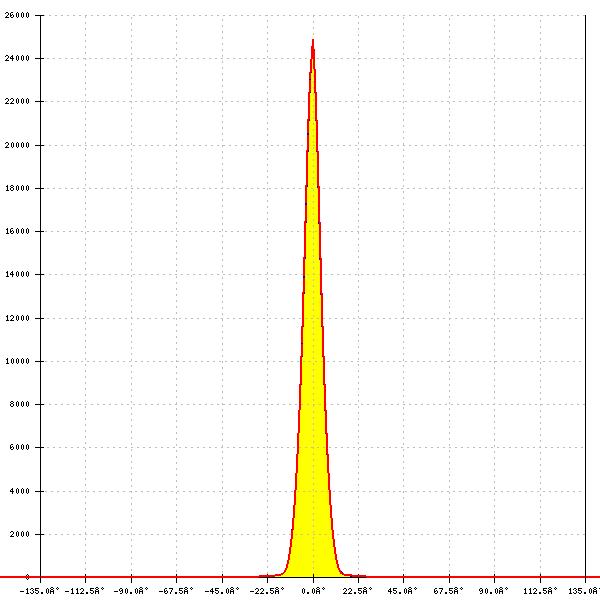

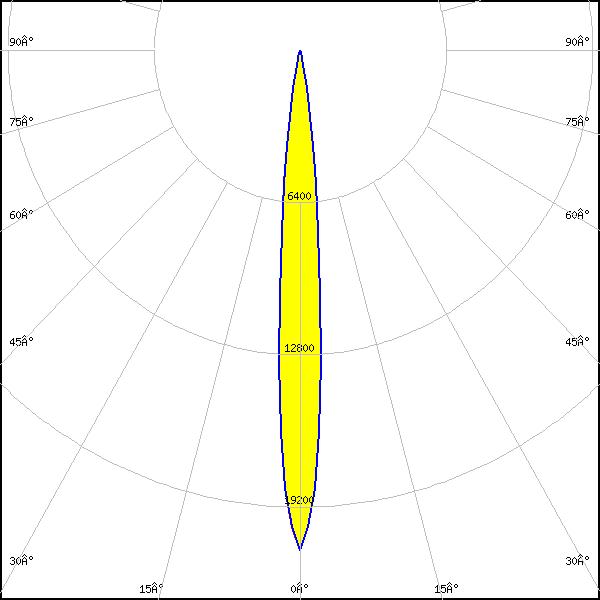

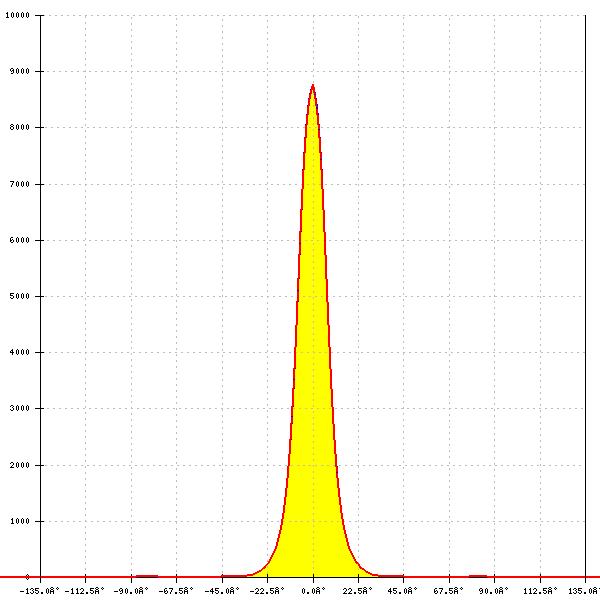

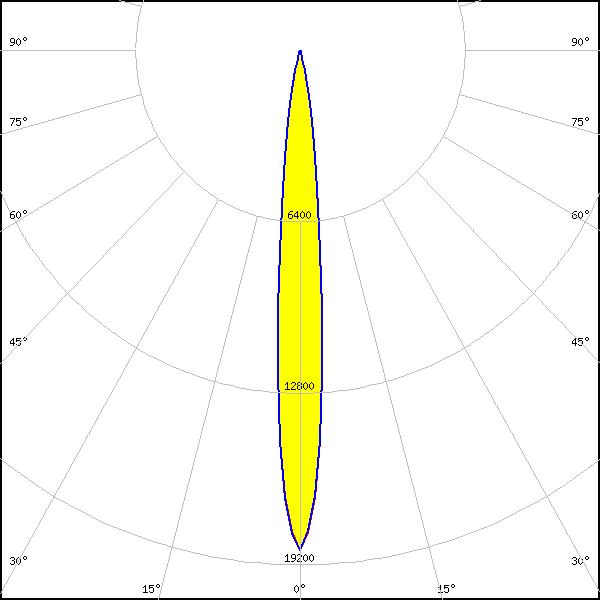

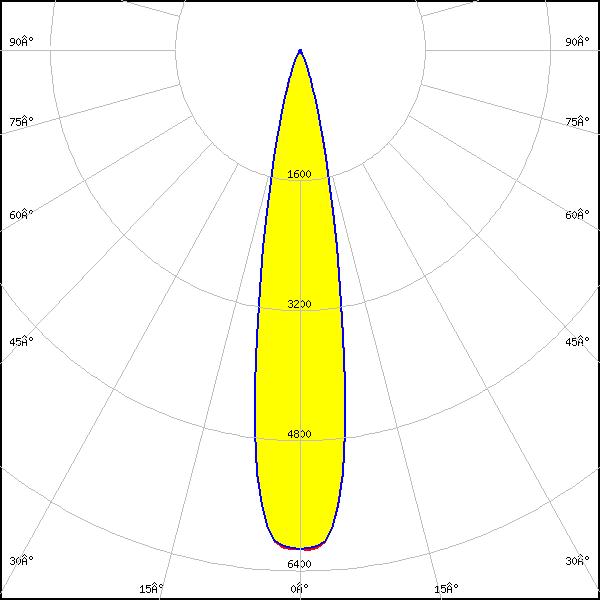

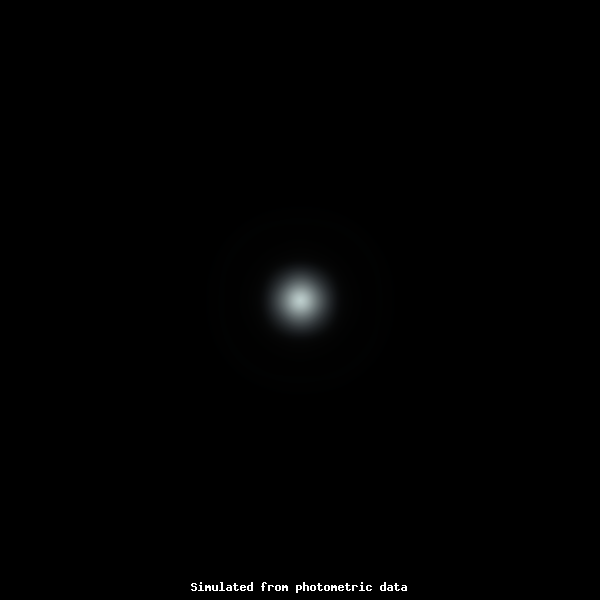

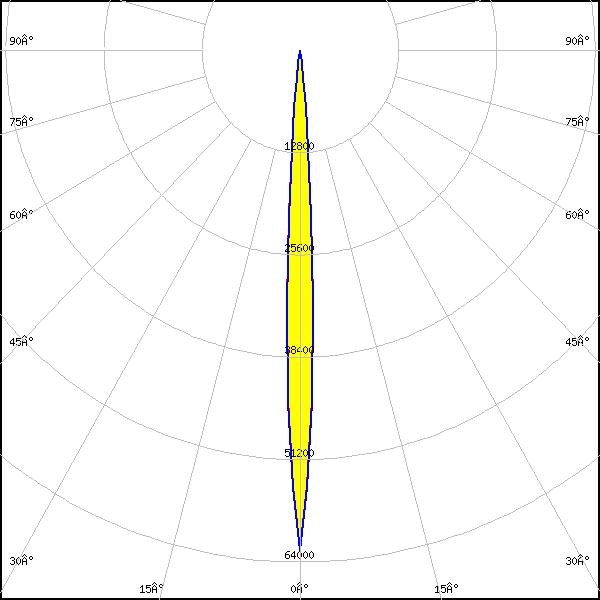

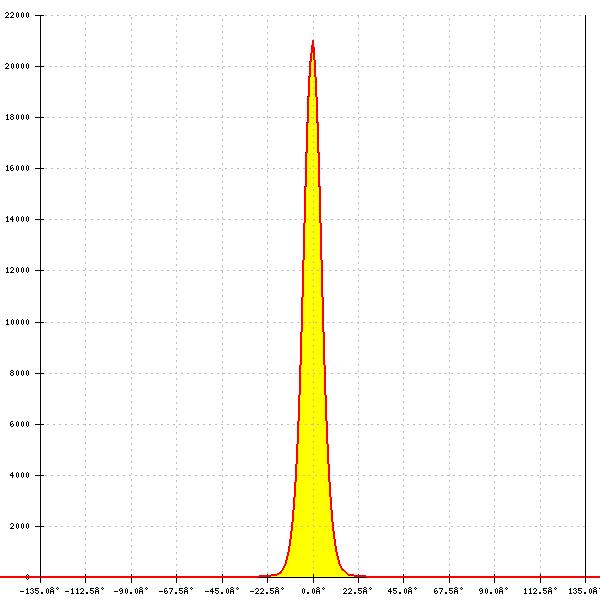

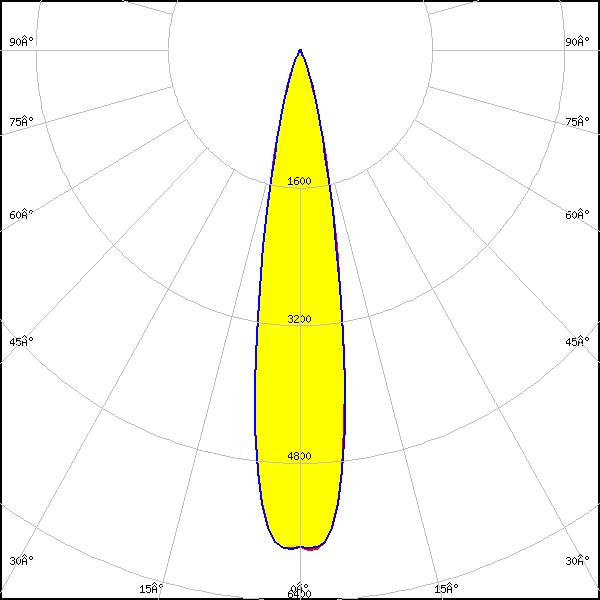

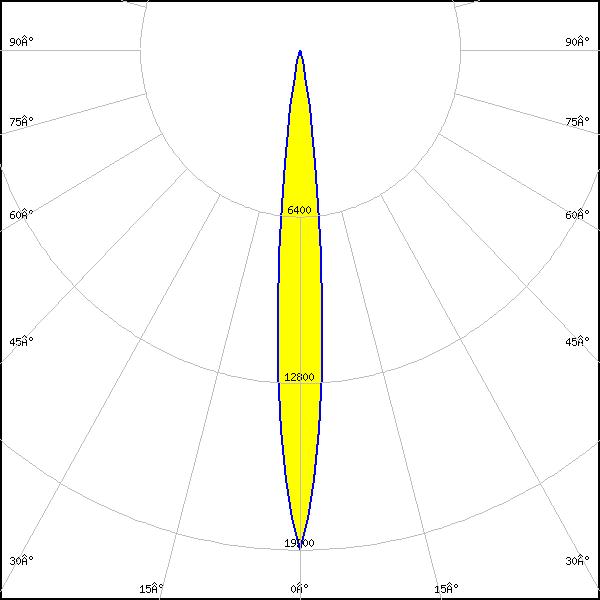

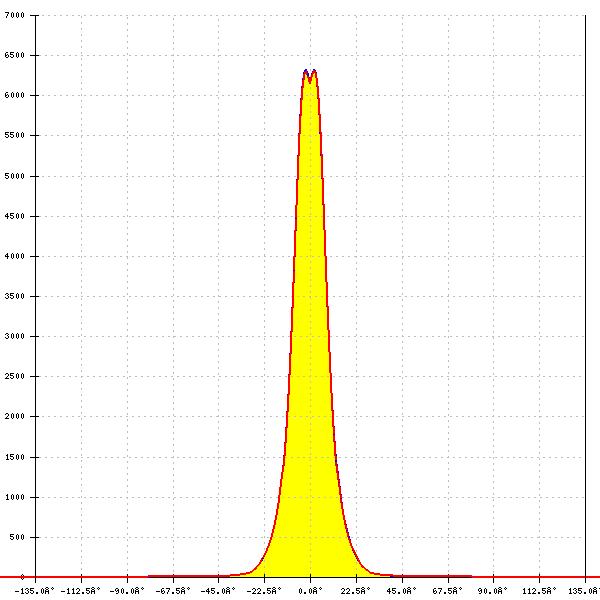

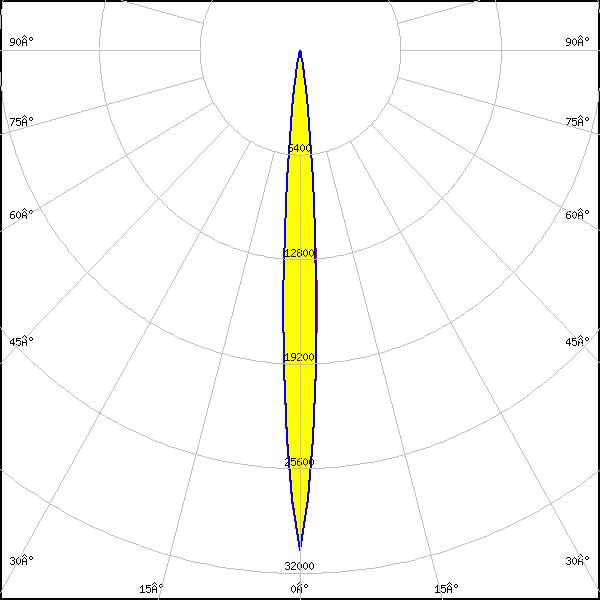

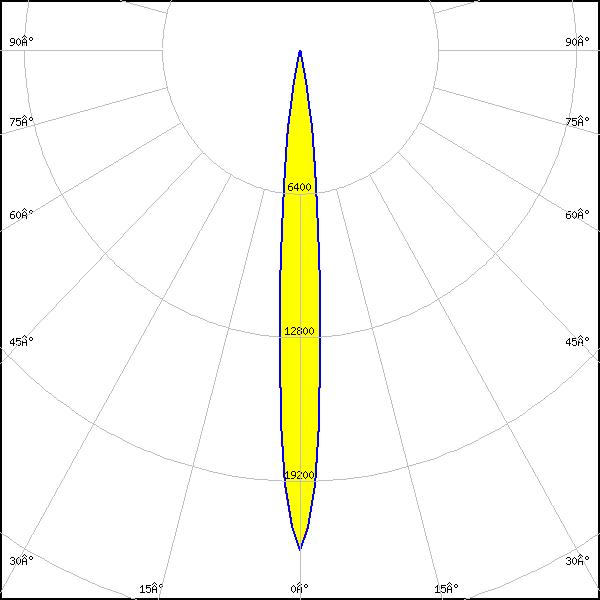

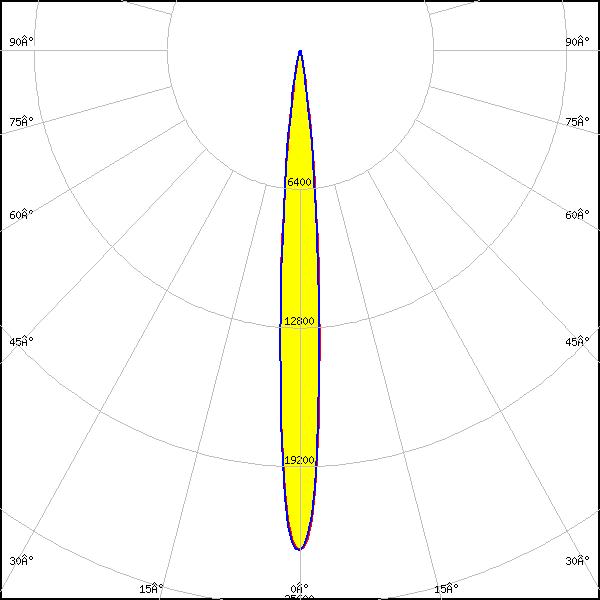

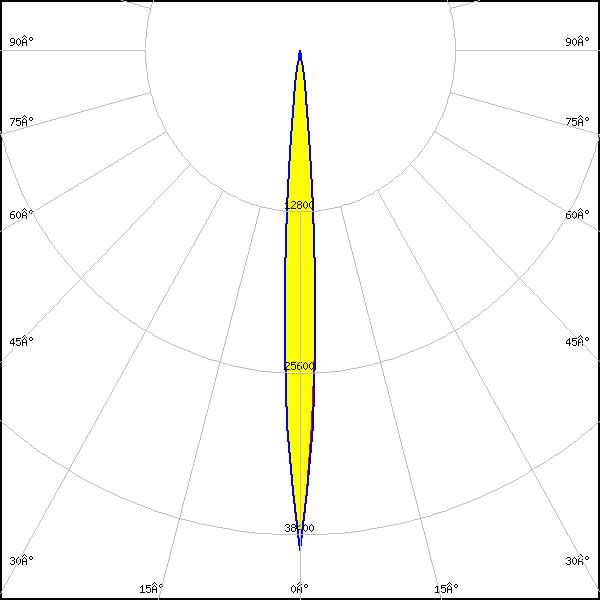

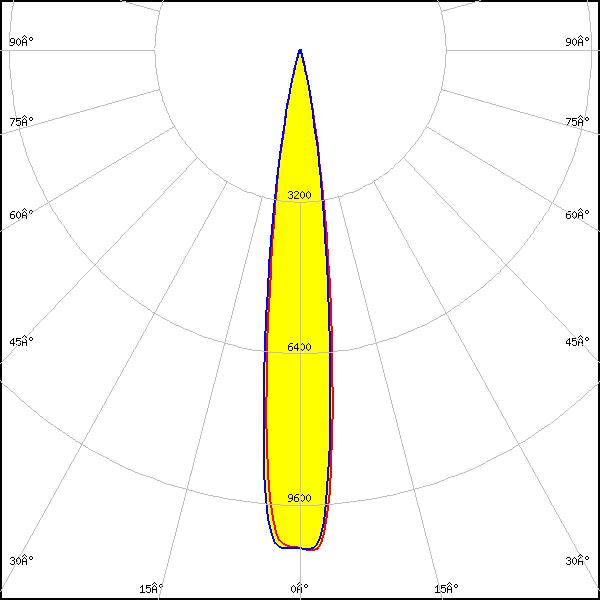

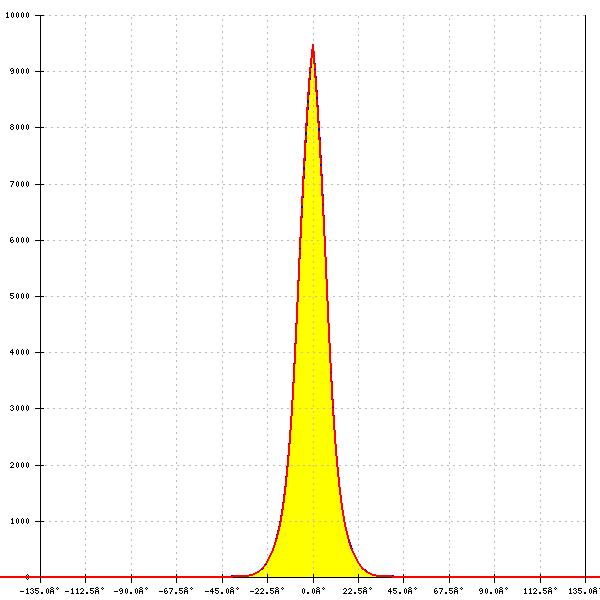

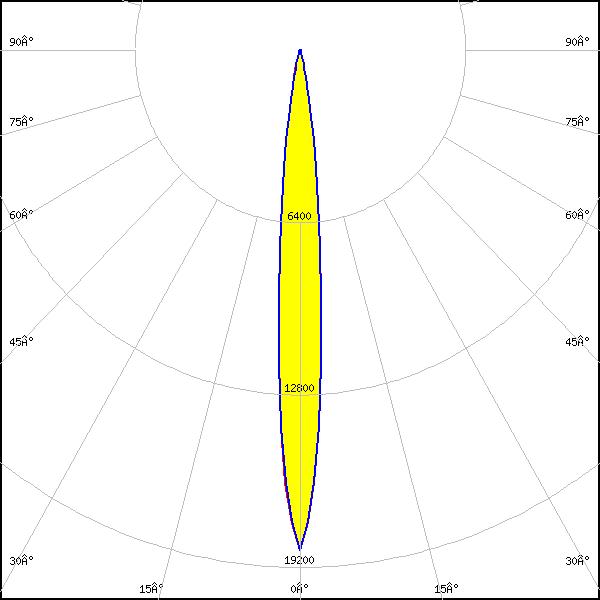

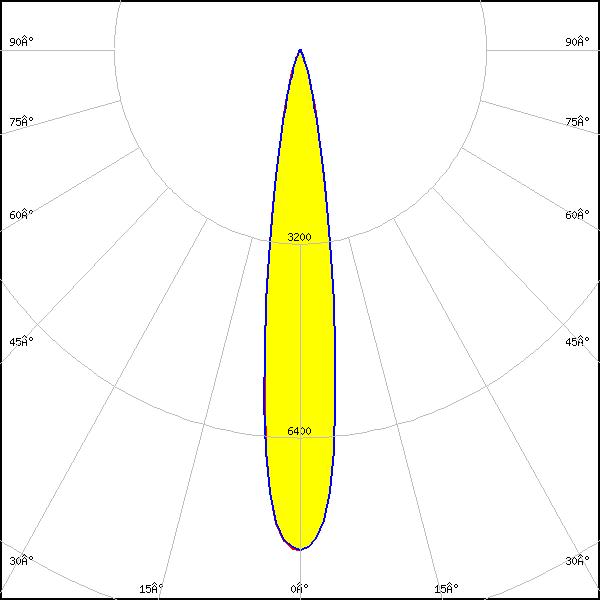

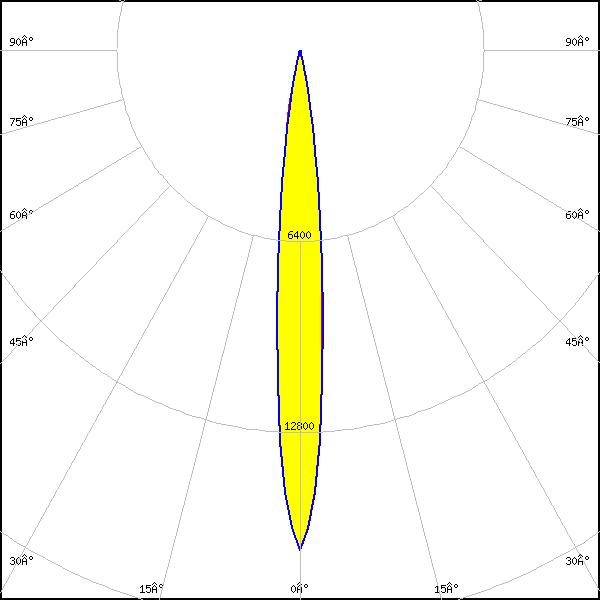

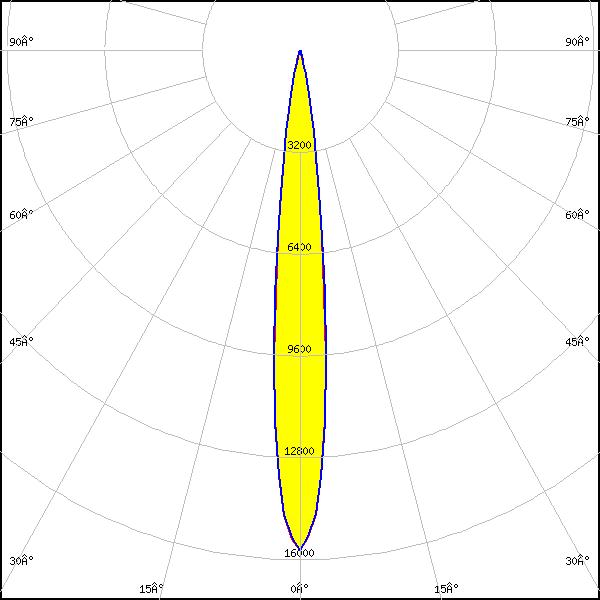

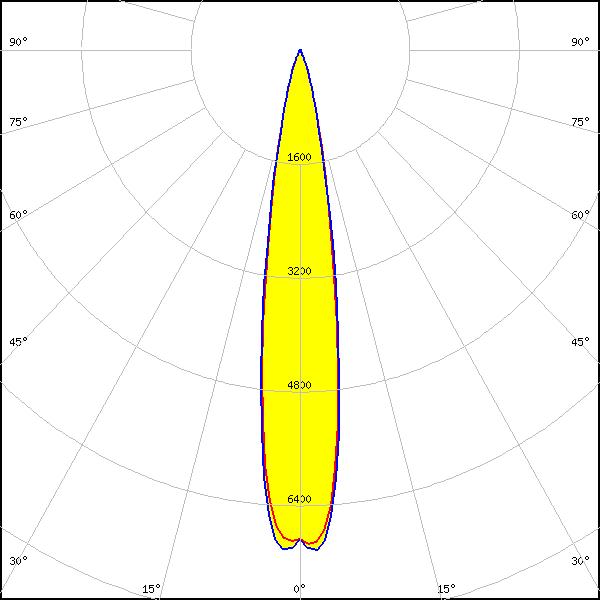

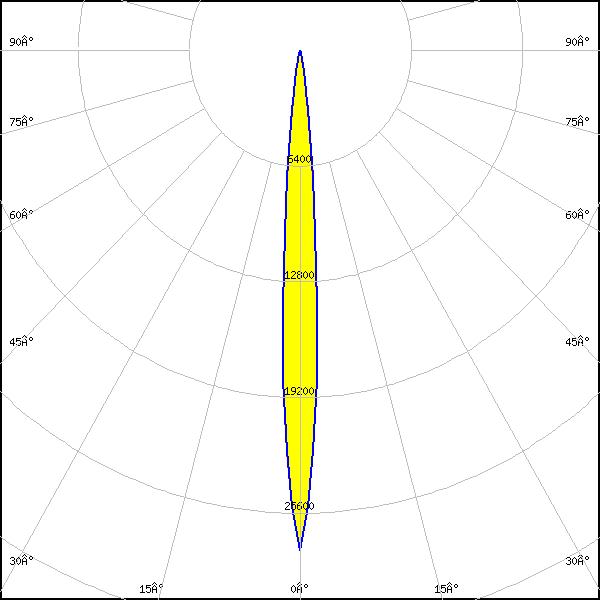

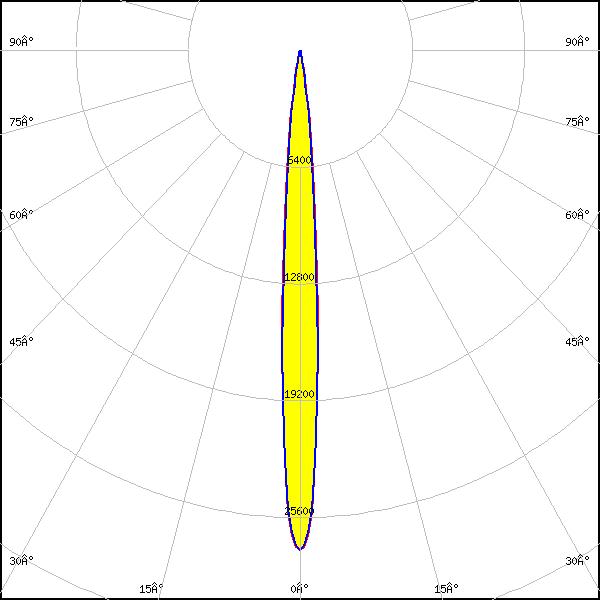

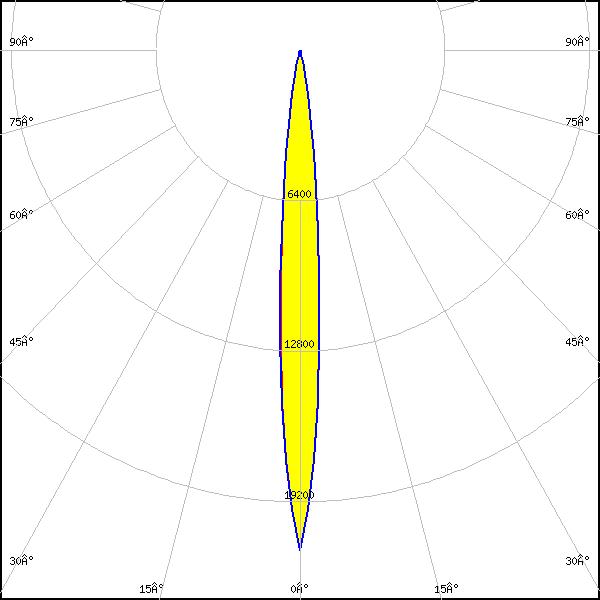

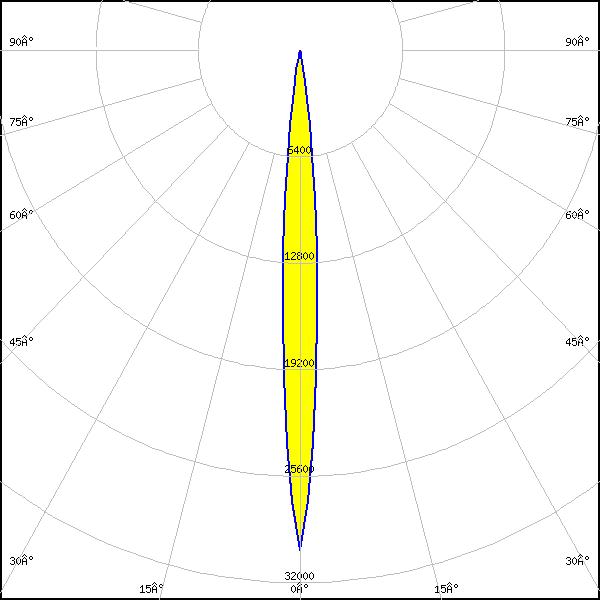

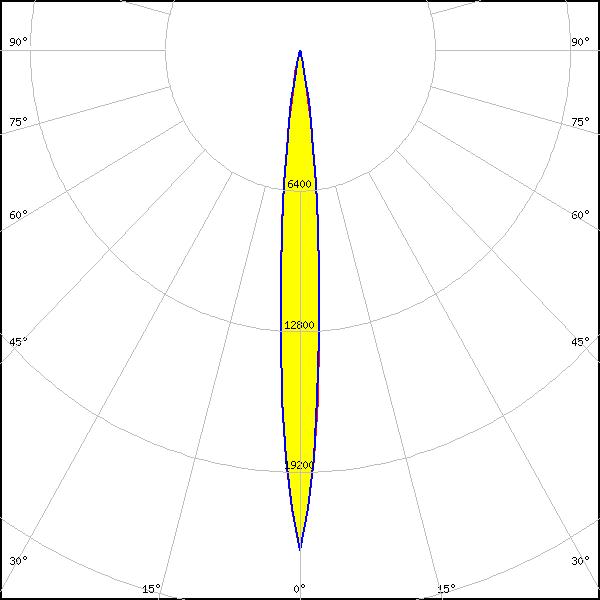

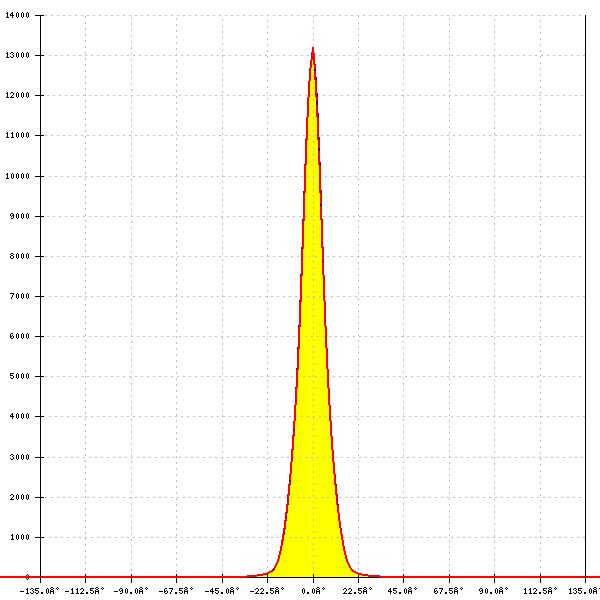

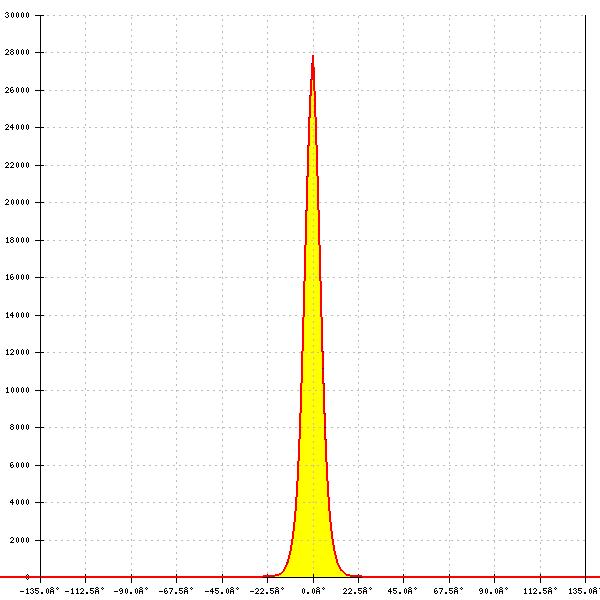

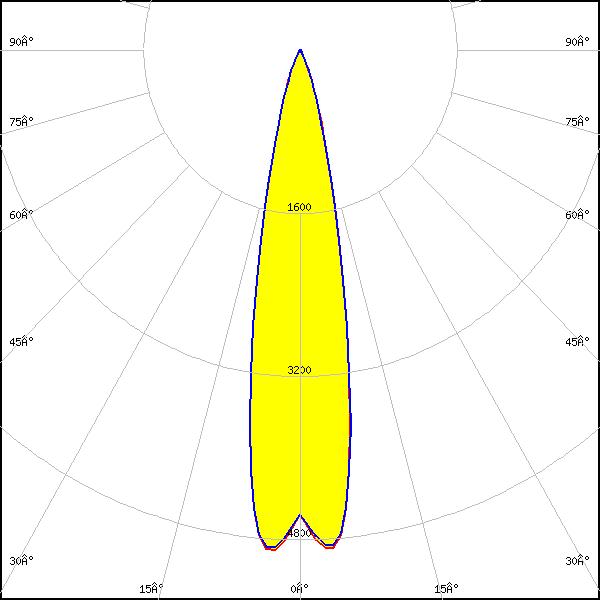

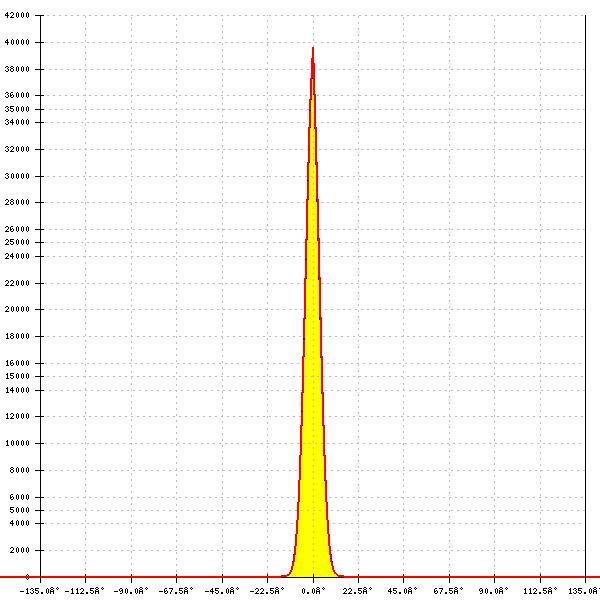

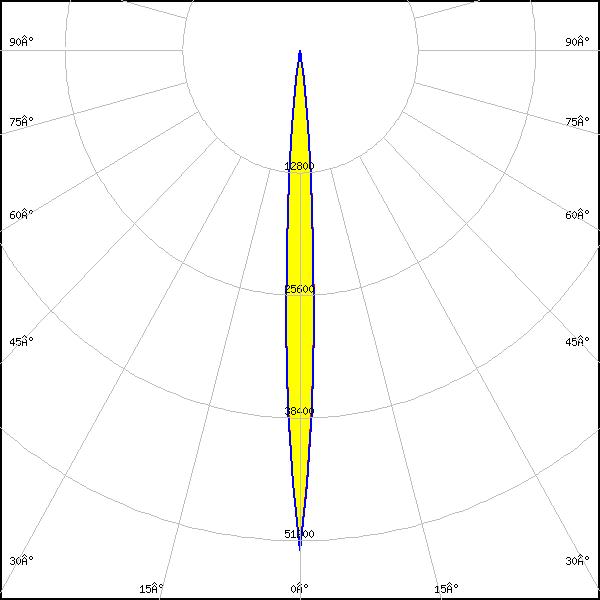

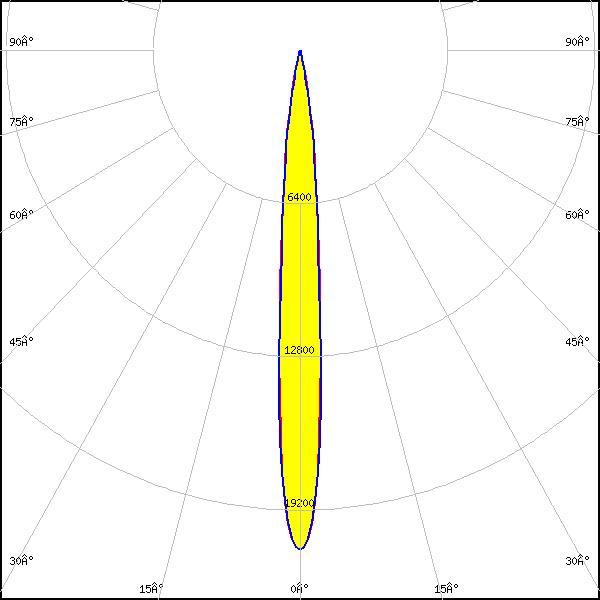

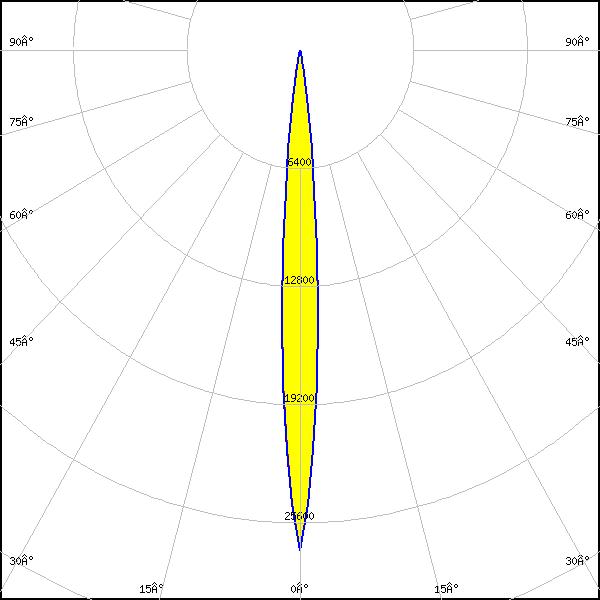

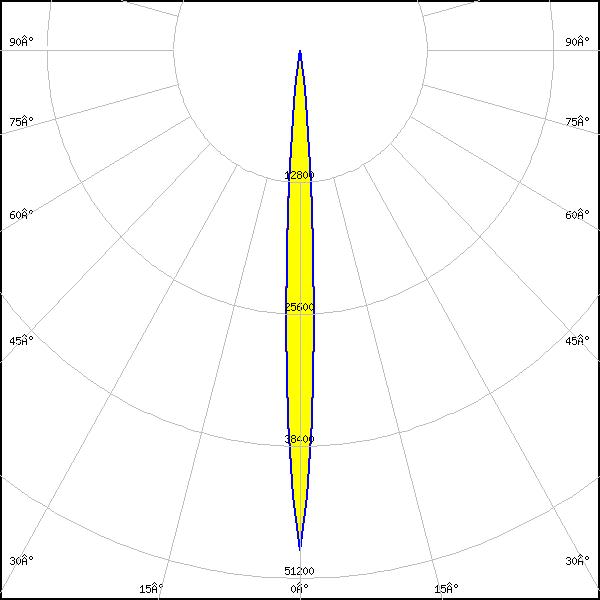

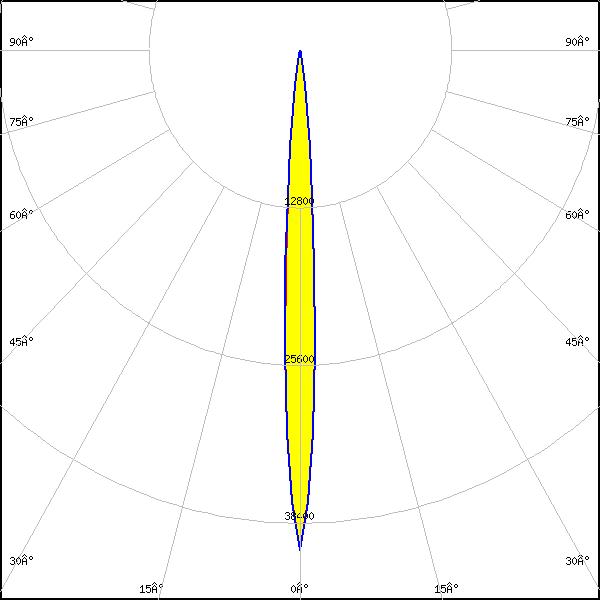

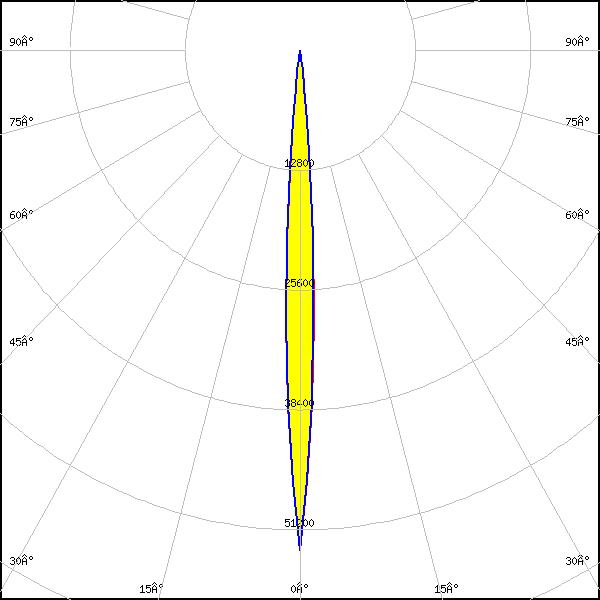

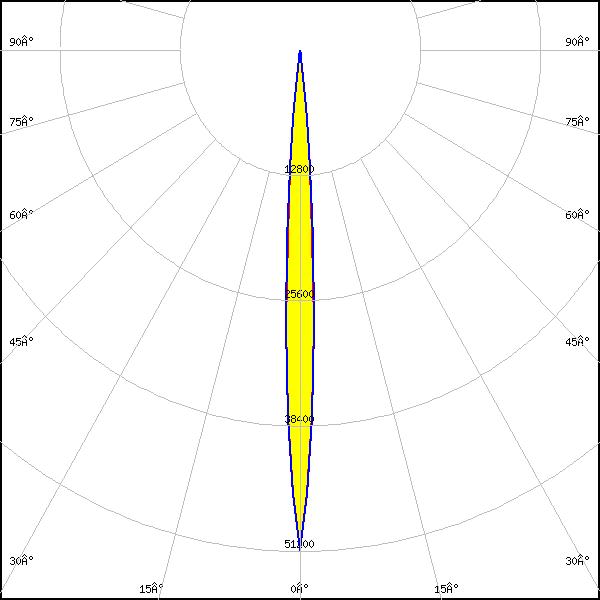

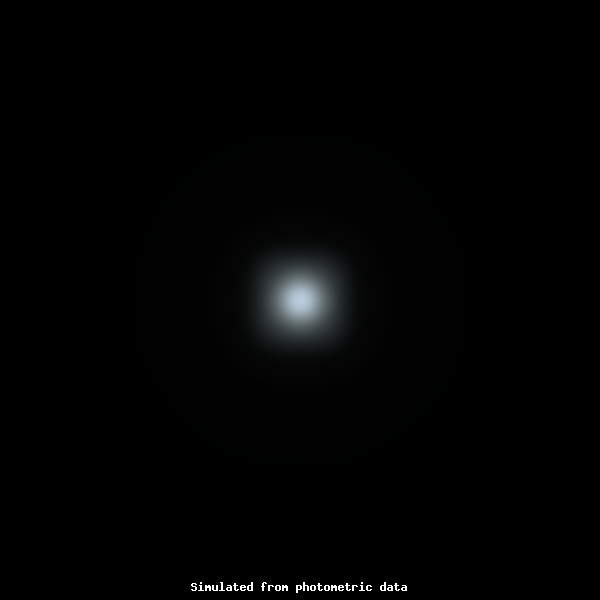

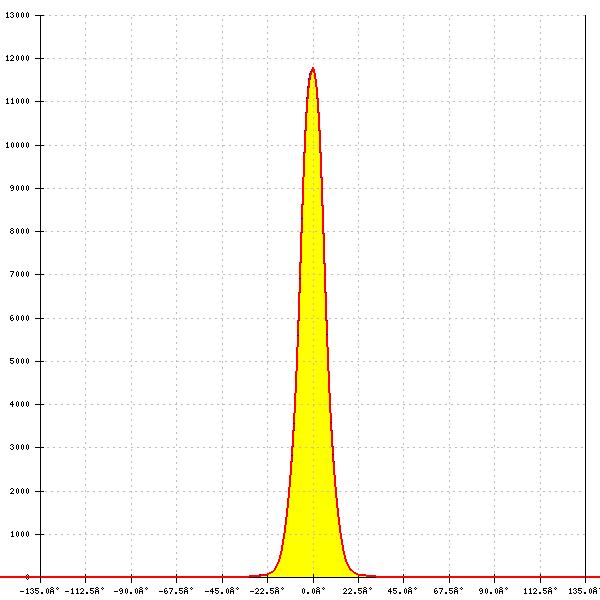

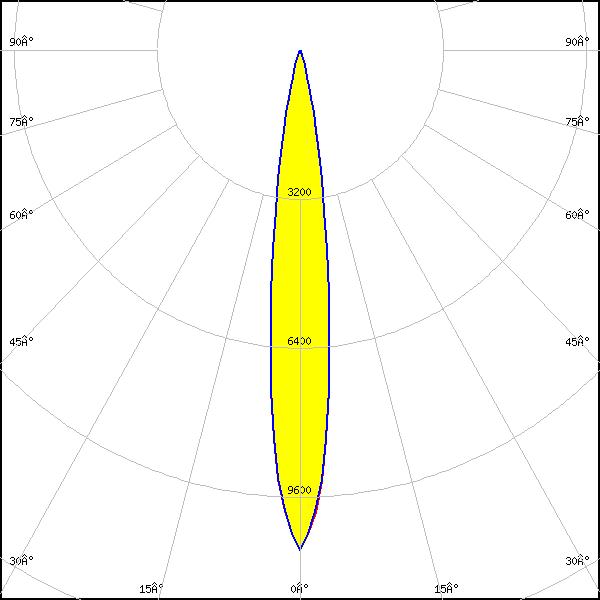

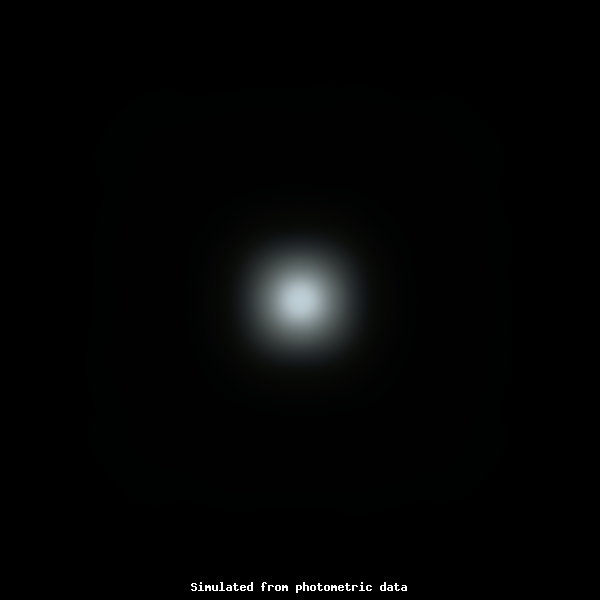

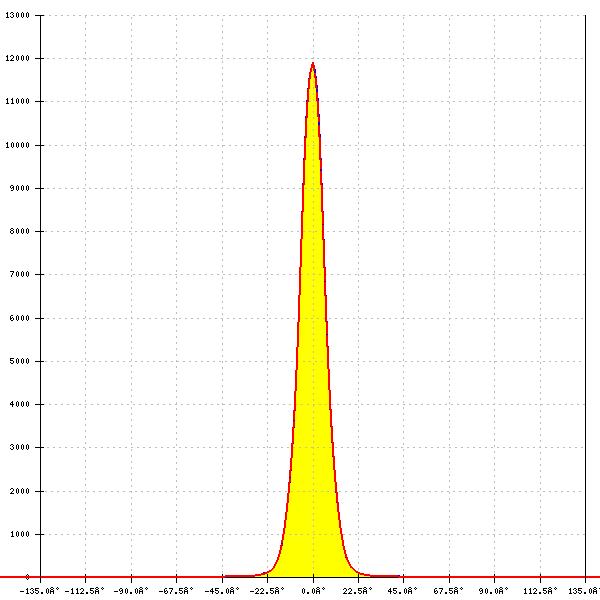

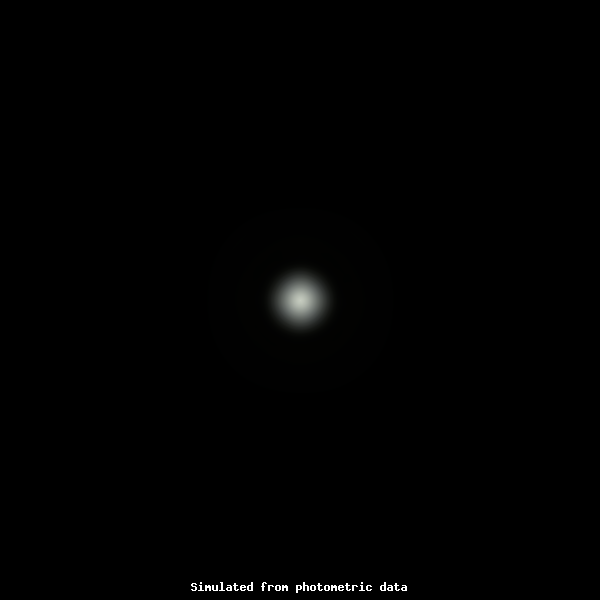

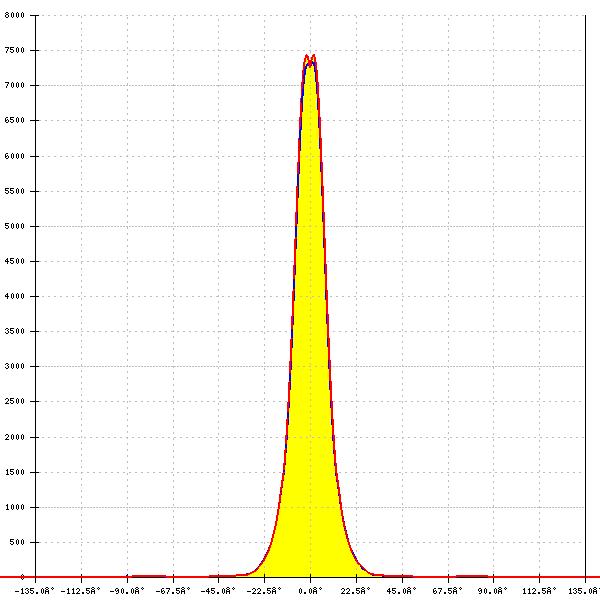

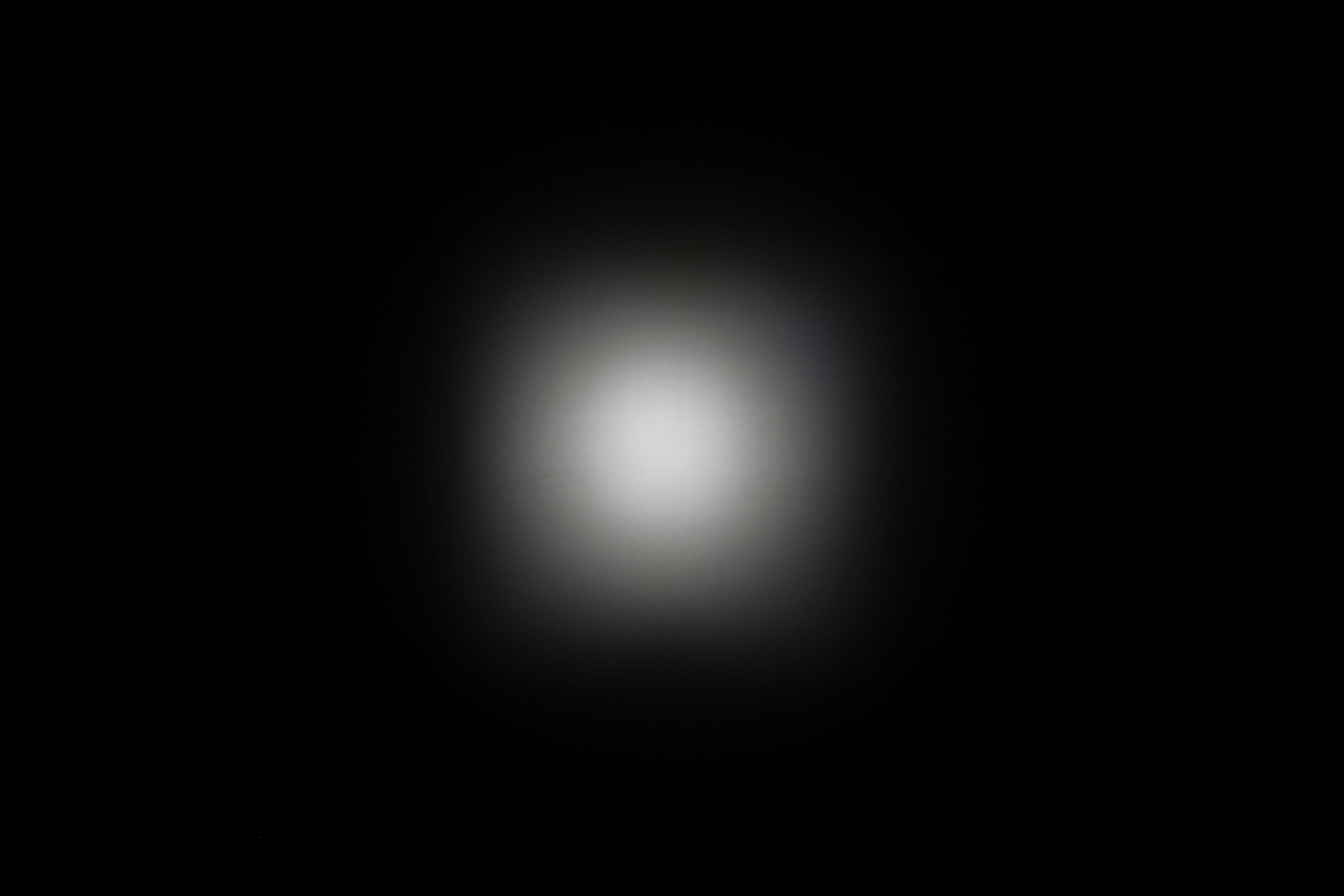

    Optical results

    LED: J Series 5050 Round LES
    FWHM: 16°
    FWTM: 32°
    Peak intensity: 8.631 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

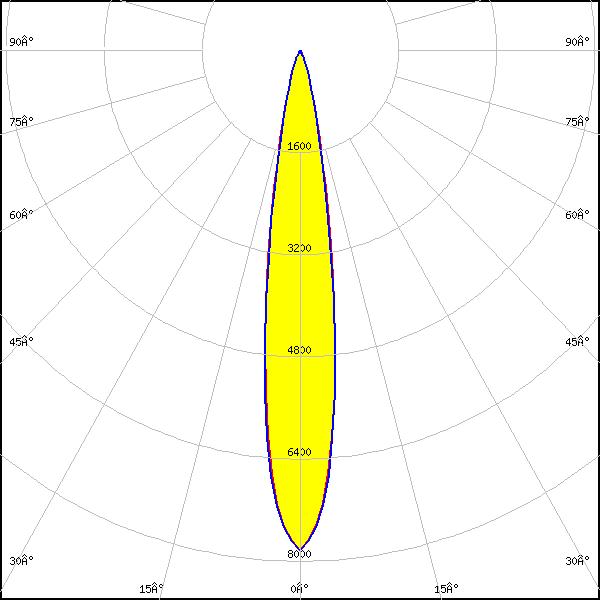

    LED: J Series 5050 Round LES
    FWHM: 16°
    FWTM: 32°
    Peak intensity: 7.831 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

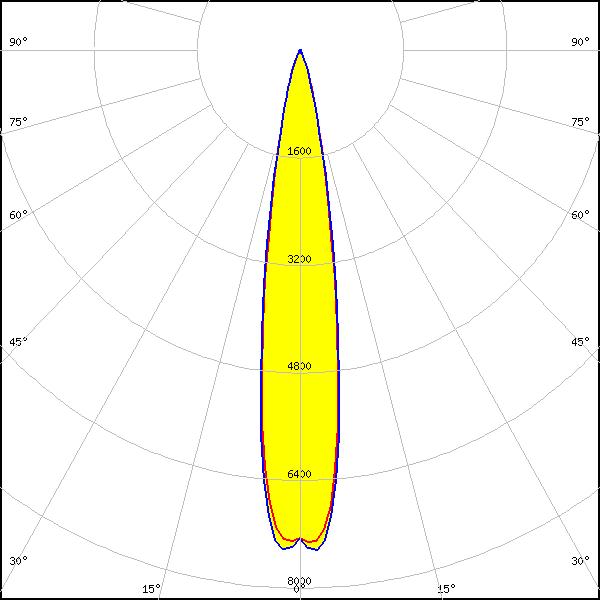

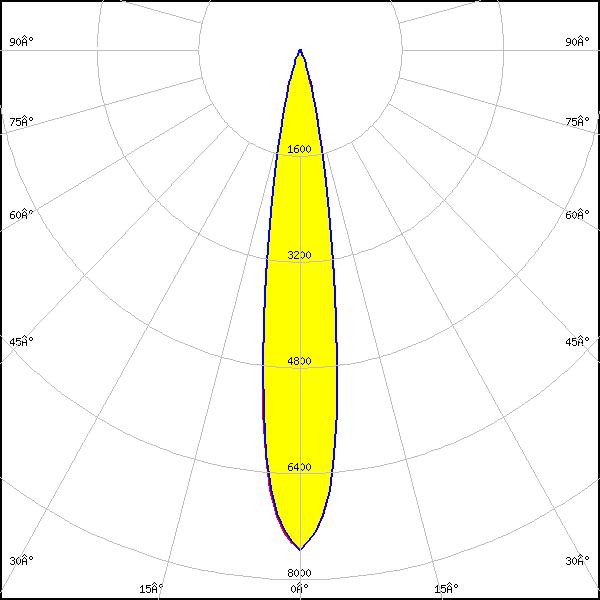

    LED: J Series 5050B 6V K Class
    FWHM: 16°
    FWTM: 34°
    Peak intensity: 7.557 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

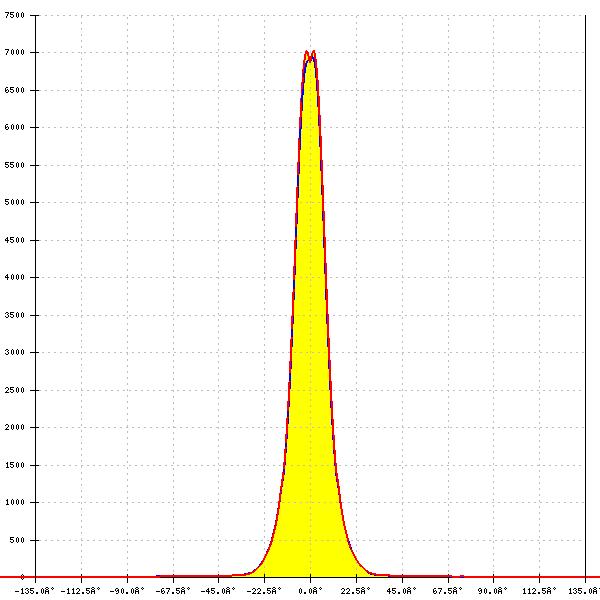

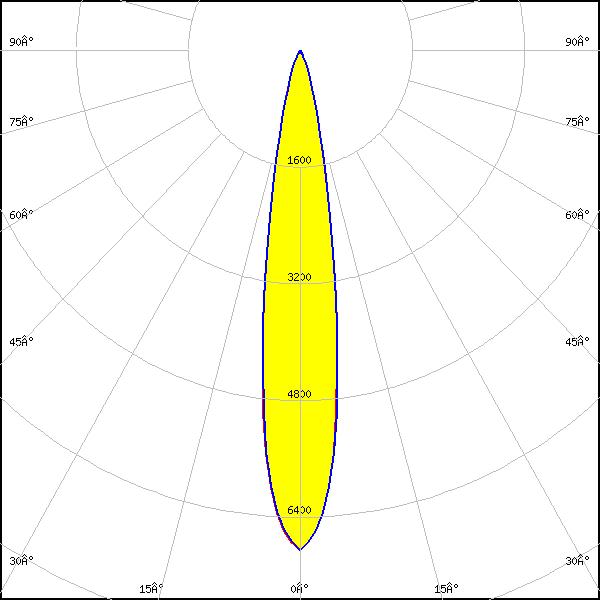

    LED: J Series 5050B 6V K Class
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 6.853 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

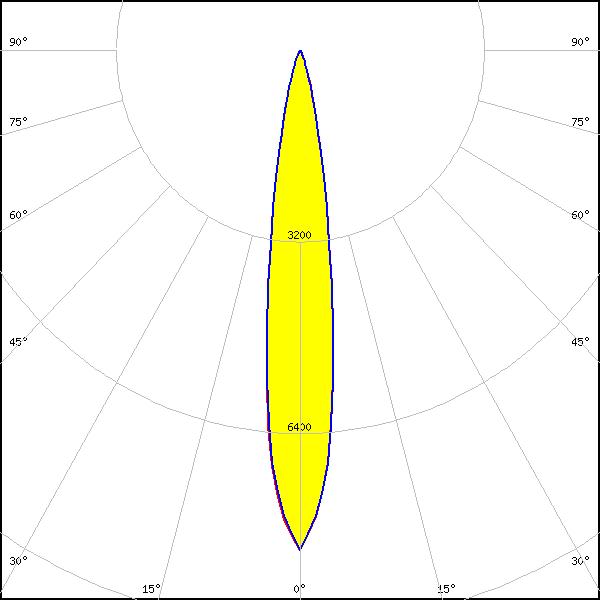

    LED: J Series 5050C 6V E Class
    FWHM: 16°
    FWTM: 32°
    Peak intensity: 8.768 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 28.435 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35.2 HD
    FWHM: 16°
    FWTM: 34°
    Peak intensity: 7.542 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35.2 HD
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 6.875 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35.2 HI
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 11.868 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35.2 HI
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 10.569 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

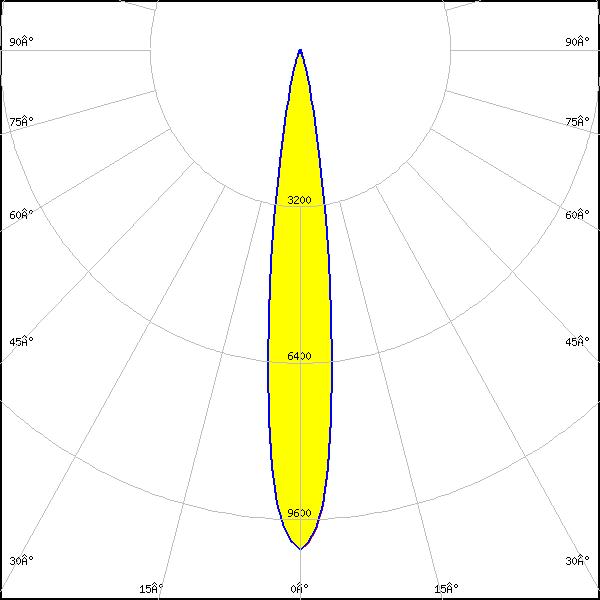

    LED: XHP50.3 HI
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 10.229 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

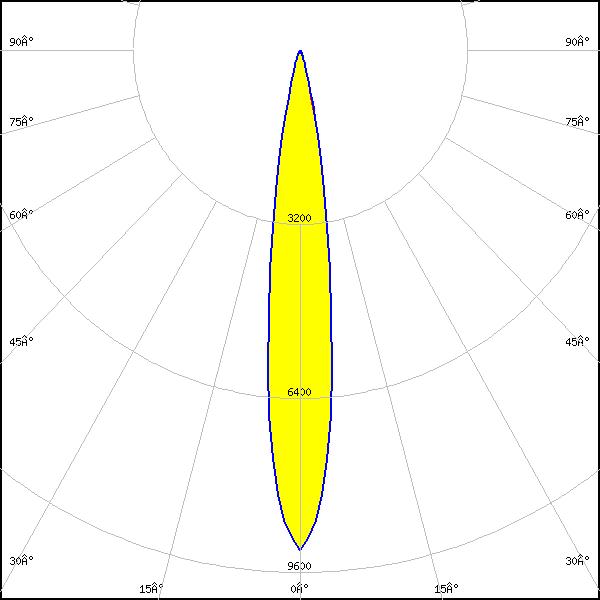

    LED: XHP50.3 HI
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 9.193 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

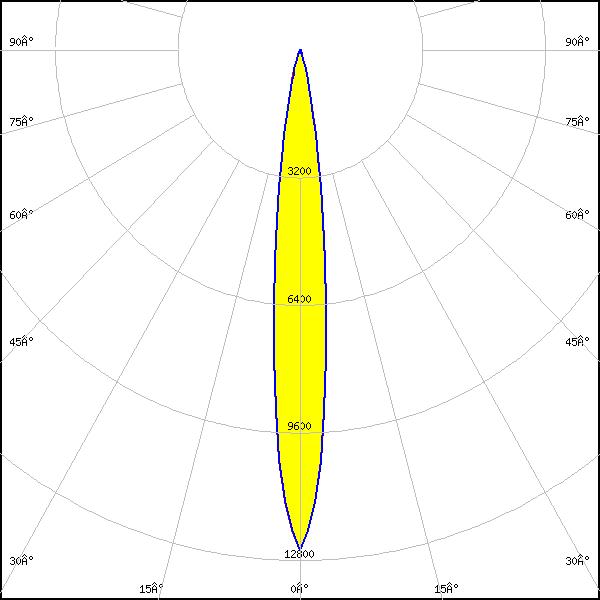

    LED: XM-L3
    FWHM: 12°
    FWTM: 26°
    Peak intensity: 12.545 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L3
    FWHM: 12°
    FWTM: 28°
    Peak intensity: 11.026 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 21.265 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

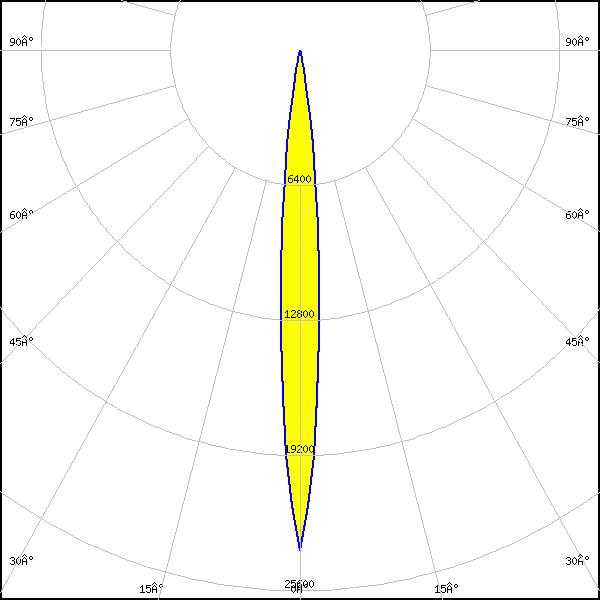

    LED: XP-G2 HE
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 23.689 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2 HE
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 28.470 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

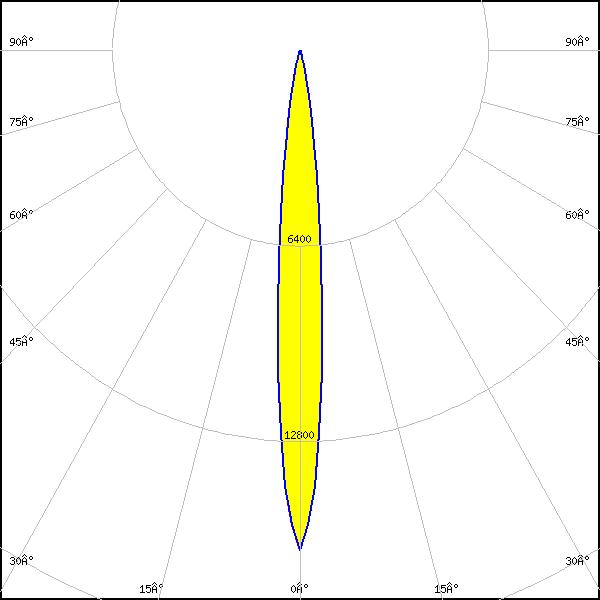

    LED: XP-G3
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 18.573 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 16.361 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4
    FWHM: 9°
    FWTM: 20°
    Peak intensity: 24.222 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

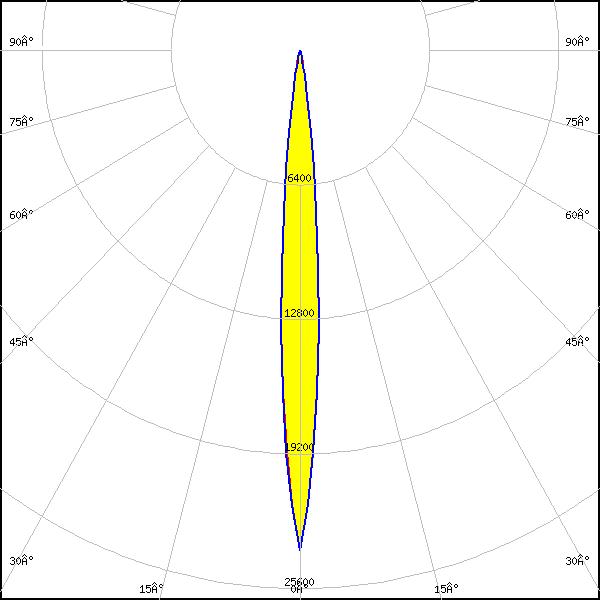

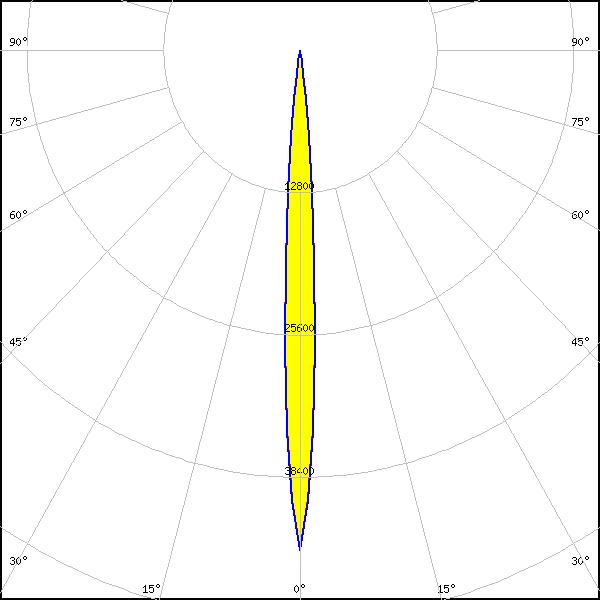

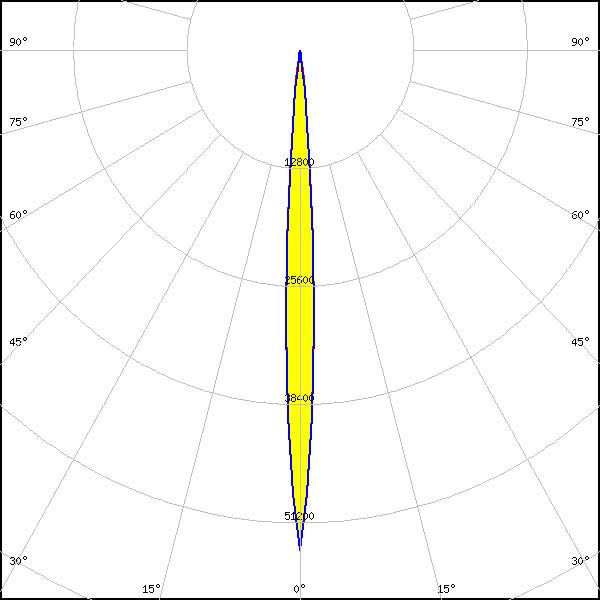

    LED: XP-G4 HI
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 29.065 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4 HI
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 23.786 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

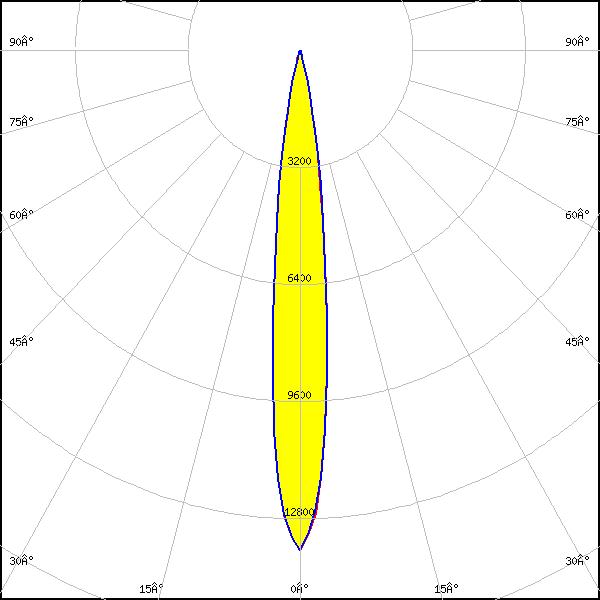

    LED: XP-L HD
    FWHM: 12°
    FWTM: 26°
    Peak intensity: 13.662 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: 12°
    FWTM: 26°
    Peak intensity: 12.825 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

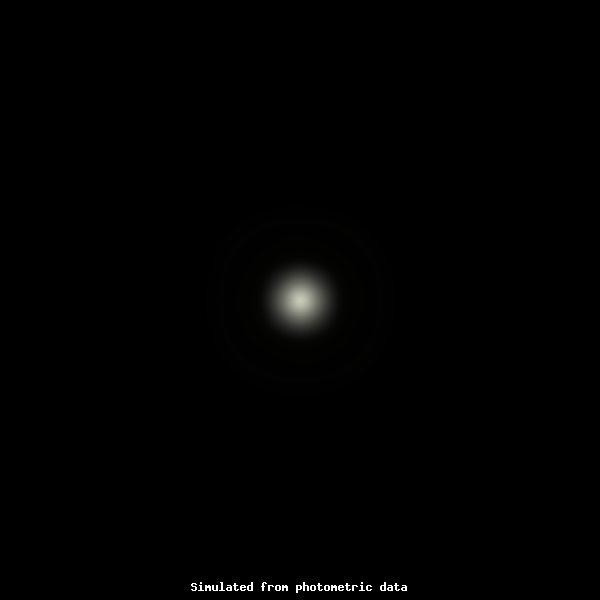

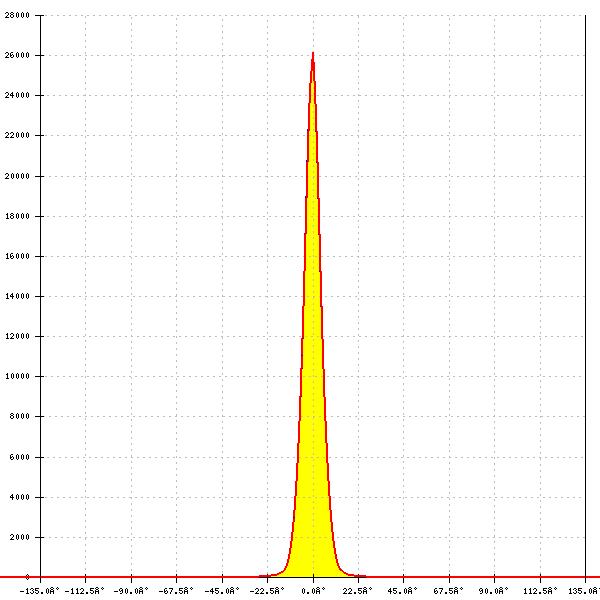

    LED: XP-L HI
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 26.151 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

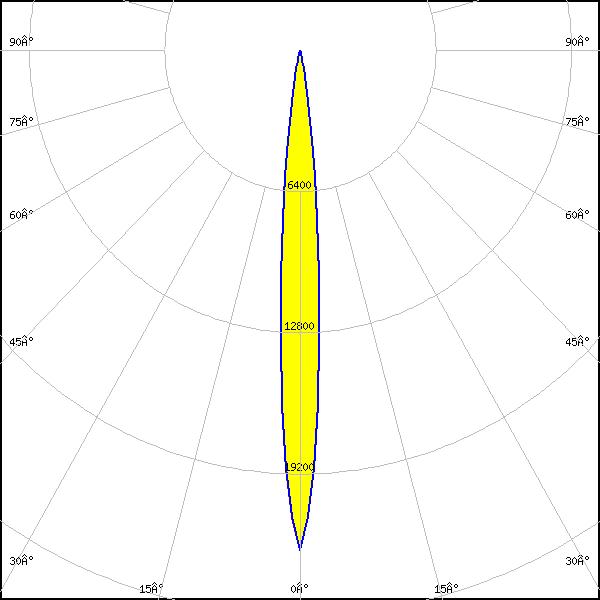

    LED: XP-L HI
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 22.662 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

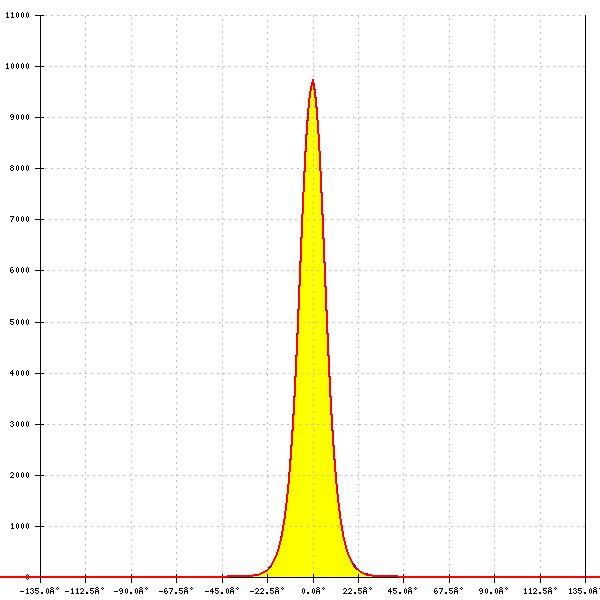

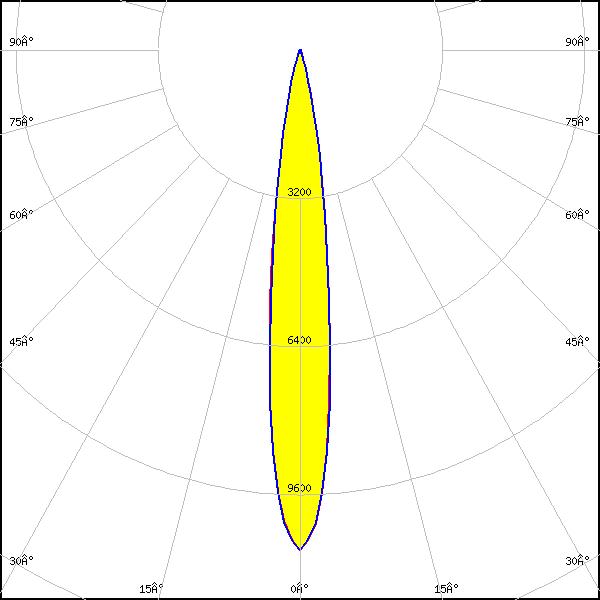

    LED: XP-L2
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 10.799 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

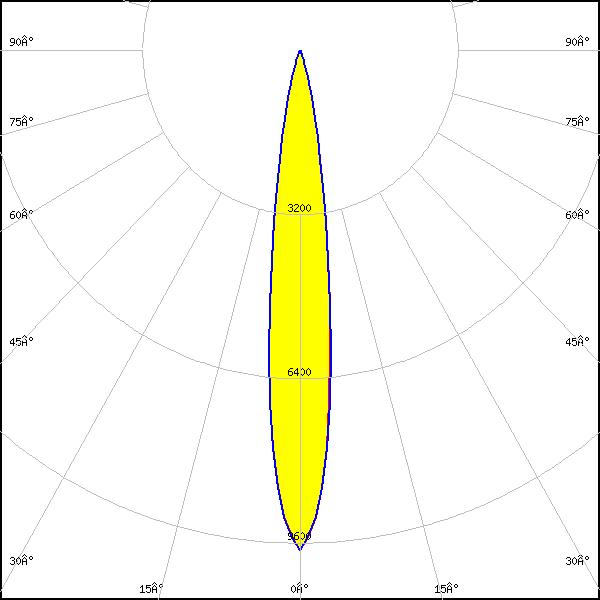

    LED: XP-L2
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 9.742 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

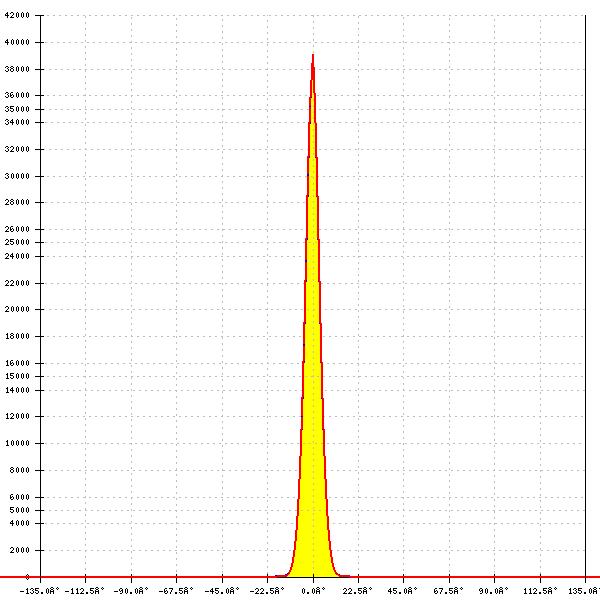

    LED: XP-P
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 39.640 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

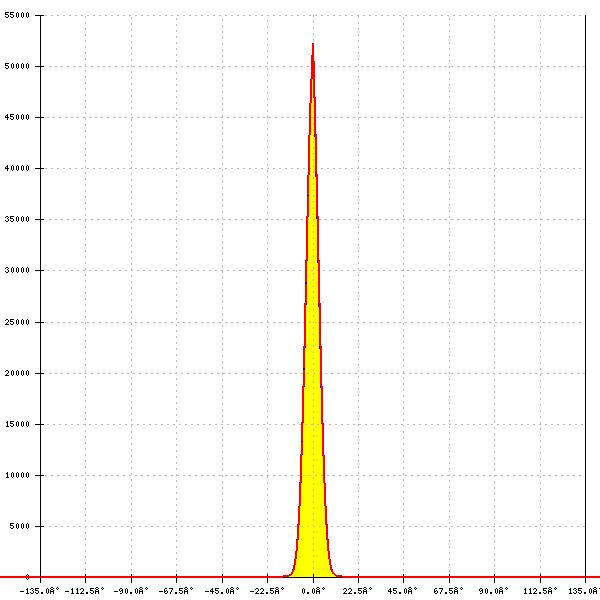

    LED: XP-P
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 52.226 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

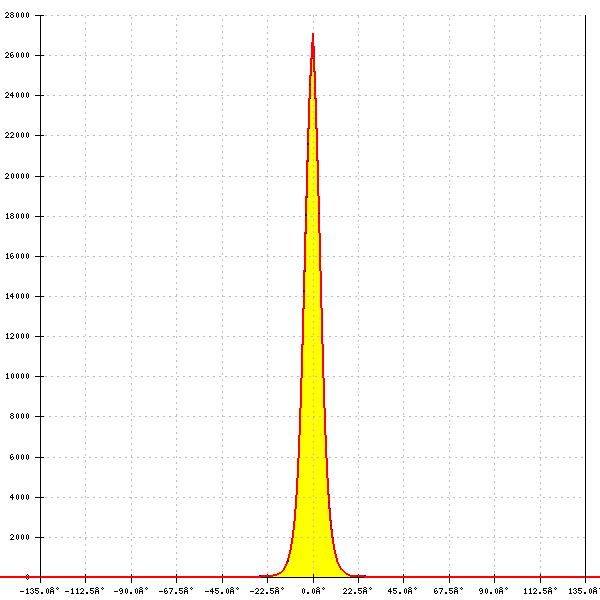

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 27.088 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

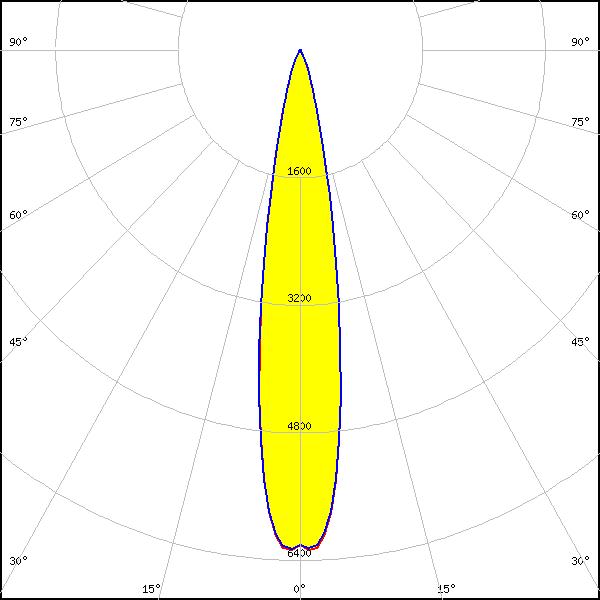

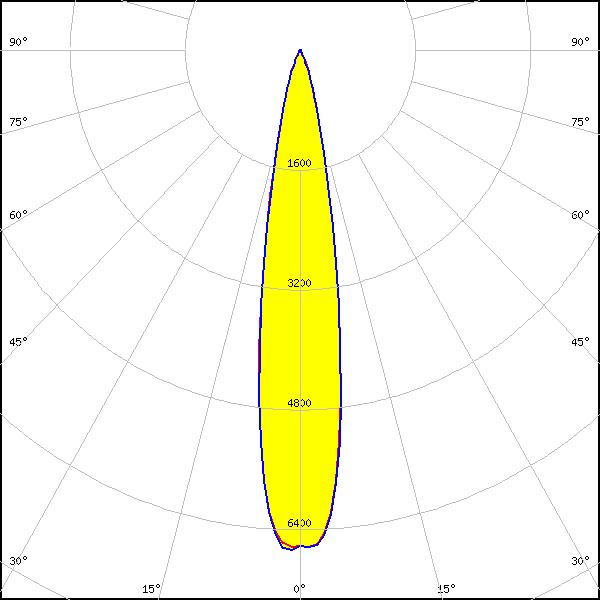

    LED: LUXEON 5050 HE
    FWHM: 16°
    FWTM: 32°
    Peak intensity: 8.258 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 6.630 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

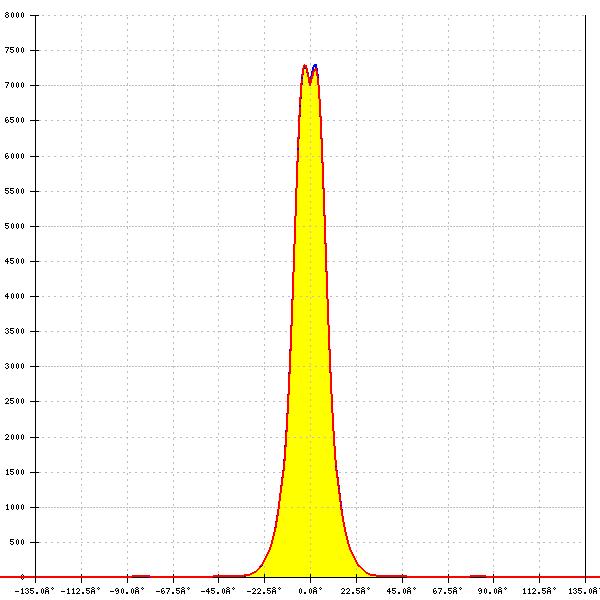

    LED: LUXEON 5050 Round LES
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 7.300 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 6.160 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 5.821 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

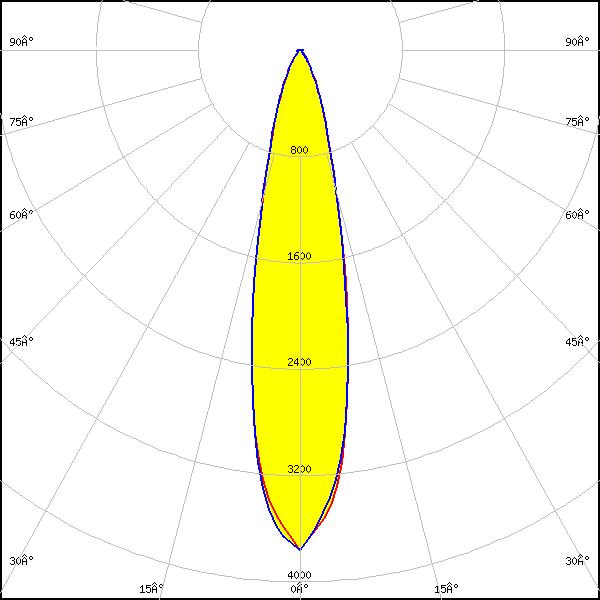

    LED: LUXEON 7070
    FWHM: 22°
    FWTM: 48°
    Peak intensity: 3.763 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

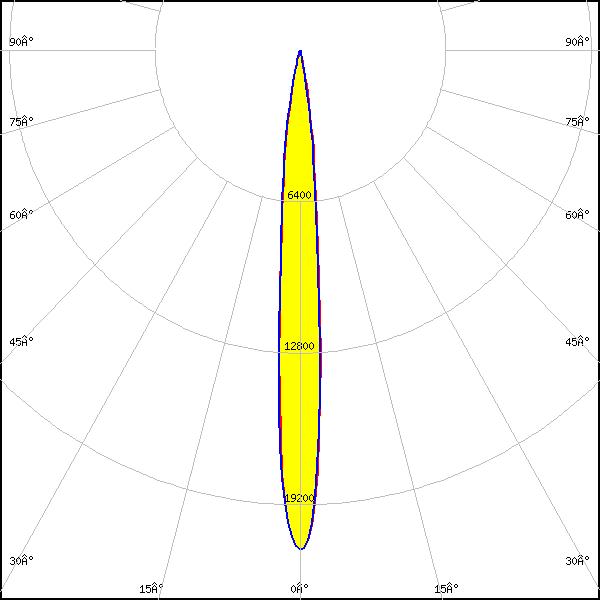

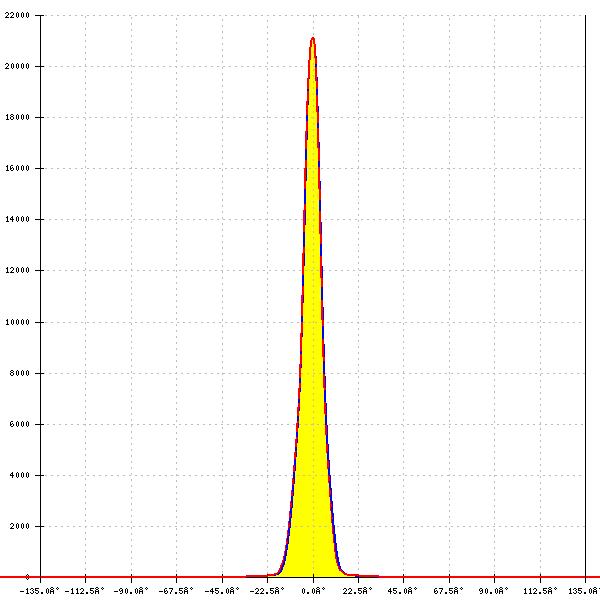

    LED: LUXEON HL2X
    FWHM: 10°
    FWTM: 21°
    Peak intensity: 21.133 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

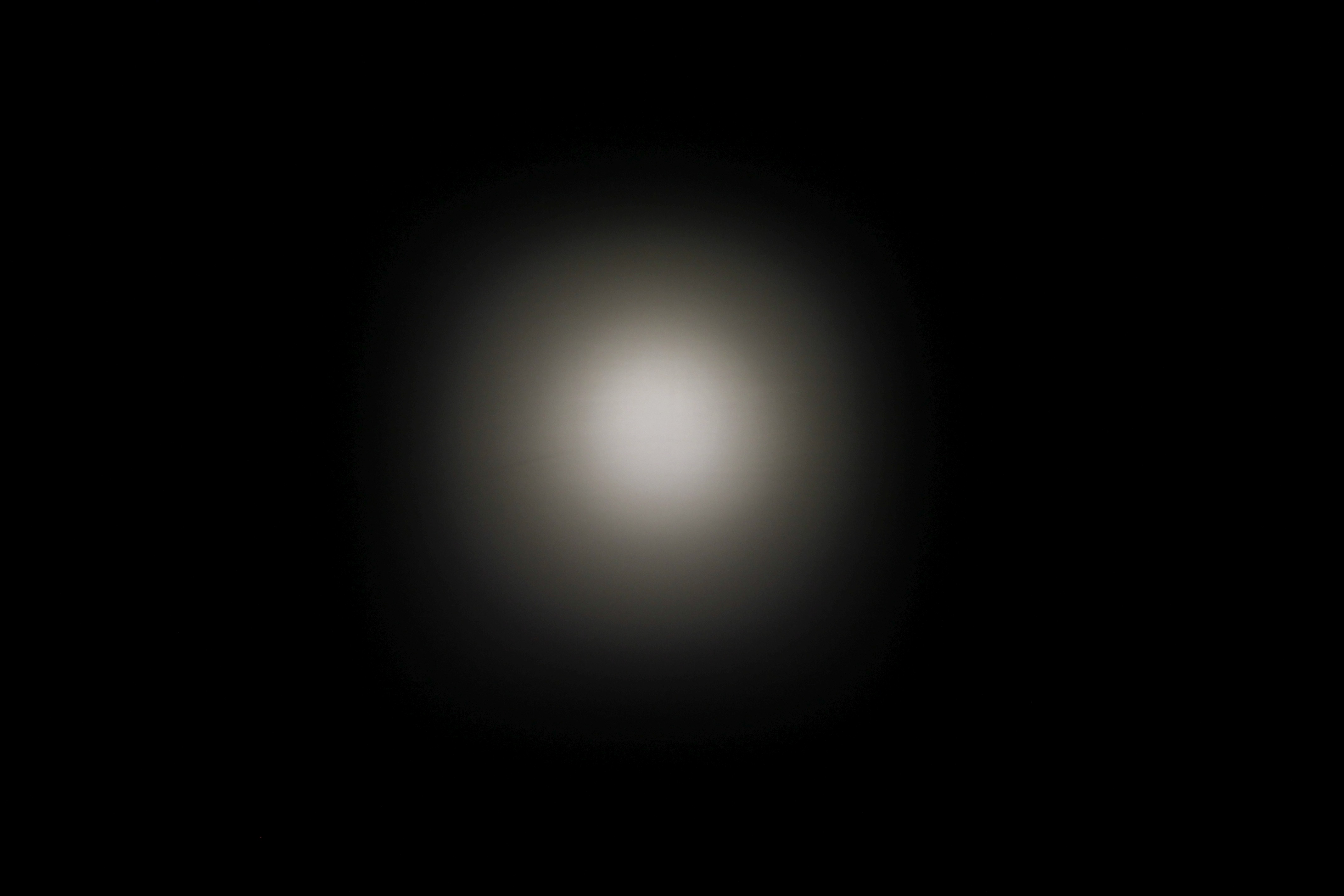

    LED: LUXEON HL2X
    FWHM: 10°
    FWTM: 21°
    Peak intensity: 20.887 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X
    FWHM: 10°
    FWTM: 21°
    Peak intensity: 21.133 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

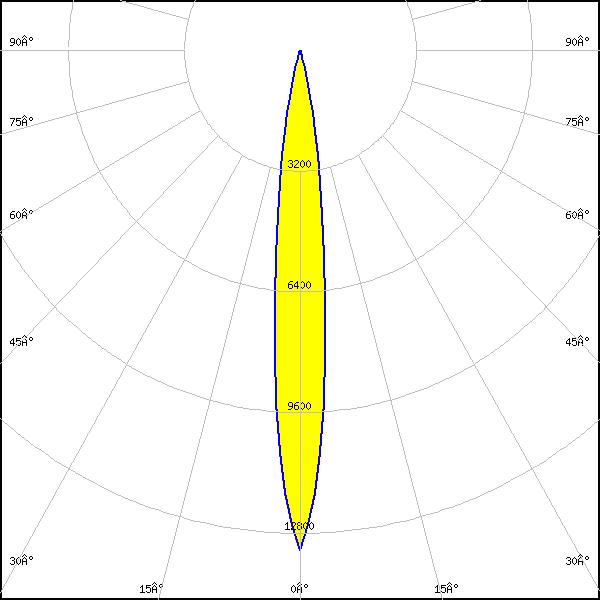

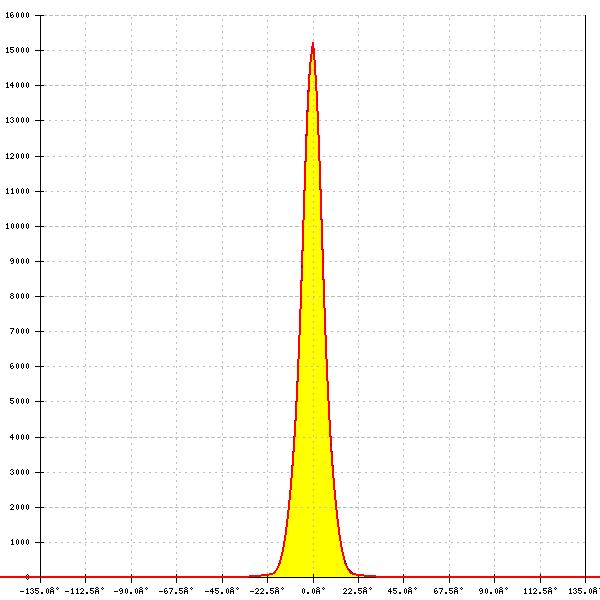

    LED: LUXEON HL2X-D
    FWHM: 12°
    FWTM: 26°
    Peak intensity: 15.234 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X-D
    FWHM: 12°
    FWTM: 26°
    Peak intensity: 13.253 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

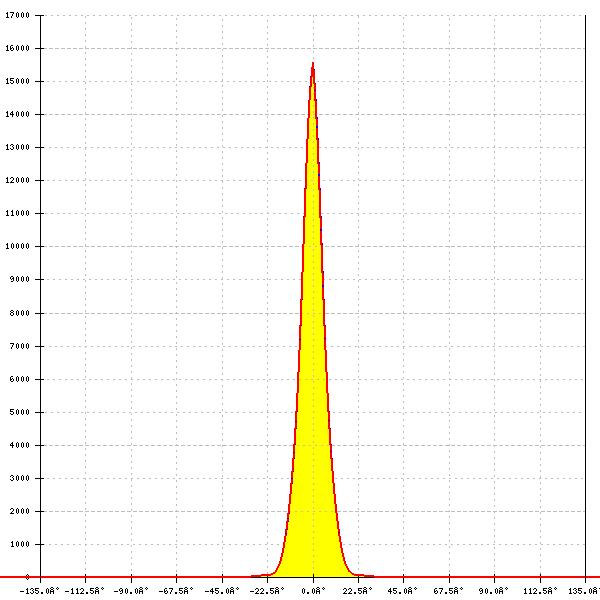

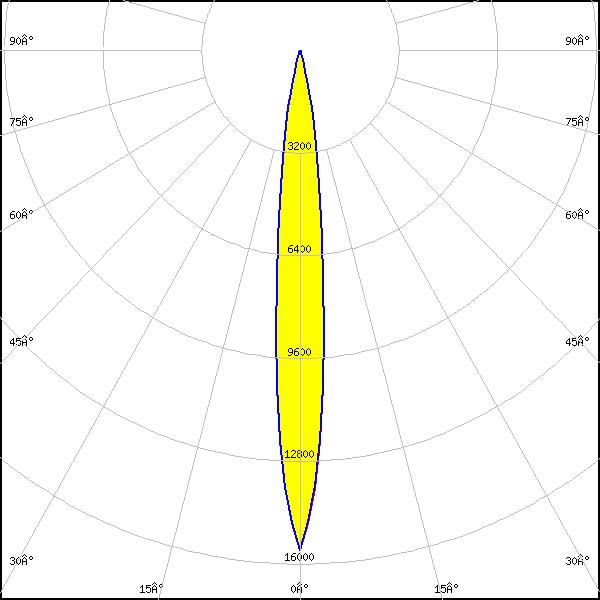

    LED: LUXEON HL2X-P
    FWHM: 12°
    FWTM: 26°
    Peak intensity: 15.573 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

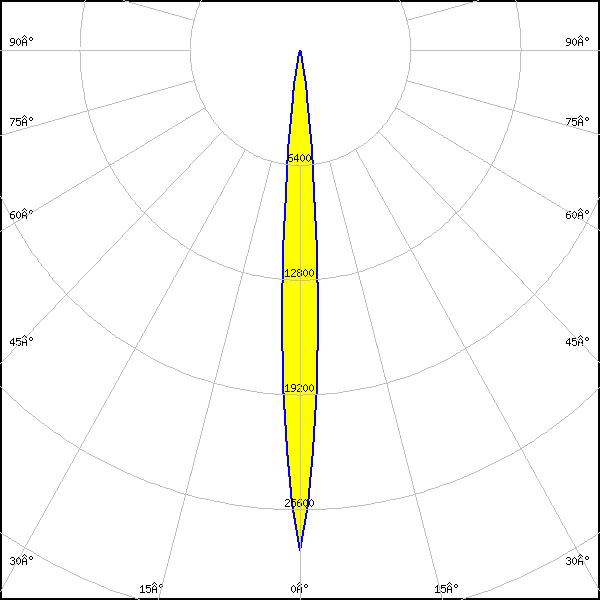

    LED: LUXEON HL2Z
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 27.864 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

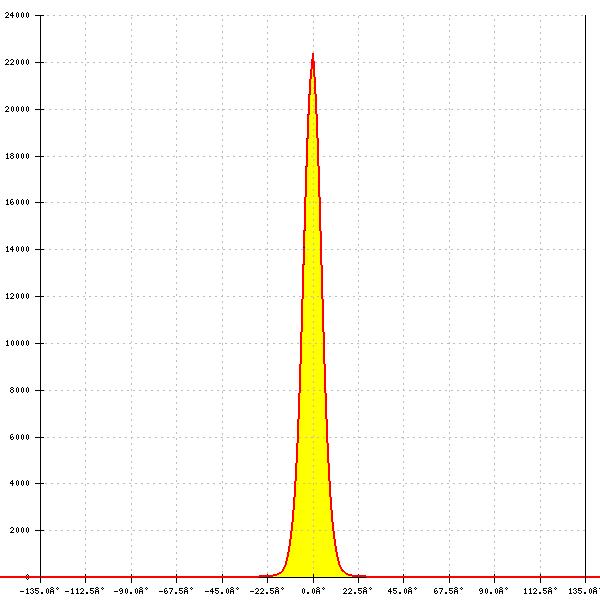

    LED: LUXEON HL4Z
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 22.359 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL4Z
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 19.213 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

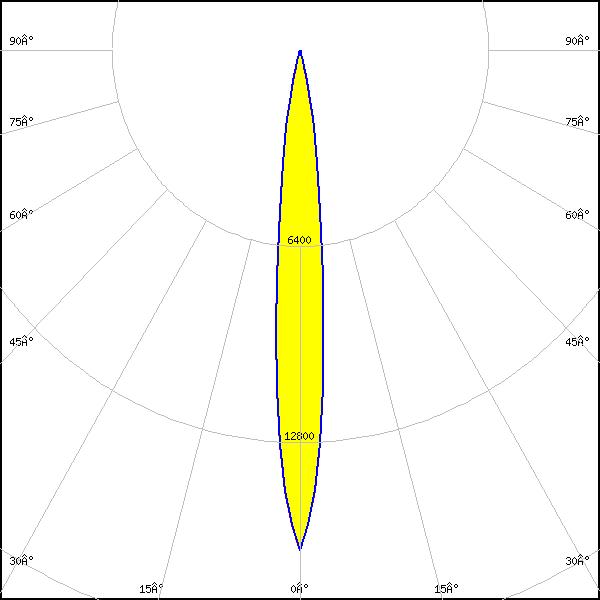

    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 16.318 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

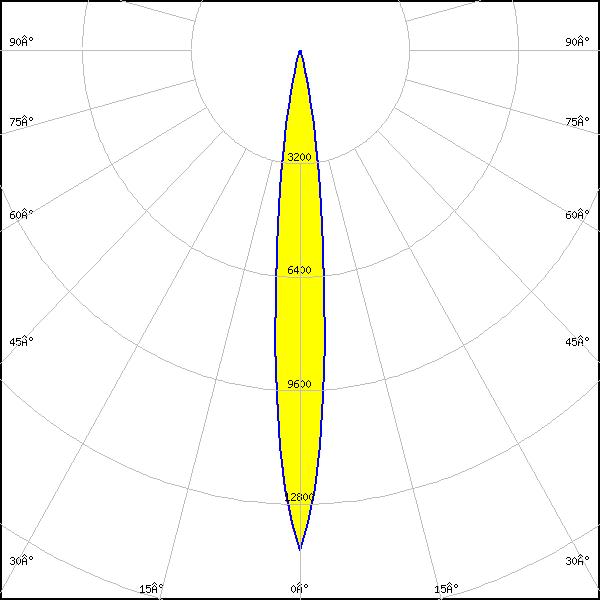

    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 14.098 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

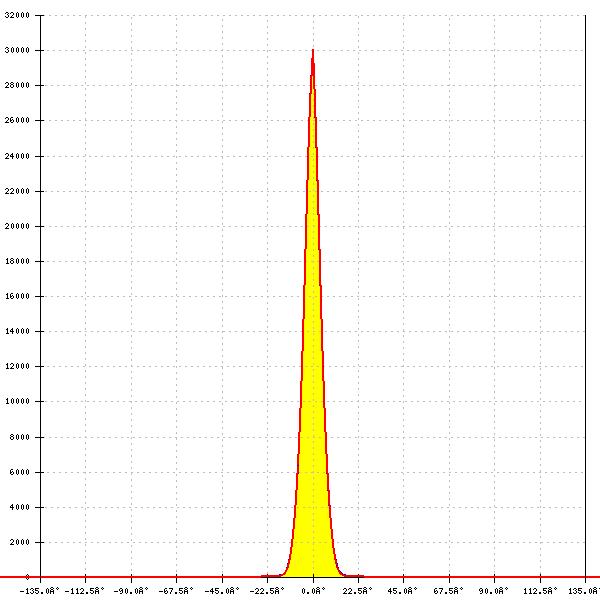

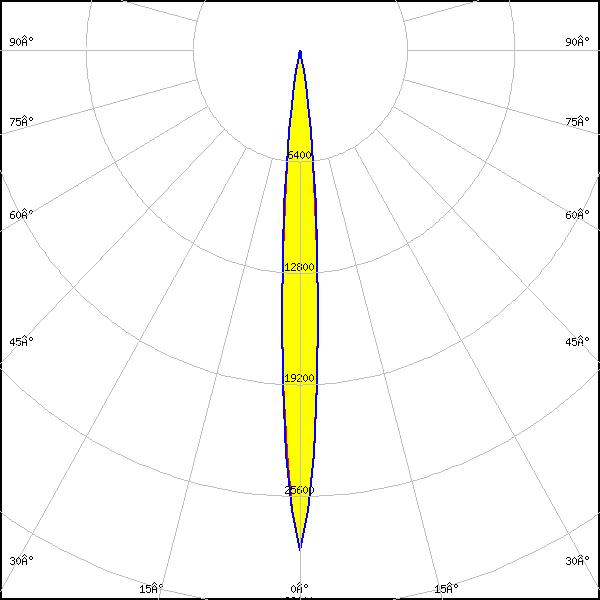

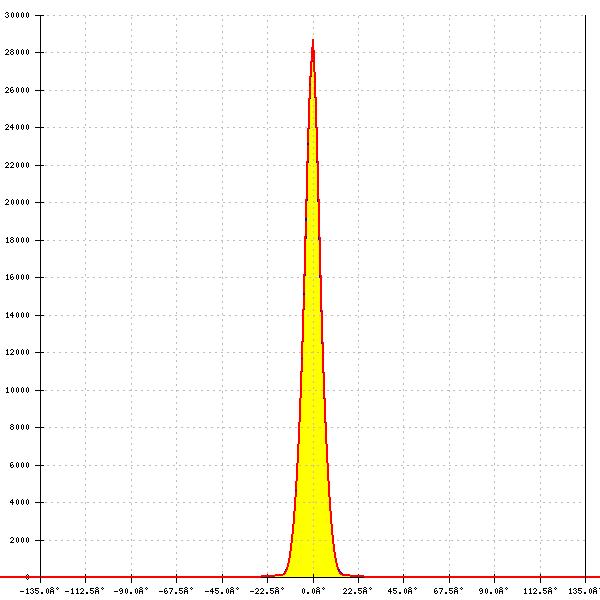

    LED: SFT-40-WCS
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 30.058 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

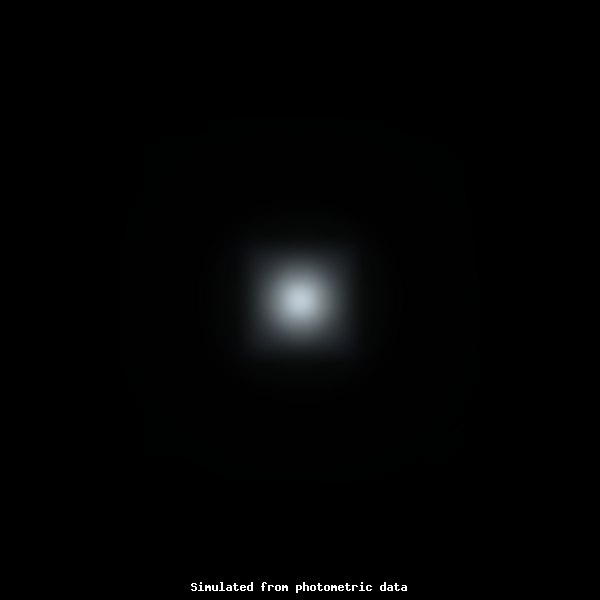

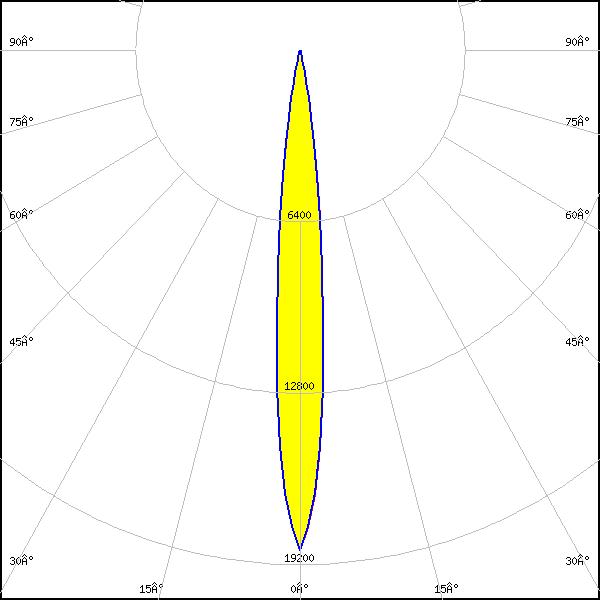

    LED: SFT-70X-WCS
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 18.666 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

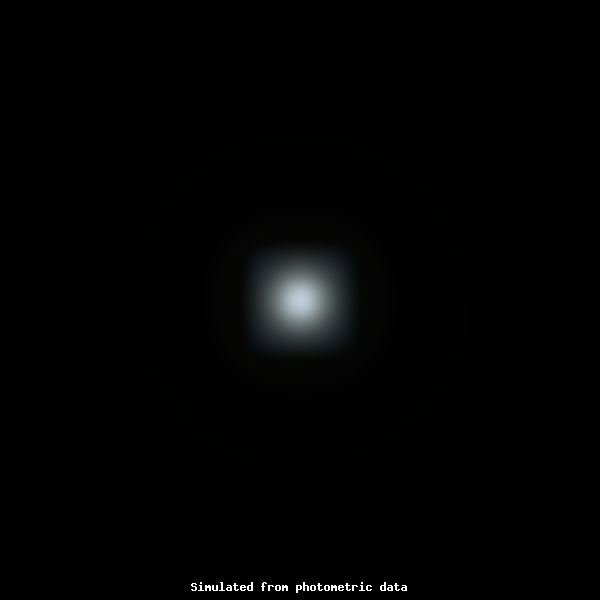

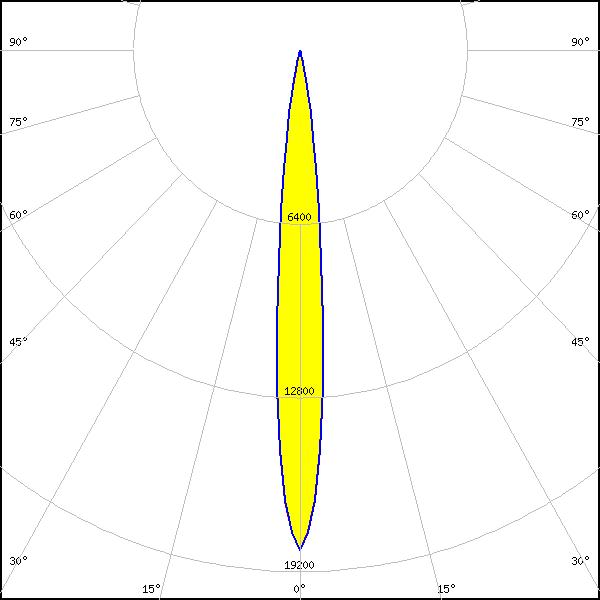

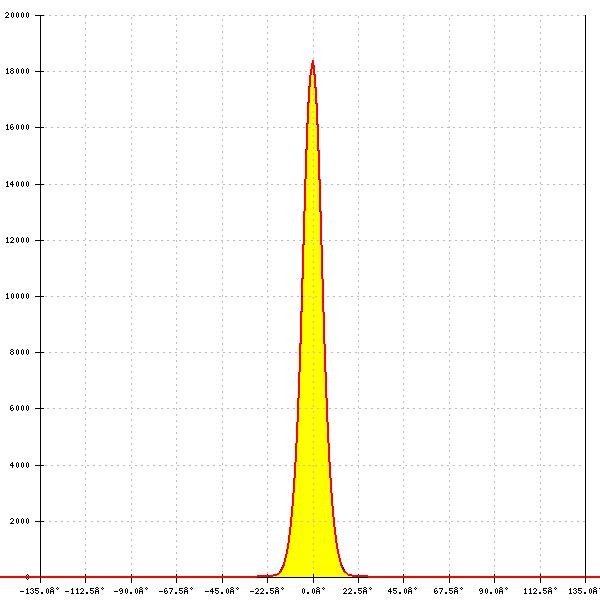

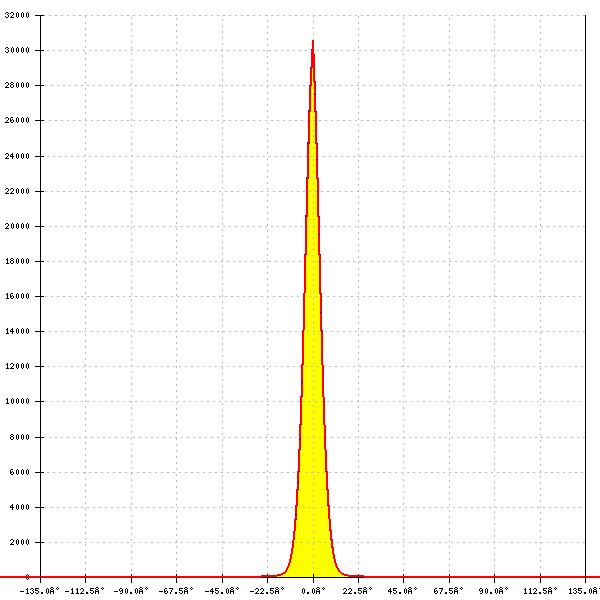

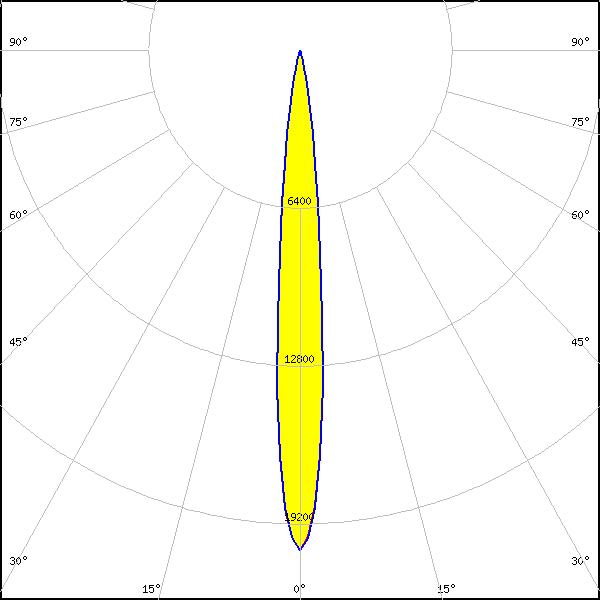

    LED: SST-20
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 30.596 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

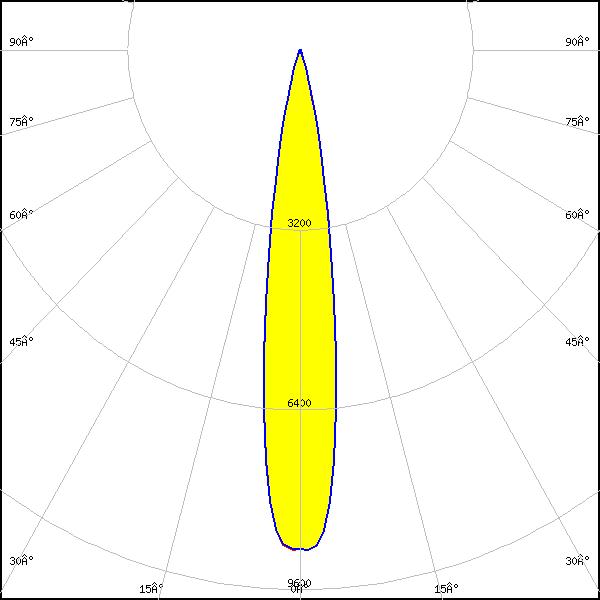

    LED: SST-70X-WCS
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 8.949 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

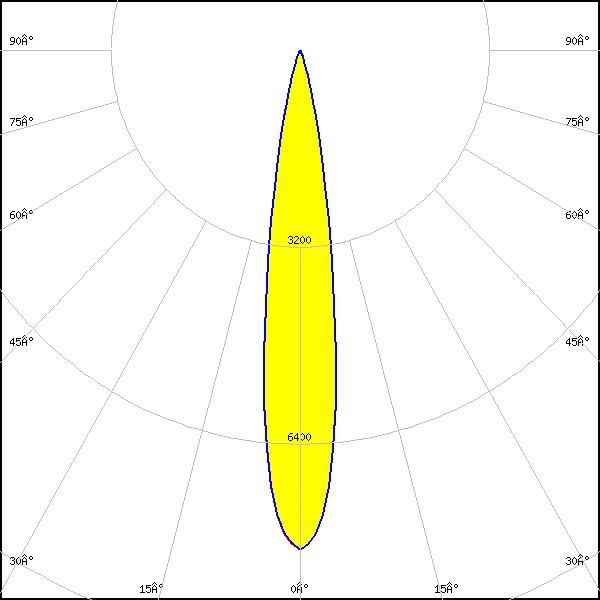

    LED: SST-70X-WCS
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 8.127 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFMW48xA
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 7.261 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

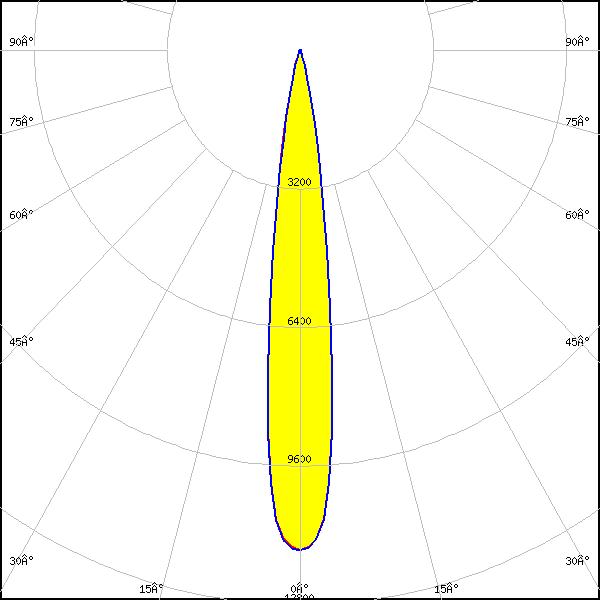

    LED: NV4WB35AM
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 11.585 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 10.594 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219D
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 19.692 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

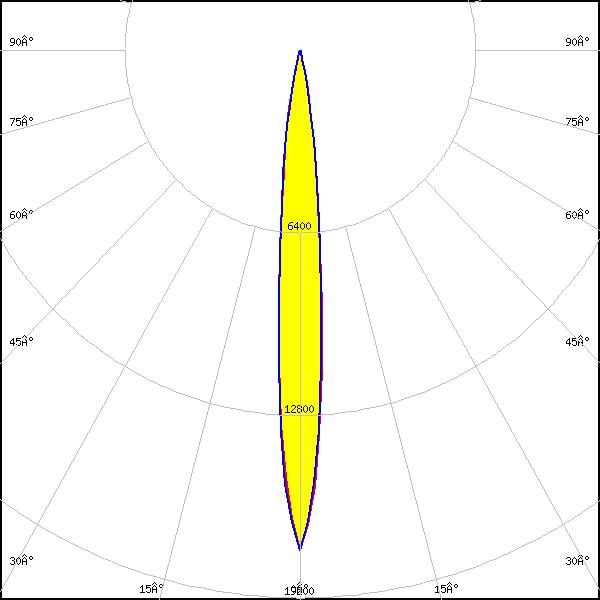

    LED: NVSW219F
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 17.533 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

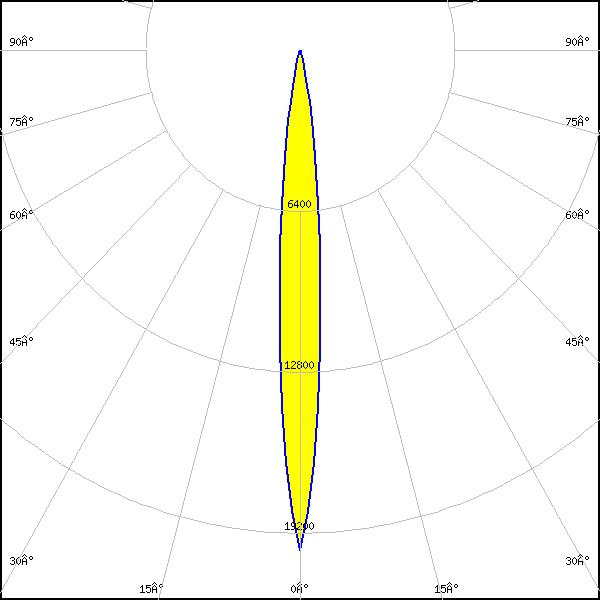

    LED: NVSW219F
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 20.661 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 19.886 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW519A
    FWHM: 12°
    FWTM: 27°
    Peak intensity: 13.194 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 27.658 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

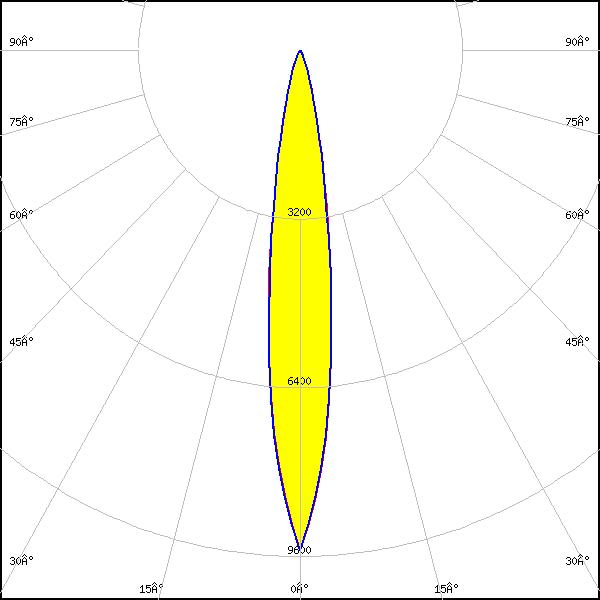

    LED: DURIS E 5050 (GW J9LHS1.4M)
    FWHM: 14°
    FWTM: 32°
    Peak intensity: 9.484 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: RGBW
    LED: Duris S5 (2 chip)
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 27.514 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

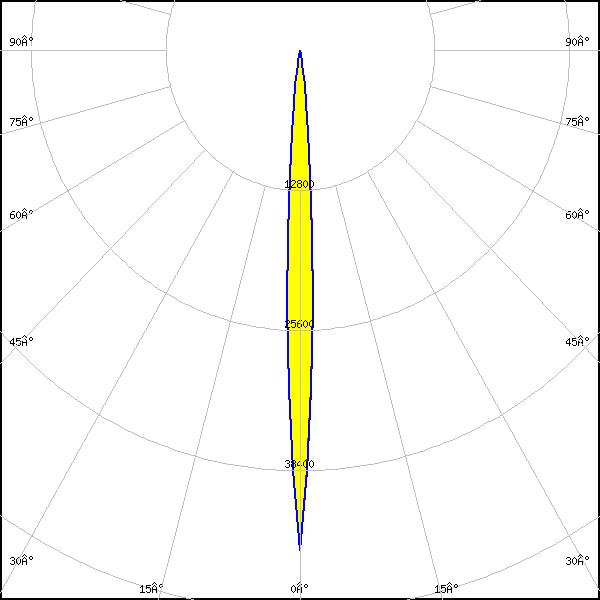

    LED: Duris S5 (Single chip)
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 45.682 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

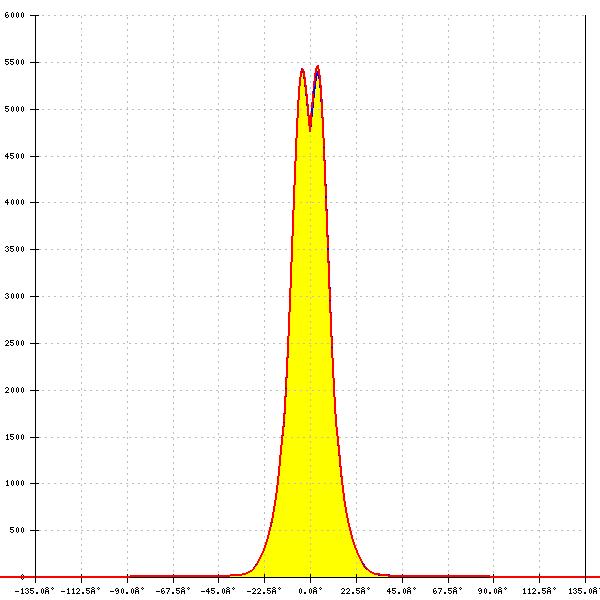

    LED: Duris S8
    FWHM: 20°
    FWTM: 38°
    Peak intensity: 5.520 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

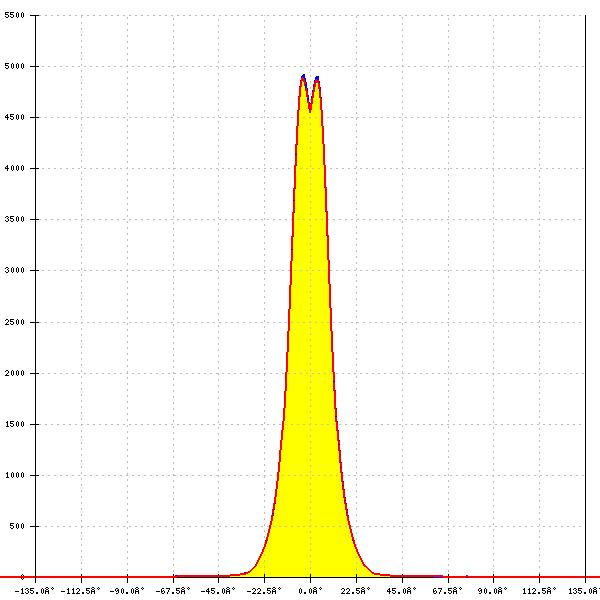

    LED: Duris S8
    FWHM: 22°
    FWTM: 40°
    Peak intensity: 4.942 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 3030
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 20.336 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 3030
    FWHM: 9°
    FWTM: 19°
    Peak intensity: 23.058 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

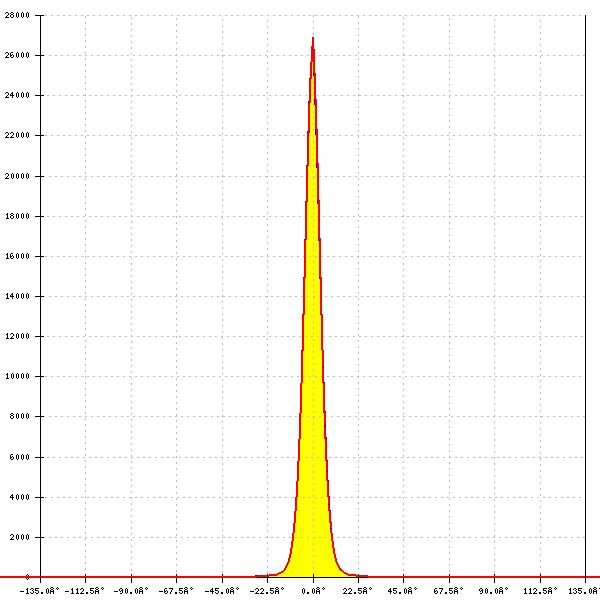

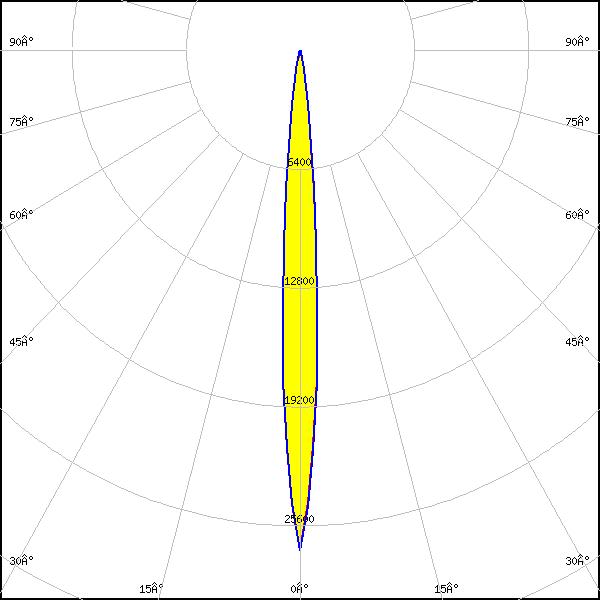

    LED: OSCONIQ P 3737 (2W version)
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 26.919 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

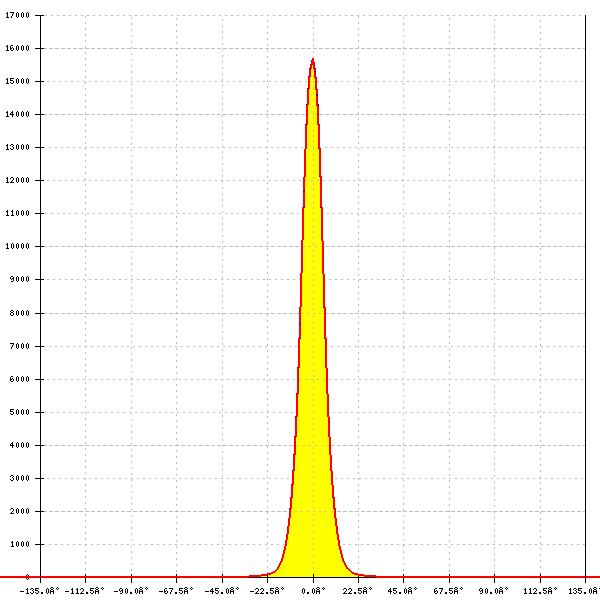

    LED: OSCONIQ P 3737 (3W version)
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 15.708 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 14.177 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

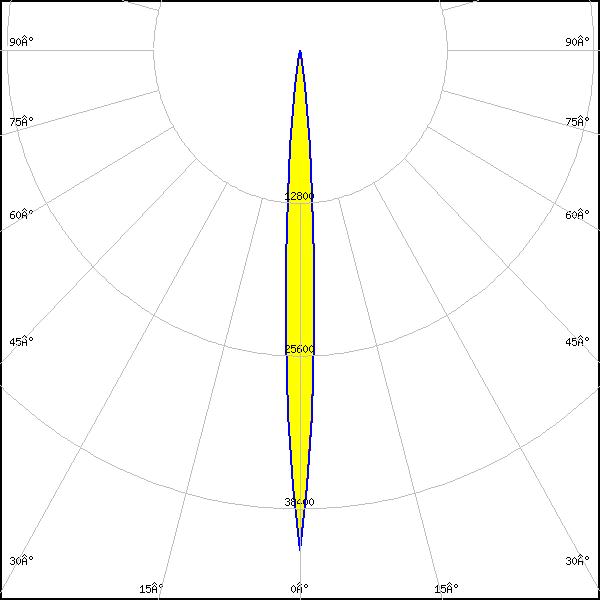

    LED: OSLON Optimal (GF CSSRML.24)
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 41.873 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Far Red

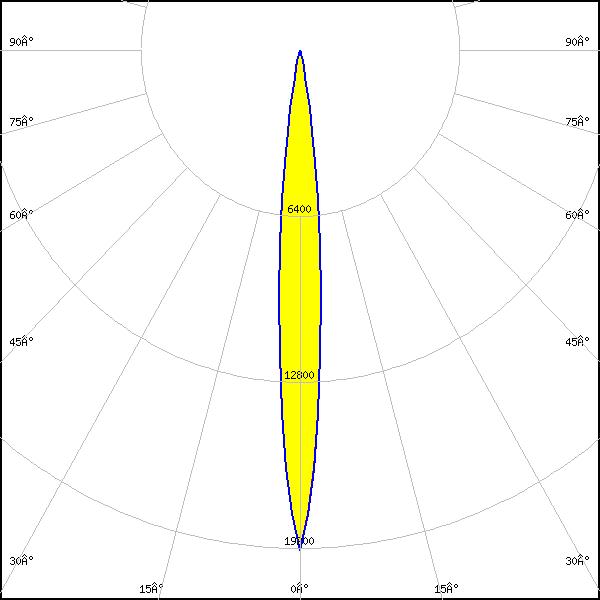

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 19.281 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 9°
    FWTM: 18°
    Peak intensity: 27.482 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 22.270 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

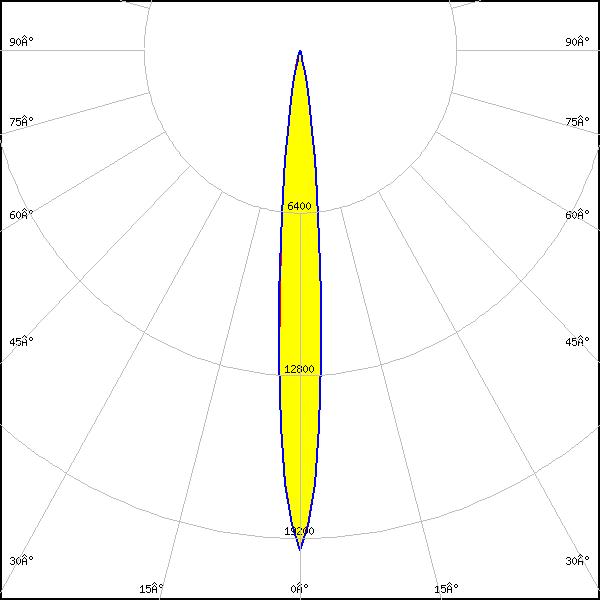

    LED: LH351B
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 19.673 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

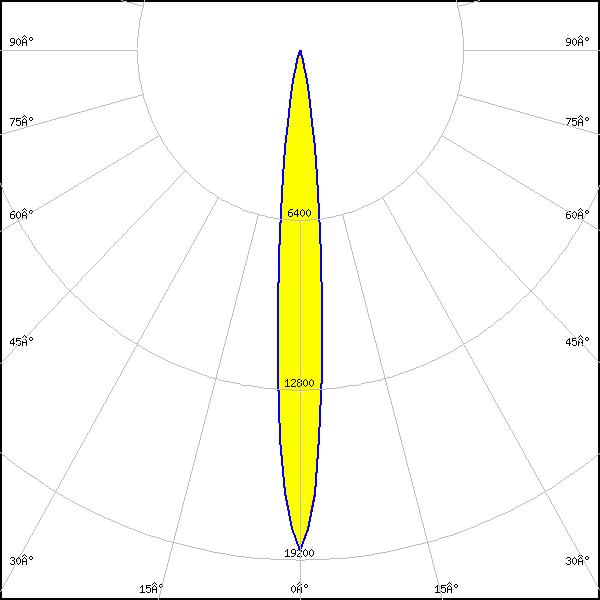

    LED: LH351C
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 18.841 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

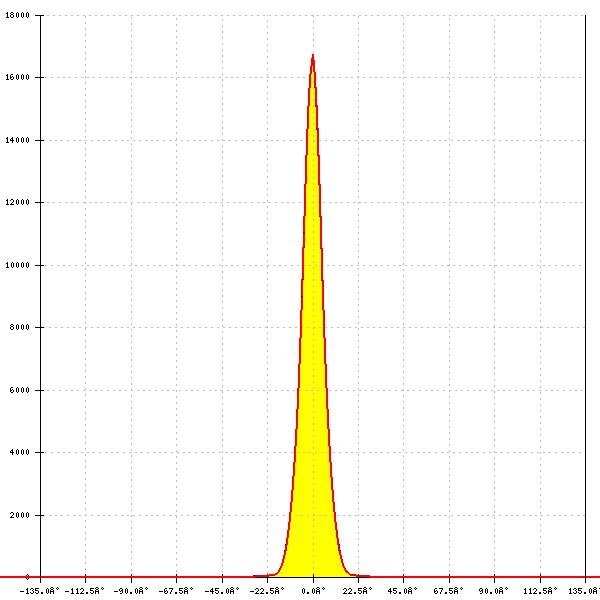

    LED: LH351C
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 16.741 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351D
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 11.780 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

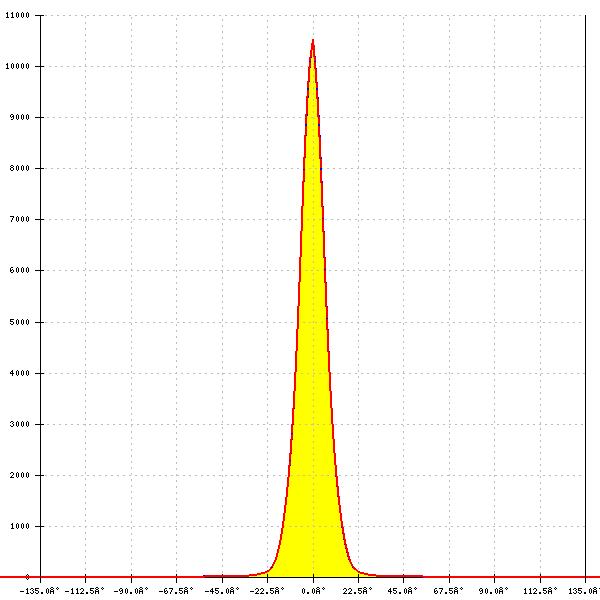

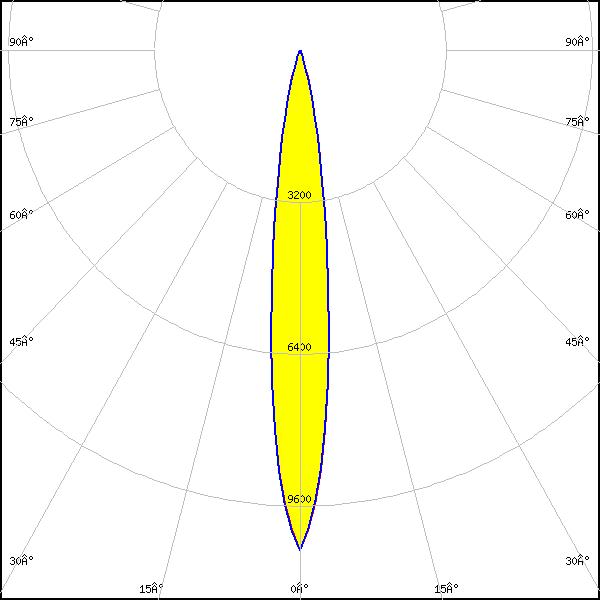

    LED: LH351D
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 10.532 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

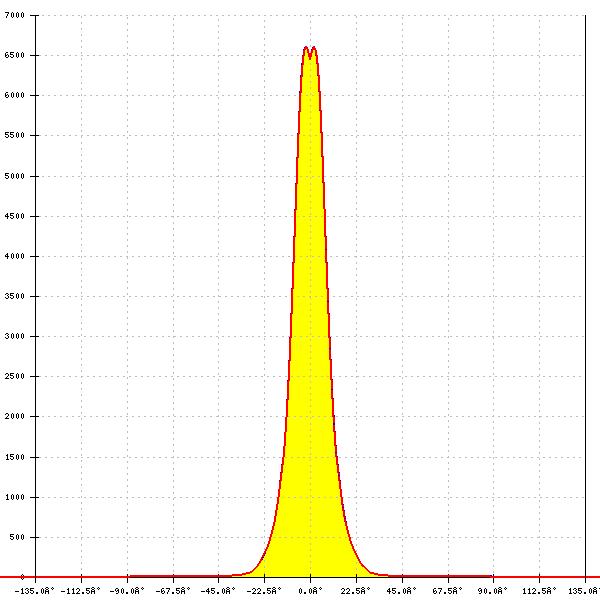

    LED: LH502C
    FWHM: 18°
    FWTM: 36°
    Peak intensity: 6.642 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

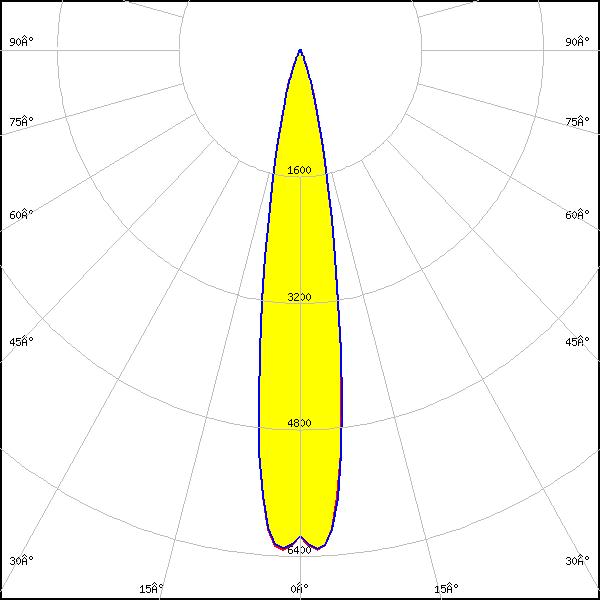

    LED: LH502C
    FWHM: 18°
    FWTM: 35°
    Peak intensity: 6.359 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

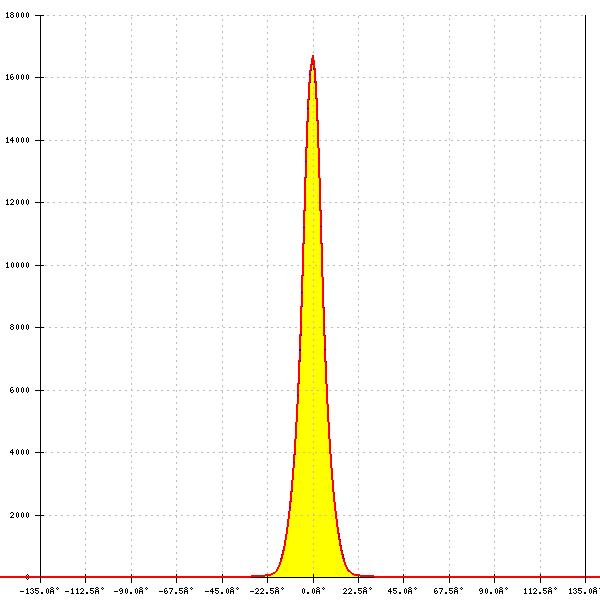

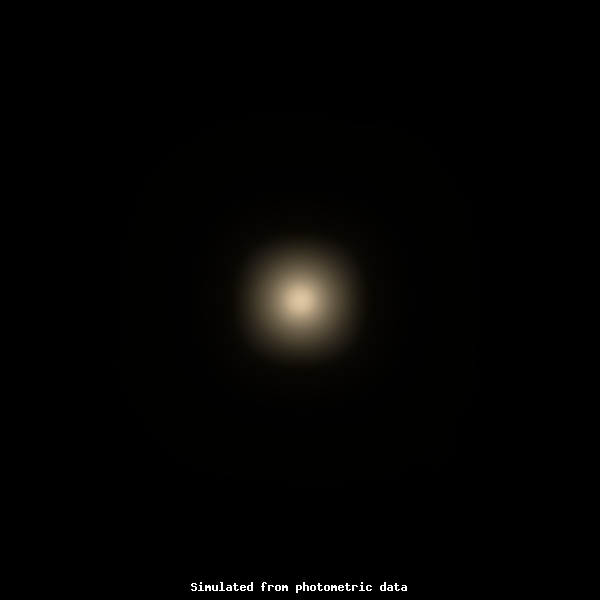

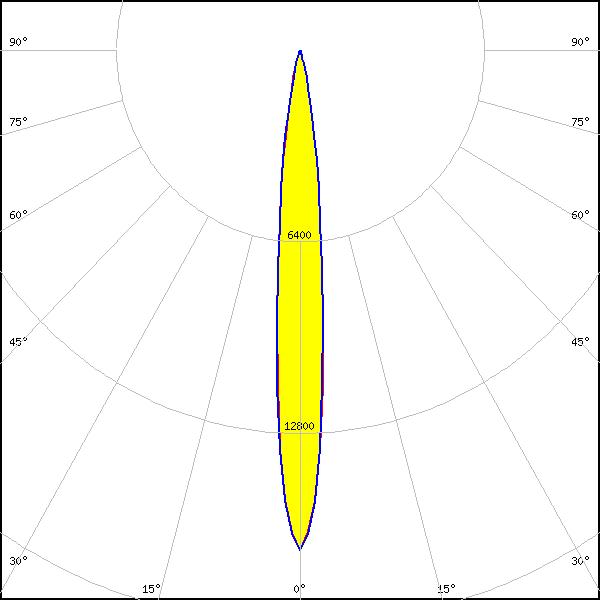

    LED: Z5M4
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 18.007 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

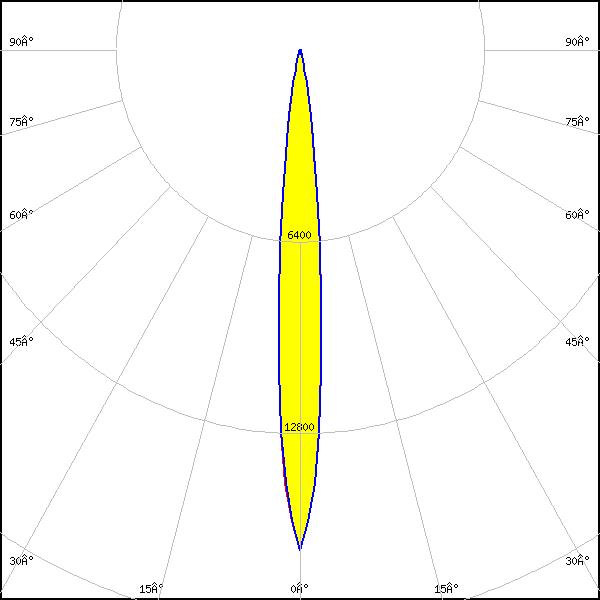

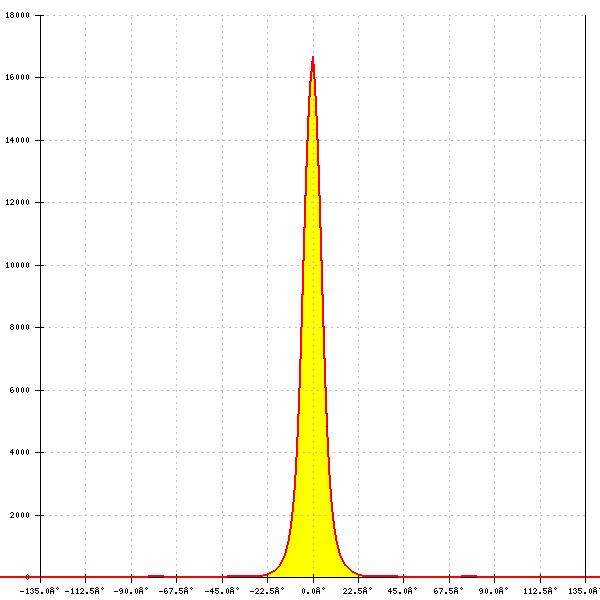

    LED: Z8Y22
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 16.692 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PassivePAQ-R-274x51-NI0-21K-857-5
    FWHM: 15°
    FWTM: 27°
    Peak intensity: 10.566 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
