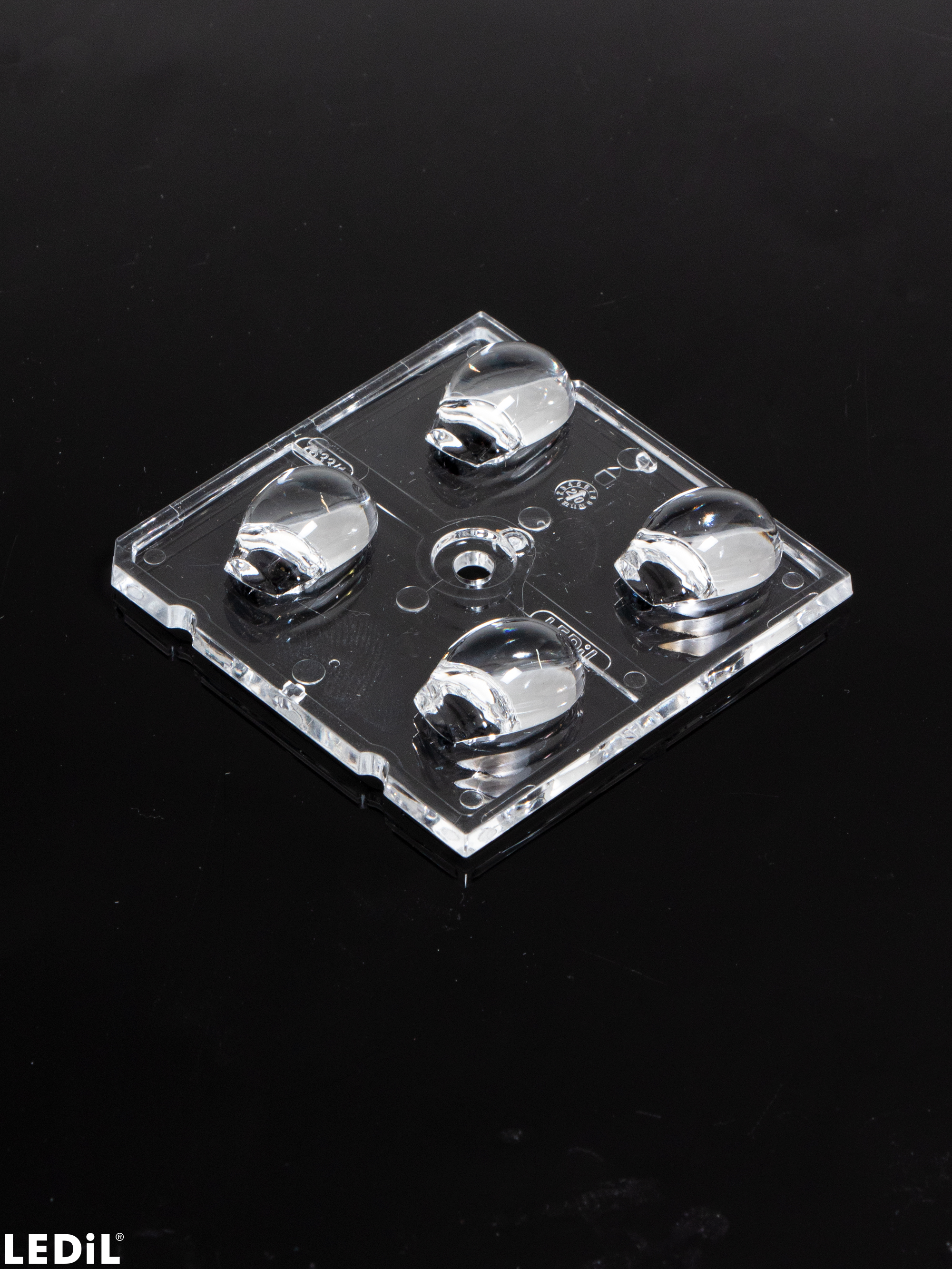

C17633_STRADA-2X2-DB

Asymmetric beam for floodlighting the area between the railway tracks according to DB requirements.

Specification

Dimensions:

50 x 50 mm
Height:

8.10 mm
Fastening:

screw
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

800 pcs
Box size:

480 x 280 x 300 mm
Box weight:

7.8 kg
MPQ:

160 pcs
MOQ:

160 pcs
MOQ size:

480 x 280 x 80 mm
MOQ weight:

1.8 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: C17633_STRADA-2X2-DB

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

C17633_STRADA-2X2-DB

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

News

NEW PRODUCTS – OCTOBER 22, 2020

Application example

Railway track area lighting with STRADA-2X2-DB

Catalogue

LEDiL Latest products catalogue

Application guide

Guide for Street lighting optics

Application area

Urban lighting with LEDiL optics

Application example

Urban lighting with LEDiL optics

Reference product

Bollard lamp for urban environments

Case story

Naberezhne Highway in Kiev

Application area

Industrial Lighting

Installation guide

STRADA-2X2 Installation guide

Application guide

Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

AVAILABLE LEDiL ACCESSORIES

STRADA-2X2-SHD-WHT

White shade for additional backlight control.

STRADA-2X2-SHD-BLK

Black shade for additional backlight control.

Optical results

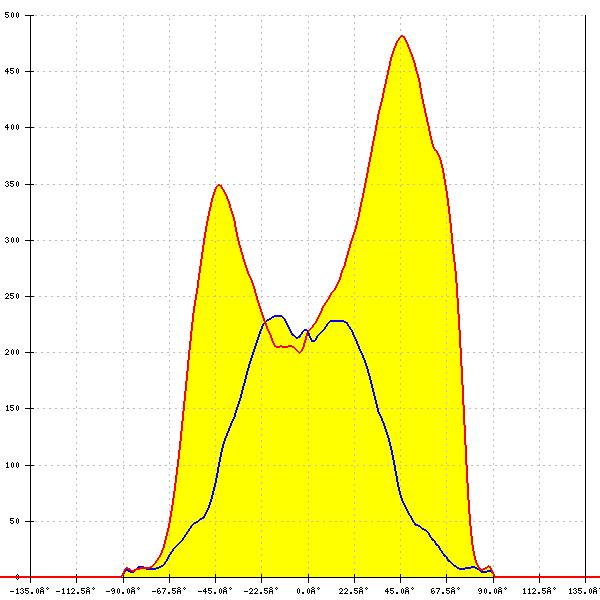

LED: XP-G3

FWHM: asymmetric

Peak intensity: 0.481 cd/lm

Efficiency: 80 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON 5050 Round LES

FWHM: asymmetric

Peak intensity: 0.526 cd/lm

Efficiency: 79 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON 5050 Square LES

FWHM: asymmetric

Peak intensity: 0.503 cd/lm

Efficiency: 79 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

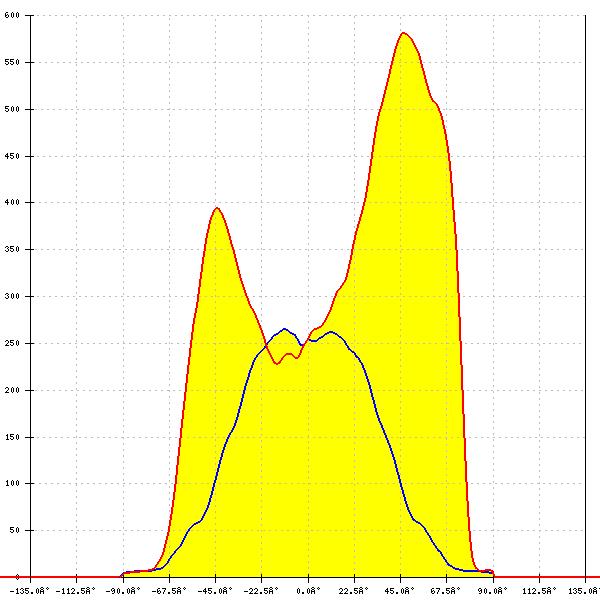

LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)

FWHM: asymmetric

Peak intensity: 0.581 cd/lm

Efficiency: 95 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

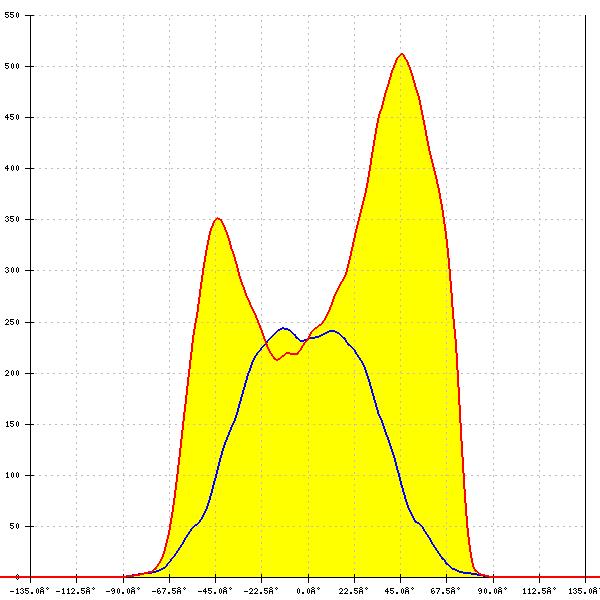

LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)

FWHM: asymmetric

Peak intensity: 0.511 cd/lm

Efficiency: 83 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NVSW519A

FWHM: asymmetric

Peak intensity: 0.529 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NVSW519A

FWHM: asymmetric

Peak intensity: 0.501 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSCONIQ P 3030

FWHM: asymmetric

Peak intensity: 0.703 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSCONIQ P 3030

FWHM: asymmetric

Peak intensity: 0.630 cd/lm

Efficiency: 83 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSLON Square CSSRM2/CSSRM3

FWHM: asymmetric

Peak intensity: 0.527 cd/lm

Efficiency: 81 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSLON Square CSSRM2/CSSRM3

FWHM: asymmetric

Peak intensity: 0.578 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LH351C

FWHM: asymmetric

Peak intensity: 0.560 cd/lm

Efficiency: 84 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LM301B

FWHM: asymmetric

Peak intensity: 0.568 cd/lm

Efficiency: 82 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: MJT 5050

FWHM: asymmetric

Peak intensity: 0.528 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

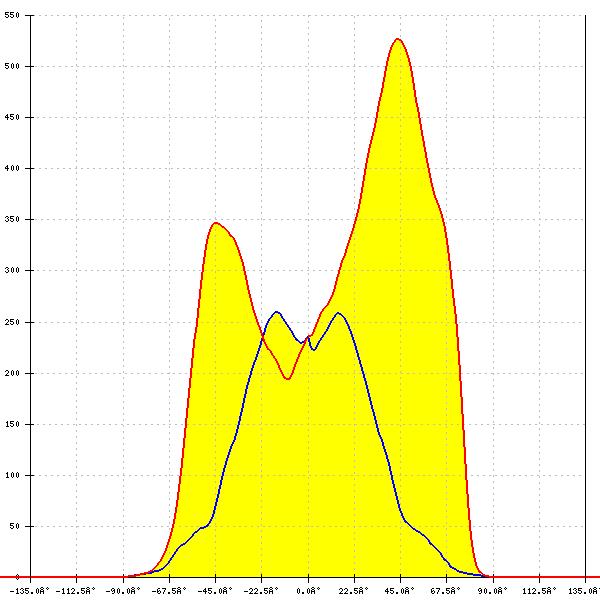

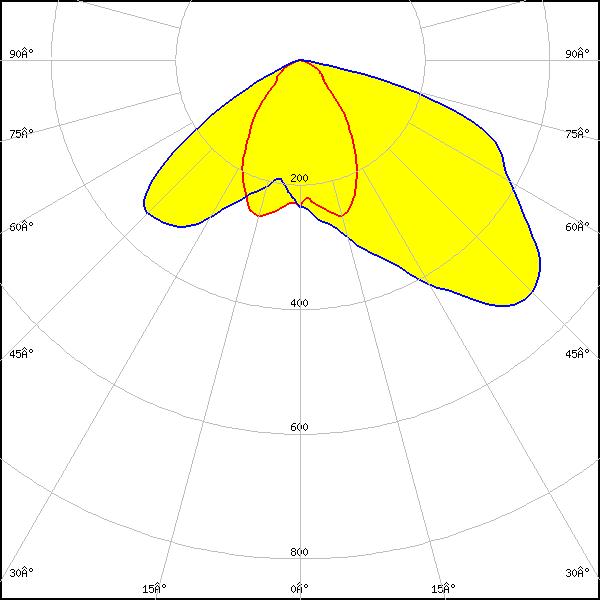

LED: RLE 2x4 2000lm HP EXC2 OTD

FWHM: asymmetric

Peak intensity: 0.527 cd/lm

Efficiency: 81 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
