C17543_LENINA-M-HMDS

Print

~30° medium beam

Specification
  • Dimensions:
    74 mm
  • Height:
    40.00 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    60 pcs
  • Box size:
    476 x 273 x 197 mm
  • Box weight:
    2.1 kg
  • MPQ:
    60 pcs
  • MOQ:
    120 pcs
  • MOQ size:
    480 x 280 x 200 mm
  • MOQ weight:
    2.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17543_LENINA-M-HMDS

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

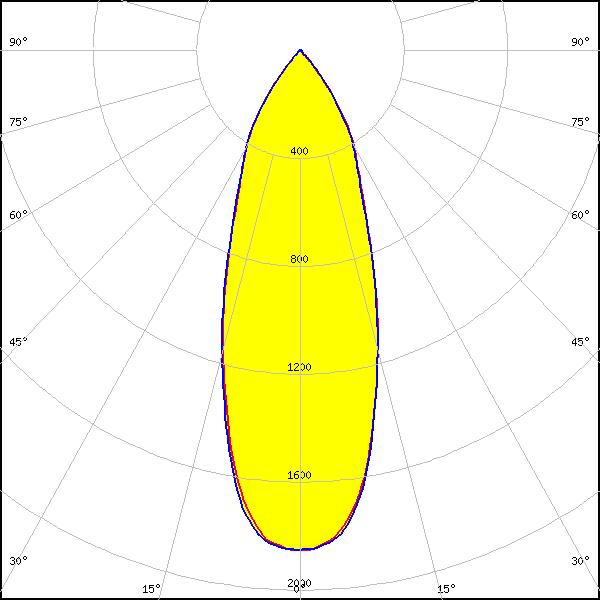

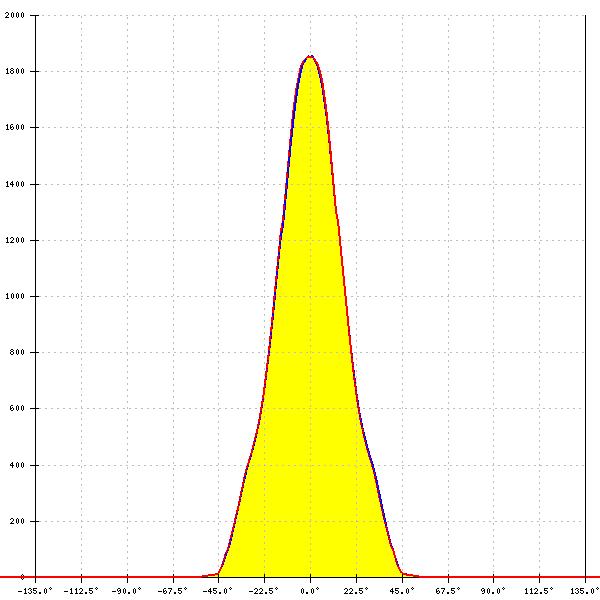

Optical results

LED: VERO18
LES size: 18.6 mm
Required components:
FWHM: 37°
FWTM: 75°
Peak intensity: 1.853 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
