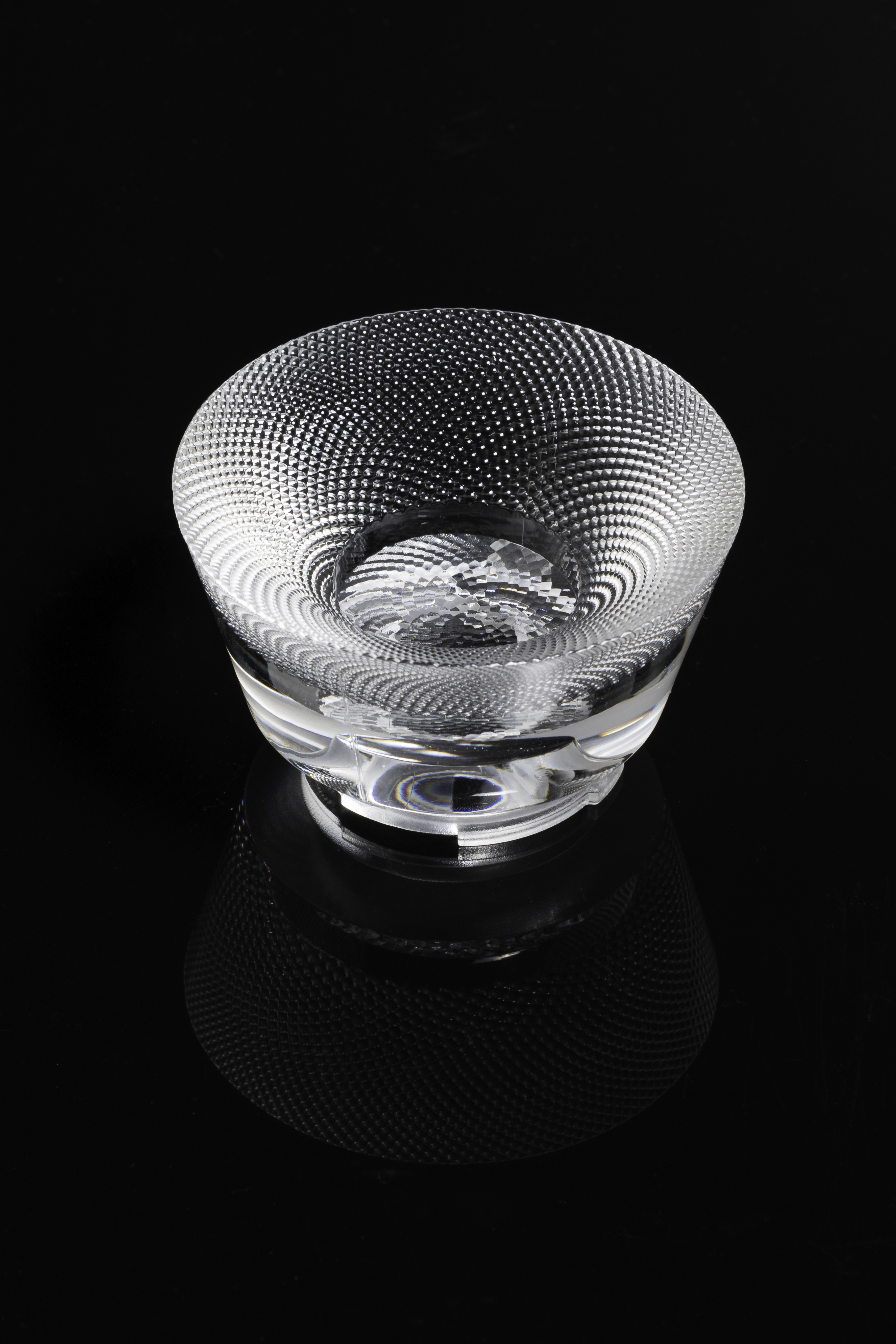

C17434_ILONA-WW
Print
~55° wide beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

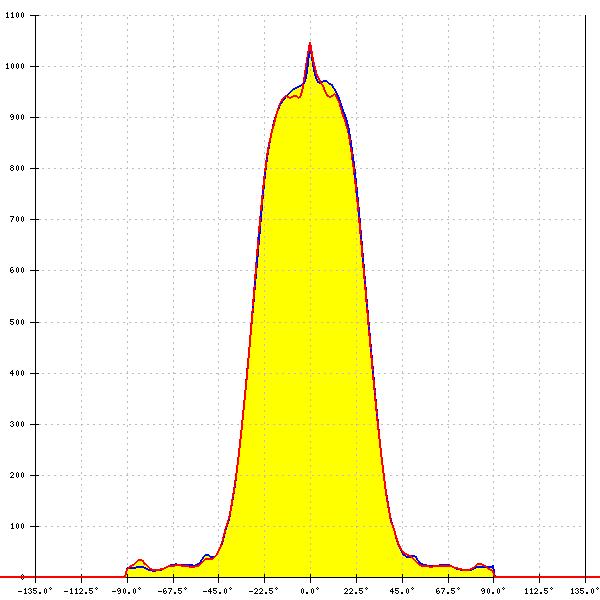

Optical results
LED:

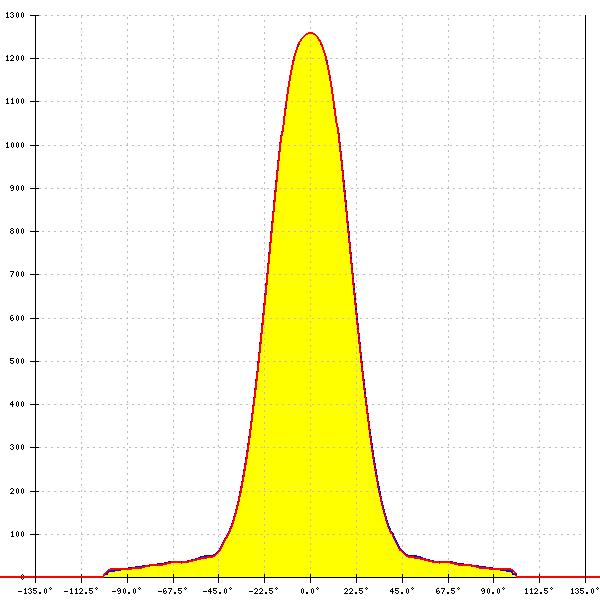

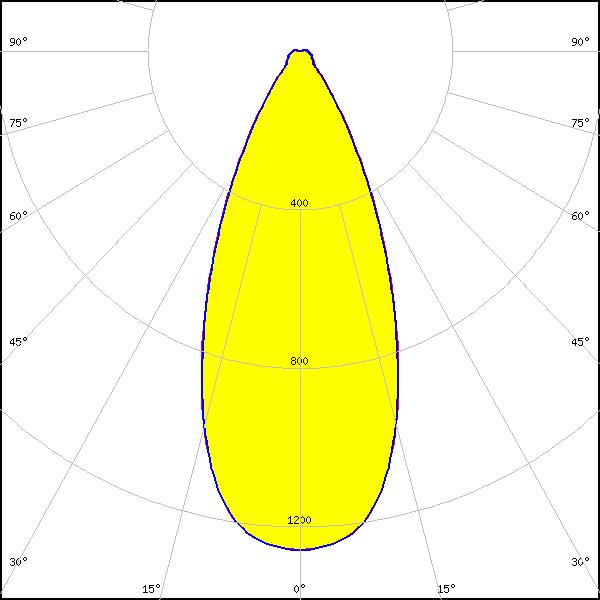

V11 HD Gen 8
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
45°
FWTM:
77°
Peak intensity:
1.262 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

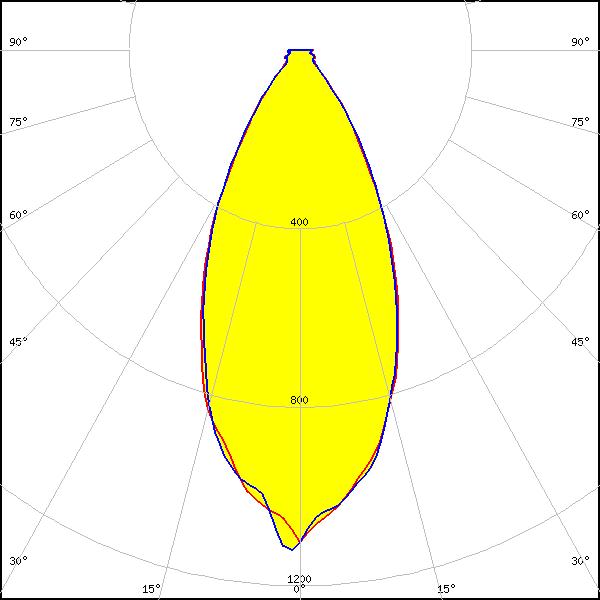

V13 Gen 8-9
LES size: 14.8 mm
Required components:
FWHM:
47°
FWTM:
83°
Peak intensity:
1.138 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

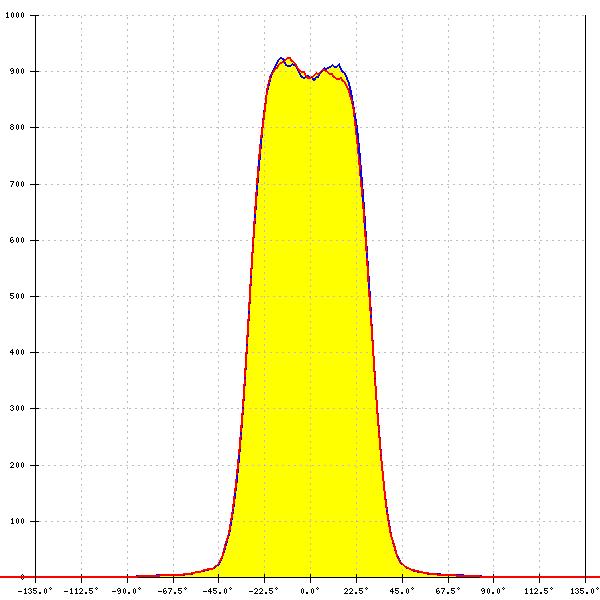

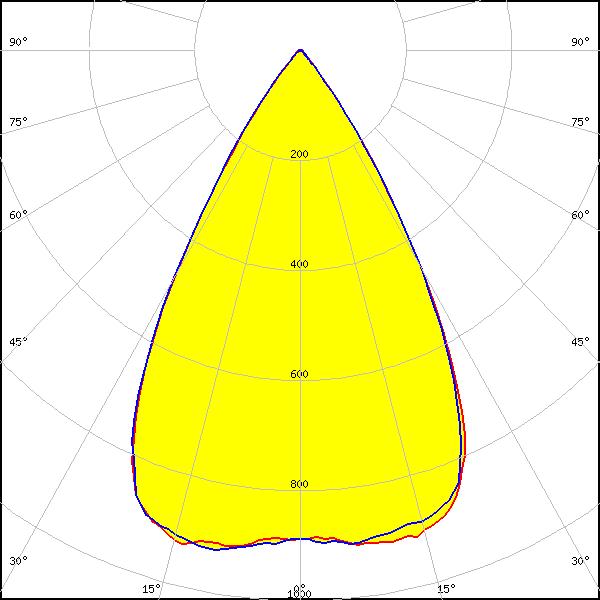

V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM:
58°
FWTM:
78°
Peak intensity:
0.923 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

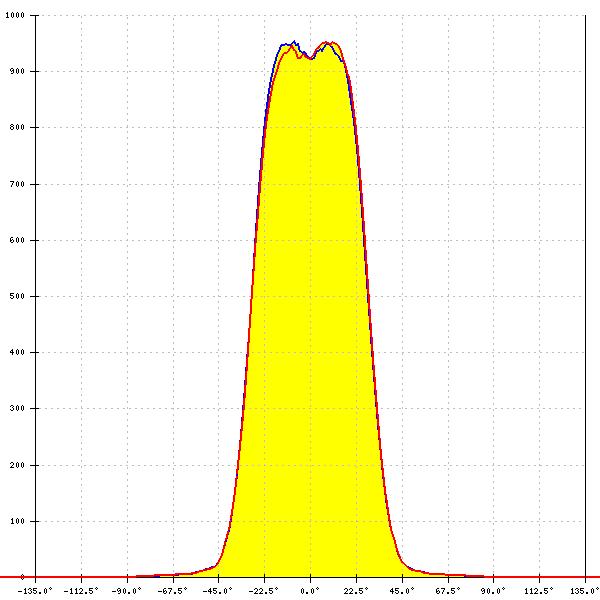

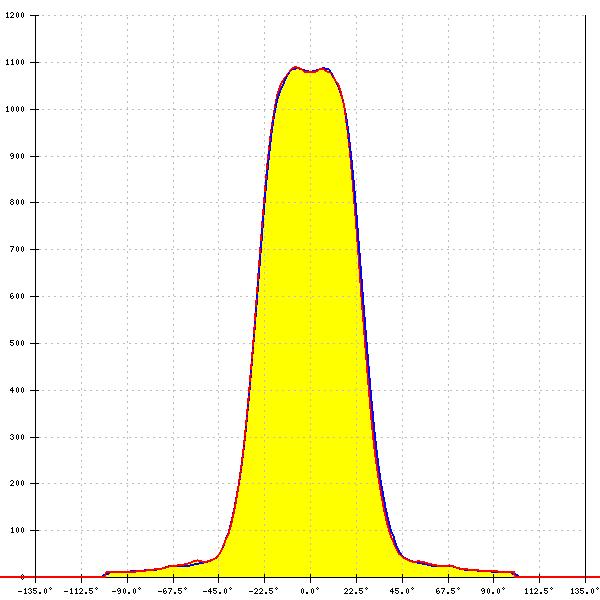

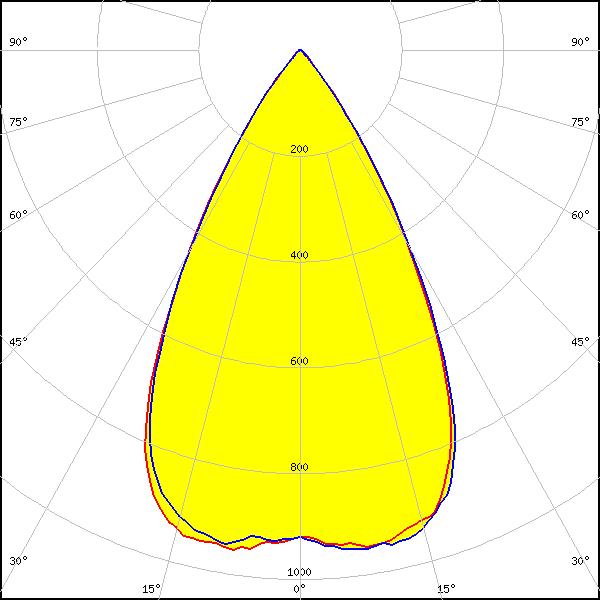

V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM:
57°
FWTM:
79°
Peak intensity:
0.959 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

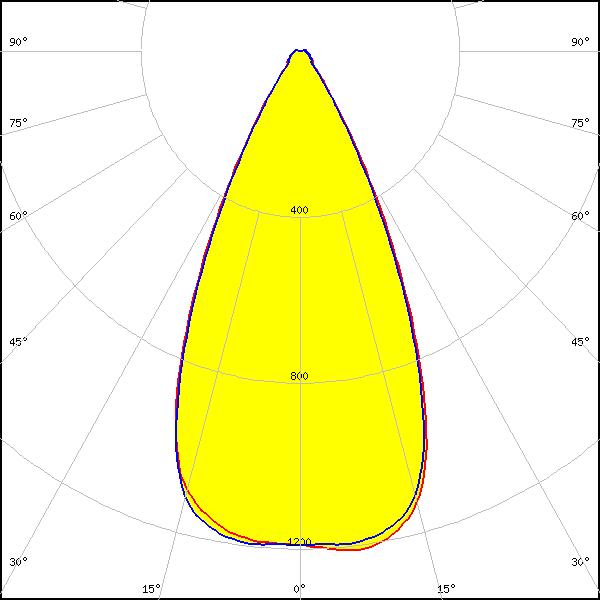

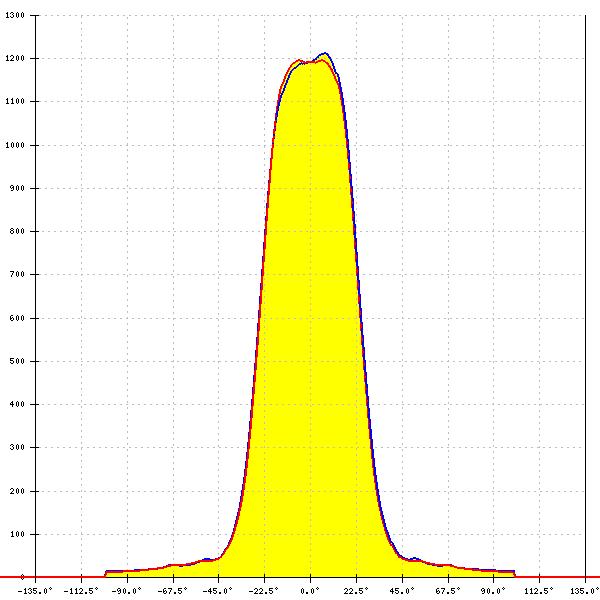

V6 HD Gen 7
LES size: 7.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
50°
FWTM:
74°
Peak intensity:
1.215 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM:
54°
FWTM:
78°
Peak intensity:
1.118 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

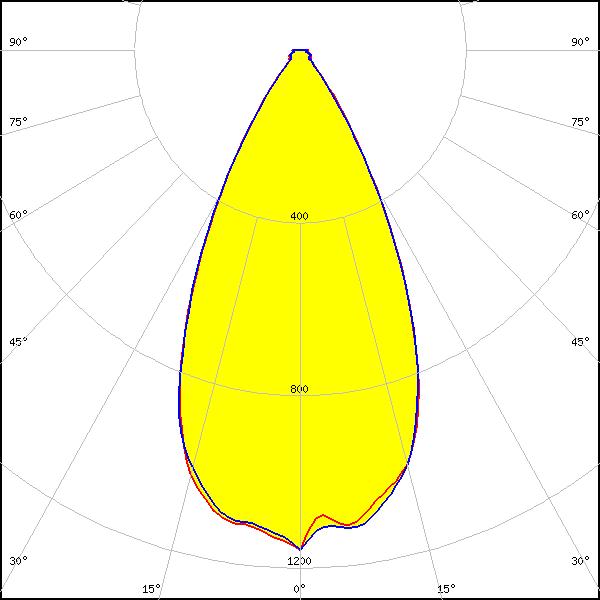

LED:

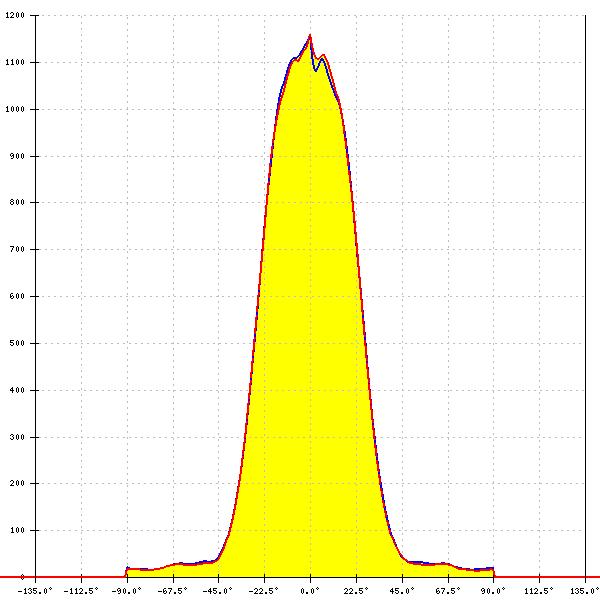

V9 HD Gen 8
LES size: 8.8 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
52°
FWTM:
78°
Peak intensity:
1.159 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

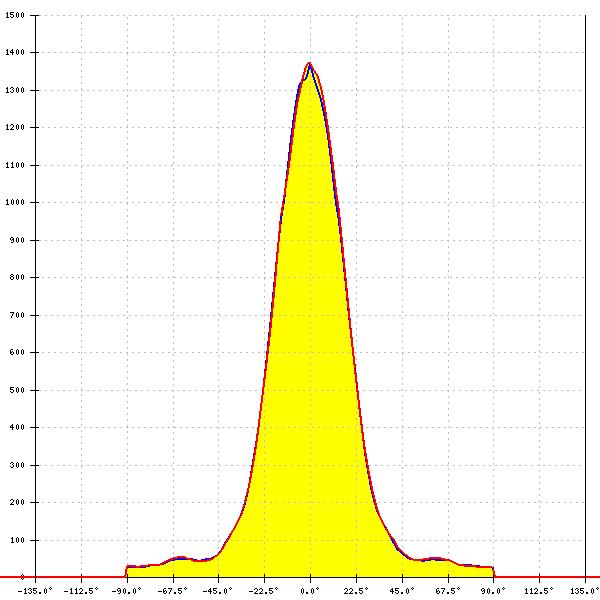

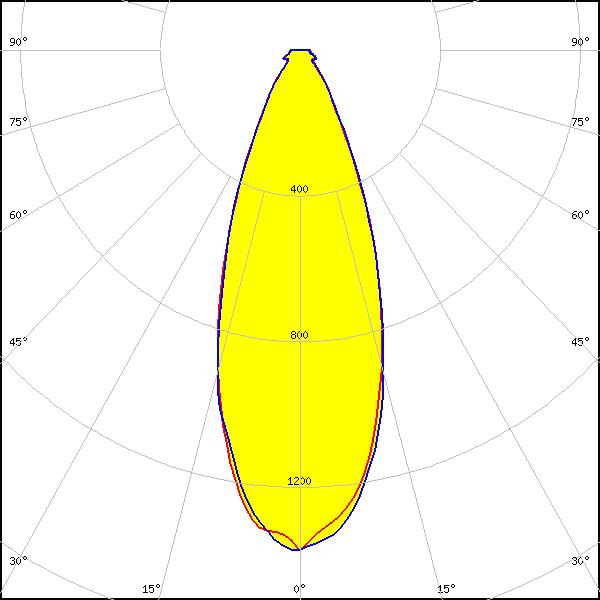

Vero SE 13
LES size: 13.4 mm
Required components:
FWHM:
38°
FWTM:
74°
Peak intensity:
1.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

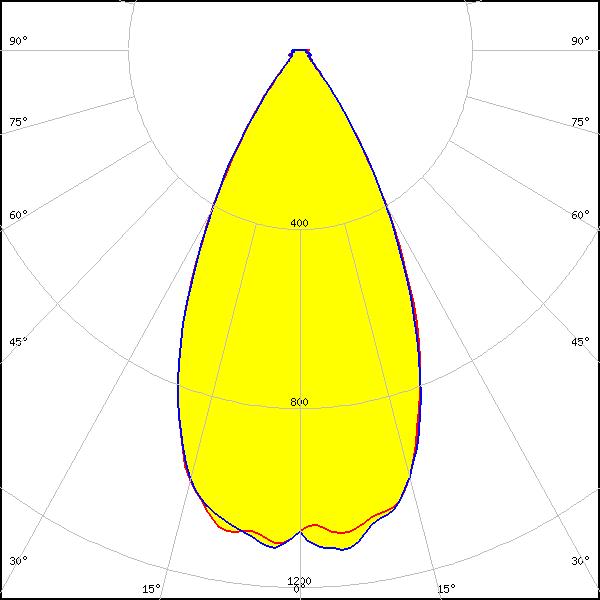

VERO10
LES size: 9.9 mm
Required components:
FWHM:
53°
FWTM:
80°
Peak intensity:
1.132 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

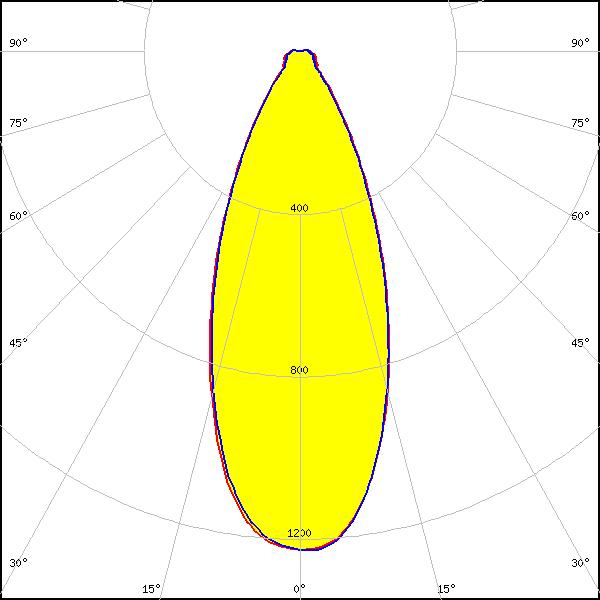

Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
FWHM:
42°
FWTM:
78°
Peak intensity:
1.227 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta DTW 9mm (4W/6W/12W)
LES size: 9.3 mm
Required components:
FWHM:
52°
FWTM:
78°
Peak intensity:
1.134 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

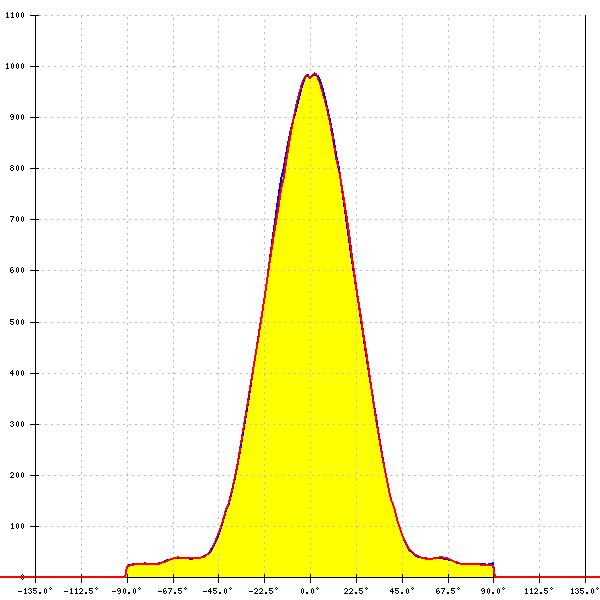

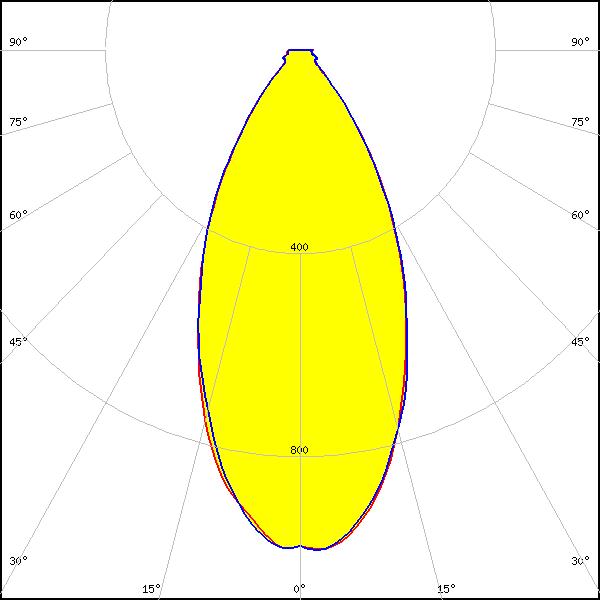

Vesta TW 15mm DP
LES size: 16.3 mm
FWHM:
49°
FWTM:
87°
Peak intensity:
0.996 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

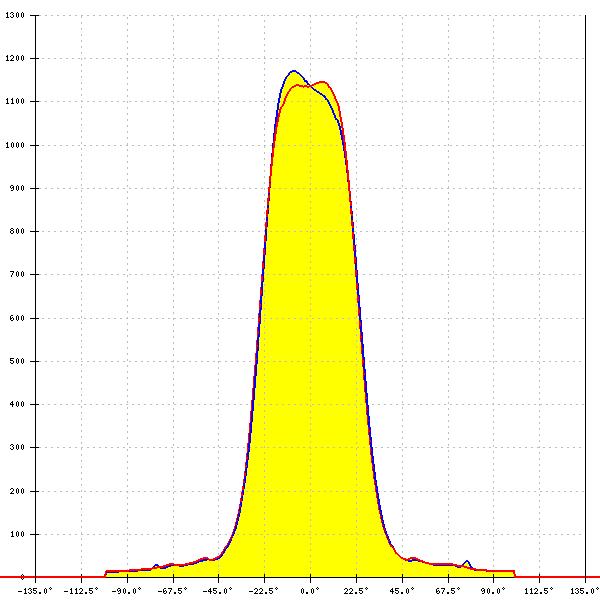

Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
50°
FWTM:
73°
Peak intensity:
1.171 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

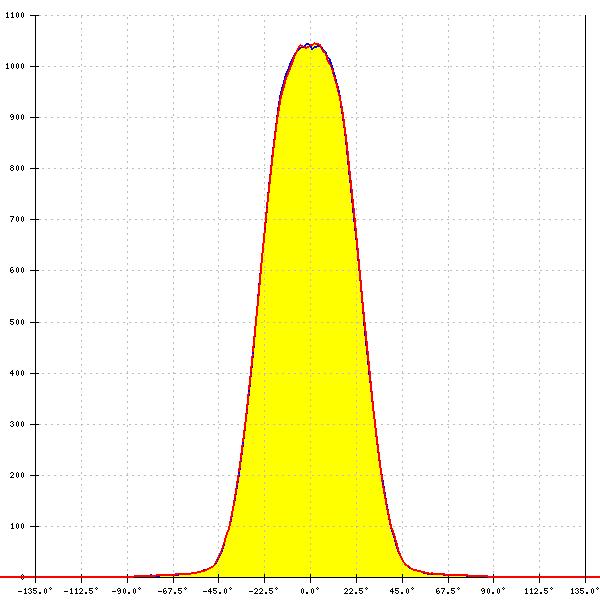

CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
52°
FWTM:
80°
Peak intensity:
1.040 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

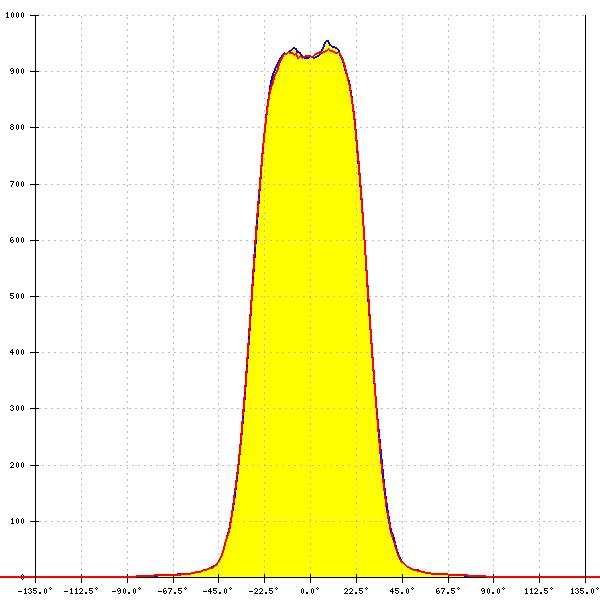

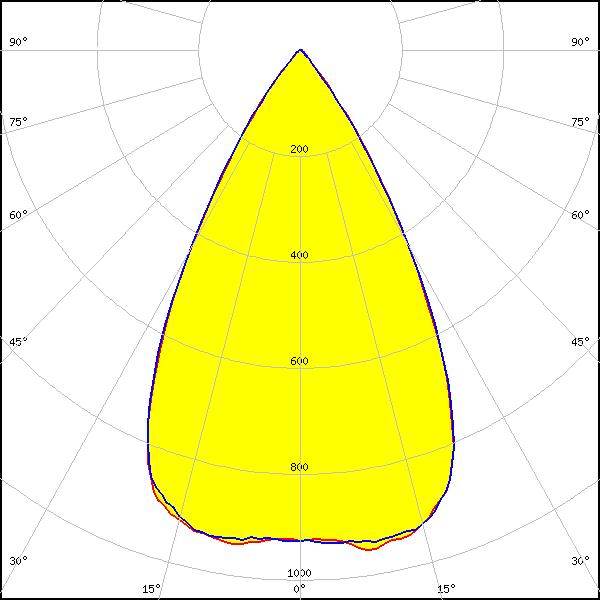

CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
57°
FWTM:
78°
Peak intensity:
0.954 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

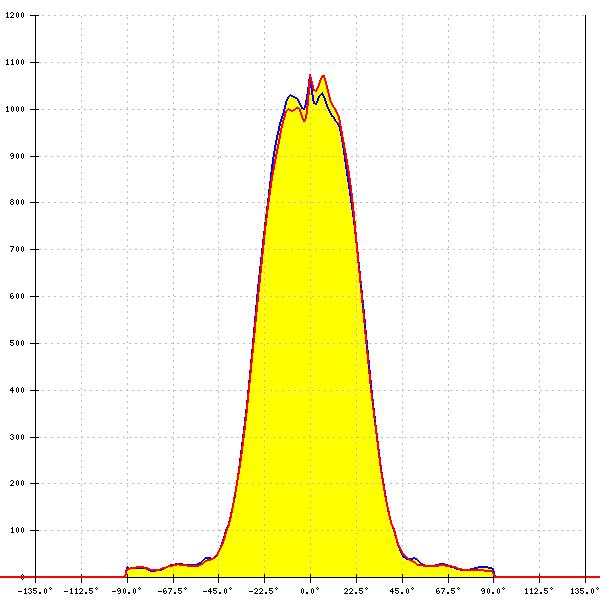

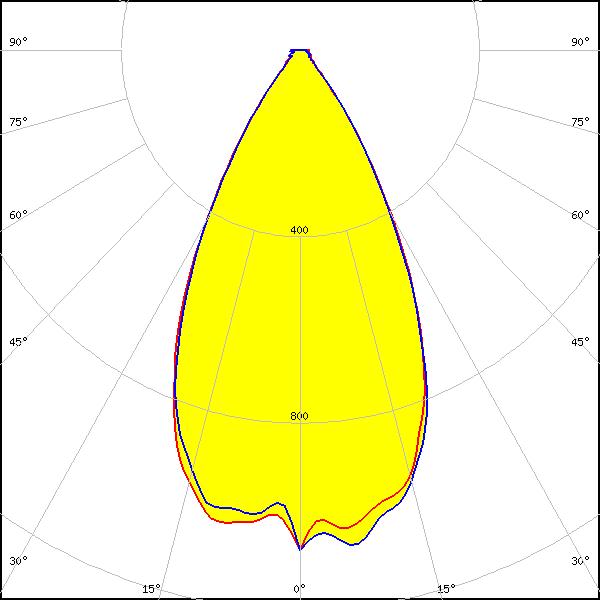

CLU712/713
LES size: 8.5 mm
Required components:
FWHM:
54°
FWTM:
82°
Peak intensity:
1.094 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

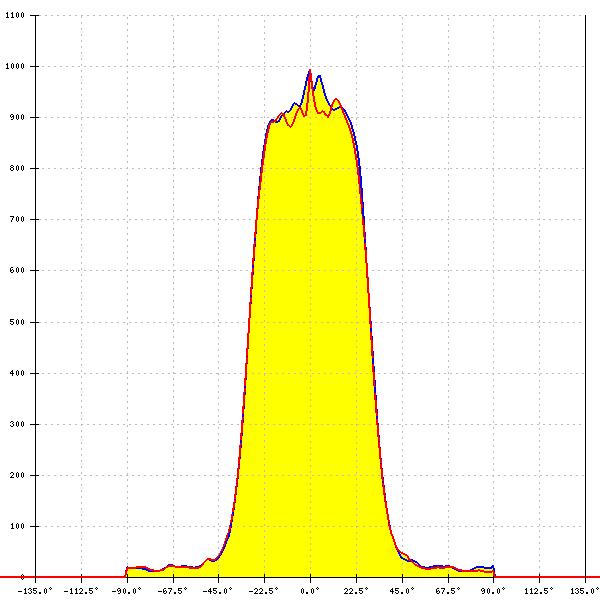

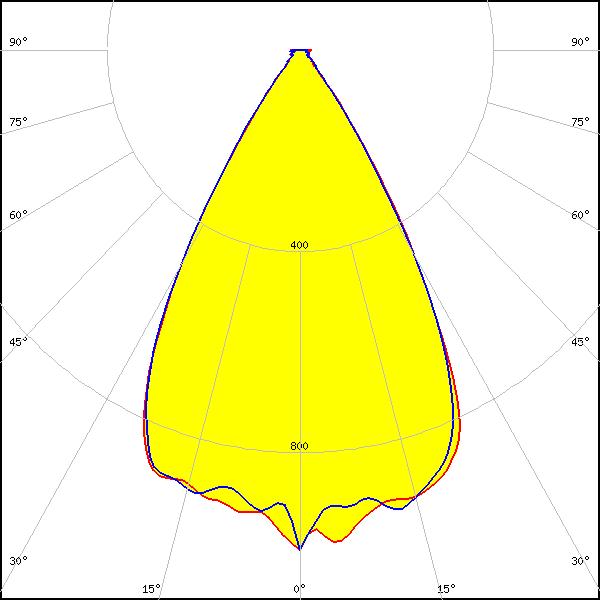

CHA0304
LES size: 3.3 mm
Required components:
FWHM:
60°
FWTM:
78°
Peak intensity:
1.017 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

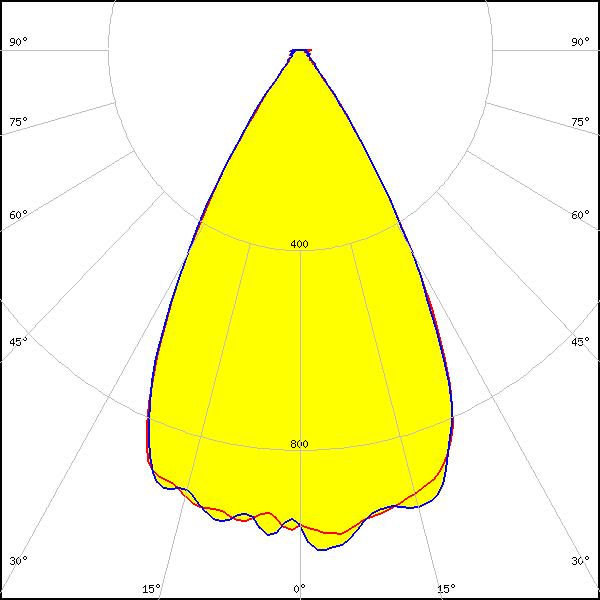

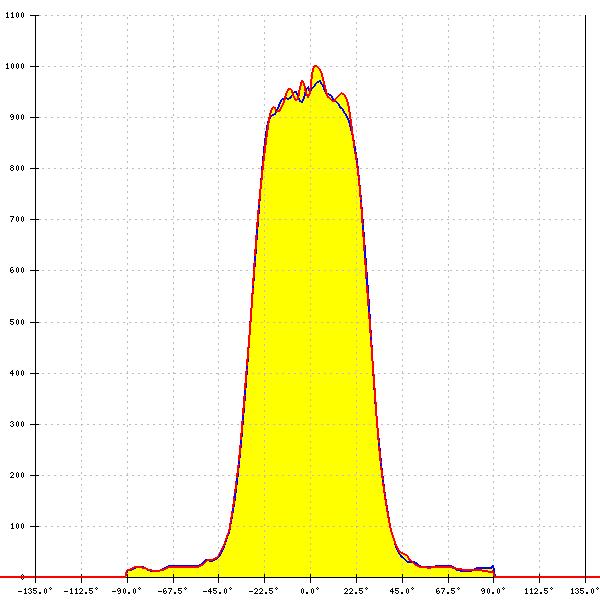

CHA0410
LES size: 4.2 mm
Required components:
FWHM:
59°
FWTM:
80°
Peak intensity:
1.025 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

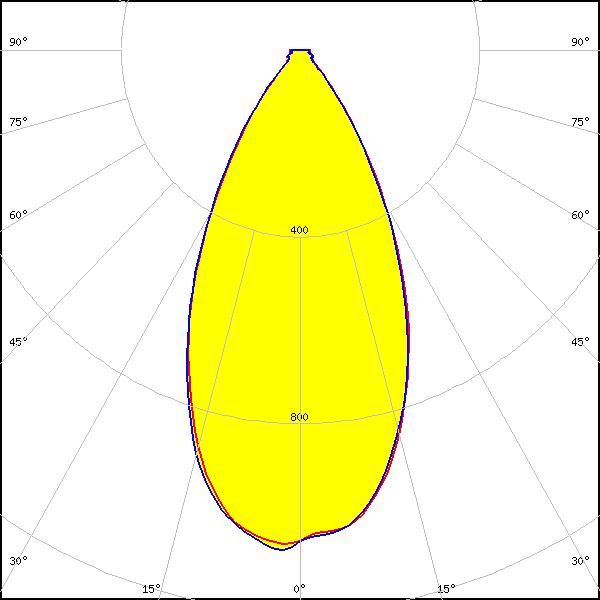

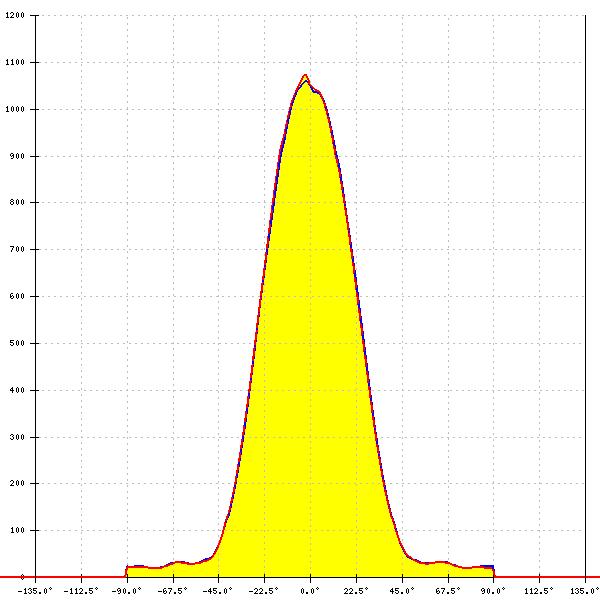

CMA1825
LES size: 12.0 mm
Required components:
FWHM:
52°
FWTM:
84°
Peak intensity:
1.072 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LZ4 (00xW00)
LES size: 0.0 mm
Required components:
FWHM:
59°
FWTM:
78°
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
IR
LED:

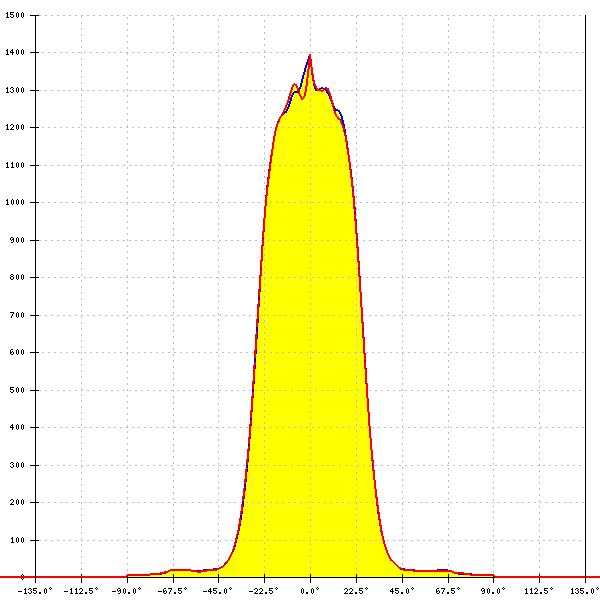

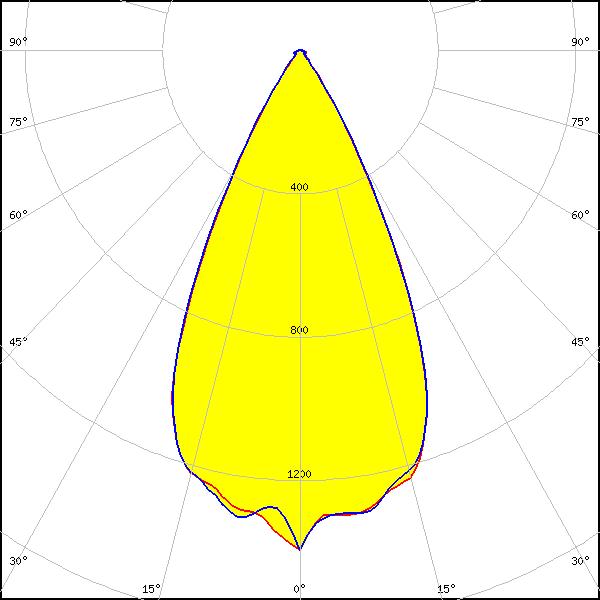

LZ4-00XX08
LES size: 0.0 mm
Required components:
FWHM:
52°
FWTM:
70°
Peak intensity:
1.405 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM:
56°
FWTM:
81°
Peak intensity:
1.047 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

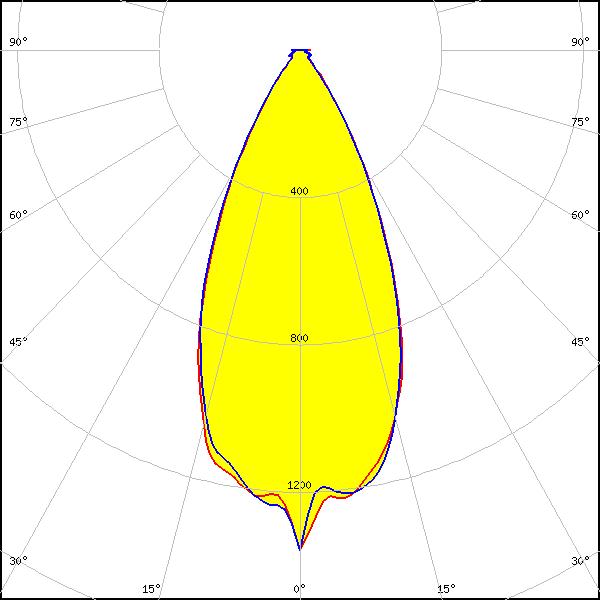

Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM:
46°
FWTM:
74°
Peak intensity:
1.358 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
48°
FWTM:
81°
Peak intensity:
1.147 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
44°
FWTM:
82°
Peak intensity:
1.197 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
FWHM:
51°
FWTM:
79°
Peak intensity:
1.065 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

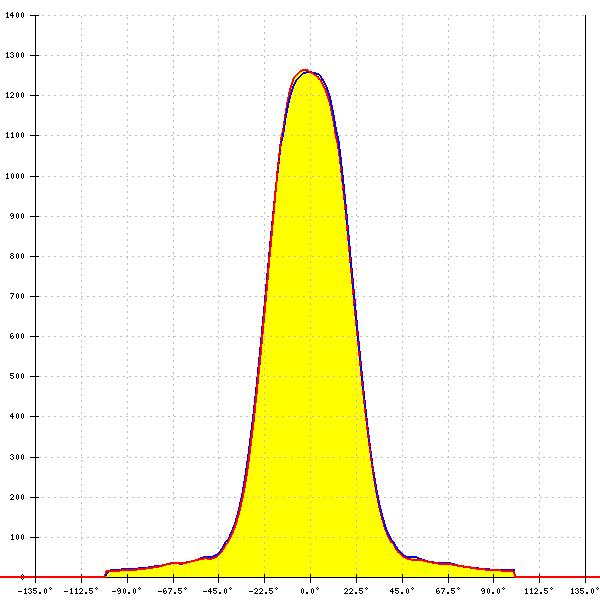

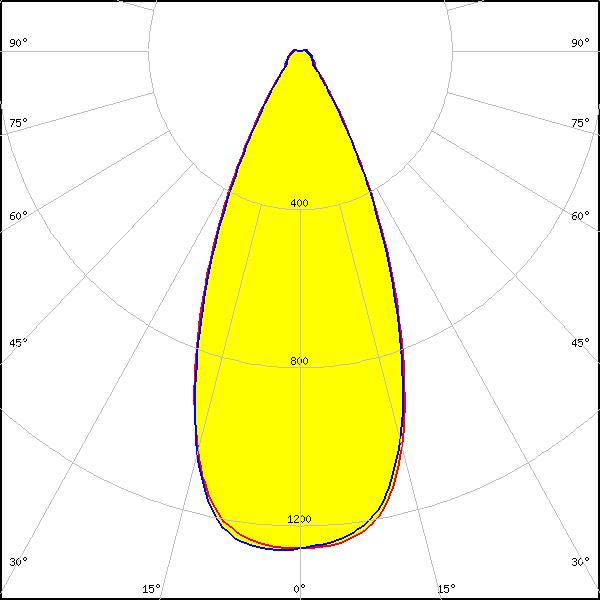

LC010T (Tunable White)
LES size: 9.8 mm
Required components:
FWHM:
46°
FWTM:
75°
Peak intensity:
1.263 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

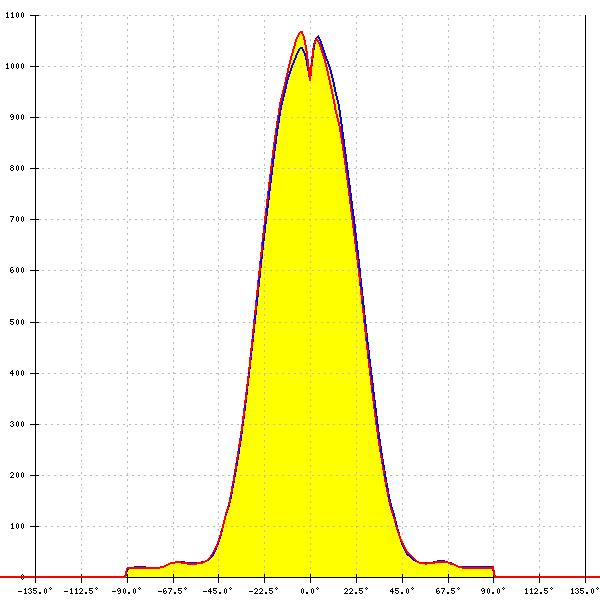

LC020T (Tunable white)
LES size: 13.0 mm
Required components:
FWHM:
52°
FWTM:
84°
Peak intensity:
1.075 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

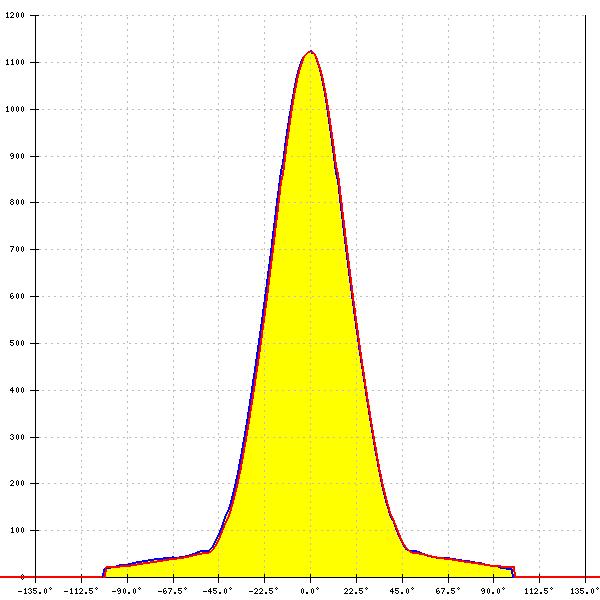

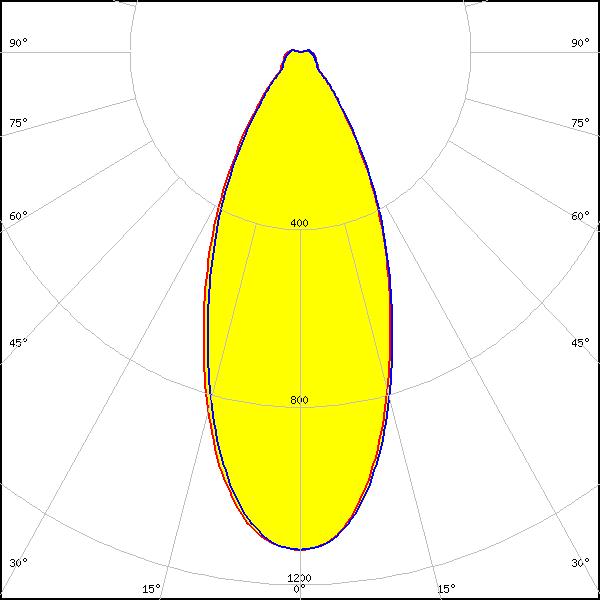

MJT COB LES 14.5
LES size: 14.5 mm
Required components:
FWHM:
45°
FWTM:
84°
Peak intensity:
1.123 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

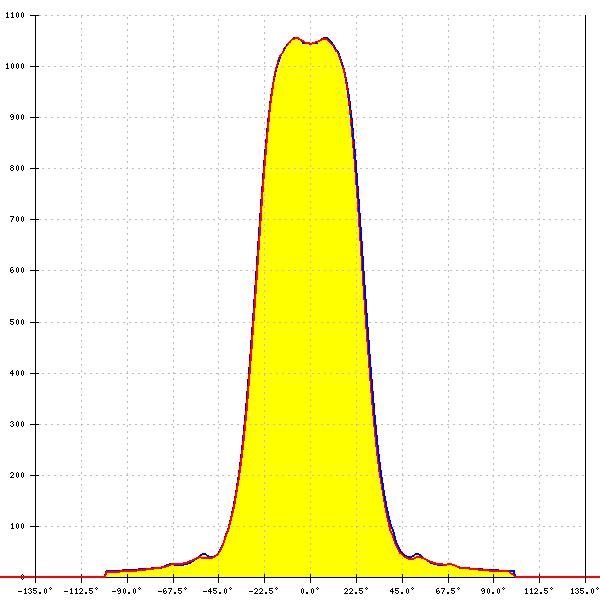

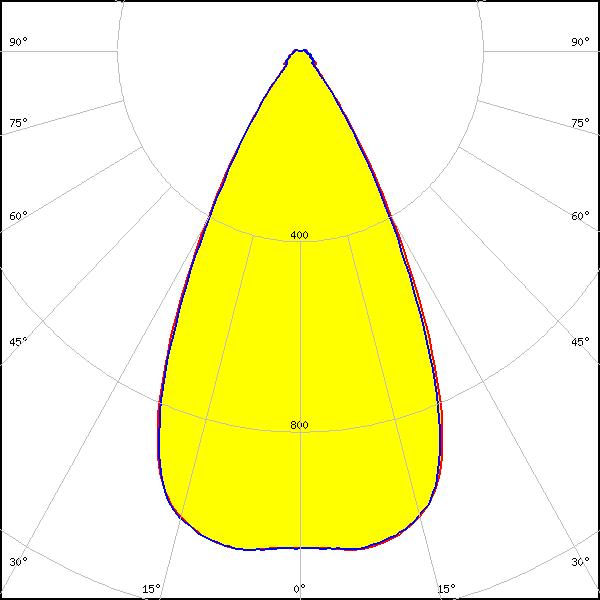

MJT COB LES 6
LES size: 6.0 mm
Required components:
FWHM:
55°
FWTM:
79°
Peak intensity:
1.060 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

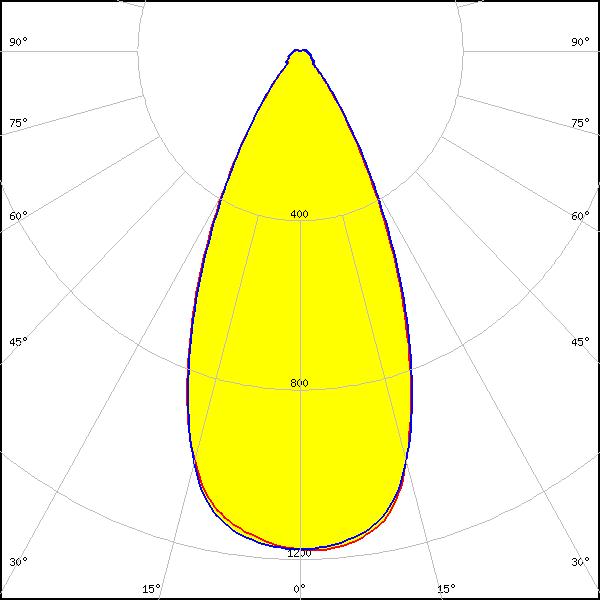

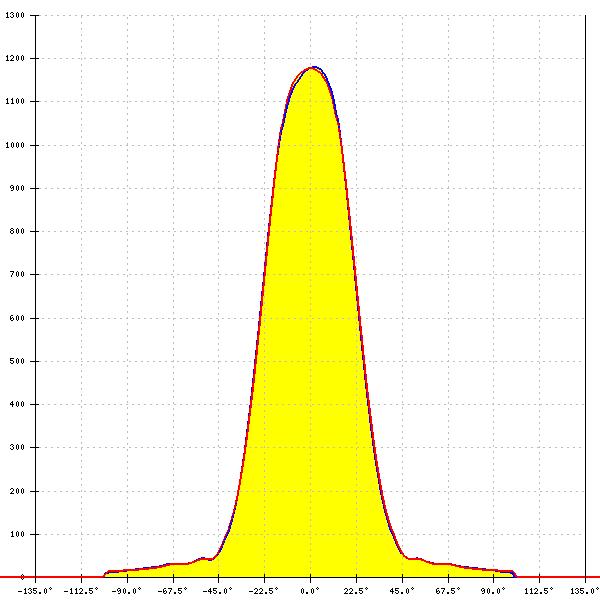

MJT COB LES 9.8
LES size: 9.8 mm
Required components:
FWHM:
49°
FWTM:
79°
Peak intensity:
1.183 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM:
50°
FWTM:
79°
Peak intensity:
1.186 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

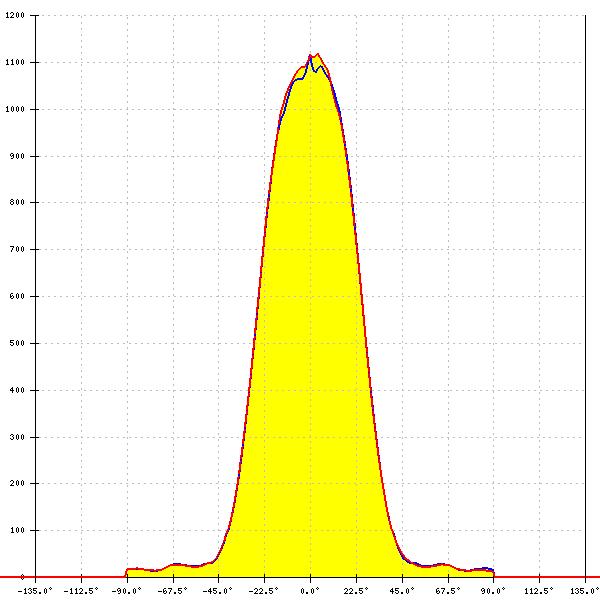

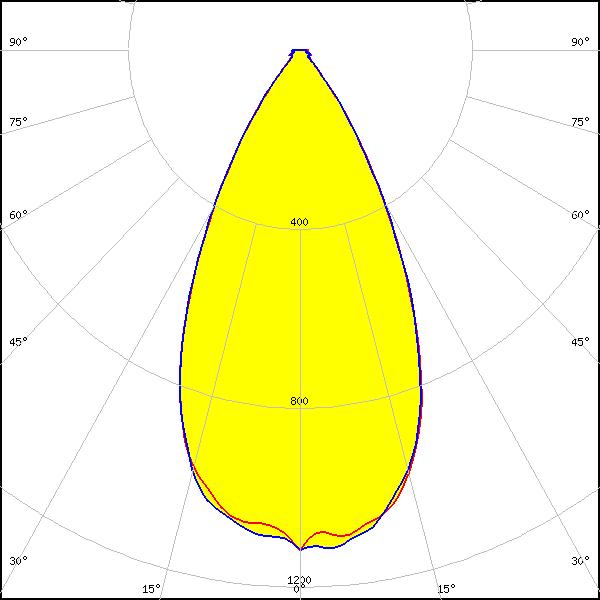

XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
52°
FWTM:
80°
Peak intensity:
1.119 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XTM - 9mm LES
LES size: 9.0 mm
Required components:
FWHM:
54°
FWTM:
82°
Peak intensity:
1.122 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
