    C17360_SPORT-2X2-FT60

    Print

    Narrow forward throw beam for high masts

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      15.50 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      640 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.5 kg
    • MPQ:
      128 pcs
    • MOQ:
      128 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C17360_SPORT-2X2-FT60

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    The teaser for the SPORT-2X2 optics

    Application example

    Football field lighting with SPORT-2X2-FT60

    News

    SPORT-2X2 – All you need to know

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    SPORT-2X2 - the right light for any sports activity

    Application area

    SPORTS INDOOR LIGHTING

    Application area

    Area and Car Park Lighting

    Application guide

    LEDiL guide for sports lighting optics

    News

    SPORT-2X2-S1 – Our narrowest, most powerful sport beam + new optic material for higher temperatures

    Application area

    Sports outdoor lighting

    AVAILABLE LEDiL ACCESSORIES

    SPORT-2X2-FT-SHD-BLK

    Black shade for additional backlight control.

    SPORT-2X2-FT-SHD-WHT

    White shade for additional backlight control.

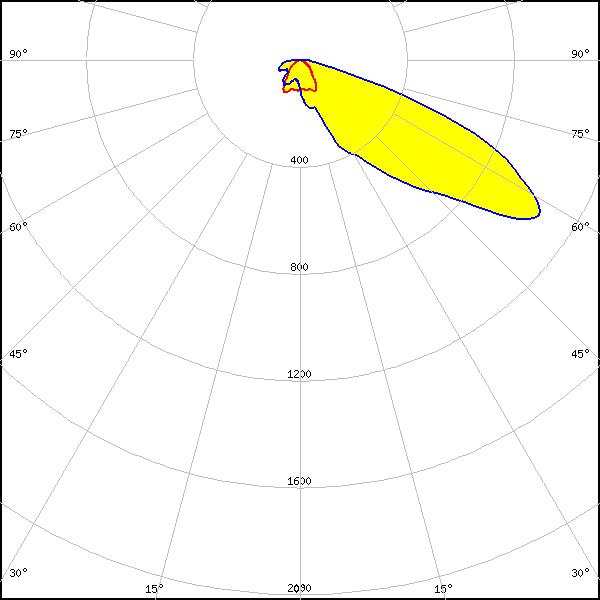

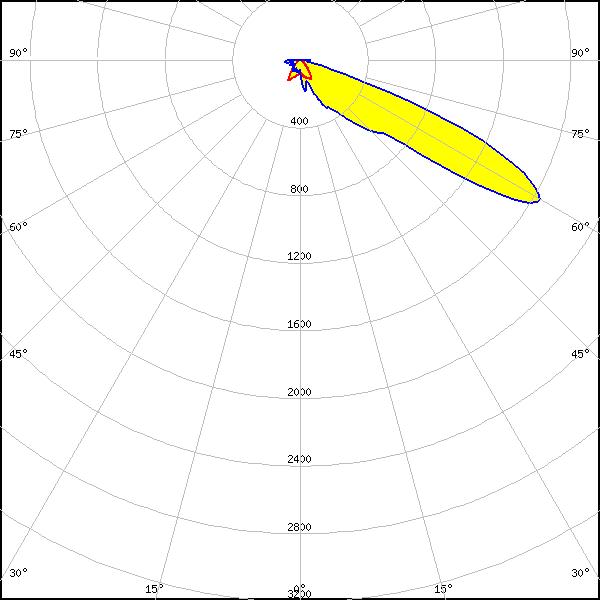

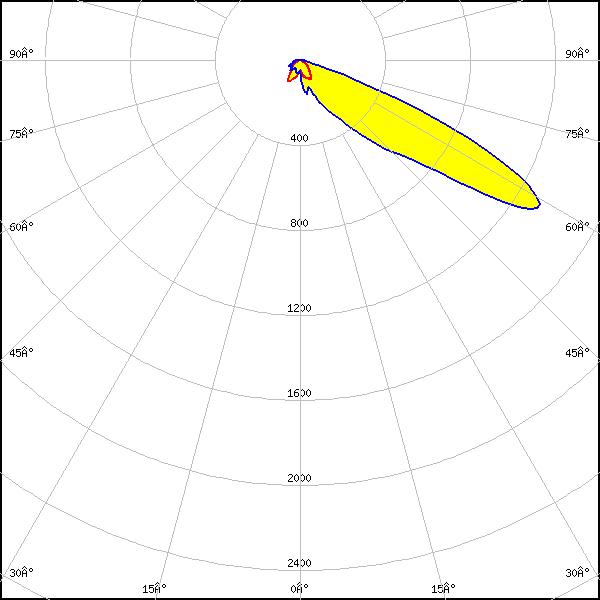

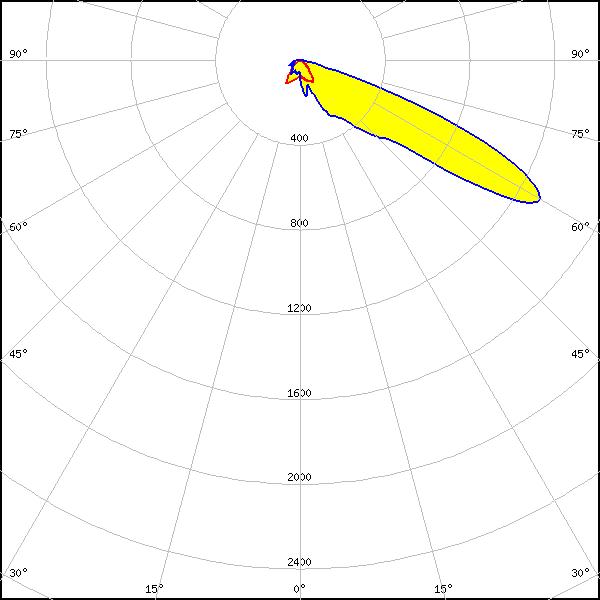

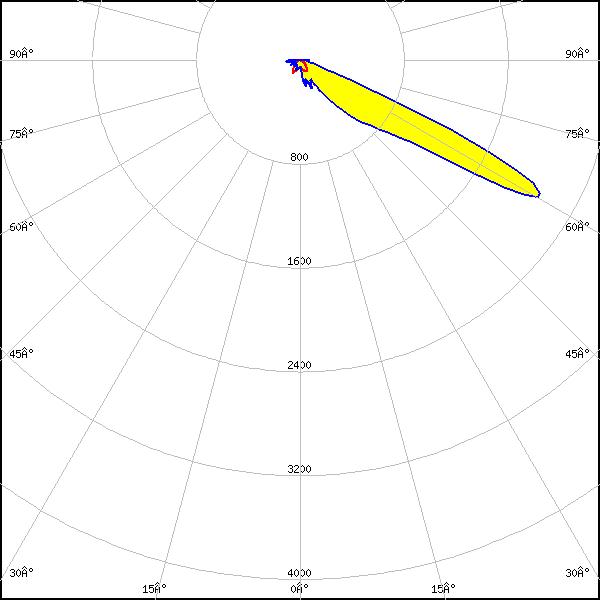

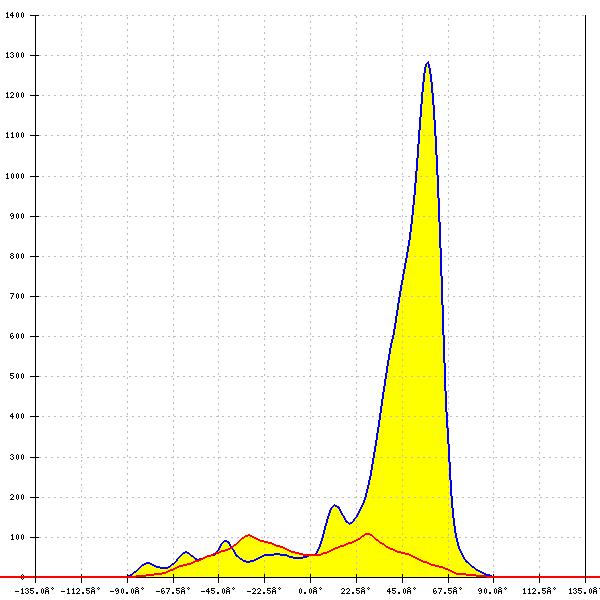

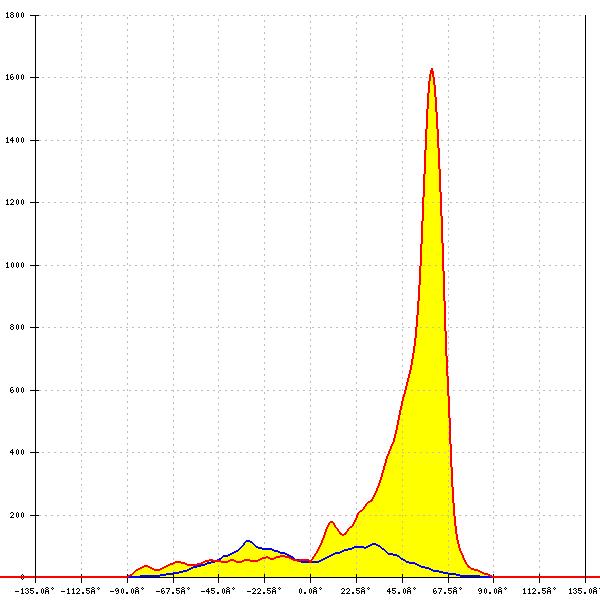

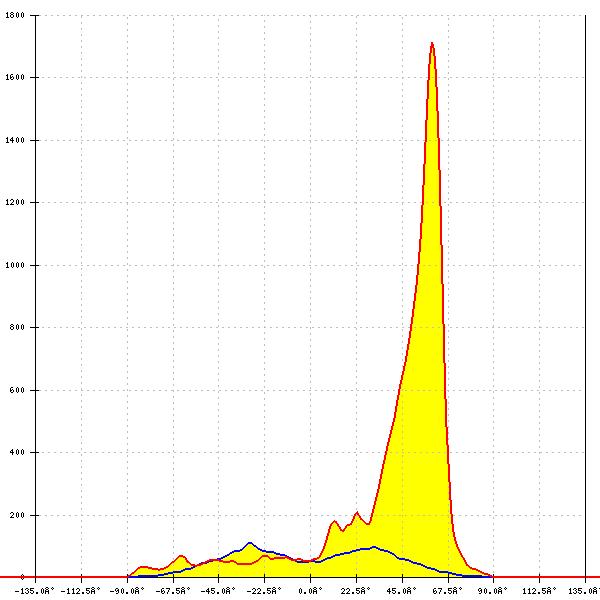

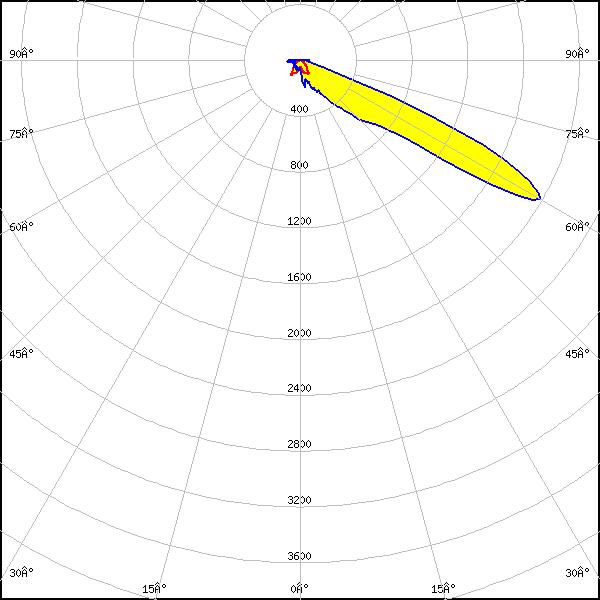

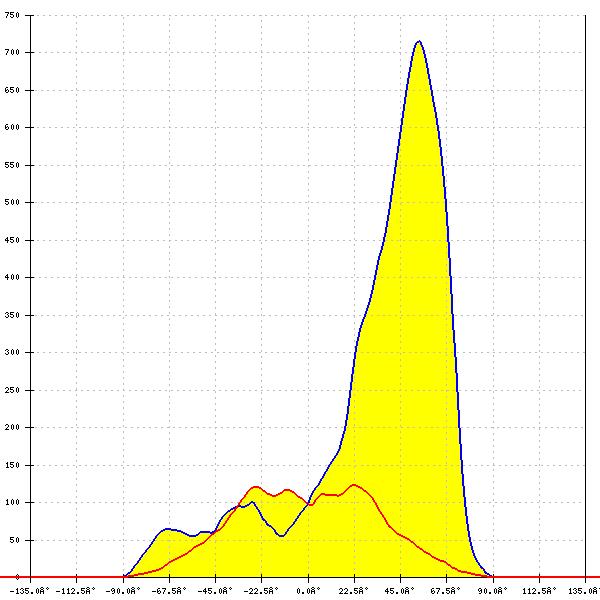

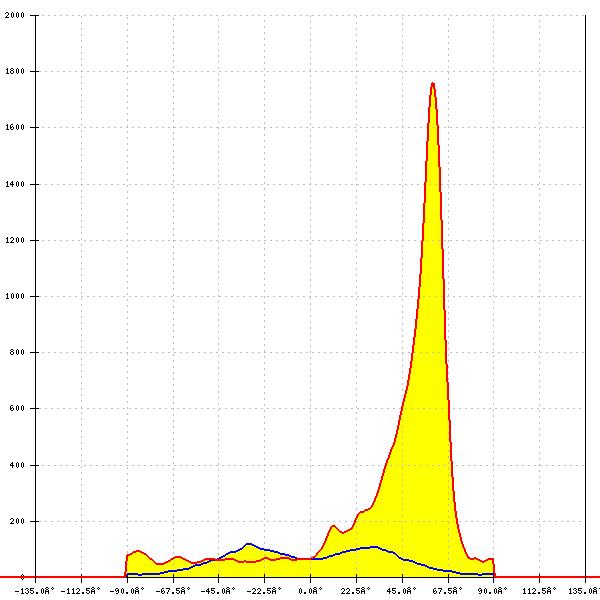

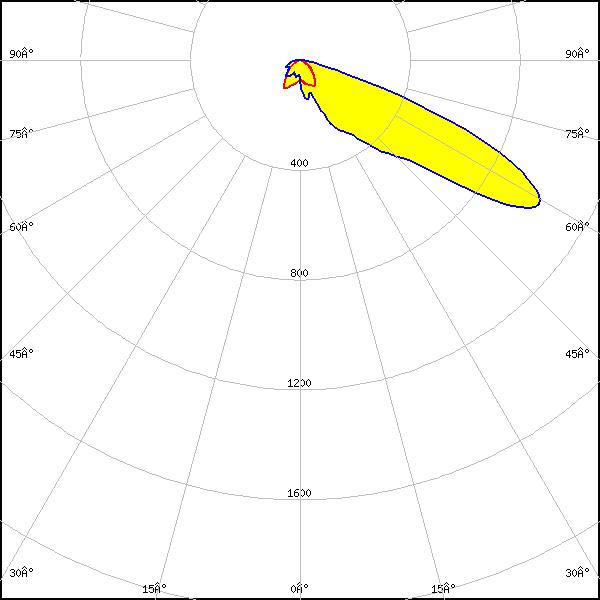

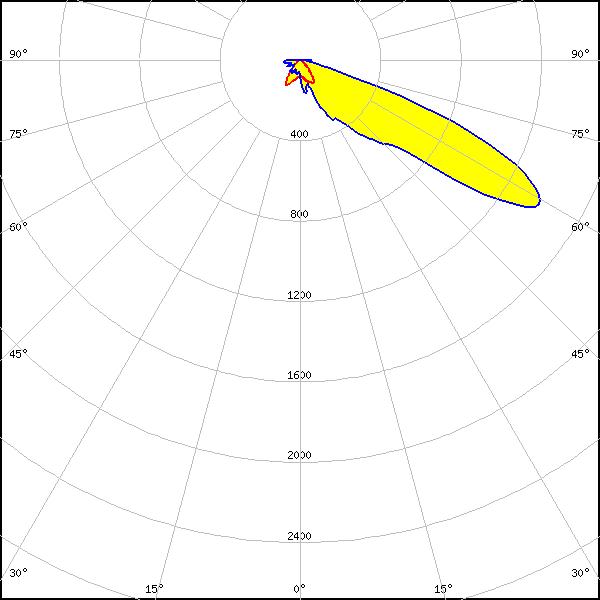

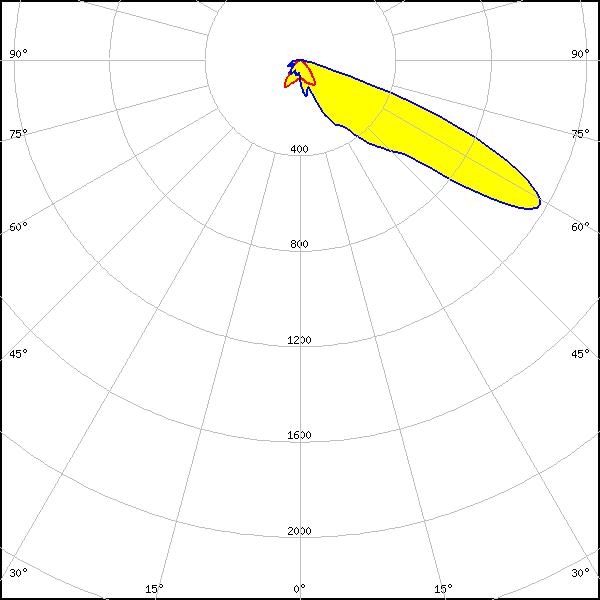

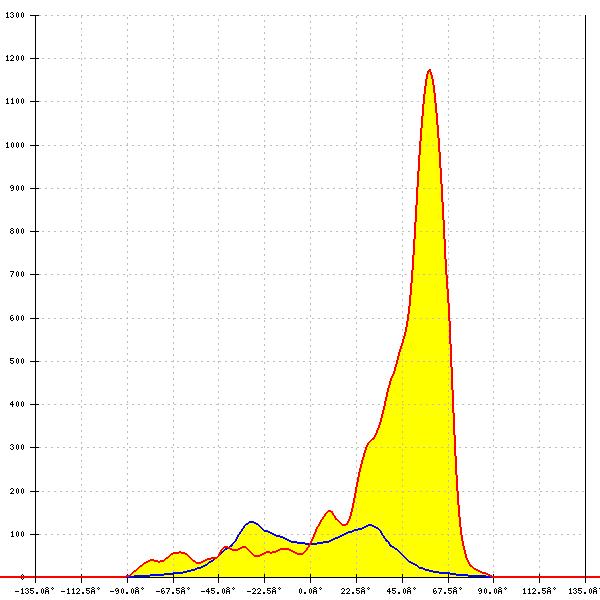

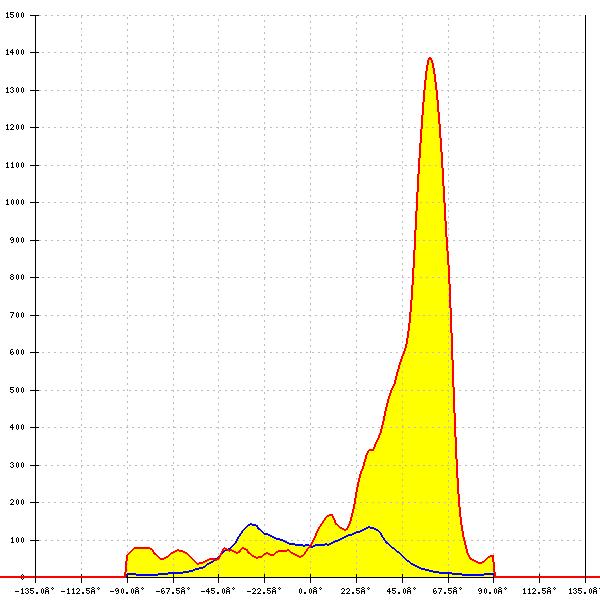

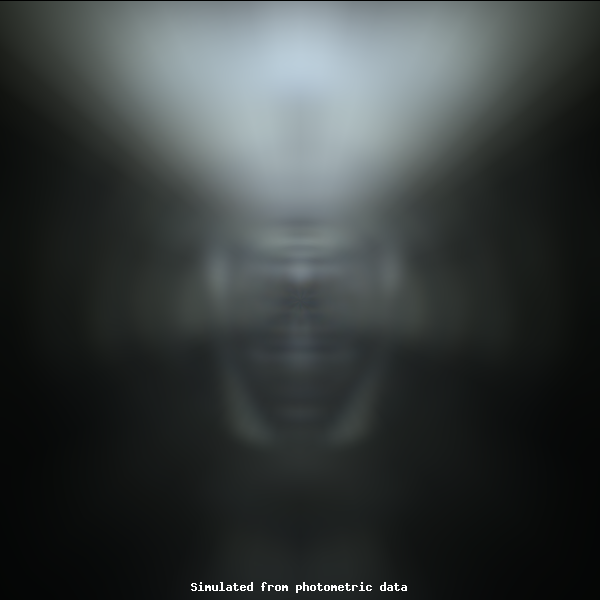

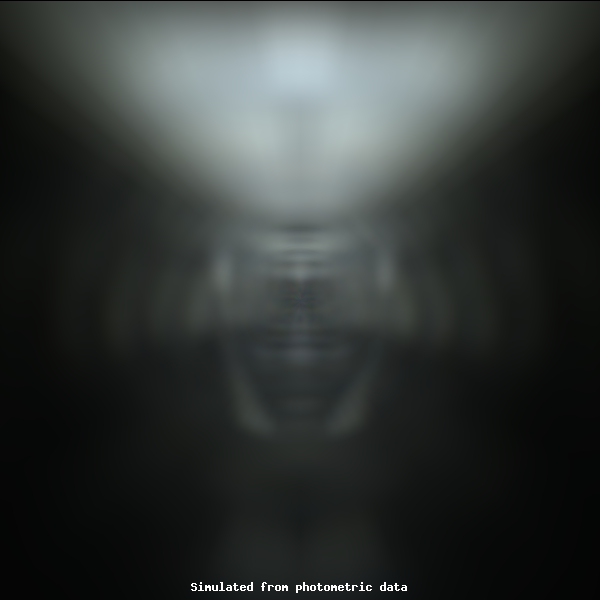

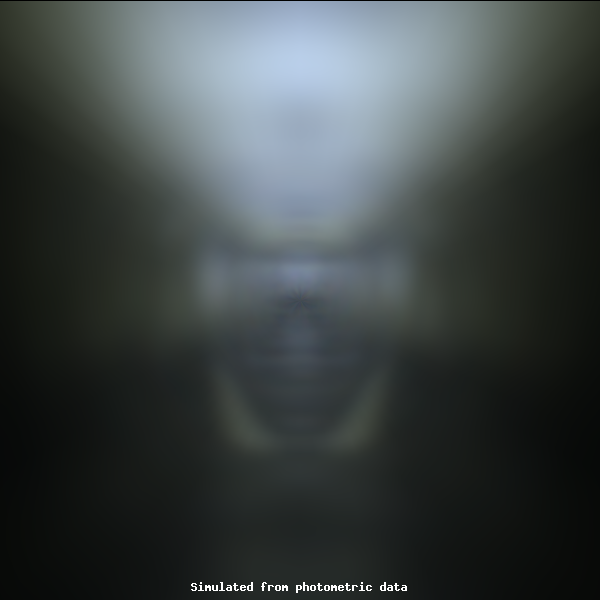

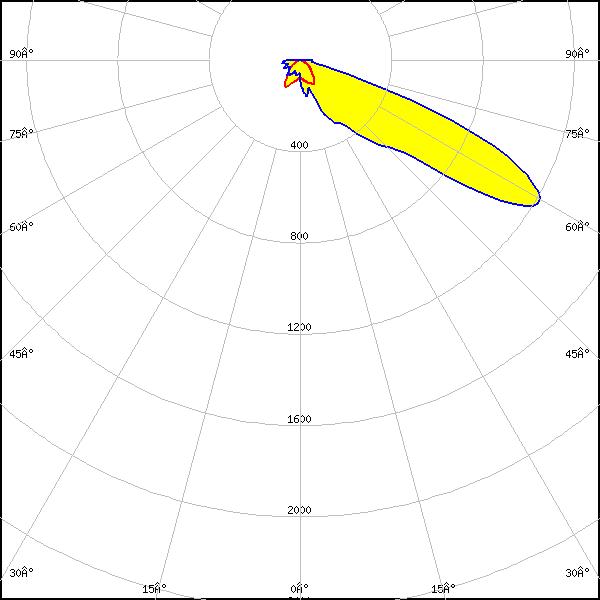

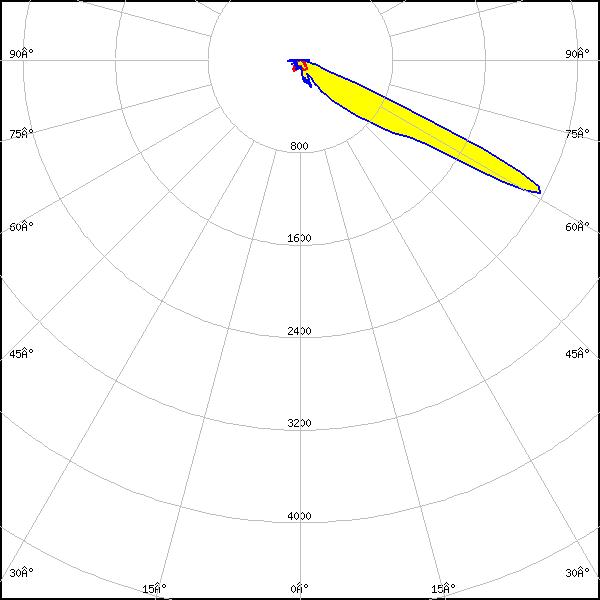

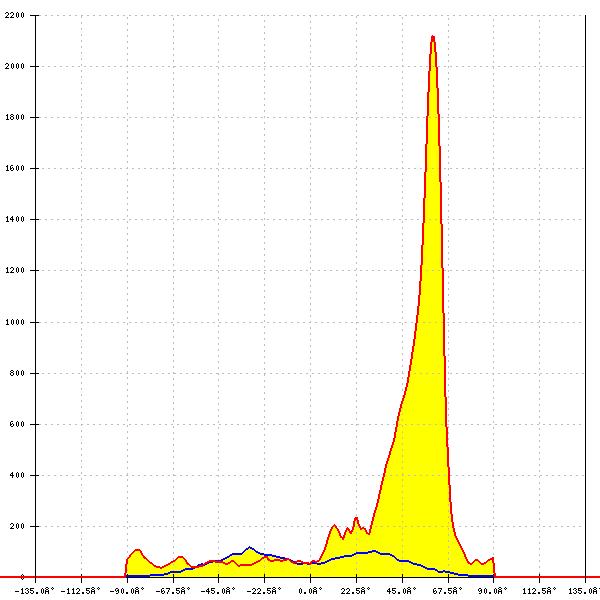

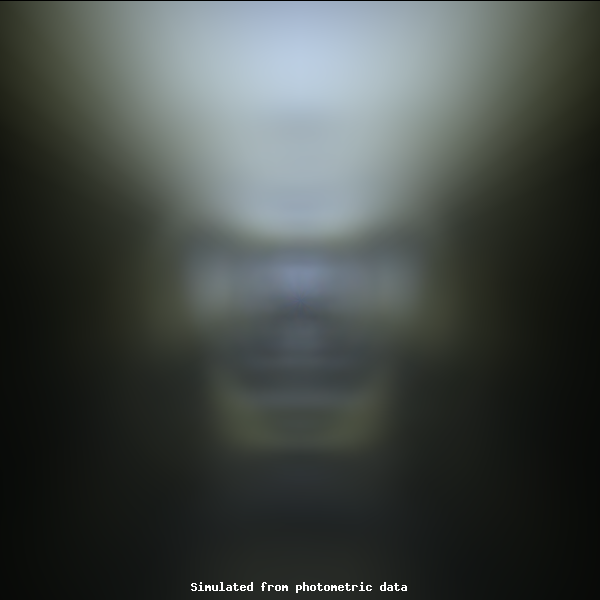

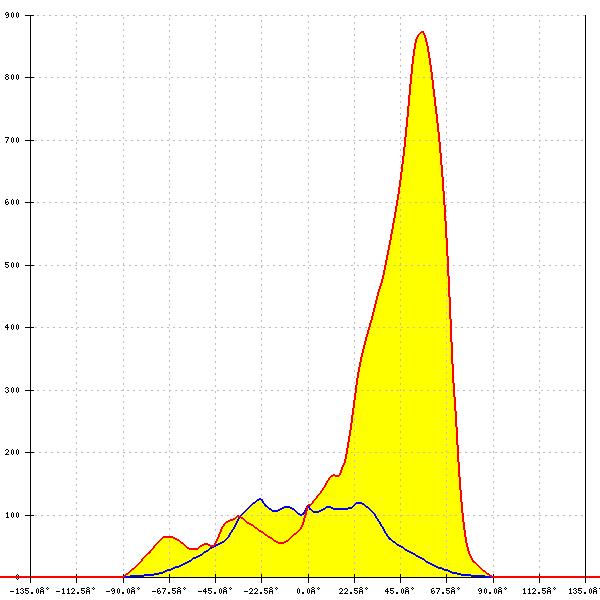

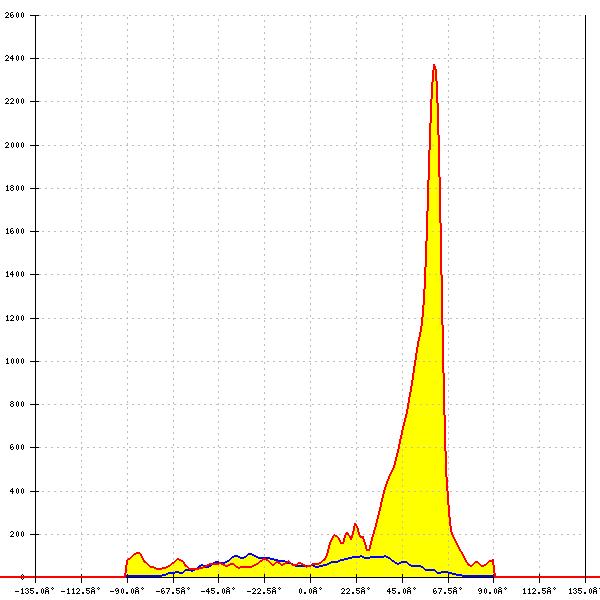

    Optical results

    LED: J Series 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 1.163 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 1.019 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 1.056 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

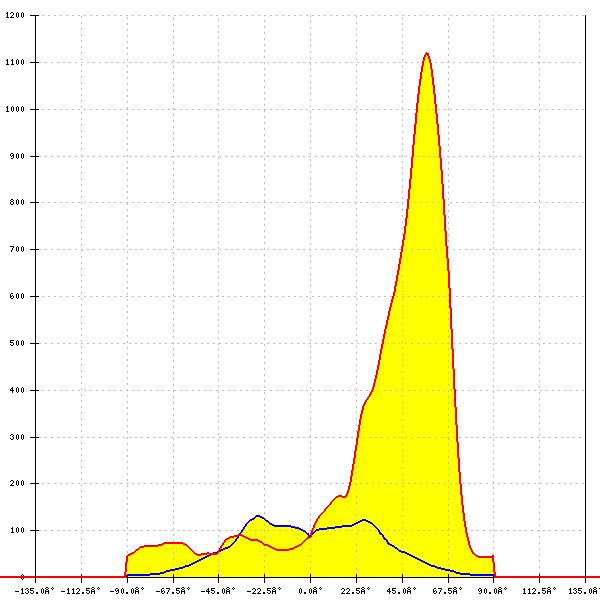

    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 1.119 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35.2 HD
    FWHM: asymmetric
    Peak intensity: 0.960 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35.2 HD
    FWHM: asymmetric
    Peak intensity: 0.808 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35.2 HI
    FWHM: asymmetric
    Peak intensity: 1.237 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35.2 HI
    FWHM: asymmetric
    Peak intensity: 1.029 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50.3 HI
    FWHM: asymmetric
    Peak intensity: 1.185 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50.3 HI
    FWHM: asymmetric
    Peak intensity: 0.988 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L3
    FWHM: asymmetric
    Peak intensity: 1.288 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L3
    FWHM: asymmetric
    Peak intensity: 1.050 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E2
    FWHM: asymmetric
    Peak intensity: 2.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: Green
    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 1.792 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 1.535 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2 HE
    FWHM: asymmetric
    Peak intensity: 1.798 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2 HE
    Required components:
    C17929_SPORT-2X2-FT-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.567 cd/lm
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2 HE
    Required components:
    C18069_SPORT-2X2-FT-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 1.606 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 1.230 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

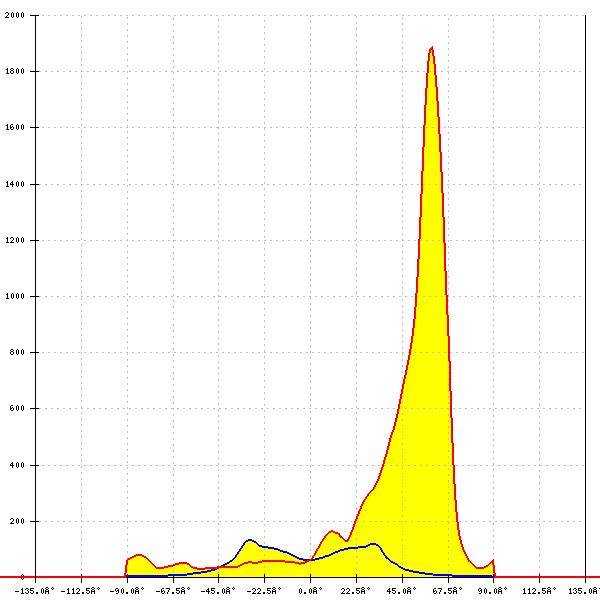

    LED: XP-G4
    FWHM: asymmetric
    Peak intensity: 1.887 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

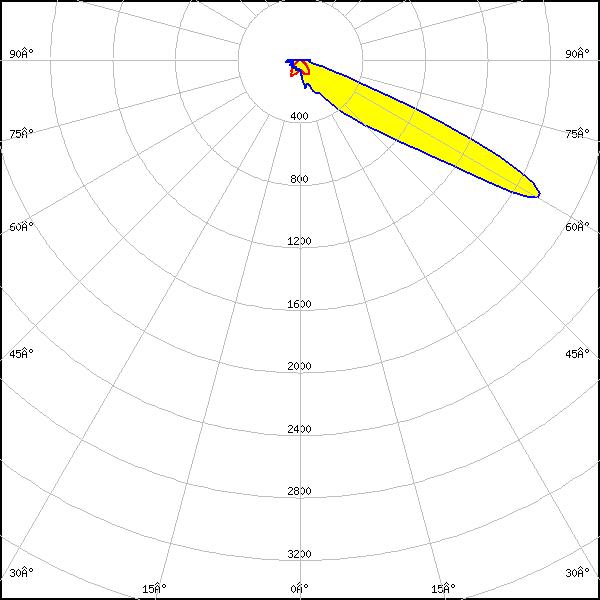

    LED: XP-G4 HI
    FWHM: asymmetric
    Peak intensity: 1.758 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4 HI
    FWHM: asymmetric
    Peak intensity: 1.400 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: asymmetric
    Peak intensity: 1.094 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: asymmetric
    Peak intensity: 1.331 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HI
    FWHM: asymmetric
    Peak intensity: 1.385 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HI
    FWHM: asymmetric
    Peak intensity: 1.732 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L2
    FWHM: asymmetric
    Peak intensity: 1.189 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L2
    FWHM: asymmetric
    Peak intensity: 0.989 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-P
    FWHM: asymmetric
    Peak intensity: 2.239 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-P
    FWHM: asymmetric
    Peak intensity: 1.697 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

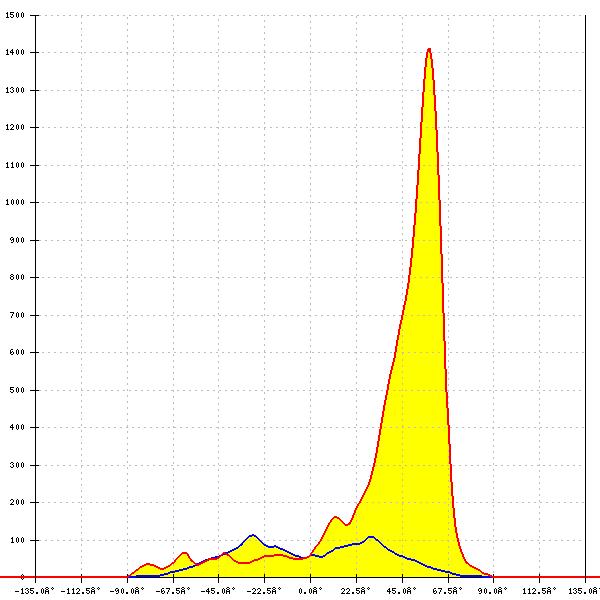

    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 1.410 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 1.095 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 0.928 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 1.091 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.940 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

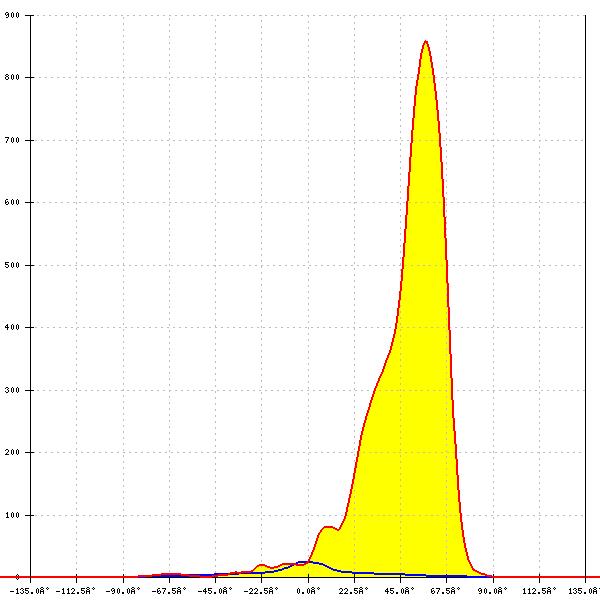

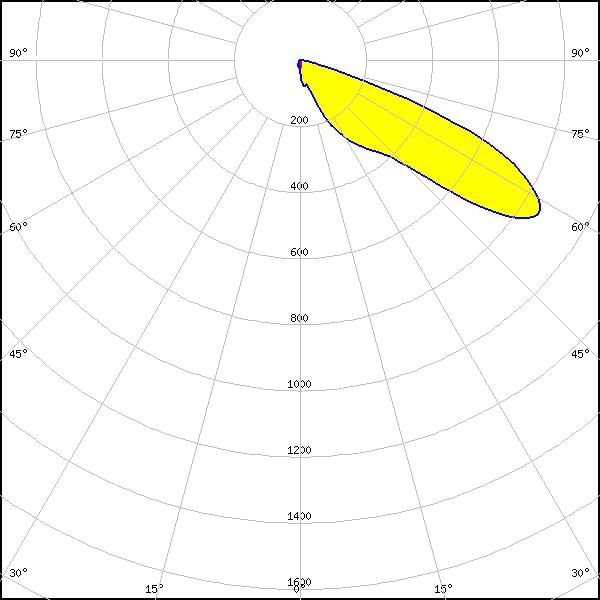

    LED: LUXEON 5050 Square LES
    Required components:
    C17929_SPORT-2X2-FT-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.928 cd/lm
    Efficiency: 58 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 1.095 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

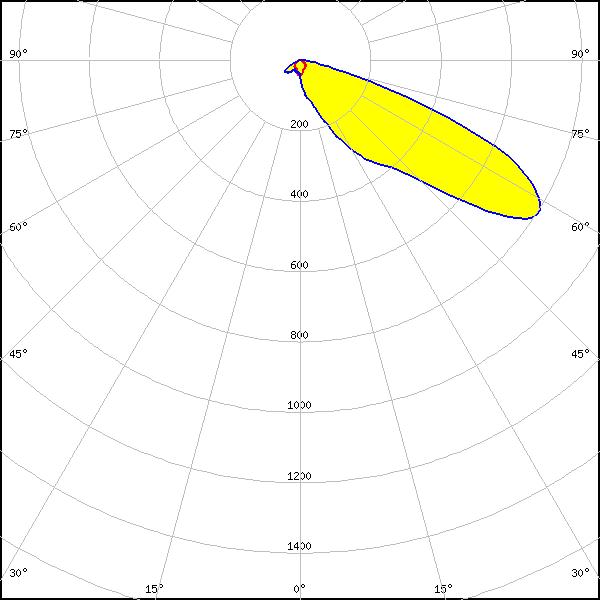

    LED: LUXEON 5050 Square LES
    Required components:
    C18069_SPORT-2X2-FT-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.954 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White

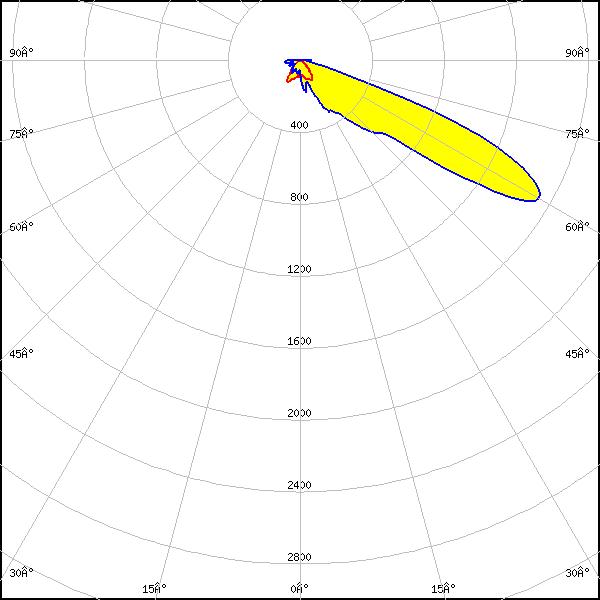

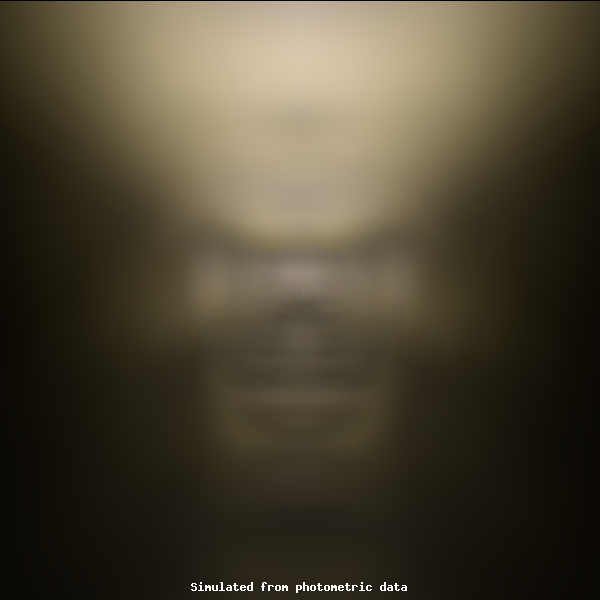

    LED: LUXEON HL2X
    FWHM: asymmetric
    Peak intensity: 1.650 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

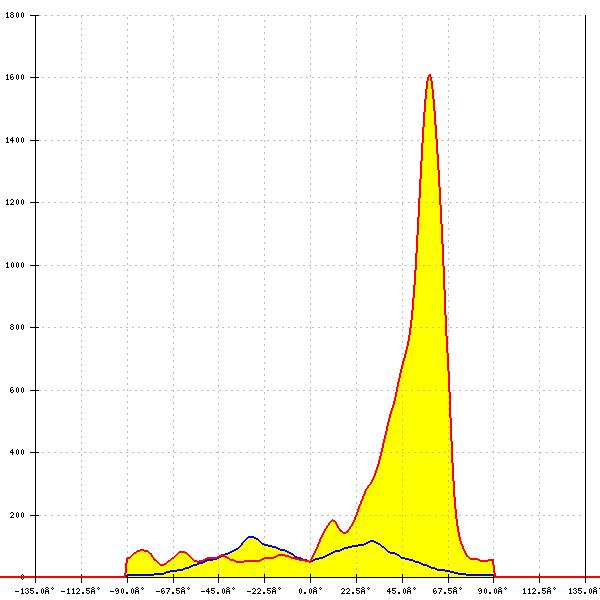

    LED: LUXEON HL4Z
    FWHM: asymmetric
    Peak intensity: 1.612 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL4Z
    FWHM: asymmetric
    Peak intensity: 1.318 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON TX
    FWHM: asymmetric
    Peak intensity: 1.646 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: asymmetric
    Peak intensity: 1.491 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: asymmetric
    Peak intensity: 1.213 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

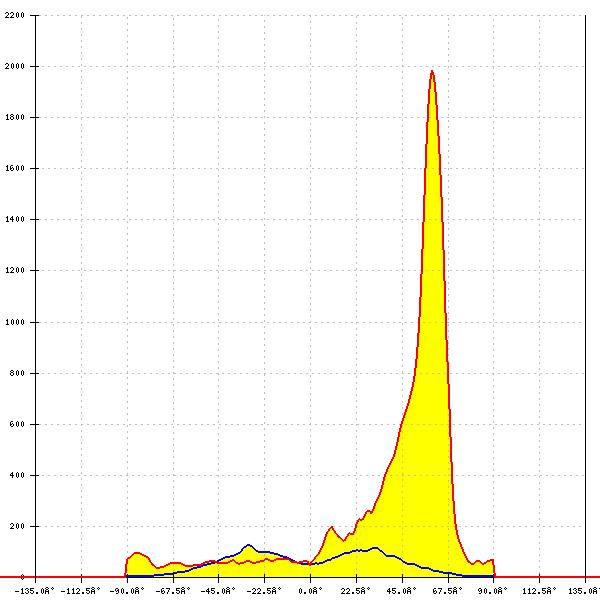

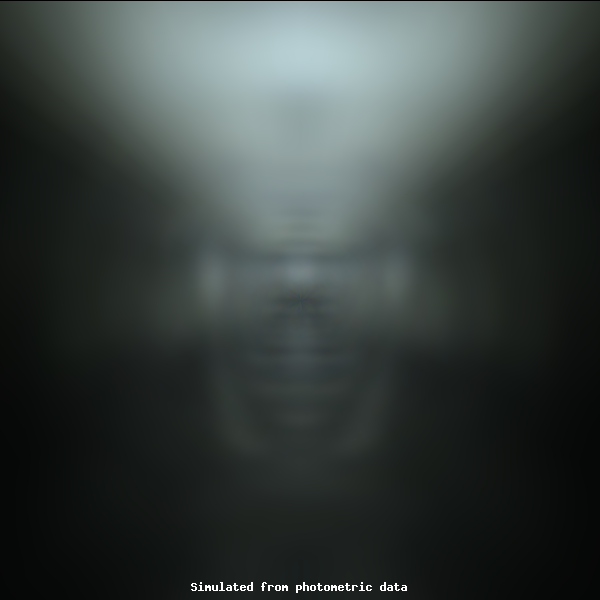

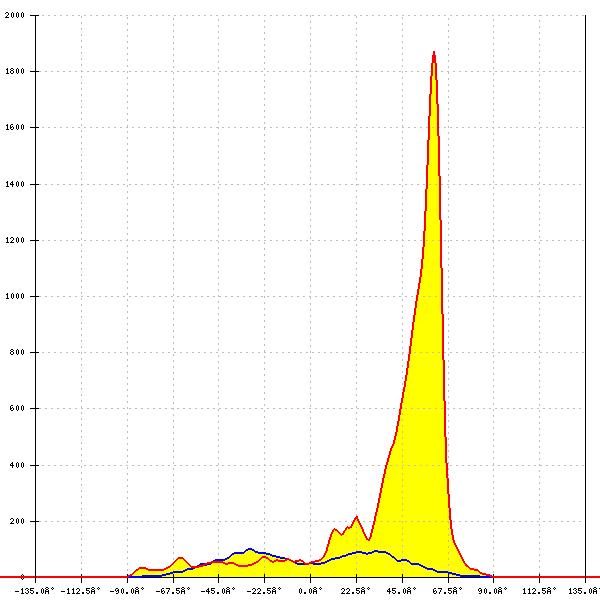

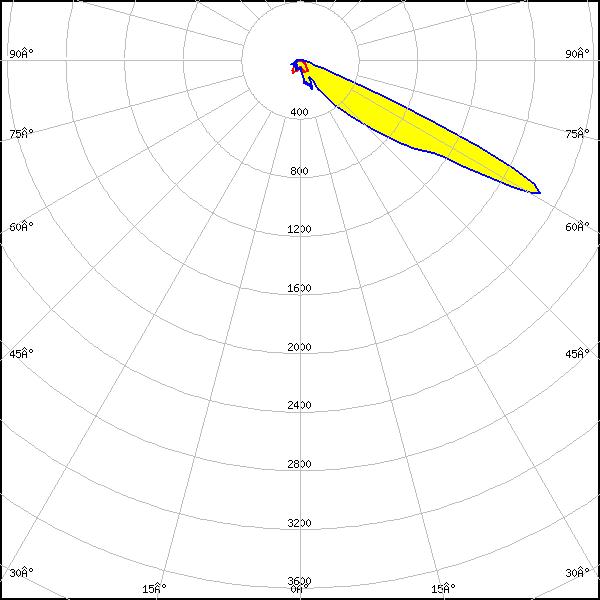

    LED: SFT-40-WCS
    FWHM: asymmetric
    Peak intensity: 1.874 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFT-70X-WCS
    FWHM: asymmetric
    Peak intensity: 1.592 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

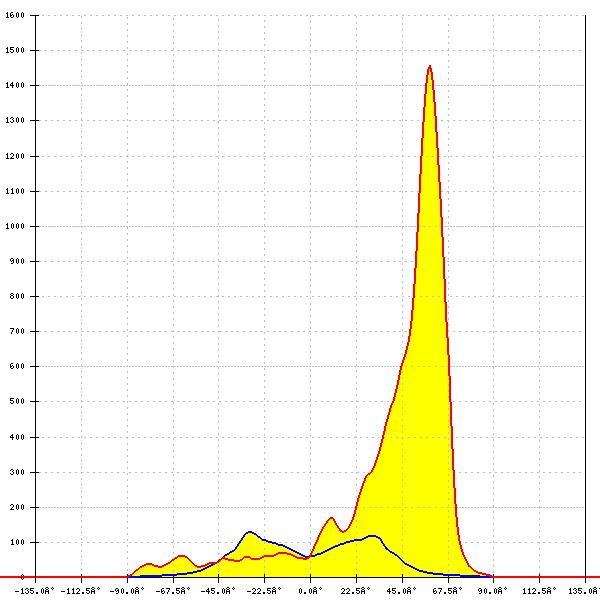

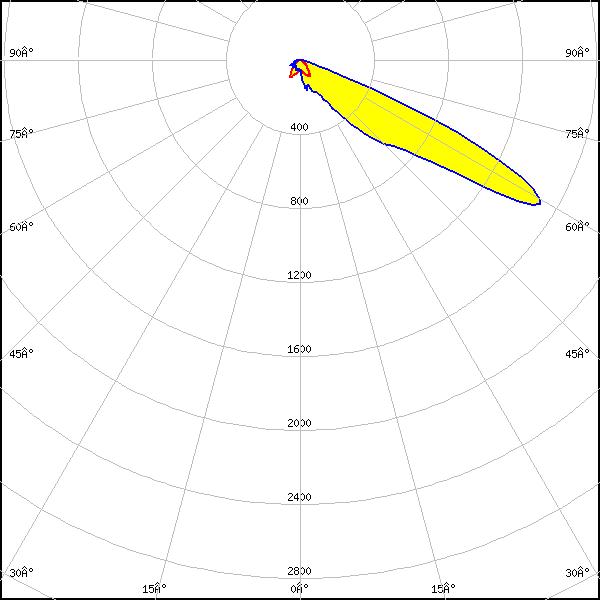

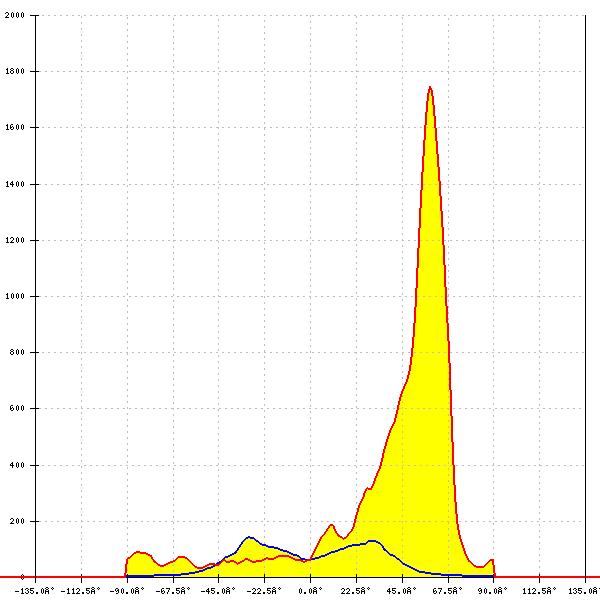

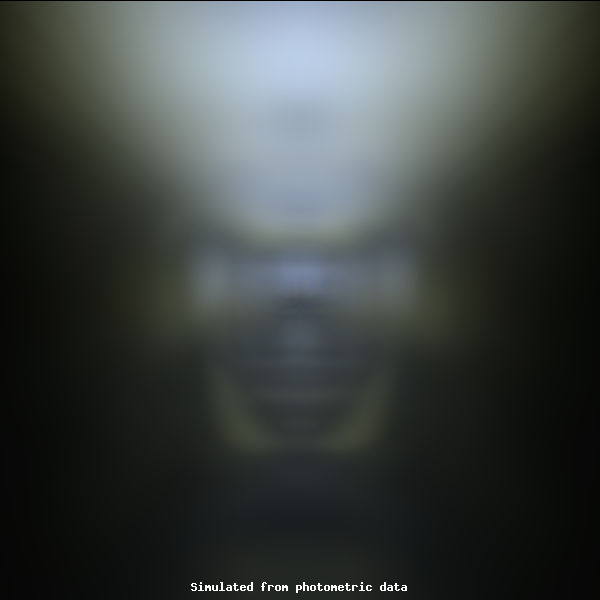

    LED: SST-20
    FWHM: asymmetric
    Peak intensity: 1.511 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

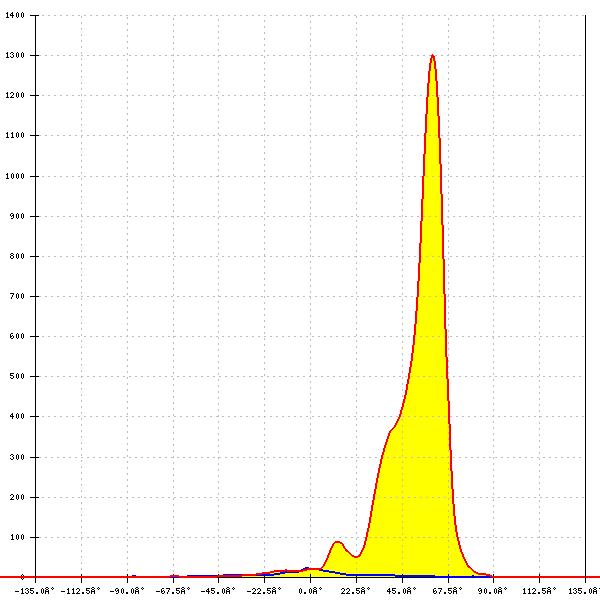

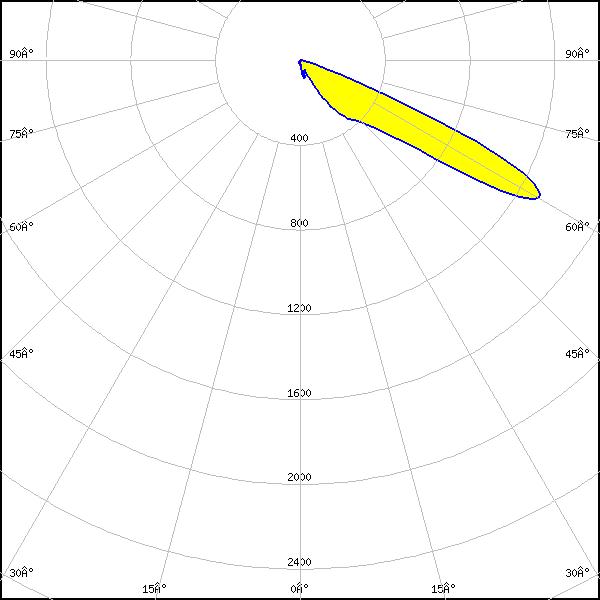

    LED: SST-20
    Required components:
    C17929_SPORT-2X2-FT-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.301 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-70X-WCS
    FWHM: asymmetric
    Peak intensity: 1.122 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-70X-WCS
    FWHM: asymmetric
    Peak intensity: 0.935 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFSx757G
    FWHM: asymmetric
    Peak intensity: 1.373 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 1.063 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    Required components:
    C18069_SPORT-2X2-FT-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.955 cd/lm
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    Required components:
    C17929_SPORT-2X2-FT-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.911 cd/lm
    Efficiency: 49 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4x144A
    FWHM: asymmetric
    Peak intensity: 0.887 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219D
    FWHM: asymmetric
    Peak intensity: 1.505 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 1.341 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW3x9A
    FWHM: asymmetric
    Peak intensity: 1.195 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

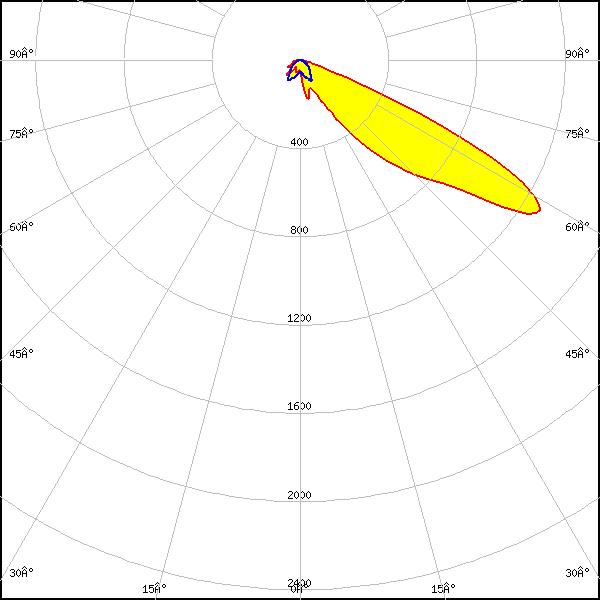

    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 1.283 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.866 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.978 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    Required components:
    C17929_SPORT-2X2-FT-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.819 cd/lm
    Efficiency: 57 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    Required components:
    C18069_SPORT-2X2-FT-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.860 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 2424
    FWHM: asymmetric
    Peak intensity: 0.848 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 4
    Light colour/type: White

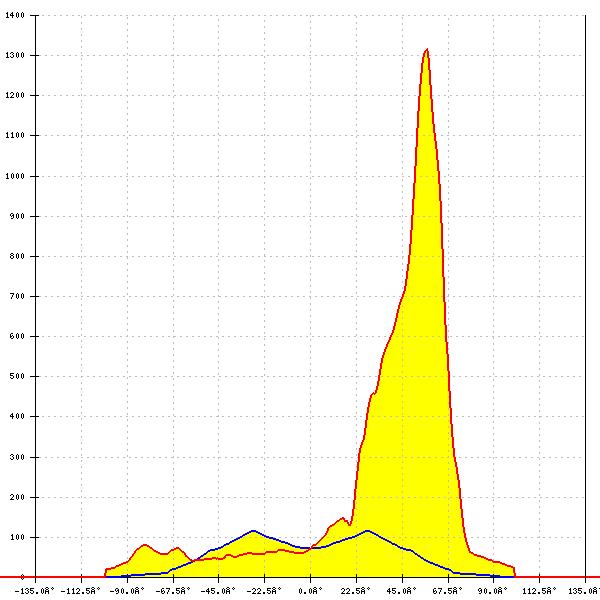

    LED: OSCONIQ C 3030
    FWHM: asymmetric
    Peak intensity: 1.329 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 3030
    FWHM: asymmetric
    Peak intensity: 1.390 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (2W version)
    FWHM: asymmetric
    Peak intensity: 1.481 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

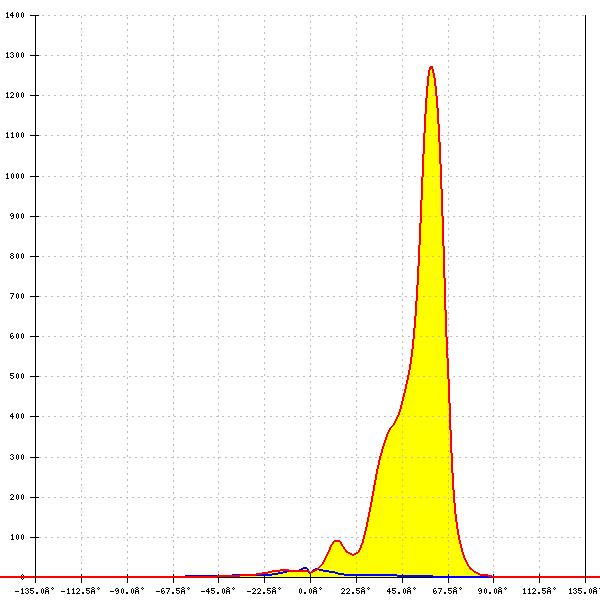

    LED: OSCONIQ P 3737 (2W version)
    Required components:
    C17929_SPORT-2X2-FT-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.271 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: asymmetric
    Peak intensity: 1.244 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 Flat
    FWHM: asymmetric
    Peak intensity: 1.466 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050
    FWHM: asymmetric
    Peak intensity: 1.004 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050
    FWHM: asymmetric
    Peak intensity: 0.853 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 1.716 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 1.472 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    Required components:
    C17929_SPORT-2X2-FT-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.528 cd/lm
    Efficiency: 62 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    Required components:
    C17929_SPORT-2X2-FT-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.305 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    Required components:
    C18069_SPORT-2X2-FT-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 1.522 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    Required components:
    C18069_SPORT-2X2-FT-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 1.298 cd/lm
    Efficiency: 63 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square Flat
    FWHM: asymmetric
    Peak intensity: 1.785 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSTAR Projection Compact (KW.CSLNM1.TG)
    FWHM: asymmetric
    Peak intensity: 1.812 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 1.416 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: asymmetric
    Peak intensity: 1.583 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: asymmetric
    Peak intensity: 1.354 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 1.088 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 1.269 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502C
    FWHM: asymmetric
    Peak intensity: 1.037 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502C
    FWHM: asymmetric
    Peak intensity: 0.896 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT 5050
    FWHM: asymmetric
    Peak intensity: 0.917 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 1.025 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.873 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3
    FWHM: asymmetric
    Peak intensity: 1.235 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

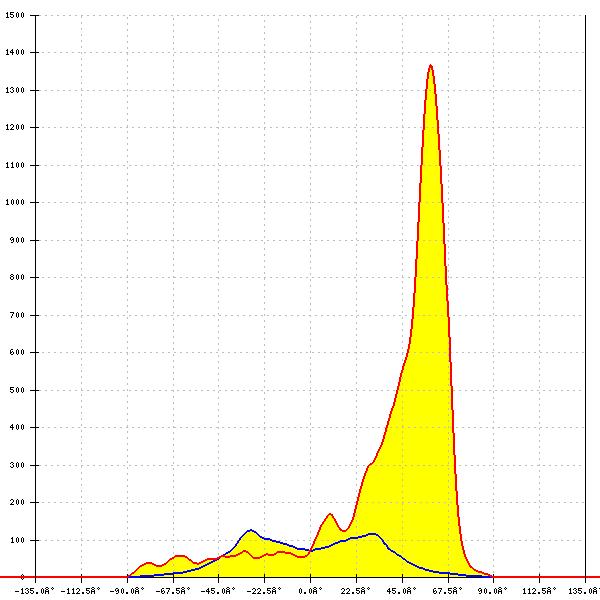

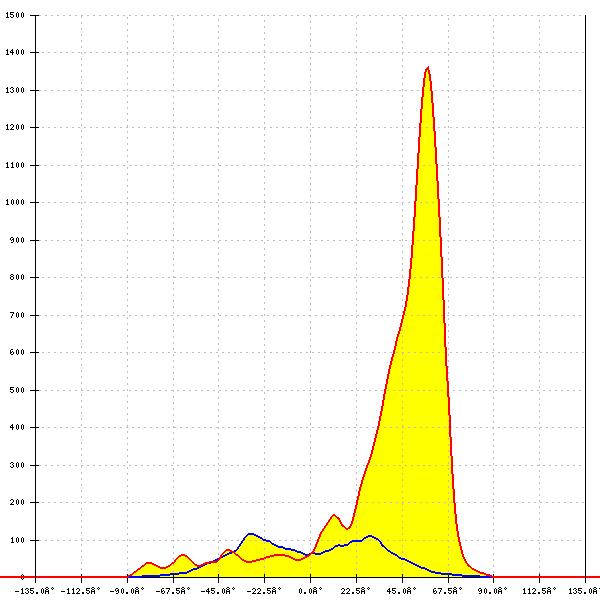

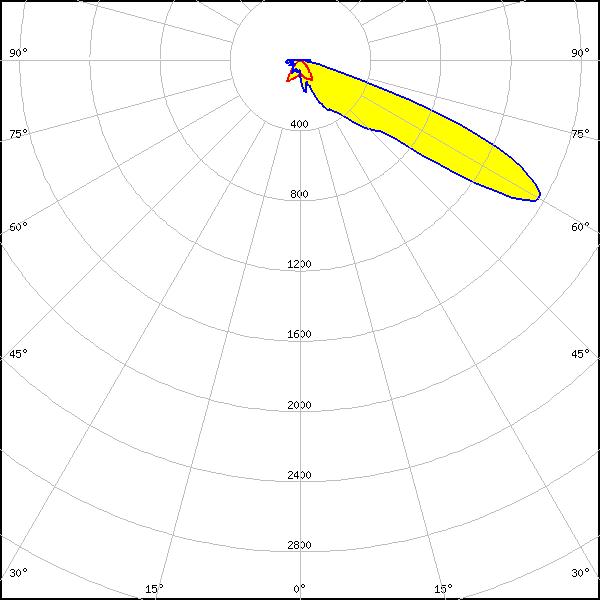

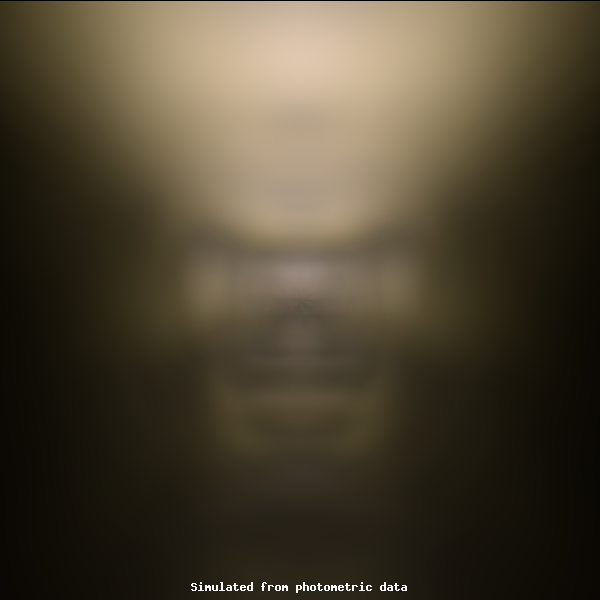

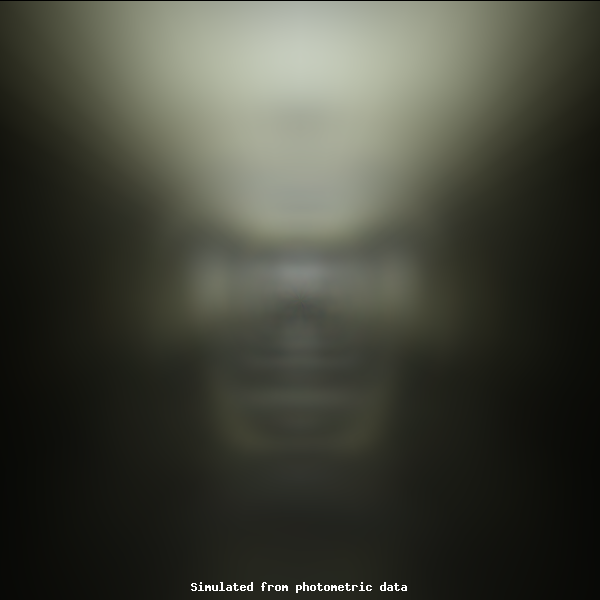

    LED: Z5M4
    FWHM: asymmetric
    Peak intensity: 1.362 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

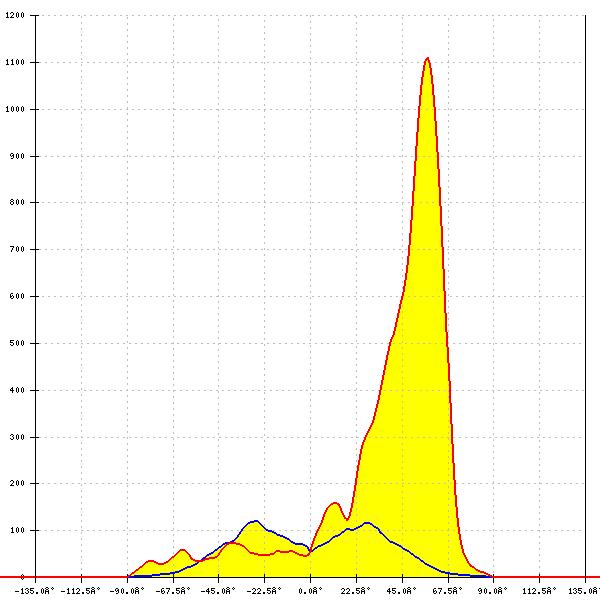

    LED: Z5M5
    FWHM: asymmetric
    Peak intensity: 1.278 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M5
    FWHM: asymmetric
    Peak intensity: 1.109 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22
    FWHM: asymmetric
    Peak intensity: 1.245 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

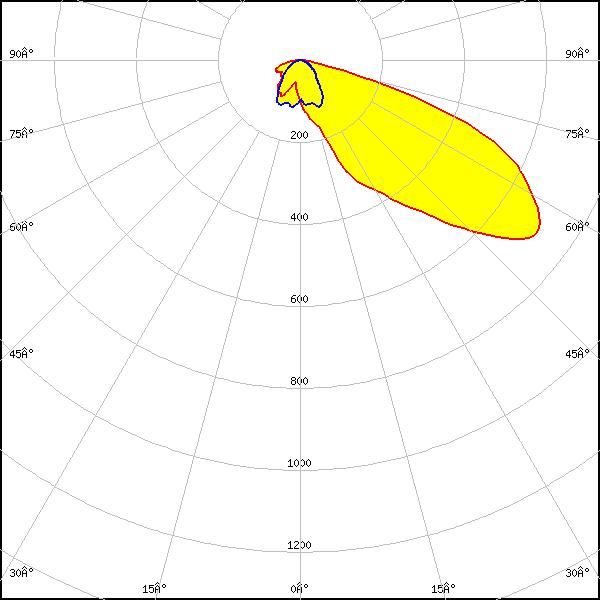

    LED: Z8Y50P
    FWHM: asymmetric
    Peak intensity: 0.716 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PassivePAQ-R-222x50.OS1.9.7K-750-5 V1.0
    FWHM: asymmetric
    Peak intensity: 1.478 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

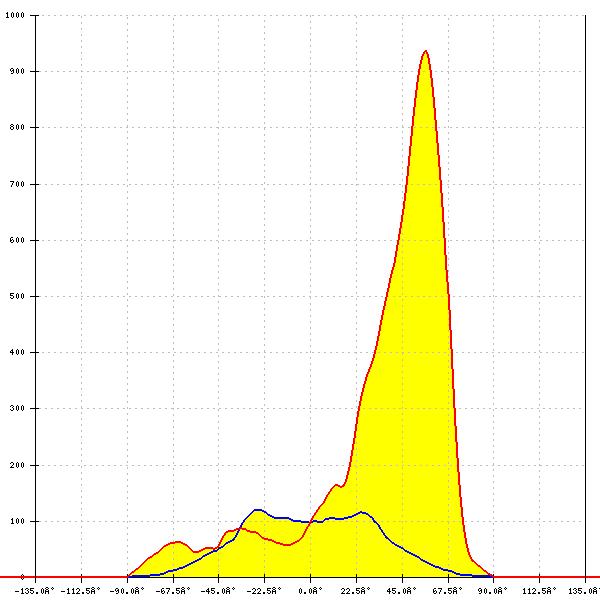

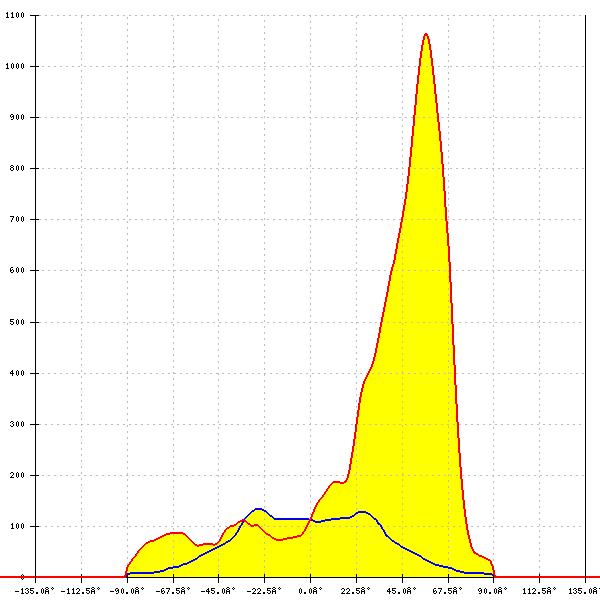

    LED: RLE 2x8 6000lm HP HE EXC3 OTD
    FWHM: asymmetric
    Peak intensity: 0.937 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 6000lm HP HE EXC3 OTD
    Required components:
    C17929_SPORT-2X2-FT-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.782 cd/lm
    Efficiency: 48 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
