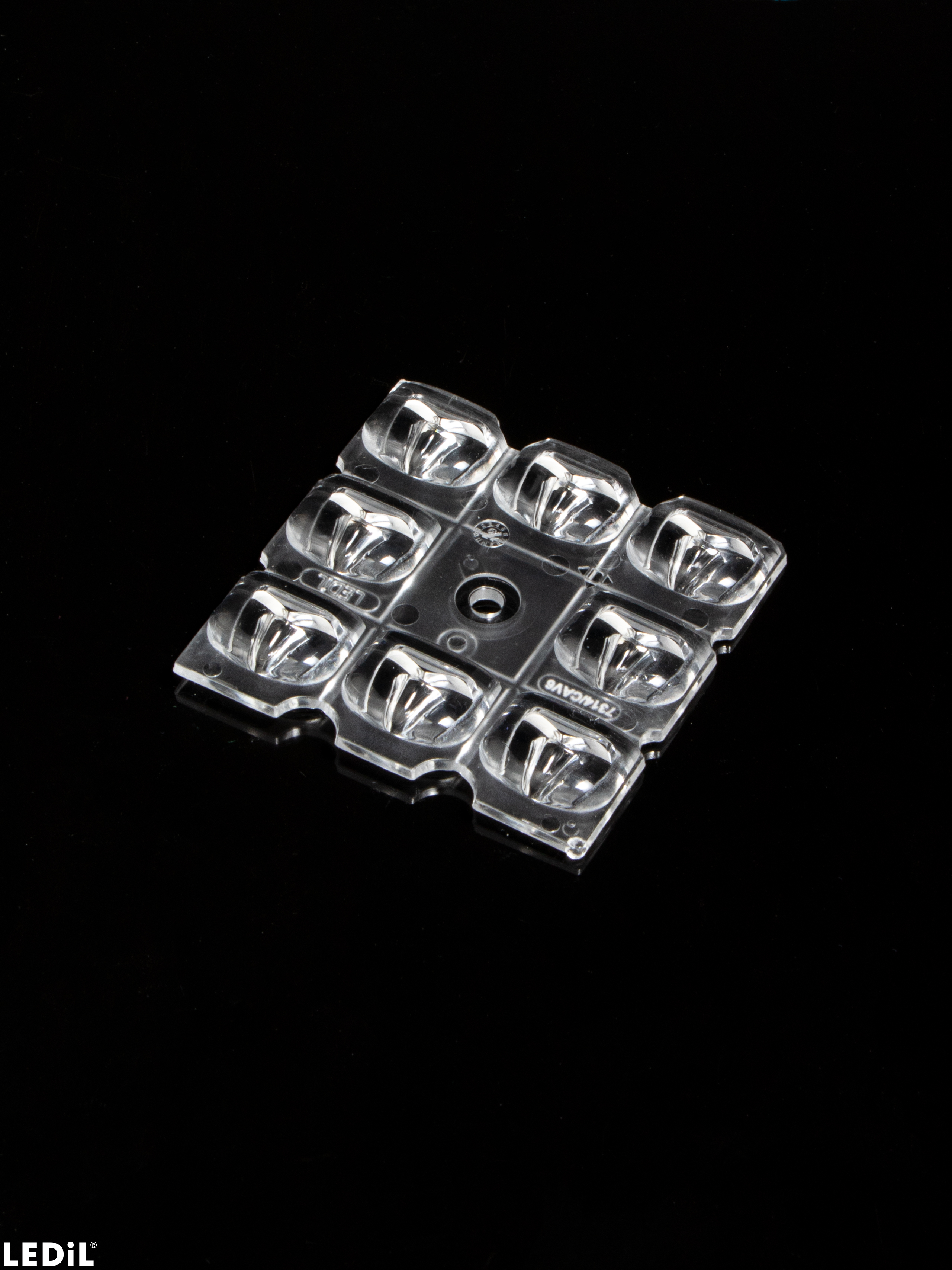

C17314_STRADELLA-8-HV-CSP-SCL

Type II/III (long) beam for very wide pole to pole distances. Ideal for pedestrian paths and residential roads. EN13201 P-class. Variant with improved creepage distance for high voltage circuit design

Specification

Dimensions:

50 x 50 mm
Height:

4.89 mm
Fastening:

screw
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

800 pcs
Box size:

480 x 280 x 300 mm
Box weight:

6.7 kg
MPQ:

160 pcs
MOQ:

160 pcs
MOQ size:

480 x 280 x 80 mm
MOQ weight:

1.6 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: C17314_STRADELLA-8-HV-CSP-SCL

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

C17314_STRADELLA-8-HV-CSP-SCL

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

News

New Products 2020-01-24

News

More lumens with less watts on your street using STRADELLA-8-CSP

Application guide

Guide for Street lighting optics

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

News

PRODUCT NEWS - STRADELLA FAMILY

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

Application area

Industrial Lighting

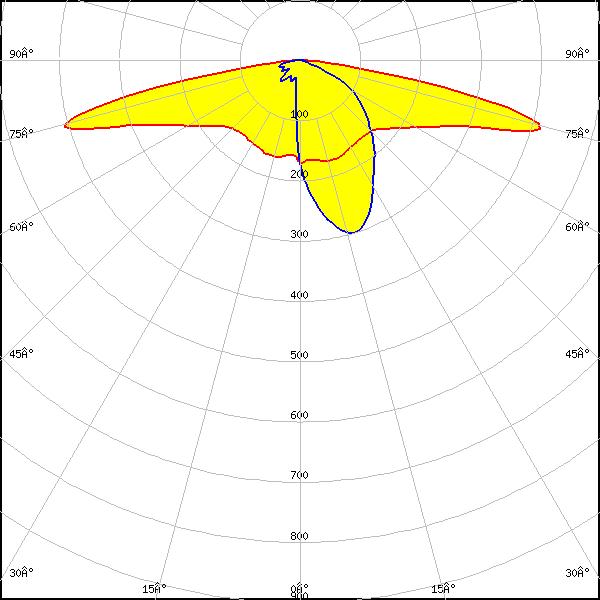

Optical results

LED: LUXEON CZ

FWHM: asymmetric

Peak intensity: 0.847 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

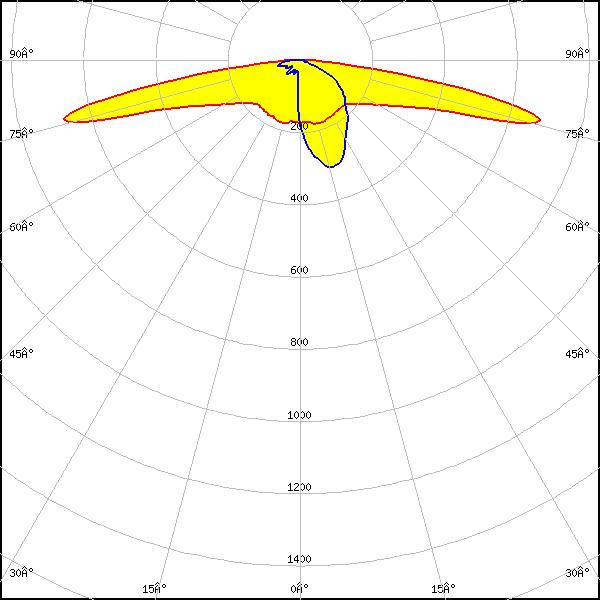

LED: LUXEON HL2Z

FWHM: asymmetric

Peak intensity: 1.113 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

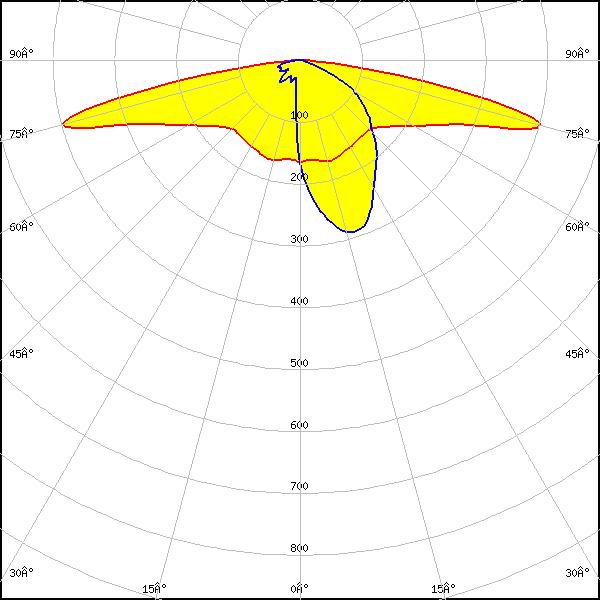

LED: LUXEON HL2Z

FWHM: asymmetric

Peak intensity: 0.591 cd/lm

Efficiency: 71 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

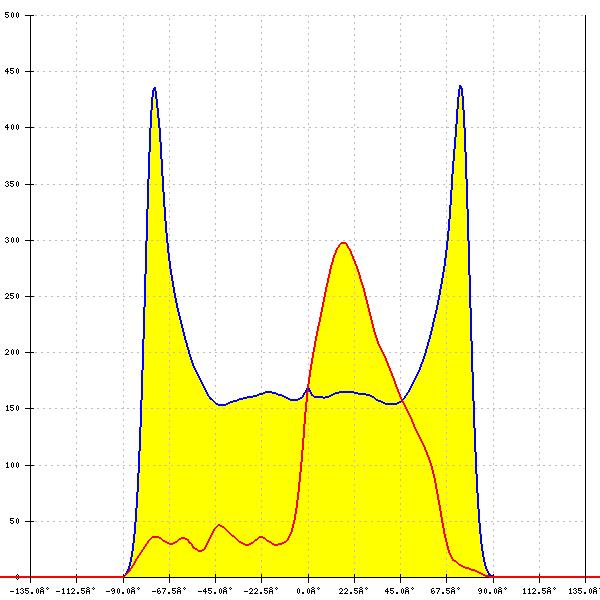

LED: NVSxE21A

FWHM: asymmetric

Peak intensity: 1.204 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

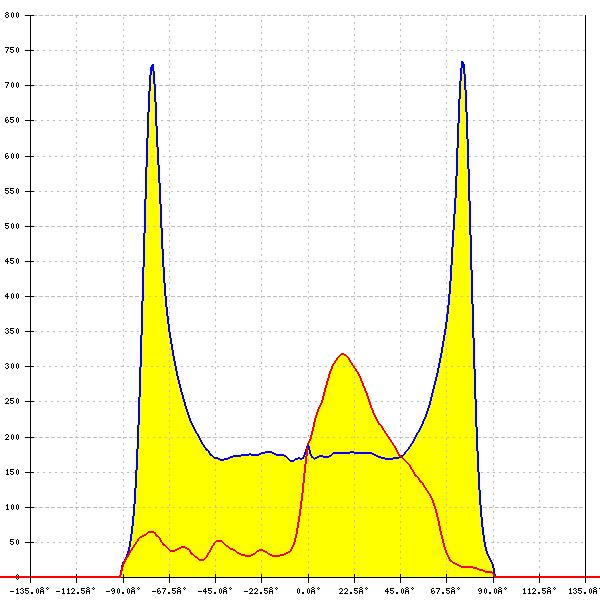

LED: NVSxE21A

FWHM: asymmetric

Peak intensity: 0.647 cd/lm

Efficiency: 72 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: Fortimo FastFlex LED 4x8up PR G5

FWHM: asymmetric

Peak intensity: 0.806 cd/lm

Efficiency: 80 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: Fortimo FastFlex LED 4x8up PR G5

FWHM: asymmetric

Peak intensity: 1.349 cd/lm

Efficiency: 95 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LH151B

FWHM: asymmetric

Peak intensity: 0.959 cd/lm

Efficiency: 75 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LH151B

FWHM: asymmetric

Peak intensity: 1.906 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LH181B

FWHM: asymmetric

Peak intensity: 0.966 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
