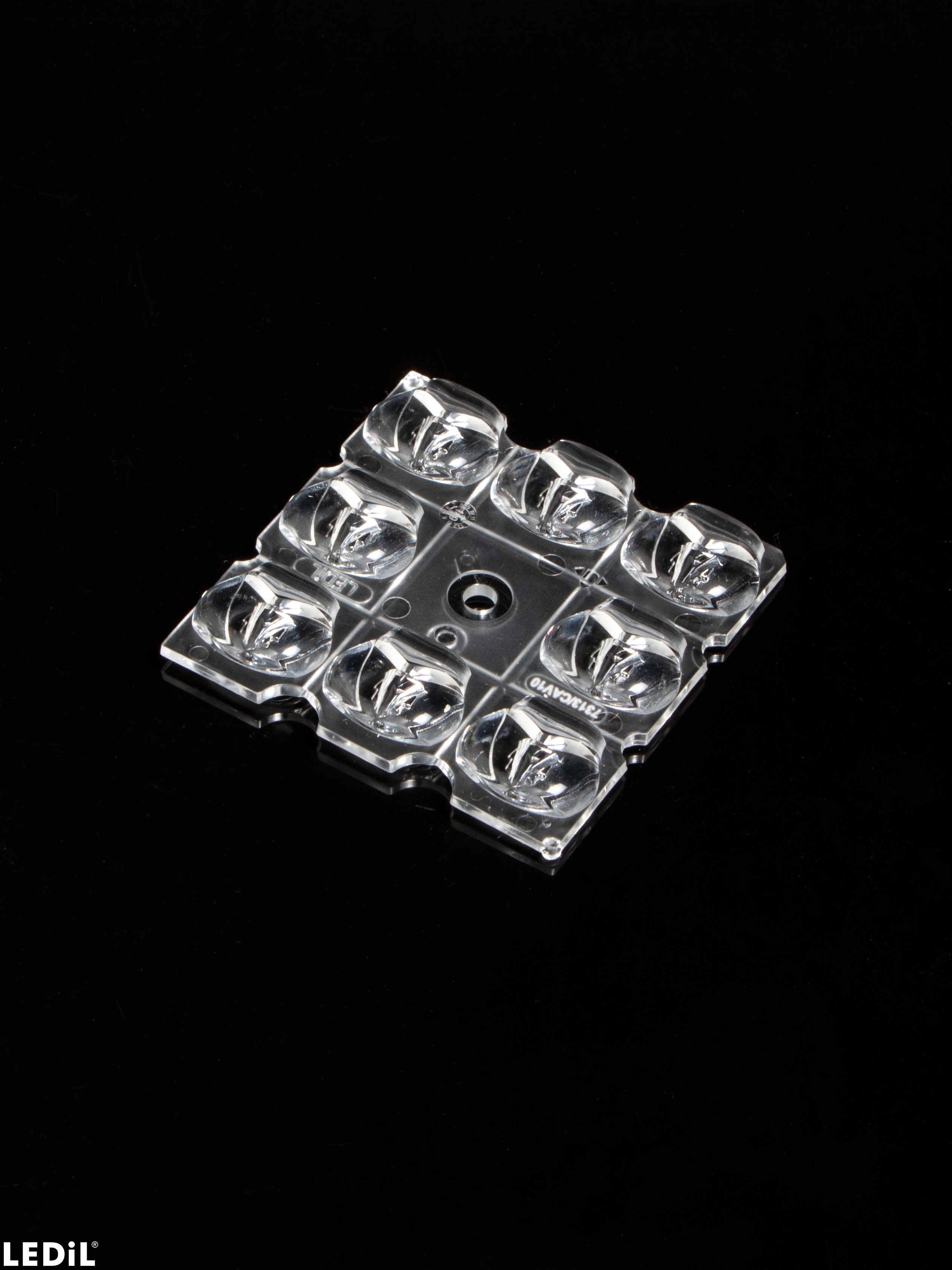

C17313_STRADELLA-8-HV-CSP-T3-M
PrintIESNA Type III (medium) beam with excellent back light control, illuminance uniformity and cutoff. Variant with improved creepage distance for high voltage circuit design.
Specification
-
Dimensions:50 x 50 mm
-
Height:4.89 mm
-
Fastening:screw
-
Colour:clear
-
RoHS and REACH compliant:Yes
Materials
Ordering information
-
Quantity in box:800 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:7.1 kg
-
MPQ:160 pcs
-
MOQ:160 pcs
-
MOQ size:480 x 280 x 80 mm
-
MOQ weight:1.7 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content

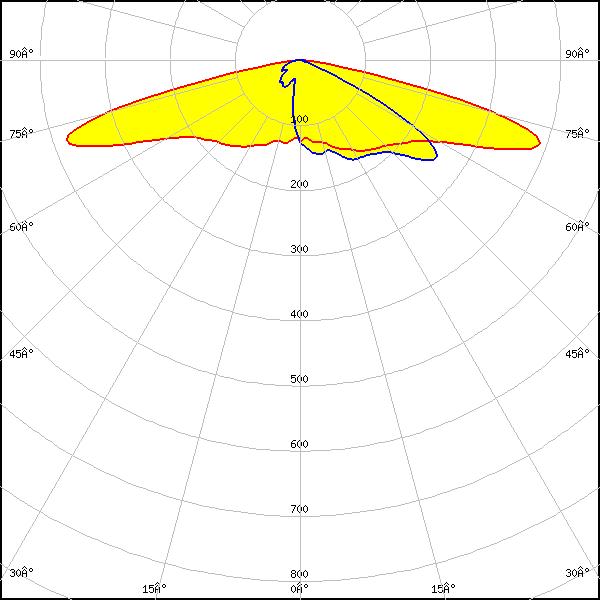

Optical results
LED:

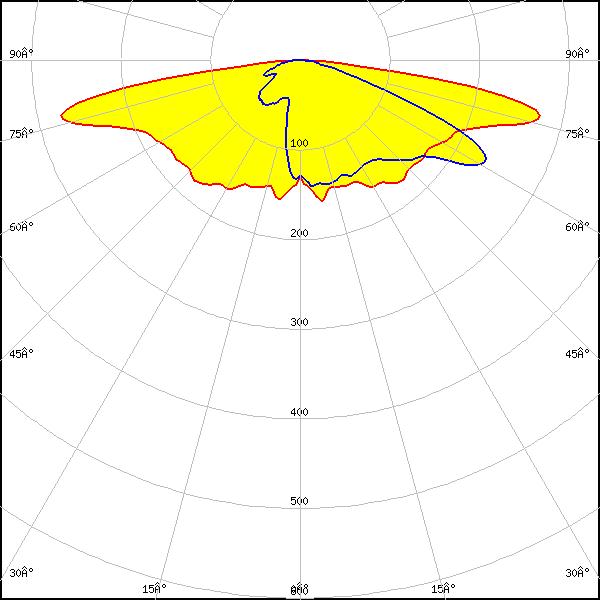

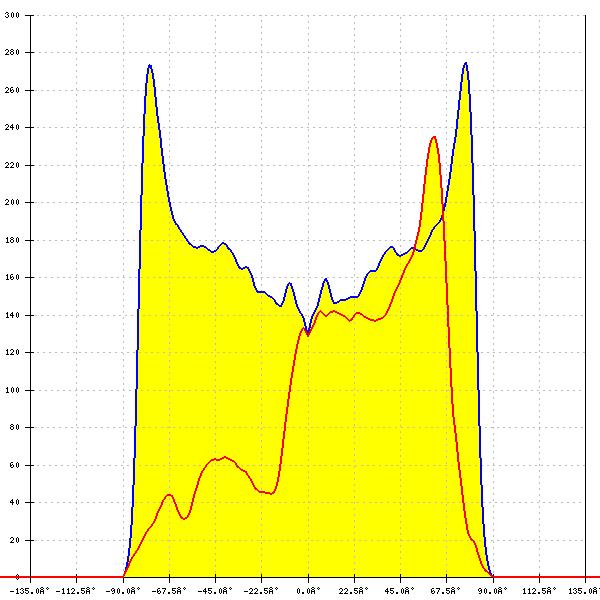

LUXEON C
FWHM: asymmetric
Peak intensity:
0.425 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White

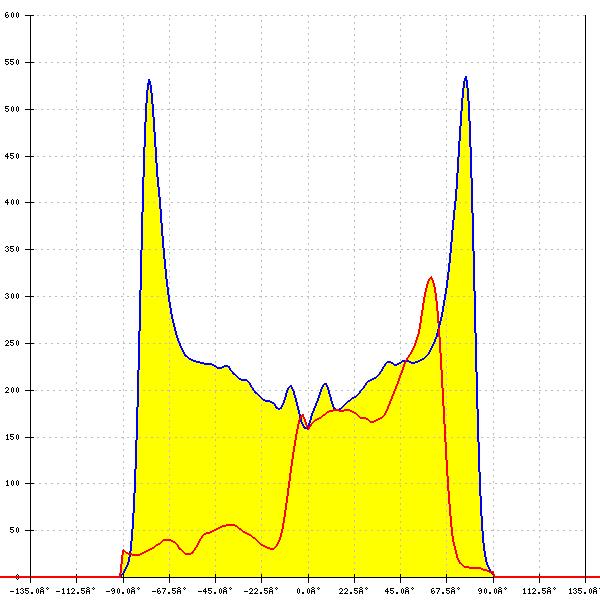

LED:

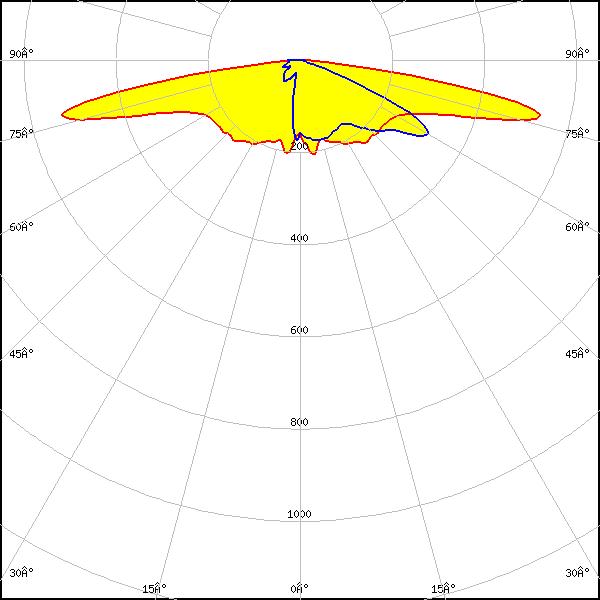

LUXEON CZ
FWHM: asymmetric
Peak intensity:
0.943 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

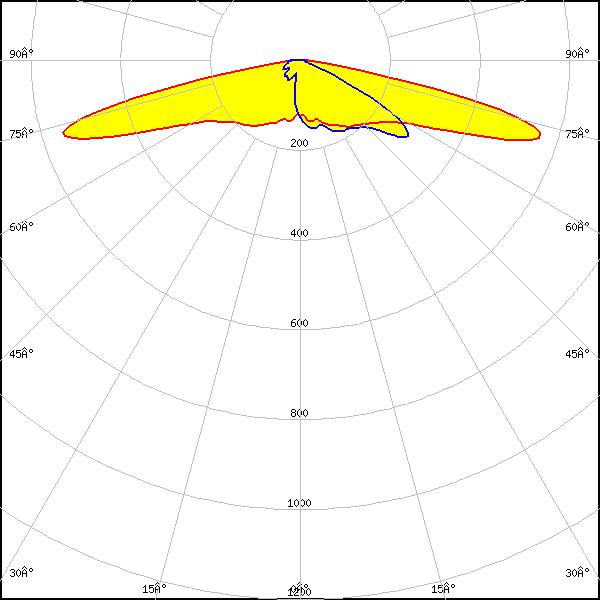

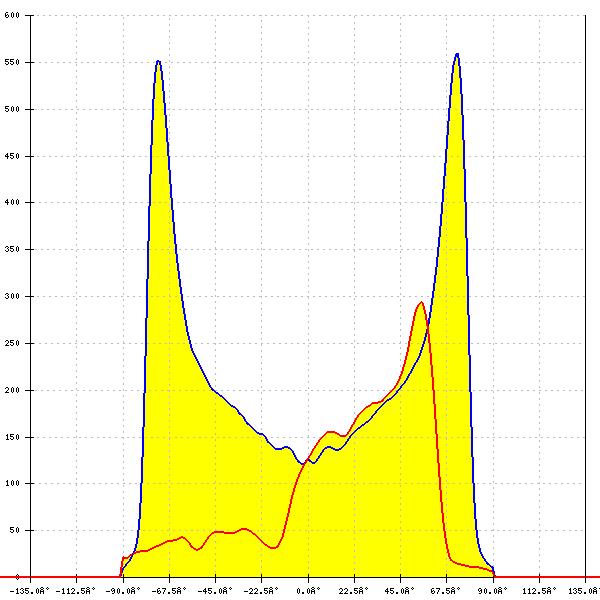

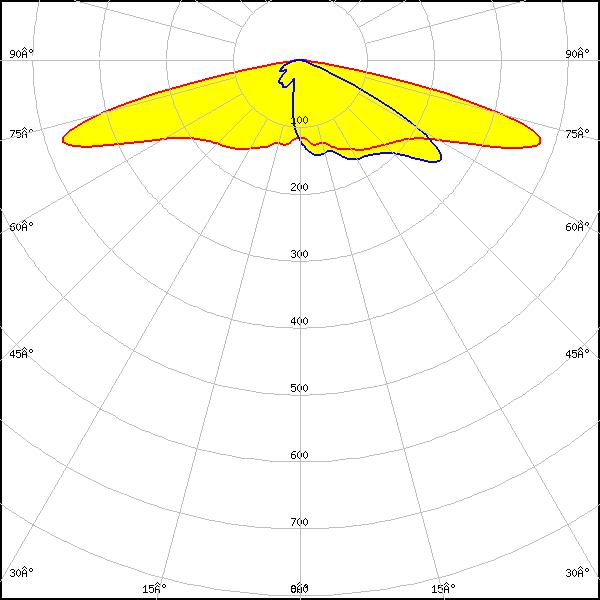

LED:
LUXEON HL2Z
FWHM: asymmetric
Peak intensity:
1.046 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

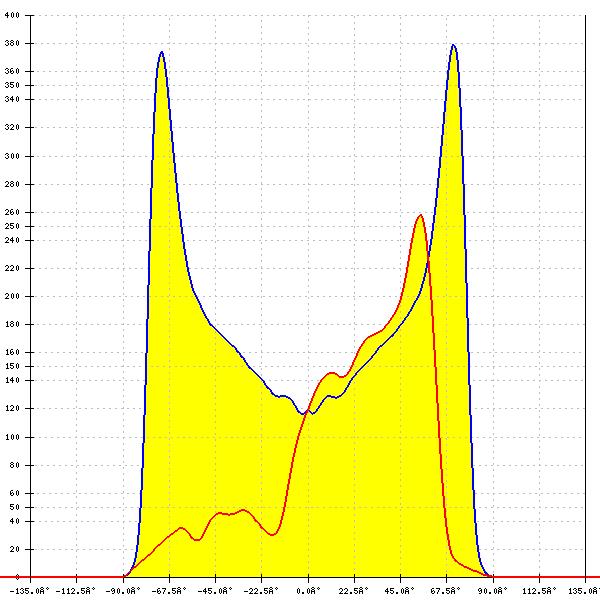

LED:
LUXEON HL2Z
FWHM: asymmetric
Peak intensity:
0.643 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

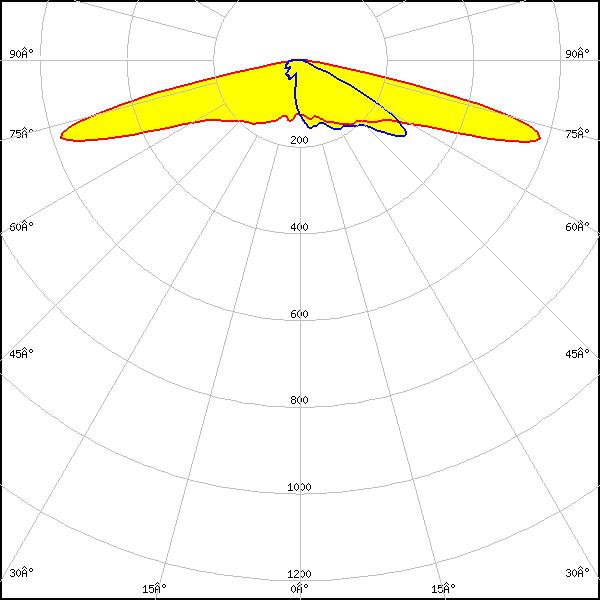

LED:

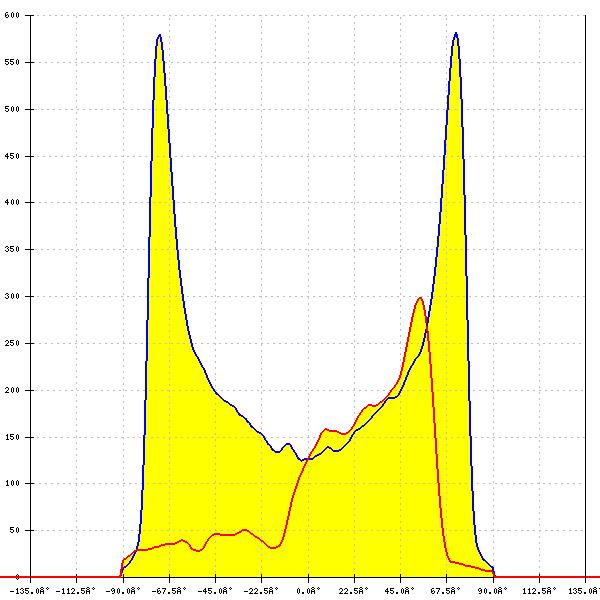

NVSxE21A
FWHM: asymmetric
Peak intensity:
1.118 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

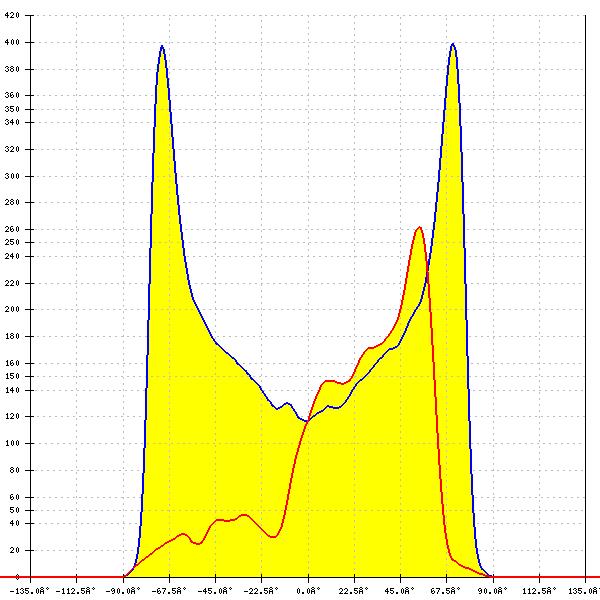

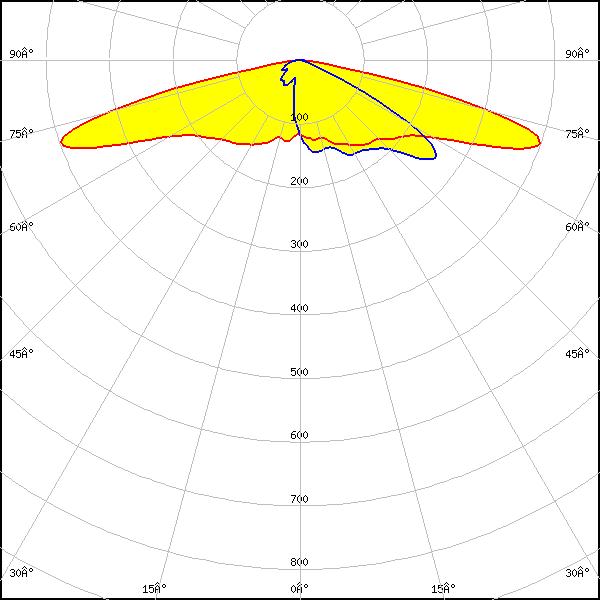

LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
0.697 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

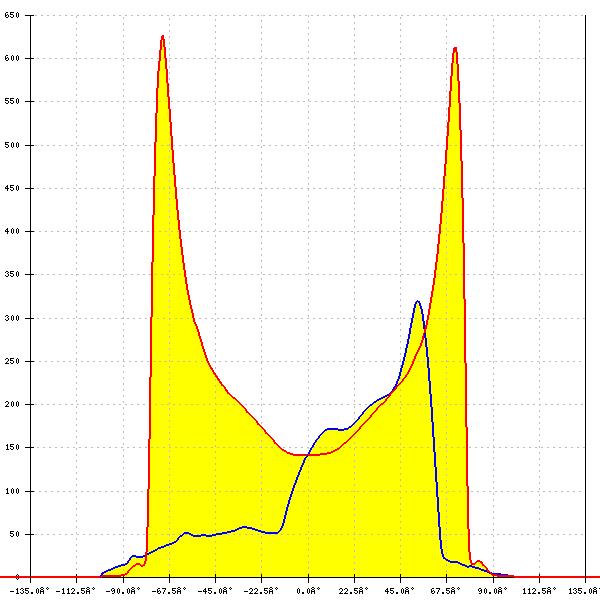

LED:

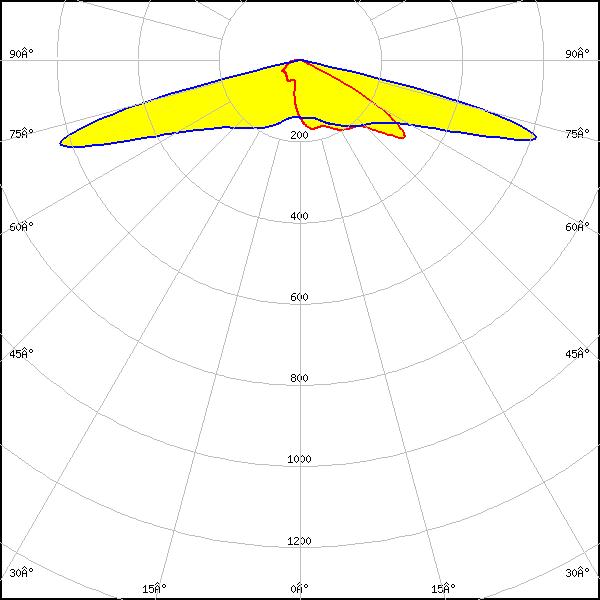

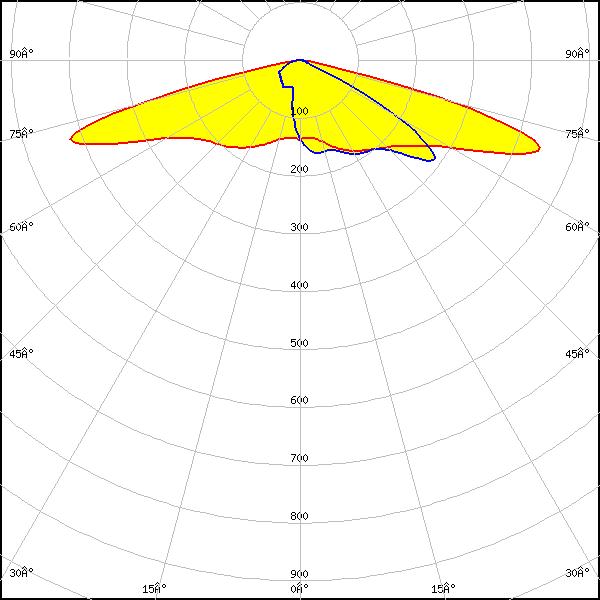

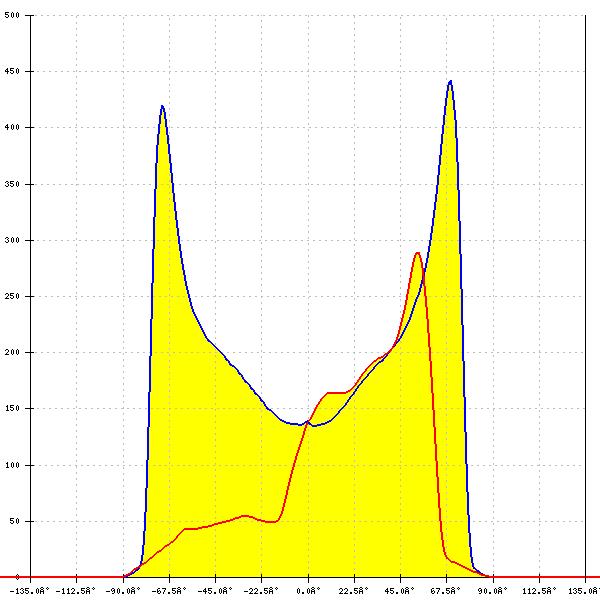

Fortimo FastFlex LED 4x8up PR G5
FWHM: asymmetric
Peak intensity:
0.781 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 4x8up PR G5
FWHM: asymmetric
Peak intensity:
1.160 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

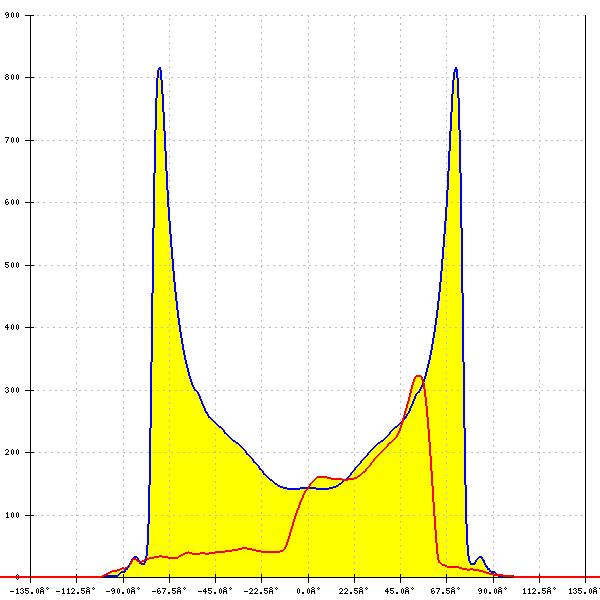

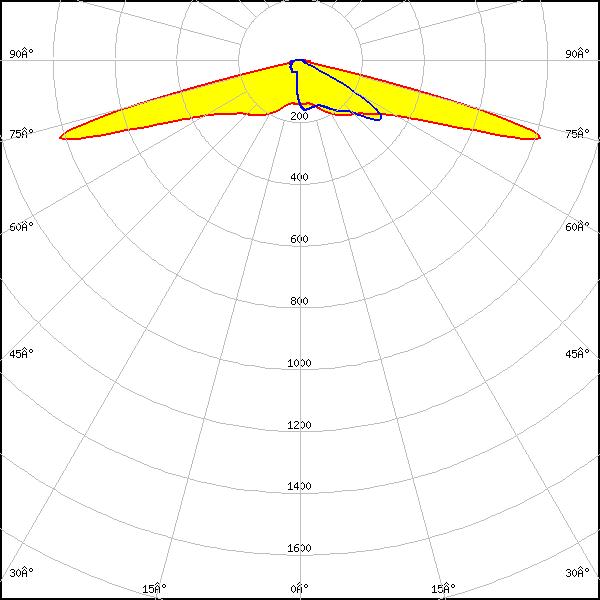

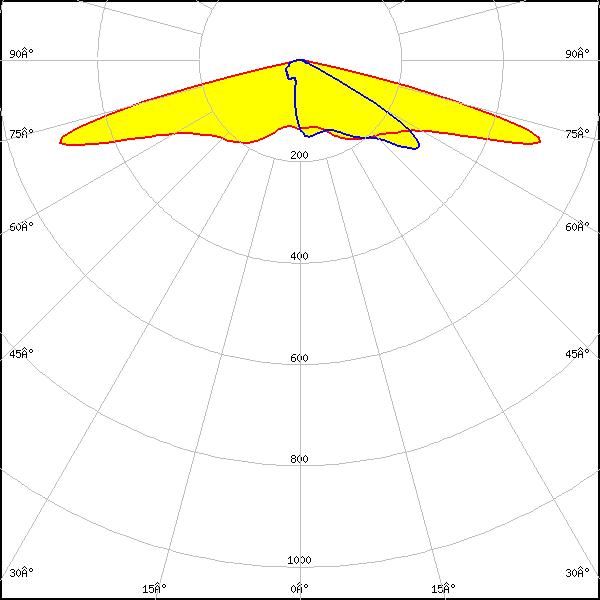

LED:
LH151B
FWHM: asymmetric
Peak intensity:
0.941 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

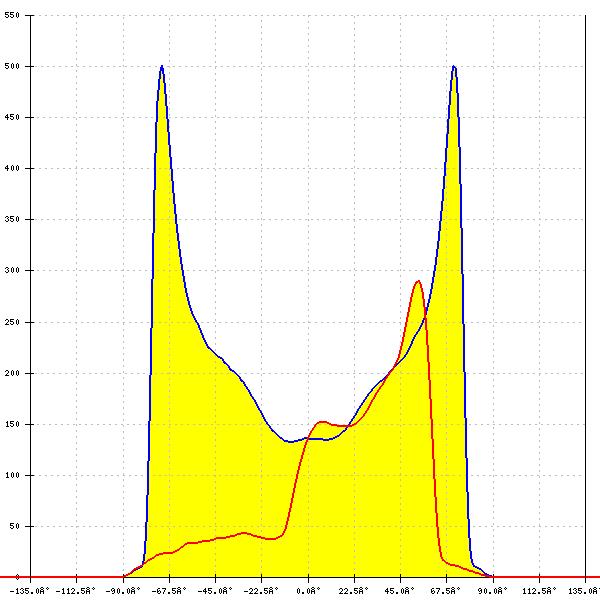

LED:
LH151B
FWHM: asymmetric
Peak intensity:
1.548 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

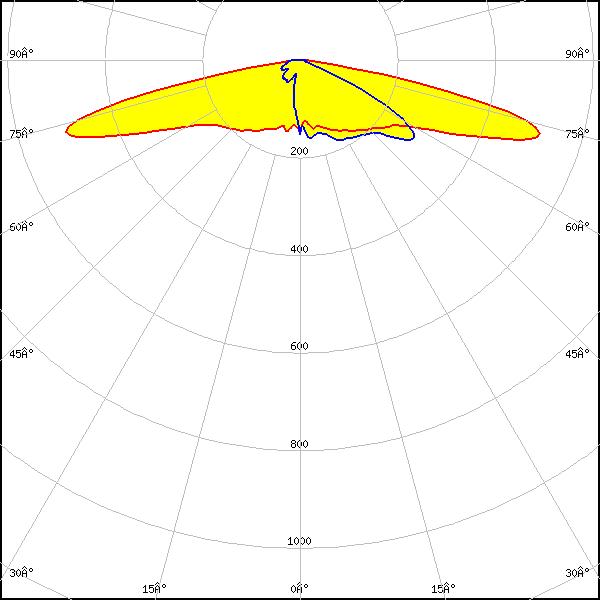

LH181B
FWHM: asymmetric
Peak intensity:
0.937 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
