C17303_HB-2X2-5050-S
Print
~25° spot beam for industrial applications
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

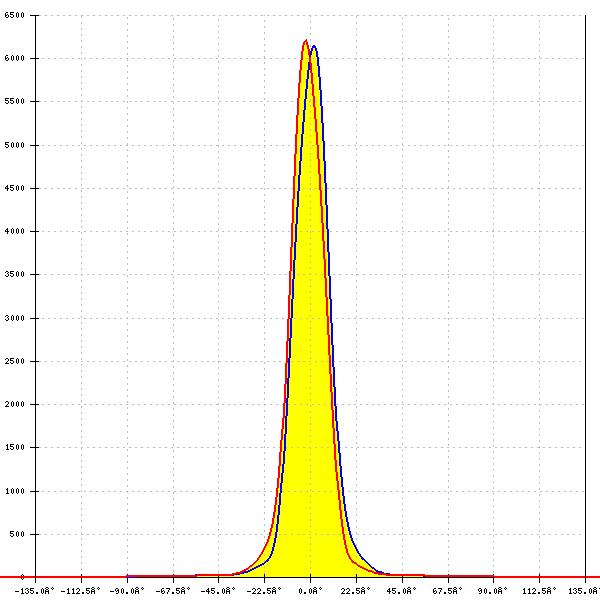

Optical results
LED:
J Series 5050 6V P Class
FWHM:
26°
FWTM:
50°
Peak intensity:
3.367 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM:
24°
FWTM:
48°
Peak intensity:
3.533 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

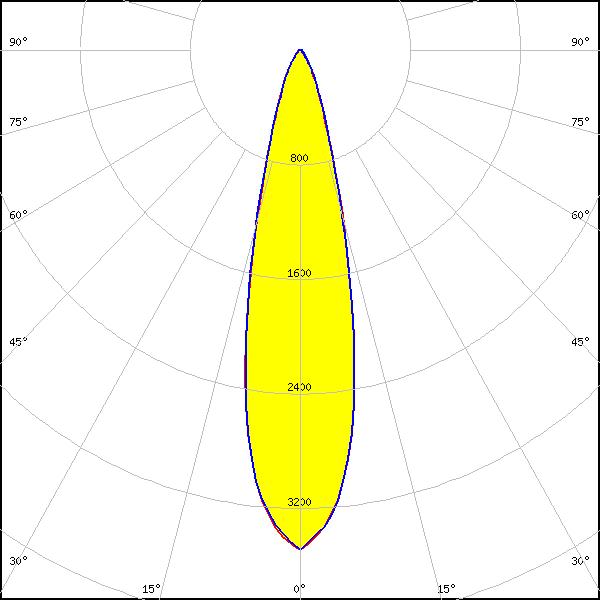

LED:
J Series 5050C 6V E Class
FWHM:
24°
FWTM:
48°
Peak intensity:
3.493 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

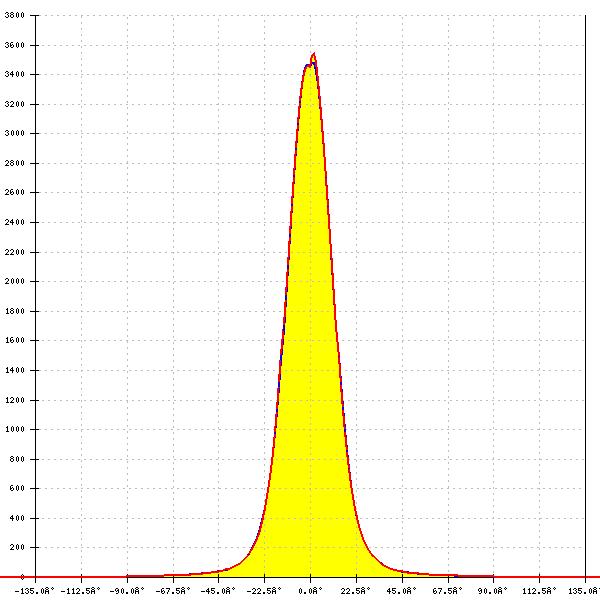

LED:
XM-L RGBW (XMLDCL HI)
FWHM:
26°
FWTM:
48°
Peak intensity:
3.543 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
XP-G2
FWHM:
21°
FWTM:
38°
Peak intensity:
5.424 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

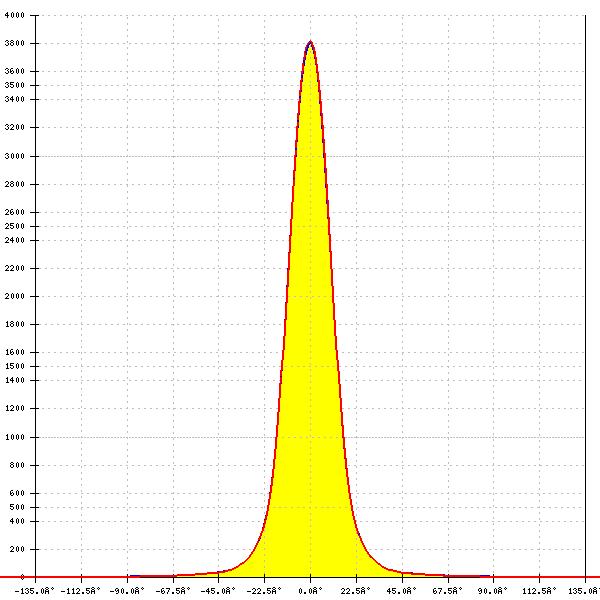

LED:
XP-G3
FWHM:
24°
FWTM:
44°
Peak intensity:
3.826 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-P
FWHM:
18°
FWTM:
30°
Peak intensity:
7.459 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

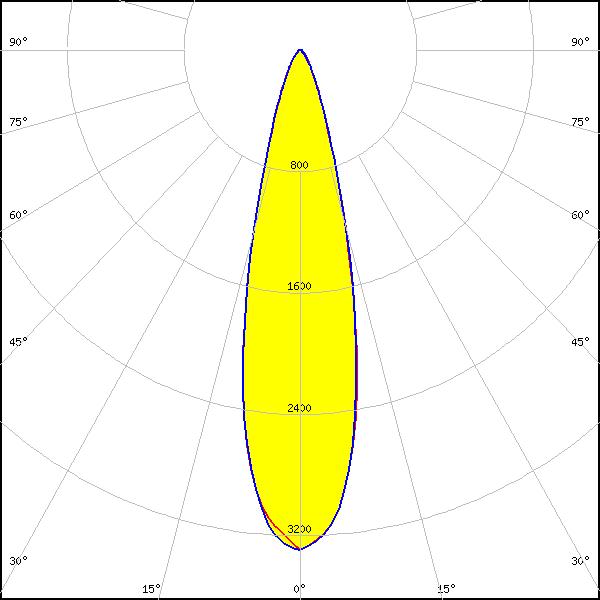

LED:
LUXEON 5050 HE
FWHM:
26°
FWTM:
48°
Peak intensity:
3.297 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 HE
FWHM:
26°
FWTM:
50°
Peak intensity:
3.110 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

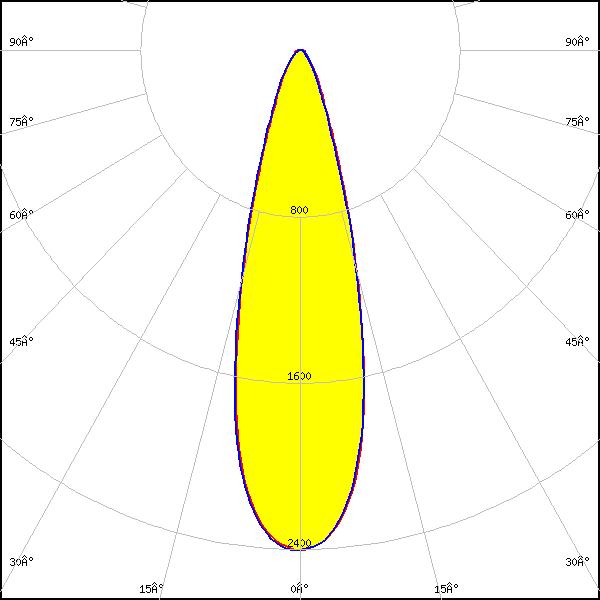

LED:

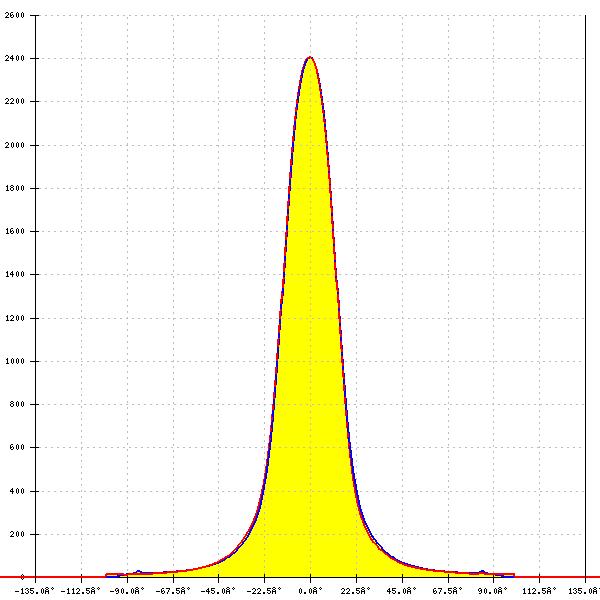

LUXEON 5050 HE Plus
FWHM:
29°
FWTM:
56°
Peak intensity:
2.405 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM:
28°
FWTM:
52°
Peak intensity:
2.809 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM:
27°
FWTM:
51°
Peak intensity:
3.065 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM:
28°
FWTM:
57°
Peak intensity:
2.461 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 7070
FWHM:
38°
FWTM:
79°
Peak intensity:
1.422 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HL2X
FWHM:
24°
FWTM:
44°
Peak intensity:
4.082 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HL2X-D
FWHM:
24°
FWTM:
46°
Peak intensity:
3.998 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HL2X-D
FWHM:
24°
FWTM:
46°
Peak intensity:
3.643 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

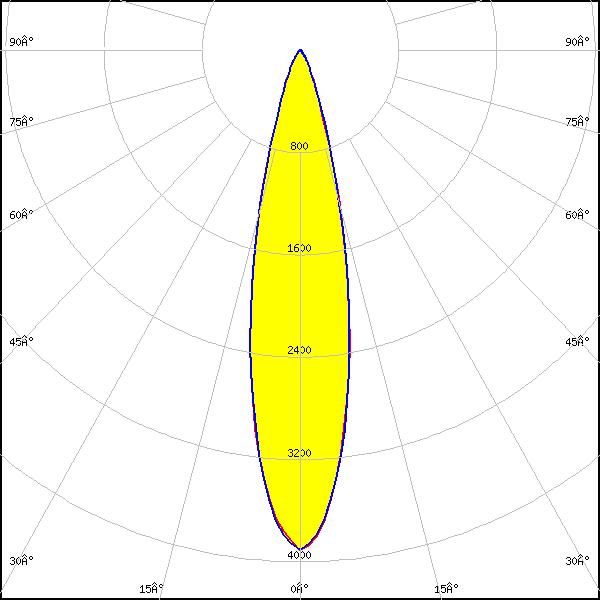

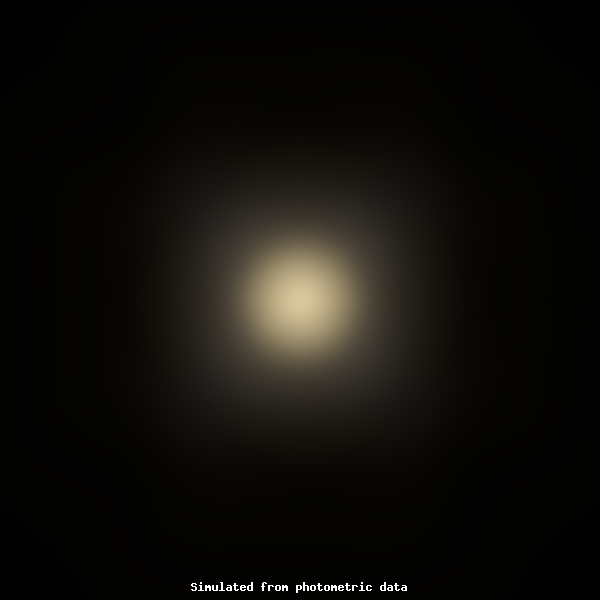

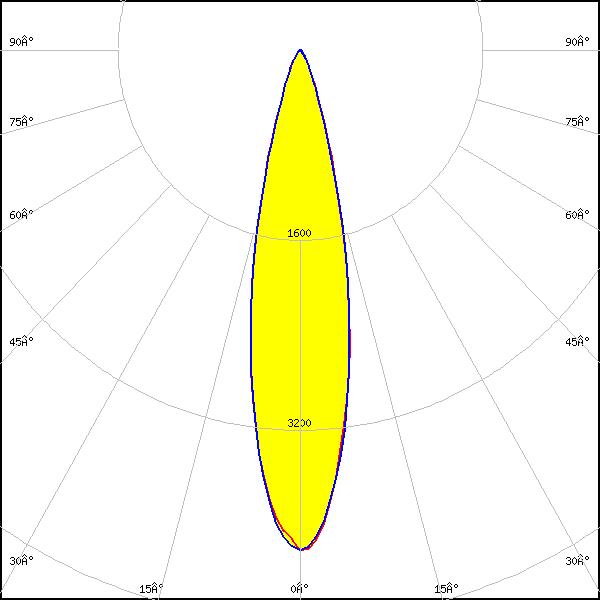

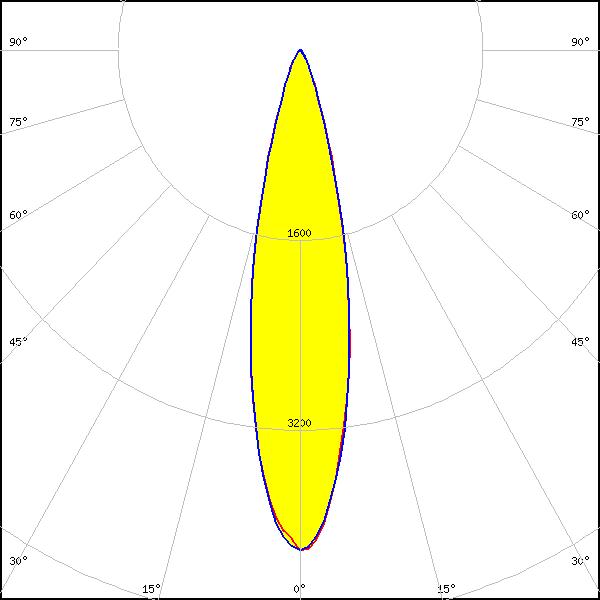

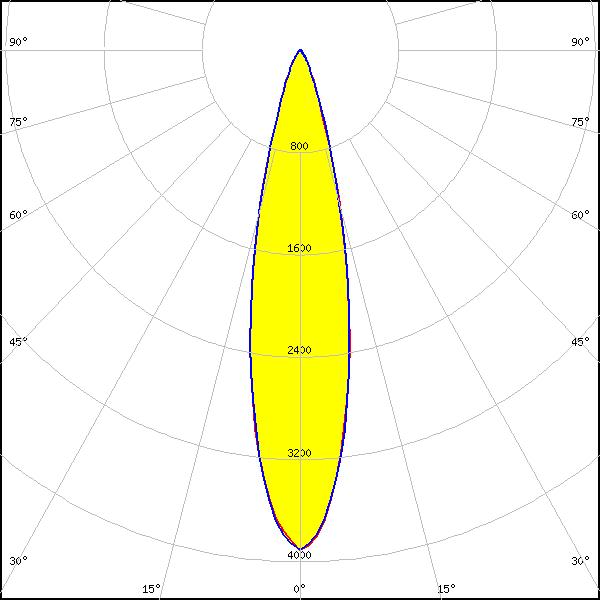

LED:
LUXEON HL2X-E
FWHM:
24°
FWTM:
44°
Peak intensity:
4.240 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HL2X-E
FWHM:
24°
FWTM:
44°
Peak intensity:
3.911 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HL2X-P
FWHM:
24°
FWTM:
47°
Peak intensity:
3.748 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

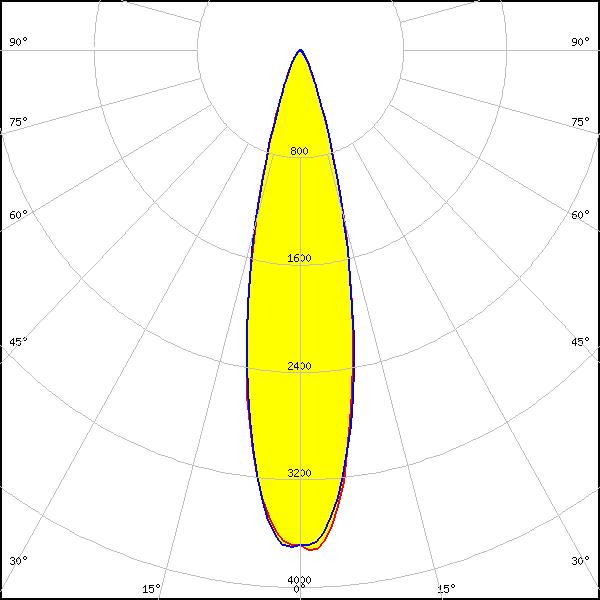

LUXEON HL4X
FWHM:
24°
FWTM:
46°
Peak intensity:
3.762 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

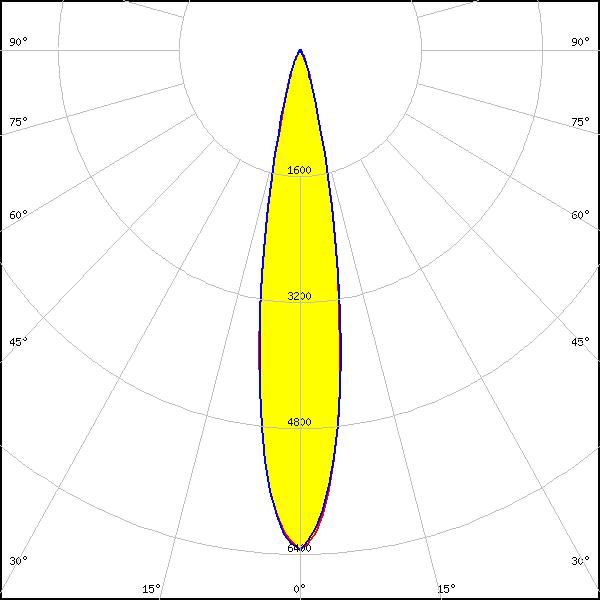

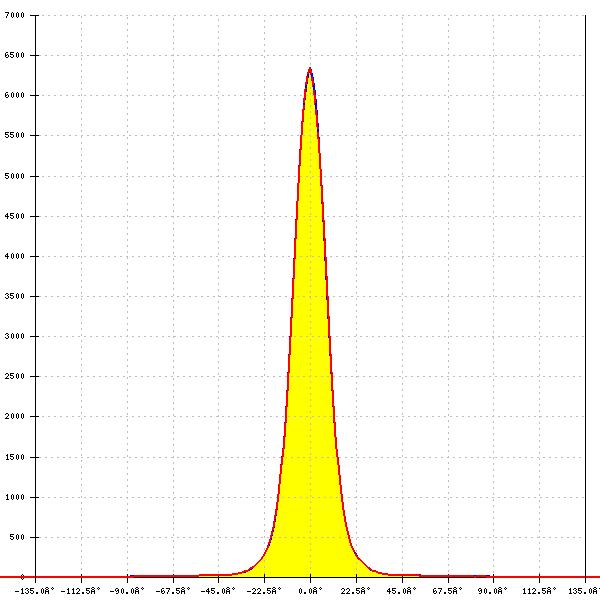

LUXEON HL4Z
FWHM:
18°
FWTM:
36°
Peak intensity:
6.348 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON XR-5050 SQR (L213-xxxx016MRH001)
FWHM:
28°
FWTM:
55°
Peak intensity:
2.516 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

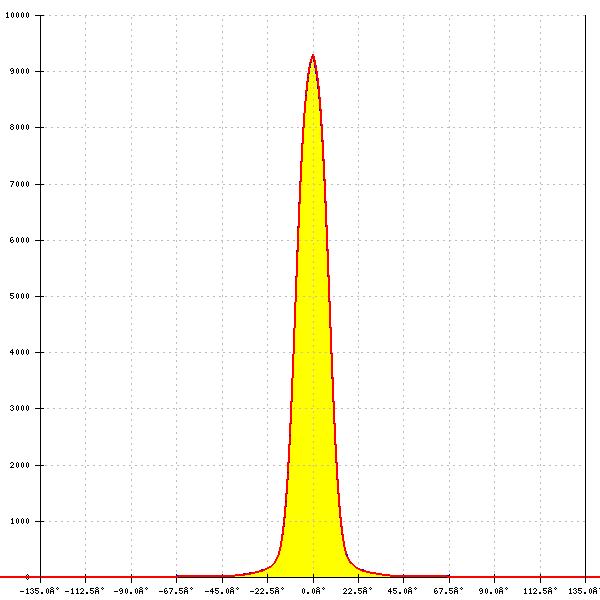

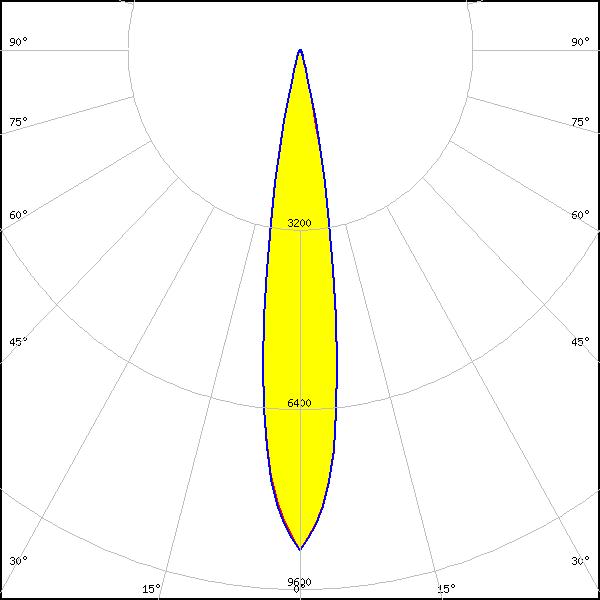

LED:

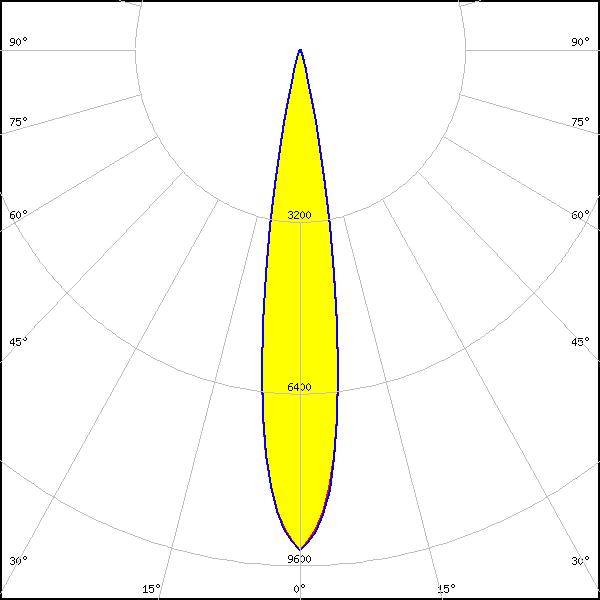

SFT-12R-W-A
FWHM:
18°
FWTM:
28°
Peak intensity:
9.314 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFT-12R-W-A
FWHM:
16°
FWTM:
28°
Peak intensity:
8.906 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RecLED 173x50mm 2900lm 740 2x6 5050 Opt G1
FWHM:
33°
FWTM:
60°
Peak intensity:
2.048 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NFMW48xA
FWHM:
28°
FWTM:
54°
Peak intensity:
2.841 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NFMW48xA
FWHM:
29°
FWTM:
55°
Peak intensity:
2.662 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

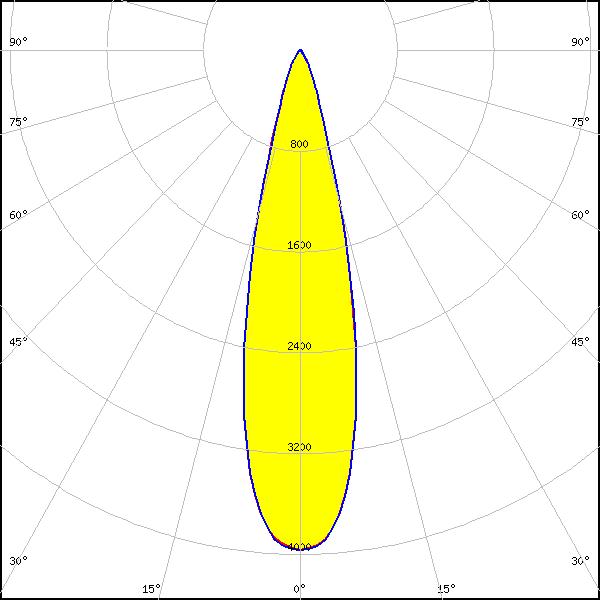

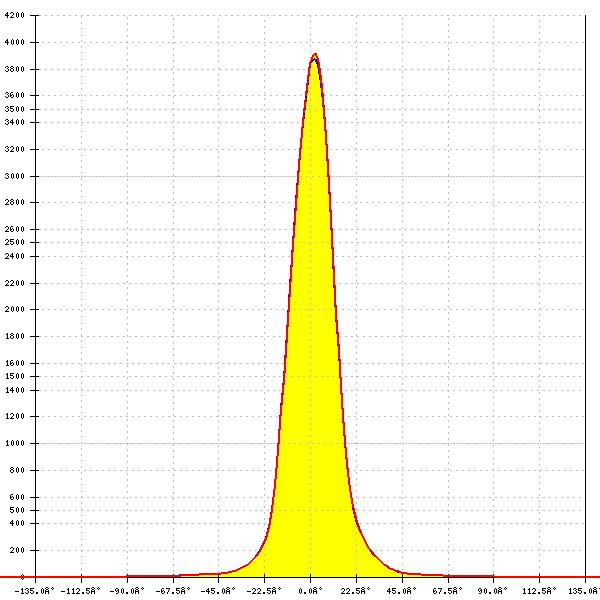

LED:
NVSW219F
FWHM:
24°
FWTM:
44°
Peak intensity:
3.981 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
DURIS E 5050 (GW J9LHS1.4M)
FWHM:
28°
FWTM:
56°
Peak intensity:
2.678 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
DURIS E 5050 (GW J9LHS1.4M)
FWHM:
28°
FWTM:
56°
Peak intensity:
2.837 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
Duris S8
FWHM:
31°
FWTM:
56°
Peak intensity:
2.281 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424 Gen1
FWHM:
16°
FWTM:
30°
Peak intensity:
9.406 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 Flat
FWHM:
18°
FWTM:
34°
Peak intensity:
6.822 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR32)
FWHM:
28°
FWTM:
52°
Peak intensity:
2.827 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR32)
FWHM:
28°
FWTM:
52°
Peak intensity:
2.594 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR35)
FWHM:
26°
FWTM:
48°
Peak intensity:
3.117 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

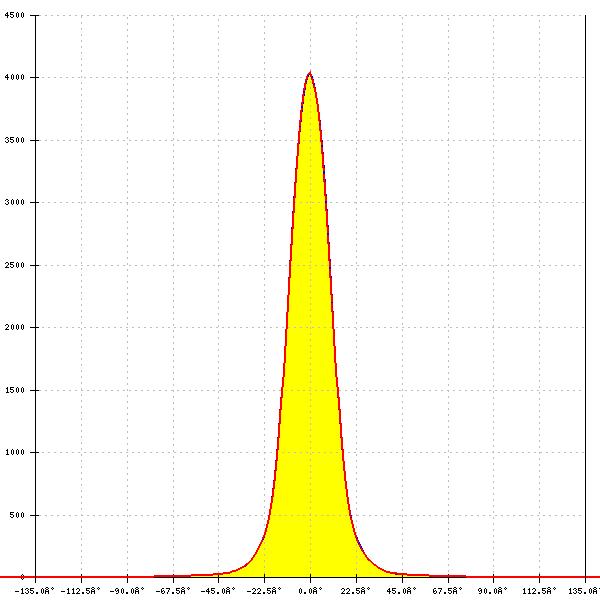

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
20°
FWTM:
38°
Peak intensity:
5.595 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
24°
FWTM:
42°
Peak intensity:
4.046 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square Flat
FWHM:
17°
FWTM:
30°
Peak intensity:
8.504 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Projection Compact (KW.CSLNM1.TG)
FWHM:
19°
FWTM:
32°
Peak intensity:
7.532 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA (U)HE
FWHM:
29°
FWTM:
56°
Peak intensity:
2.435 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH502C
FWHM:
28°
FWTM:
54°
Peak intensity:
2.780 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH502C
FWHM:
28°
FWTM:
54°
Peak intensity:
2.575 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

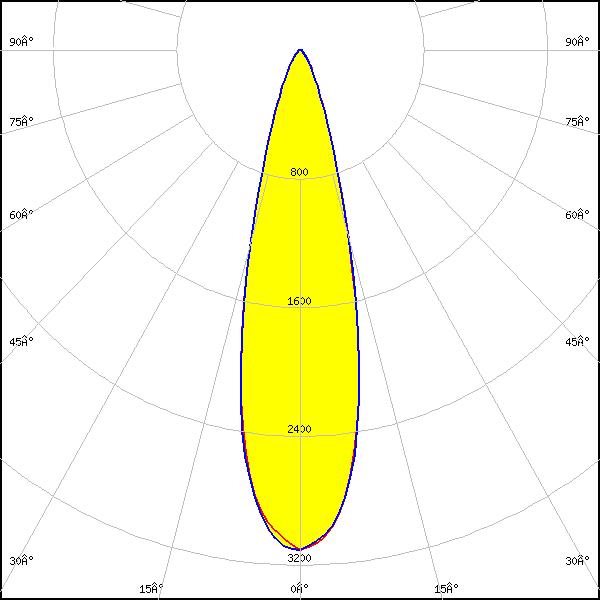

LH502D
FWHM:
26°
FWTM:
50°
Peak intensity:
3.109 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH508B
FWHM:
28°
FWTM:
56°
Peak intensity:
2.732 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM301B
FWHM:
16°
FWTM:
32°
Peak intensity:
7.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT 5050
FWHM:
30°
FWTM:
60°
Peak intensity:
2.382 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

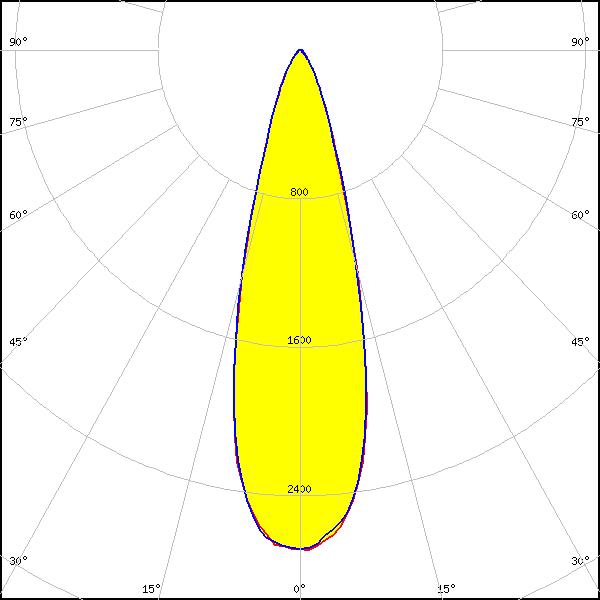

Seoul 5050 G-Series
FWHM:
28°
FWTM:
54°
Peak intensity:
2.713 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
FWHM:
28°
FWTM:
54°
Peak intensity:
2.709 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

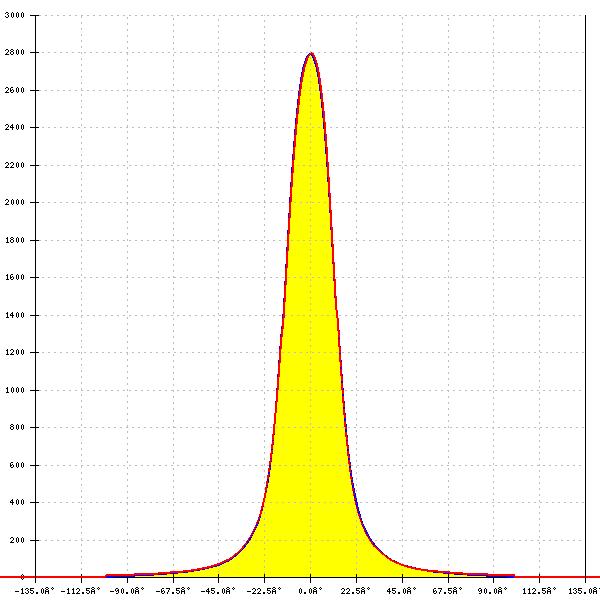

RLE 2x8 6000lm HP HE EXC3 OTD
FWHM:
27°
FWTM:
52°
Peak intensity:
2.796 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
